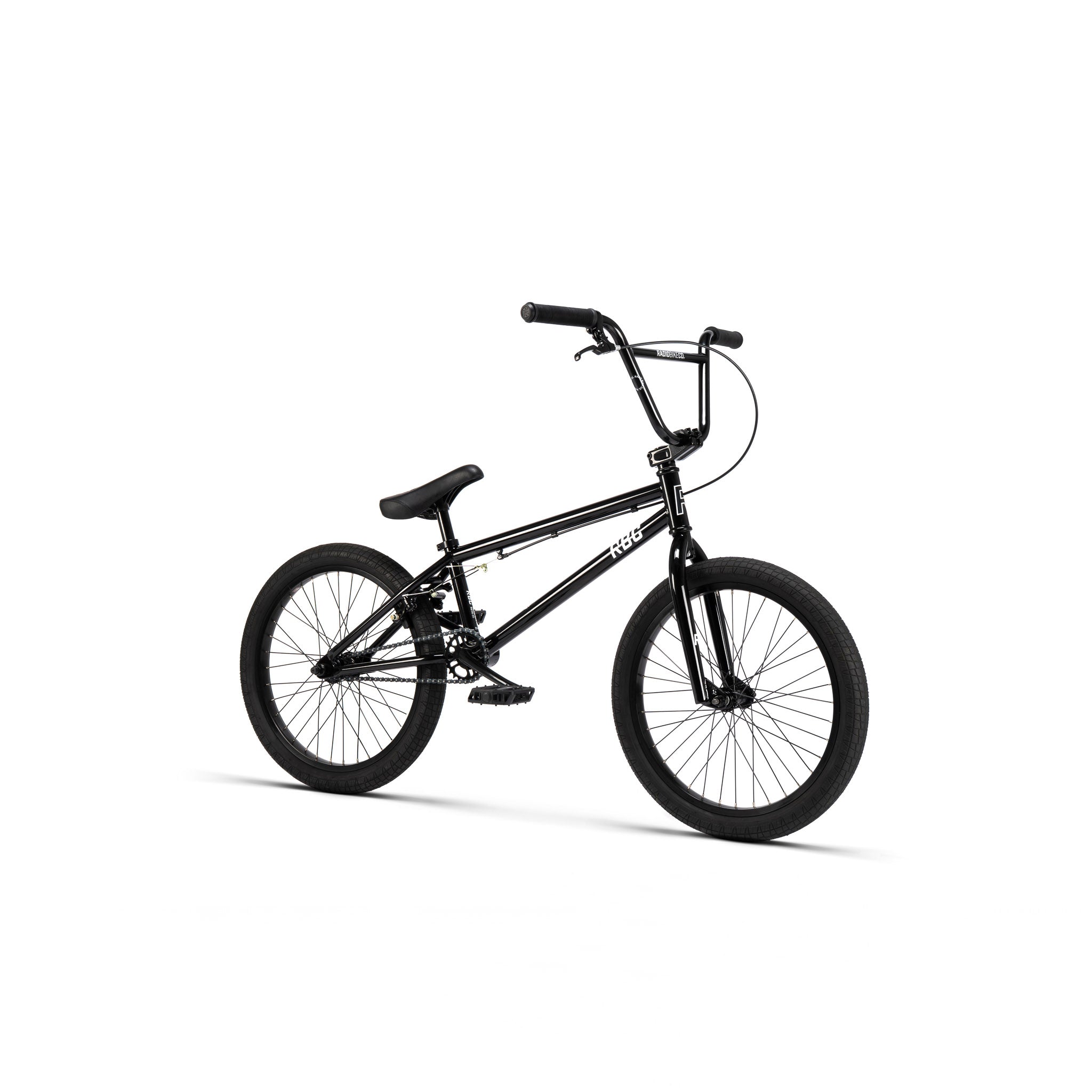

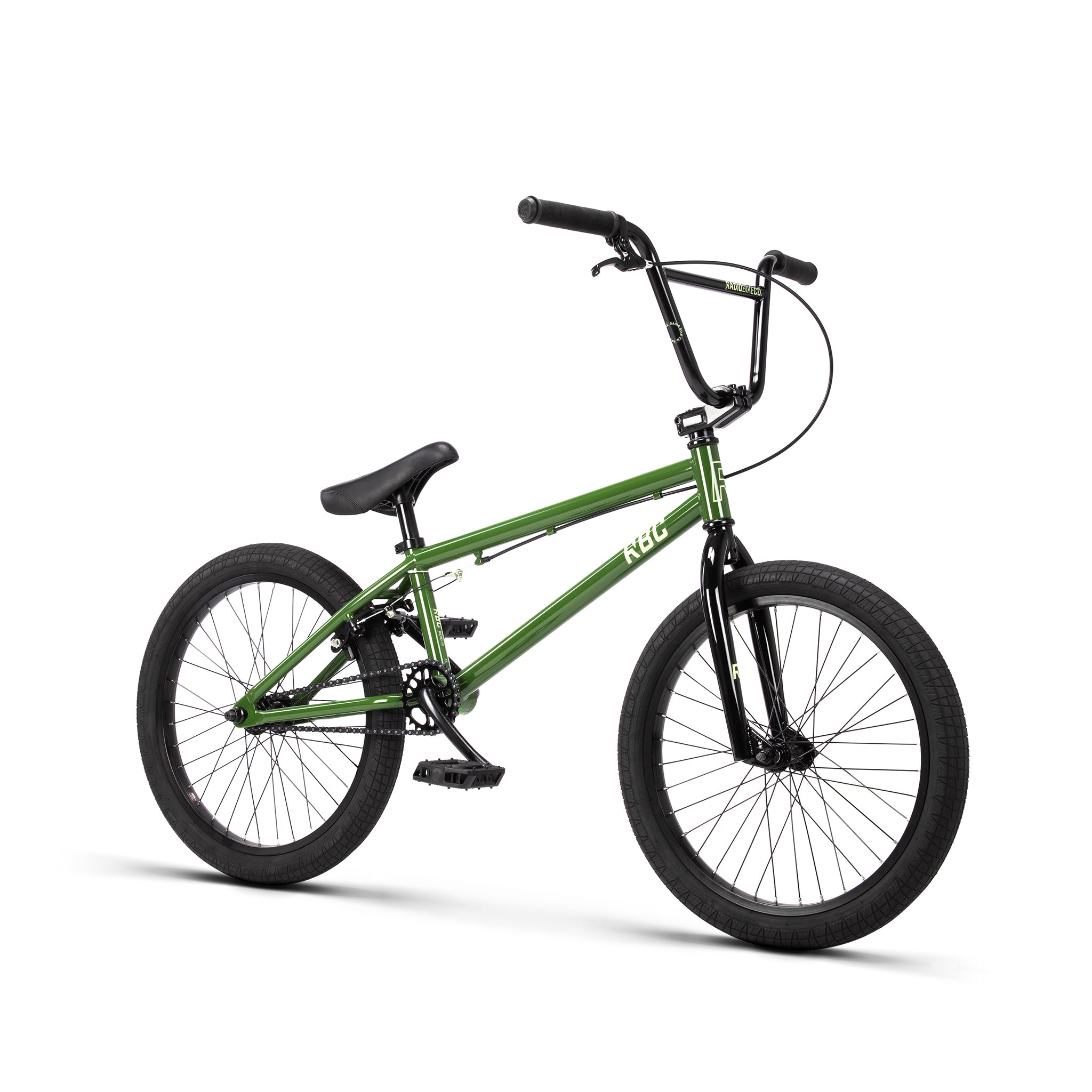

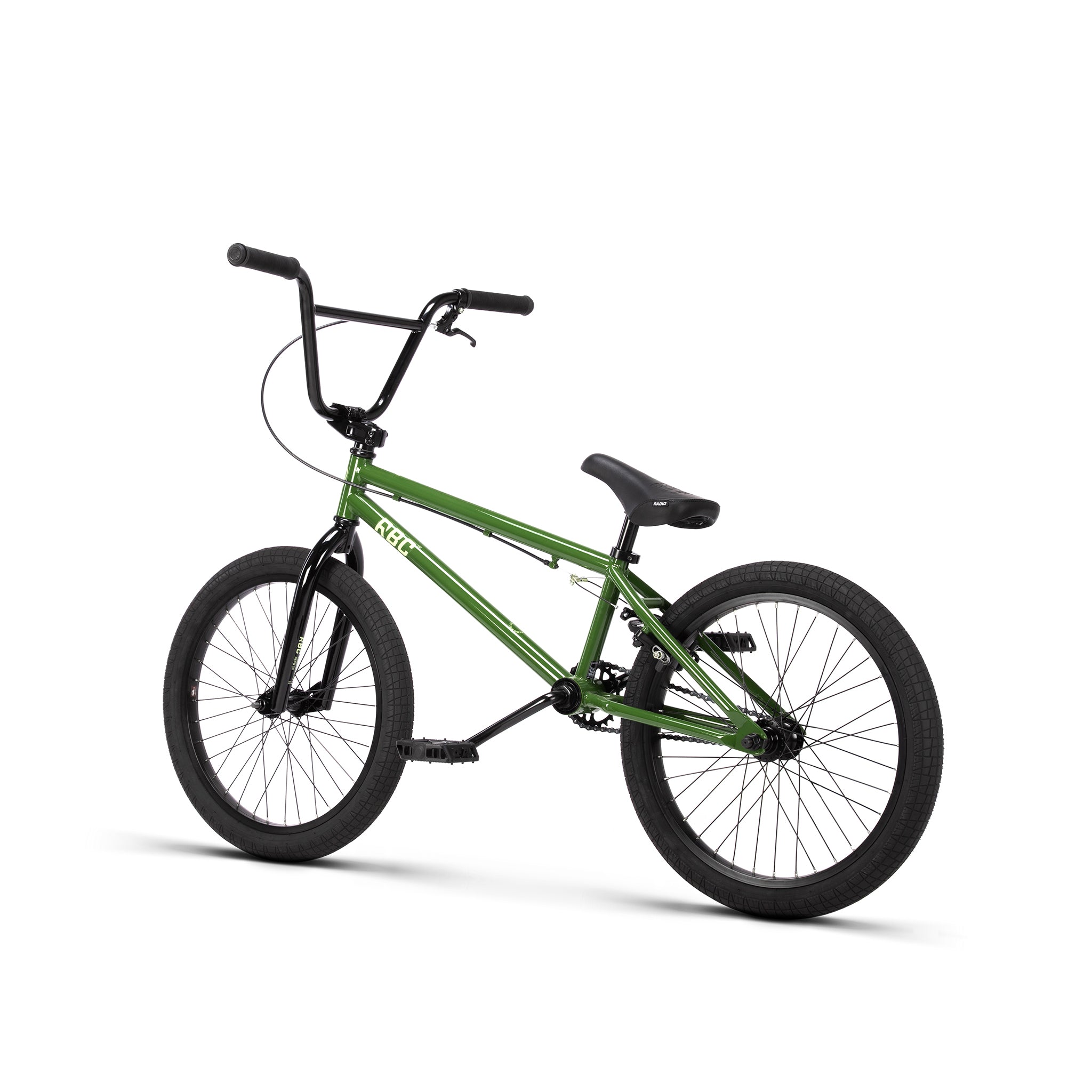

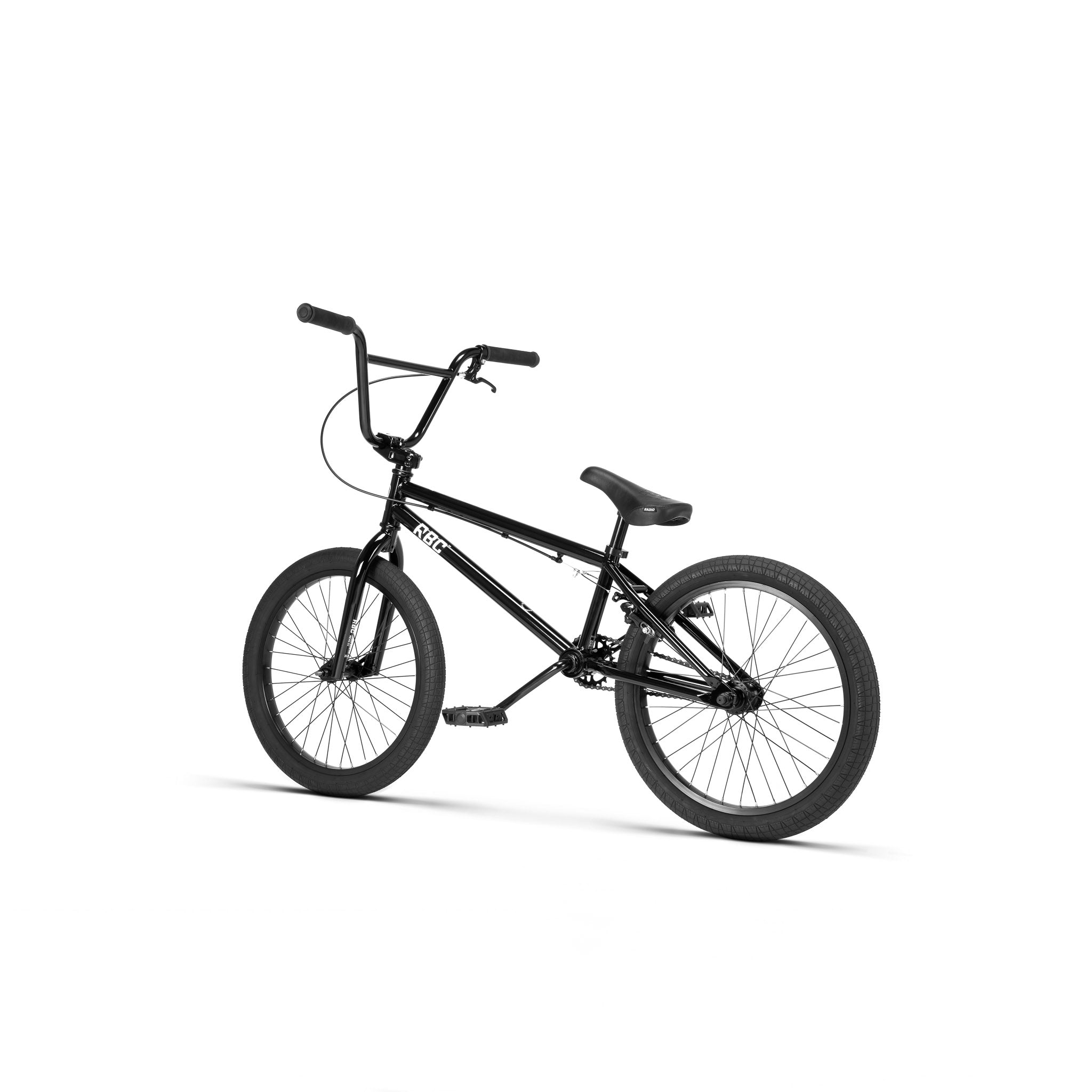

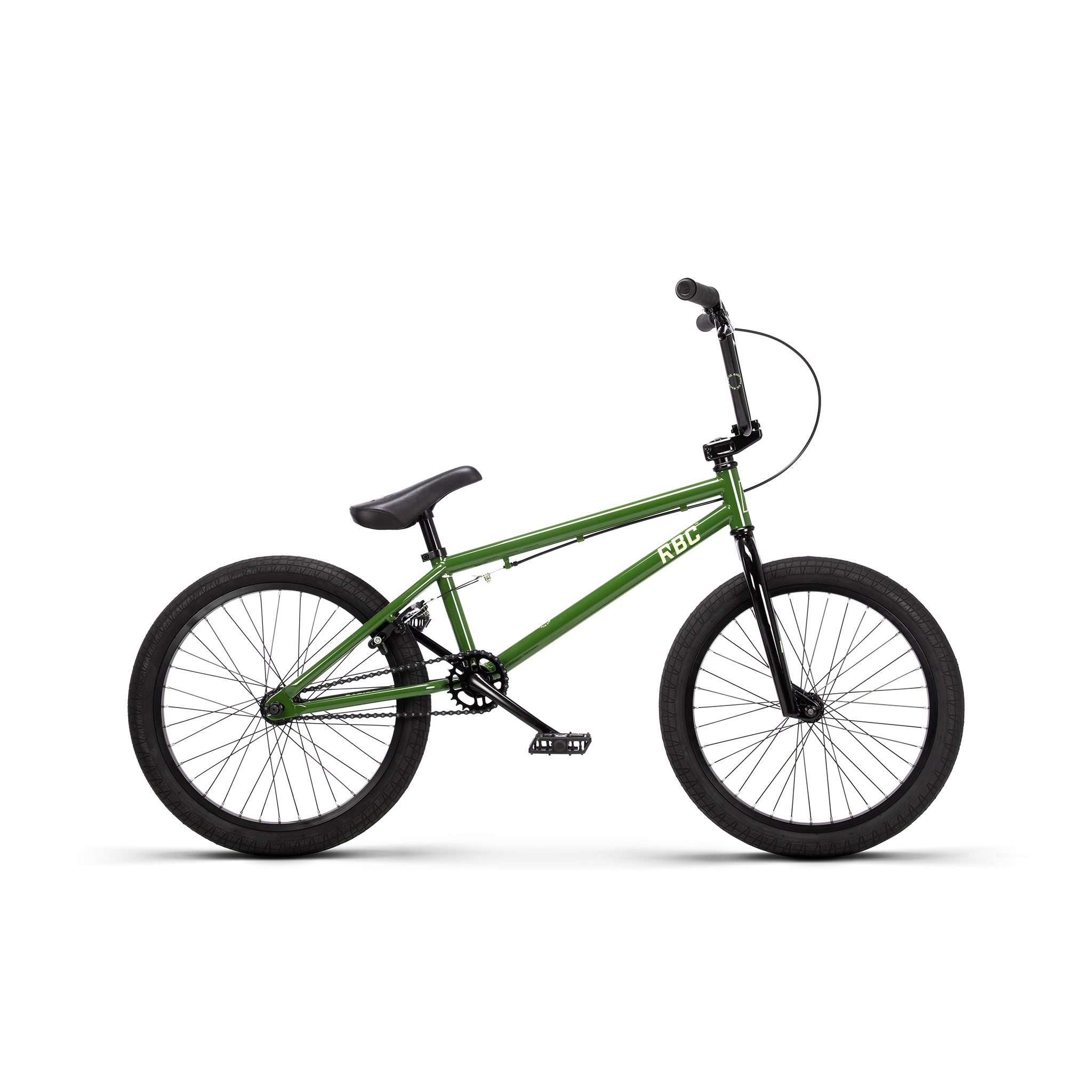

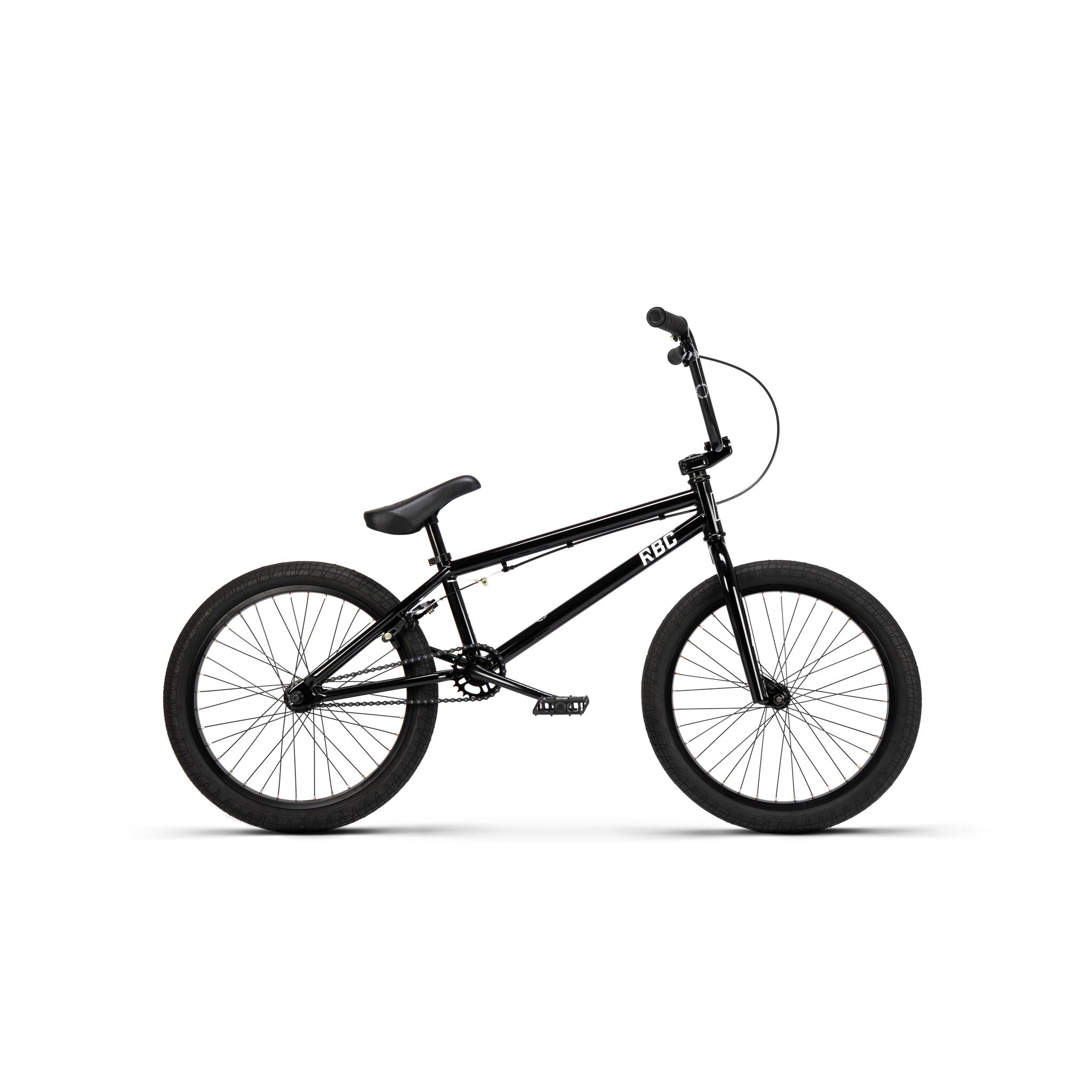

Revo 20" Complete Bike

Start your BMX journey the right way with the Revo line. Built to deliver an authentic freestyle riding experience, the Revo combines durability, performance, and incredible value in one complete package. Every component has been carefully selected to ensure the bike is ready to shred straight out of the box, easy to maintain, and upgradeable as your skills progress. Loaded with features like 25-9 gearing, tapered fork legs, and short, responsive pro-inspired geometry, the Revo is designed to help riders progress faster and have more fun doing it.

The Revo 20" is the ideal introduction to freestyle BMX, combining pro-inspired design, reliable performance, and exceptional value. With a lightweight, compact build and rider-focused features, it's designed to help new riders build confidence, progress their skills, and enjoy every session from day one.

Full Spec:

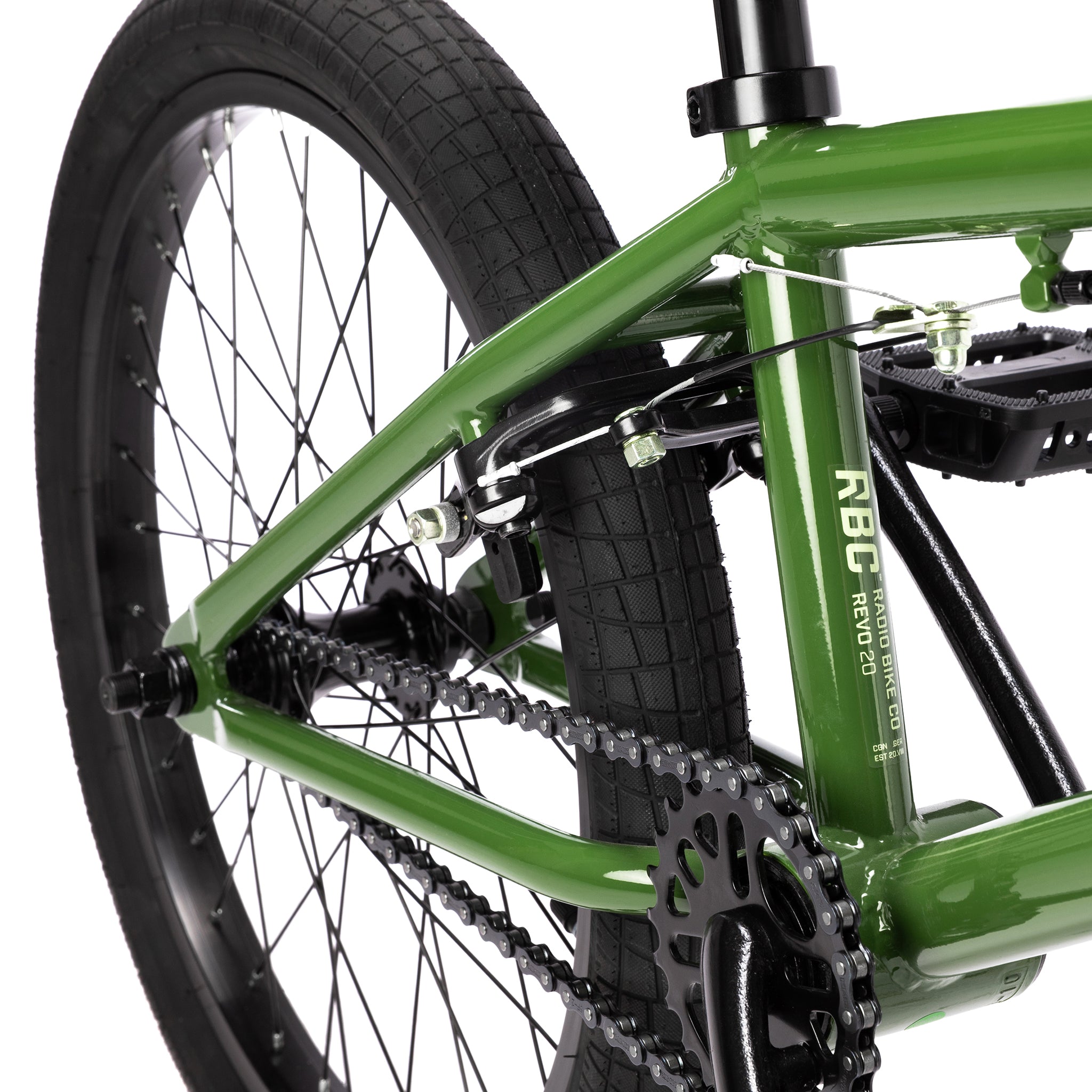

  • FRAME: RADIO “REVO 20” frame, full 1020 hi-ten

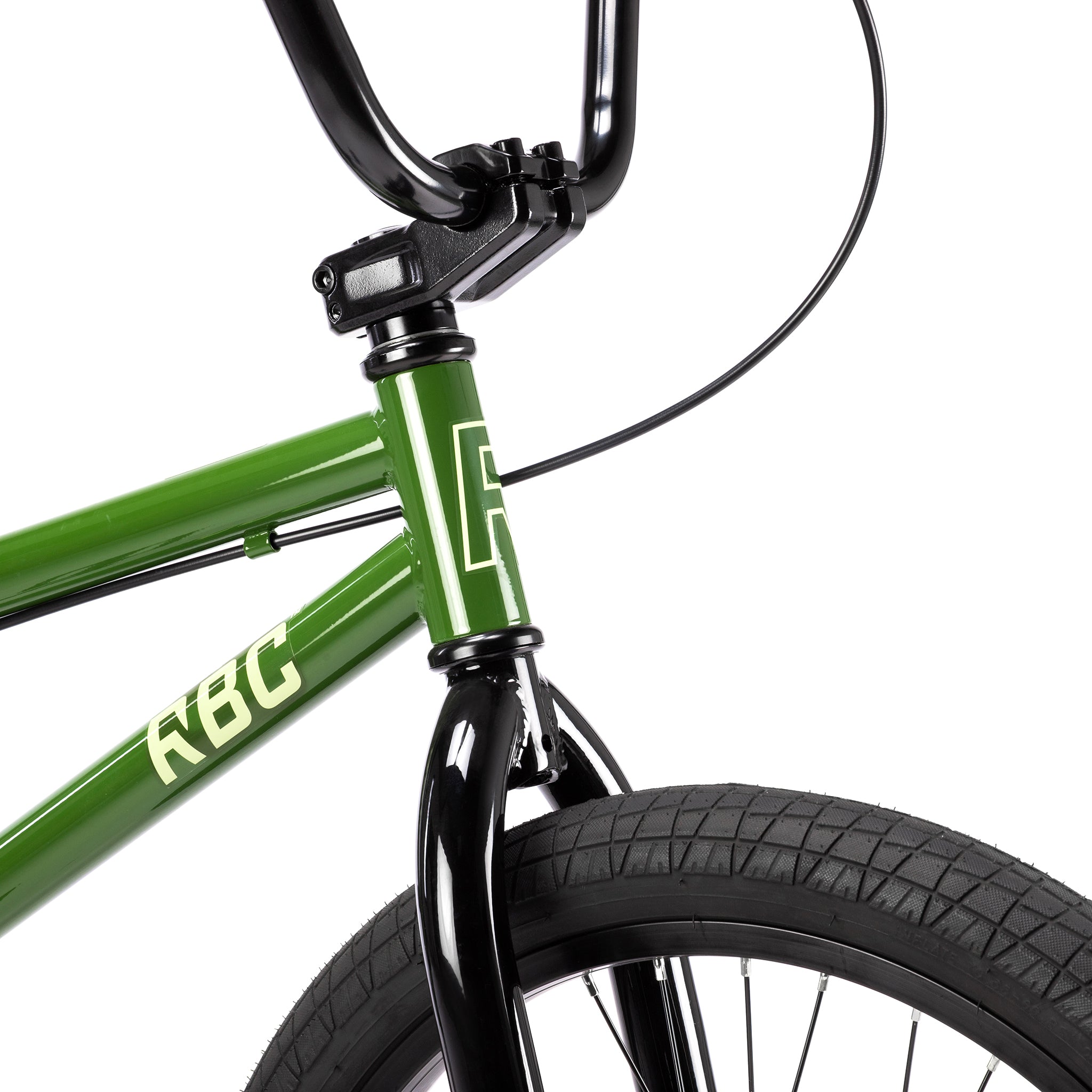

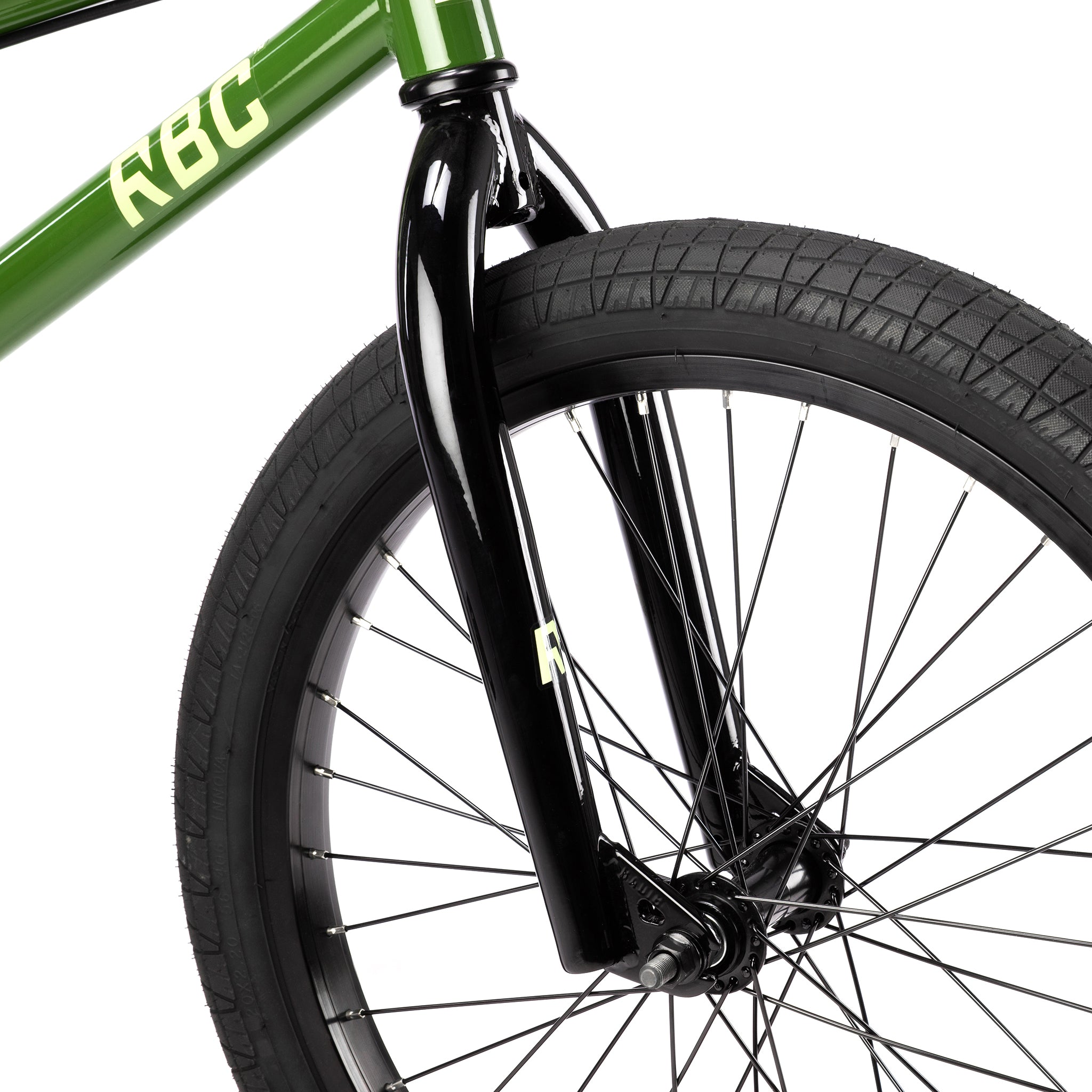

  • FORK: RADIO “AM 20” fork, 1020 hi-ten, crmo steerer

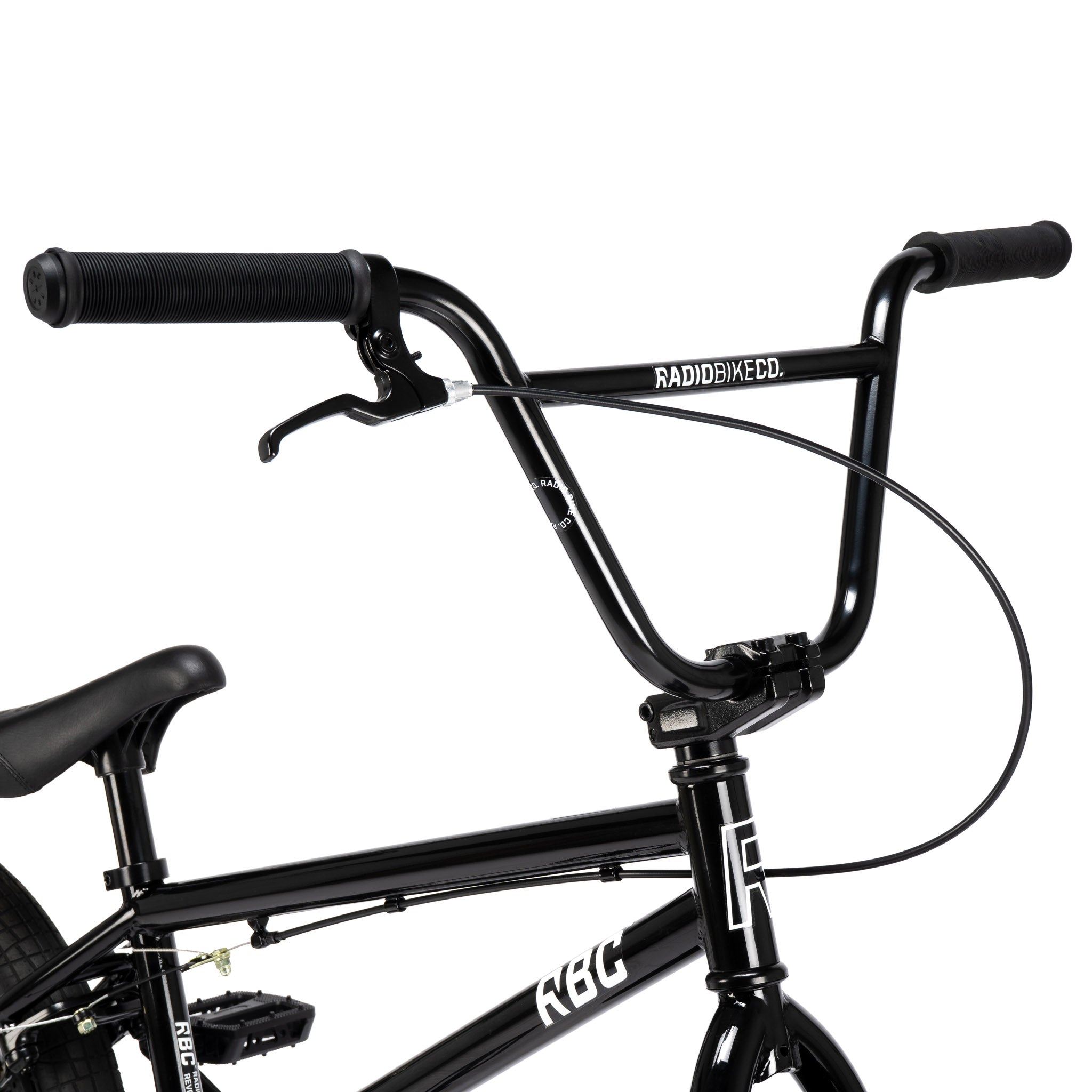

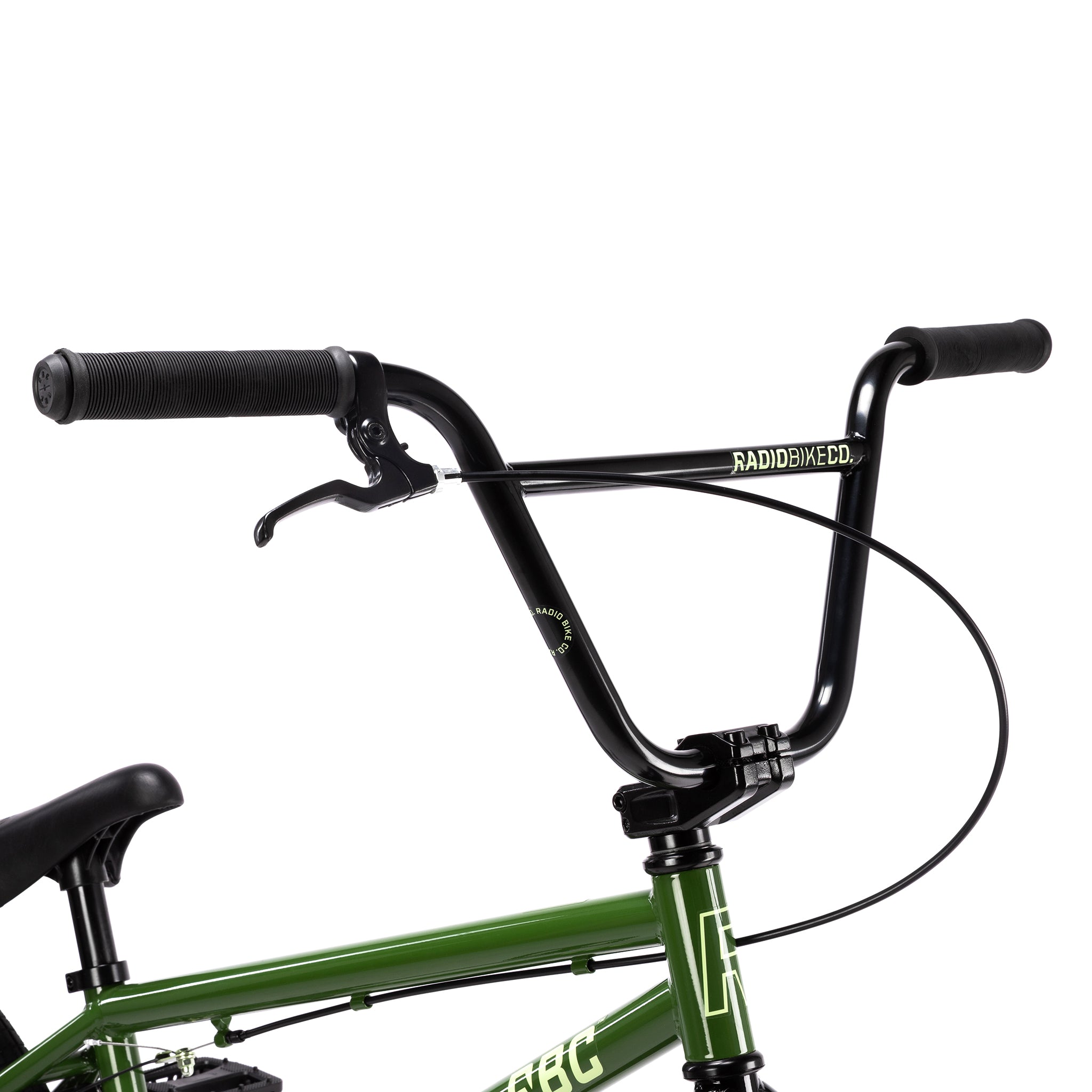

  • HANDLEBAR: RADIO “REVO 20” bar, hi-ten

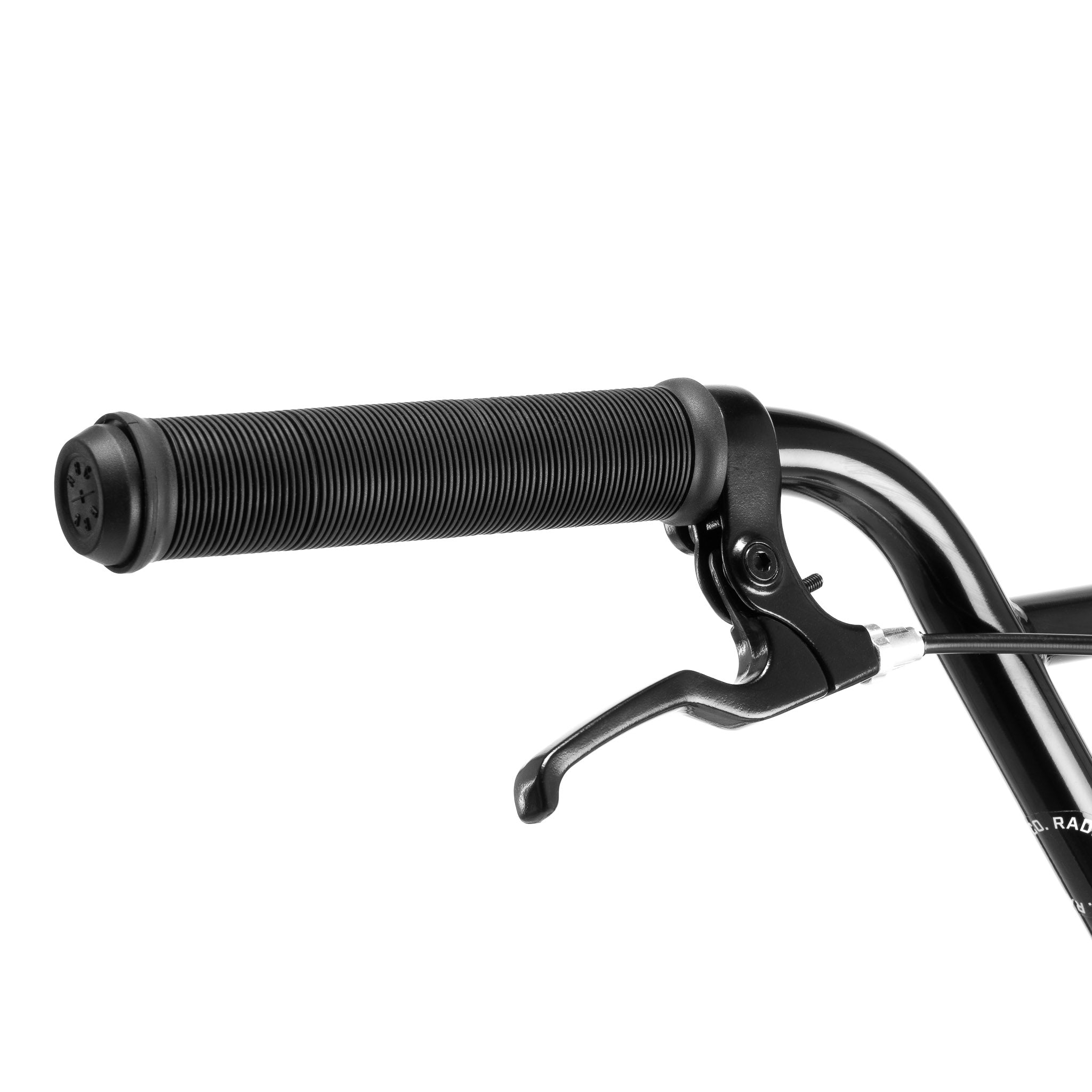

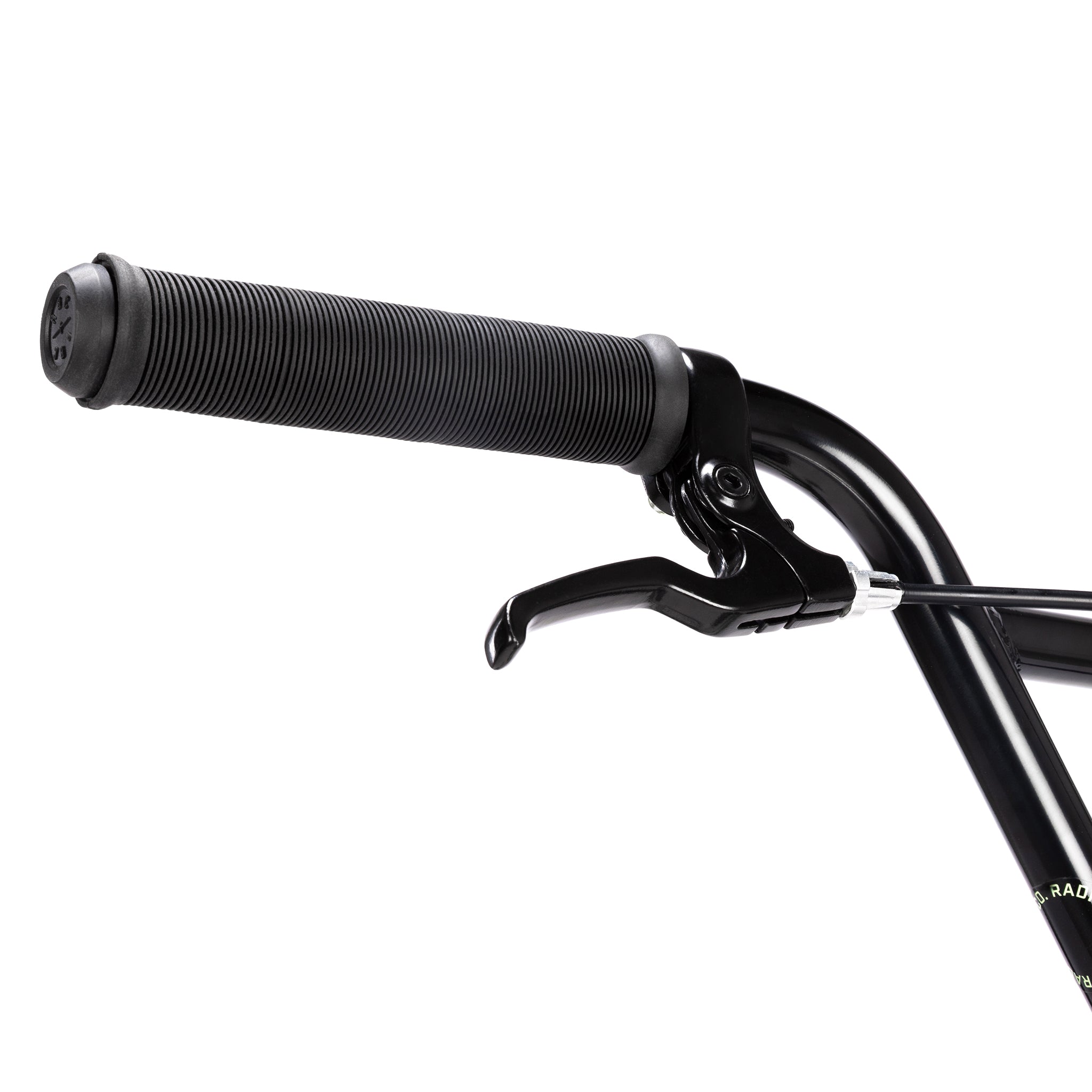

  • GRIPS: RADIO “AM” grips, flangeless, 150mm

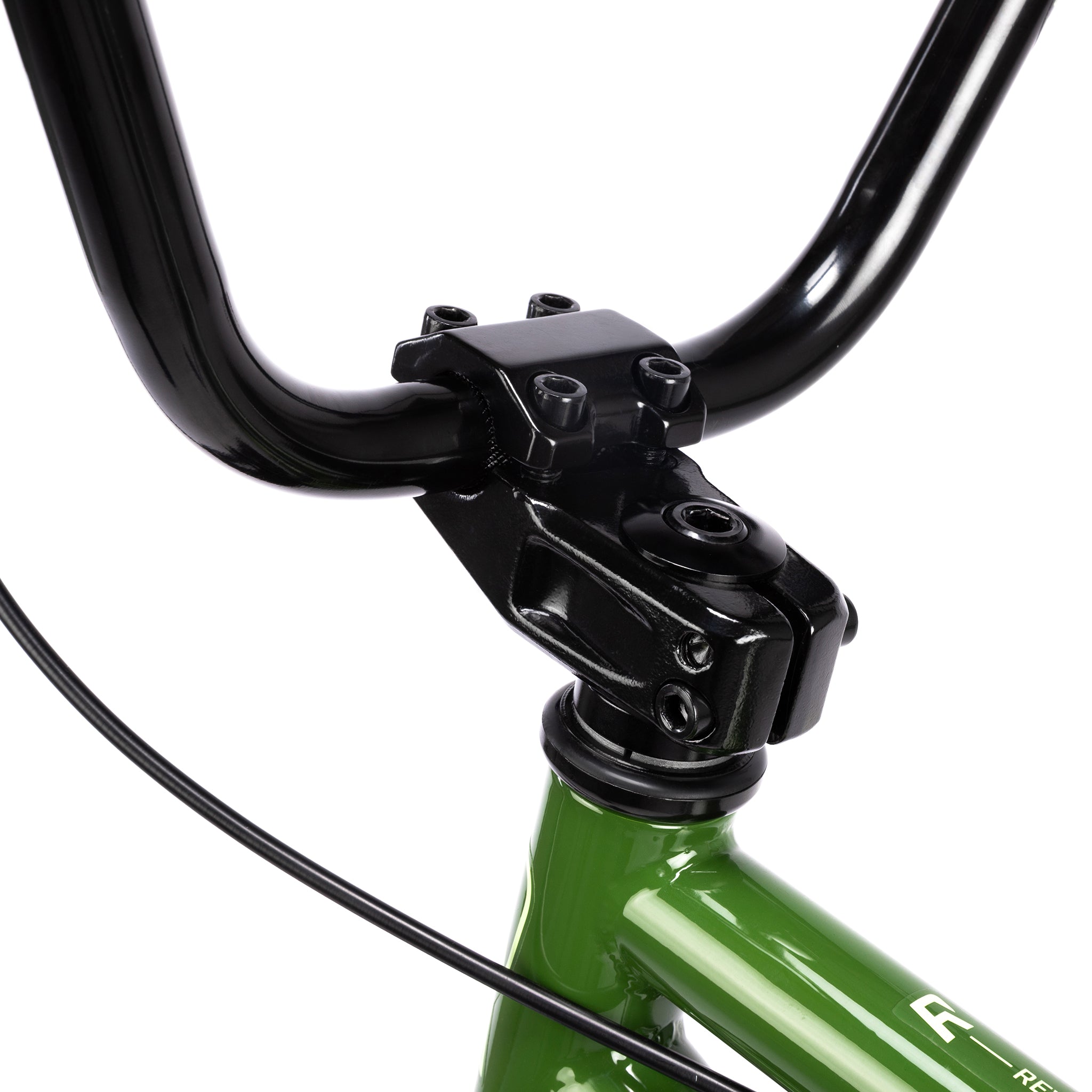

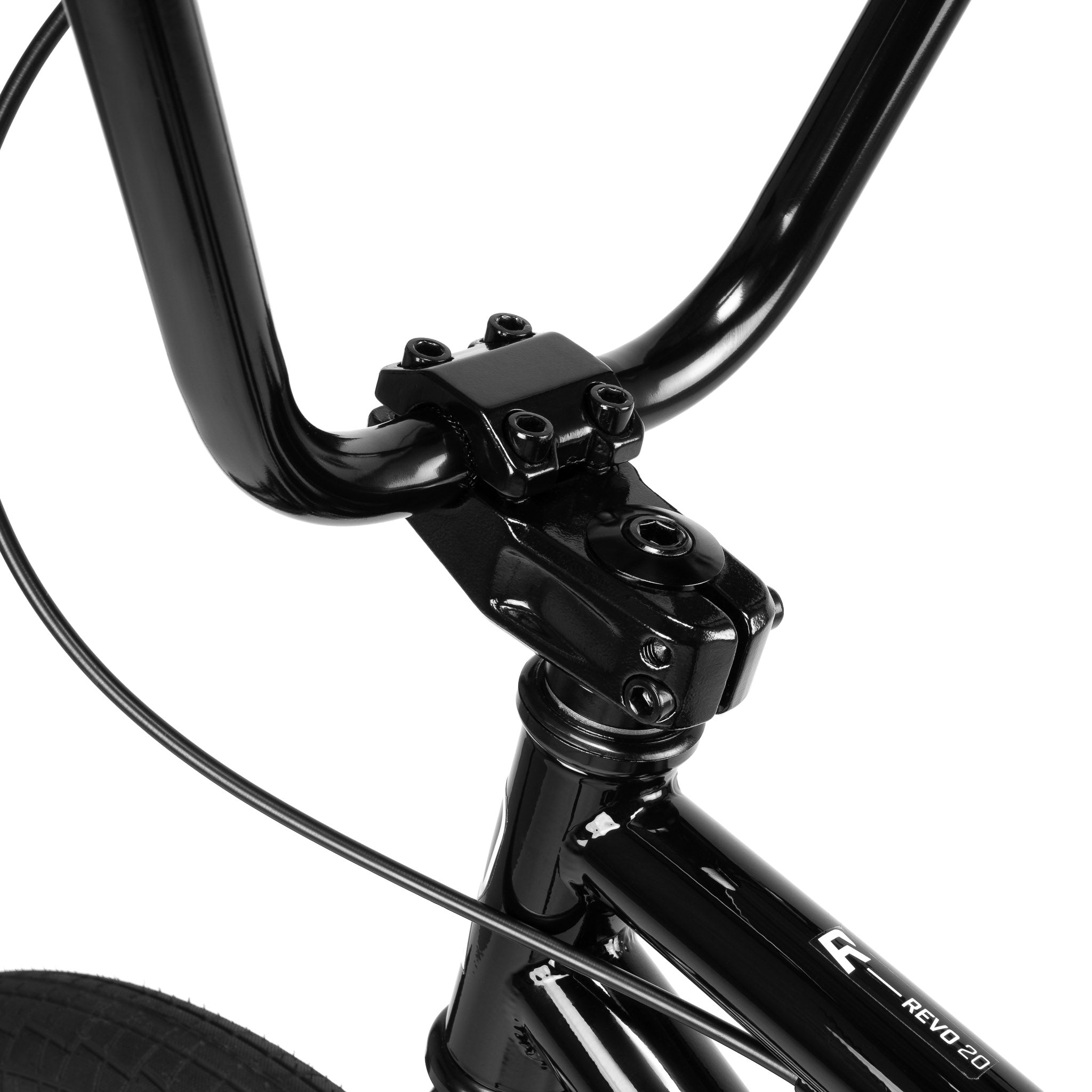

  • STEM: SALT “AM” topload stem, 50mm reach
  • HEADSET: FSA A-headset, loose ball
  • BRAKE LEVER: RADIO “AM” brake lever, alloy
  • BRAKE: RADIO "AM" u-brake, alloy, rear

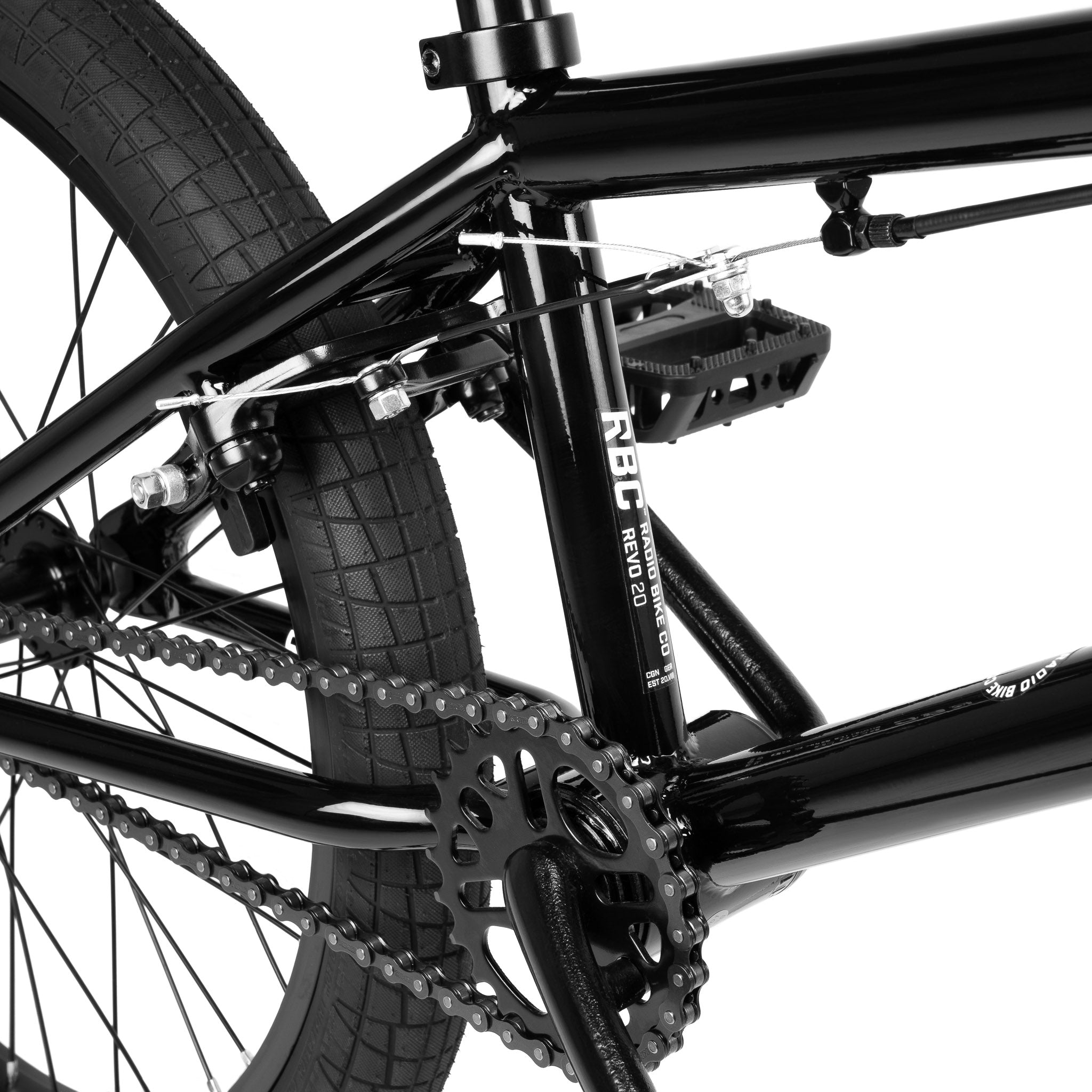

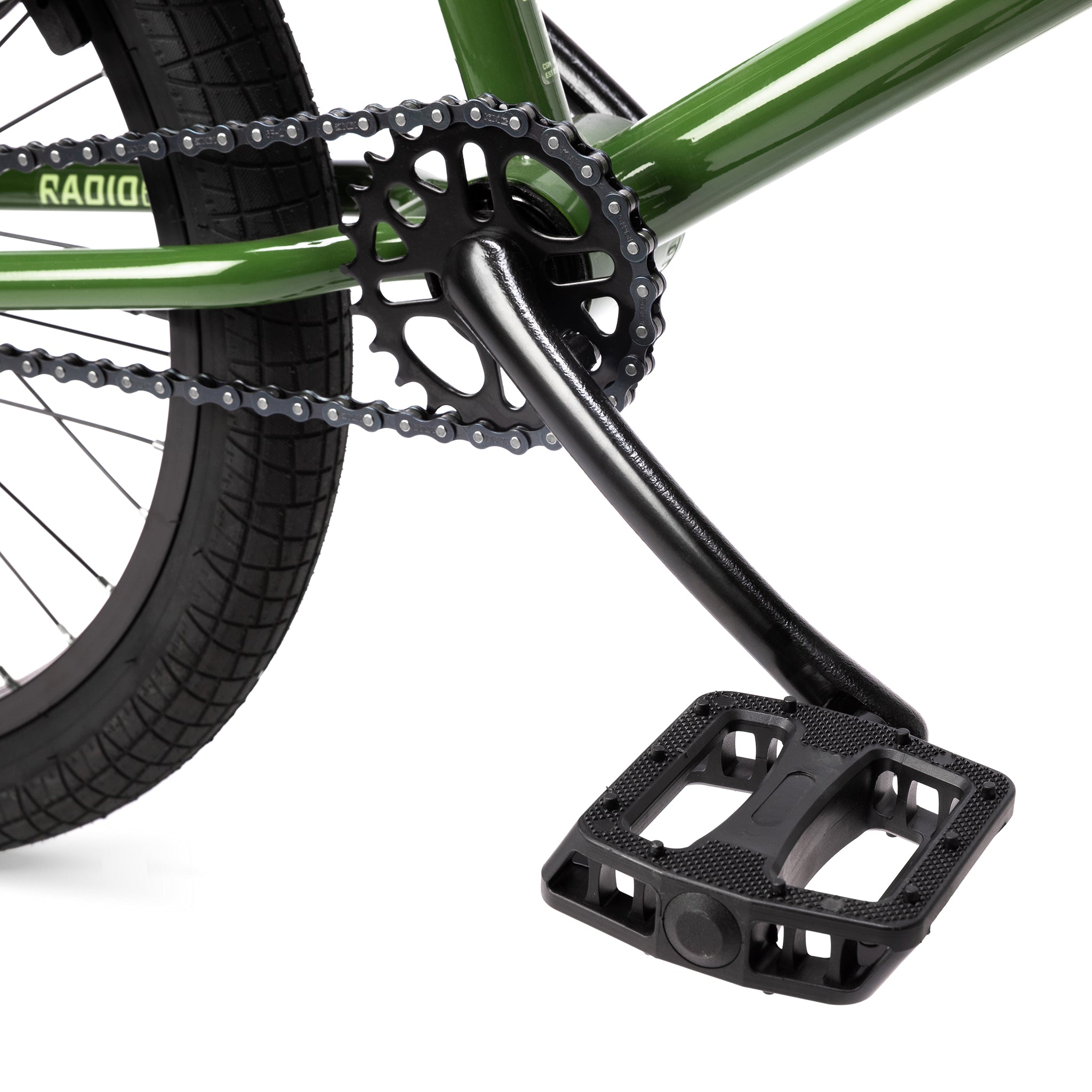

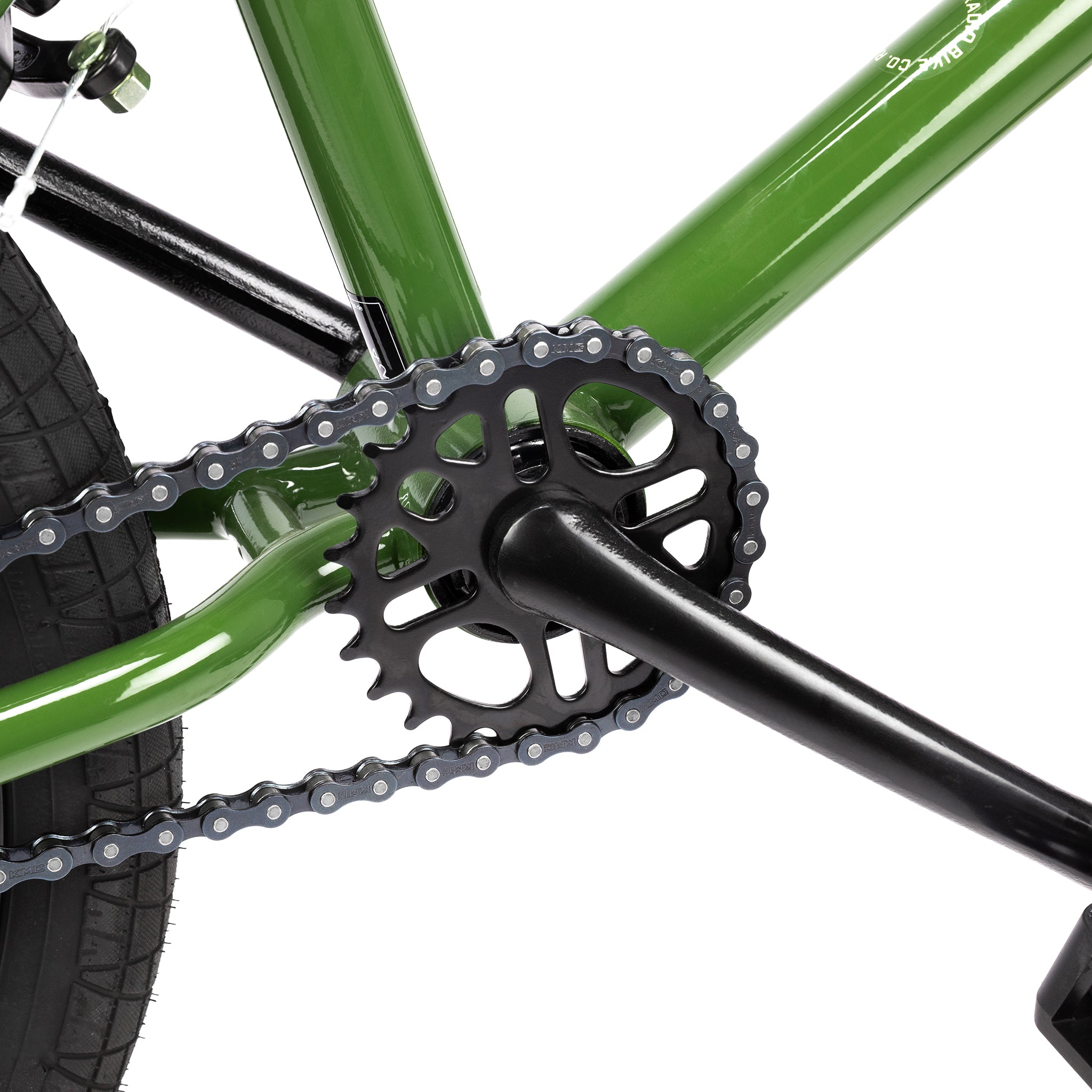

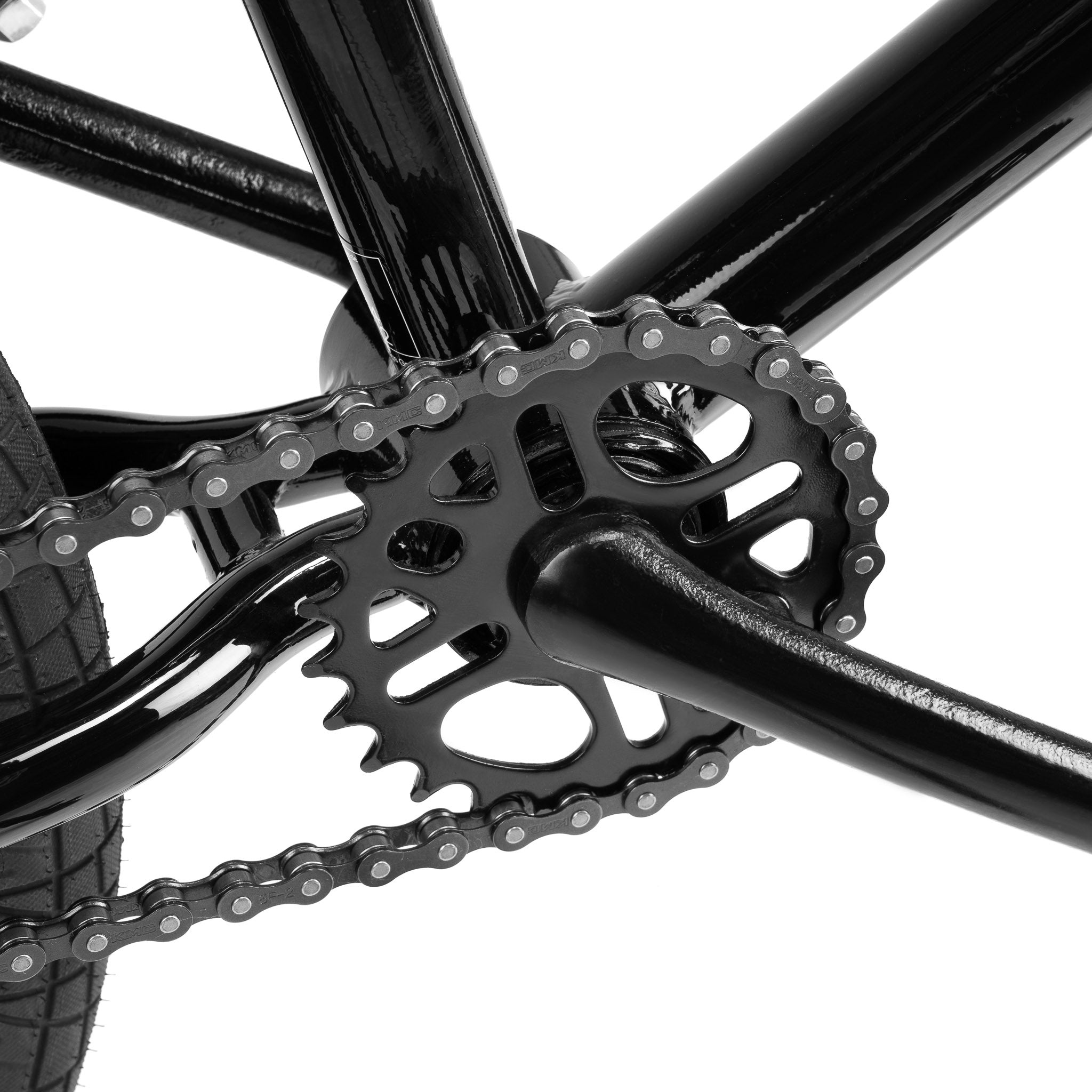

  • CRANK: RADIO "ROOKIE" 1pc crank, forged, crmo, 170mm
  • BB: RADIO "US" bb set, loose ball

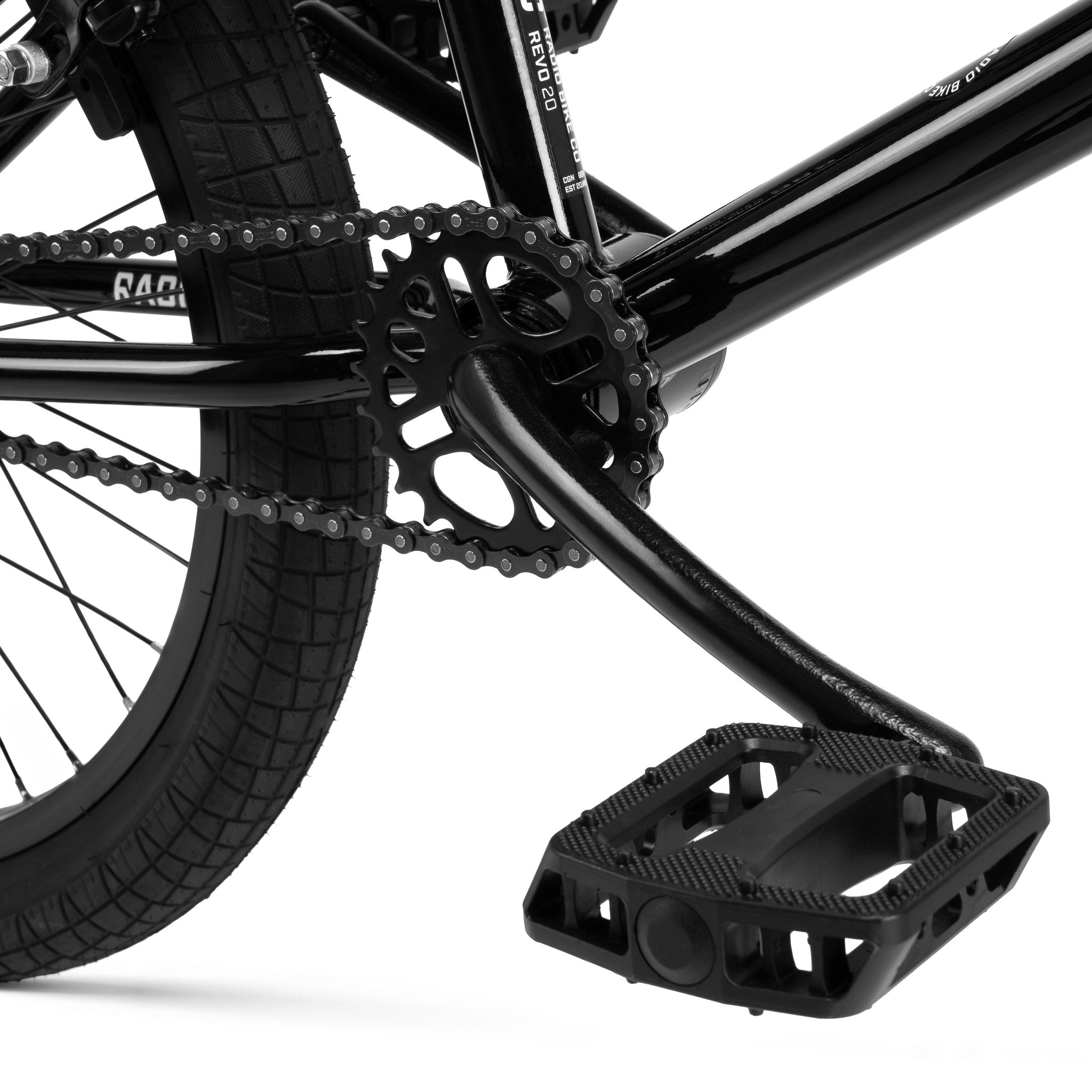

  • PEDALS: RADIO “ROOKIE” pedals, nylon
  • CHAIN: KMC “S1” chain
  • SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
  • DRIVER: cassette driver, 9t

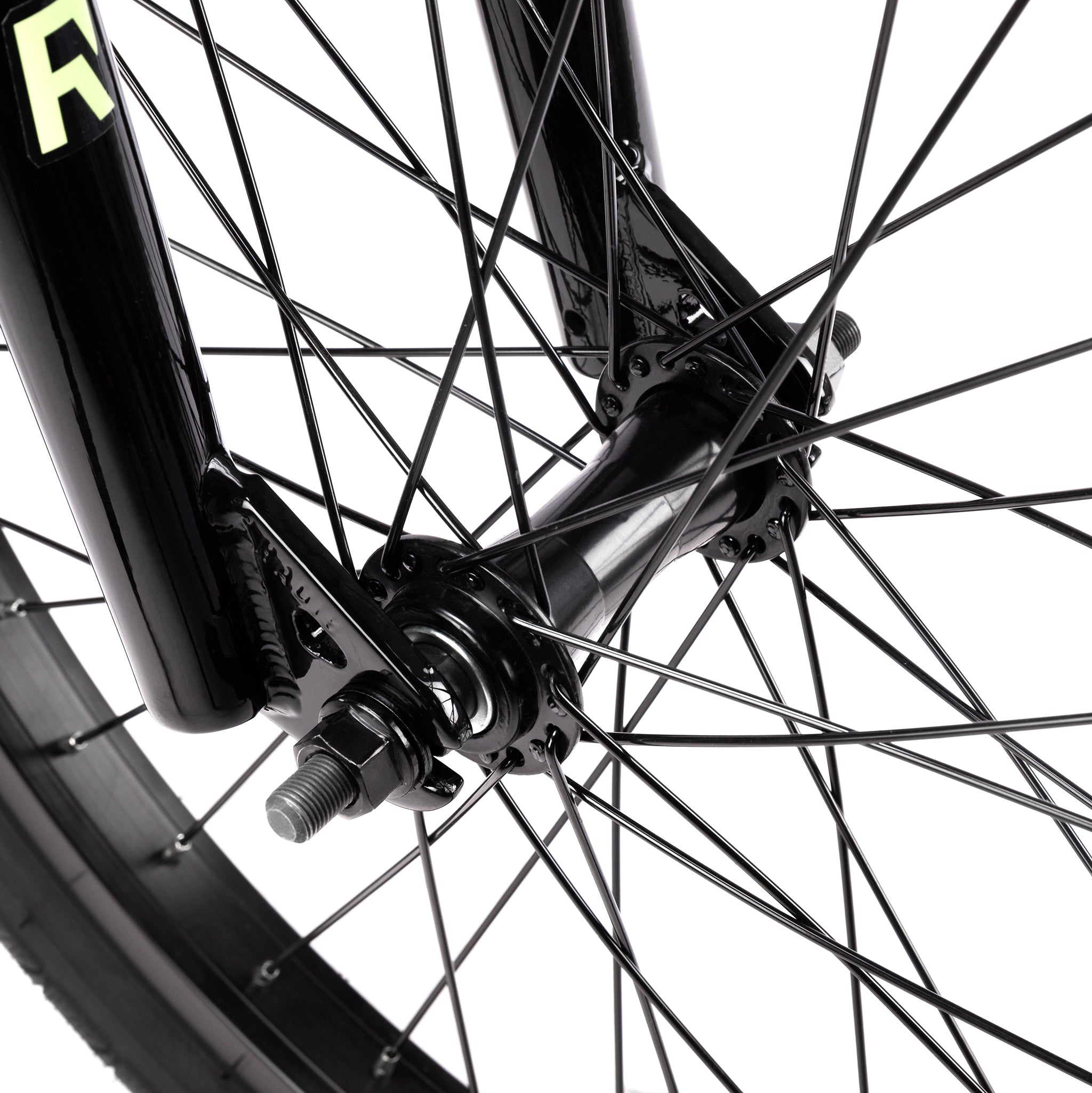

  • FRONT HUB: RADIO “ROOKIE” hub, steel, lb, 3/8″s, 36h

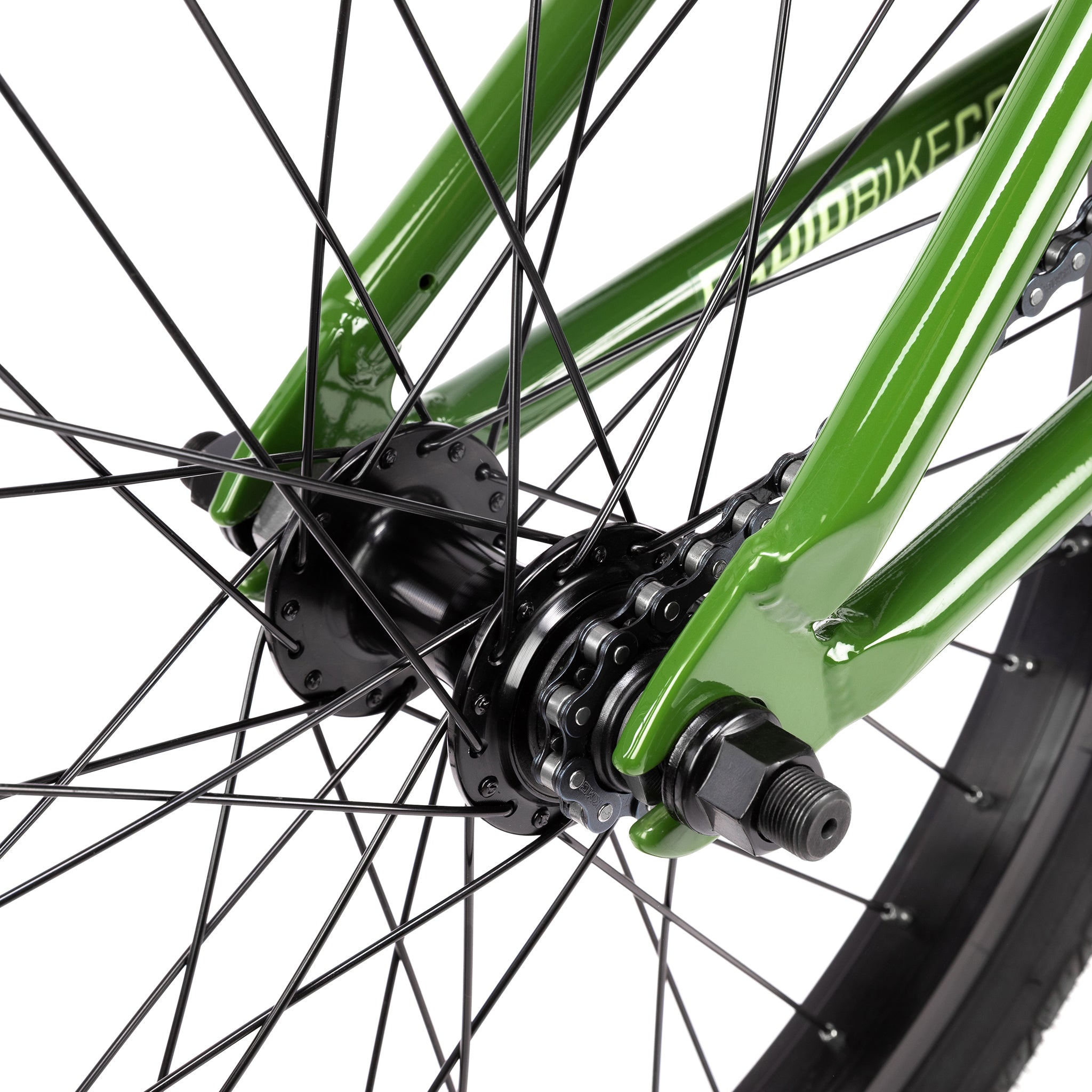

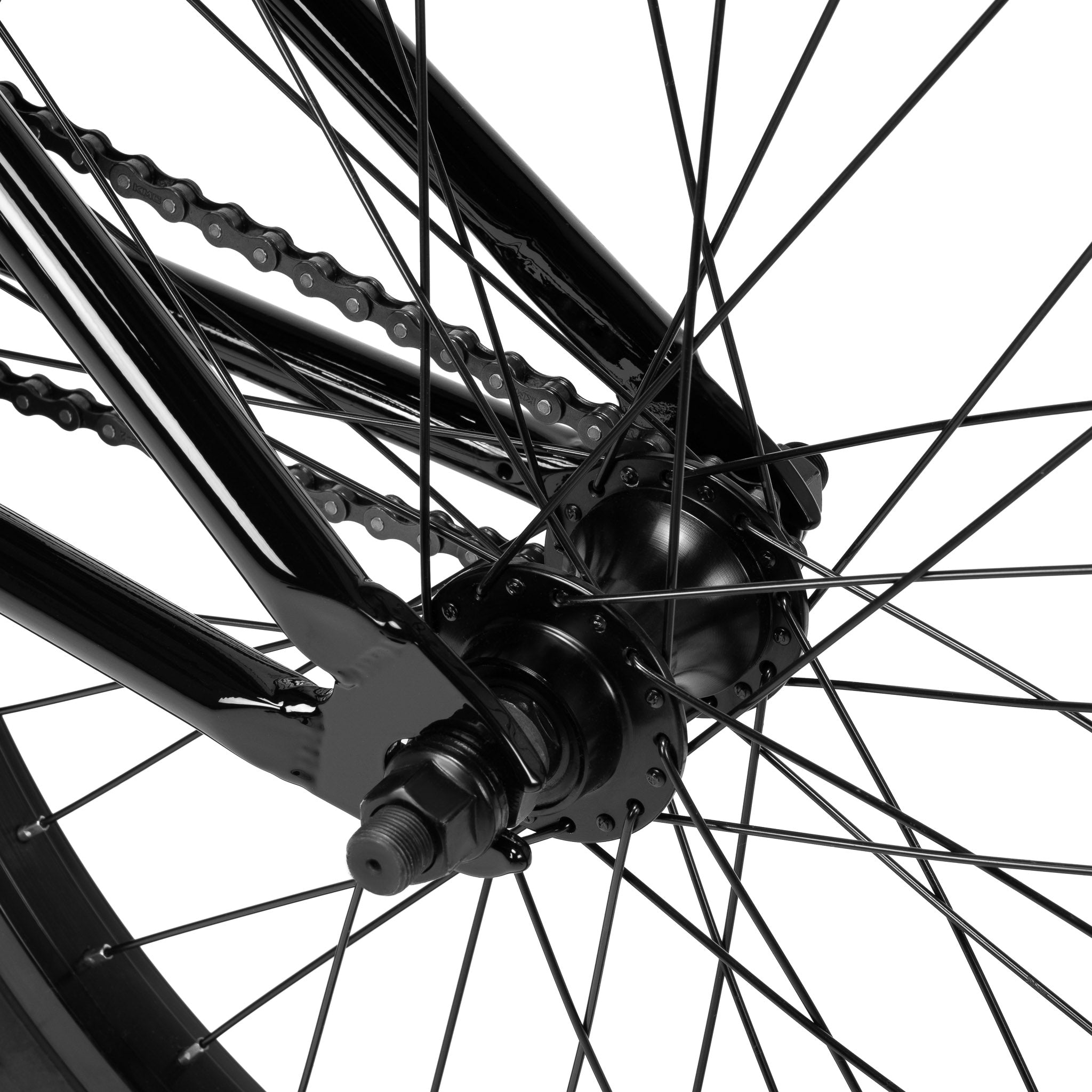

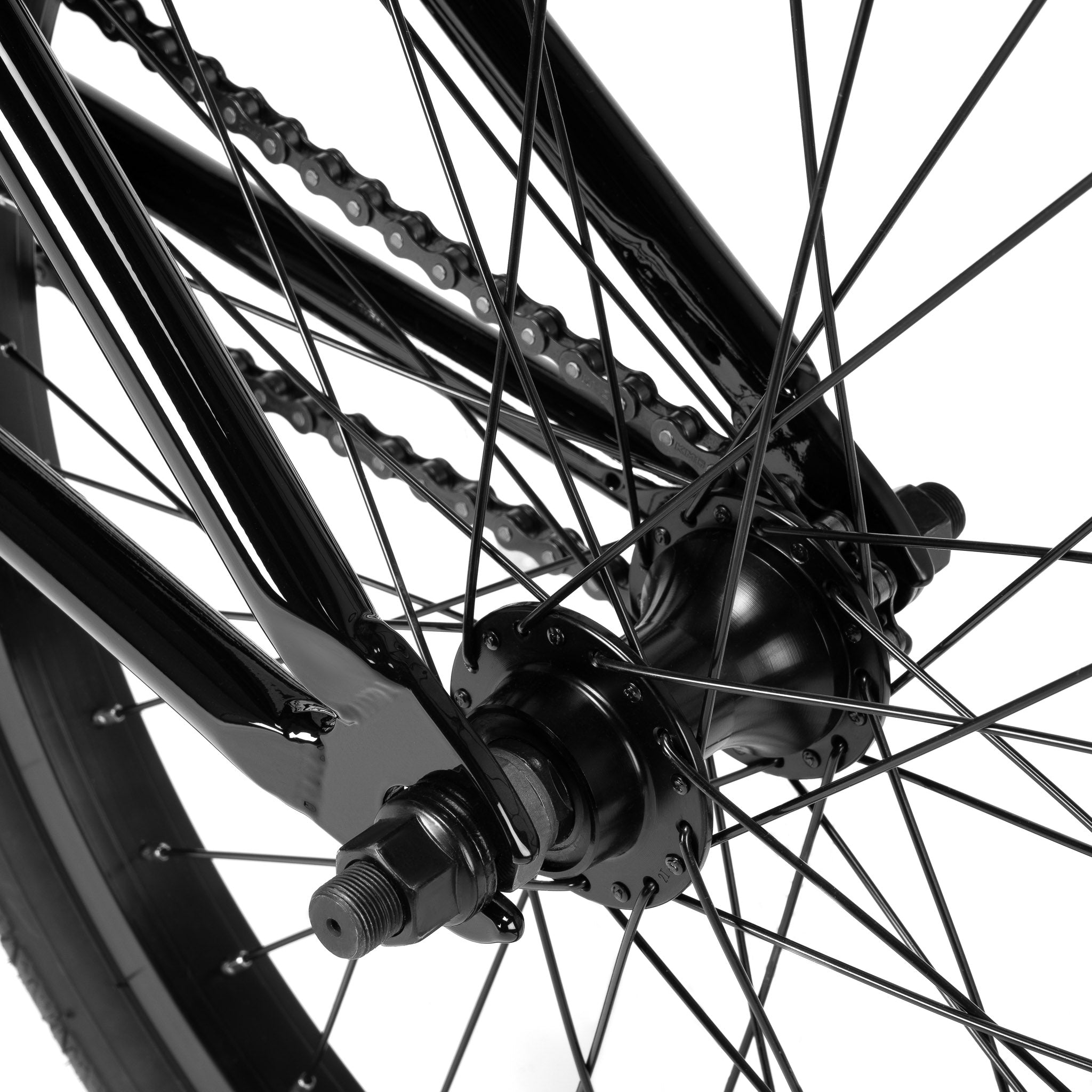

  • REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9t, 14mm axle, 36h
  • FRONT RIM: SALT “AM” rim, straight single wall, 36h
  • REAR RIM: SALT “AM” rim, straight single wall, 36h

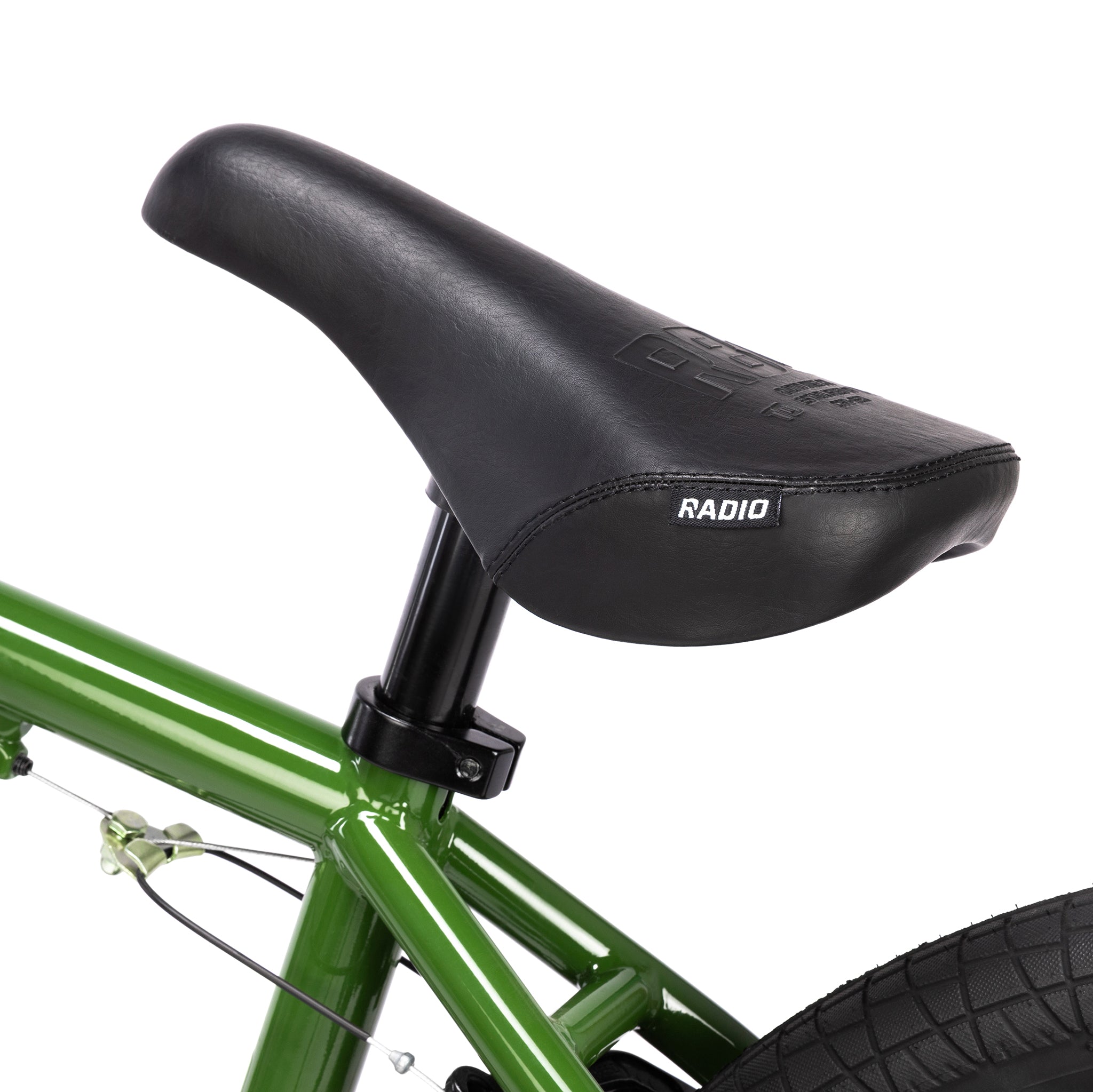

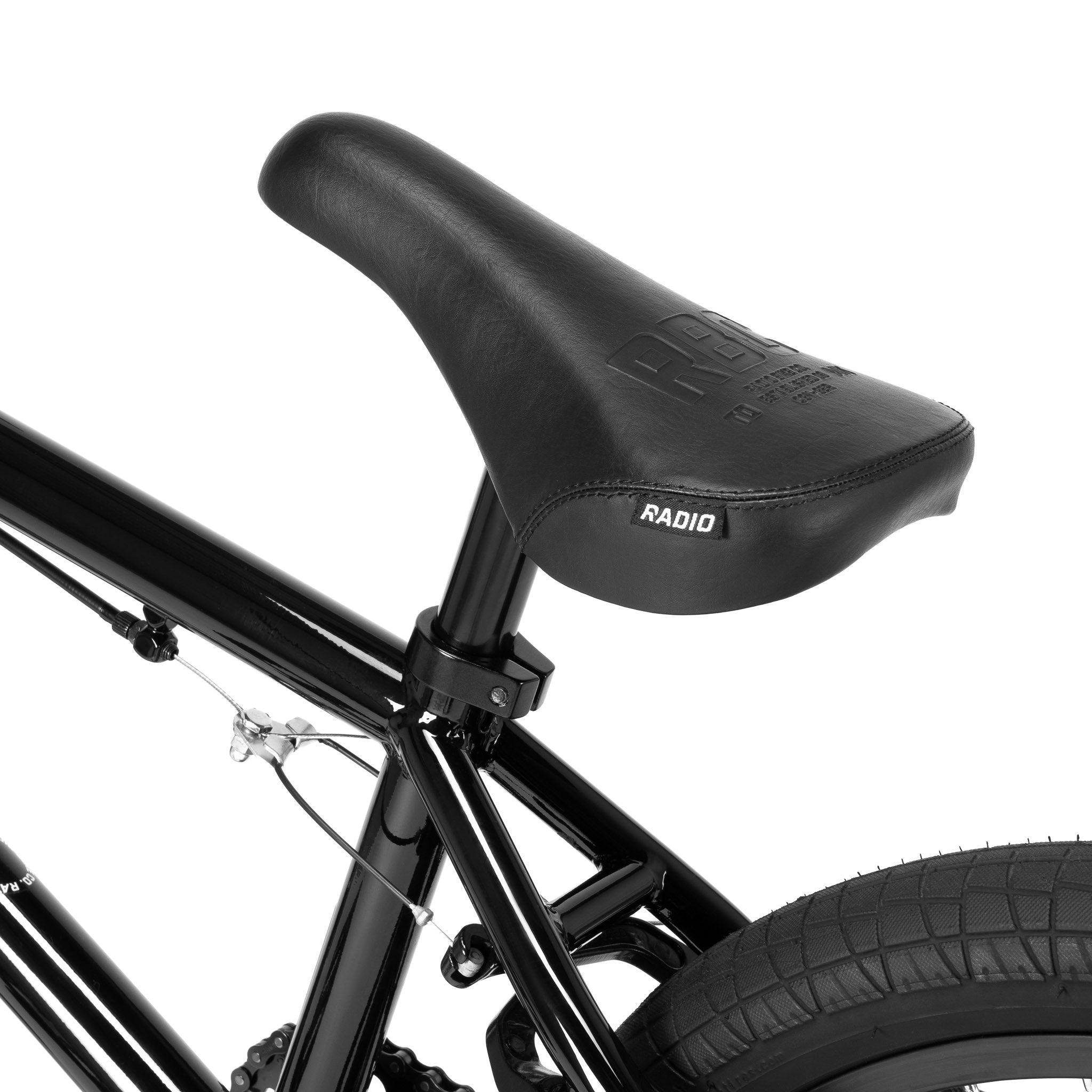

  • SEAT: RADIO "CENTURY" combo seat, slim padded
  • SEAT CLAMP: RADIO seat clamp, slim, alloy
  • TIRES: RADIO “ROOKIE” tires, 20″x2.2″, front & rear

Weight: 11.92kg / 26.27lbs



Frame Geometry:

Top Tube Length 20"
Chain Stay Length 13"
Head Tube Angle 75°
Seat Tube Angle 71.5°
Bottom Bracket Height  11.75"
Standover Height 7.8"



Handlebar Geometry:

Rise 8.75"
Width 29"
Backsweep 11°
