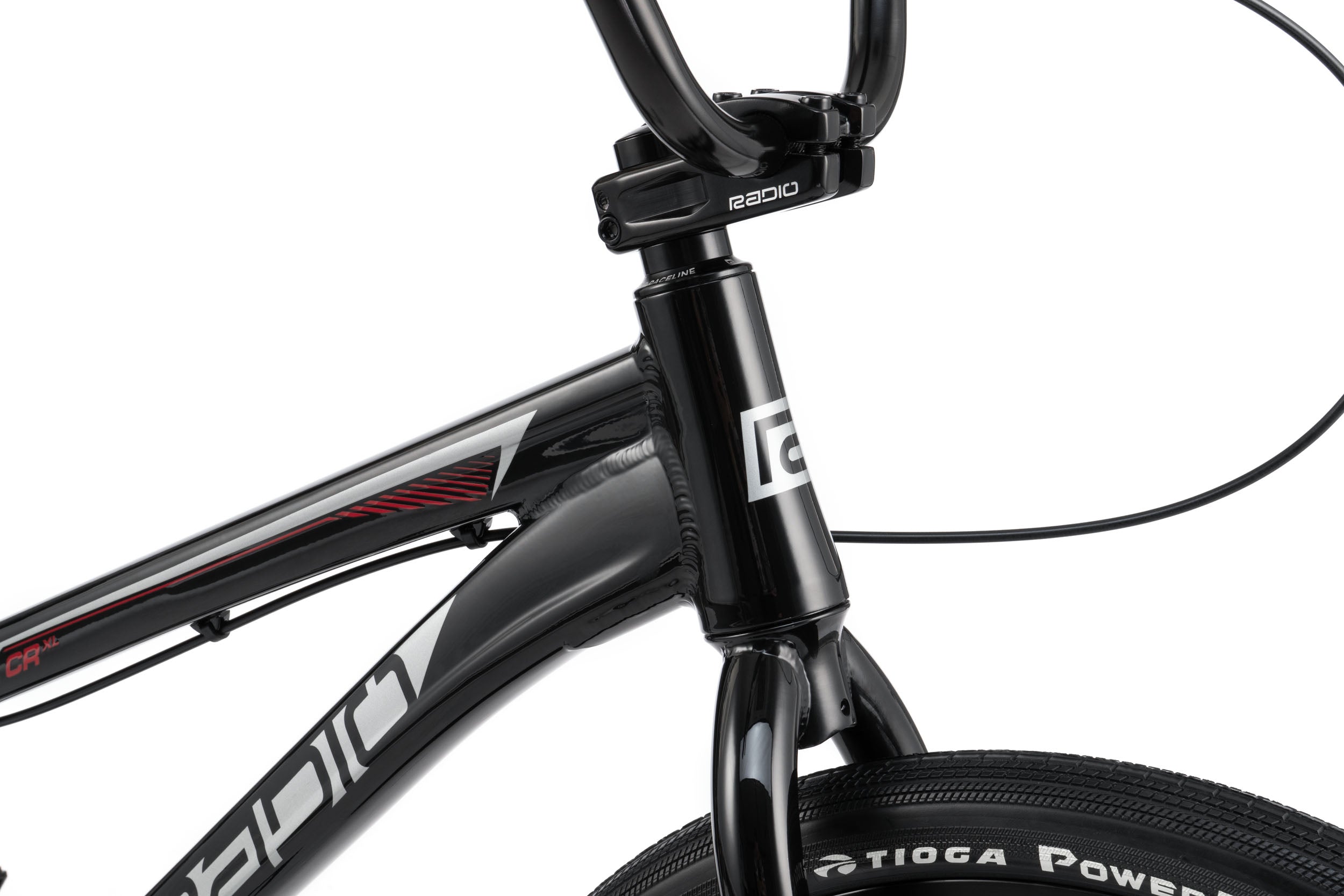

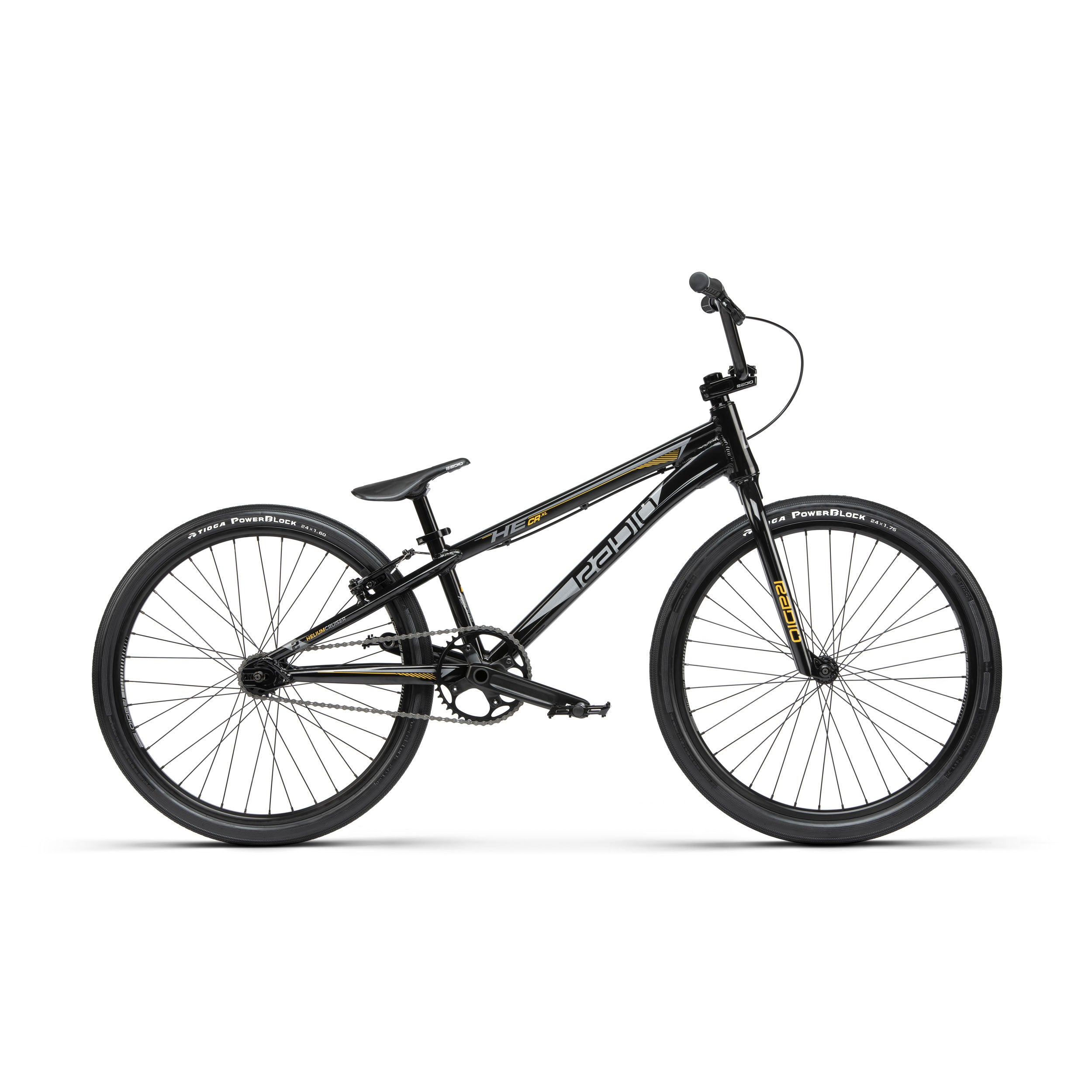

FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners

FORK crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset

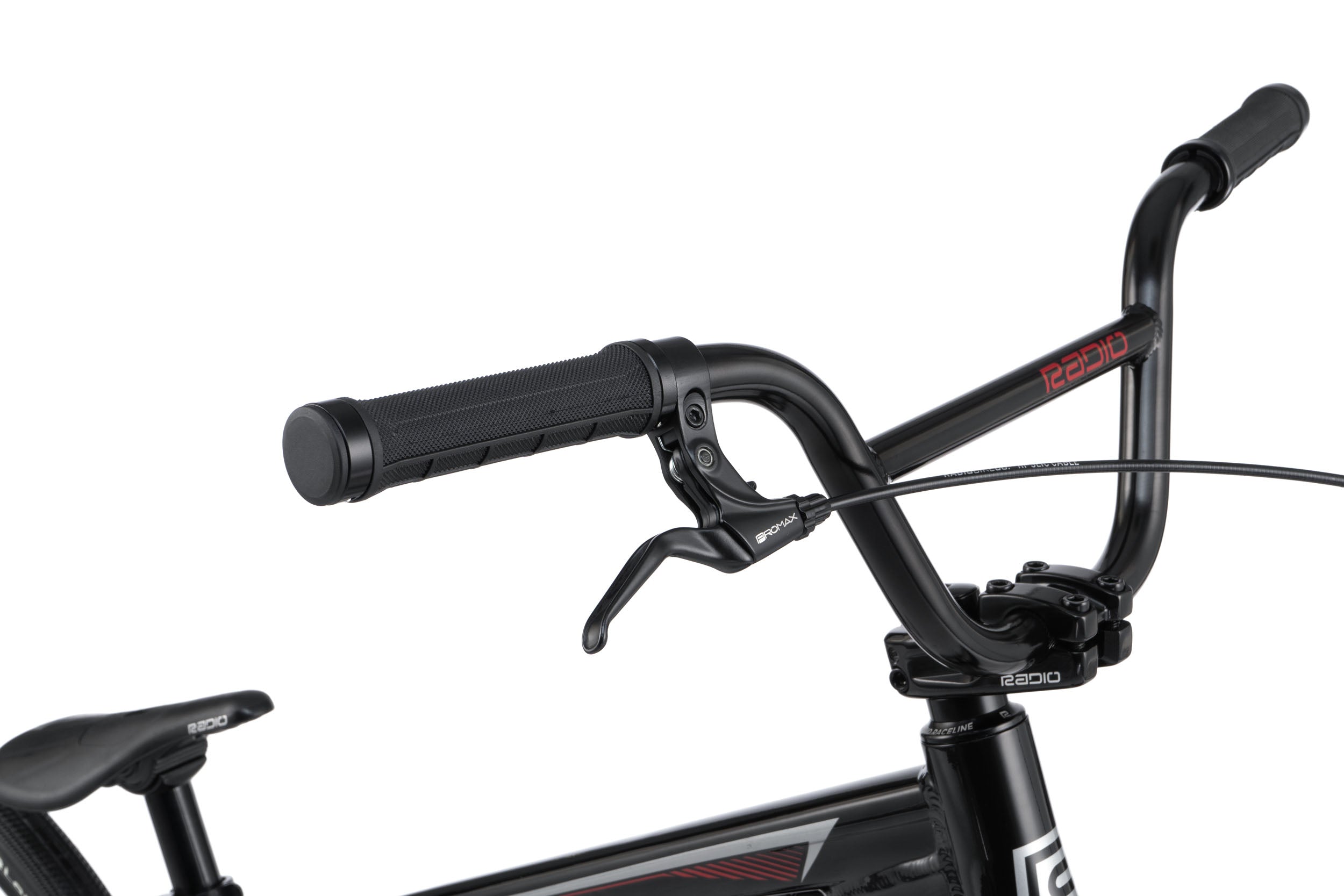

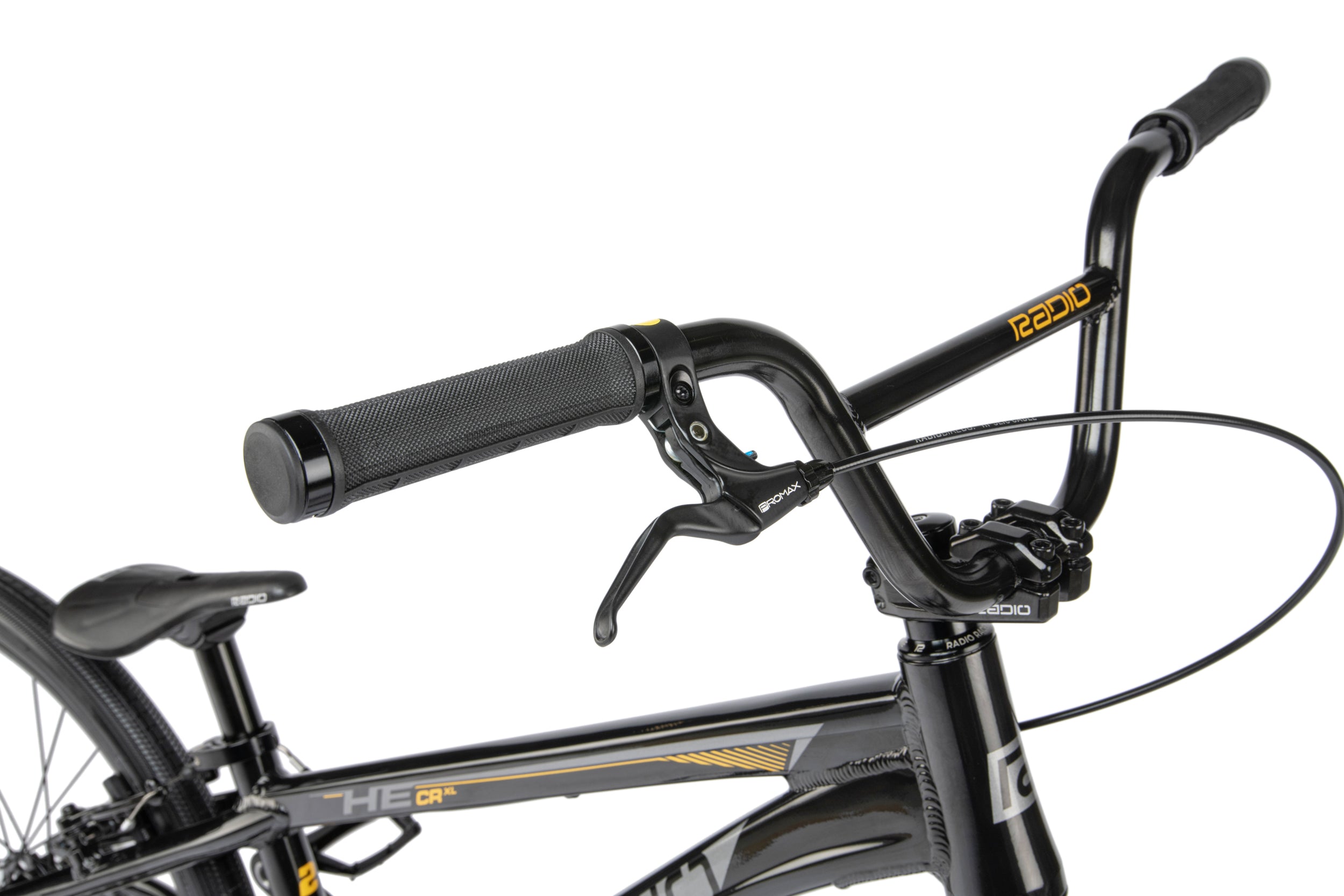

BARS: 4130 crmo bar, seamless

GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

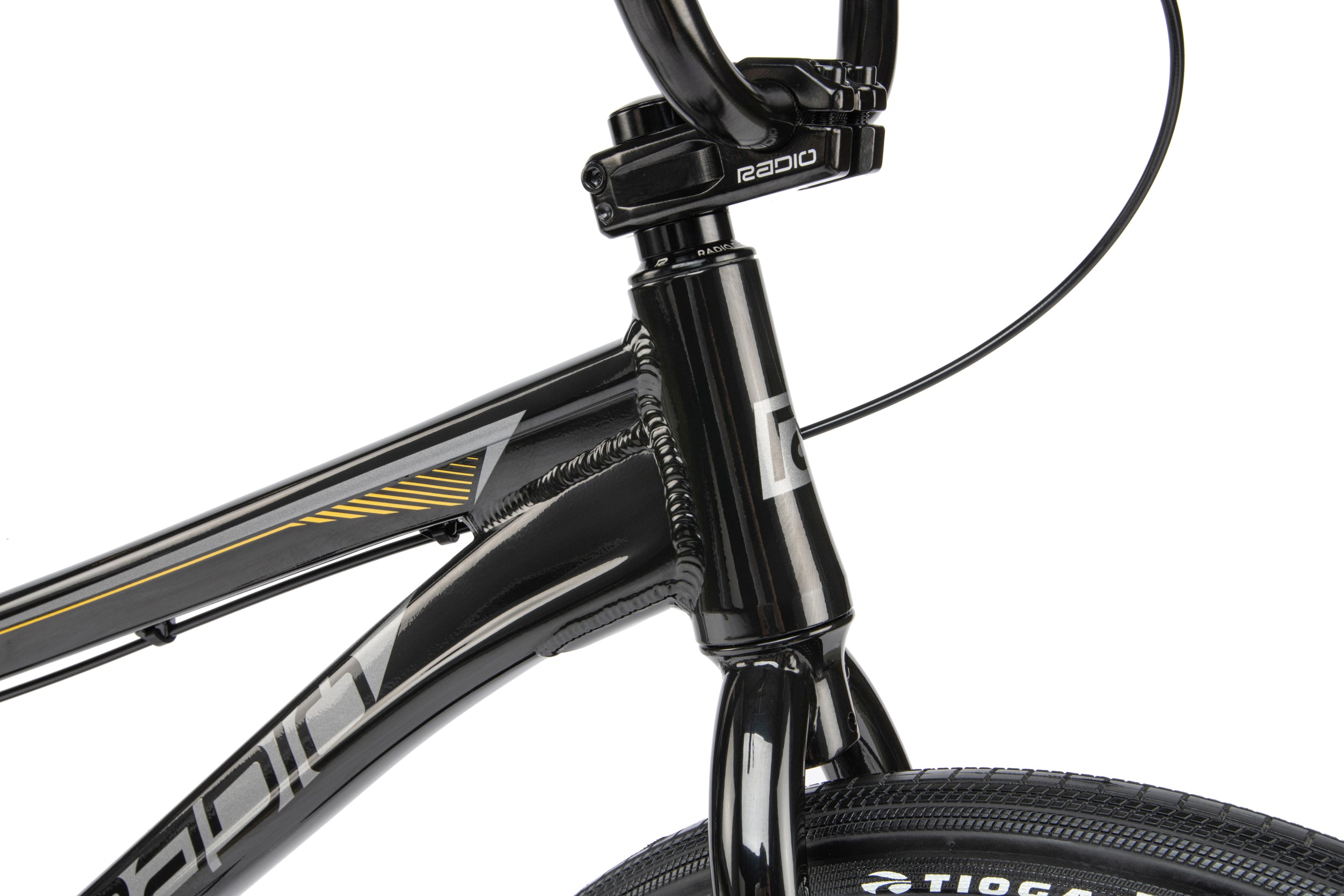

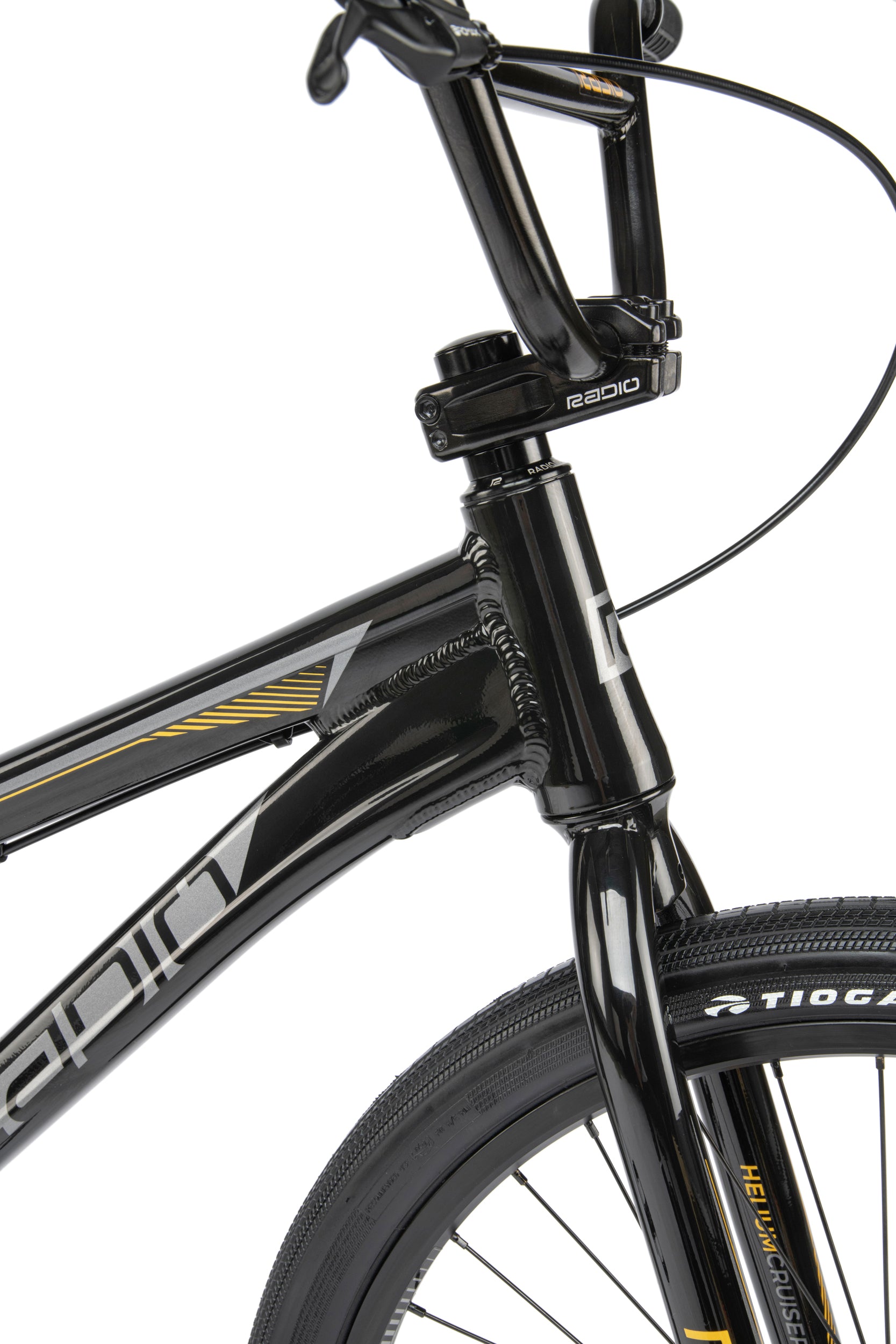

STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy

HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter

LEVER: PROMAX "XL-373" brake lever, rear

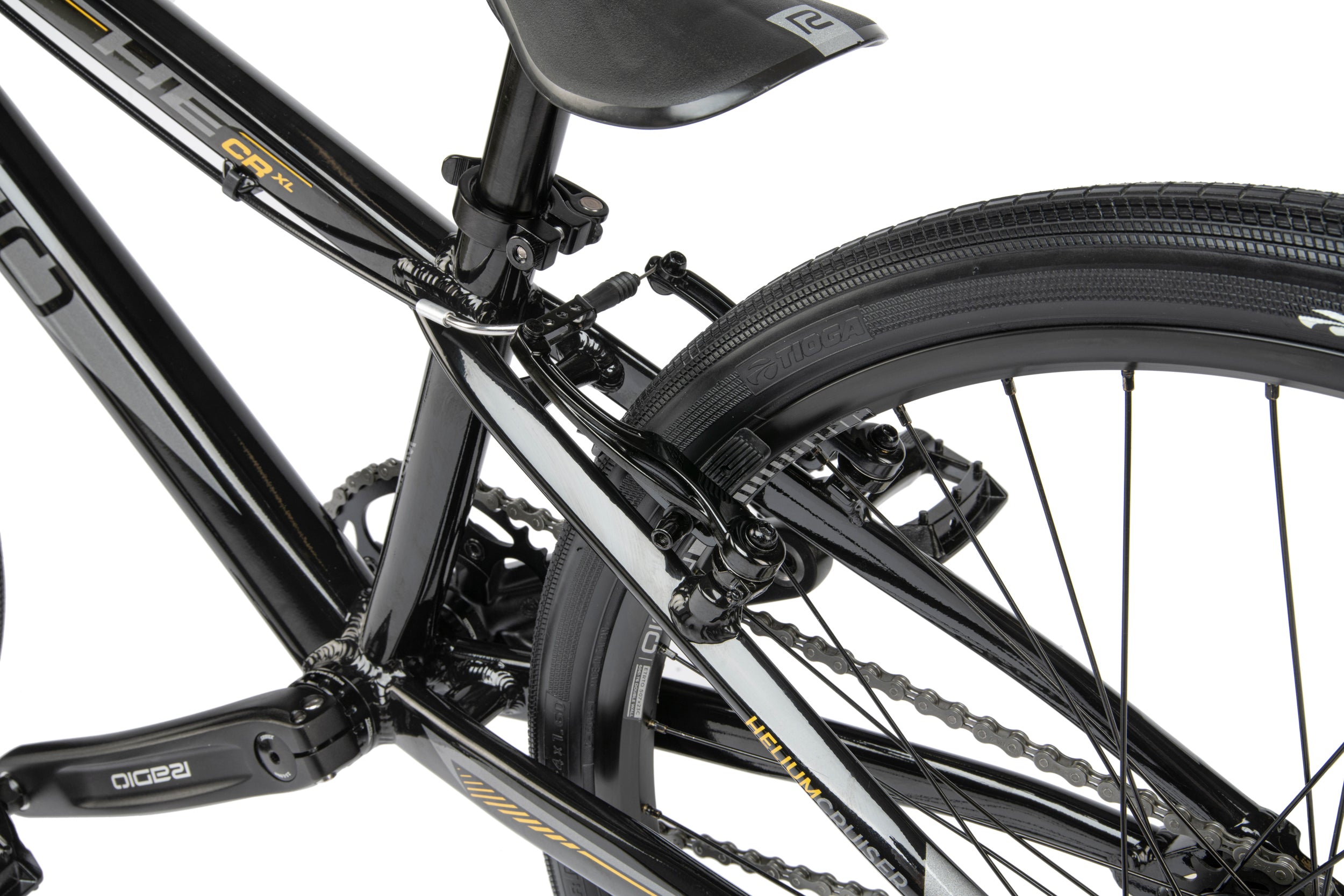

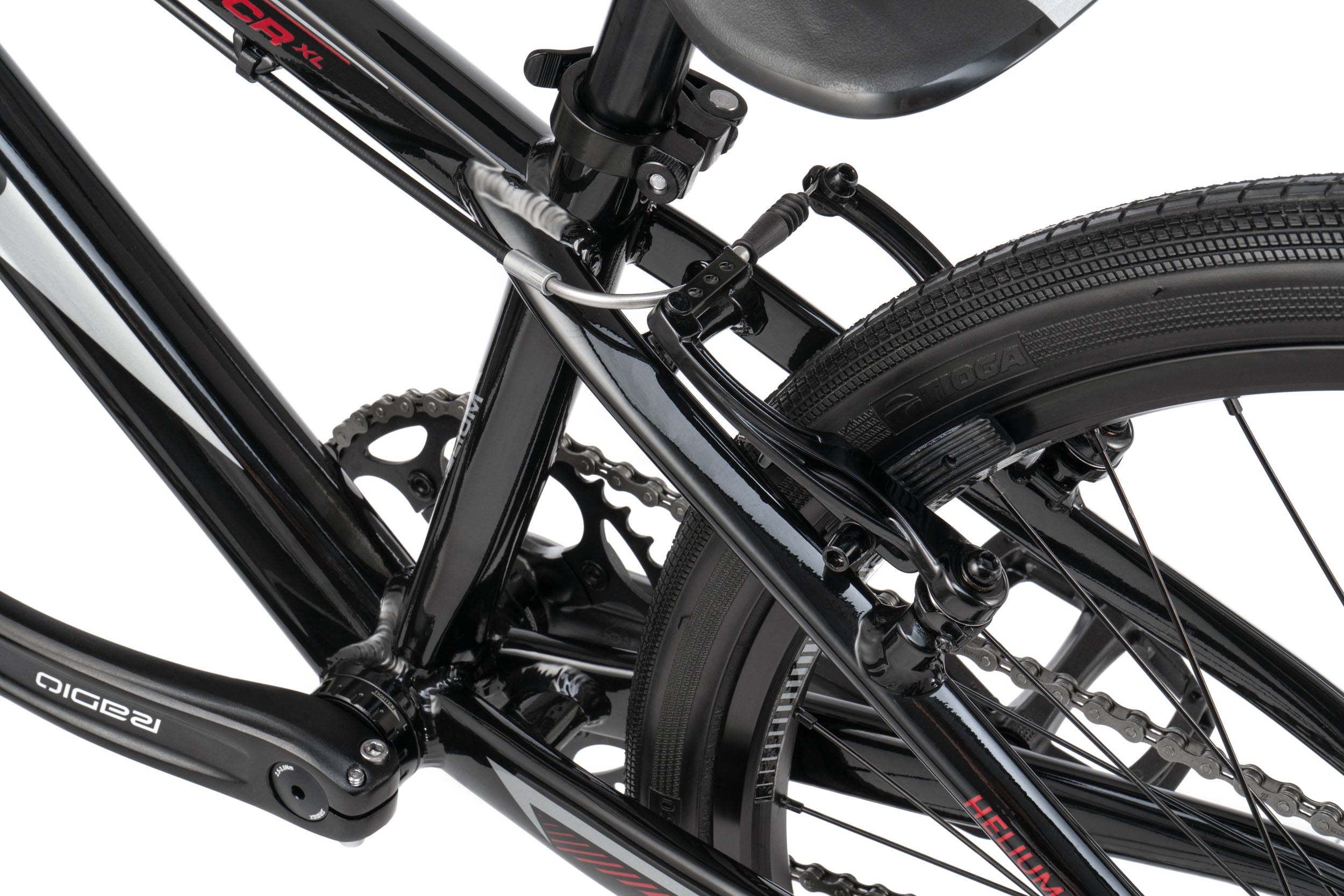

BRAKES: PROMAX "TX-131" brake, rear

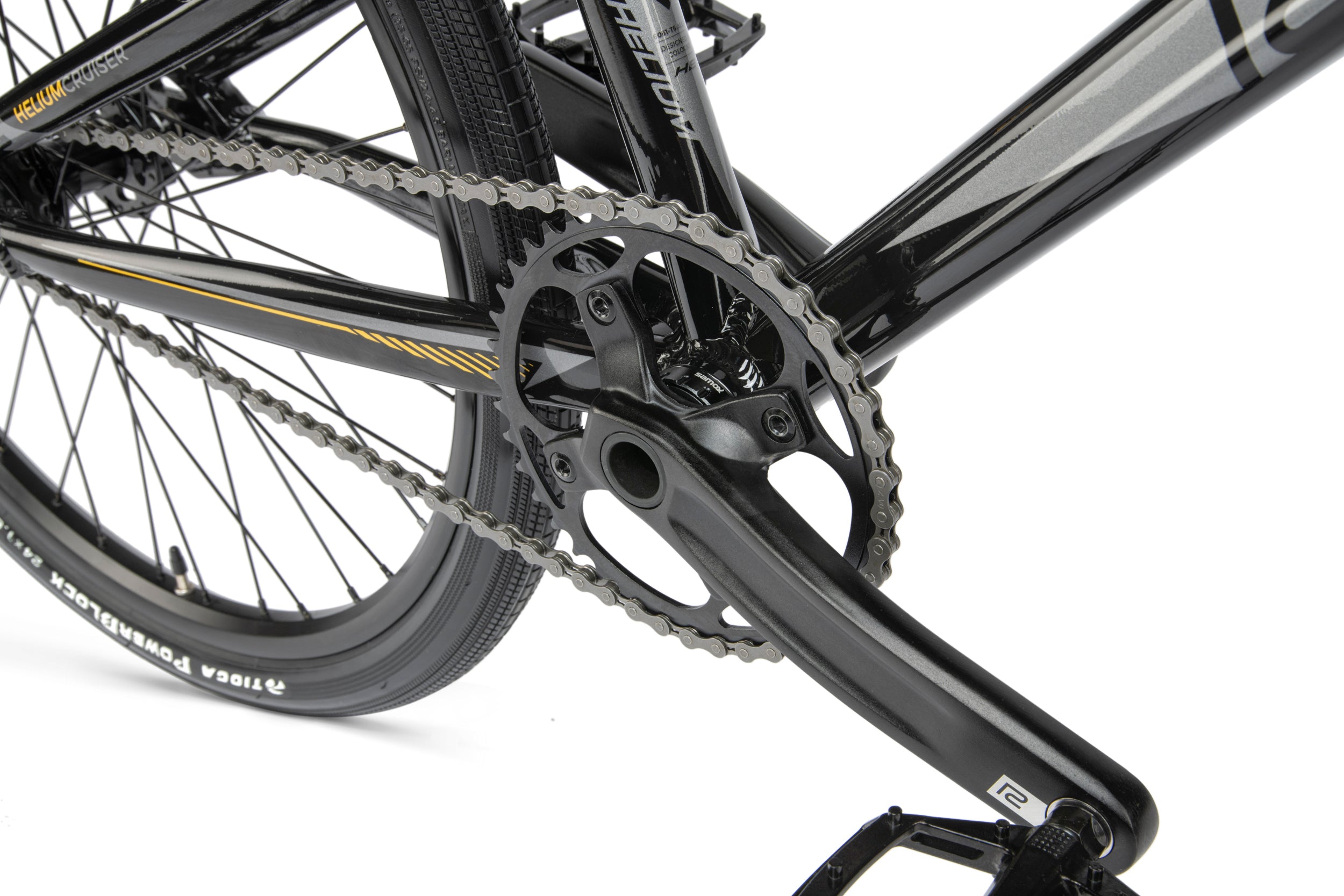

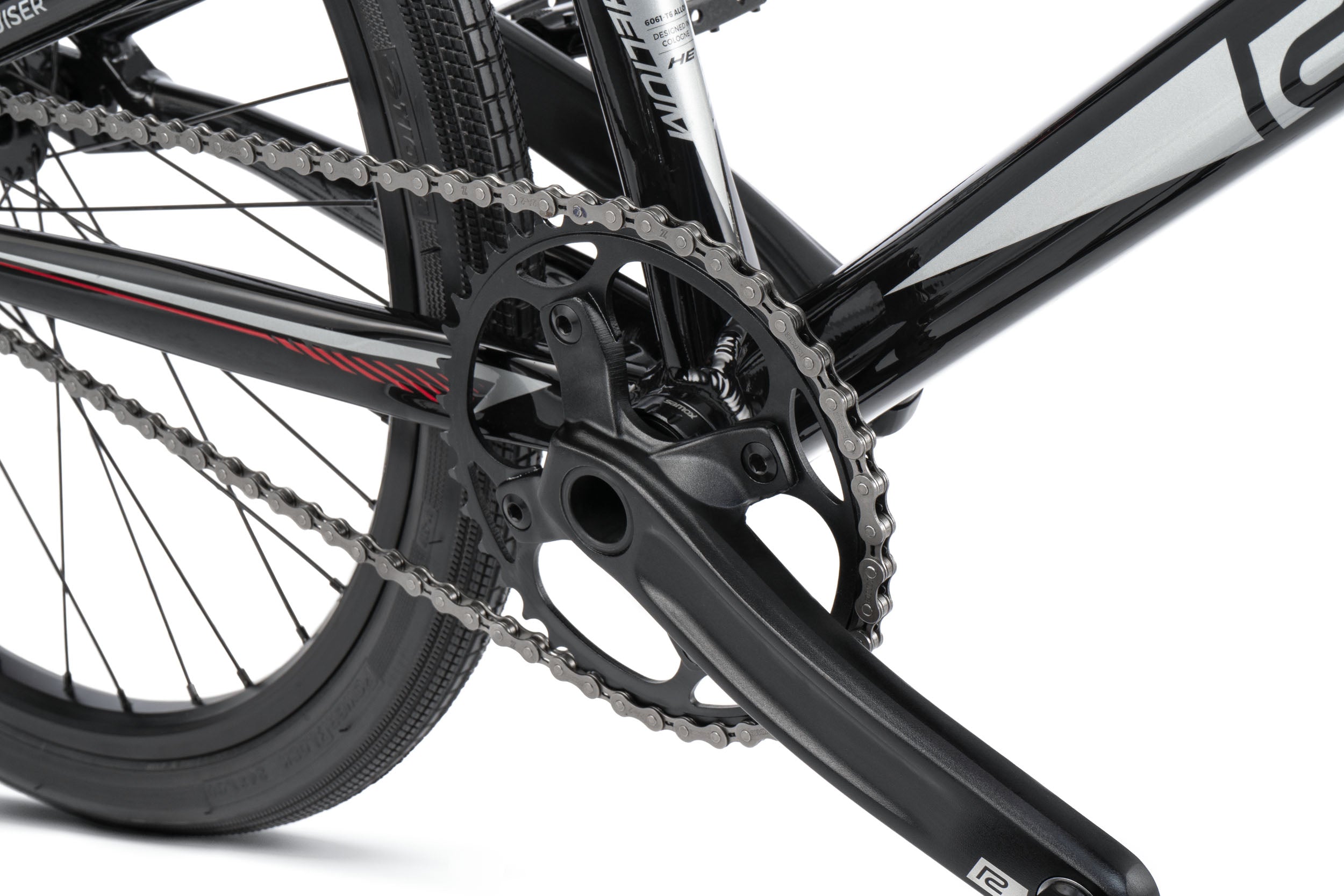

CRANKS: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy,180mm length, 24mm spindle

BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed

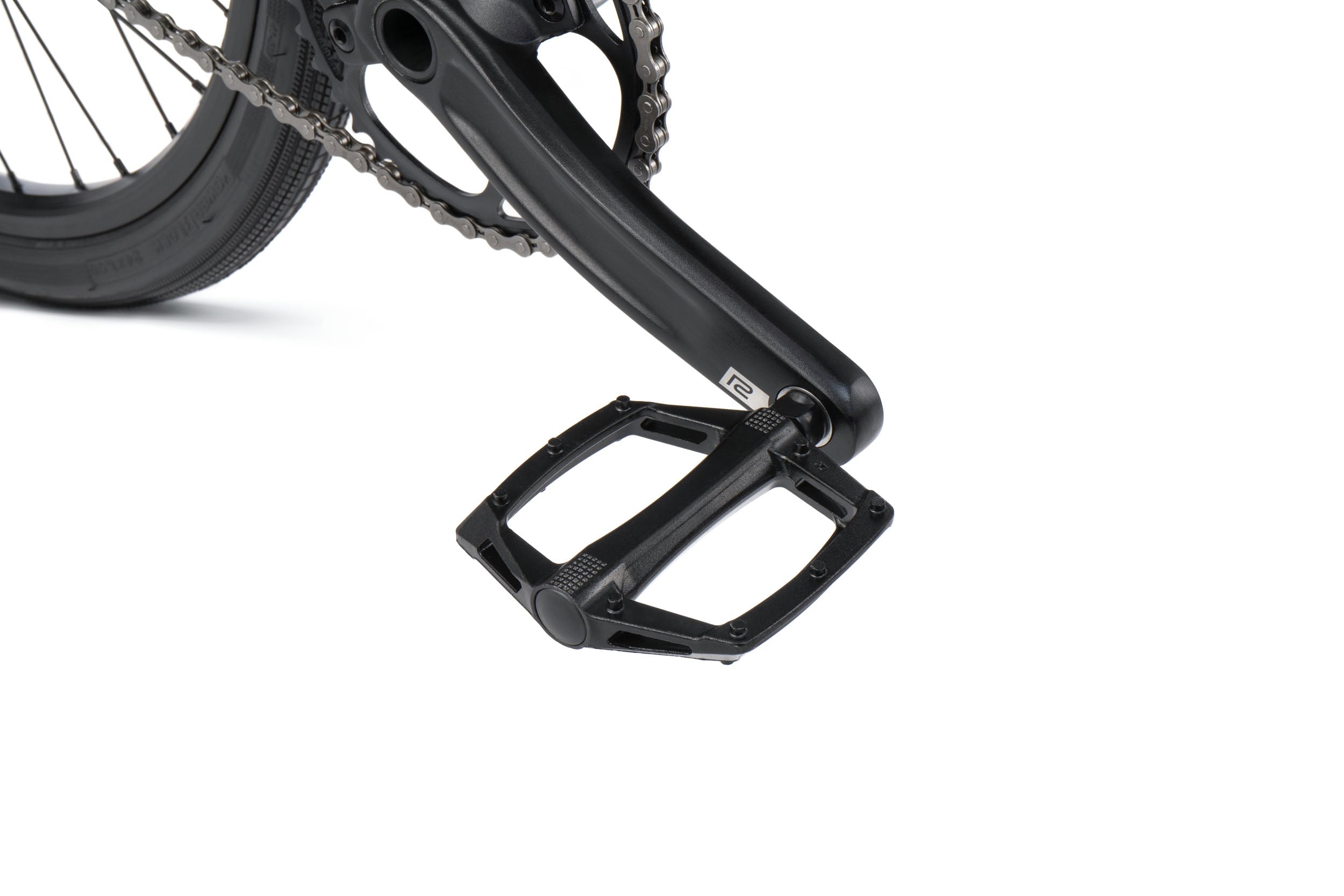

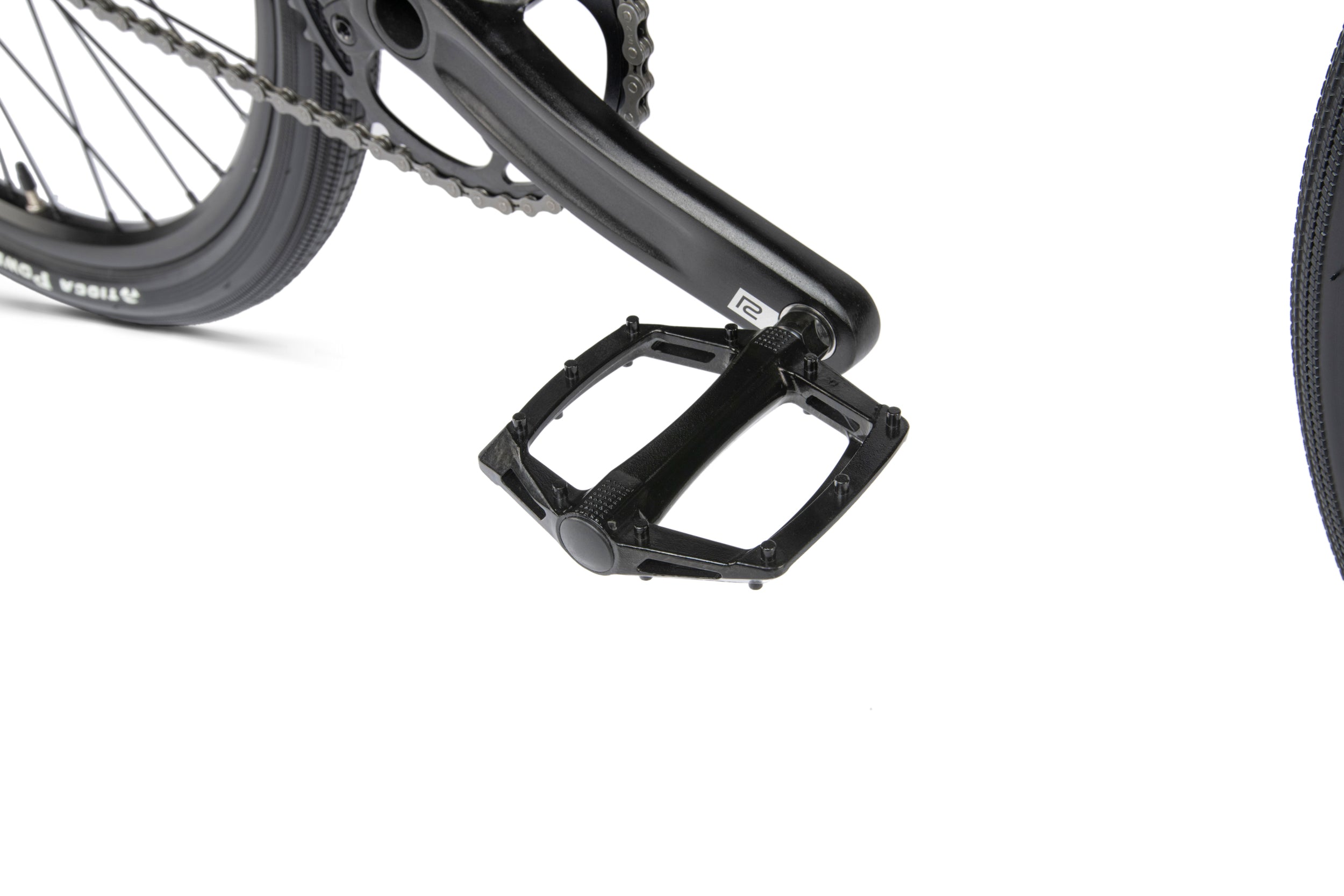

PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy

CHAIN: KMC "Z6" chain, 1/2" x 3/32"

SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 41T, alloy

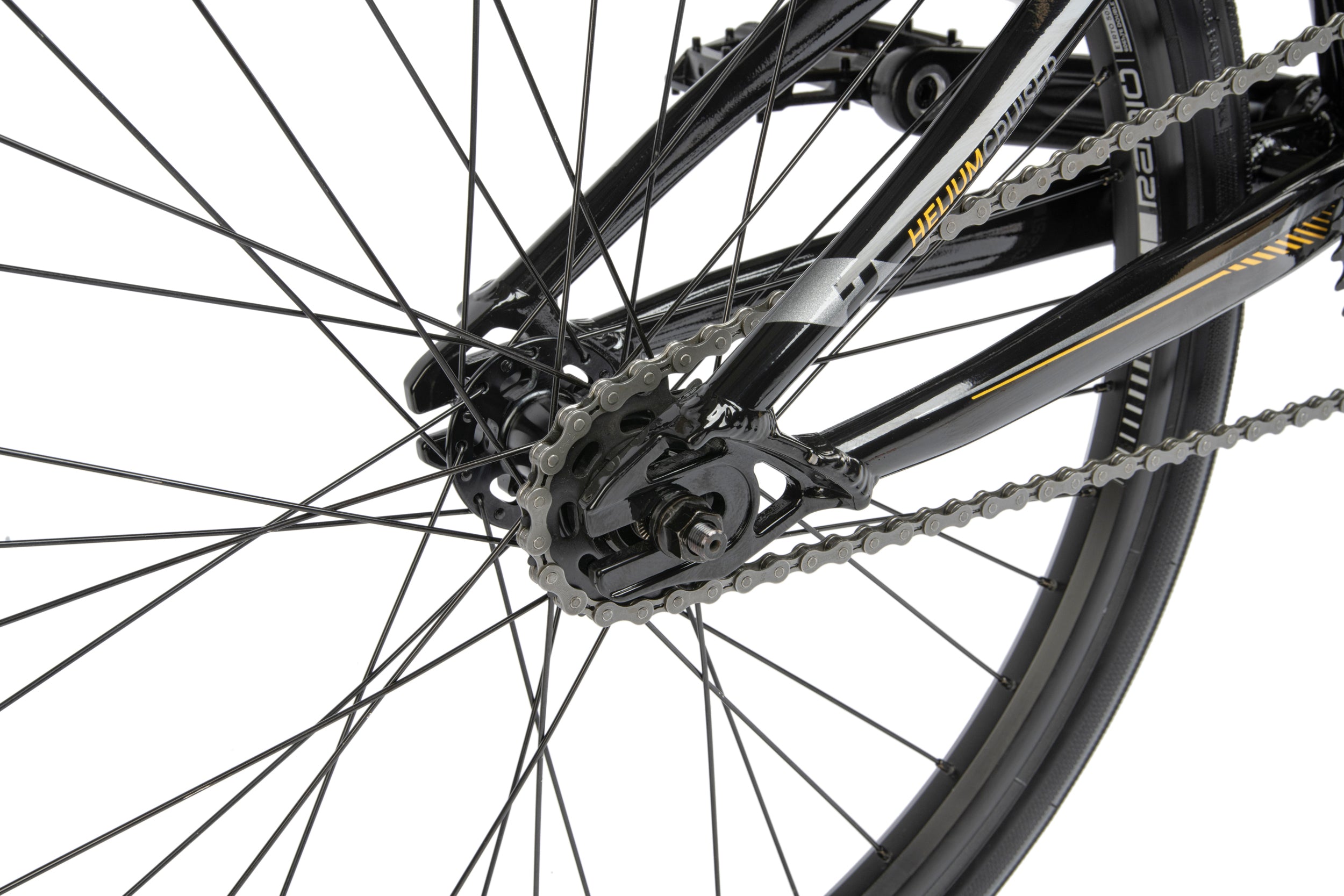

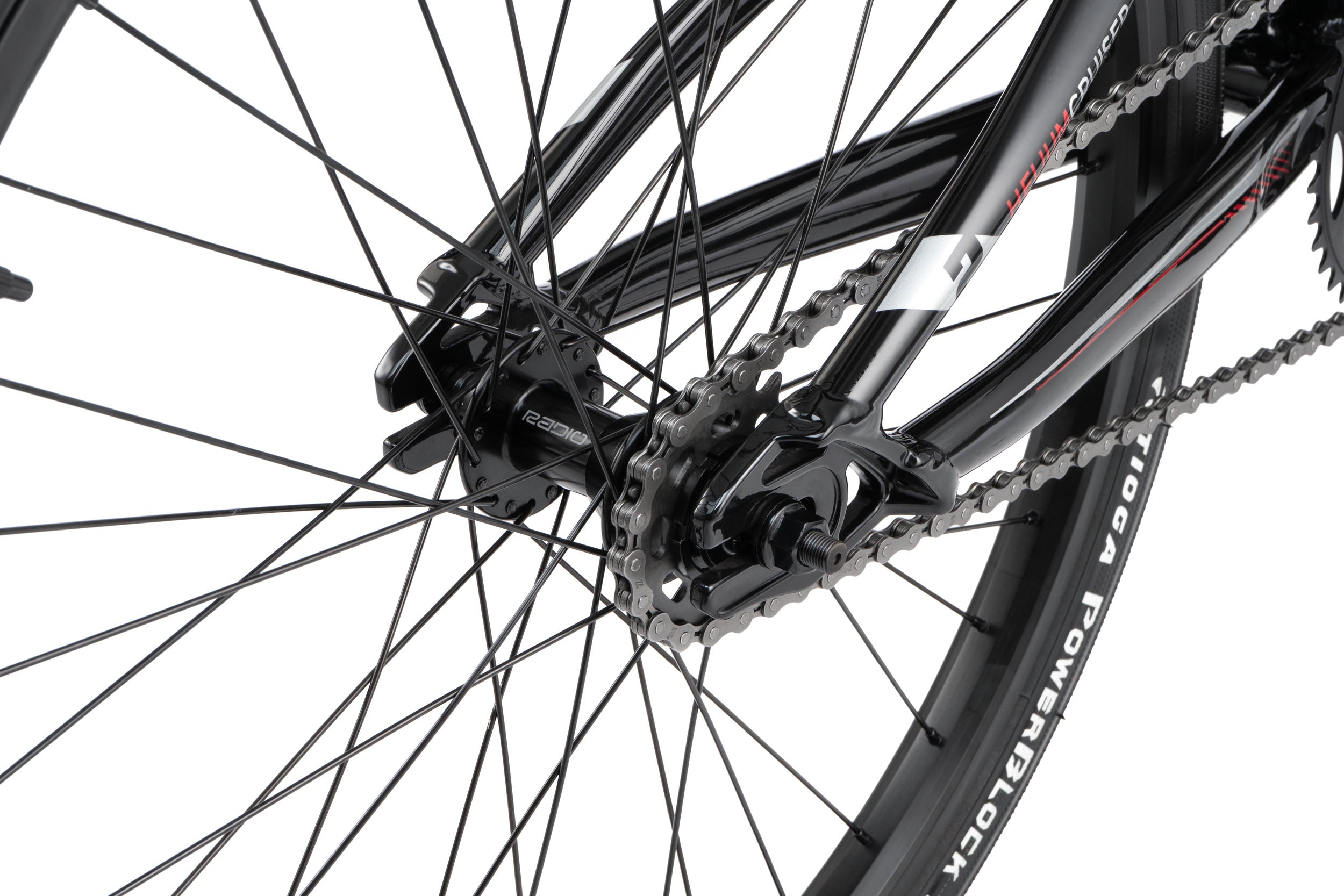

DRIVER: RADIO RACELINE driver, 18T, 1/2"- 3/32", sealed cassette

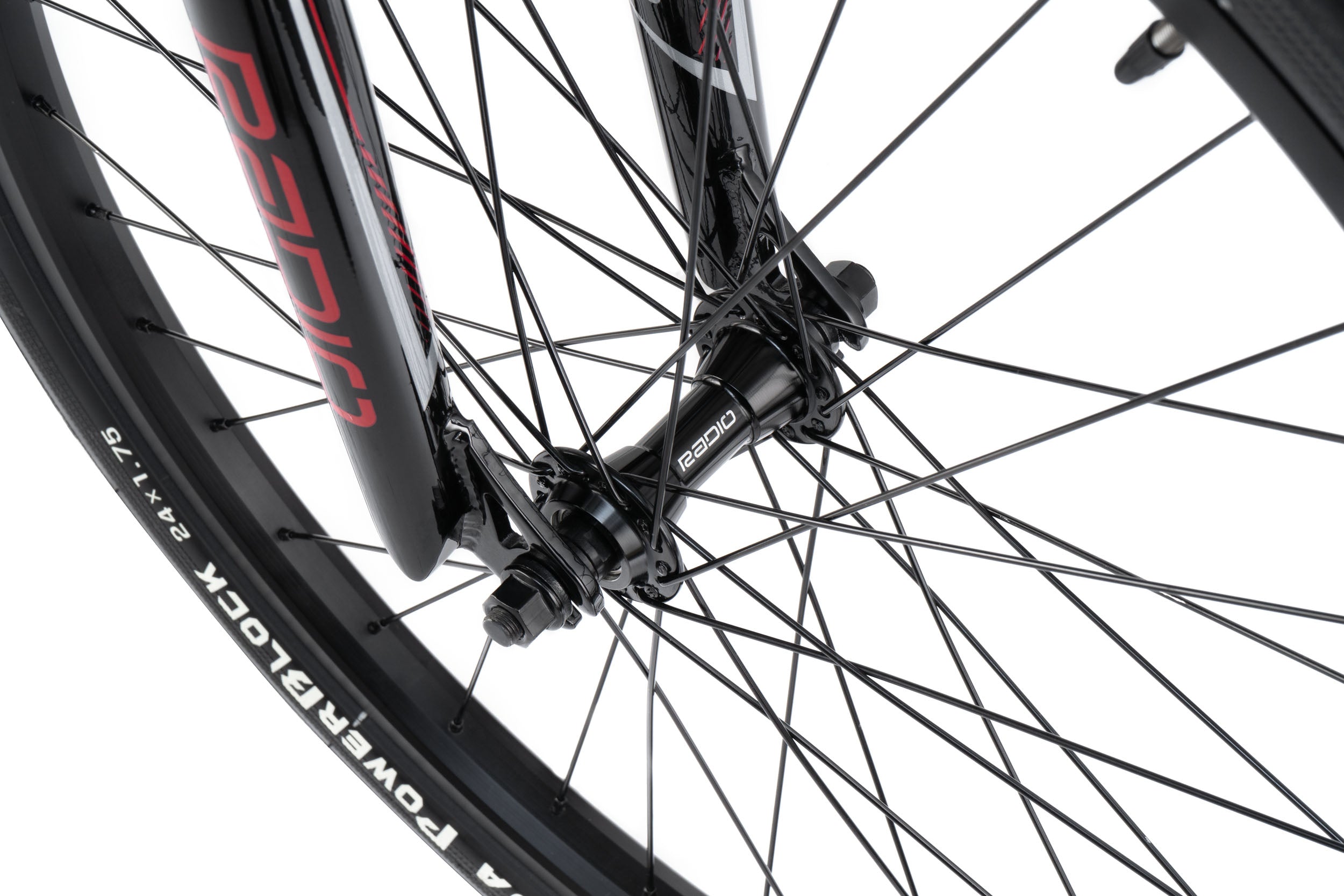

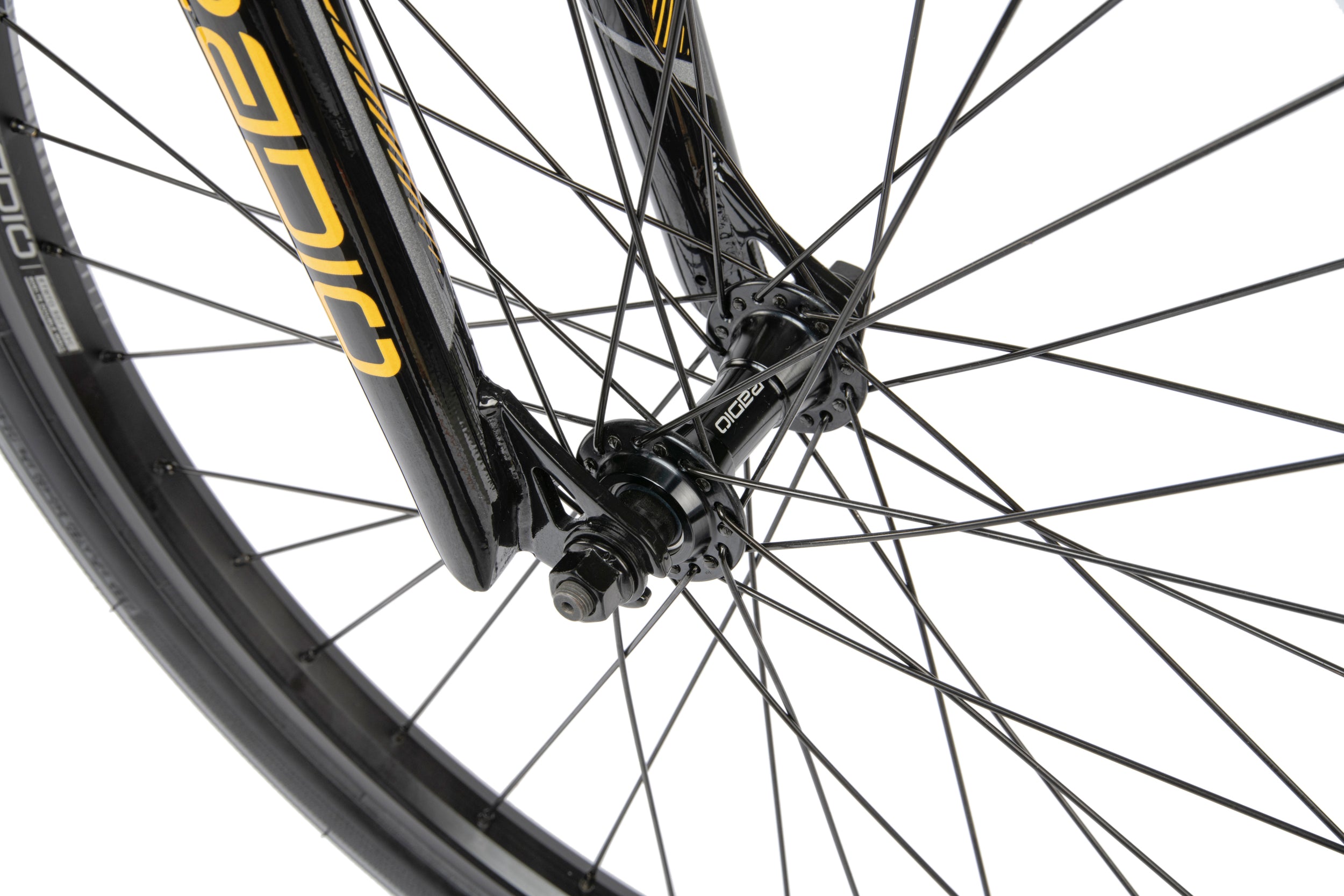

FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36T, 3/8" crmo axle

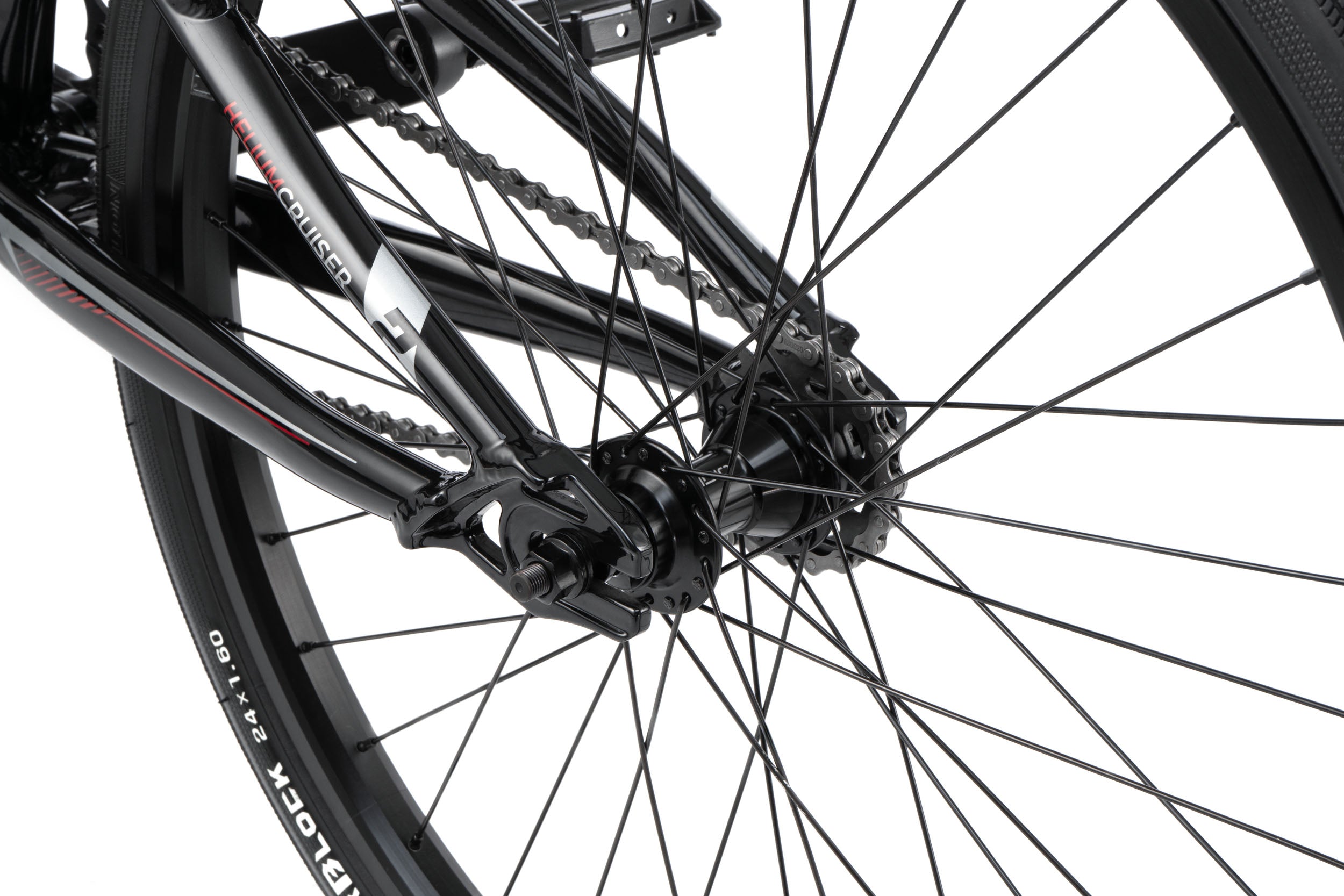

REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36T, disc brake cassette, 3/8" crmo axle

RIMS: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36H, alloy

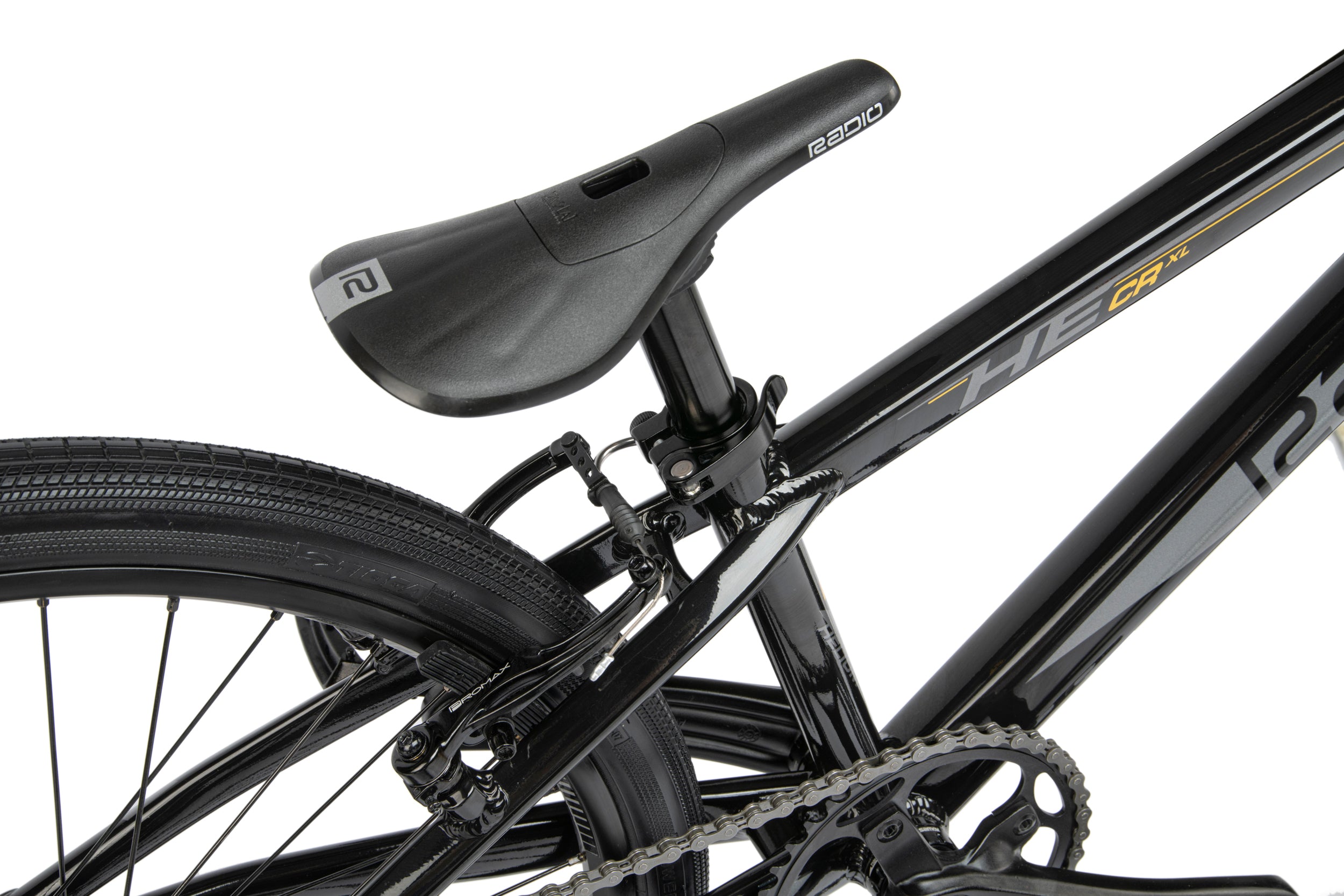

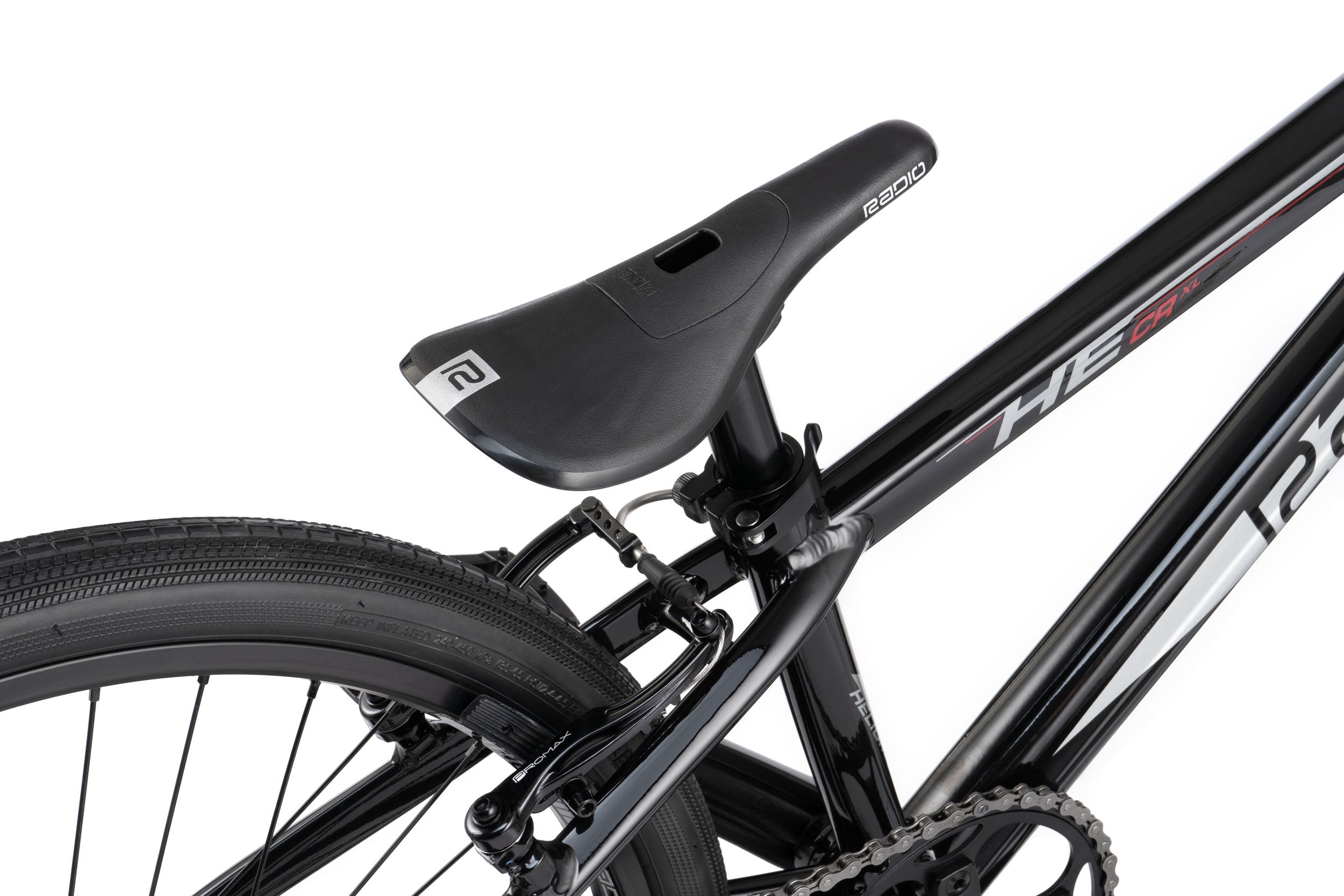

SEAT: RADIO RACELINE "XENON" pivotal seat, no padding

SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy

SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy

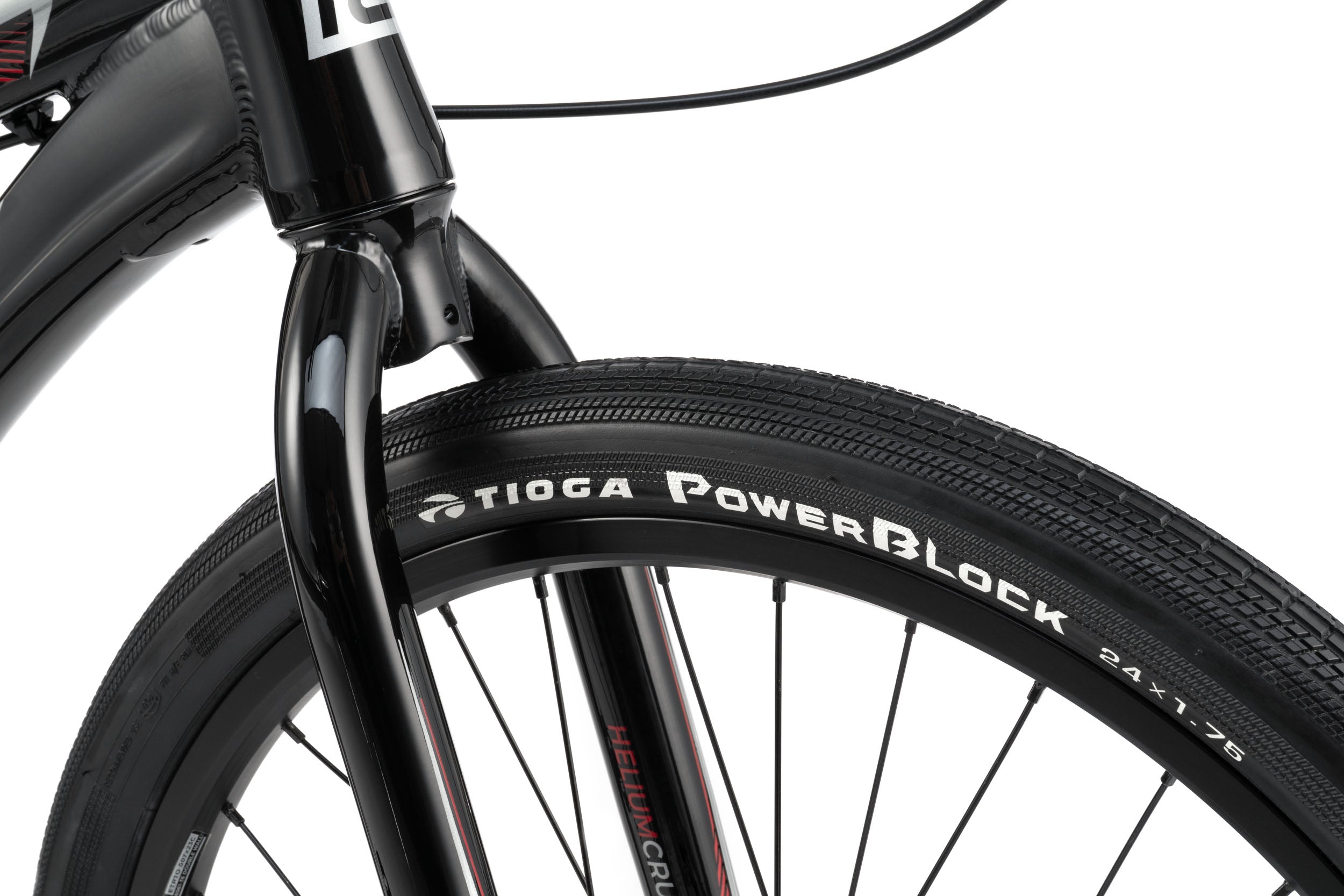

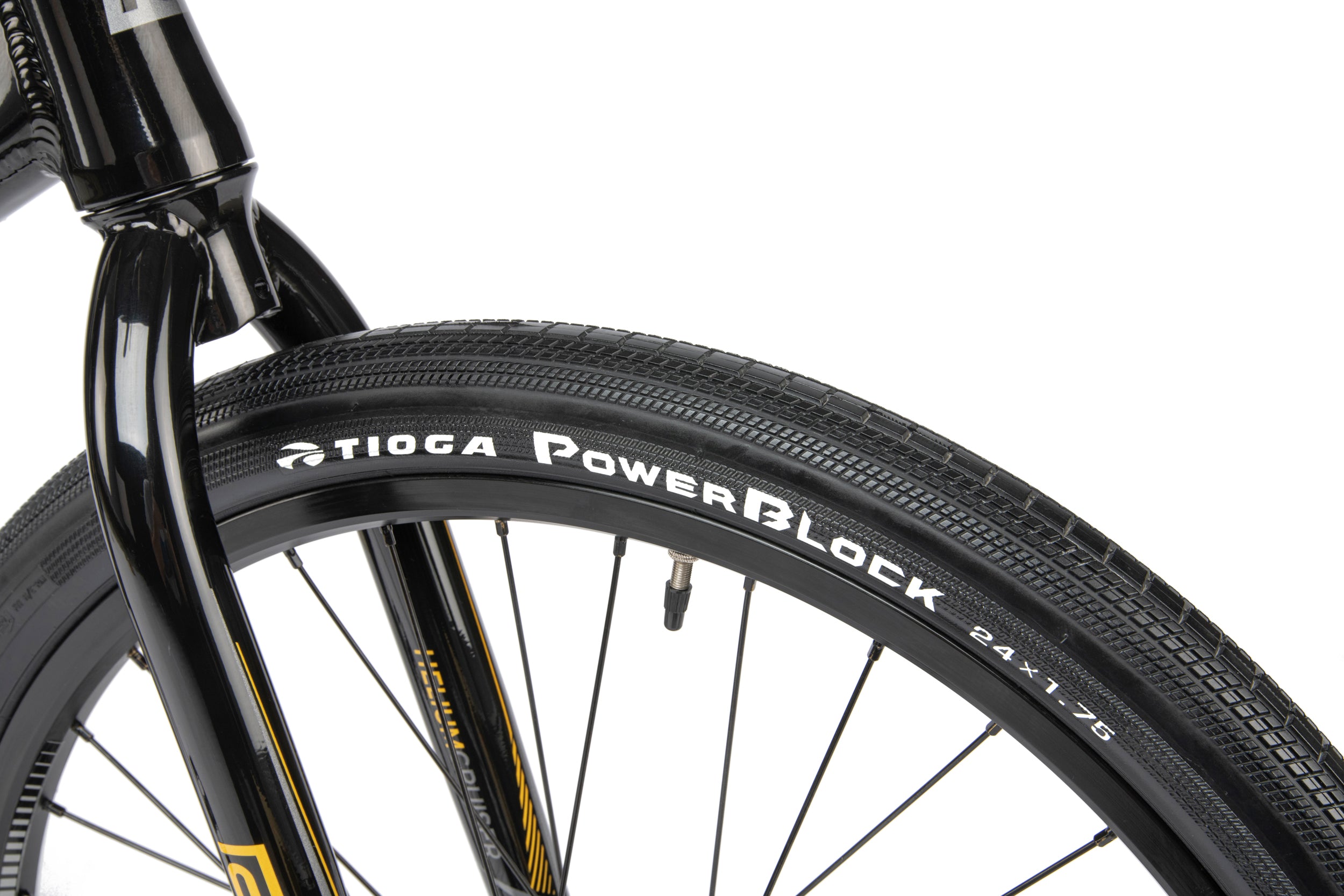

TIRES: TIOGA "POWER-BLOCK" tires, front: 24" x 1.75" and rear: 24" x 1.6"

TOP TUBE LENGTH: 22”

CHAIN STAY LENGTH: 15.15”

BOTTOM BRACKET HEIGHT: 12”

HEAD TUBE ANGLE: 74°

SEAT TUBE ANGLE: 71°

BAR RISE: 6.1”

BAR WIDTH: 26.75”

BACKSWEEP: 8°

UPSWEEP: 2°

WEIGHT: 10.24kg / 22.79lbs
