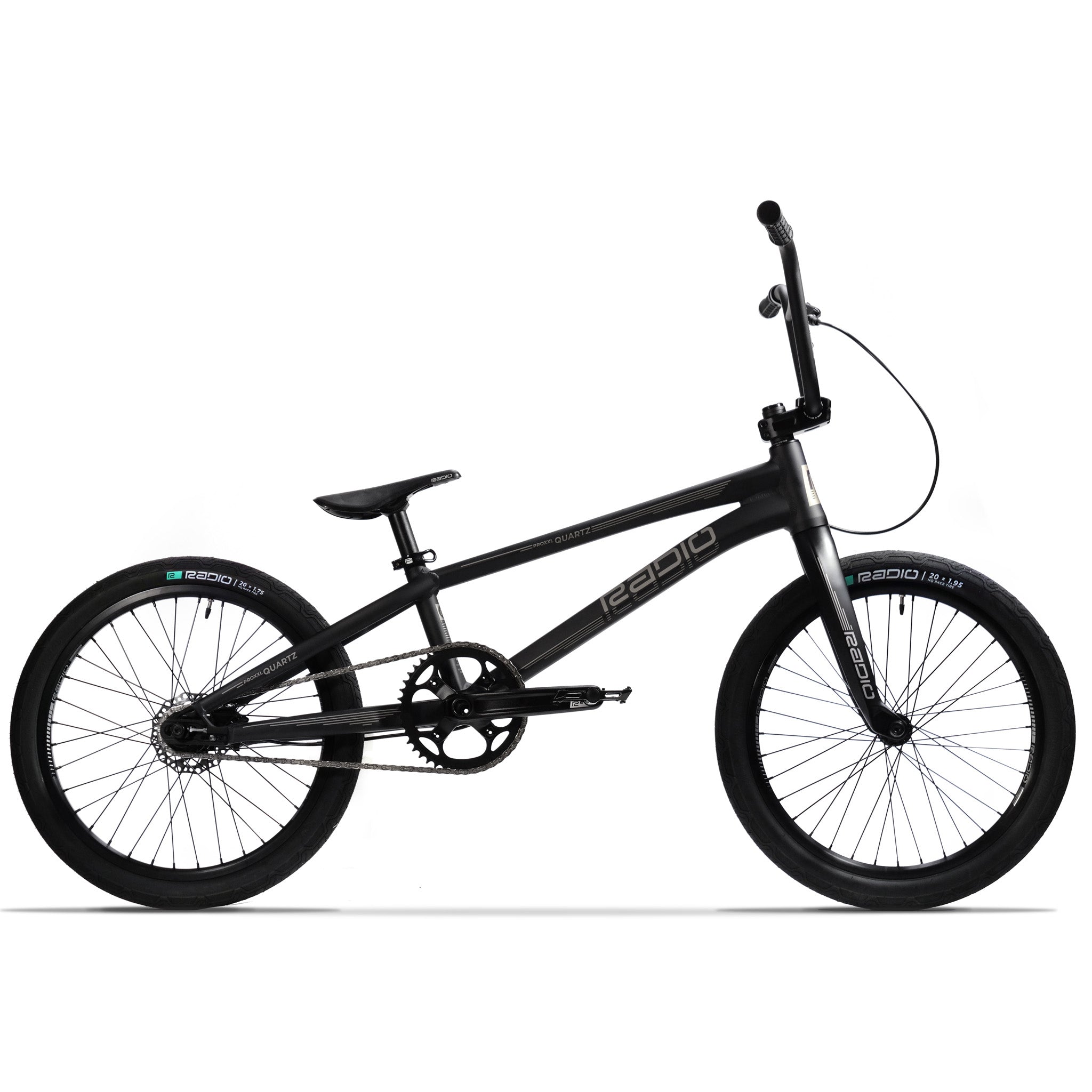

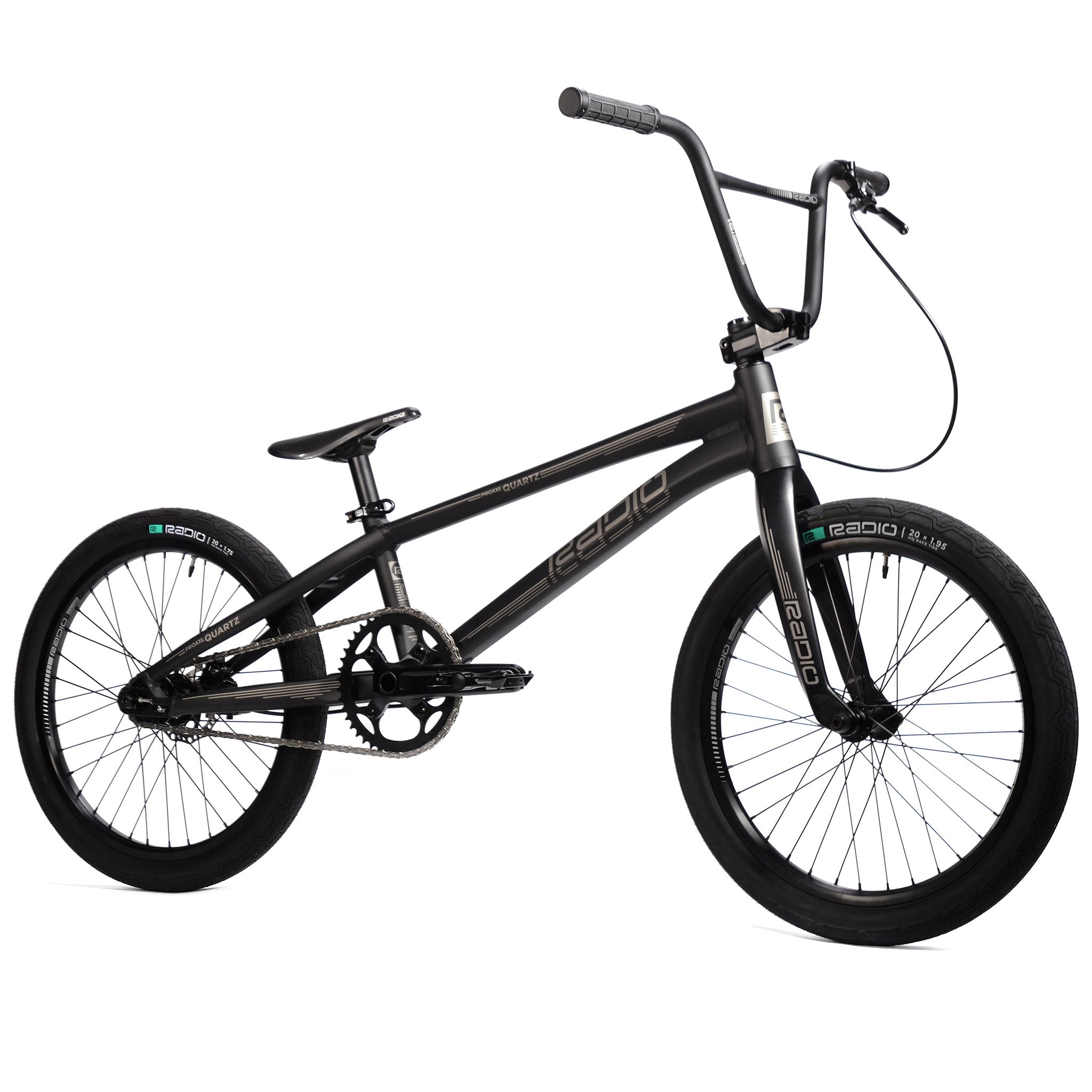

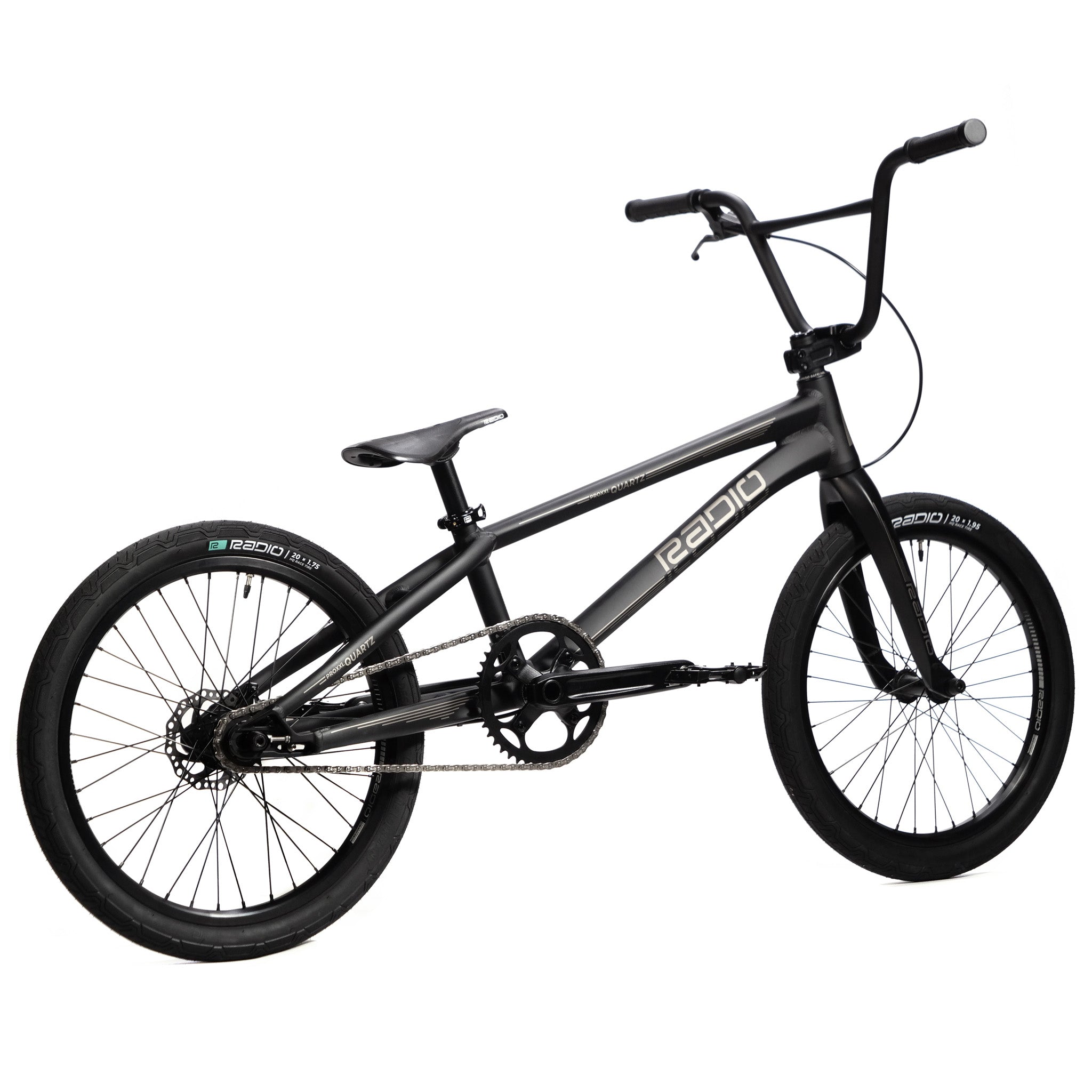

Quartz Pro 20" Complete Bike

The best of the best! The Quartz PRO is our 6-time world championship winning super-lightweight alloy frame with no details spared. We took this frame and draped it in only the very best components creating a full PRO build that anyone would be jealous to own. You’ll find our Solar Carbon fork, Oxygen Tires, Argon Rims, Turbine Hubs and even our new Hydraulic disc brake kit on this masterpiece of a bike. Ready for the track and the podium, we hope you can keep up with the speed that this machine can put out! Now with the all new Quartz Disc frame featuring our new sliding disc dropouts with flat mount brakes and super stealthy cable routing.

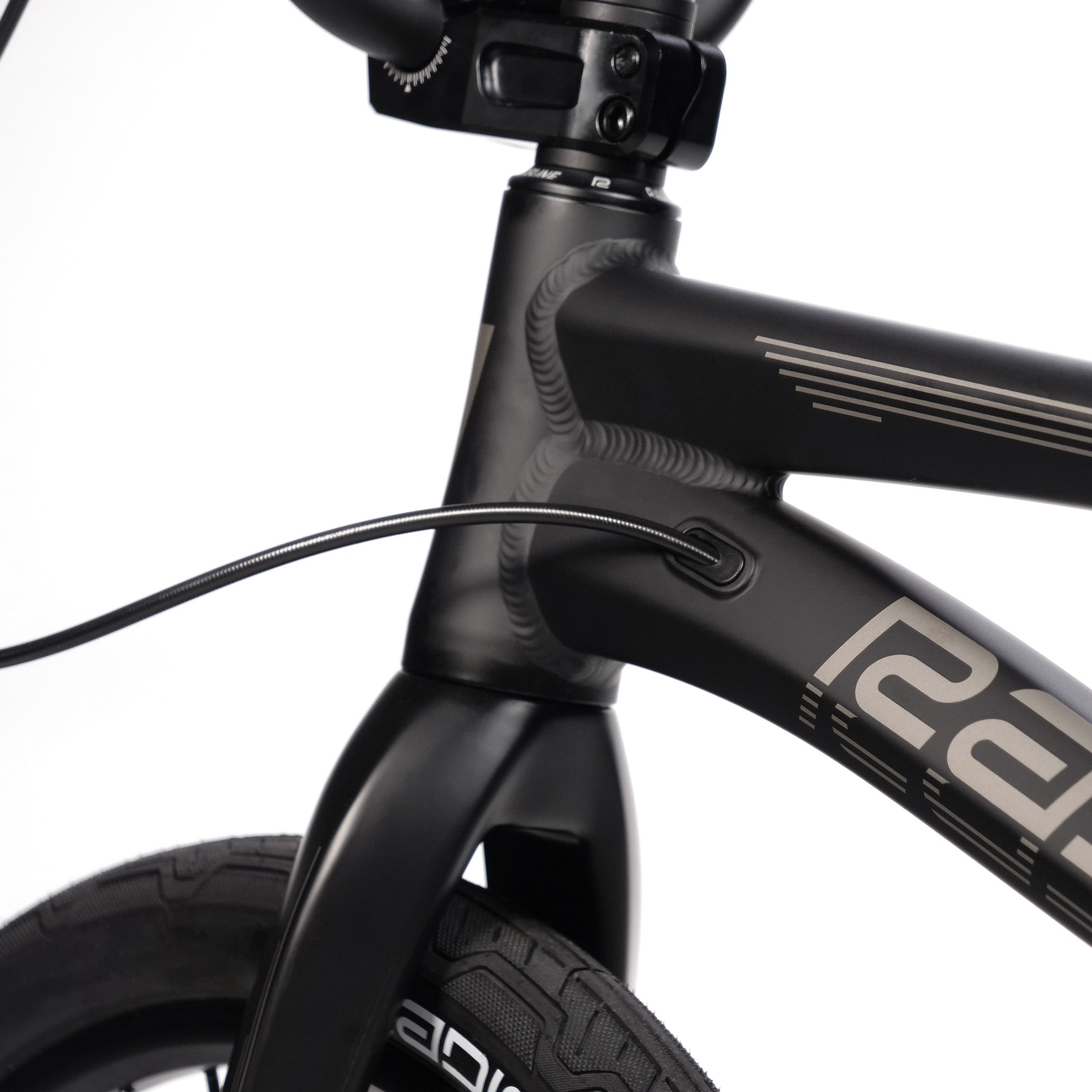

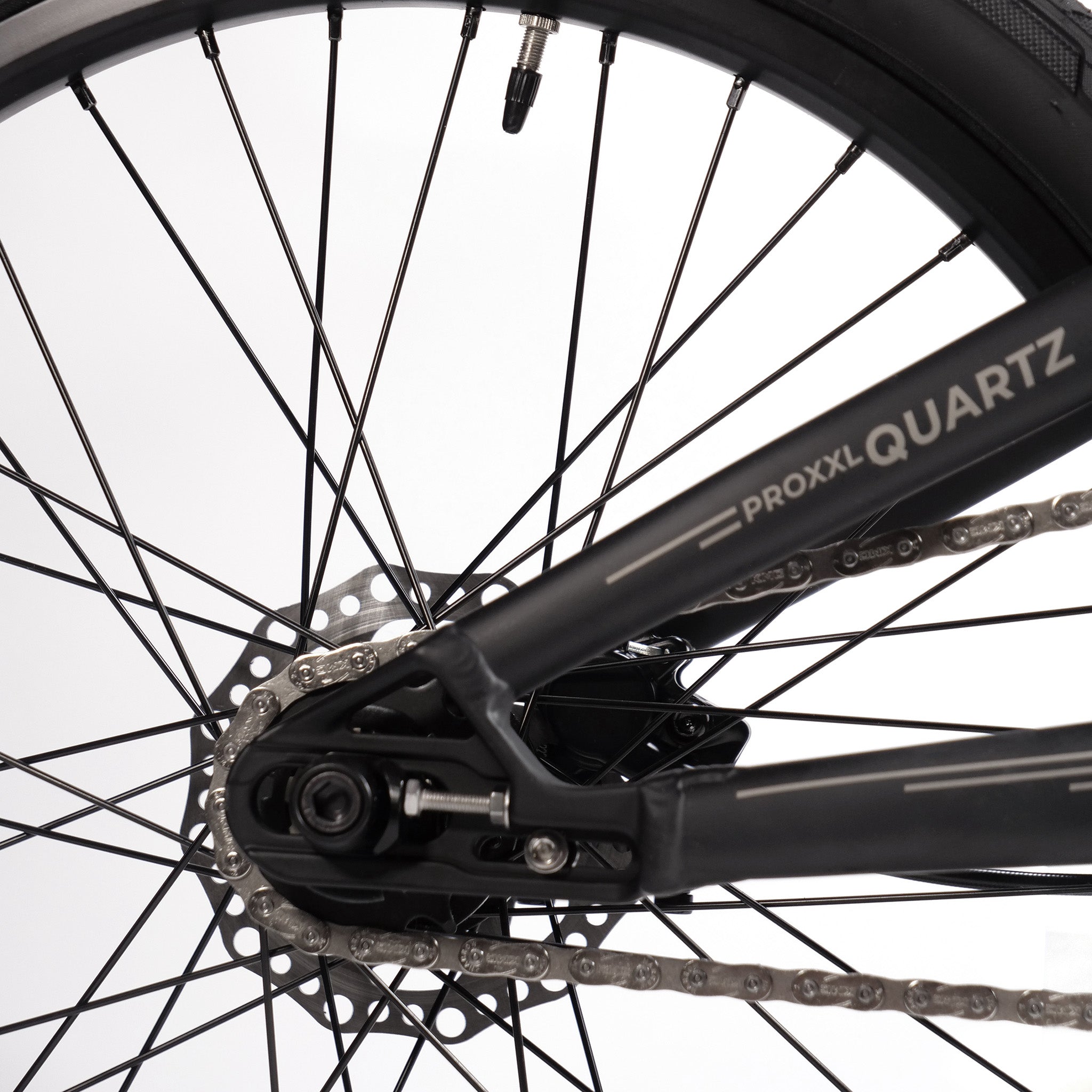

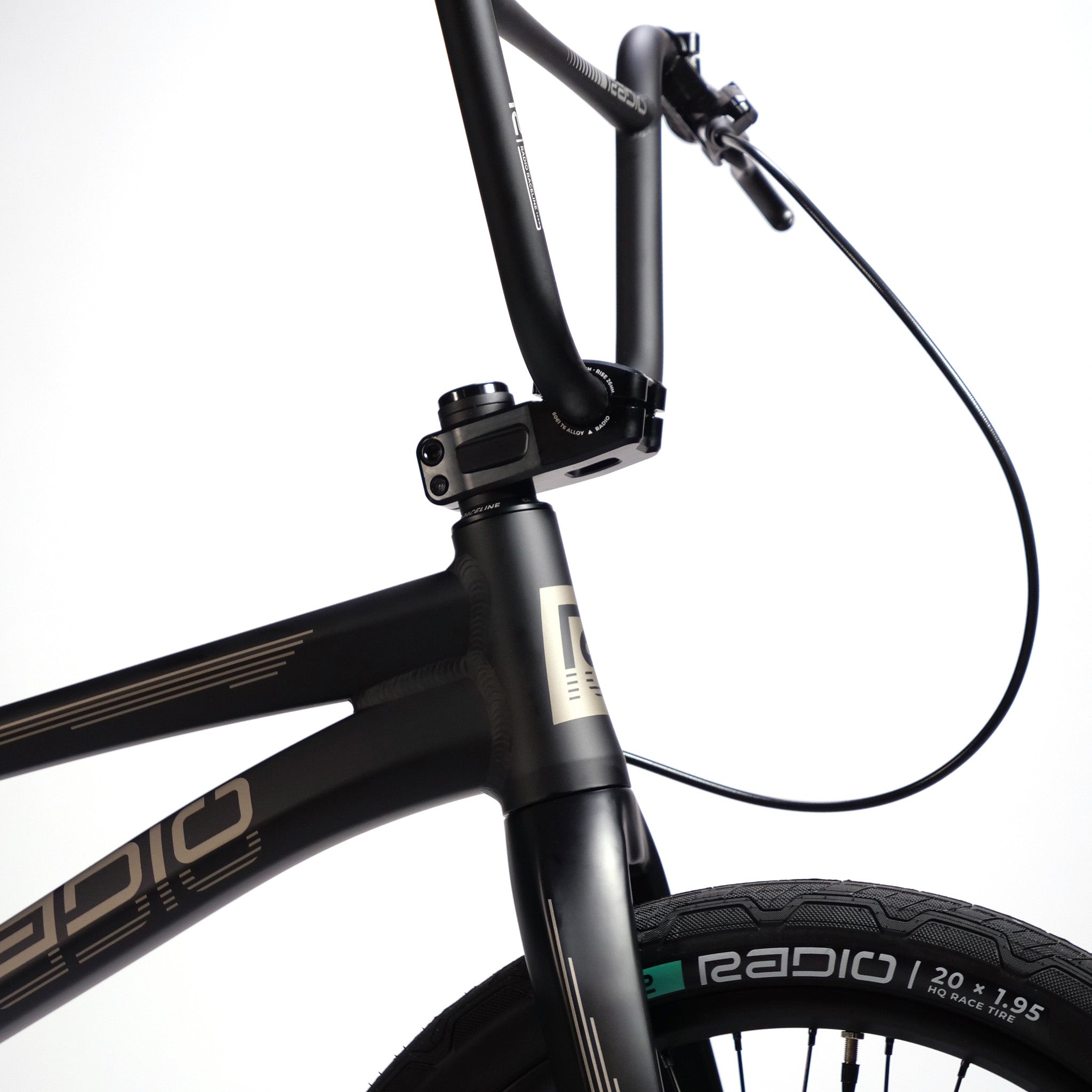

  • FRAME: RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake

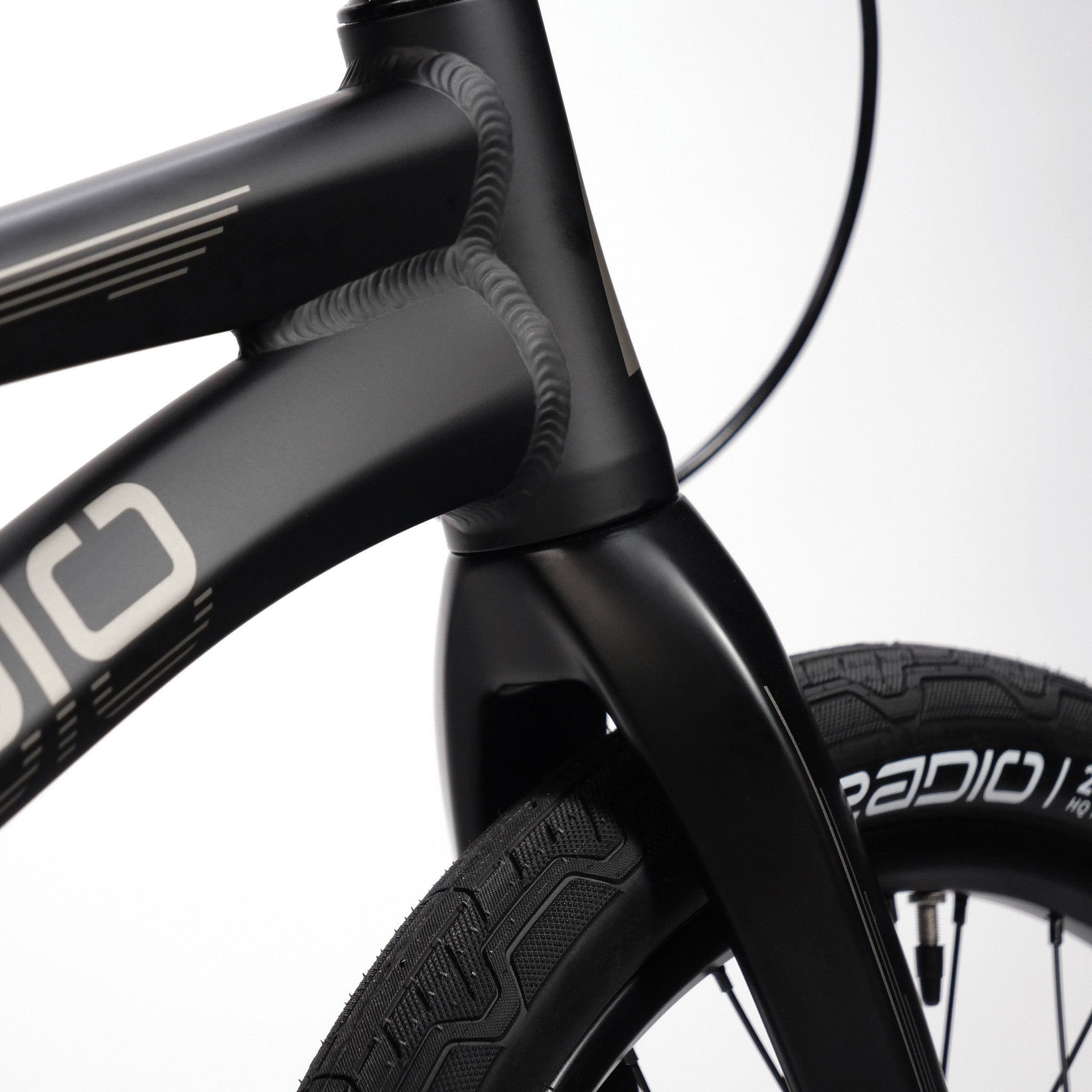

  • FORK: RADIO RACELINE "SOLAR" carbon fork, 1-1/8" - 1.5" tapered steerer, 32mm offset, inc. 10mm adaptors

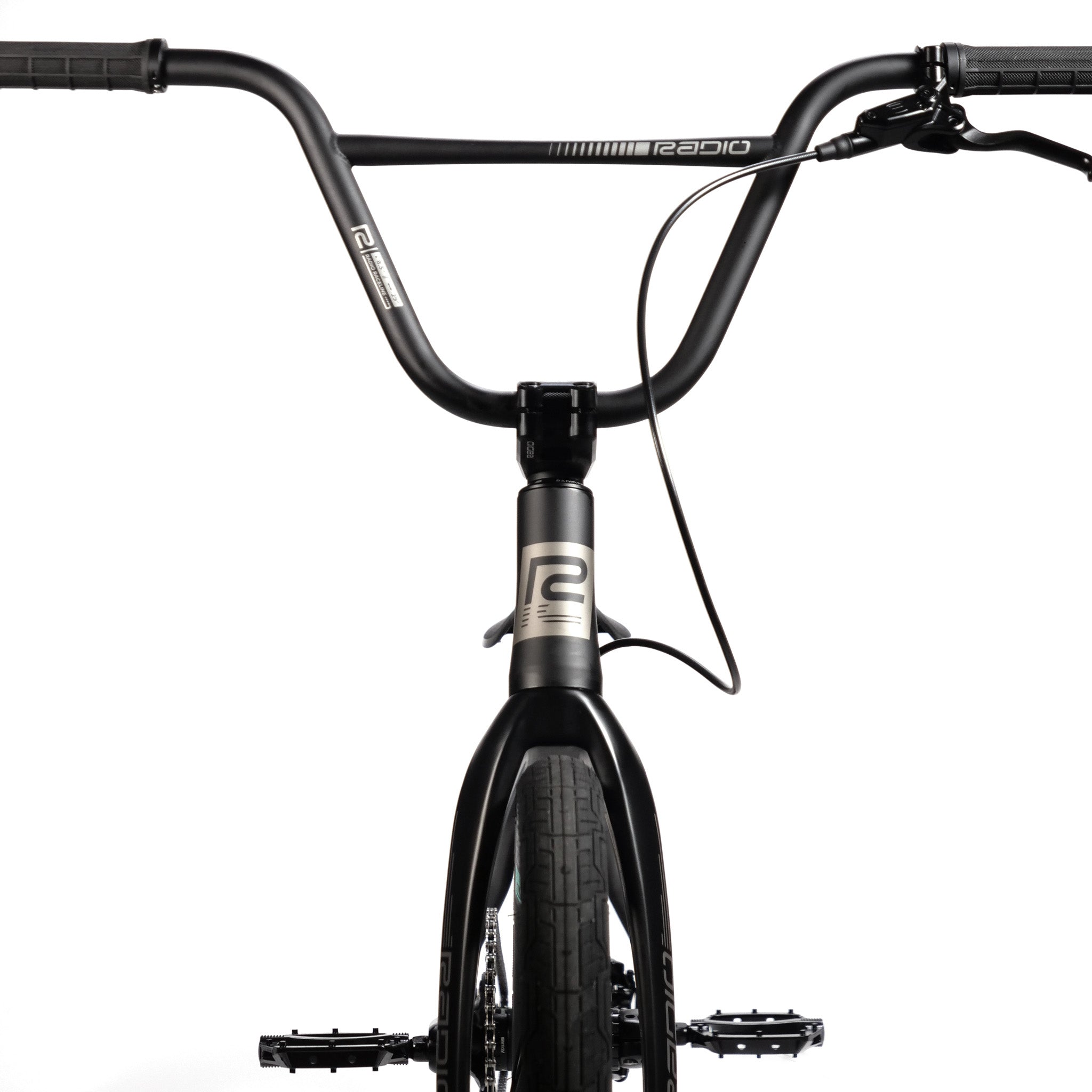

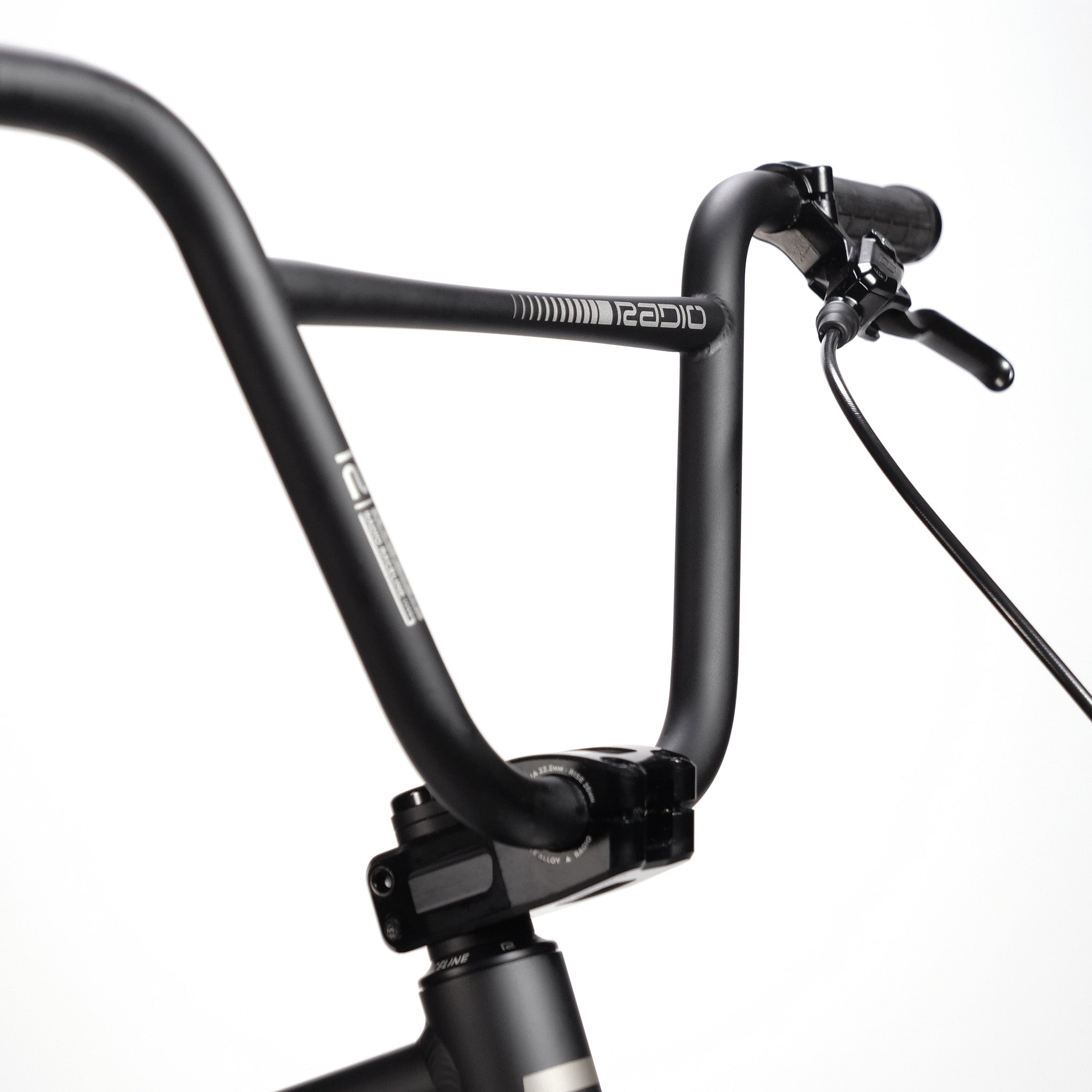

  • HANDLEBAR: RADIO RACELINE "NEON PRO 7.5 / 8 / 8.5" hydroformed bar, multiple butted & heattreated crmo
  • GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

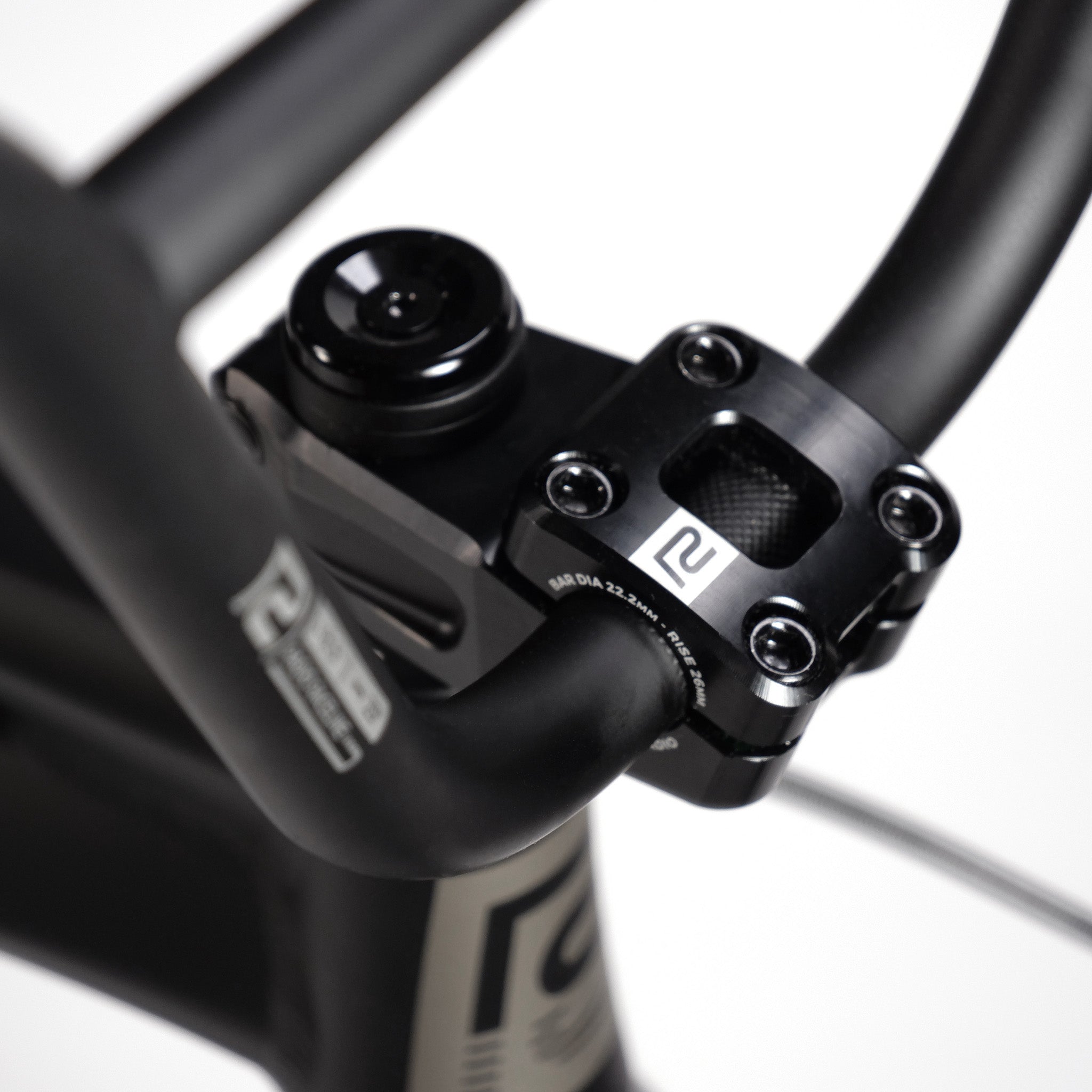

  • STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
  • HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"

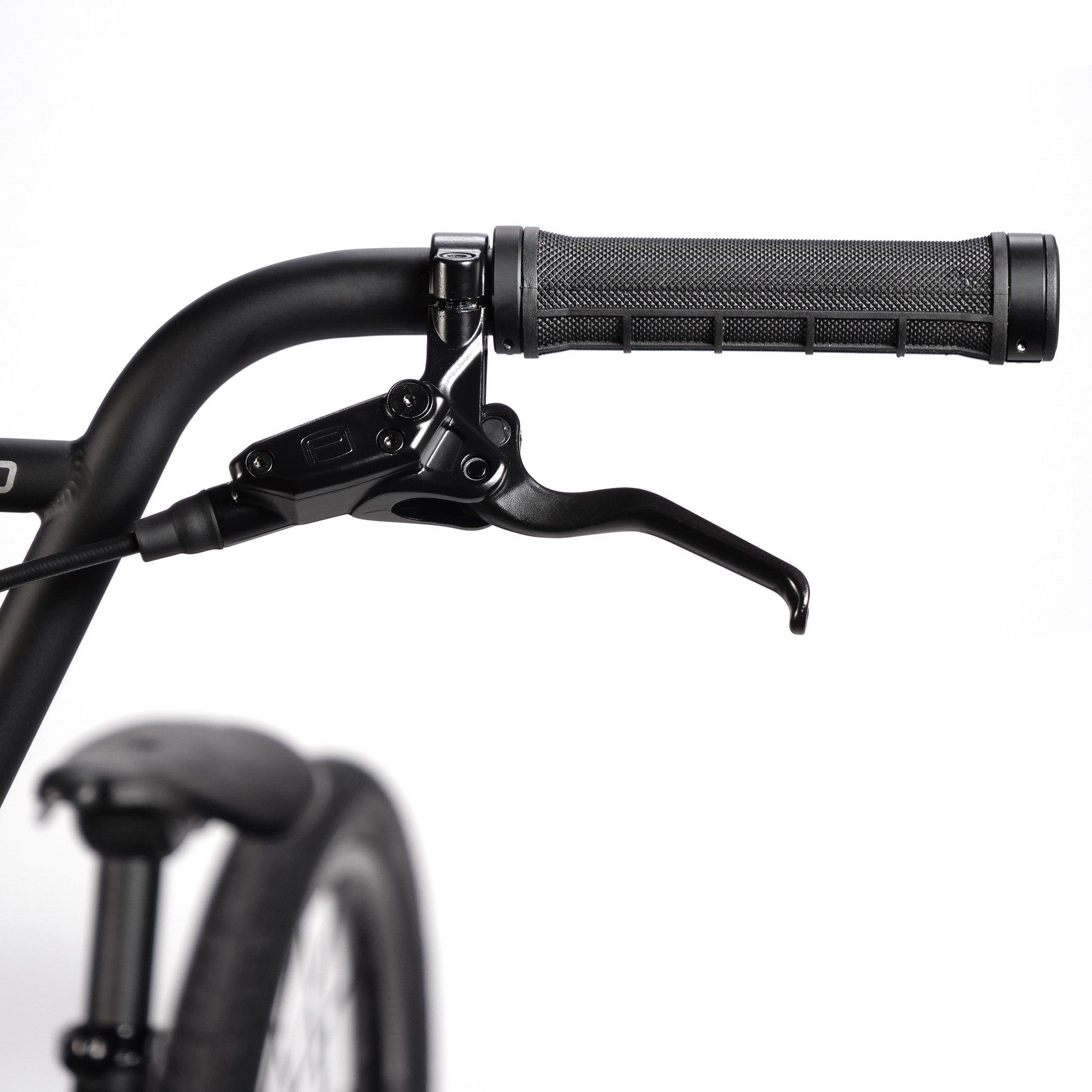

  • BRAKE LEVER: PROMAX "F1" 2 finger lever for hydraulic disc brake rear
  • BRAKE: PROMAX "F1" hydraulic disc brake, 120mm rotor, rear, flatmount

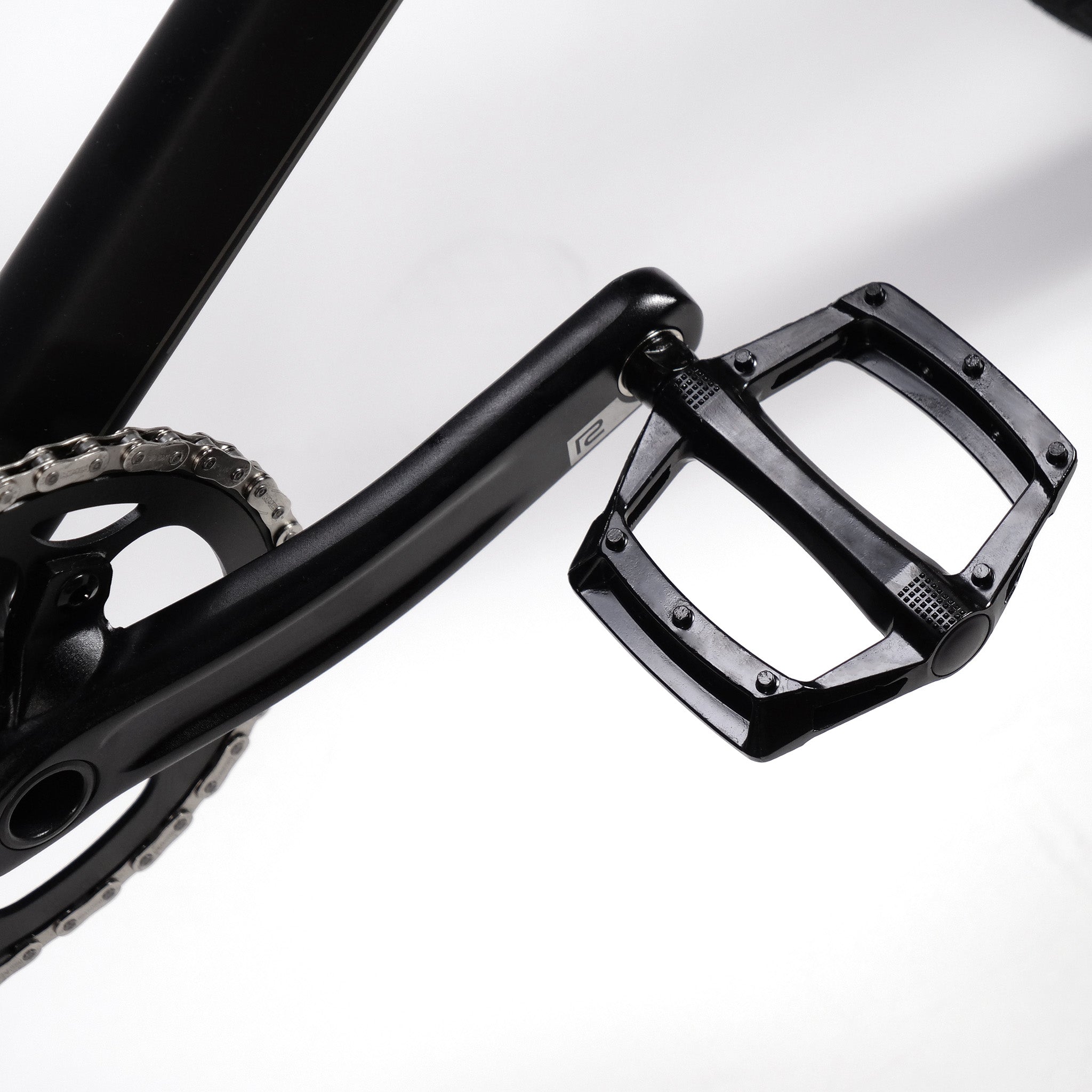

  • CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
  • BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
  • PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
  • CHAIN: KMC "Z1eHX" chain, 1/2" x 3/32"
  • SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 43T / 44T, alloy
  • DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

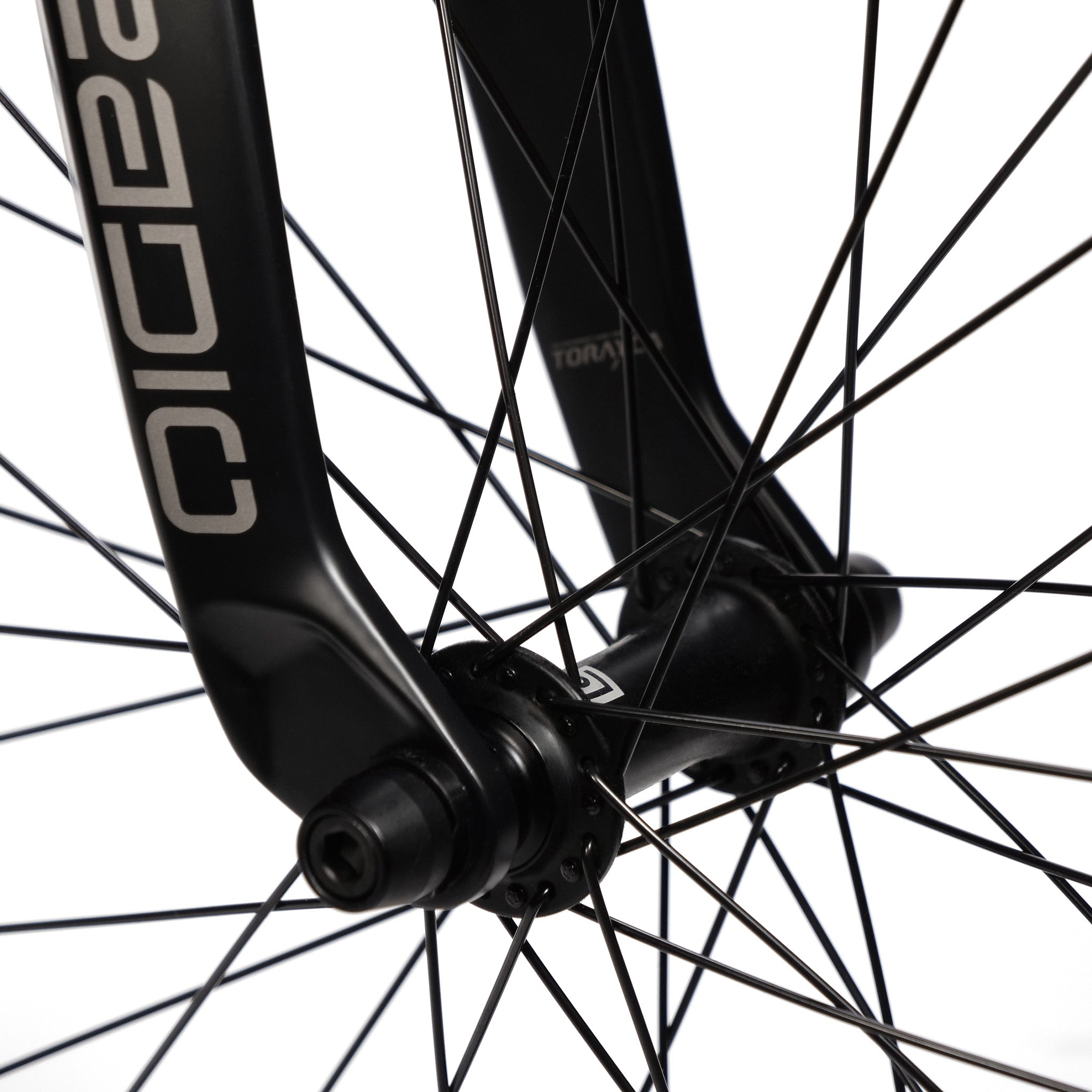

  • FRONT HUB: RADIO RACELINE "TURBINE" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle
  • REAR HUB: RADIO RACELINE "TURBINE" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
  • FRONT RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
  • REAR RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy

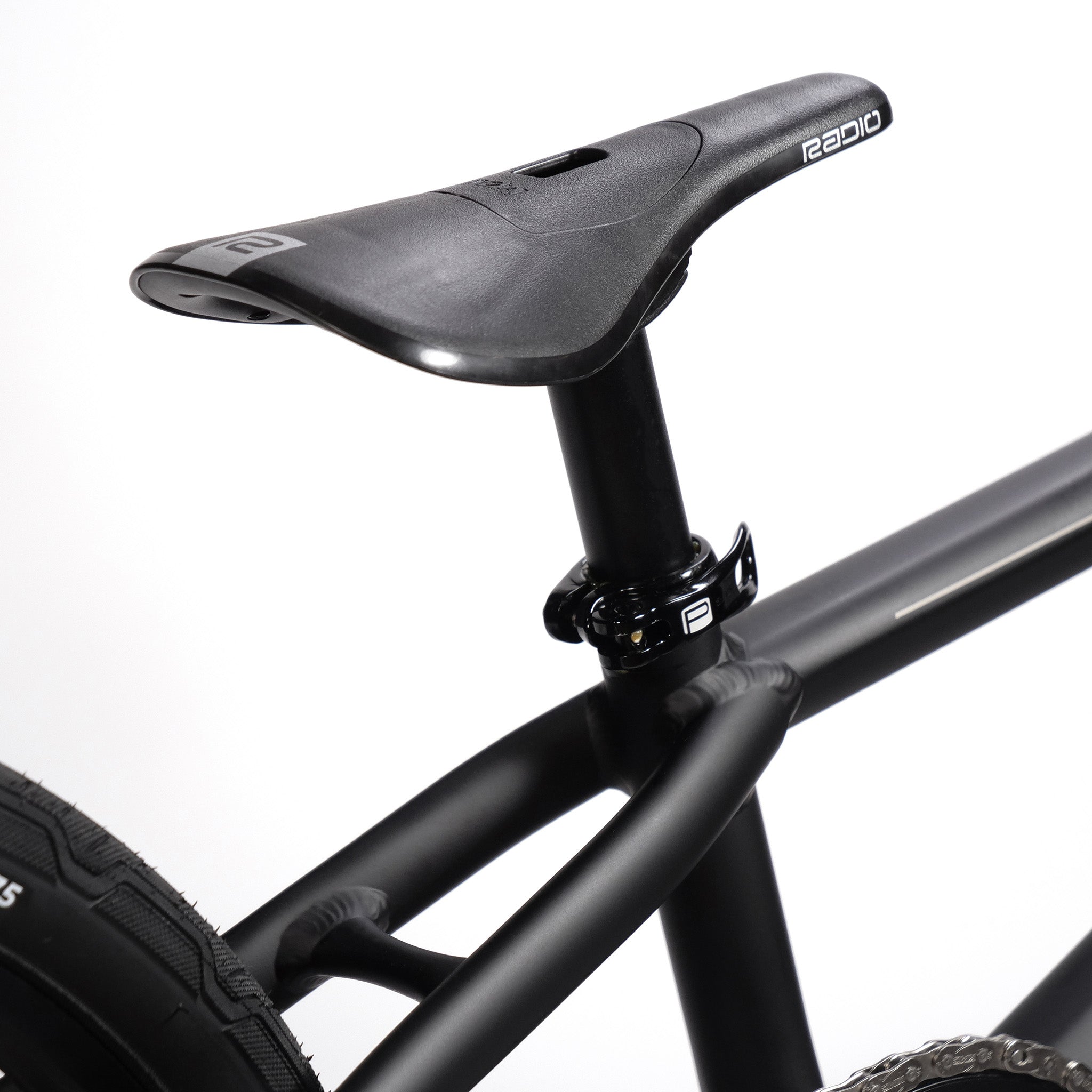

  • SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
  • SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
  • SEAT CLAMP: RADIO RACELINE "XENON" seat clamp, quick-release, alloy
  • TIRES: RADIO RACELINE "OXYGEN" tires, foldable, tubeless ready, front: 20" x 1.95" and rear: 20" x 1.75"

Weight
L: 9.2kg / 20.28lbs
XL: 9.4kg / 20.74lbs
XXL: 9.5kg / 20.9lbs



Frame Geometry:

Top Tube Length 20.9" / 21.25" / 21.75"
Chain Stay Length 14.25" / 14.85" / 15.25"
Head Tube Angle 74°
Seat Tube Angle 71°
Bottom Bracket Height  11.6"



Handlebar Geometry:

Rise 7.5" / 8" / 8.5"
Width 28" / 28.5" / 29"
Backsweep 6.5°
Upsweep 2.5°
