FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts, with int. Chaintensioners

FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset

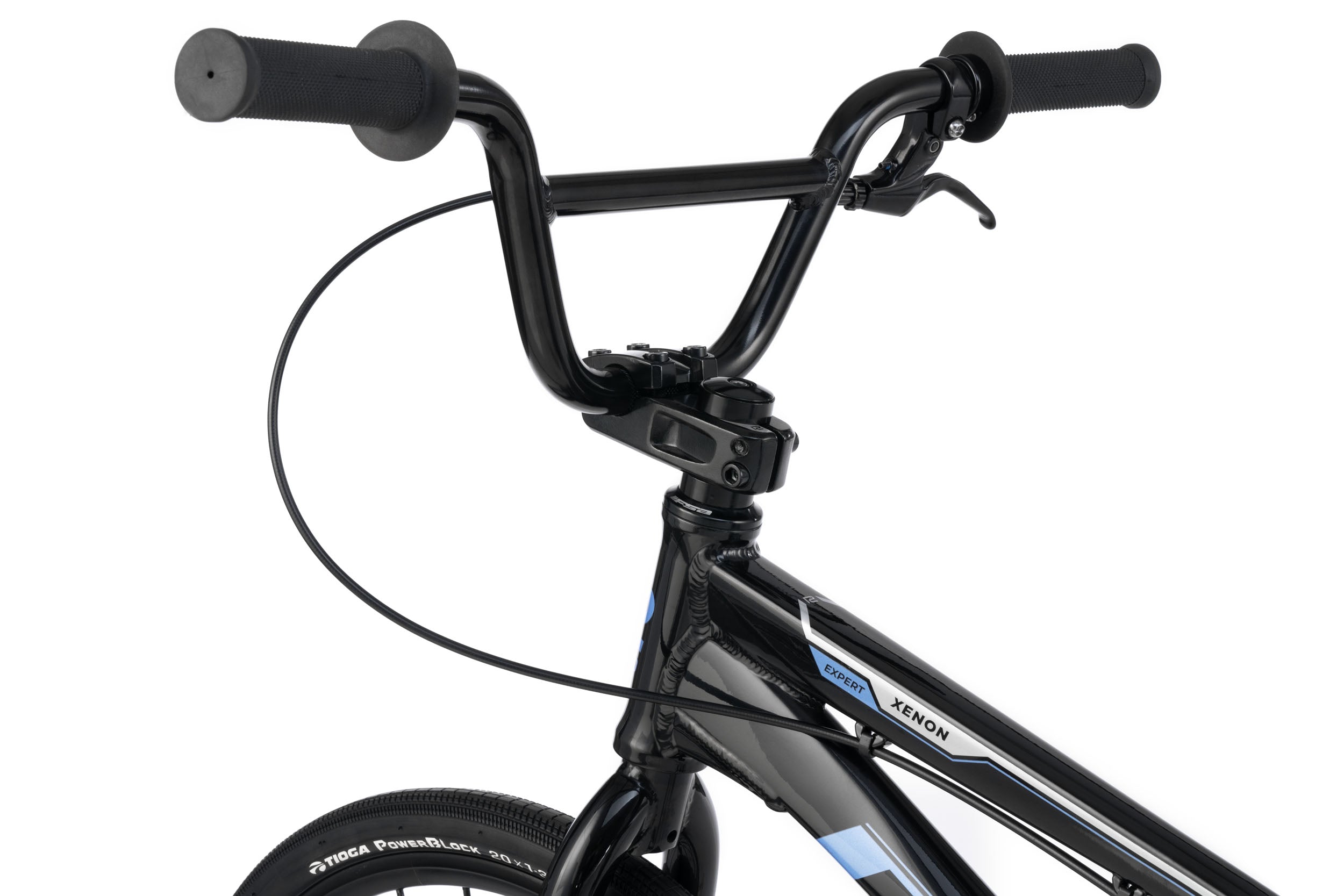

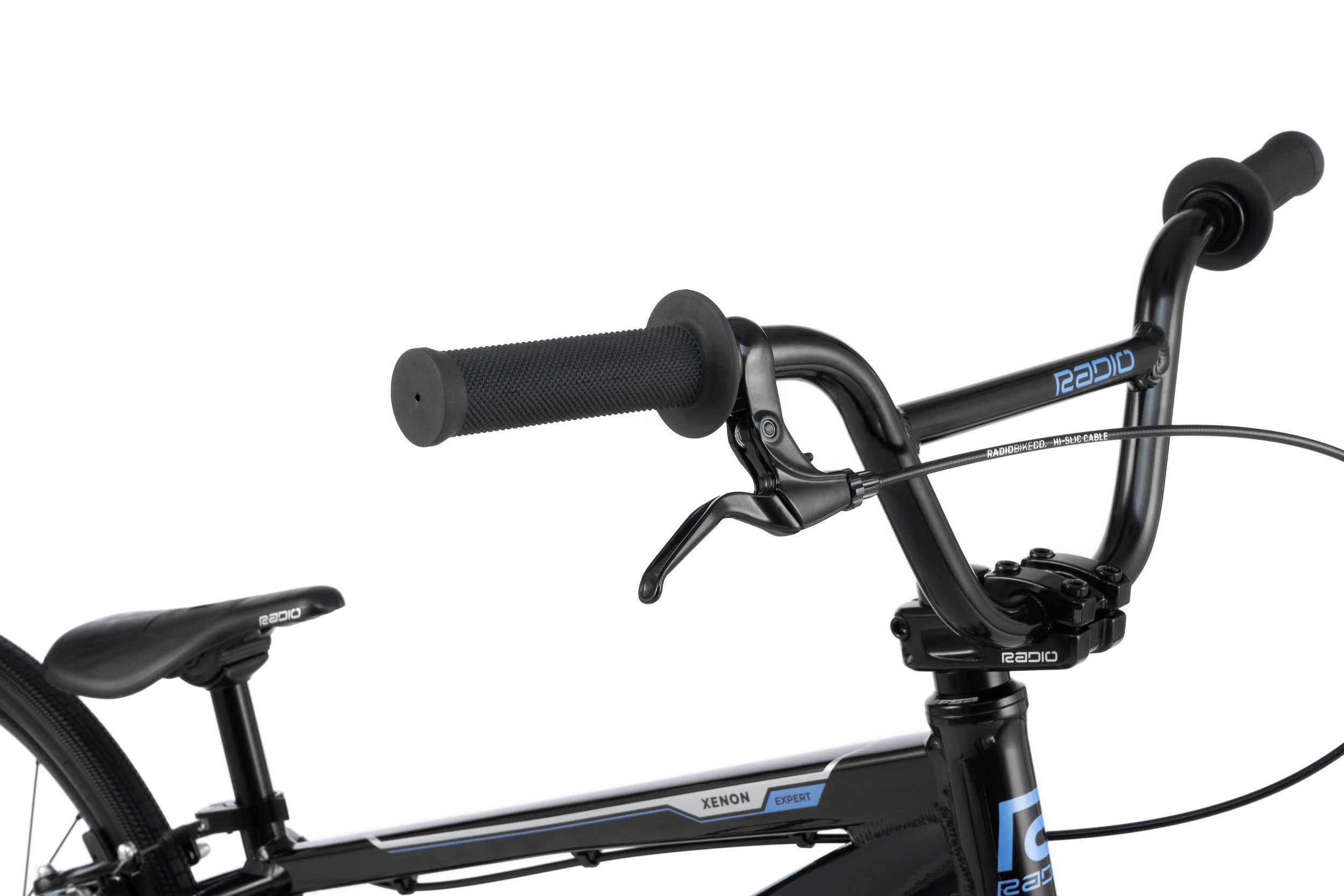

BARS: 6061-T6 alloy bar

GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 132mm length

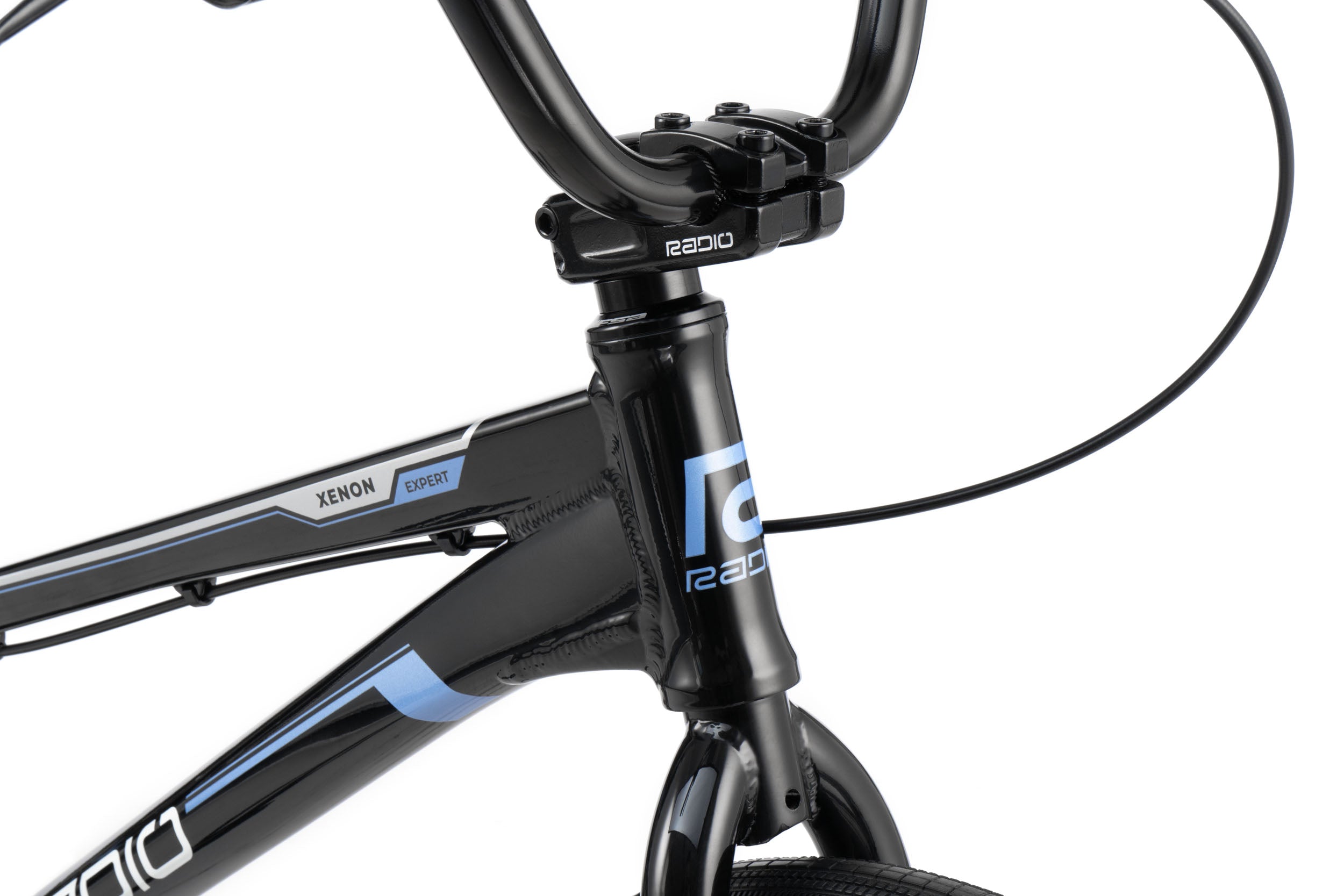

STEM: RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy

HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"

LEVER: PROMAX "XL-378" brake lever, rear

BRAKES: PROMAX "MV-85" brake, rear

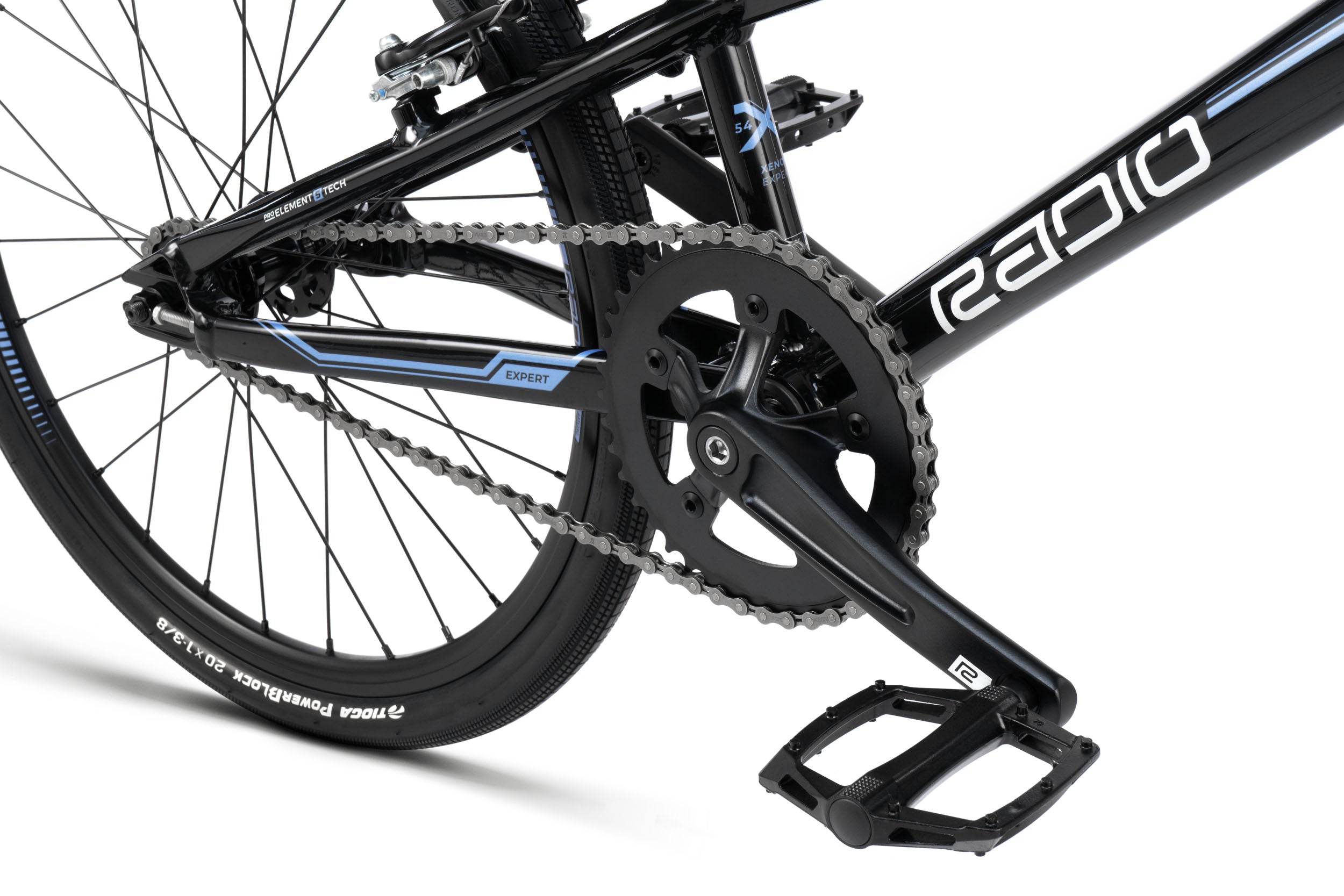

CRANKS: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 165mm length

BB: RADIO RACELINE bb set, BSA square taper, sealed

PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy

CHAIN: KMC "Z6" chain, 1/2" x 3/32"

SPROCKET: RADIO RACELINE sprocket, 42T, alloy

DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

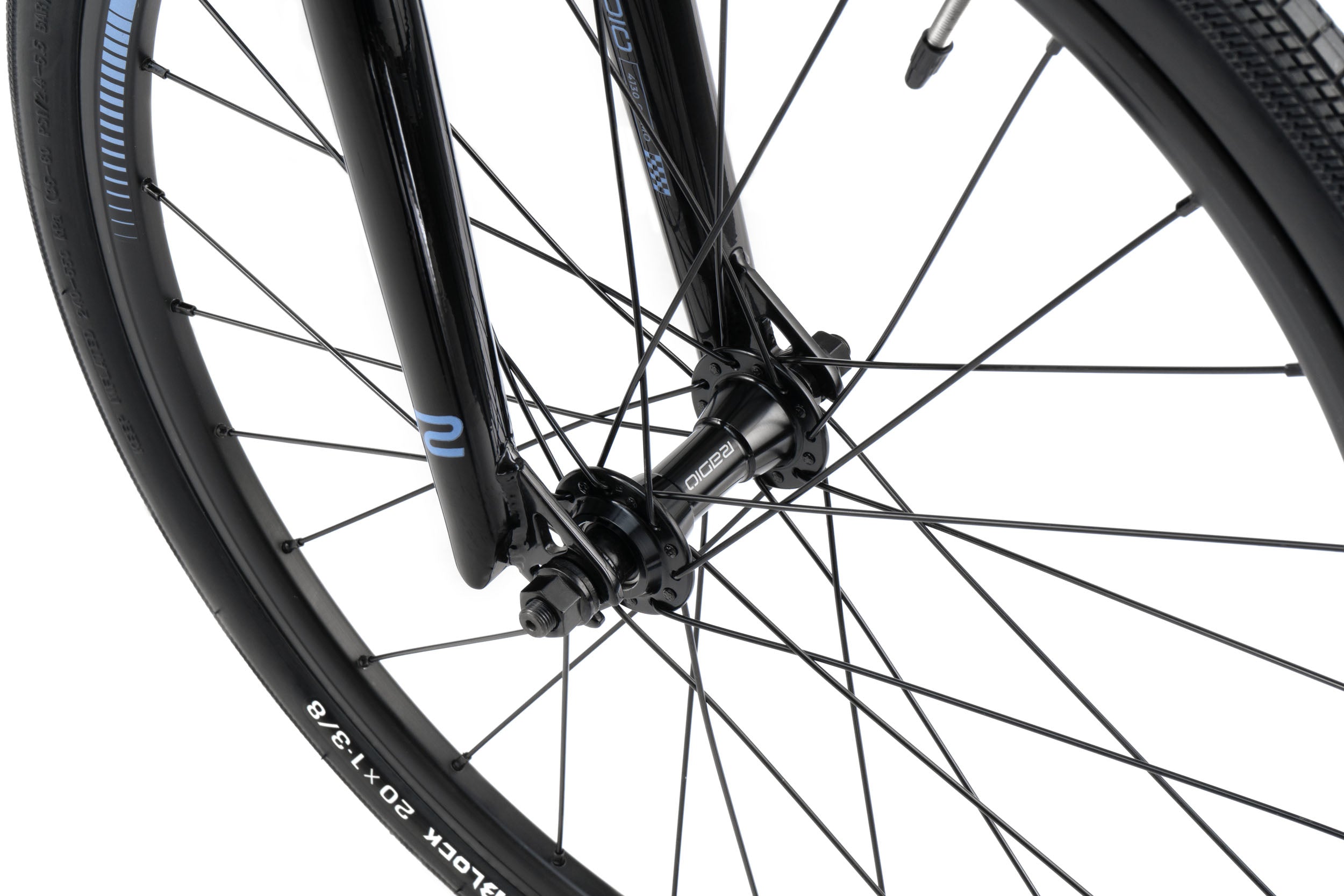

FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 28T, 3/8" crmo axle

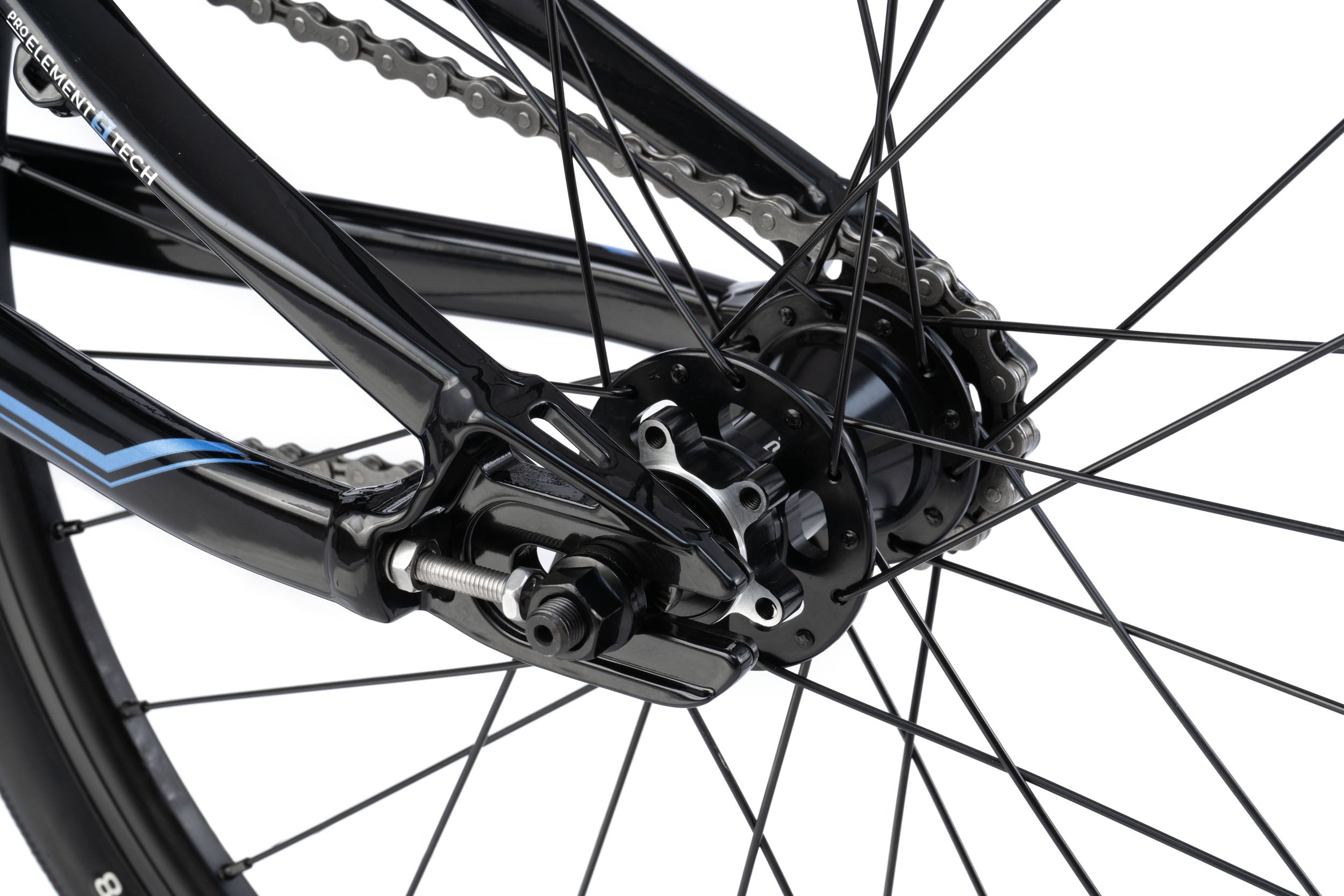

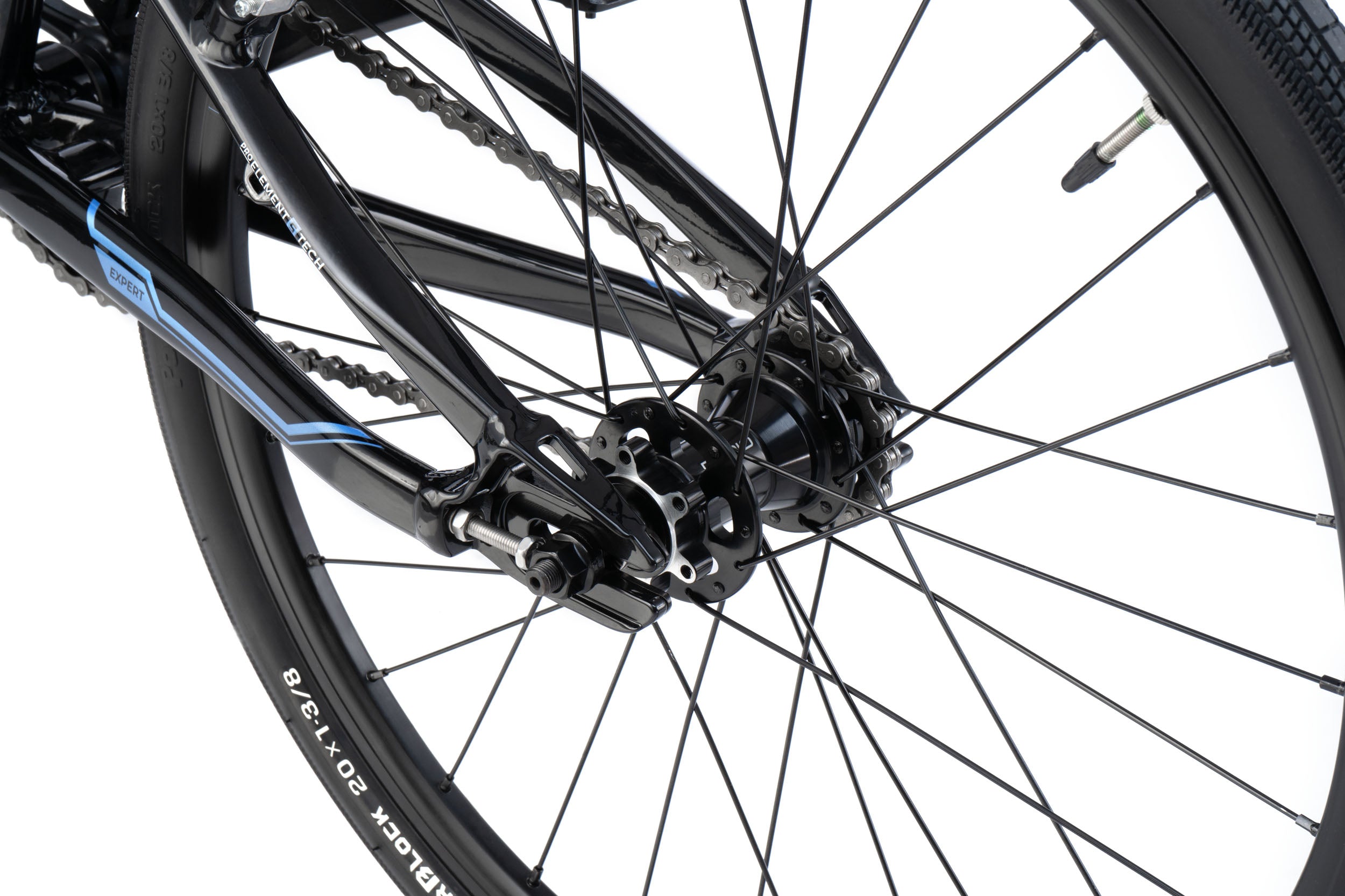

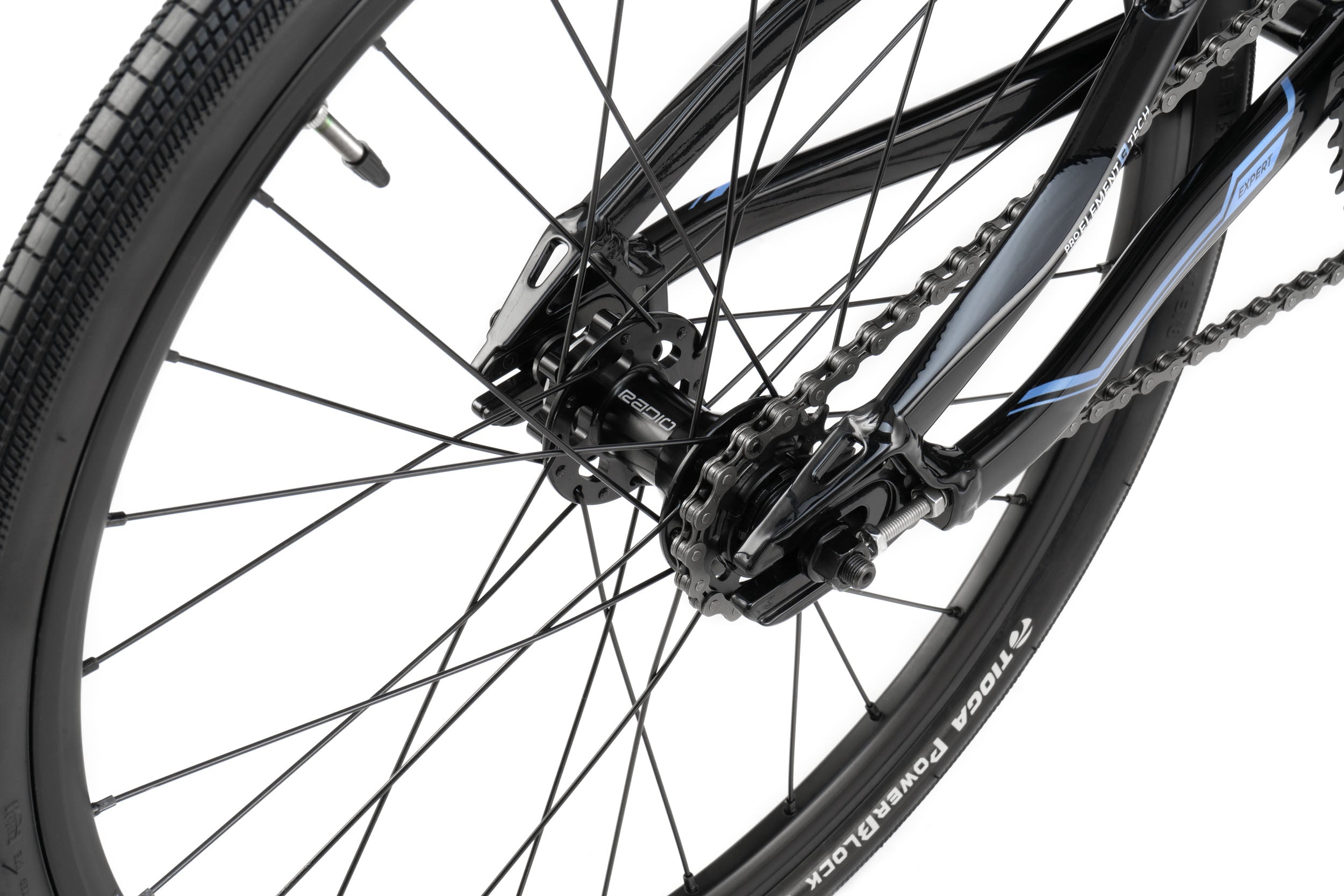

REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 28T, disc brake cassette, 3/8" crmo axle

RIMS: RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28H, alloy

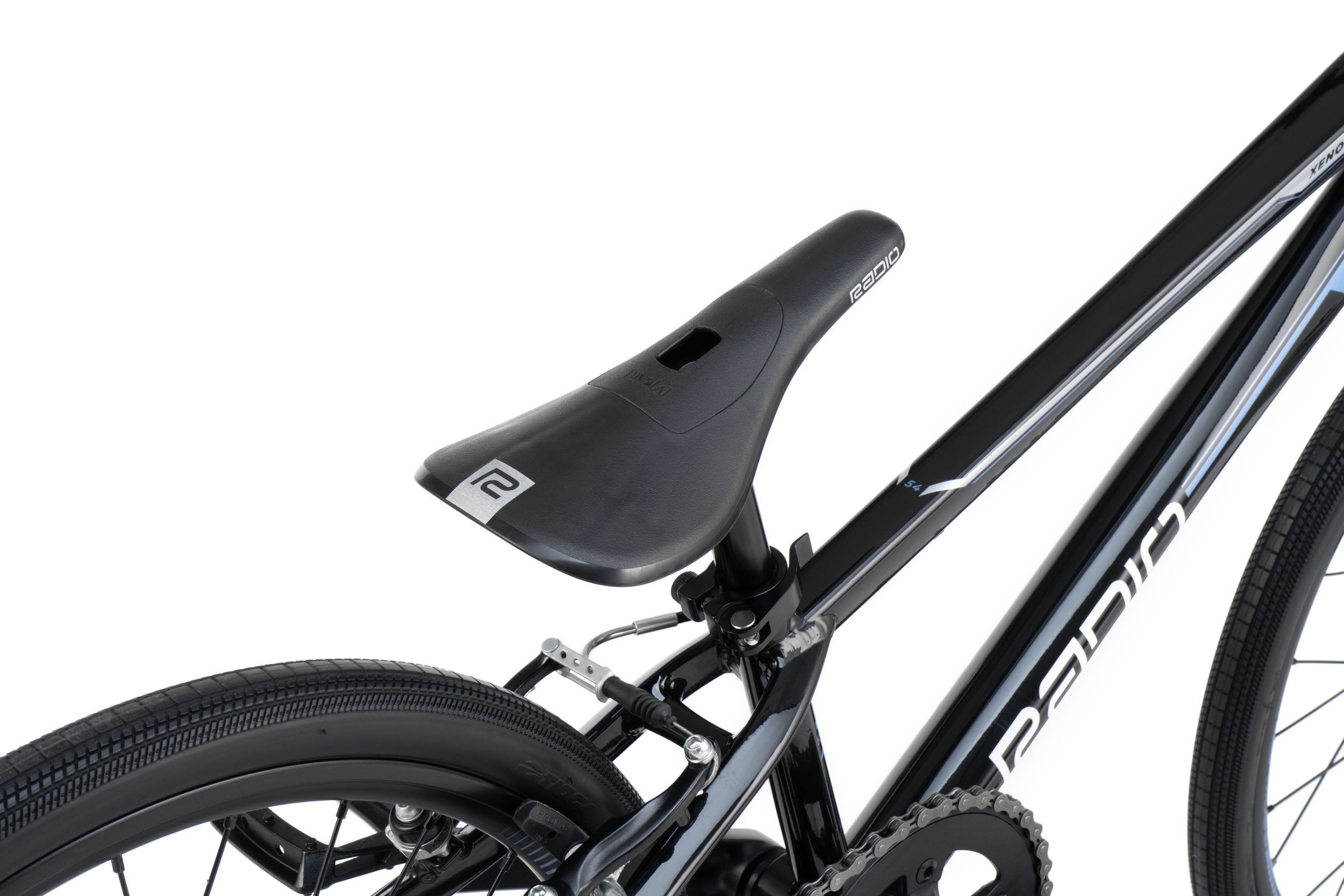

SEAT: RADIO RACELINE "XENON" pivotal seat, no padding

SEAT POST: RADIO RACELINE pivotal seat post, 22.2mm, alloy

SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy

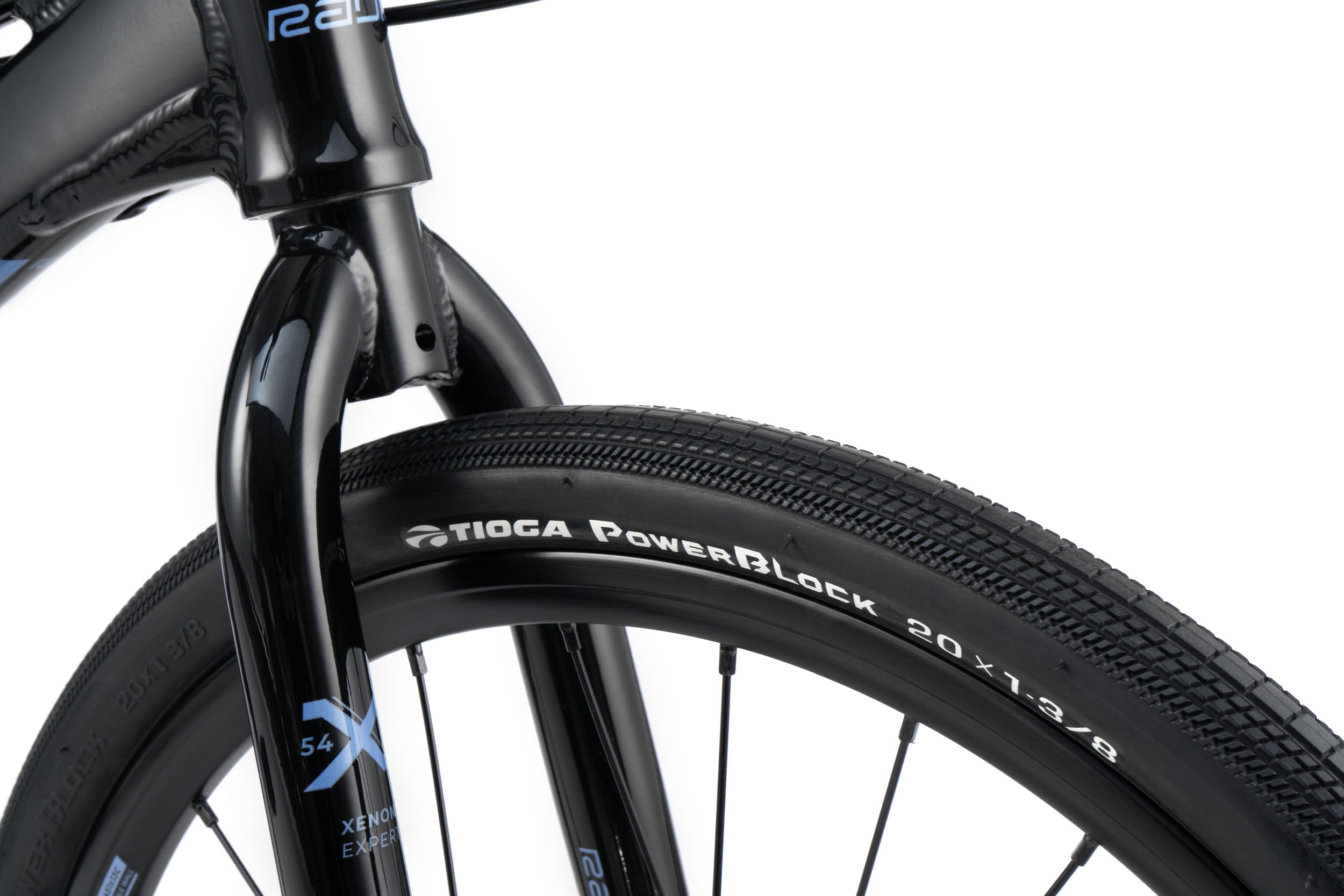

TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-3/8"

TOP TUBE LENGTH: 19.5”

CHAIN STAY LENGTH: 13.6”

BOTTOM BRACKET HEIGHT: 10.8”

HEAD TUBE ANGLE: 73.5°

SEAT TUBE ANGLE: 71°

BAR RISE: 5.75”

BAR WIDTH: 24.4”

BACKSWEEP: 8°

UPSWEEP: 2°

WEIGHT: 8.19kg / 18.06lbs
