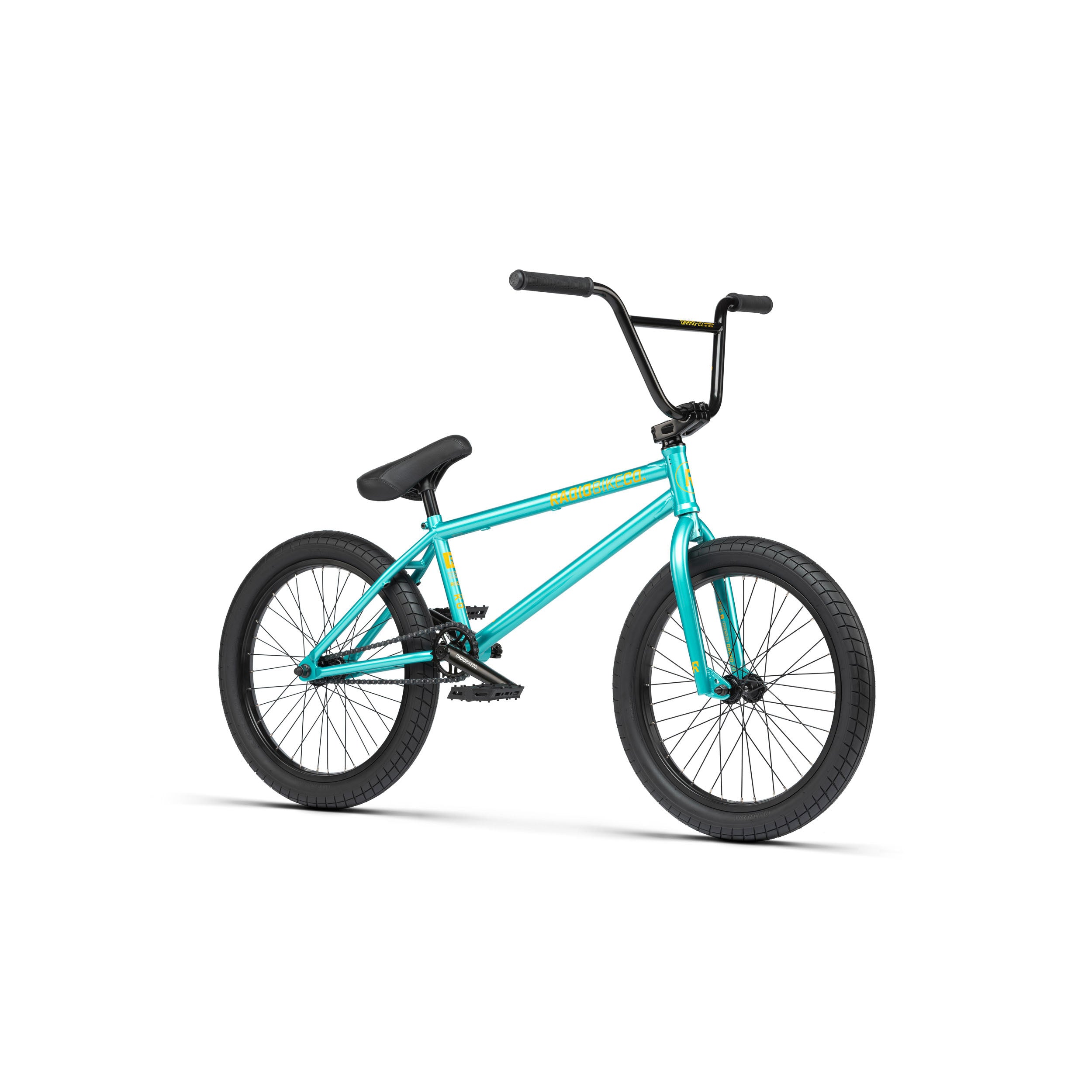

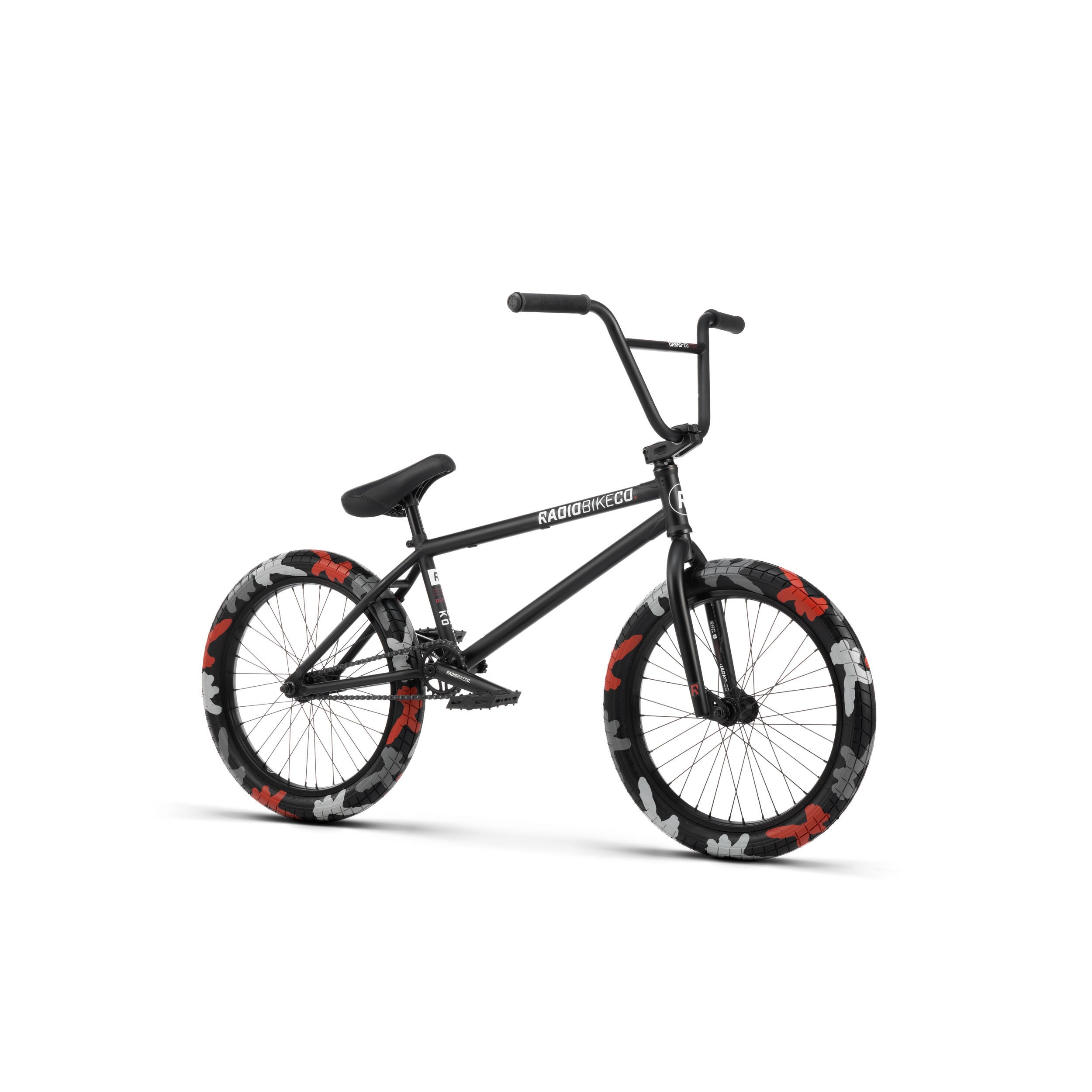

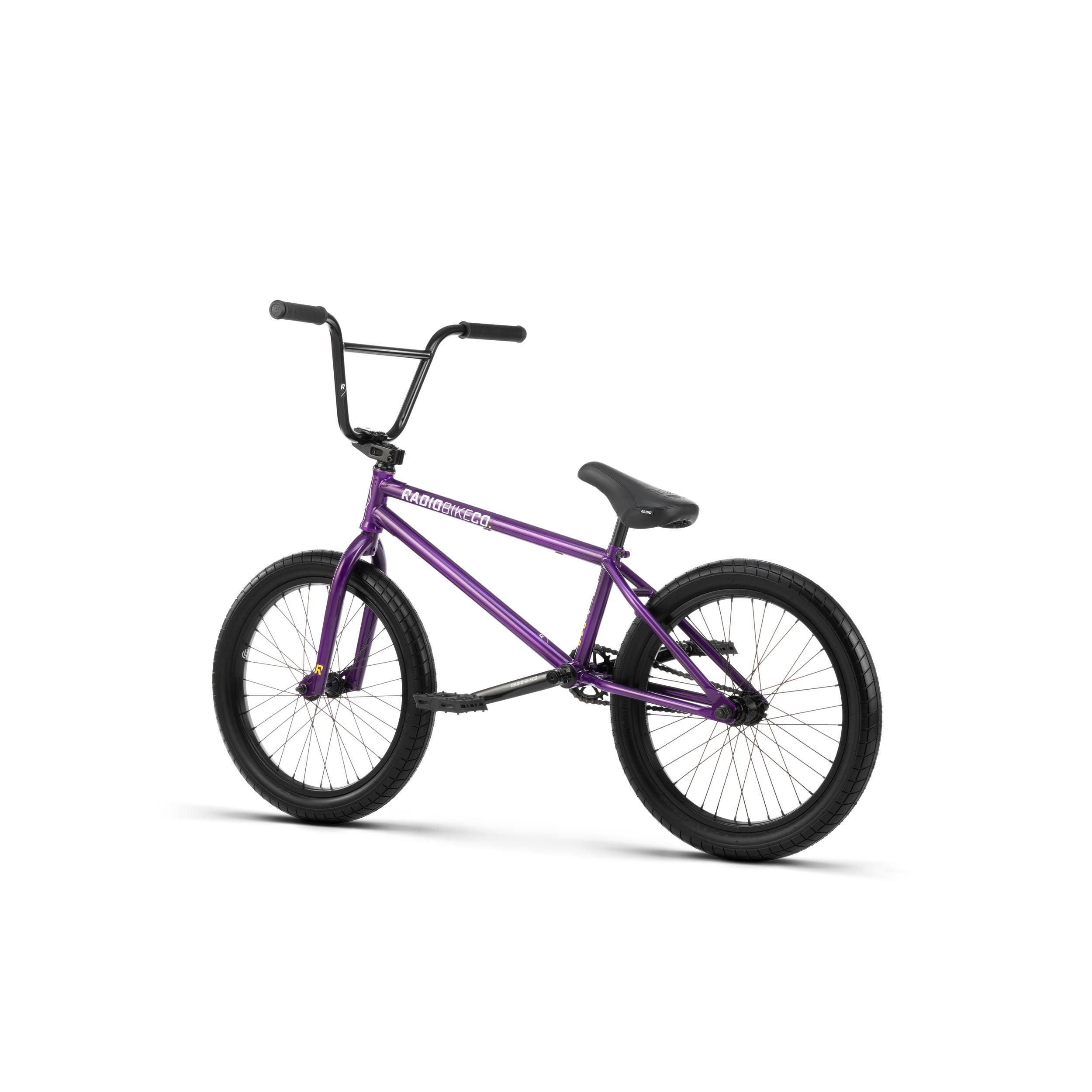

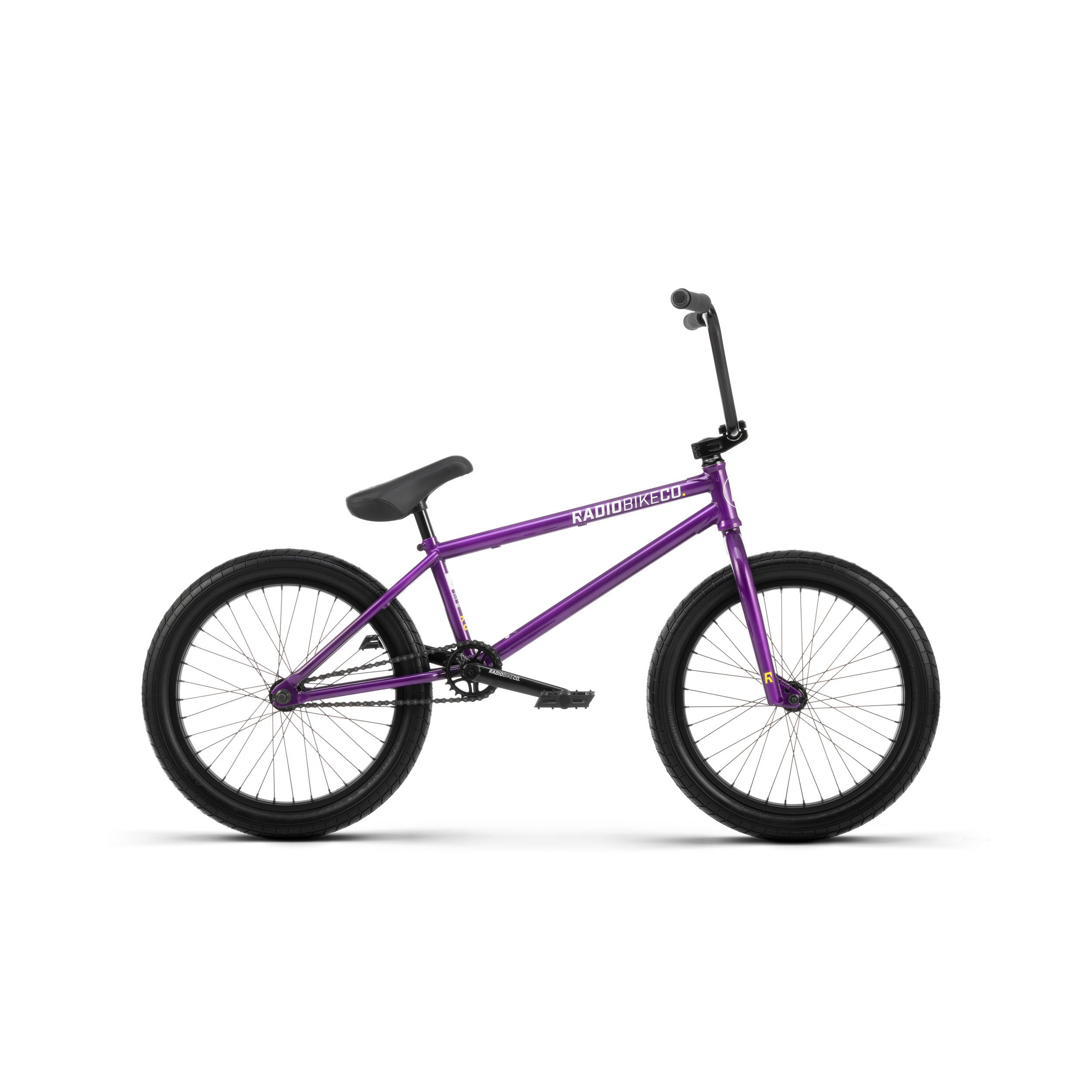

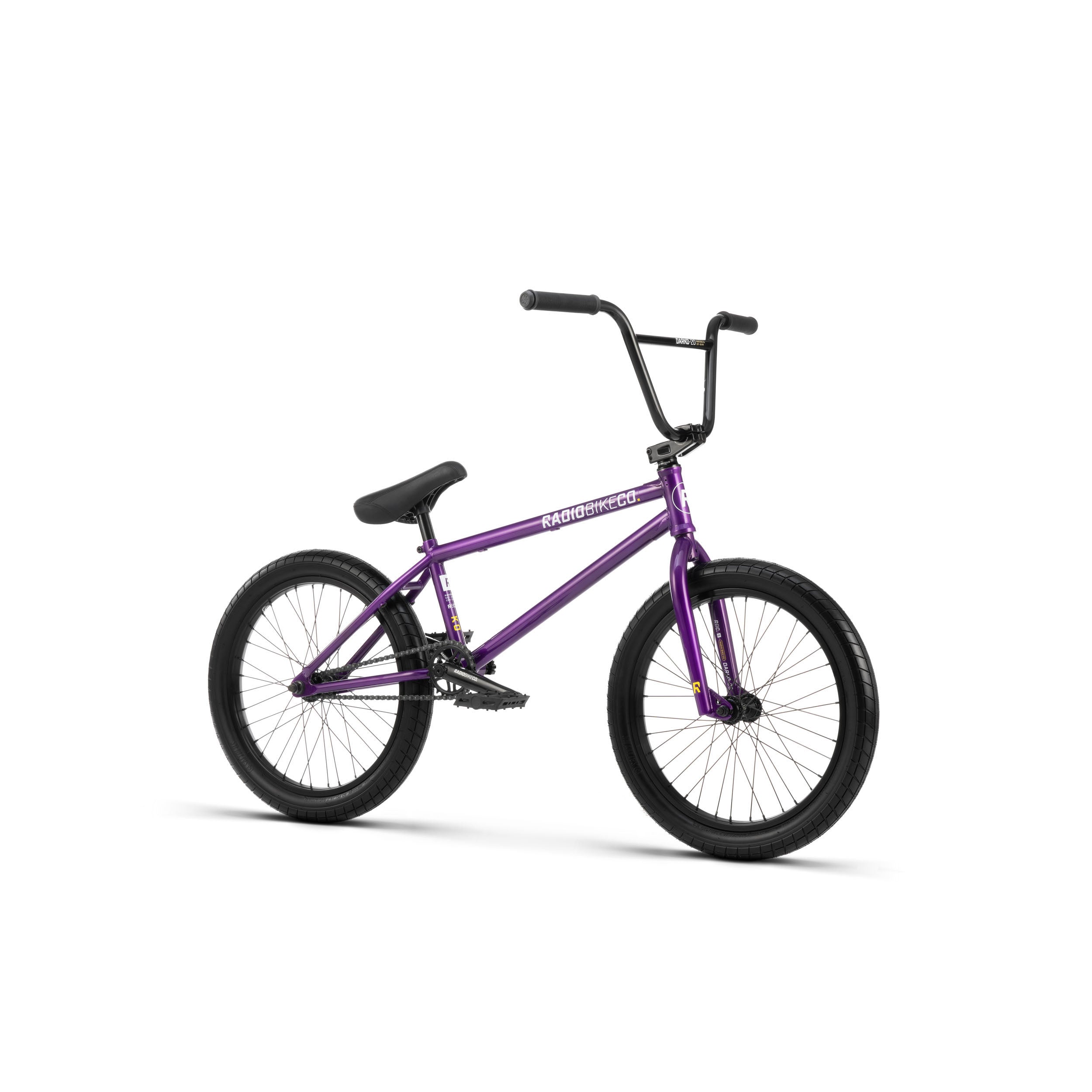

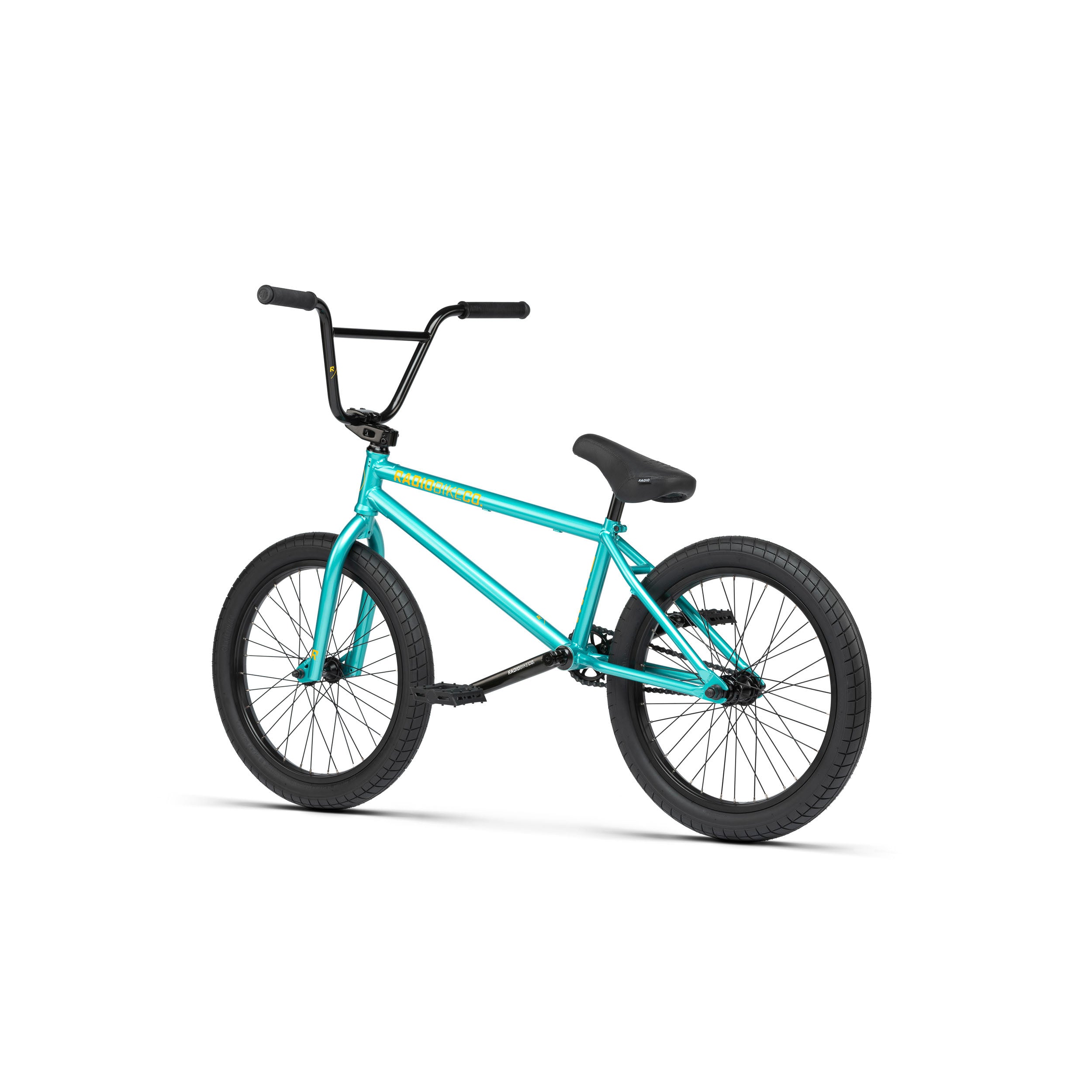

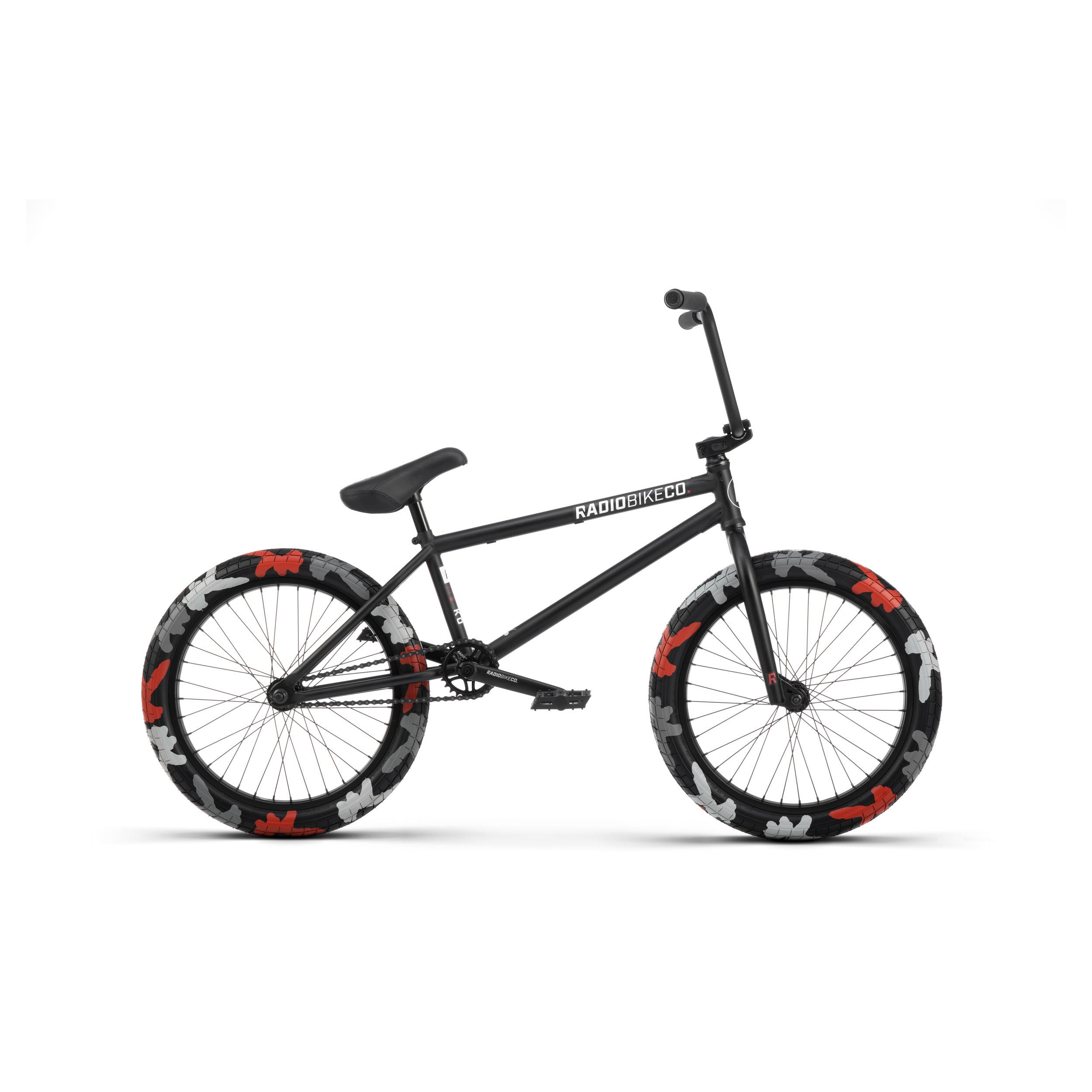

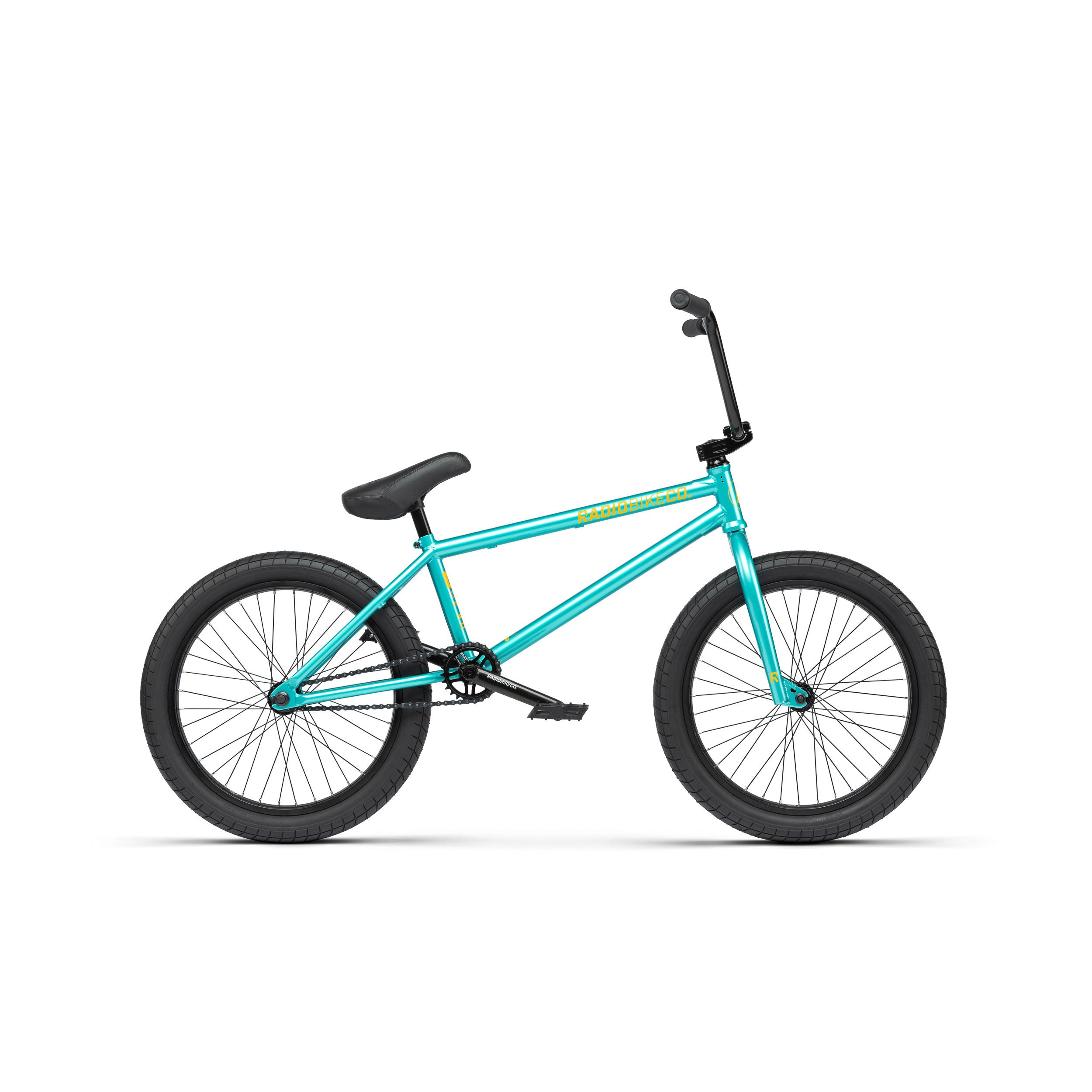

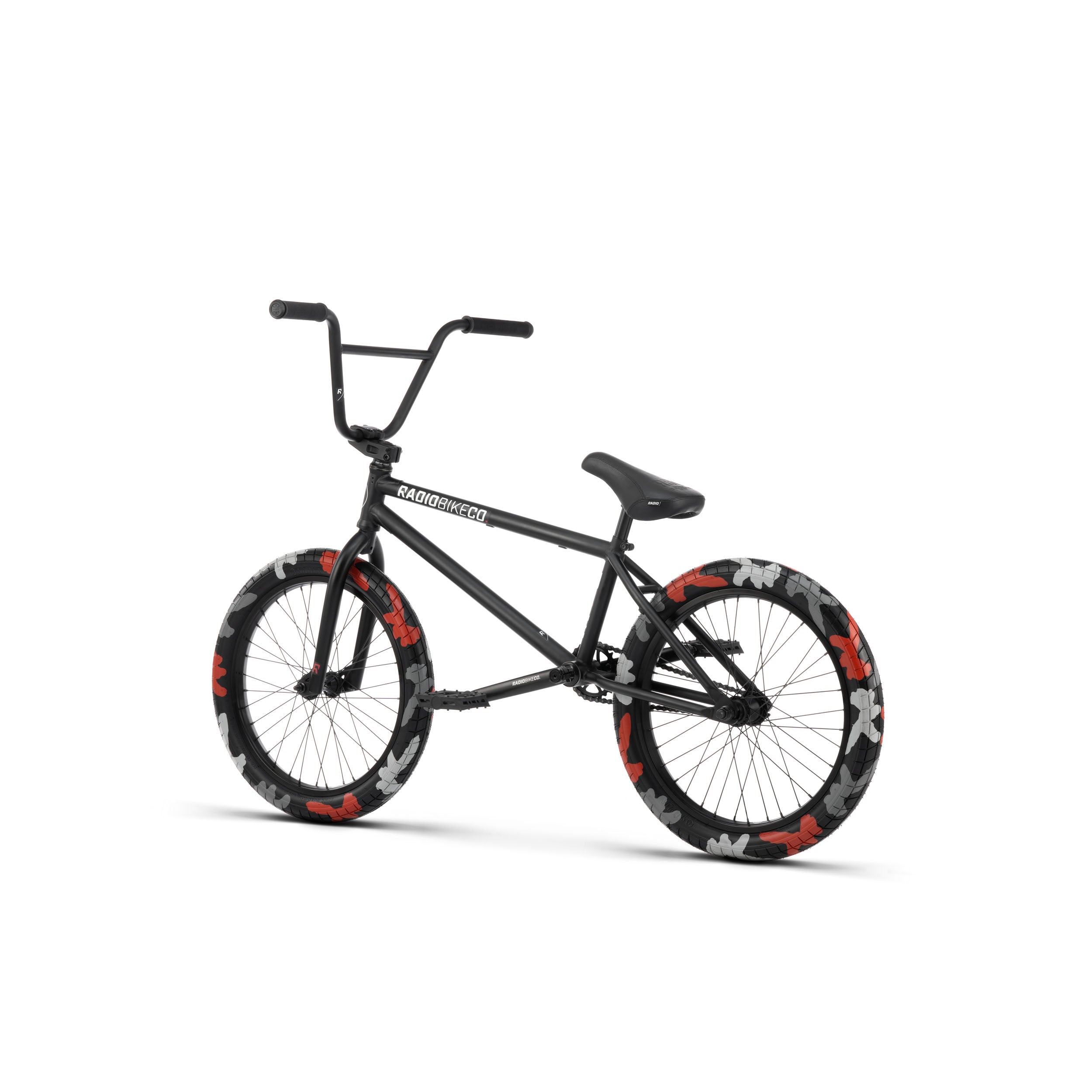

Darko Complete Bike
Available in a choice of 20.5” or 21” top tube lengths, the Darko is a well spec’d, and vibrant bike for the new-school street shredder. The frame comes with fully removable brake hardware and the bars use the flangeless RADIO XL grips giving the Darko a sleek and modern look. A fat combo seat, a shorter 13.2” chainstay and three radical colourways finish off this incredible bike built for the streets.

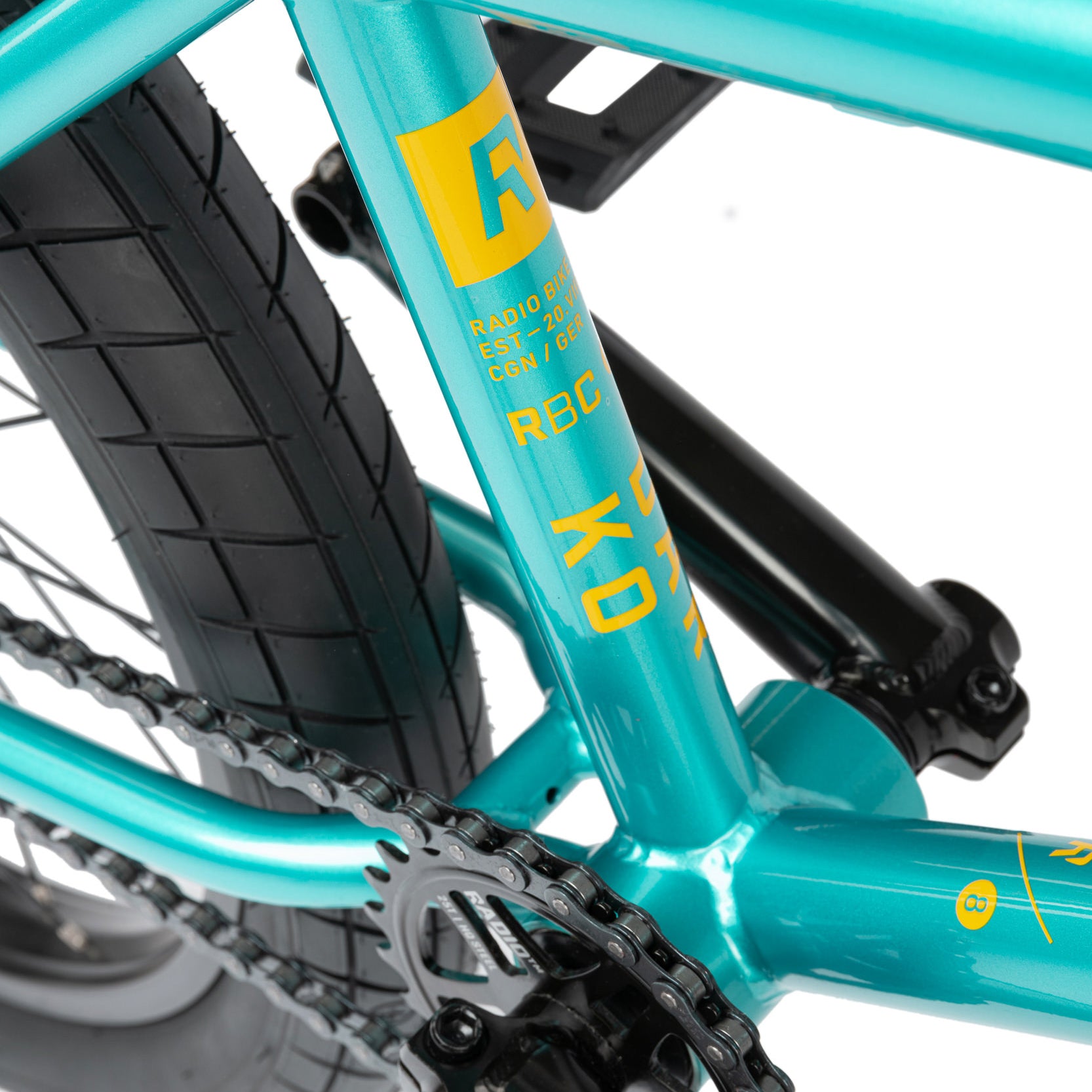

FRAME: RADIO "DARKO" frame, crmo top tube & down tube, 1020 hi-ten, removable brake mounts & guides
FORK: RADIO "AM" fork, 1020 hi-ten, crmo steerer, tapered legs

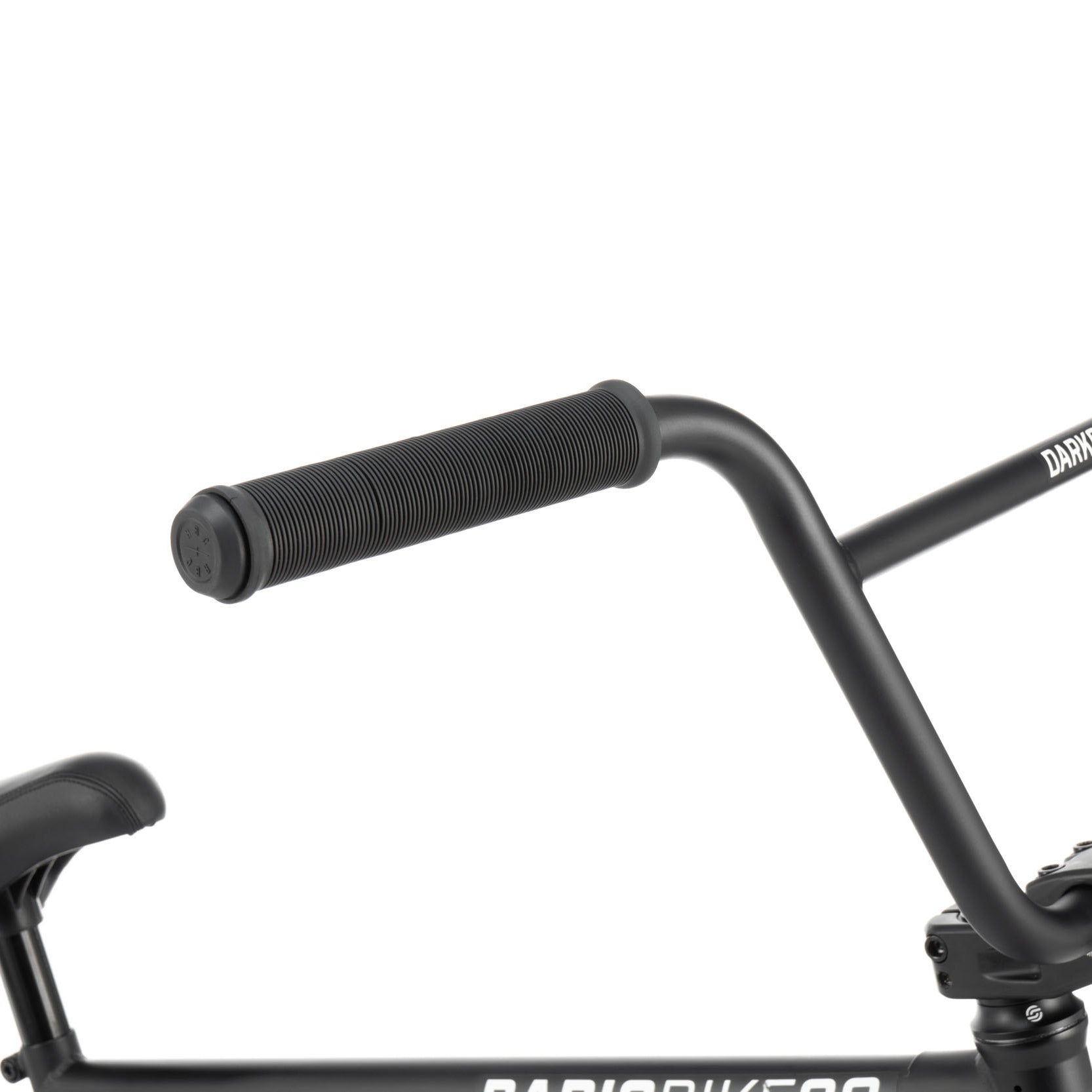

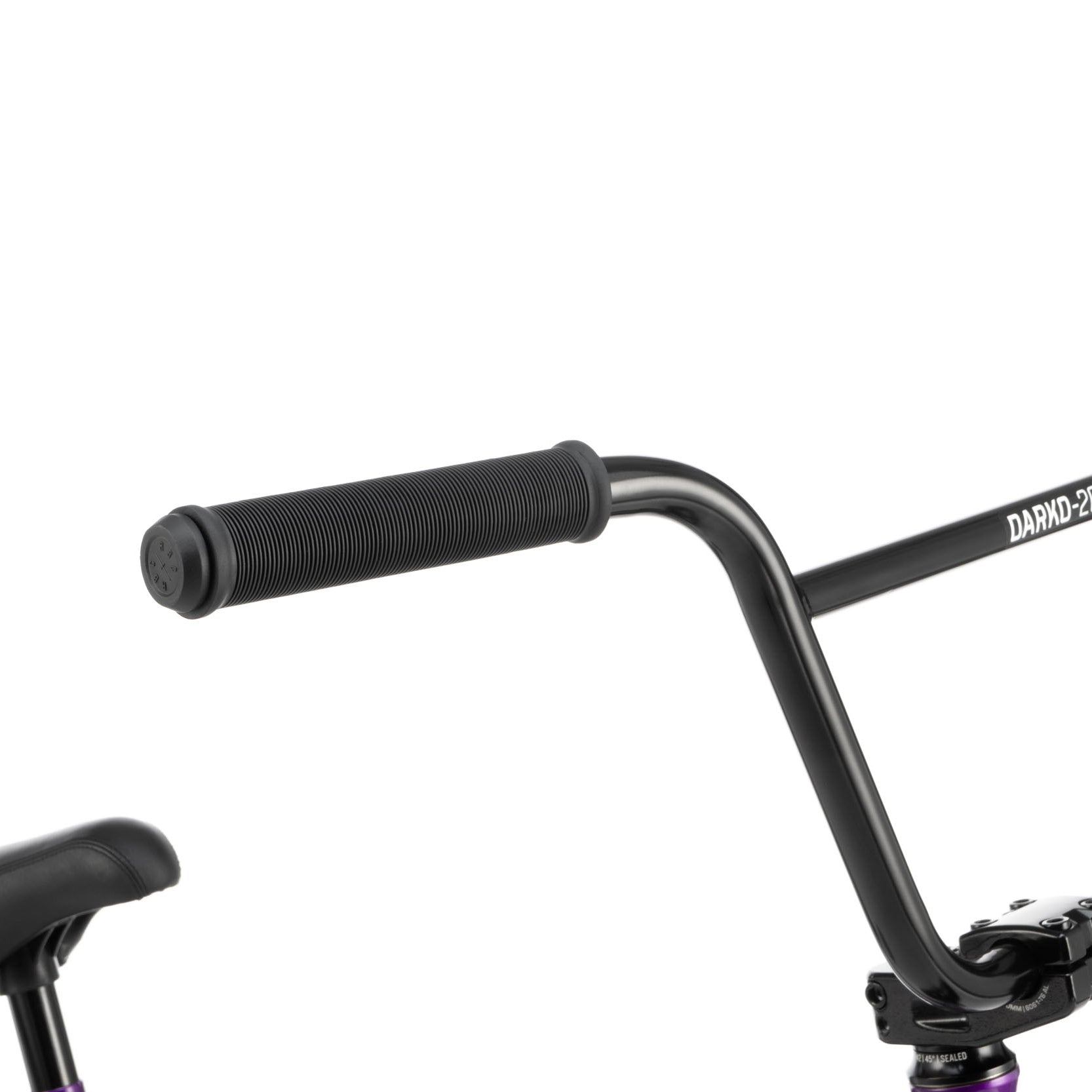

BARS: RADIO "DARKO" bar, 1020 hi-ten

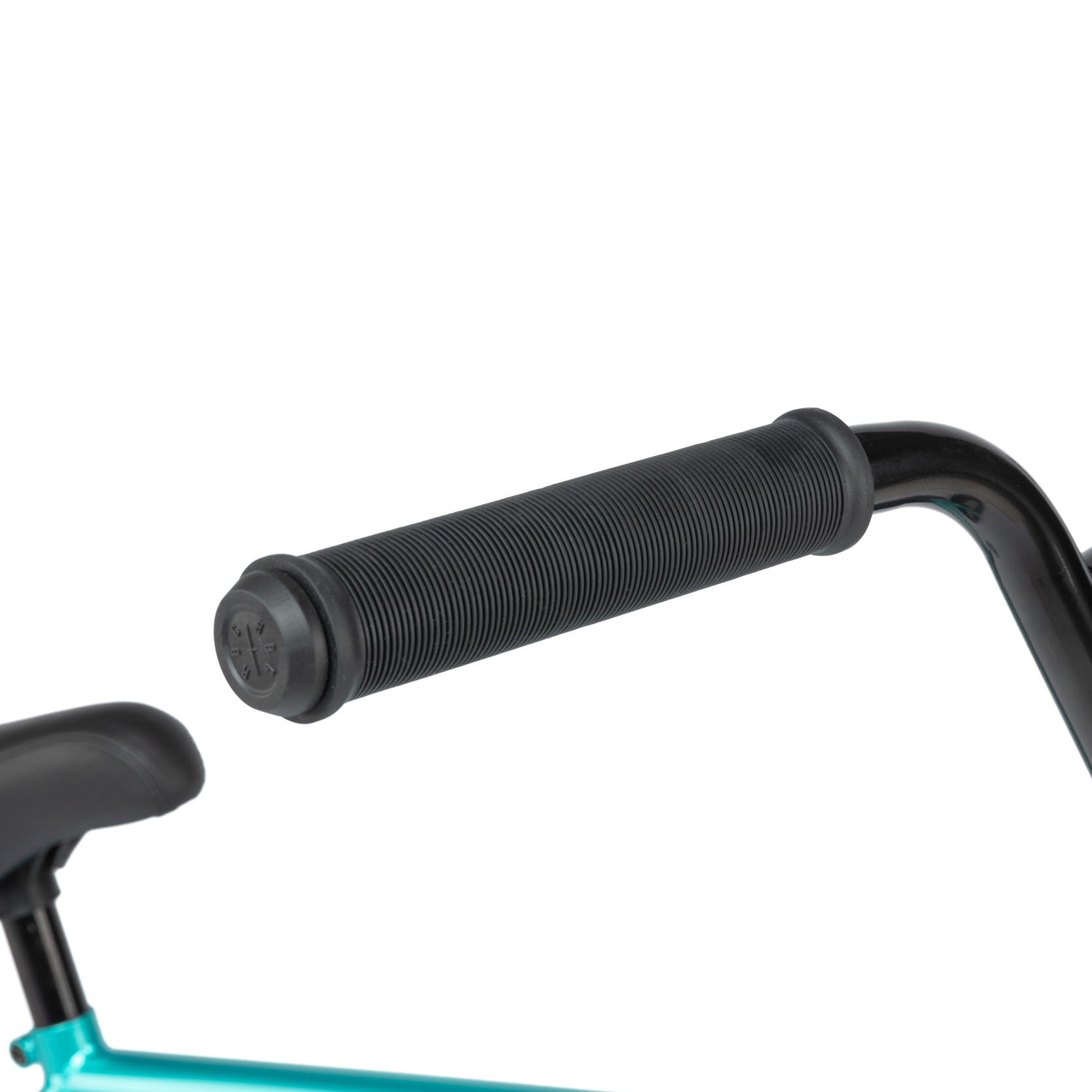

GRIPS: RADIO "AM XL" grips, 160mm

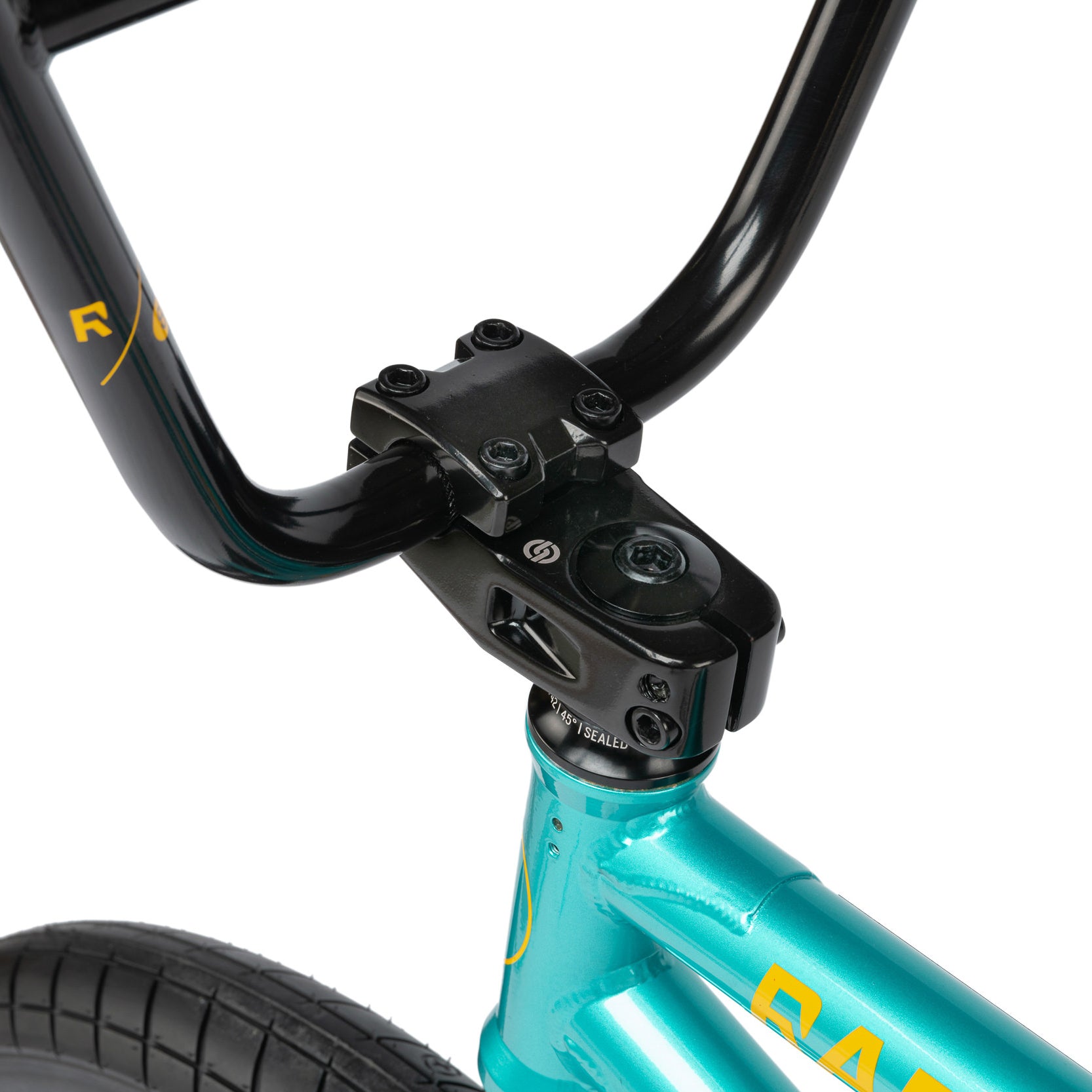

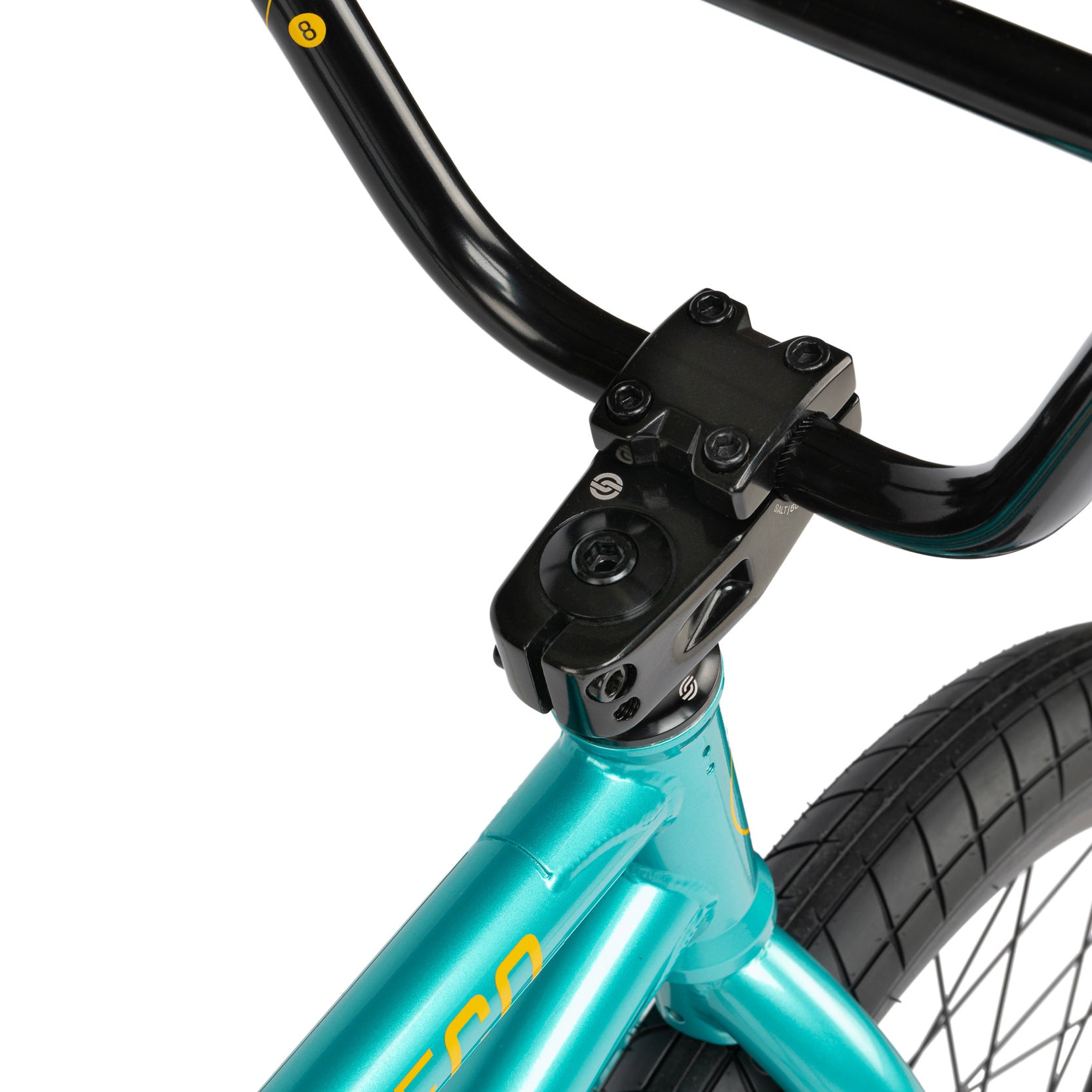

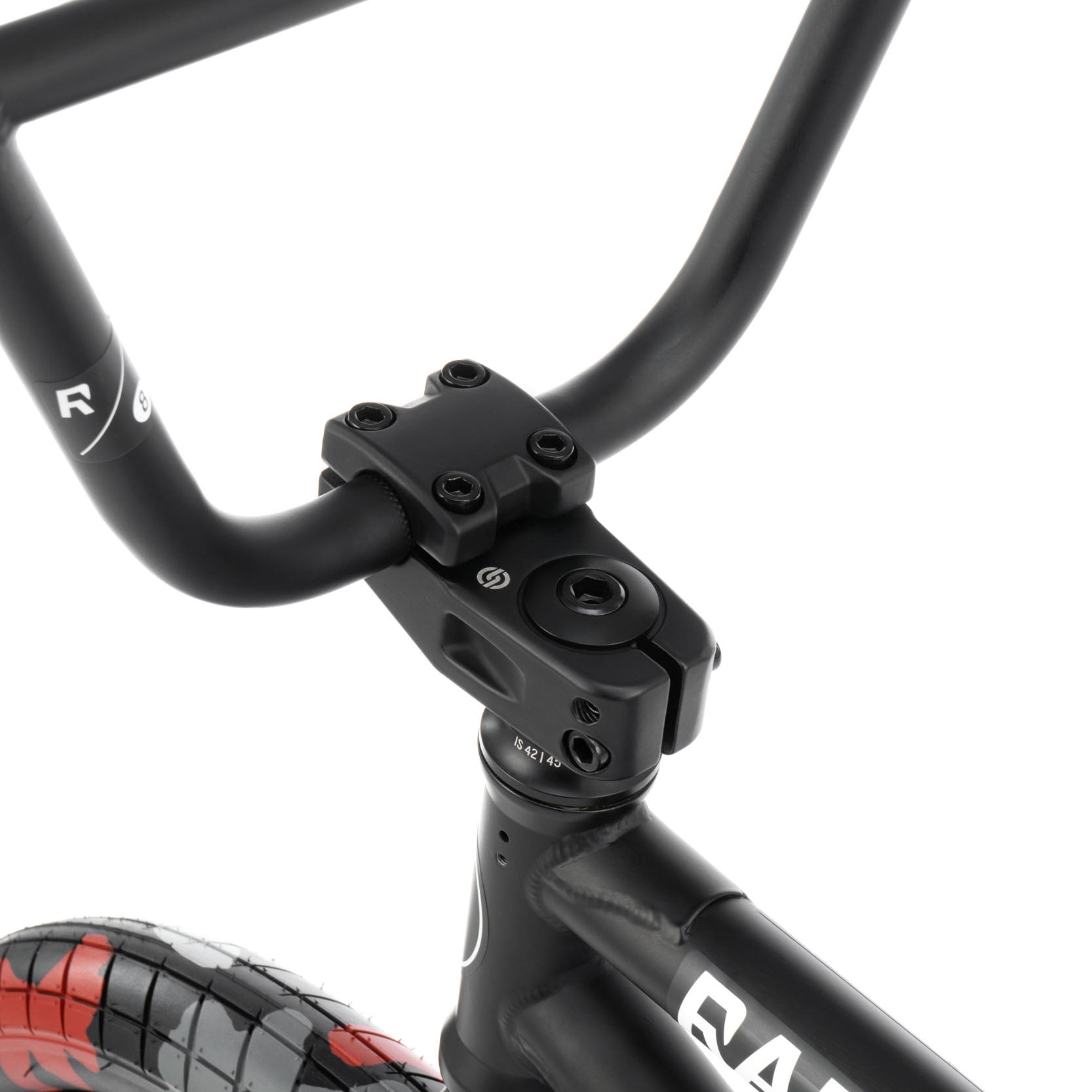

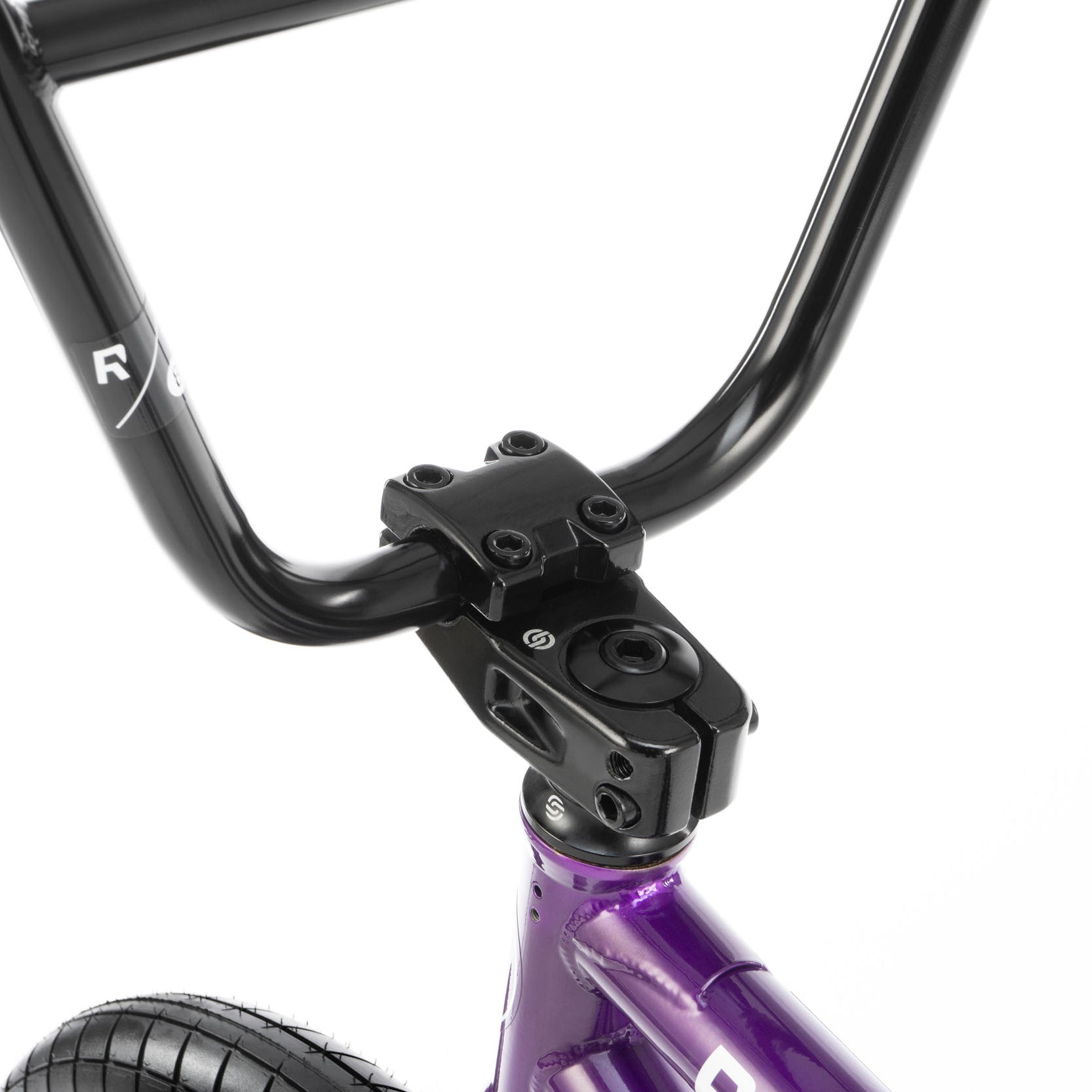

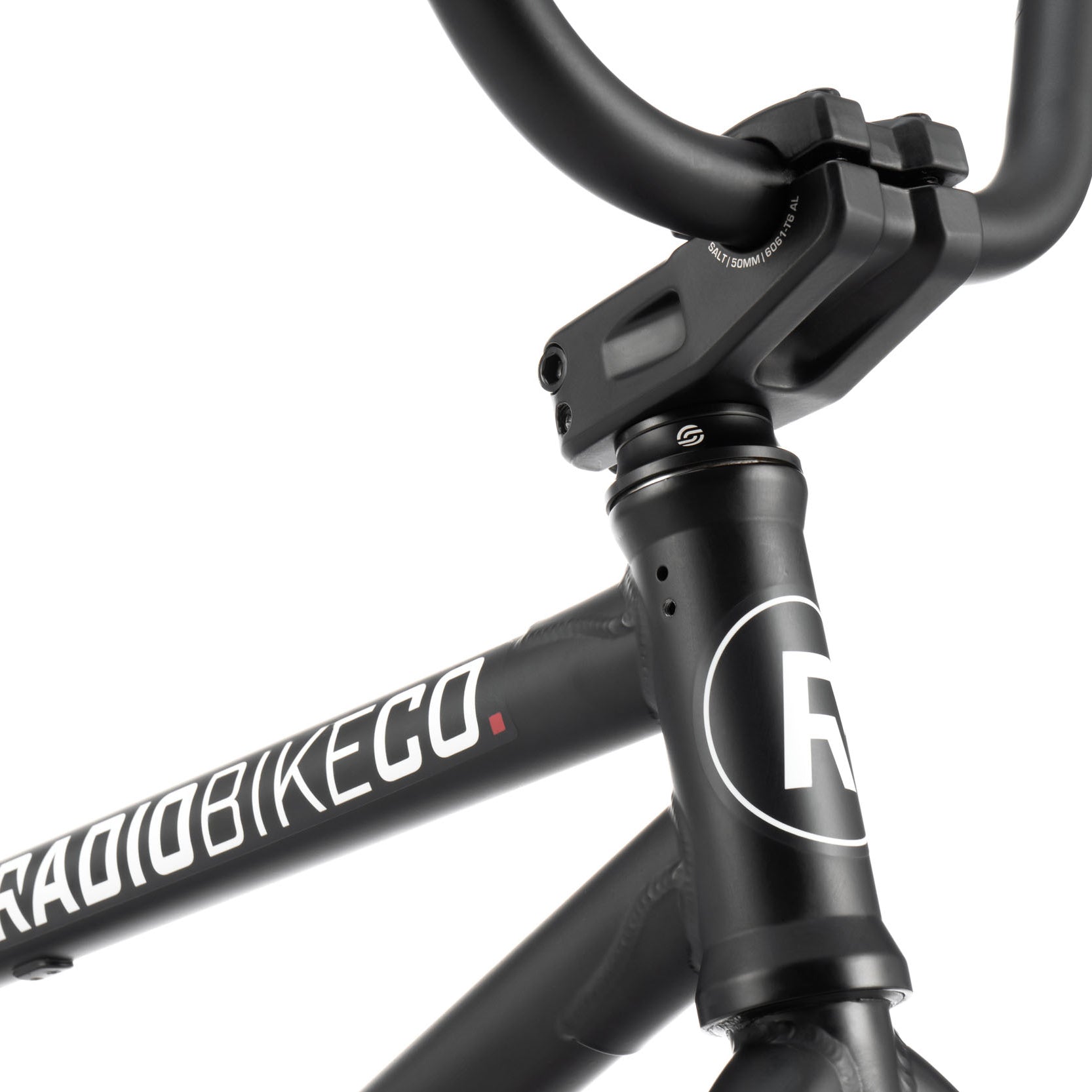

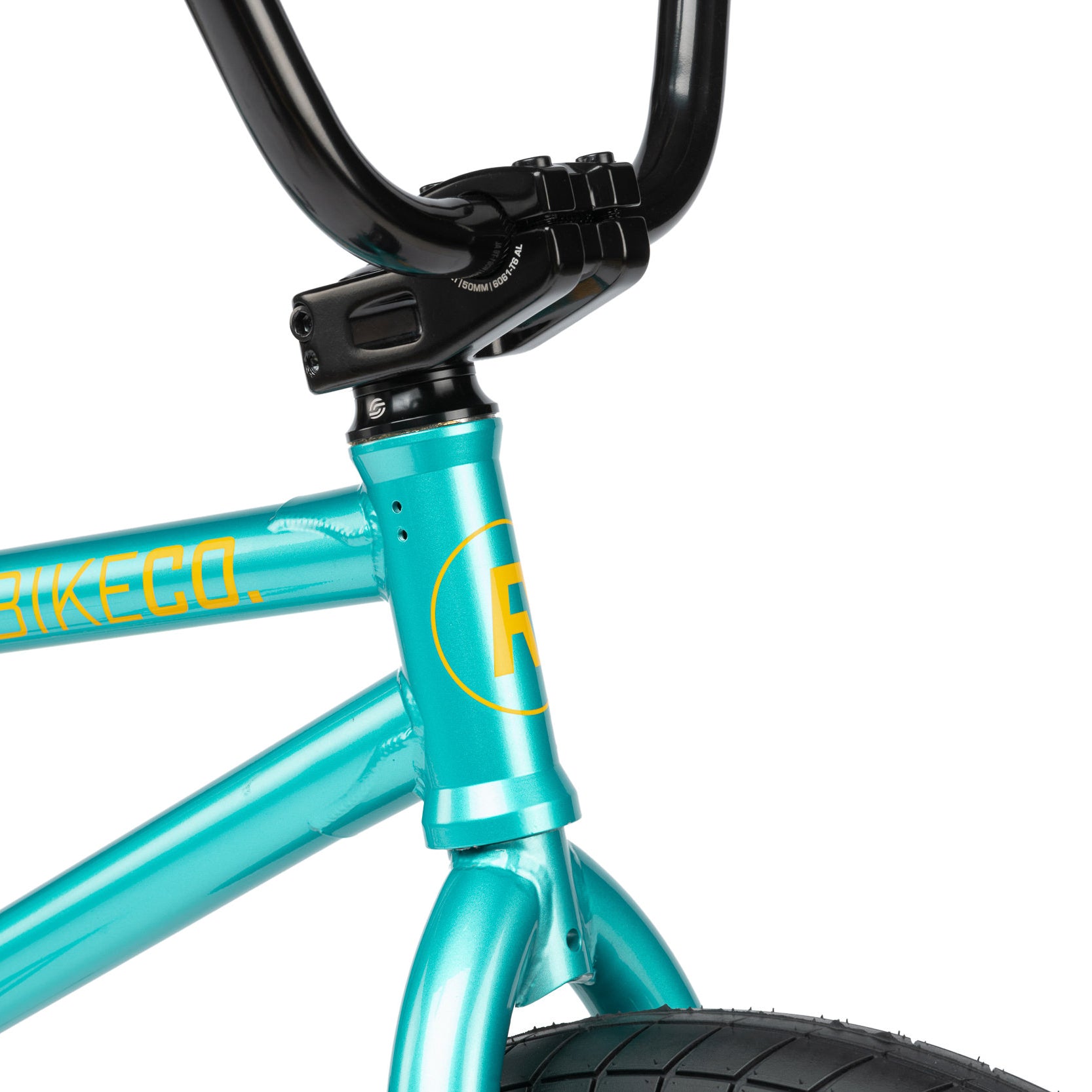

STEM: SALT "PRO" topload stem, 50mm reach

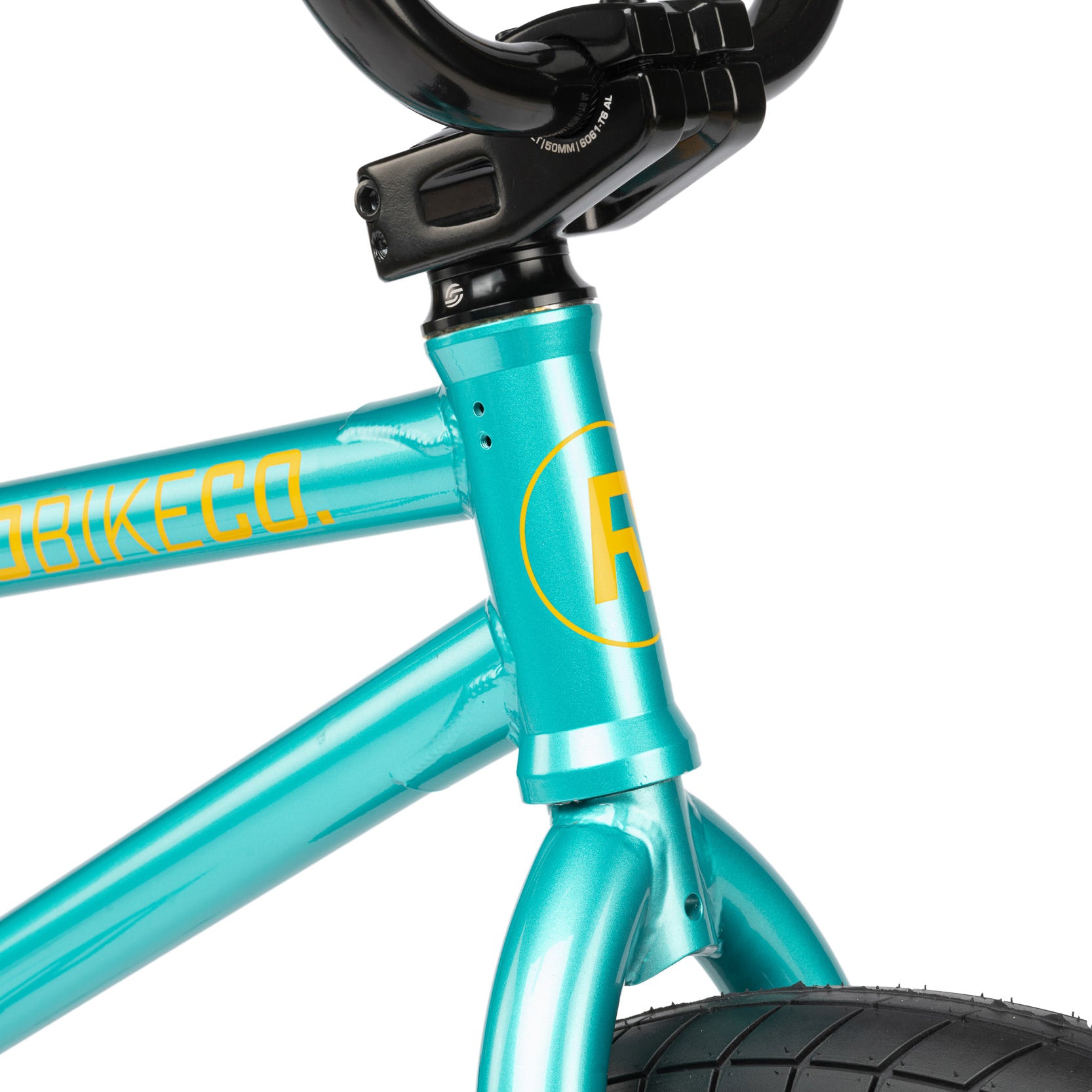

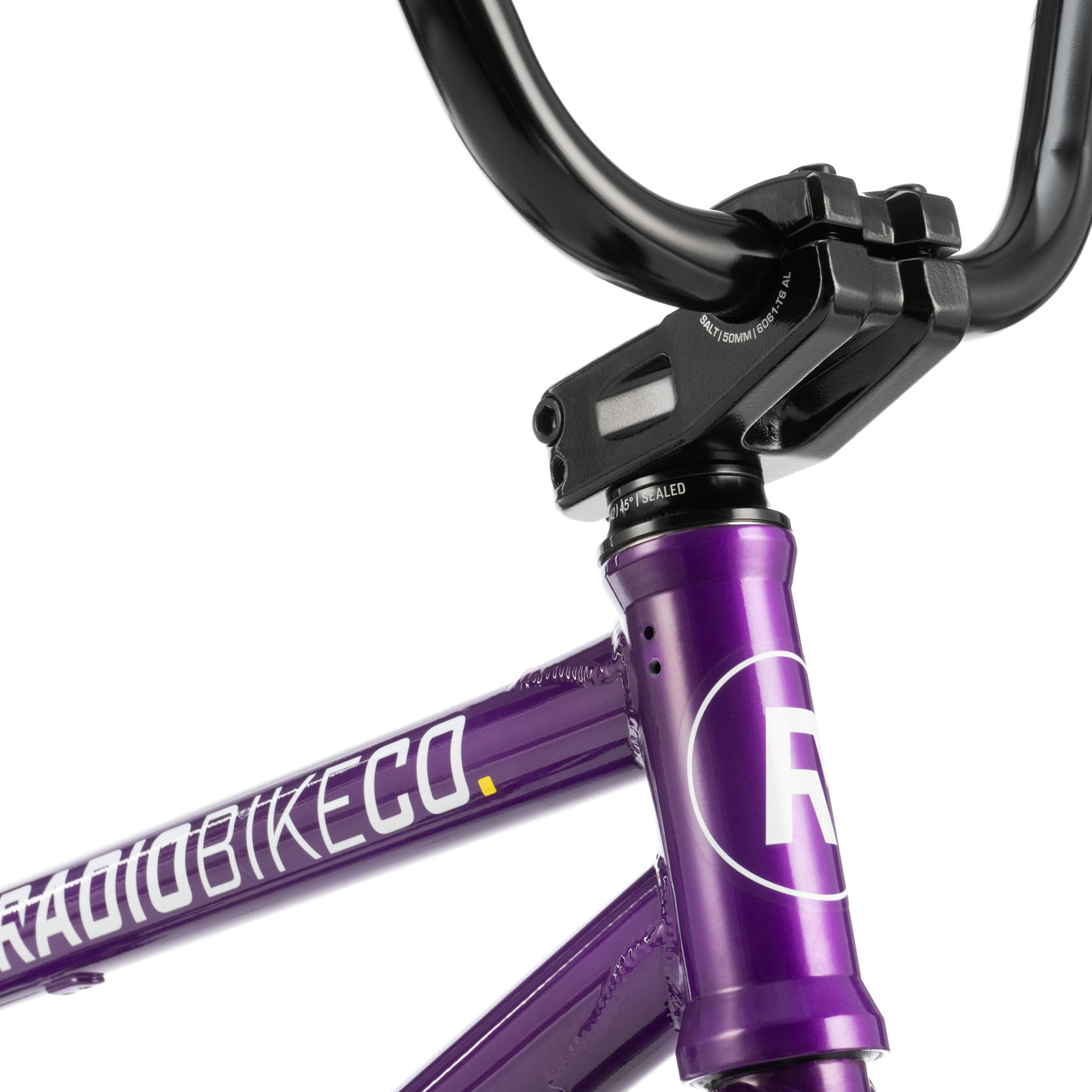

HEADSET: SALT "PRO" integrated headset, sealed bearing
LEVER: RADIO "AM" brake lever, alloy, rear
BRAKES: RADIO "AM" u-brake, alloy, rear

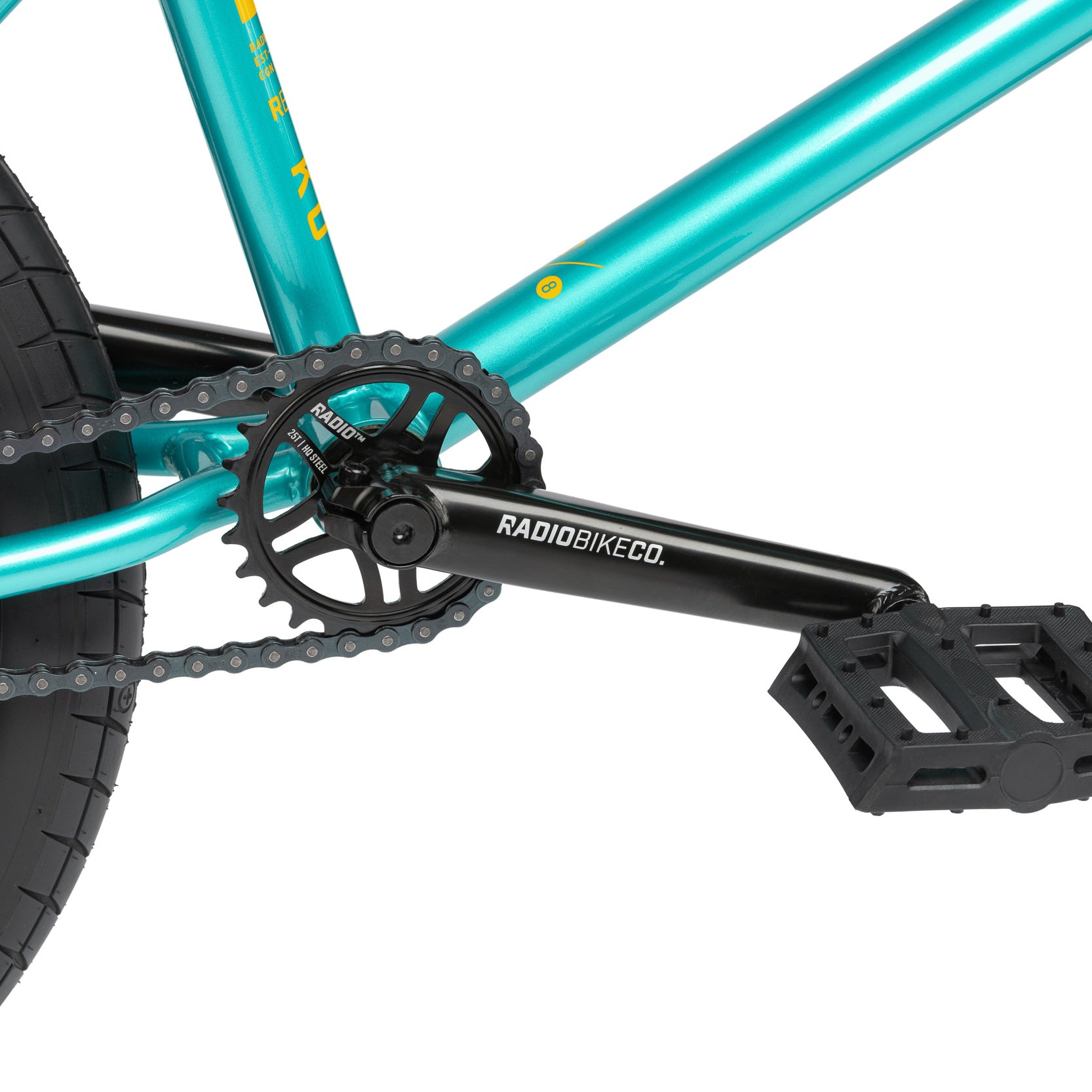

CRANKS: RADIO "AM" 3pc crank, tubular, crmo, 170mm, 8 spline
BB: RADIO "MID" bb set, press fit, sealed bearing

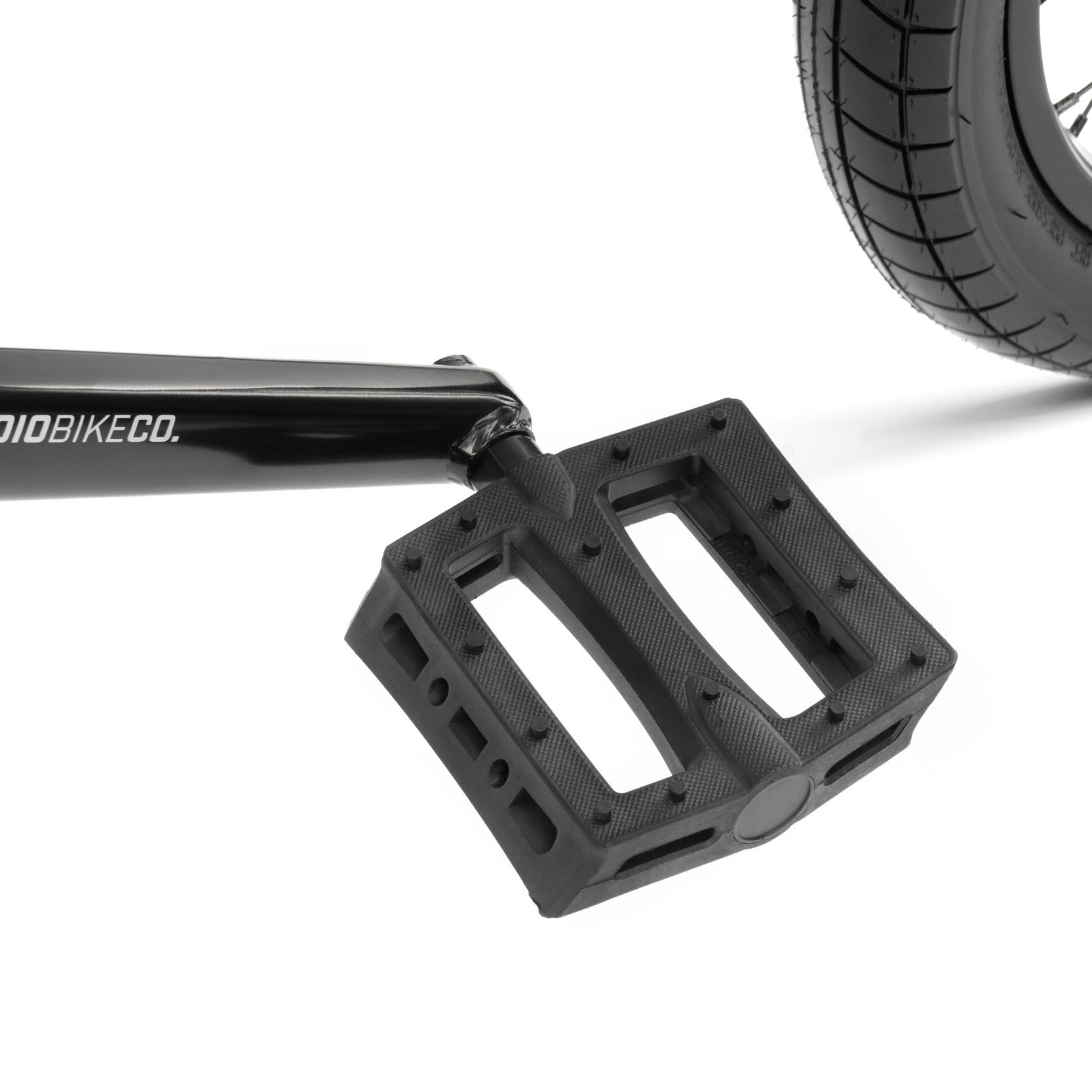

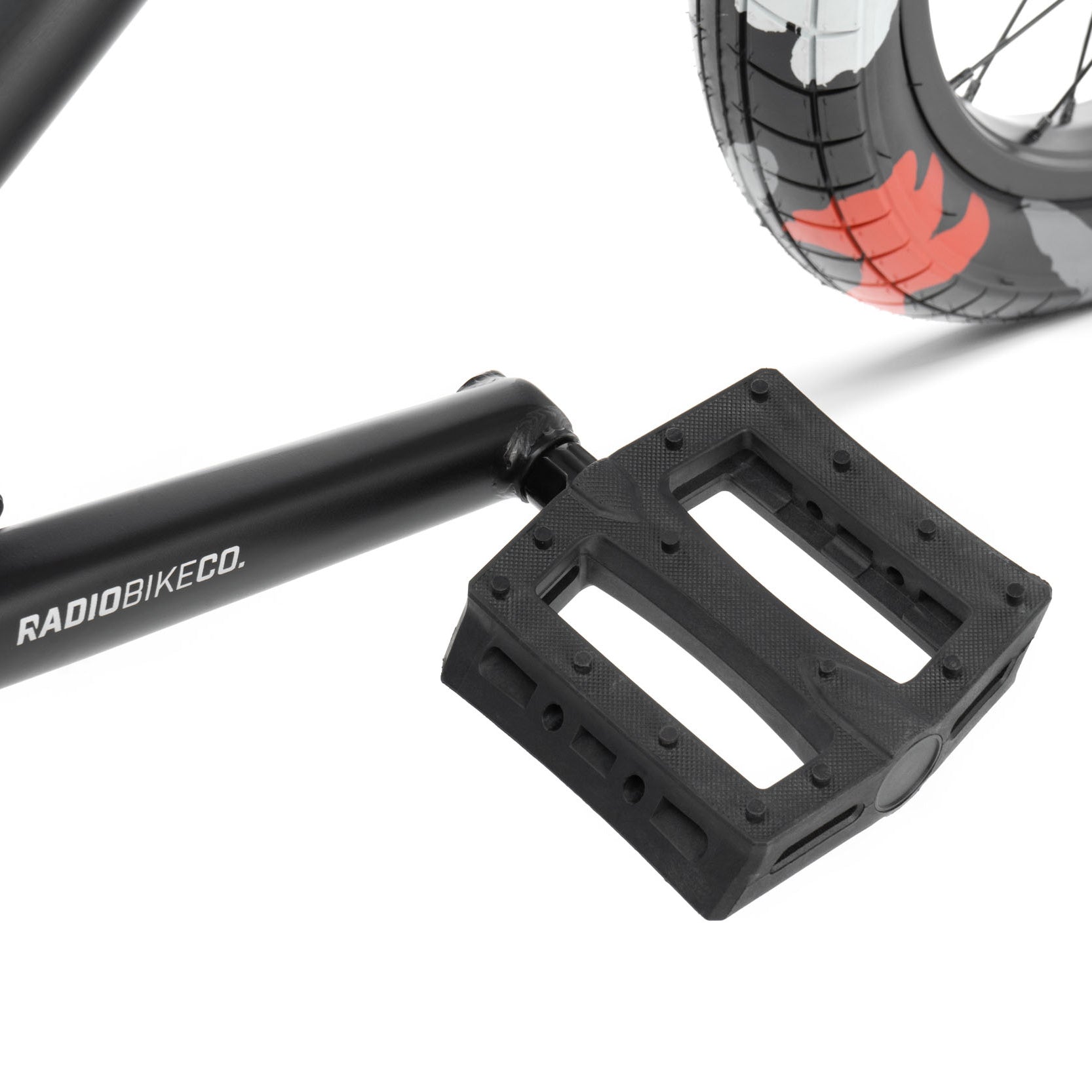

PEDALS: RADIO "PRO" pedals, nylon/fiberglass
CHAIN: SALT "AM" chain, WZ1 type

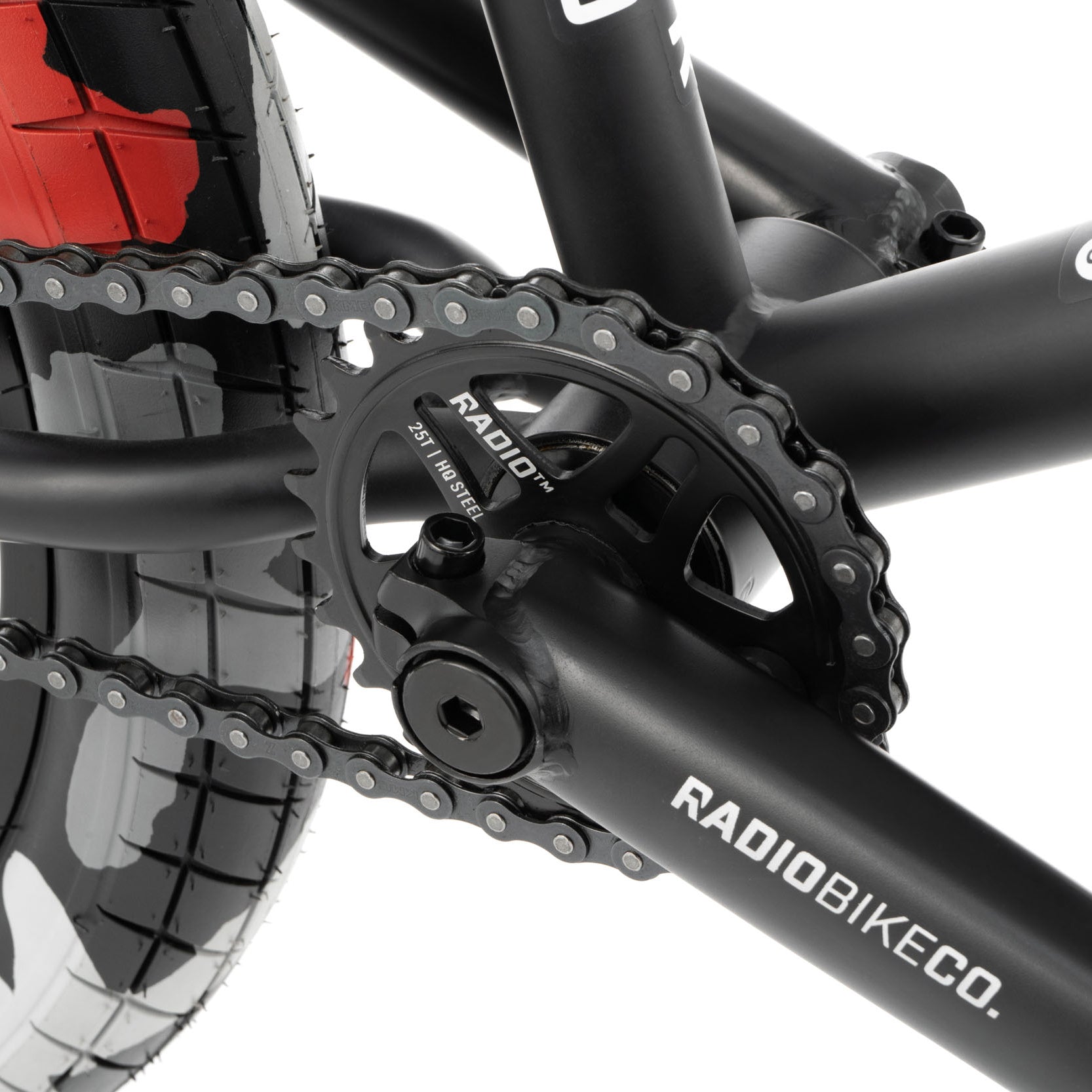

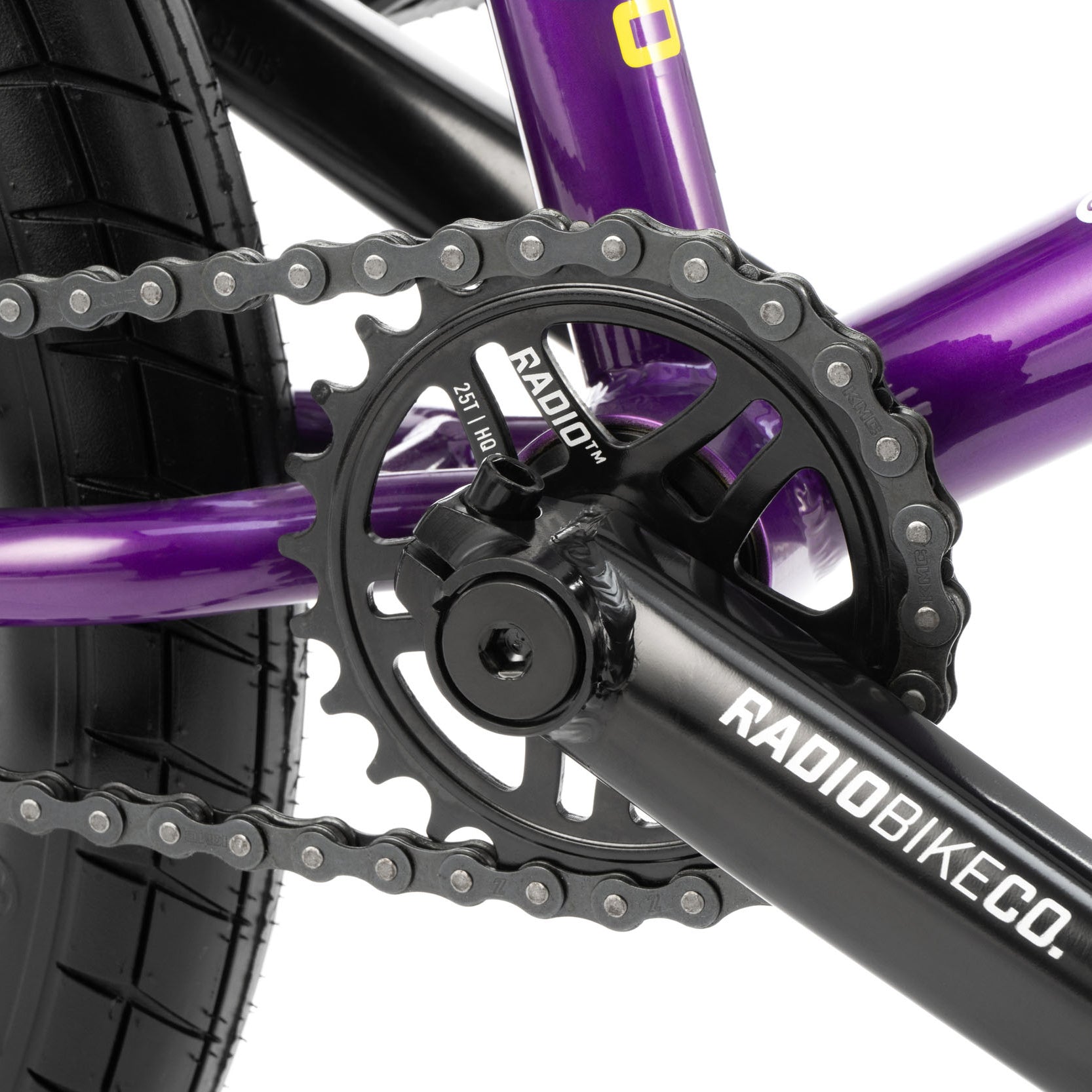

SPROCKET: RADIO "VISION" sprocket, steel, 25t
DRIVER: cassette driver, 9t, sealed bearing

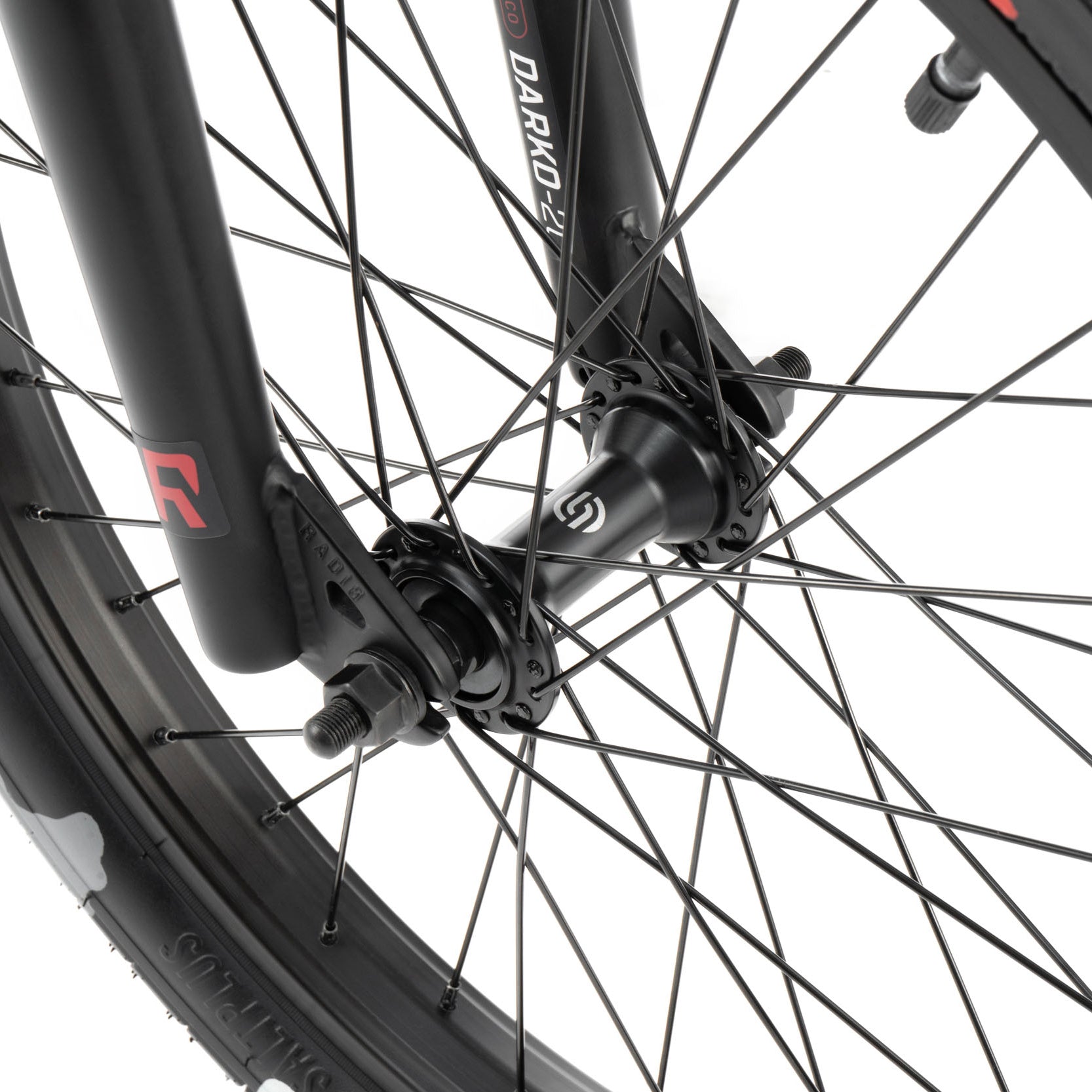

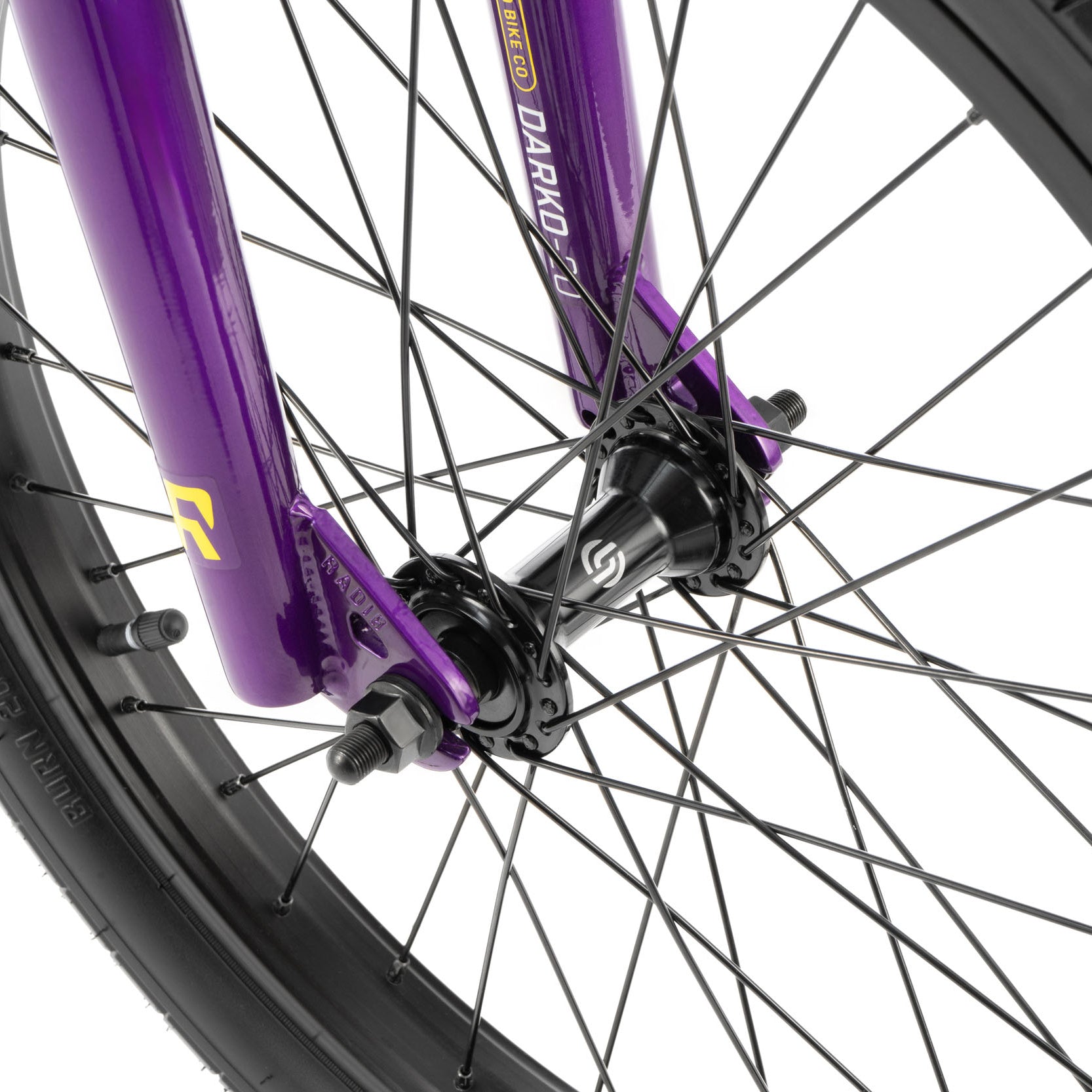

FRONT HUB: SALT "AM" hub, alloy, loose ball, 3/8"s male axle, 36h

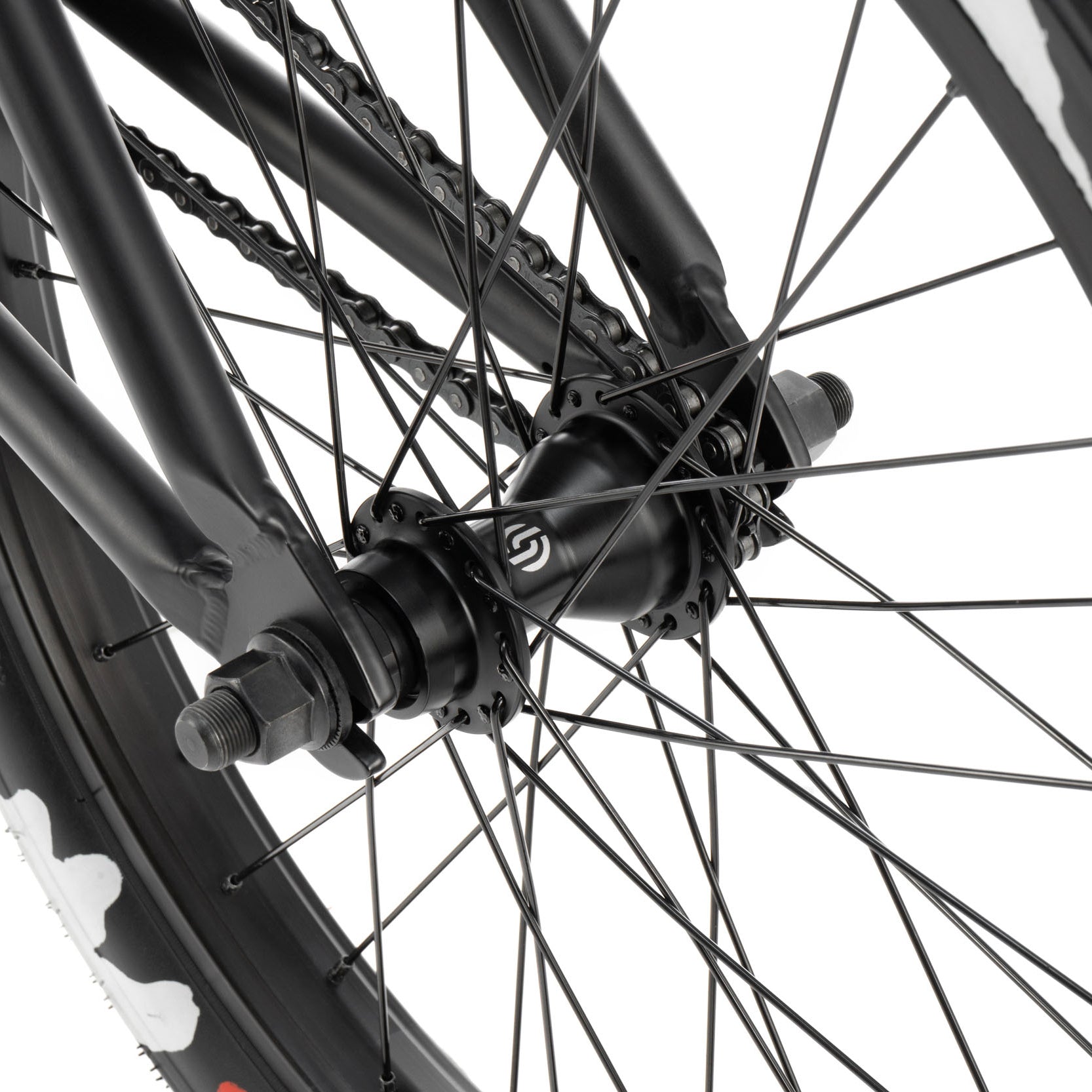

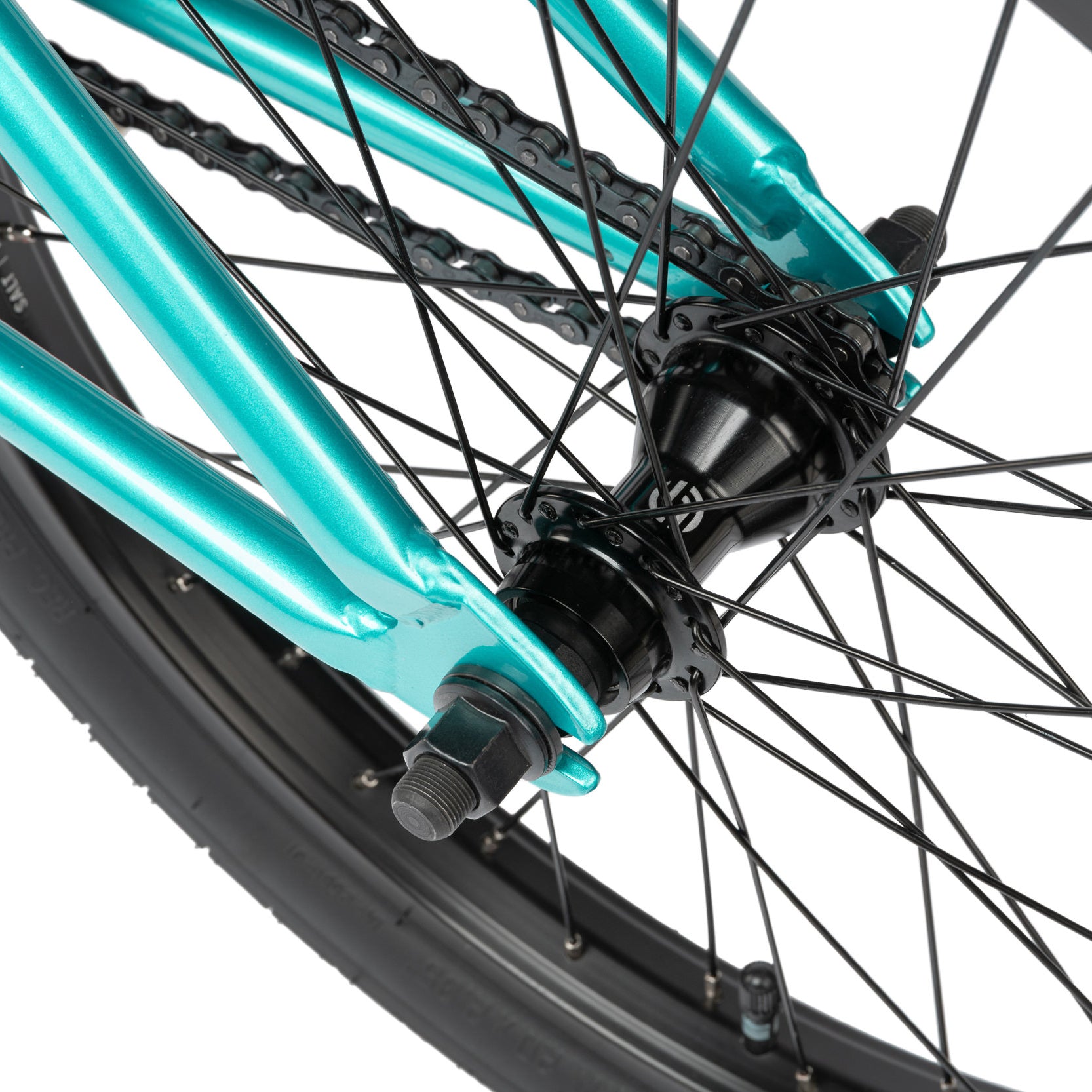

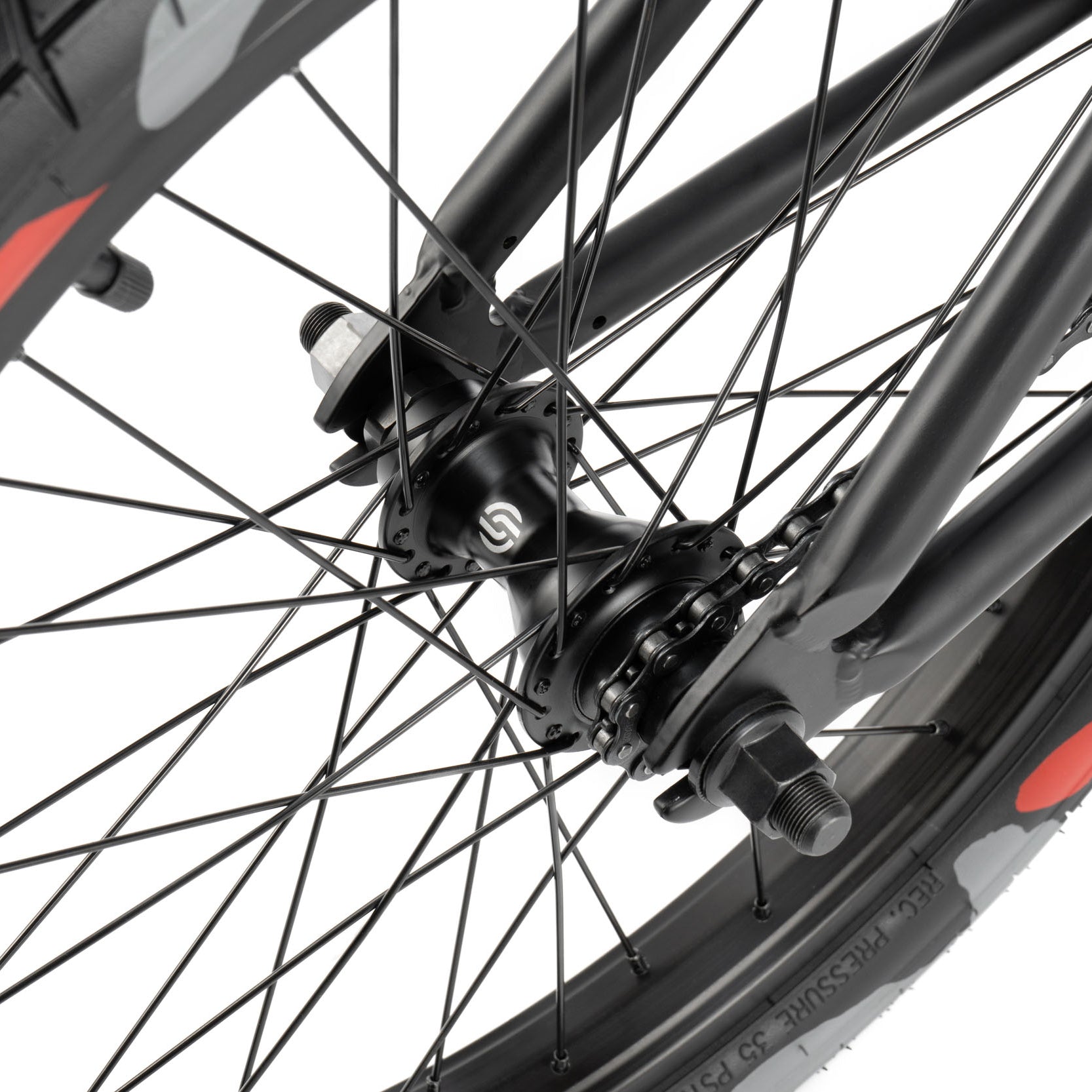

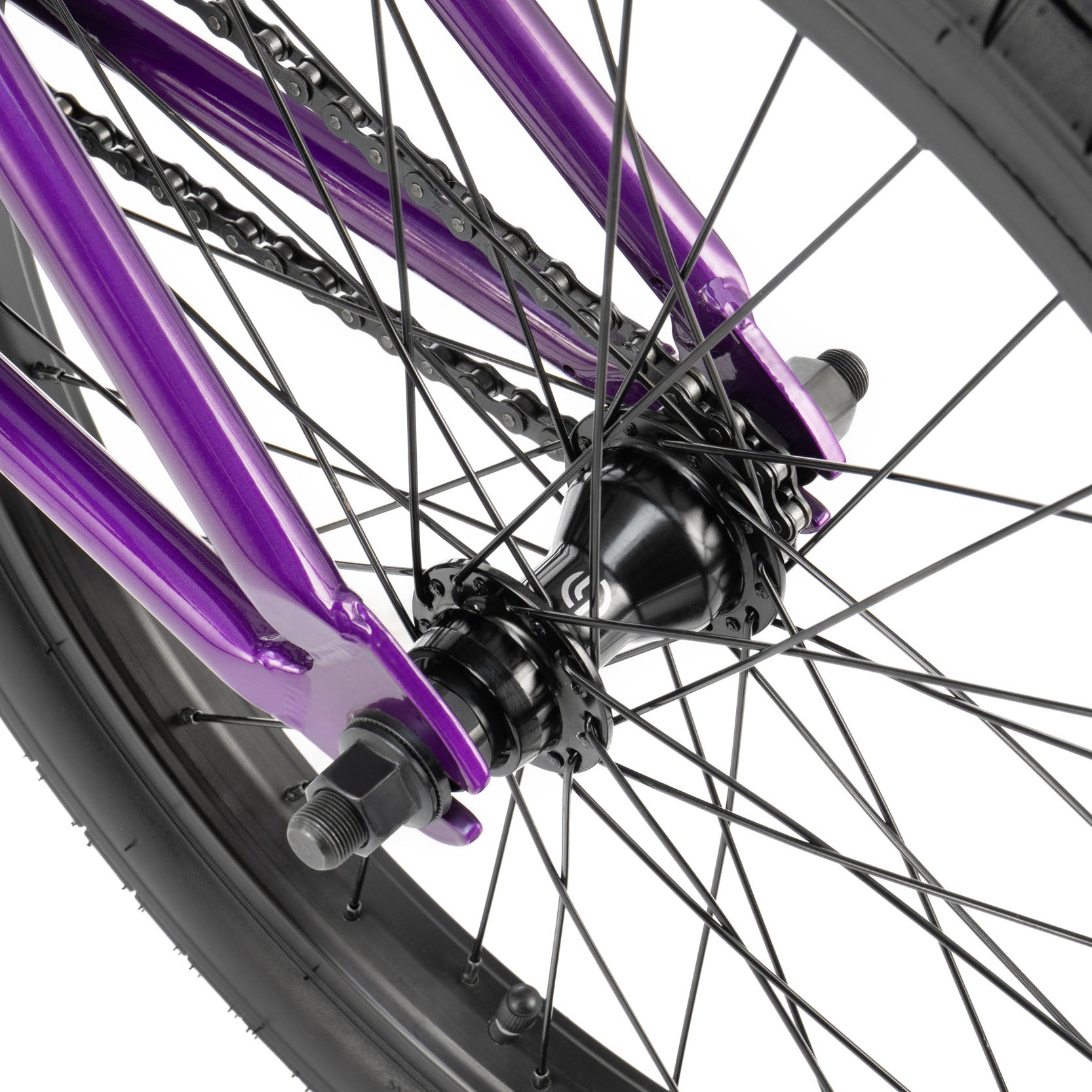

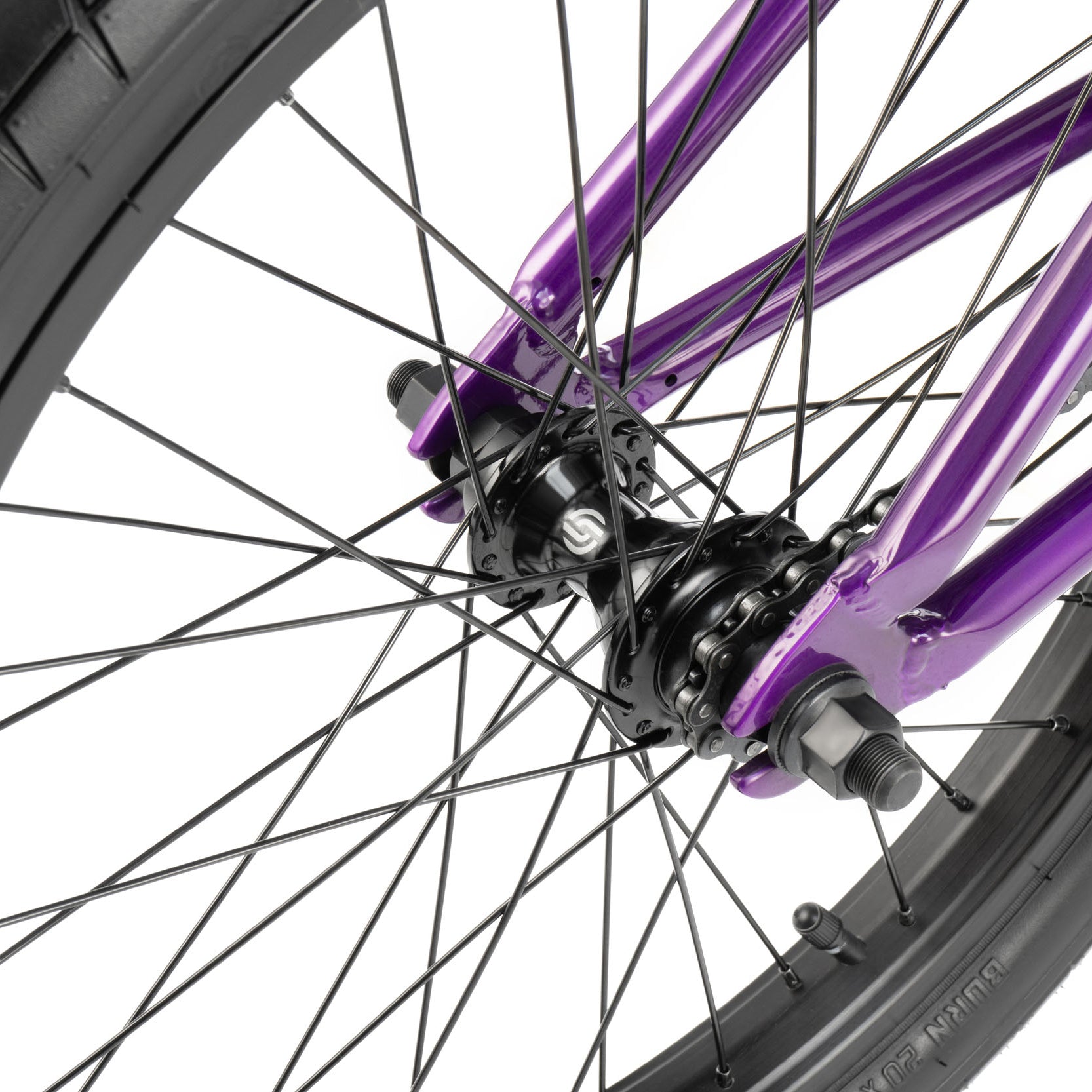

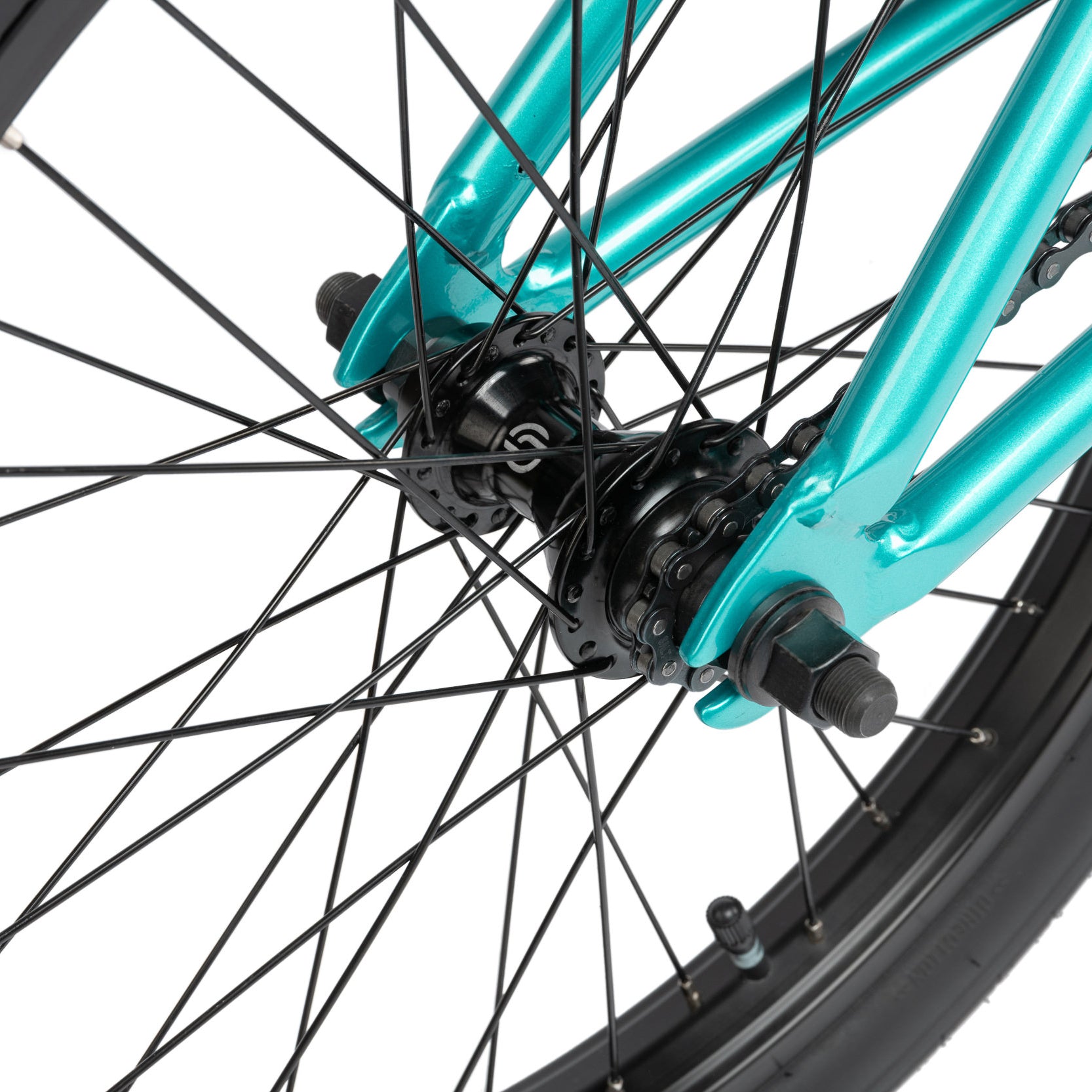

REAR HUB: RADIO "AM" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
RIM: SALT "FRACTION" rim, single wall

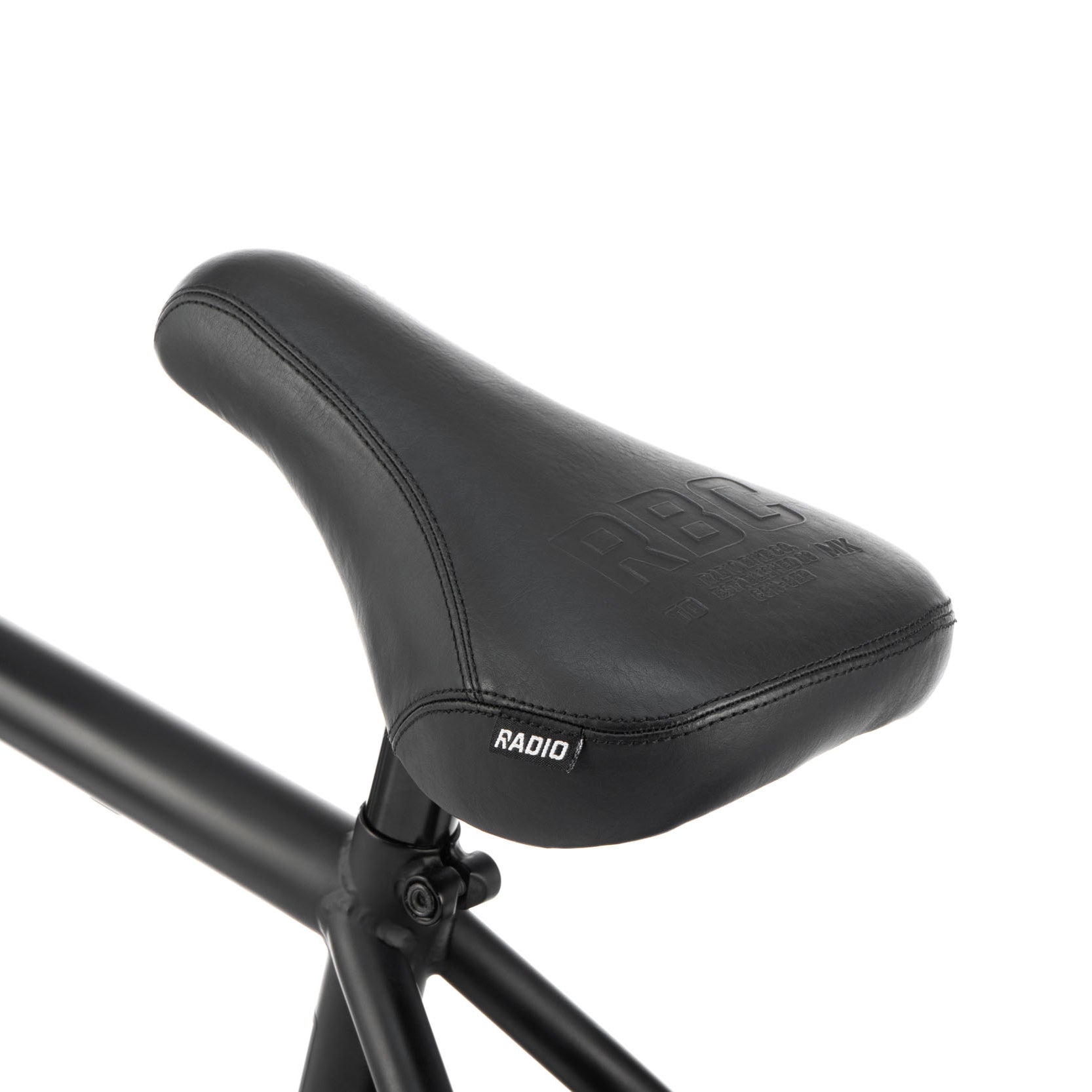

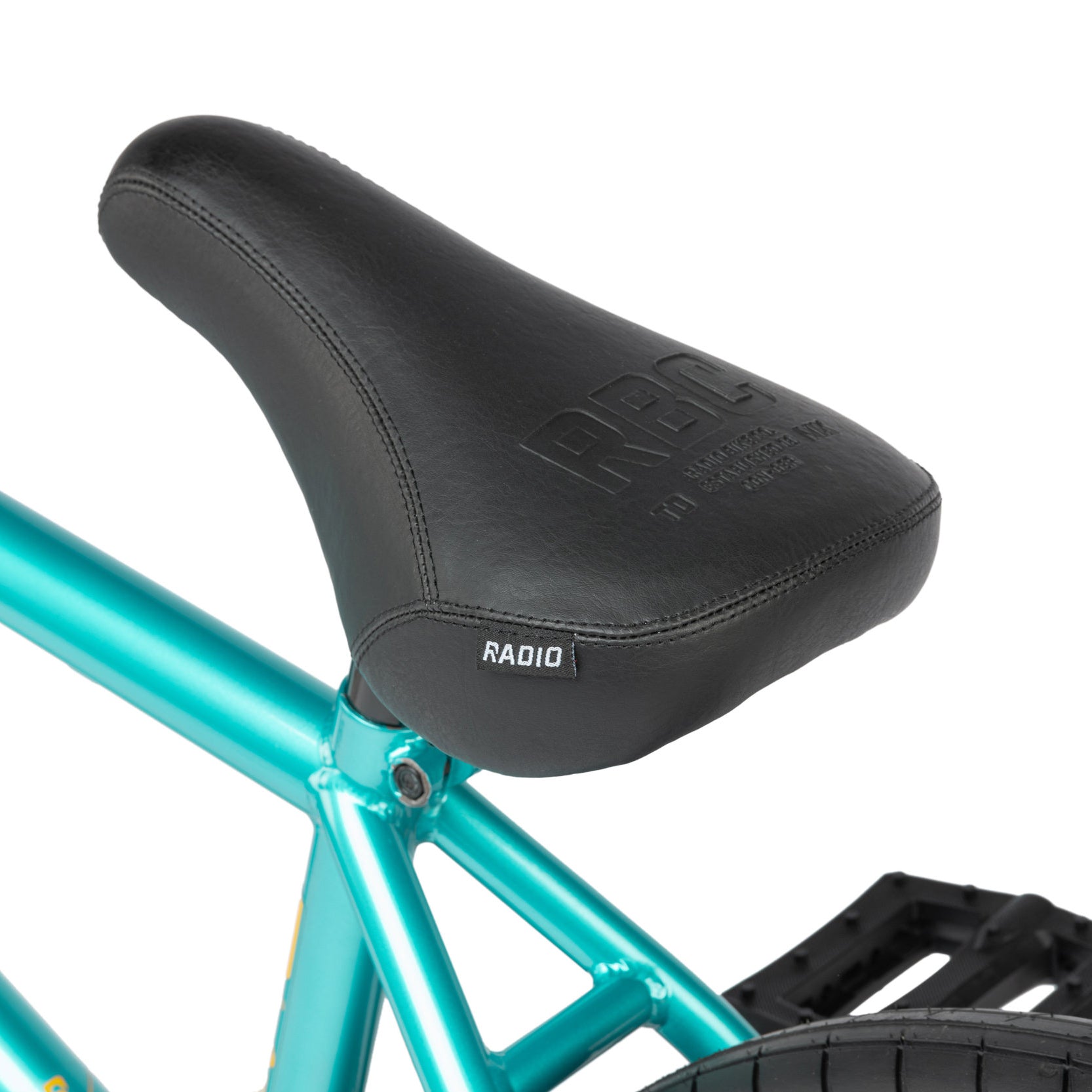

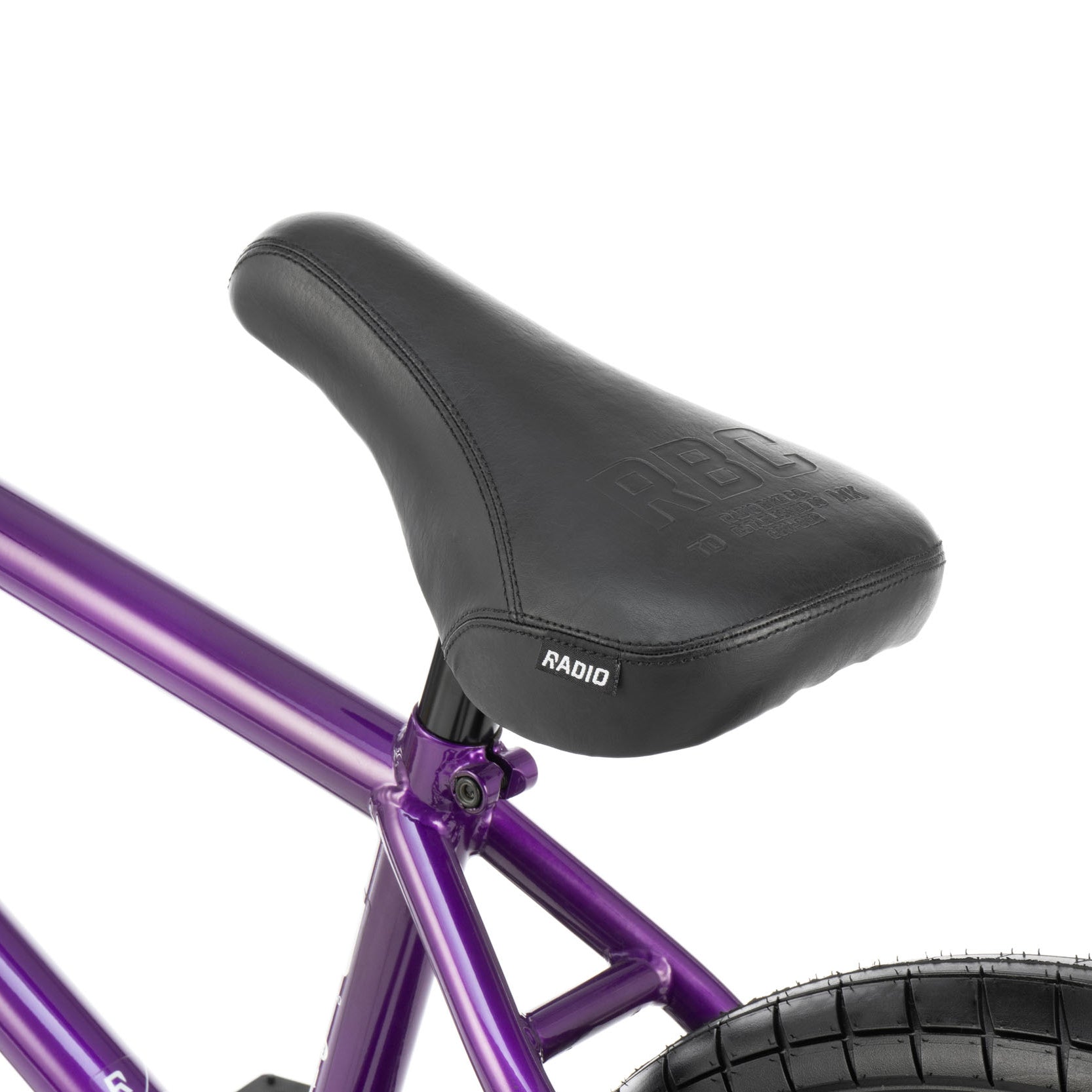

SEAT: RADIO "CENTURY" combo seat, fat padded
SEAT POST: -
SEAT CLAMP: integrated seat clamp

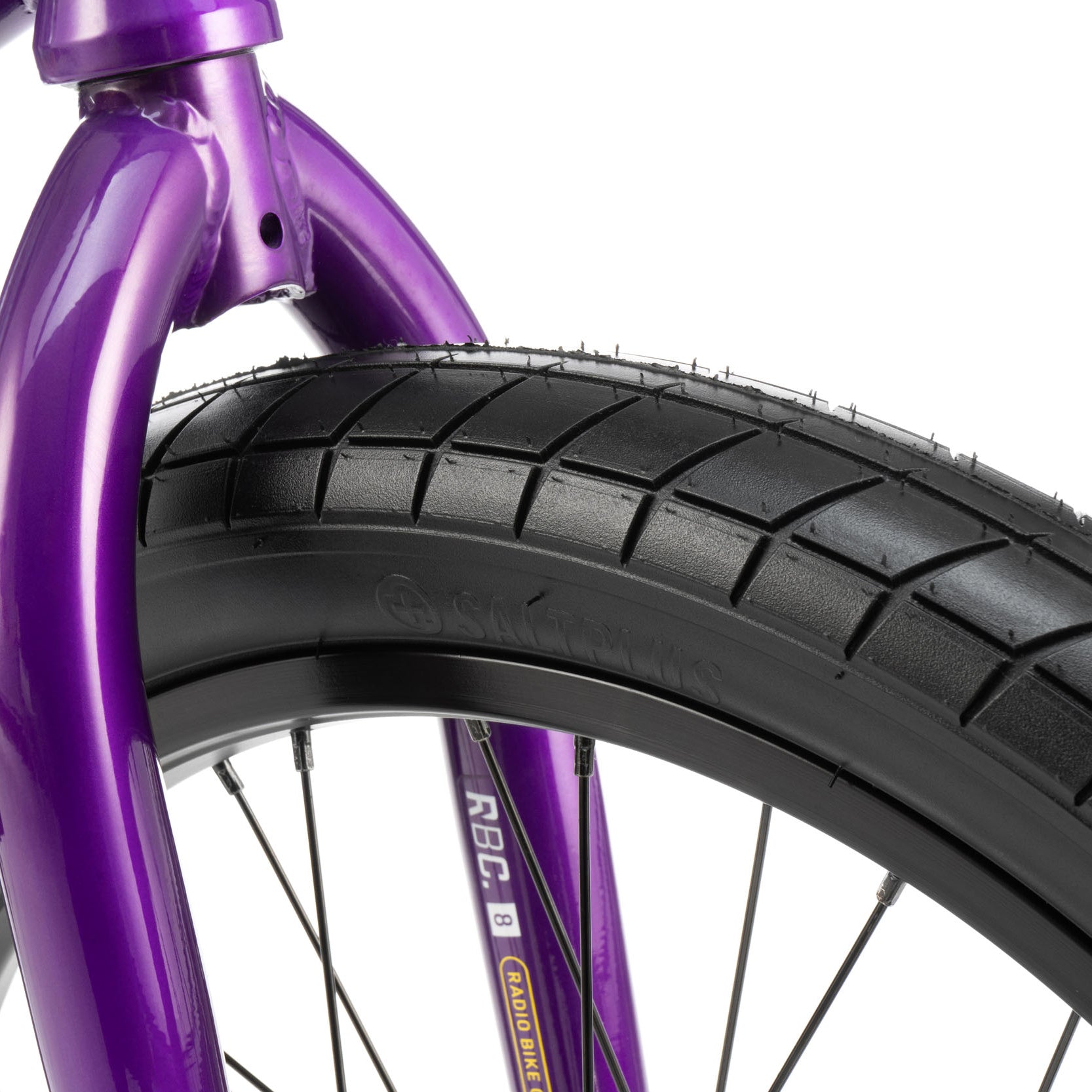

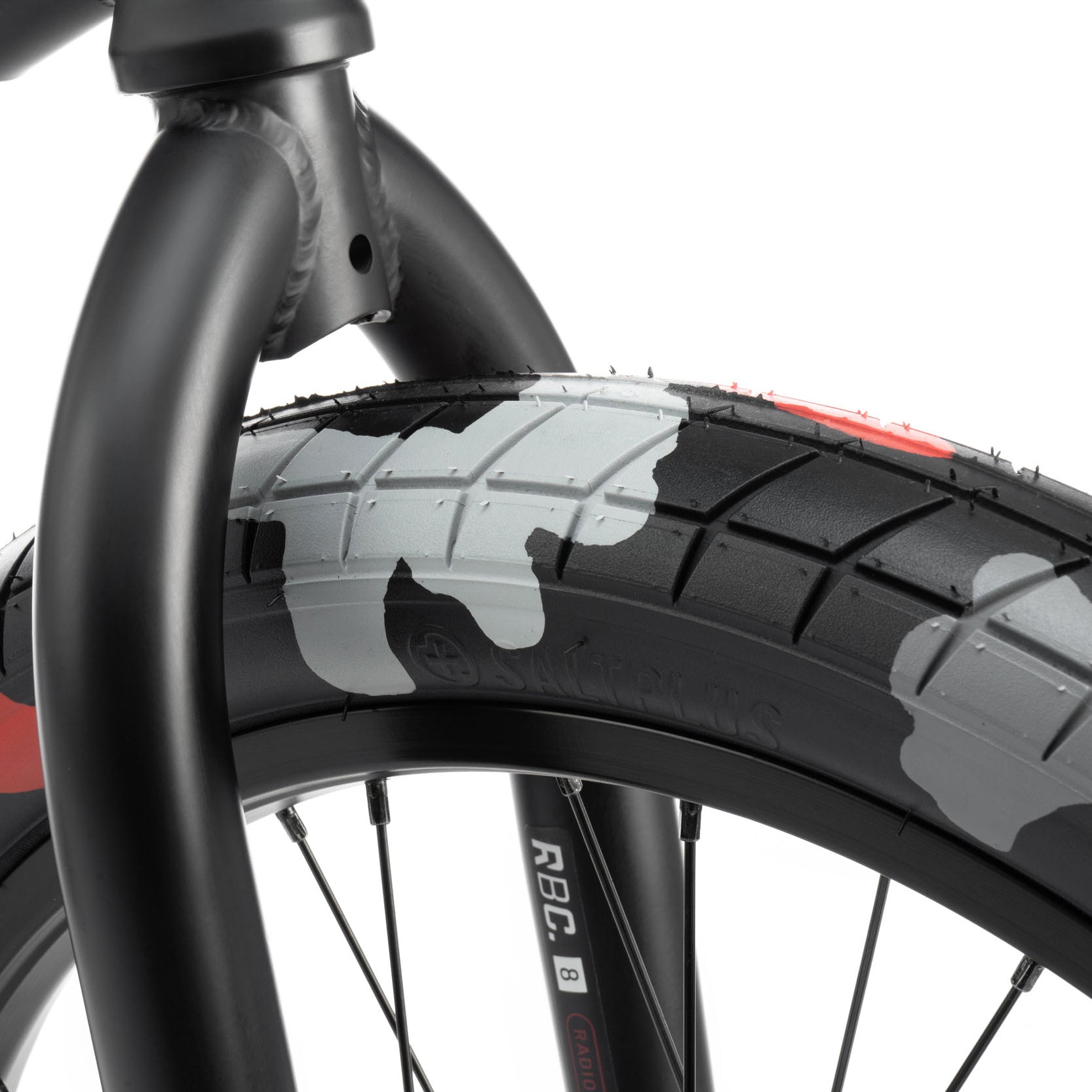

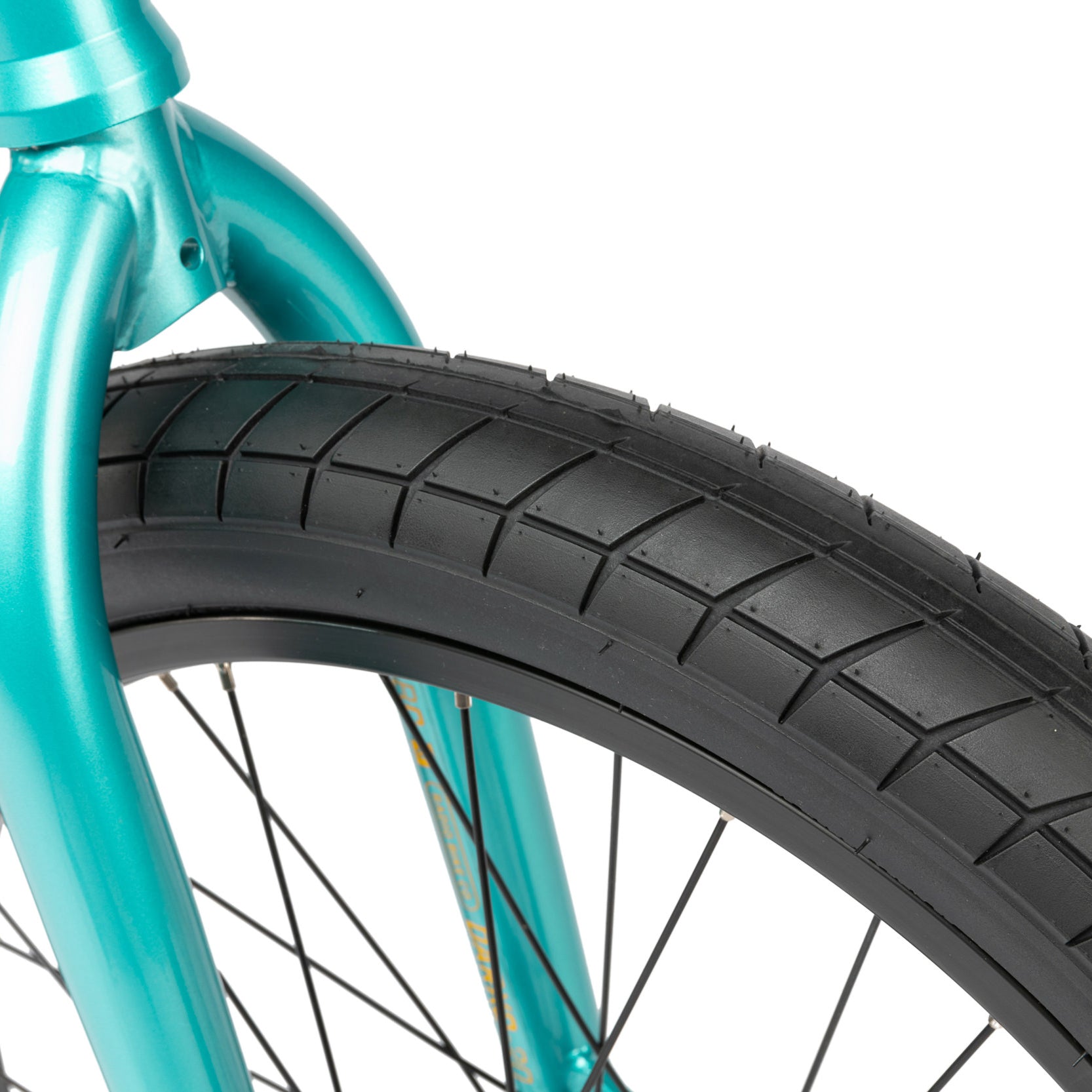

TIRES: SALTPLUS "BURN" tires, 2.35", front & rear
TOP TUBE LENGTH: 20.5" & 21"
CHAIN STAY LENGTH: 13.2"
BOTTOM BRACKET HEIGHT: 11.7"
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71°
BAR RISE: 9"
BAR WIDTH: 29.5"
BACKSWEEP: 12°
UPSWEEP: 2°
WEIGHT: 12.15kg / 26.80lbs
