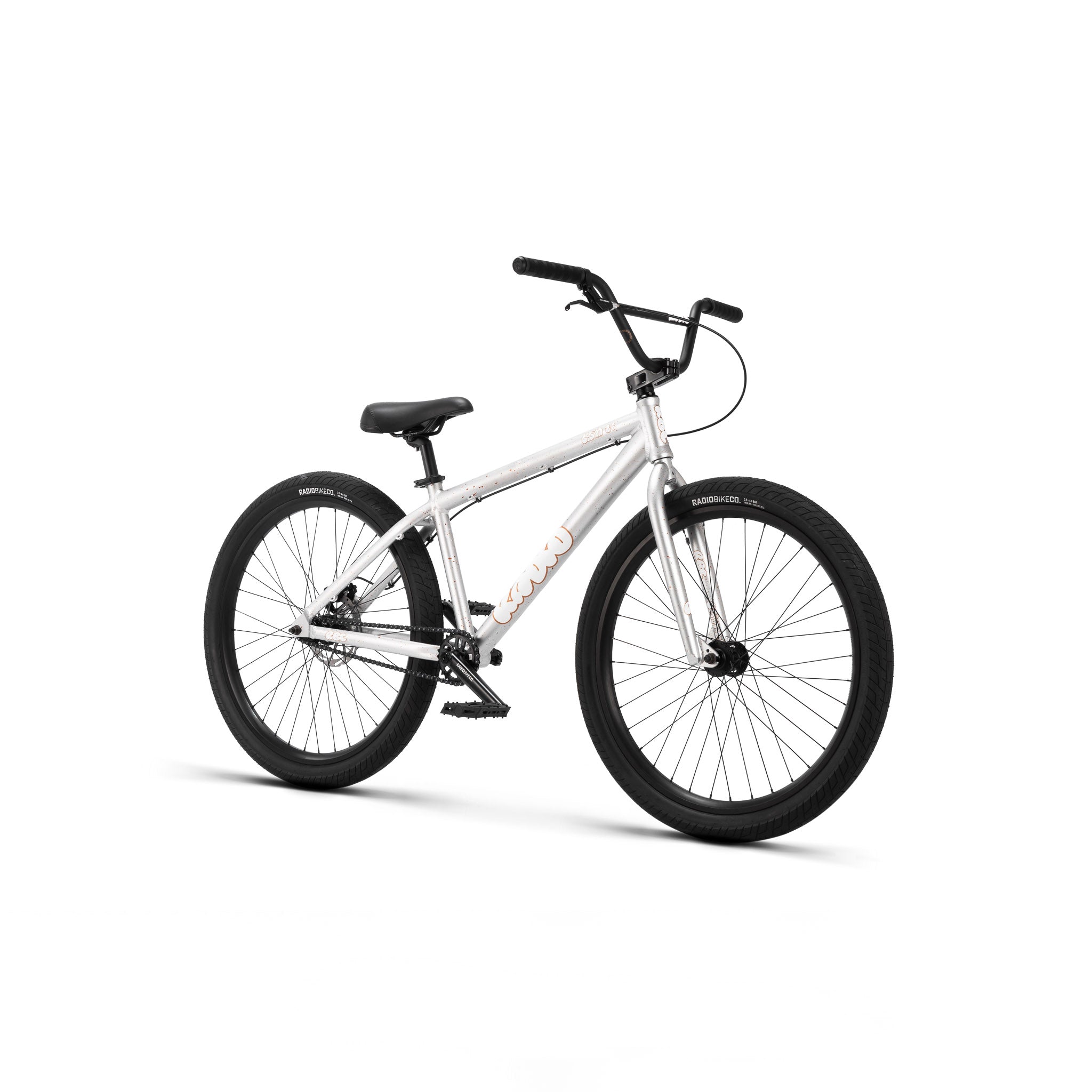

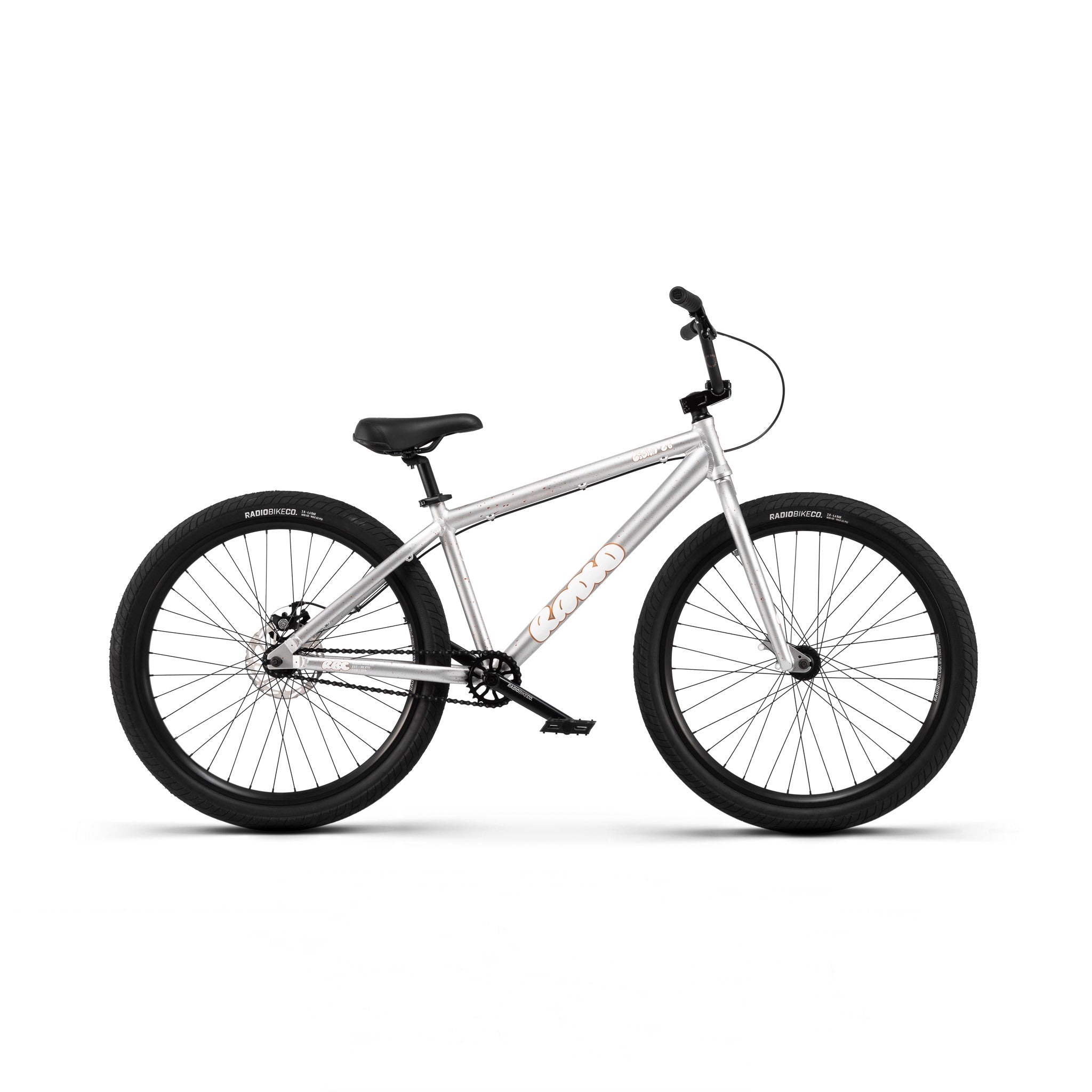

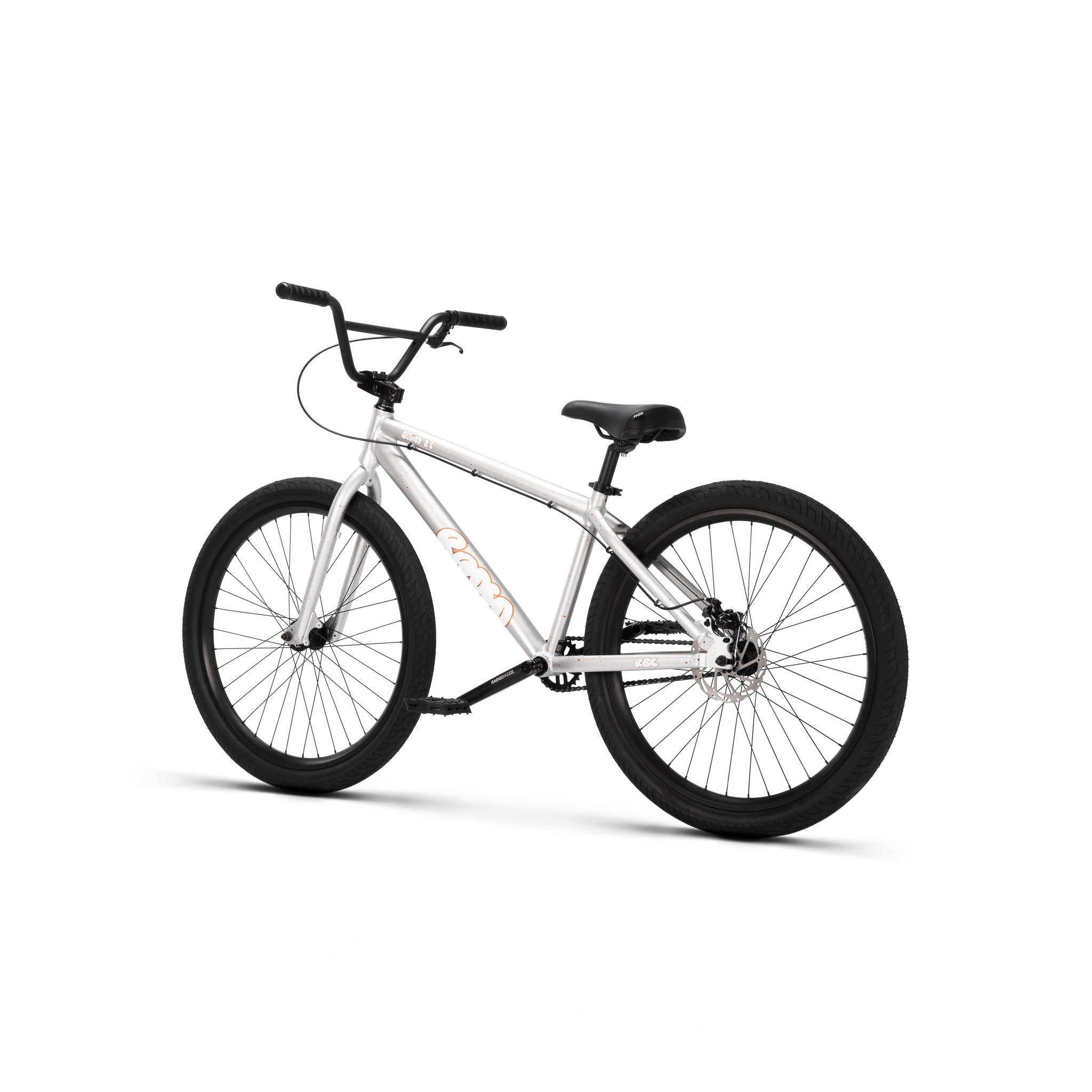

Legion 26 Complete Bike

A new kind of bike, the Legion is an urban weapon designed to ride through it all, one wheel or two. We designed our very own 6061-T6 alloy frame with "wheelie specific geometry", making it super responsive and easy to pick up and mauver, yet stable at high speeds. With the frame being alloy, it's low in weight but tough enough to handle anything you can throw at it (or throw it at!). Fully sealed RADIO PRO wheels with massive 2.2" RADIO tires and a Tektro disc brakes front and rear make this wheelie machine simply unbeatable and unlike anything else out there right now.
The only question you'll be asking yourself is 26" or 29"?

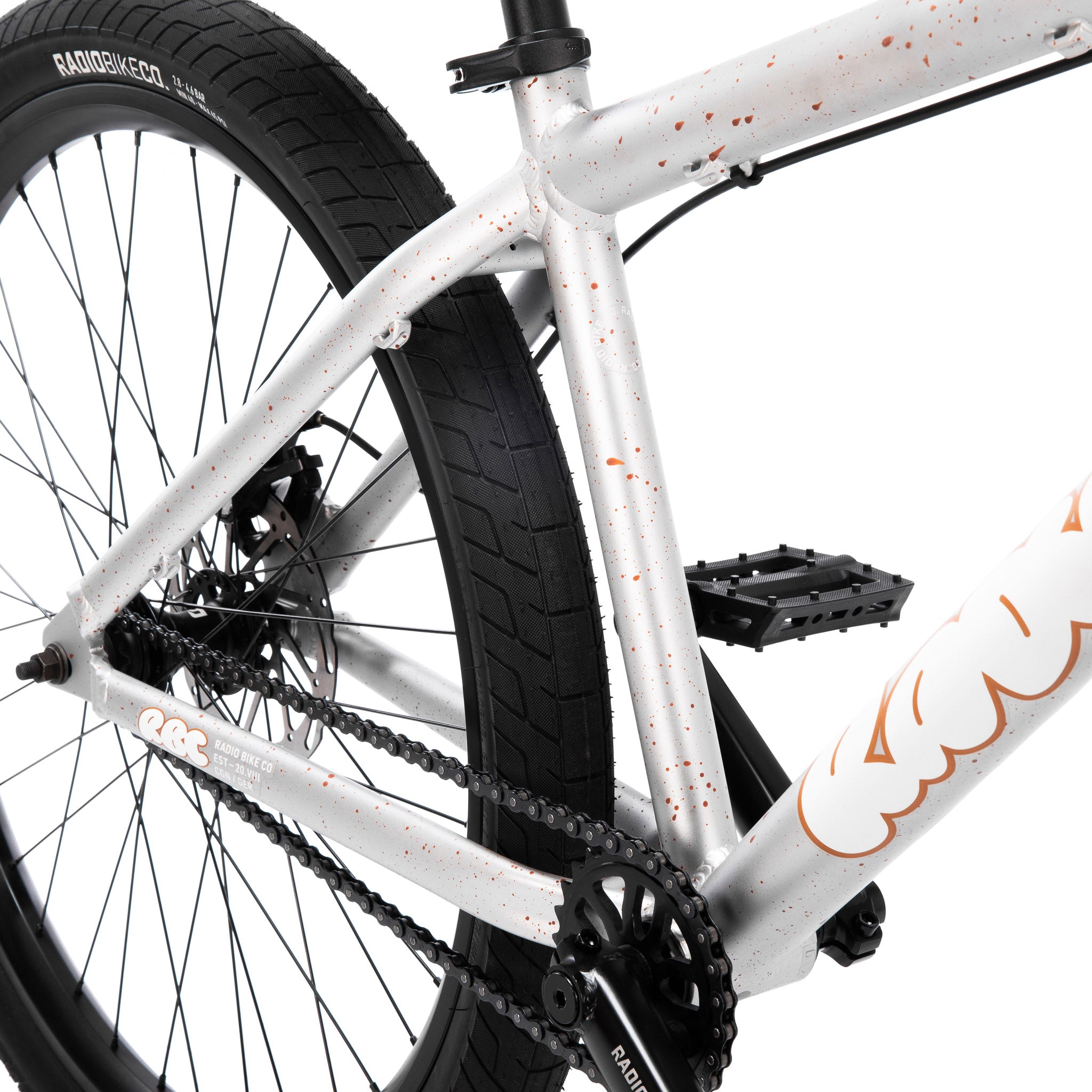

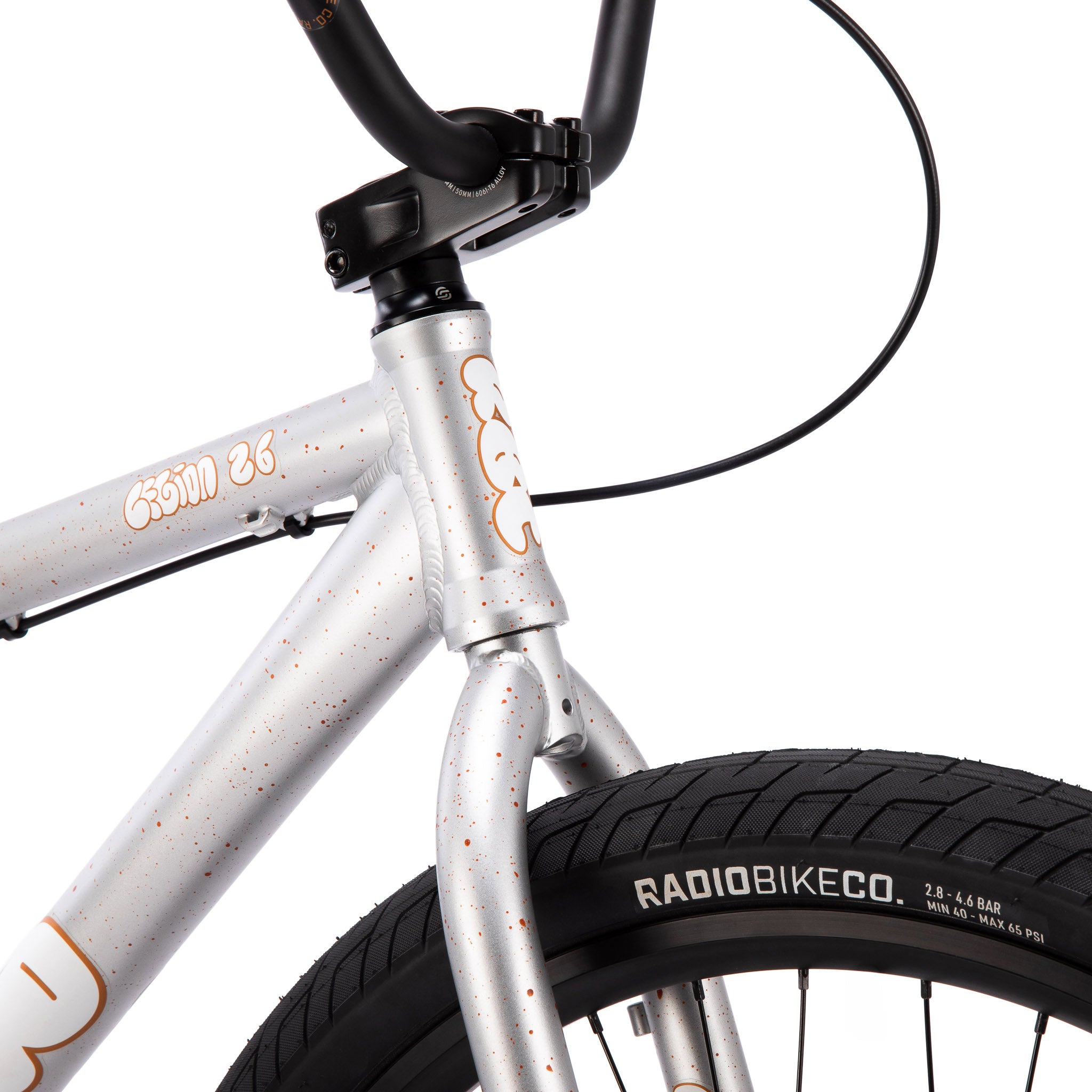

  • FRAME: RADIO "LEGION 26" frame, 6061-T6 alloy

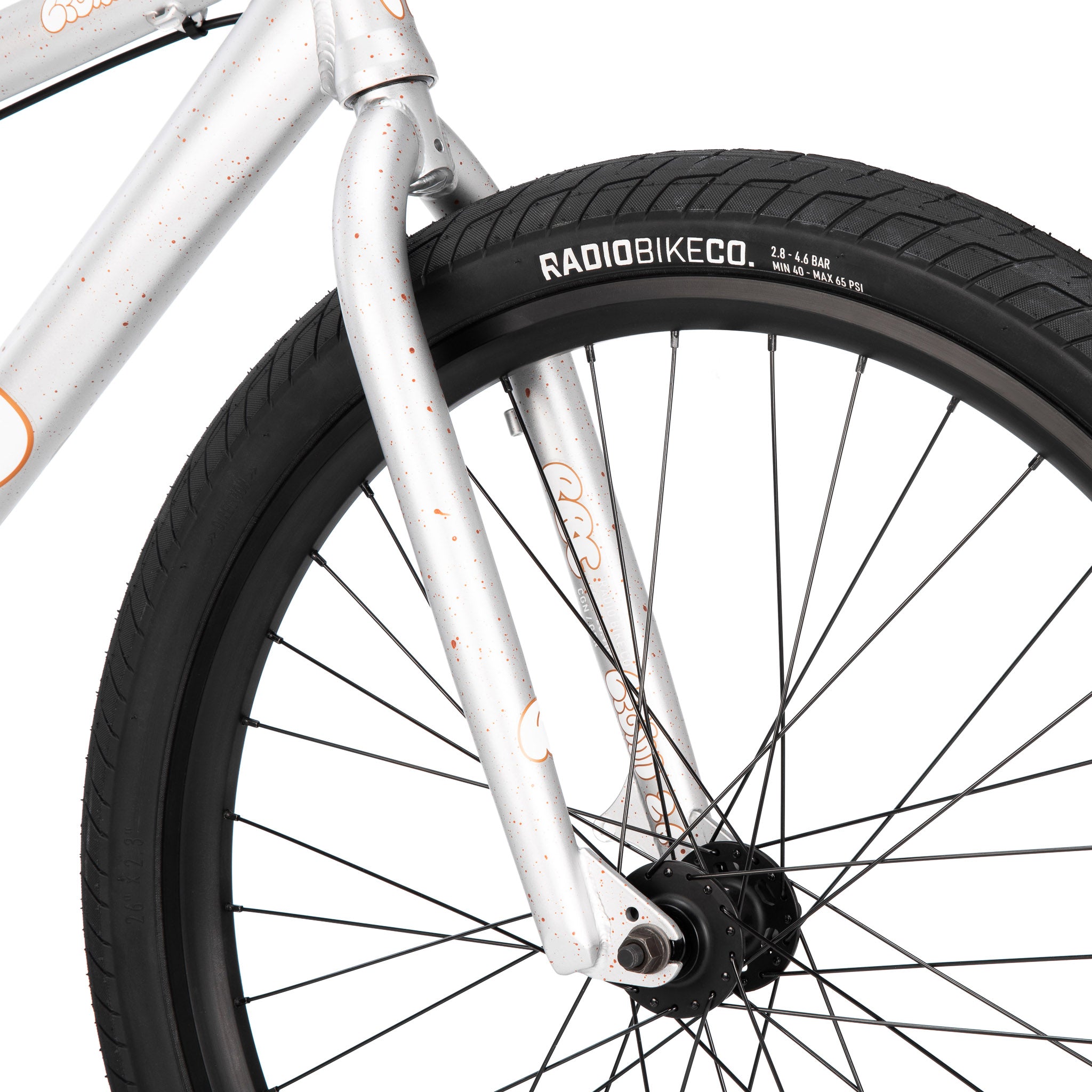

  • FORK: RADIO "LEGION 26" fork, full crmo, 30mm offset

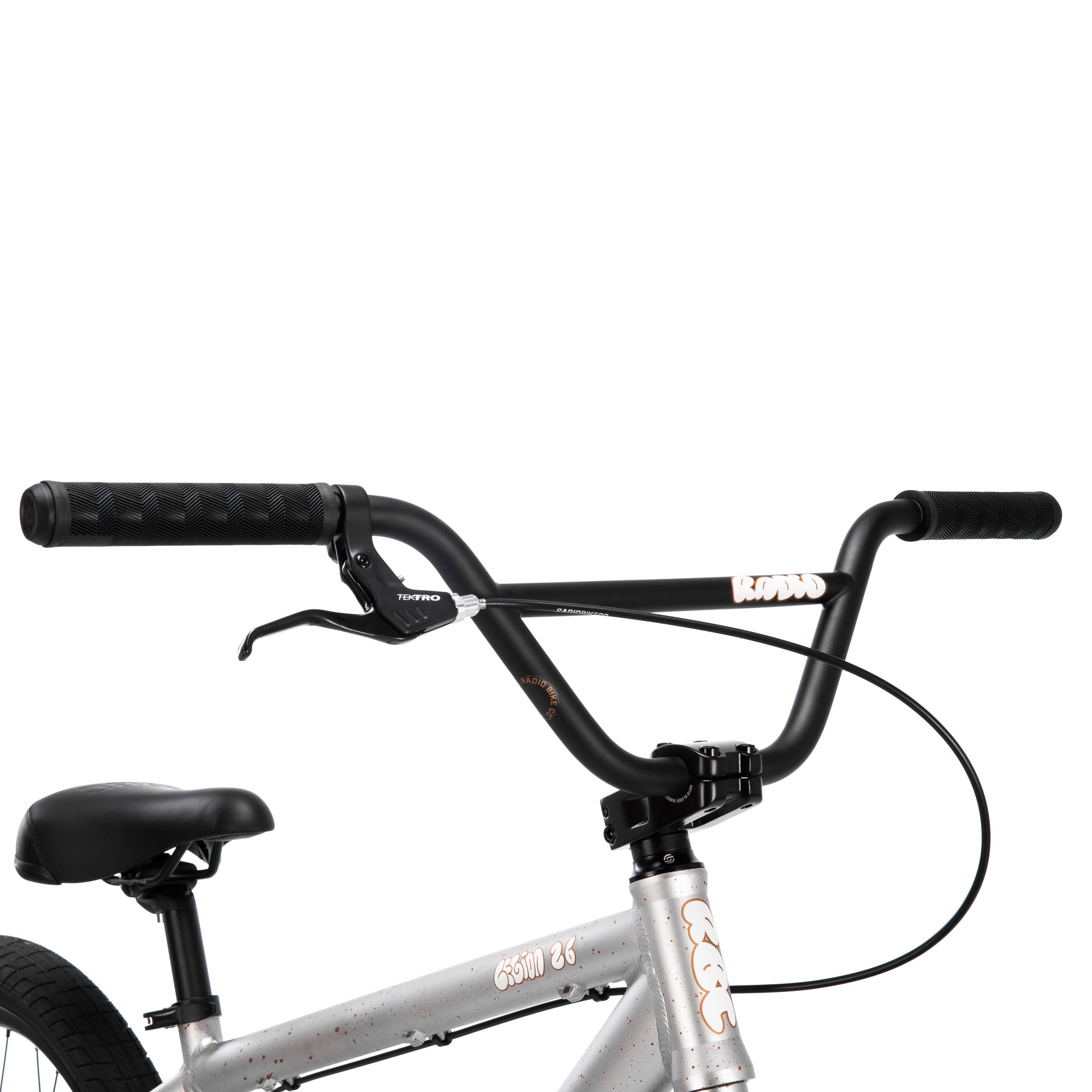

  • HANDLEBAR: RADIO "LEGION" bar, full 4130 crmo

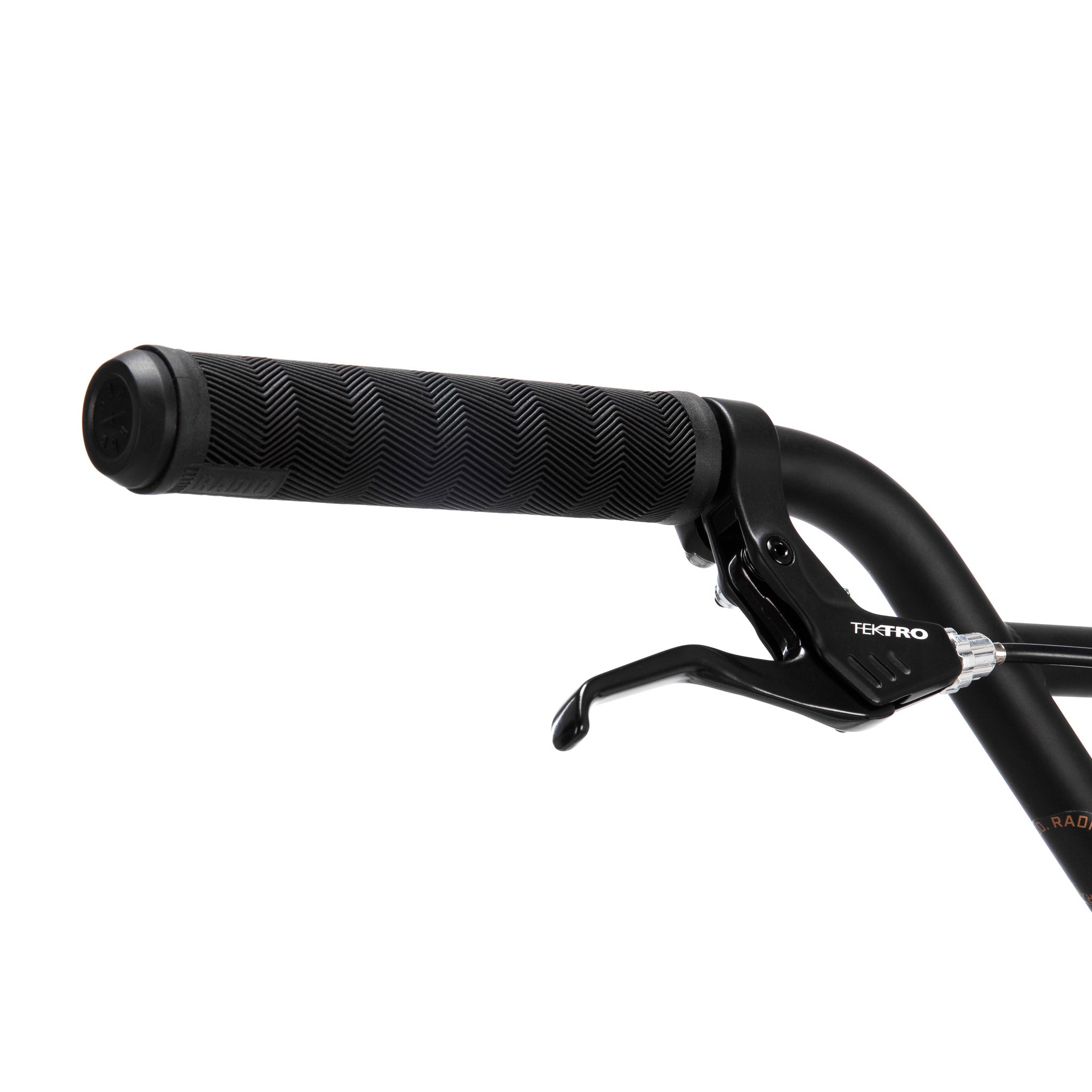

  • GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

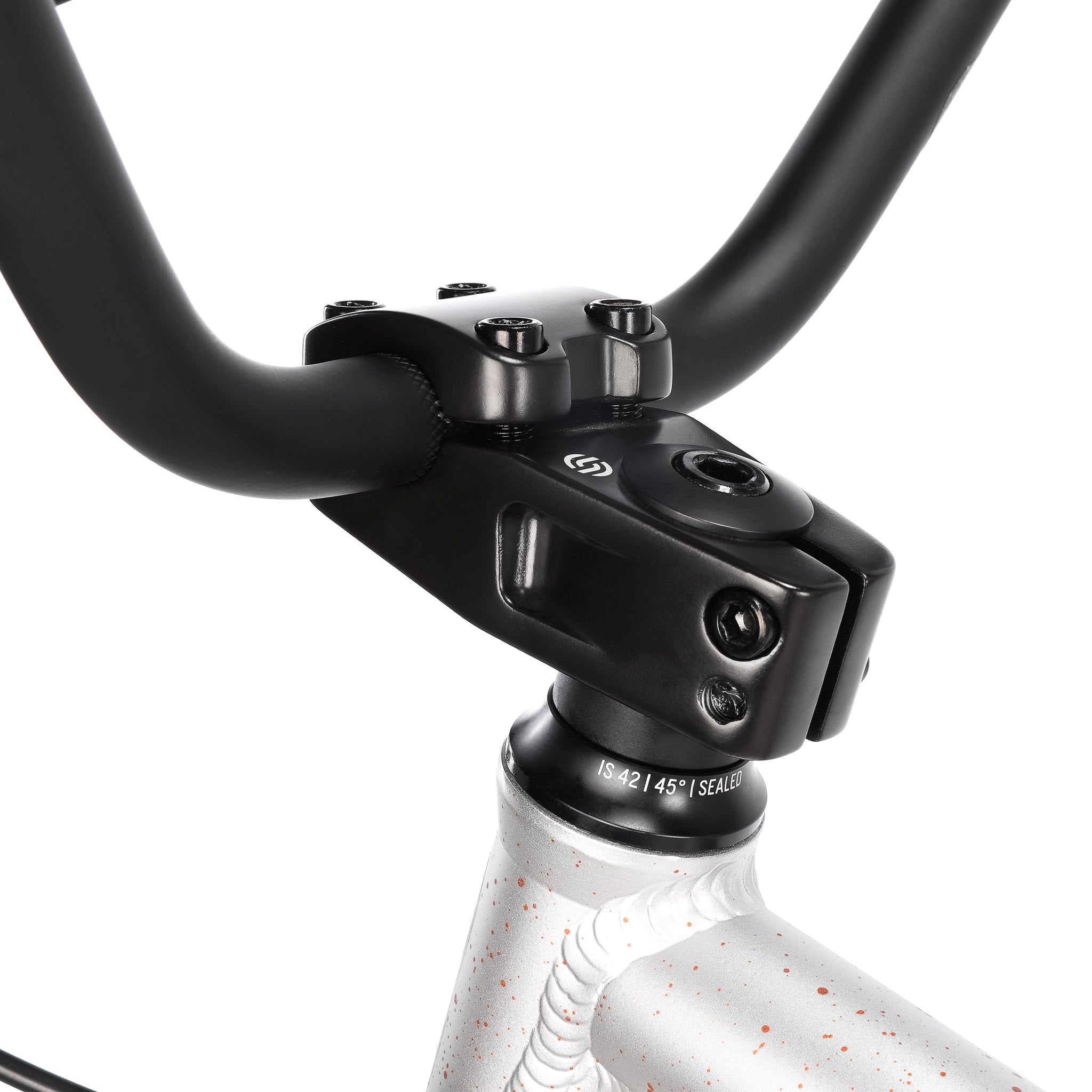

  • STEM: SALT "COMP" topload stem, 50mm reach
  • HEADSET: SALT "PRO" integrated headset, sealed bearing
  • BRAKE LEVER: TEKTRO "RS-360A"lever, front & rear

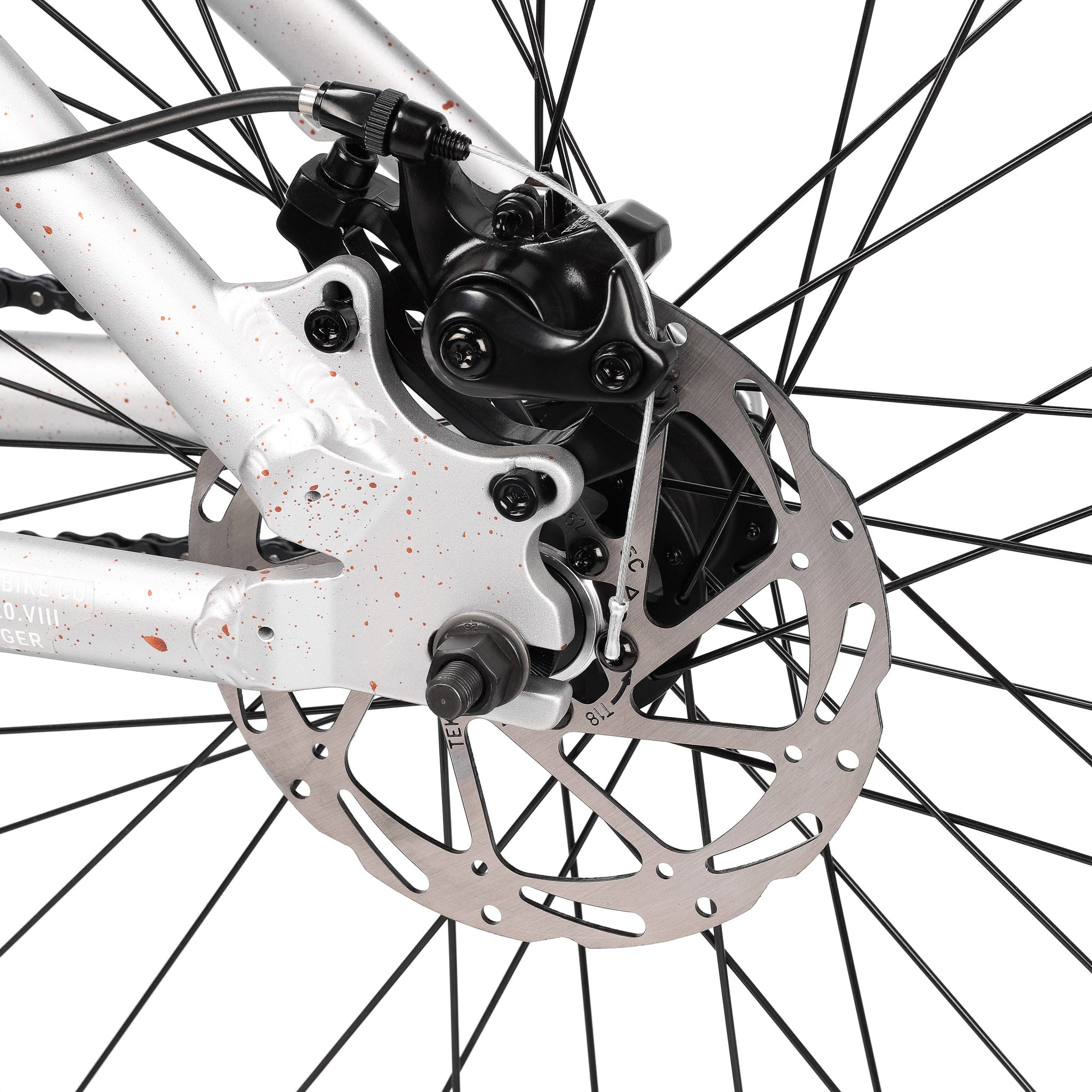

  • BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front & rear

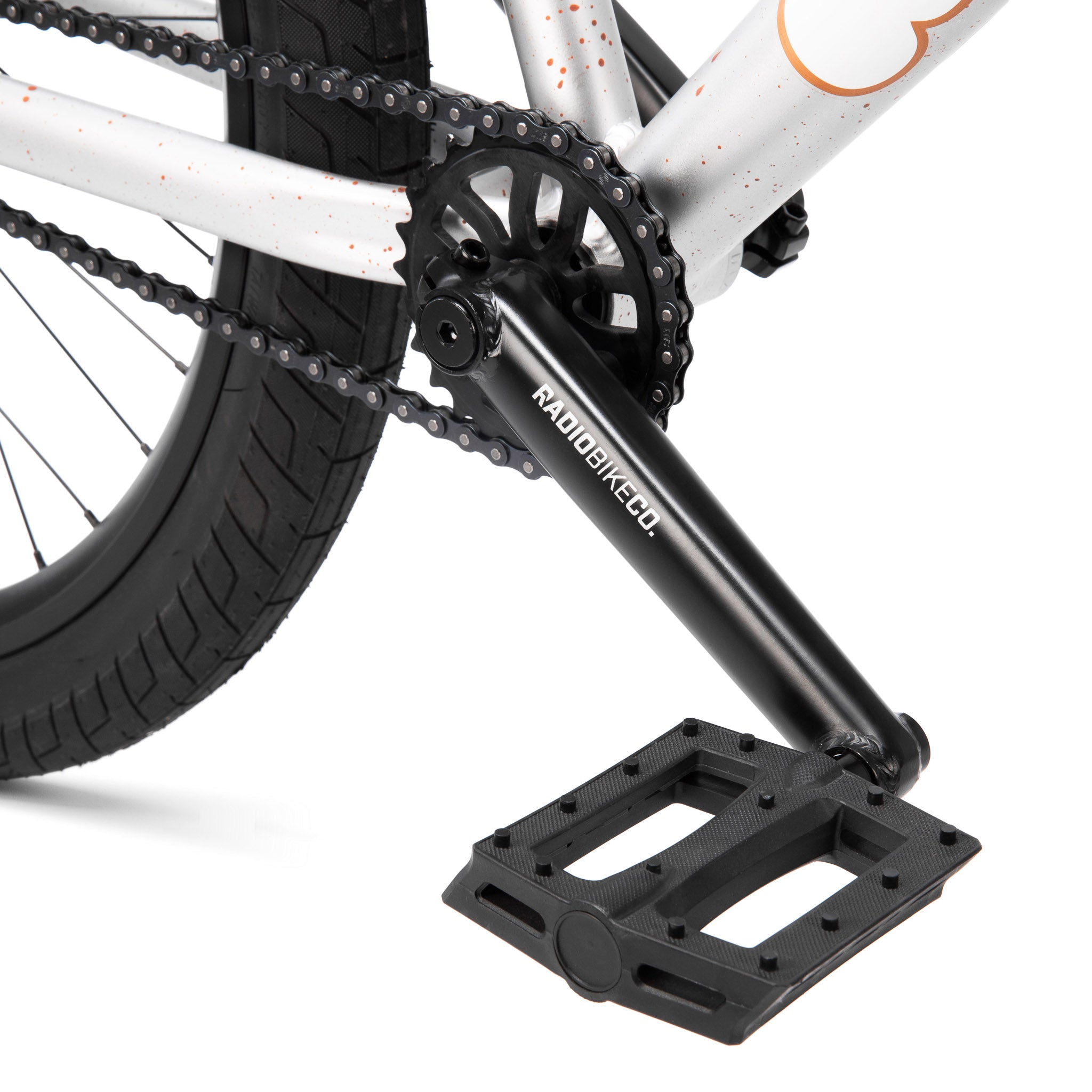

  • CRANK: RADIO "PRO" 3pc crank, tubular, crmo, 175mm, 8 spline
  • BB: RADIO "BSA19" bb set, sealed bearing
  • PEDALS: RADIO "PRO" pedals, nylon/fiberglass
  • CHAIN: SALT "AM" chain, WZ1 type

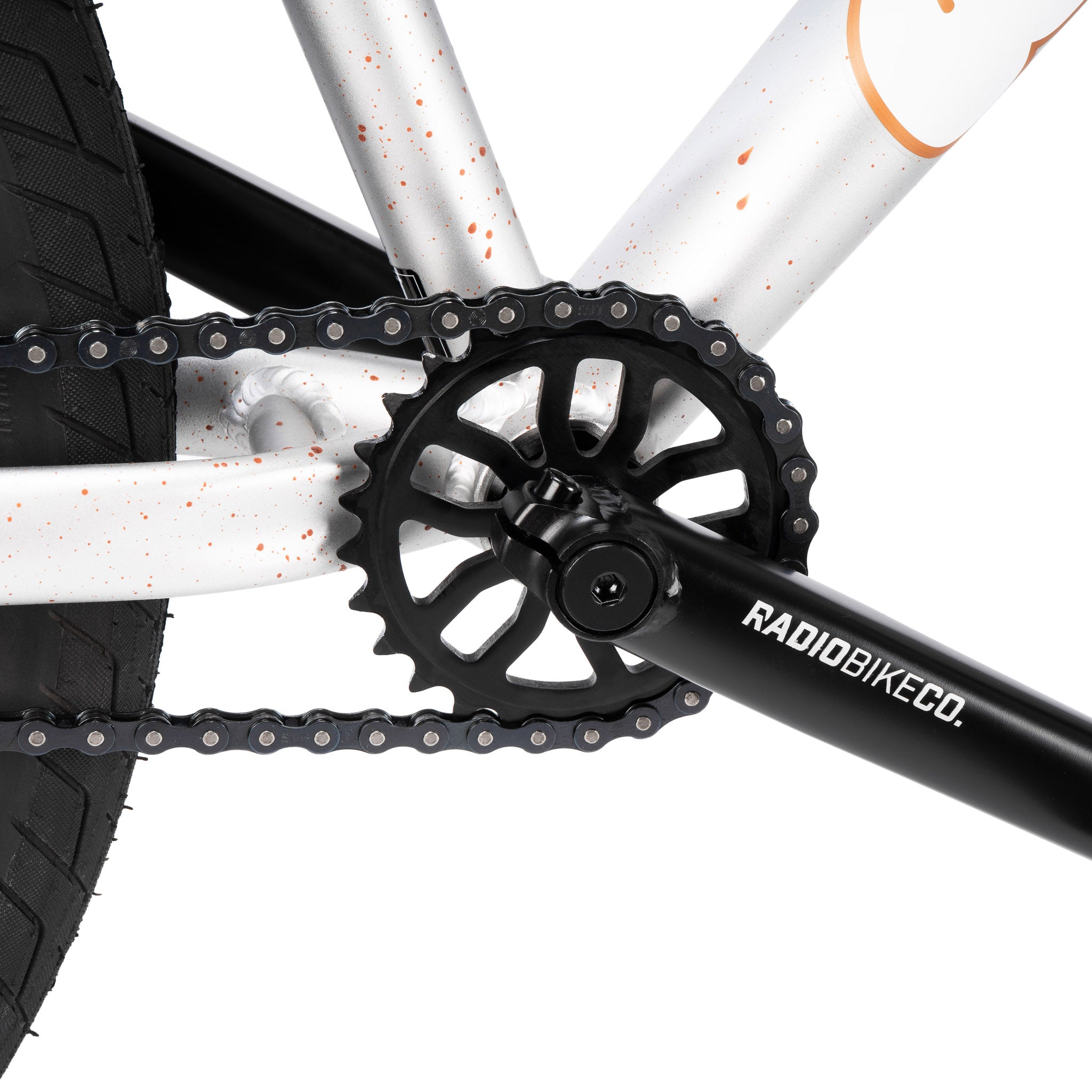

  • SPROCKET: RADIO "LEGION" sprocket, alloy, 26t
  • DRIVER: cassette driver, 12t, sealed bearing

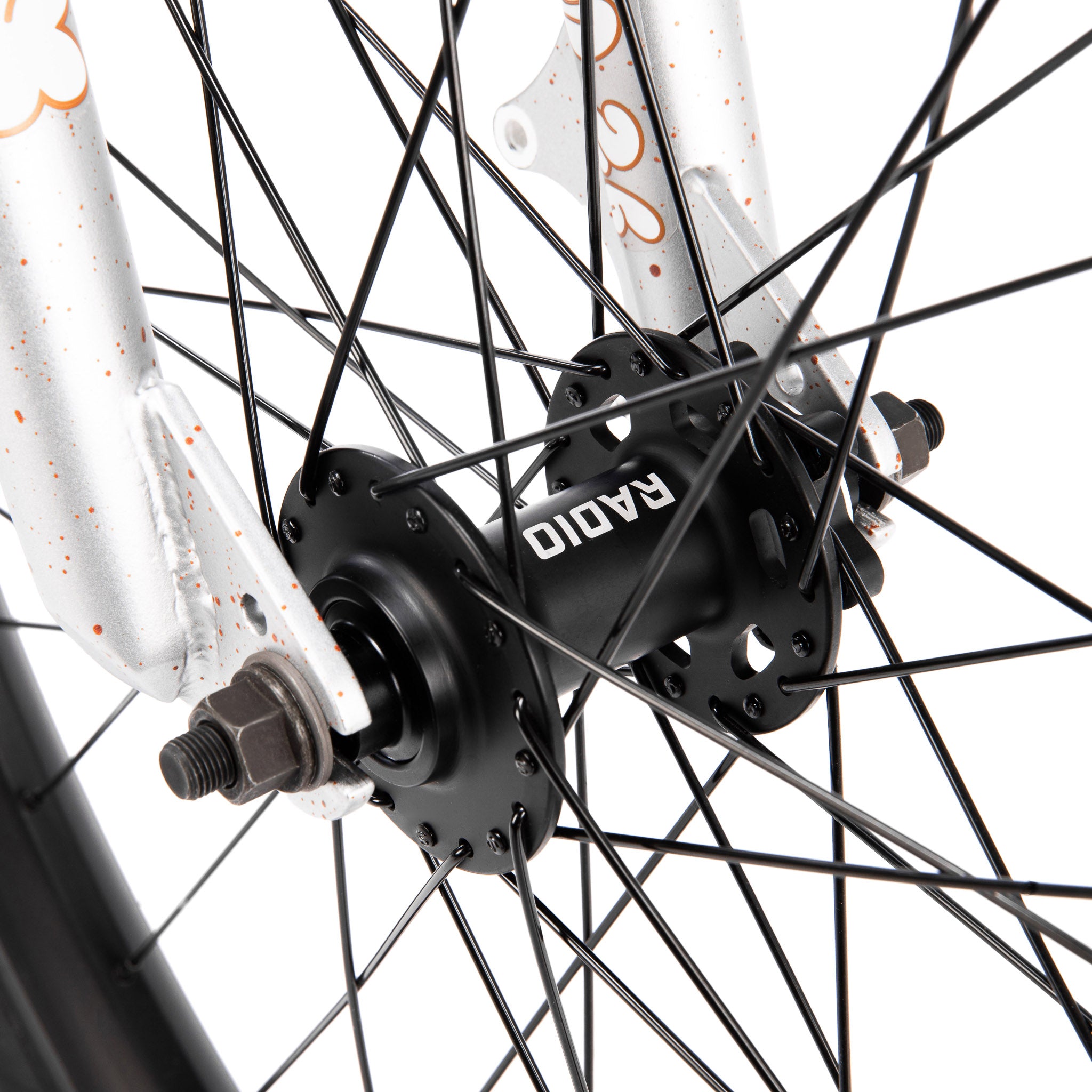

  • FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 36h

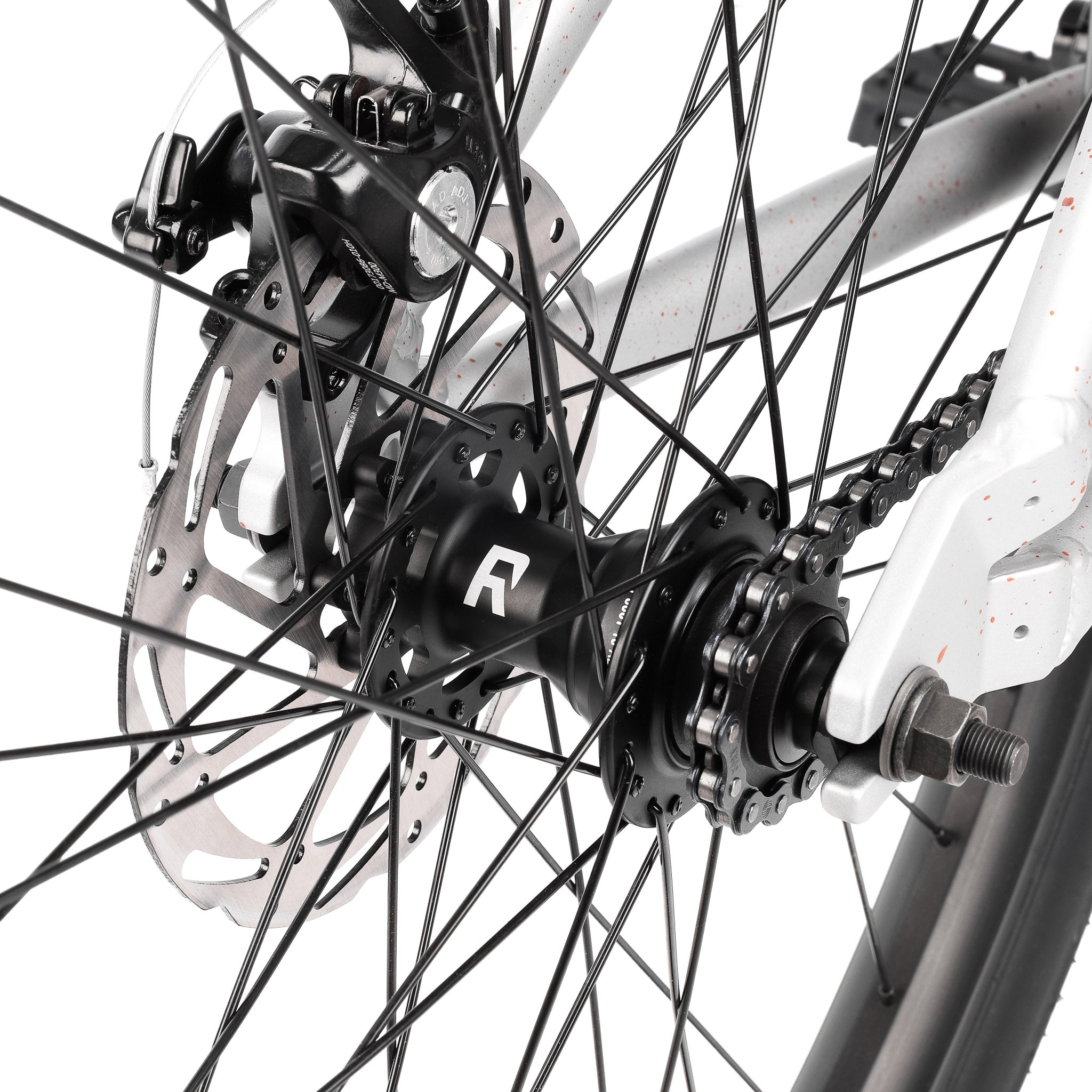

  • REAR HUB: RADIO "PRO" disc hub, alloy, sealed, 12t, 3/8"s axle, 36h
  • FRONT RIM: RADIO "DB35" rim, double wall
  • REAR RIM: RADIO "DB35" rim, double wall

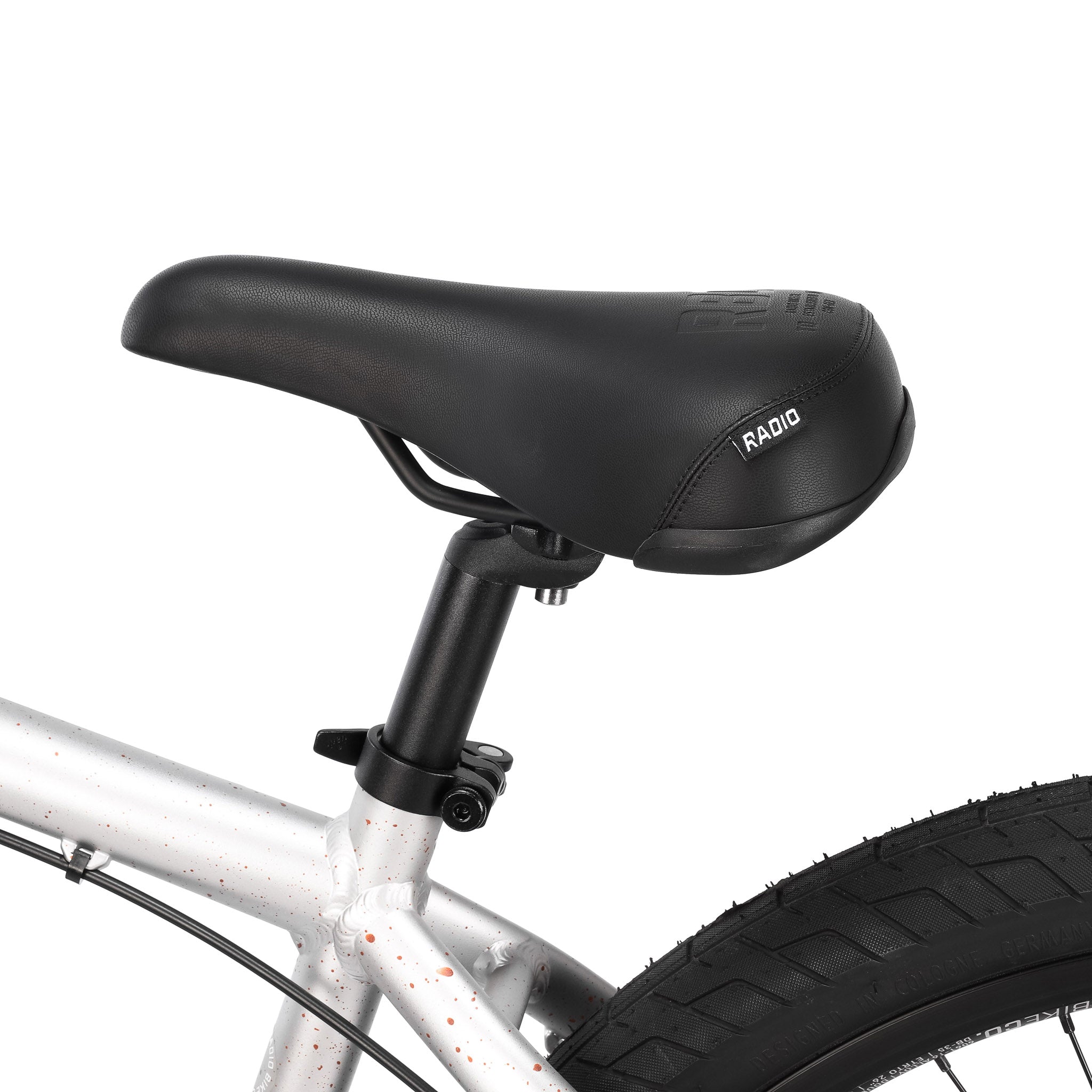

  • SEAT: RADIO "LEGION" railed seat
  • SEAT POST: RADIO "SP228" seat post, micro-adjust, alloy
  • SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy
  • TIRES: RADIO "LEGION 26" tires, 2.2", front & rear

Weight: 13.99kg / 30.85lbs



Frame Geometry:

Top Tube Length 22"
Chain Stay Length 16.7"
Head Tube Angle 71°
Seat Tube Angle 71.5°
Bottom Bracket Height  33mm drop
Standover Height 12.8"



Handlebar Geometry:

Rise 6.1"
Width 30"
Backsweep 10°
