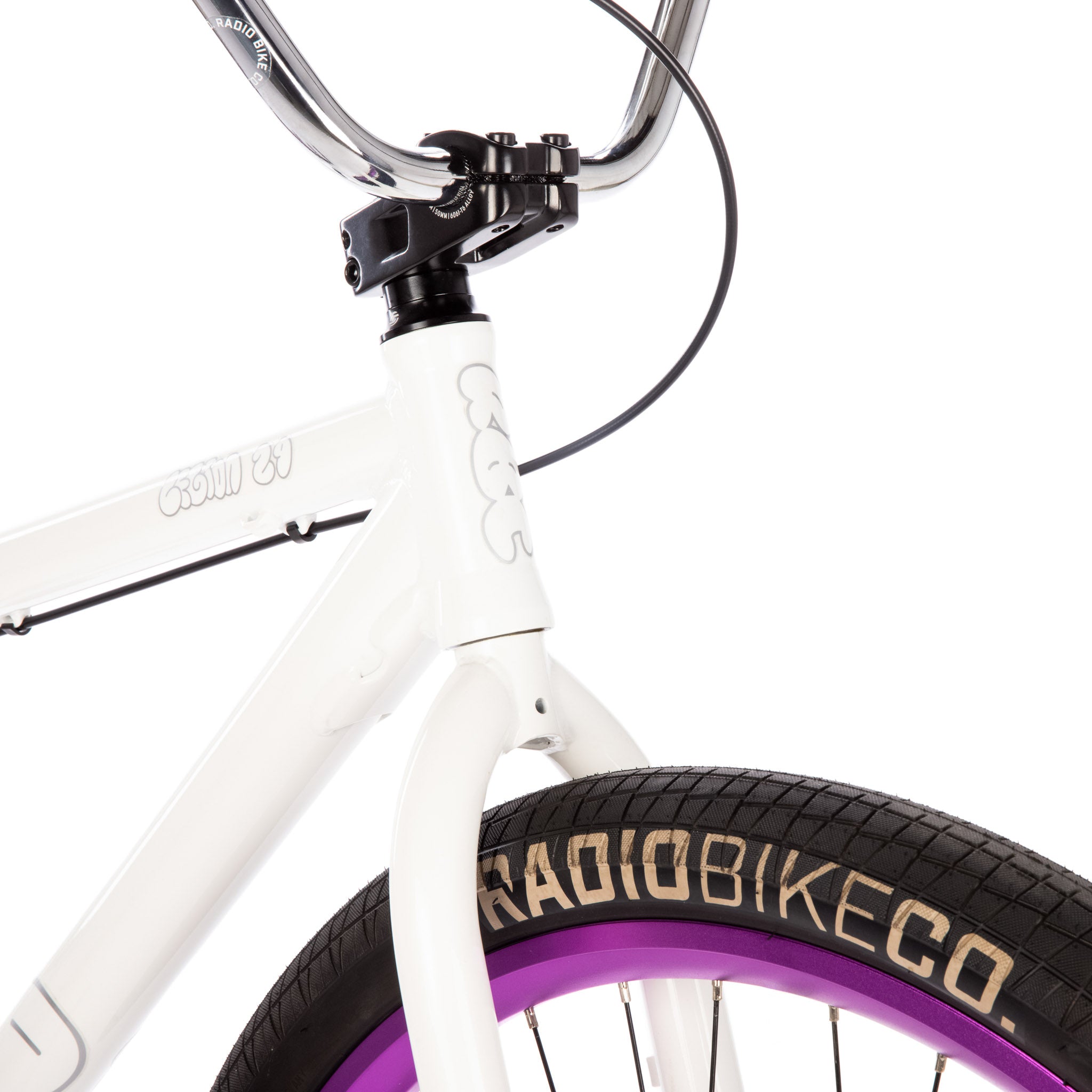

- FRAME: RADIO "LEGION 29" frame, 6061-T6 alloy
- FORK: RADIO "LEGION 29" fork, full crmo, 30mm offset

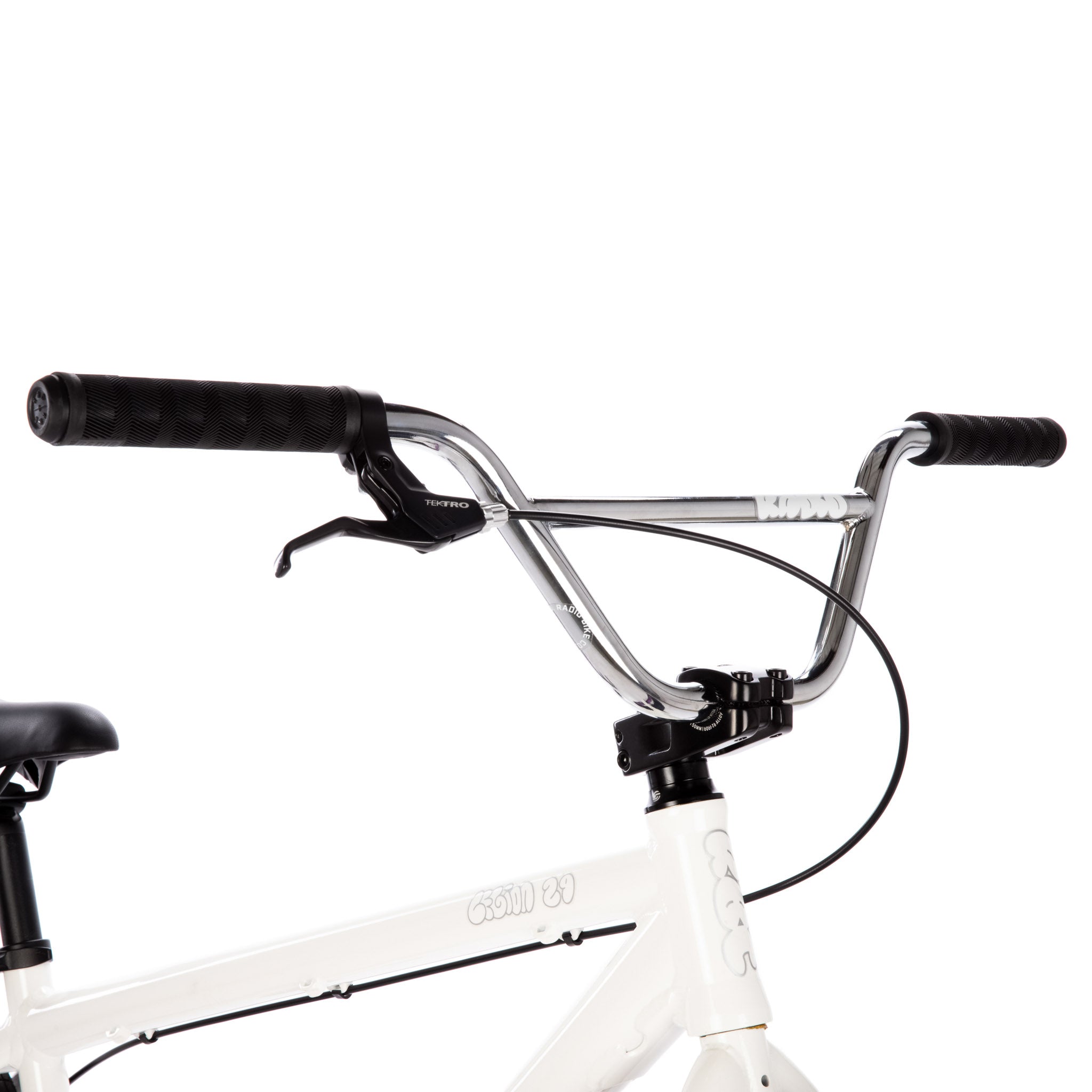

- HANDLEBAR: RADIO "LEGION" bar, full 4130 crmo

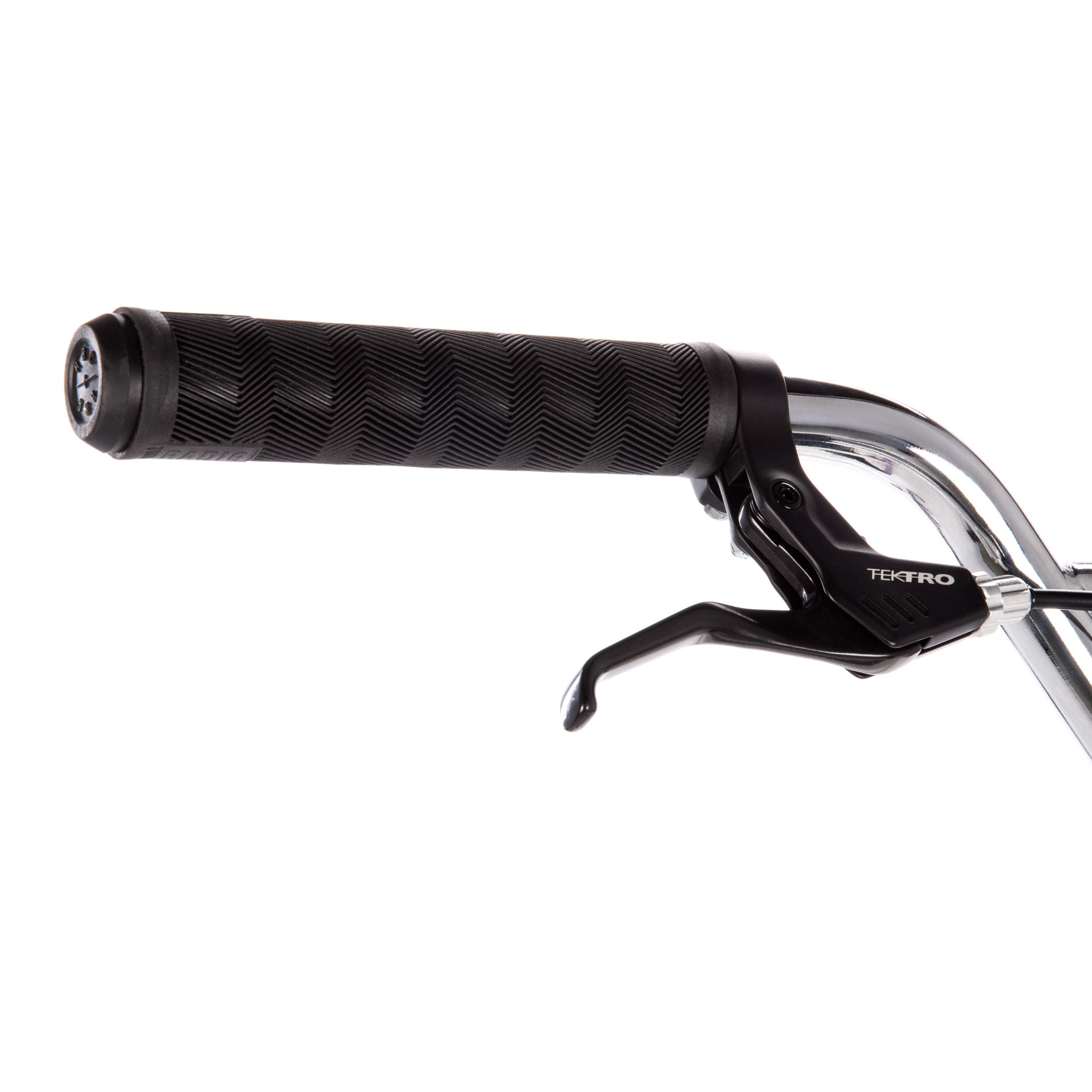

- GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

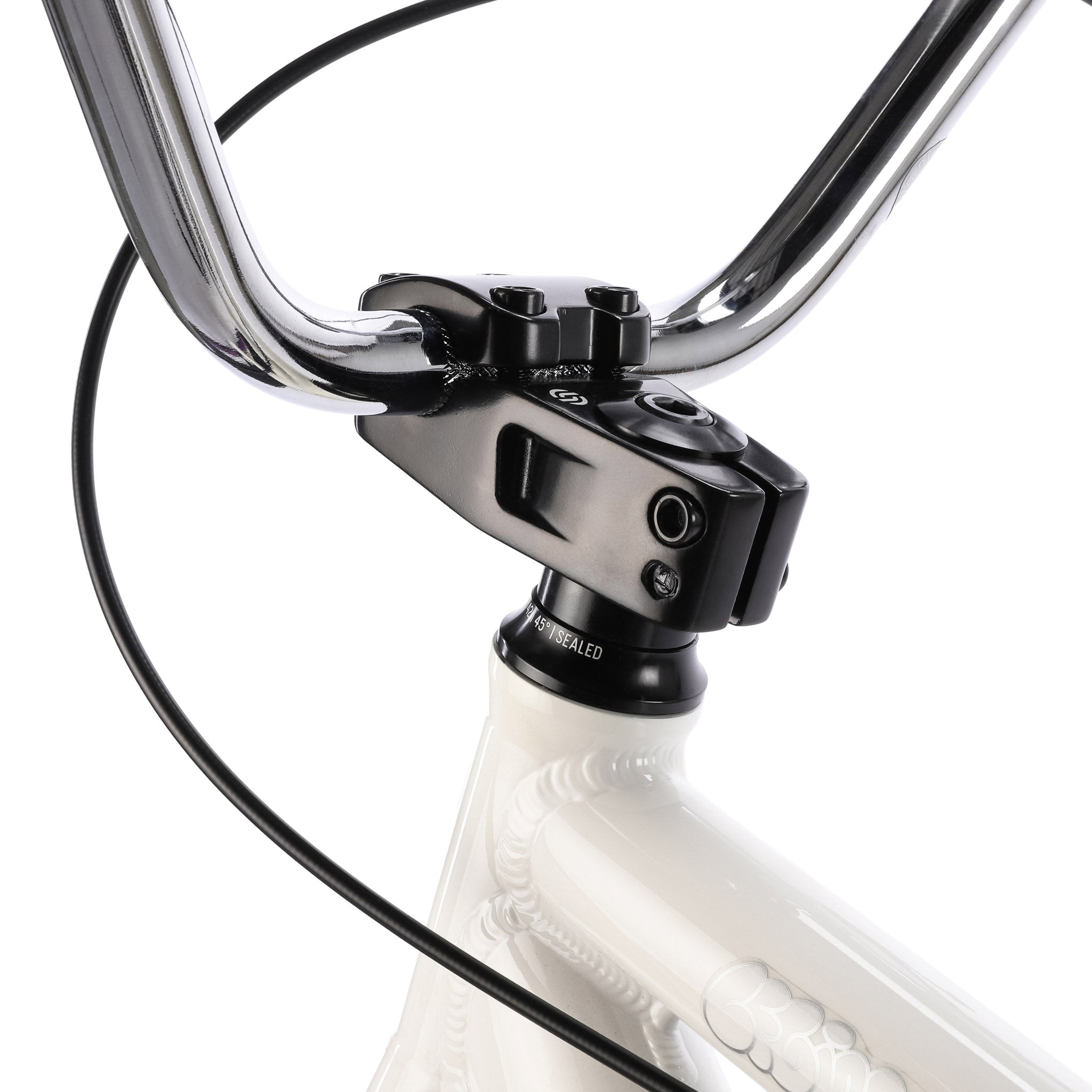

- STEM: SALT "COMP" topload stem, 50mm reach
- HEADSET: FSA "NO.28" A-headset
- BRAKE LEVER: TEKTRO "RS-360A"lever, front & rear

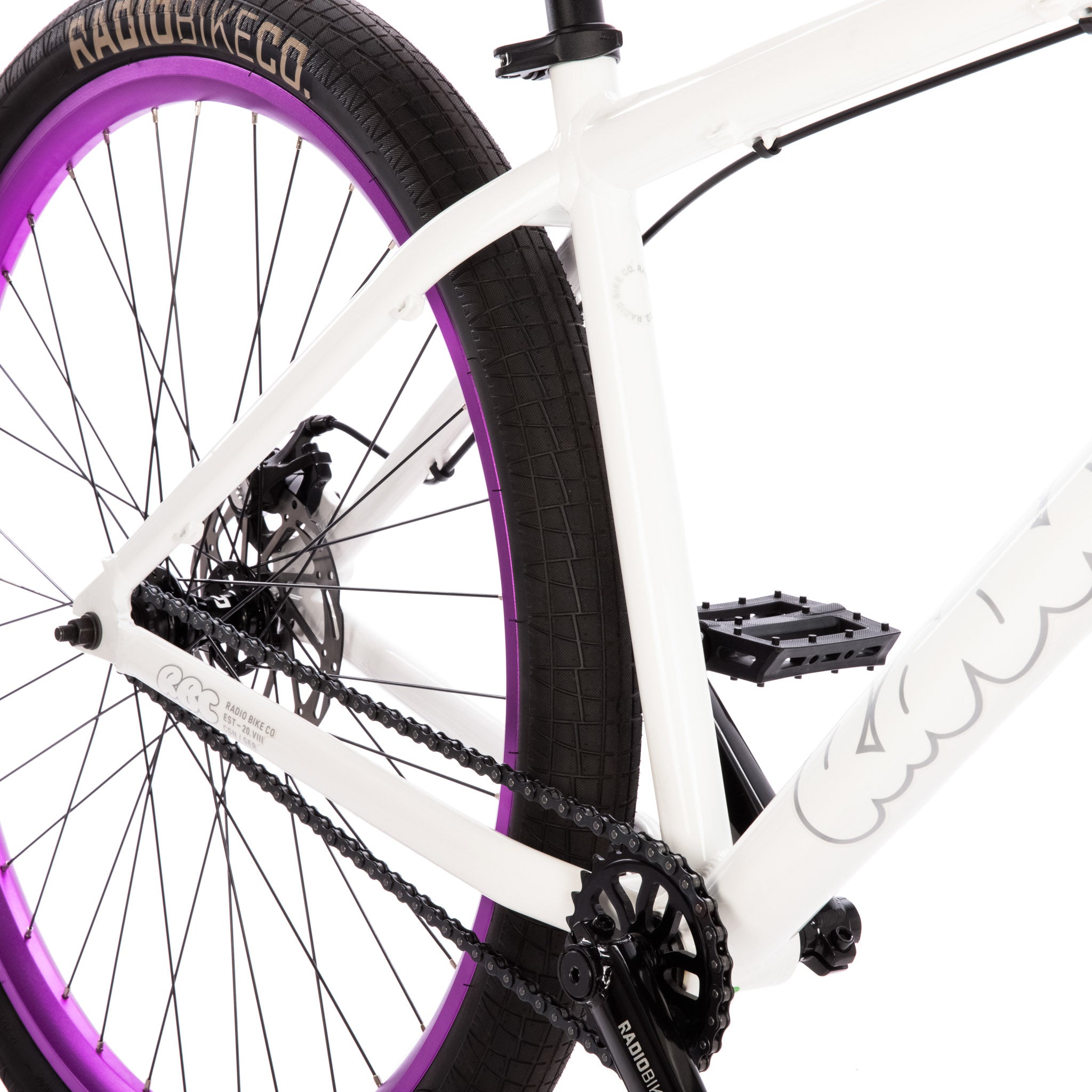

- BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front & rear

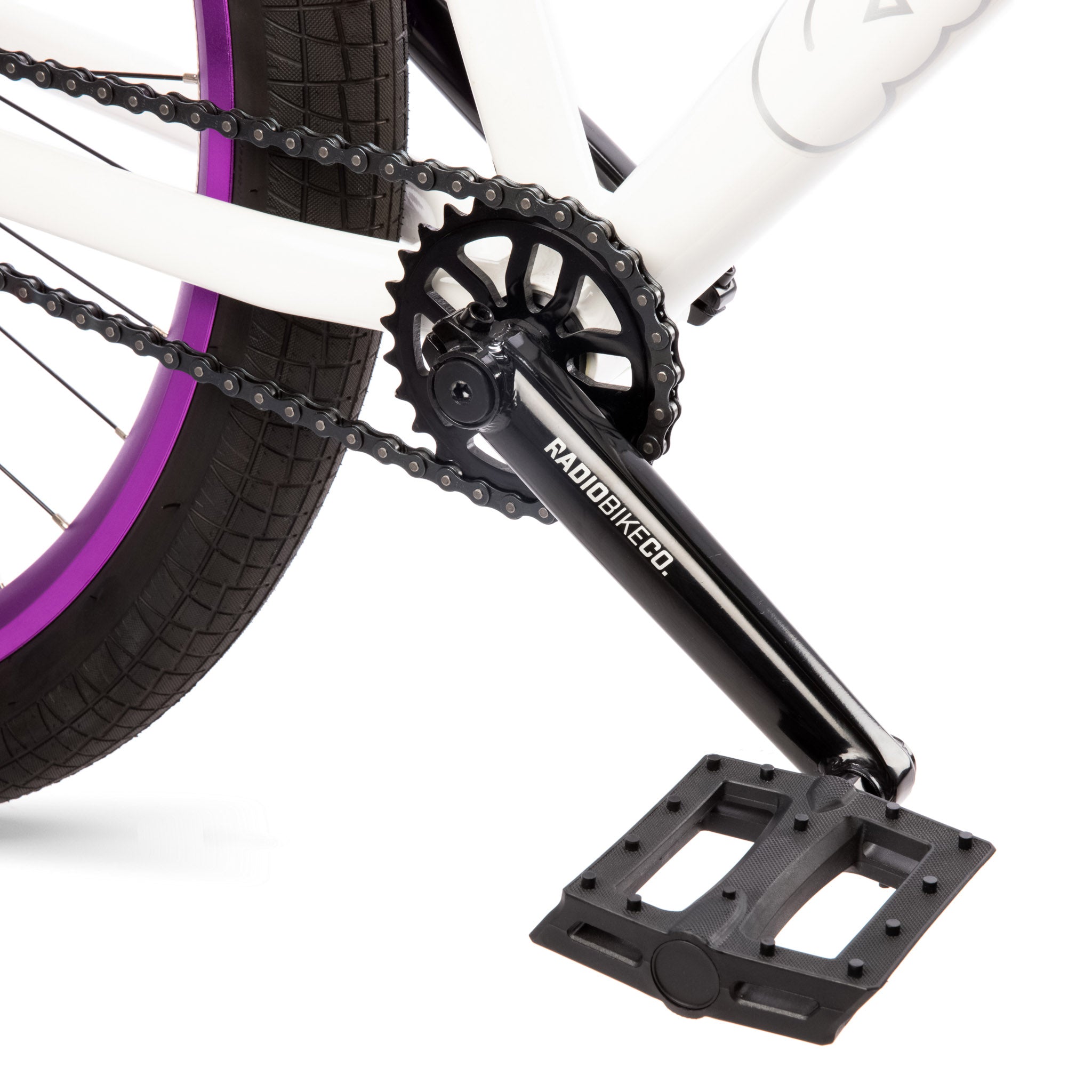

- CRANK: RADIO "PRO" 3pc crank, tubular, crmo, 175mm, 8 spline
- BB: RADIO "BSA19" bb set, sealed bearing
- PEDALS: RADIO "PRO" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type

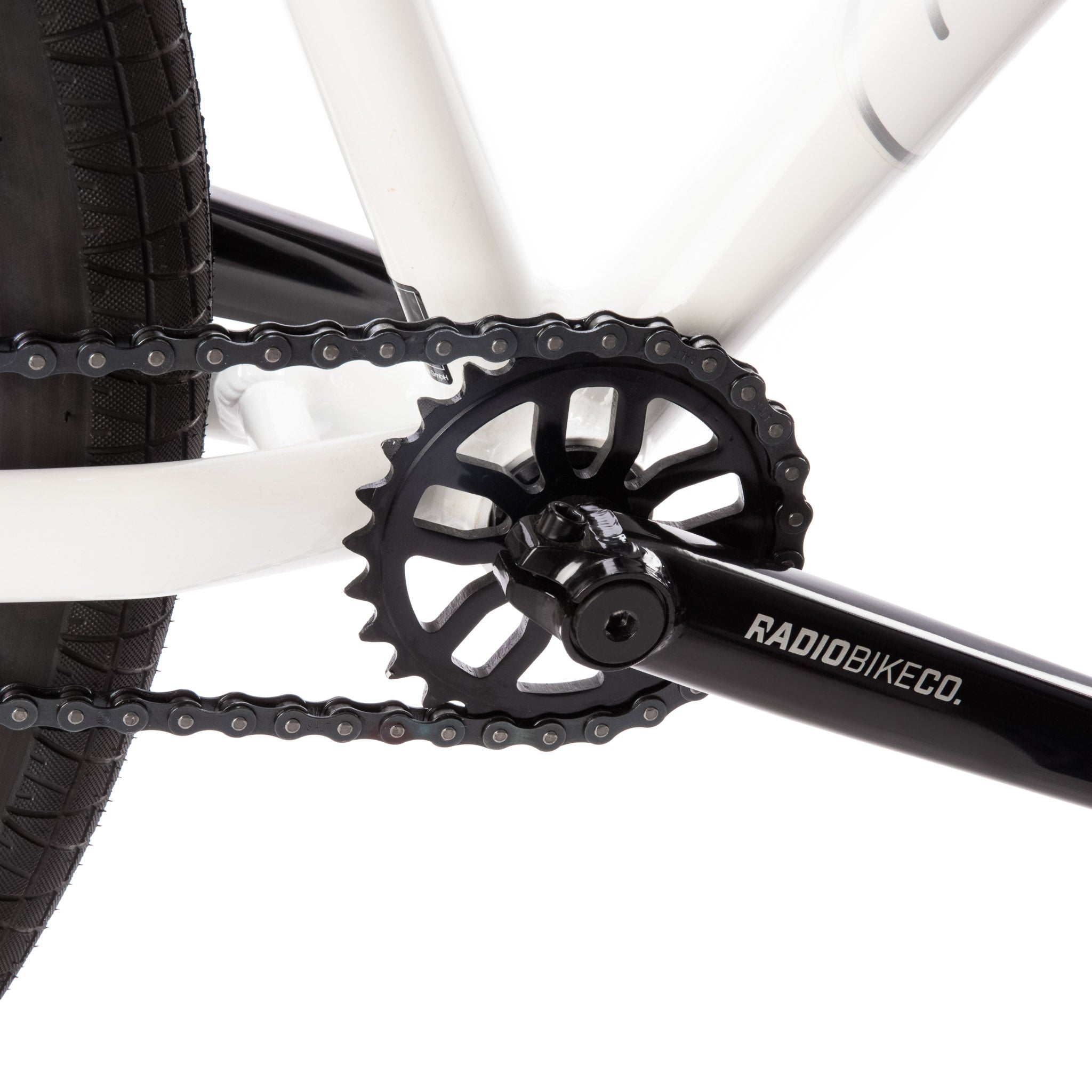

- SPROCKET: RADIO "LEGION" sprocket, alloy, 26t
- DRIVER: cassette driver, 12t, sealed bearing

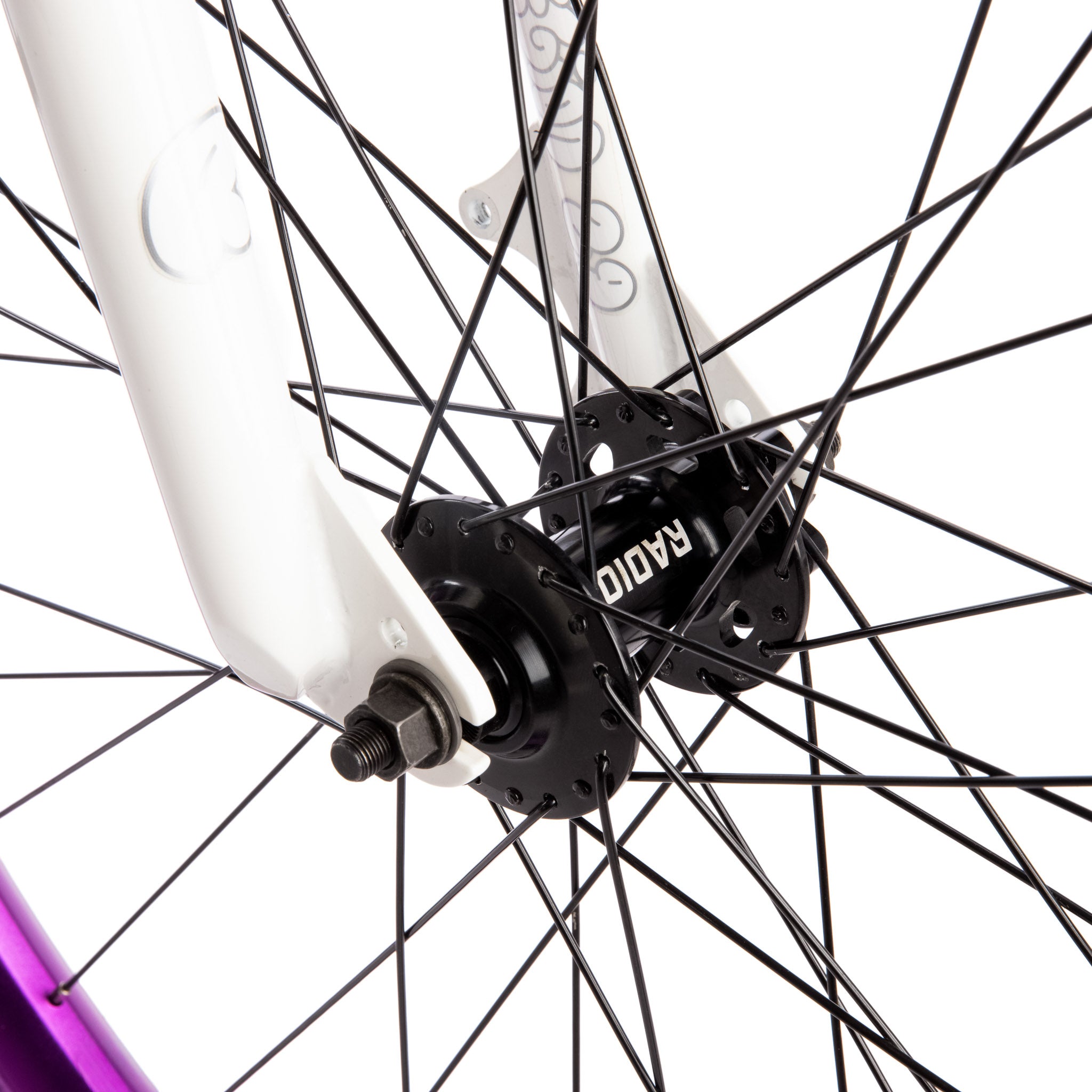

- FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 36h

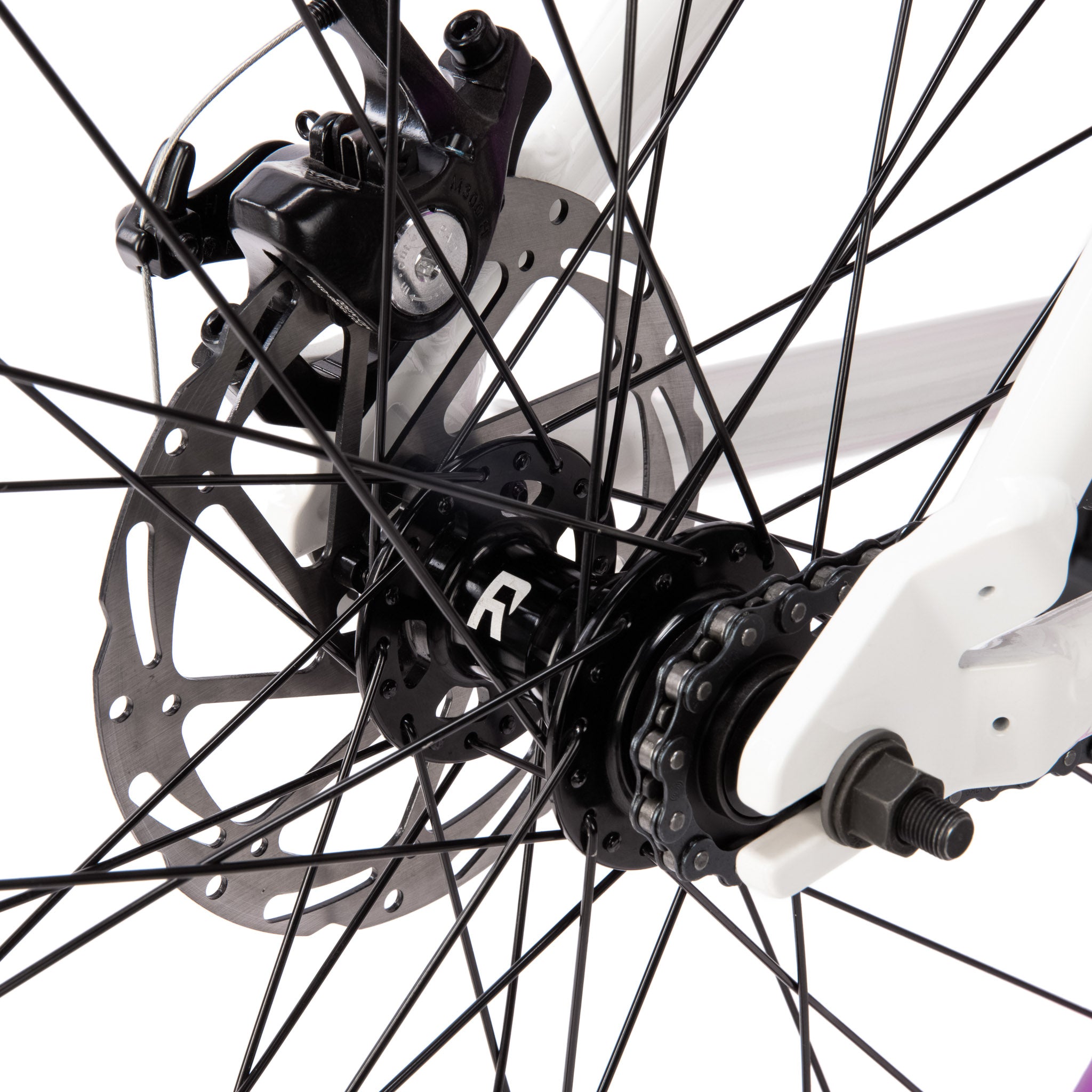

- REAR HUB: RADIO "PRO" disc hub, alloy, sealed, 12t, 3/8"s axle, 36h
- FRONT RIM: RADIO "DB35" rim, double wall
- REAR RIM: RADIO "DB35" rim, double wall

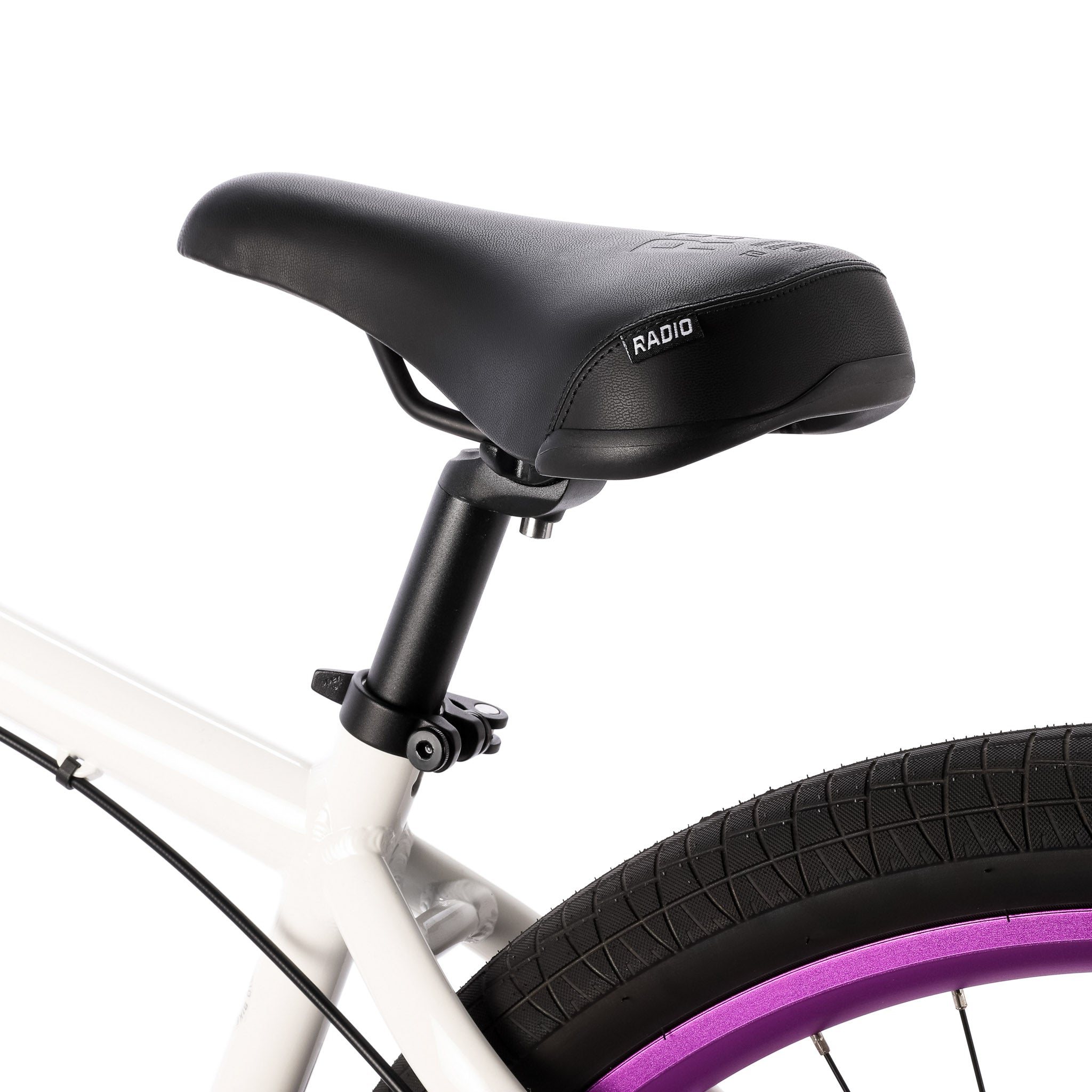

- SEAT: RADIO "LEGION" railed seat
- SEAT POST: RADIO "SP228" seat post, micro-adjust, alloy
- SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy

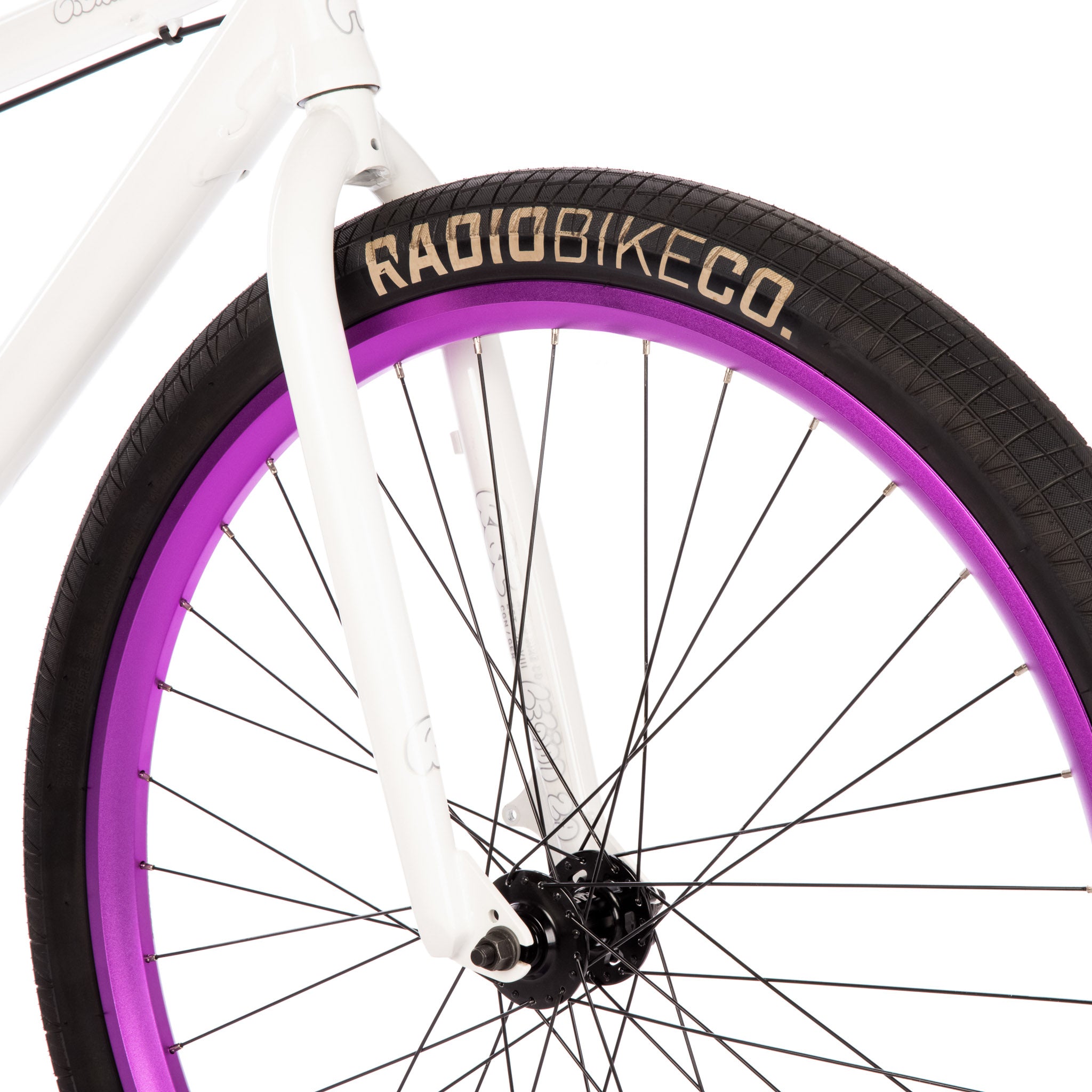

- TIRES: RADIO "LEGION 29" tires, 2.3", front & rear

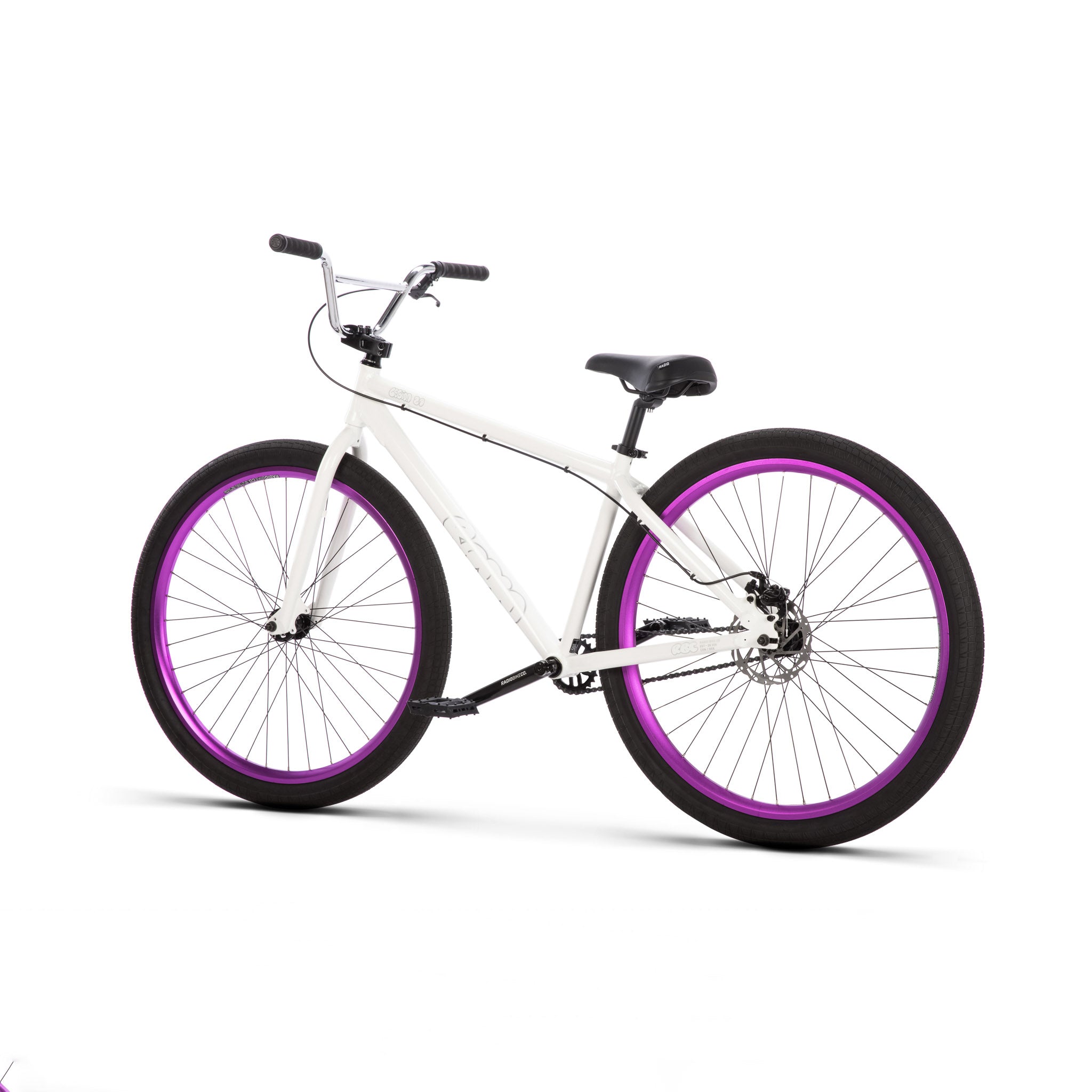

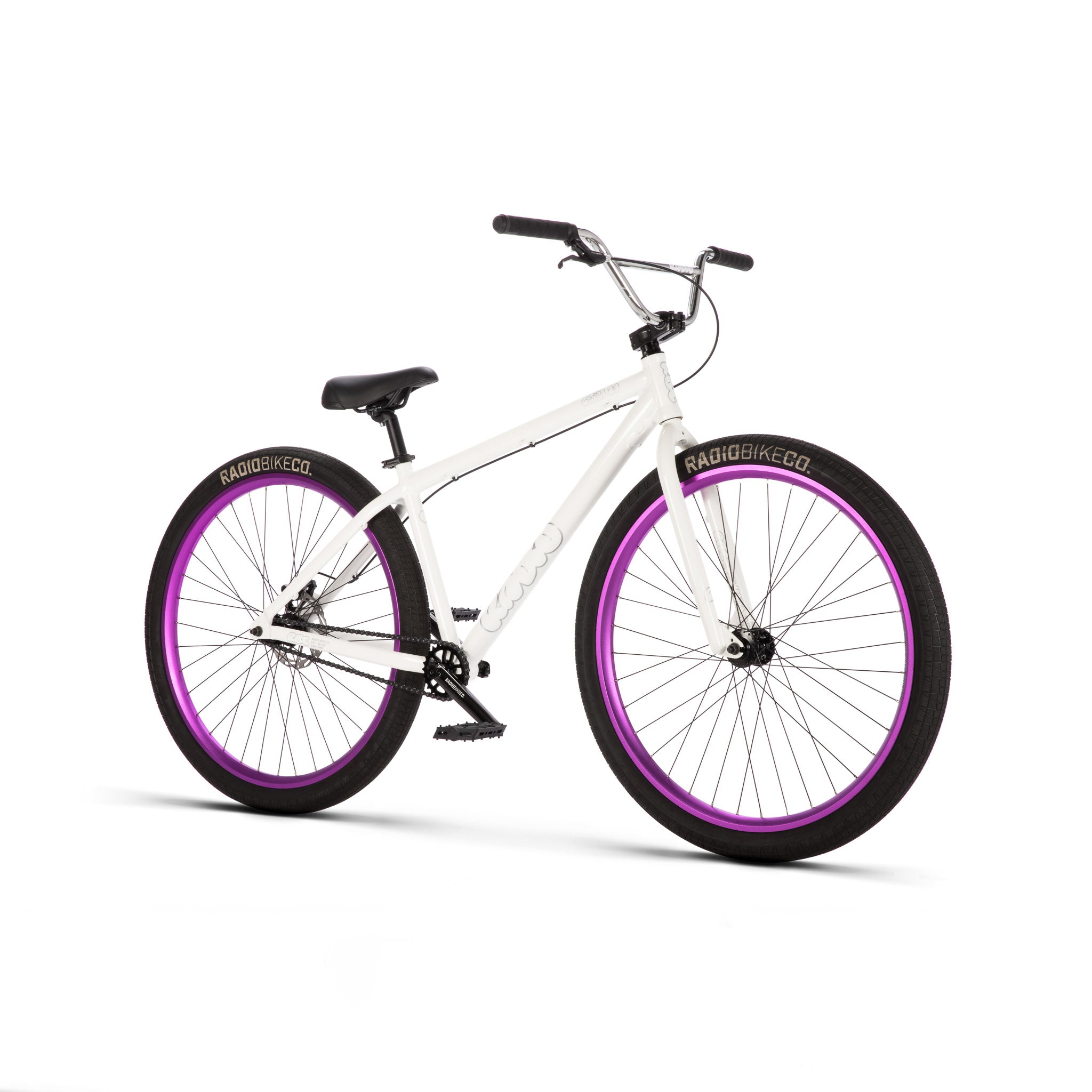

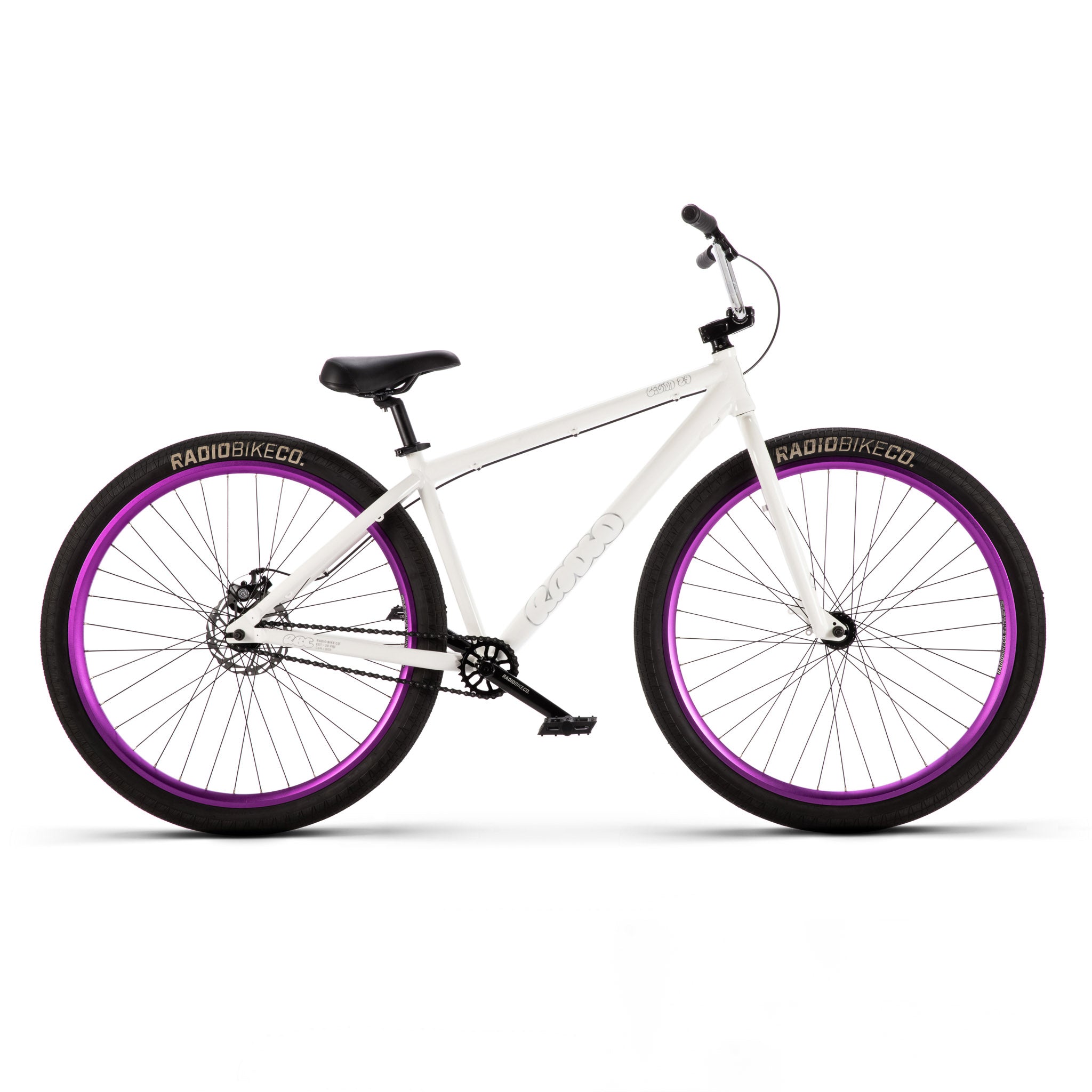

Legion 29 Complete Bike
A new kind of bike, the Legion is an urban weapon designed to ride through it all, one wheel or two. We designed our very own 6061-T6 alloy frame with "wheelie specific geometry", making it super responsive and easy to pick up and mauver, yet stable at high speeds. With the frame being alloy, it's low in weight but tough enough to handle anything you can throw at it (or throw it at!). Fully sealed RADIO PRO wheels with massive 2.2" RADIO tires and a Tektro disc brakes front and rear make this wheelie machine simply unbeatable and unlike anything else out there right now.
The only question you'll be asking yourself is 26" or 29"?
Weight: 15.04kg / 33.15lbs
Frame Geometry:
Top Tube Length | 23.5" |
Chain Stay Length | 18" |
Head Tube Angle | 71° |
Seat Tube Angle | 71° |
Bottom Bracket Height | 65mm drop |
Standover Height | seat tube length: 430mm |
Handlebar Geometry:
Rise | 6.1" |
Width | 30" |
Backsweep | 10° |
Upsweep | 3° |
