- FRAME: RADIO "EVOL" frame, crmo top tube, 1020 hi-ten
- FORK: RADIO "AM" fork, 1020 hi-ten, crmo steerer, tapered legs
- HANDLEBAR: RADIO "AM 20" bar, 1020 hi-ten
- GRIPS: SALT "EX" grips, flangless, 155mm
- STEM: RADIO "AM" topload stem, 50mm reach
- HEADSET: SALT "PRO" integrated headset, sealed bearing
- ROTOR: holes for removable gyro tabs
- BRAKE LEVER: RADIO "AM" brake lever, alloy, rear
- BRAKE: RADIO "AM" u-brake, alloy, rear
- CRANK: RADIO "ROOKIE" 3pc crank, tubular, crmo, 165mm, 8 spline
- BB: RADIO "MID" bb set, press fit, sealed bearing
- PEDALS: RADIO "PRO" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type
- SPROCKET: RADIO "VISION" sprocket, steel, 25t
- DRIVER: cassette driver, 9t, lb
- FRONT HUB: RADIO "ROOKIE" hub, steel, loose ball, 3/8"s, 36h
- REAR HUB: RADIO "AM" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
- FRONT RIM: RADIO "ROOKIE" rim, single wall
- REAR RIM: RADIO "ROOKIE" rim, single wall
- SEAT: RADIO "CENTURY" combo seat, slim padded
- SEAT CLAMP: RADIO "SLIM" seat clamp, alloy
- TIRES: RADIO "ROOKIE" tires, 2.3", front & rear

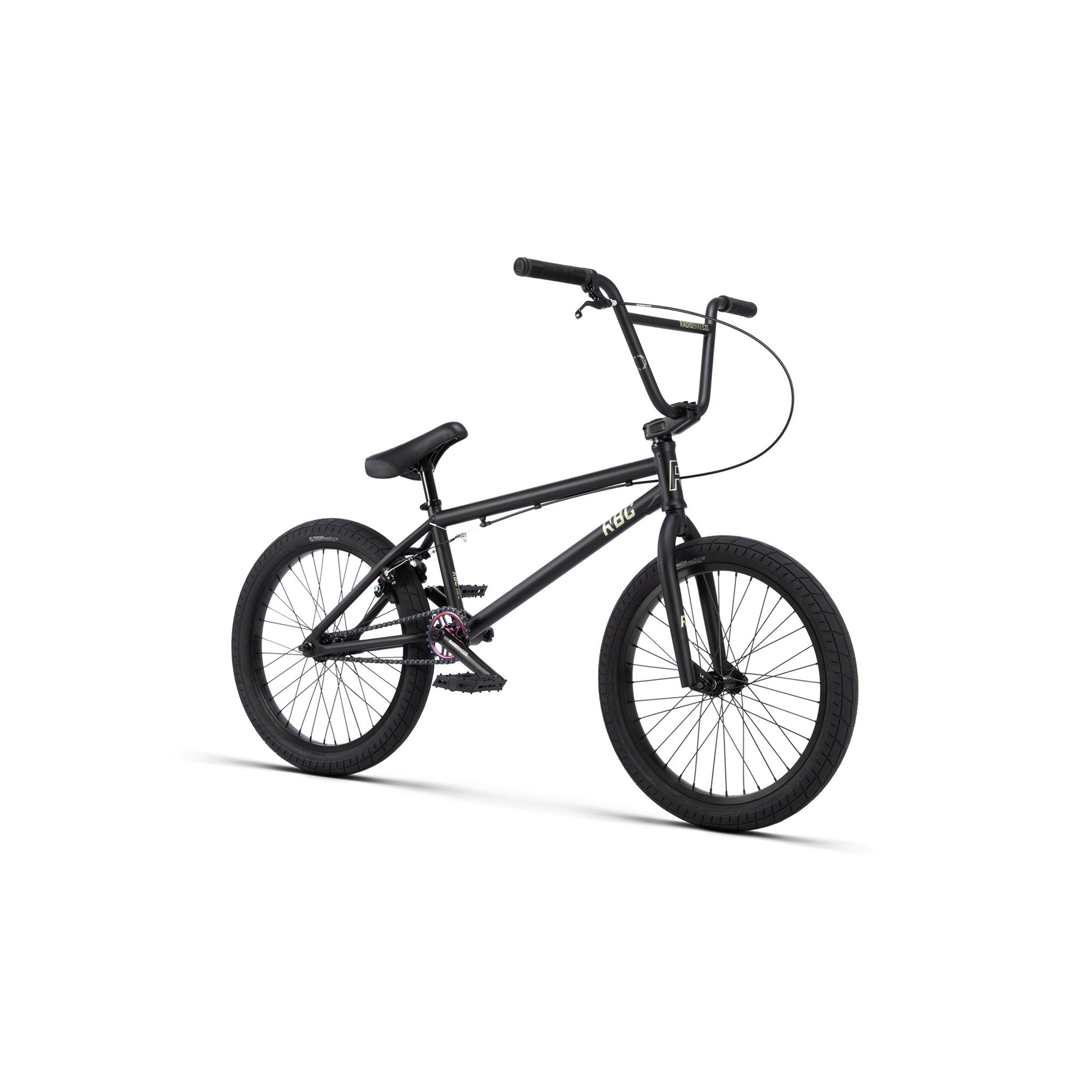

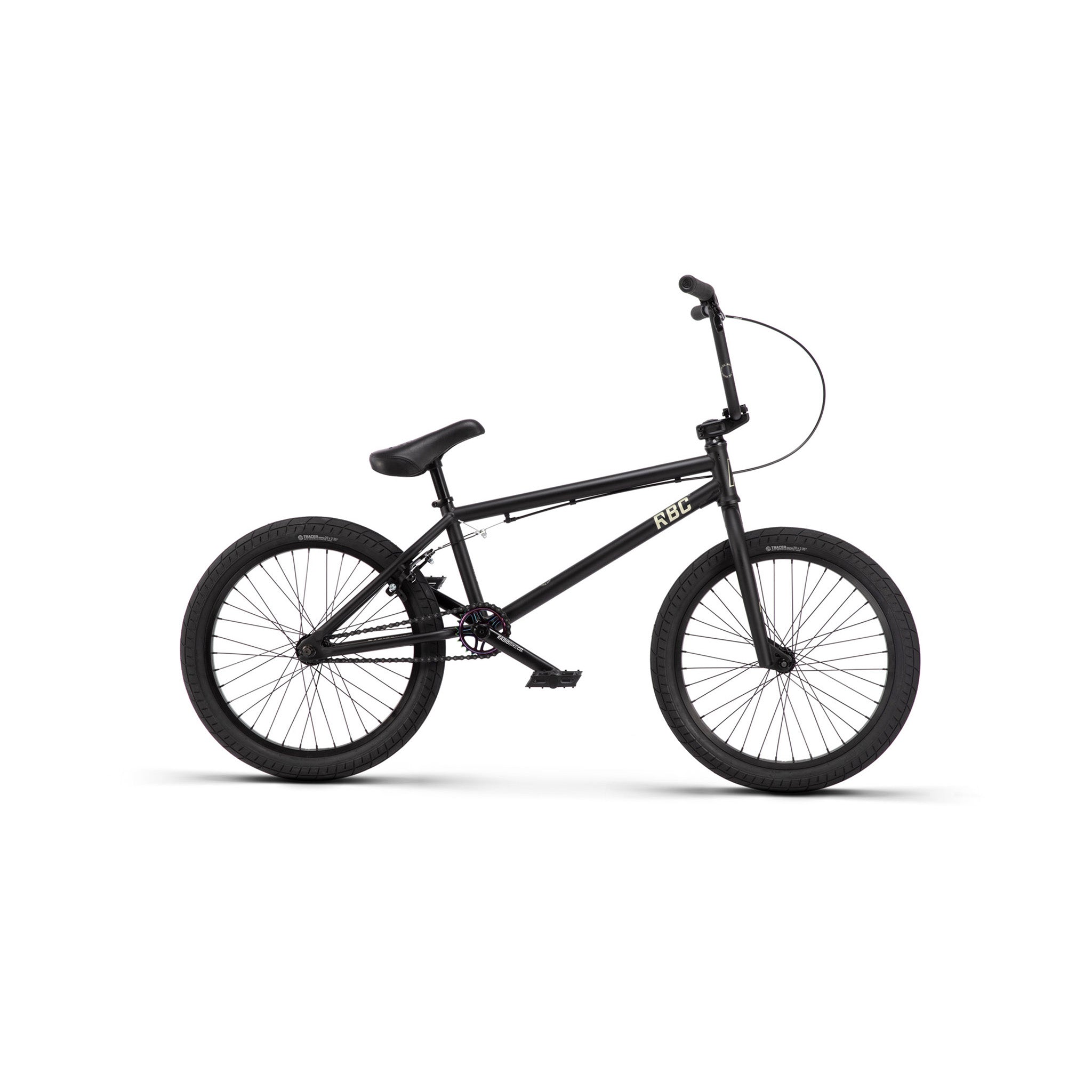

Evol Complete Bike
The Evol is a solid entry level machine with everything you need to start making serious progression with your riding. Boasting a crmo toptube and a sealed integrated headset and Mid-sized bottom bracket, details like the big logo Radio Rookie tires and Oil Slick sprocket make the EVOL something very special and unique.
Weight: 12.25kg / 27.02lbs
Frame Geometry:
| Top Tube Length | 20.3" |
| Chain Stay Length | 13.2" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 11.75" |
| Standover Height | 8.25" |
Handlebar Geometry:
| Rise | 8.8" |
| Width | 29" |
| Backsweep | 11° |
| Upsweep | 2° |
