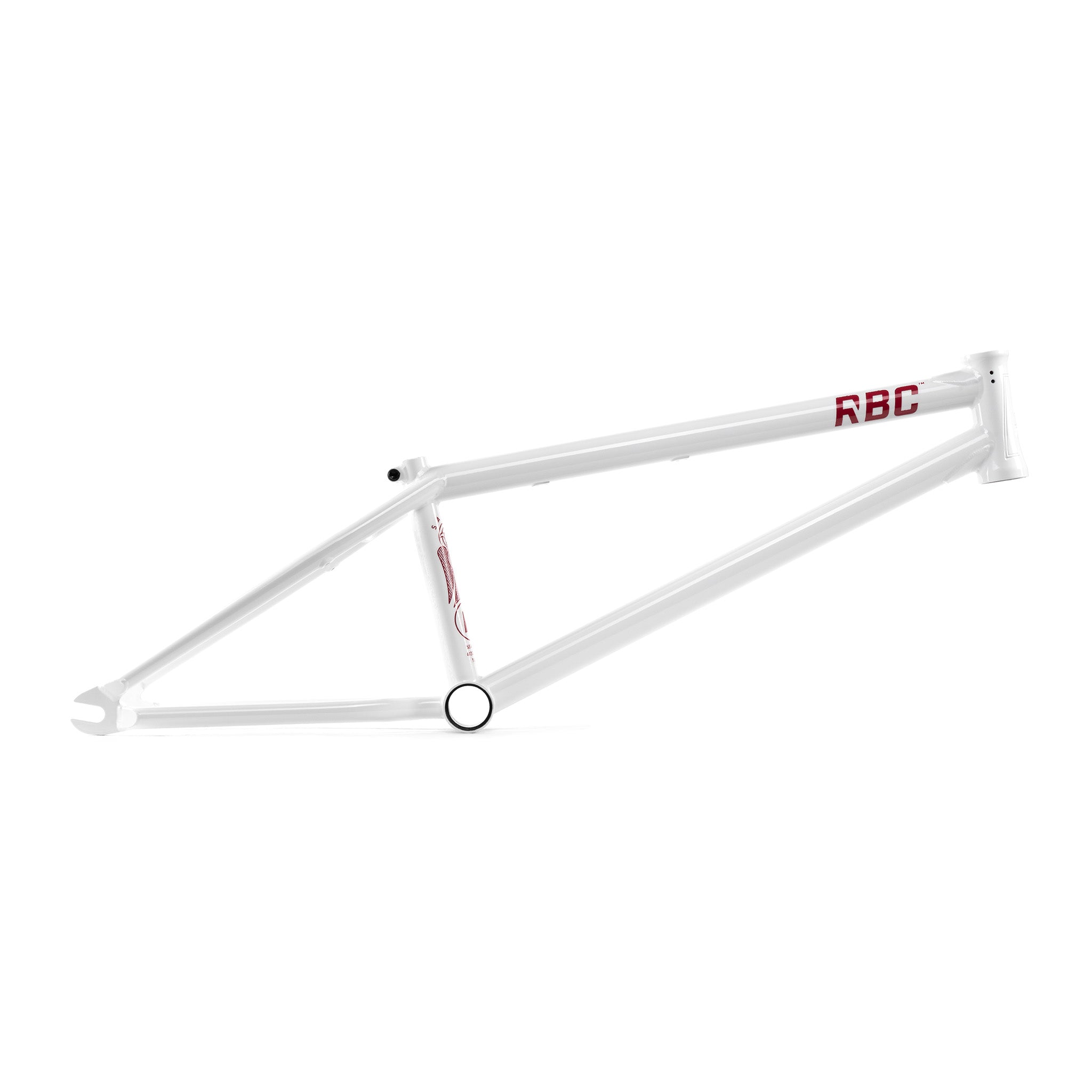

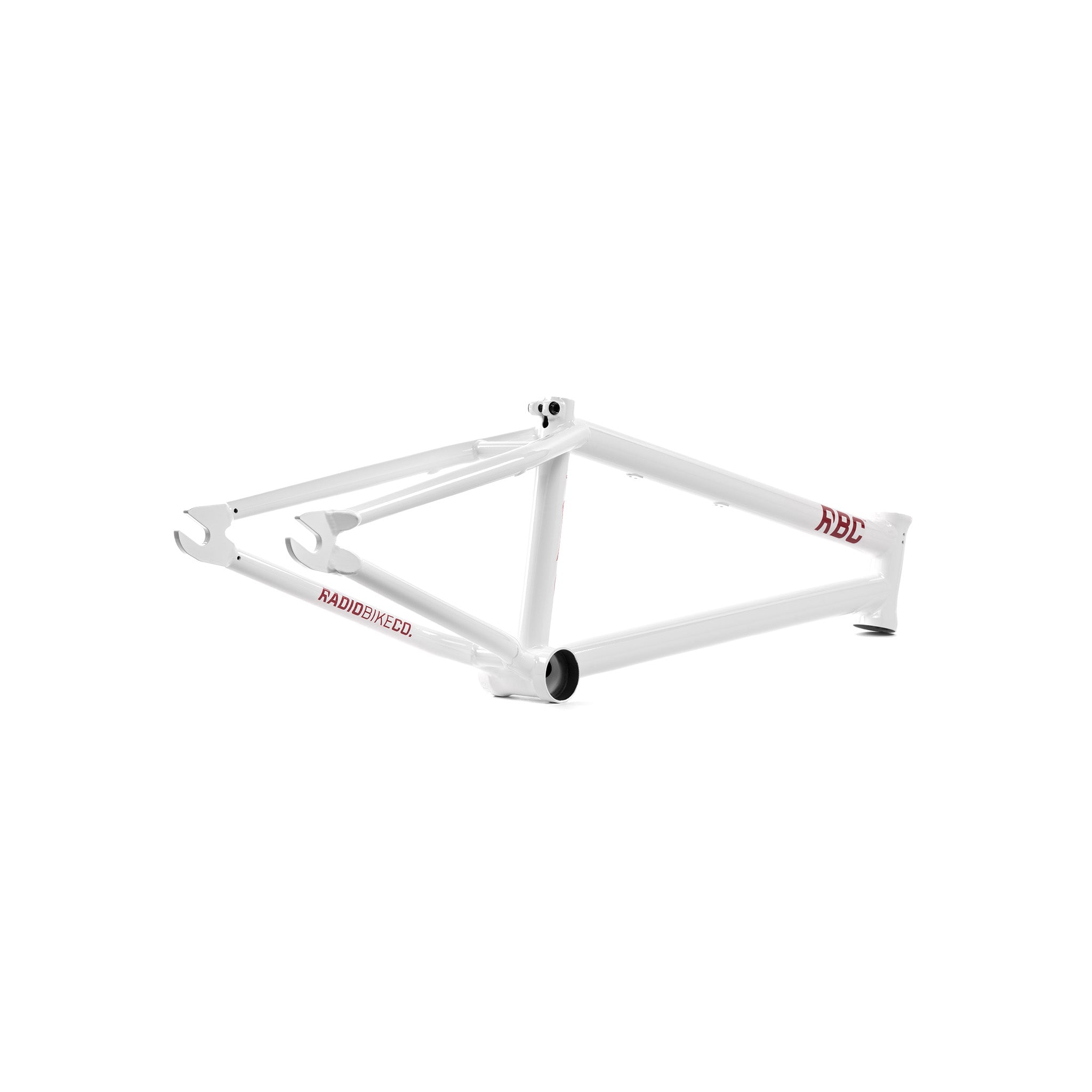

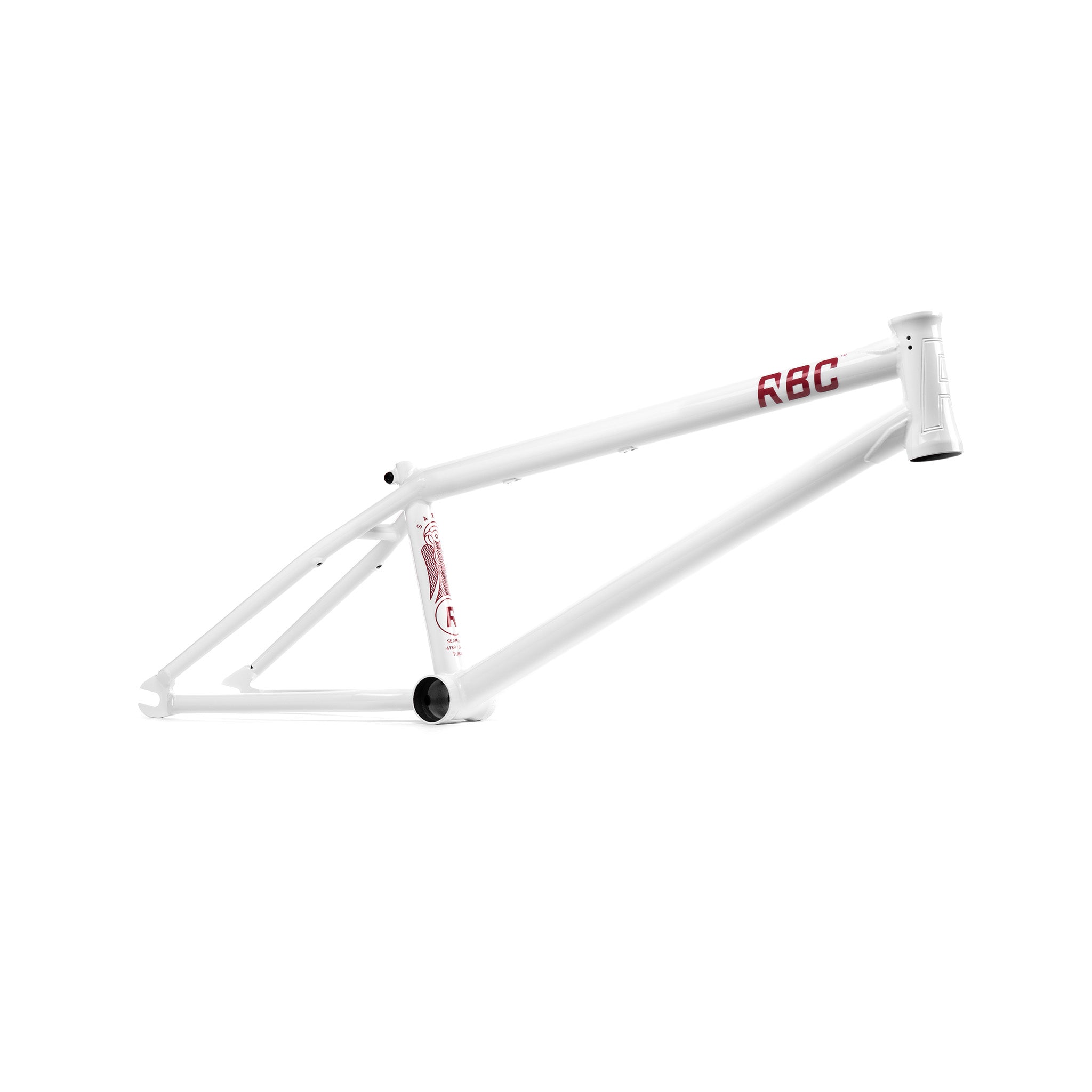

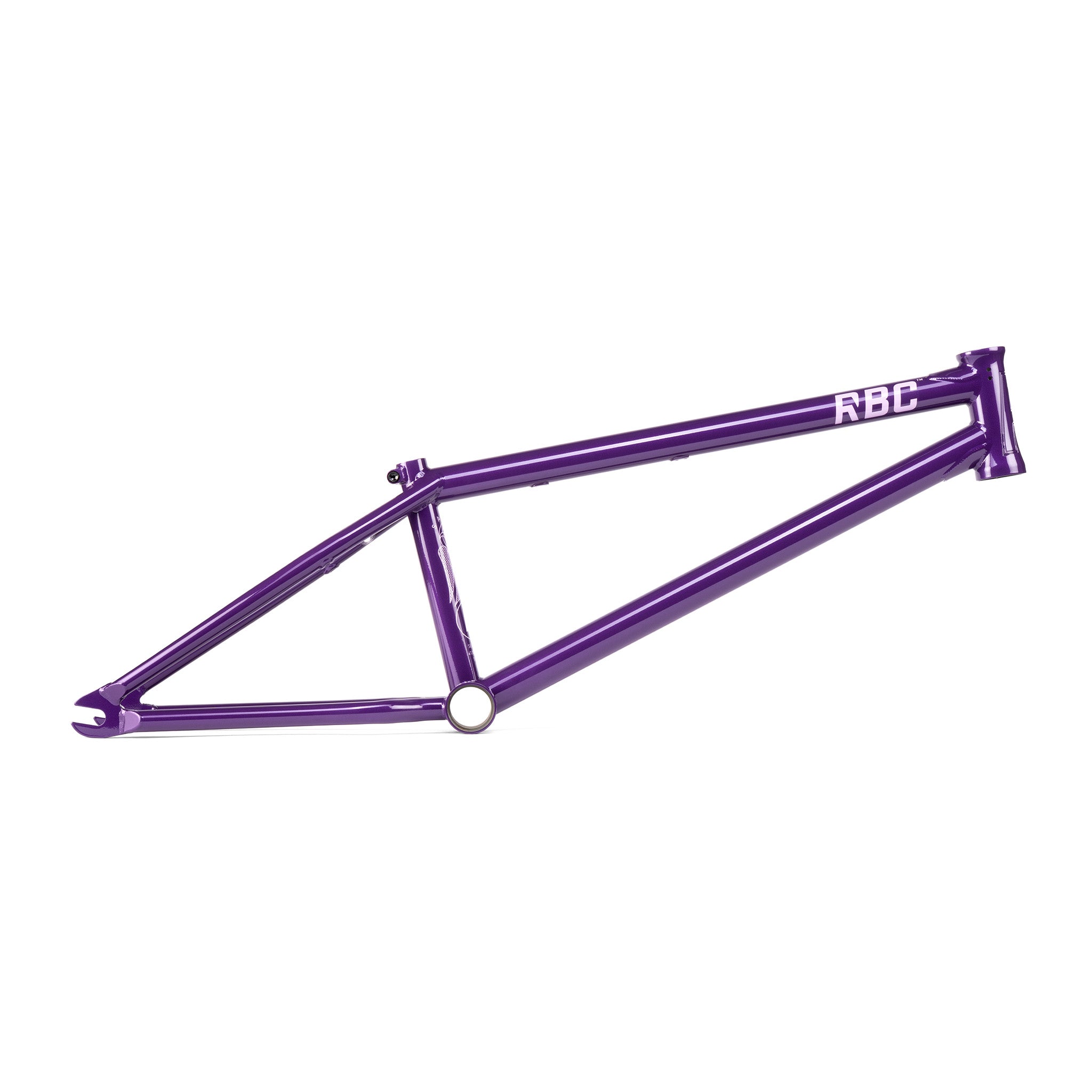

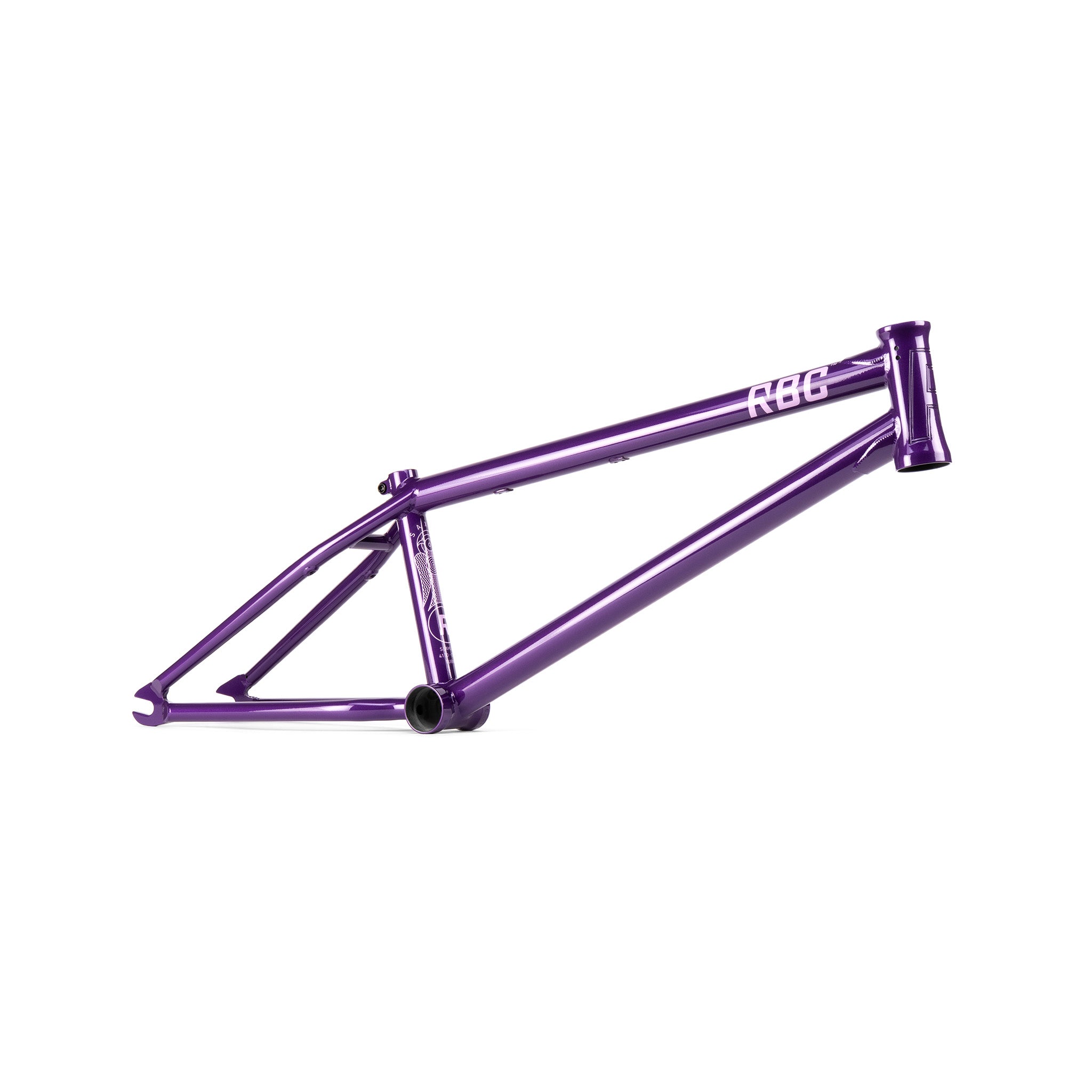

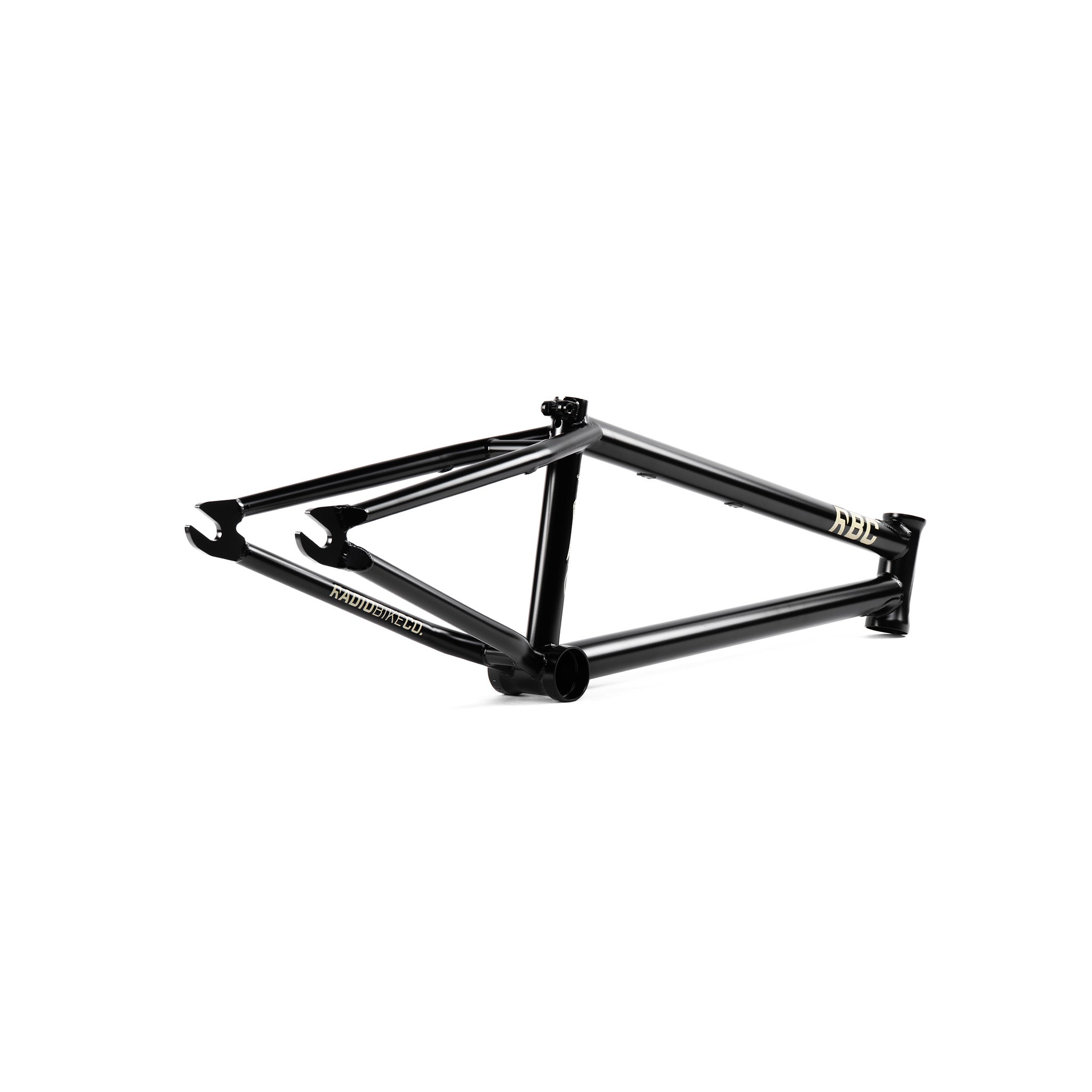

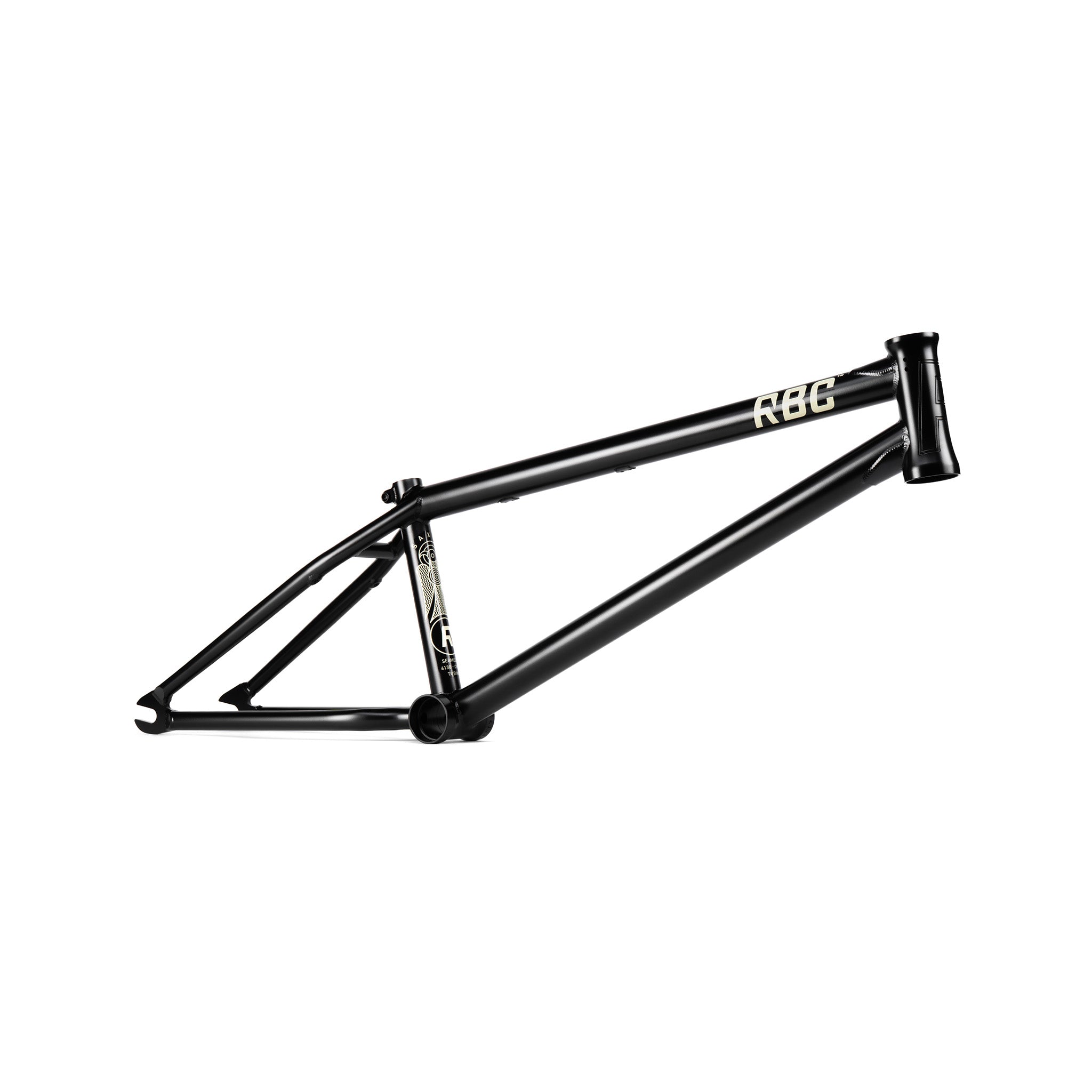

Saxon Frame

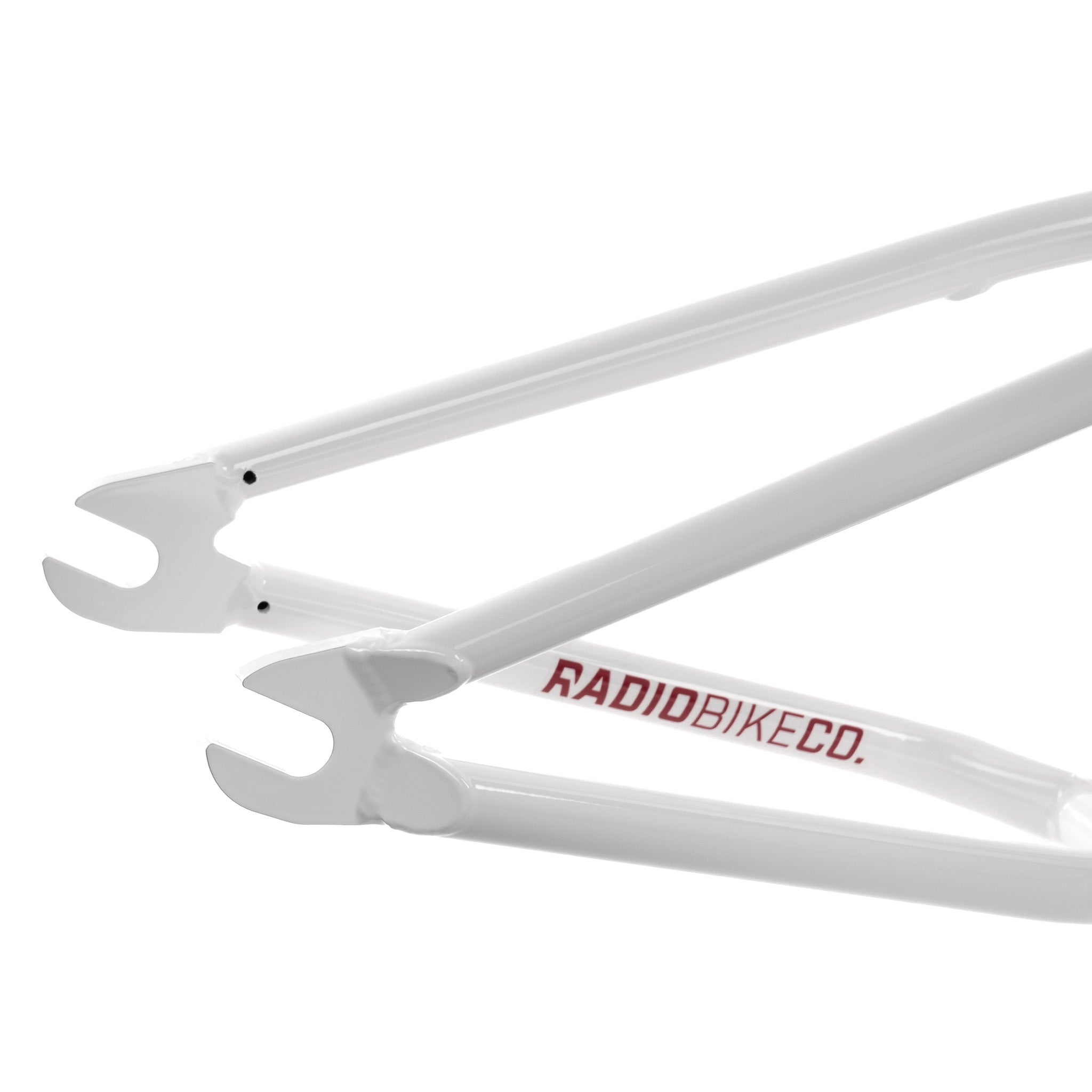

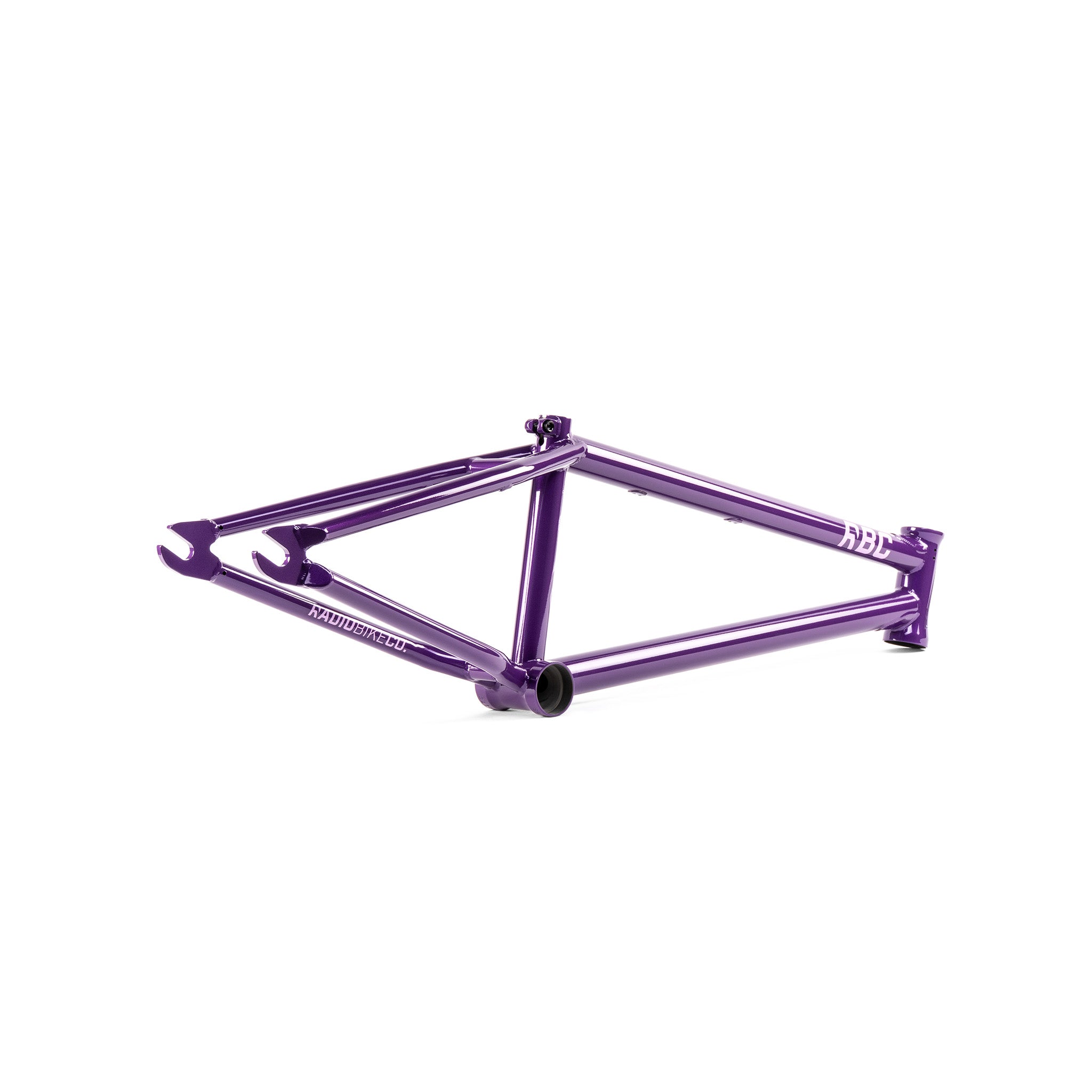

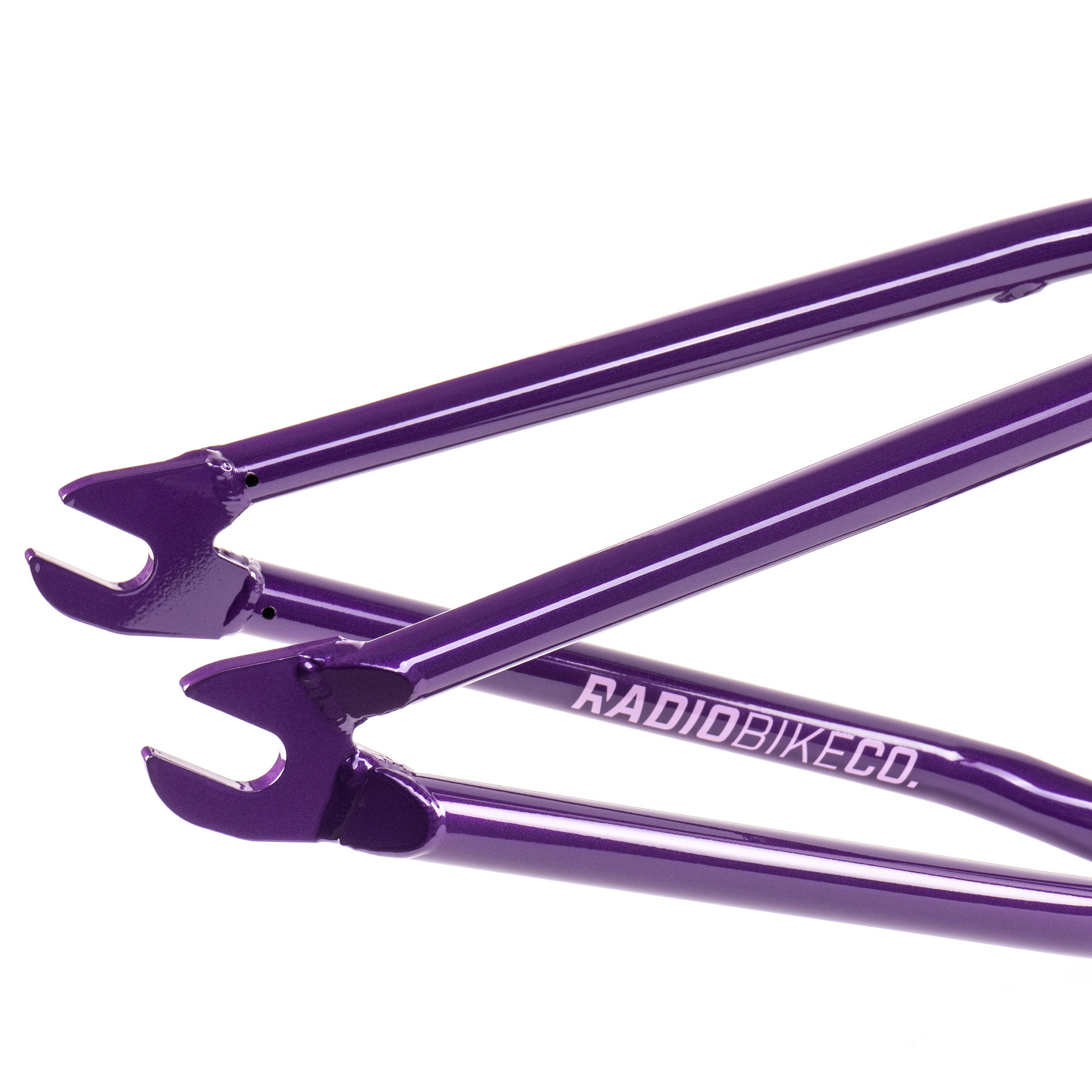

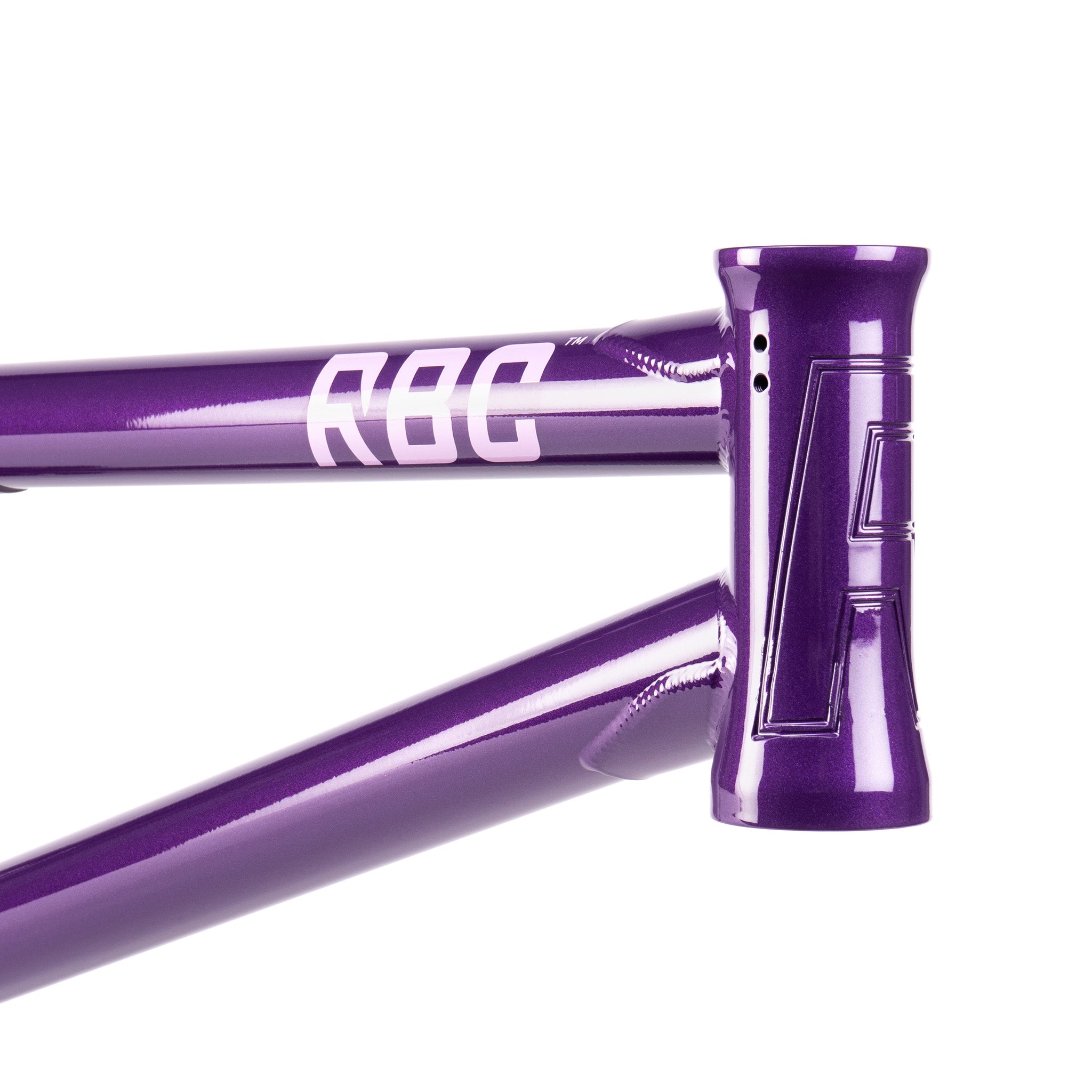

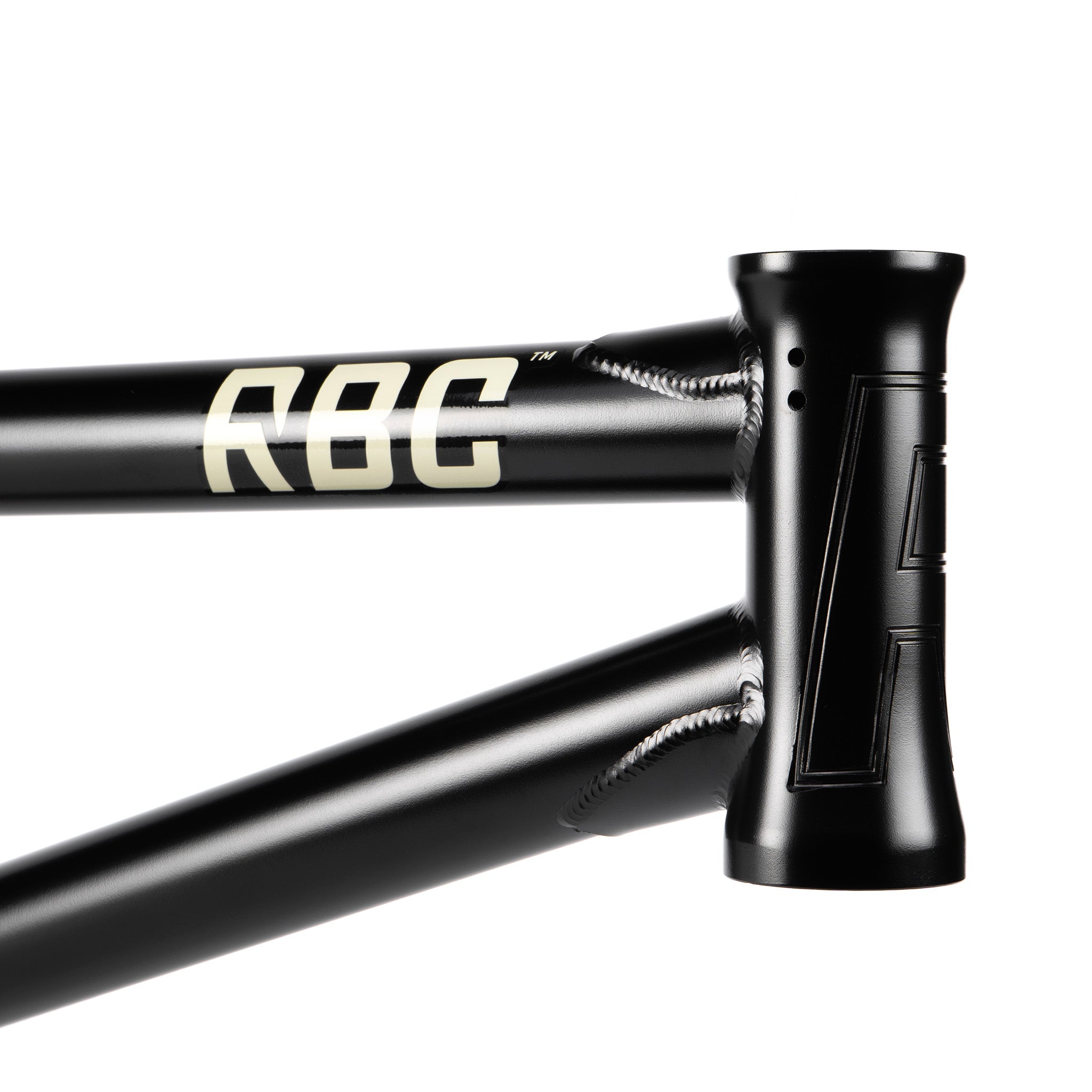

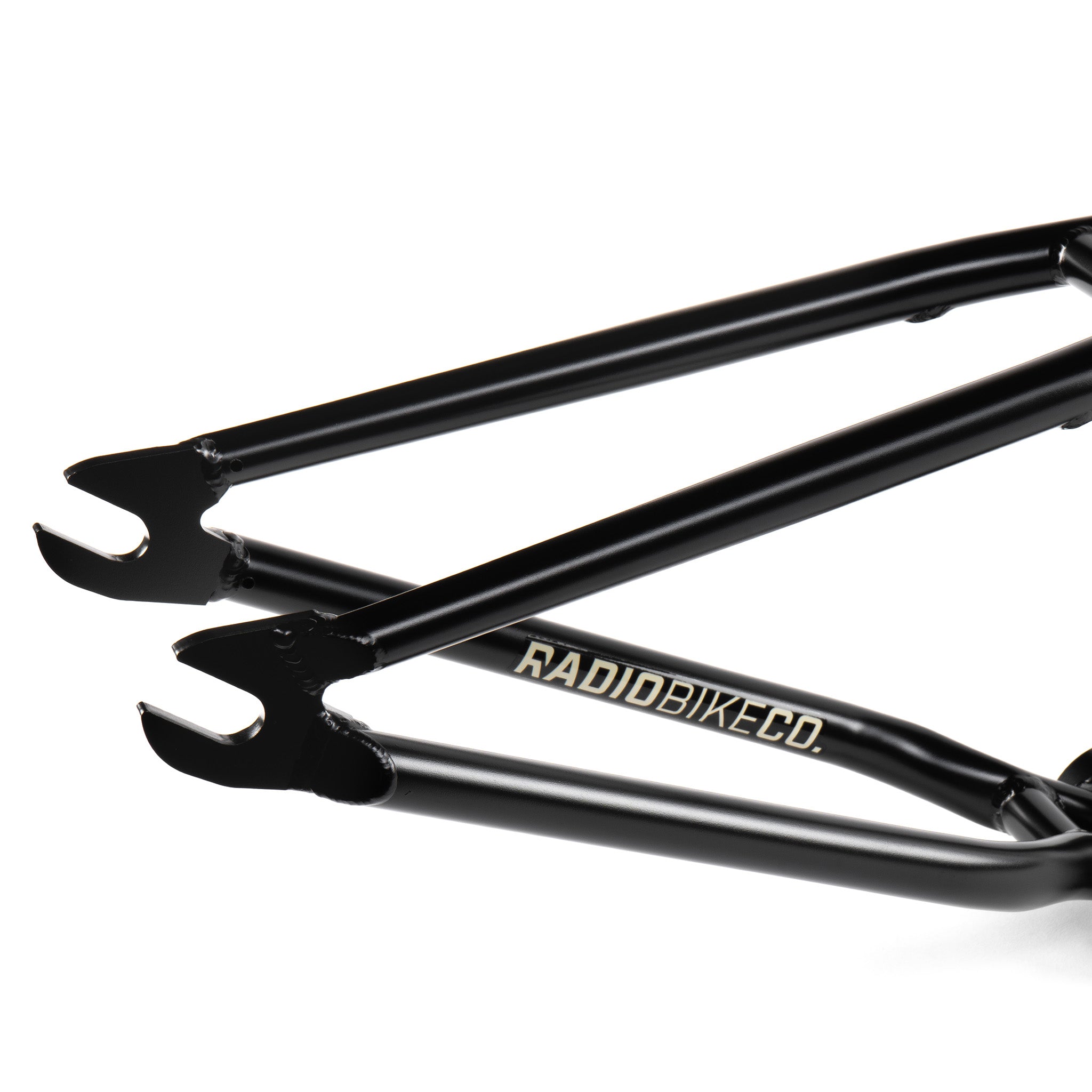

The Saxon frame features a smooth hourglass style headtube and minimal dropouts, and the unique seat tube design gives your feet more room to pinch during tabletops and tailwhips. Available in x3 colours and your choice of 20.4″ or 20.8″, the Saxon frame is perfect for the modern-day skatepark shredder.
The Saxon frame features a super short 12.75″ chainstay and 8″ stand over height keep it nimble, whilst the lower 11.5″ bottom bracket and 75-degree headtube keep the frame stable whilst blasting transitions.
INCLUDES LIFETIME GUARANTEE.
Geometry:
- Top Tube Lenghts: 20.4" / 20.8"
-
Chainstay Length: 12.75" - 13.25"
- Standover Height: 8"
- Head Tube Angle: 75°
- Seat Tube Angle: 71°
- Bottom Bracket Height: 11.6"
- Bottom Bracket: 74mm mid size, cnc machined
Features:
- technical skatepark geometry

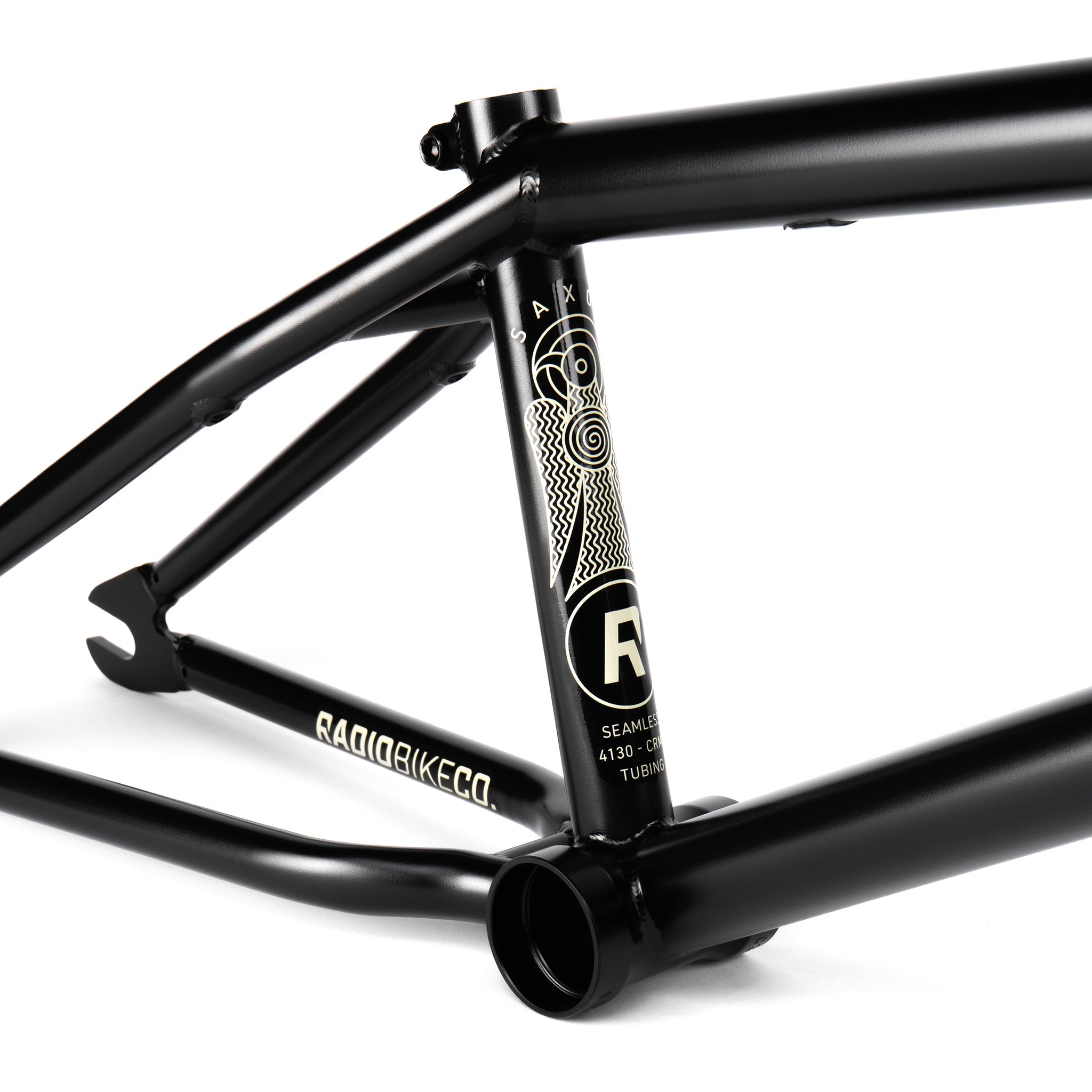

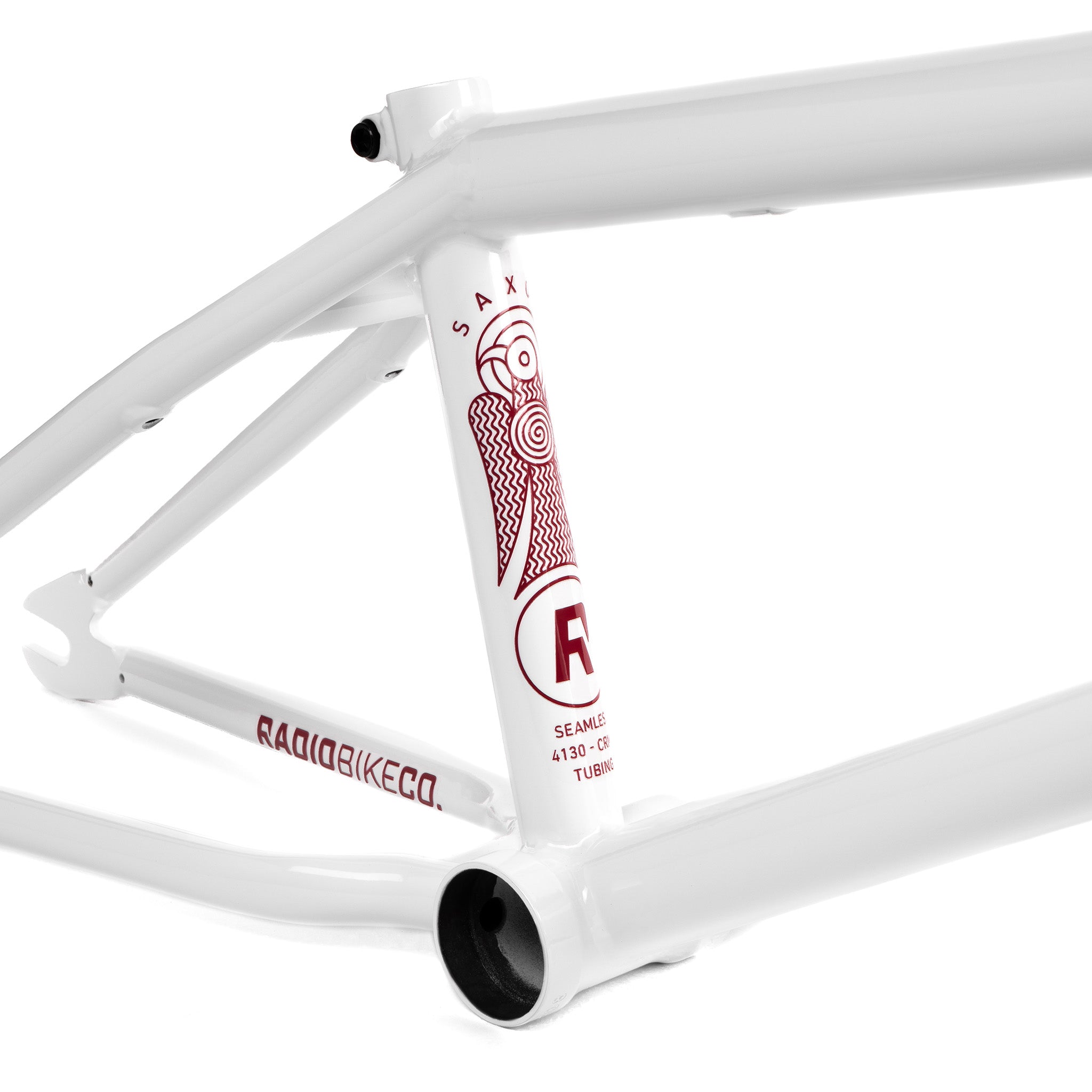

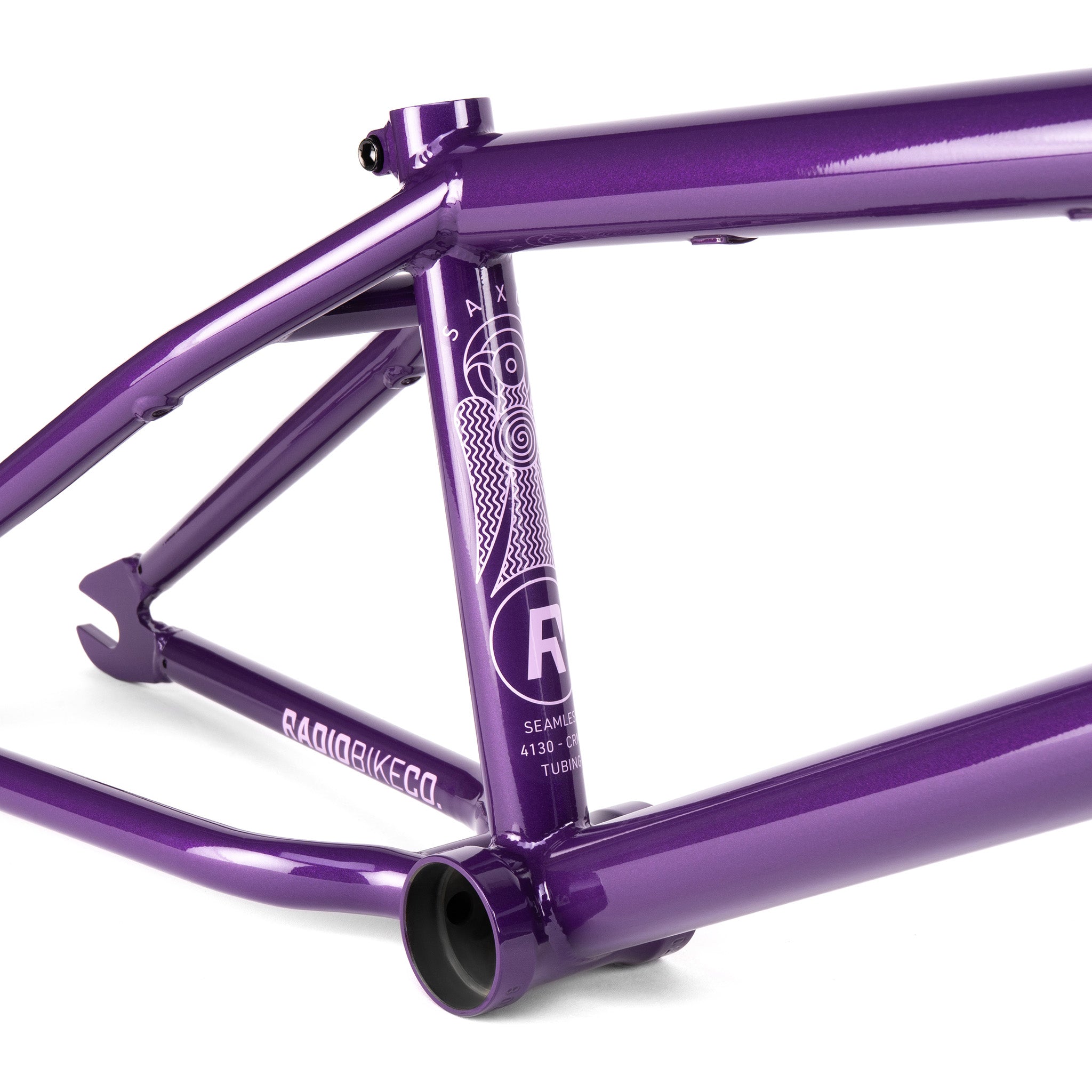

- oval seat tube for extra foot clearance
- Mid size BB and integrated head tube
- 117mm tall headtube
- removable brake mounts & cable guides and holes for rotor tabs on head tube
- INCLUDES LIFETIME GUARANTEE
- CNC machined 6mm thick and heat treated
- Weight: 4.9lbs / 2,22 (20.8″)
