- FRAME: RADIO "GRIFFIN PRO" frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke

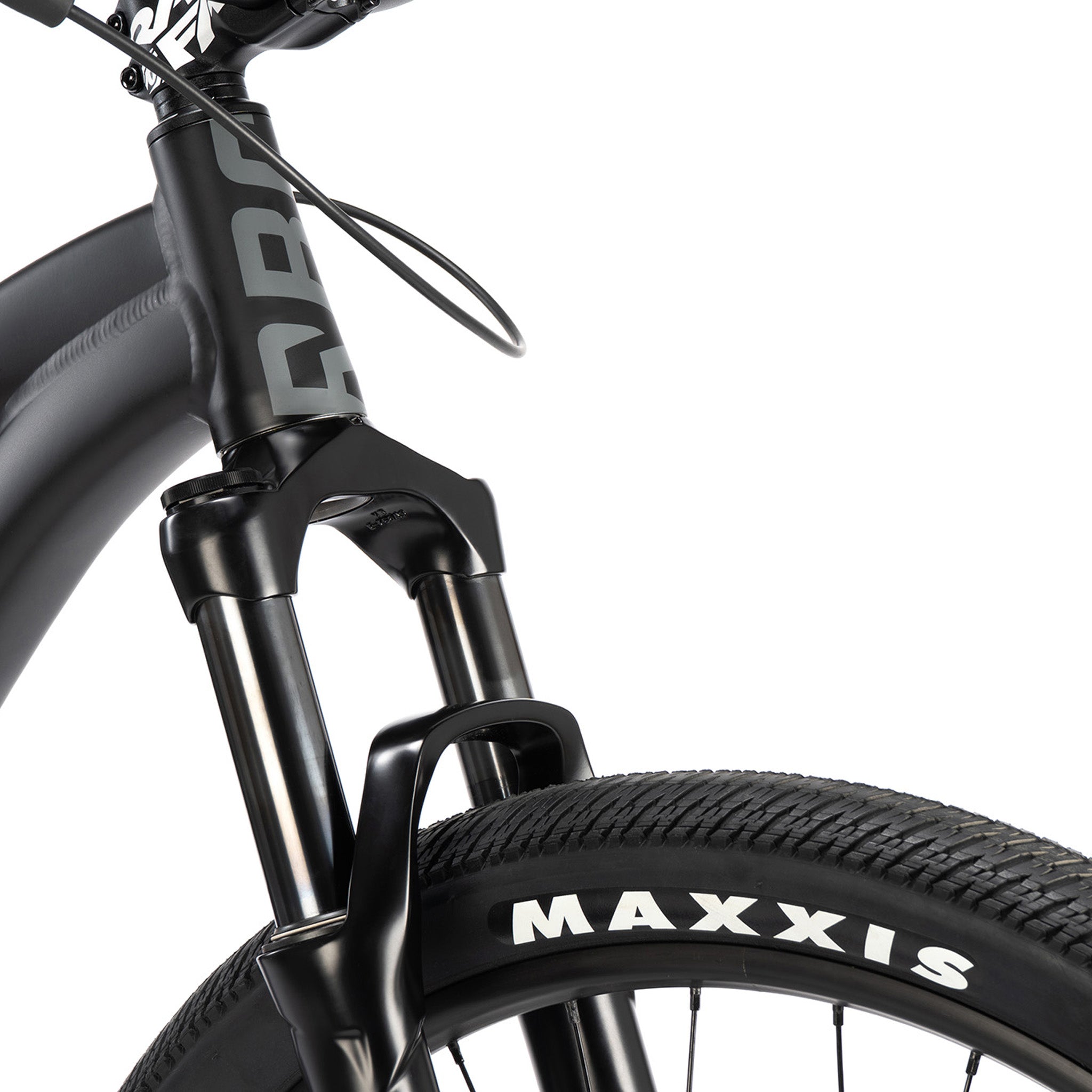

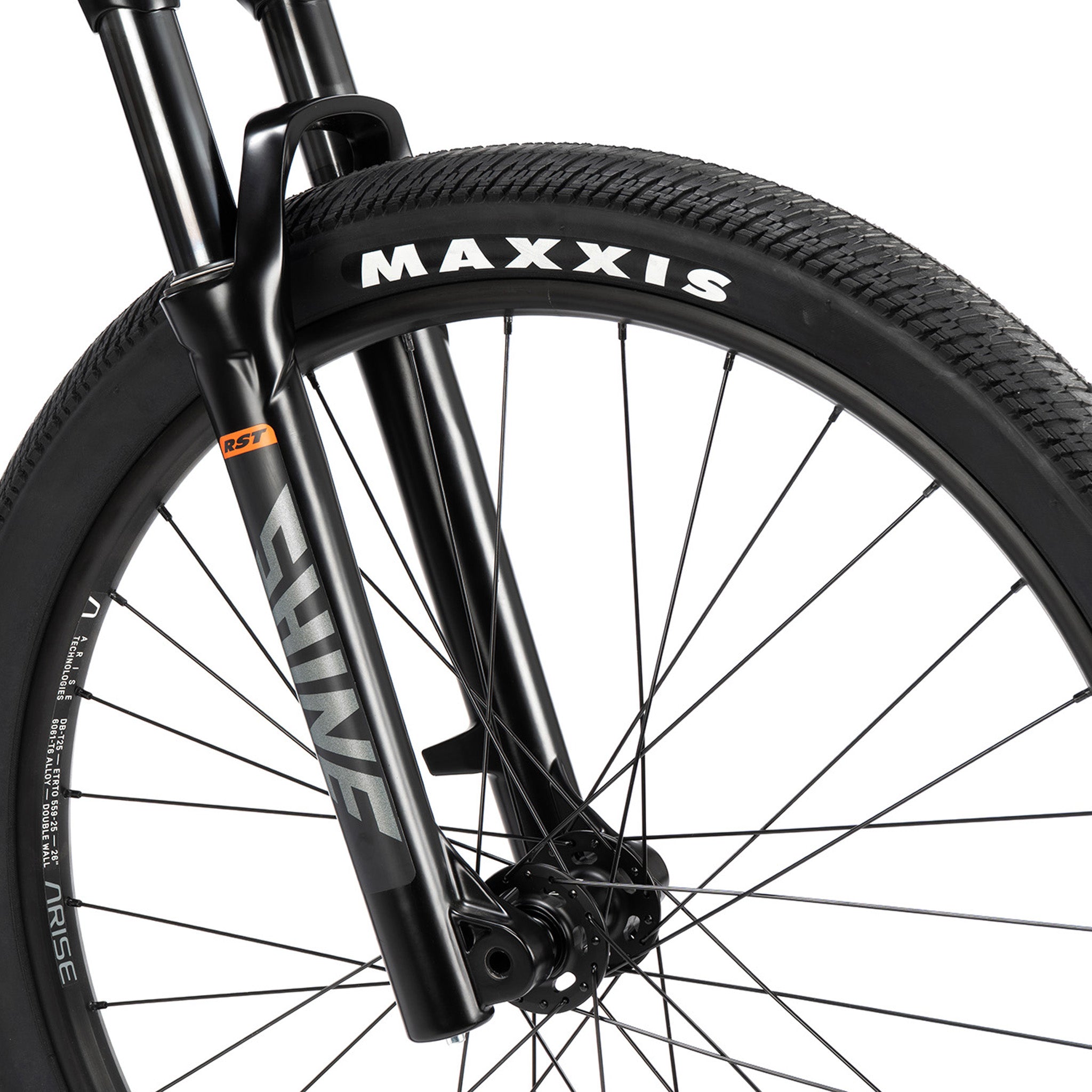

- FORK: RST “SHINE AIR” 100mm travel (alt option is the Manitou Circus Sport fork)

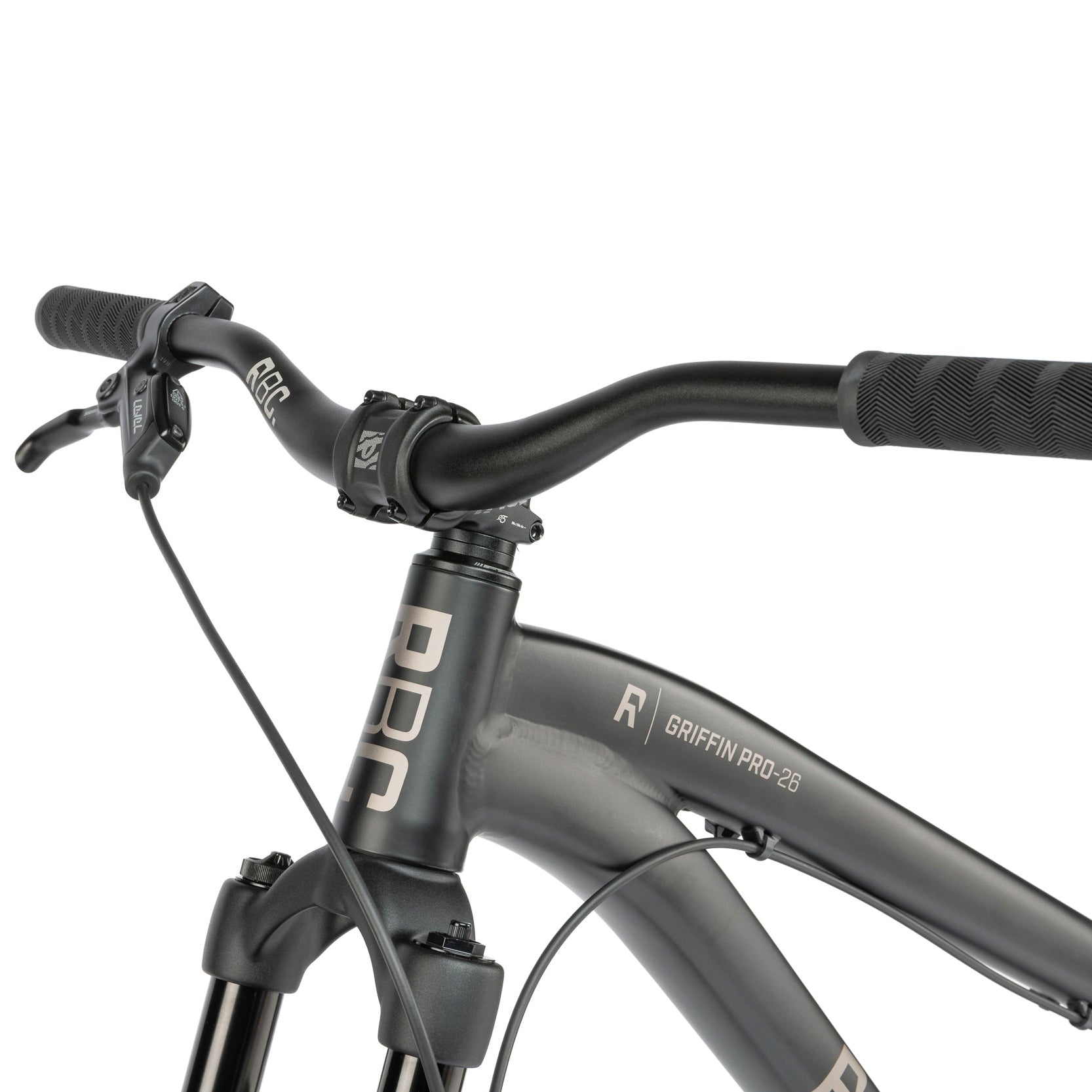

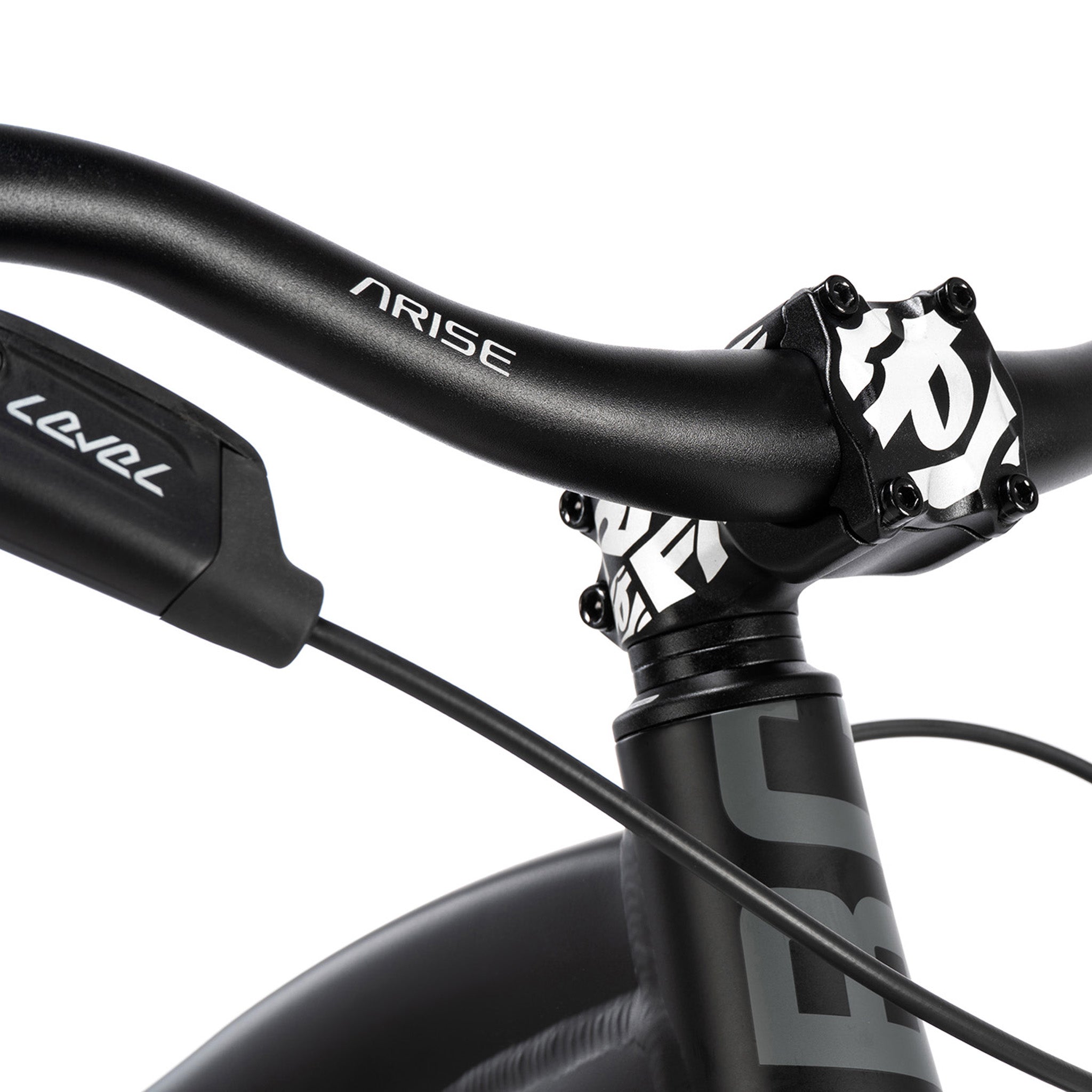

- HANDLEBAR: RADIO "GRIFFIN" bar, 6061-T6 alloy, 35mm
- GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

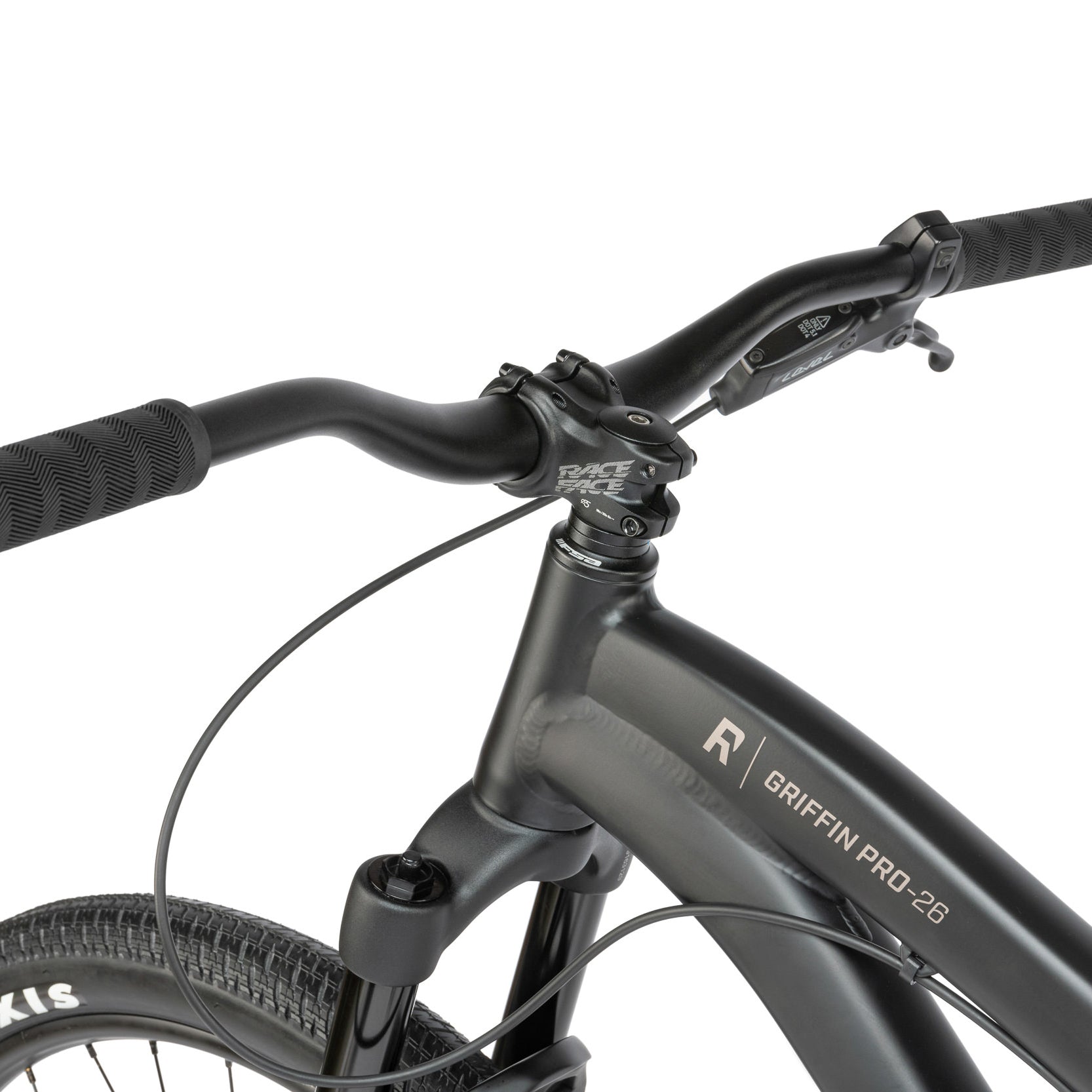

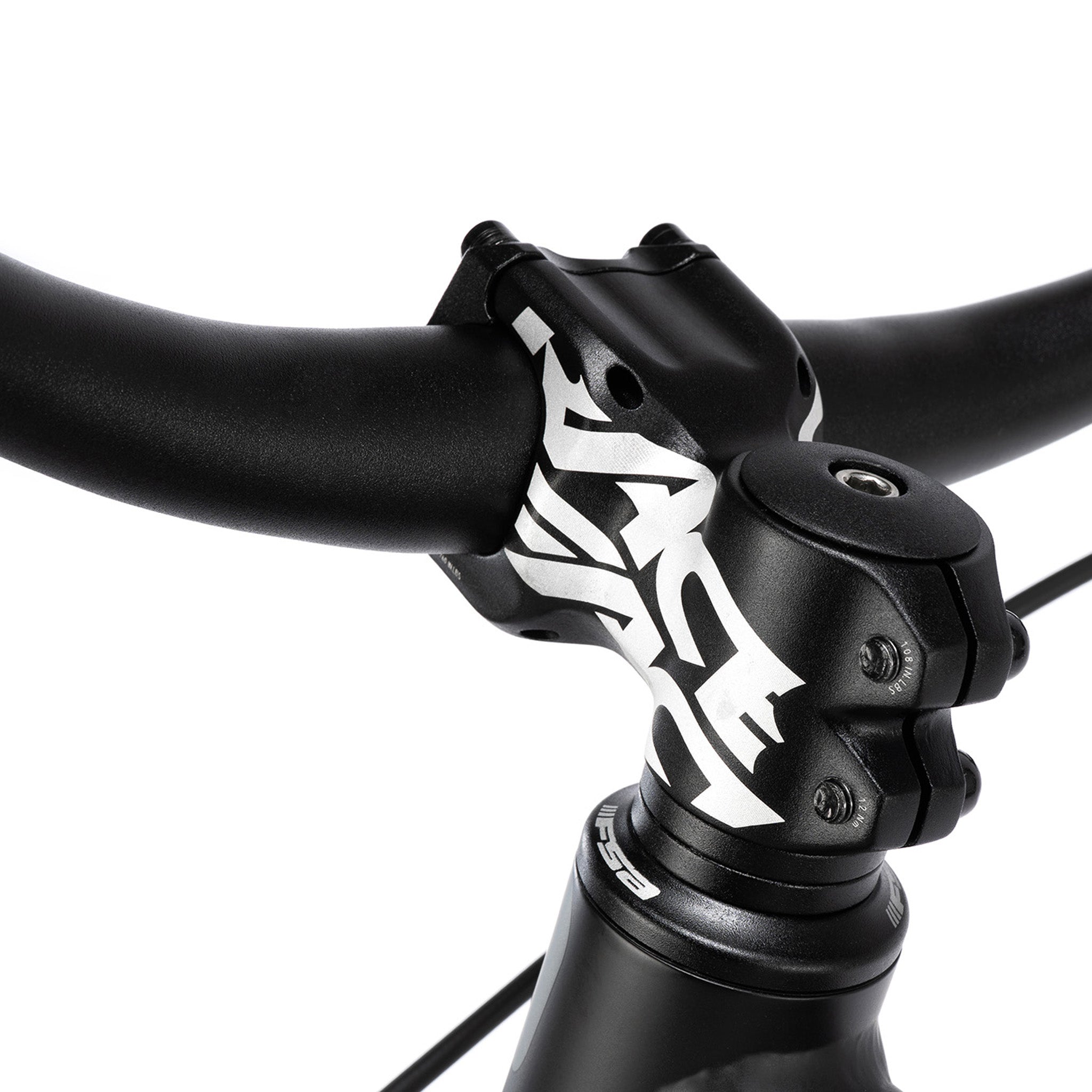

- STEM: RACE FACE "CHESTER 35" frontload stem, alloy, 40mm reach
- HEADSET: FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"

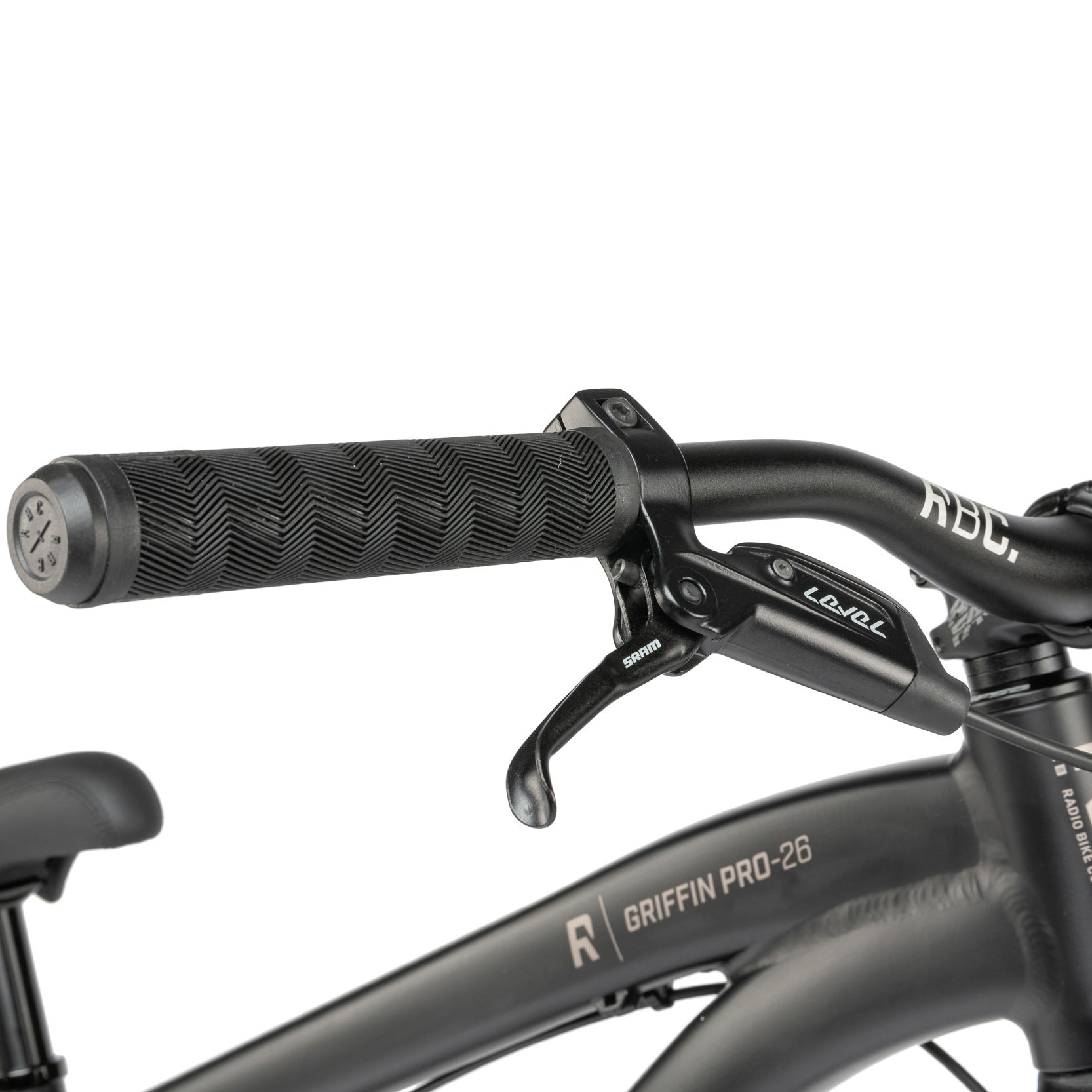

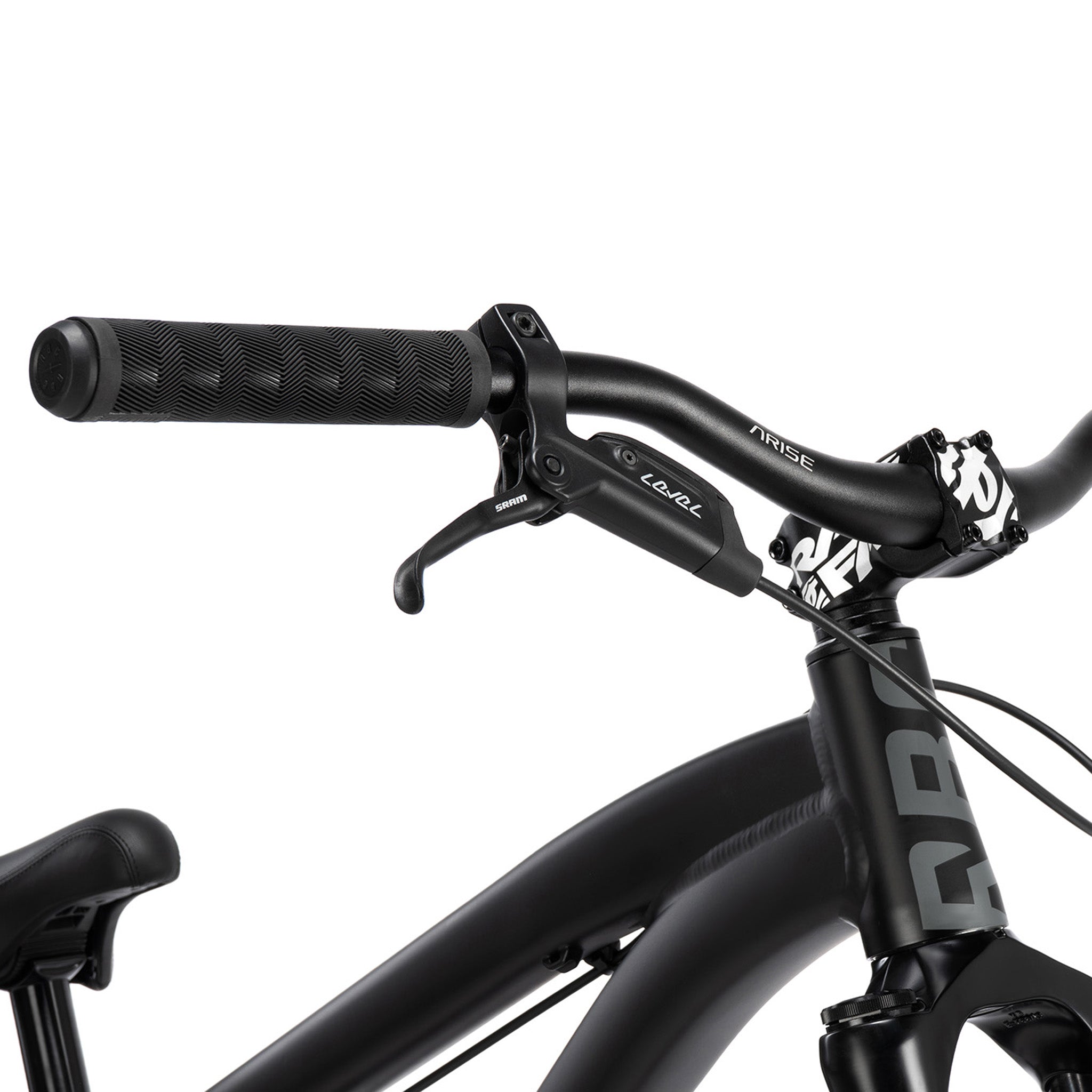

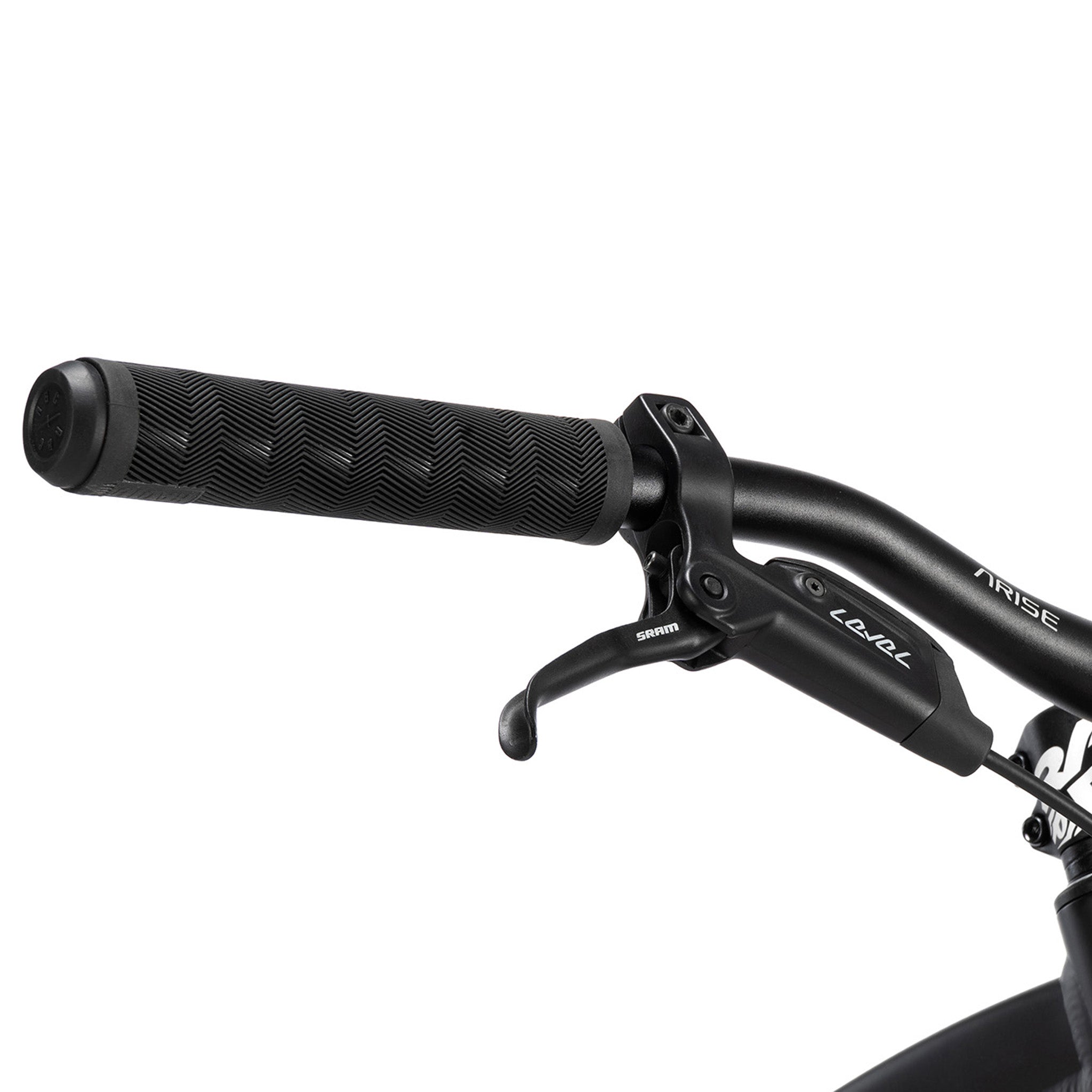

- BRAKE LEVER: TEKTRO "RS-360A" front lever / SRAM "DB-LVL-A1" rear lever

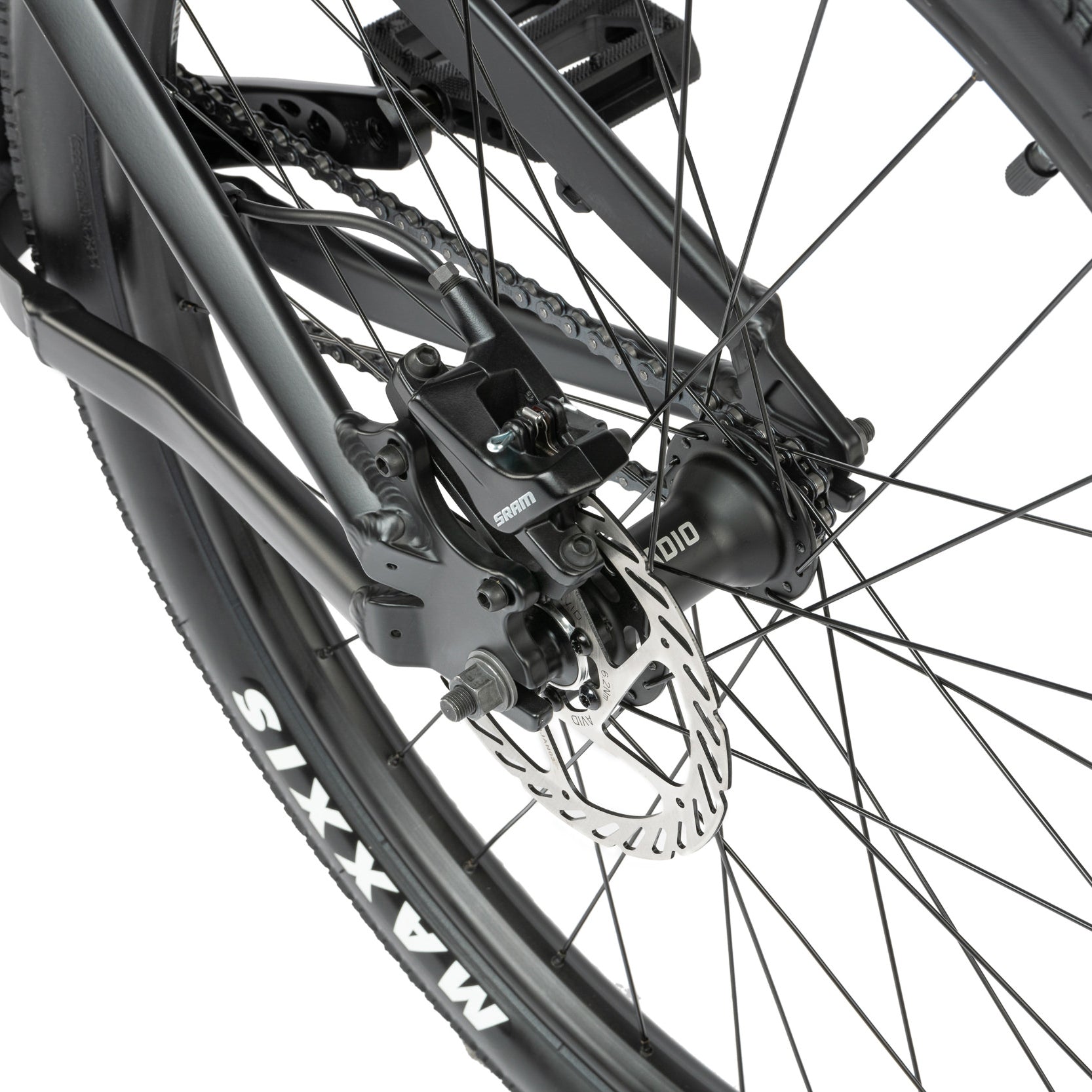

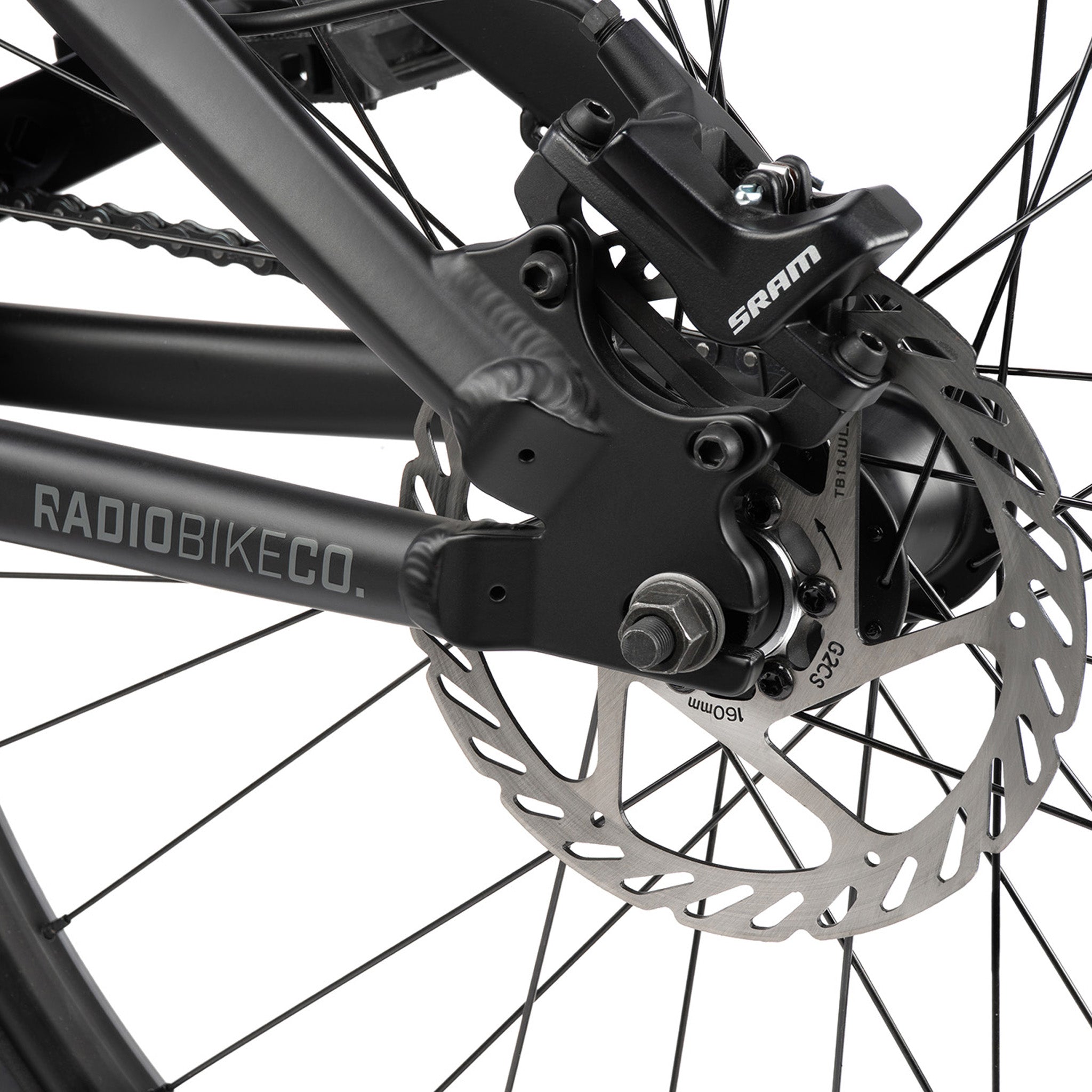

- BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / SRAM "DB-LVL-A1" hydraulic disc brake, 160mm rotor, rear

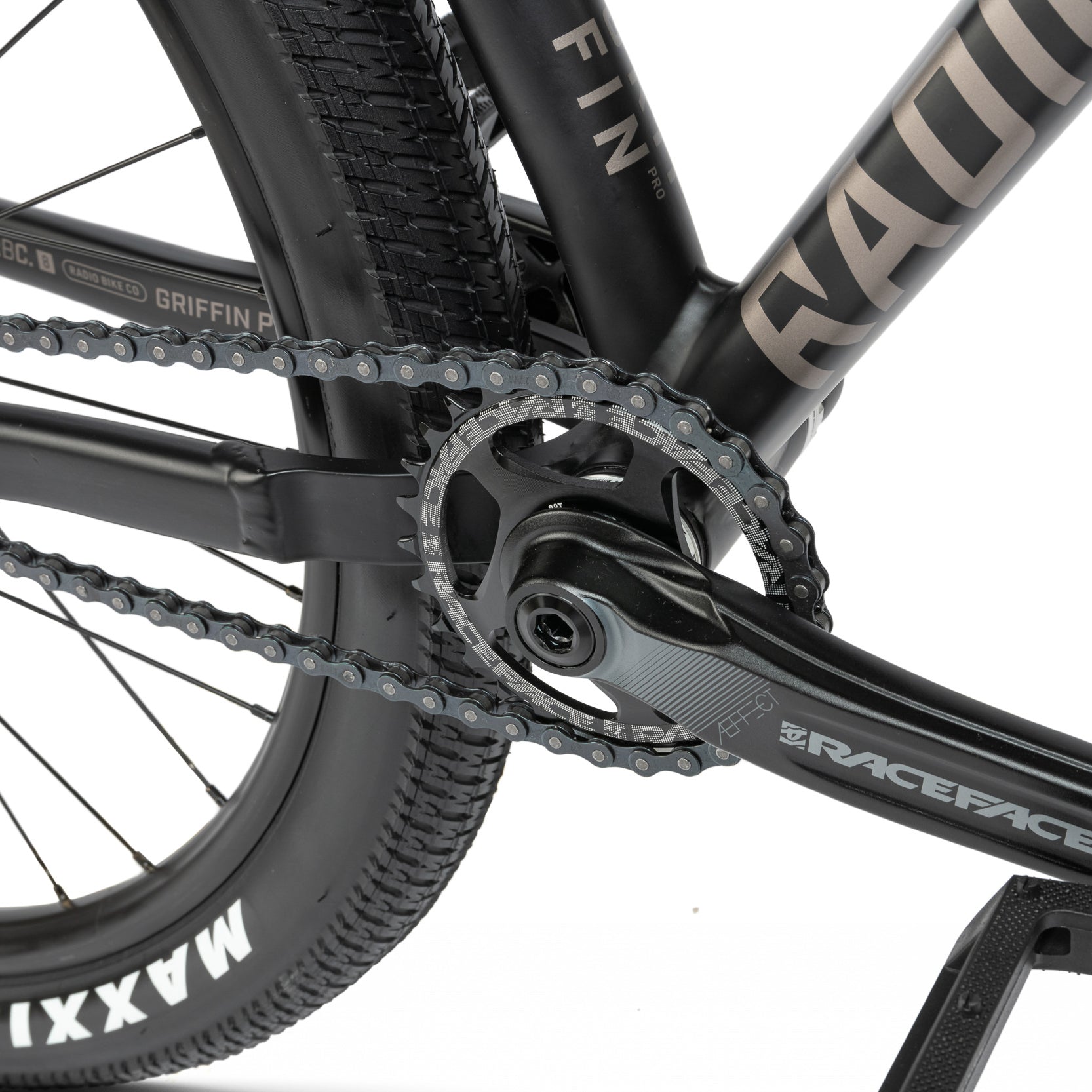

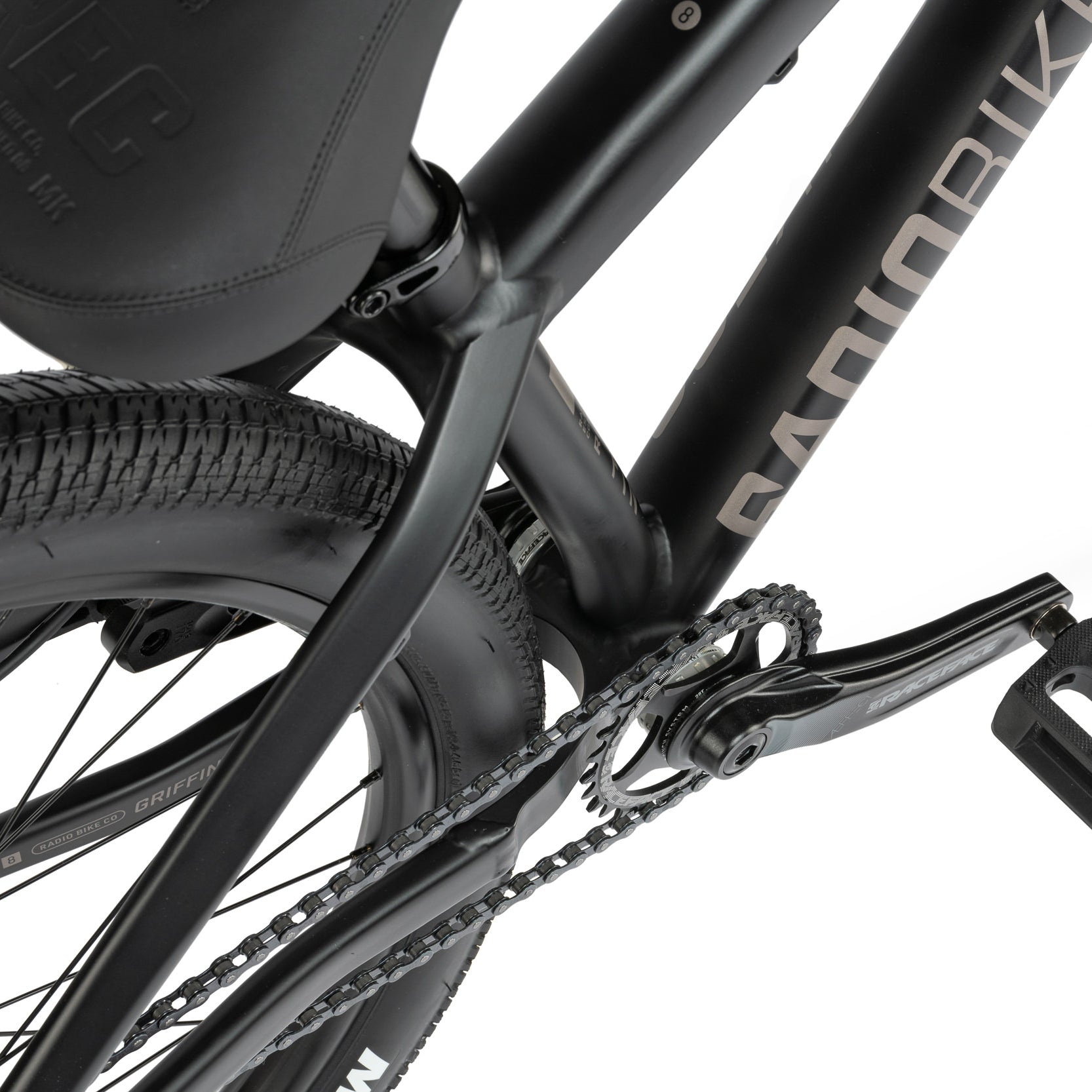

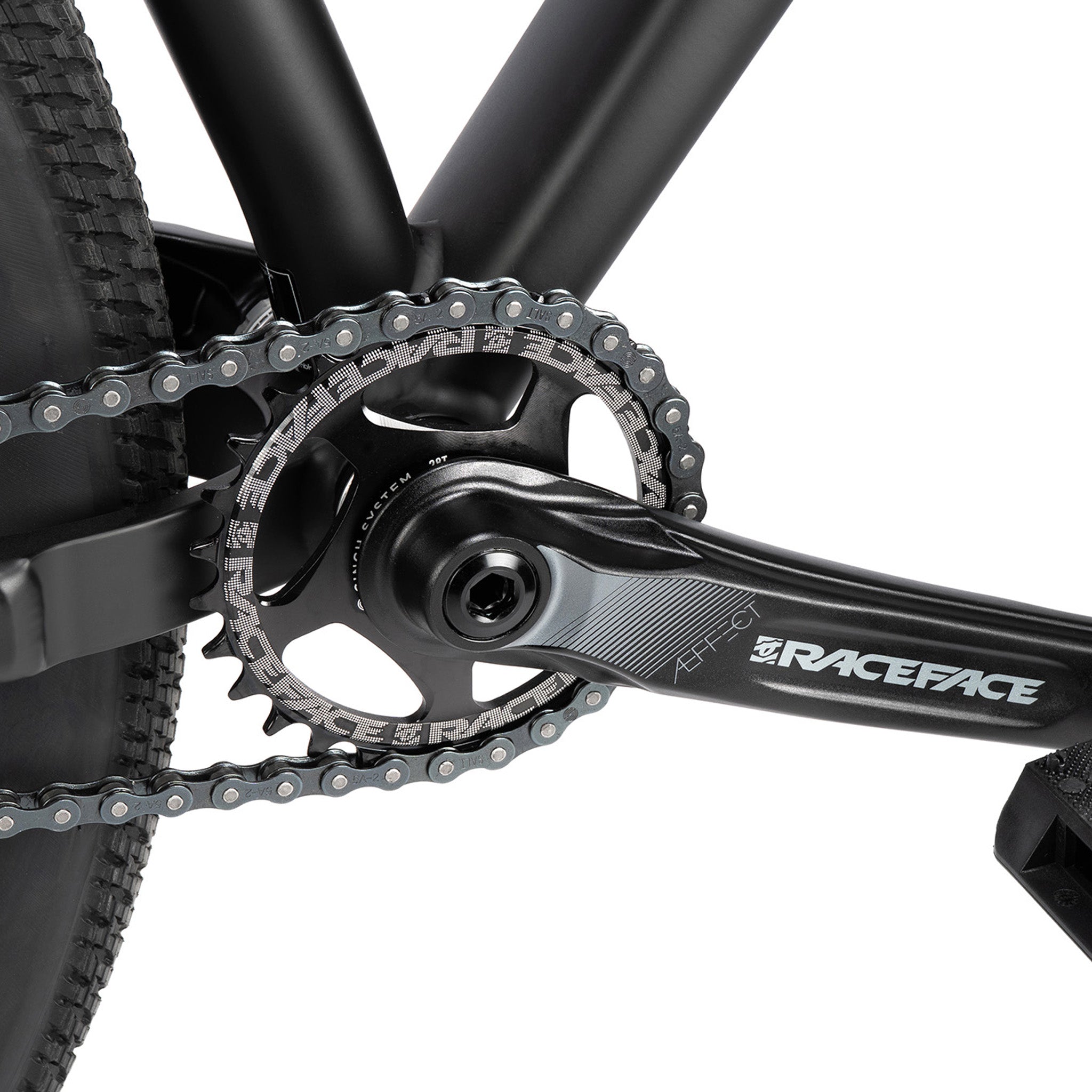

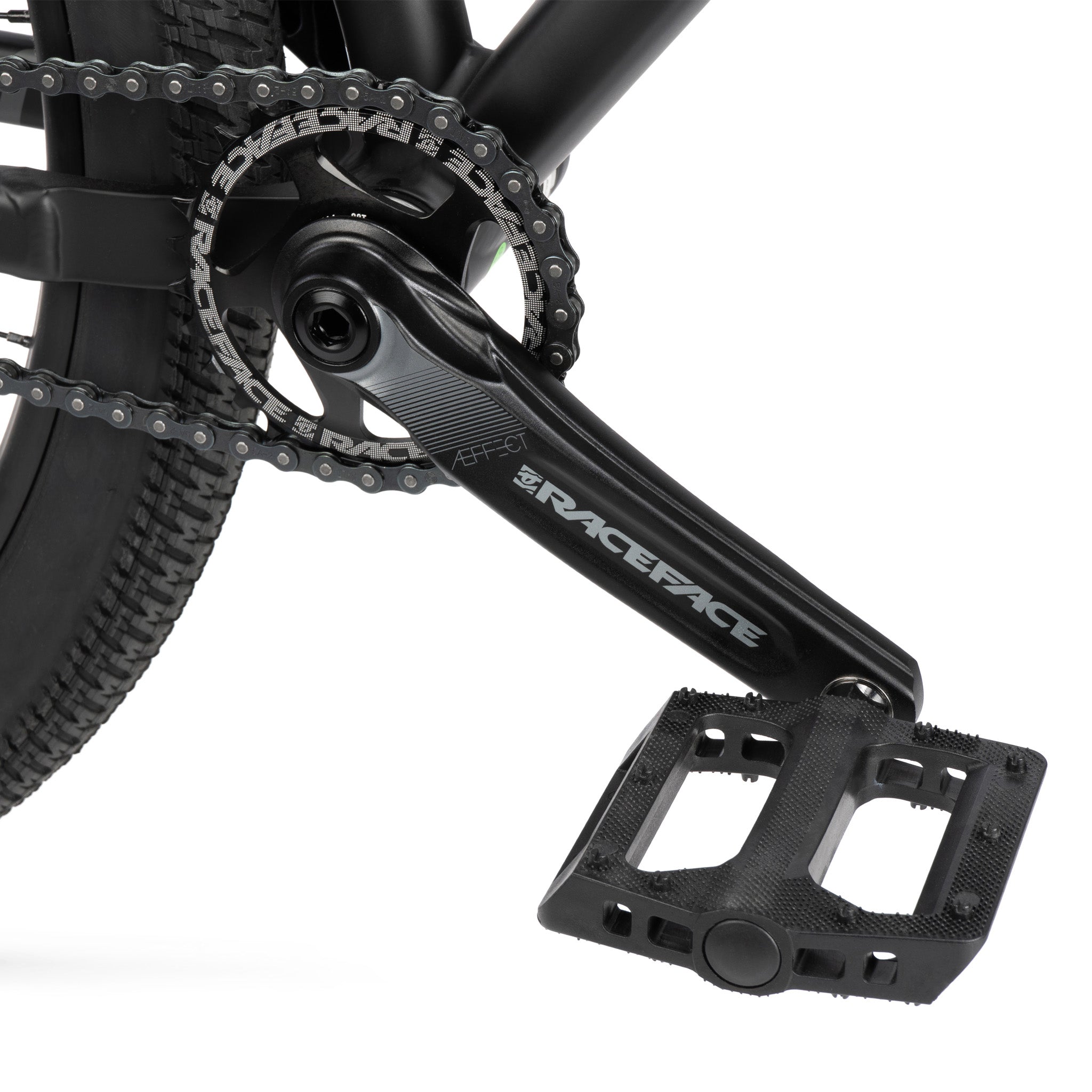

- CRANK: RACE FACE "AEFFECT" crank, alloy, 170mm

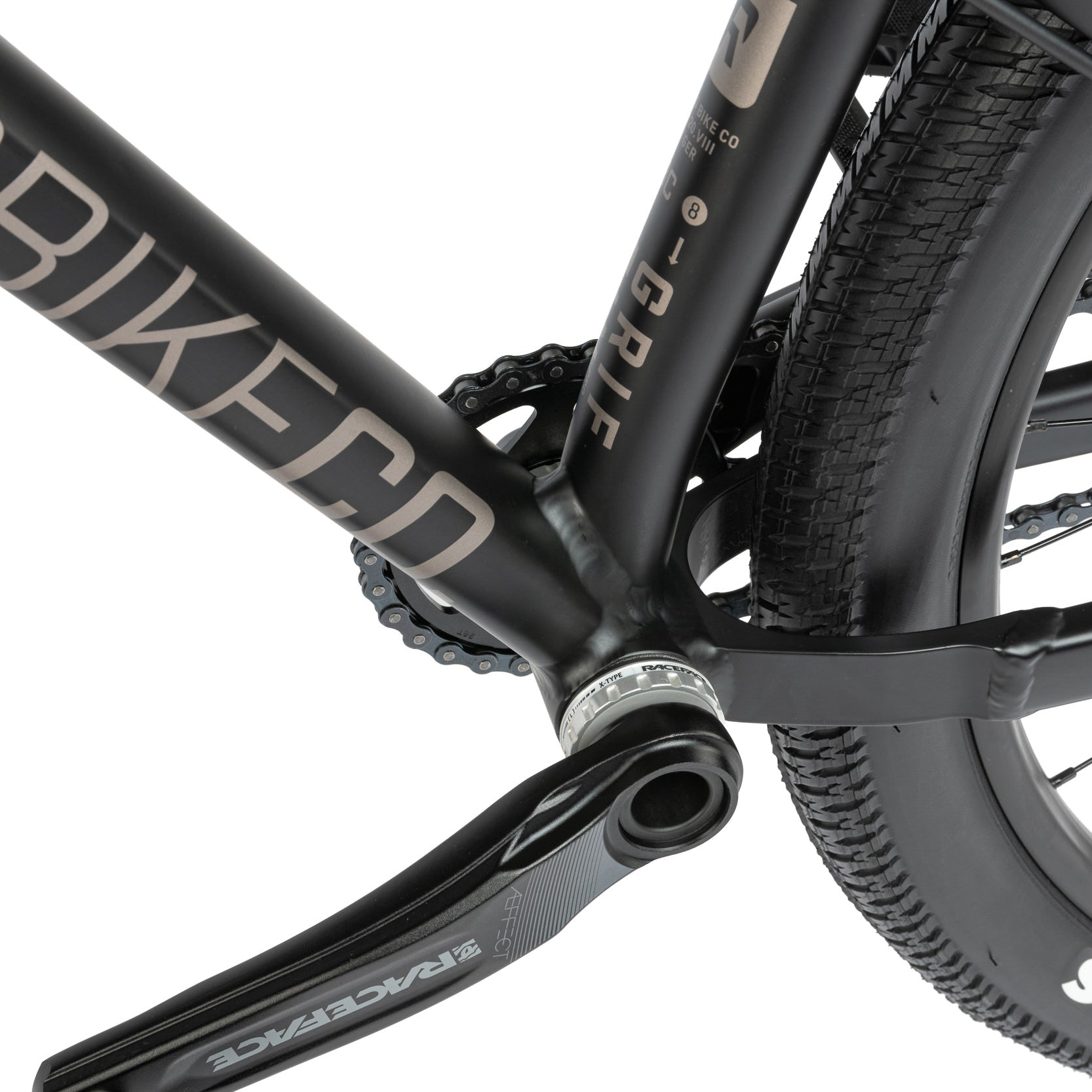

- BB: RACE FACE "AEFFECT" BSA bb set, sealed bearing
- PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type
- SPROCKET: RACE FACE "AEFFECT" sprocket, alloy, 28t
- DRIVER: cassette driver, 10t, sealed bearing

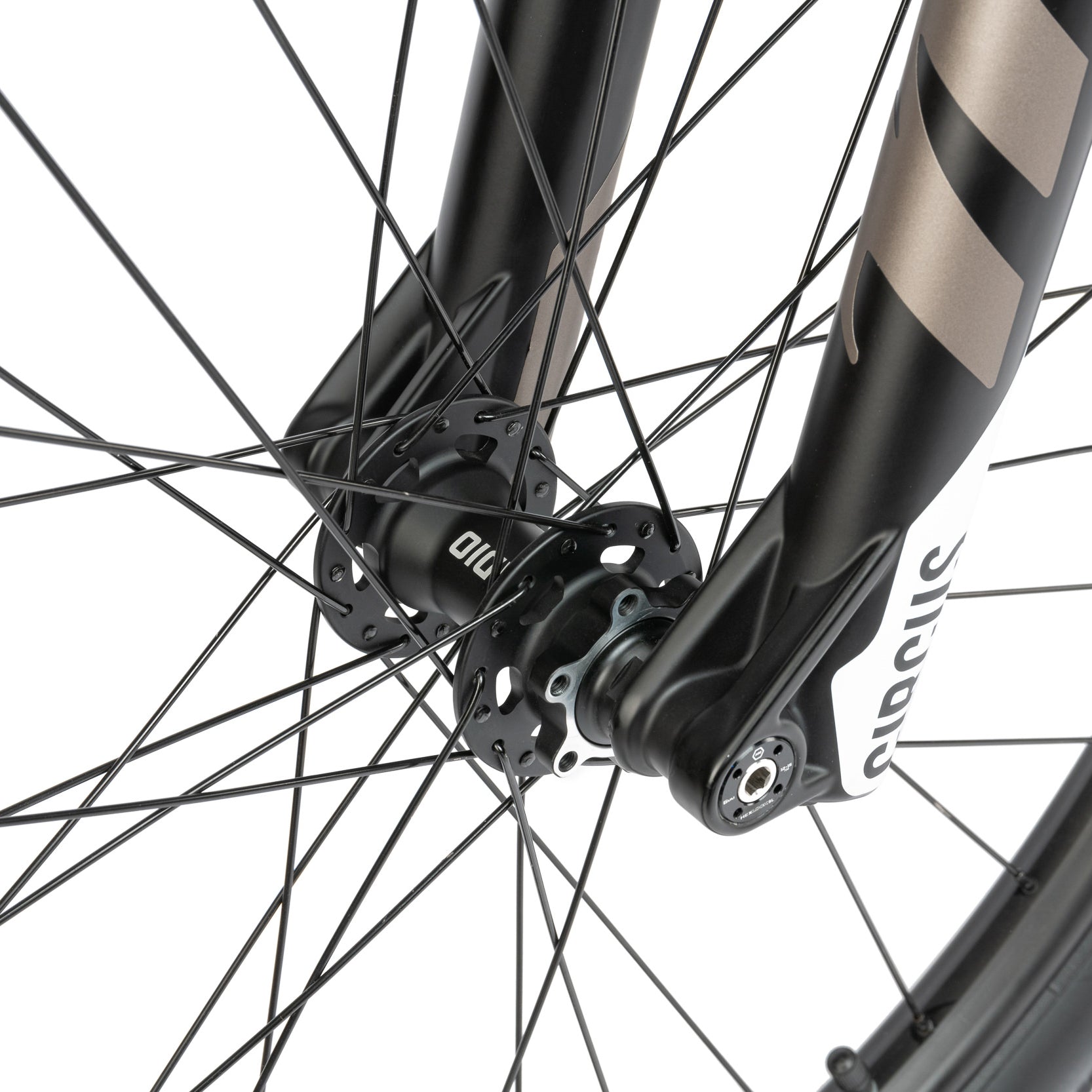

- FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 15mm alloy through axle, 32h

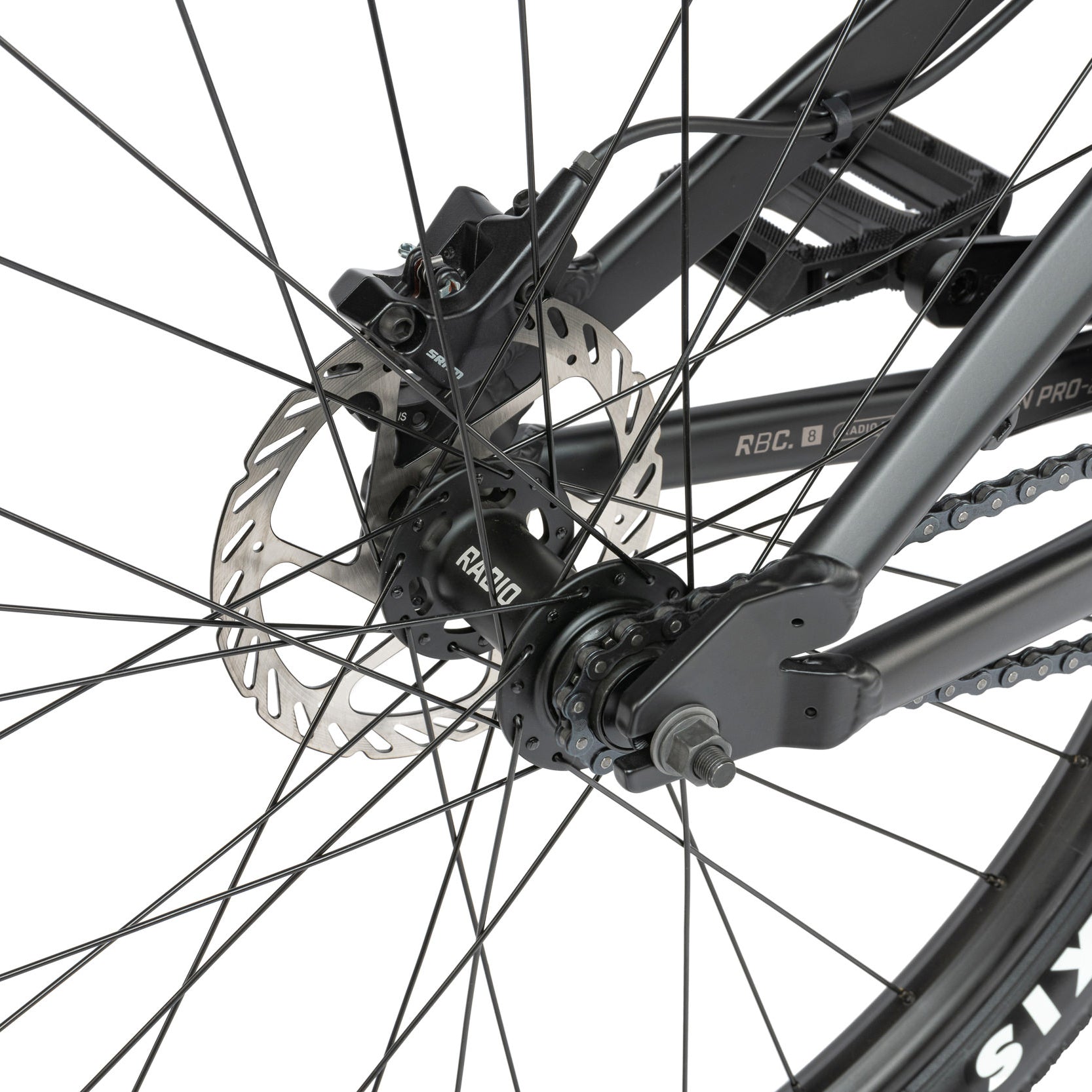

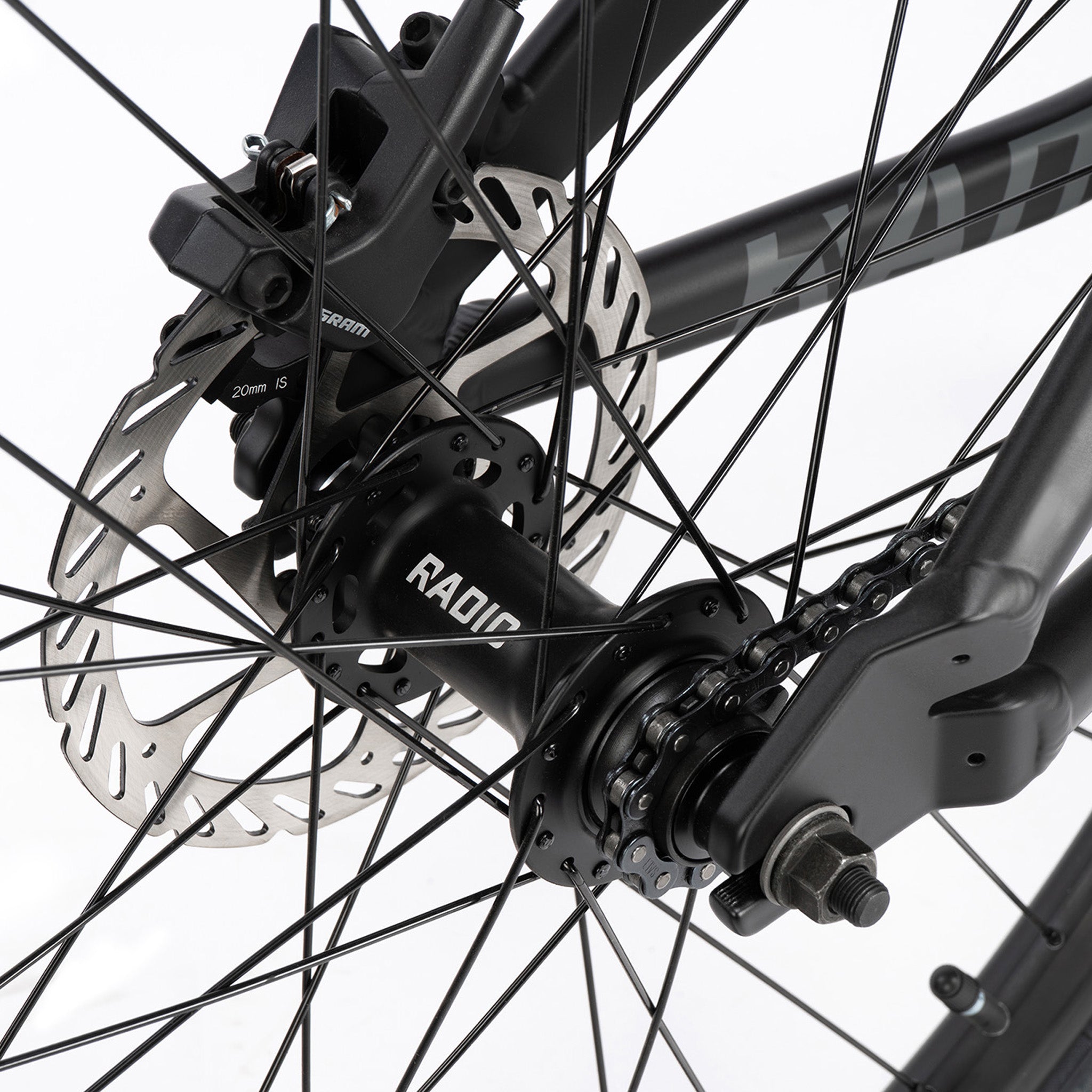

- REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h
- FRONT RIM: RADIO "DB-T25" rim, double wall, sleeved
- REAR RIM: RADIO "DB-T25" rim, double wall, sleeved

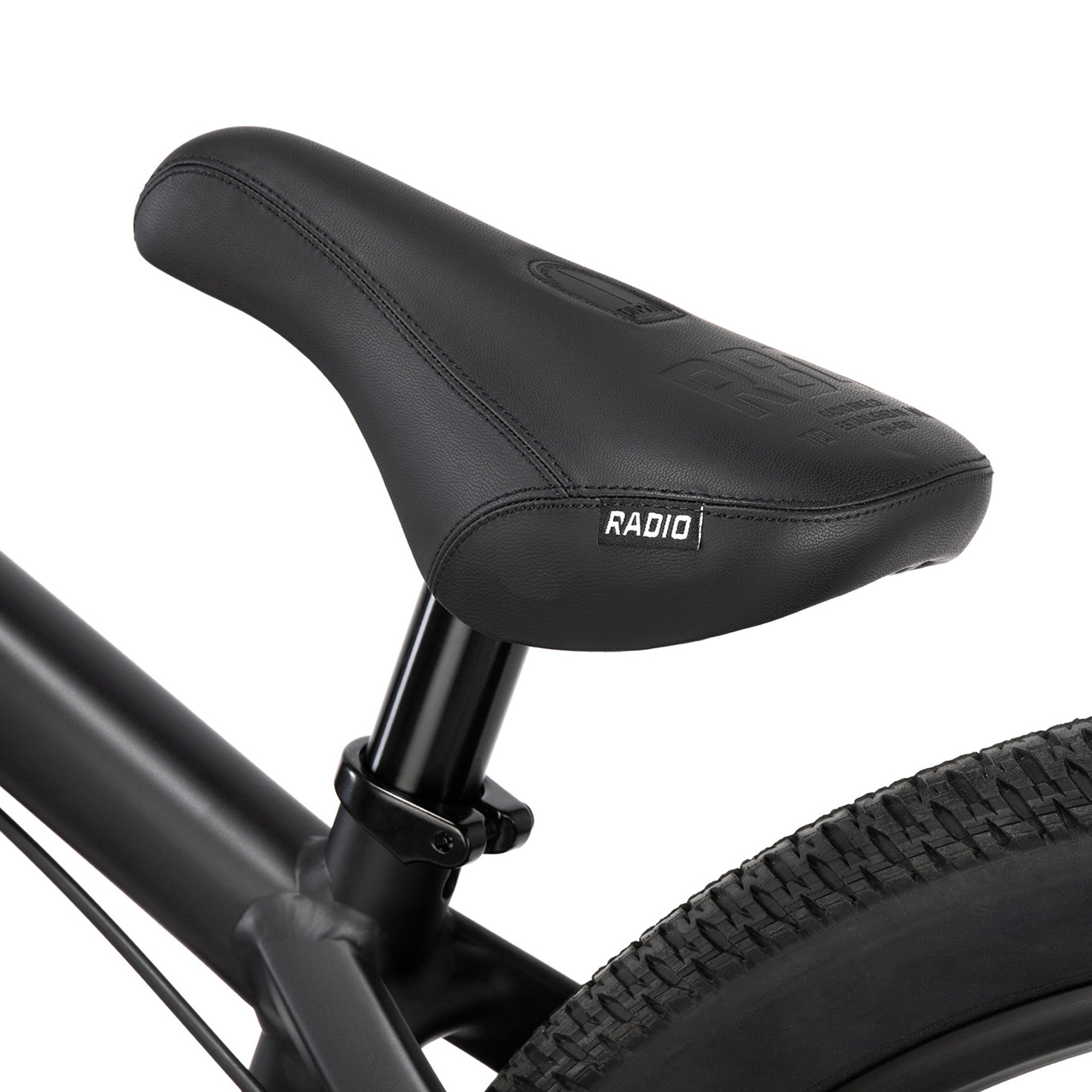

- SEAT: RADIO “CENTURY” pivotal seat, fat padded
- SEAT POST: RADIO "PIVOTAL" seat post, alloy

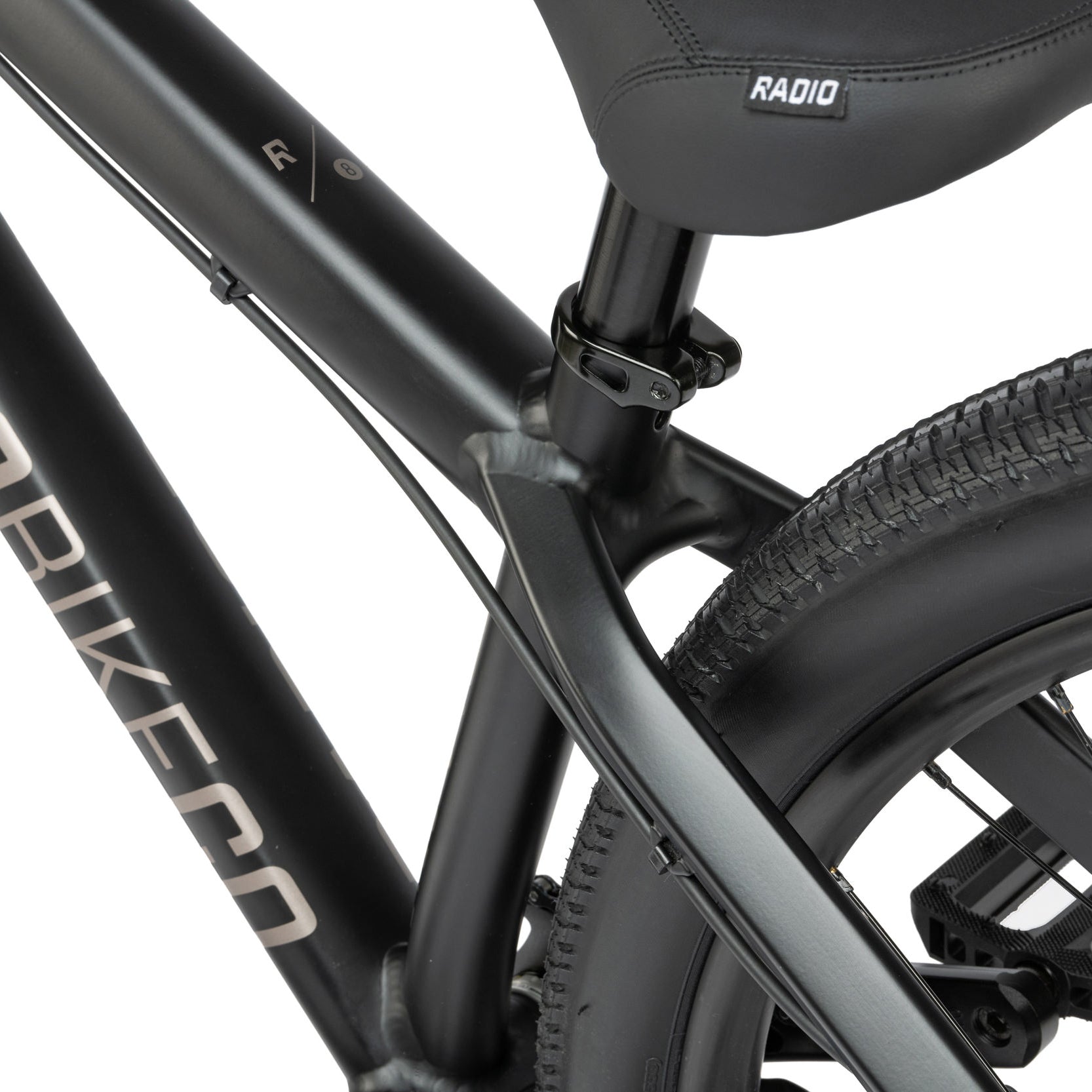

- SEAT CLAMP: RADIO "SLIM" seat clamp, alloy
- TIRES: MAXXIS "DTH" tires, 2.3", front & rear

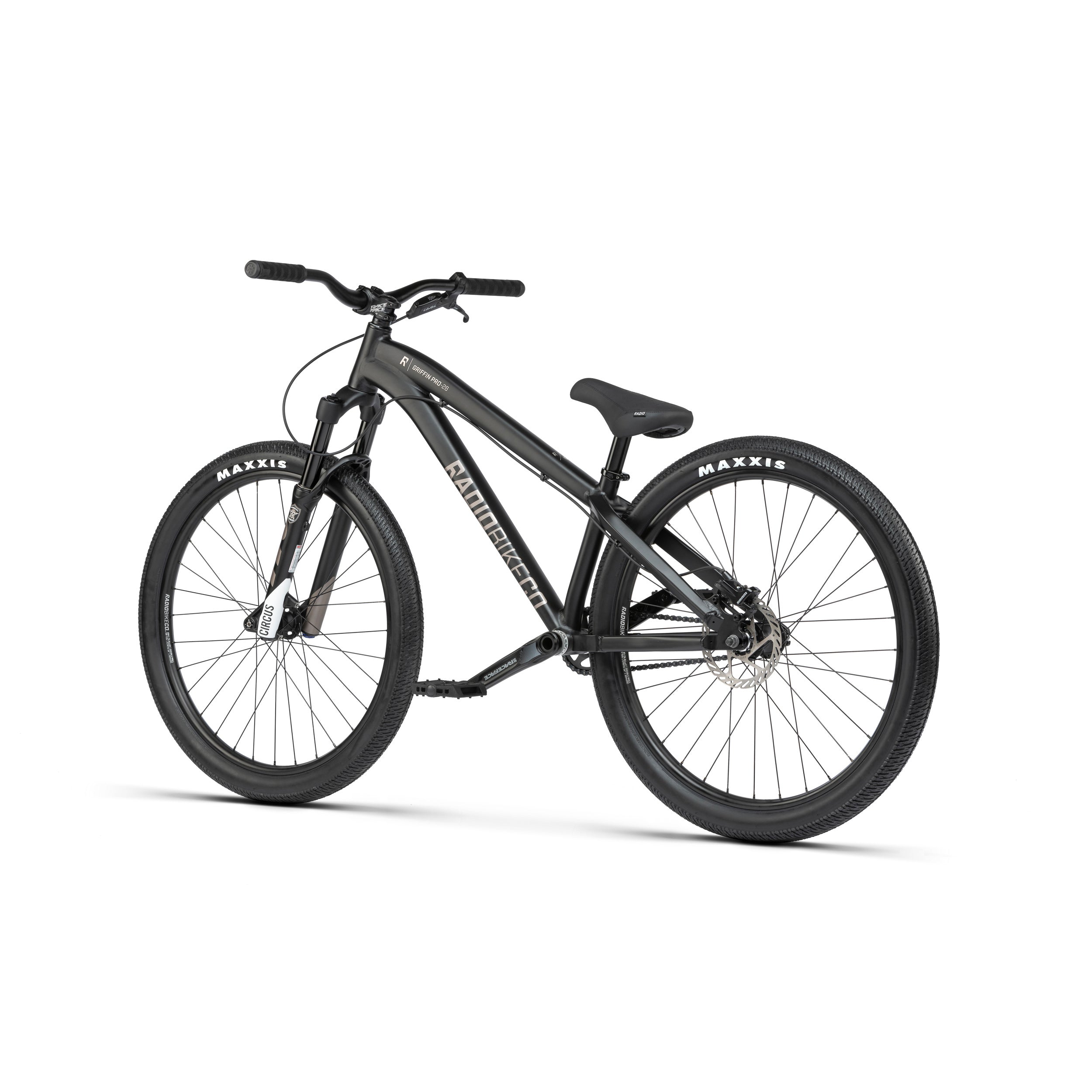

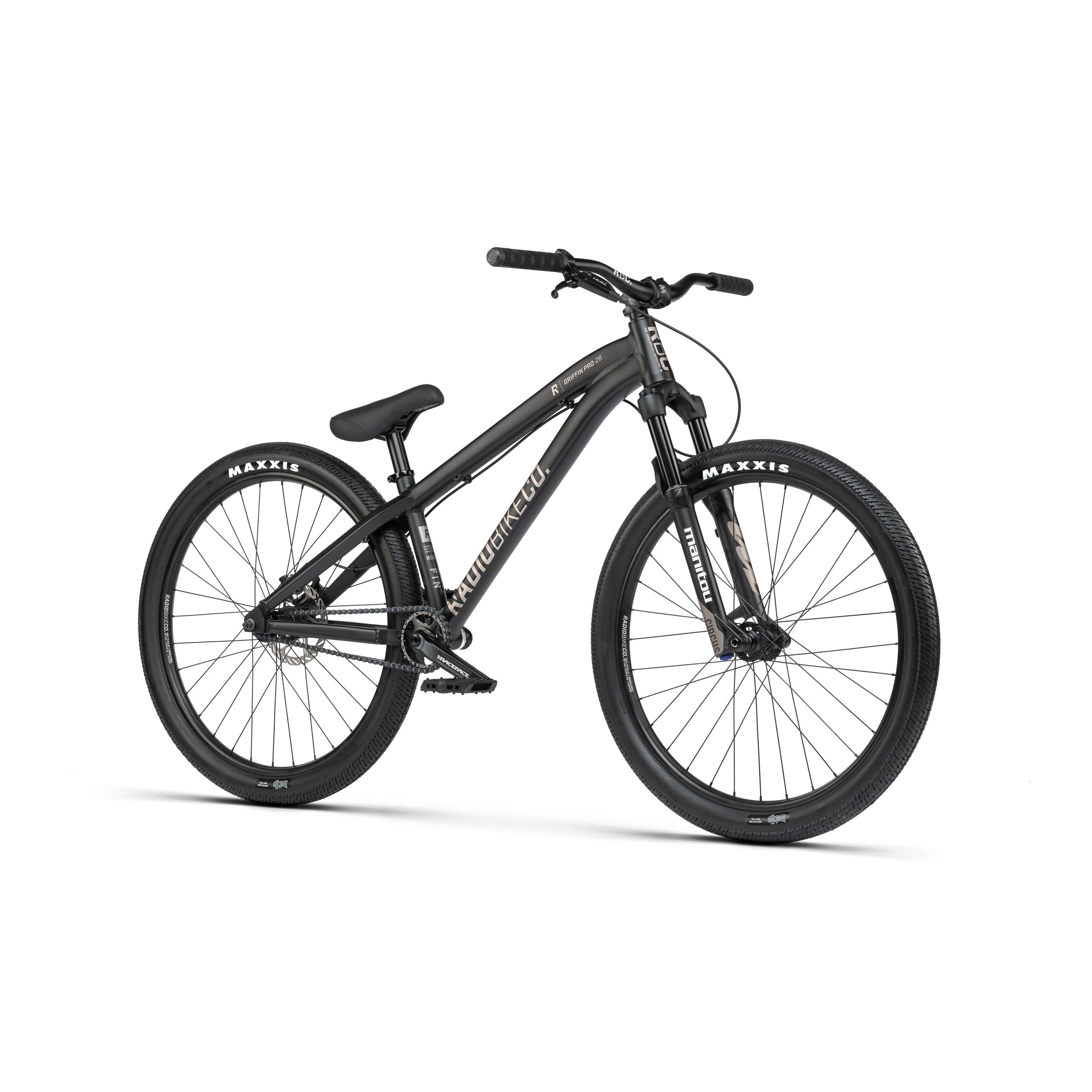

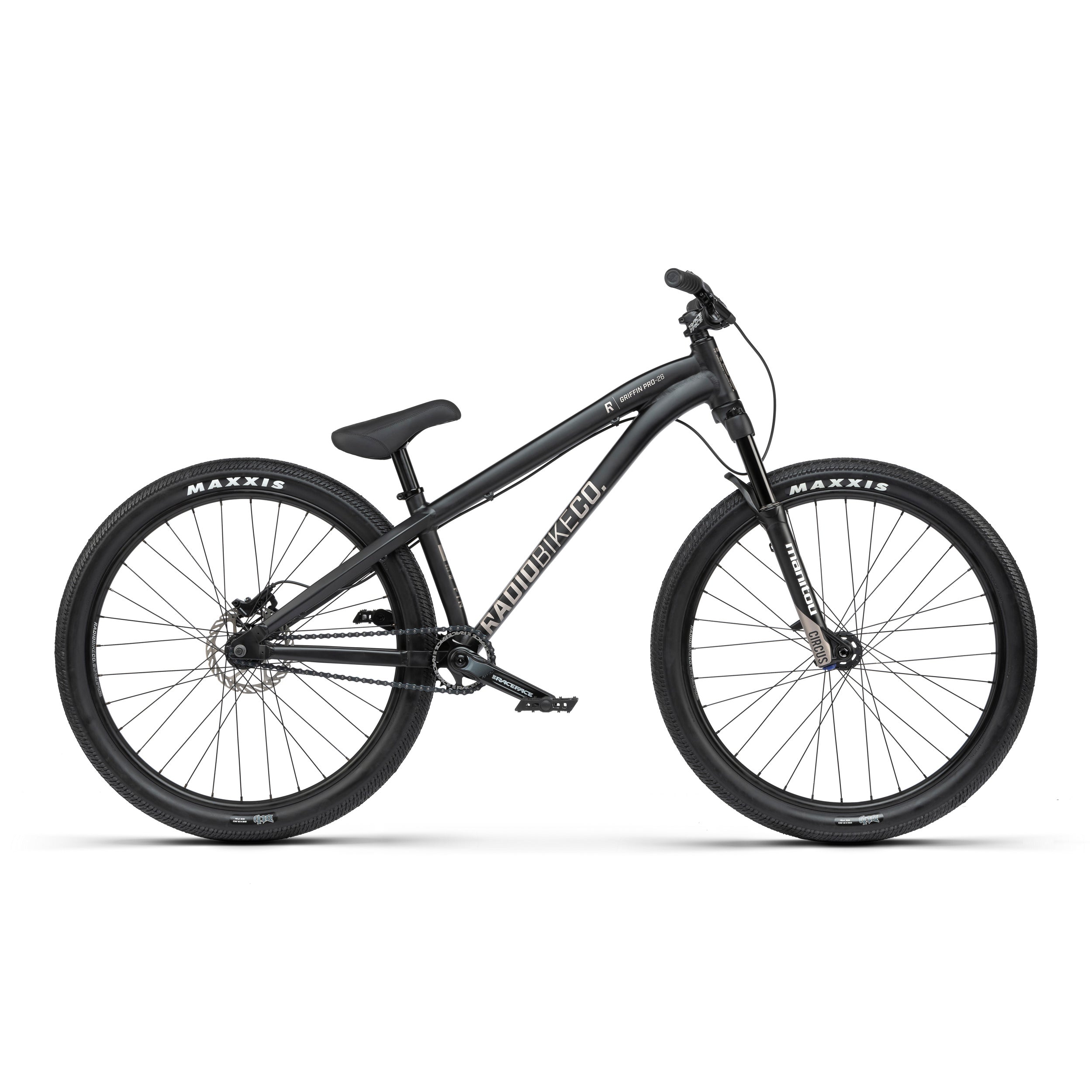

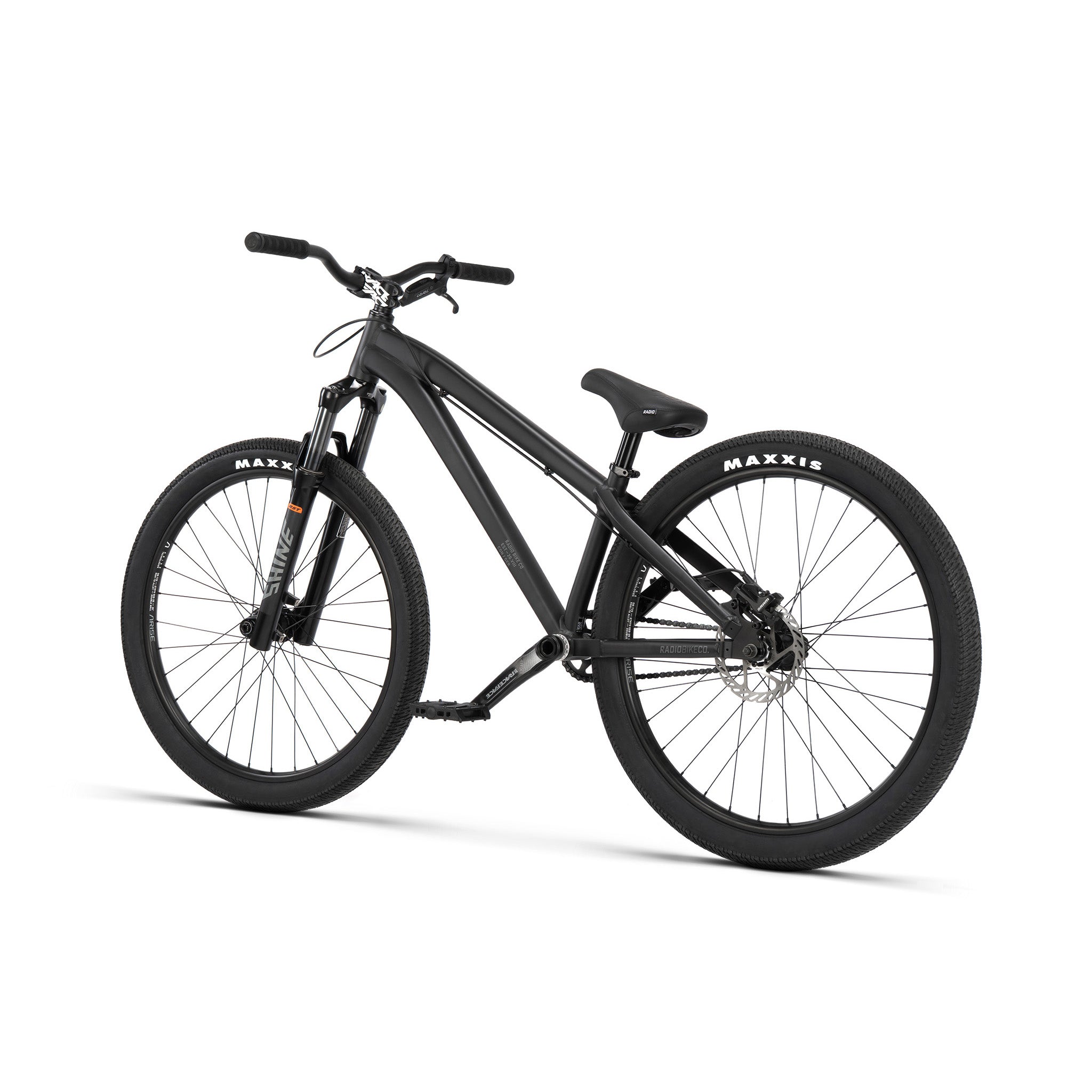

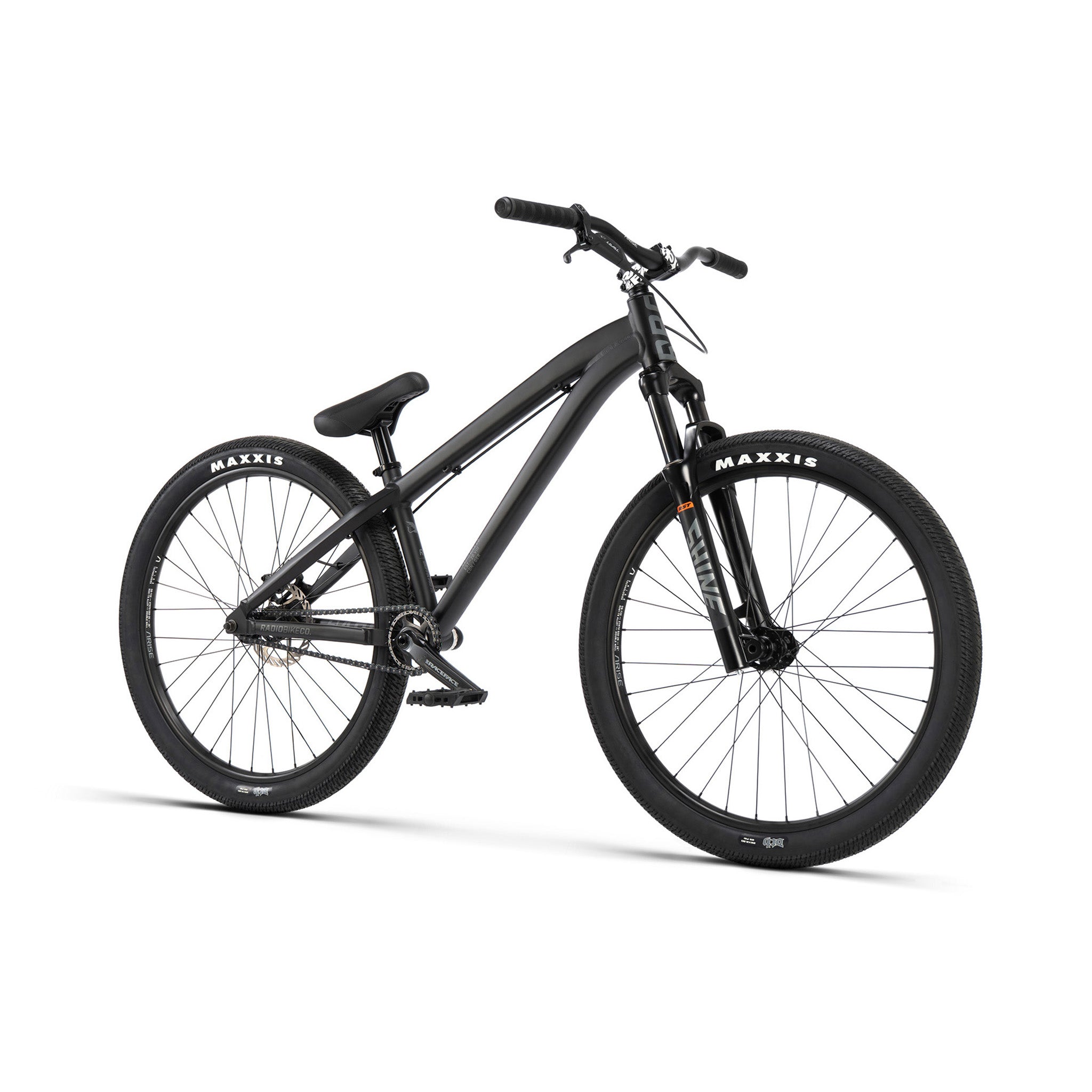

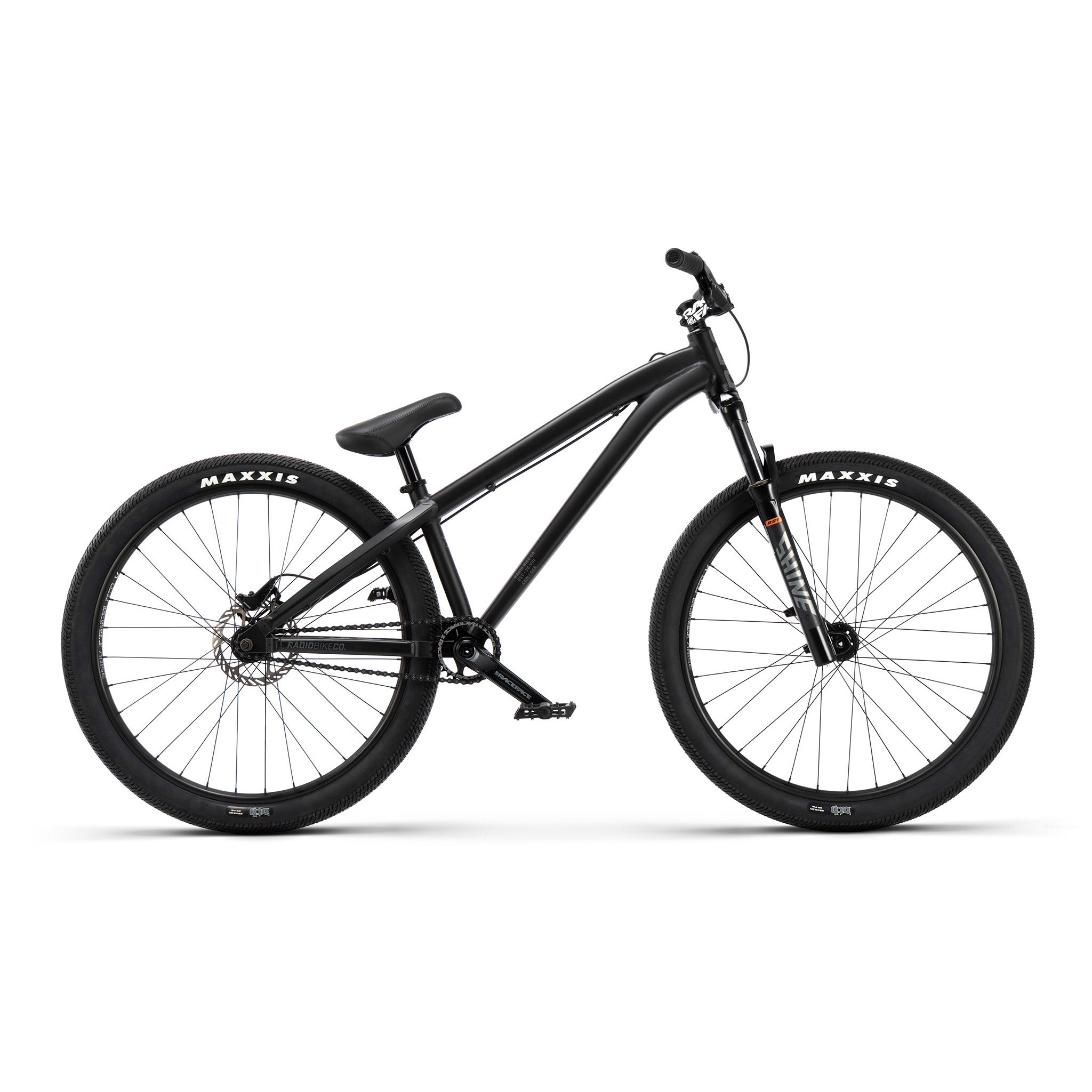

Griffin Pro 26" Complete
The crème de la crème of 26” bikes, the Griffin PRO is built around a super light and stiff 6061-T6 Alloy frame and is adorned with RST “SHINE AIR” 100mm fork and a premium level parts package from RACE FACE and MAXXIS. A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.
Weight: 11.31kg / 24.94lbs
Frame Geometry:
| Top Tube Length | 22.8" |
| Chain Stay Length | 15" |
| Head Tube Angle | 70° |
| Seat Tube Angle | 70° |
| Bottom Bracket Height | 14mm drop |
| Standover Height | 10.2" |
Handlebar Geometry:
| Rise | 50mm |
| Width | 760mm |
| Backsweep | 8° |
| Upsweep | 3° |
