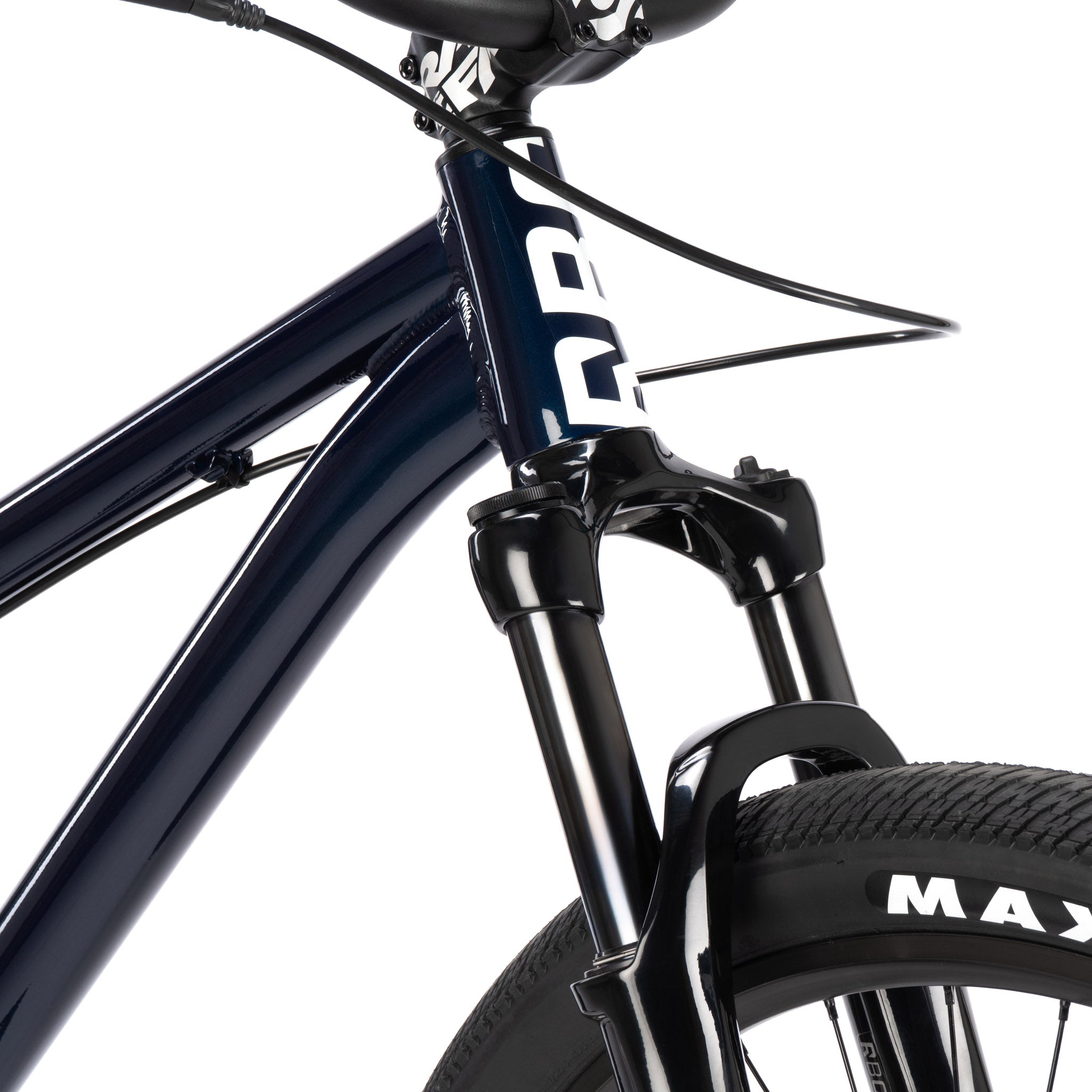

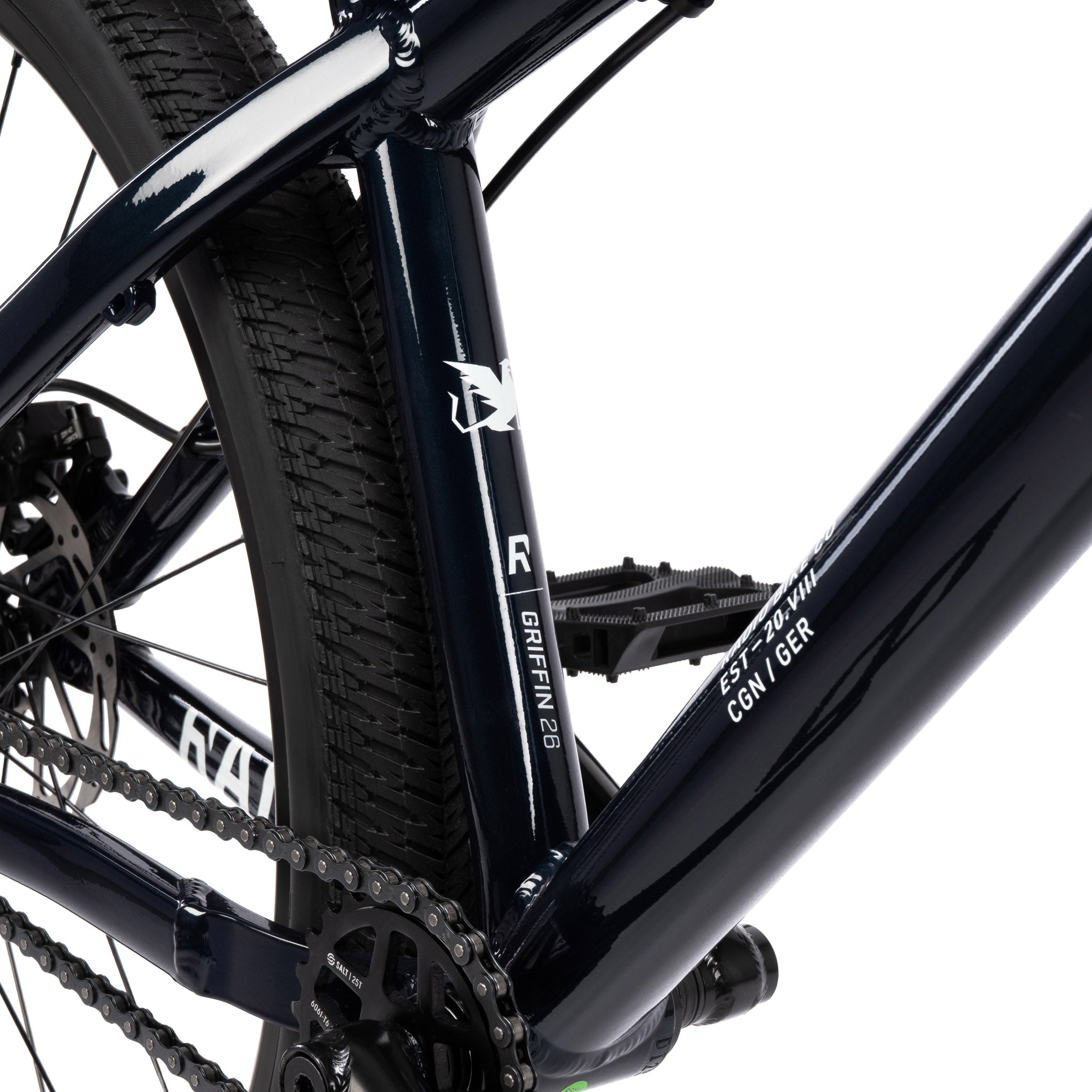

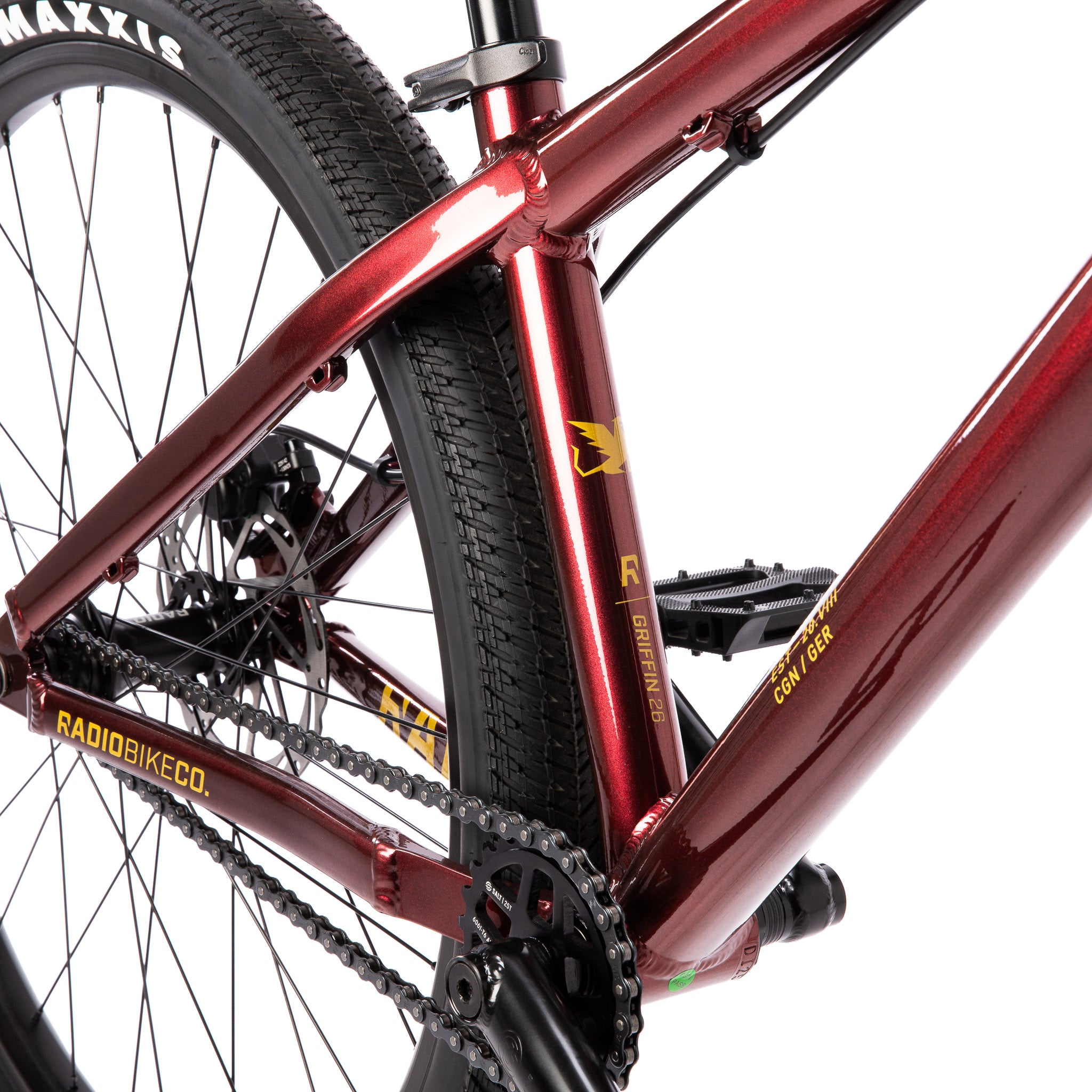

- FRAME: RADIO "GRIFFIN" frame, 6061-T6 alloy, tapered head tube, forged yoke

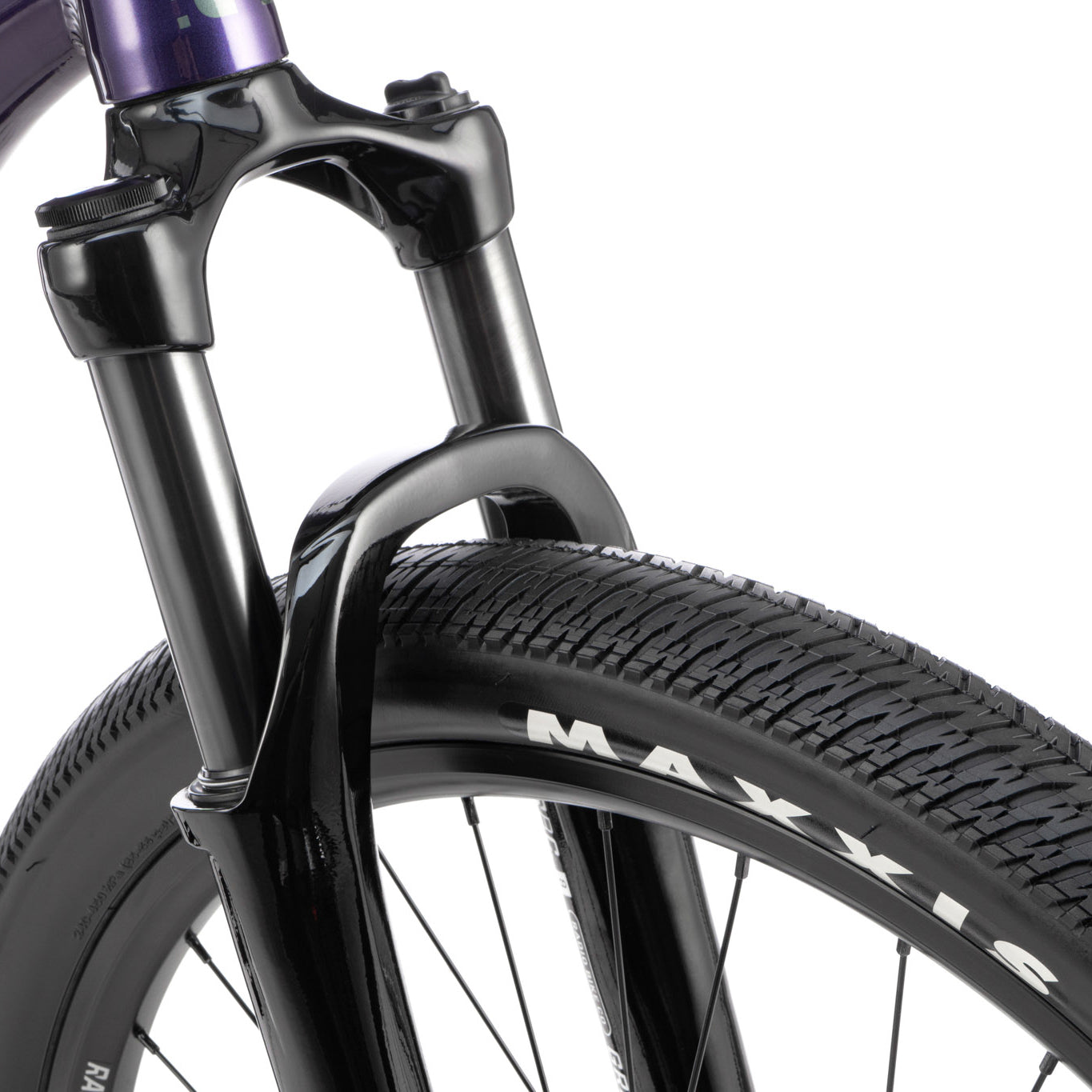

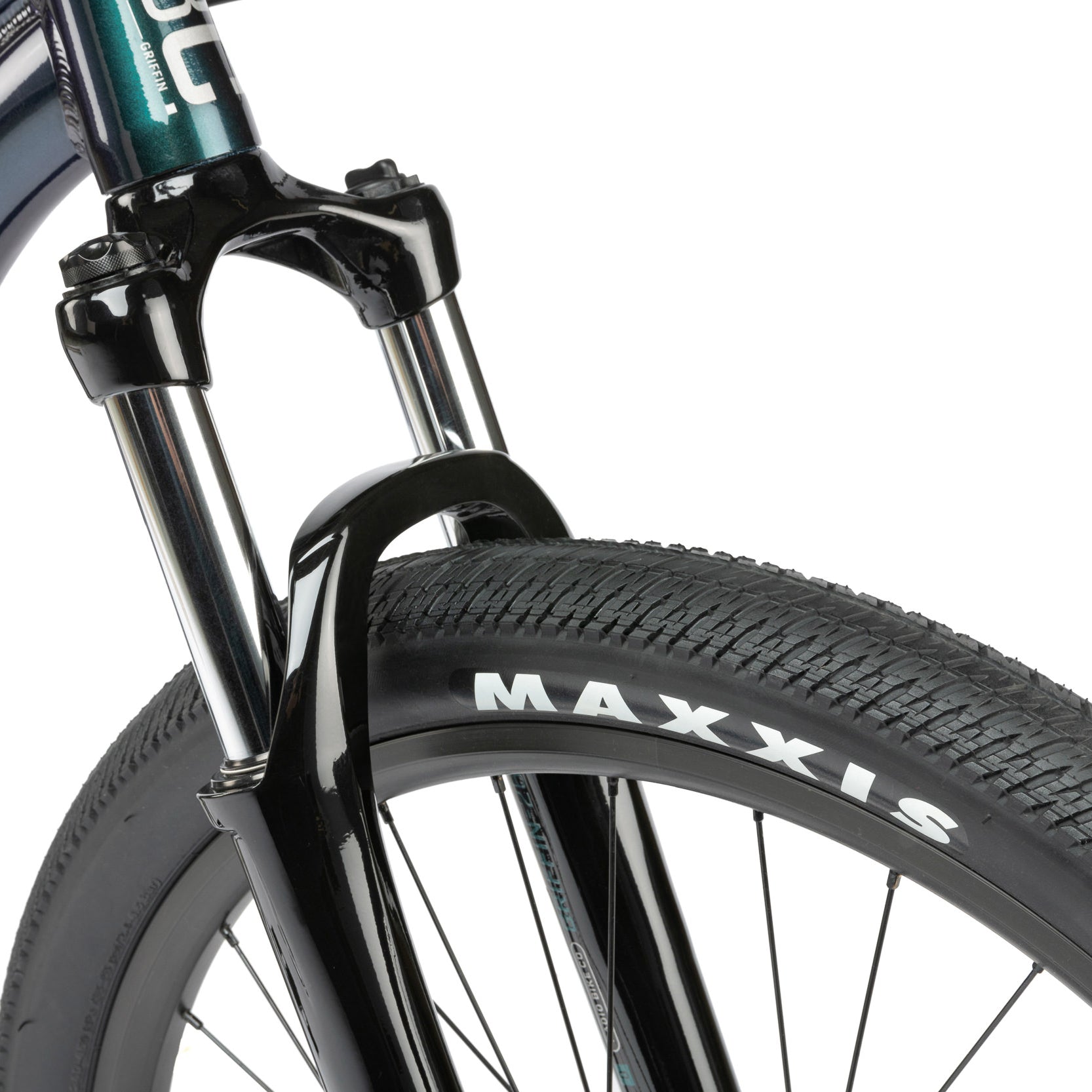

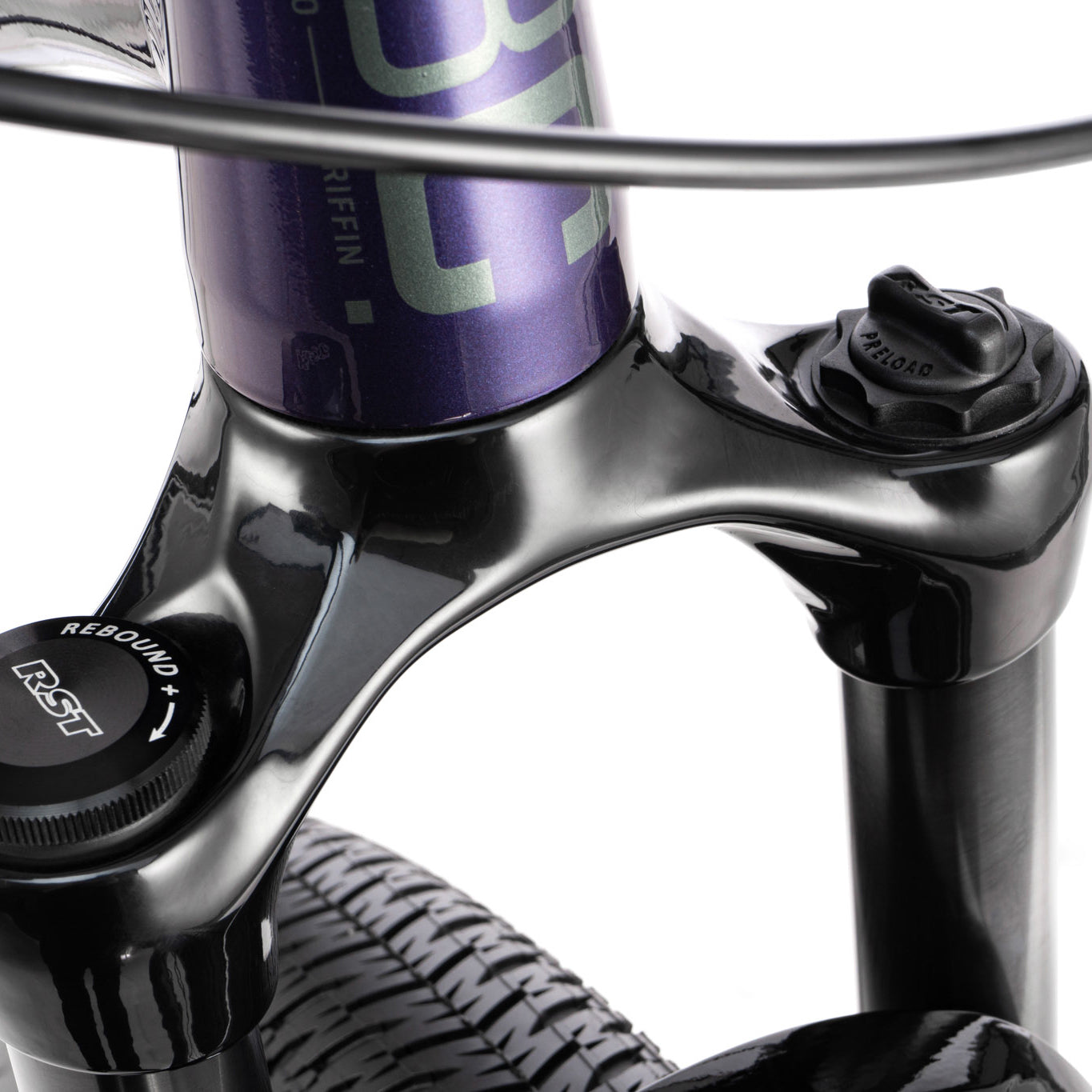

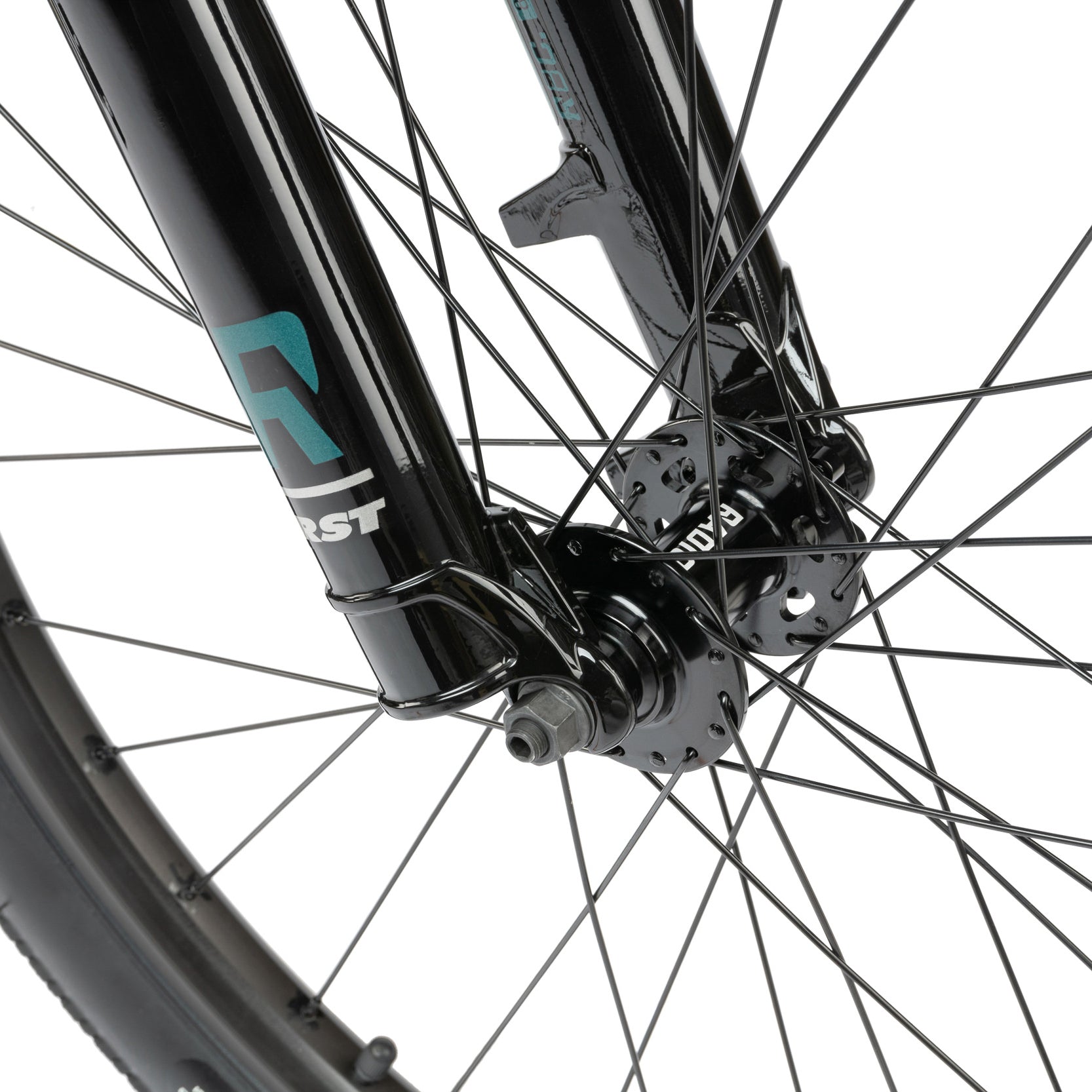

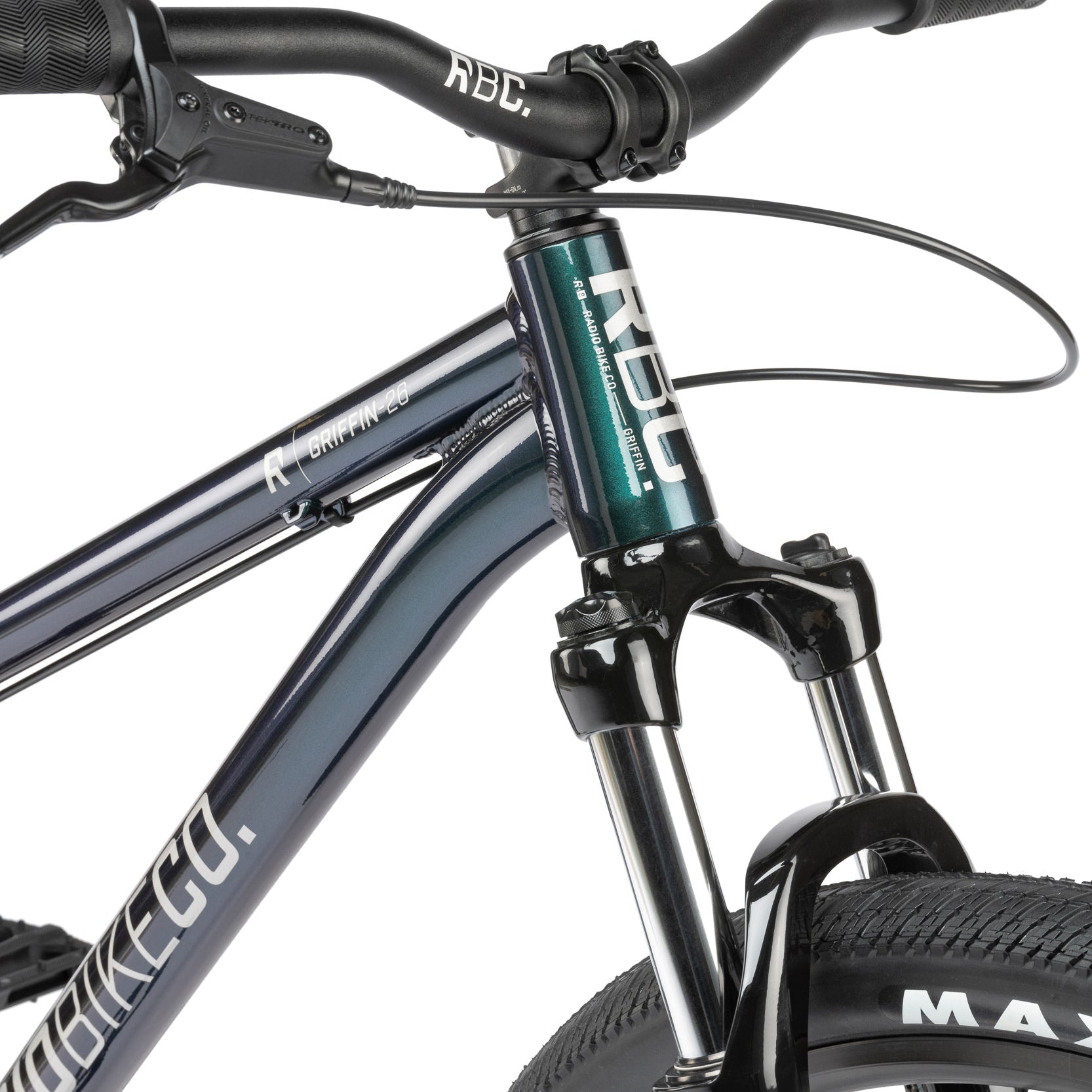

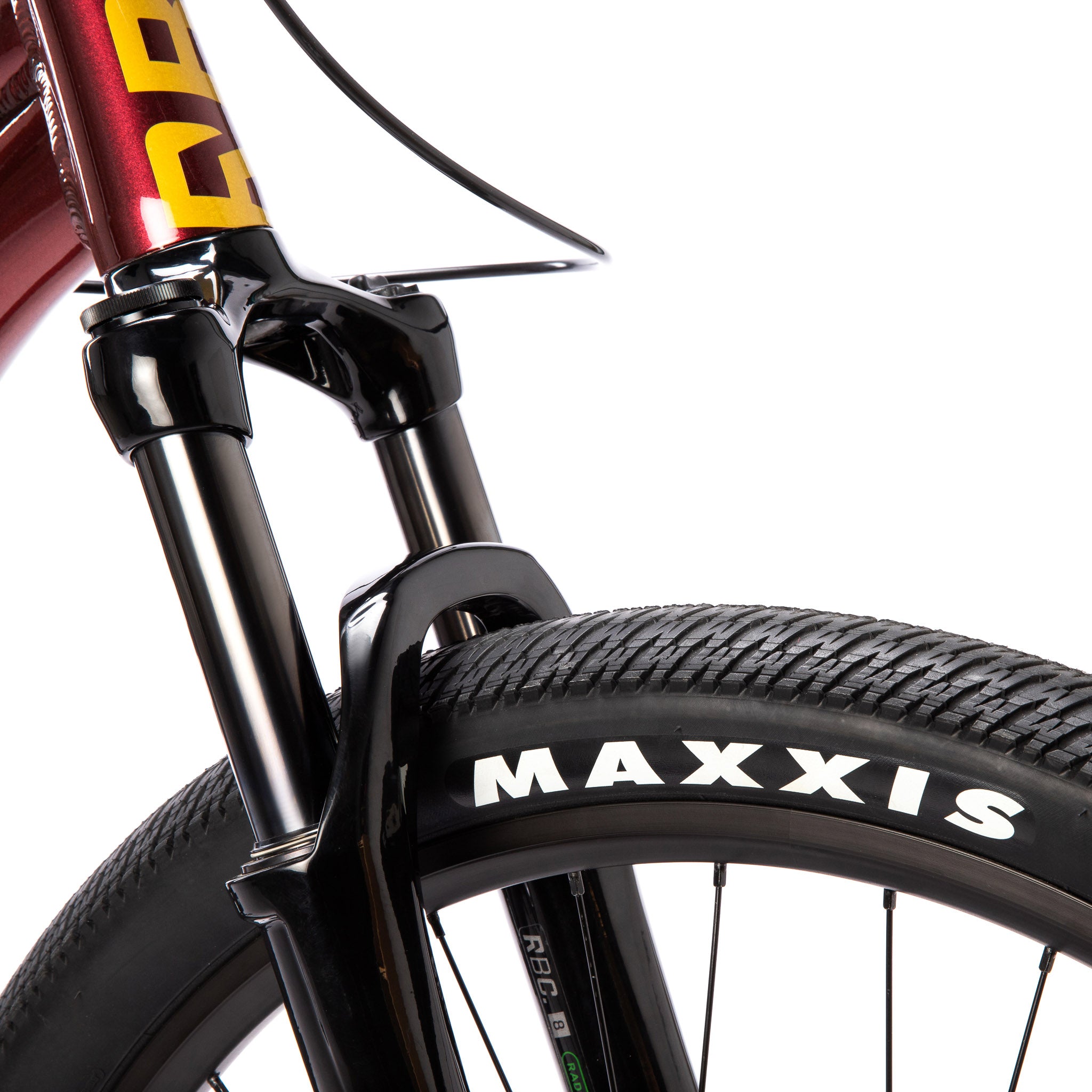

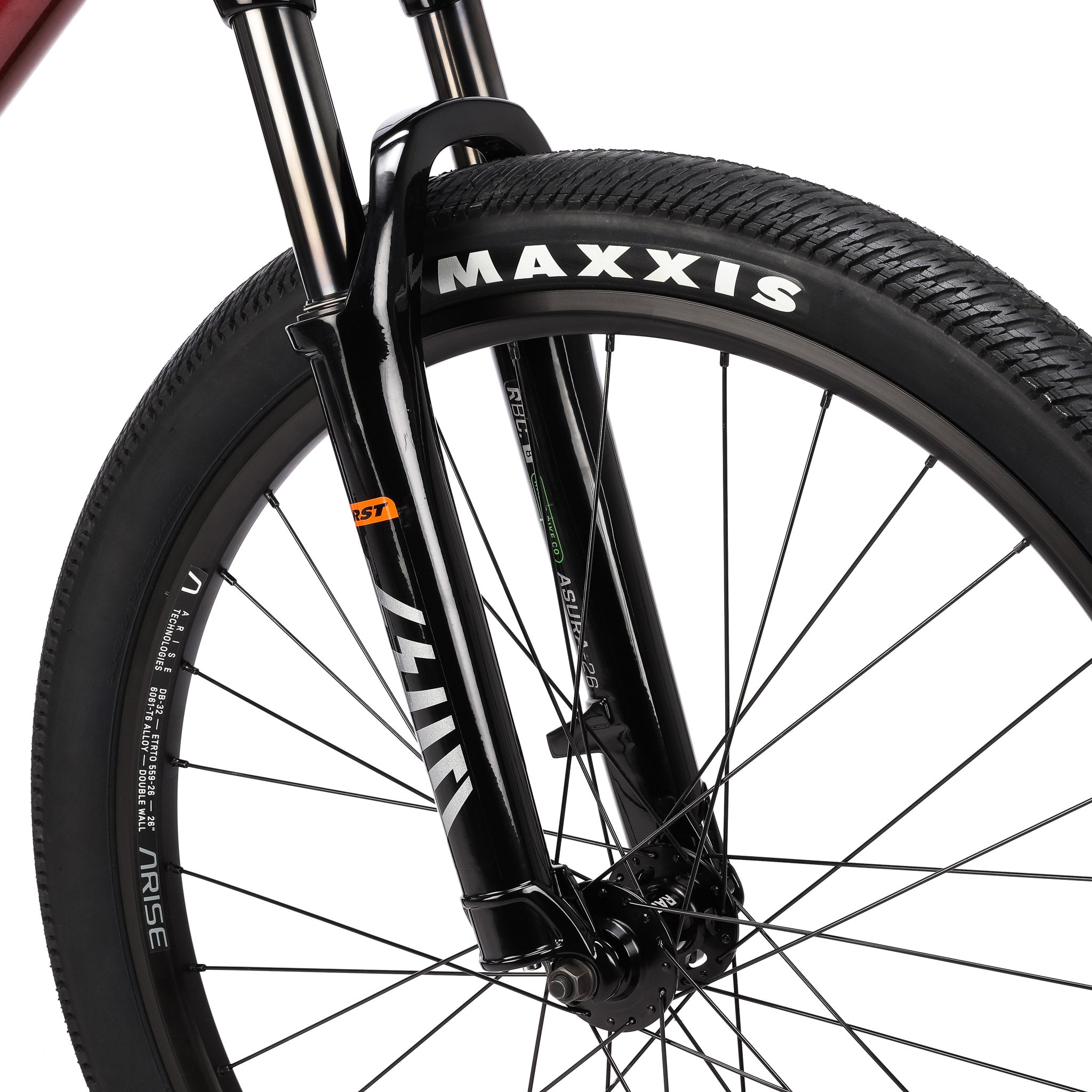

- FORK: RST "DIRT RA" fork, 100mm travel

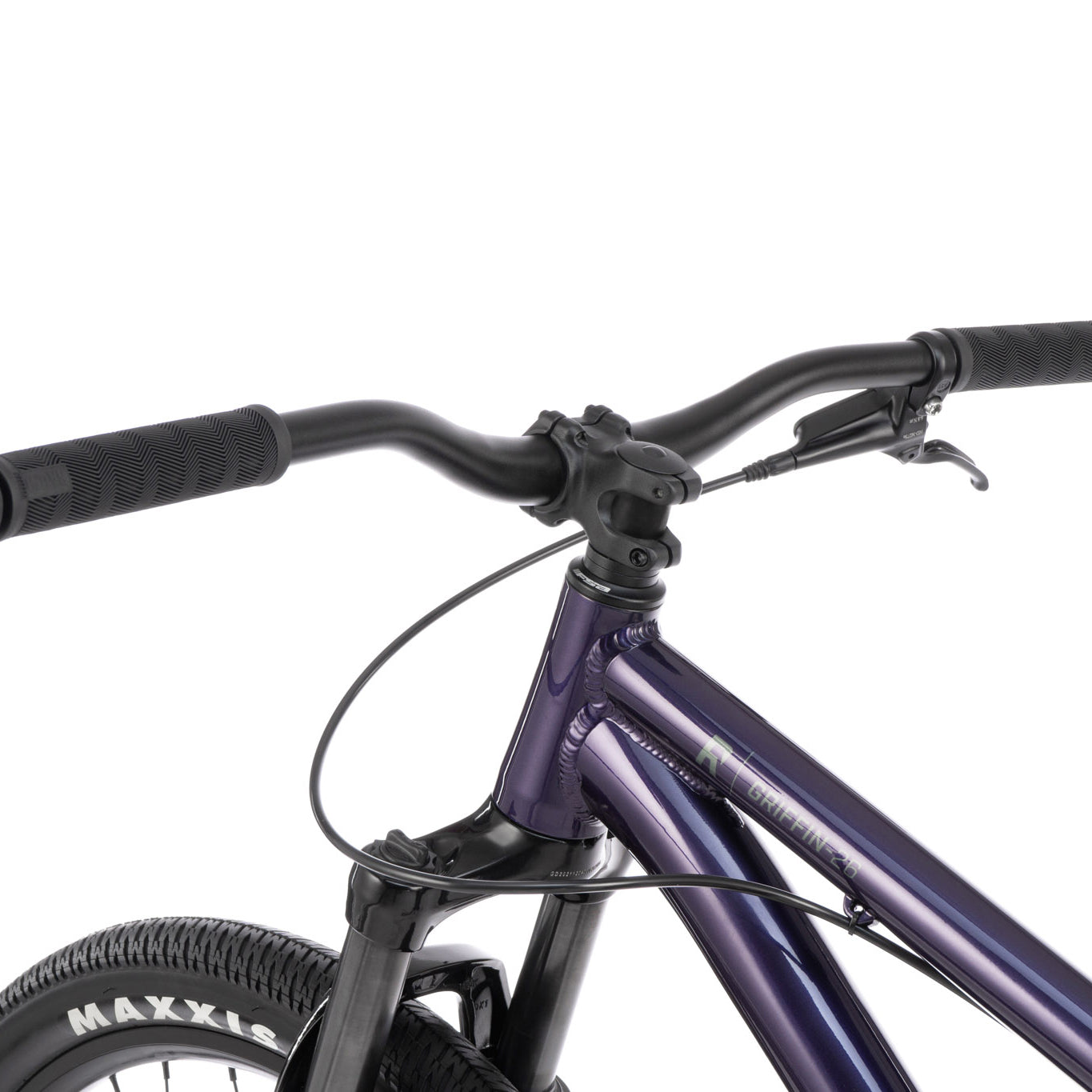

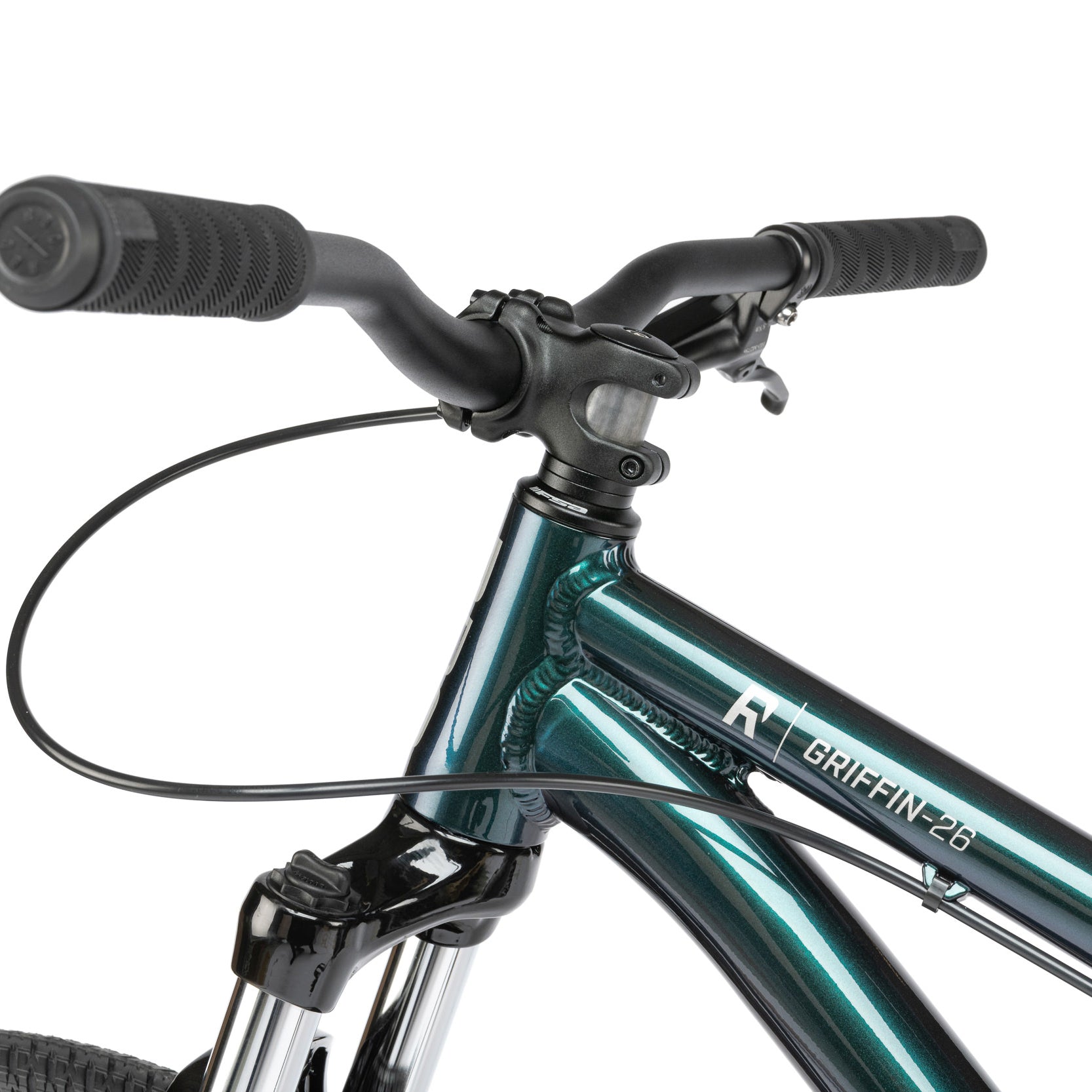

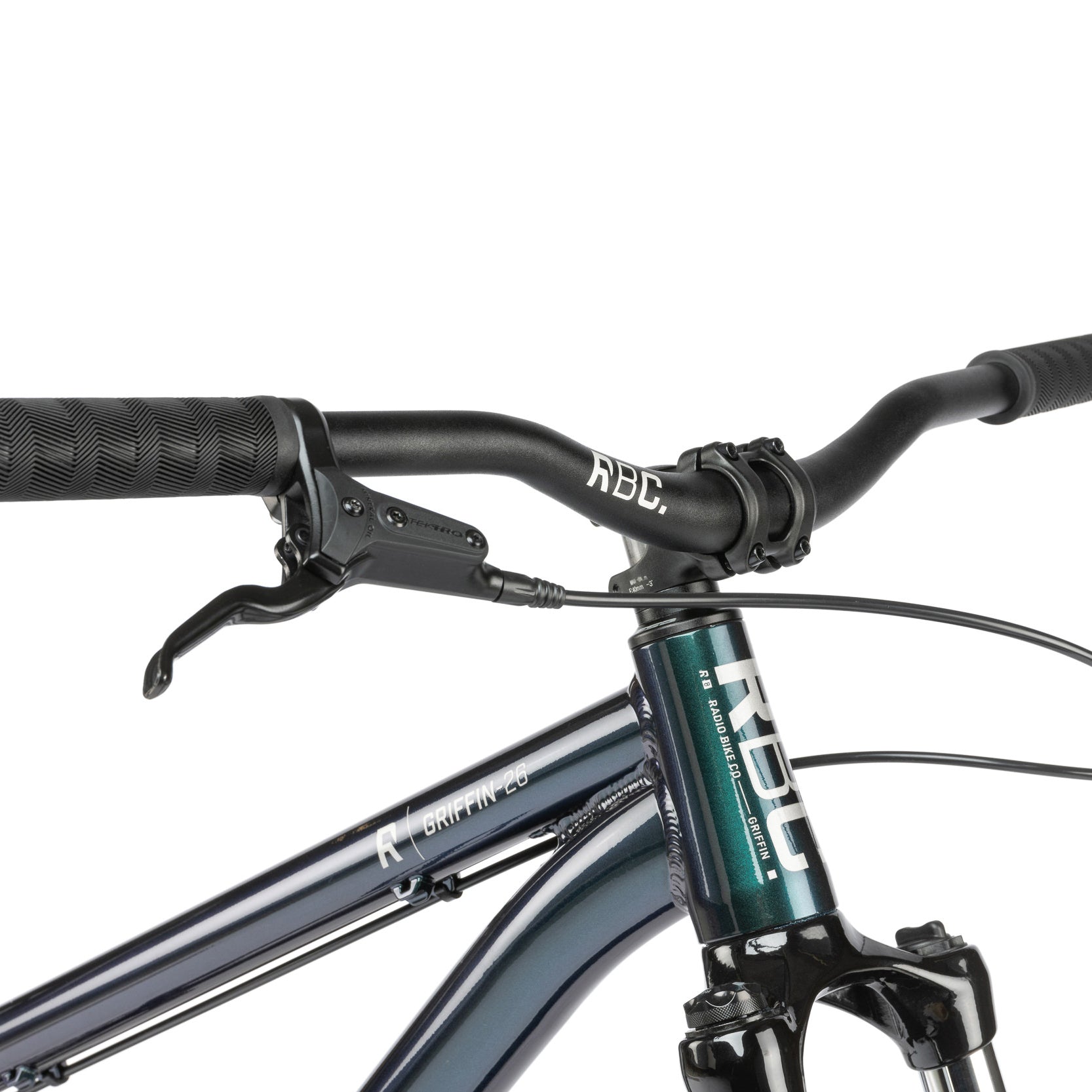

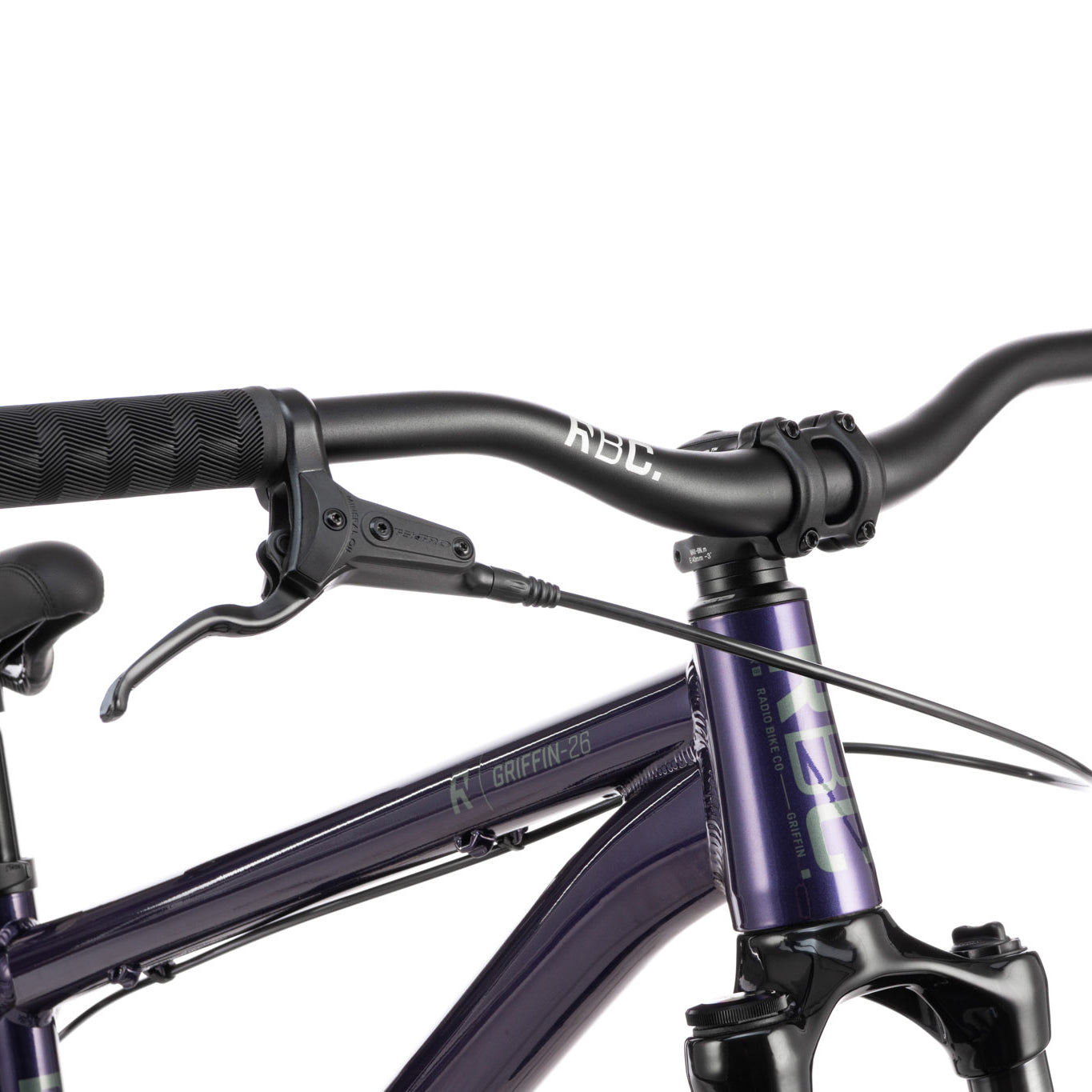

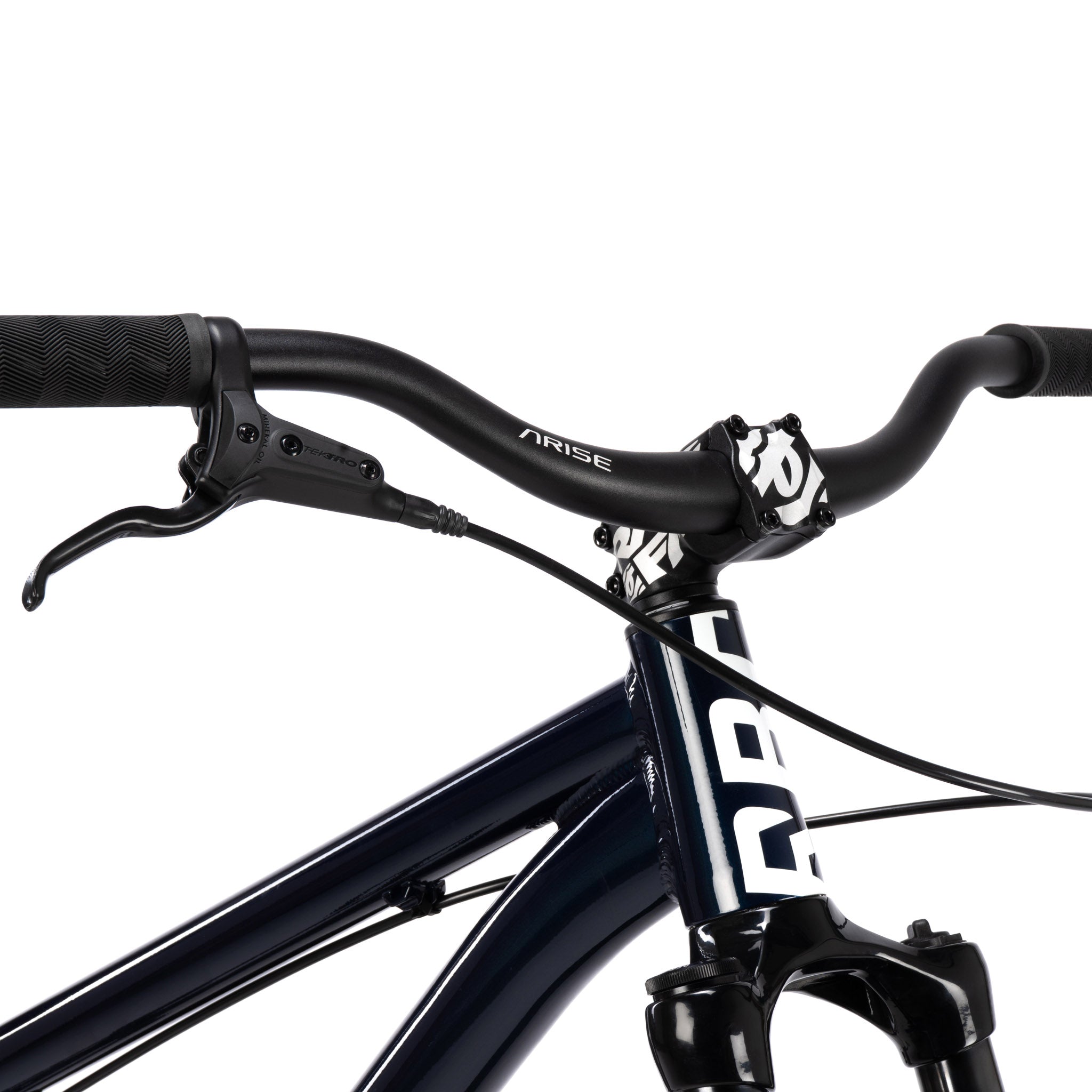

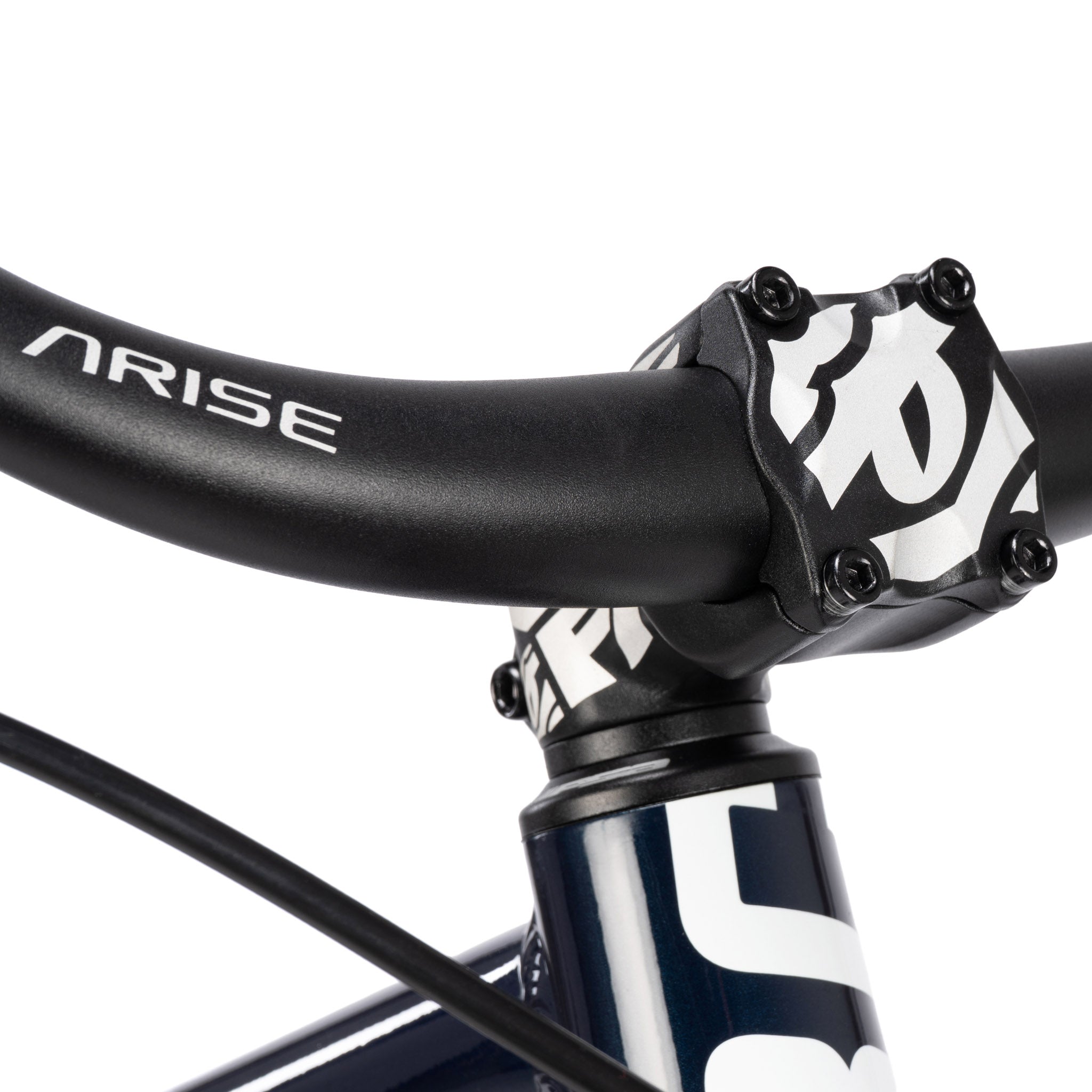

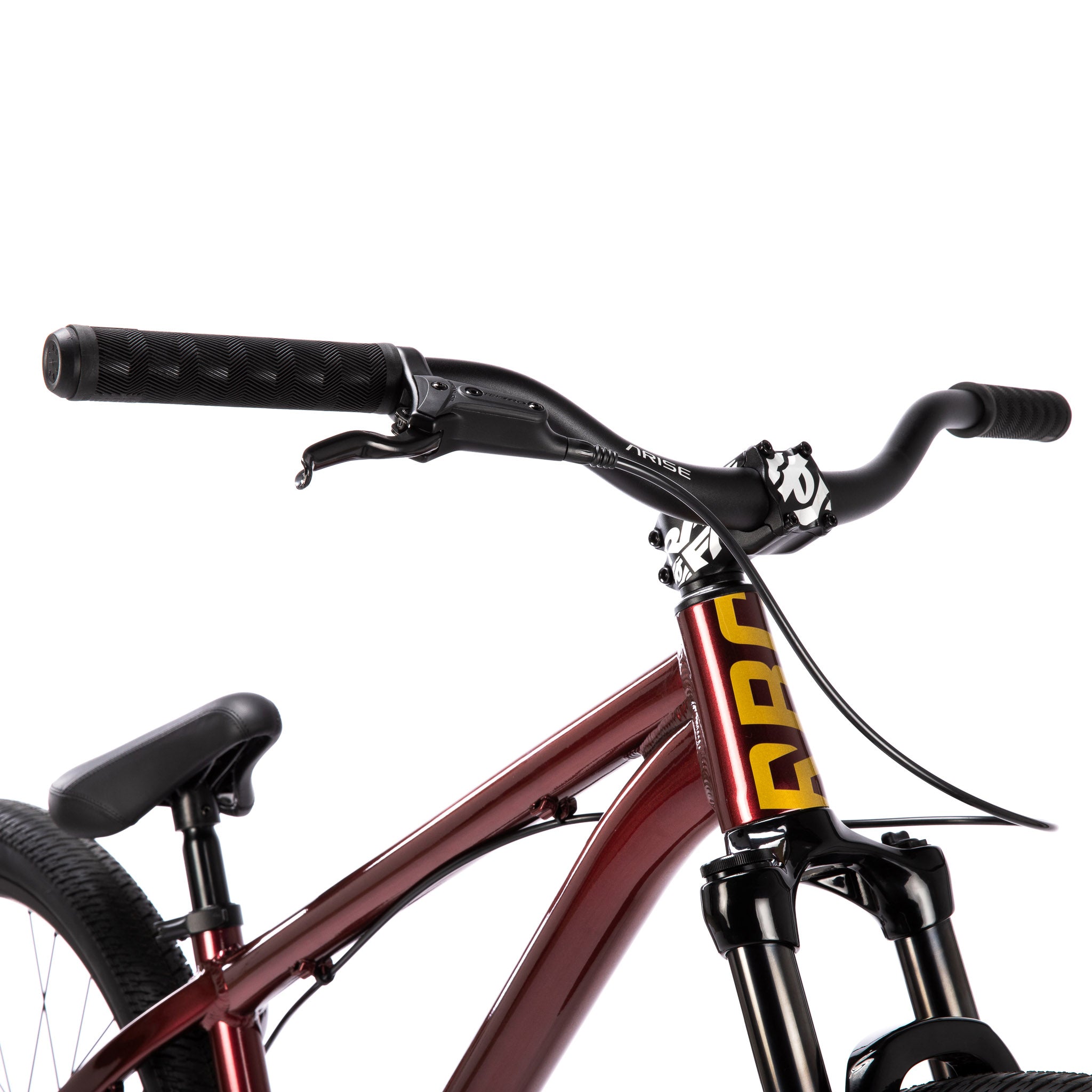

- HANDLEBAR: ARISE "ASURA" bar, 6061-T6 alloy, 31.8mm

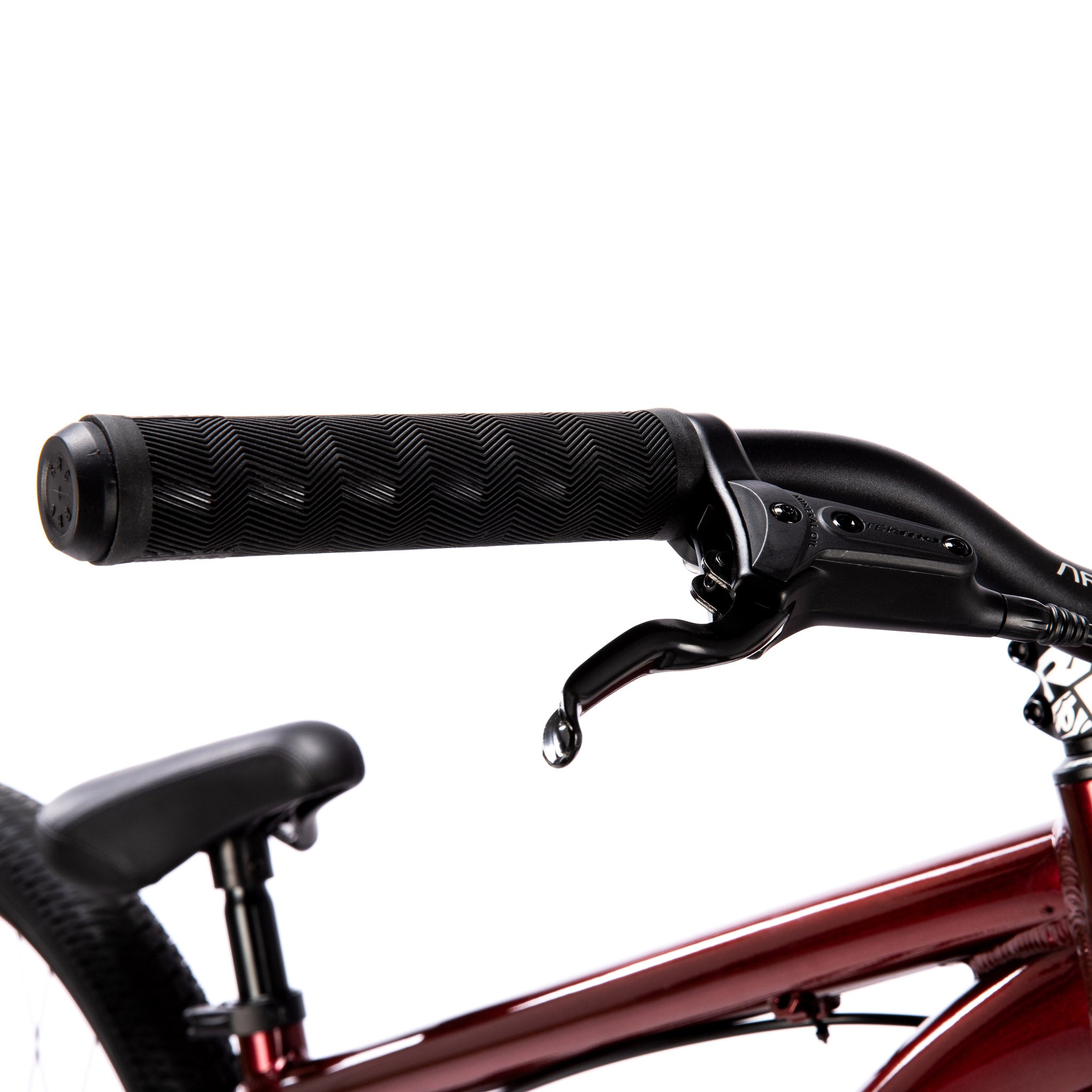

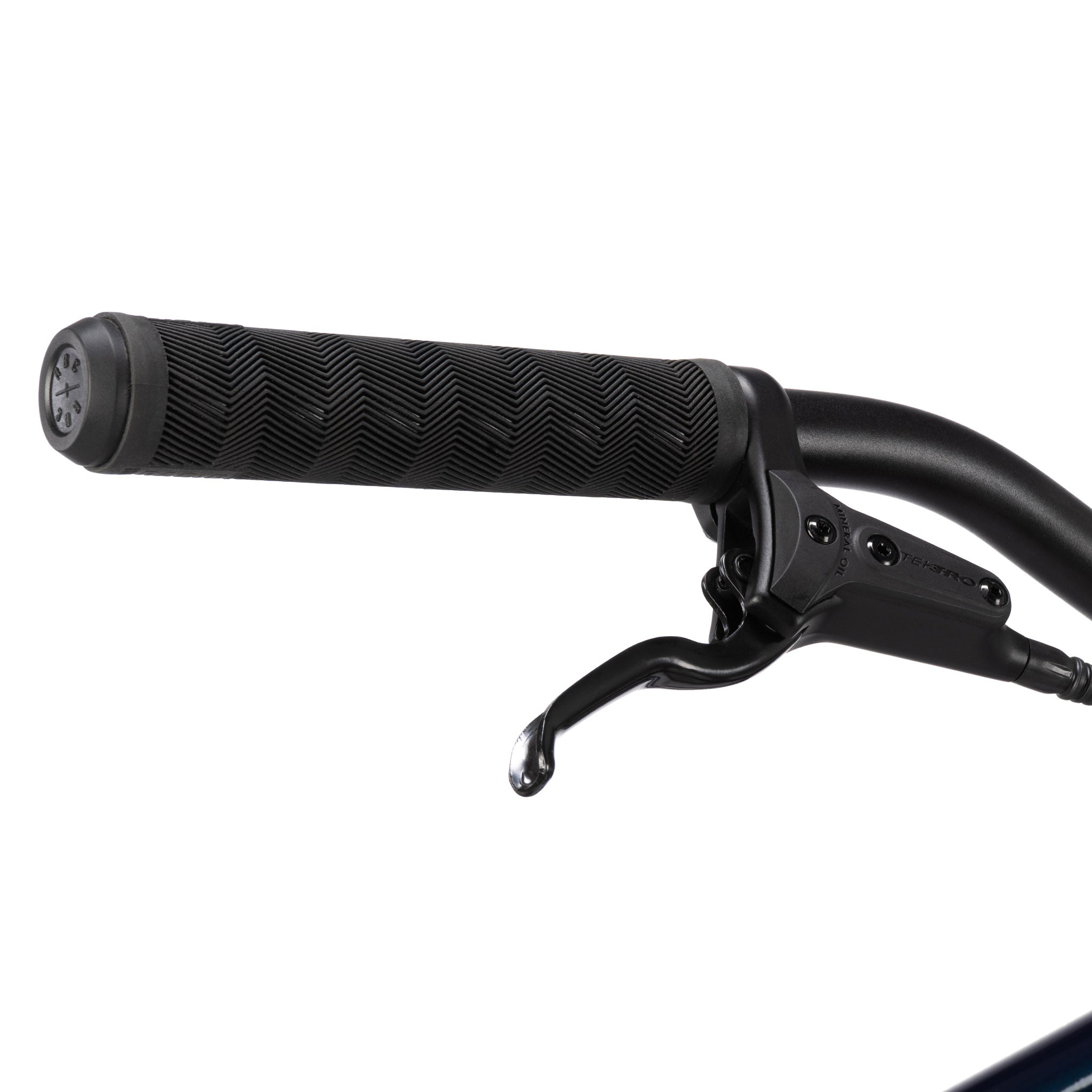

- GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

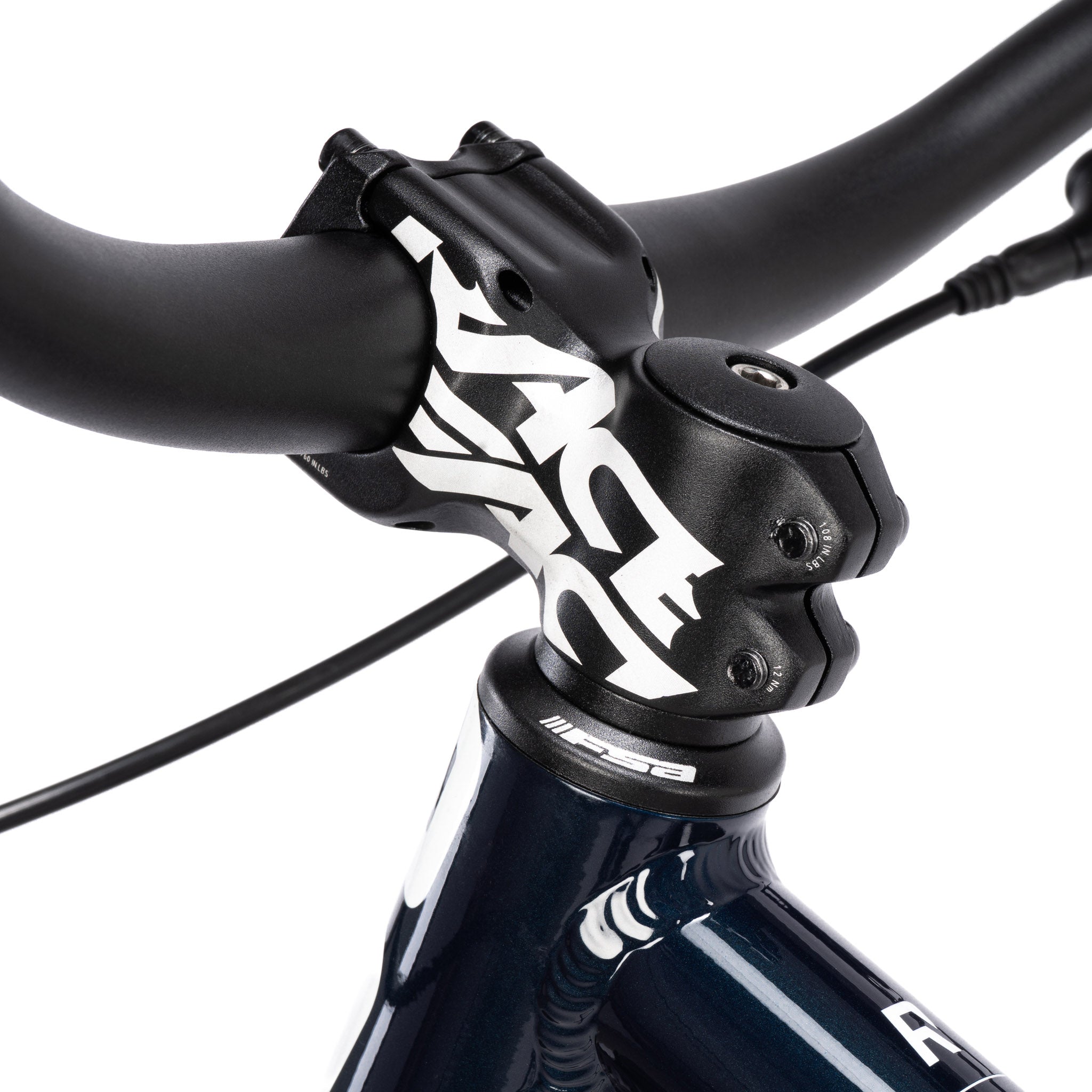

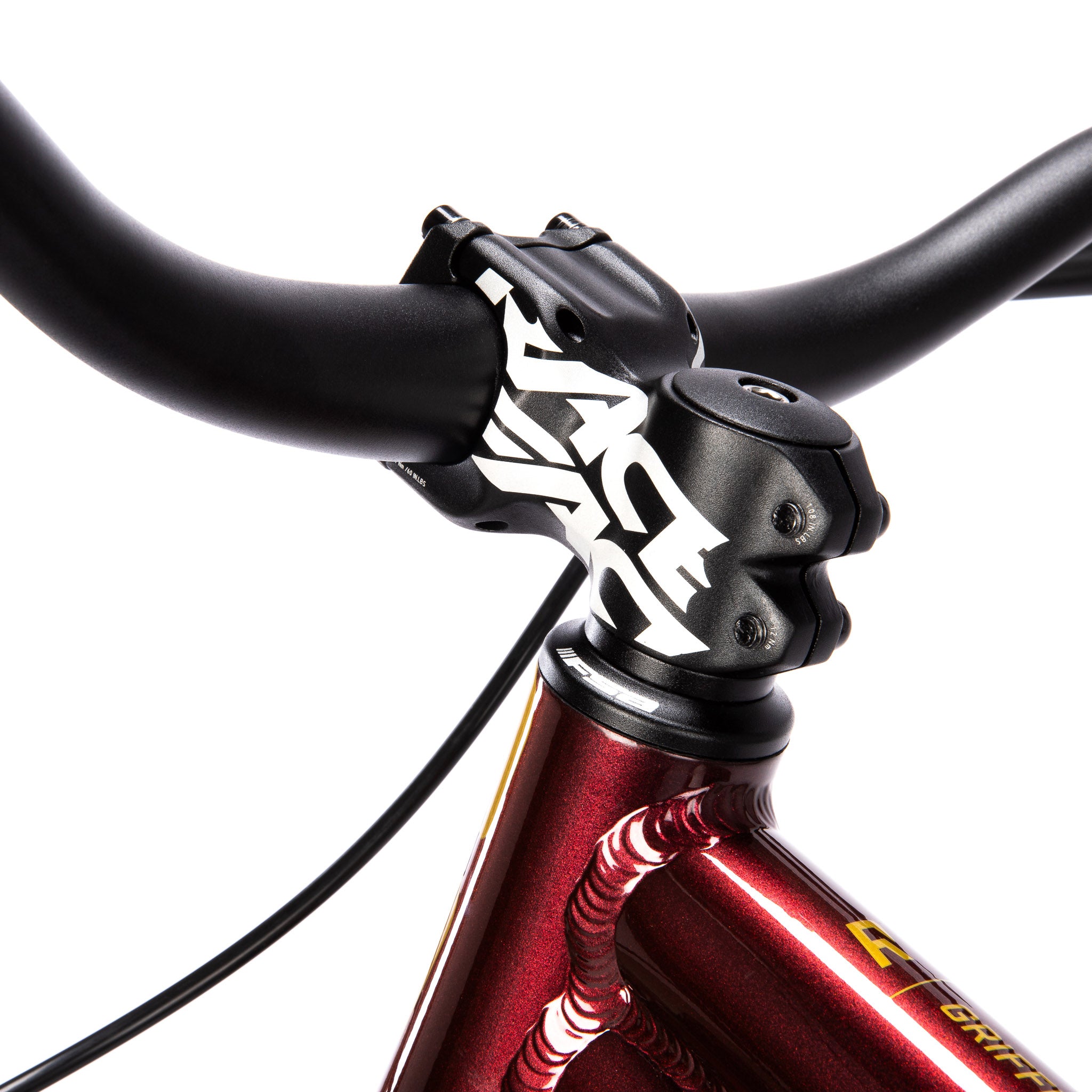

- STEM: RACE FACE "CHESTER" frontload stem, alloy, 50mm reach
- HEADSET: FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
- BRAKE LEVER: TEKTRO "RS-360A" front lever / TEKTRO " HD-M275" rear lever

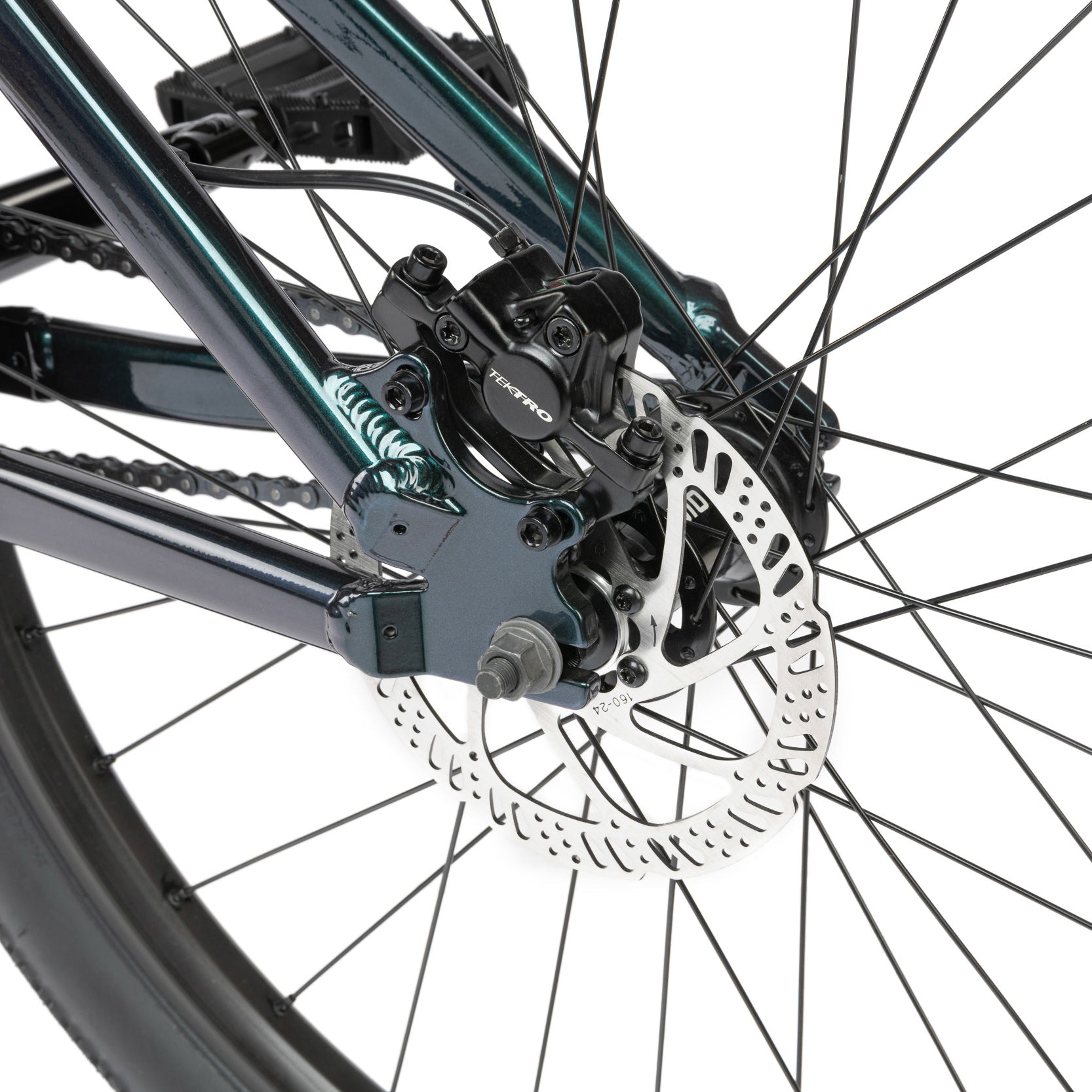

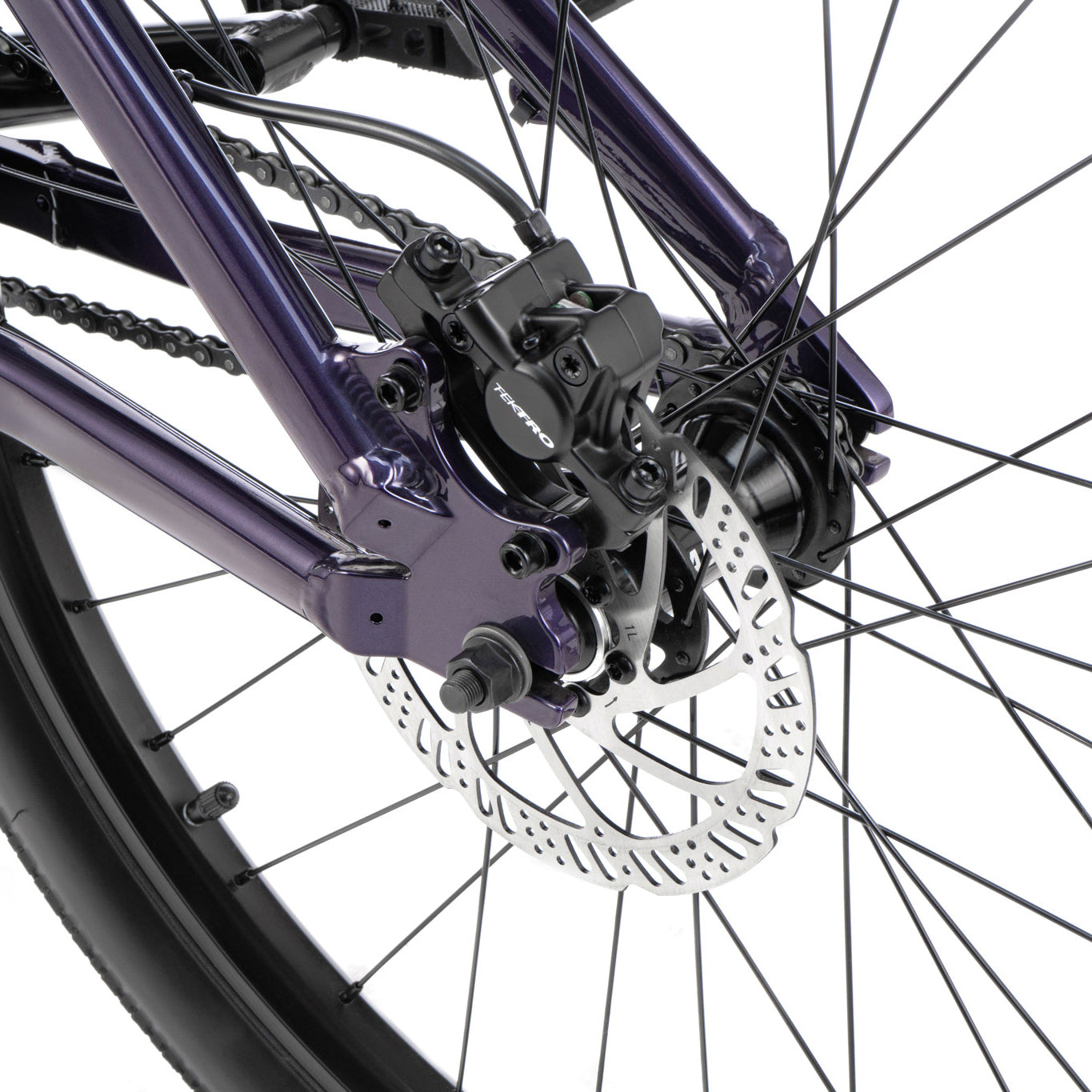

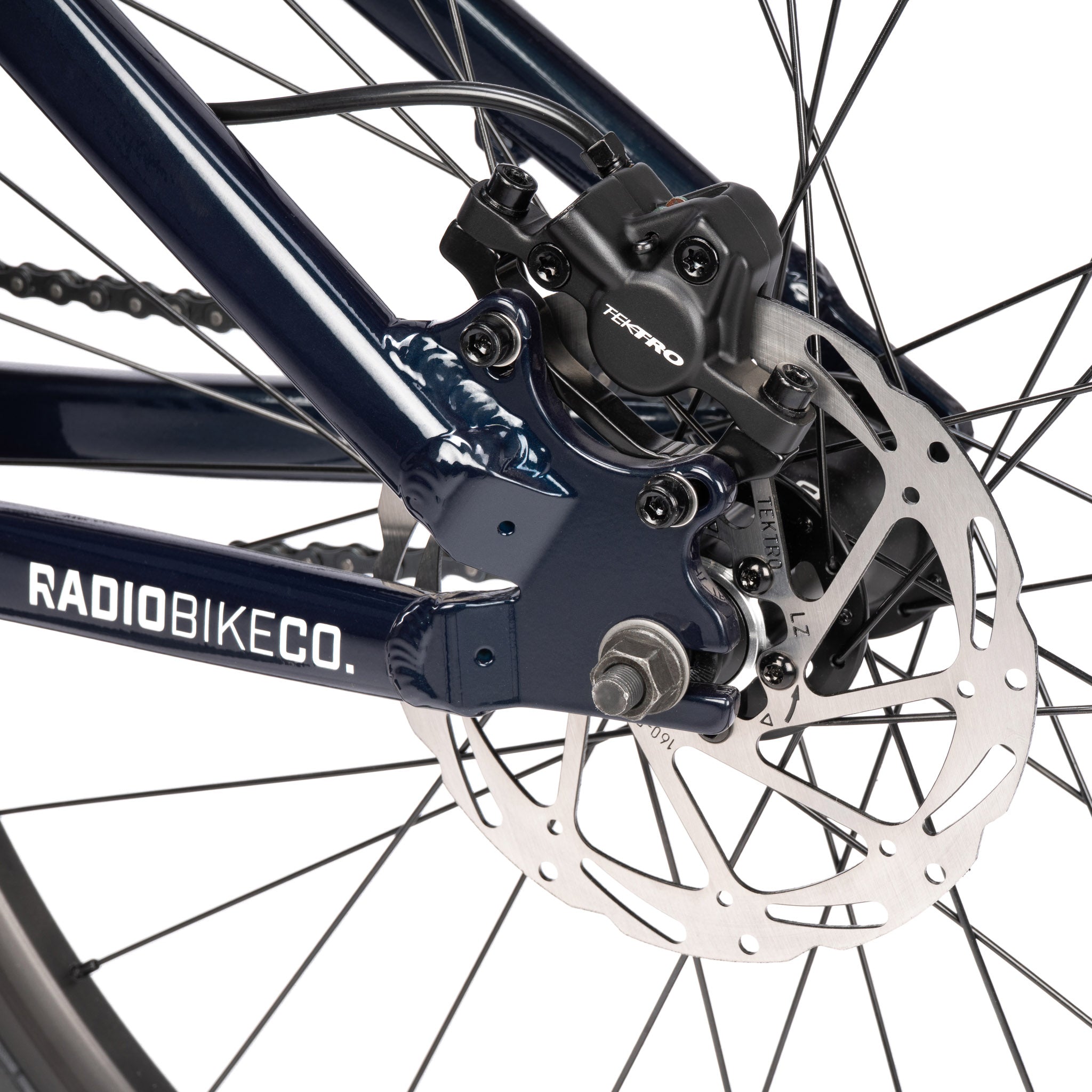

- BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear

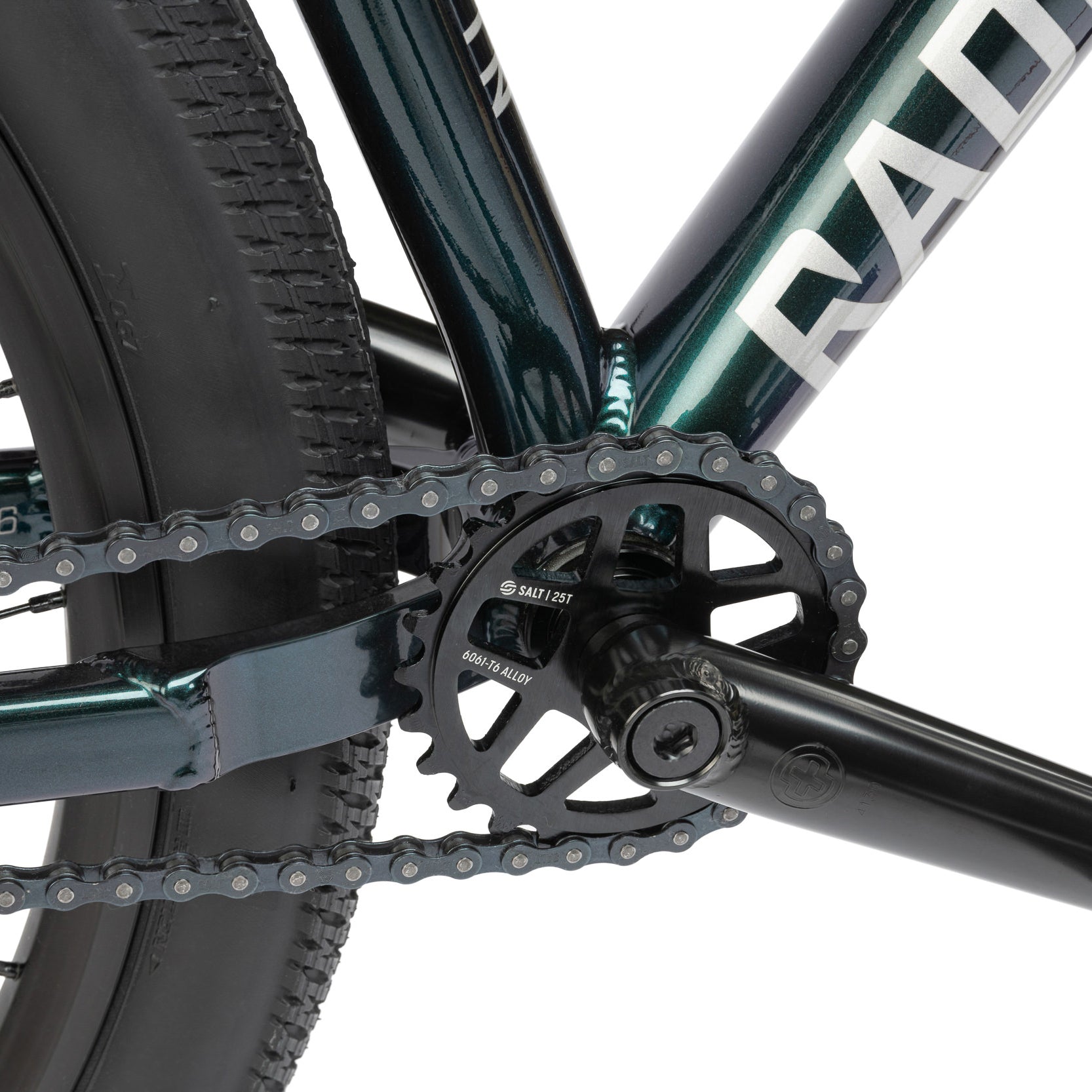

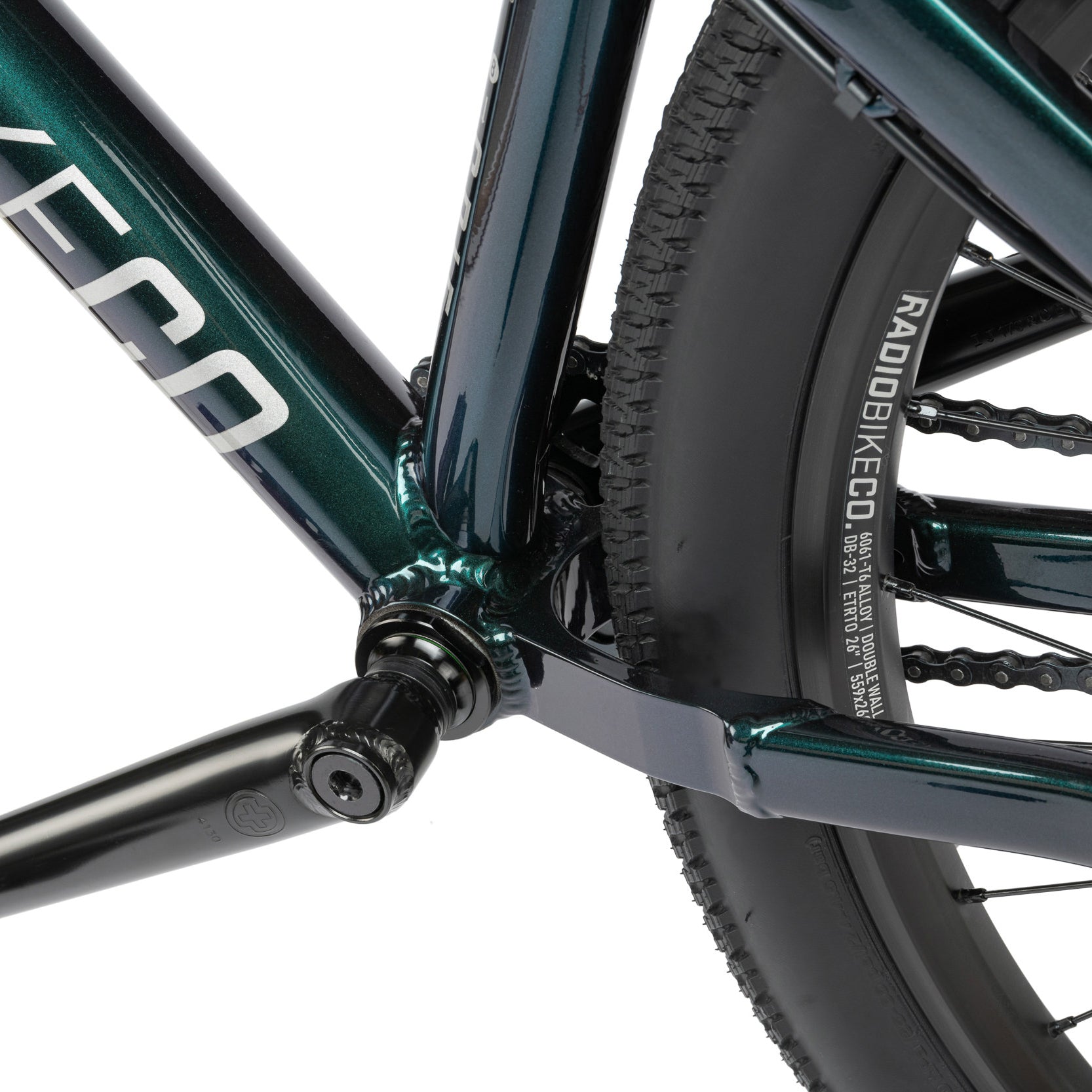

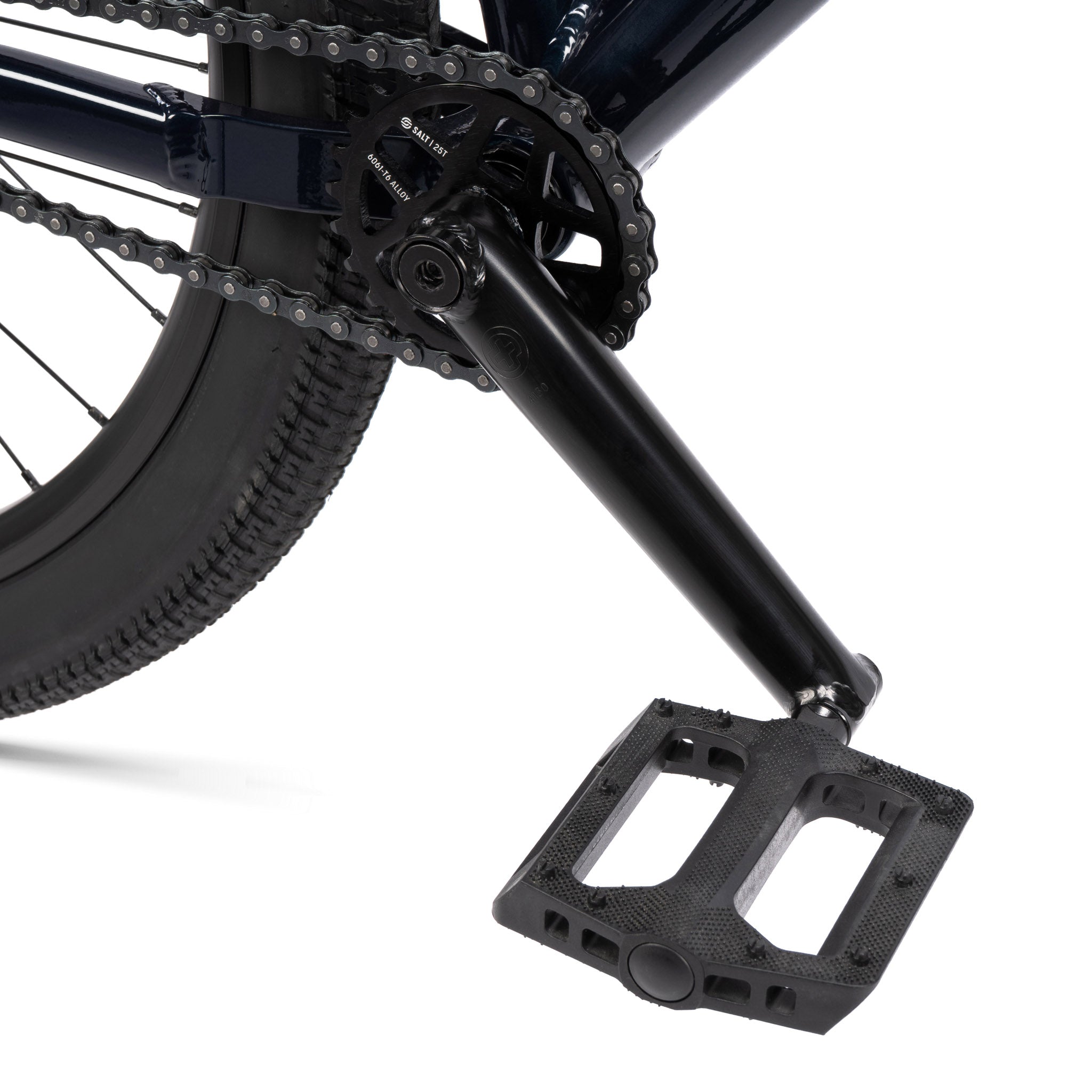

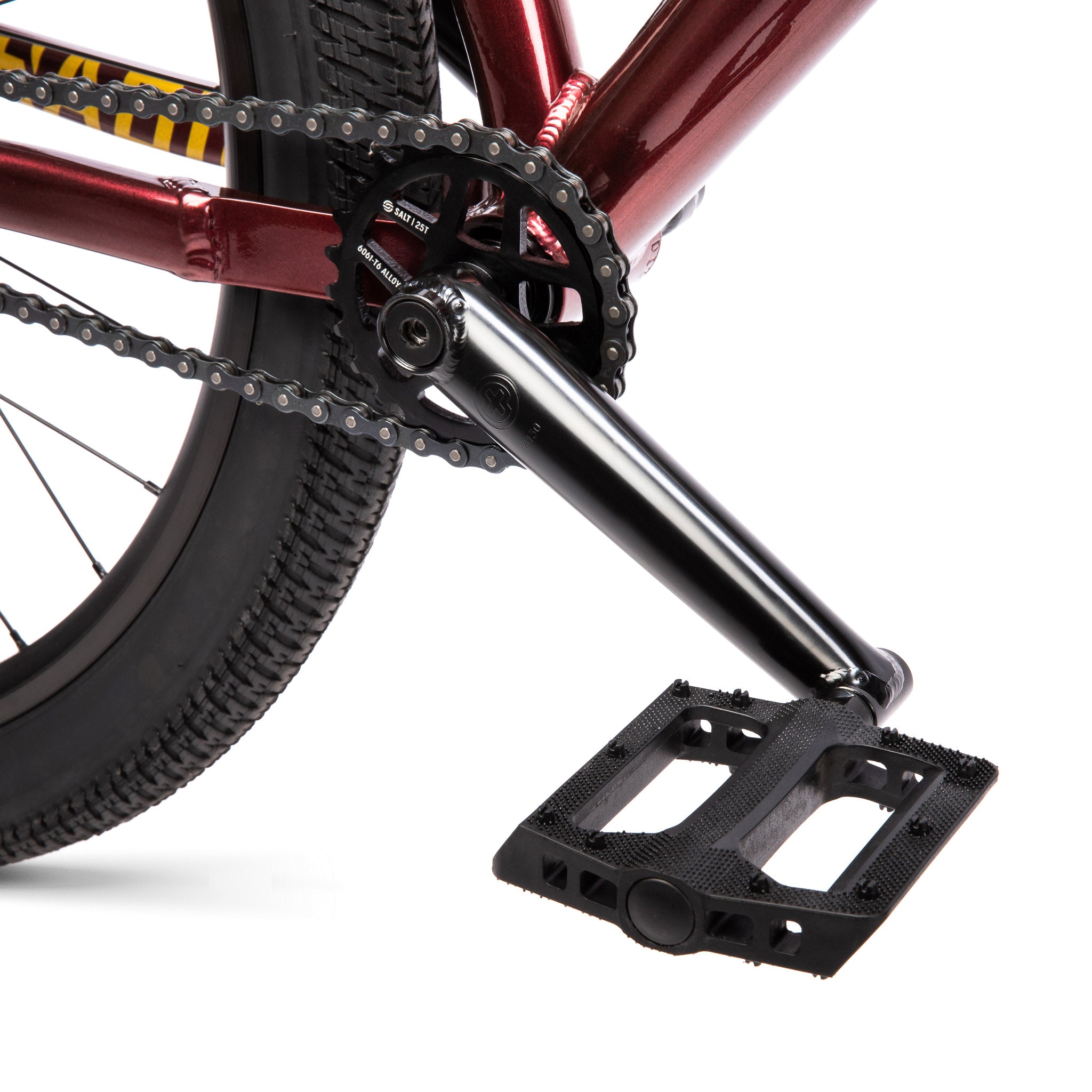

- CRANK: SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 170mm, 8 spline
- BB: RADIO "BSA19" bb set, sealed bearing

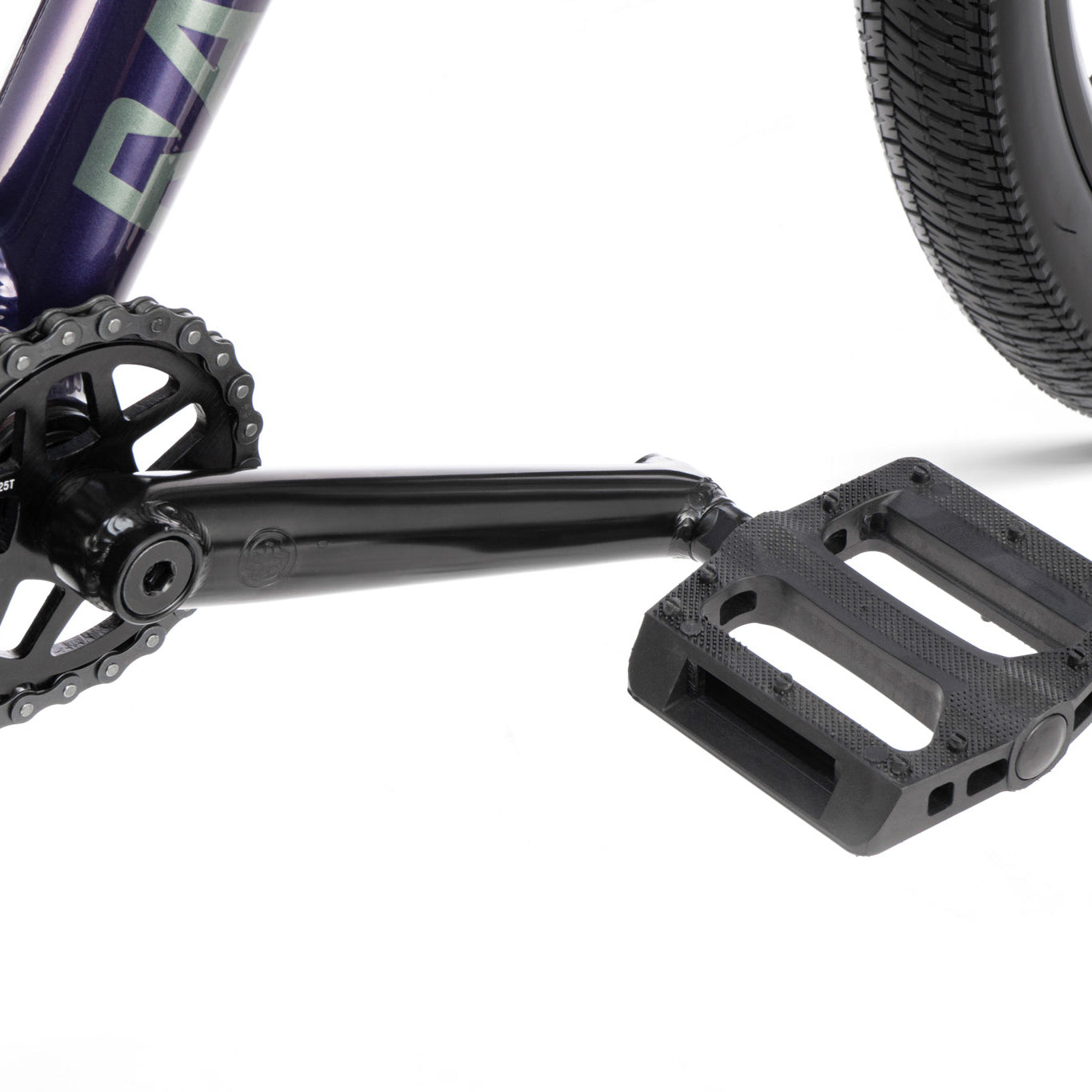

- PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type

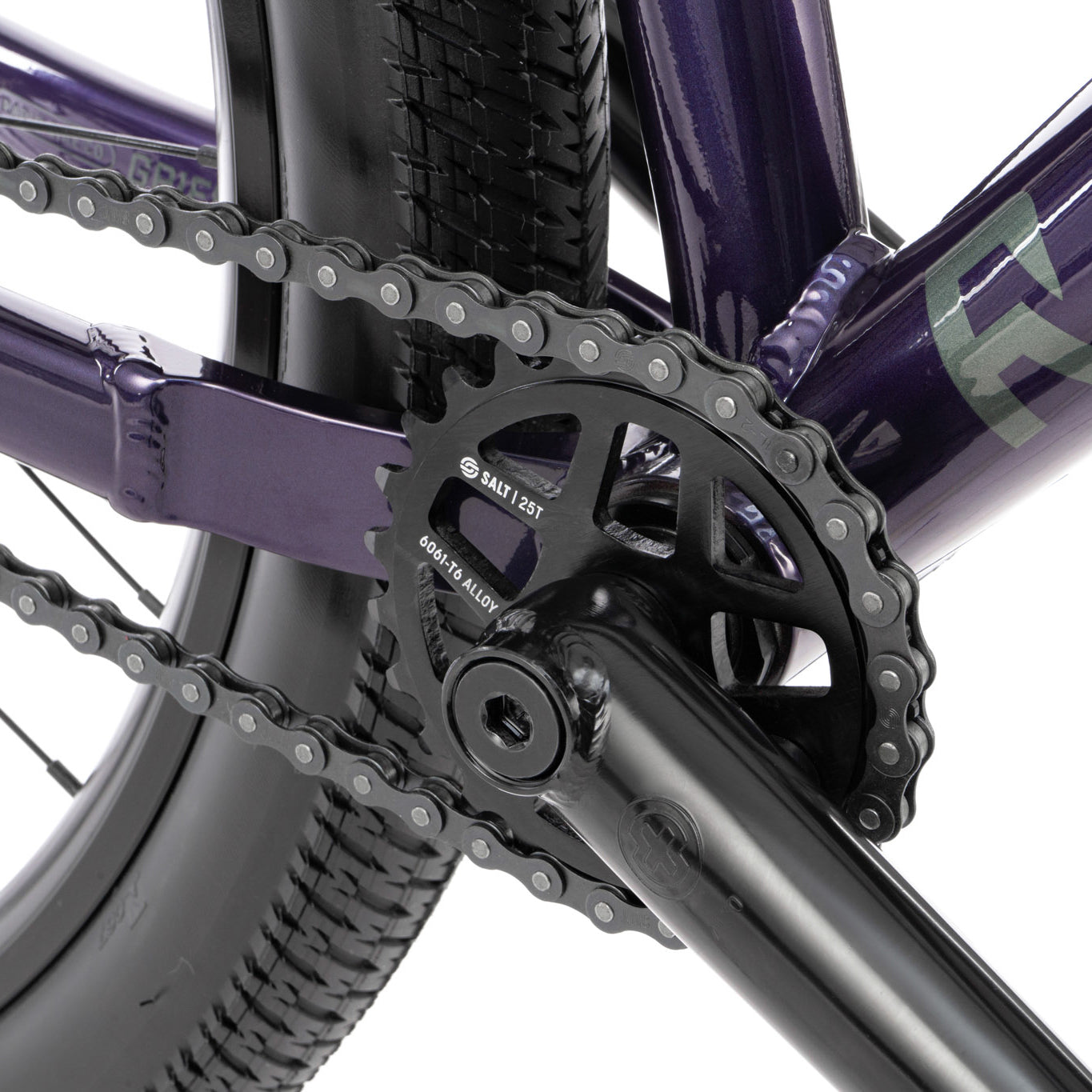

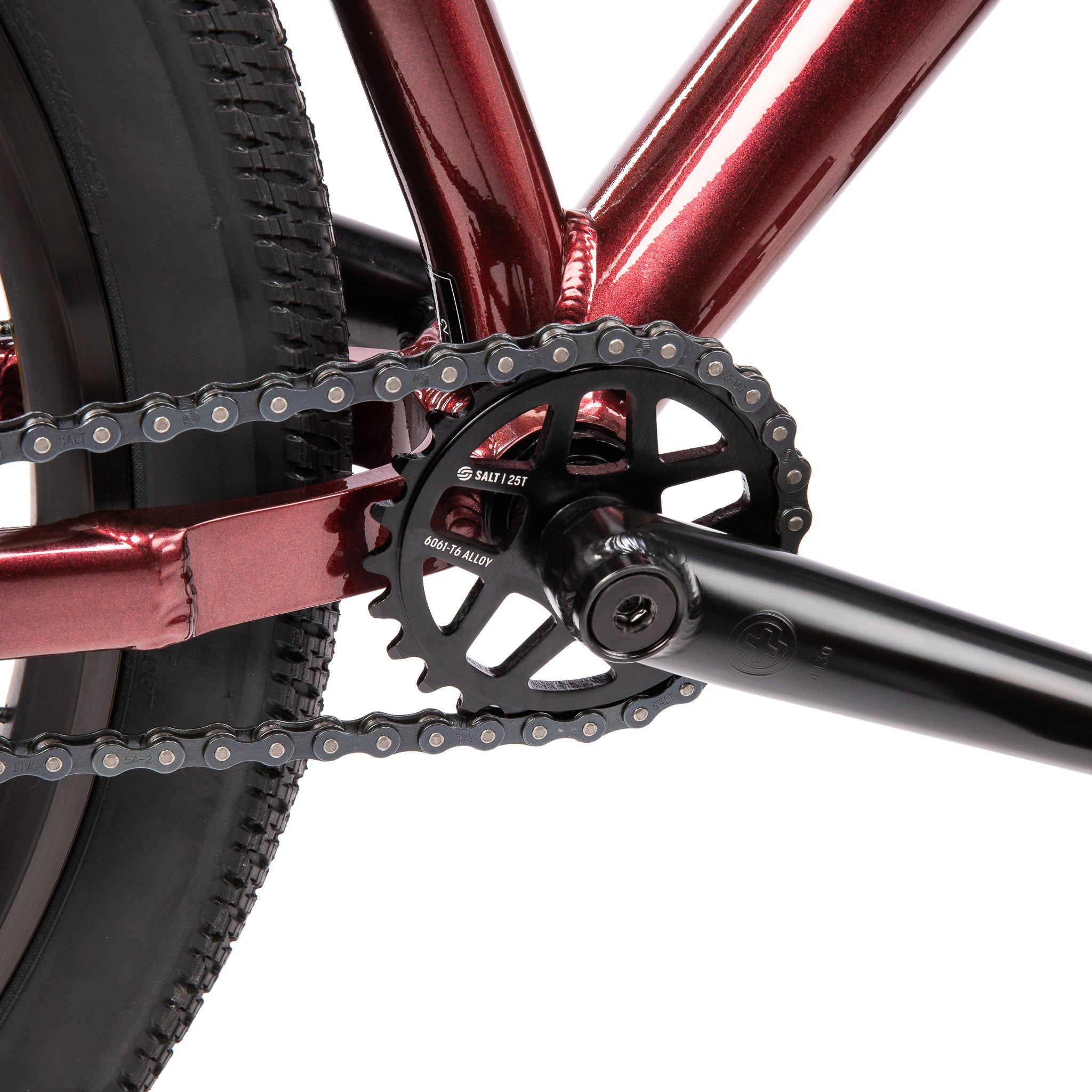

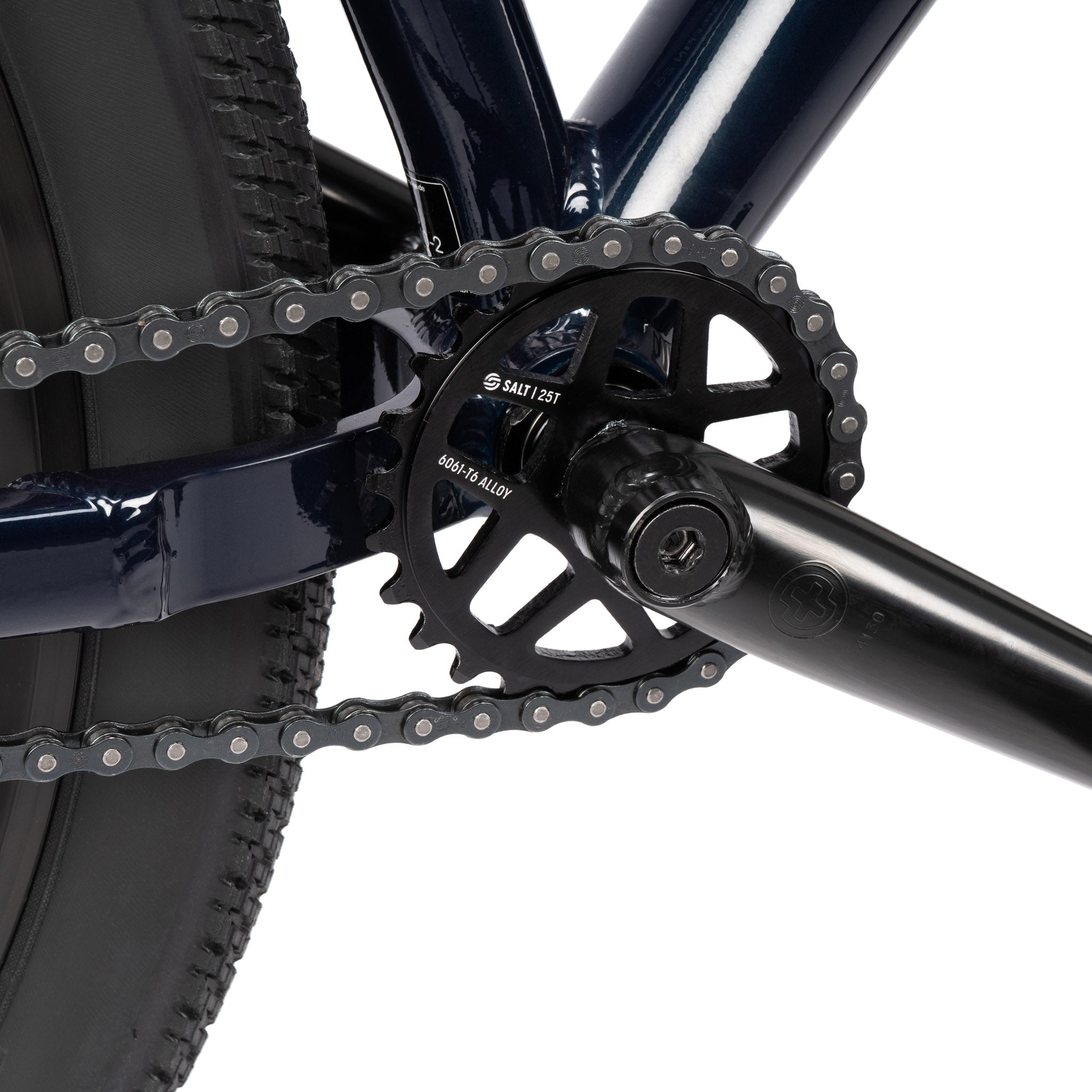

- SPROCKET: SALT "GATEWAY" sprocket, alloy, 25t
- DRIVER: cassette driver, 10t, sealed bearing

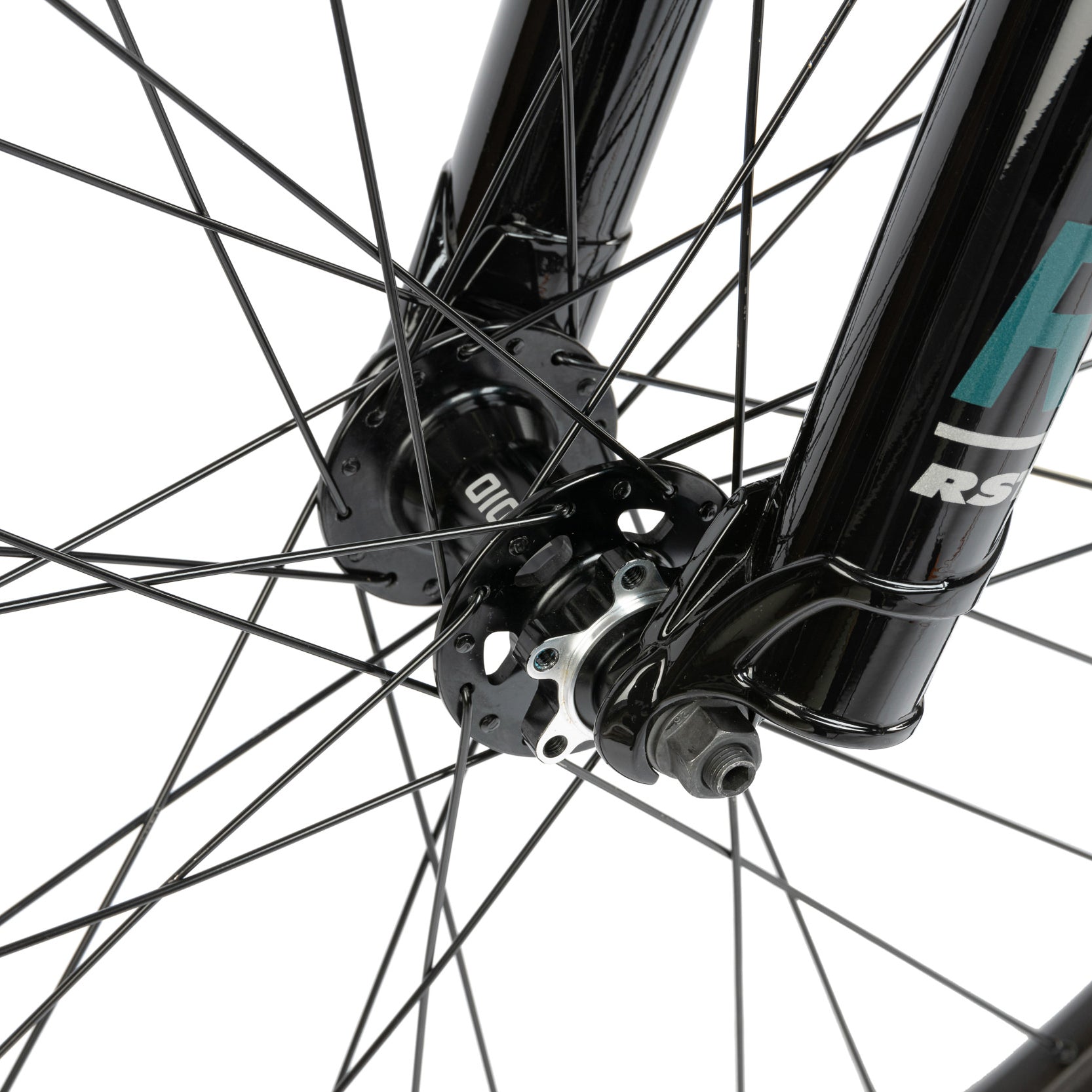

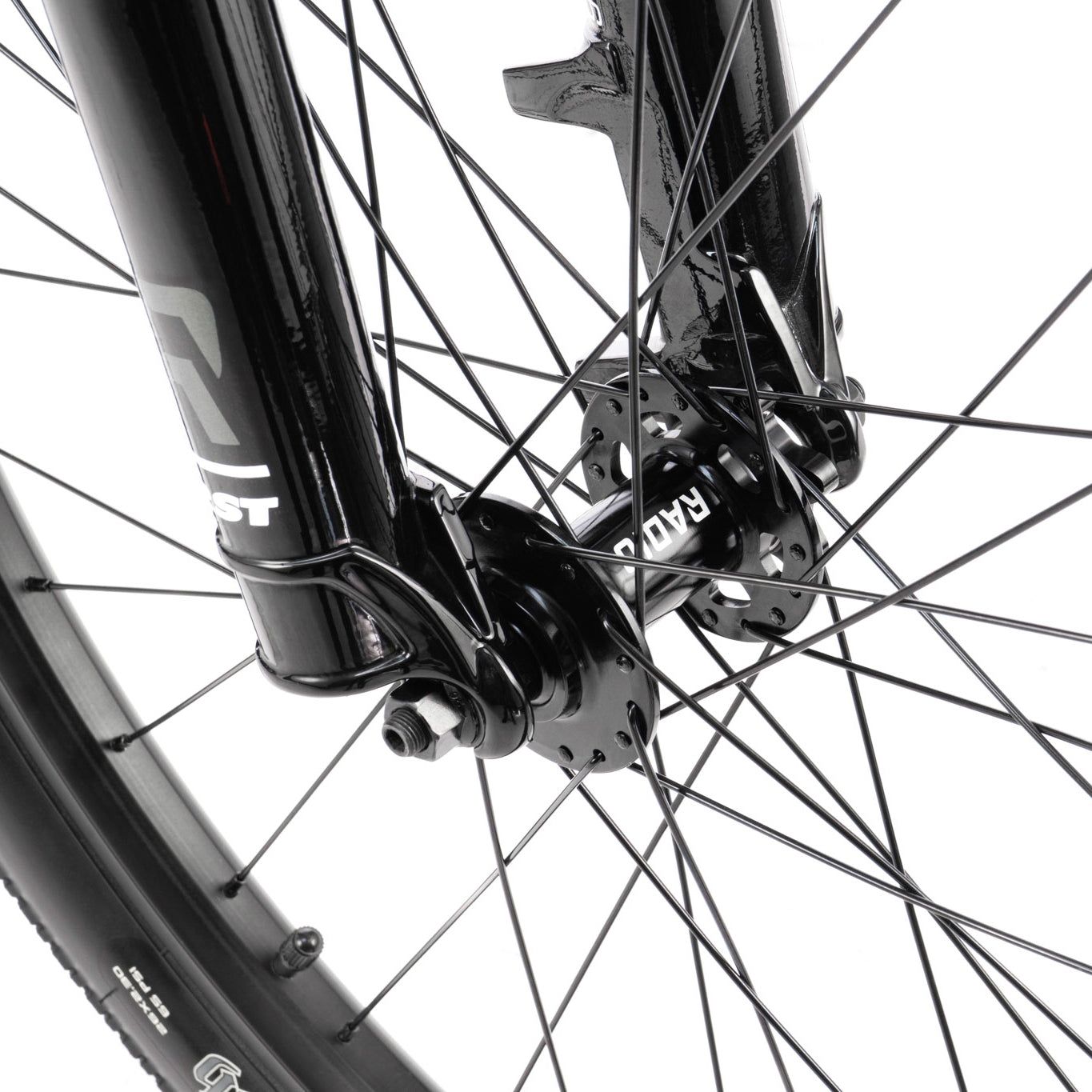

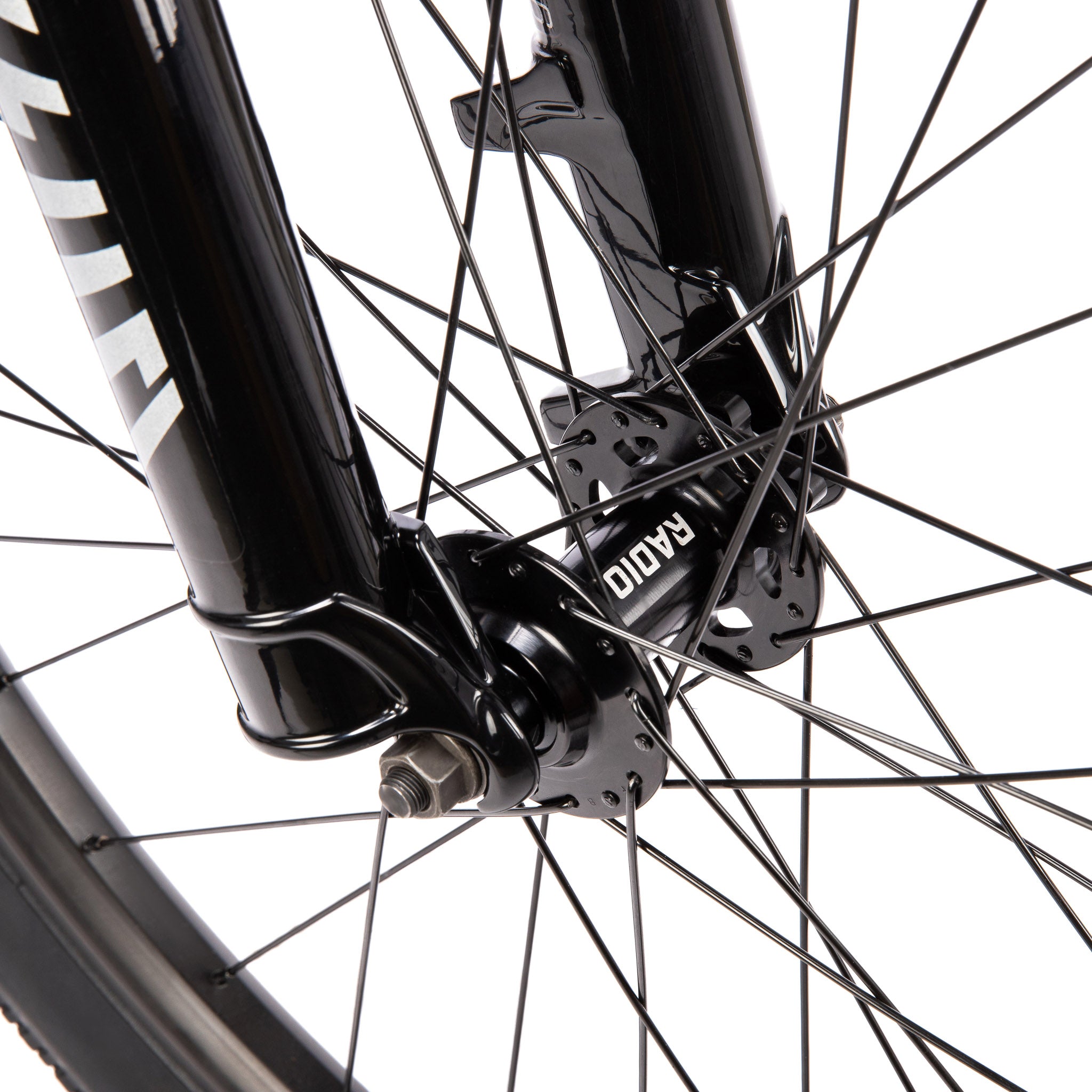

- FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h

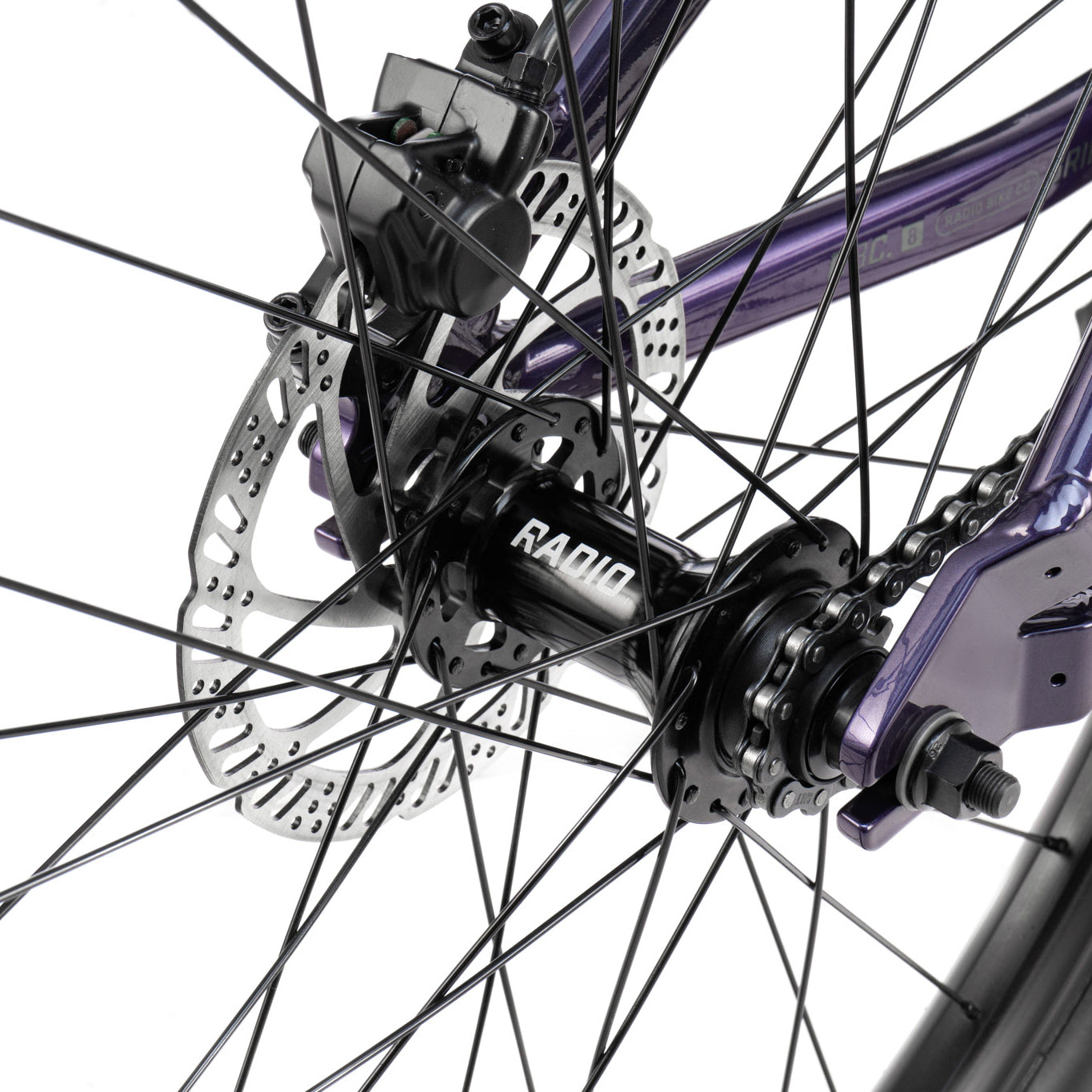

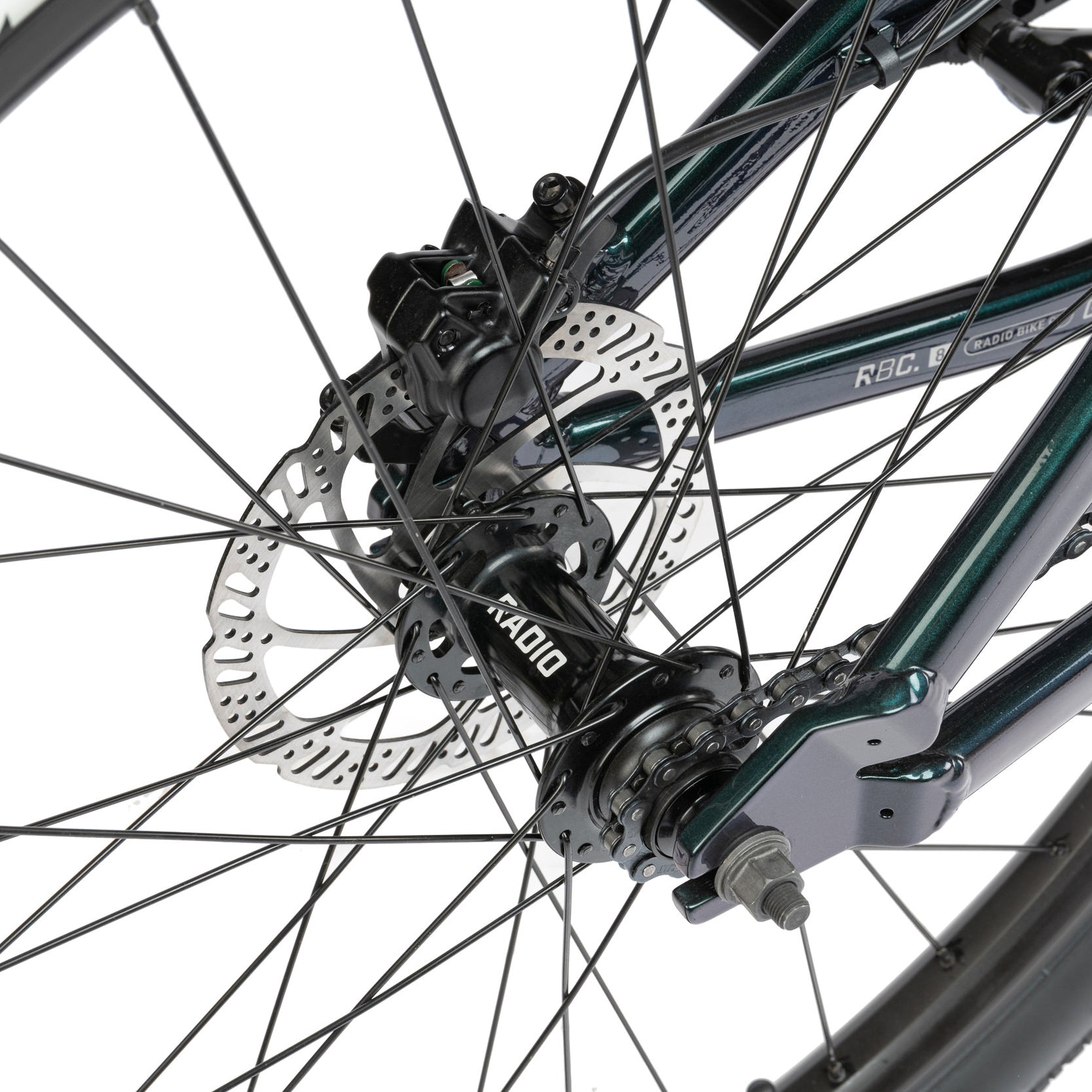

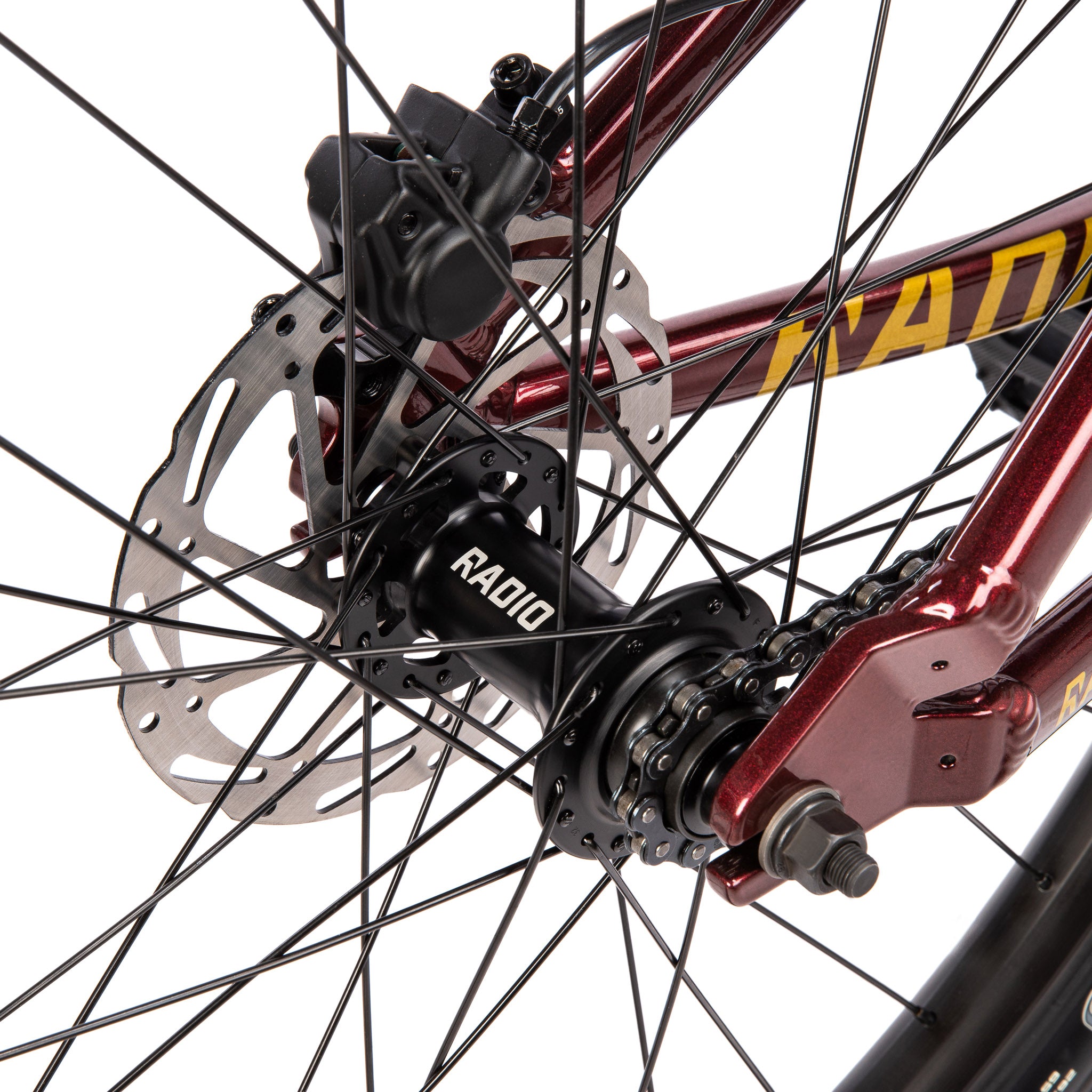

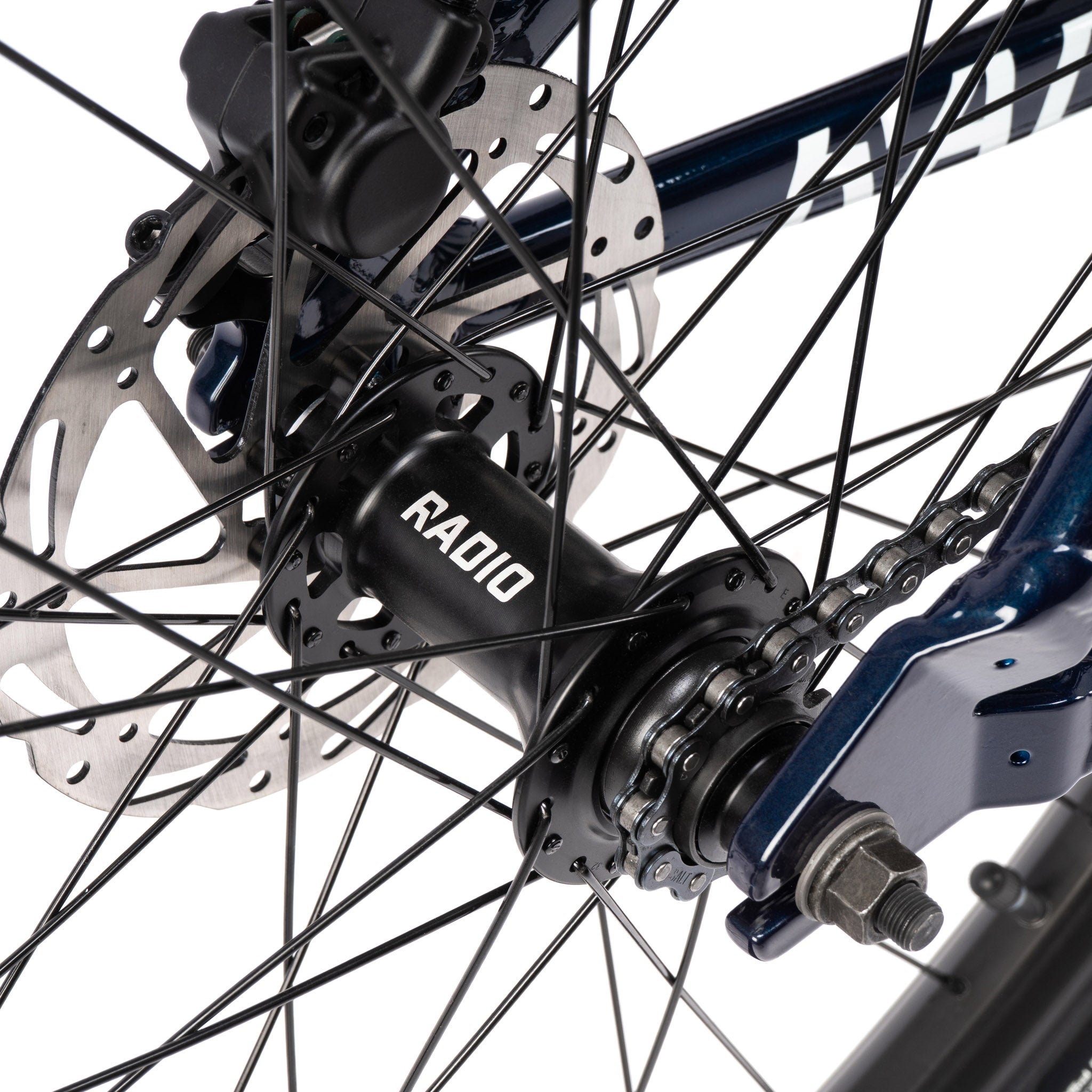

- REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h

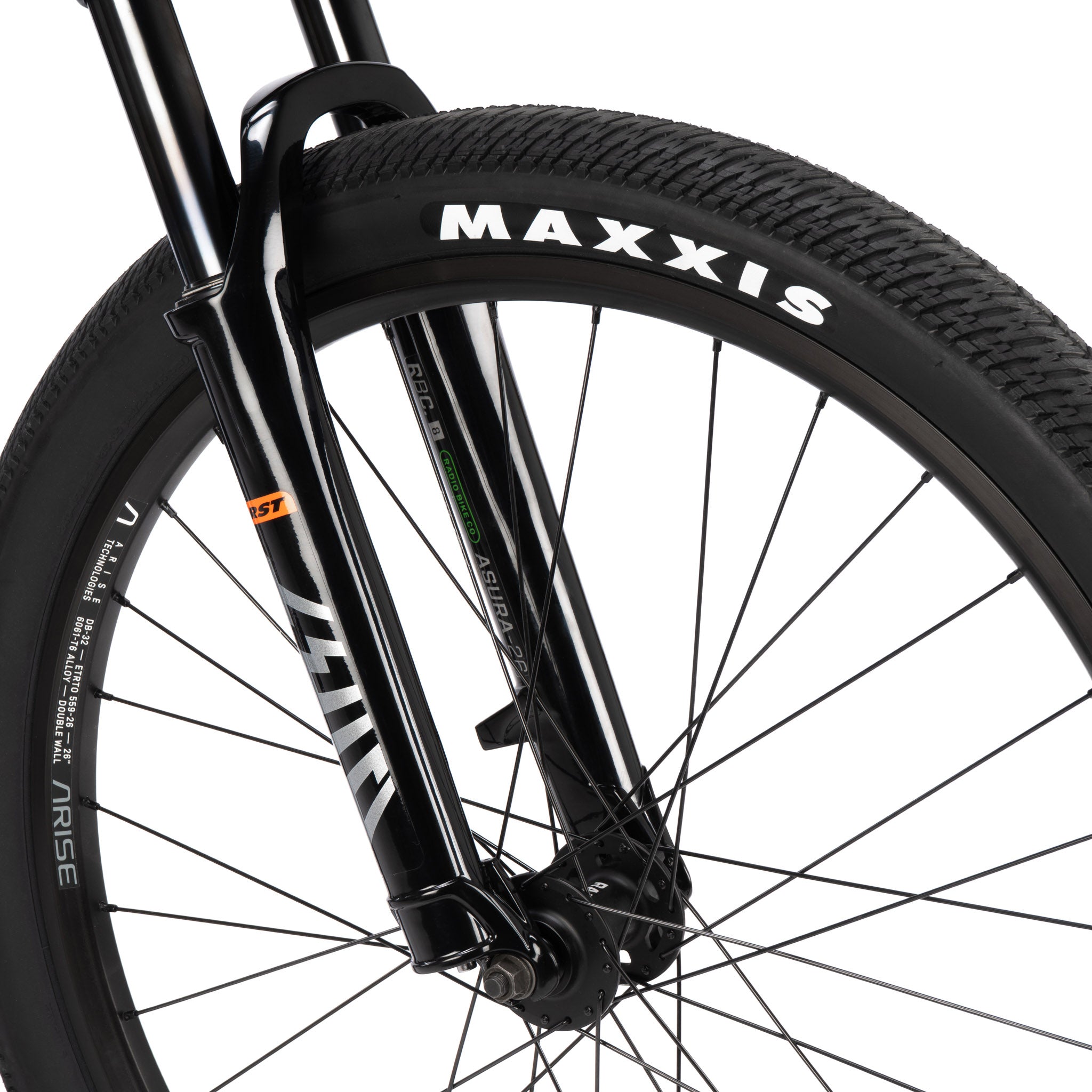

- FRONT RIM: ARISE "DB32" rim, double wall
- REAR RIM: ARISE "DB32" rim, double wall

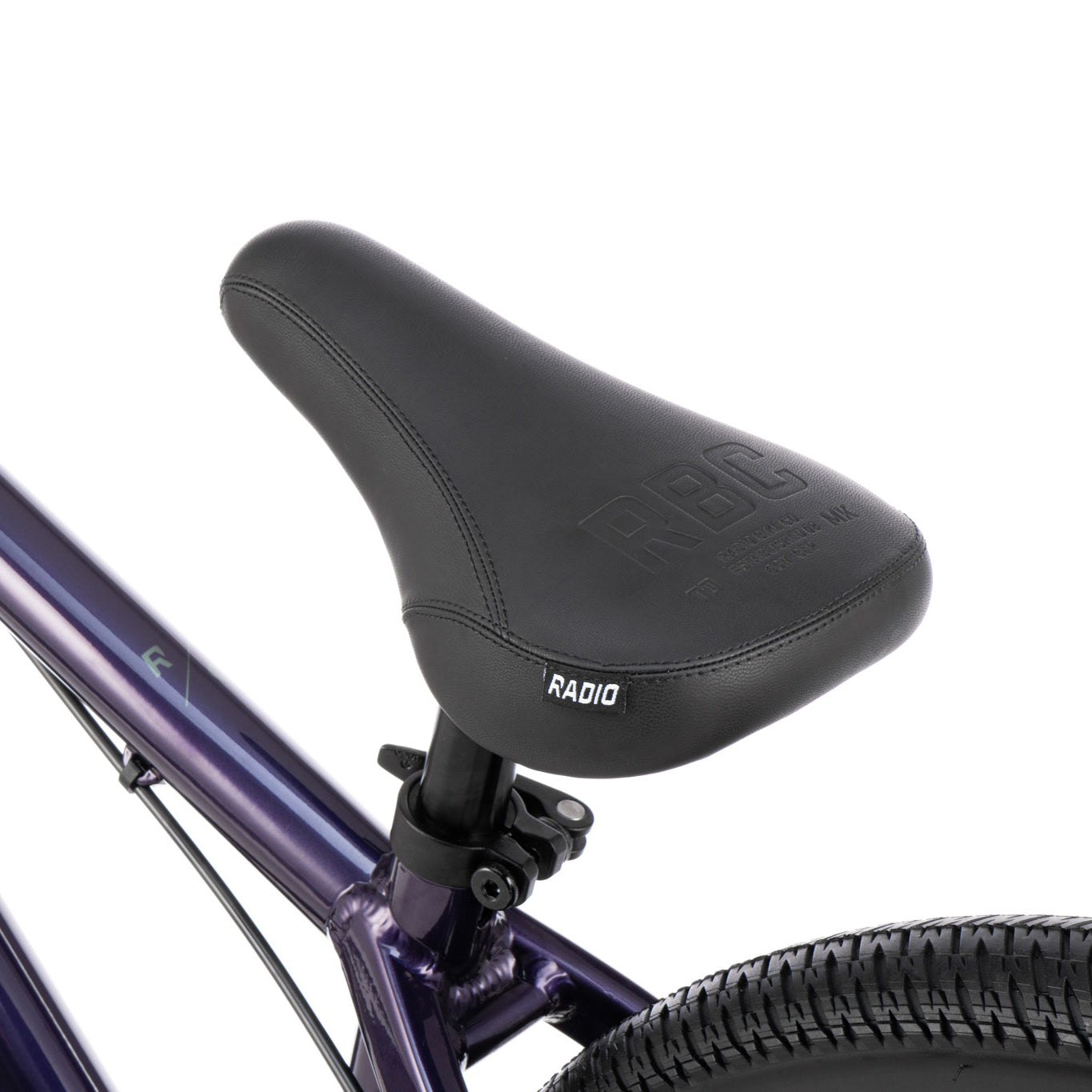

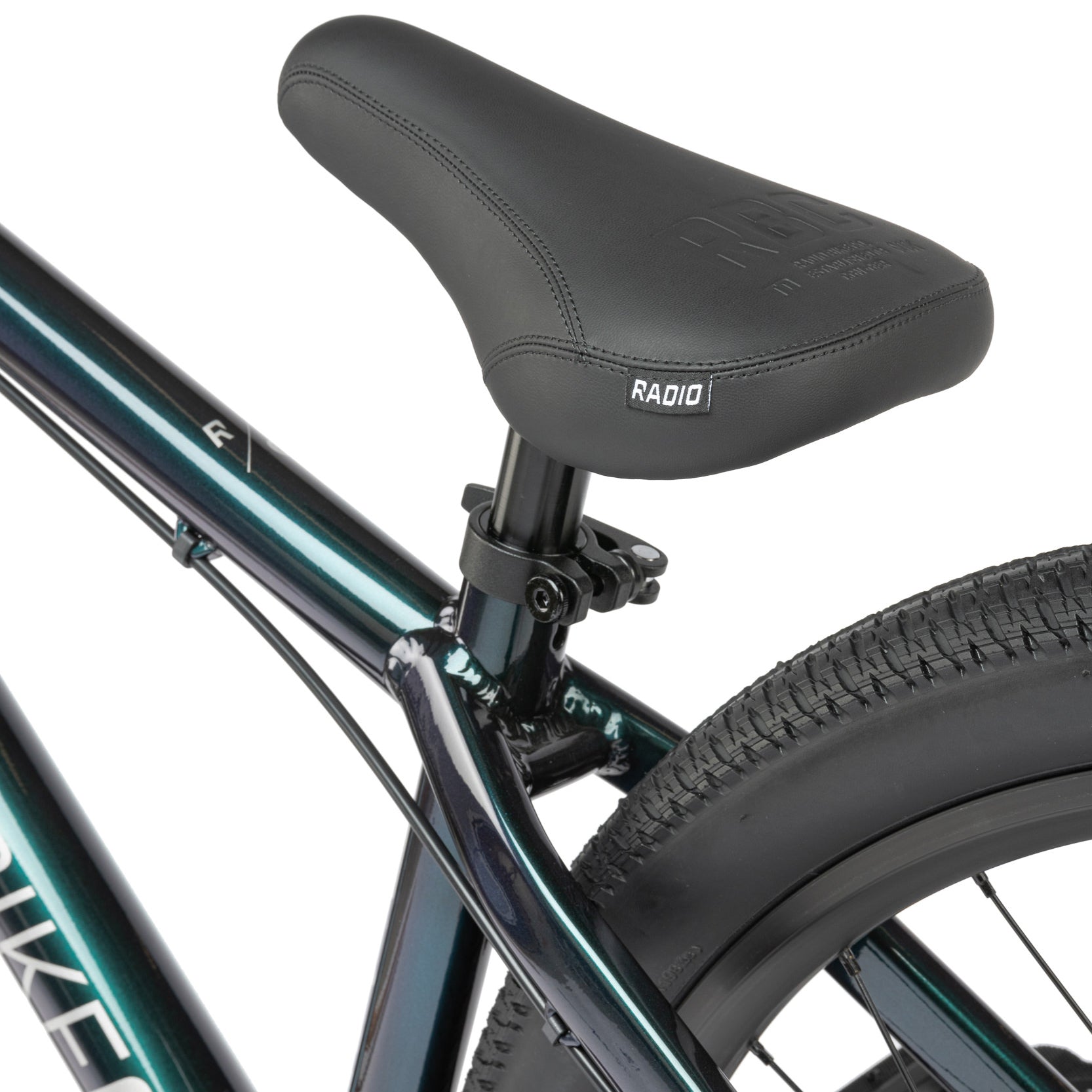

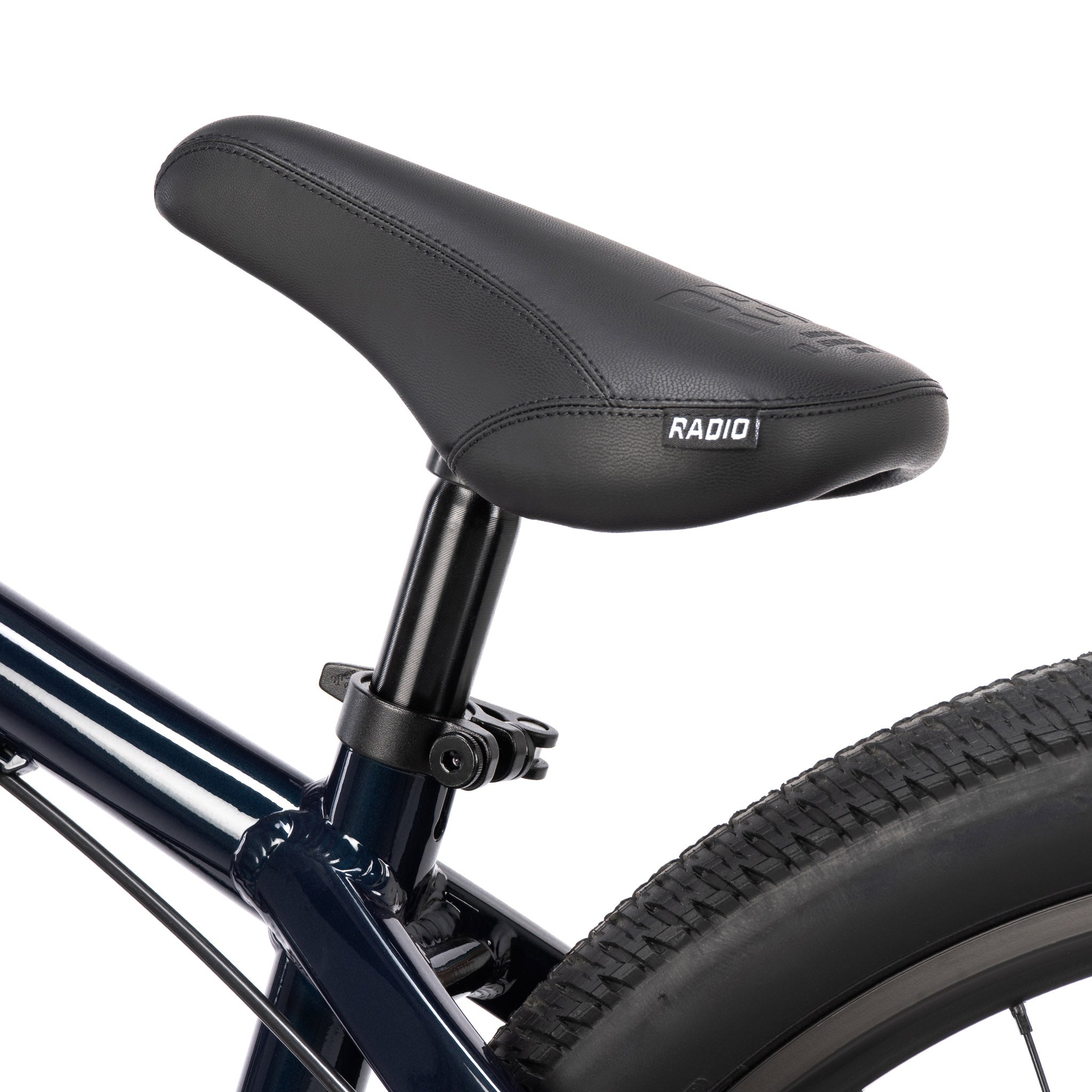

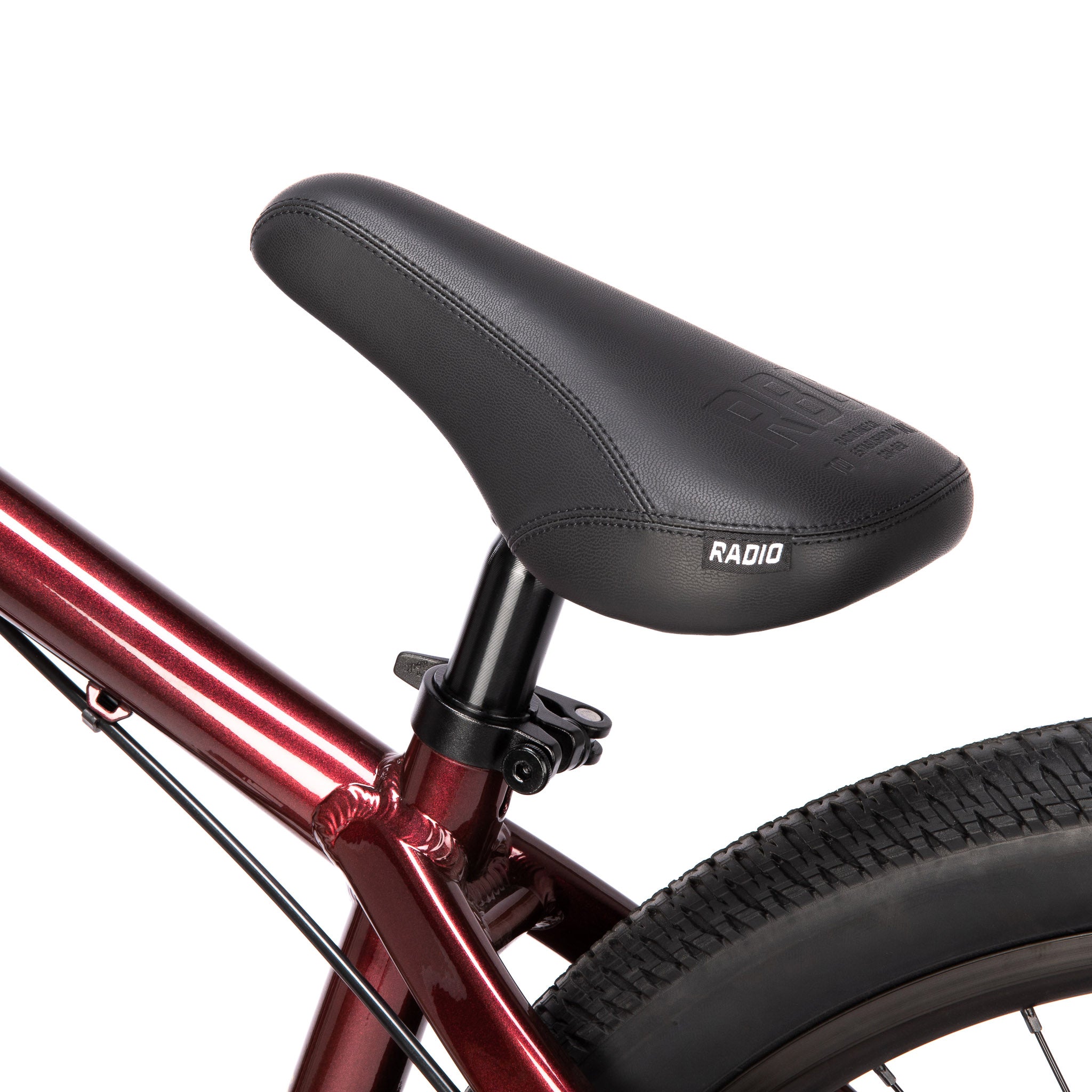

- SEAT: RADIO "DJ" combo seat, medium padded

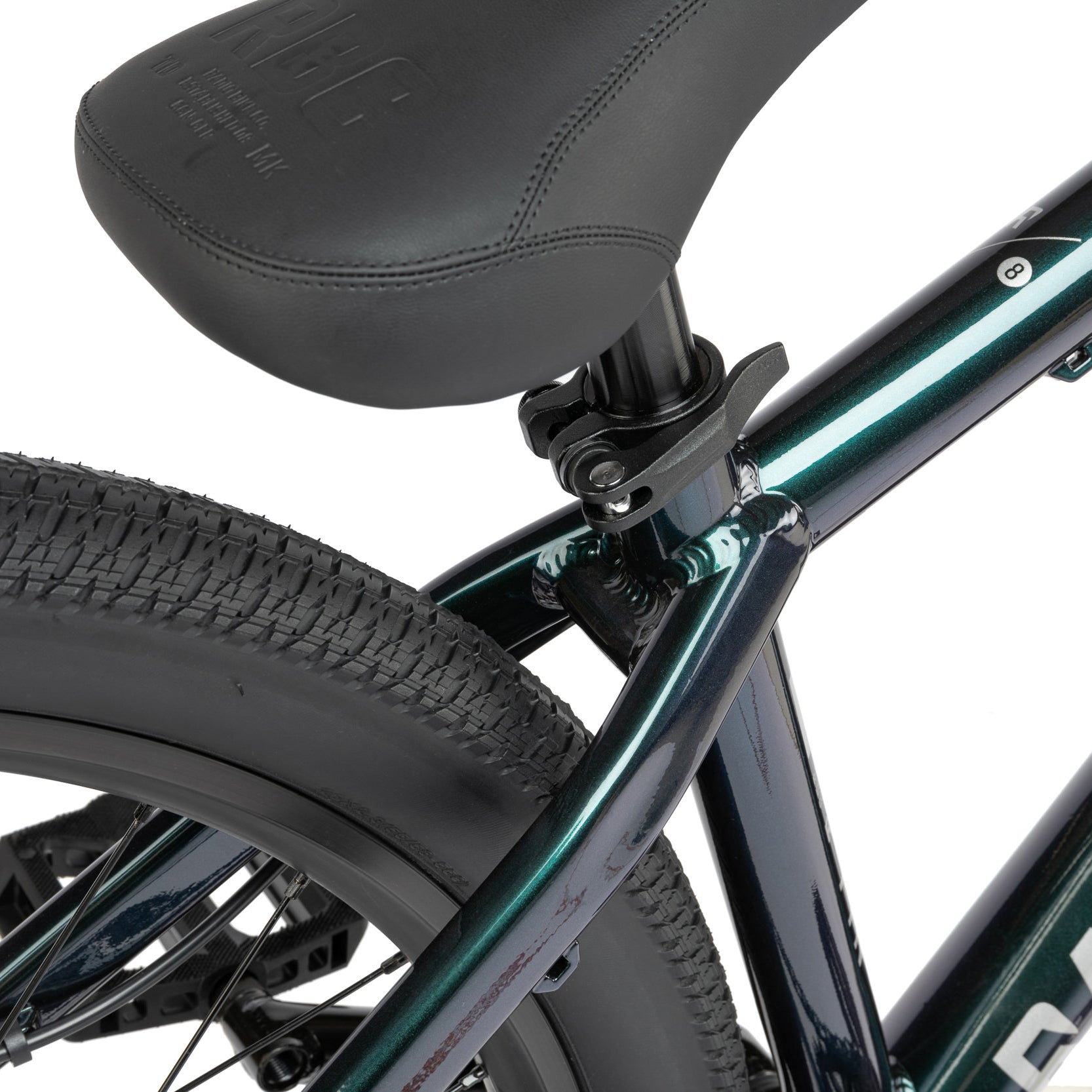

- SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy
- TIRES: MAXXIS "DTH" tires, 2.3", front & rear

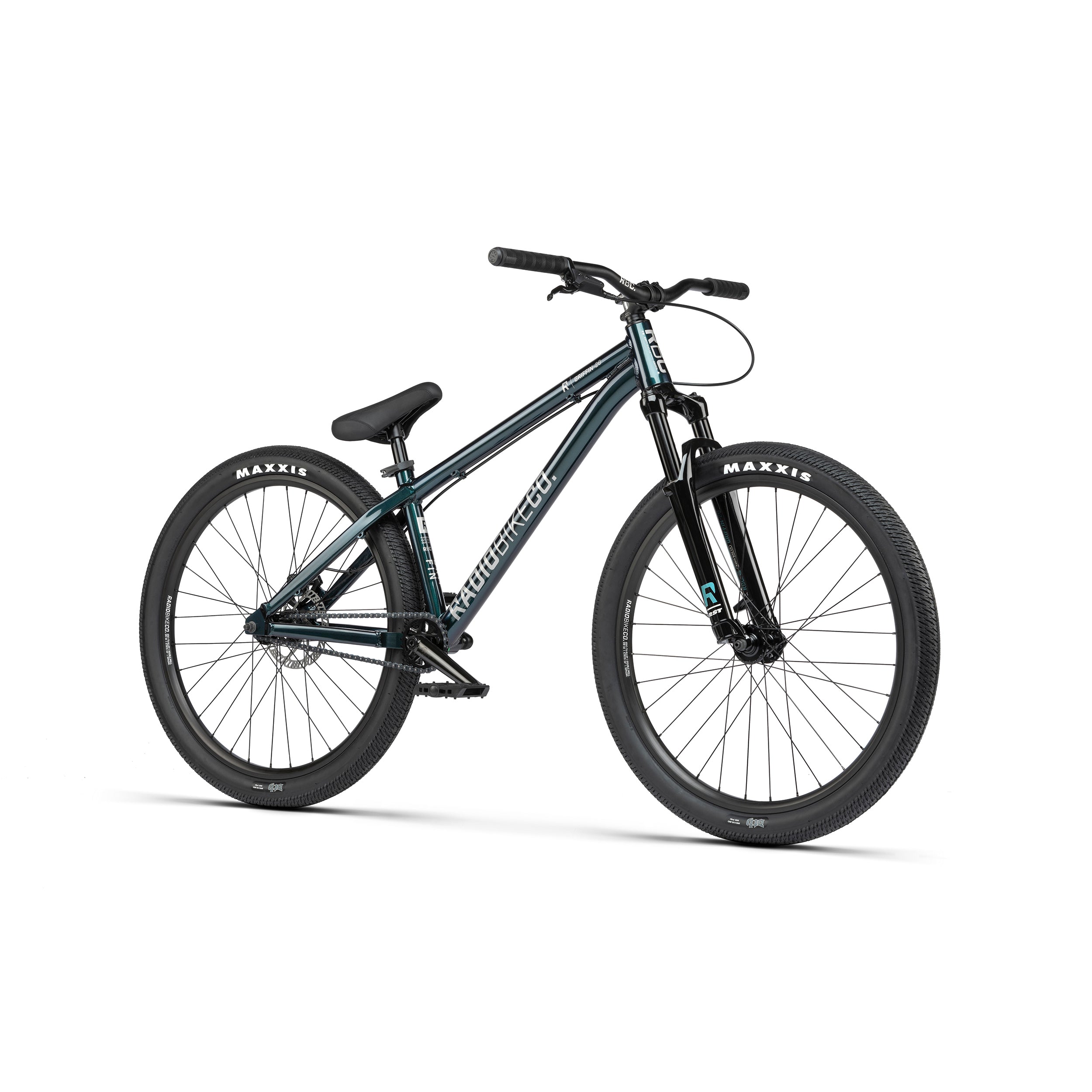

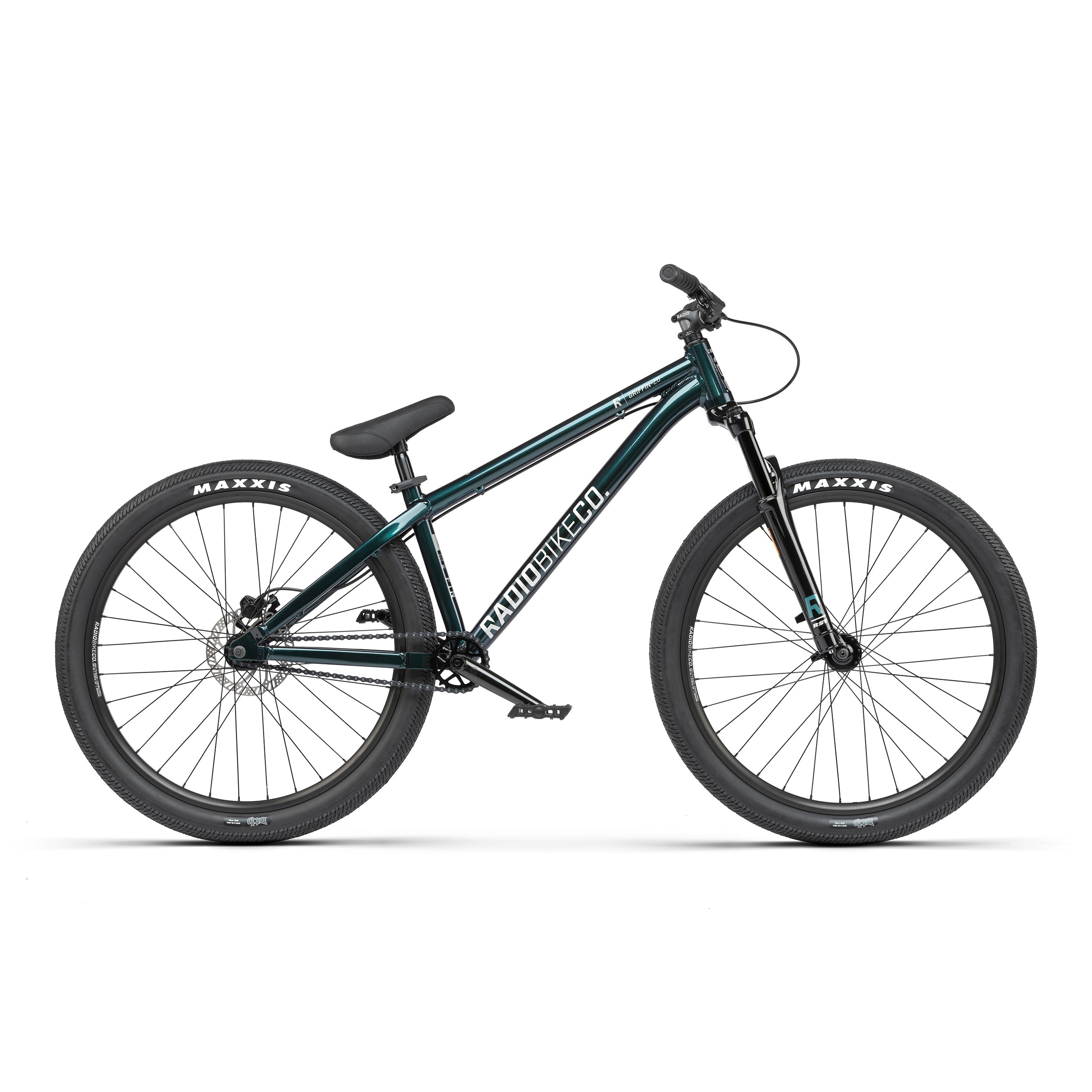

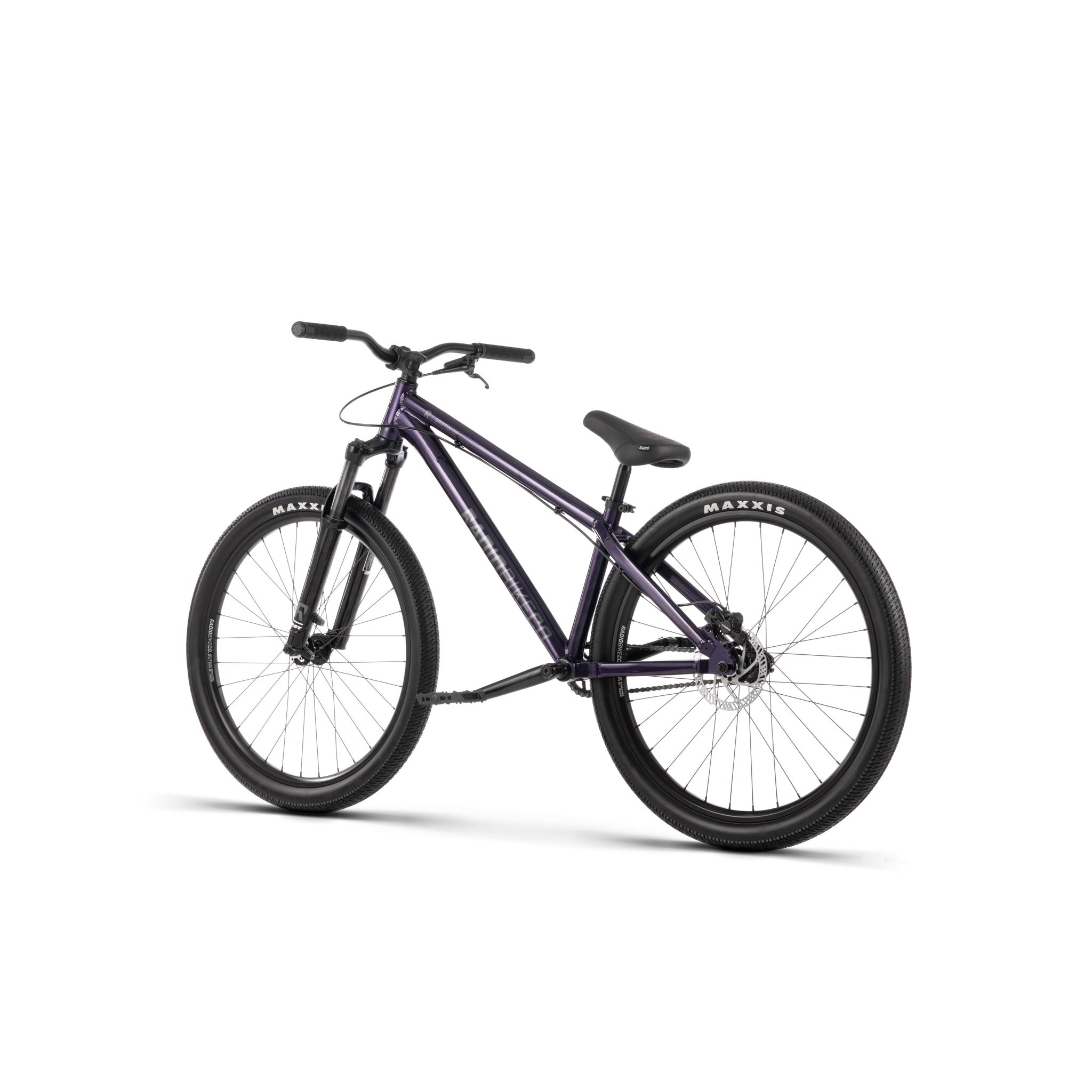

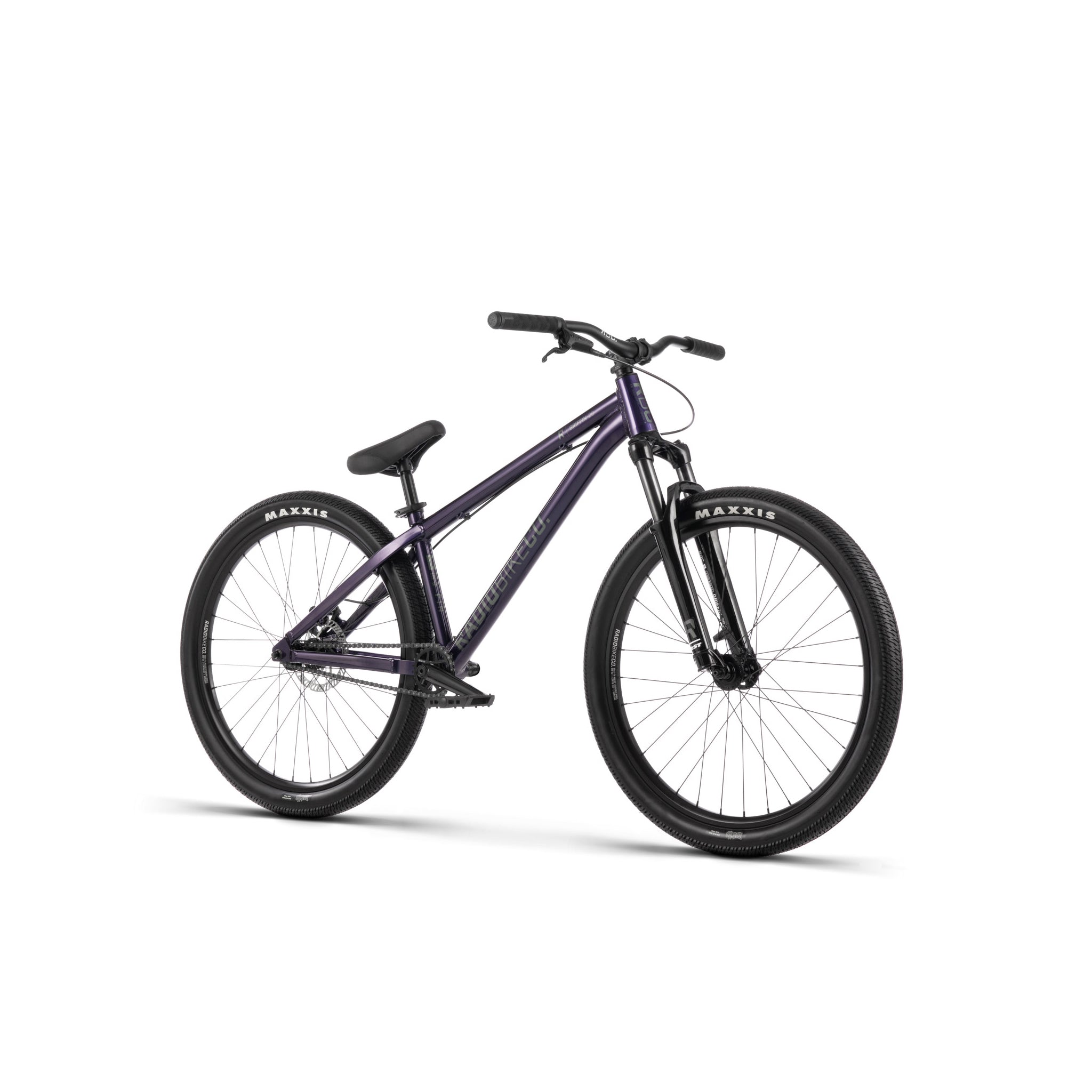

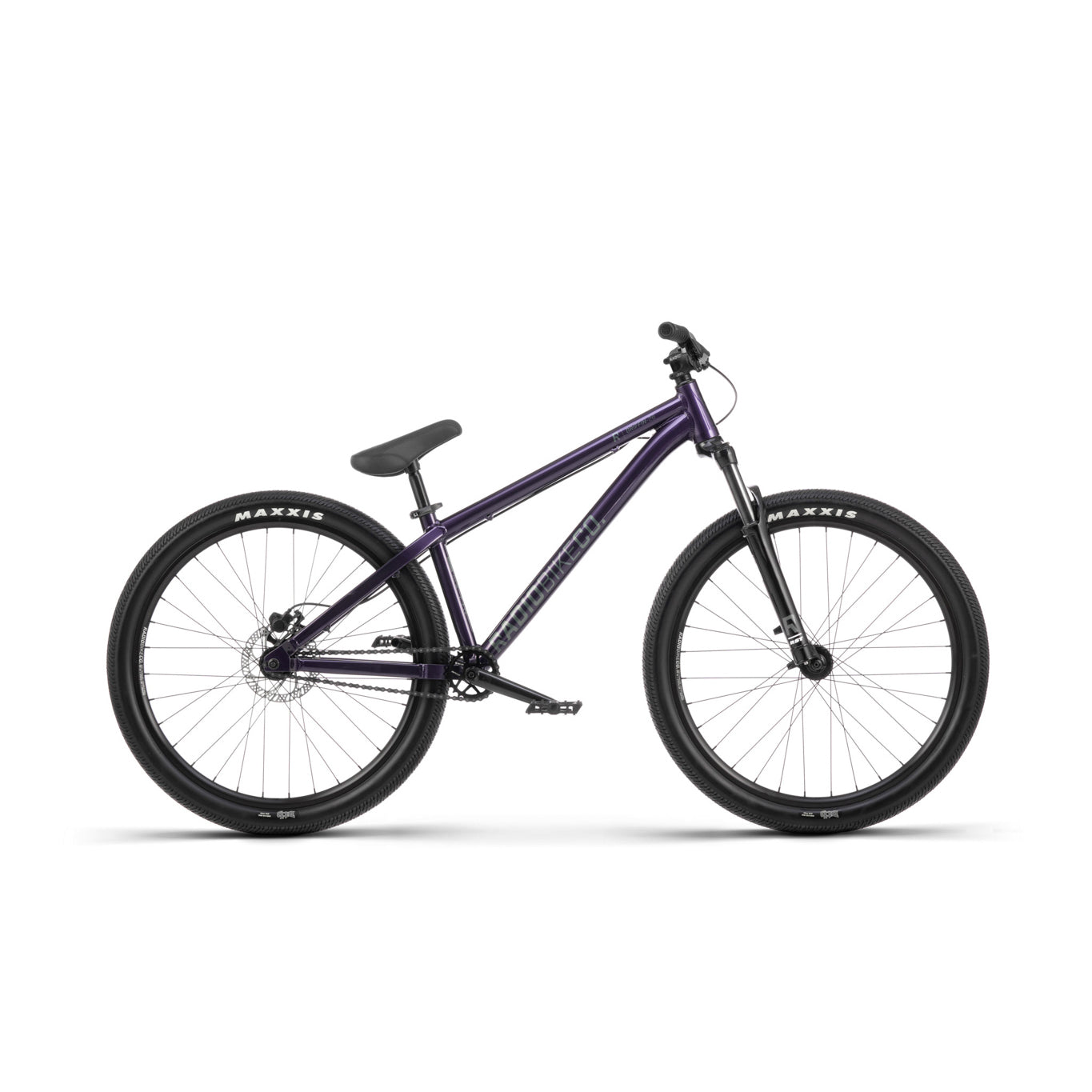

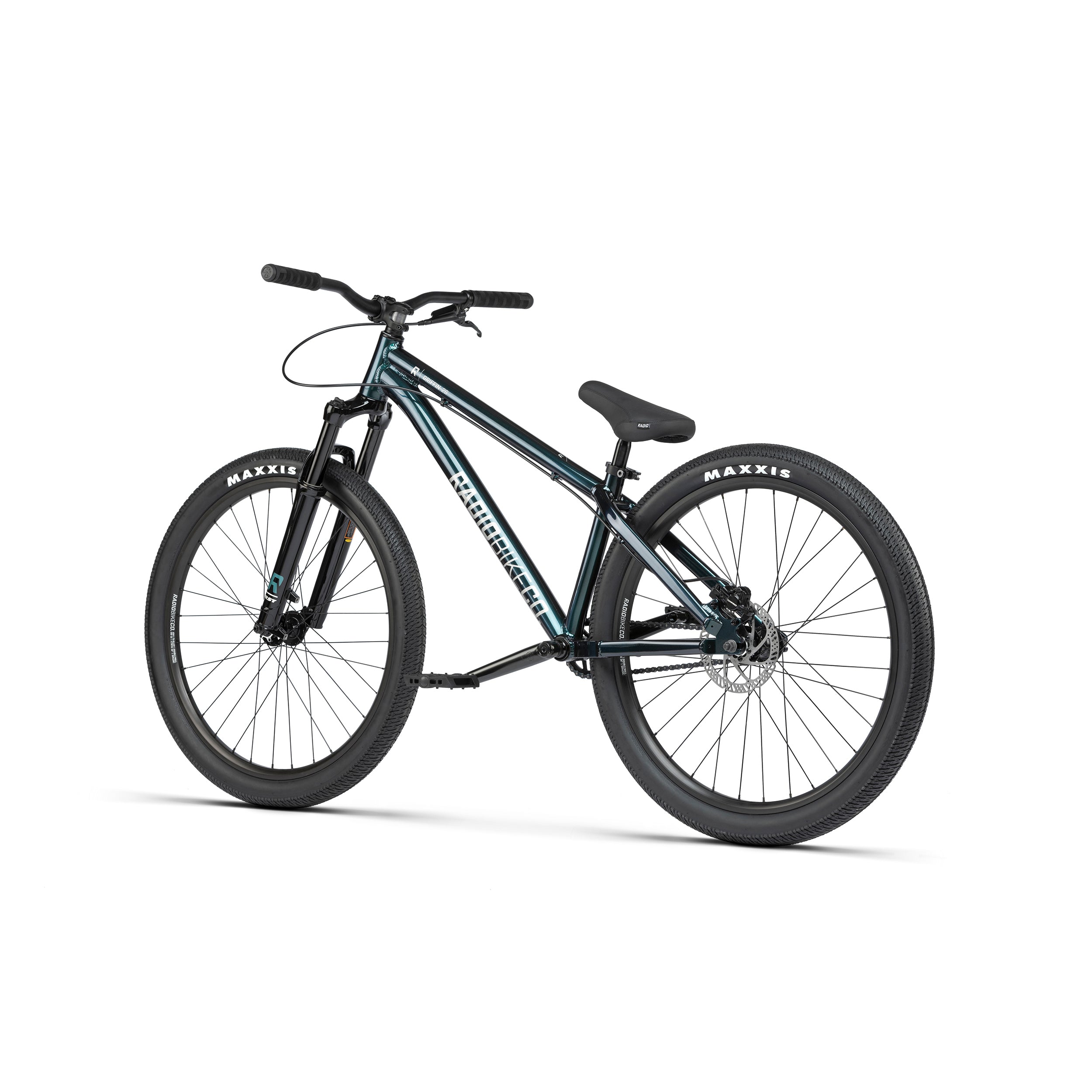

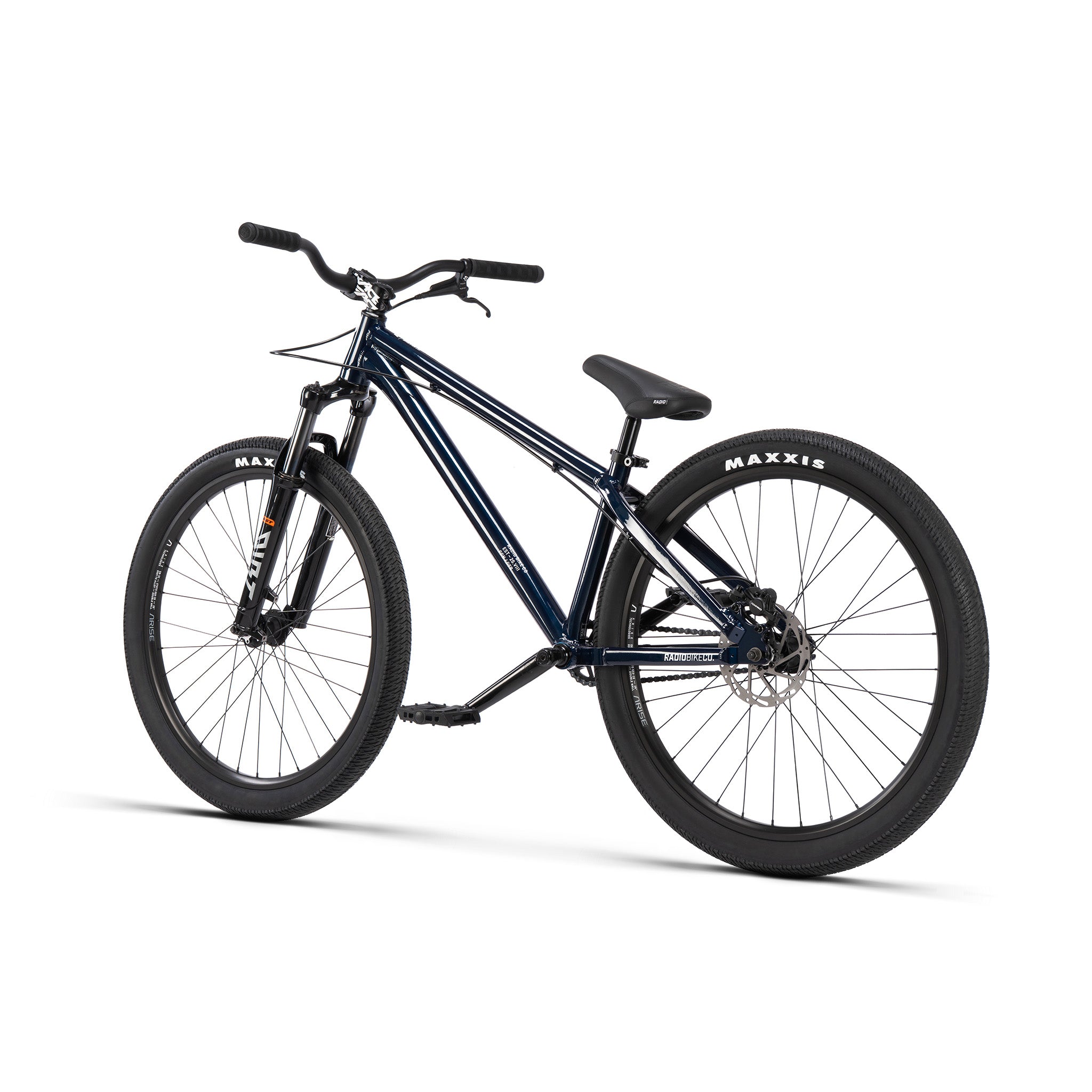

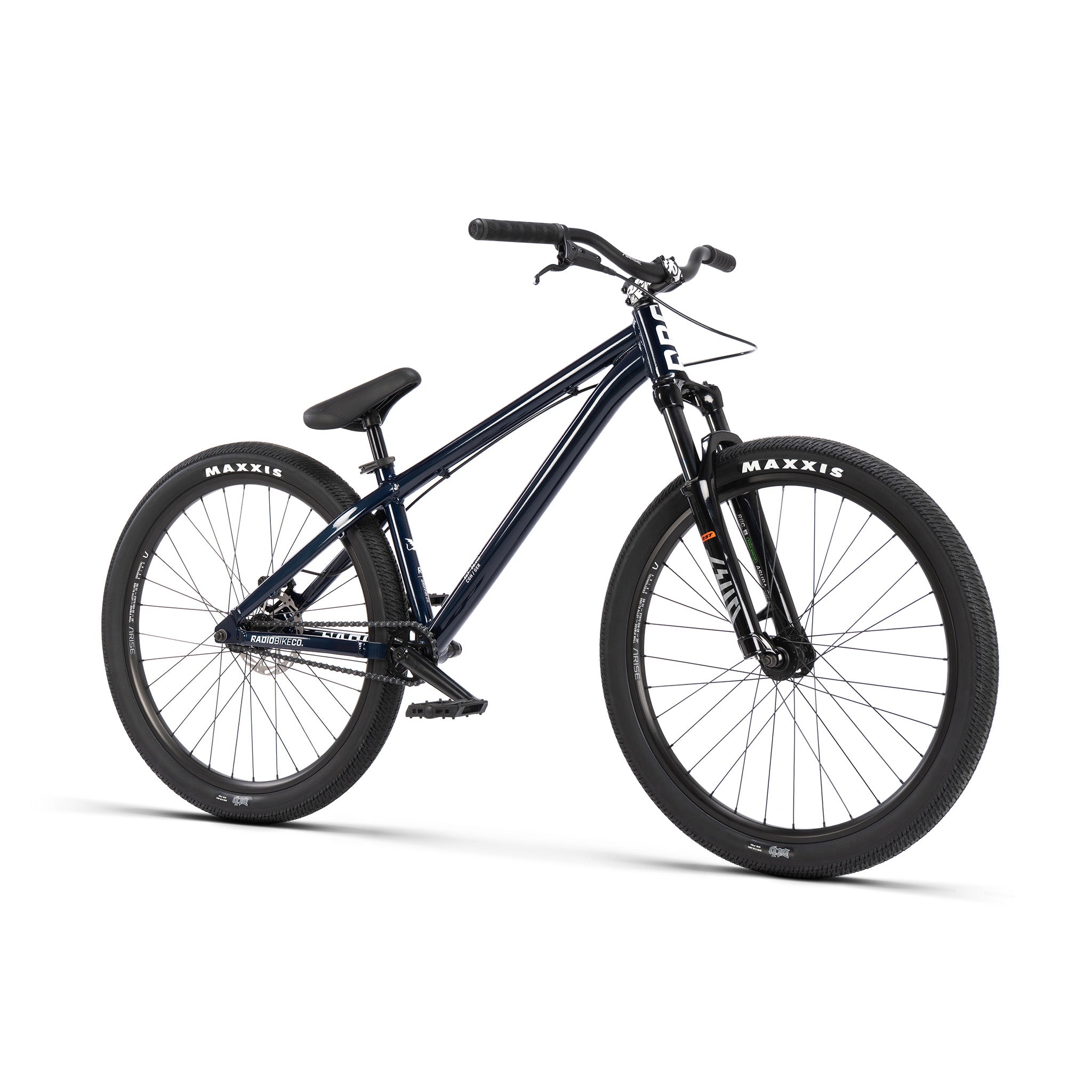

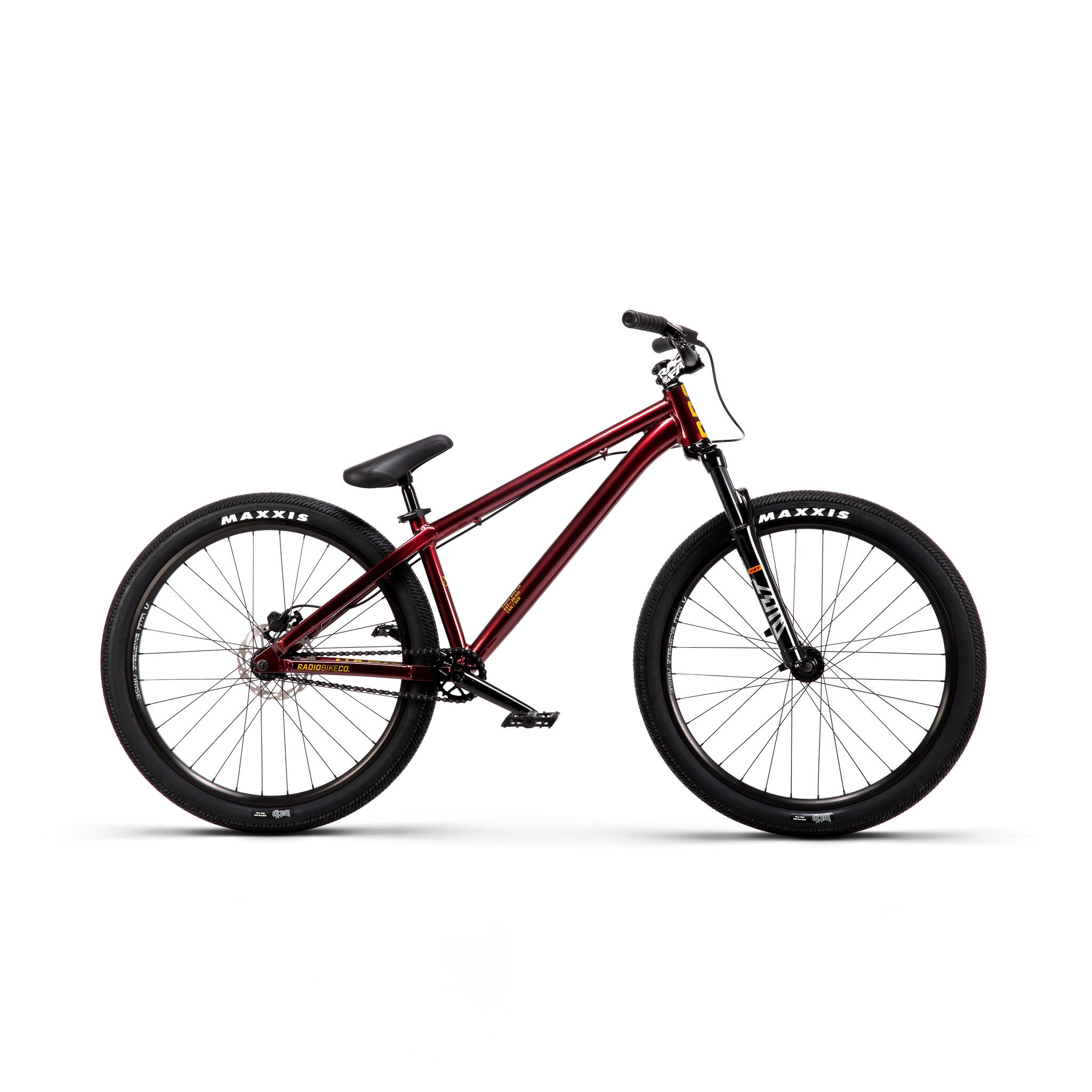

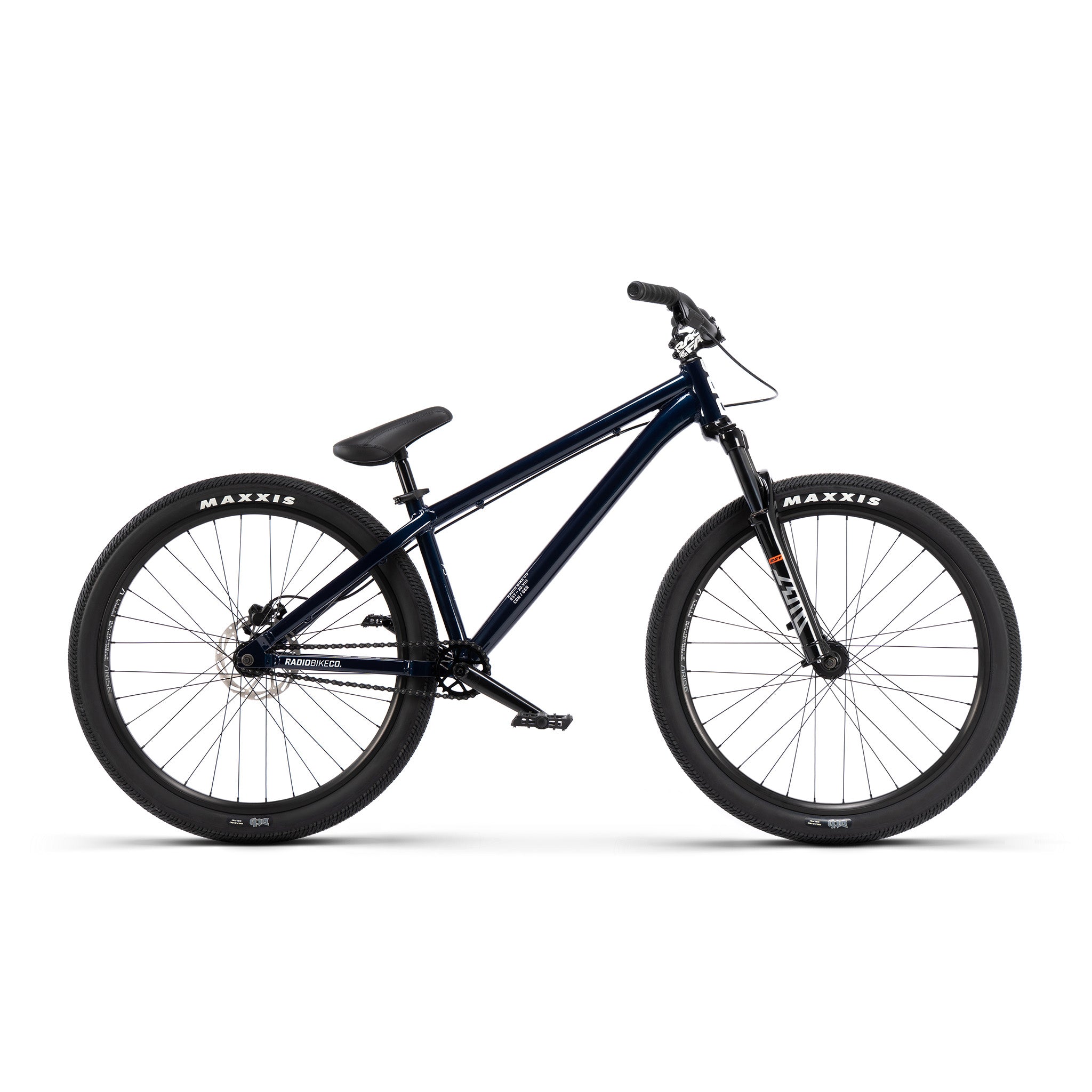

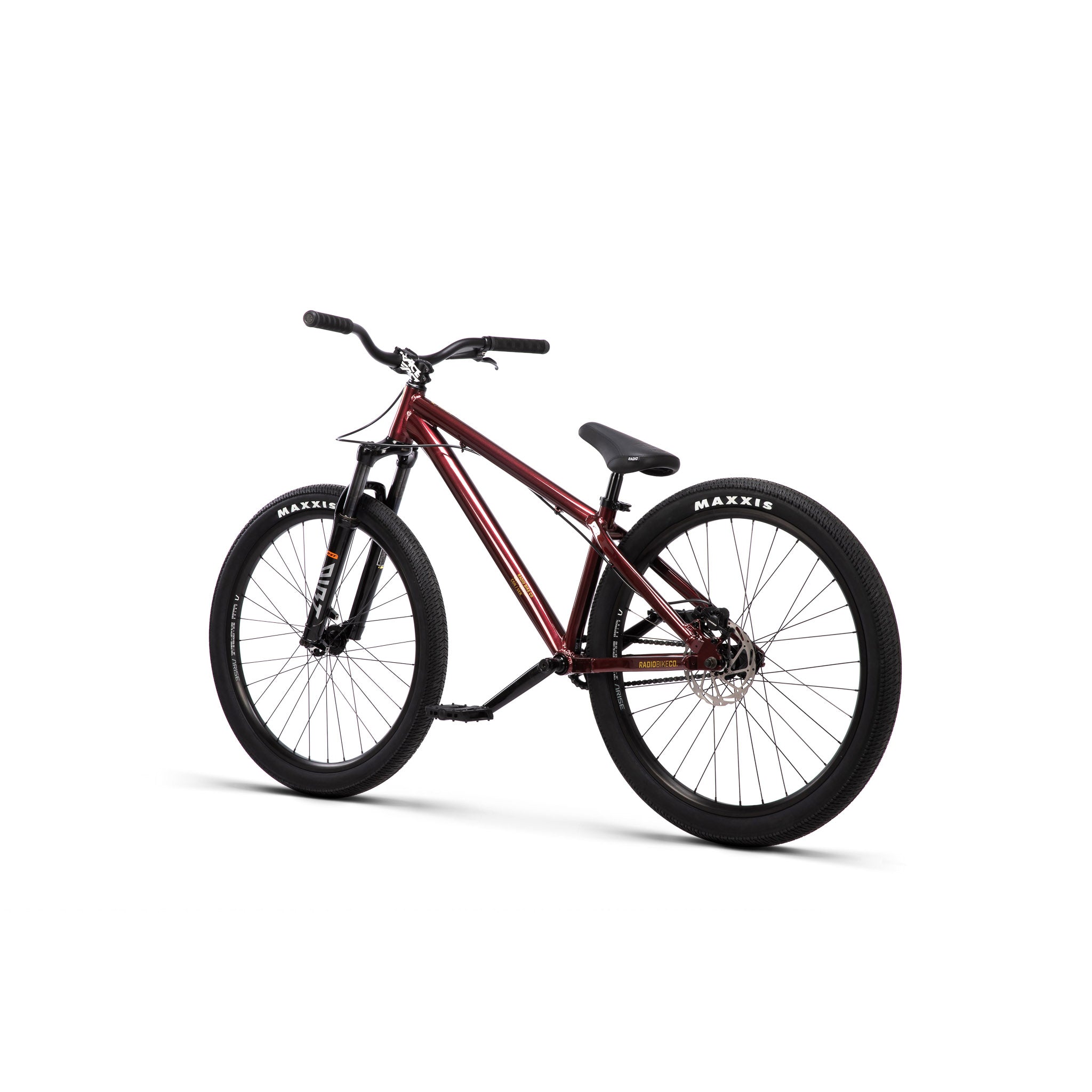

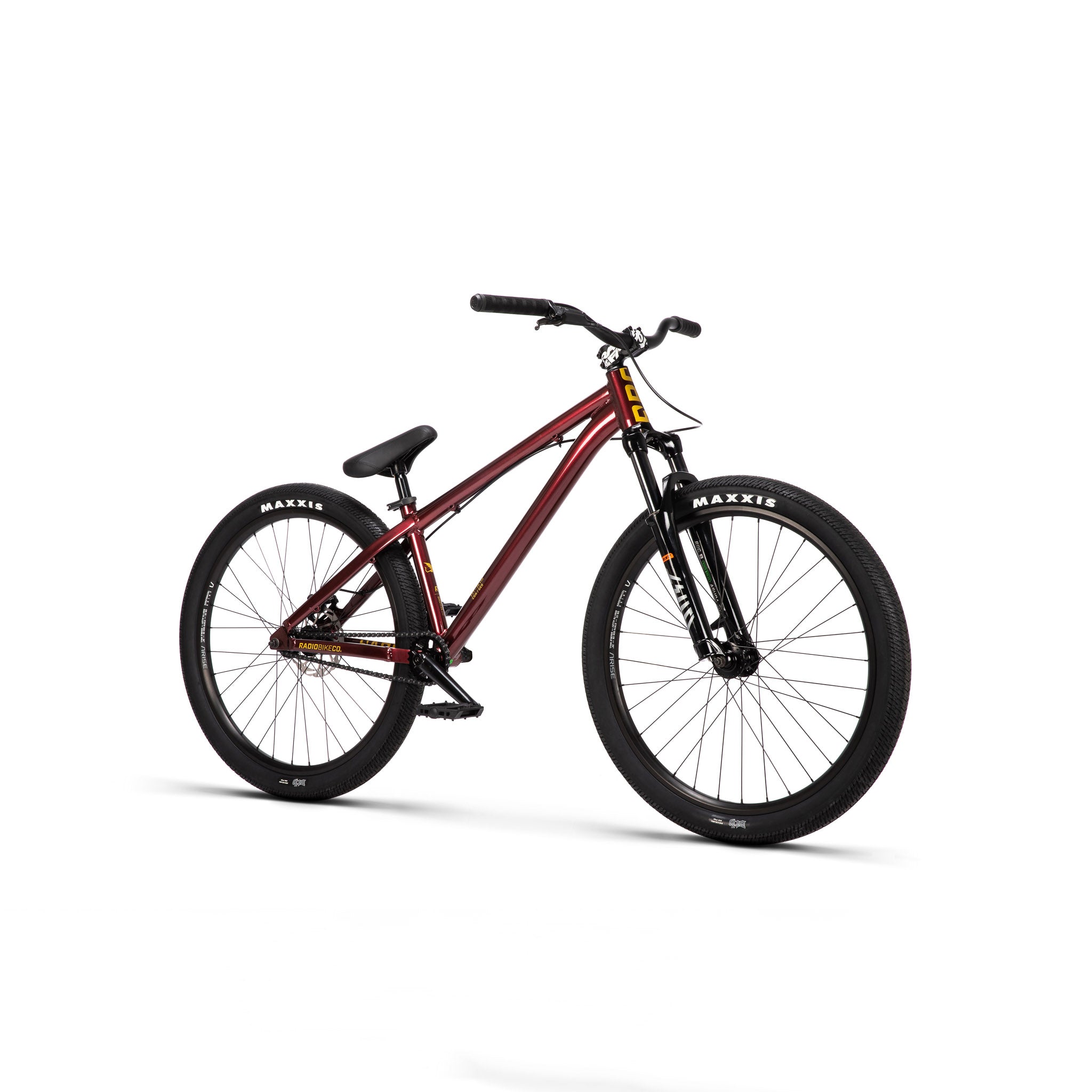

Griffin 26" Complete Bike
The Griffin keeps raising the bar. Built around a competition-ready 6061-T6 aluminium frame and loaded with trusted components from Maxxis, RST, Tektro and FSA, this dirt jump machine is designed to help riders progress and ride harder with confidence. Finished in two eye-catching colourways, the Griffin continues to be one of our most sought-after bikes for good reason.
Weight: 13.01kg / 26.68lbs
Frame Geometry:
| Top Tube Length | 22.6" |
| Chain Stay Length | 15" |
| Head Tube Angle | 69° |
| Seat Tube Angle | 72° |
| Bottom Bracket Height | 20mm drop |
| Standover Height | 11" |
Handlebar Geometry:
| Rise | 50mm |
| Width | 760mm |
| Backsweep | 8° |
| Upsweep | 3° |
