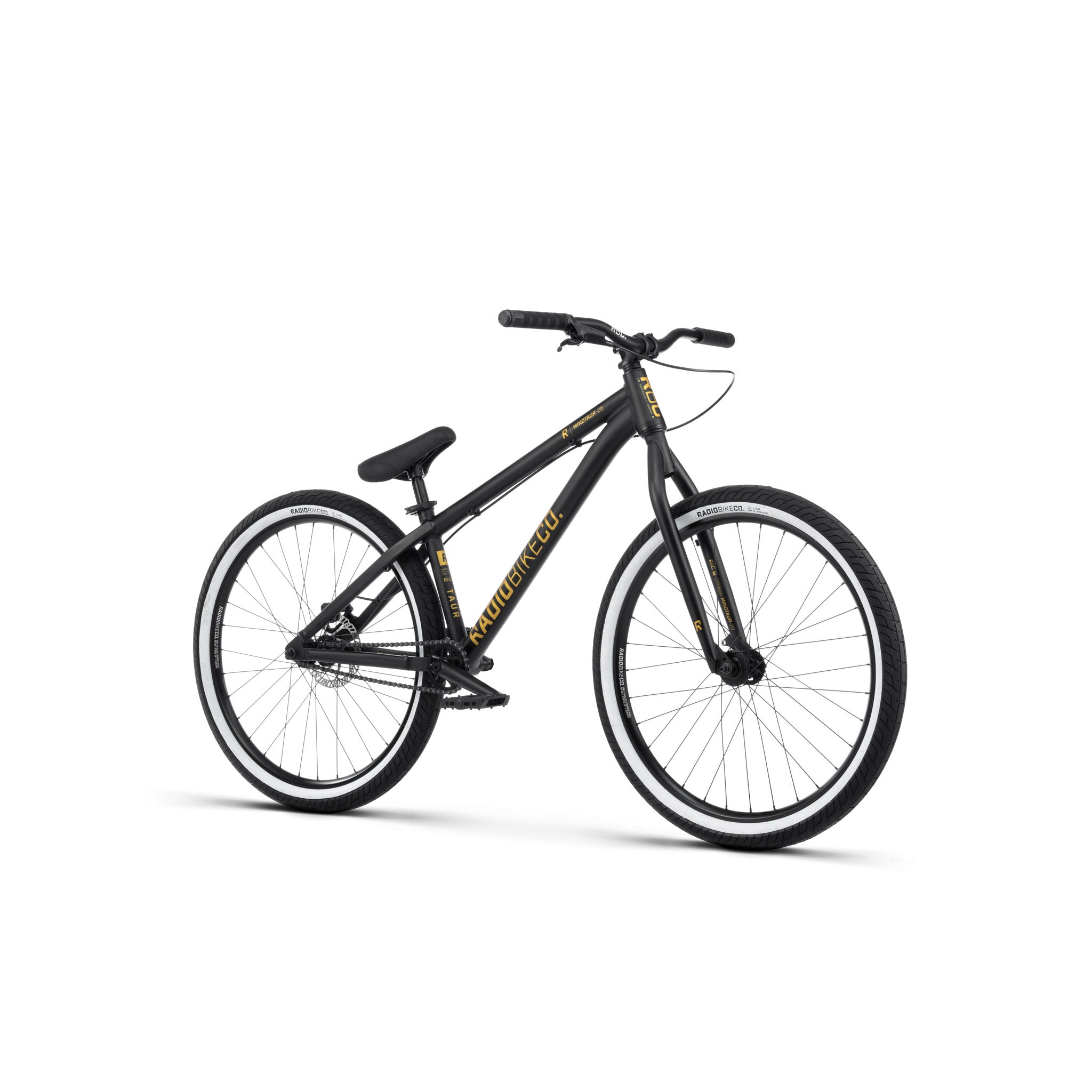

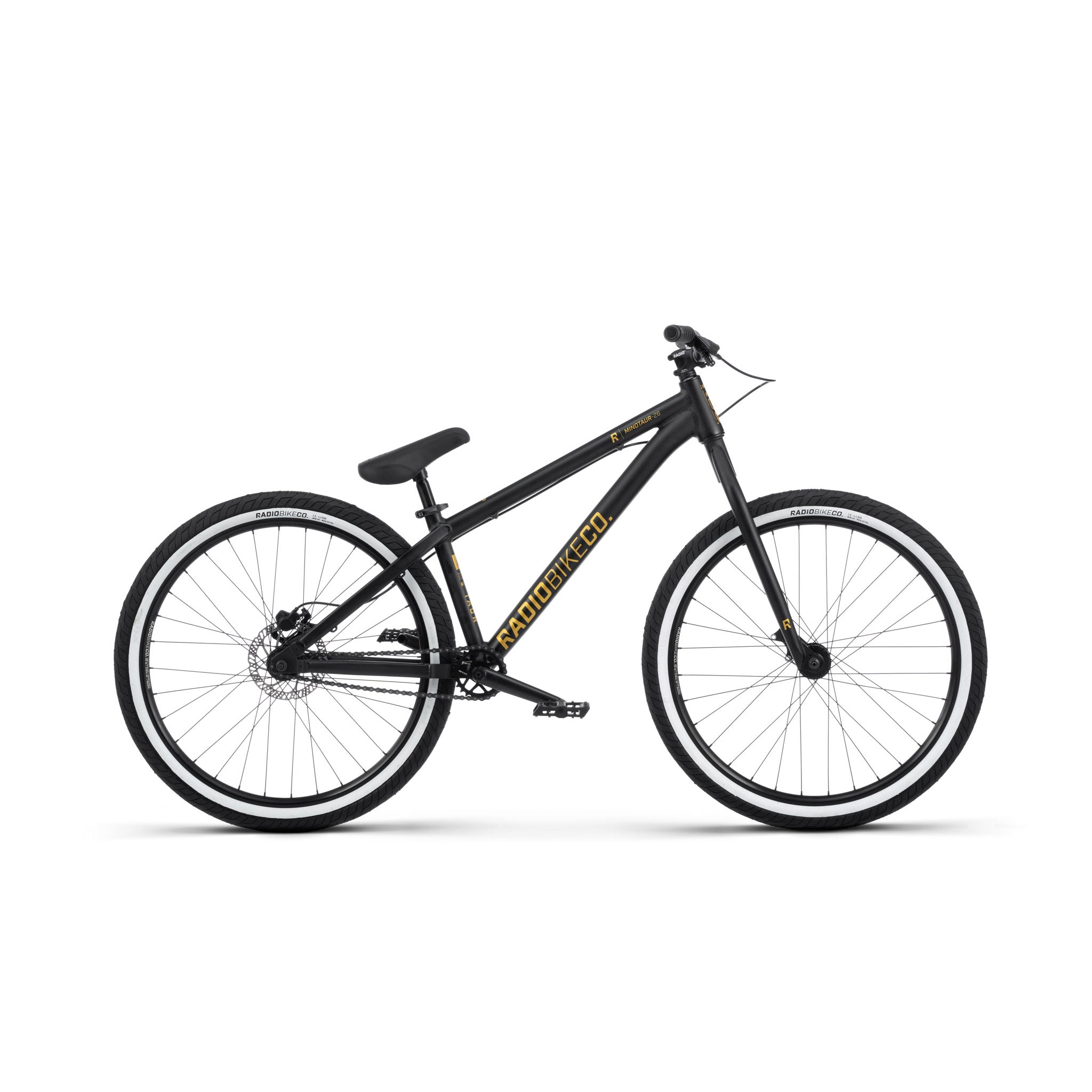

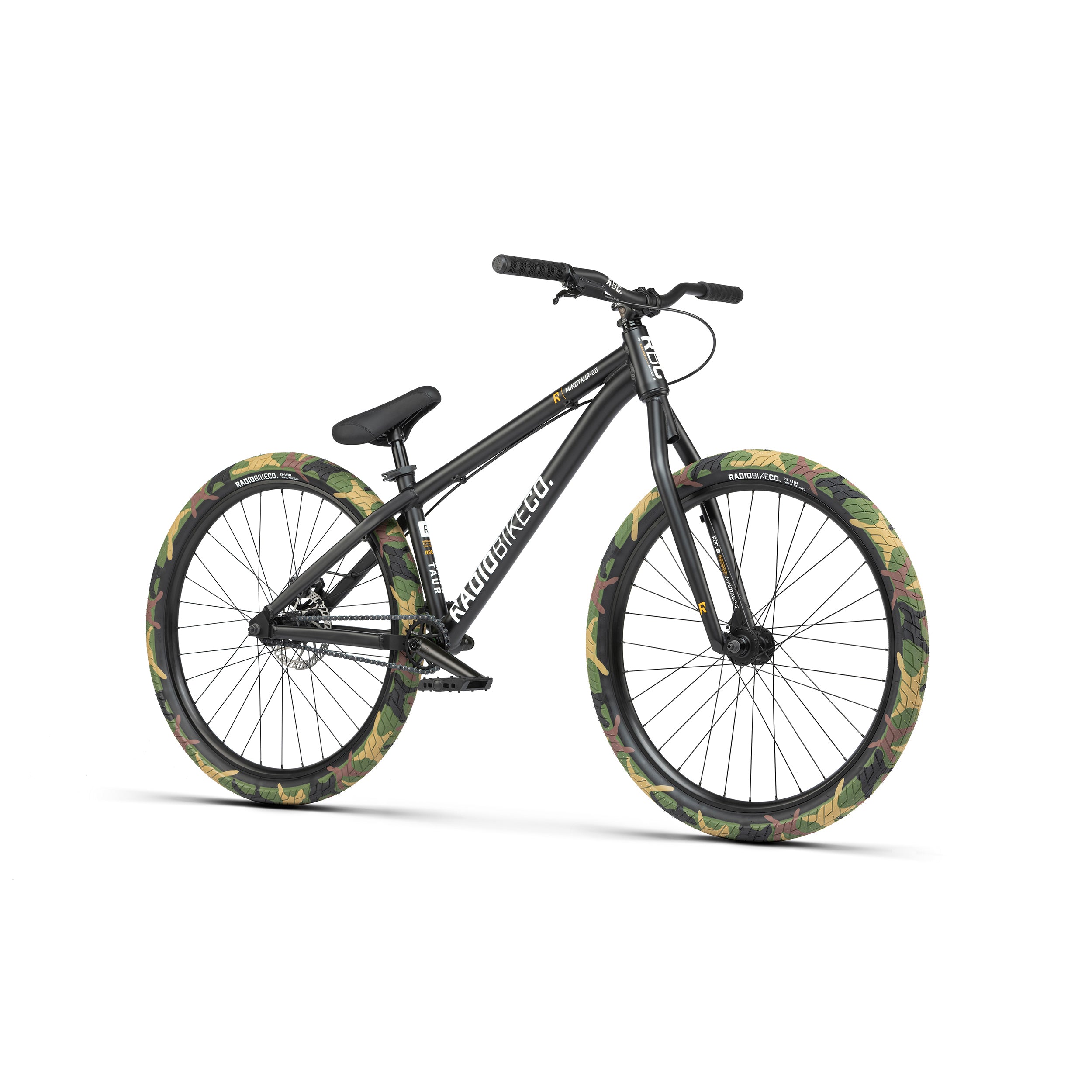

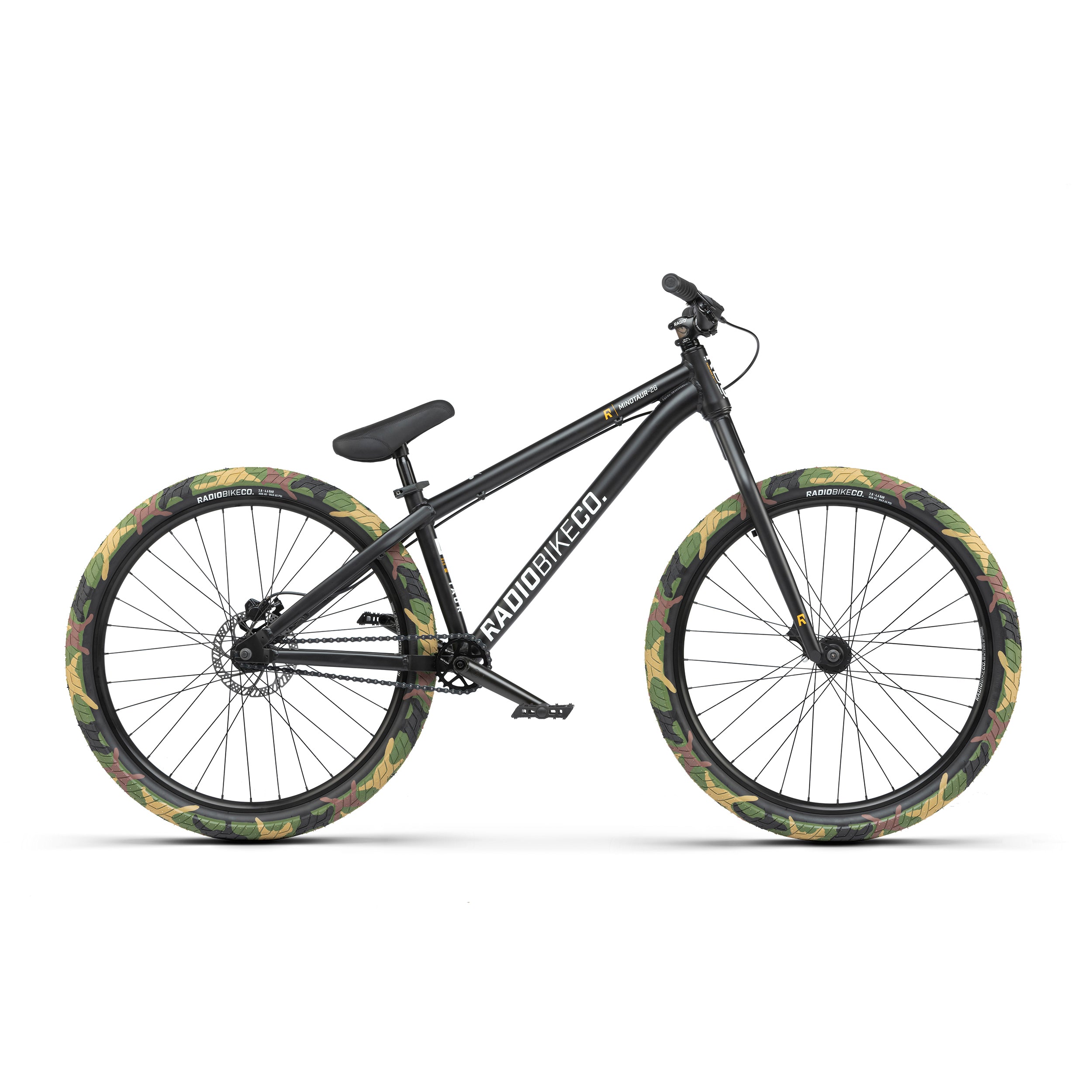

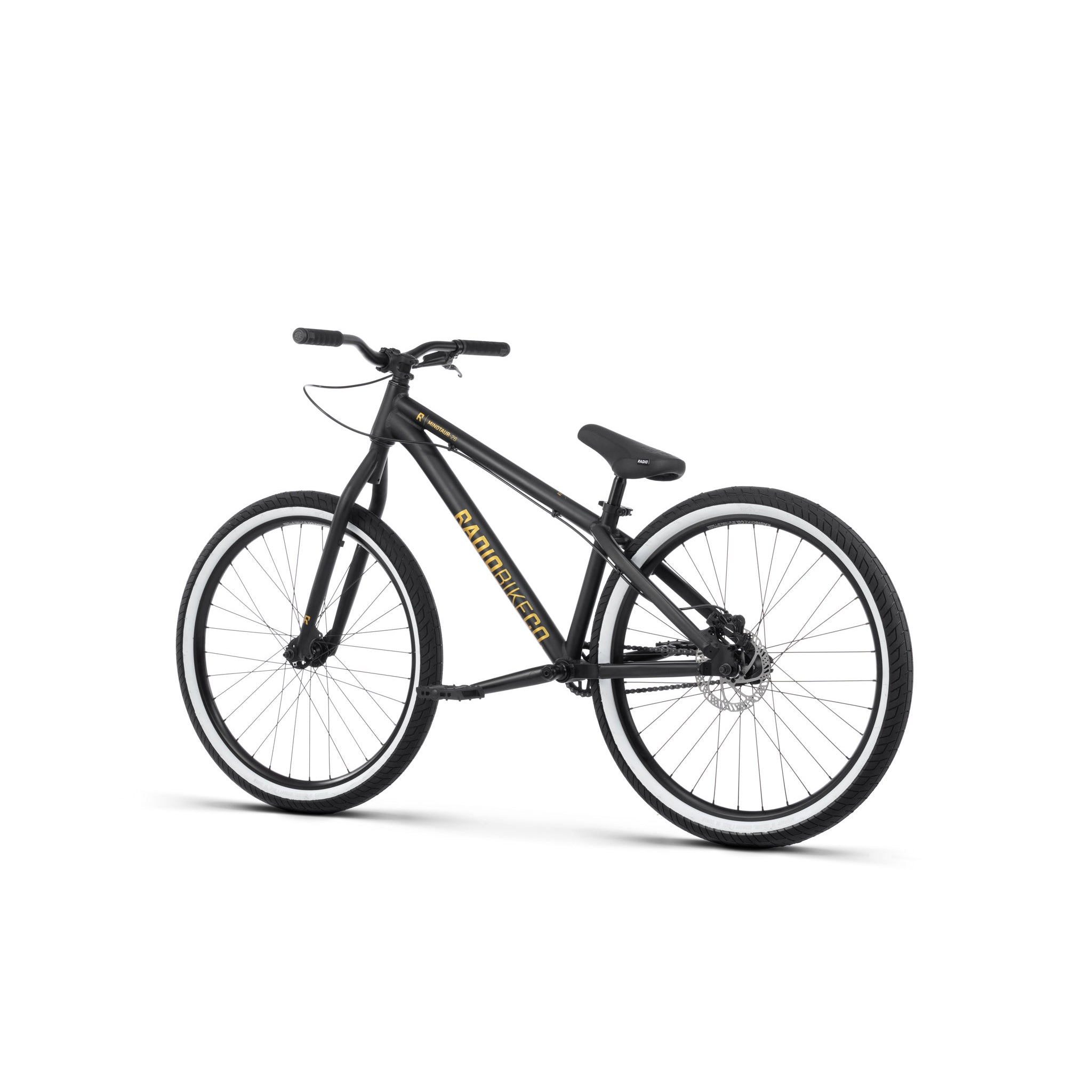

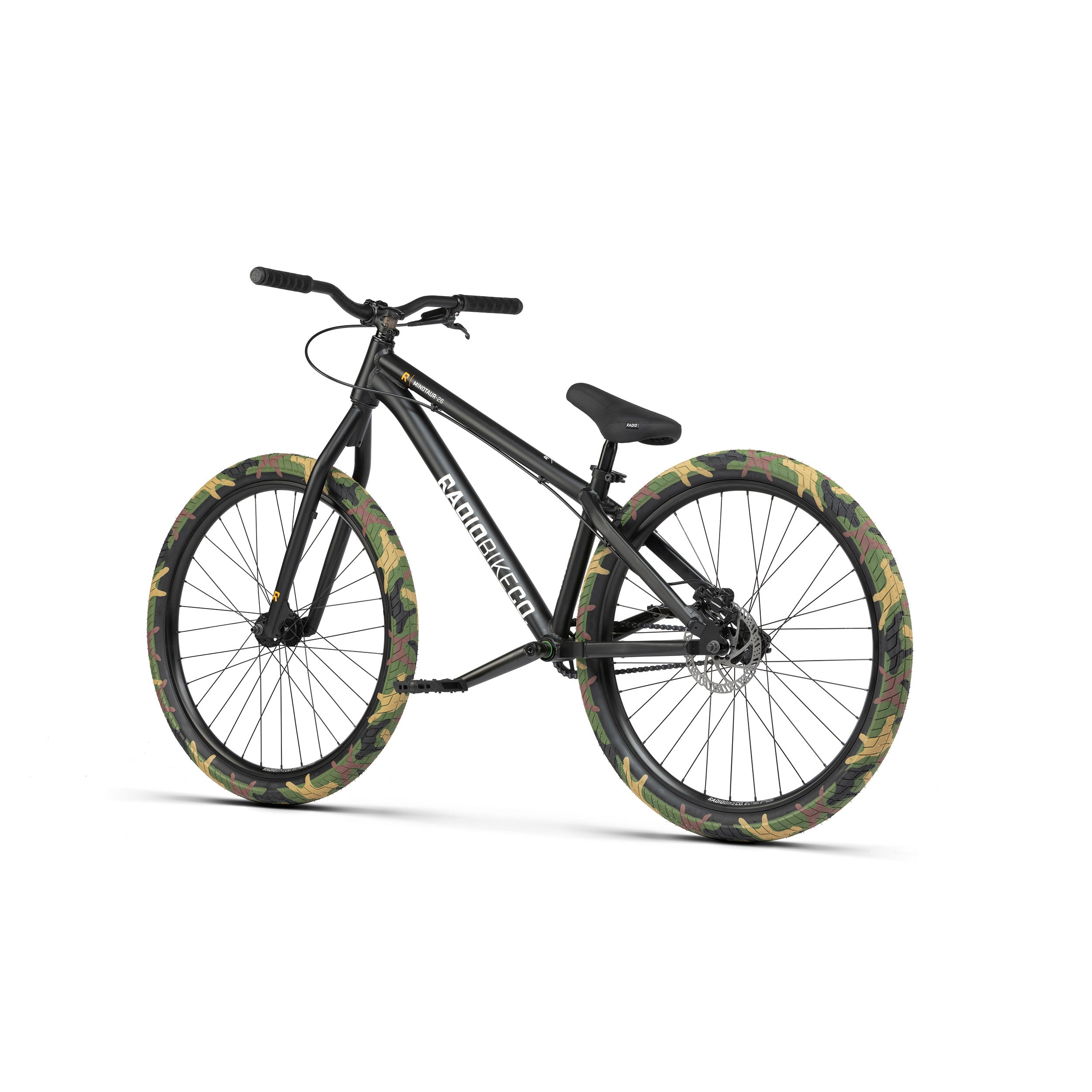

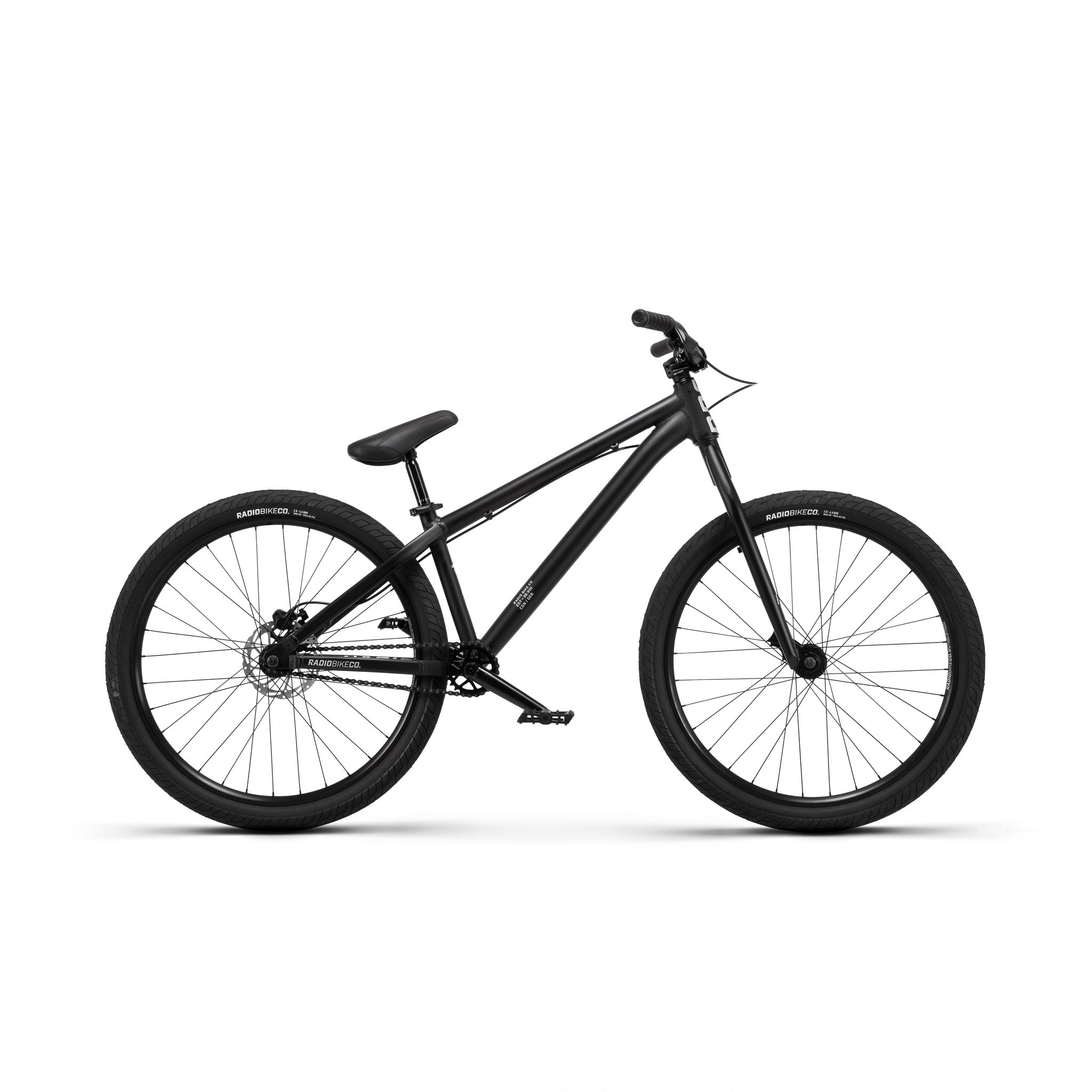

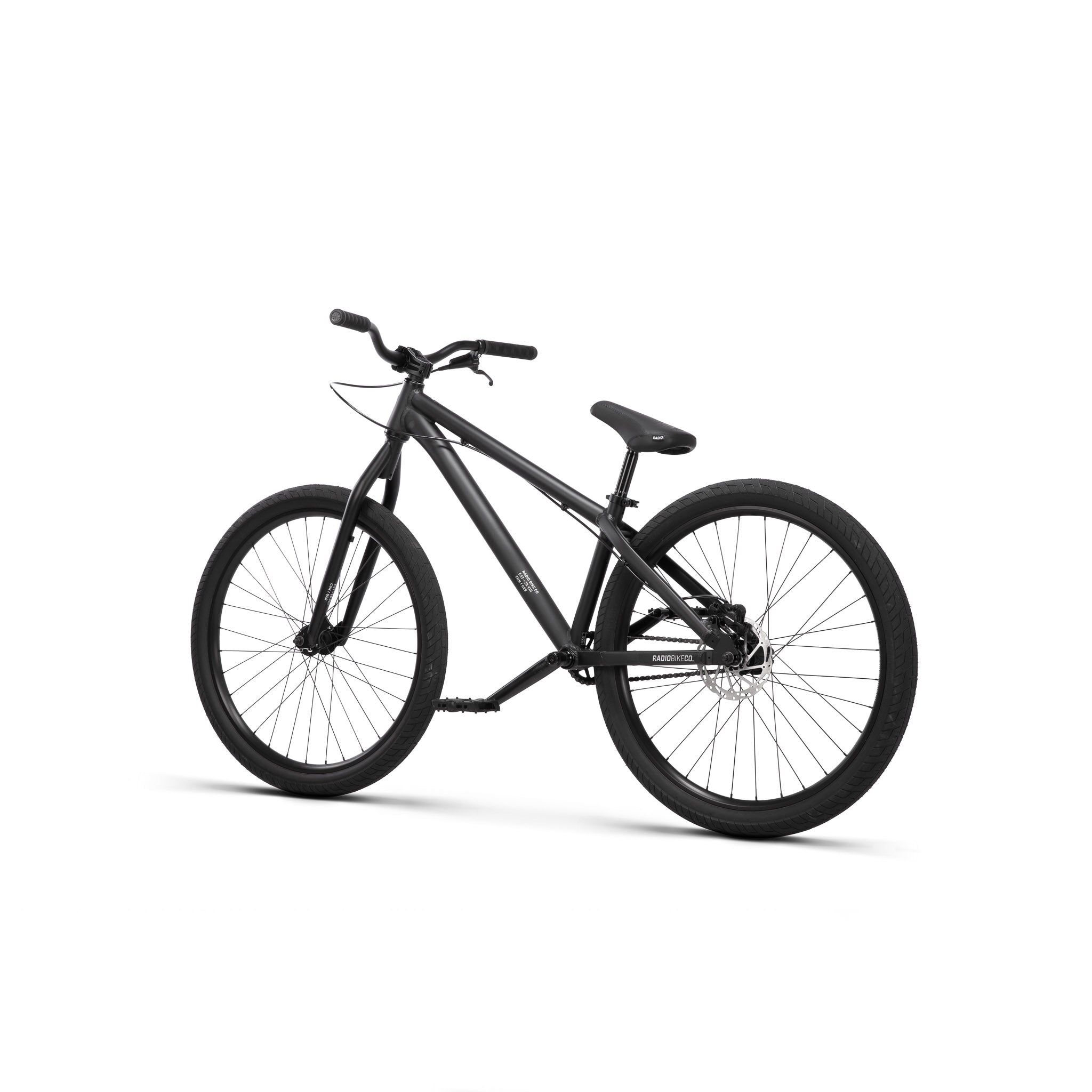

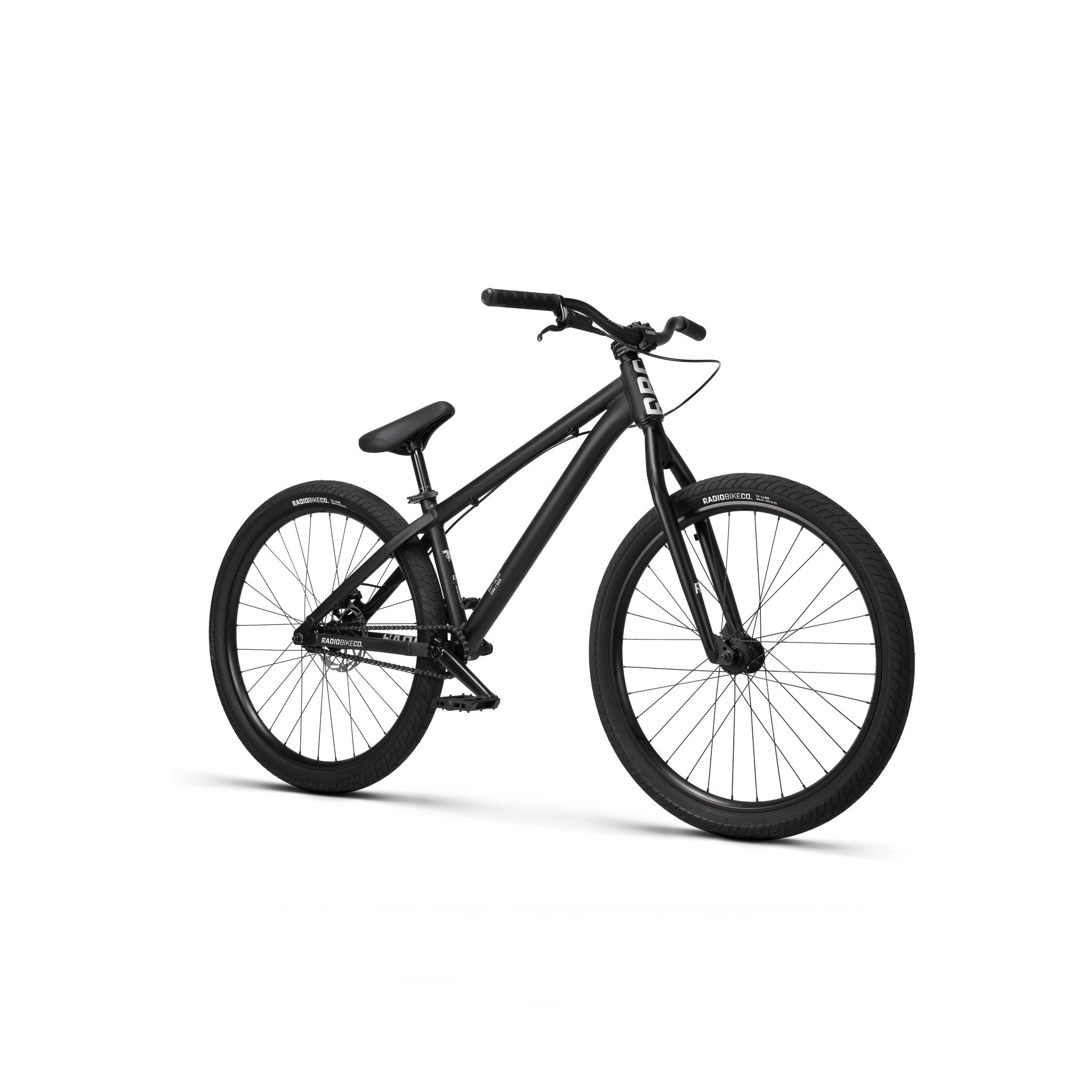

Minotaur 26" Complete Bike

Simply built for shredding, the Minotaur is a dirt and pump track beast that proves less can be more. Combining a lightweight 6061-T6 aluminium frame with a rigid chromoly fork, it delivers a fast, direct, and incredibly playful ride that's all about having fun. The rigid setup keeps things simple, affordable, and ready for future upgrades, while Radio Stratus tyres provide the grip and confidence to keep the good times rolling. The result? A bike that's as exciting to ride as it is to look at.

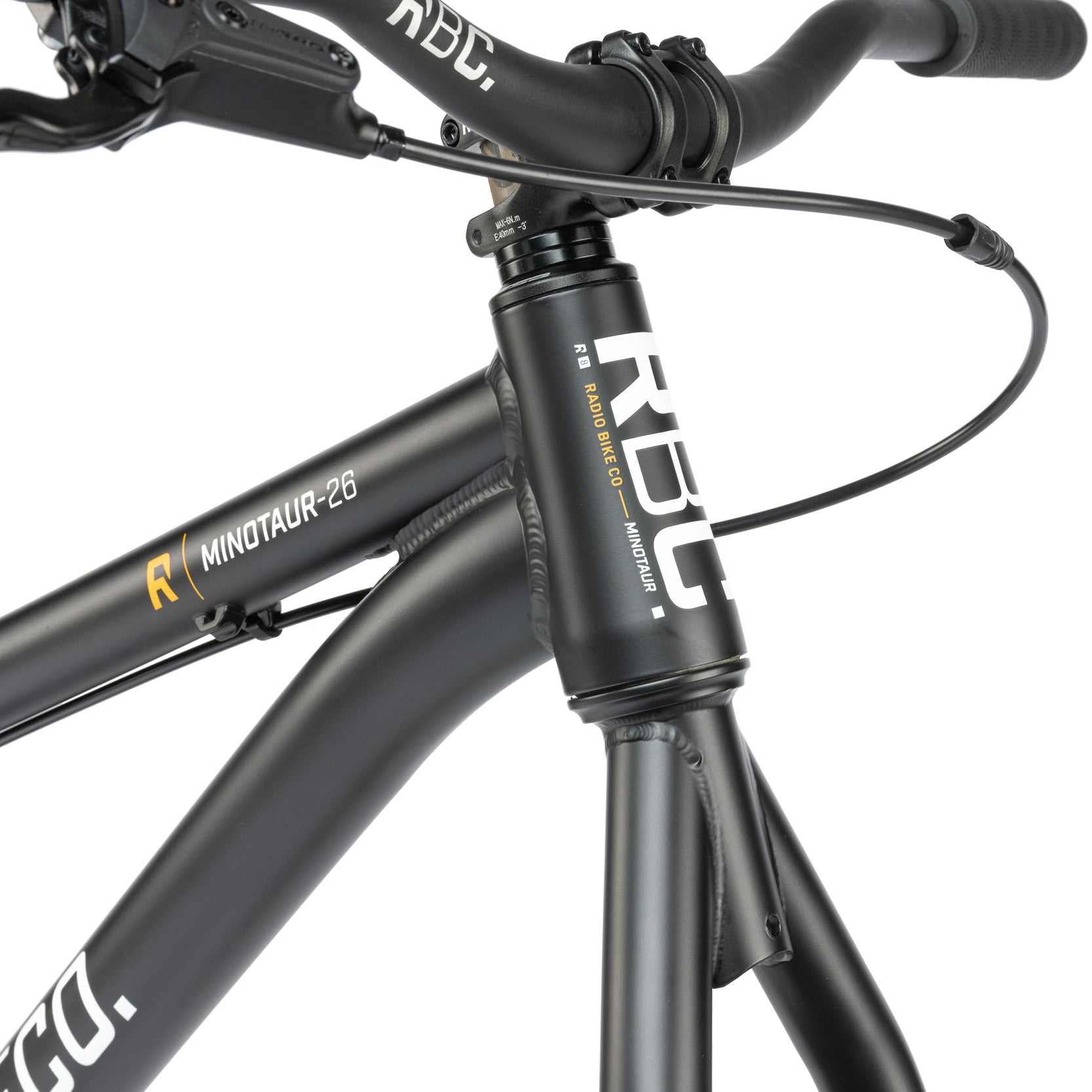

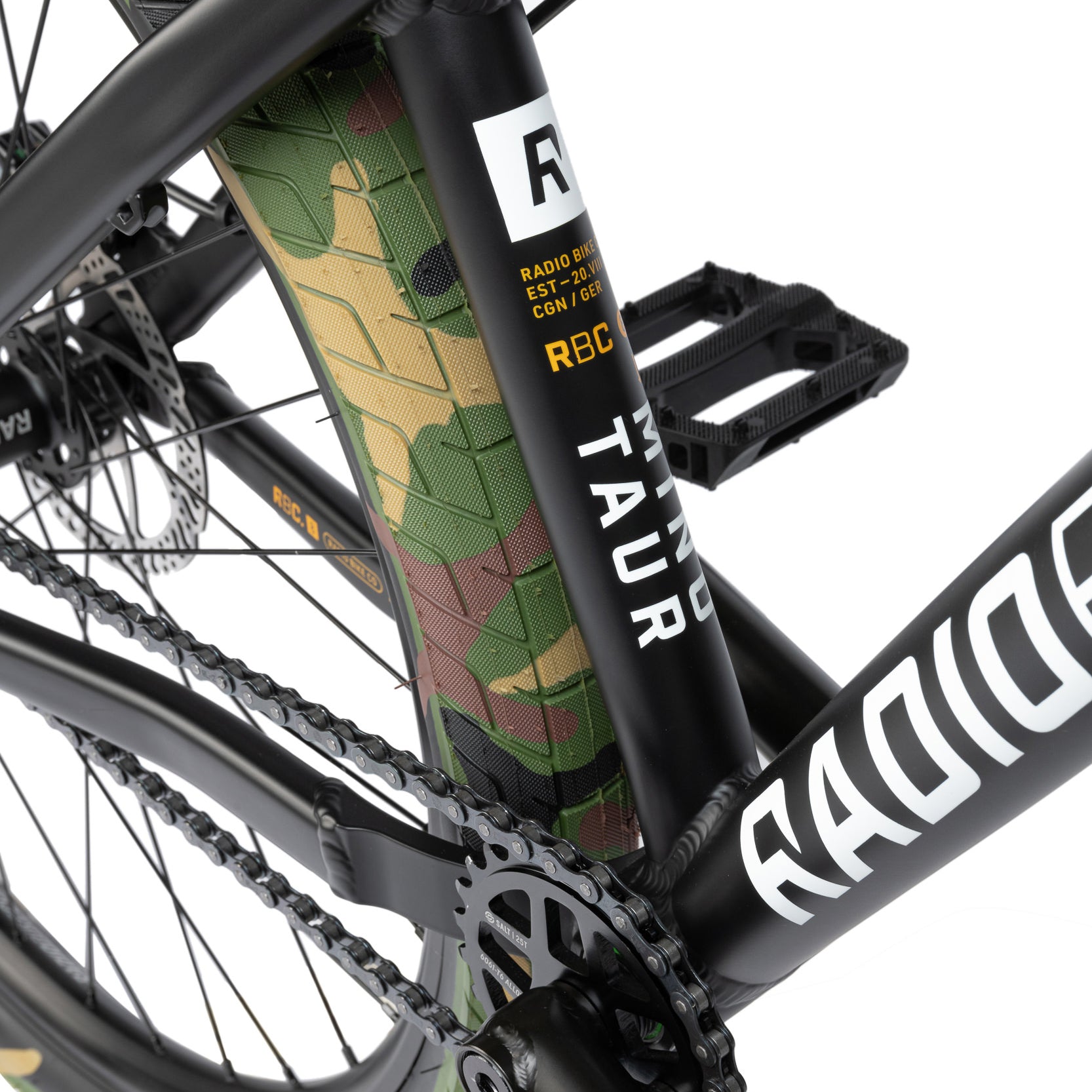

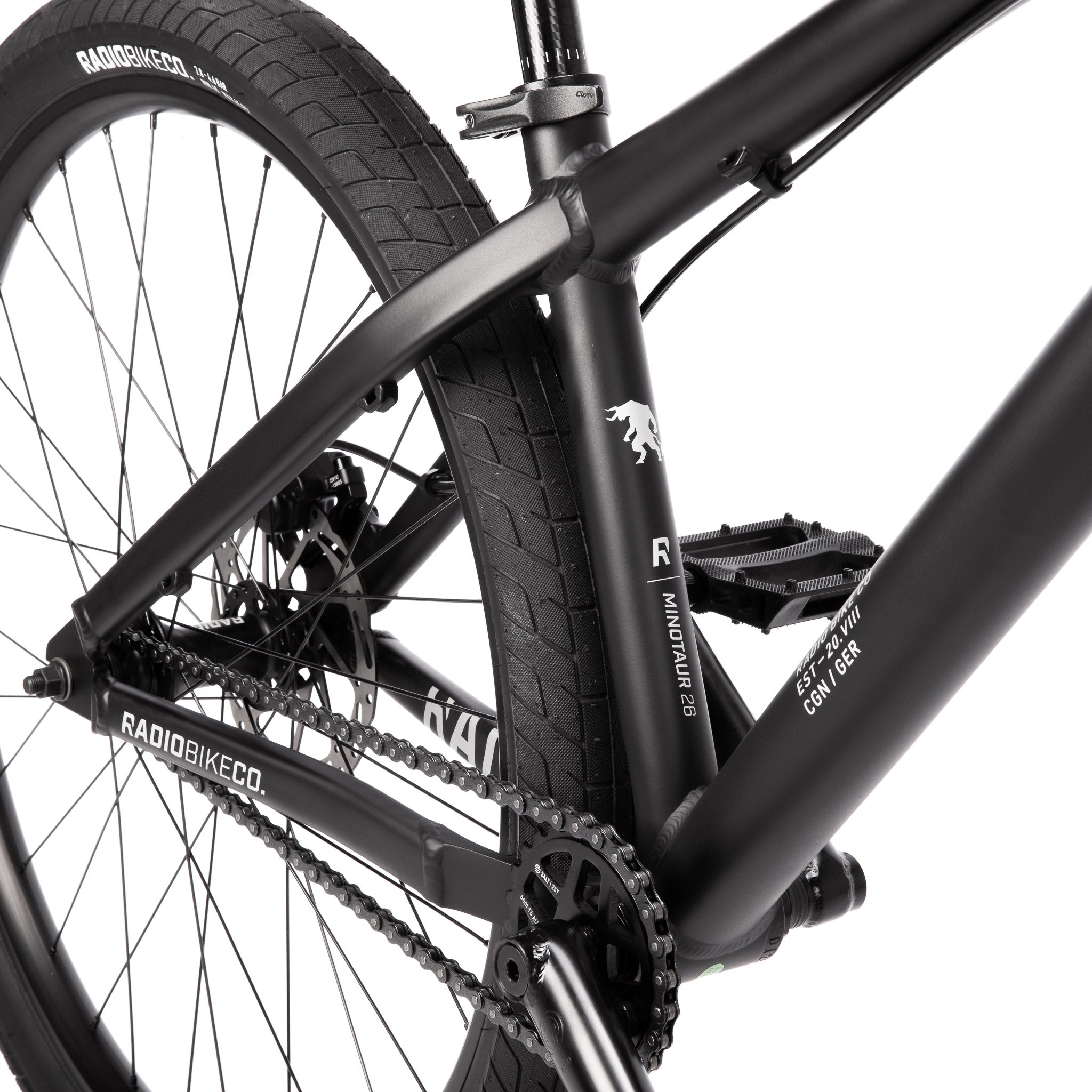

  • FRAME: RADIO "MINOTAUR" frame, 6061-T6 alloy, tapered head tube, forged yoke

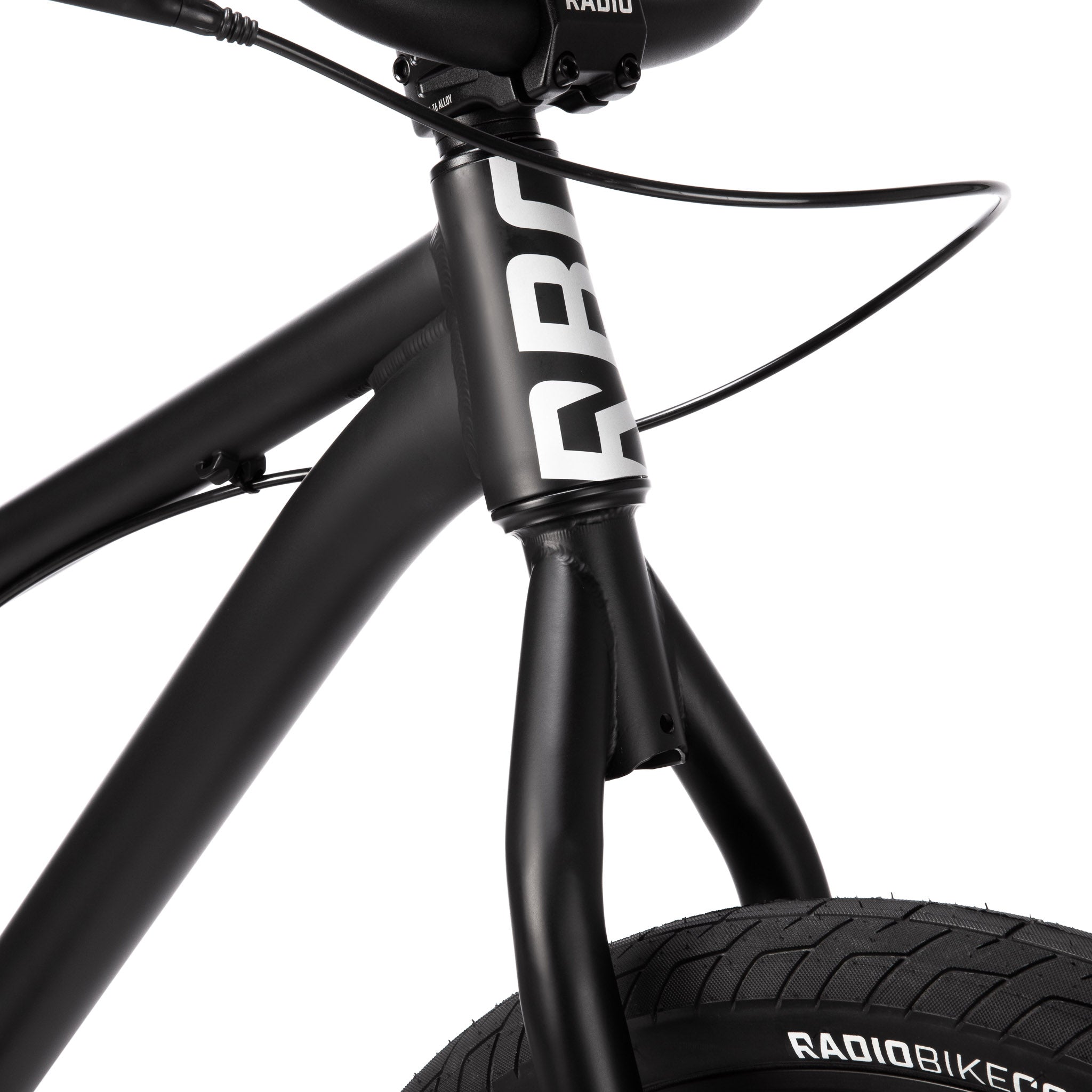

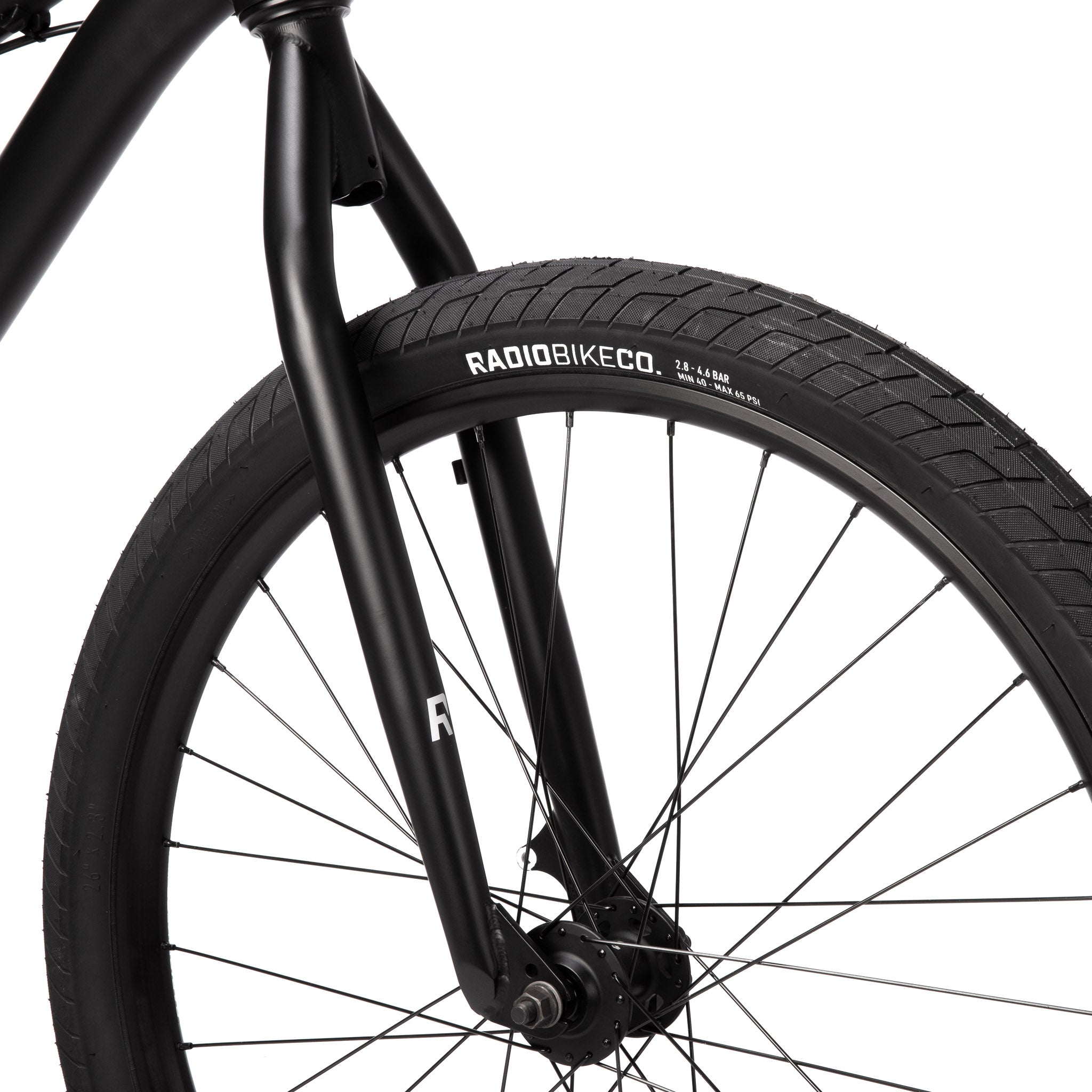

  • FORK: RADIO "MINOTOUR" fork, full crmo, tapered crmo steerer, 28mm offset

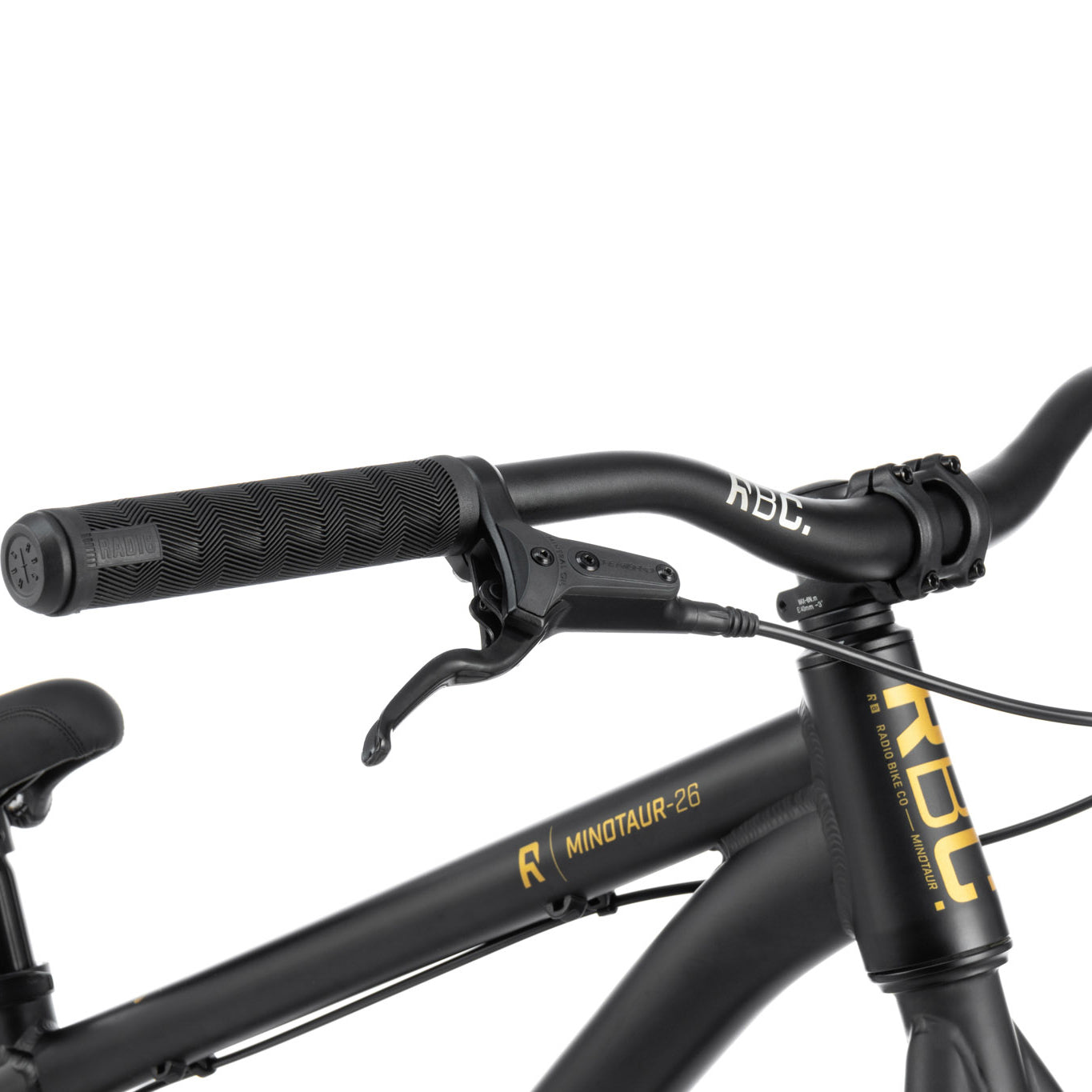

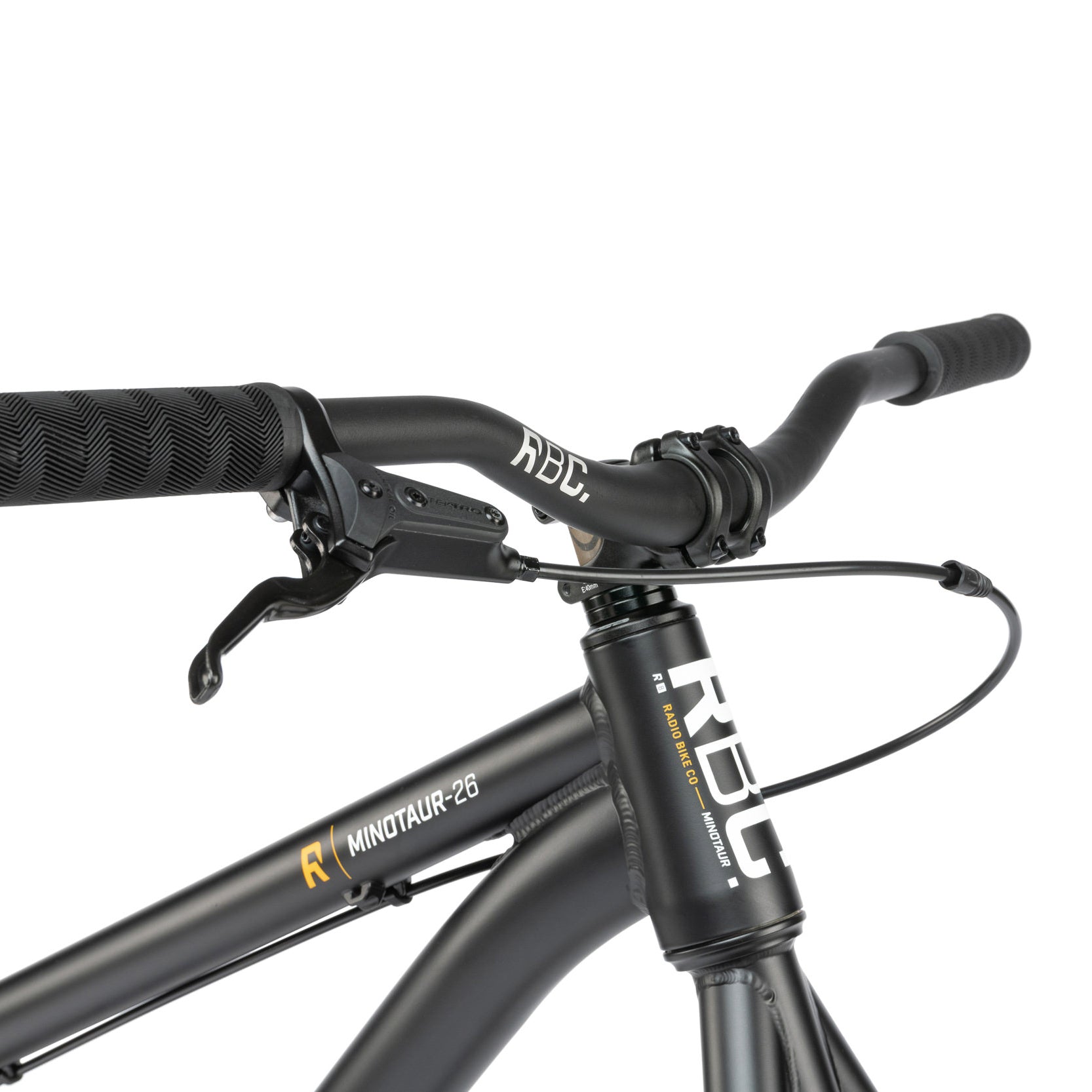

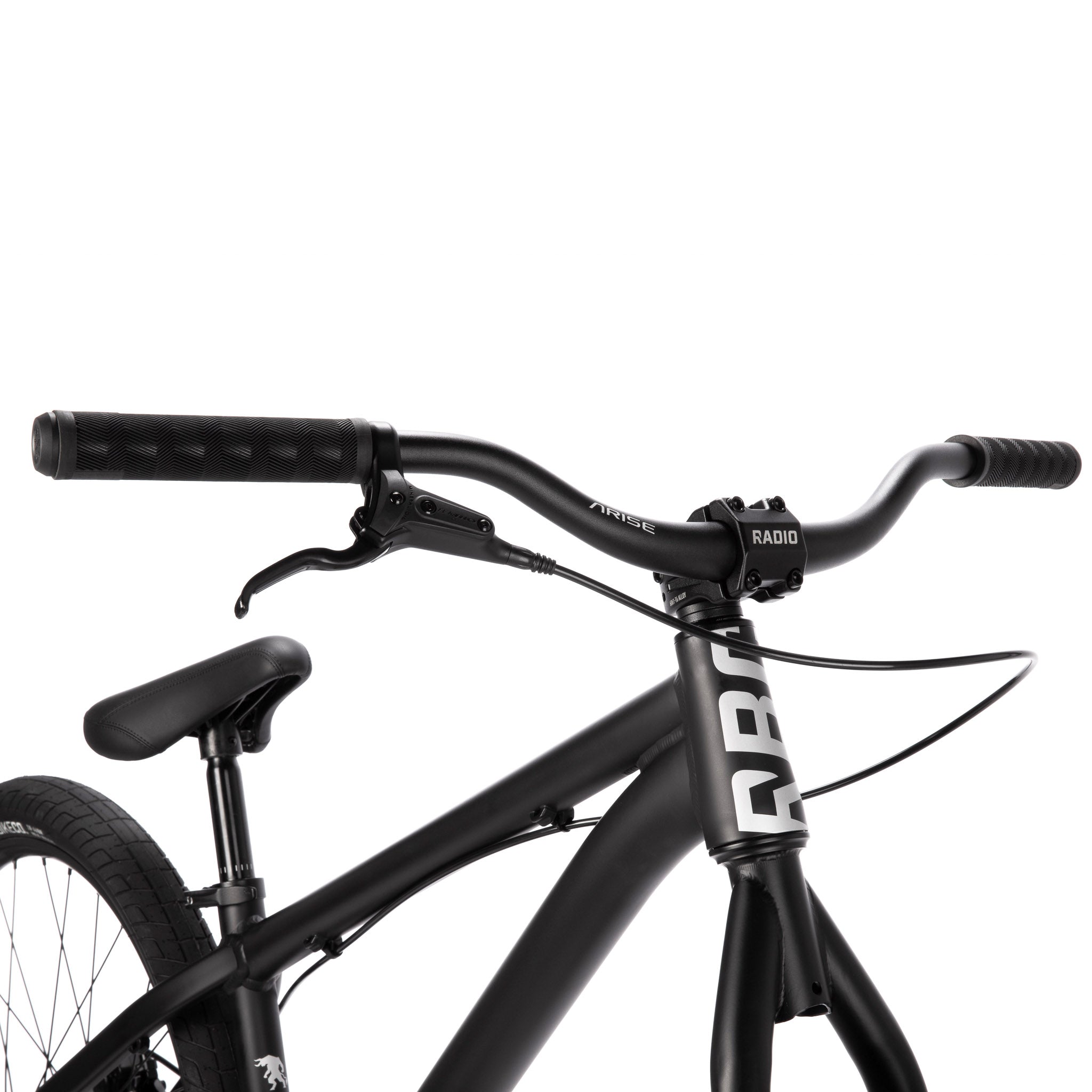

  • HANDLEBAR: ARISE "ASURA" bar, 6061-T6 alloy, 31.8mm
  • GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

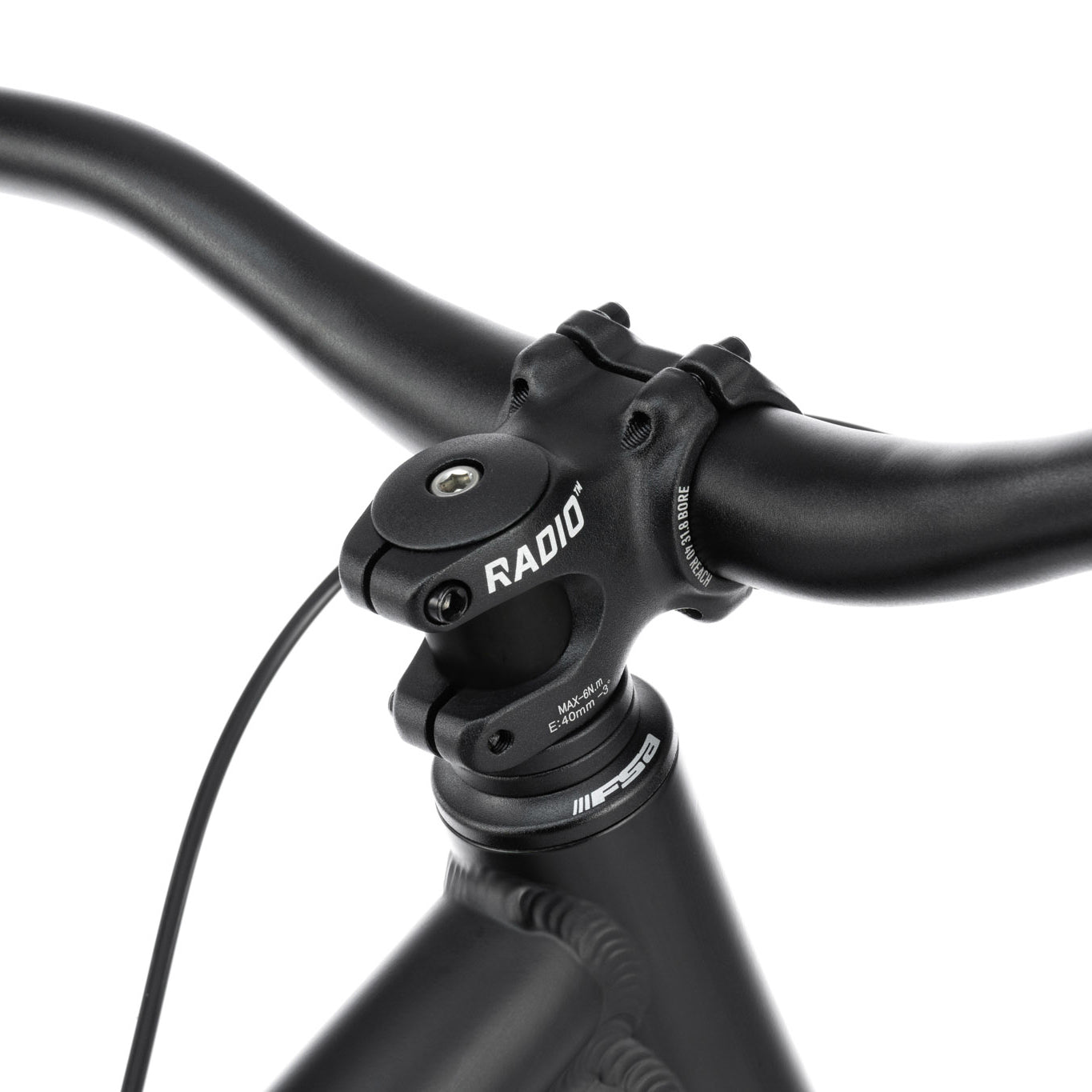

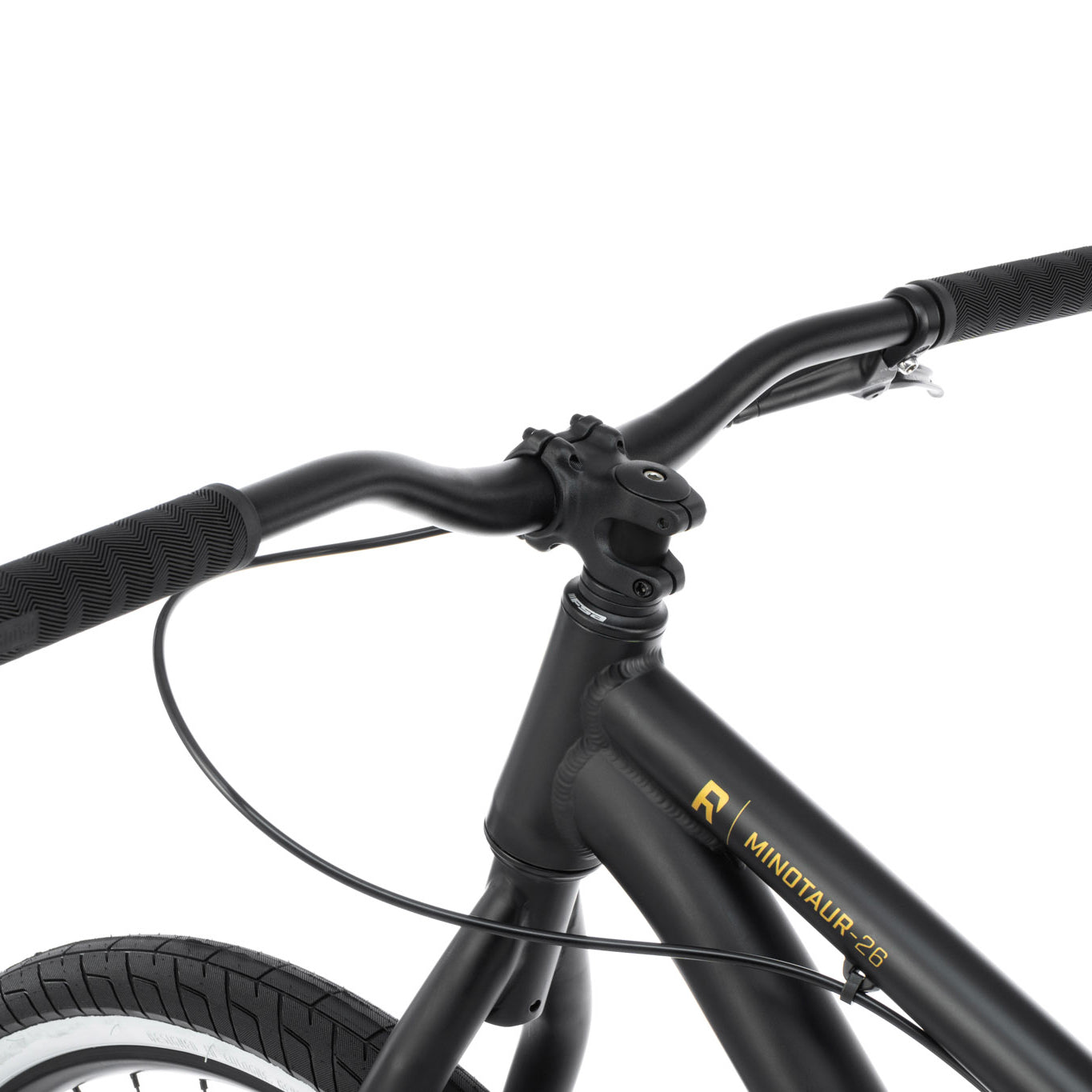

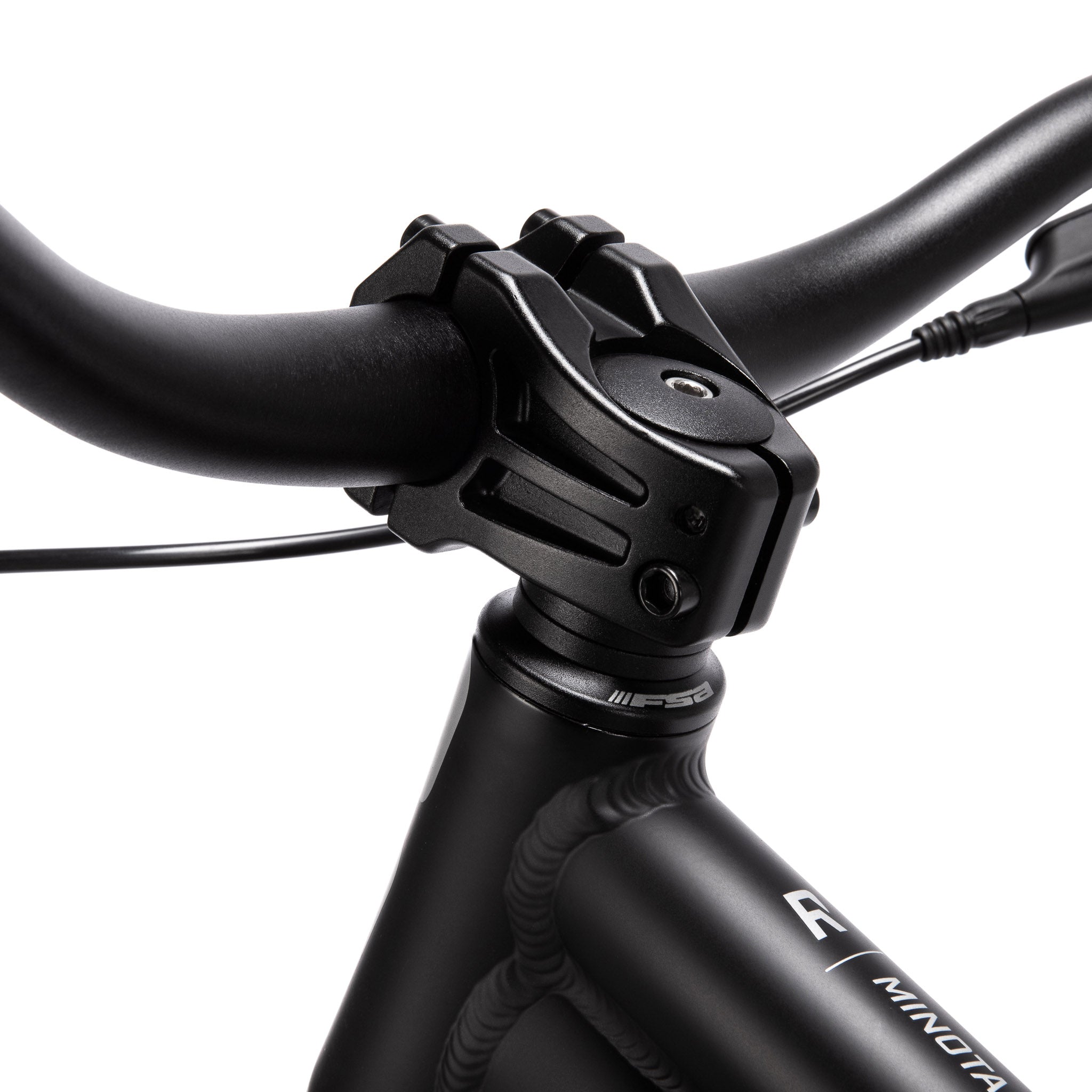

  • STEM: RADIO "ZOOM" frontload stem, alloy, 40mm reach
  • HEADSET: FSA "NO.57E" integrated A-headset, 1-1/8"-1.5"
  • BRAKE LEVER: TEKTRO "RS-360A" front lever /  TEKTRO " HD-M275" rear lever

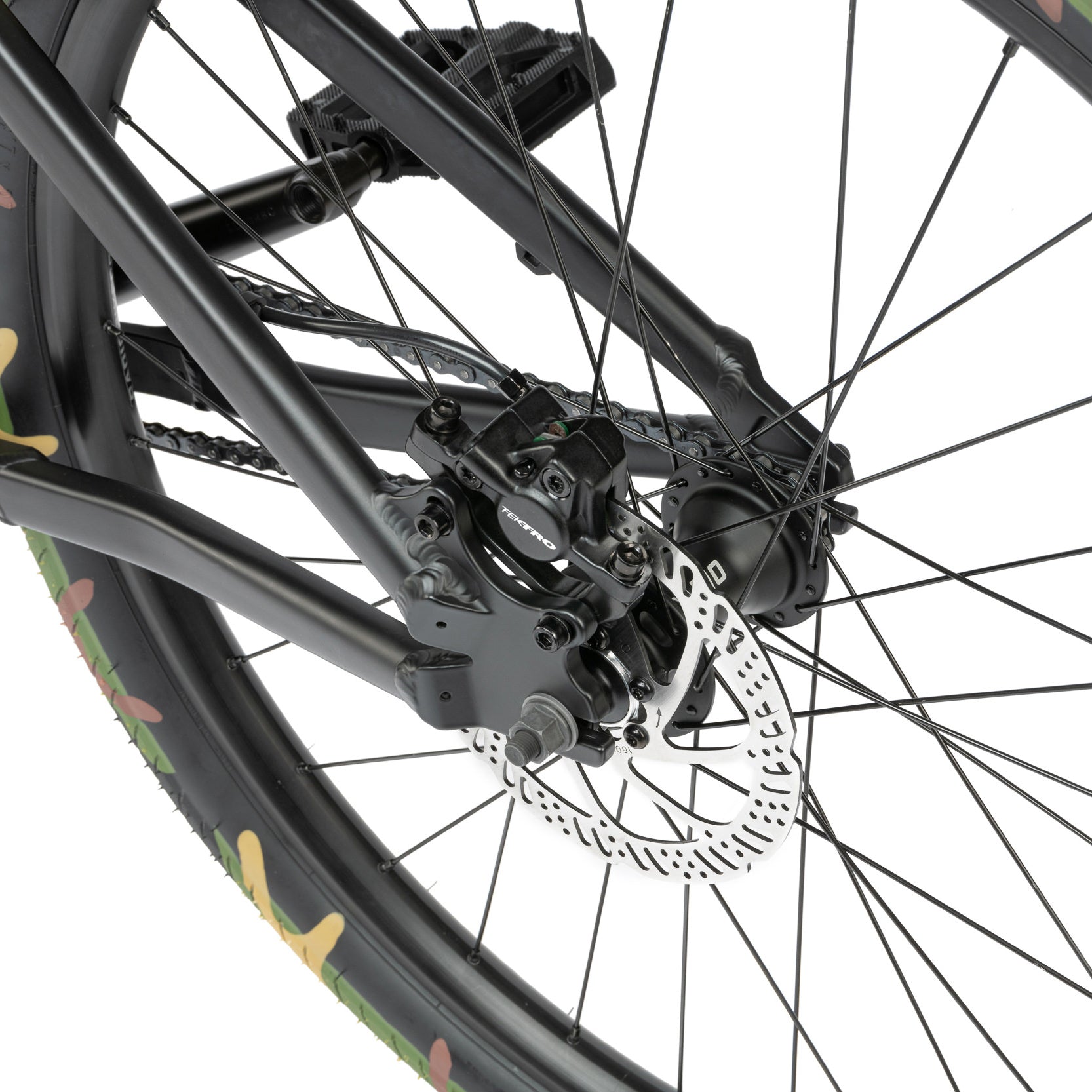

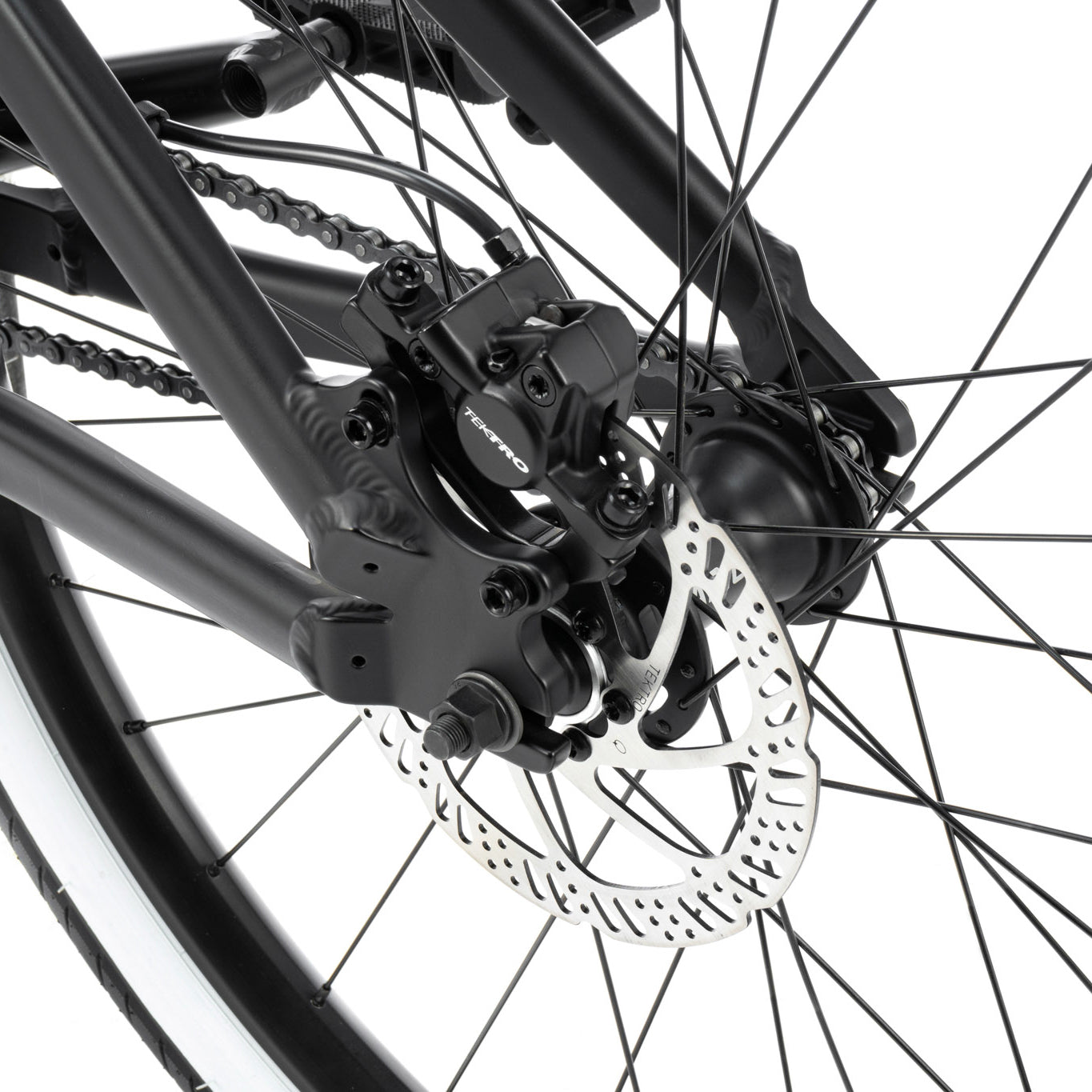

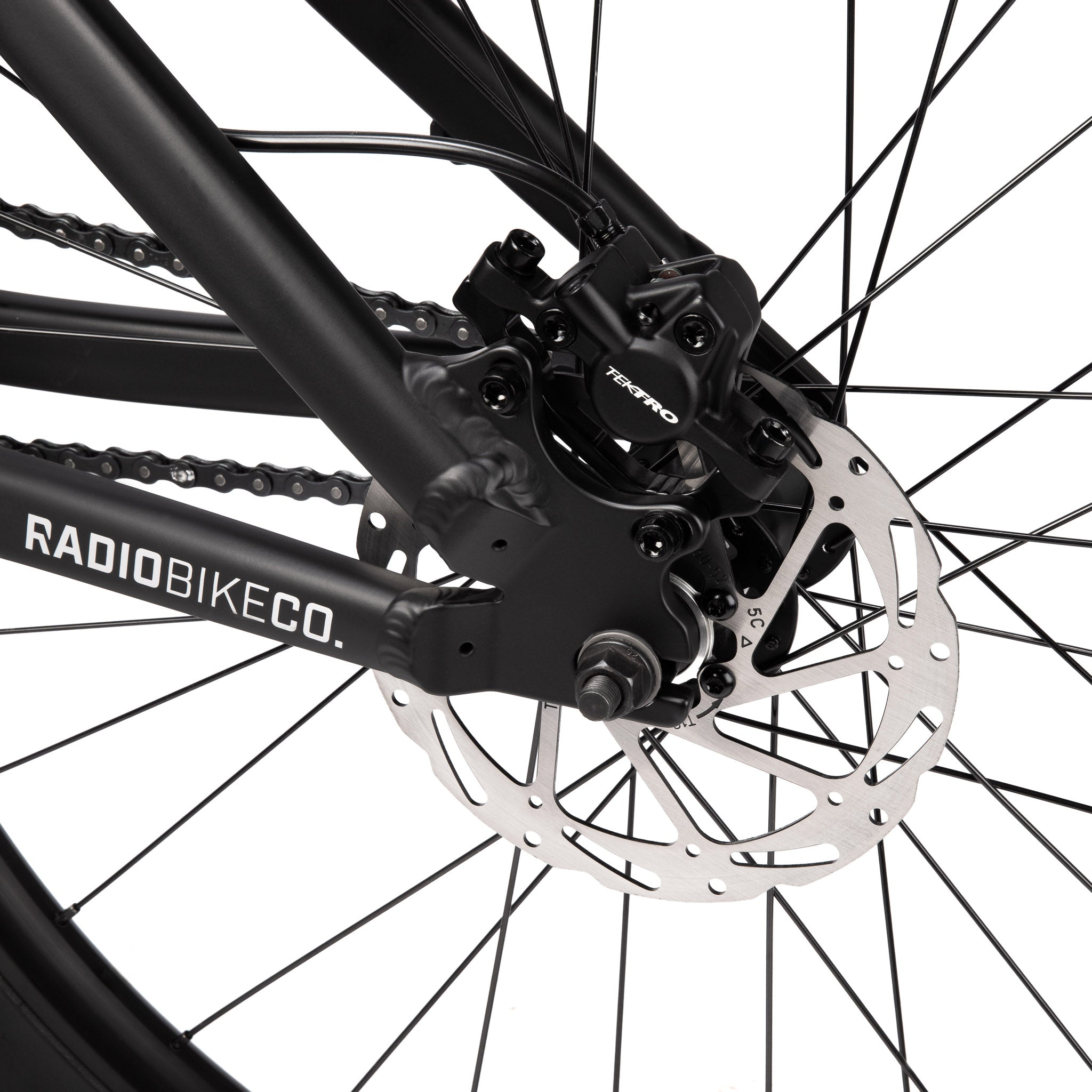

  • BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear

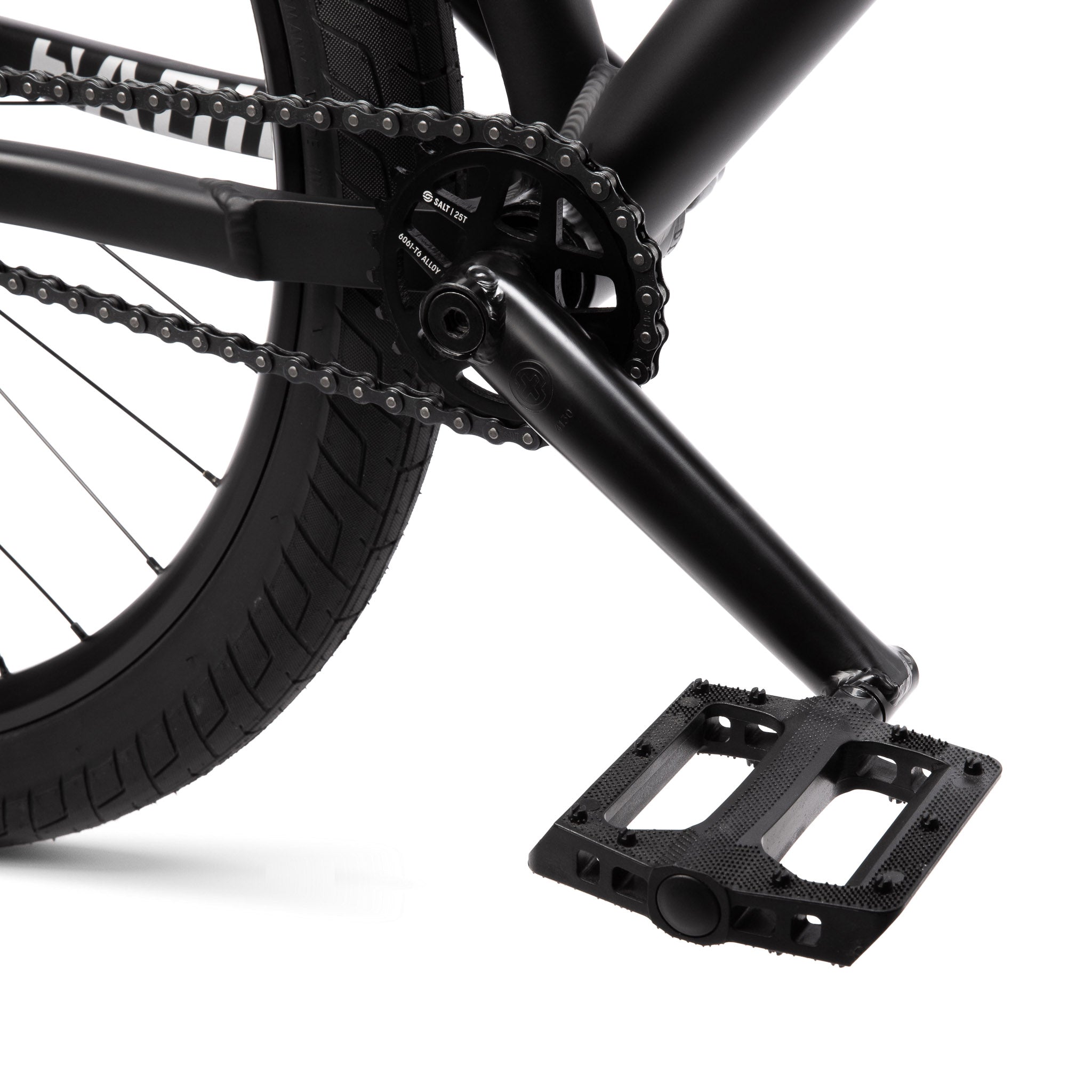

  • CRANK: SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 170mm, 8 spline
  • BB: RADIO "BSA19" bb set, sealed bearing

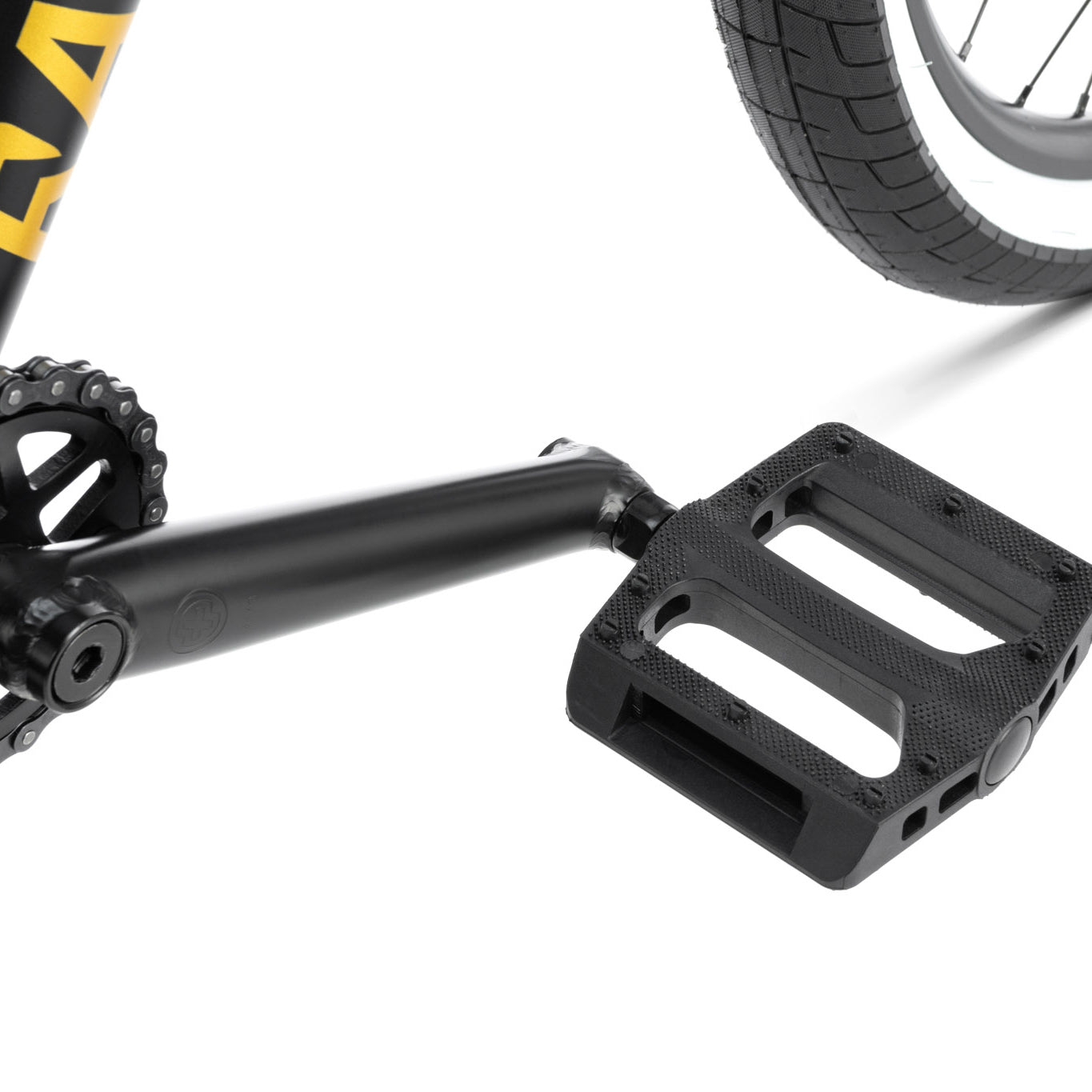

  • PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
  • CHAIN: SALT "AM" chain, WZ1 type

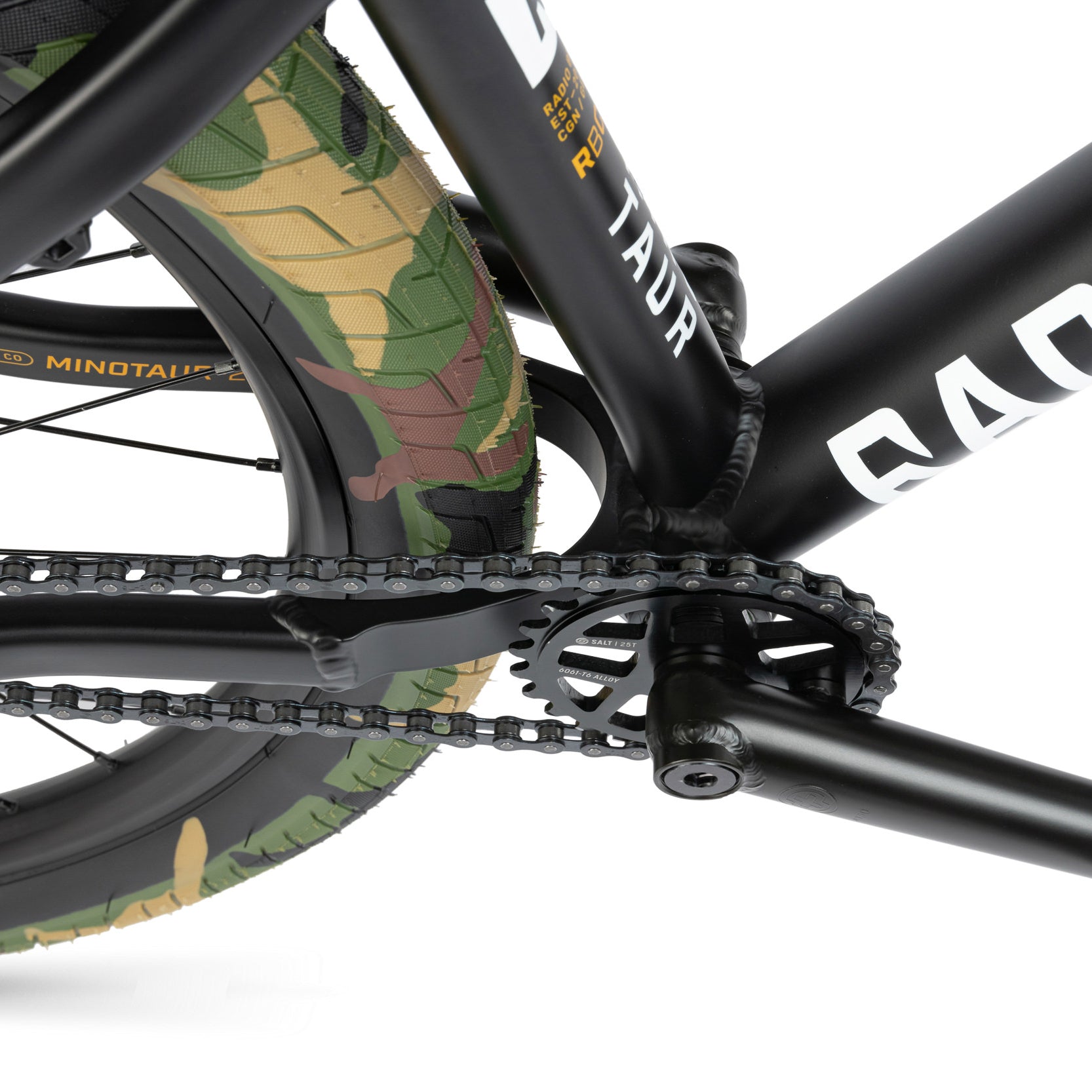

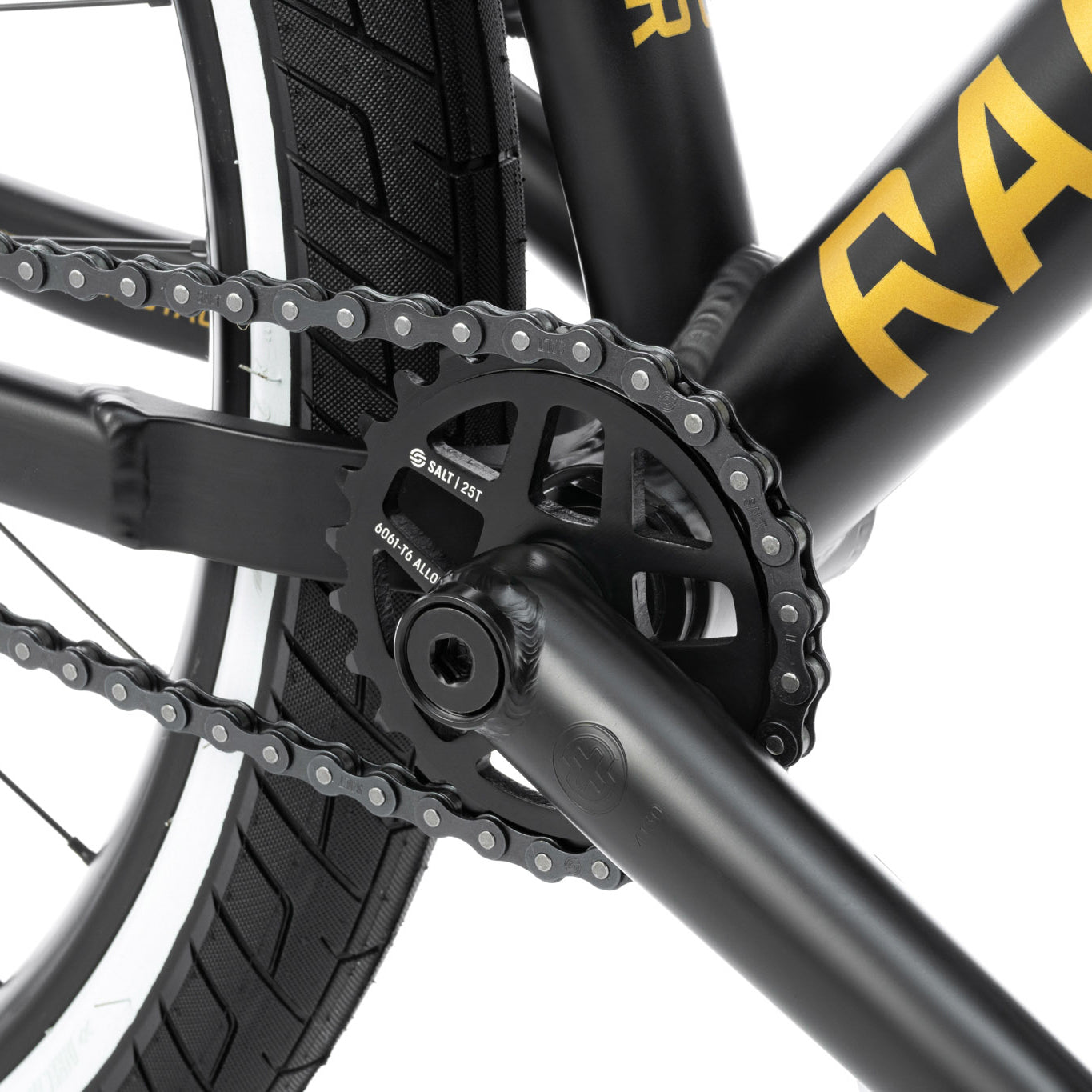

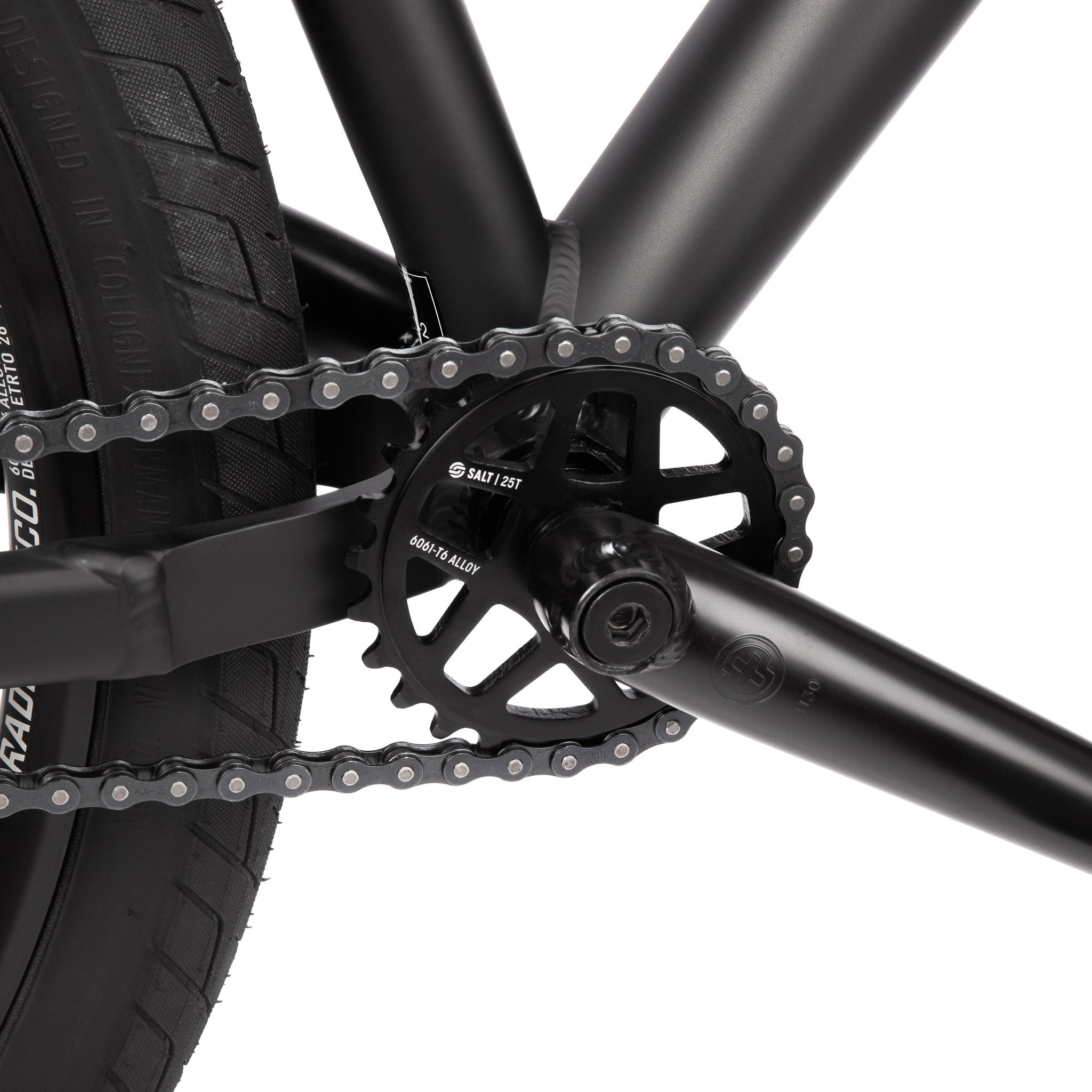

  • SPROCKET: SALT "GATEWAY" sprocket, alloy, 25t
  • DRIVER: cassette driver, 10t, sealed bearing

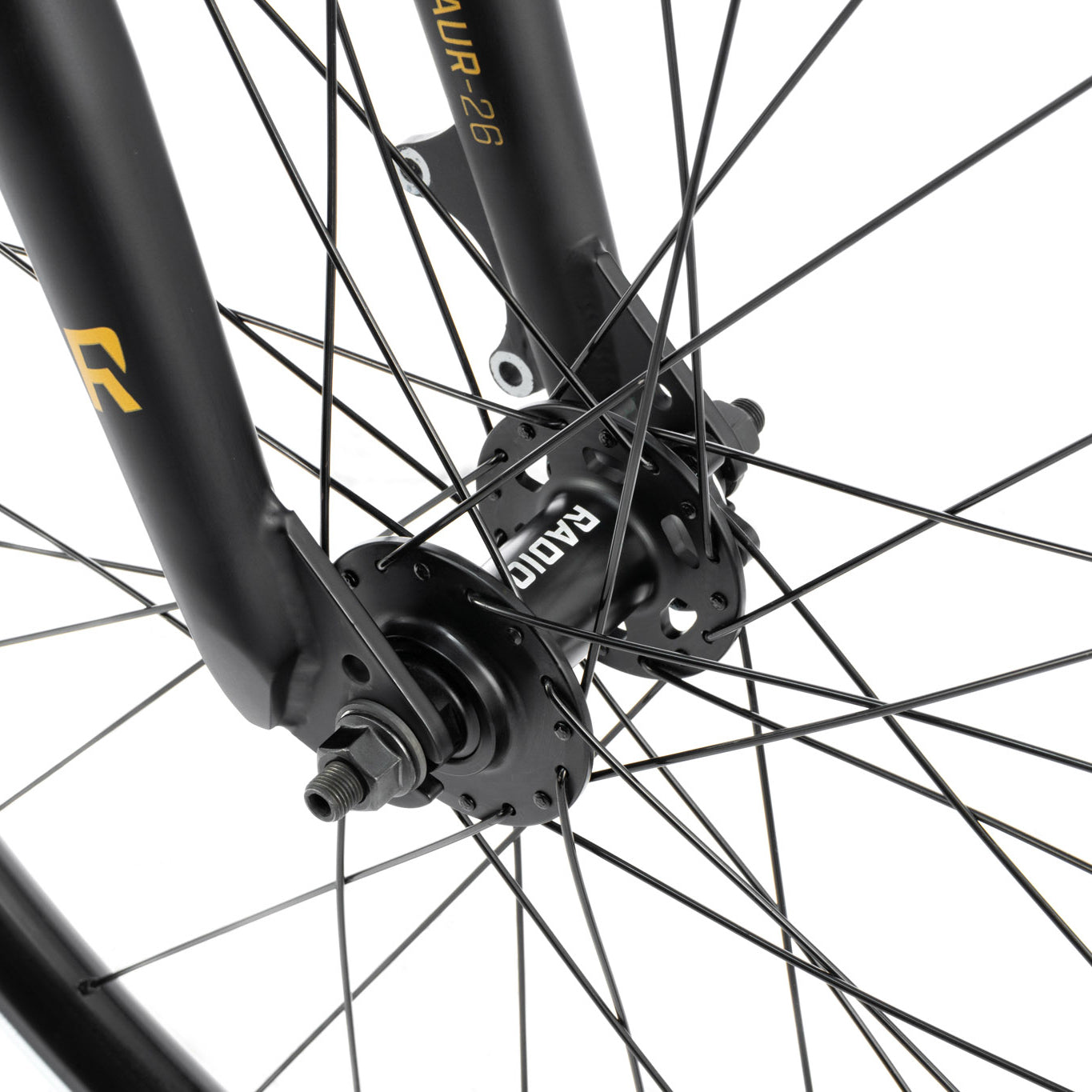

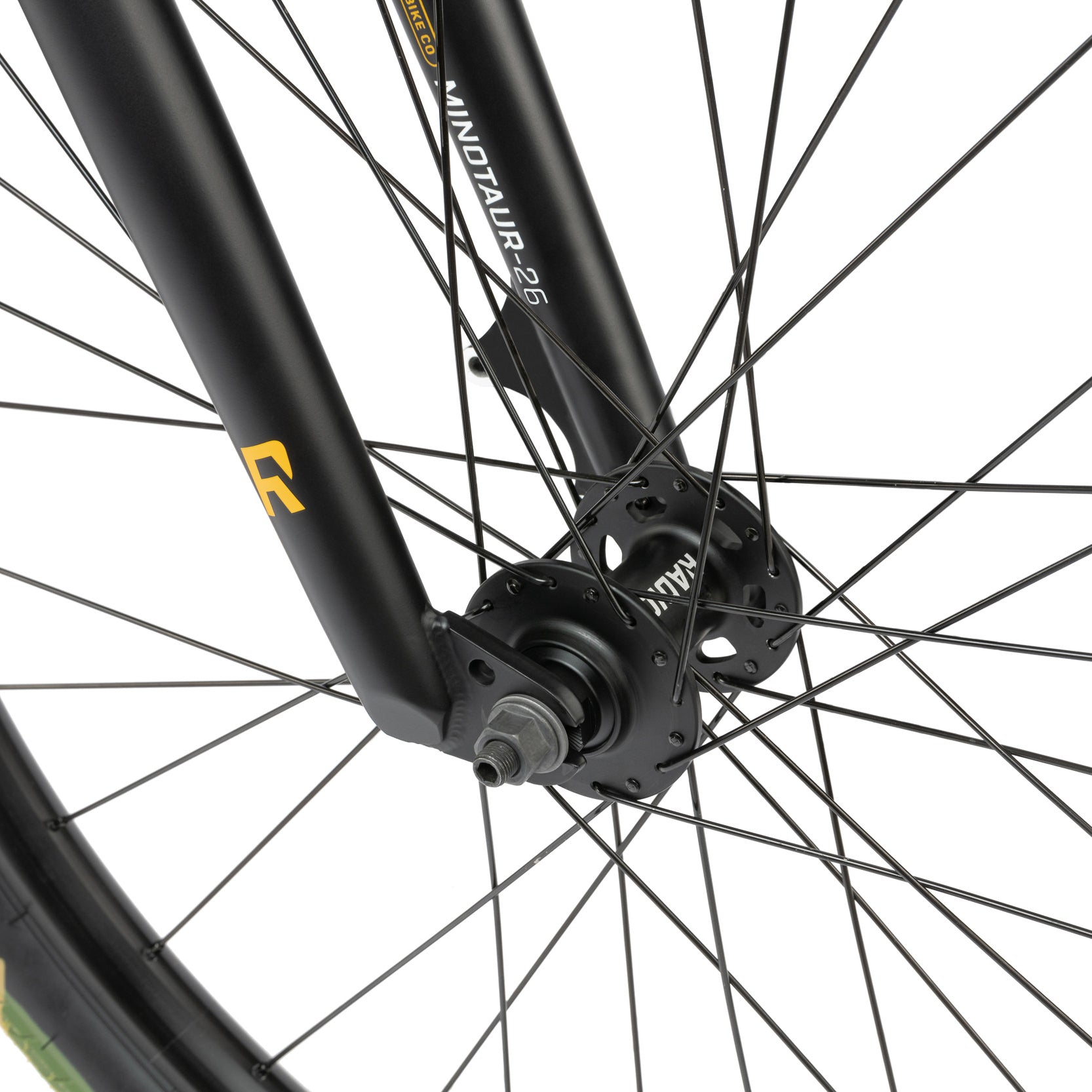

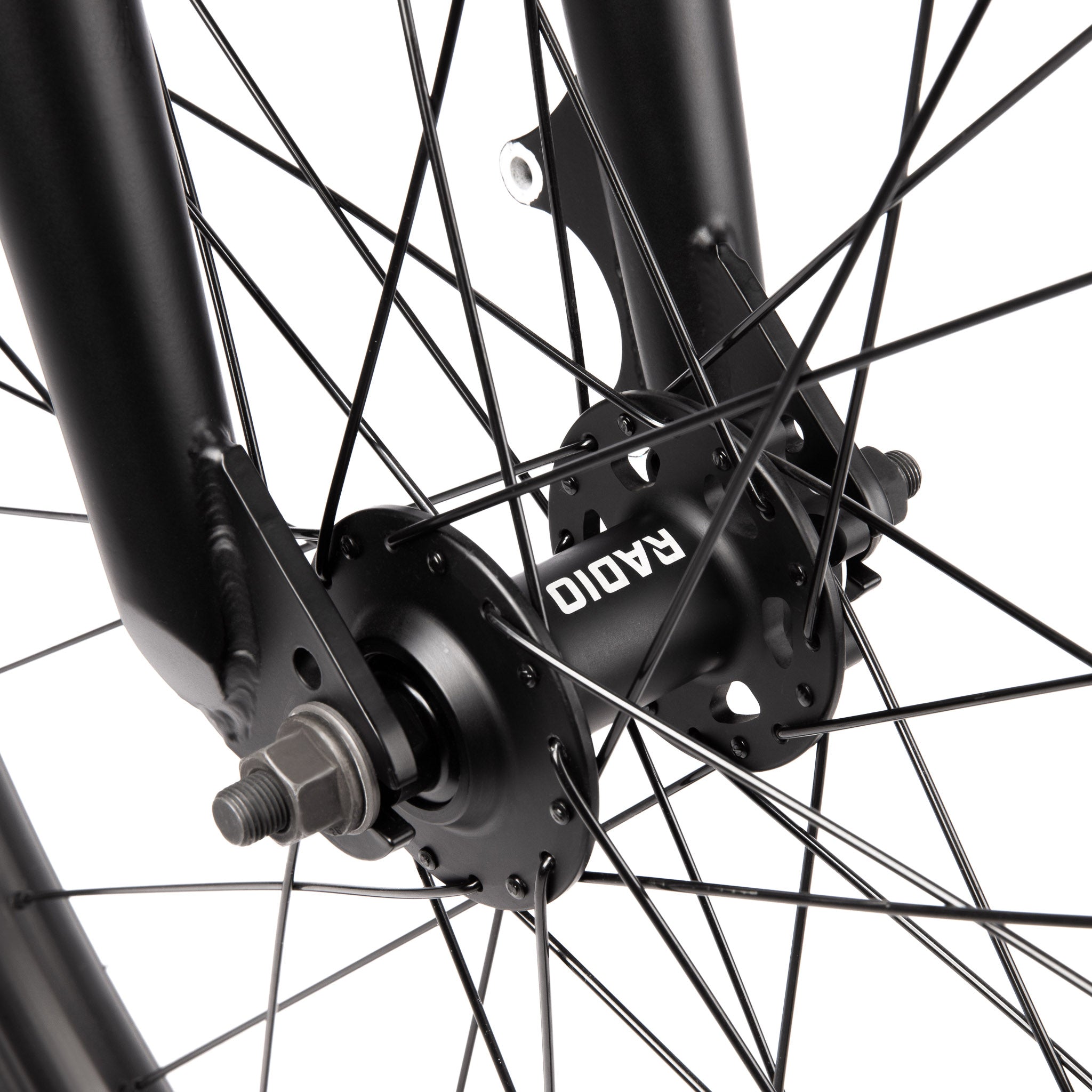

  • FRONT HUB: RADIO "AM-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h

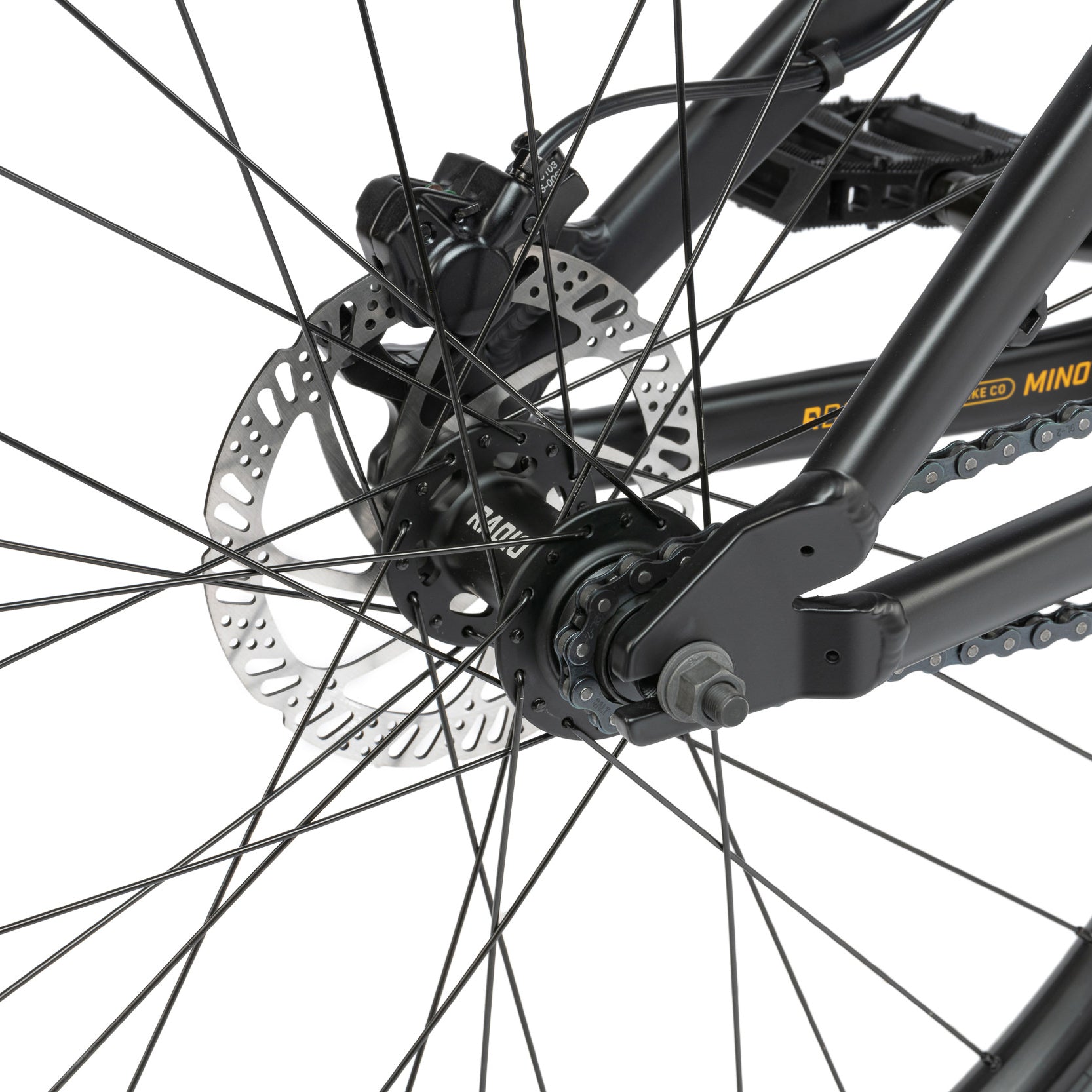

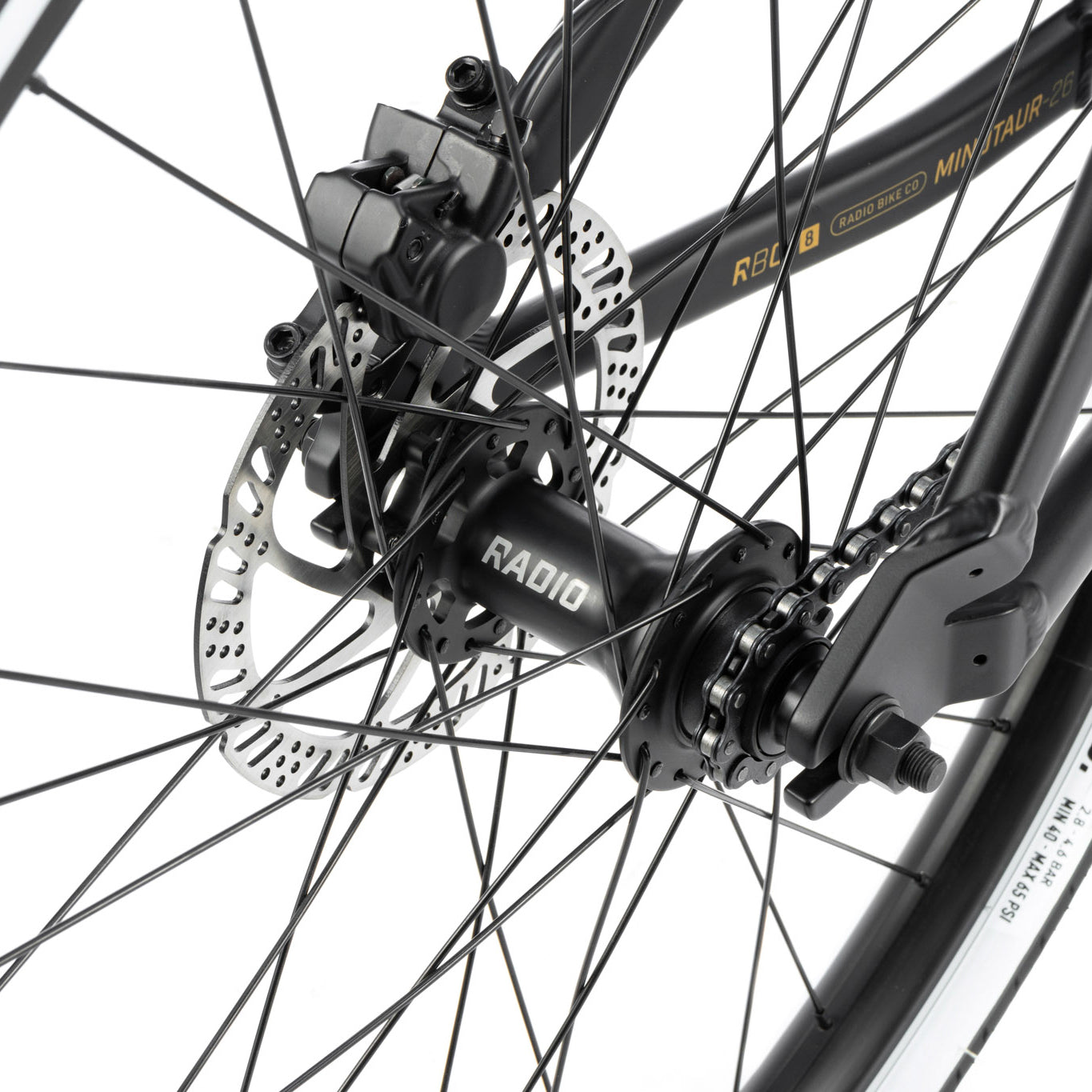

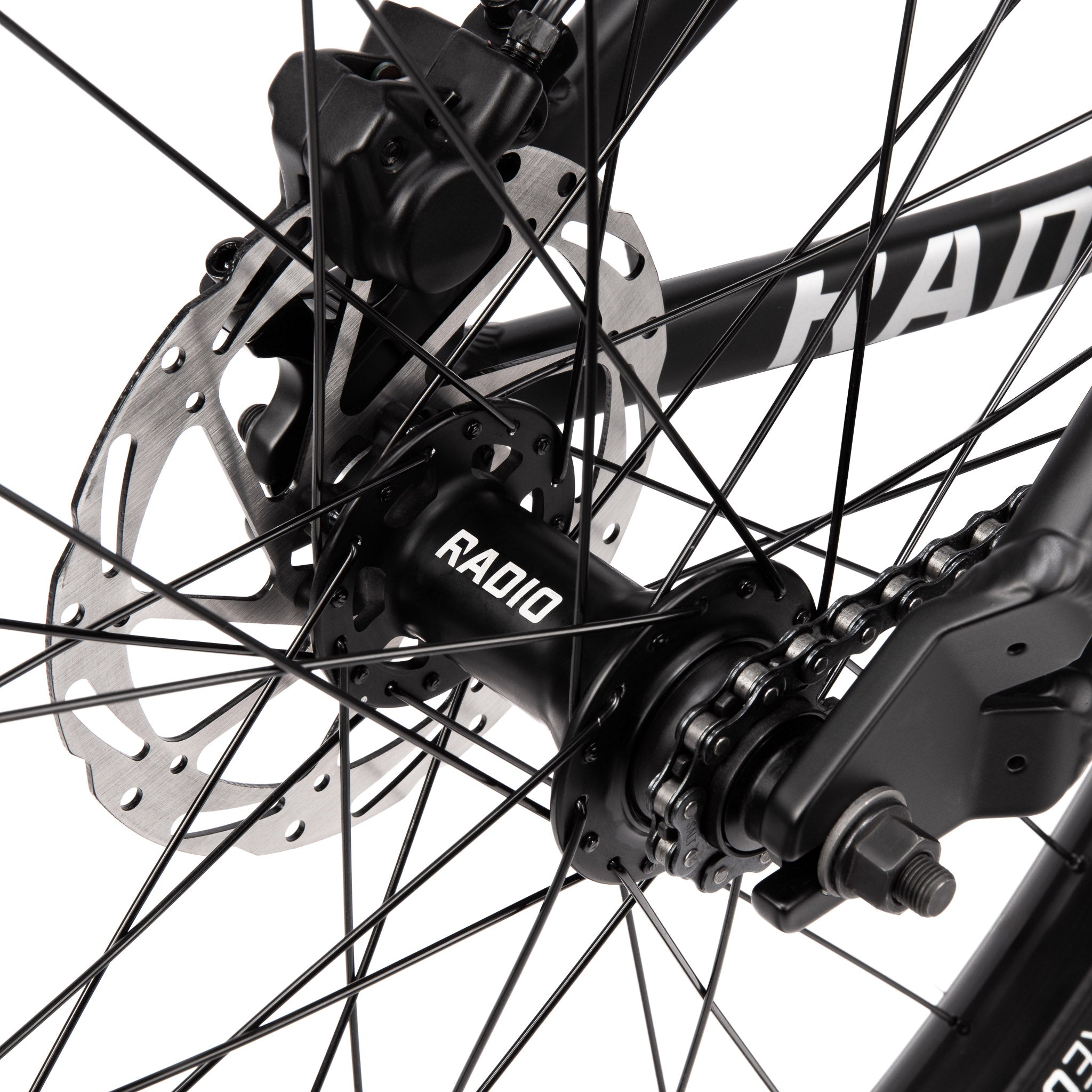

  • REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
  • FRONT RIM: RADIO "DB30" rim, double wall
  • REAR RIM: RADIO "DB30" rim, double wall

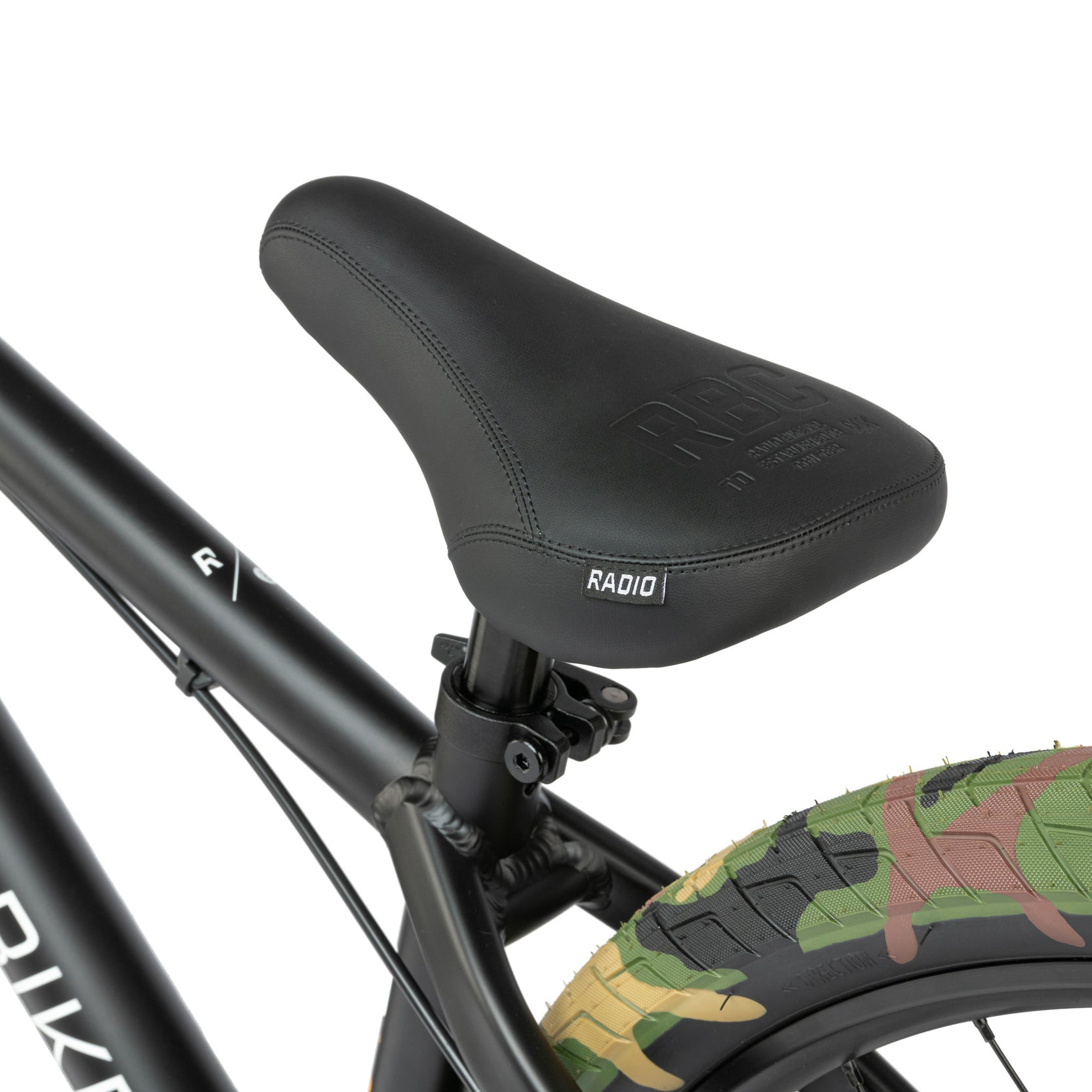

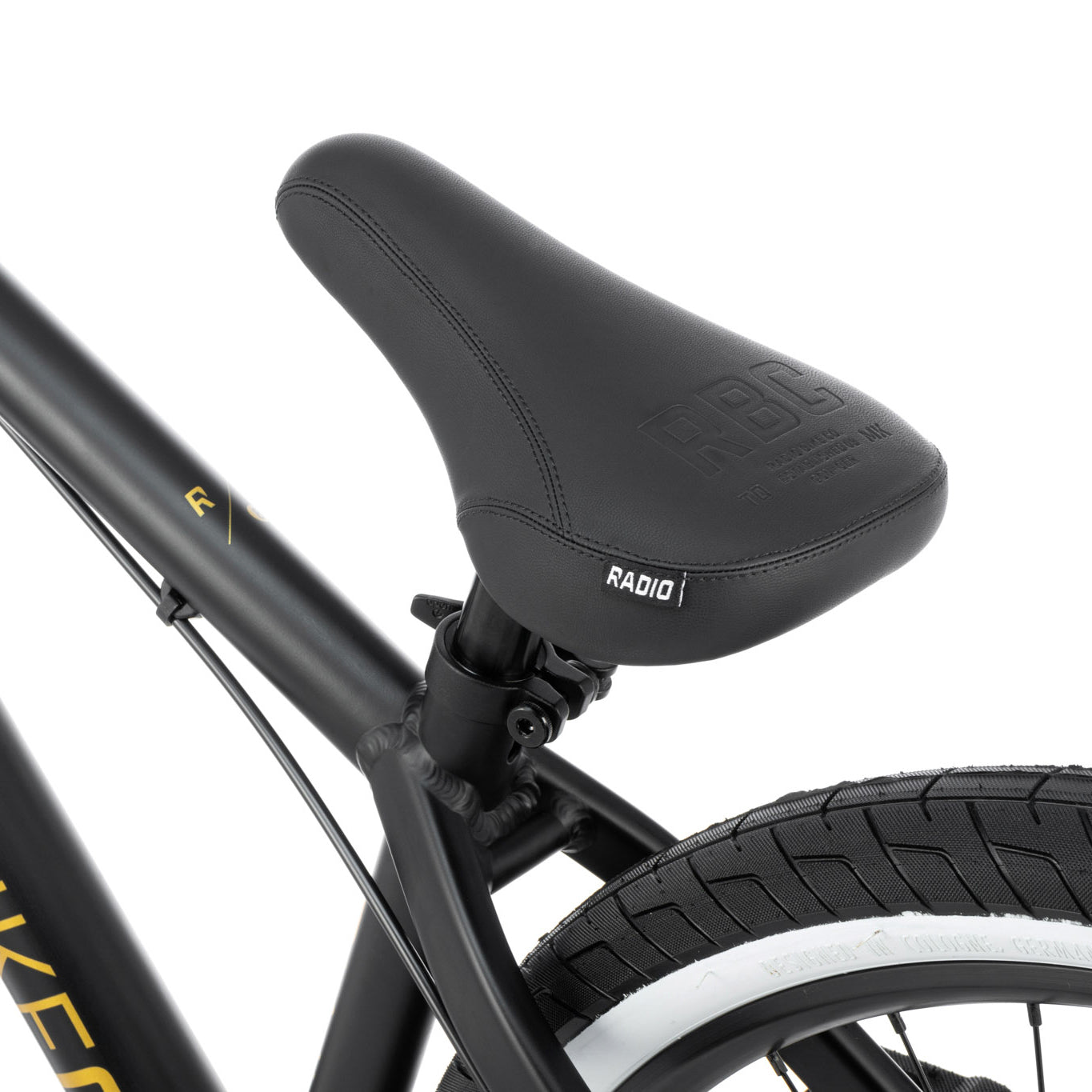

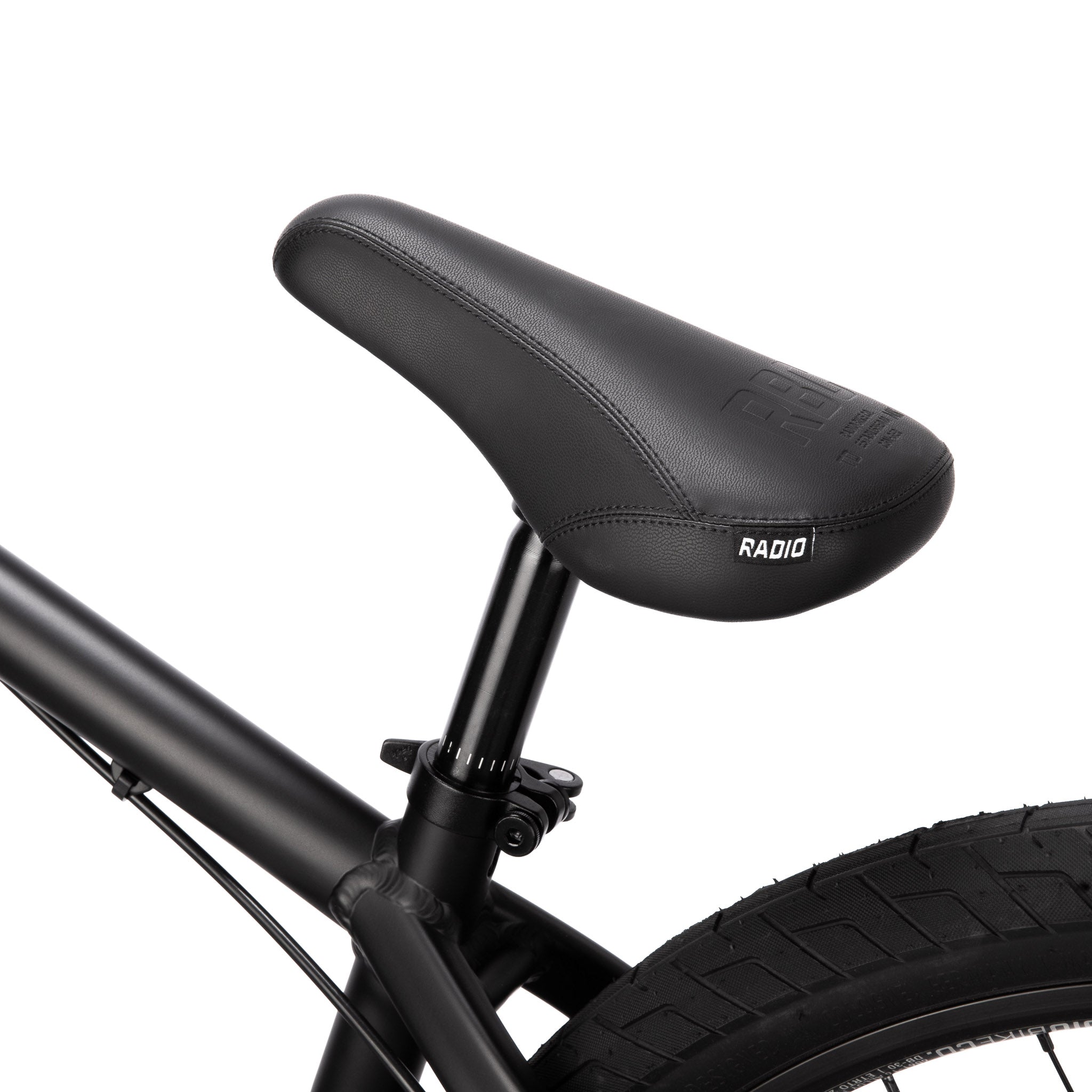

  • SEAT: RADIO "DJ" combo seat, medium padded

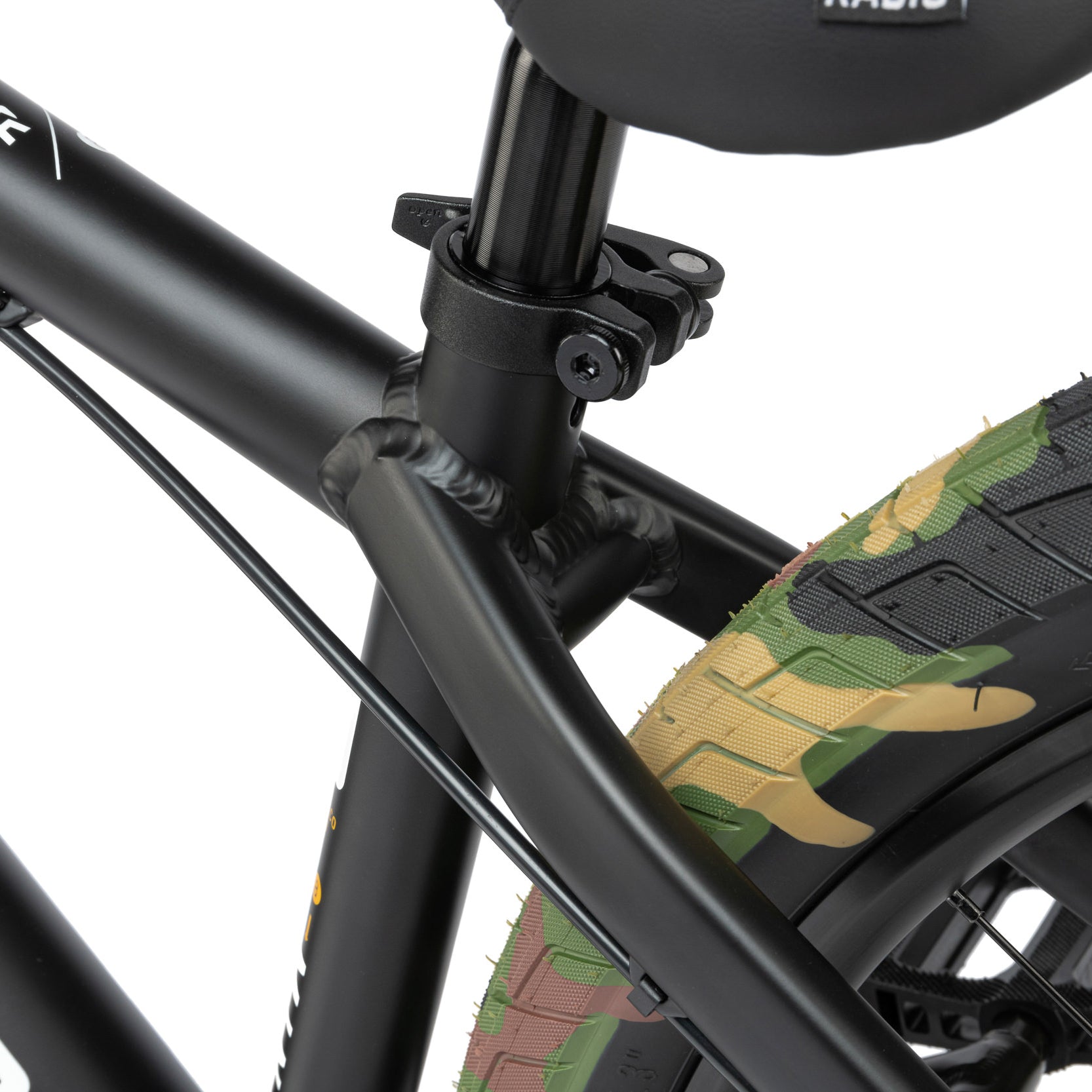

  • SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy

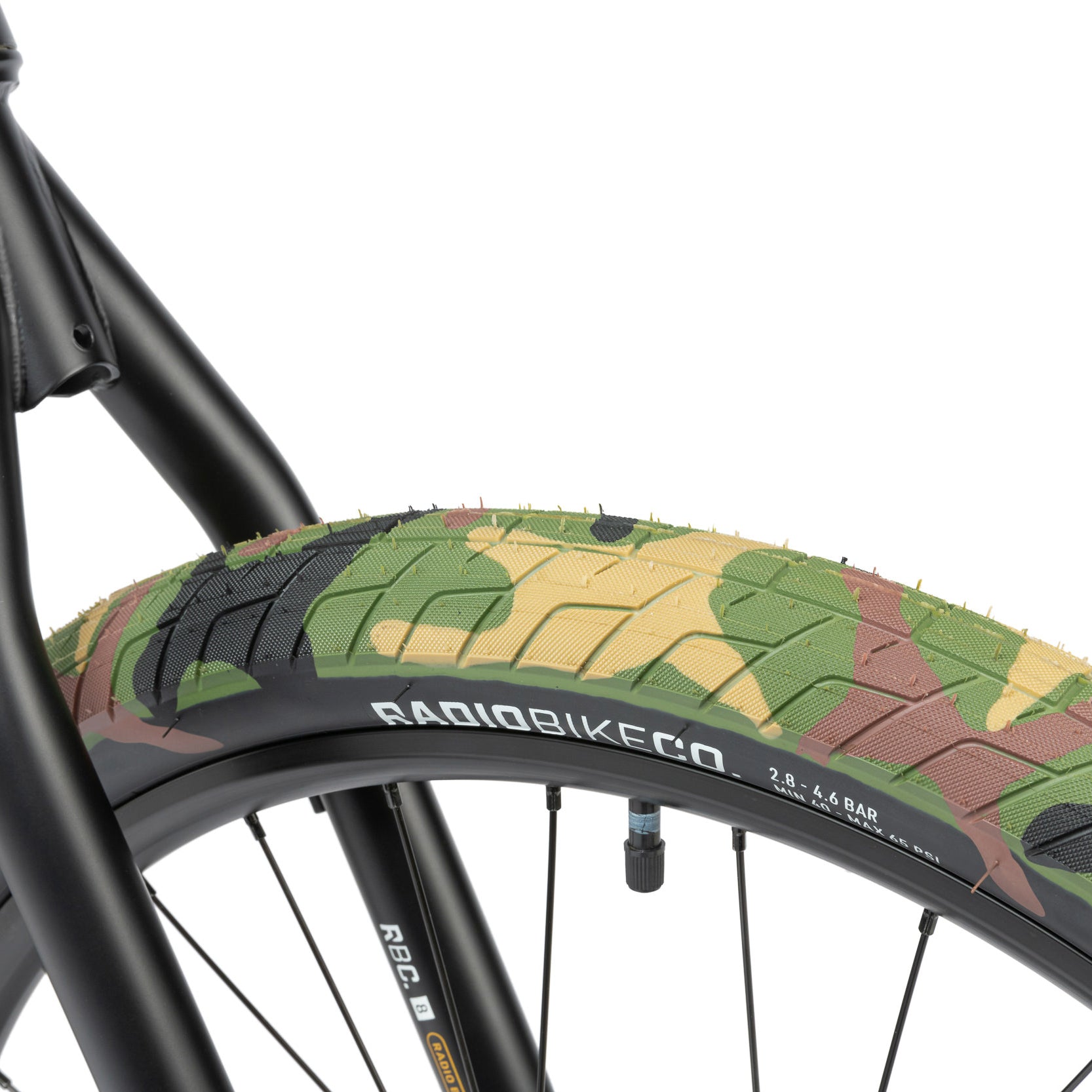

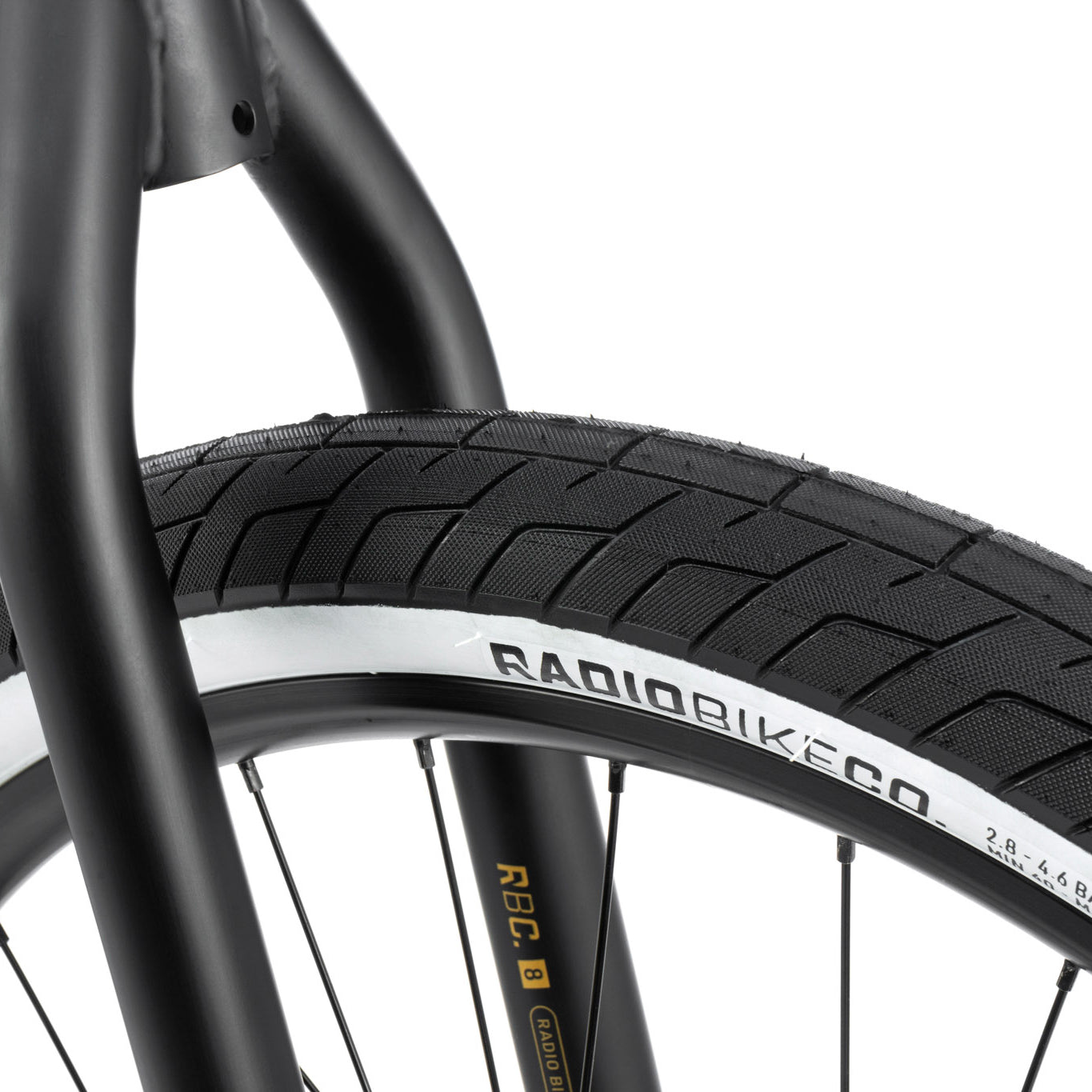

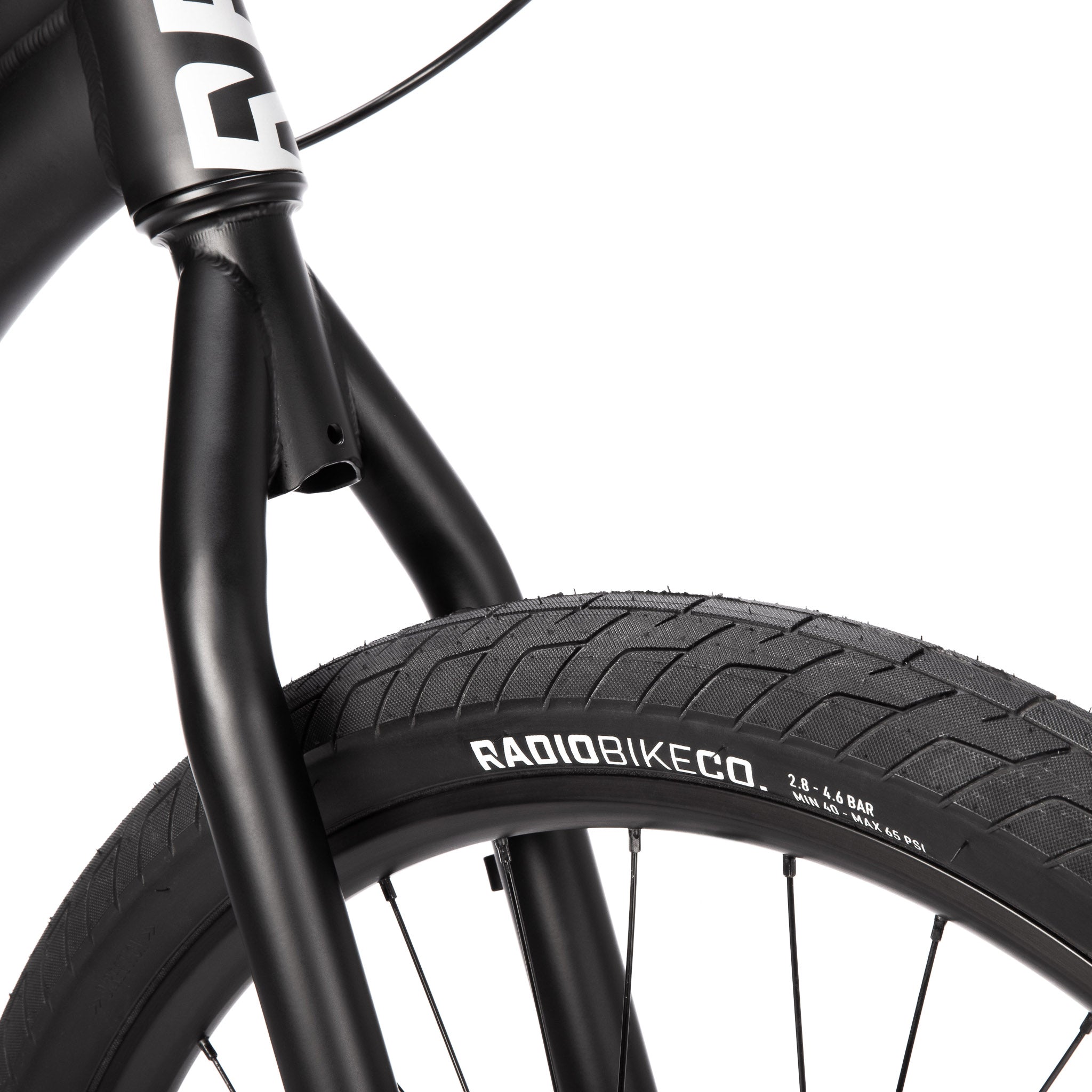

  • TIRES: RADIO “Stratus” tires, 2.3″, front & rear

Weight: 11.87kg / 26.17lbs



Frame Geometry:

Top Tube Length 22.6"
Chain Stay Length 15"
Head Tube Angle 69°
Seat Tube Angle 72°
Bottom Bracket Height  20mm drop
Standover Height 11"



Handlebar Geometry:

Rise 50mm
Width 740mm
Backsweep
Upsweep



Toptube Length
Color
Wheelsize
