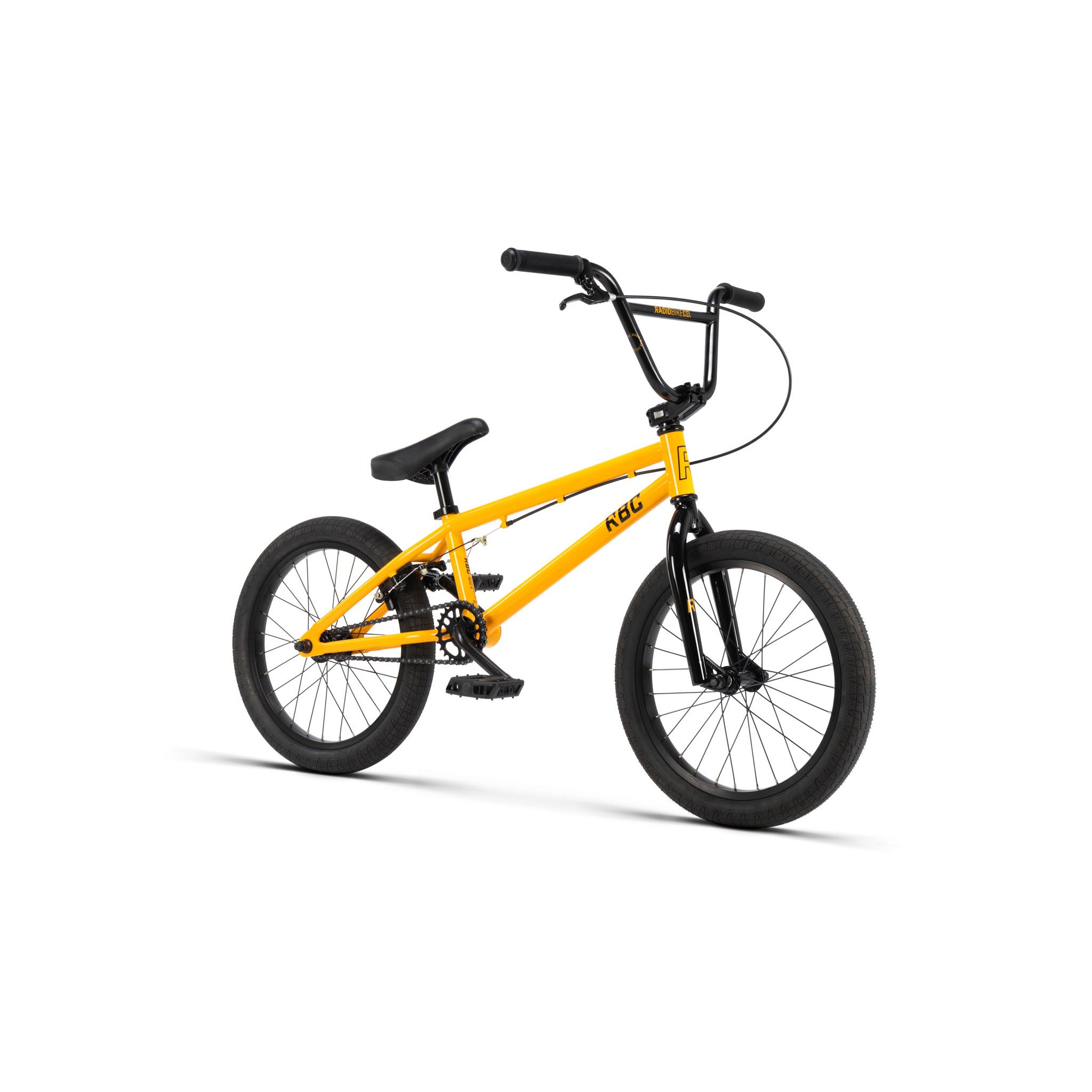

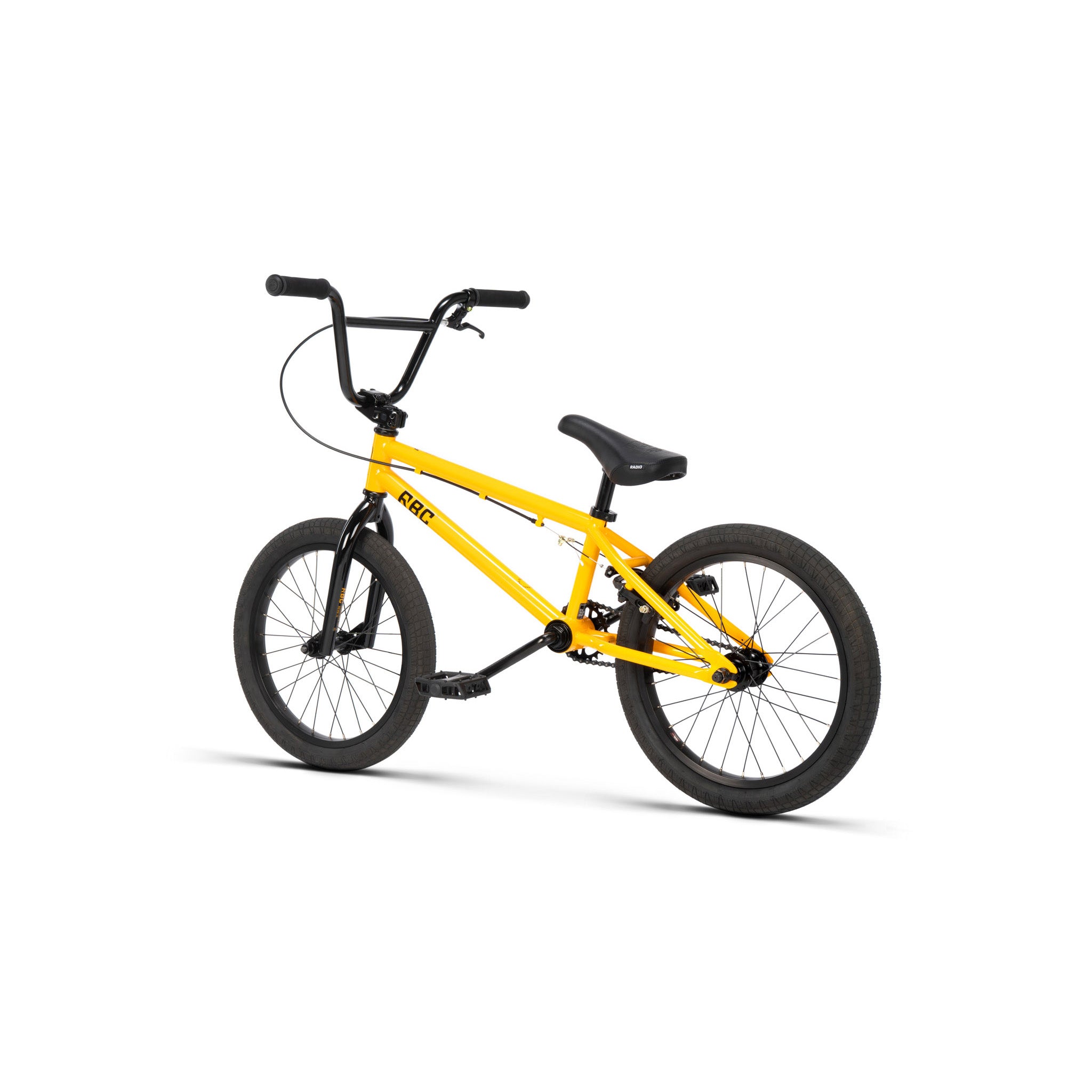

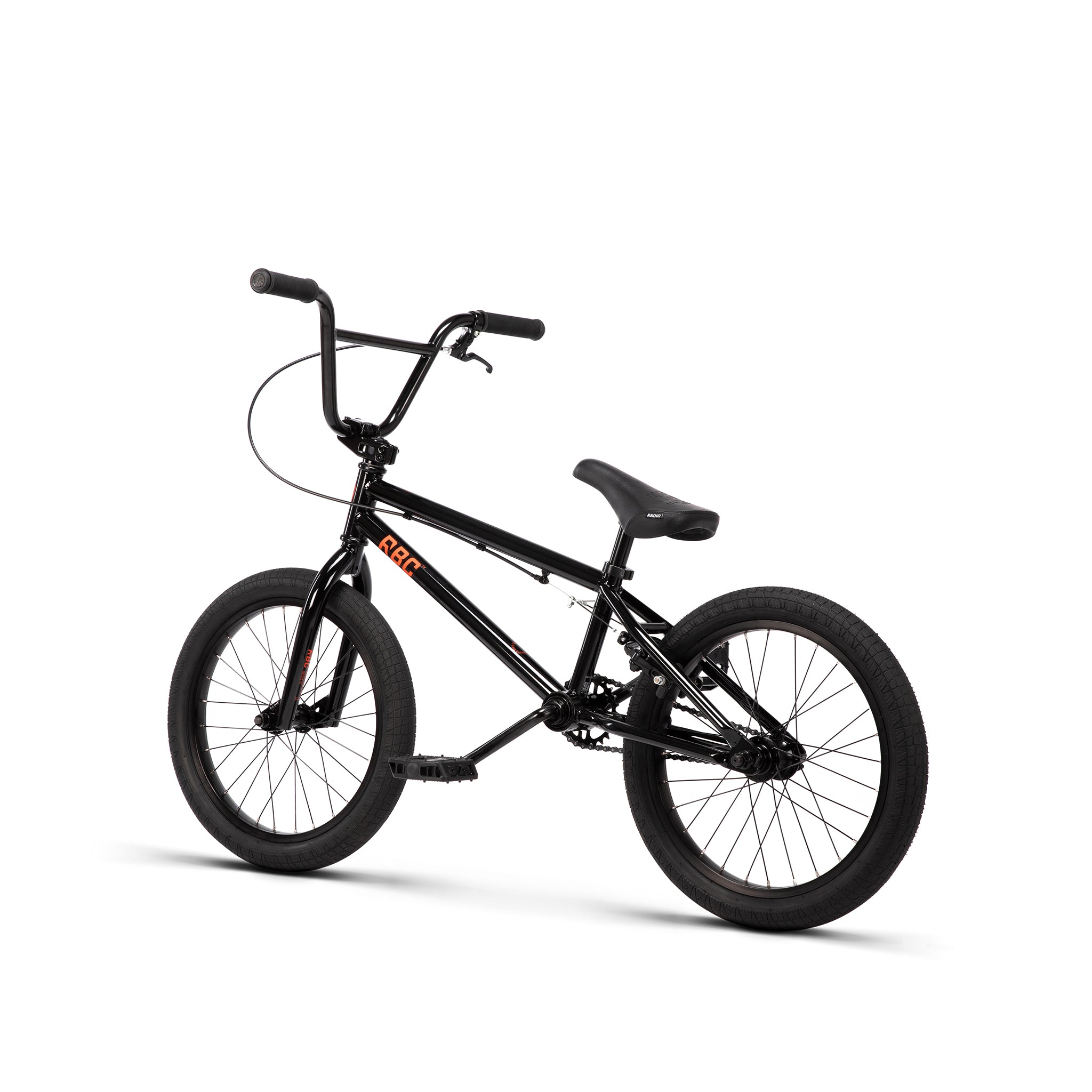

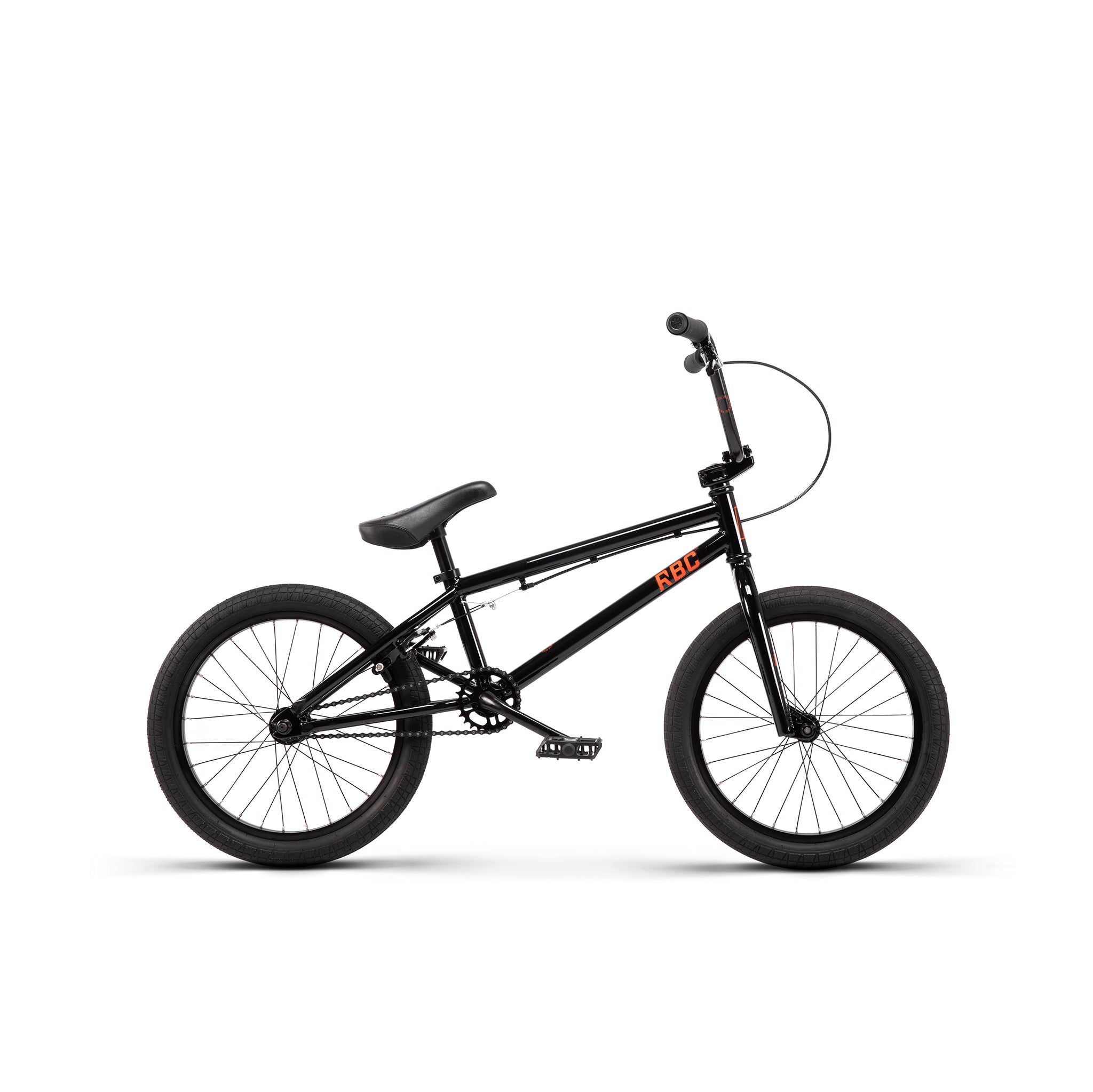

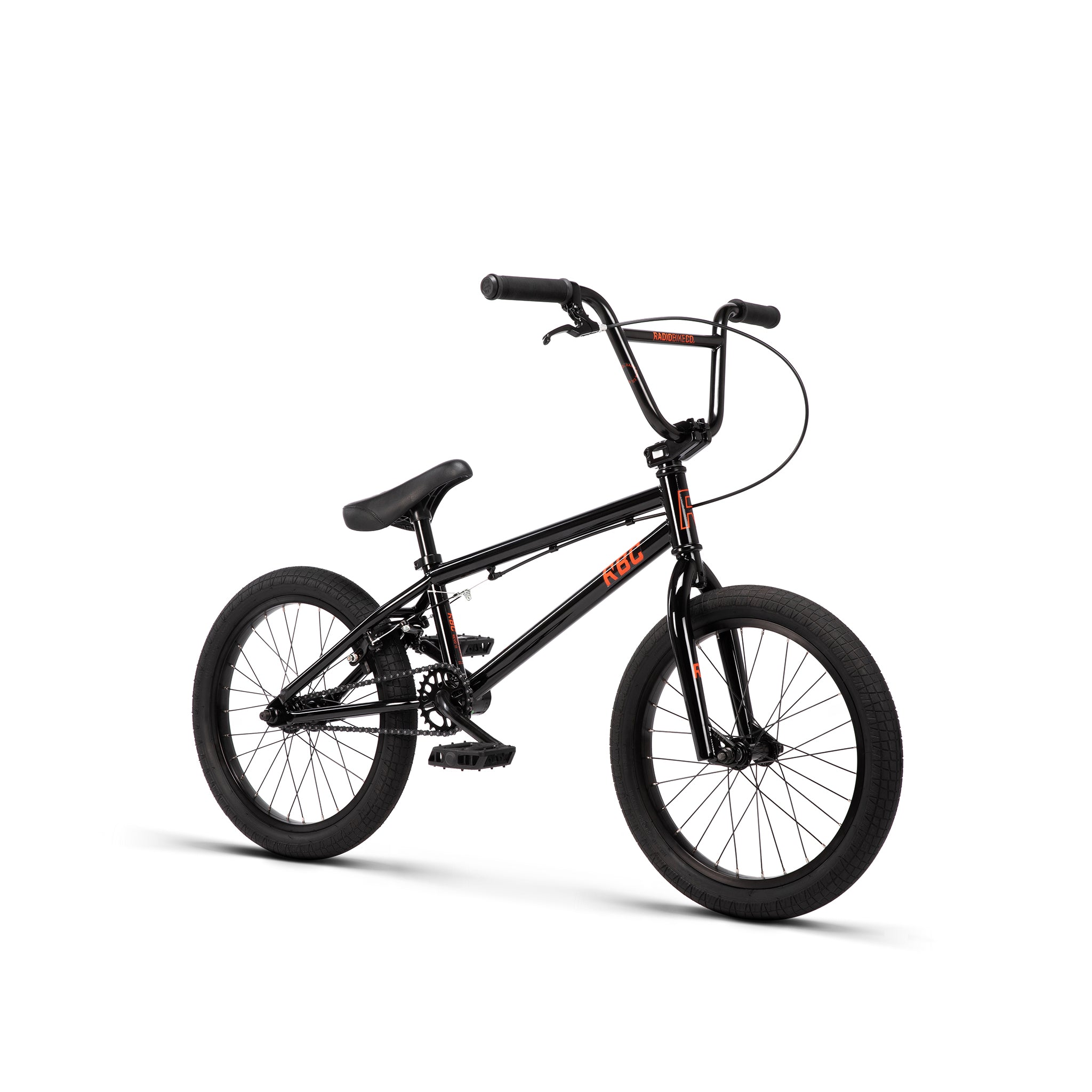

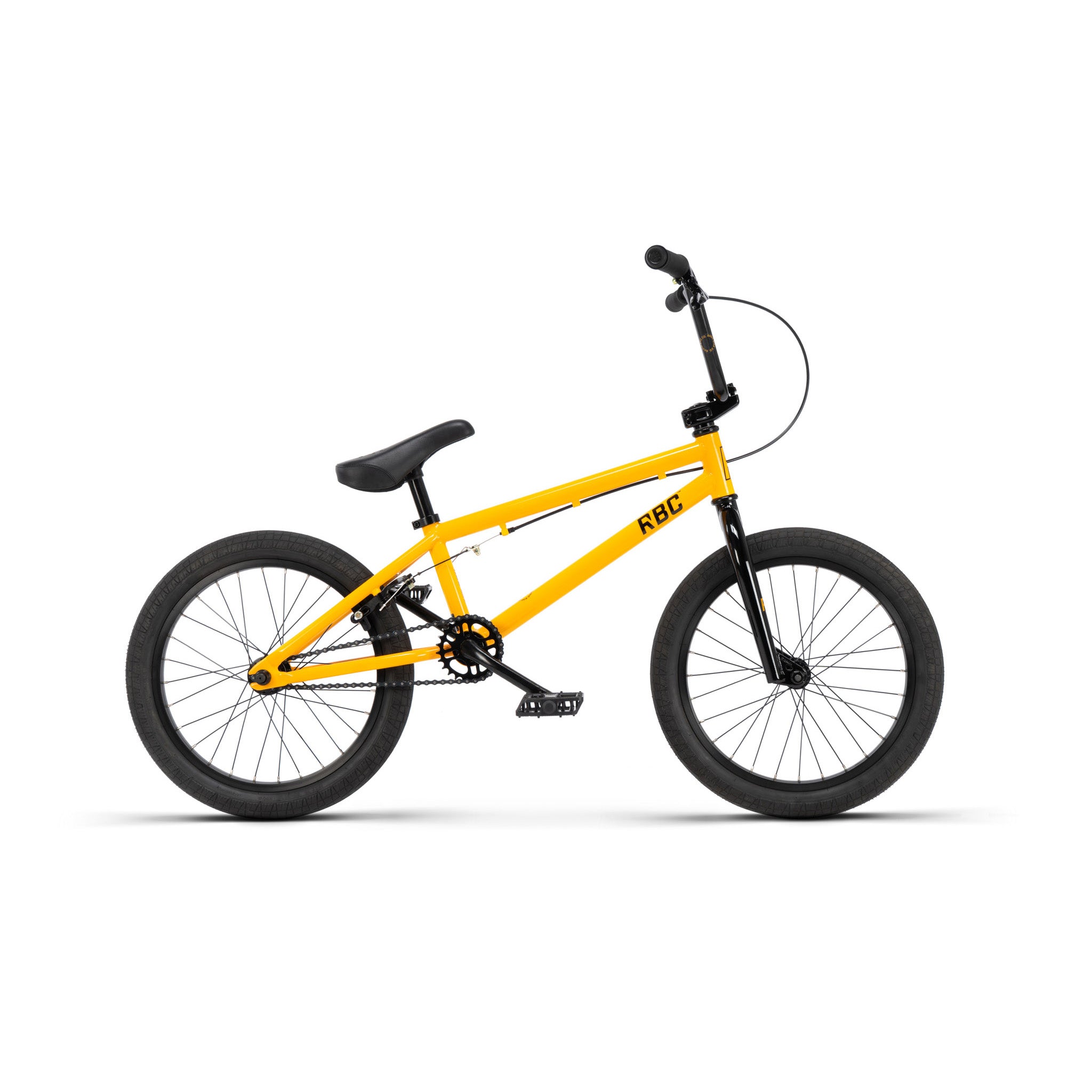

Revo 18" Complete Bike

Start your BMX journey the right way with the Revo line. Built to deliver an authentic freestyle riding experience, the Revo combines durability, performance, and incredible value in one complete package. Every component has been carefully selected to ensure the bike is ready to shred straight out of the box, easy to maintain, and upgradeable as your skills progress. Loaded with features like 25-9 gearing, tapered fork legs, and short, responsive pro-inspired geometry, the Revo is designed to help riders progress faster and have more fun doing it.

The Revo 18" is built for young riders ready to take their BMX progression to the next level. Sitting just below a full-size 20"" bike, it provides a perfect fit with a quick, responsive feel. With influences from our Dice 18"", features like the lightweight slim combo saddle and 25-9 gearing give the Revo 18" the style and performance of a pro-level complete bike.

Full Spec:

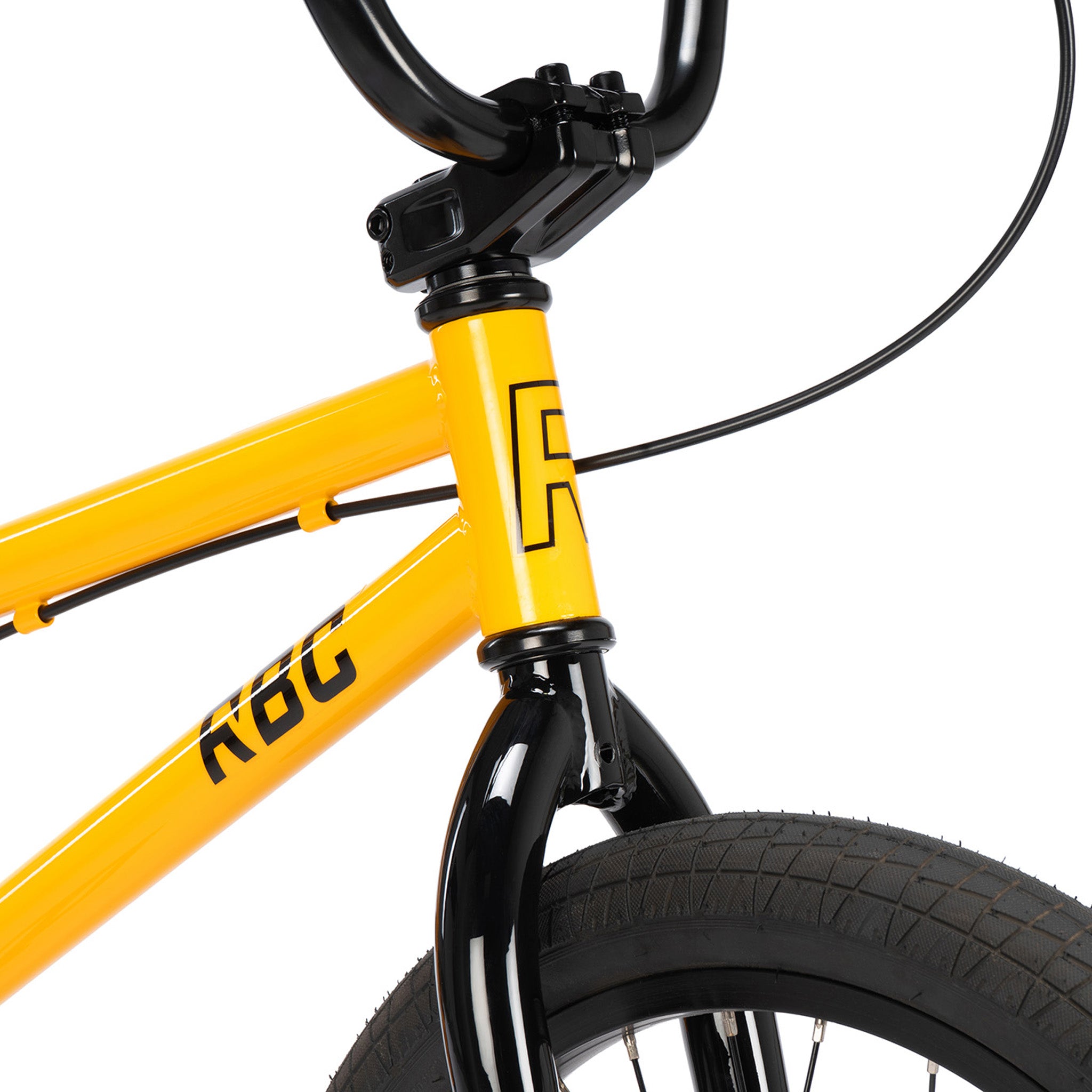

  • FRAME: RADIO “REVO 18” frame, full 1020 hi-ten

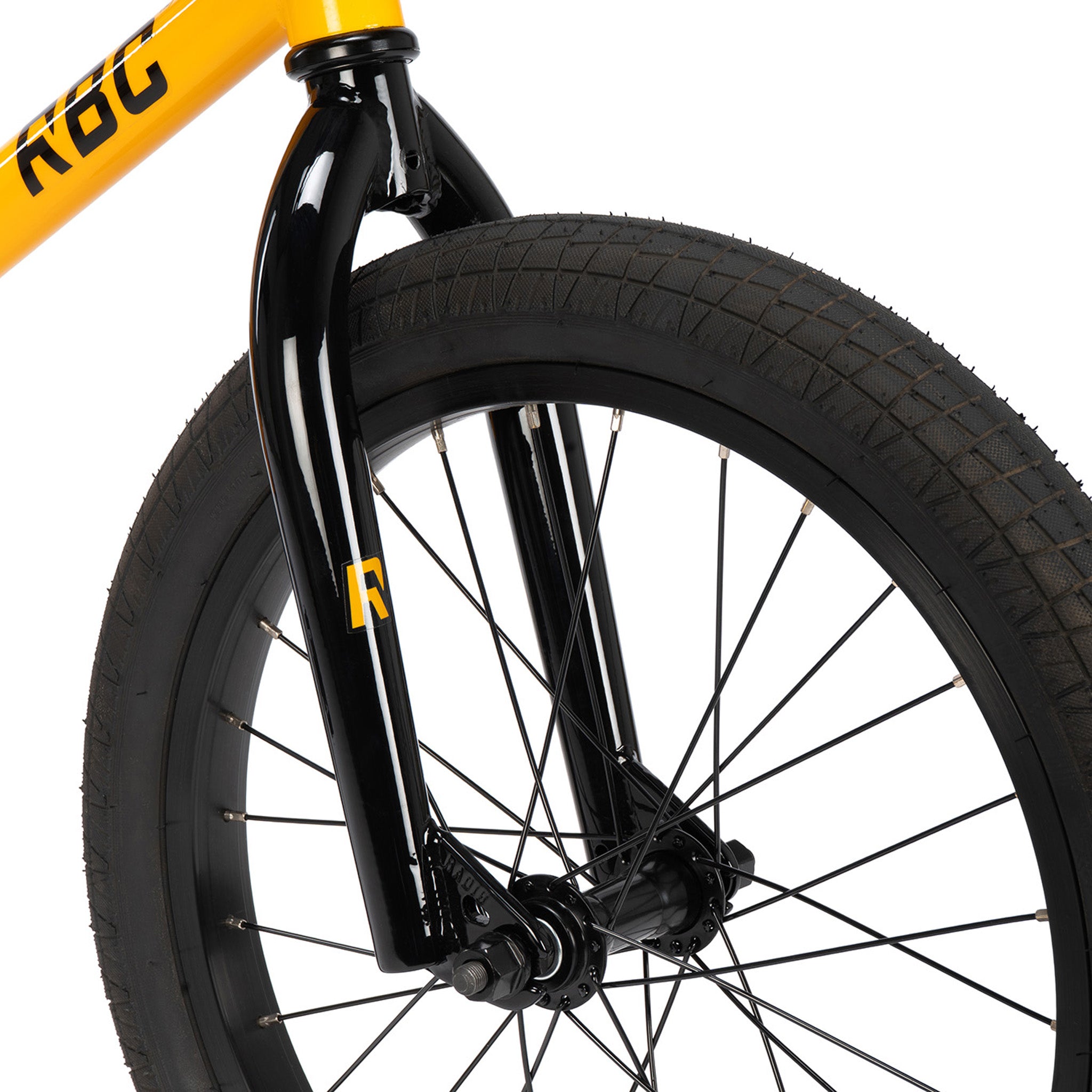

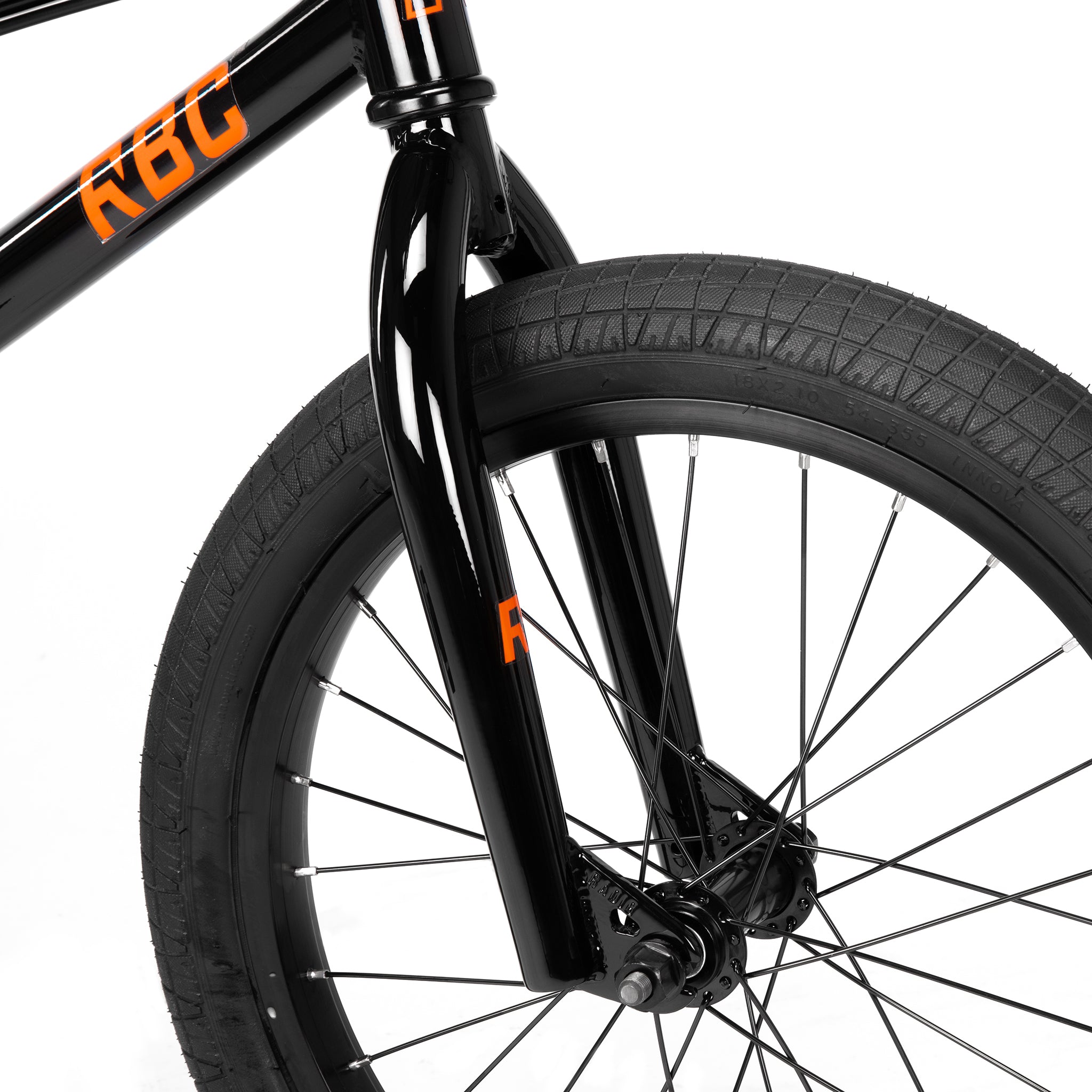

  • FORK: RADIO “ROOKIE 18” fork, hi-ten

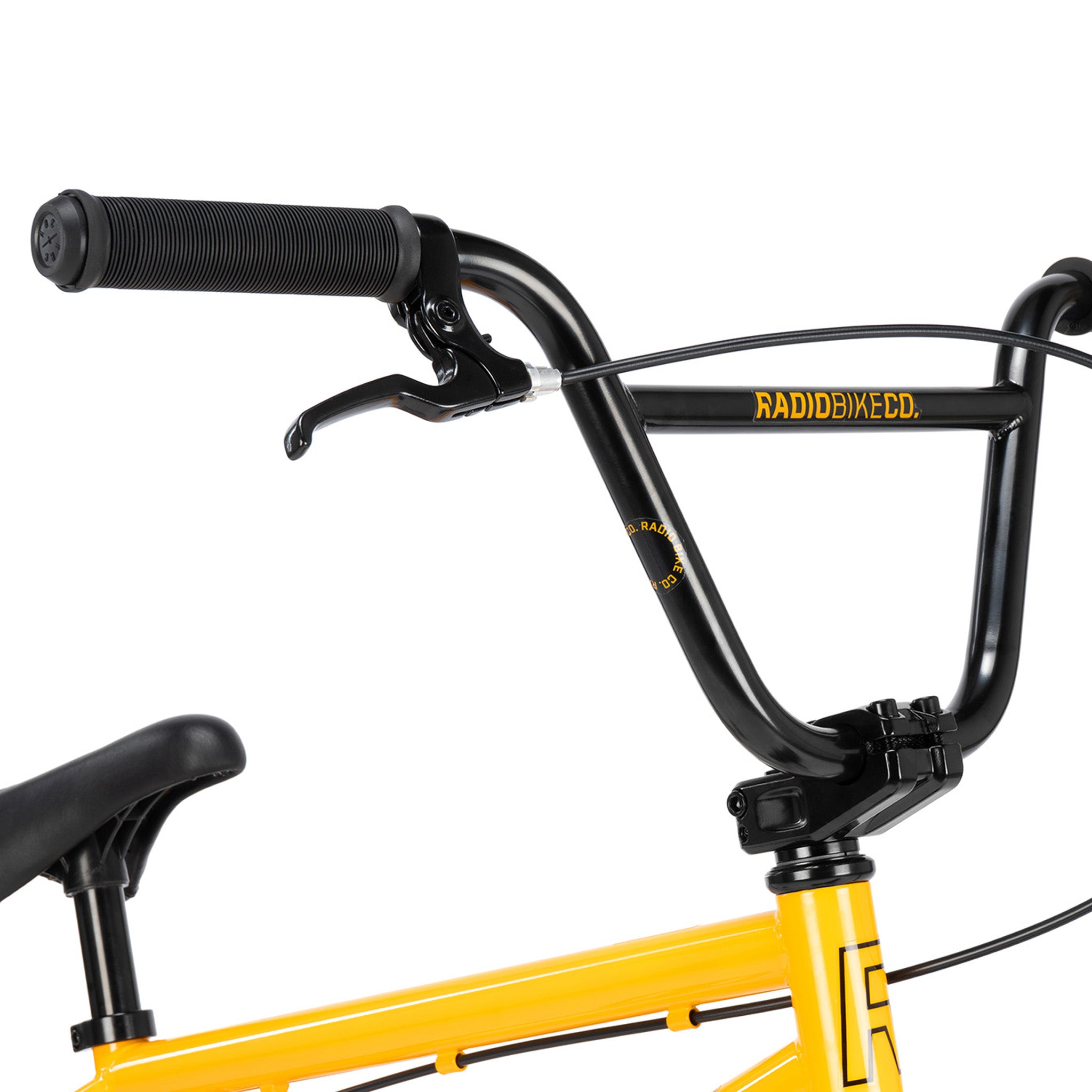

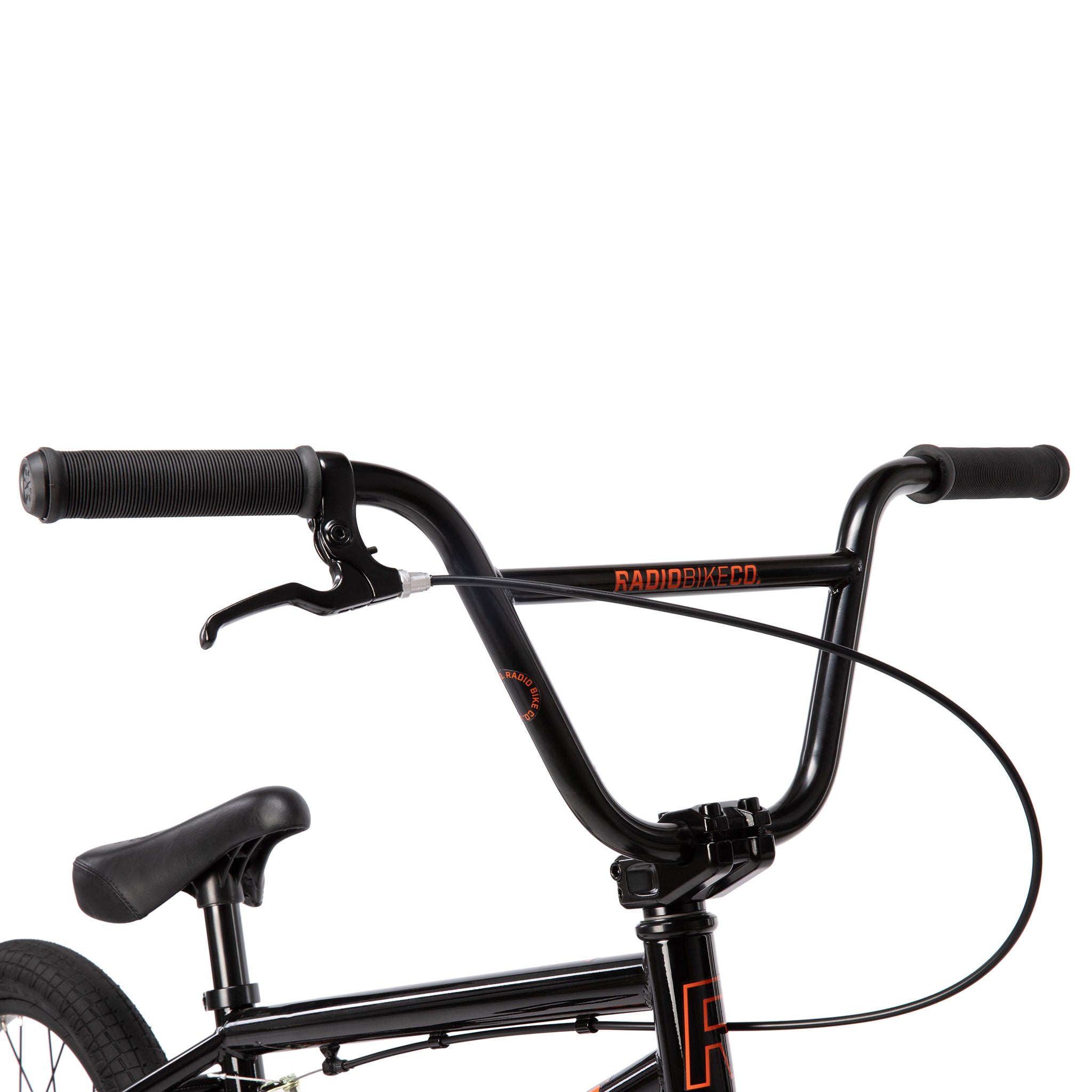

  • HANDLEBAR: RADIO “REVO 18” bar, hi-ten
  • GRIPS: RADIO “JUNIOR” grips, flangeless, 130mm

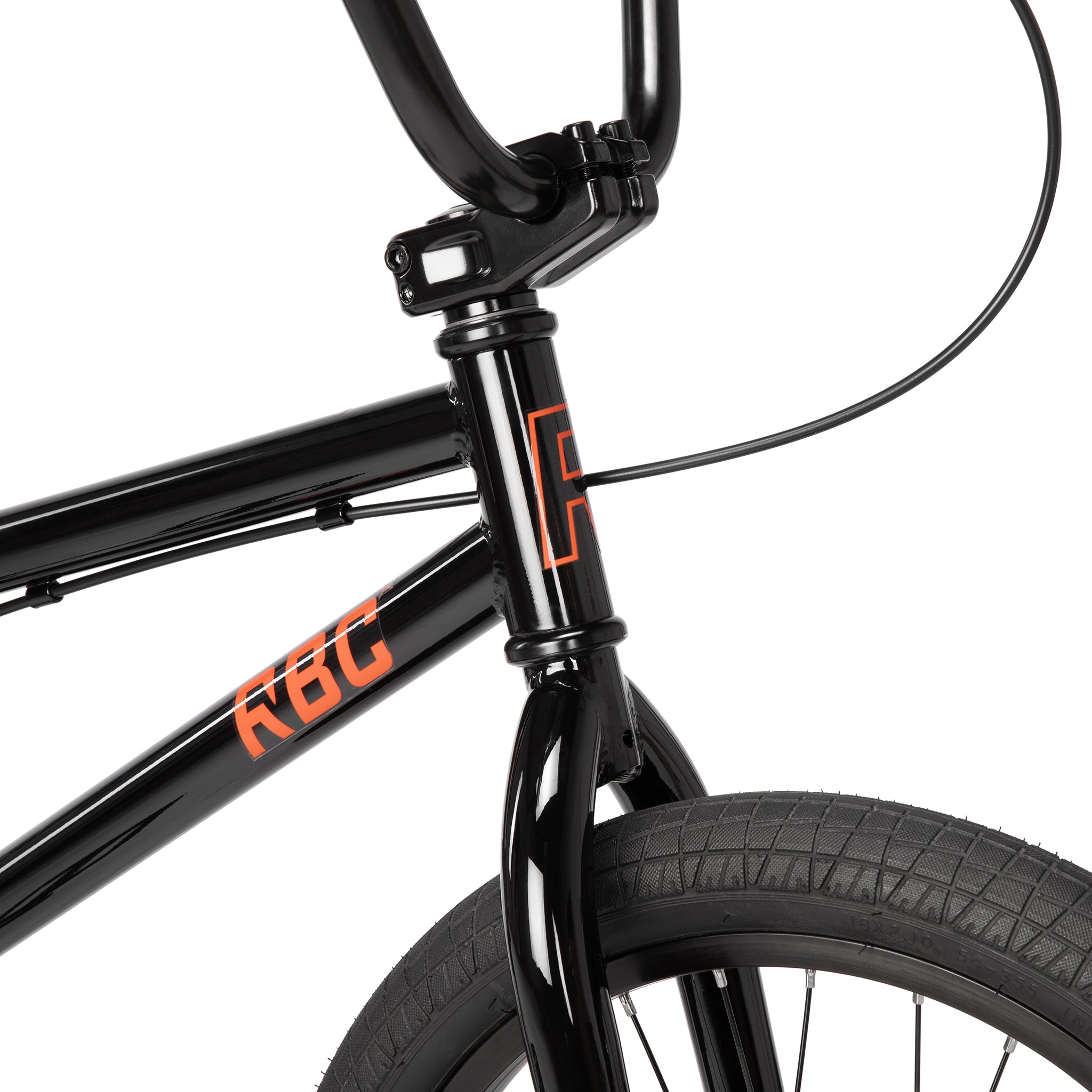

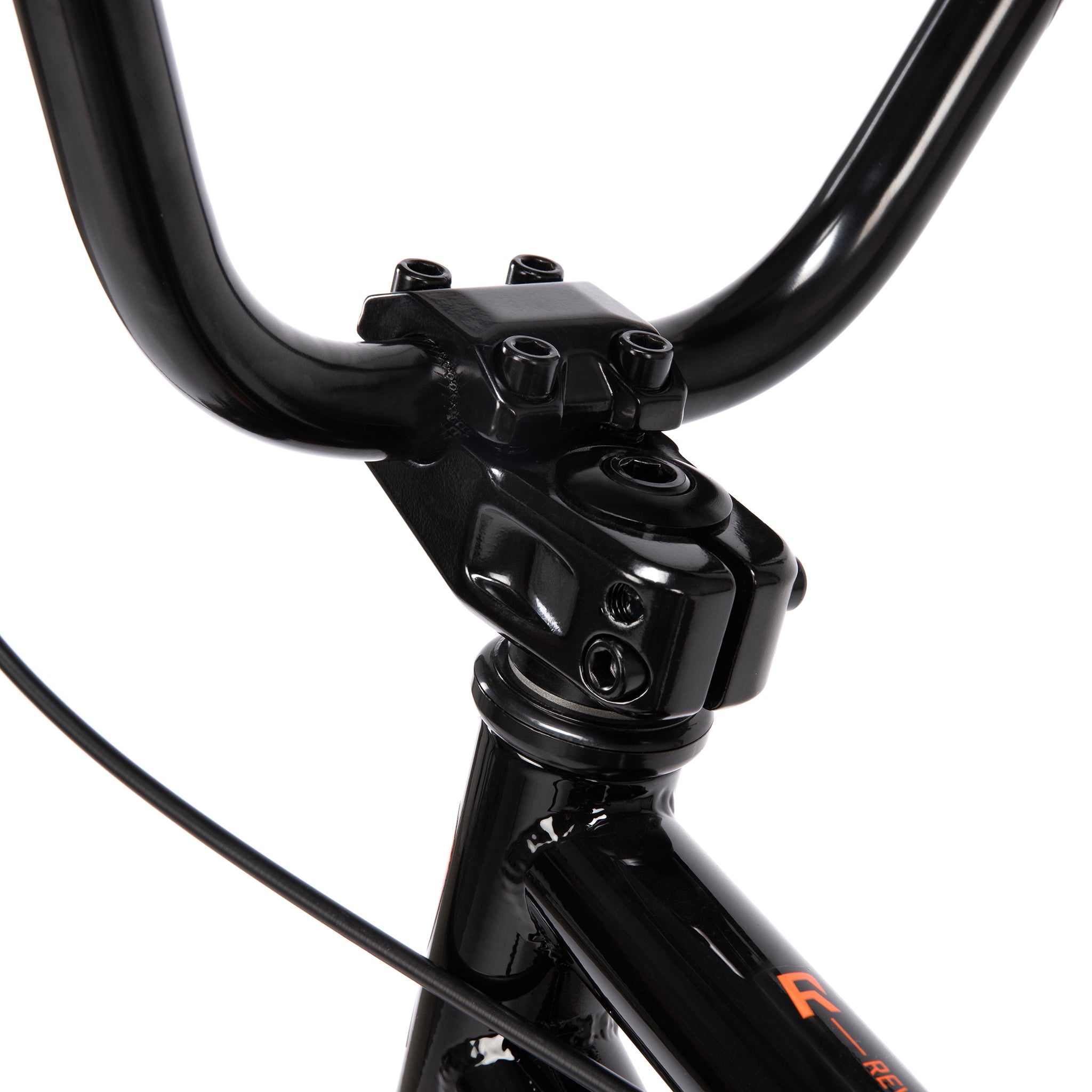

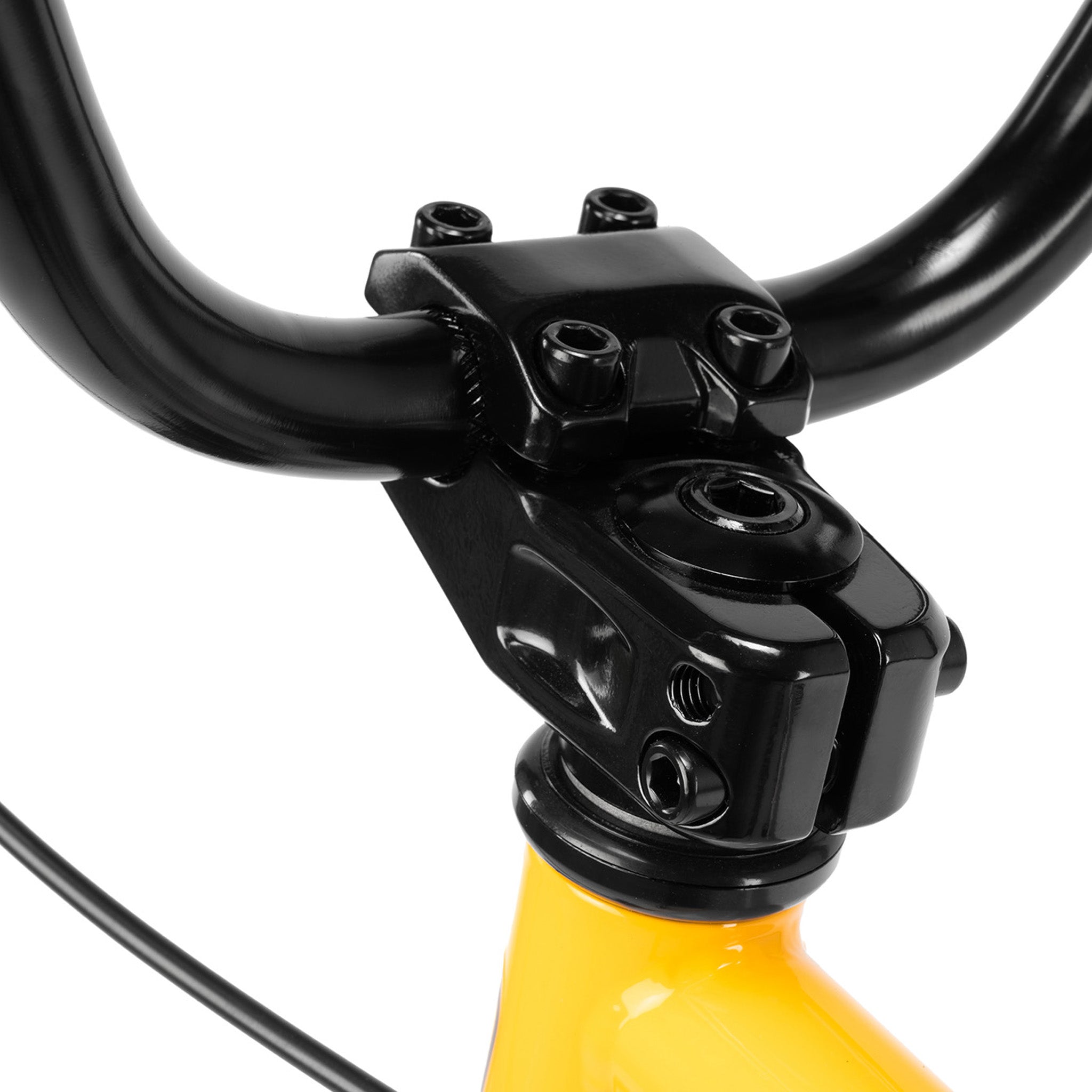

  • STEM: SALT “JUNIOR” topload stem, 40mm reach
  • HEADSET: FSA A-headset, loose ball

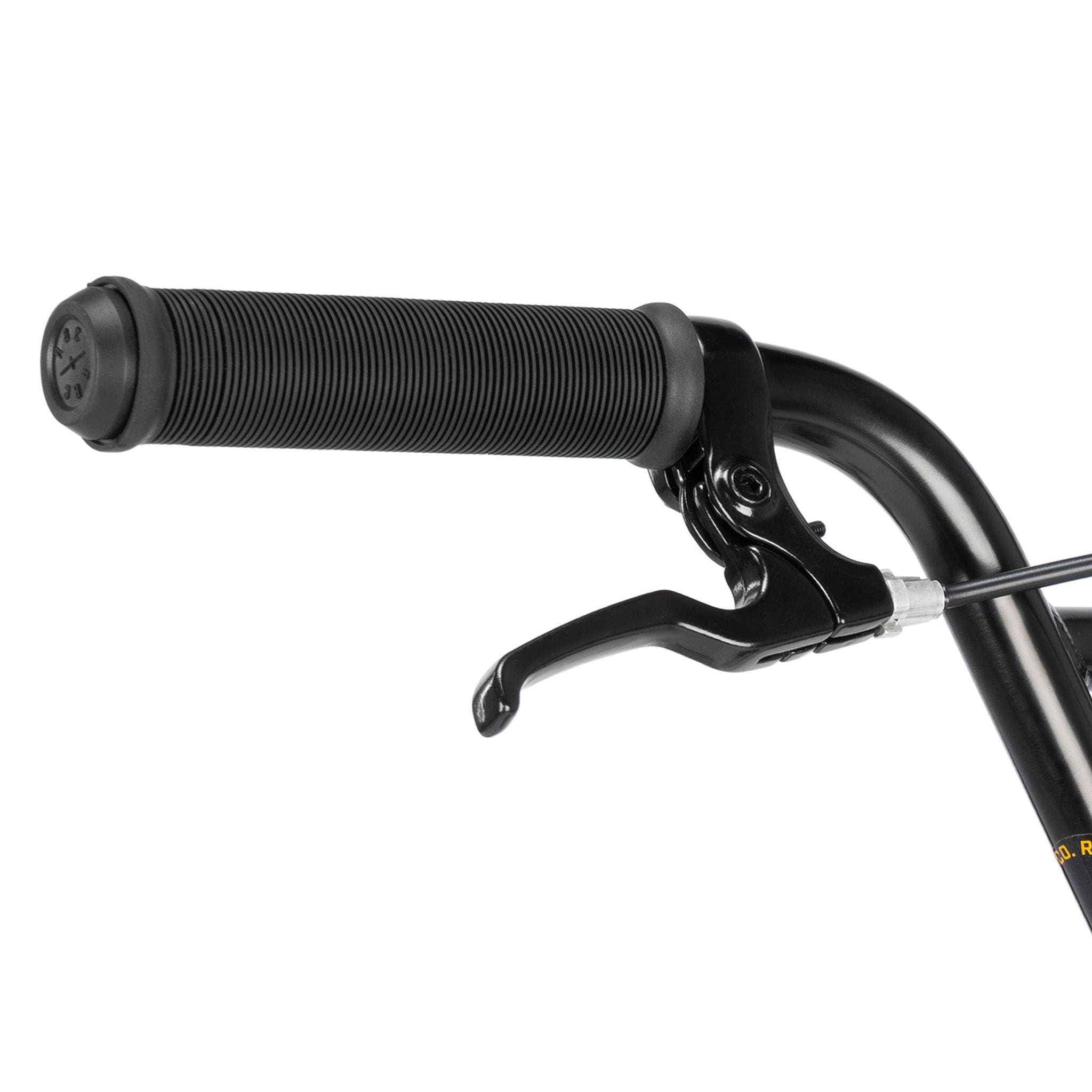

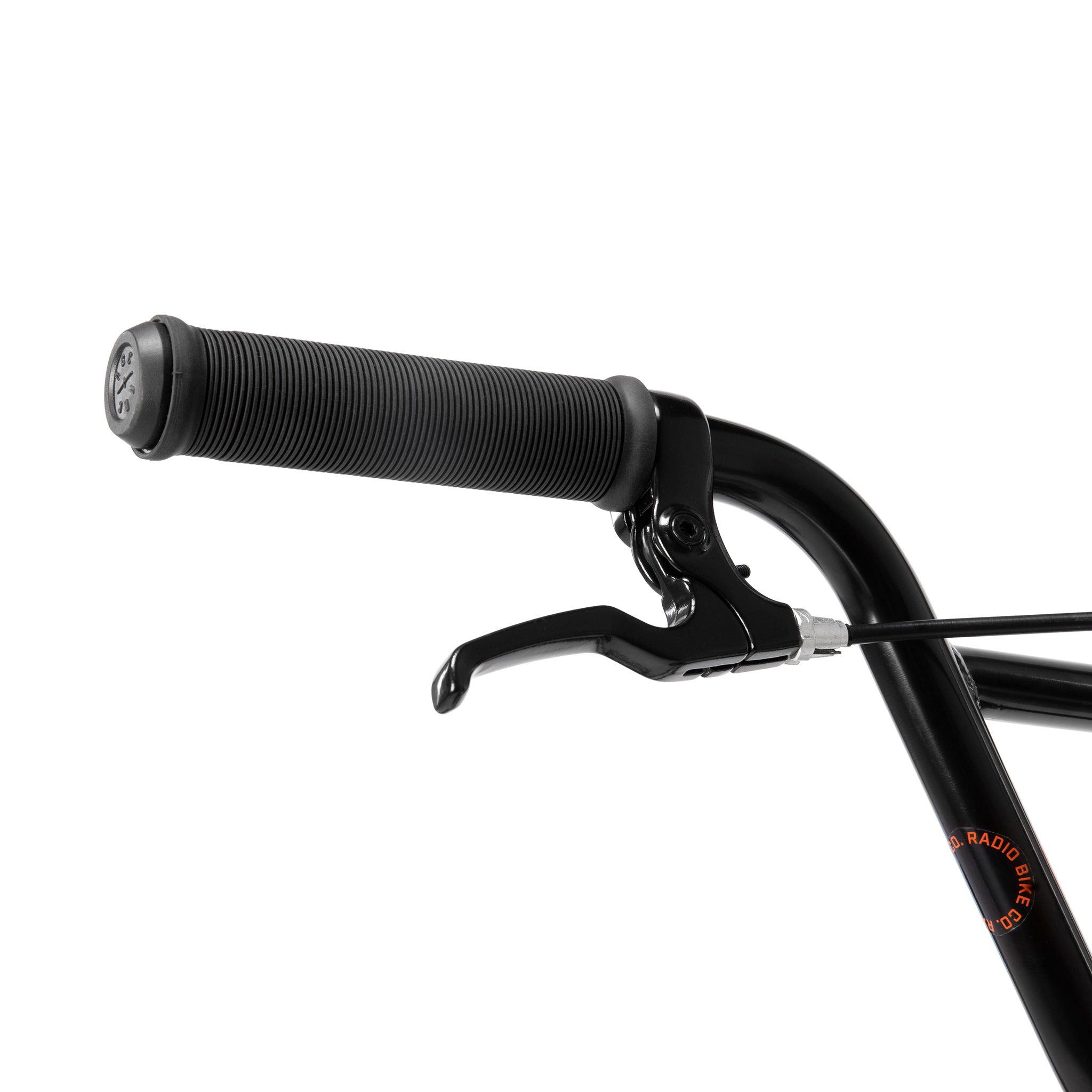

  • BRAKE LEVER: RADIO “AM” brake lever, alloy

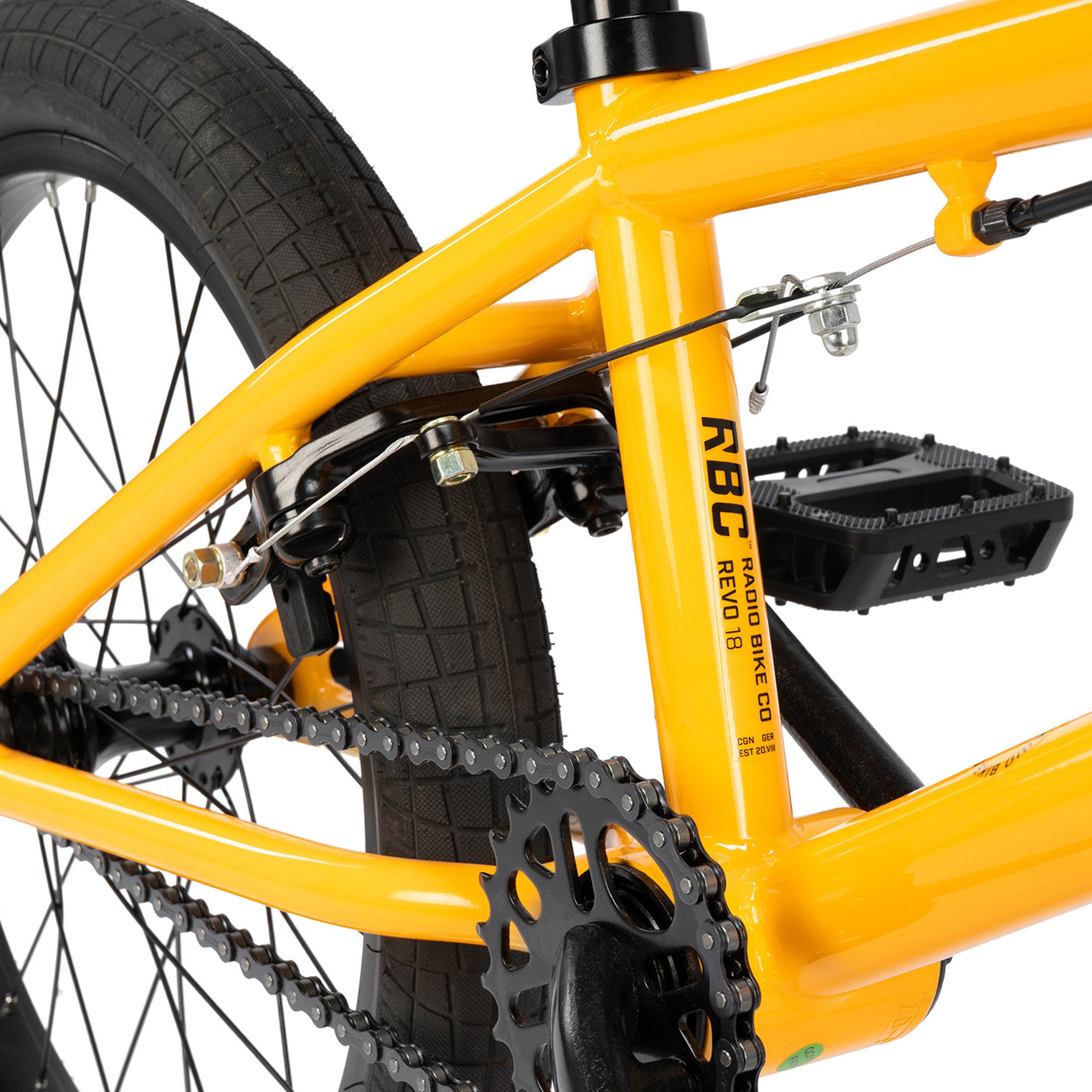

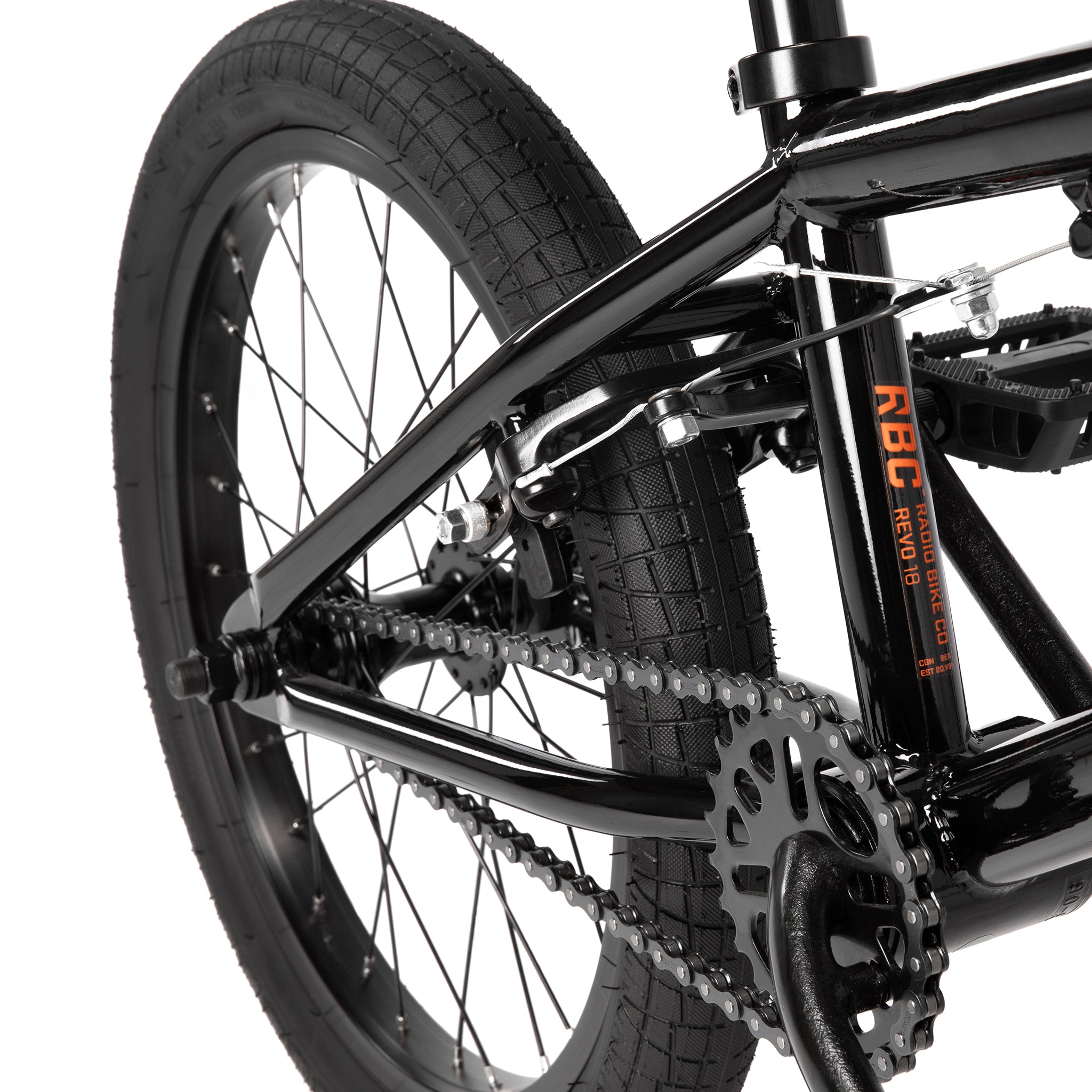

  • BRAKE: RADIO “AM” caliper brake, alloy, front / RADIO “AM-U” u-brake, alloy, rear

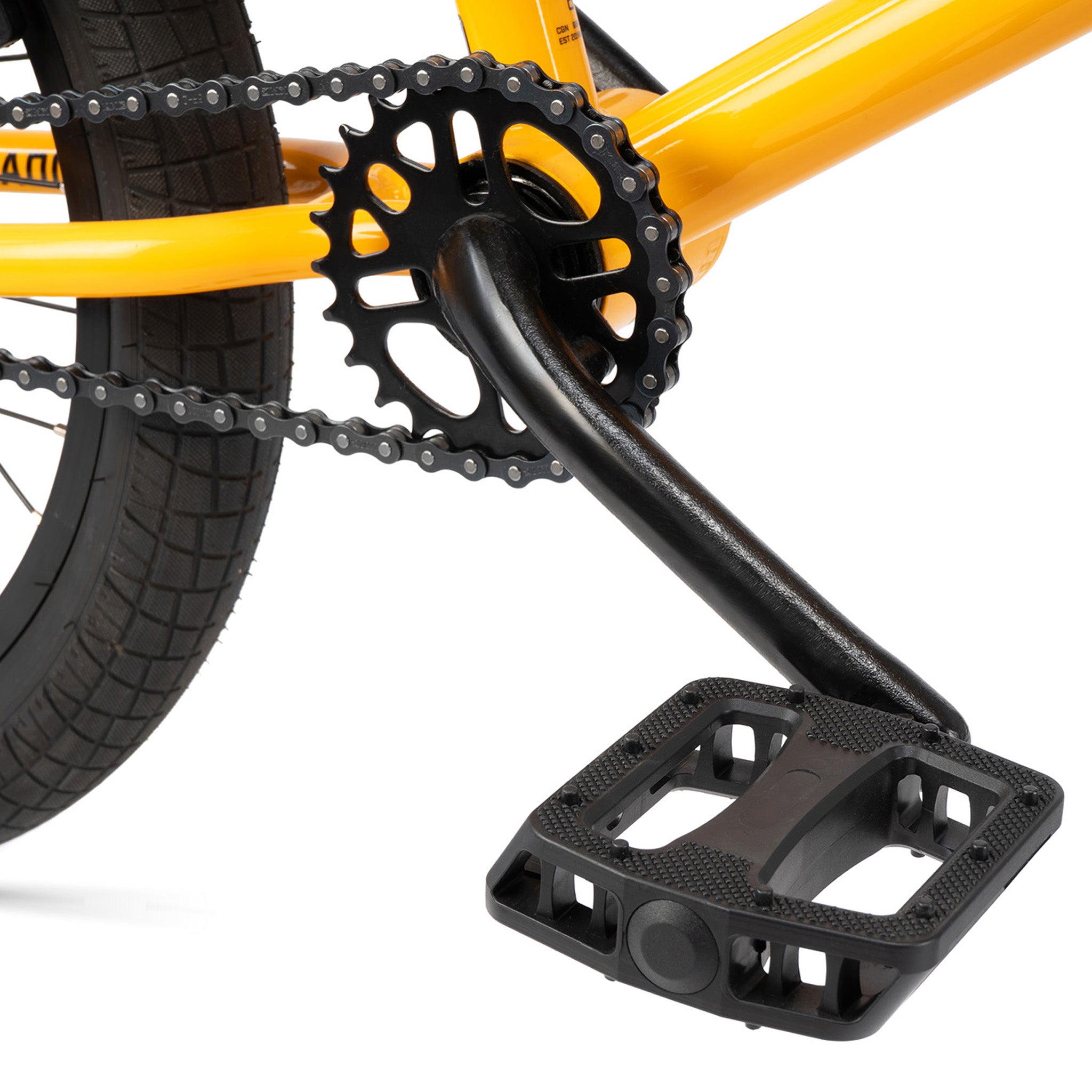

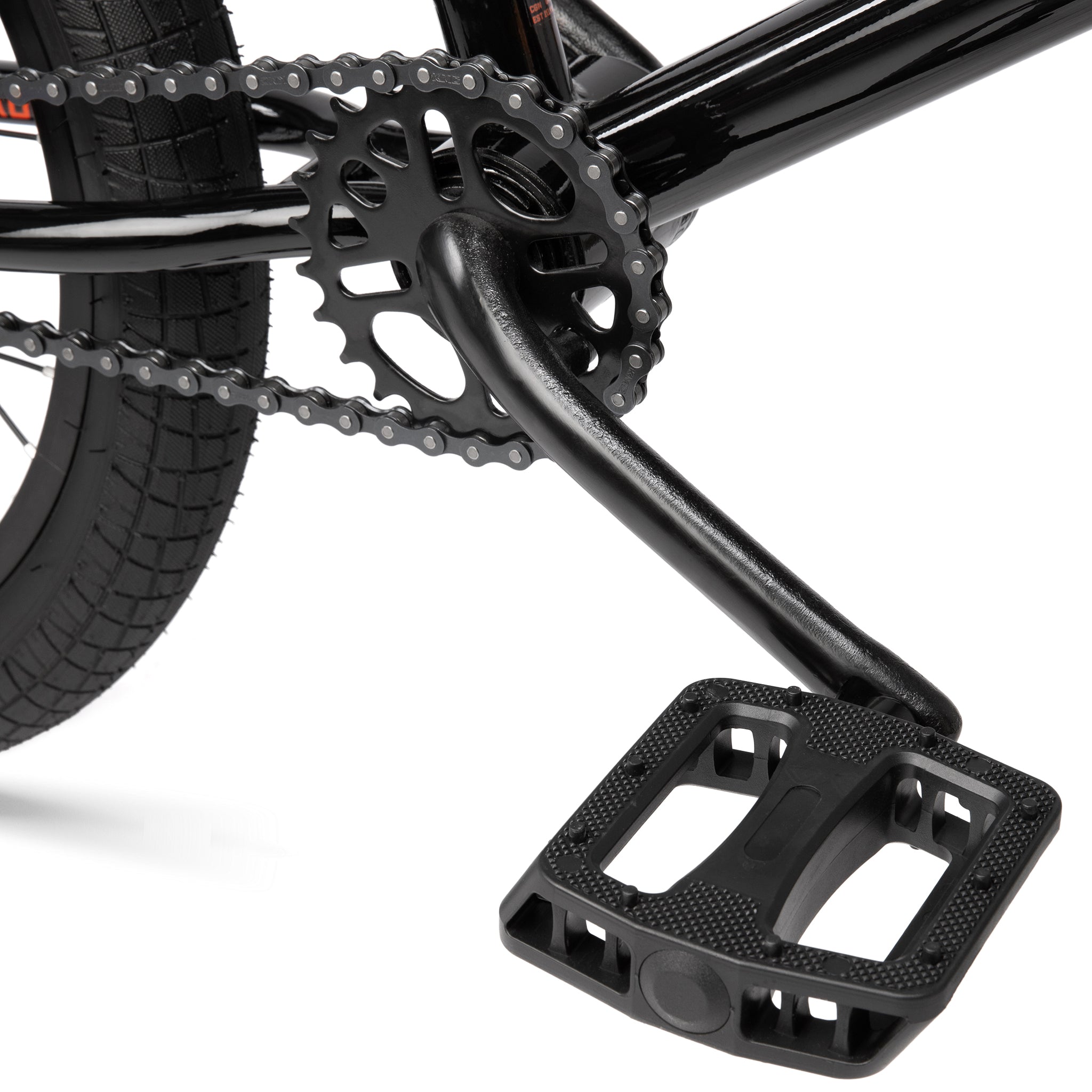

  • CRANK: RADIO "ROOKIE" 1pc crank, forged, crmo, 152mm
  • BB: RADIO "US" bb set, loose ball
  • PEDALS: RADIO “ROOKIE” pedals, nylon
  • CHAIN: KMC “S1” chain

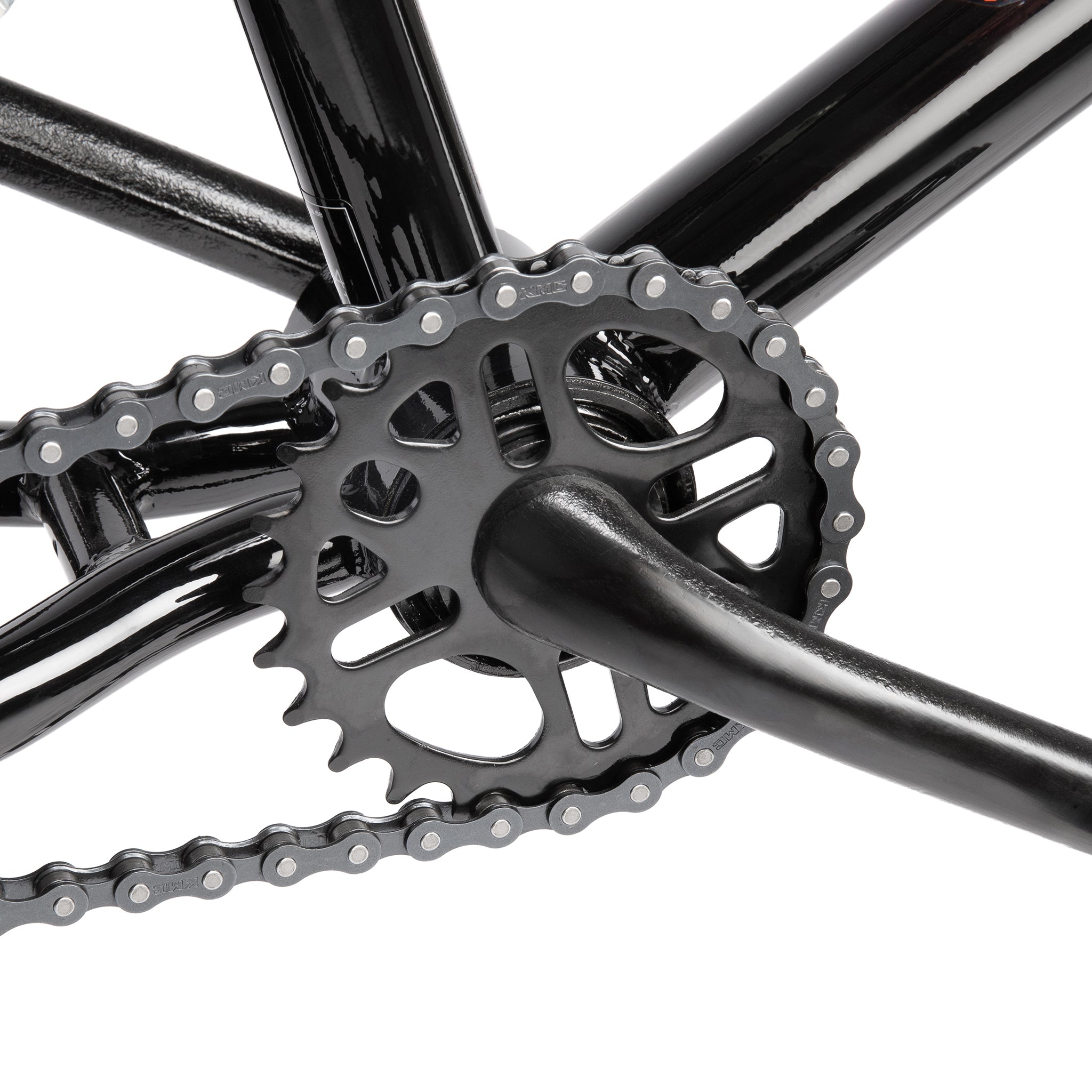

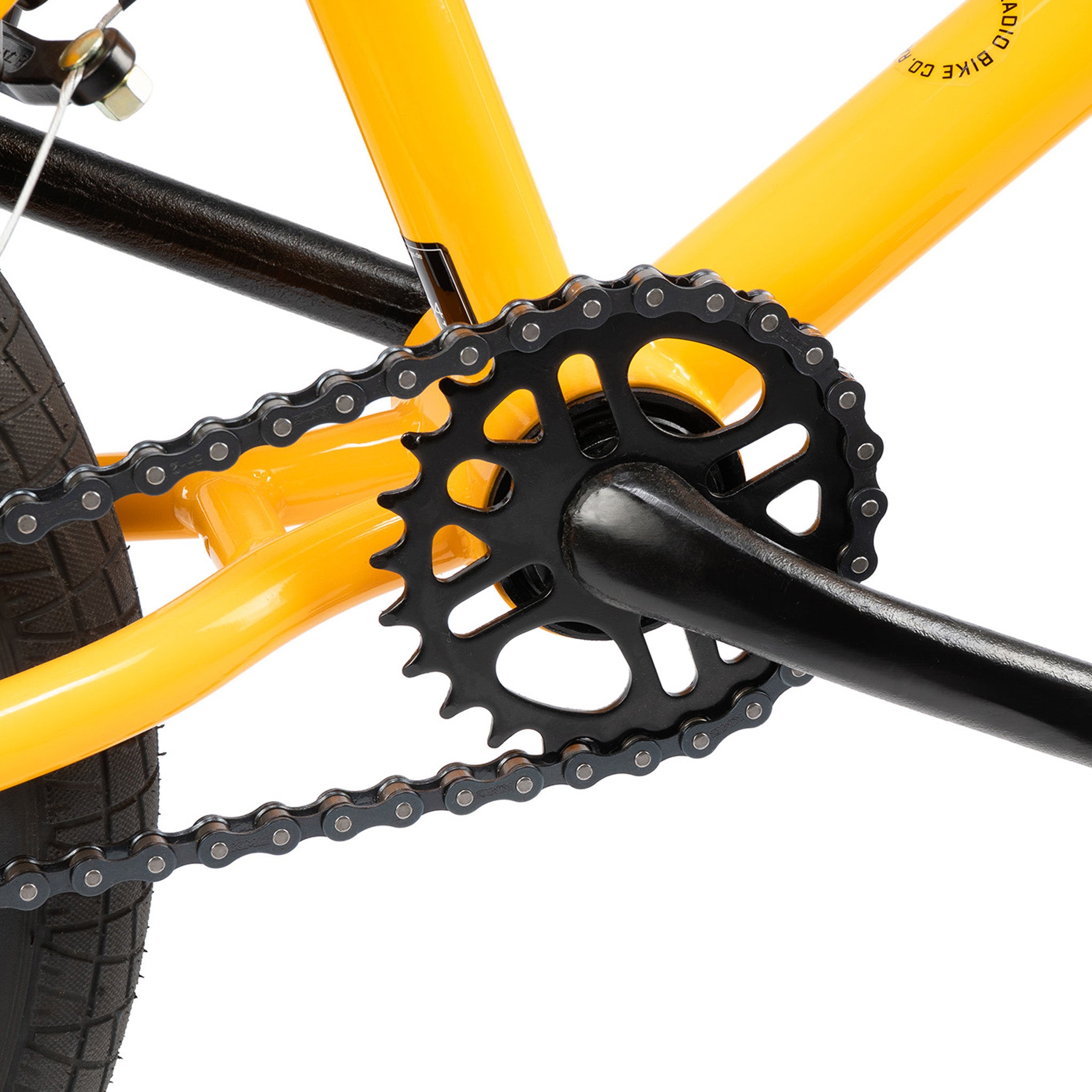

  • SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
  • DRIVER: cassette driver, 9t

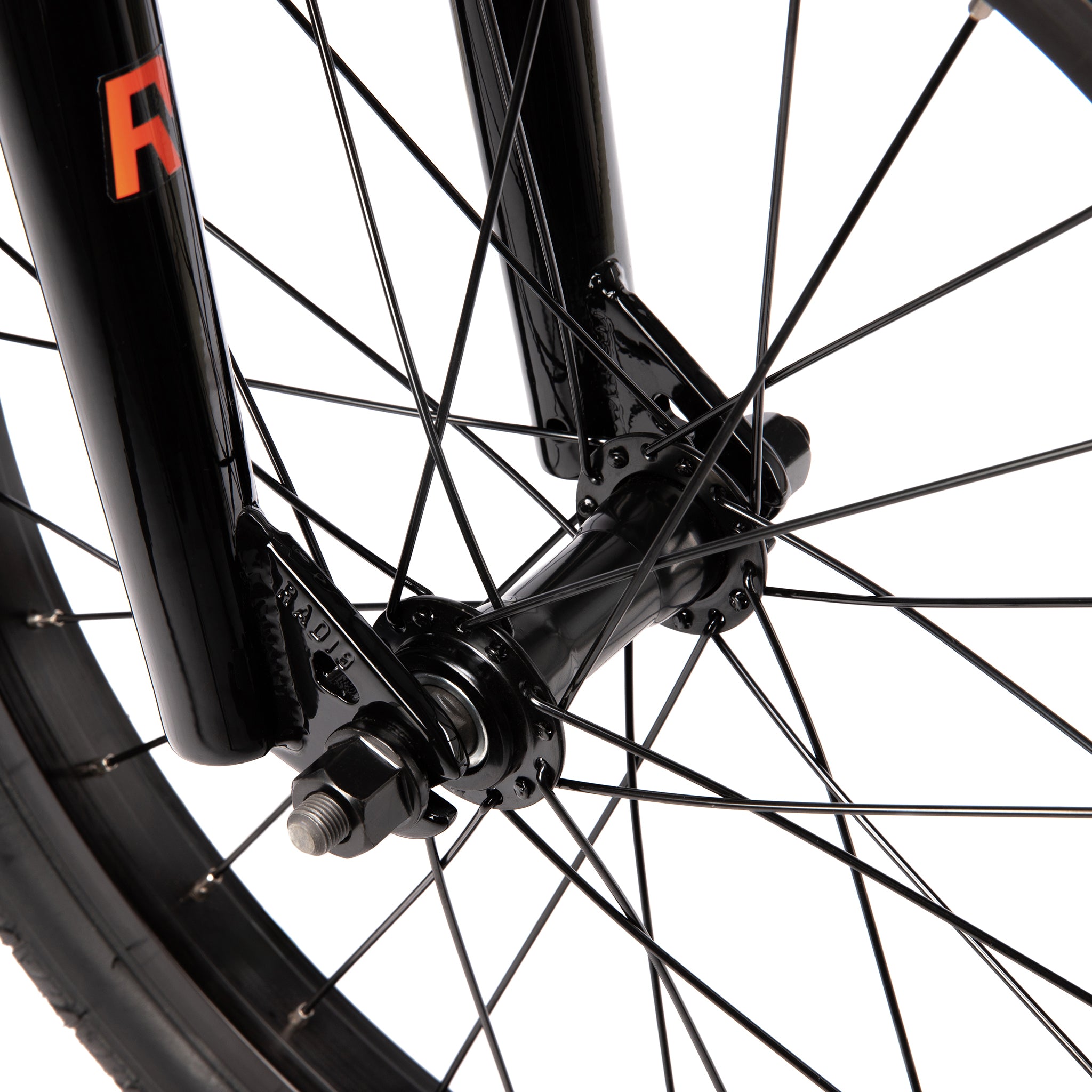

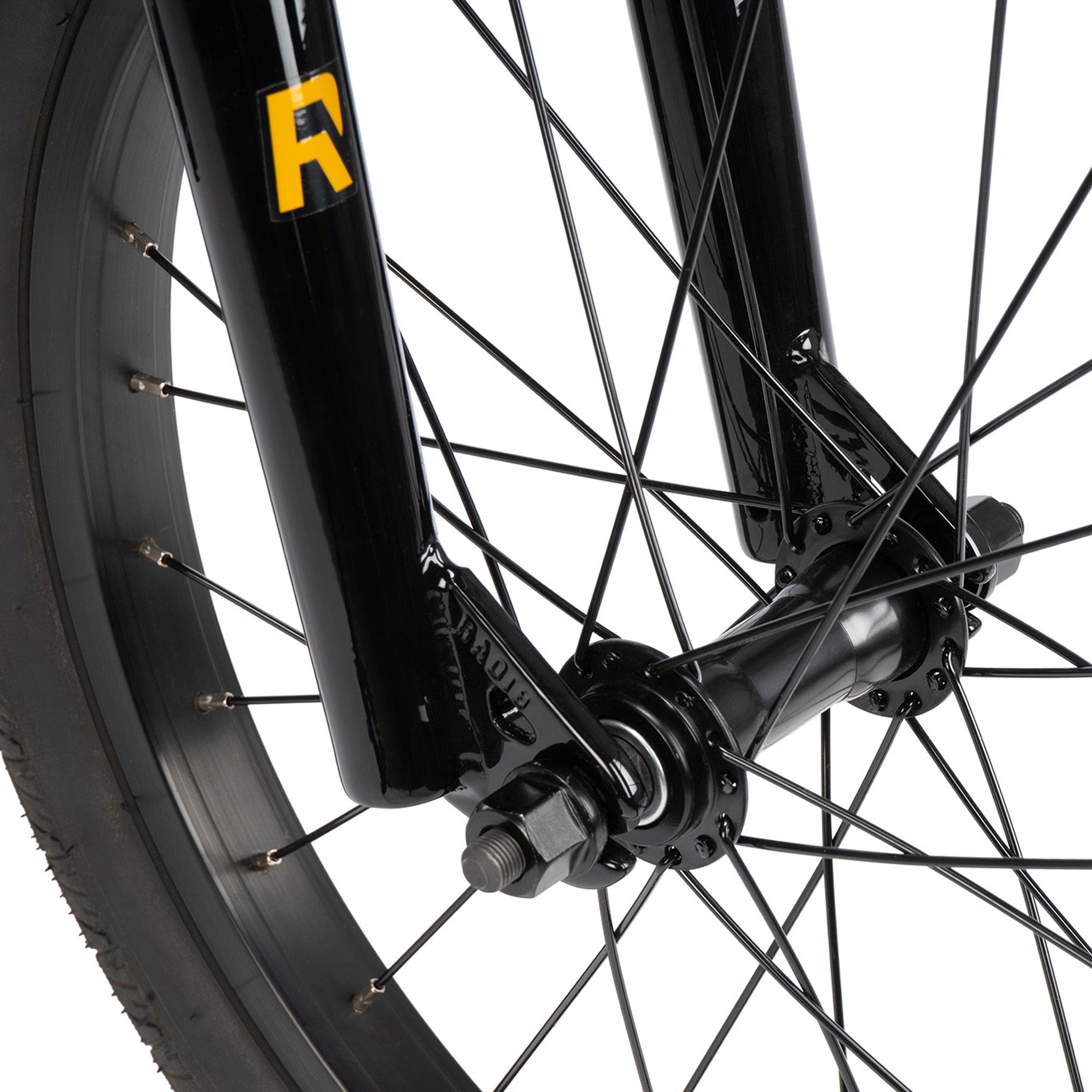

  • FRONT HUB: RADIO "ROOKIE" hub, steel, lb, 3/8"s, 28h

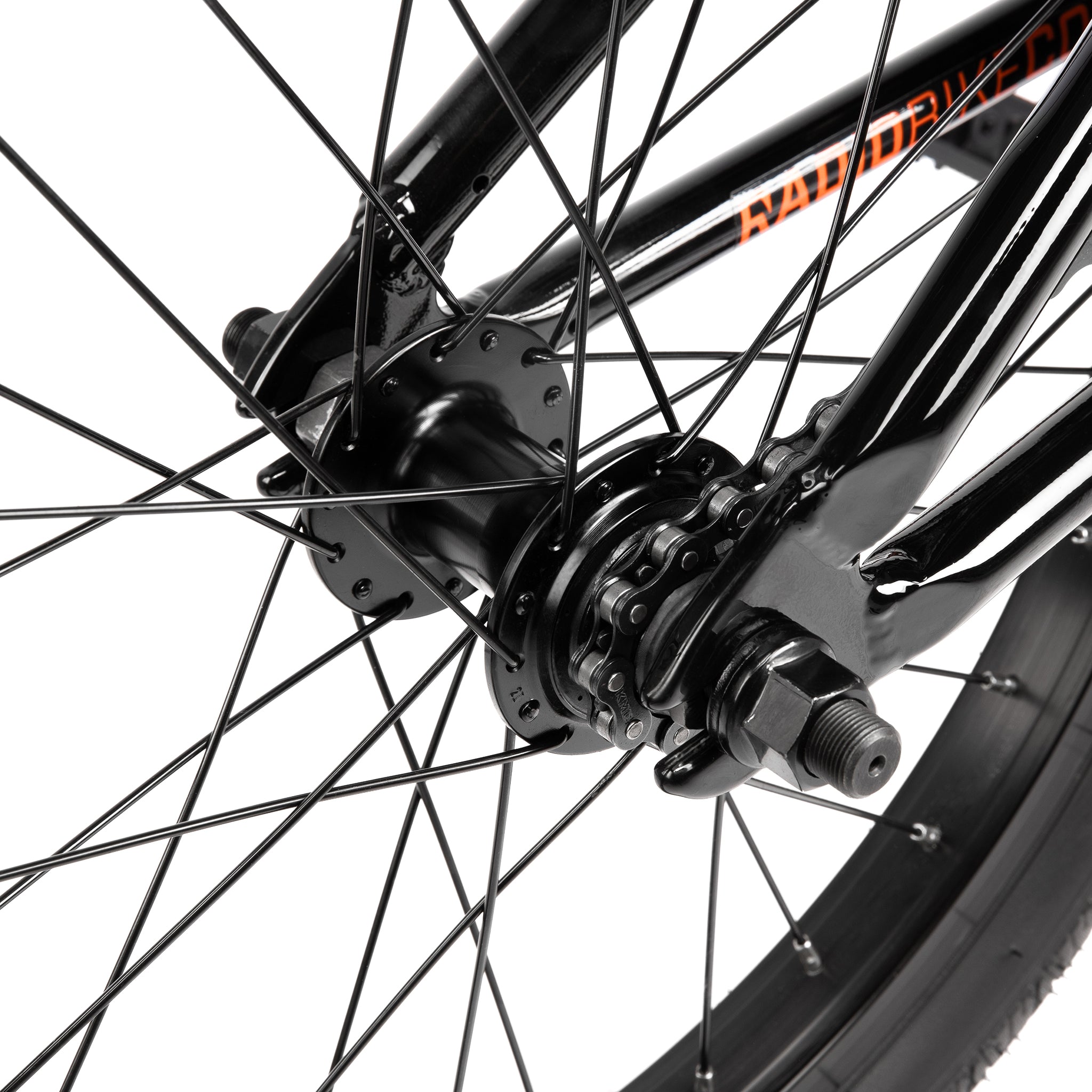

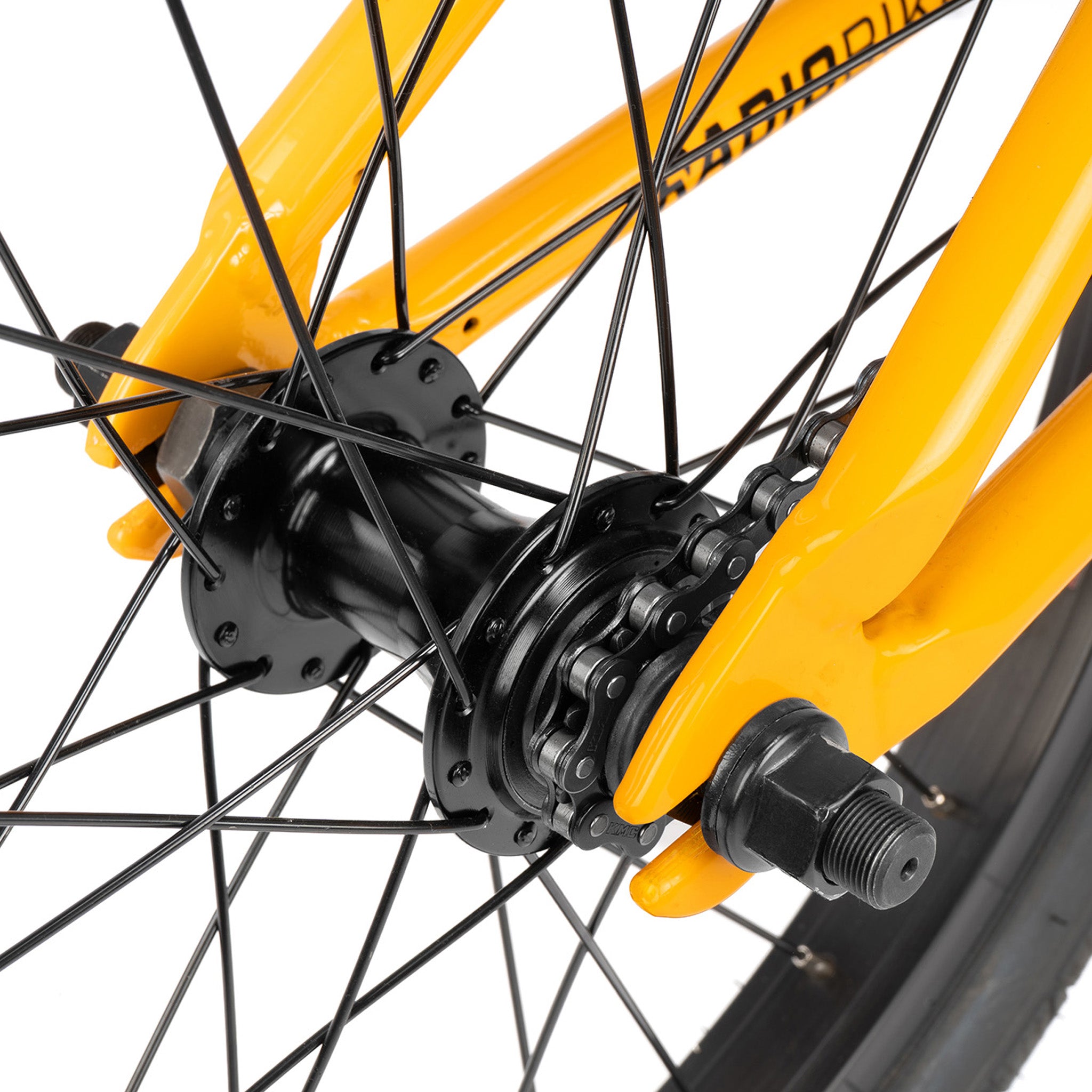

  • REAR HUB: RADIO "ROOKIE" cassette hub, steel, lb, 9t, 14mm axle, 28h
  • FRONT RIM: SALT “AM” rim, straight single wall, 28h
  • REAR RIM: SALT “AM” rim, straight single wall, 28h

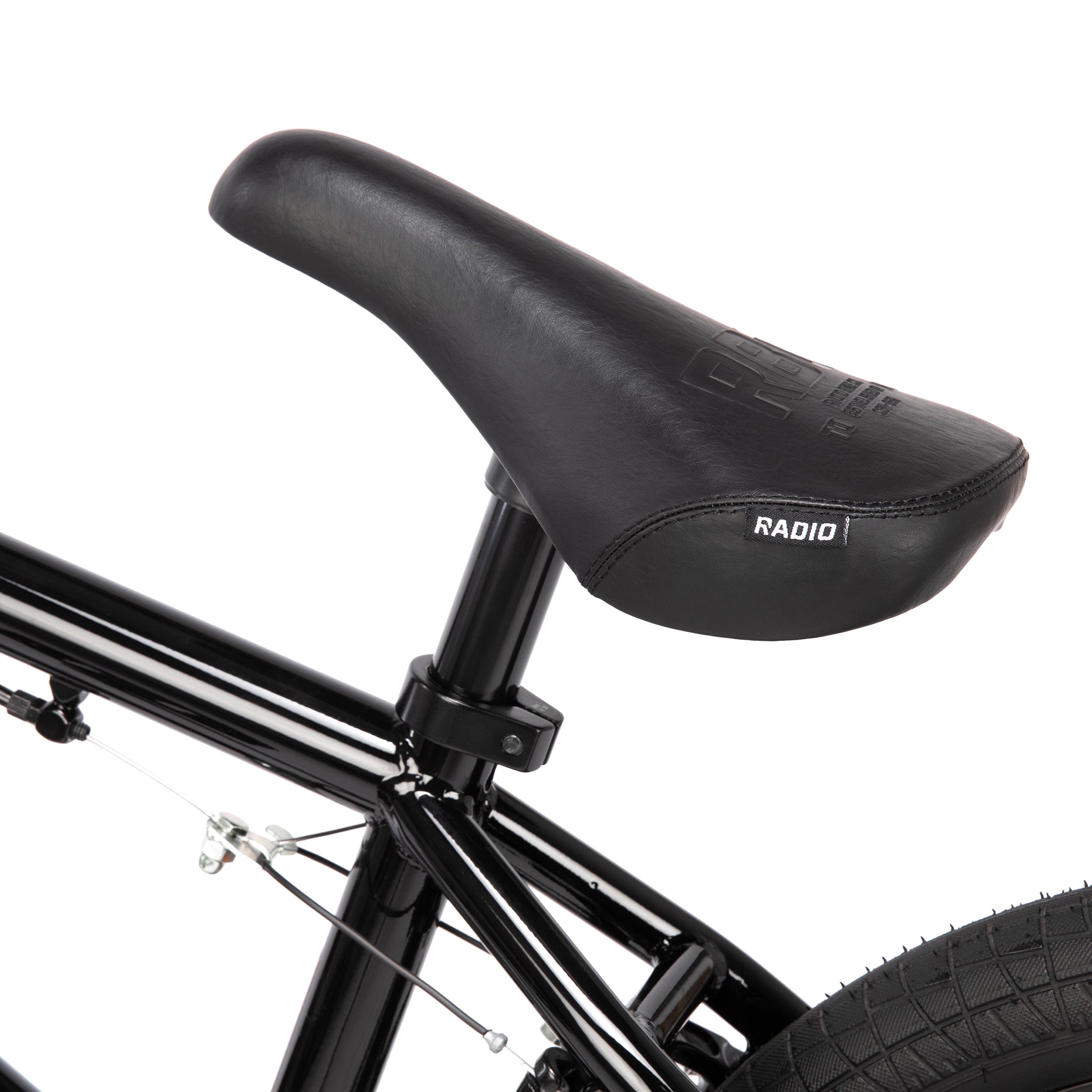

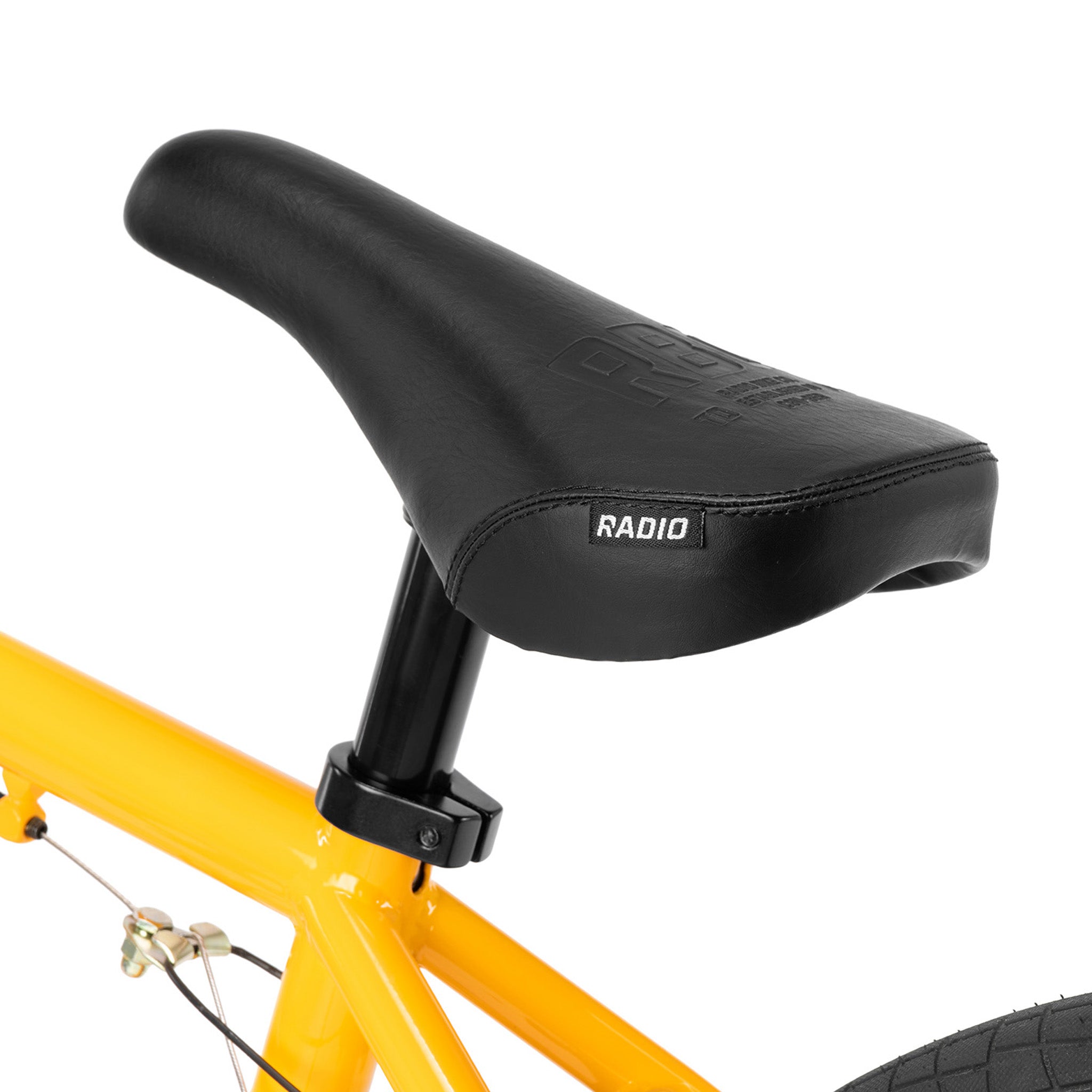

  • SEAT: RADIO "CENTURY" combo seat, slim padded
  • SEAT CLAMP: RADIO seat clamp, slim, alloy
  • TIRES: RADIO “ROOKIE” tires, 18″x2.1″, front & rear

Weight: 10.88kg / 23.99lbs



Frame Geometry:

Top Tube Length 18"
Chain Stay Length 12.7"
Head Tube Angle 75°
Seat Tube Angle 71.5°
Bottom Bracket Height  10.75"
Standover Height 7.3"



Handlebar Geometry:

Rise 7.9"
Width 26.5"
Backsweep 10°
