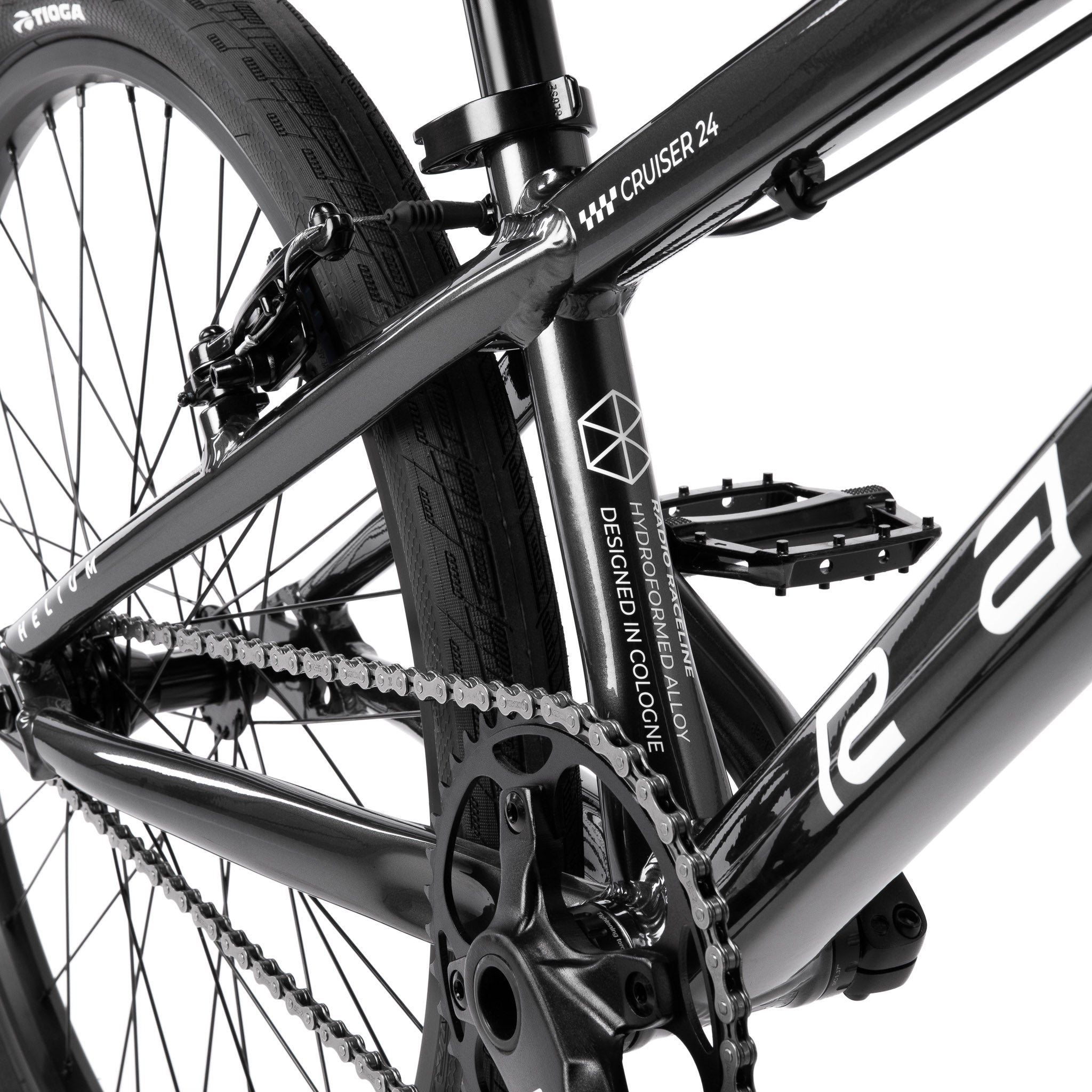

- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners

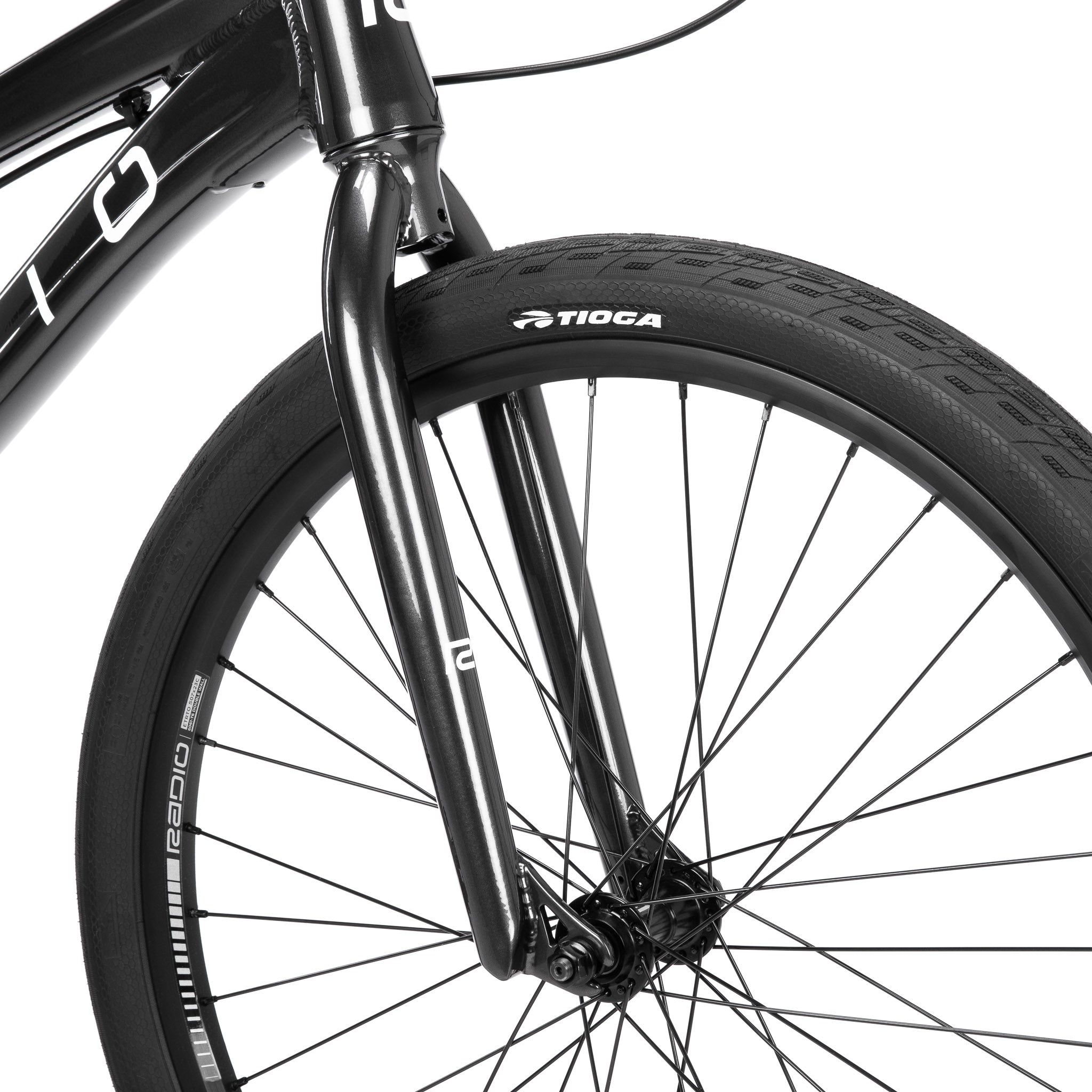

- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset

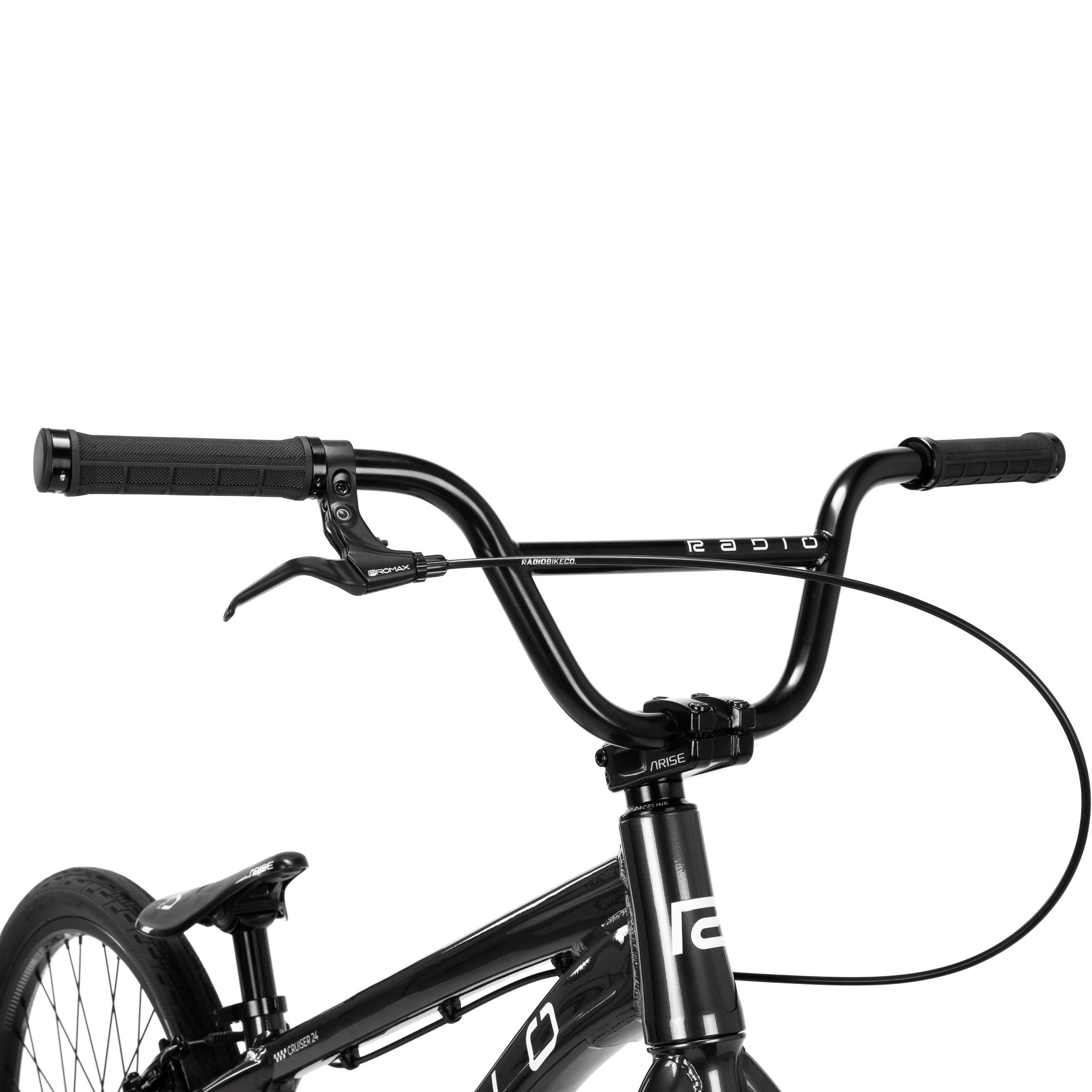

- HANDLEBAR: 4130 crmo bar, seamless

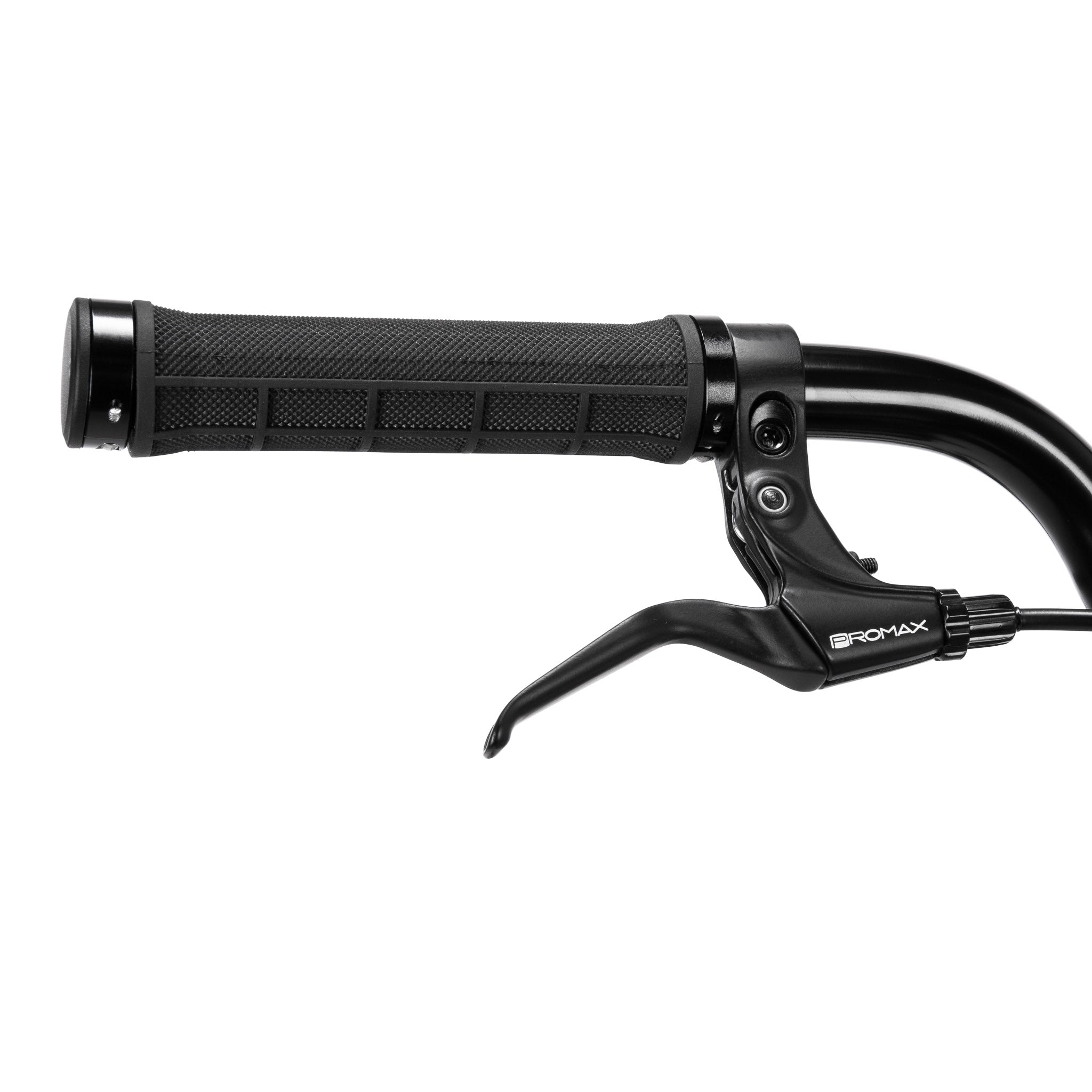

- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

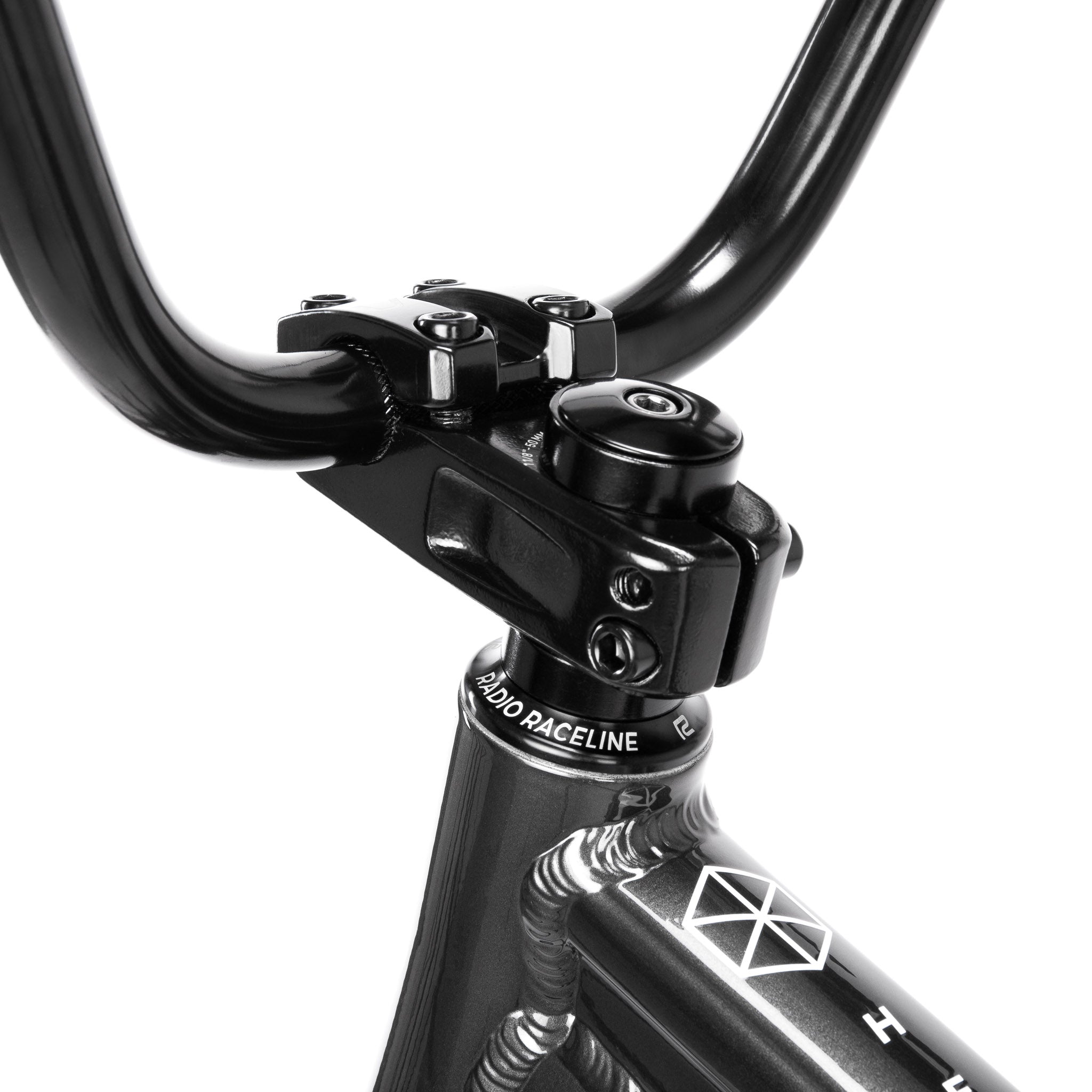

- STEM: ARISE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy

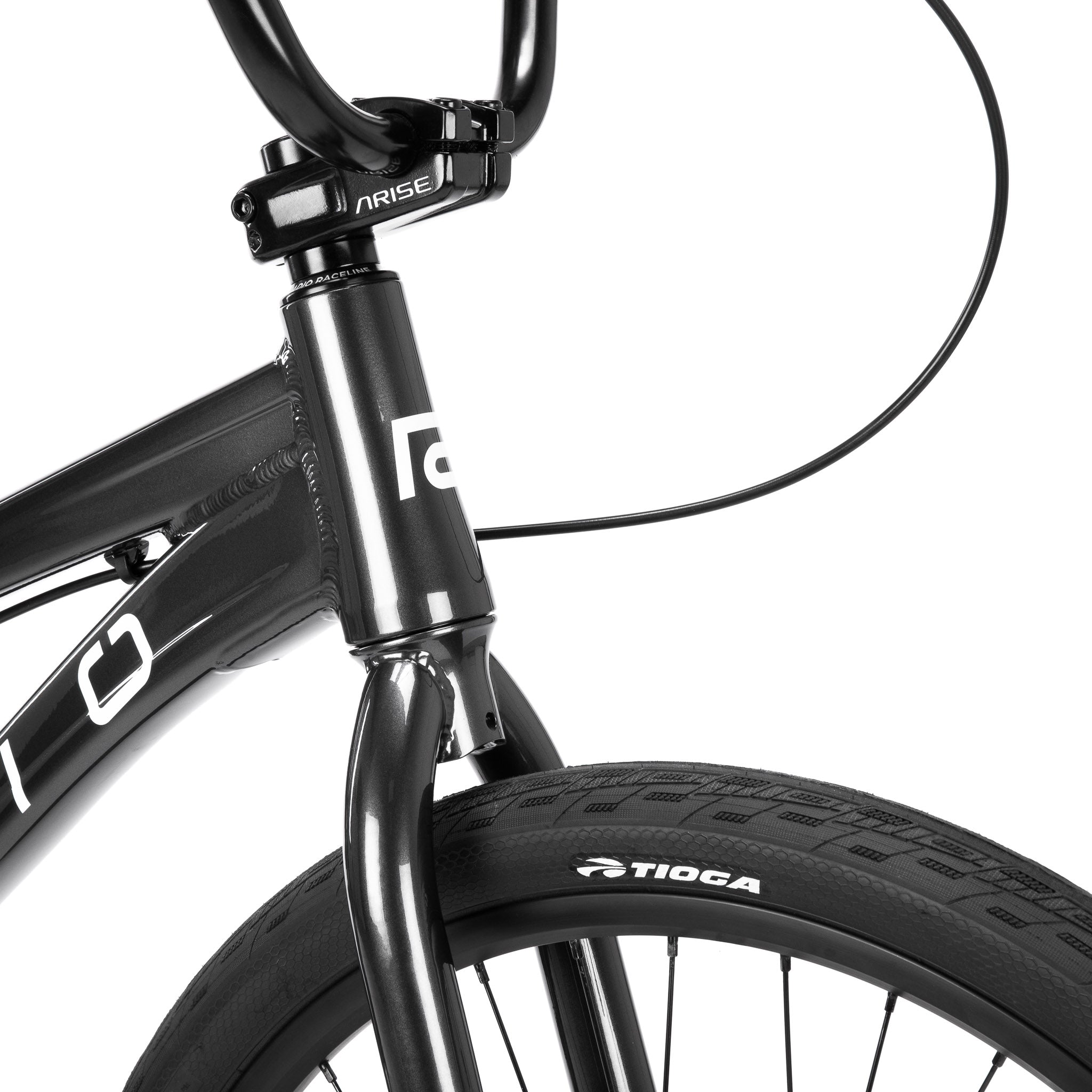

- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter
- BRAKE LEVER: PROMAX "XL-373" brake lever, rear
- BRAKE: PROMAX "TX-131" brake, rear

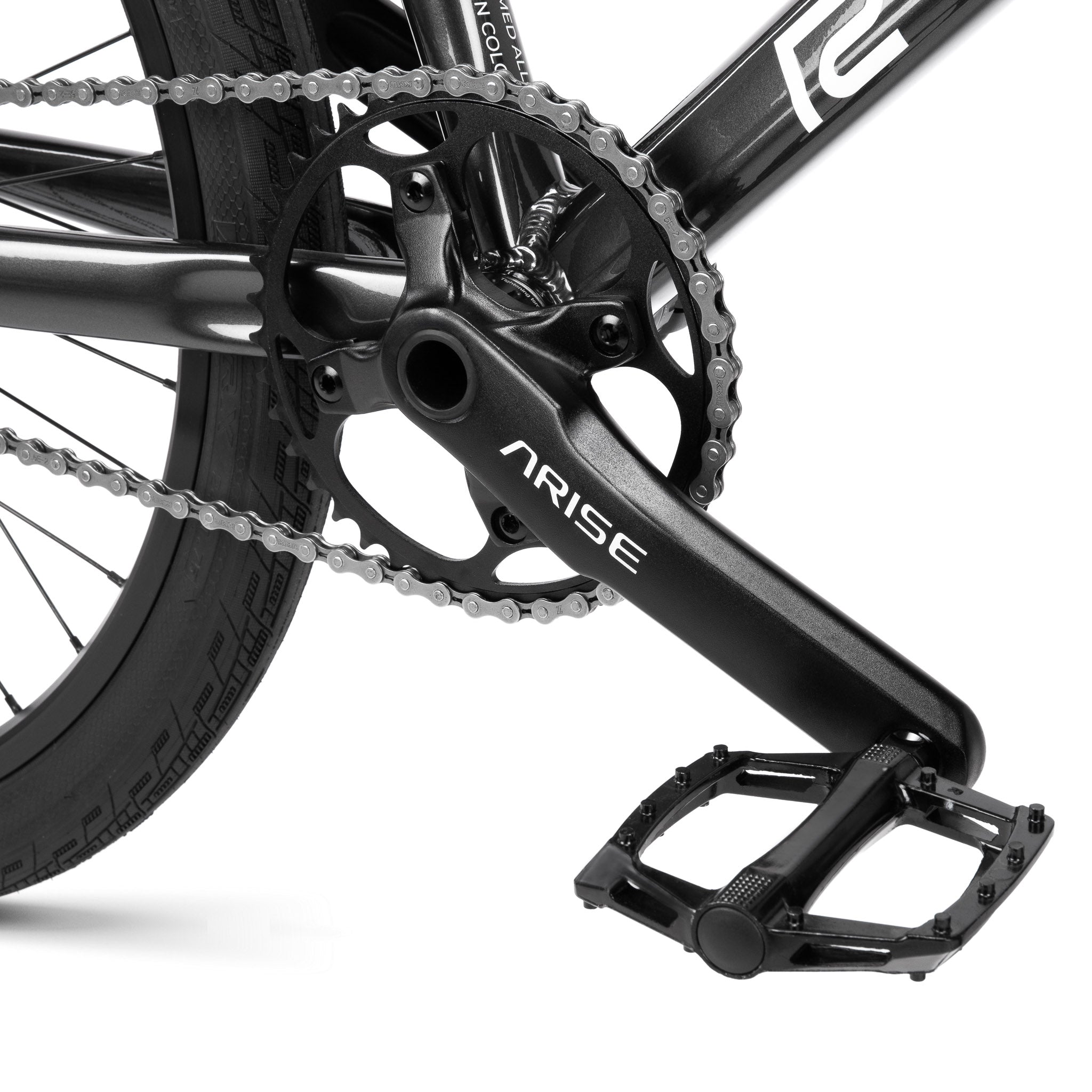

- CRANK: ARISE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: ARISE "XENON PRO" sprocket, 41T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

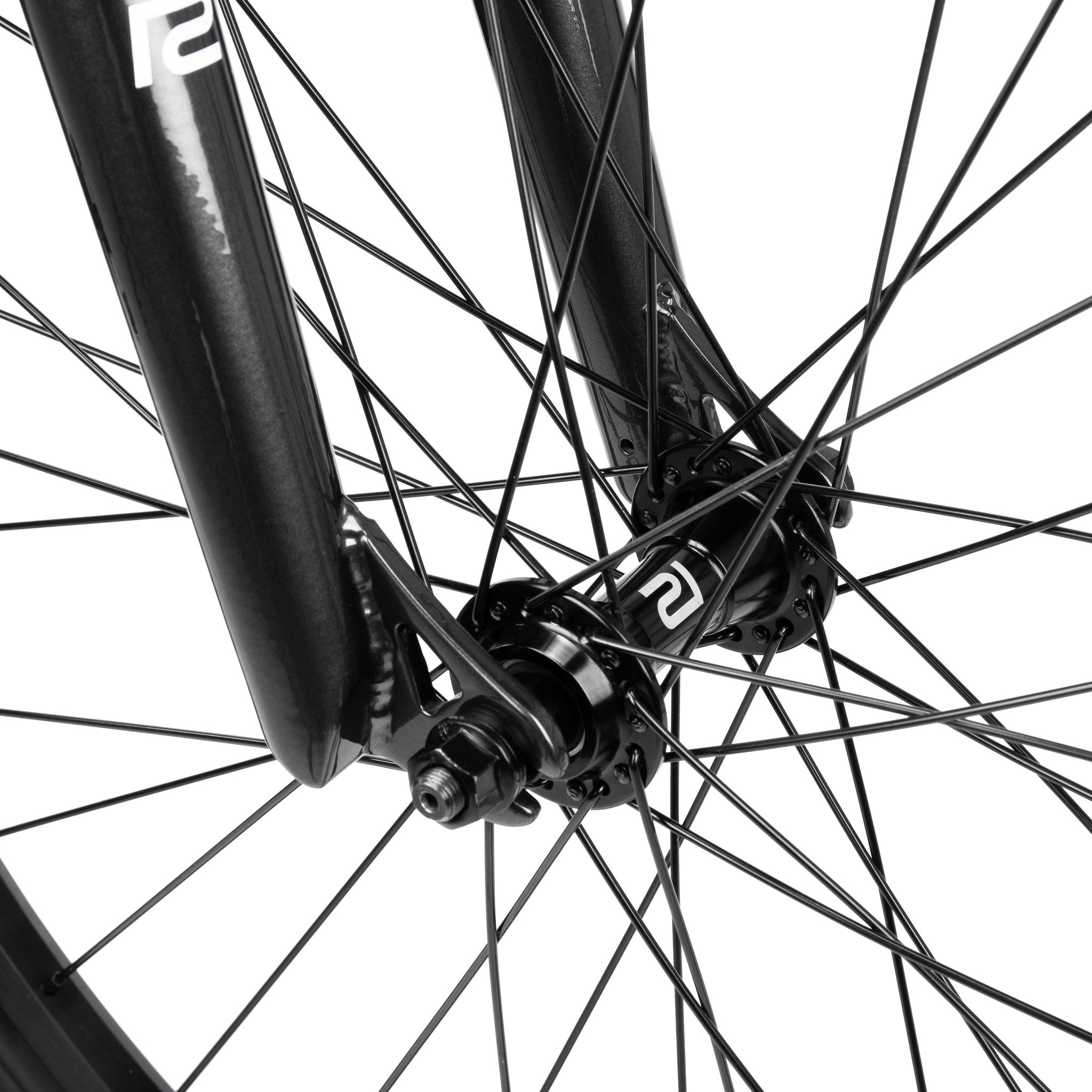

- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle

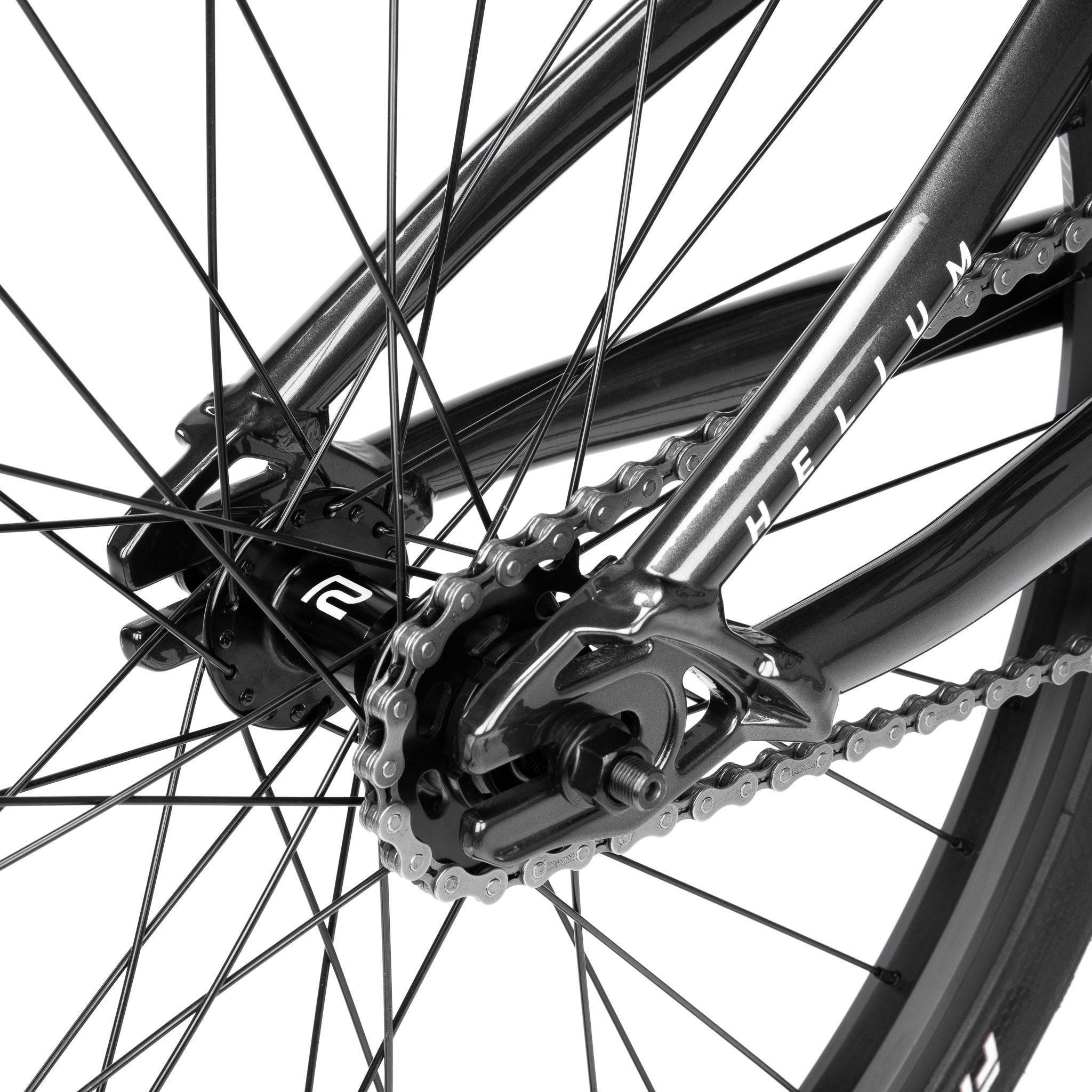

- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
- REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy

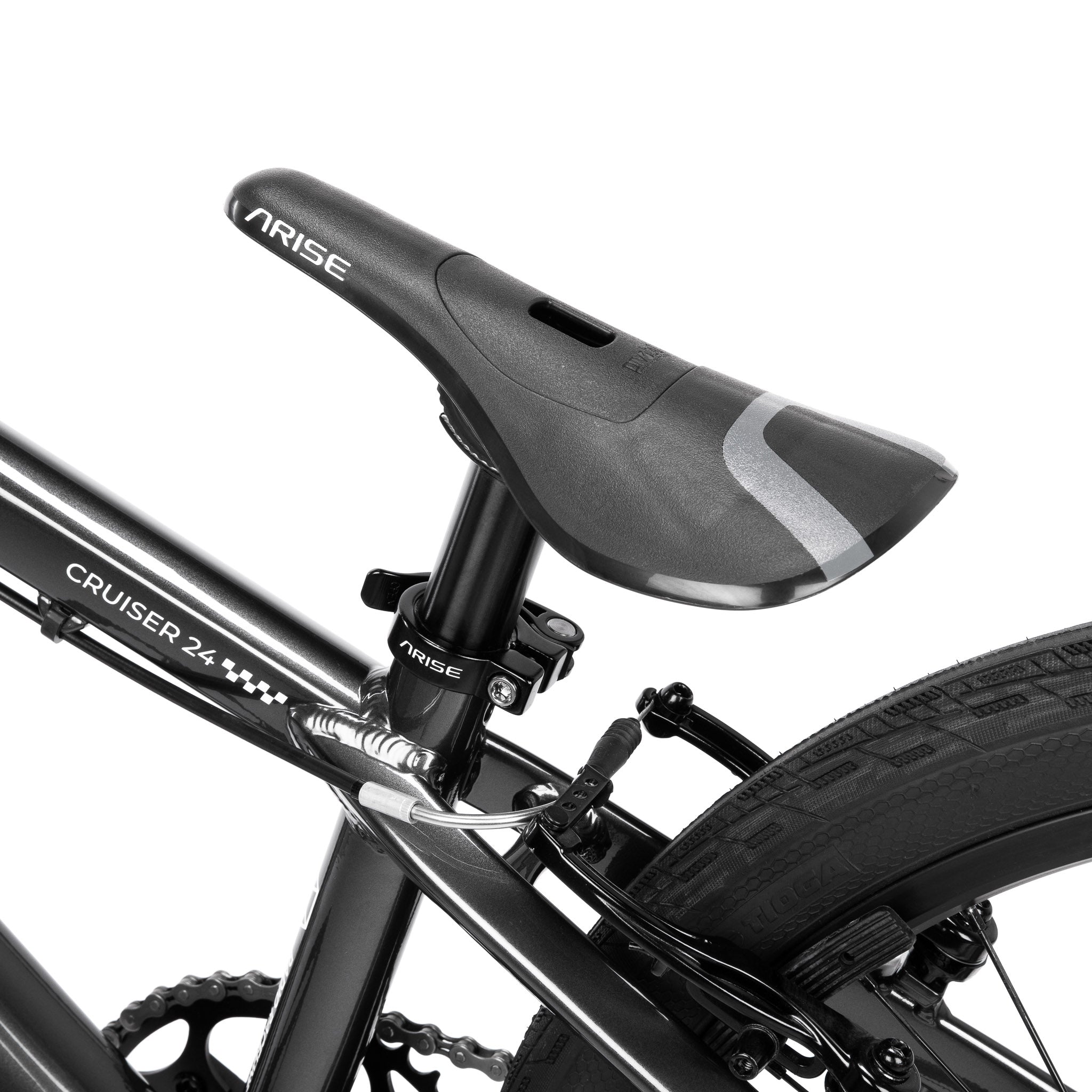

- SEAT: ARISE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
- TIRES: TIOGA "FASTR" tires, front: 24" x 1.75" and rear: 24" x 1.75"

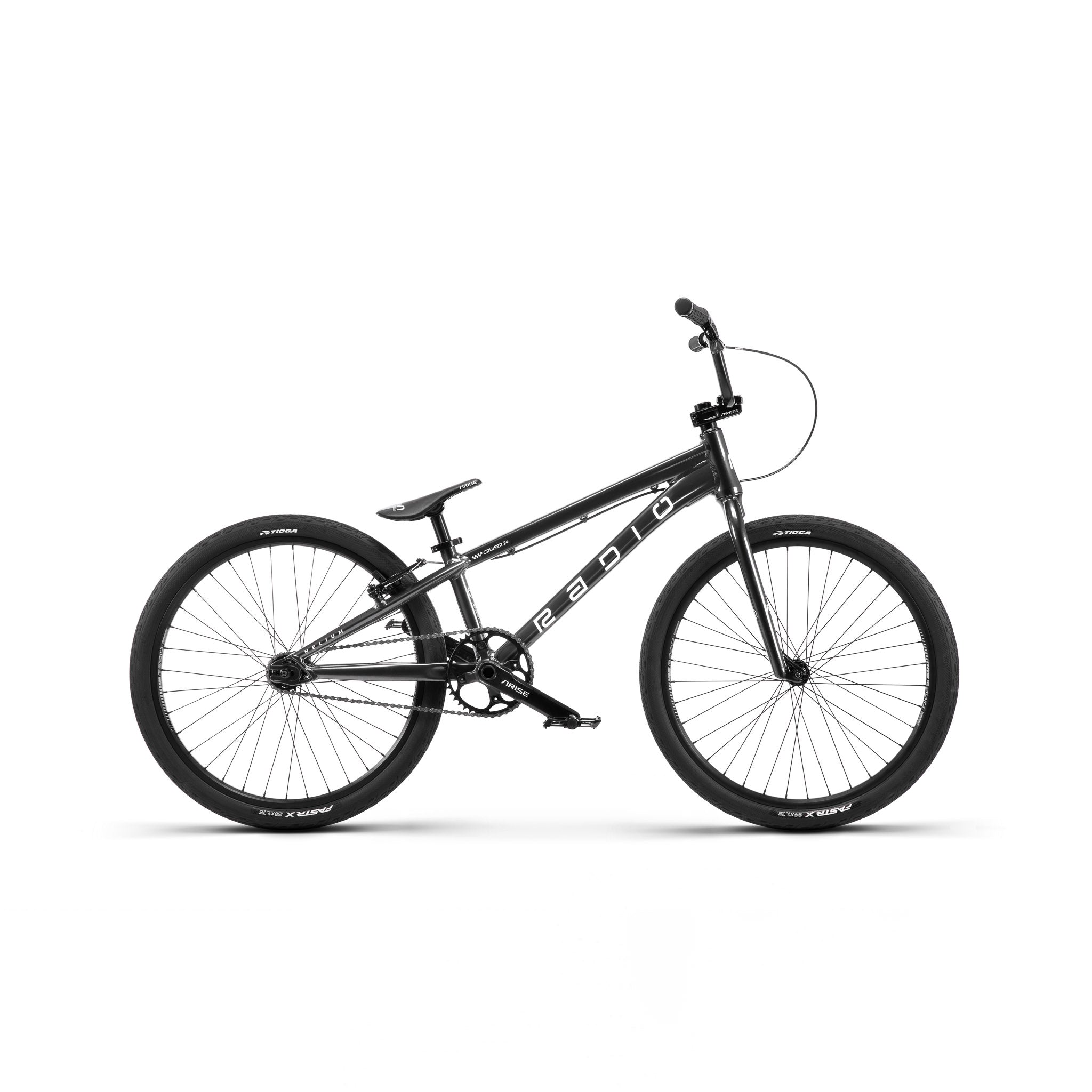

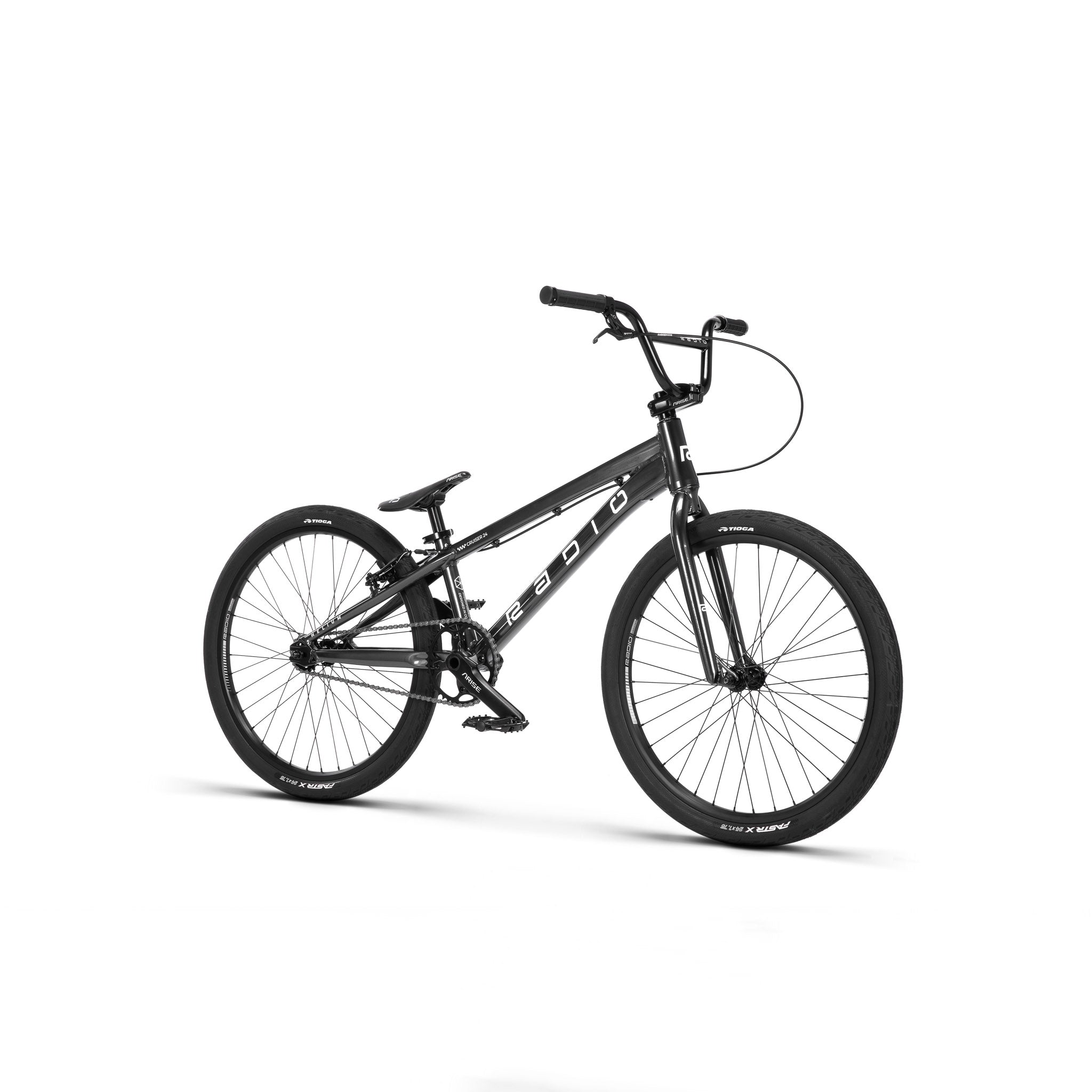

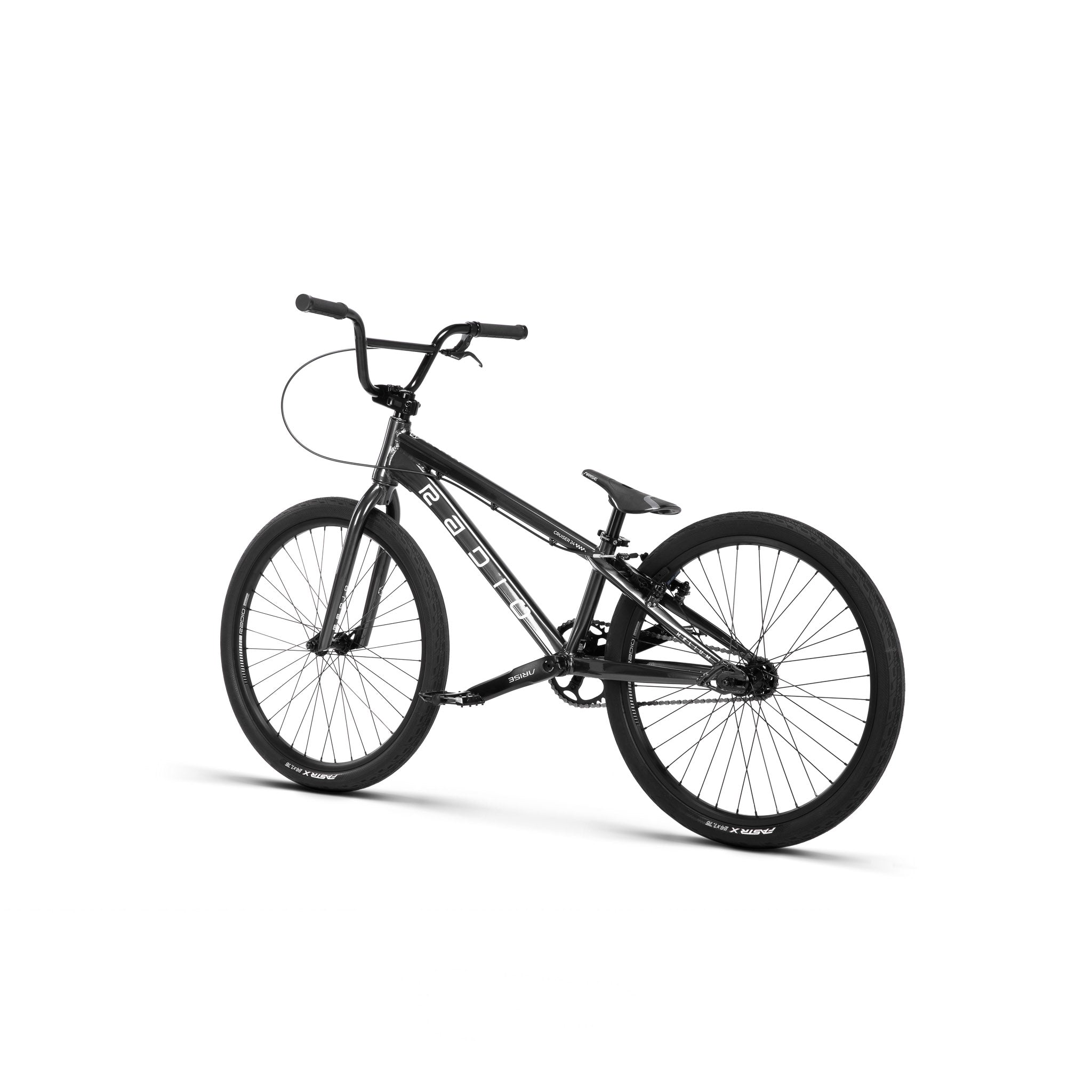

Helium Cruiser XL Complete Bike
The Helium Cruiser XL has developed a strong following for good reason. Built around our proven aftermarket Helium Cruiser frame and equipped with a full pro-level build kit, this 24"" race machine delivers the performance and reliability cruiser riders demand.
Featuring forged dropouts, our aftermarket Argon Pro rims, and quality components from Promax and Tioga, every detail has been chosen with racing in mind. Whether you're chasing podiums or simply enjoying the unique feel of cruiser racing, the Helium Cruiser XL is built to perform.
Weight: 10.24kg / 22.79lbs
Frame Geometry:
| Top Tube Length | 22" |
| Chain Stay Length | 15.15" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 12" |
Handlebar Geometry:
| Rise | 6.1" |
| Width | 26.75" |
| Backsweep | 8° |
| Upsweep | 2° |
