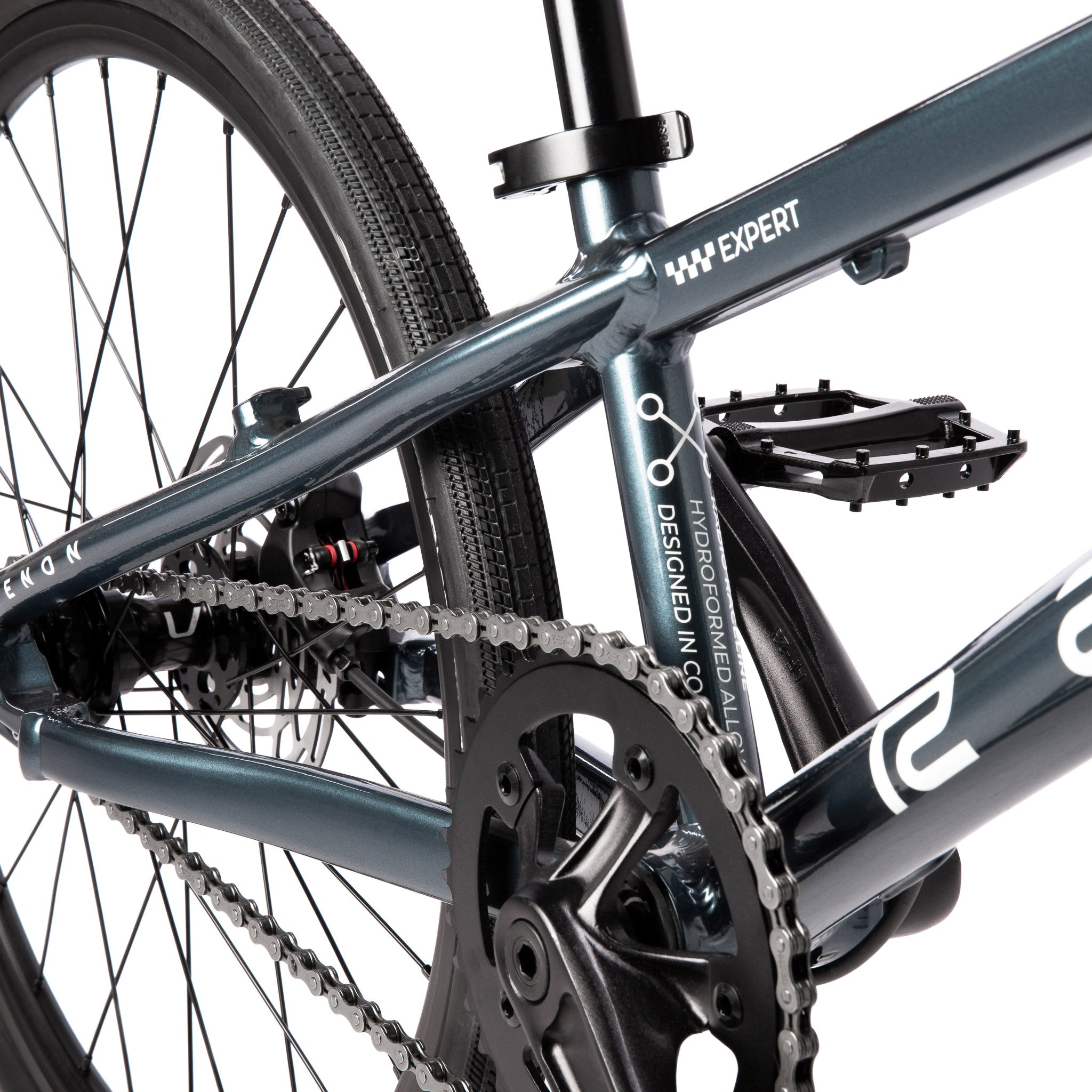

- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts

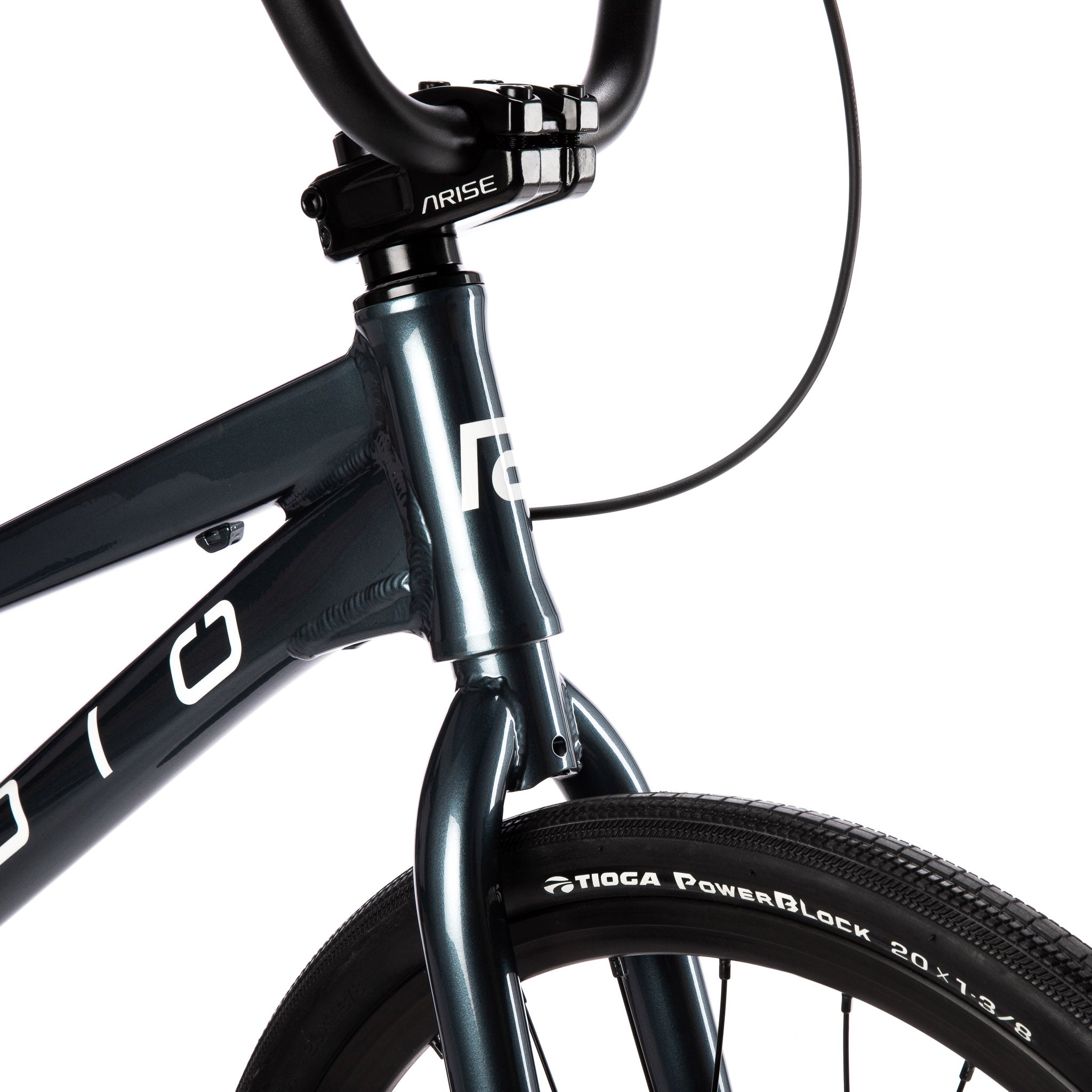

- FORK: crmo fork, 1" butted steerer, crmo fork legs, 23mm offset

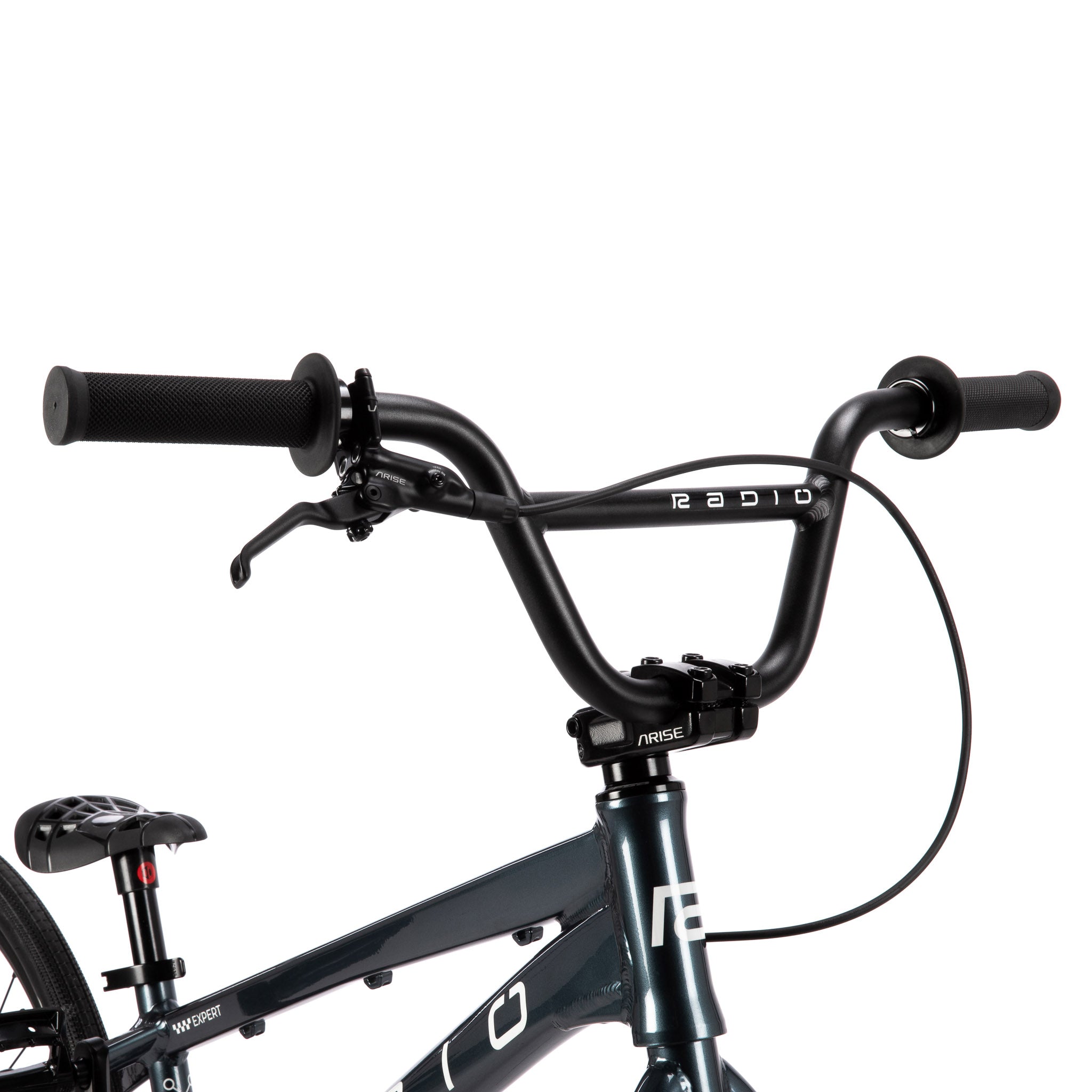

- HANDLEBAR: 6061-T6 alloy bar
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 115mm length

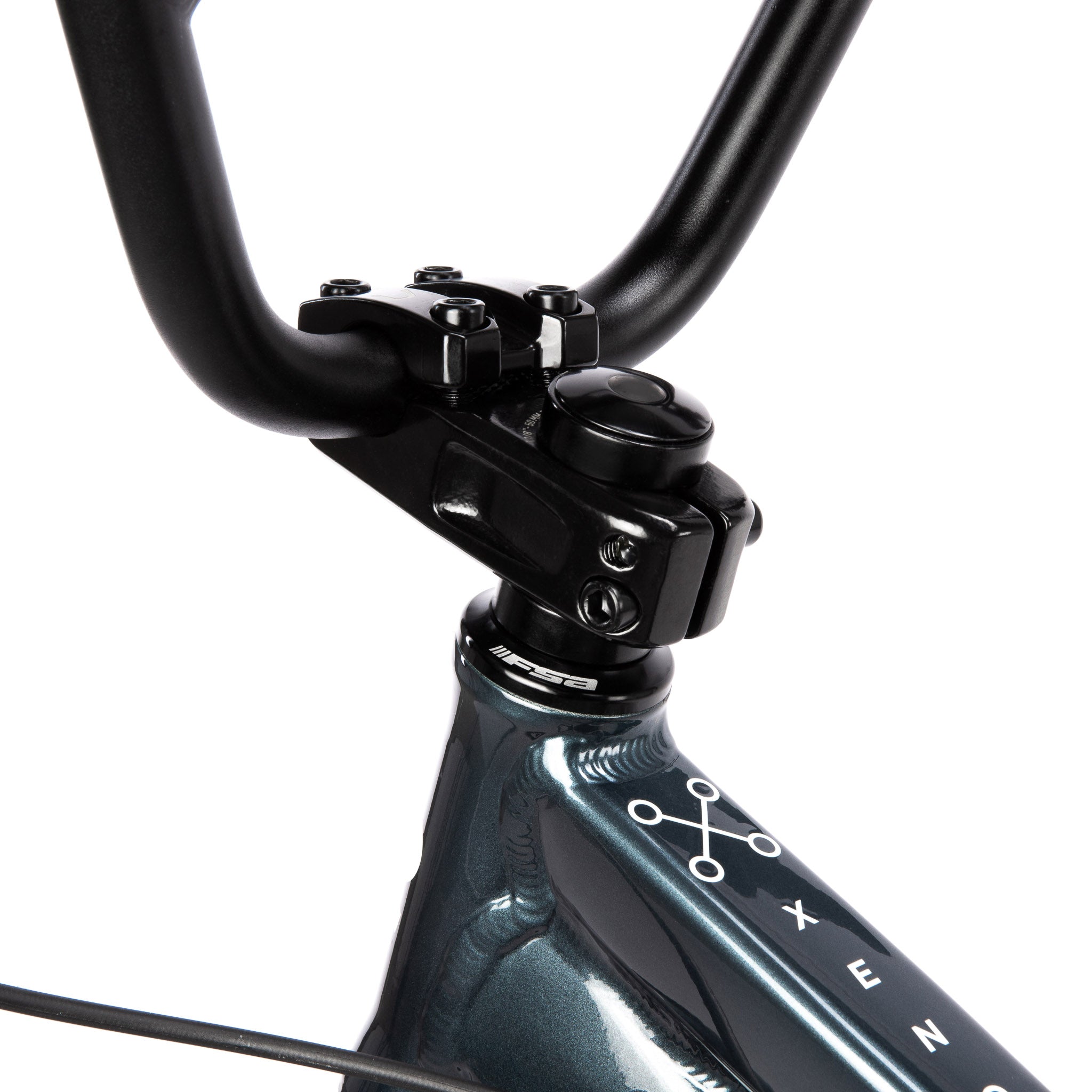

- STEM: ARISE "COBALT" toploader stem, ext. 40mm, alloy
- HEADSET: RADIO RACELINE integrated headset, sealed, 1"

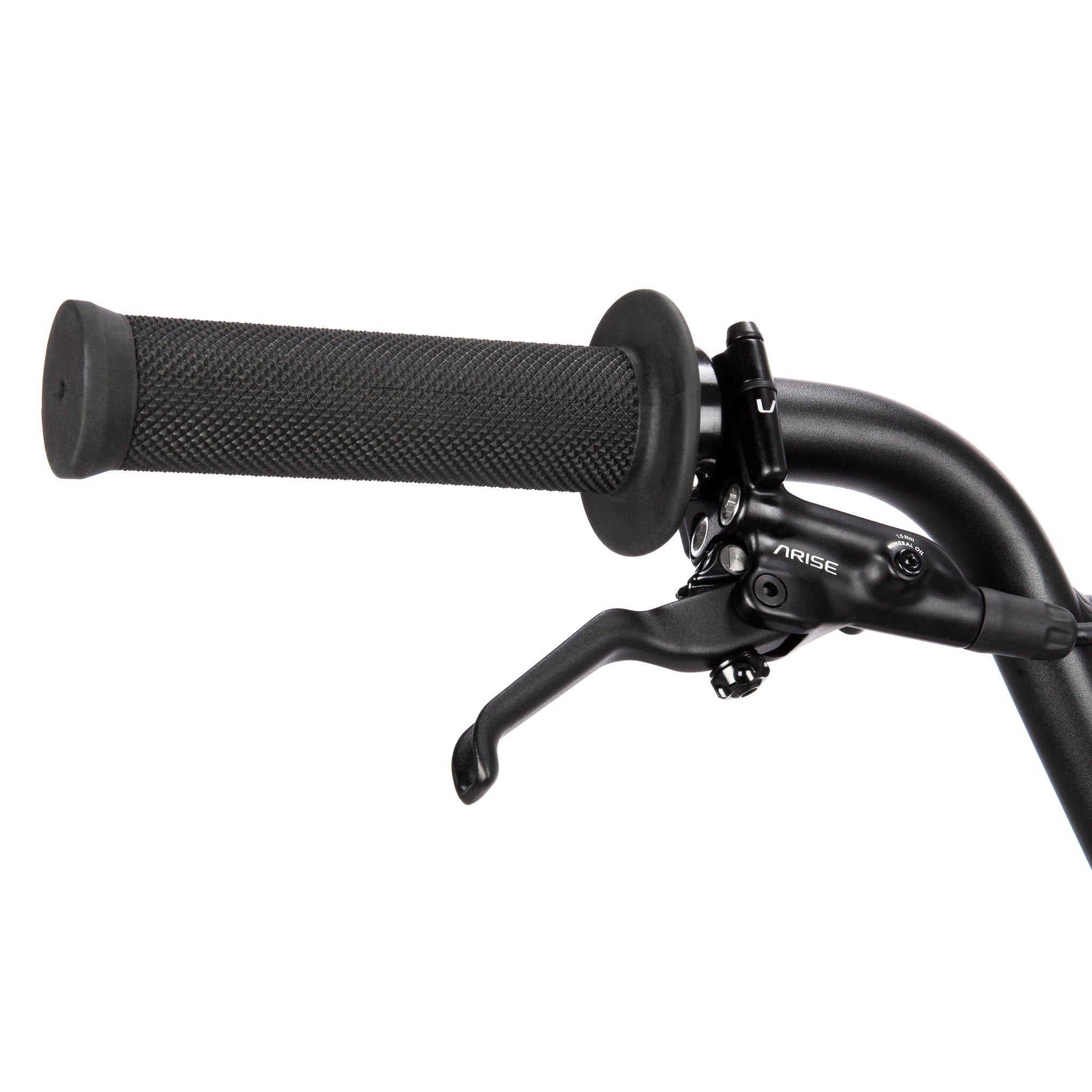

- BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

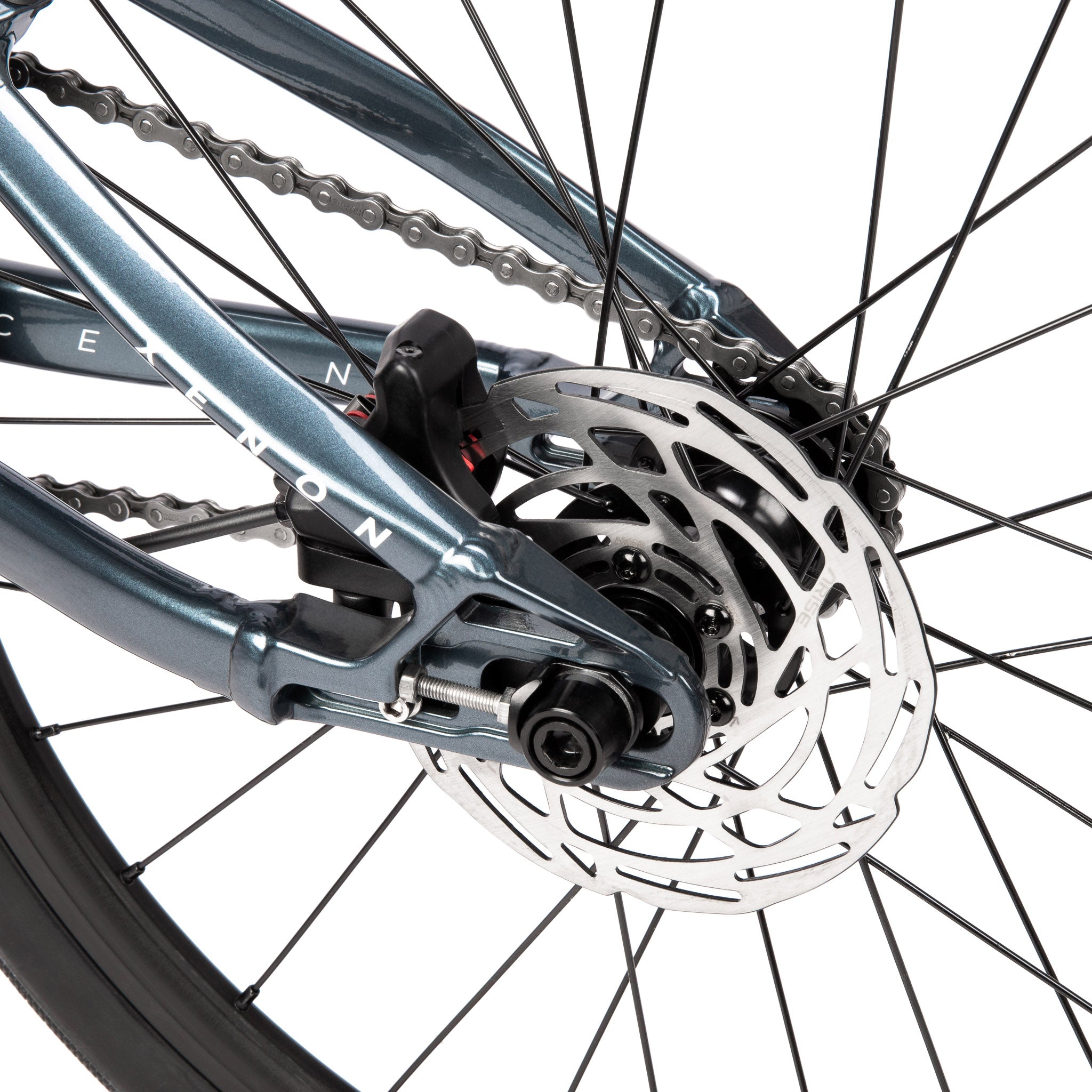

- BRAKE: ARISE "XENON" Disc brake, rear

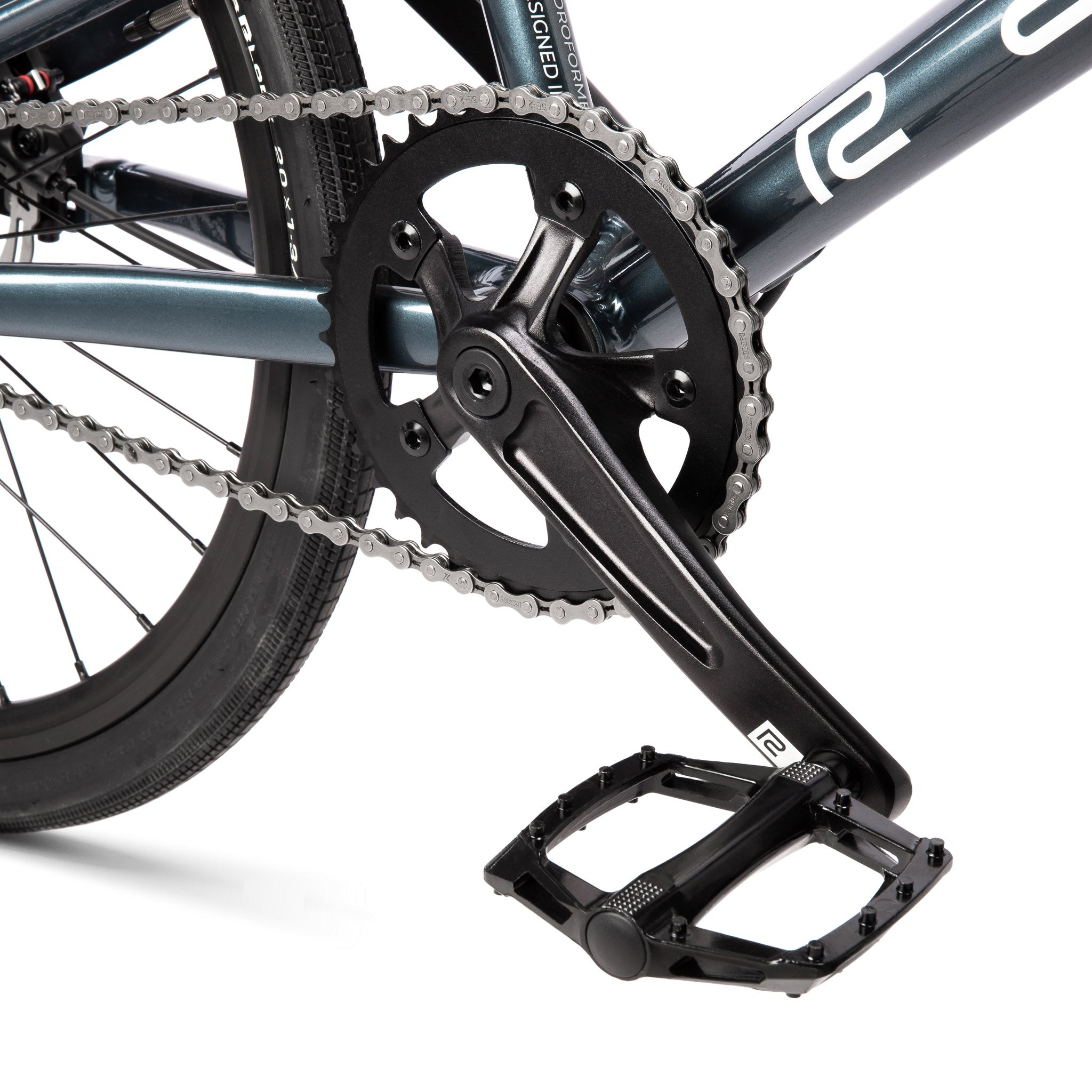

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 140mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON JUNIOR" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 40T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

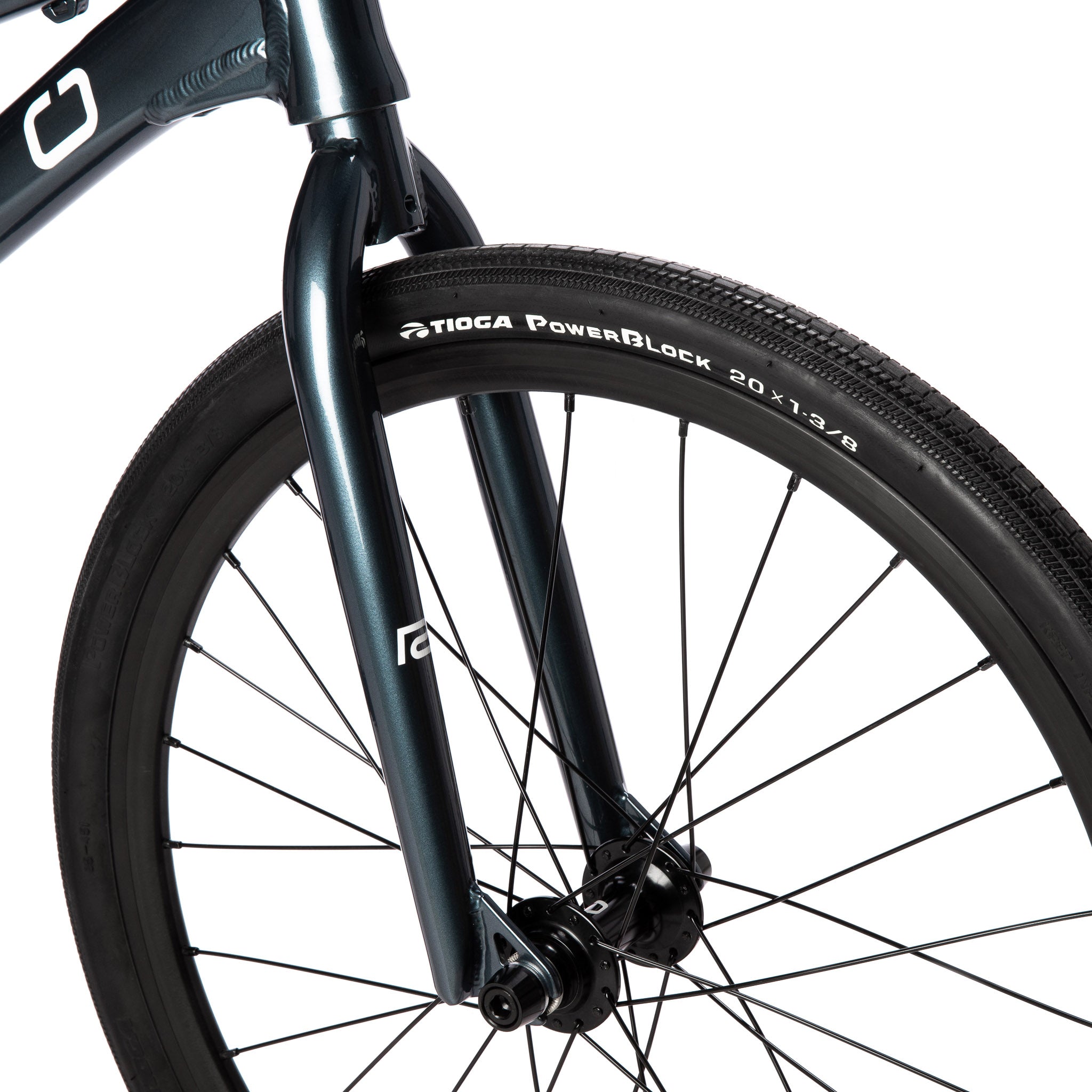

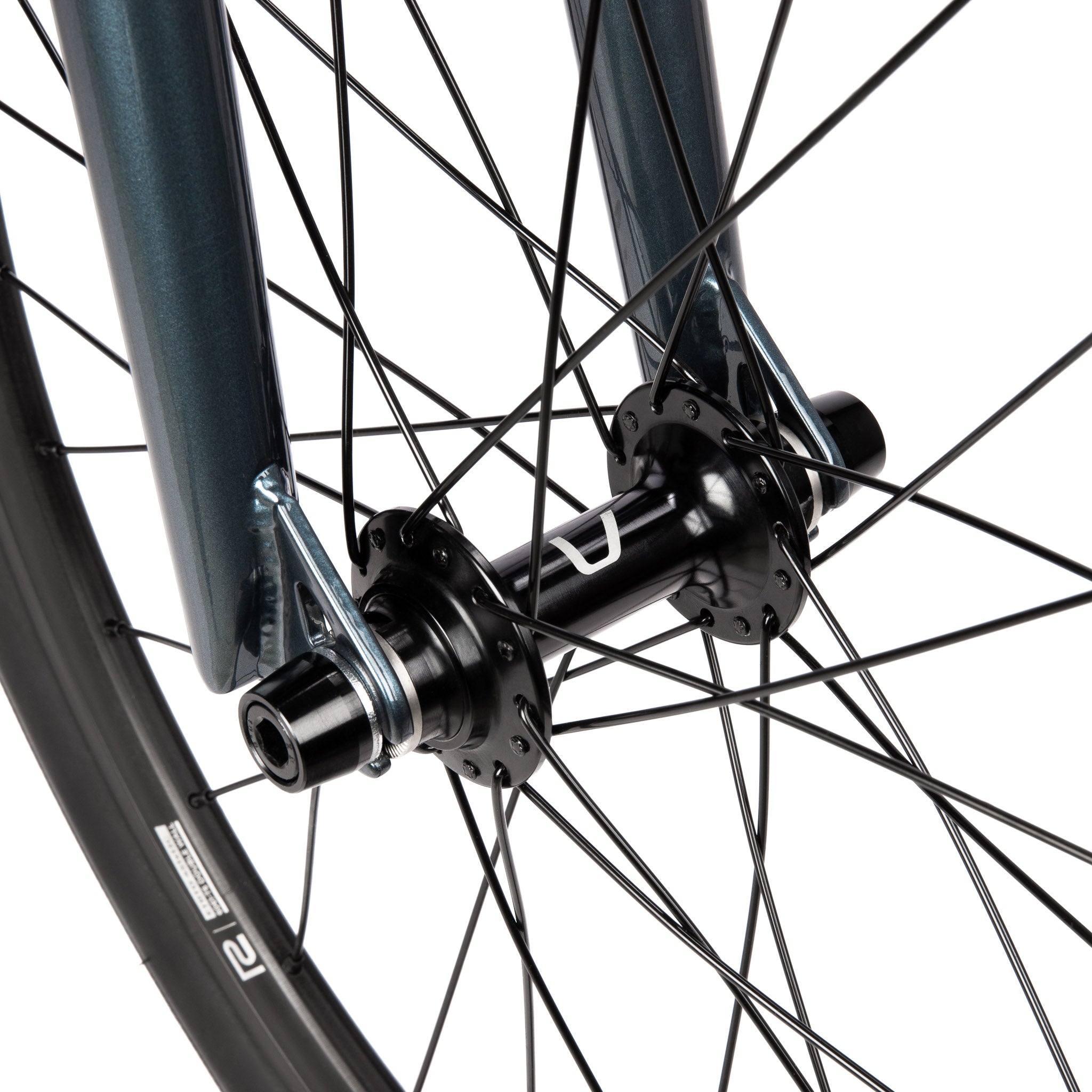

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

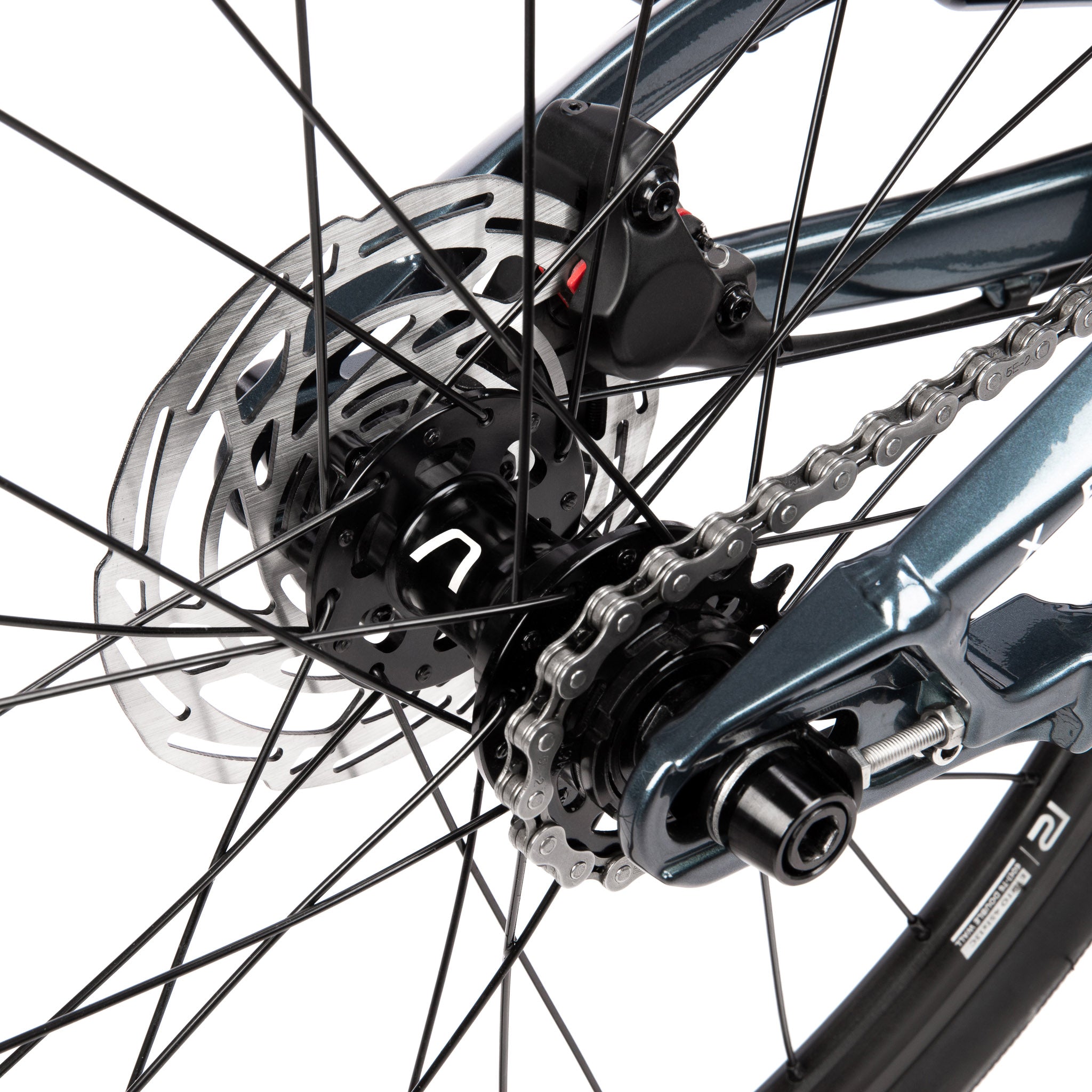

- REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
- REAR RIM: RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy

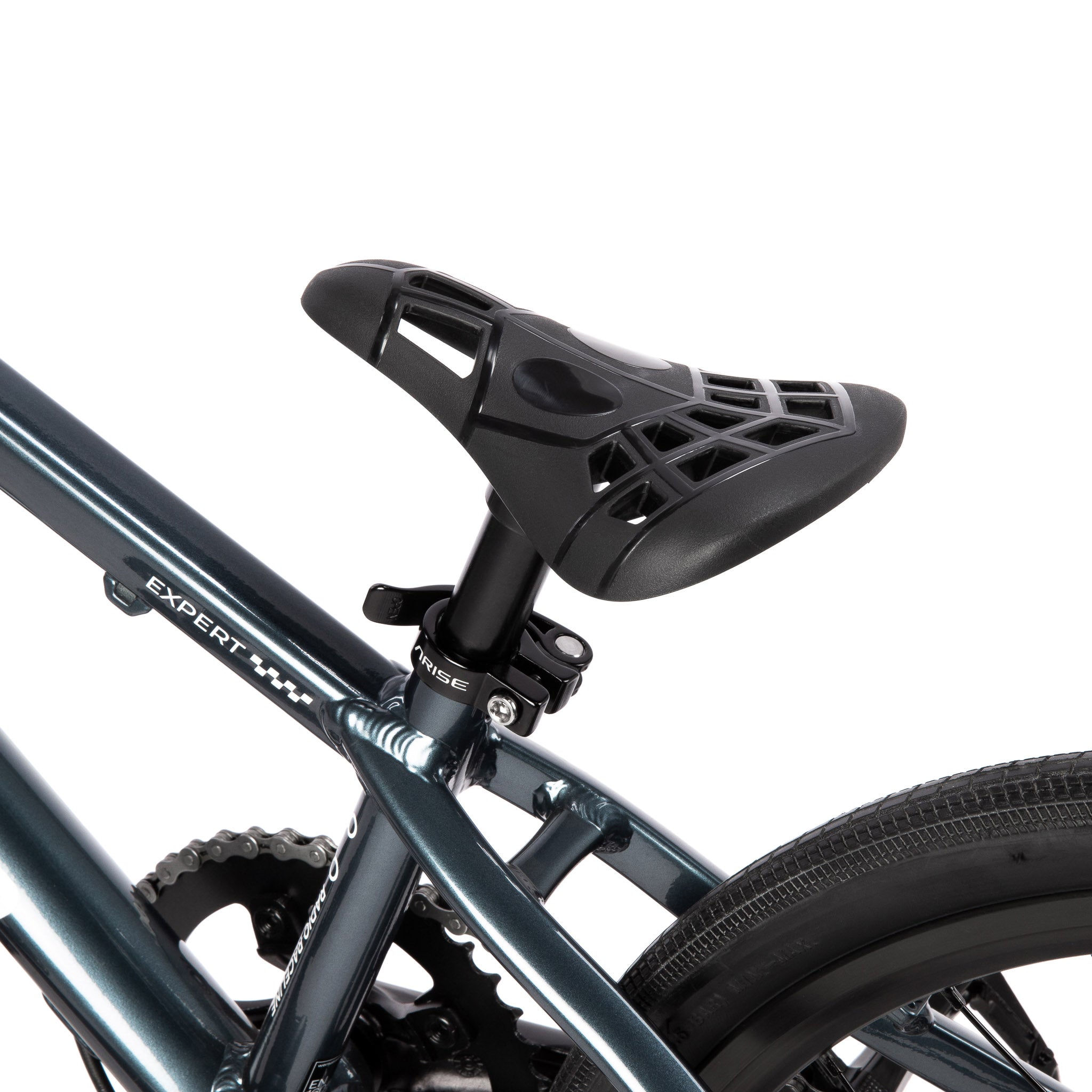

- SEAT: BOX "TWO" combo seat
- SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
-
TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"

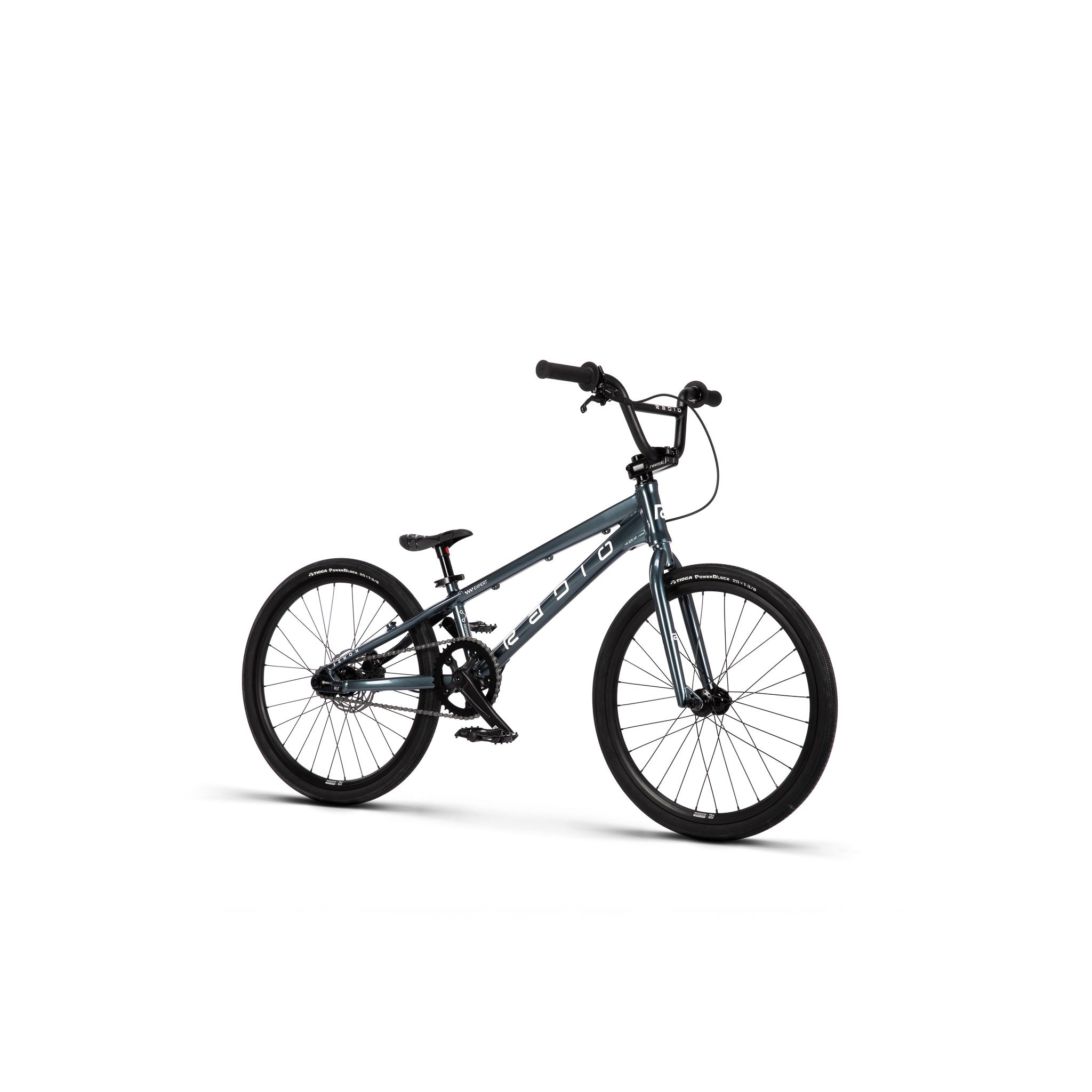

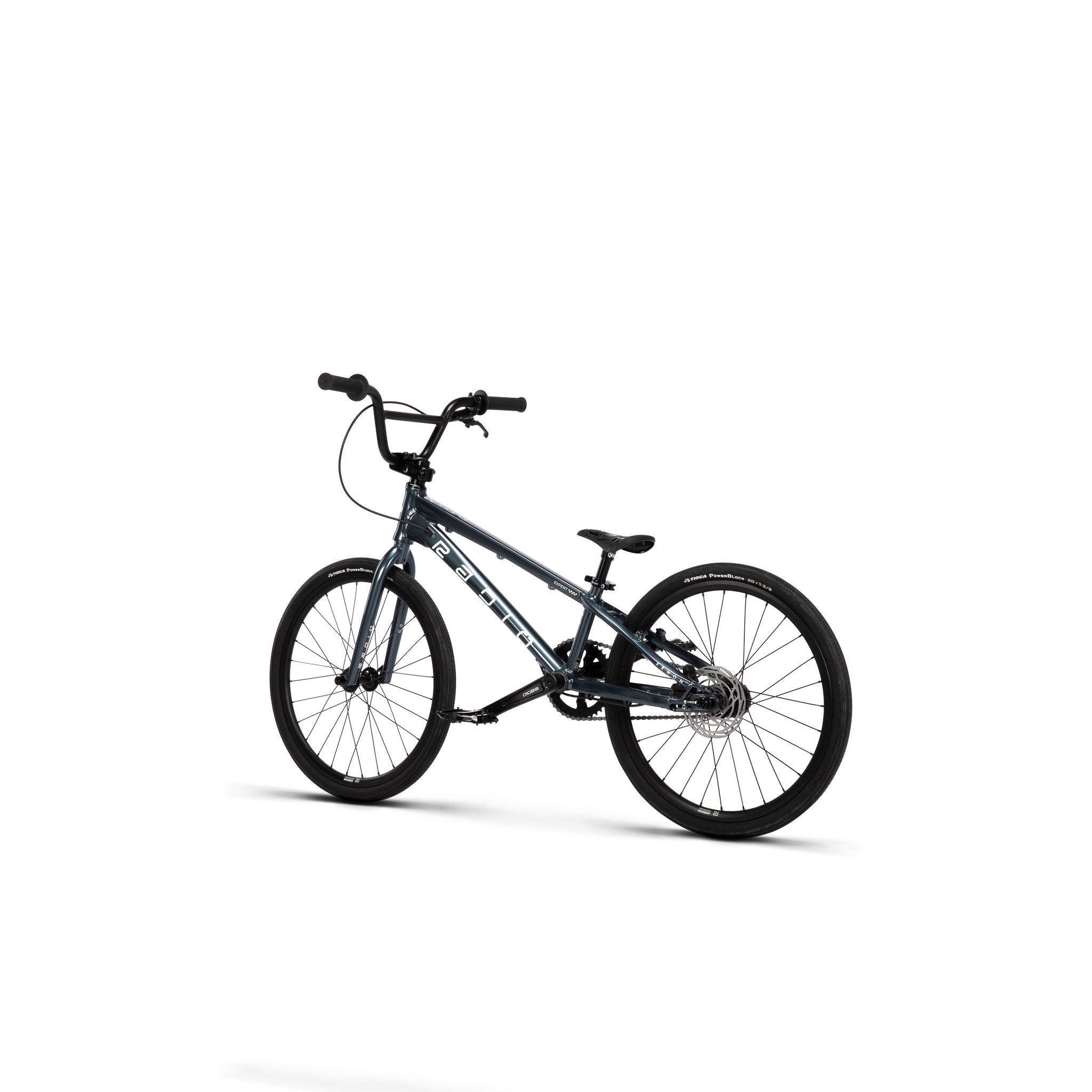

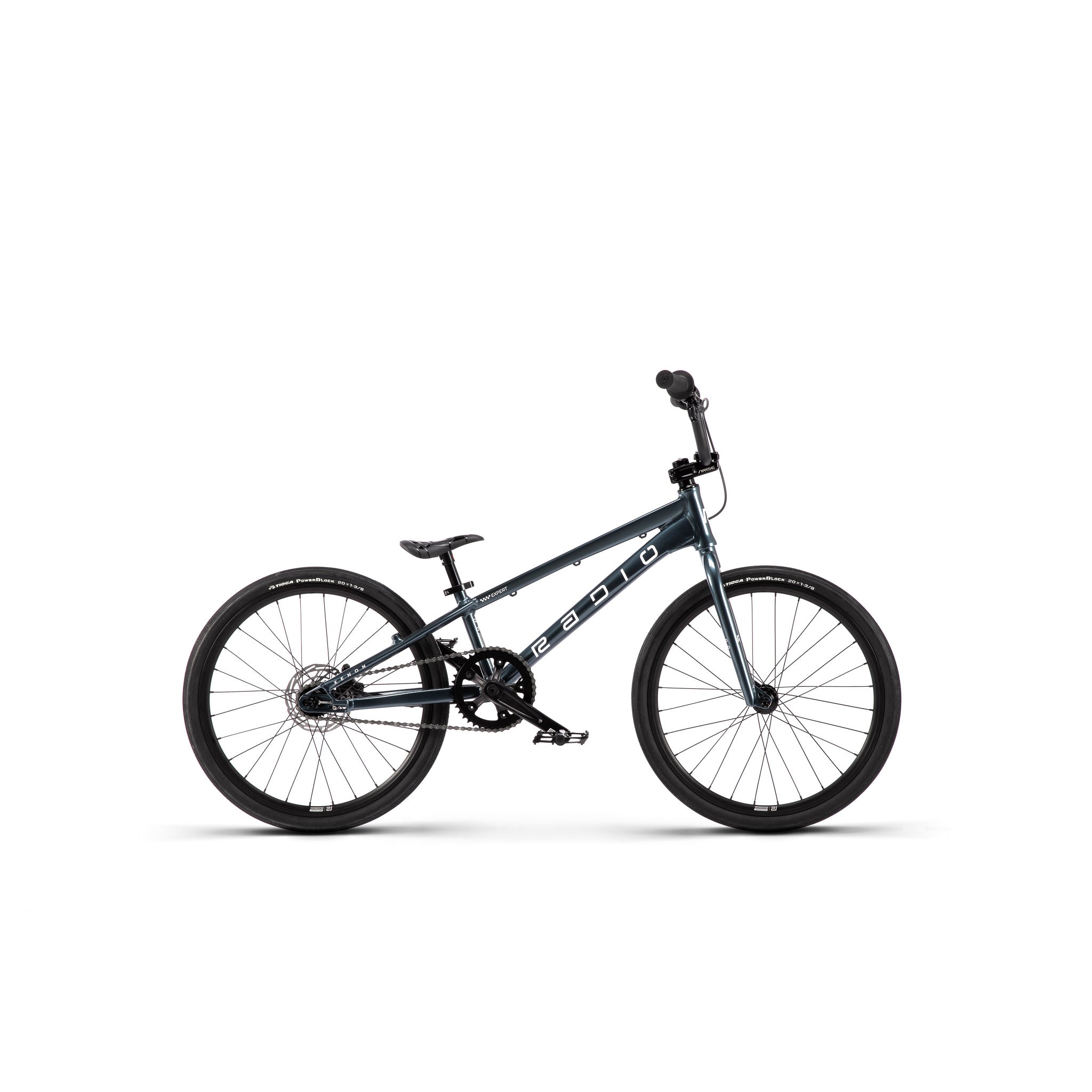

Xenon Expert Complete Bike
The Xenon Expert is built for riders pushing towards the front of the pack. With disc-ready technology featured throughout the Xenon range, upgrading to a full disc brake setup is simple with our aftermarket conversion kit.
No shortcuts have been taken, with forged disc-ready dropouts featuring integrated tensioners and our aftermarket Clipper Junior rims delivering the performance and reliability racers demand. Race-focused and built to progress, the Xenon Expert is ready when the gate drops.
Weight: 8.08kg / 17.81lbs
Frame Geometry:
| Top Tube Length | 19.5" |
| Chain Stay Length | 13.6" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.8" |
Handlebar Geometry:
| Rise | 5.75" |
| Width | 24.4" |
| Backsweep | 8° |
| Upsweep | 2° |
