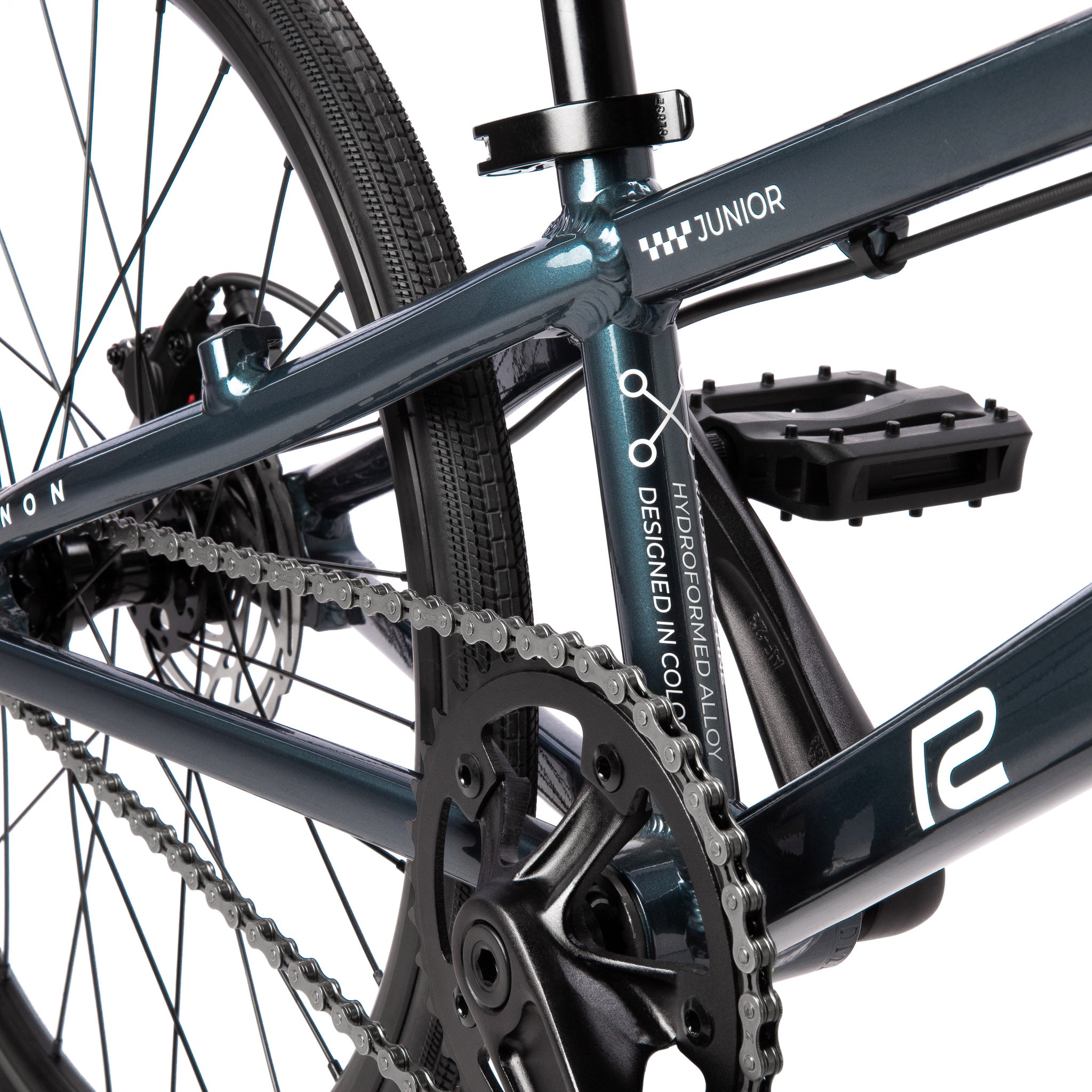

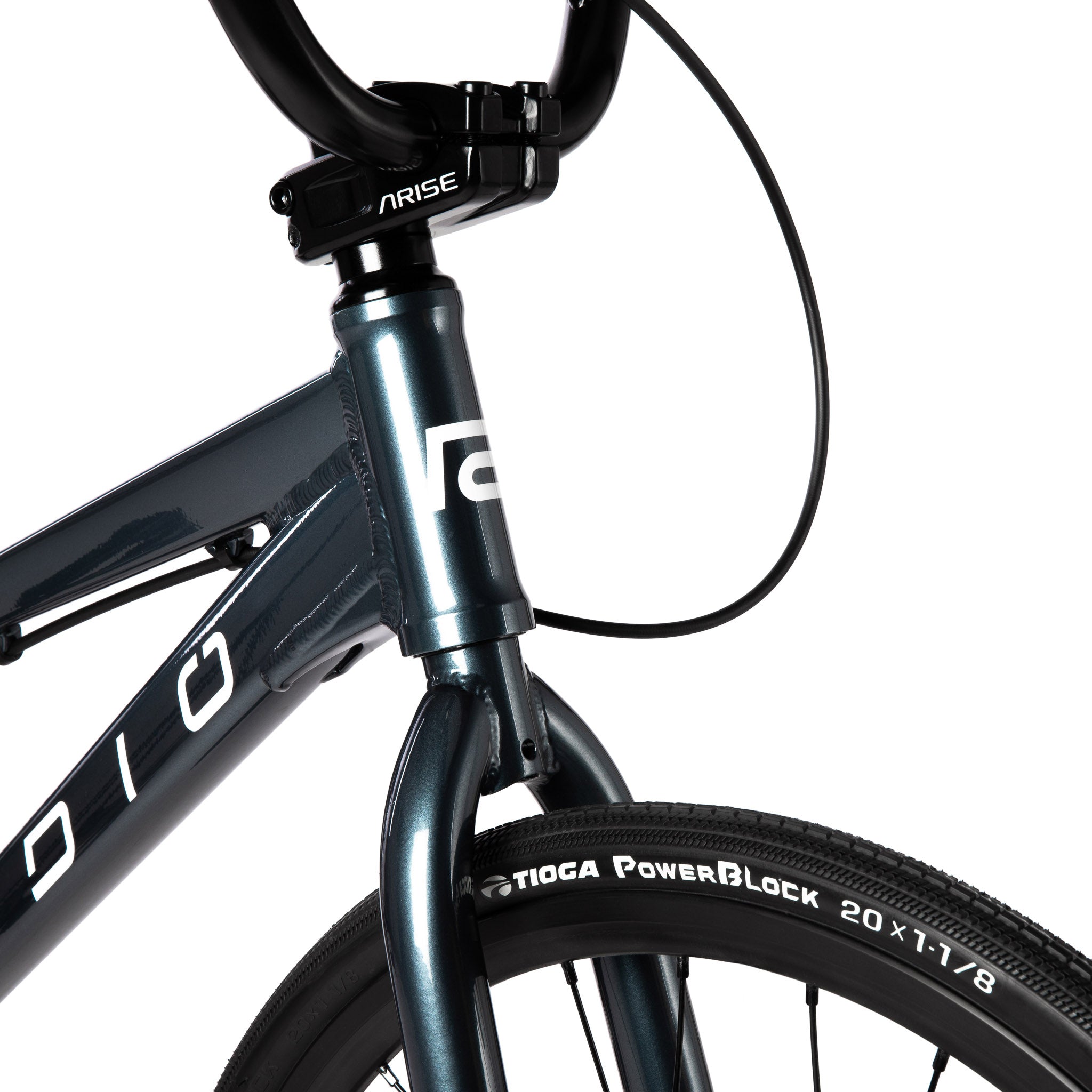

- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts

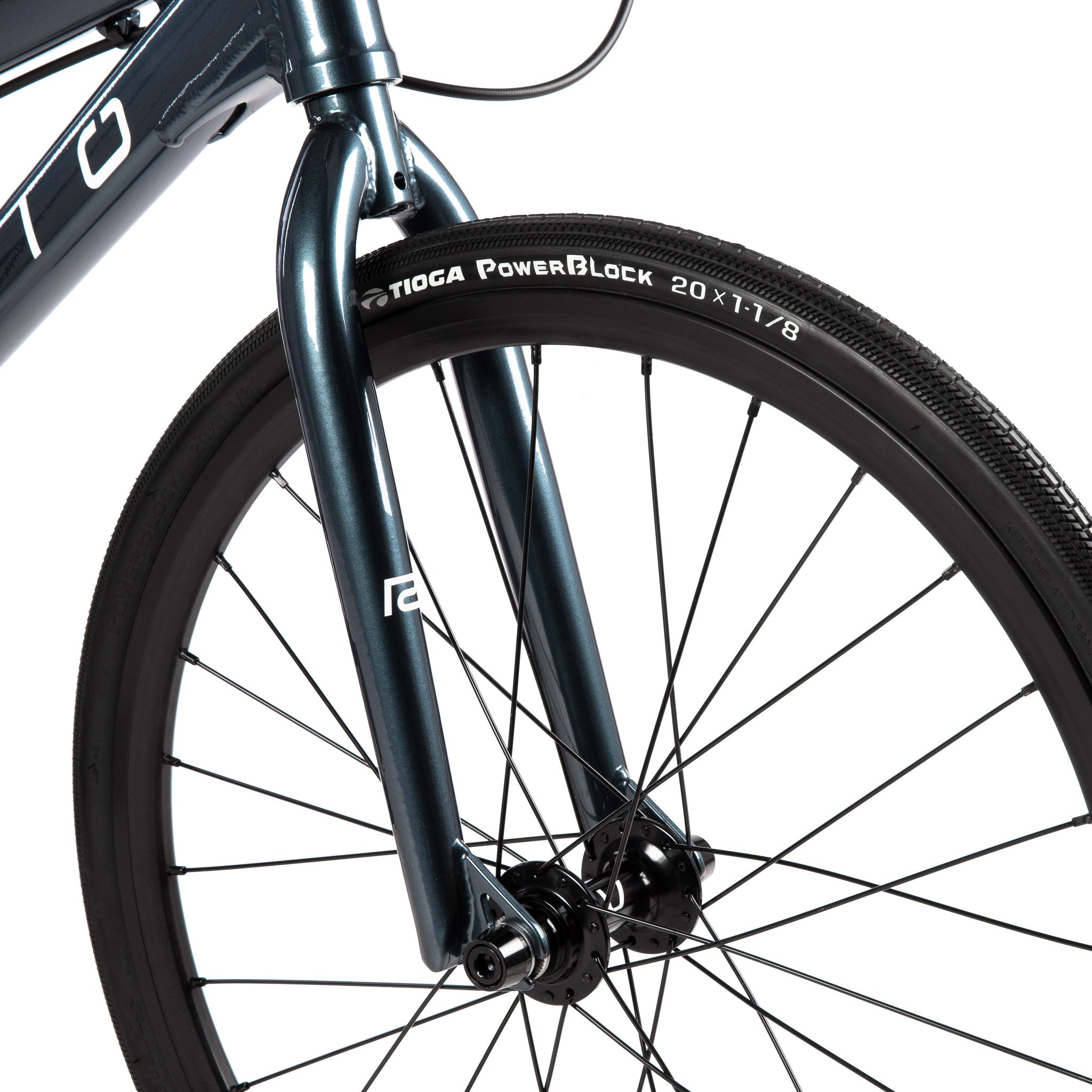

- FORK: crmo fork, 1" butted steerer, crmo fork legs, 23mm offset

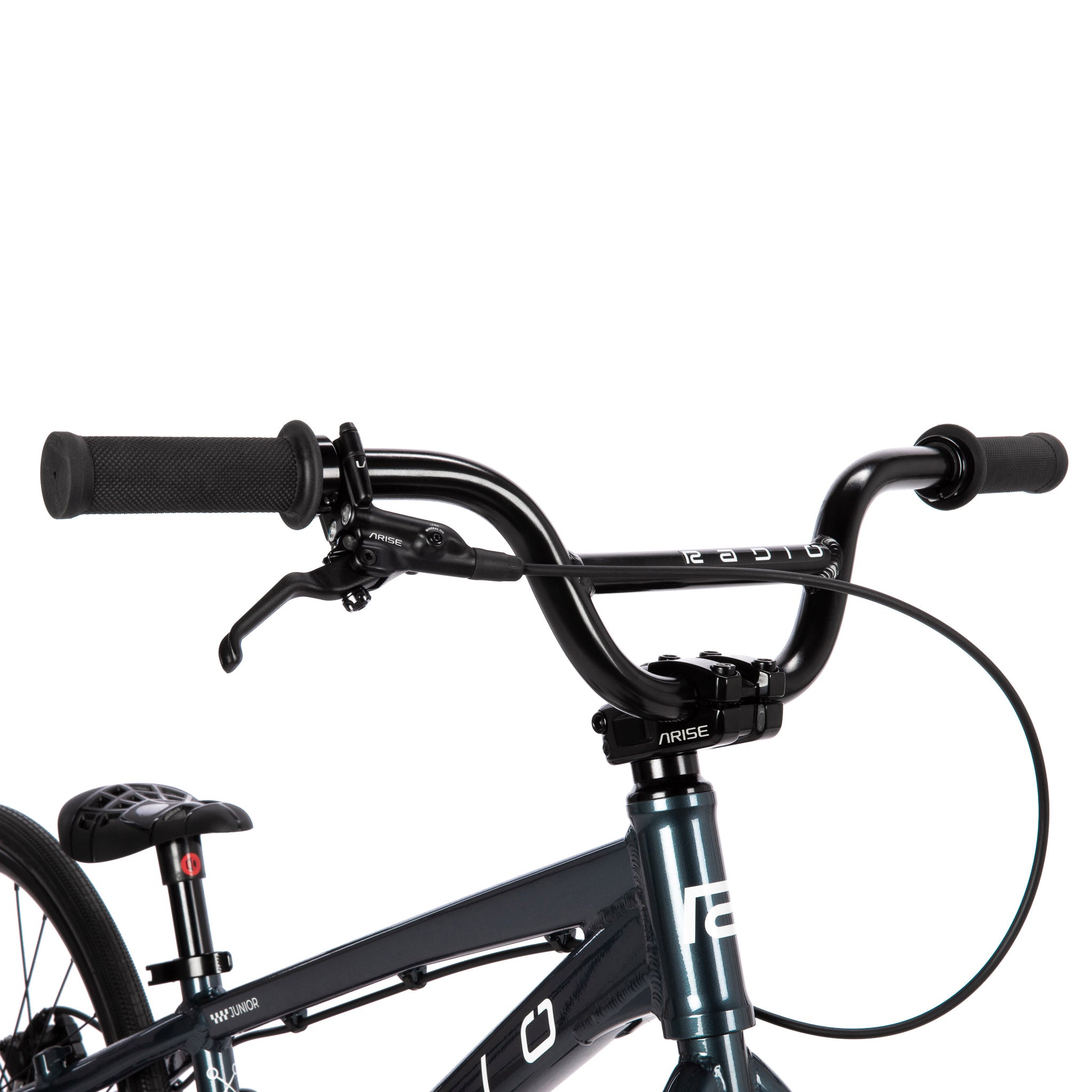

- HANDLEBAR: 6061-T6 alloy bar

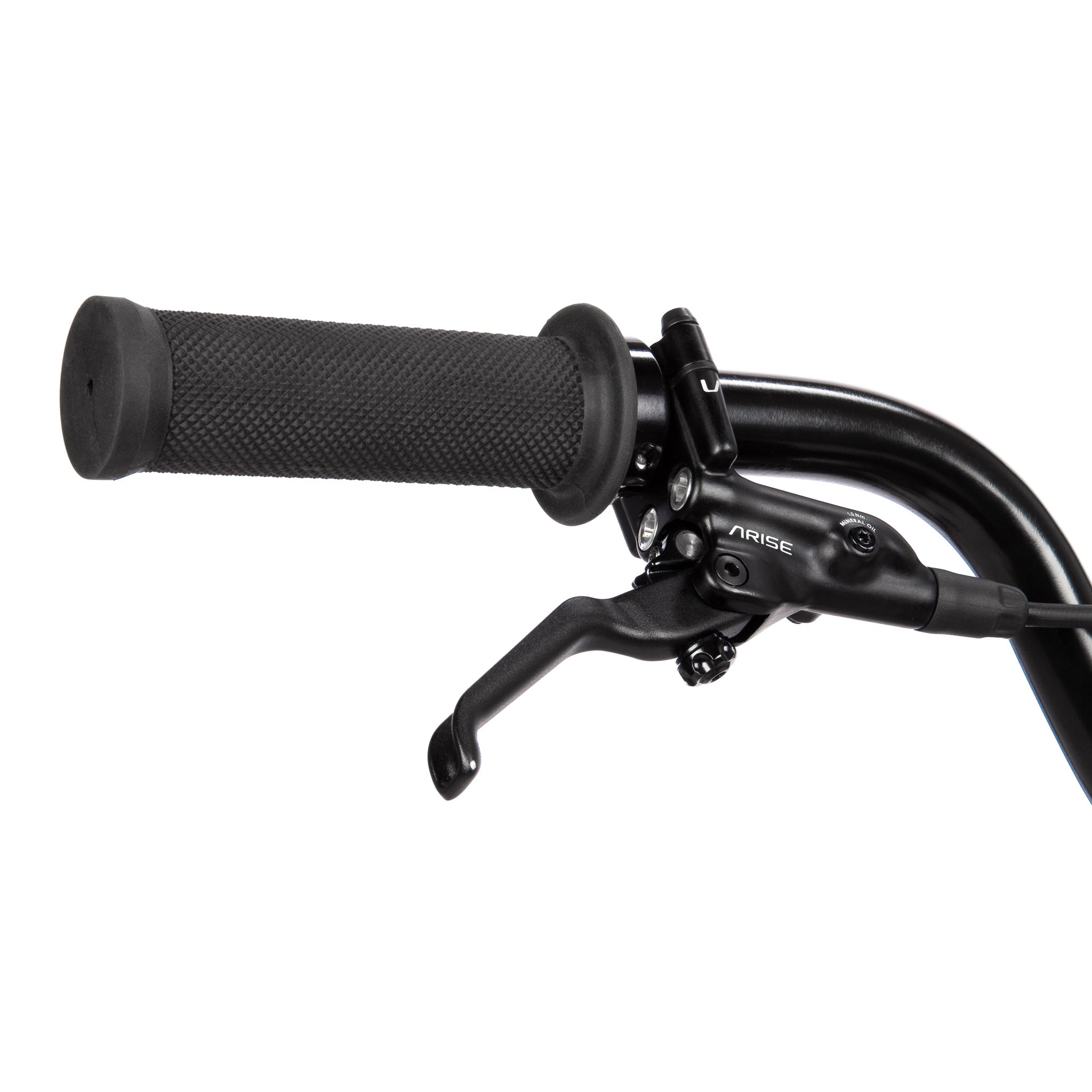

- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 115mm length

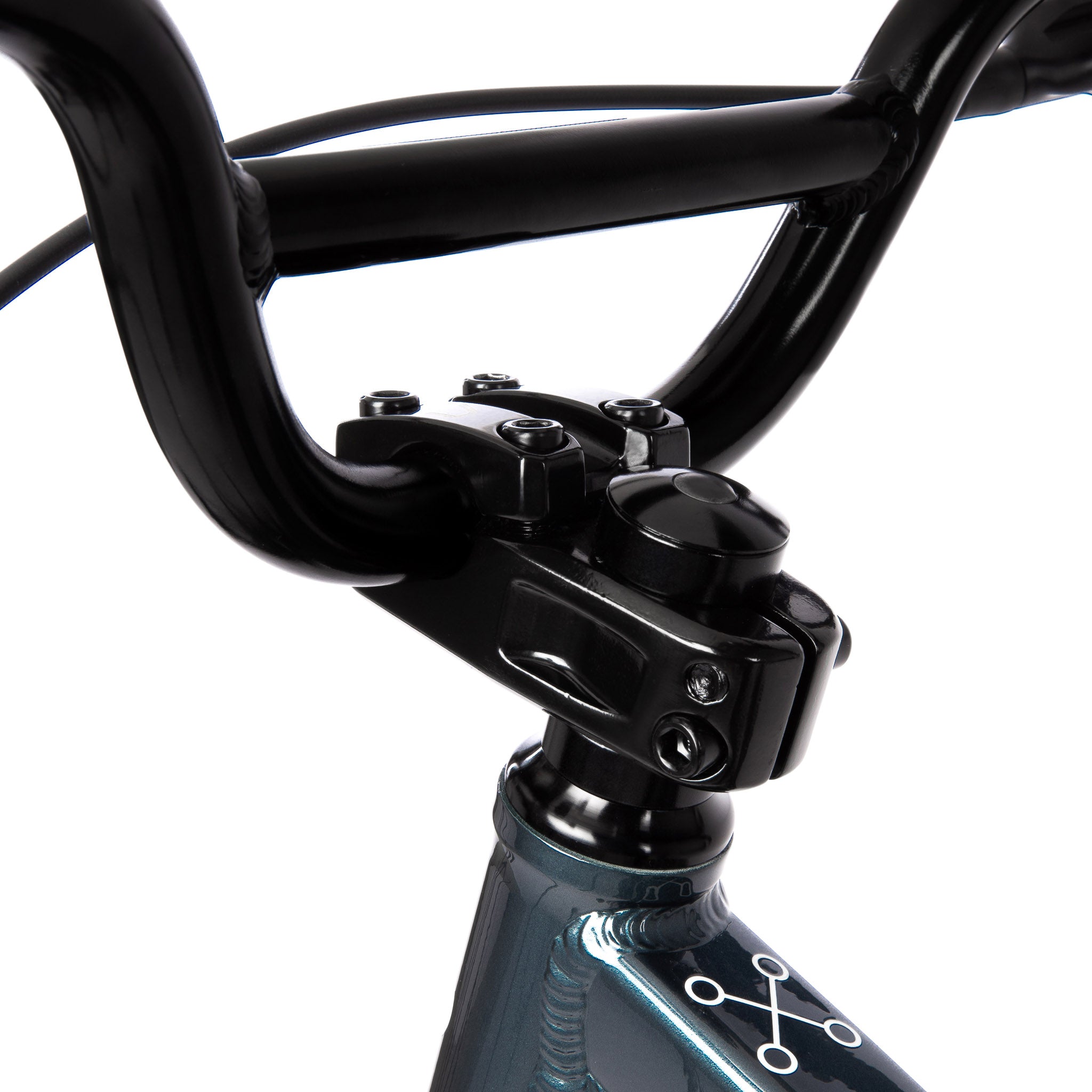

- STEM: RADIO RACELINE "COBALT" toploader stem, ext. 40mm, alloy
- HEADSET: RADIO RACELINE integrated headset, sealed, 1"
- BRAKE LEVER: PROMAX "XL-378" brake lever, rear
- BRAKE: PROMAX "MV-85" brake, rear

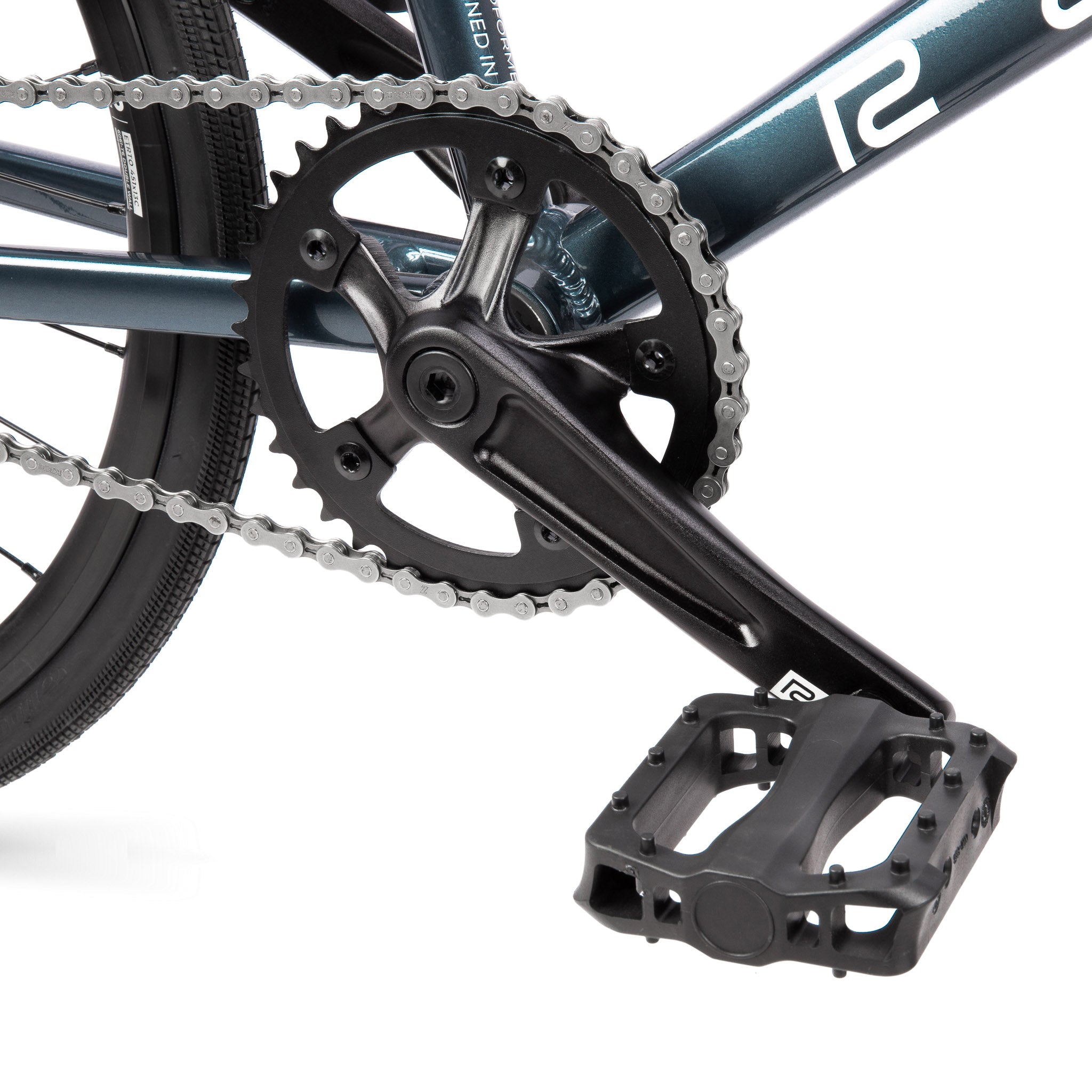

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 155mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON JUNIOR" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 40T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

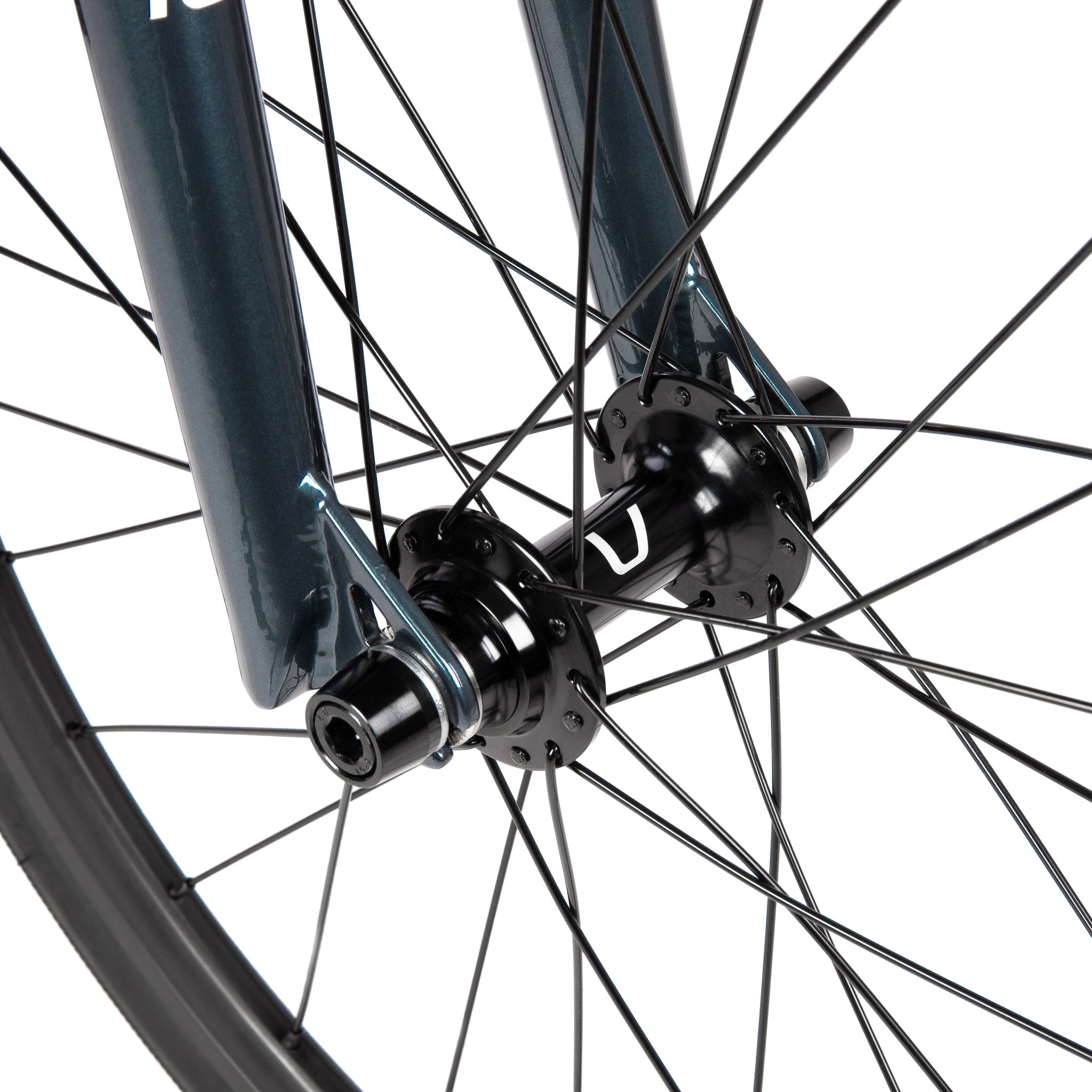

- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

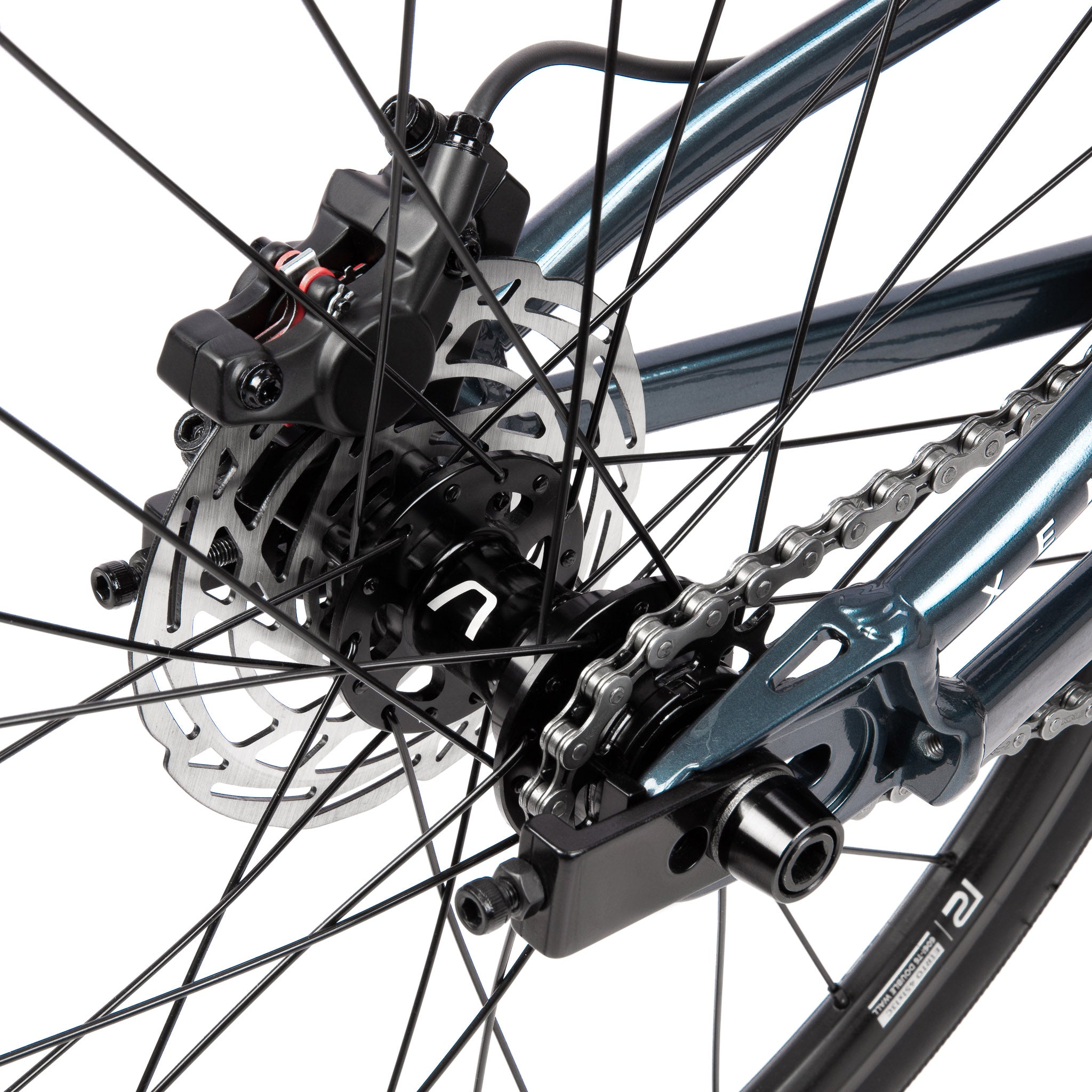

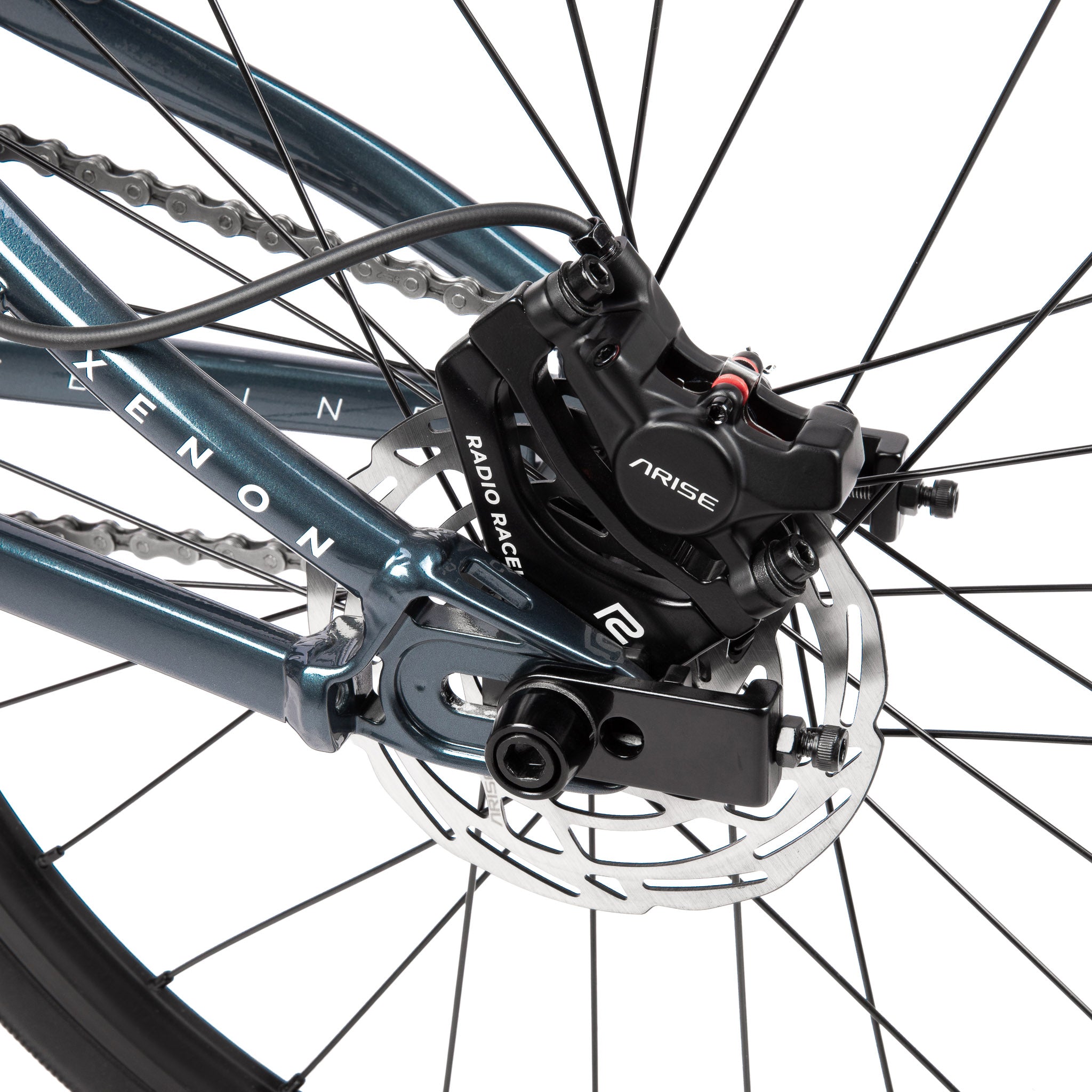

- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
- REAR RIM: RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy

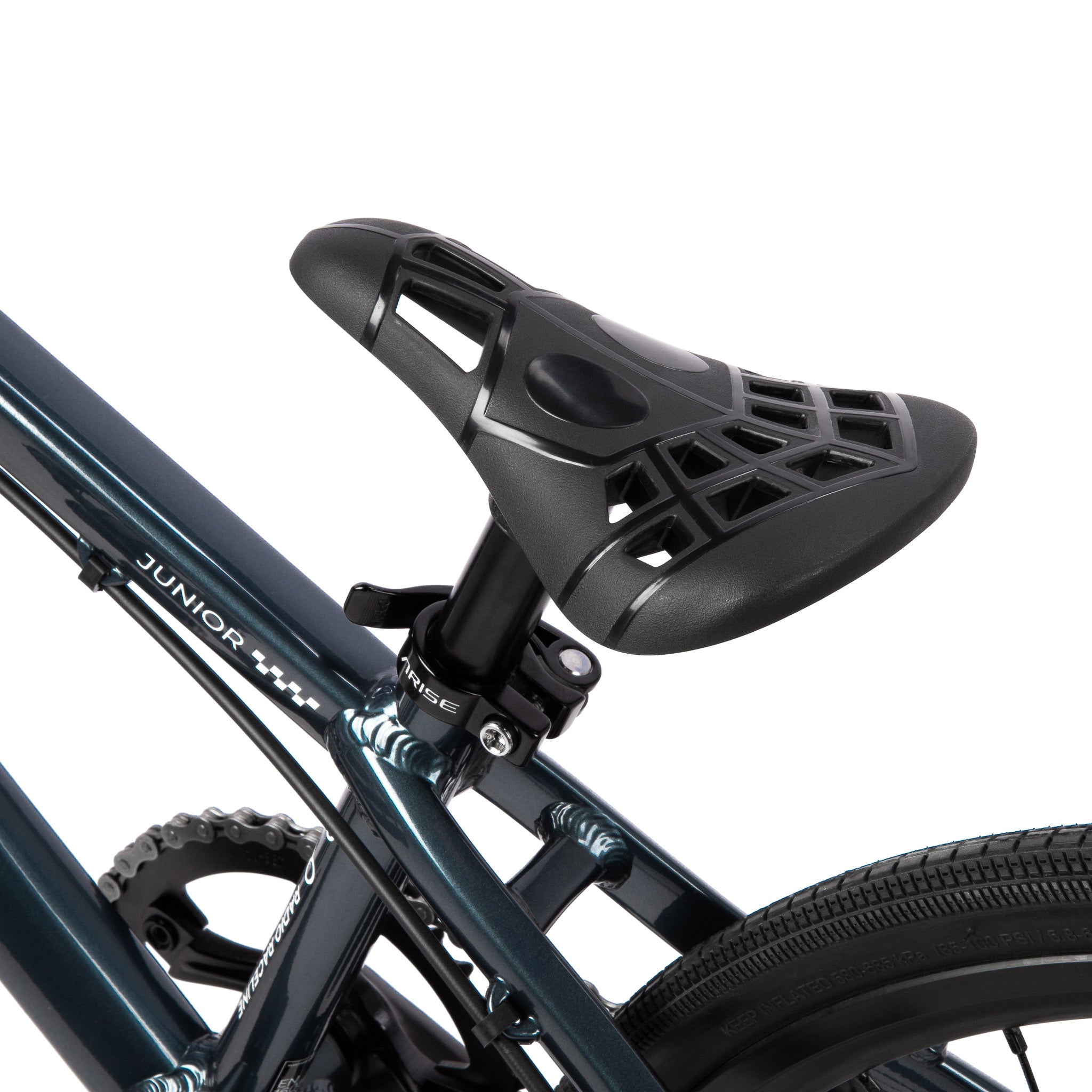

- SEAT: RADIO RACELINE "MINI" combo seat
- SEAT POST: RADIO RACELINE seat post, 22.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
- TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"

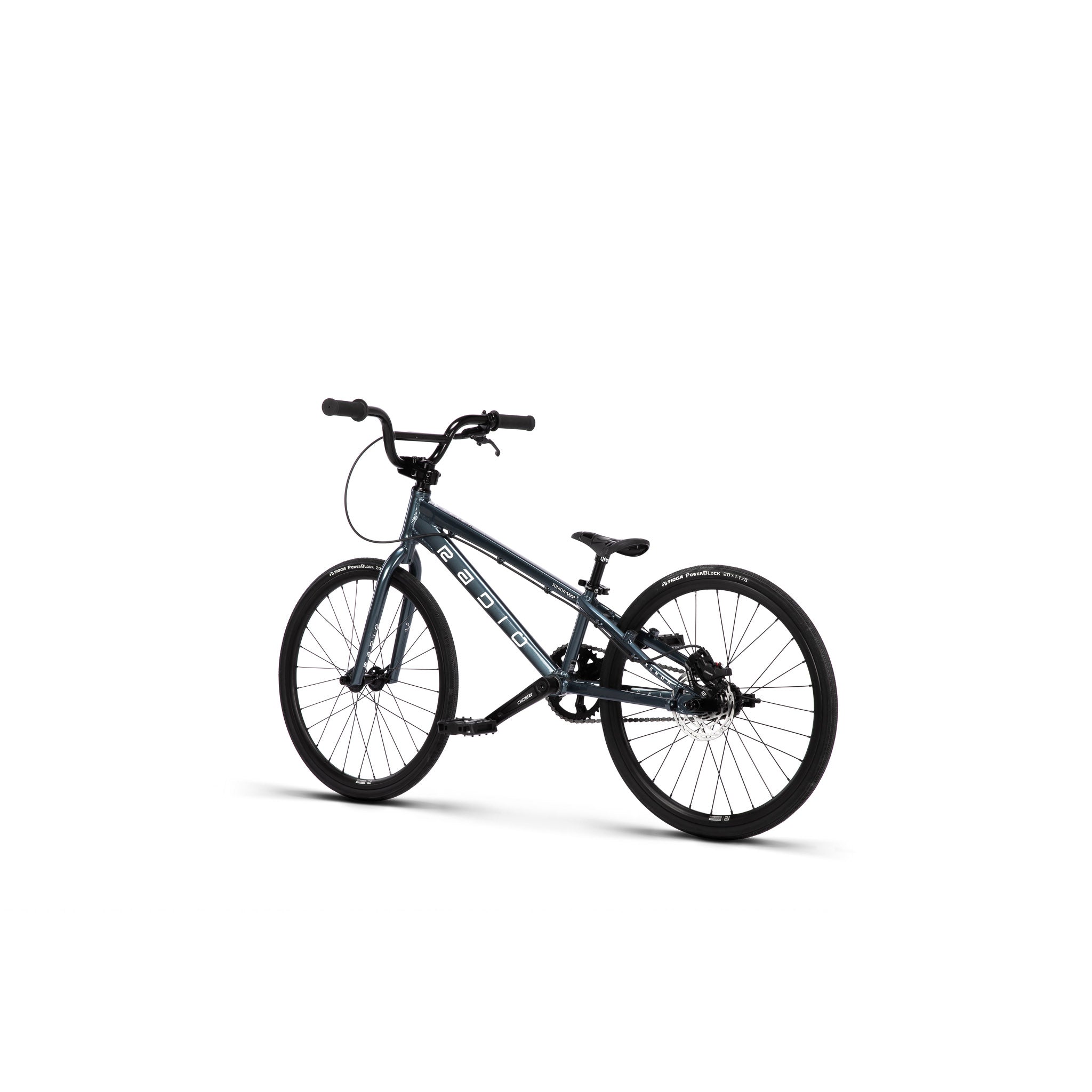

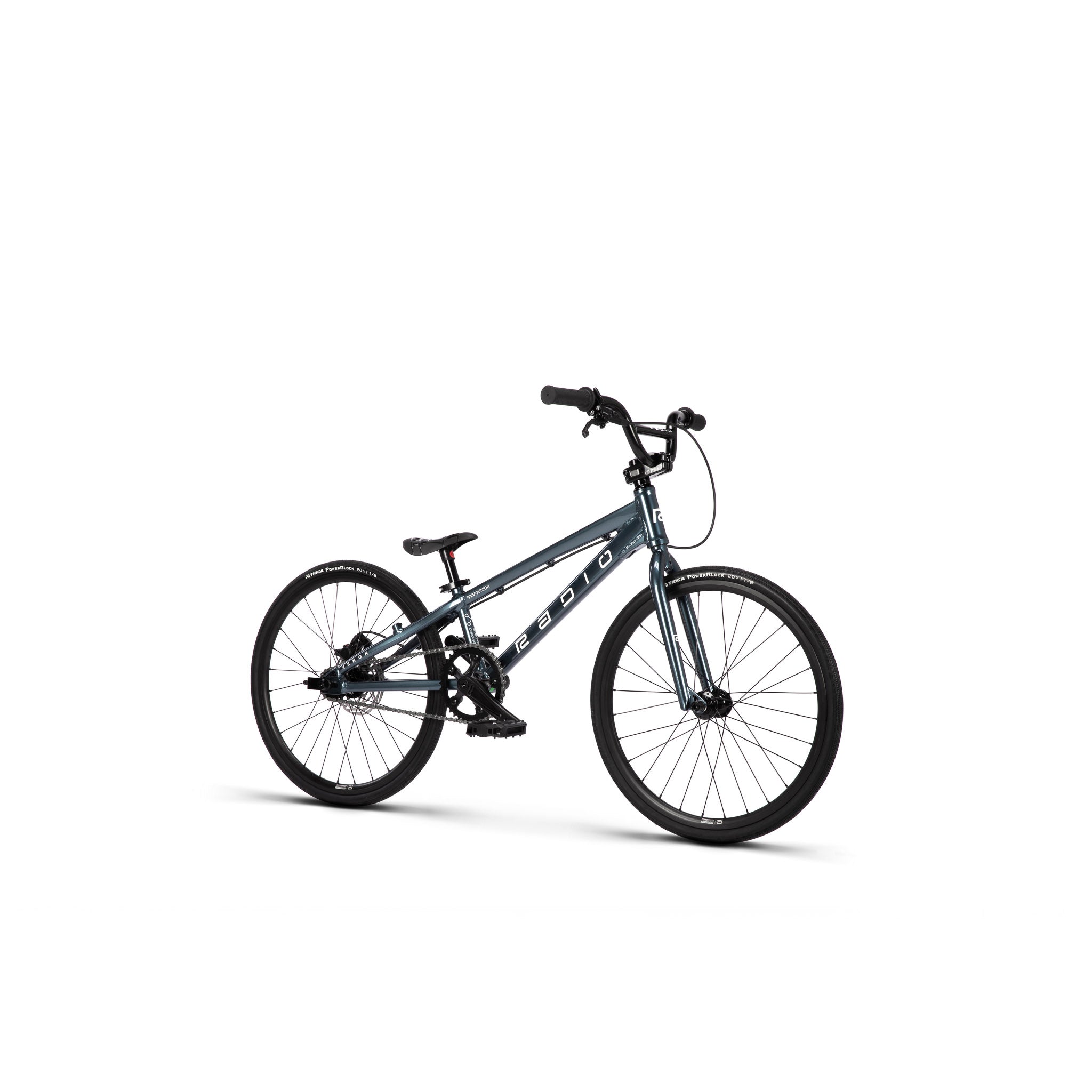

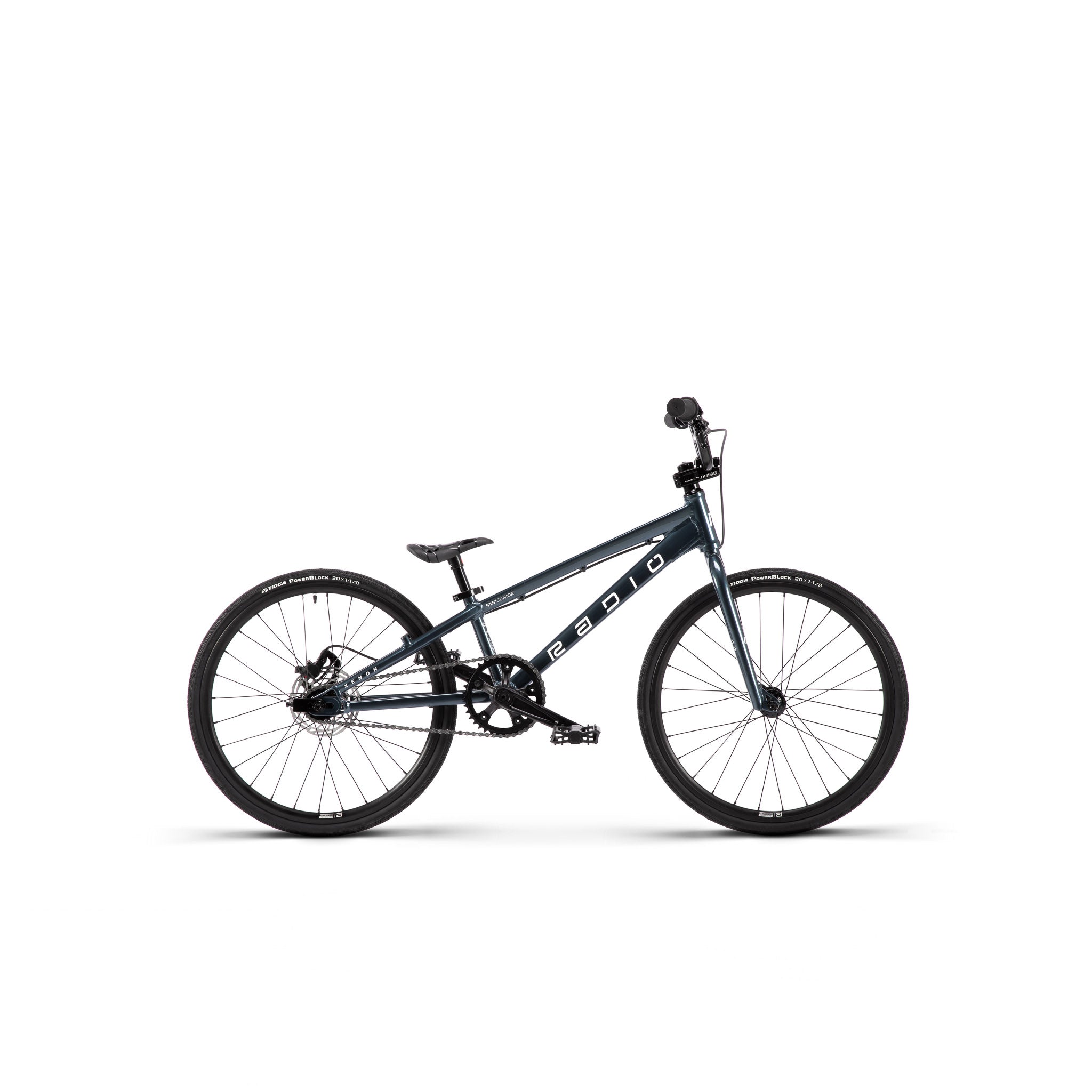

Xenon Junior Complete Bike
The Xenon Junior is light, tough and built to dominate. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit. We spared no details here, from forged disc-ready dropouts, our very own aftermarket Clipper Junior Rims to parts from Promax and Tioga, the Xenon is a natural born winner.
Weight: 7.78kg / 17.16lbs
Frame Geometry:
| Top Tube Length | 18.6" |
| Chain Stay Length | 13.4" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.6" |
Handlebar Geometry:
| Rise | 4.25" |
| Width | 24" |
| Backsweep | 8° |
| Upsweep | 2° |
