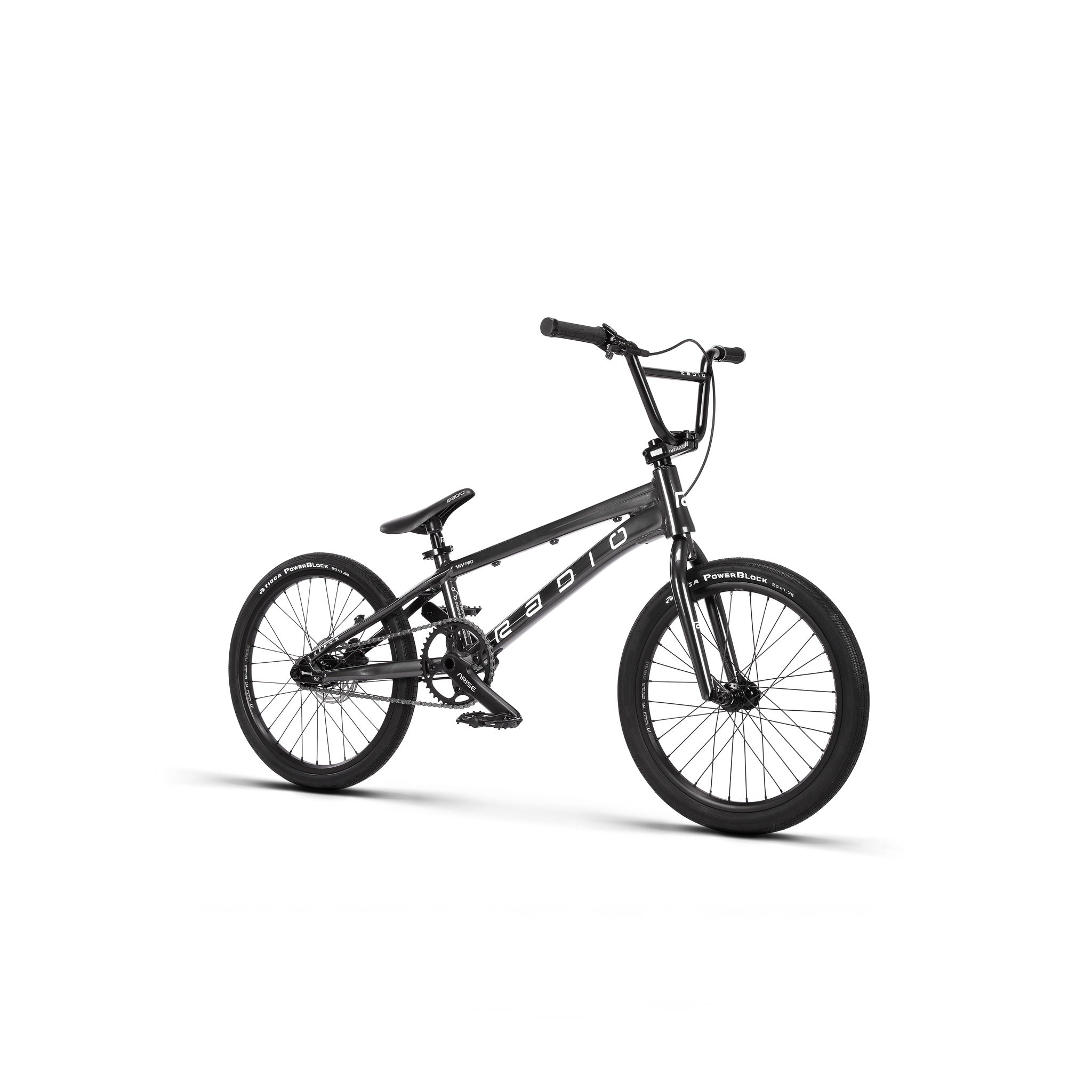

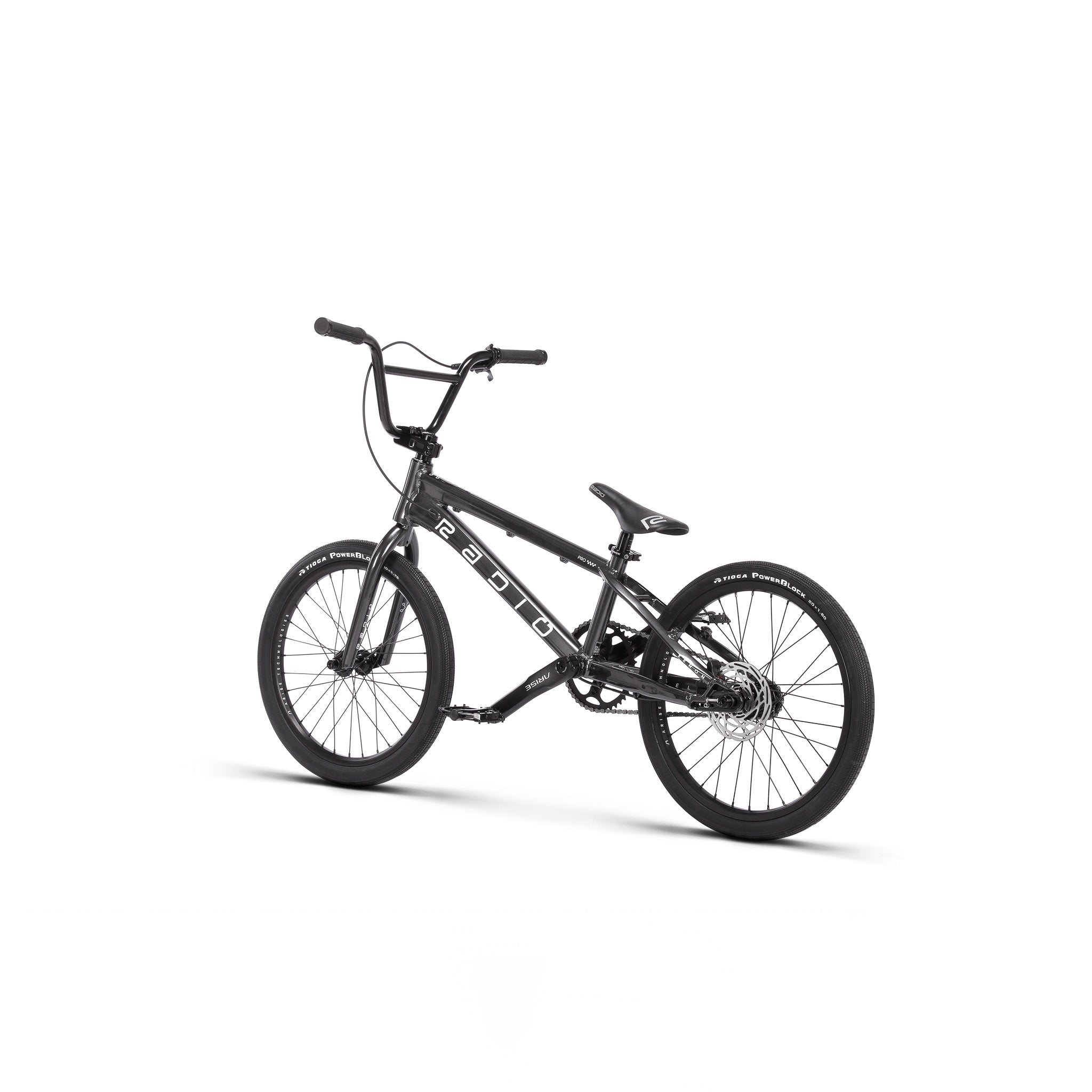

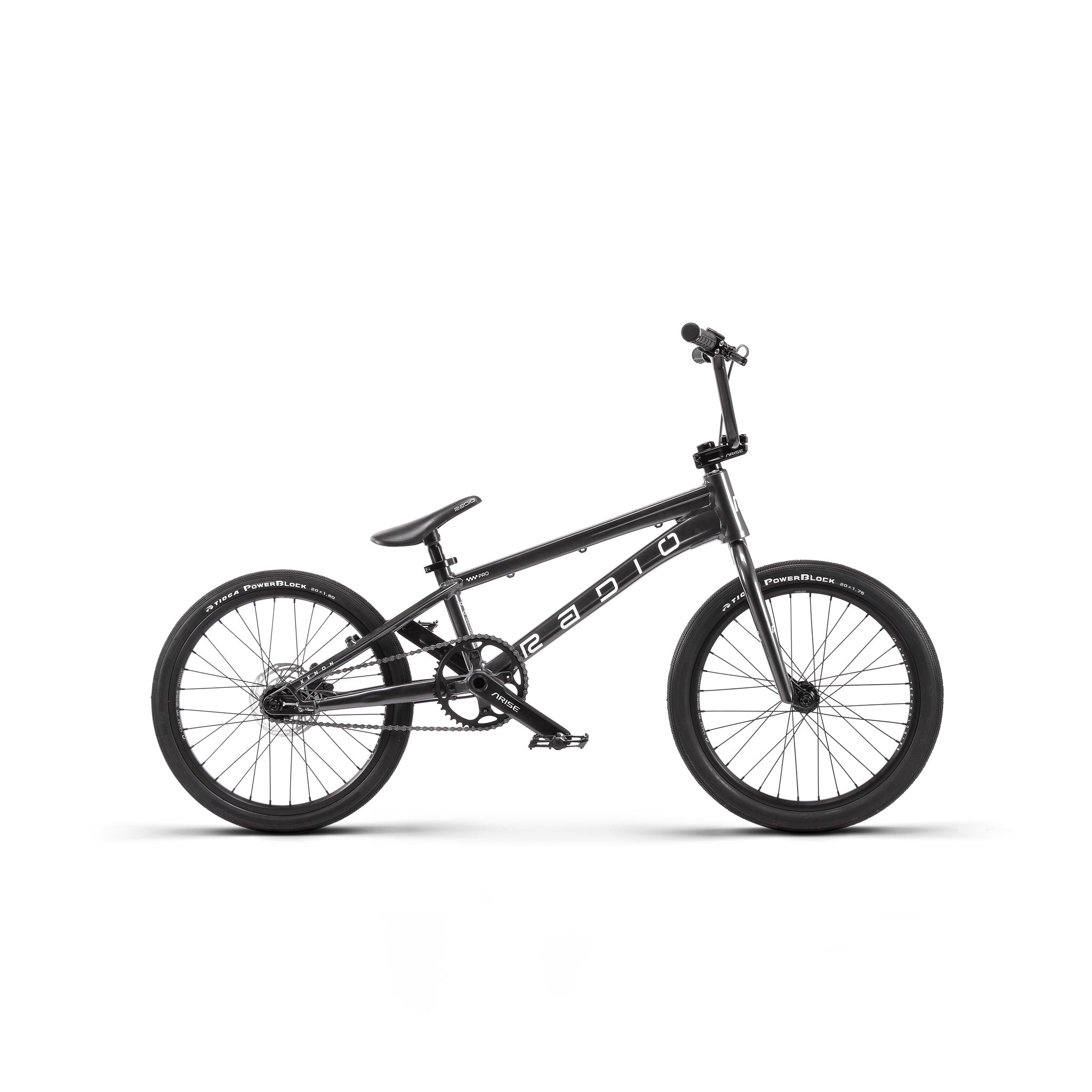

Xenon Pro Complete Bike

The Xenon Pro L steps things up with Pro-sized geometry and a full specification upgrade, giving riders a race-ready package designed to perform at every level. Like the rest of the Xenon range, it's built disc-ready, making the transition to a full disc brake setup simple with our aftermarket conversion kit.

From forged disc-ready dropouts with integrated tensioners to our Xenon stem, Tioga Power Block tires, and Argon Pro rims, every component has been selected with performance in mind. Fast, dependable, and built for the demands of modern BMX racing, the Xenon Pro L is ready when the gate drops.

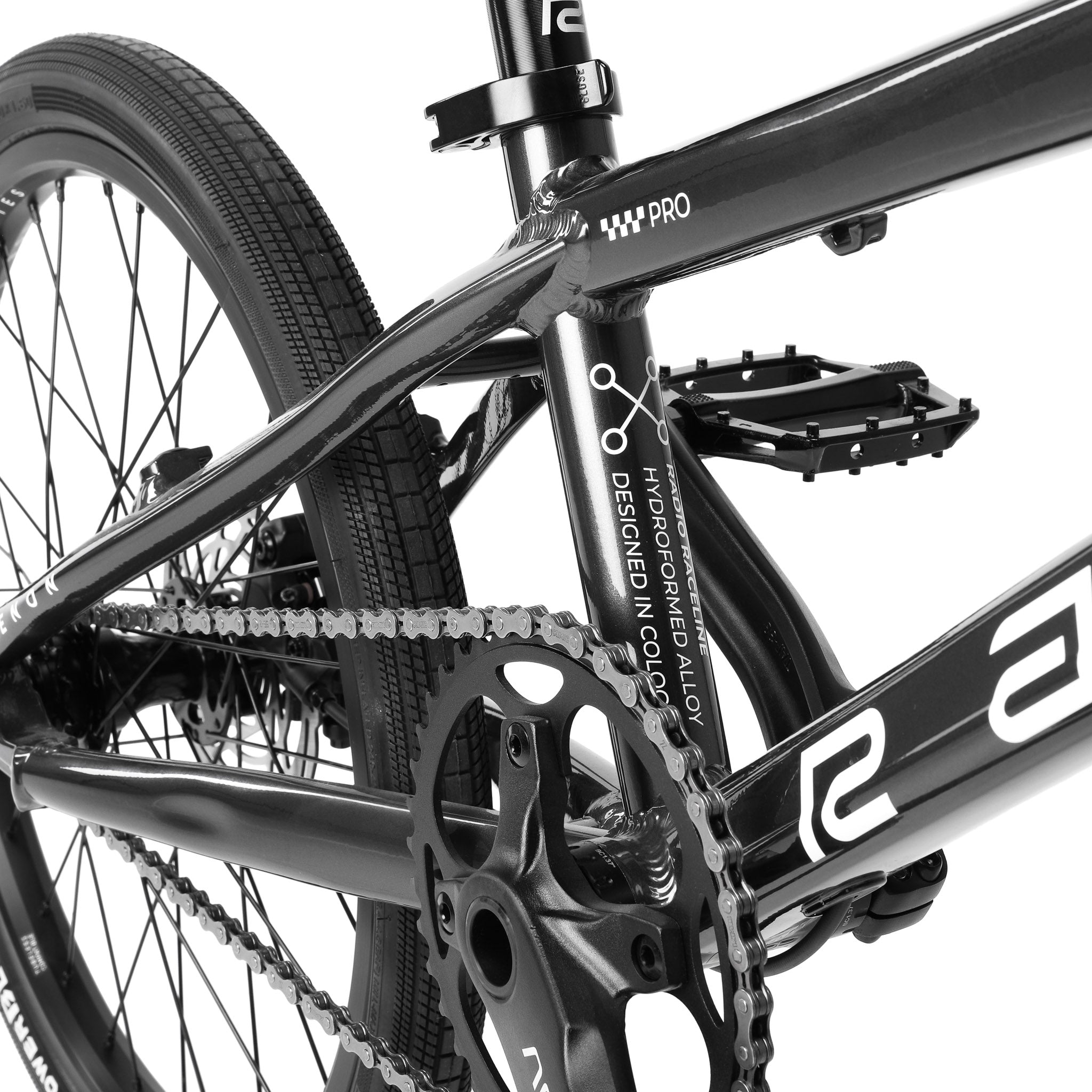

  • FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts

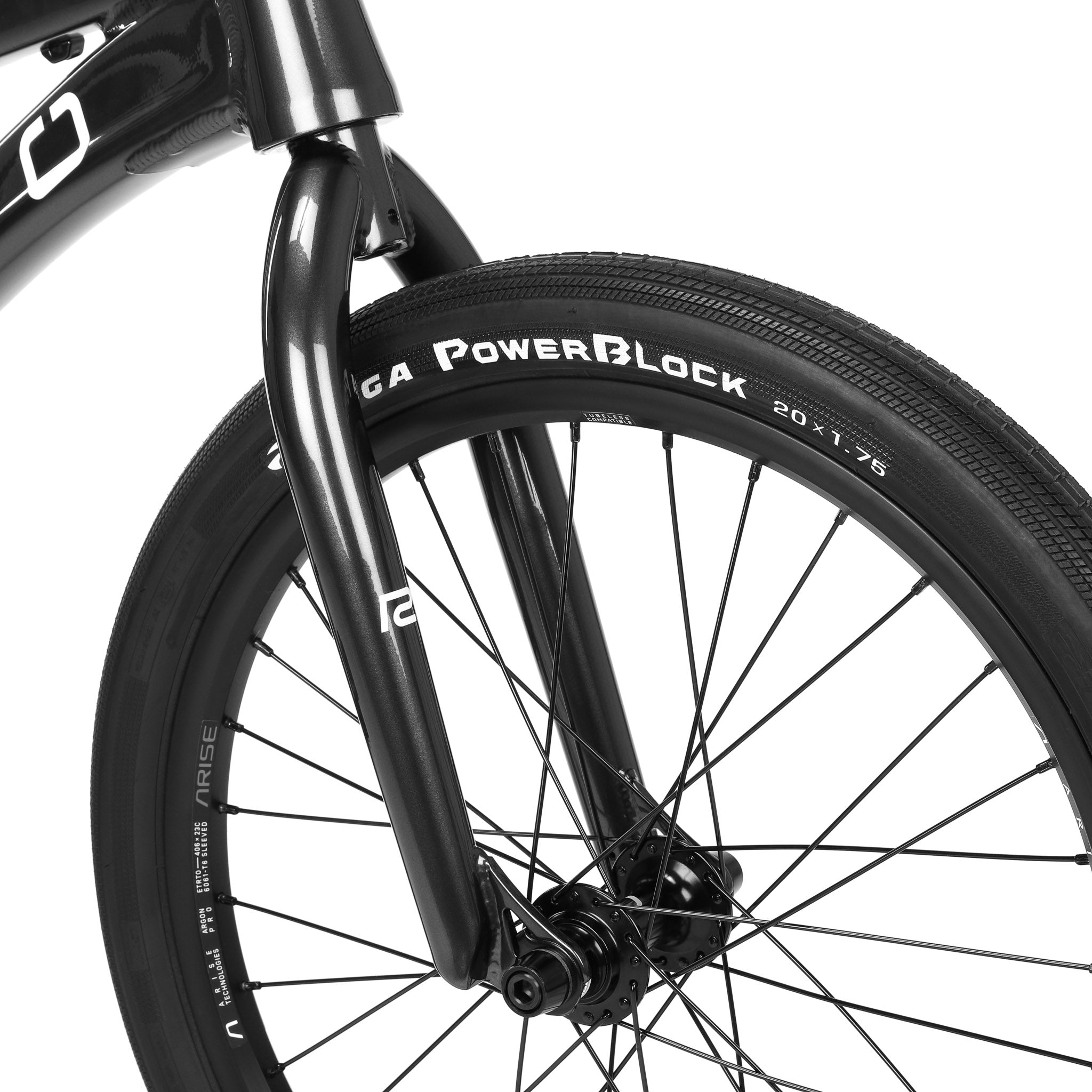

  • FORK: crmo fork, 1" butted steerer, crmo fork legs, 23mm offset

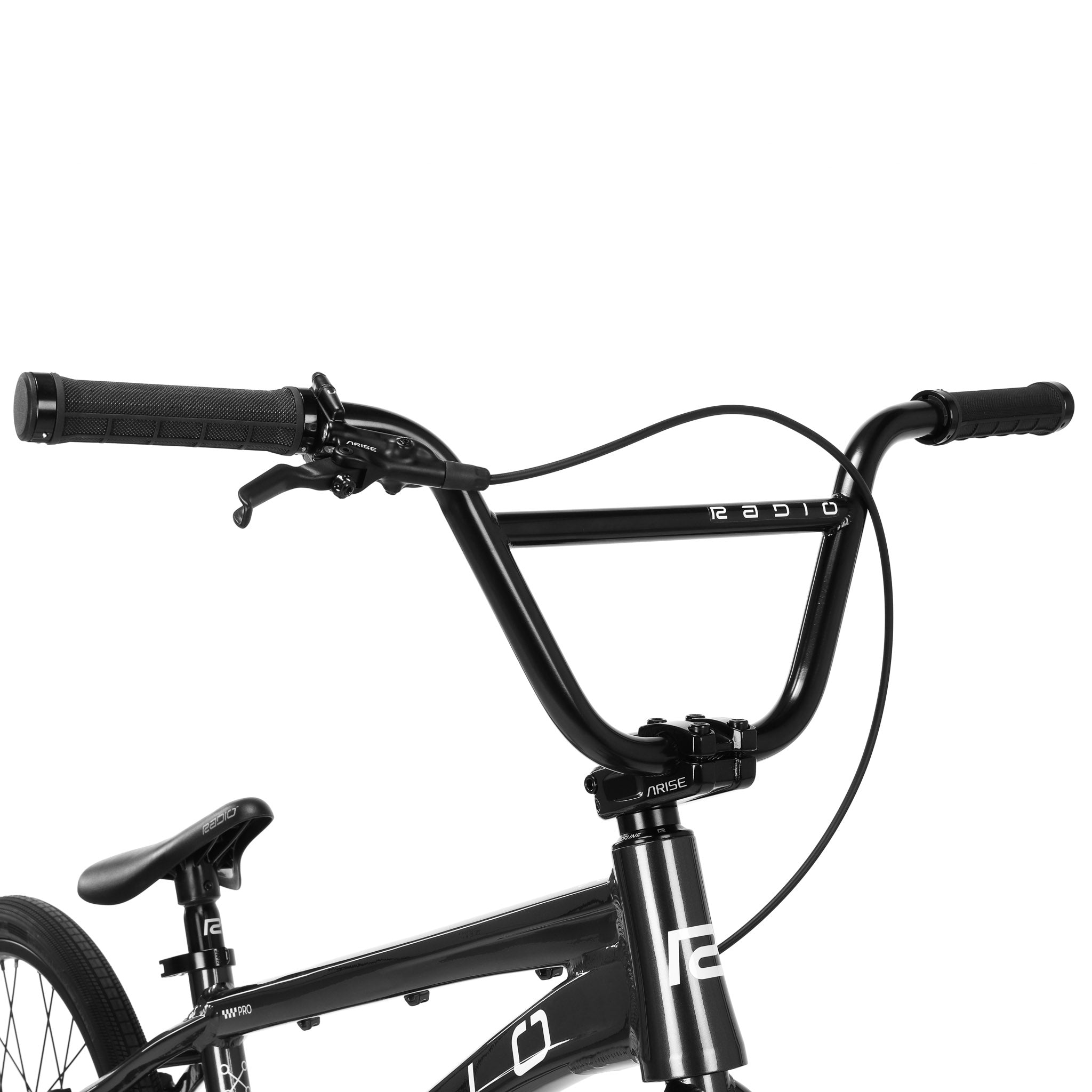

  • HANDLEBAR: 6061-T6 alloy bar
  • GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 115mm length

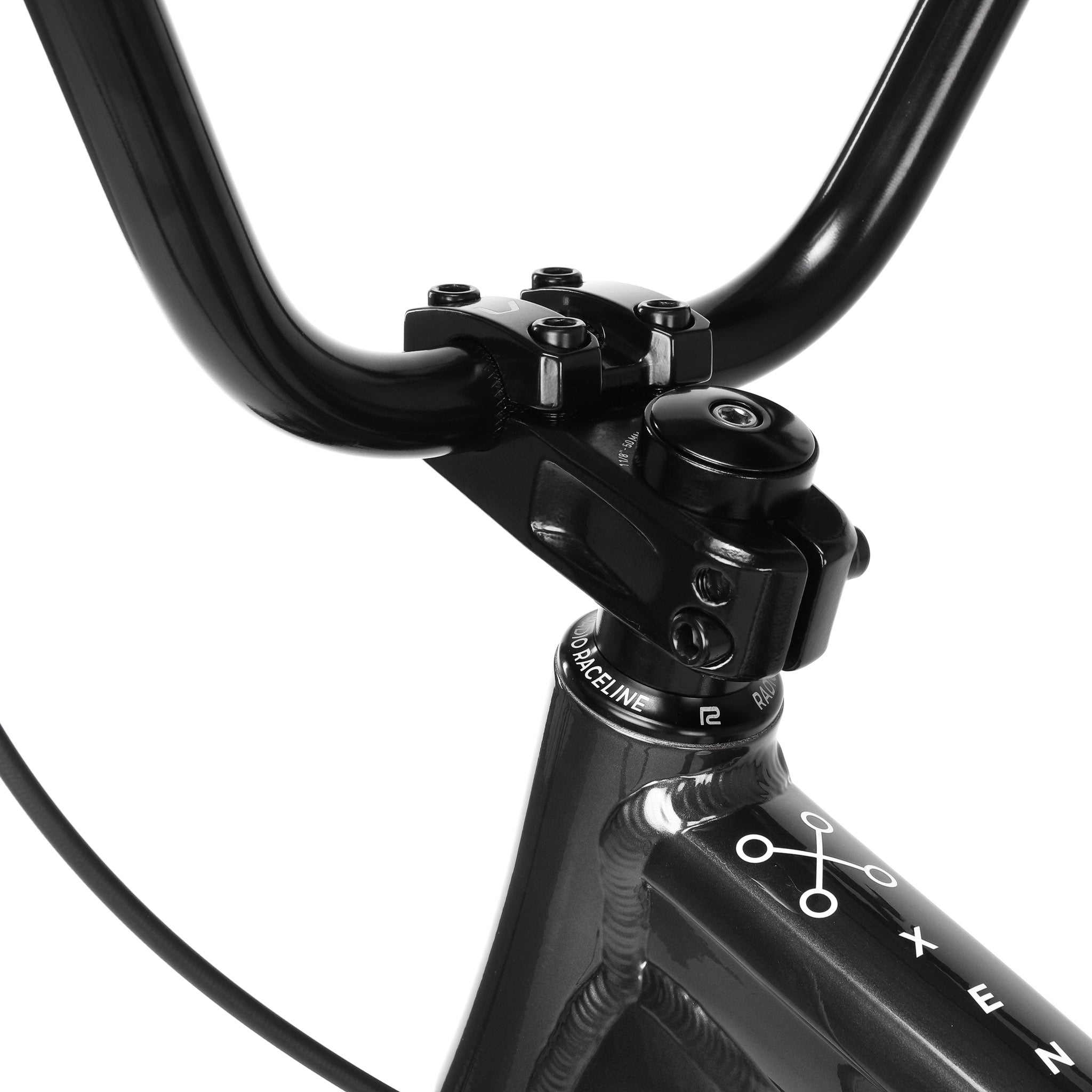

  • STEM: ARISE "XENON PRO" toploader stem, ext. 40mm, alloy

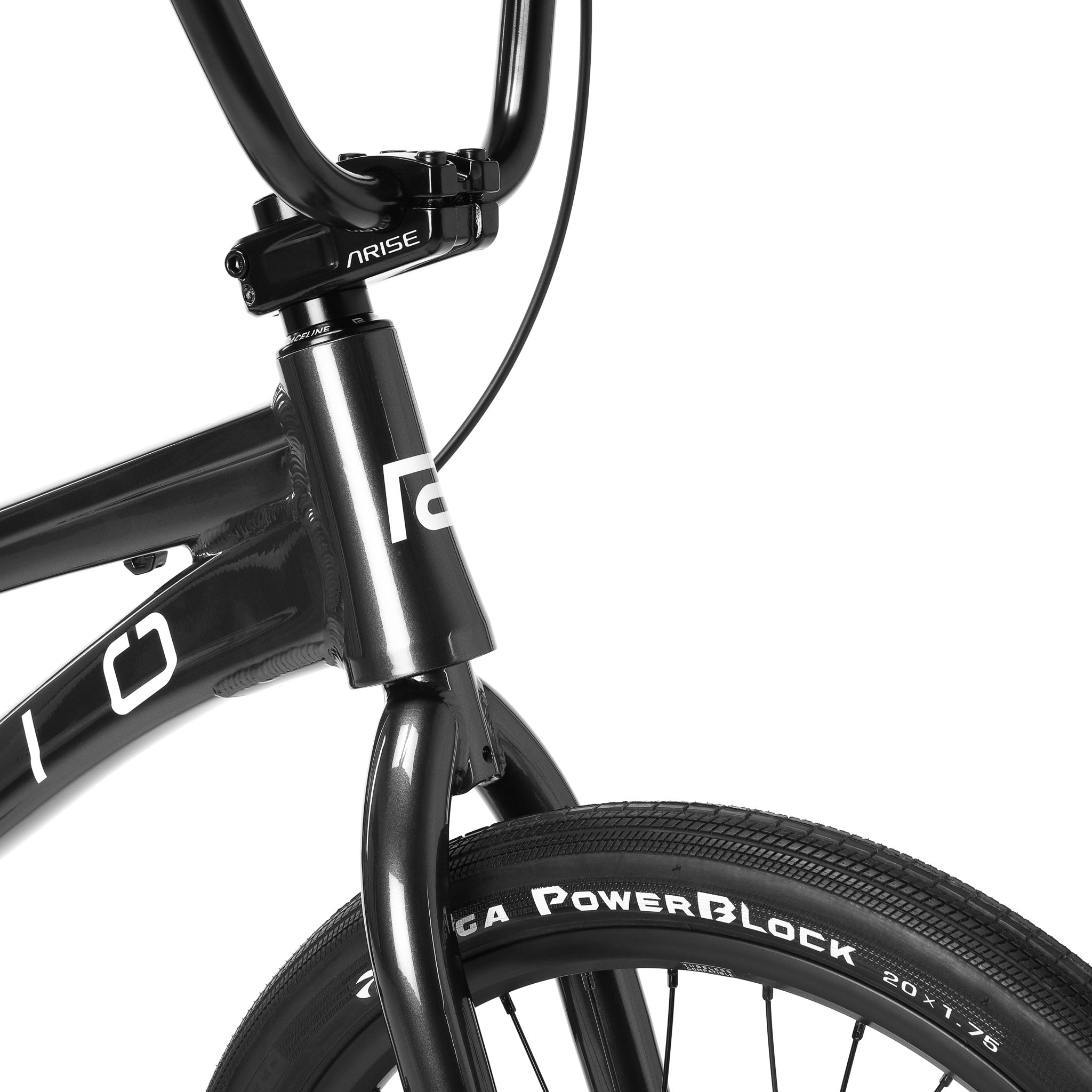

  • HEADSET: RADIO RACELINE integrated headset, sealed, 1"

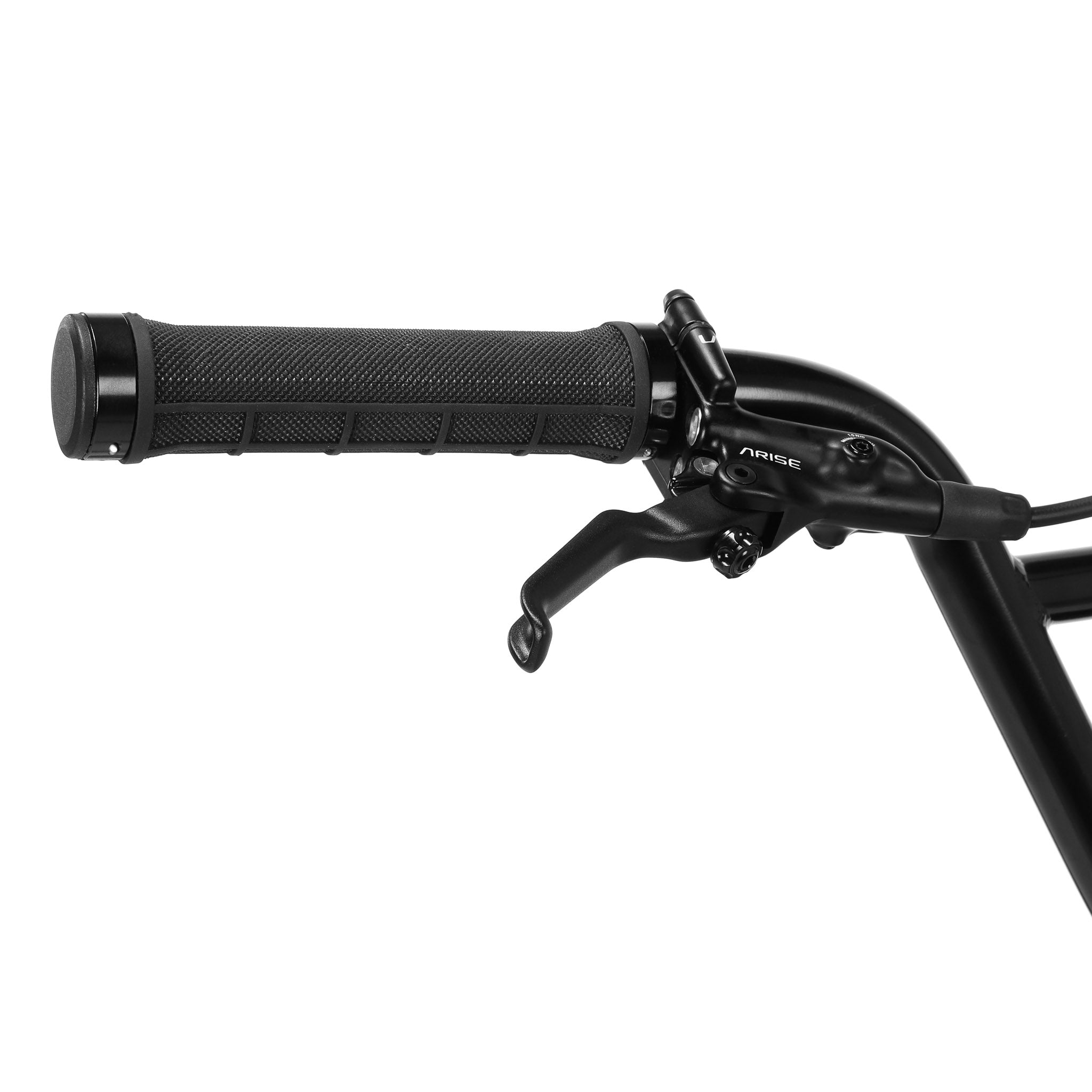

  • BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

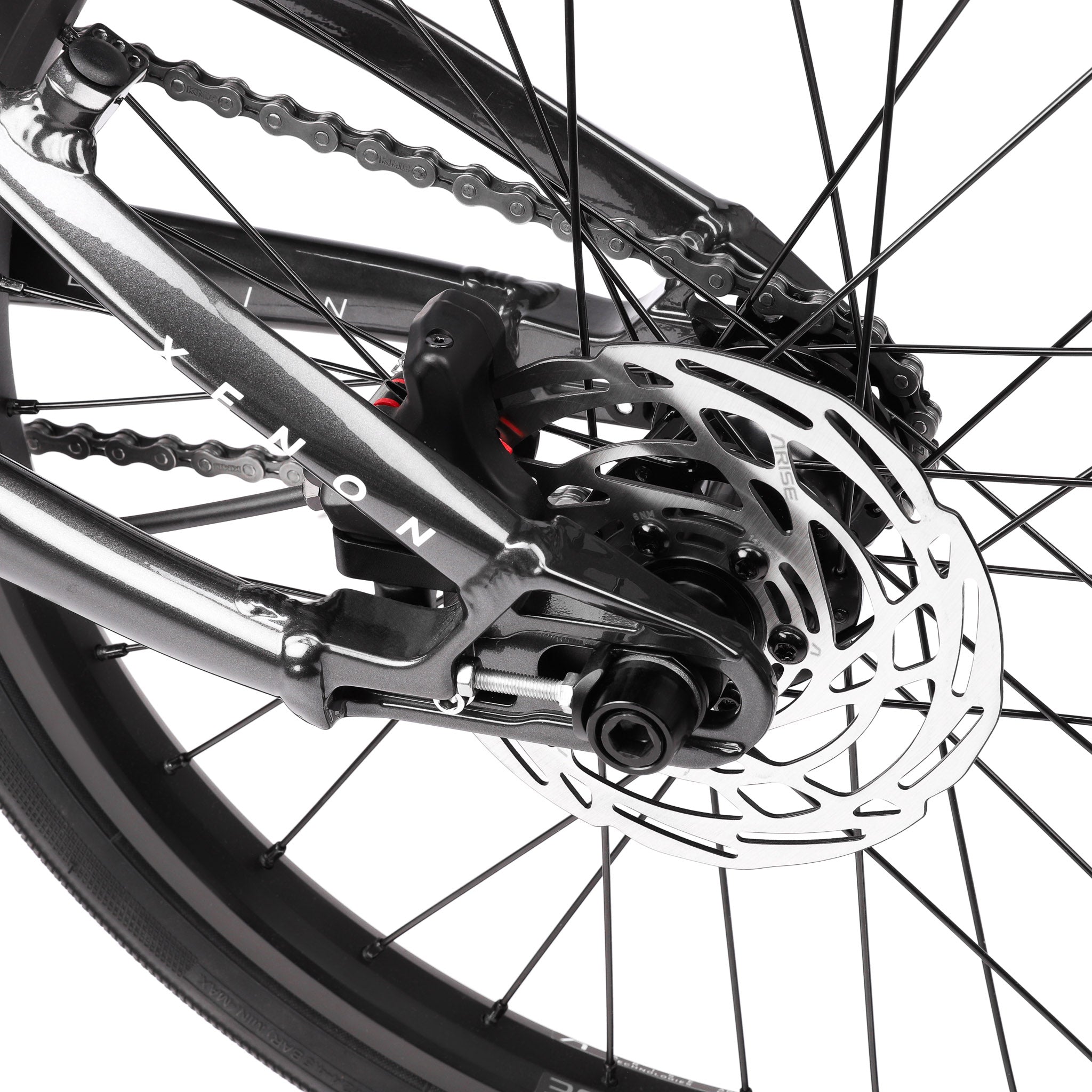

  • BRAKE: ARISE "XENON" Disc brake, rear

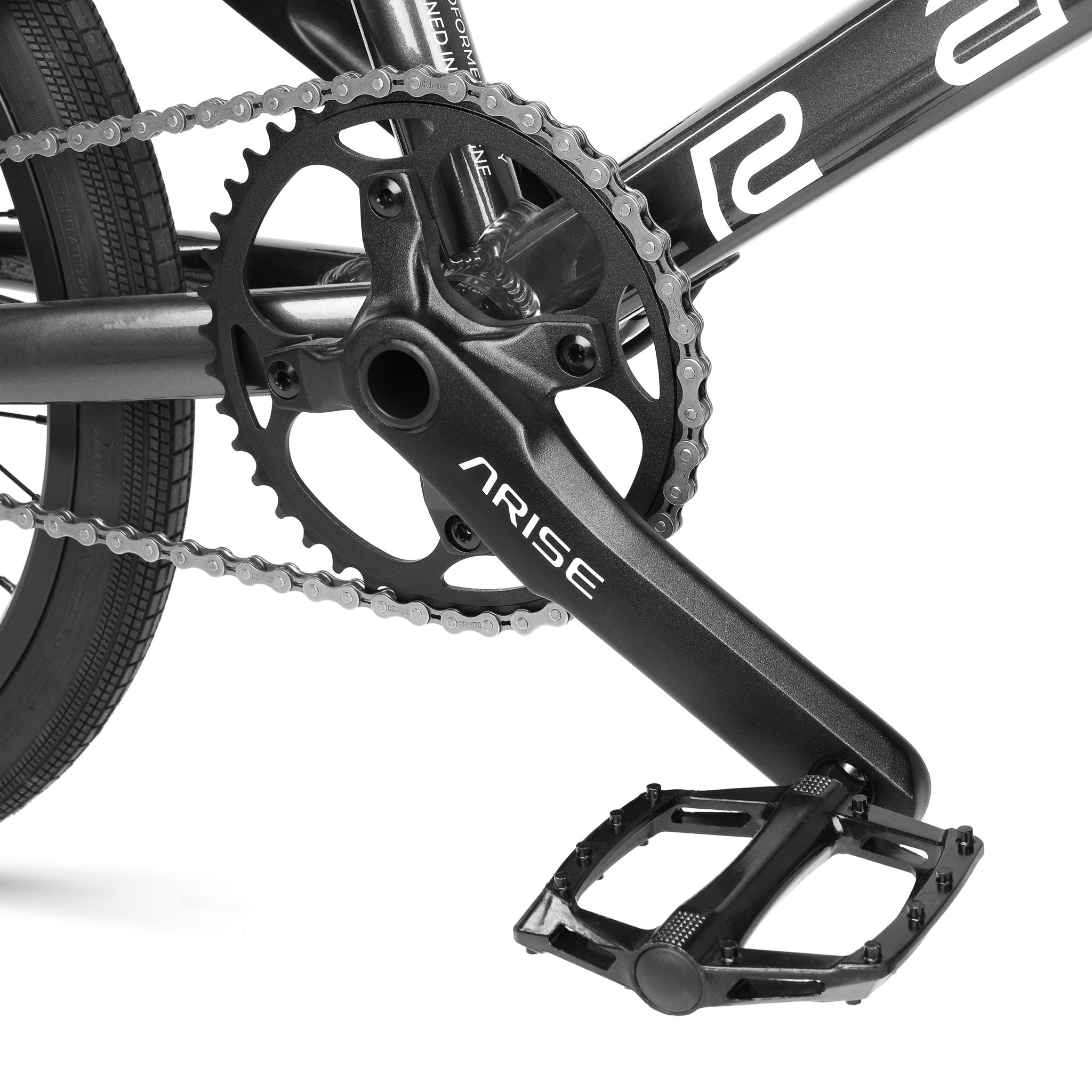

  • CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 140mm length
  • BB: RADIO RACELINE BB set, BSA square taper, sealed
  • PEDALS: RADIO RACELINE "XENON JUNIOR" pedal, alloy
  • CHAIN: KMC "Z6" chain, 1/2" x 3/32"
  • SPROCKET: RADIO RACELINE sprocket, 42T, alloy
  • DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

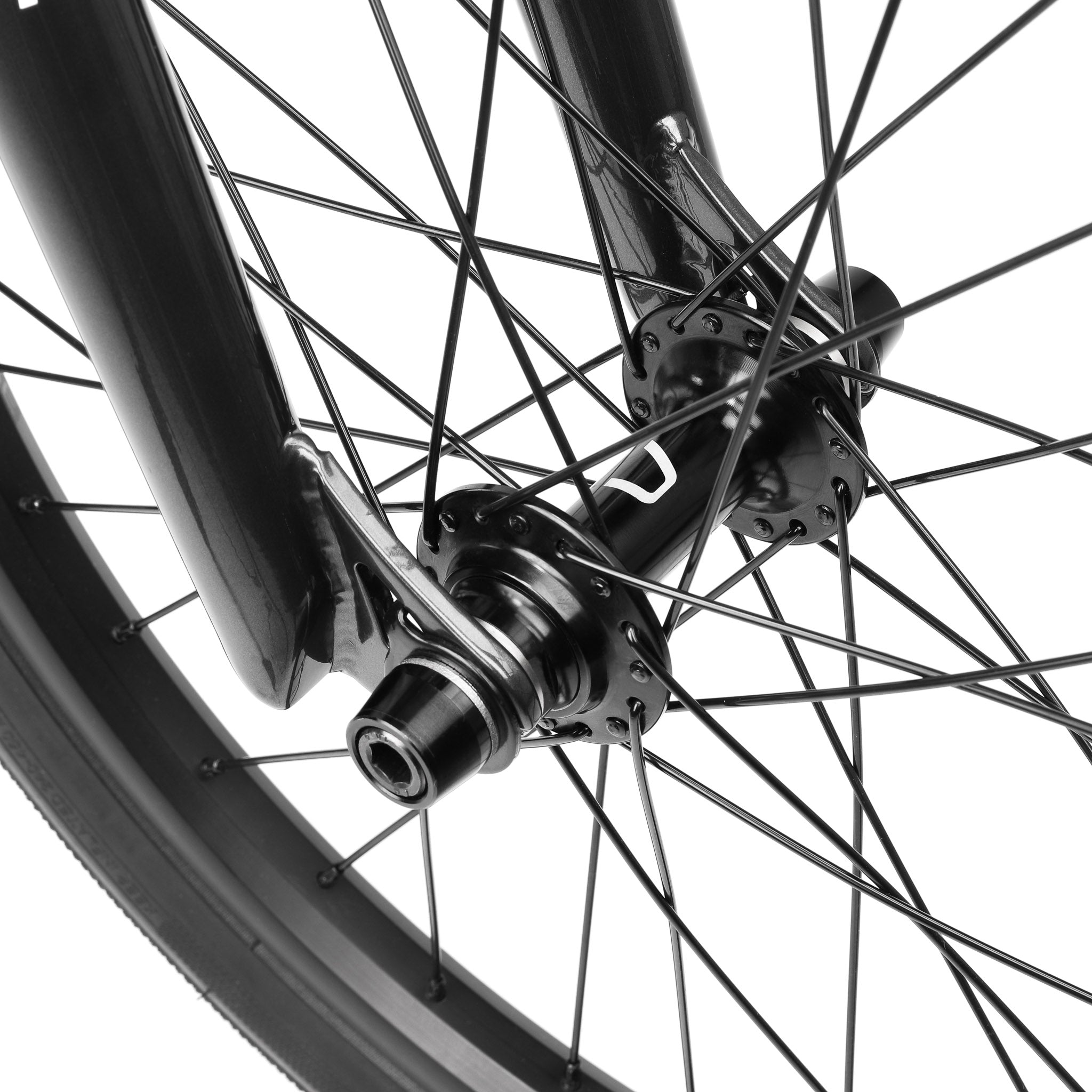

  • FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

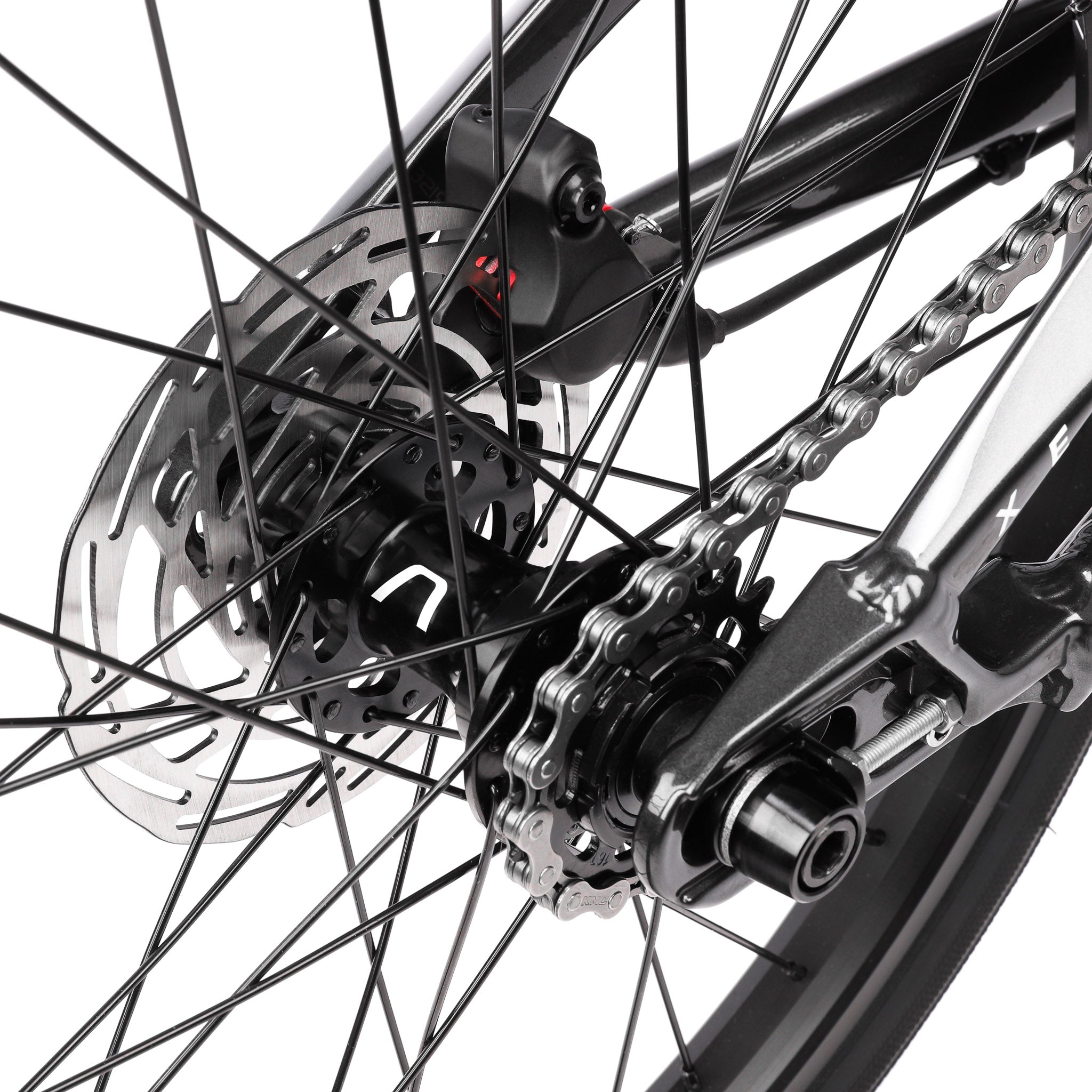

  • REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
  • FRONT RIM: ARISE "ARGON PRO" rim, sleeved joint, 32h, alloy
  • REAR RIM: ARISE "ARGON PRO" rim, sleeved joint, 32h, alloy
  • SEAT: BOX "TWO" combo seat
  • SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
  • TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"

Weight: 9.18kg / 20.23lbs



Frame Geometry:

Top Tube Length 20.75"
Chain Stay Length 14.25"
Head Tube Angle 74°
Seat Tube Angle 71°
Bottom Bracket Height  11.6"



Handlebar Geometry:

Rise 7.5"
Width 28"
Backsweep 11°
Upsweep 3.5°
