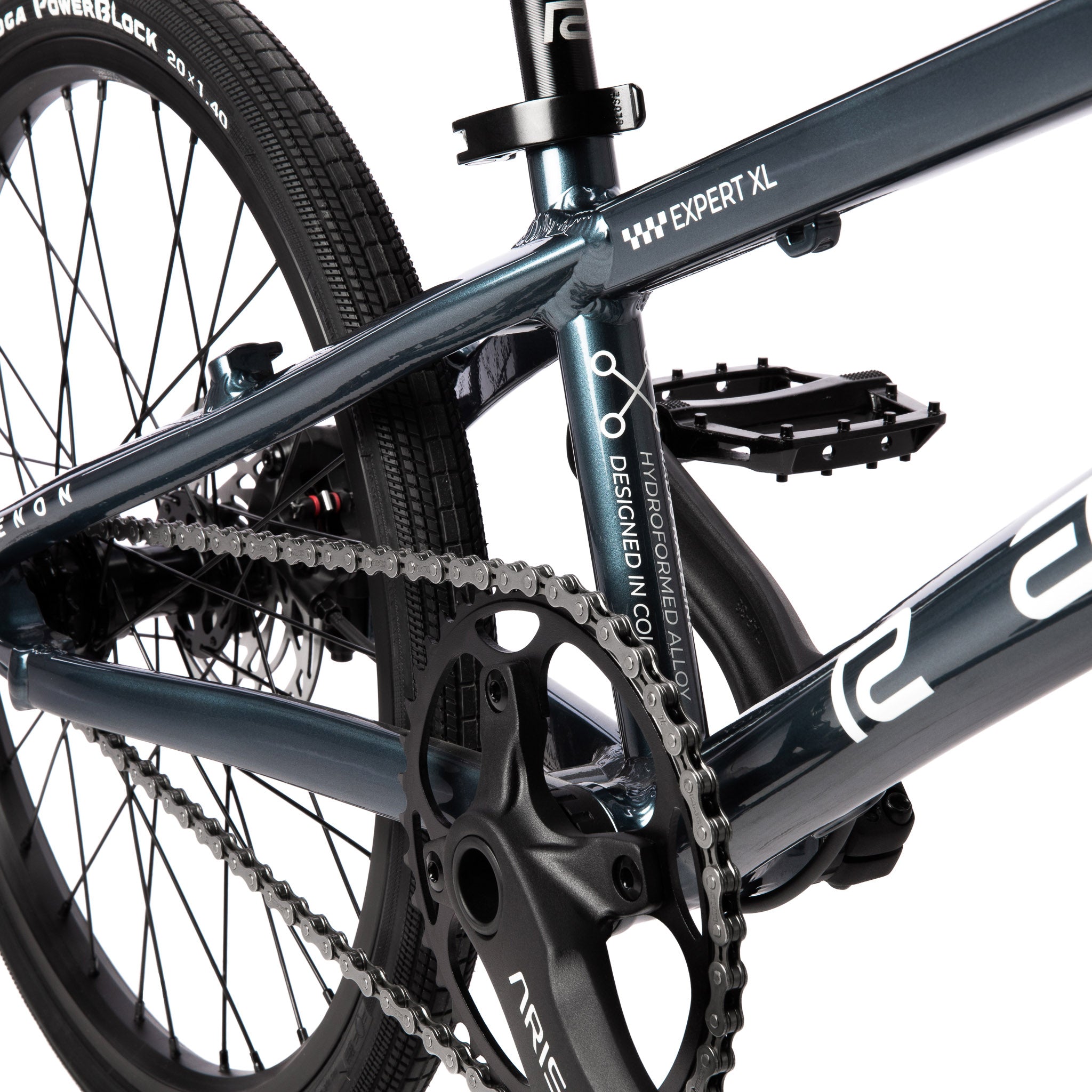

- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts
- FORK: crmo fork, 1" butted steerer, crmo fork legs, 23mm offset

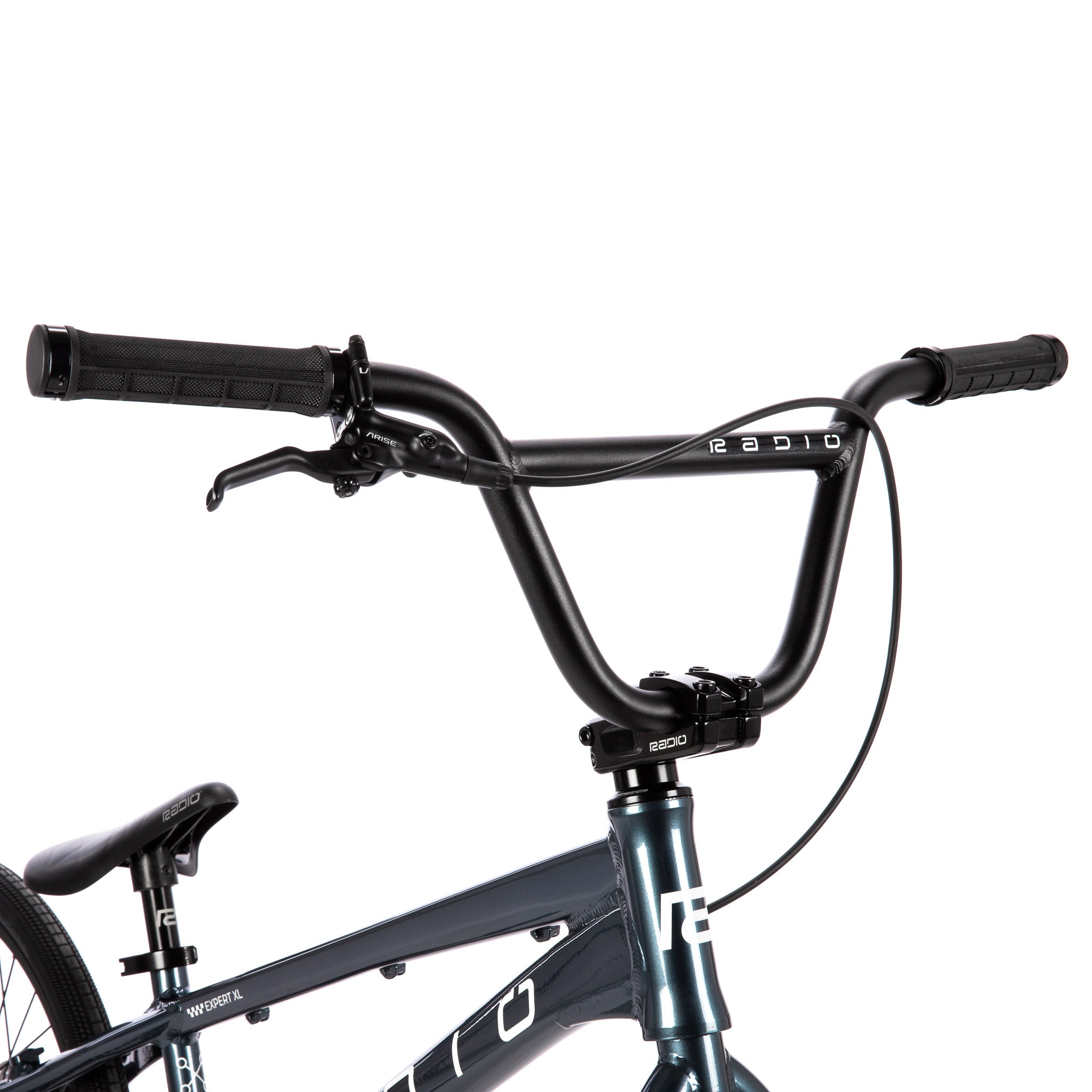

- HANDLEBAR: 6061-T6 alloy bar
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 115mm length

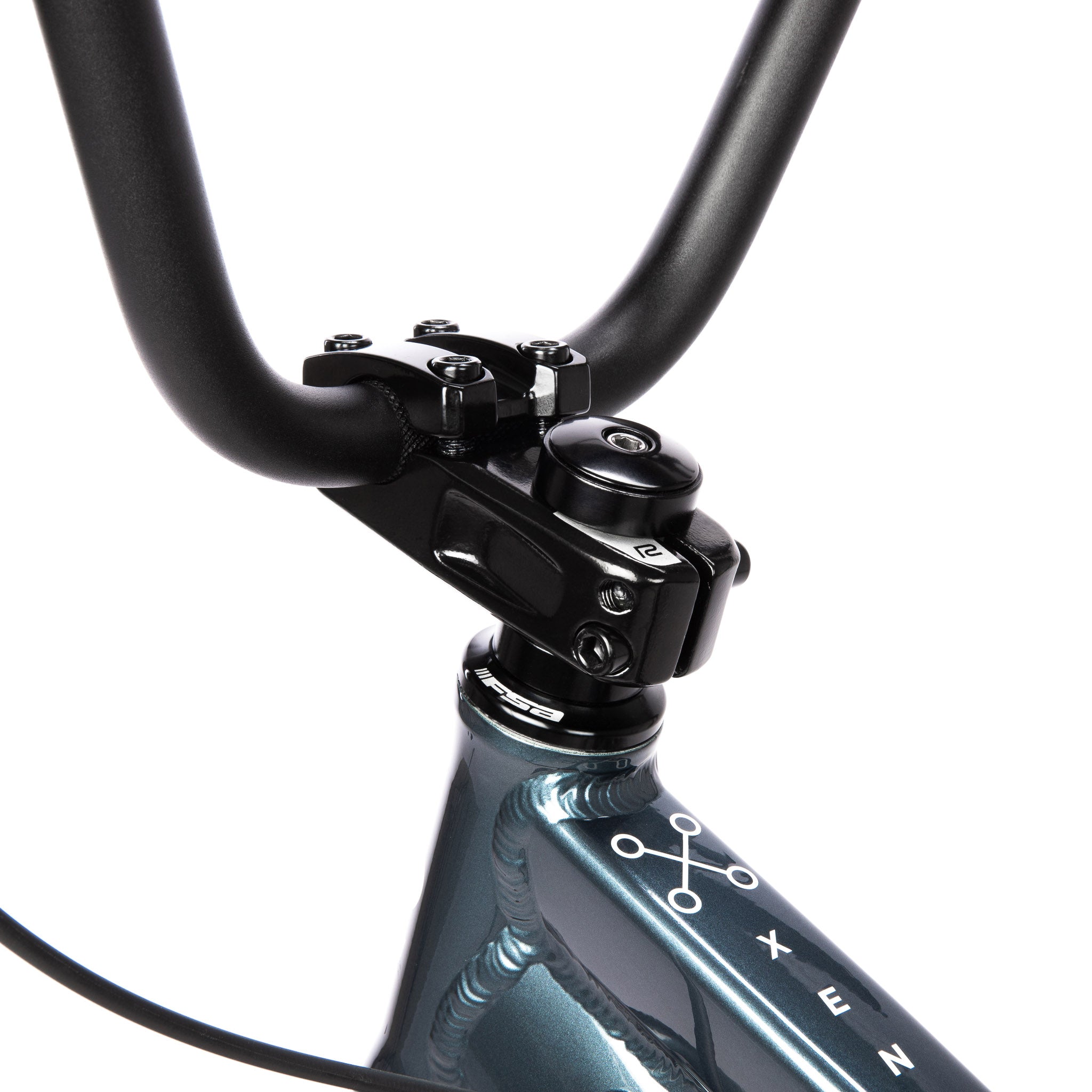

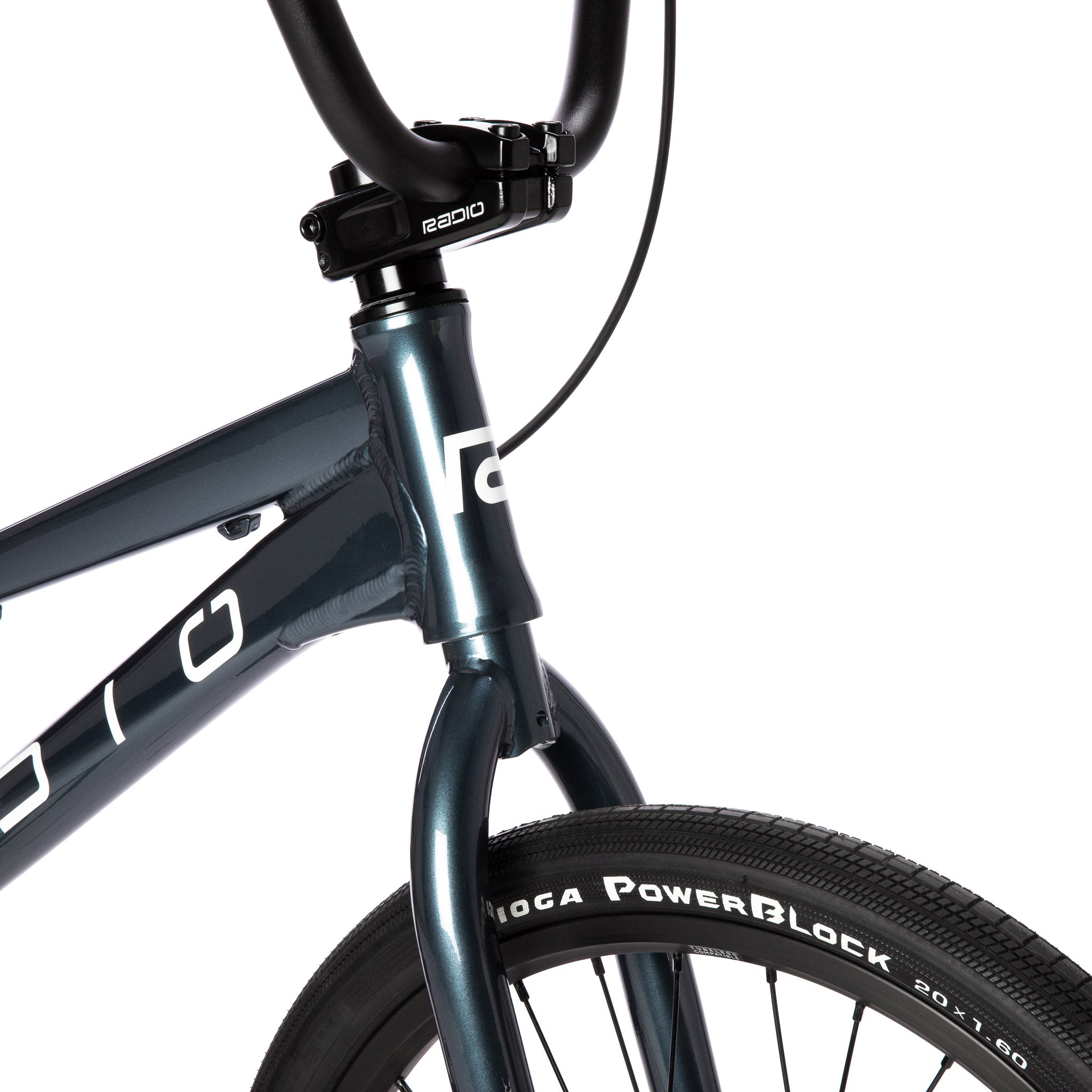

- STEM: RADIO RACELINE "COBALT" toploader stem, ext. 40mm, alloy
- HEADSET: RADIO RACELINE integrated headset, sealed, 1"

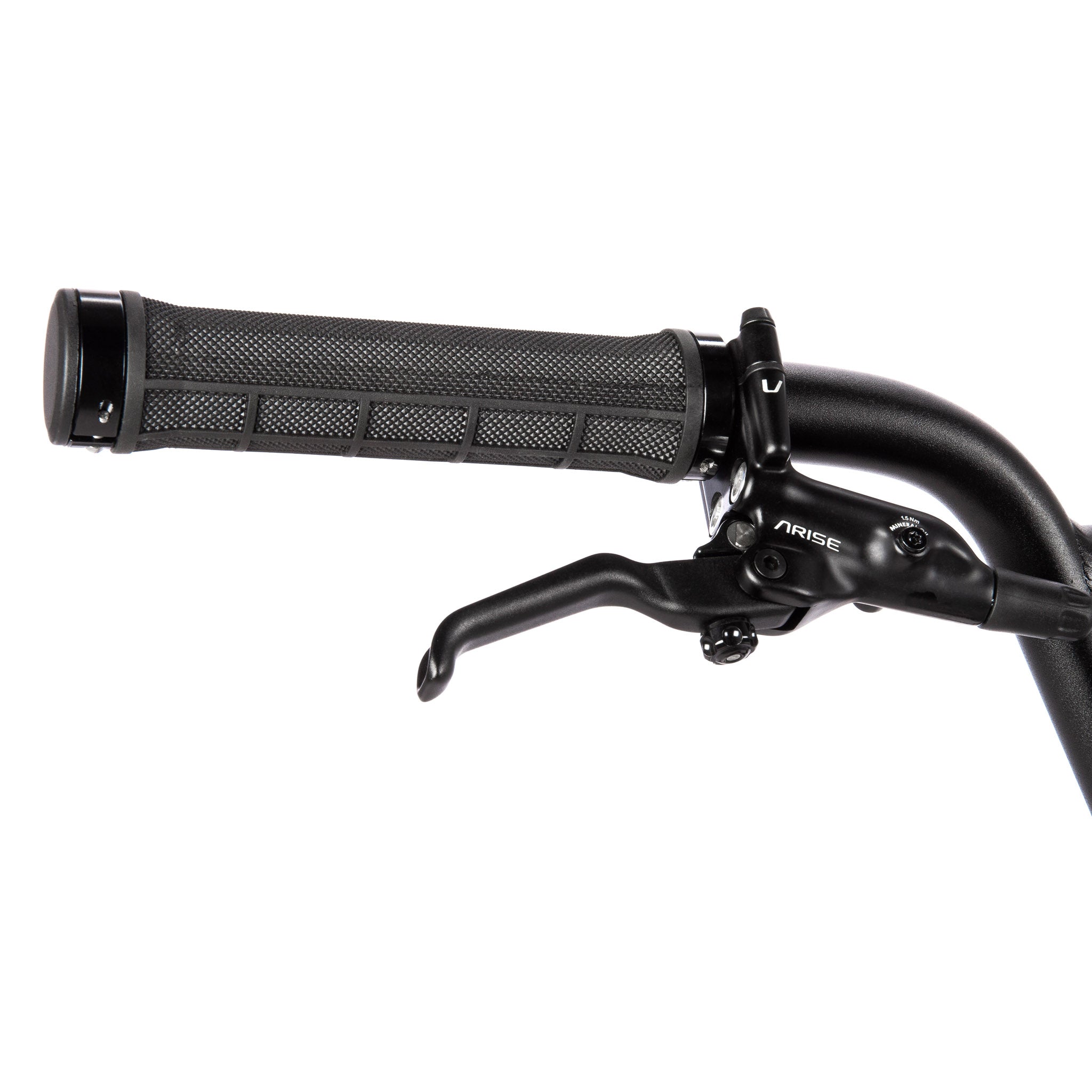

- BRAKE LEVER: ARISE "XENON" Disc brake lever, rear
- BRAKE: ARISE "XENON" Disc brake, rear

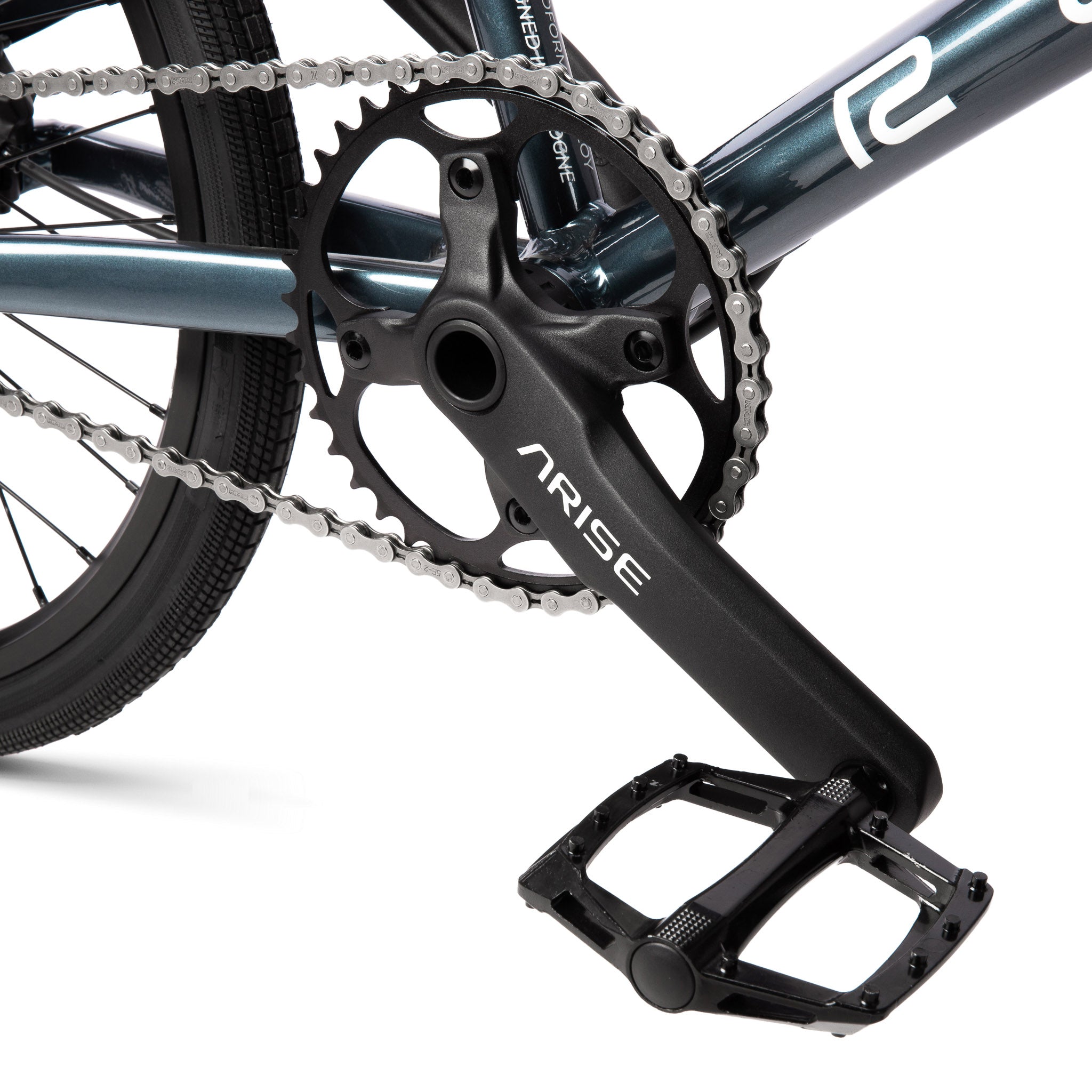

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 140mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON JUNIOR" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 40T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

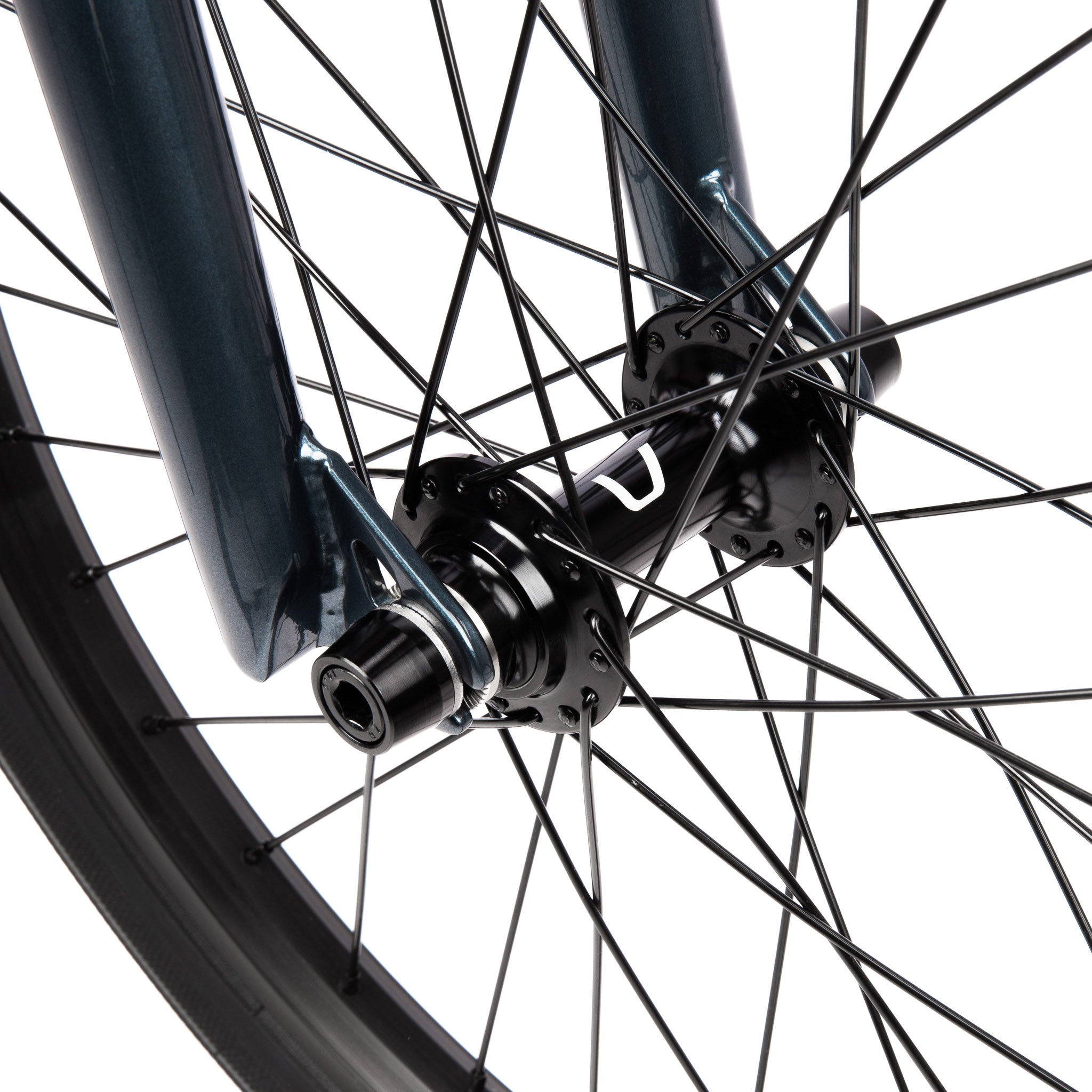

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

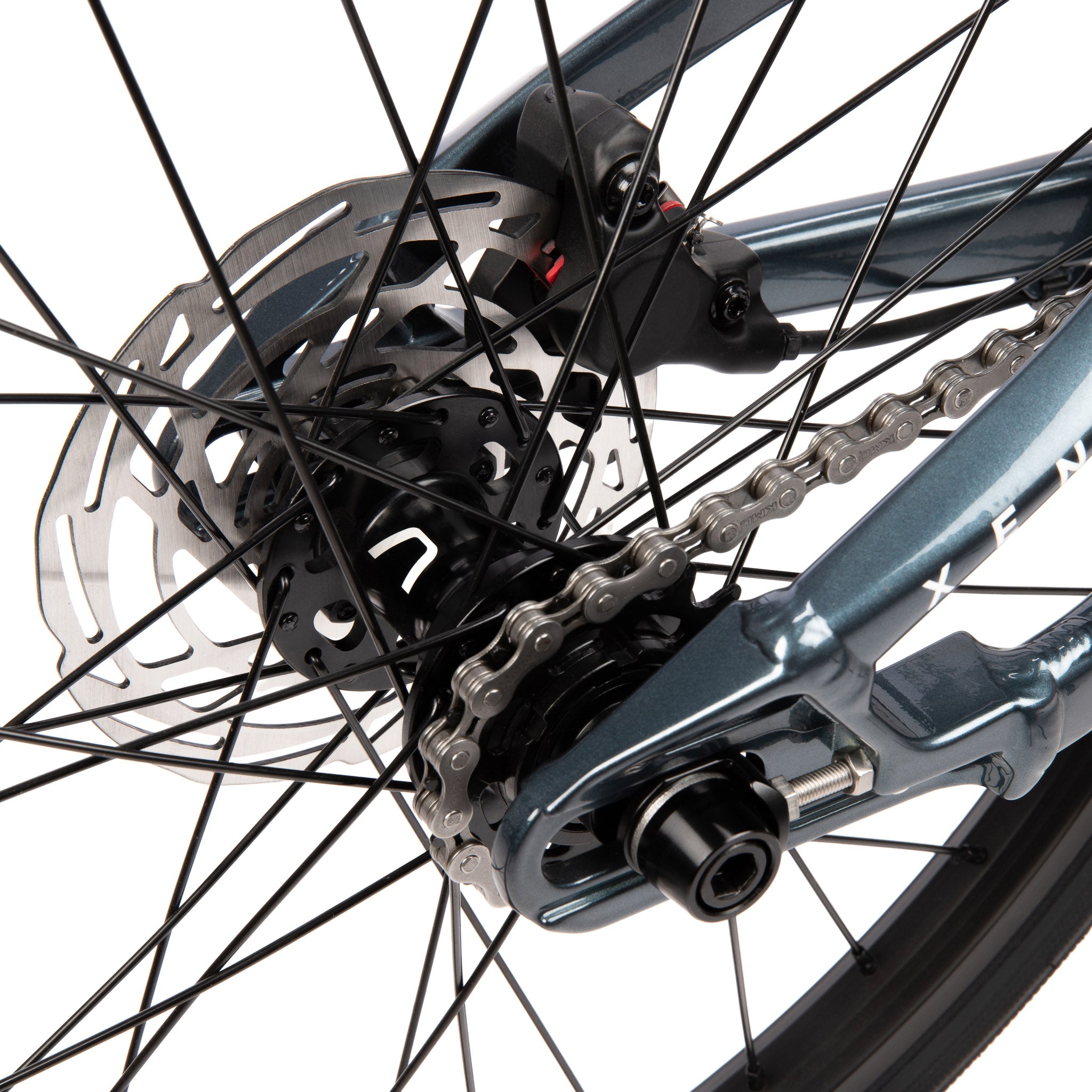

- REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: ARISE "CLIPPER EXPERT" rim, pinned joint, 32h, alloy
- REAR RIM: ARISE "CLIPPER EXPERT" rim, pinned joint, 32h, alloy

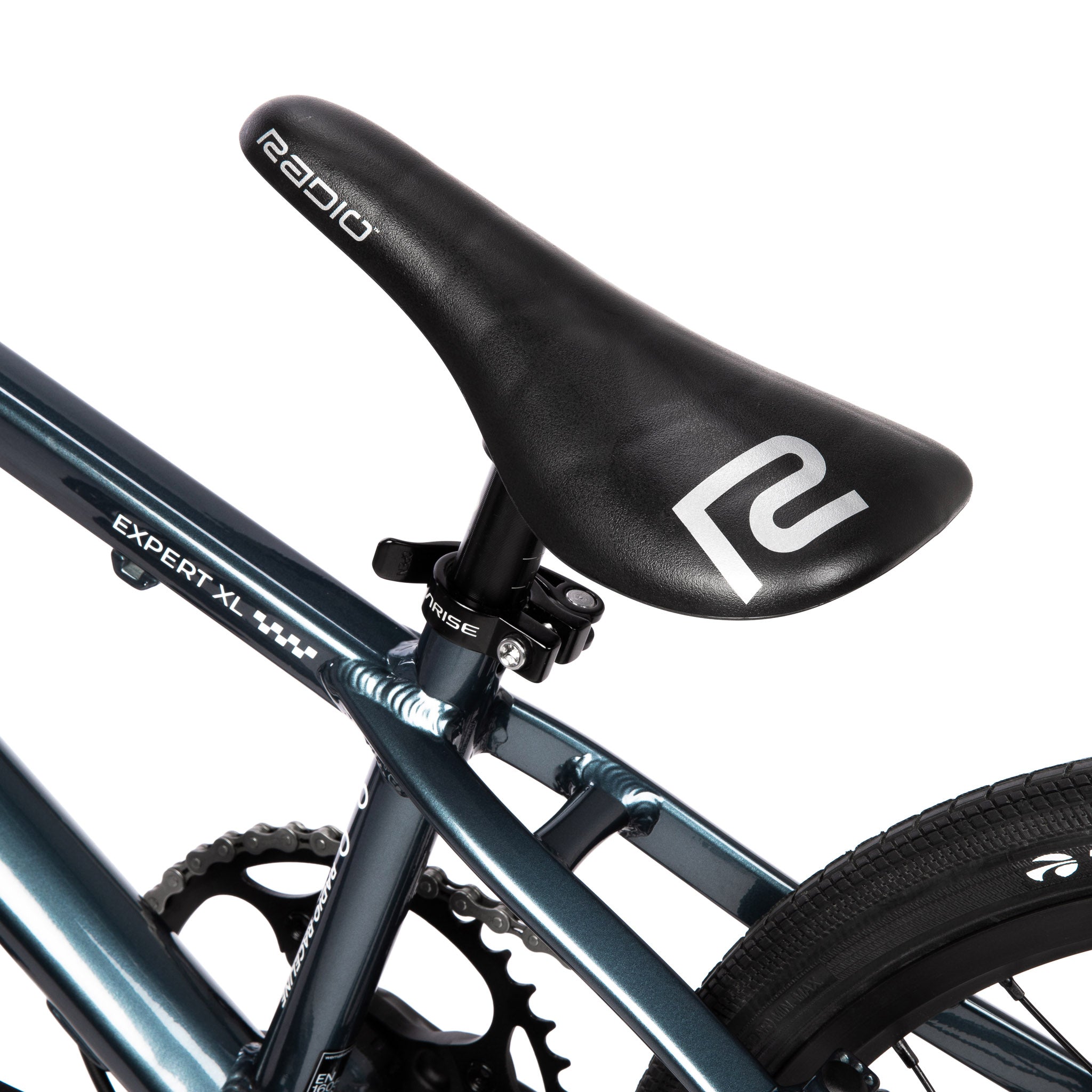

- SEAT: BOX "TWO" combo seat
- SEAT CLAMP: Arise "XENON" seat post, quick-release, alloy
-

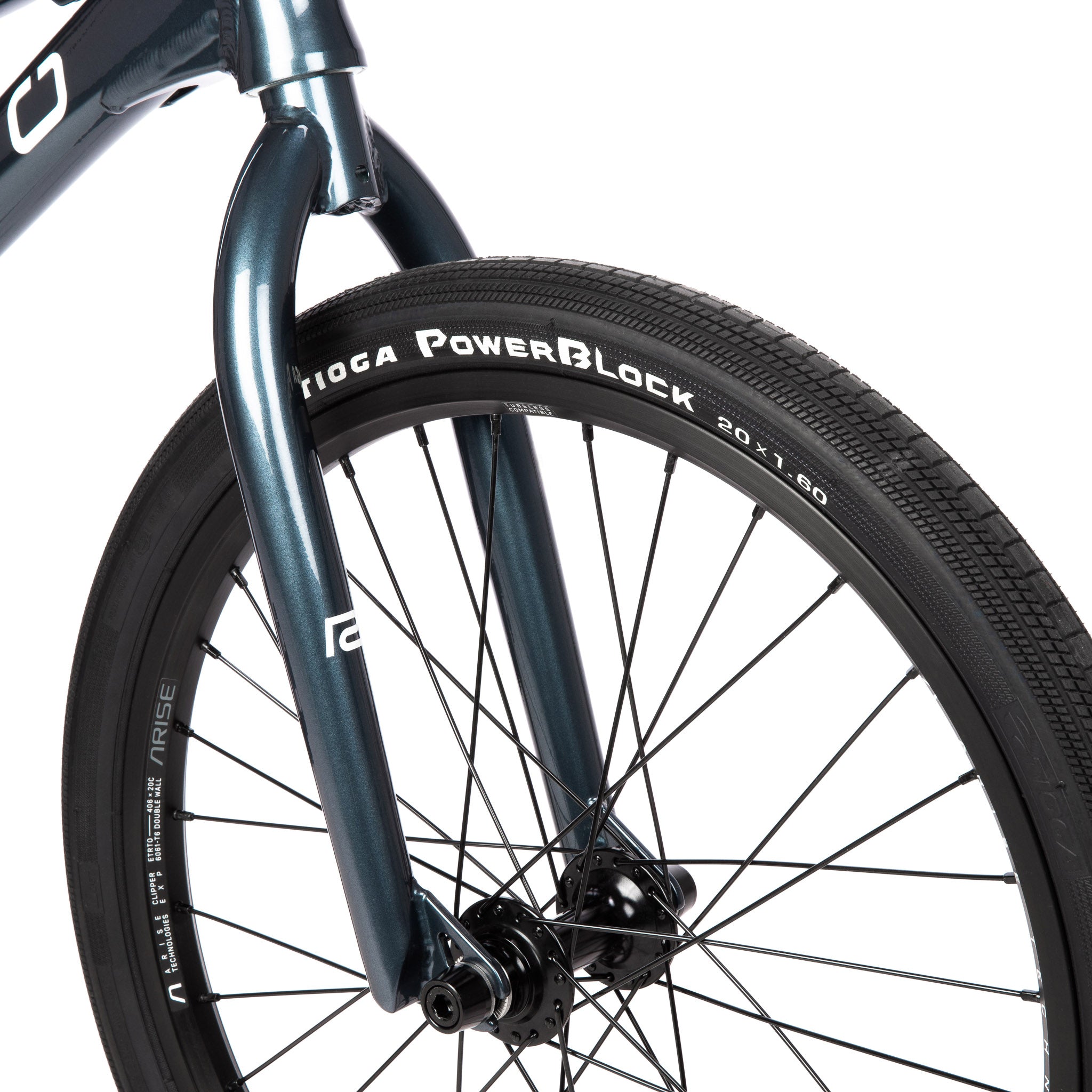

TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"

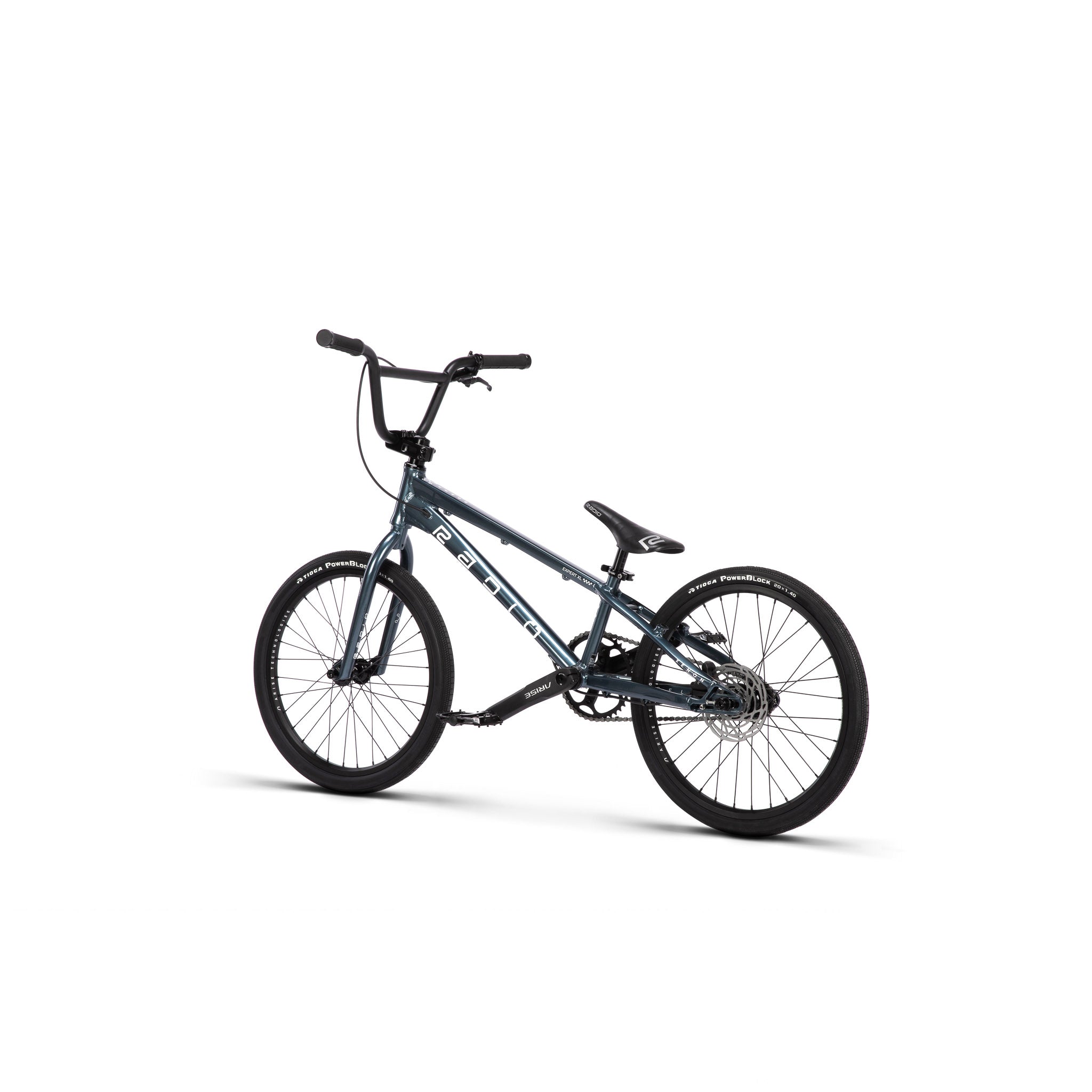

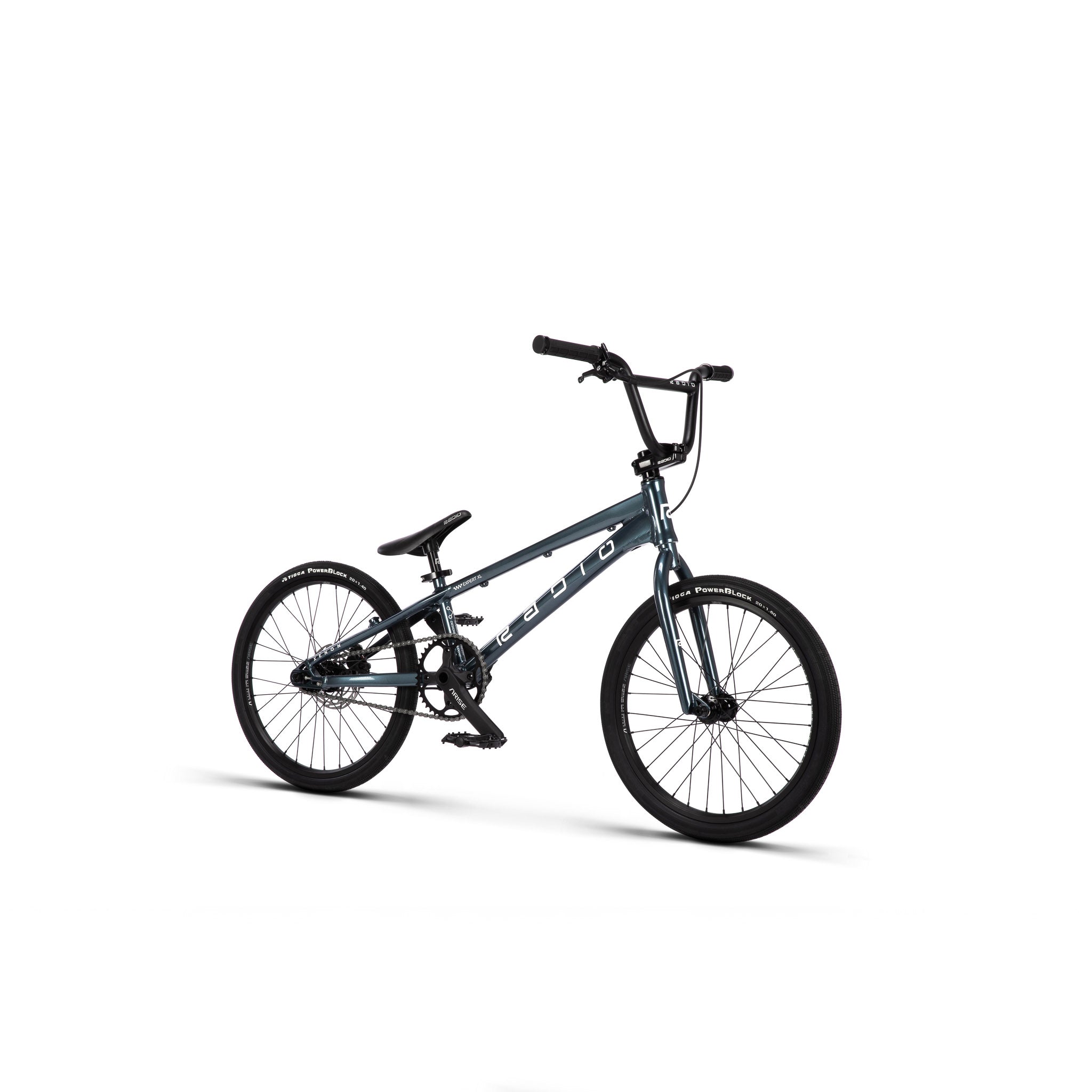

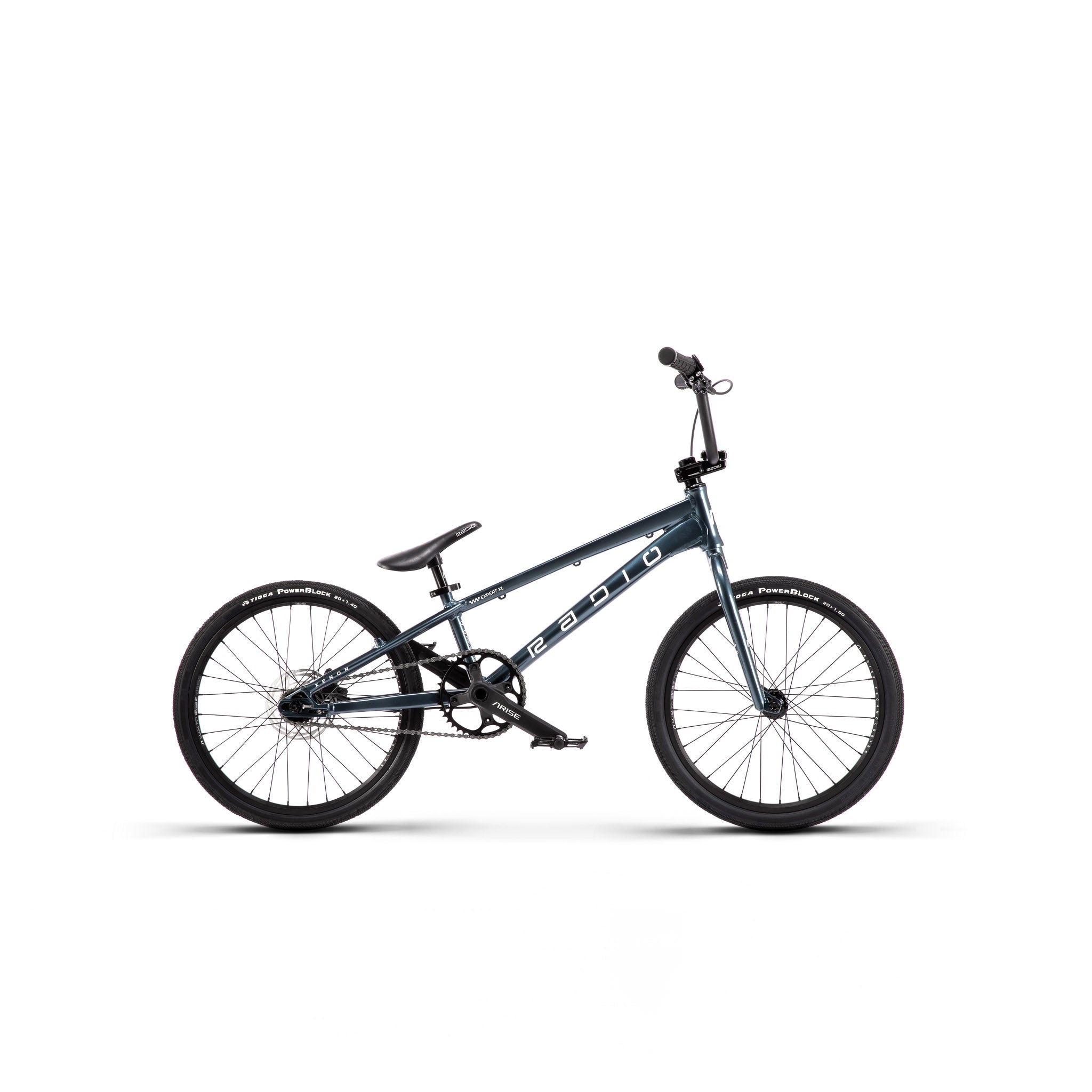

Xenon Expert XL Complete Bike
The Xenon Expert XL takes performance up another level with a comprehensive component upgrade designed for riders demanding even more from their race bike. As part of the Xenon range, it features a disc-ready frame and fork, allowing for a seamless upgrade to a full disc brake setup using our aftermarket conversion kit.
No detail has been overlooked, with forged disc-ready dropouts featuring integrated chain tensioners, Tioga Power Block tires, and Clipper Expert rims combining to create a race-focused package built for speed, reliability, and progression. Available in both 19.5"" and 20.5"" top tube lengths, the Xenon Expert XL offers riders the opportunity to find their ideal fit and maximise performance every time they line up at the gate.
Weight: 8.23kg / 18.14lbs
Frame Geometry:
| Top Tube Length | 19.5" / 20.5" |
| Chain Stay Length | 13.8" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.8" |
Handlebar Geometry:
| Rise | 7" |
| Width | 26.25" |
| Backsweep | 6° |
| Upsweep | 3° |
