- FRAME: RADIO "EVOL XL" frame, crmo top tube, 1020 hi-ten

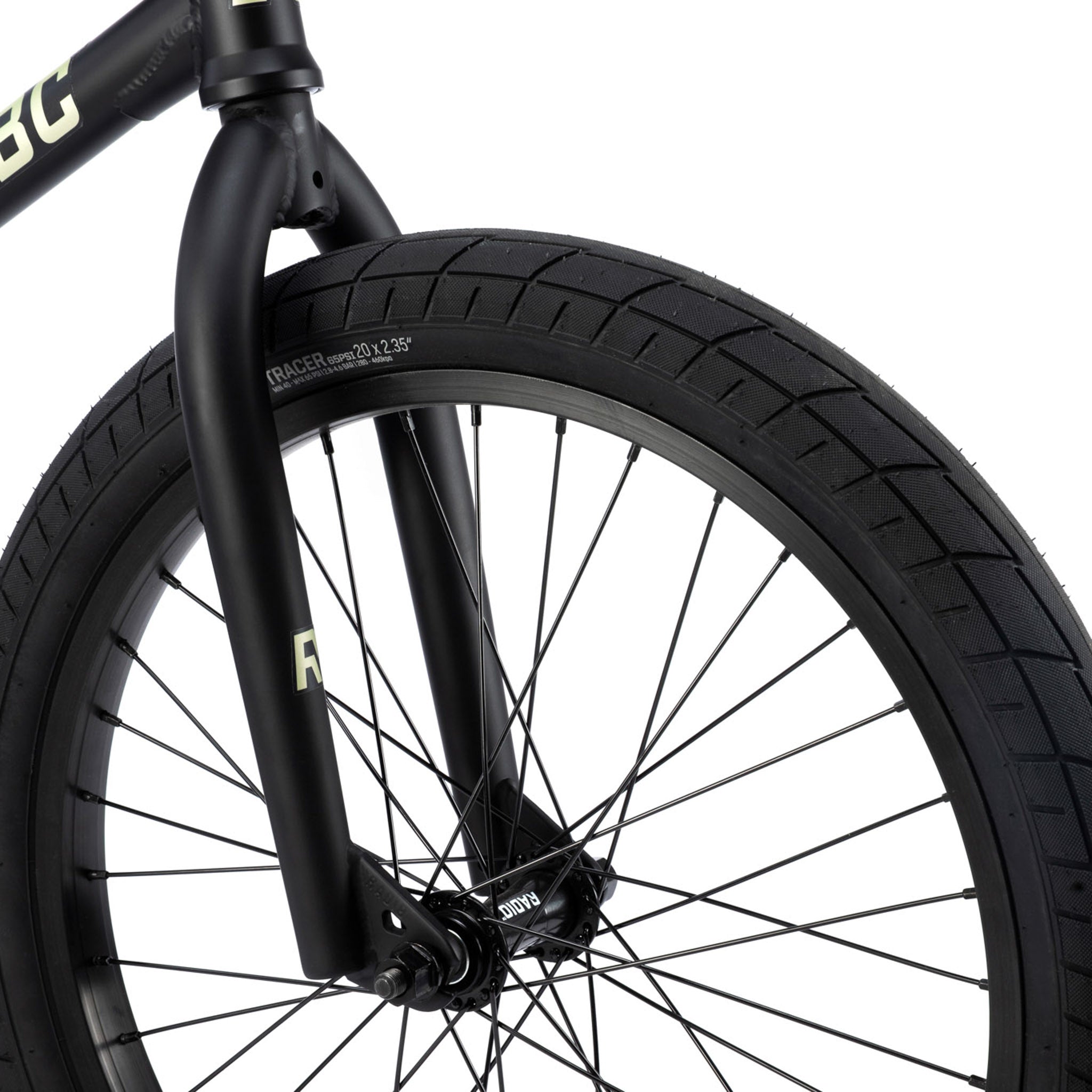

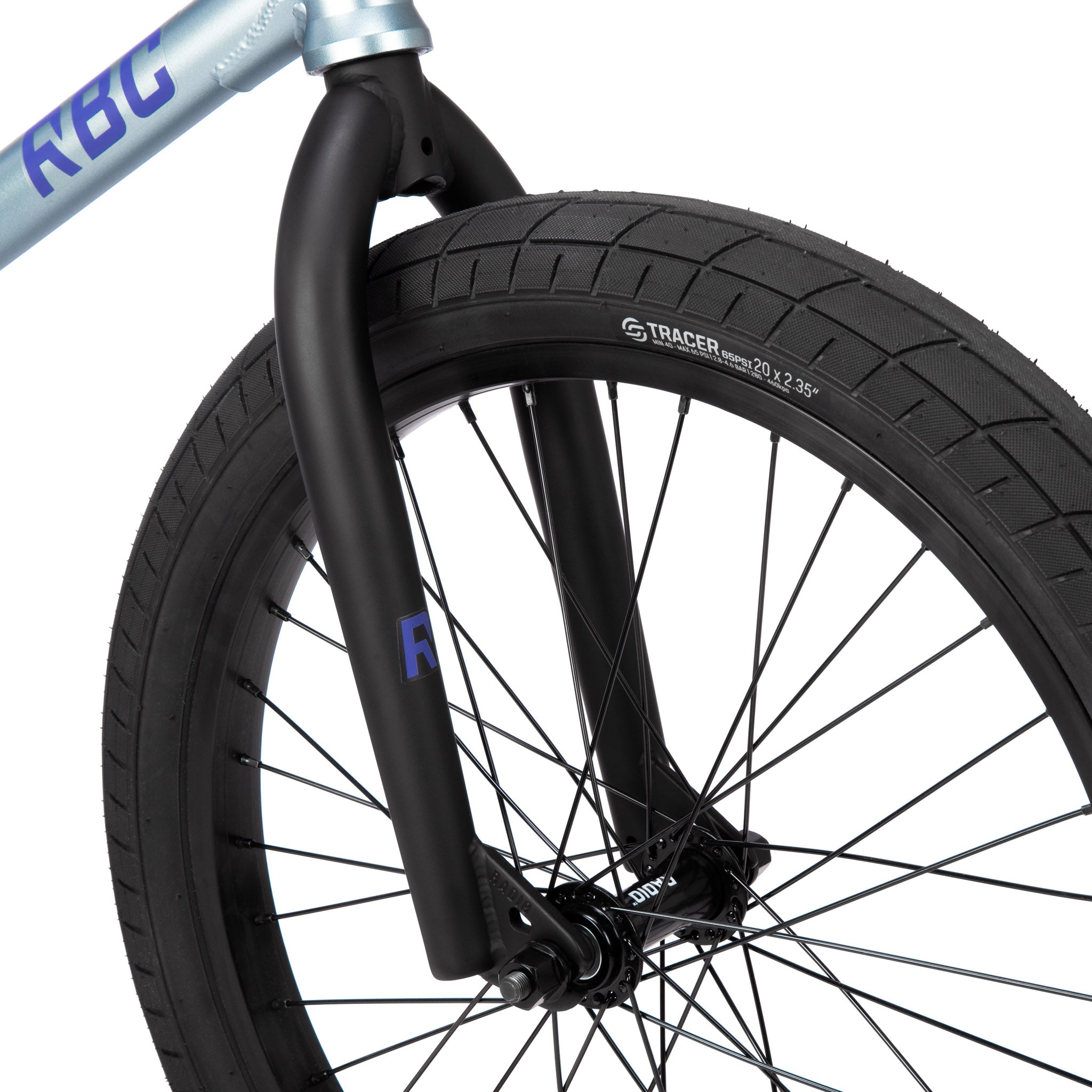

- FORK: RADIO "AM" fork, 1020 hi-ten, crmo steerer, tapered legs

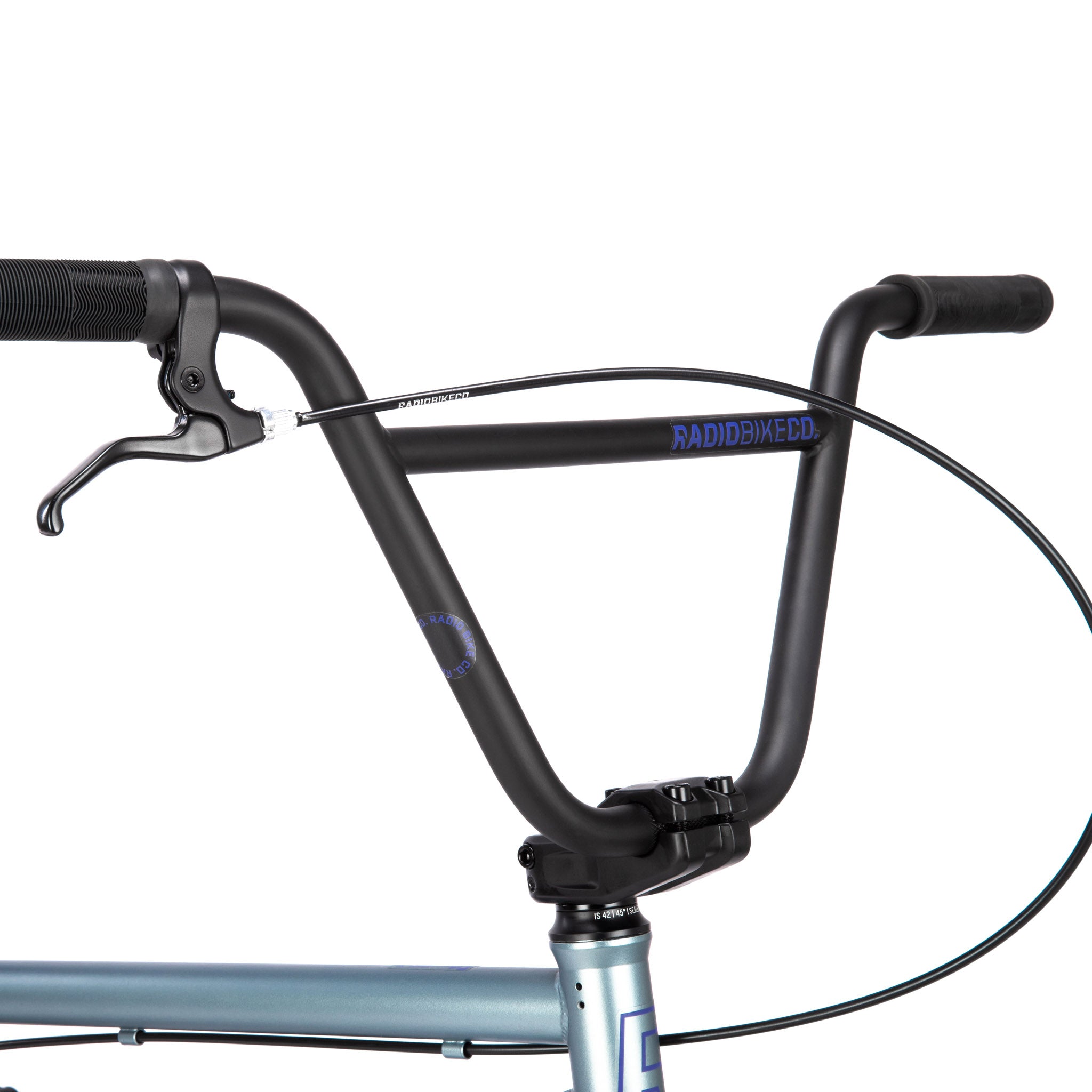

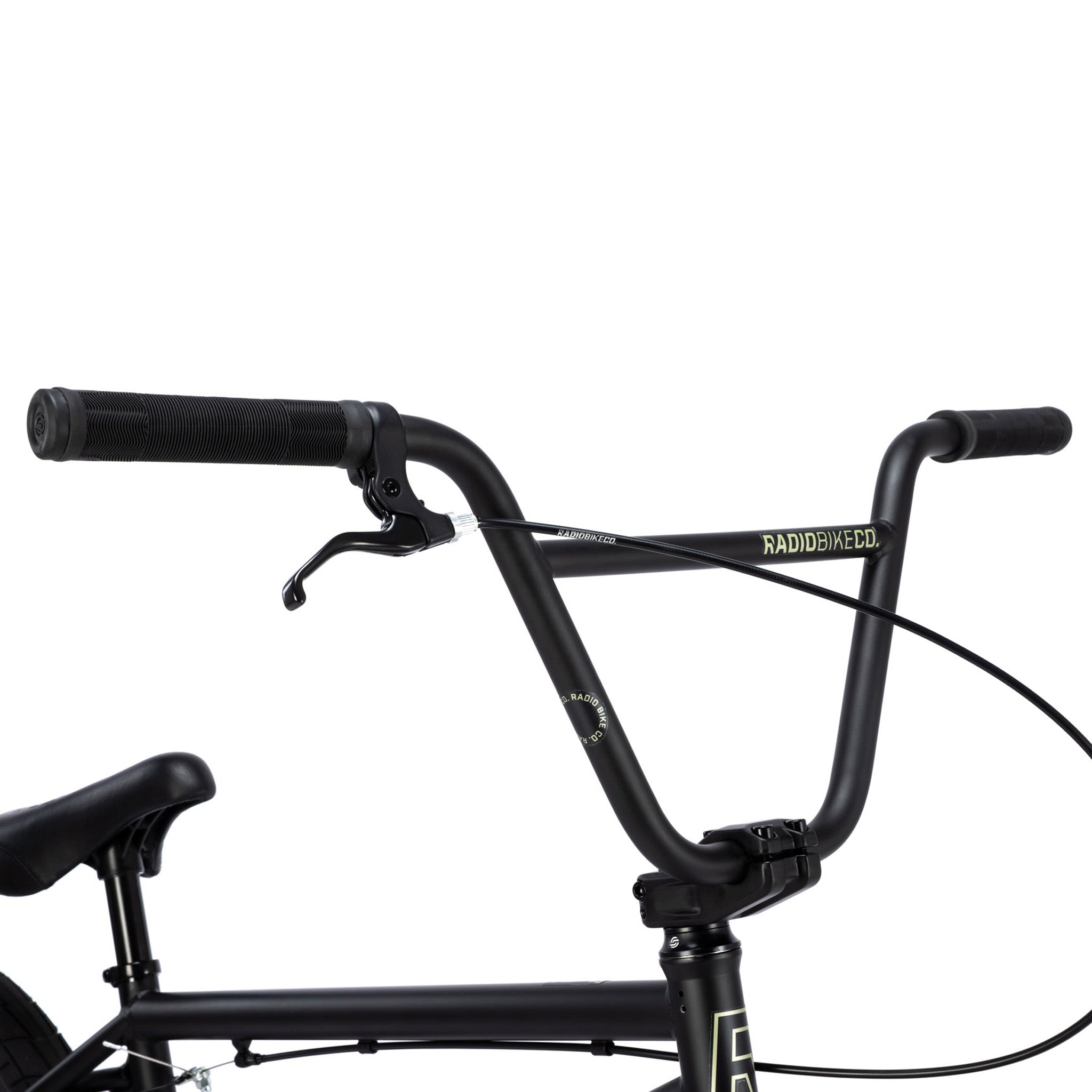

- HANDLEBAR: RADIO "AM 20" bar, 1020 hi-ten
- GRIPS: SALT "EX" grips, flangless, 155mm

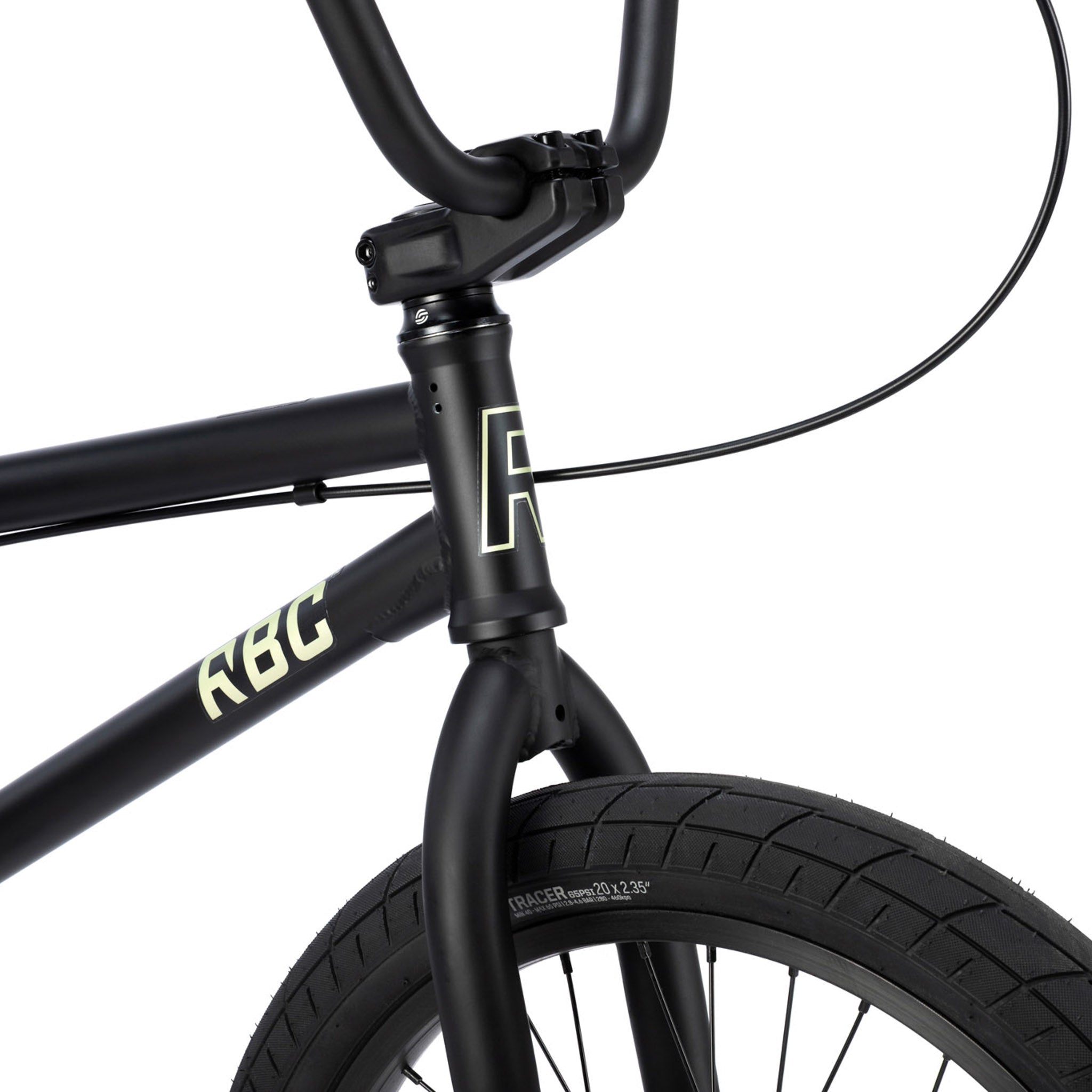

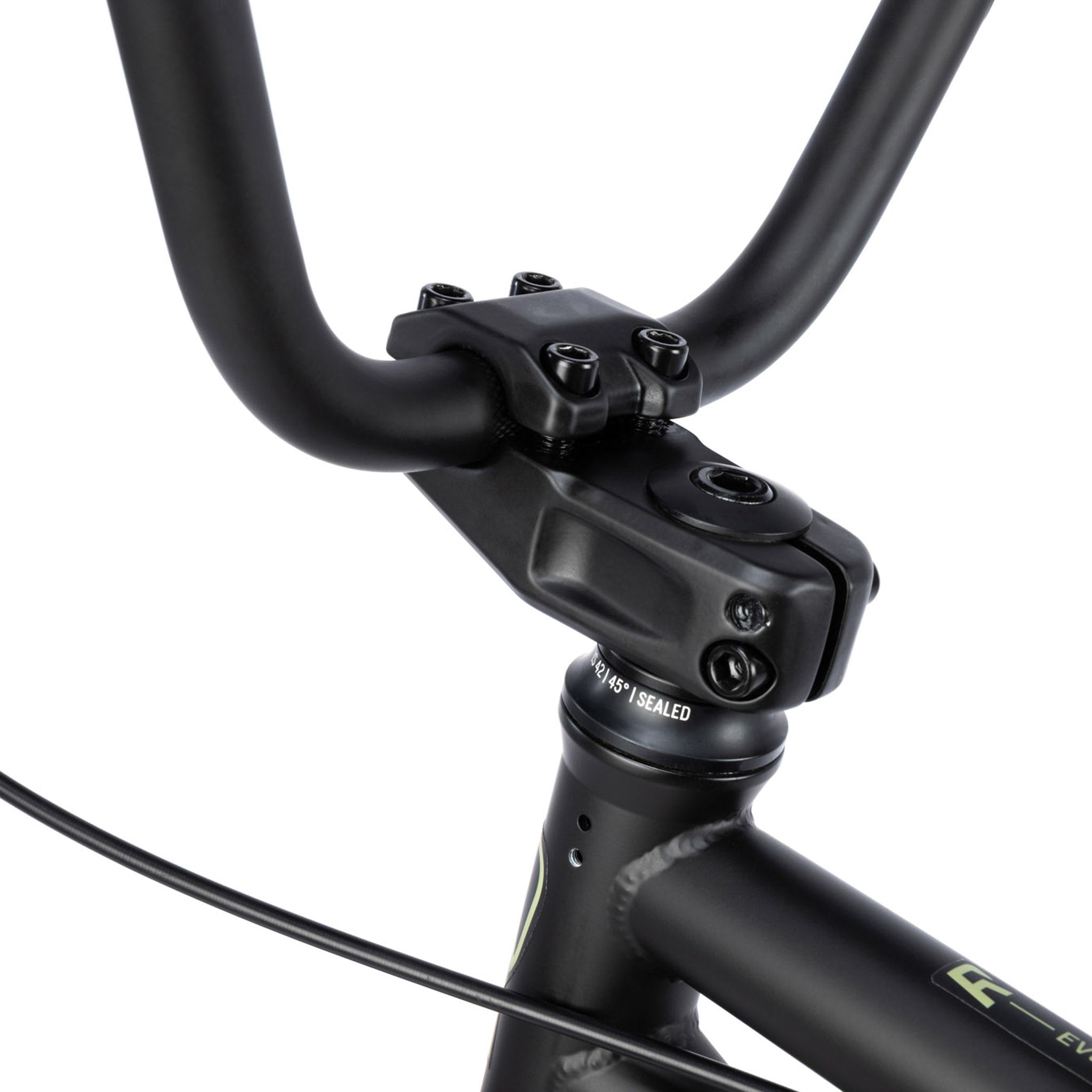

- STEM: RADIO "AM" topload stem, 50mm reach

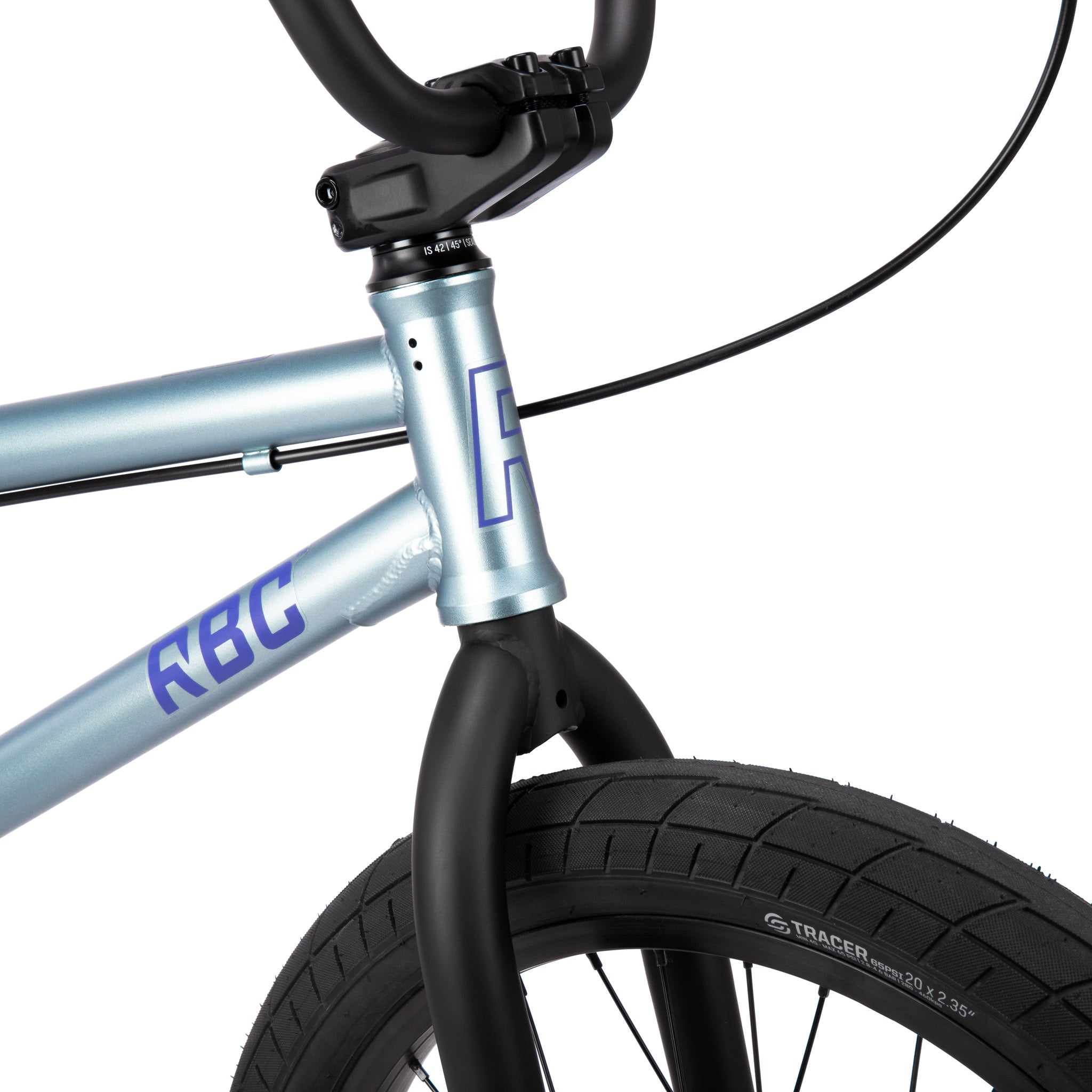

- HEADSET: SALT "PRO" integrated headset, sealed bearing
- ROTOR: holes for removable gyro tabs

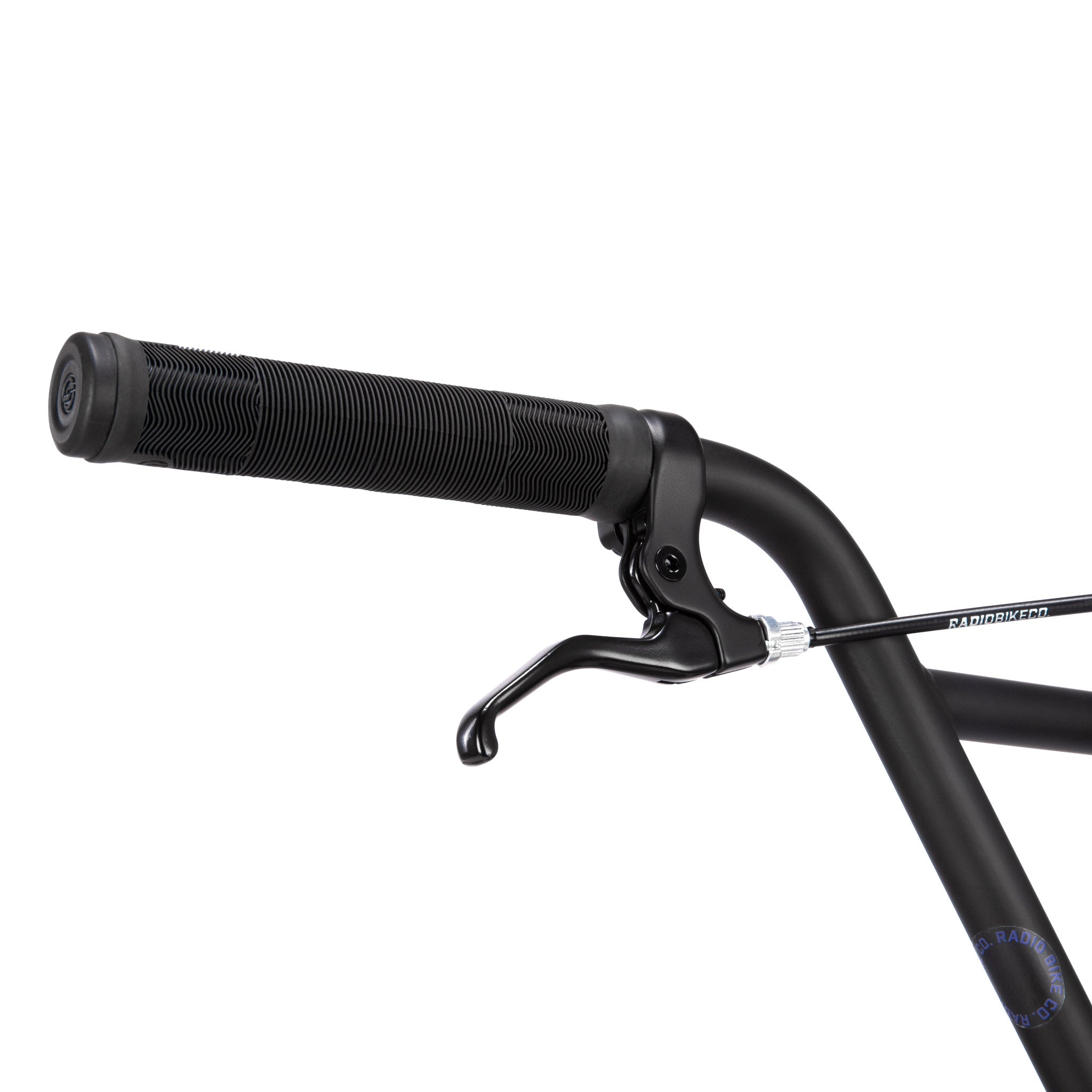

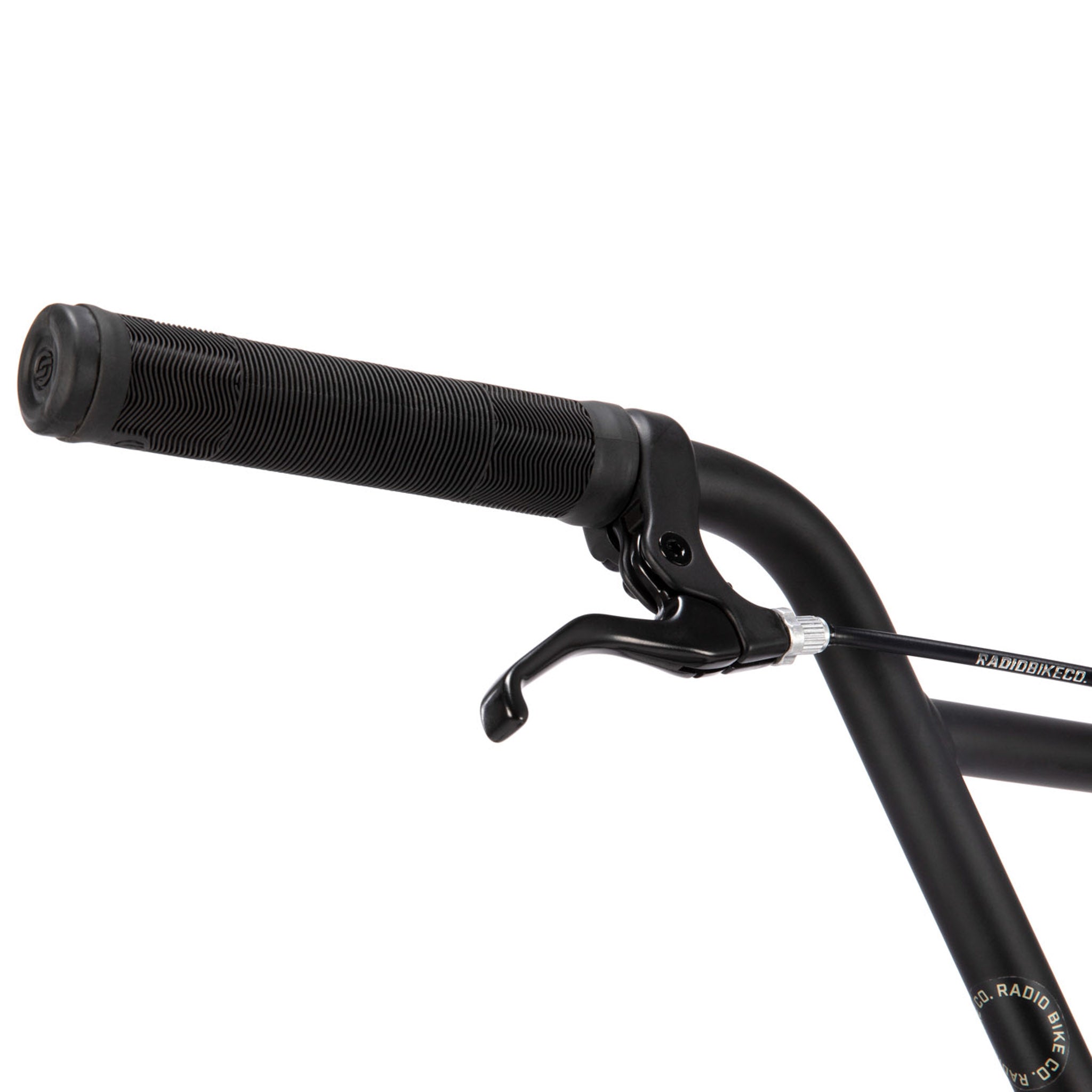

- BRAKE LEVER: RADIO "AM" brake lever, alloy, rear

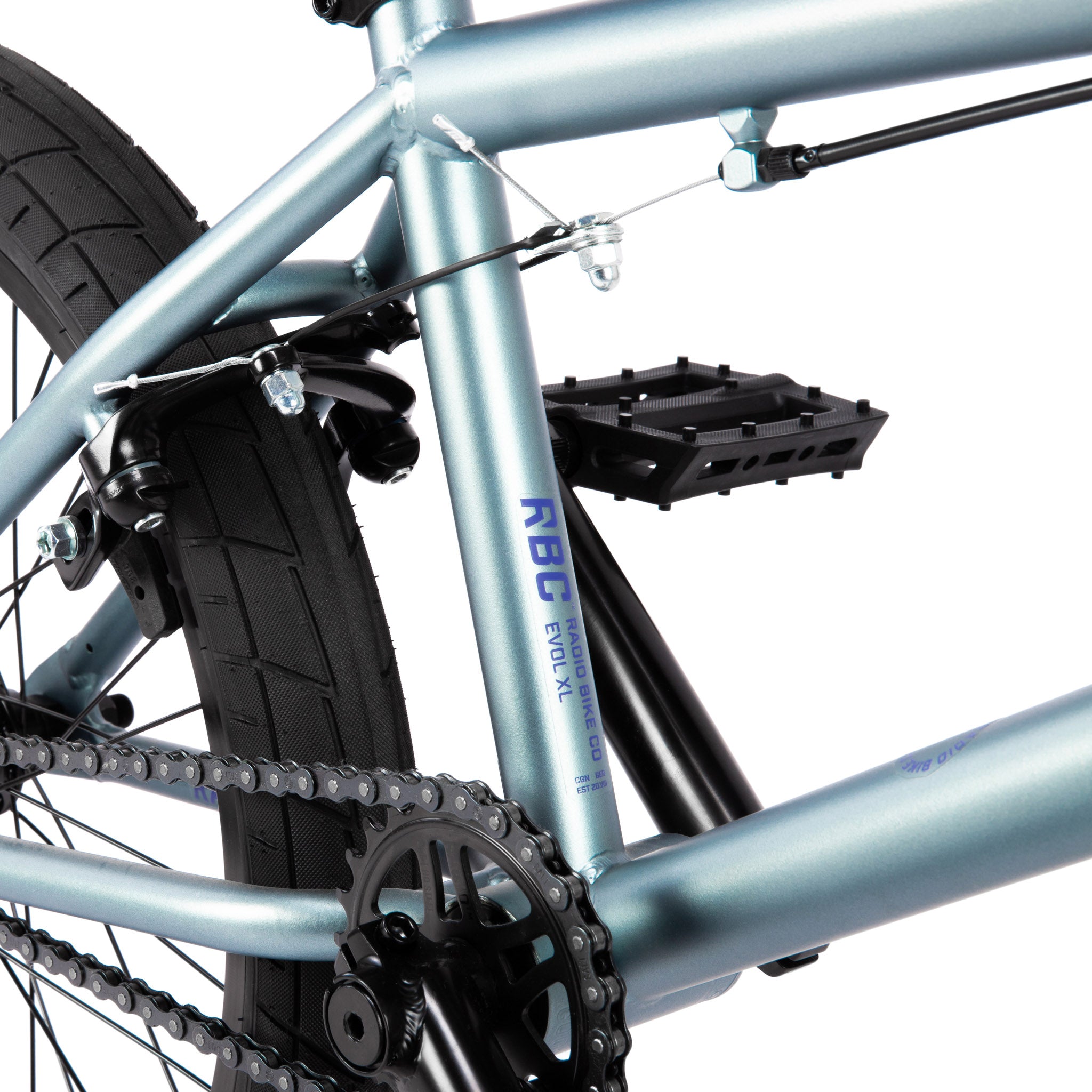

- BRAKE: RADIO "AM" u-brake, alloy, rear

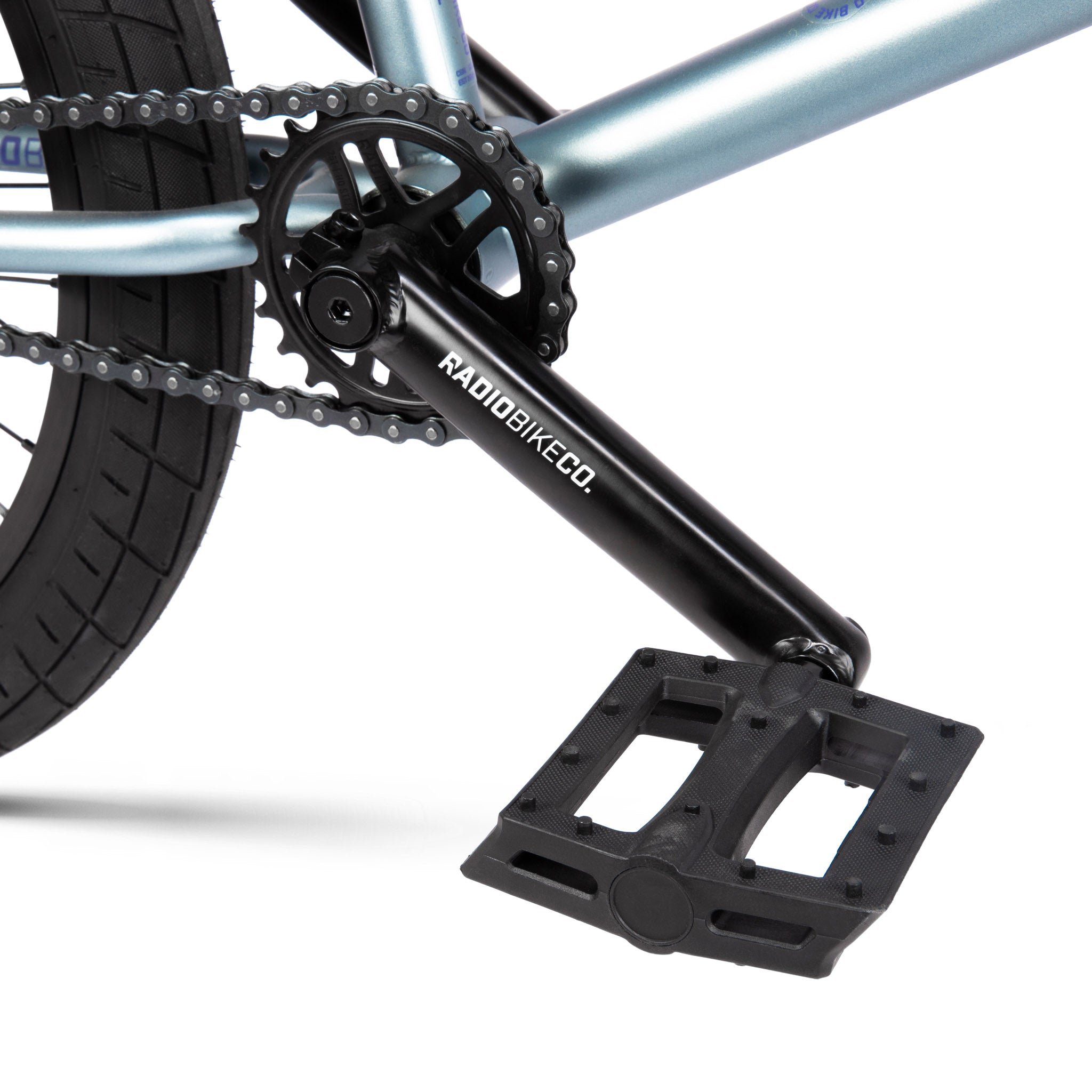

- CRANK: RADIO "ROOKIE" 3pc crank, tubular, crmo, 165mm, 8 spline
- BB: RADIO "MID" bb set, press fit, sealed bearing

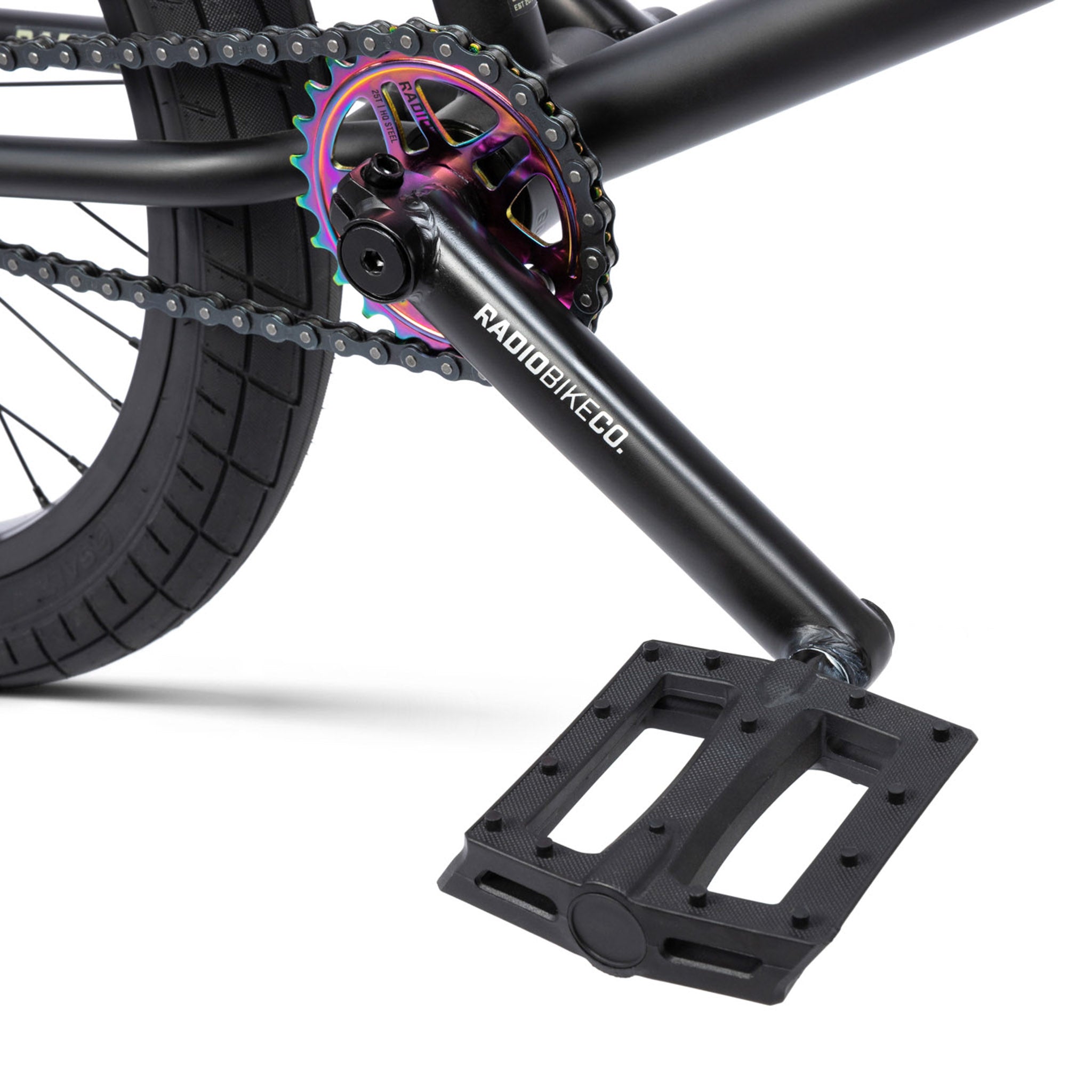

- PEDALS: RADIO "PRO" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type

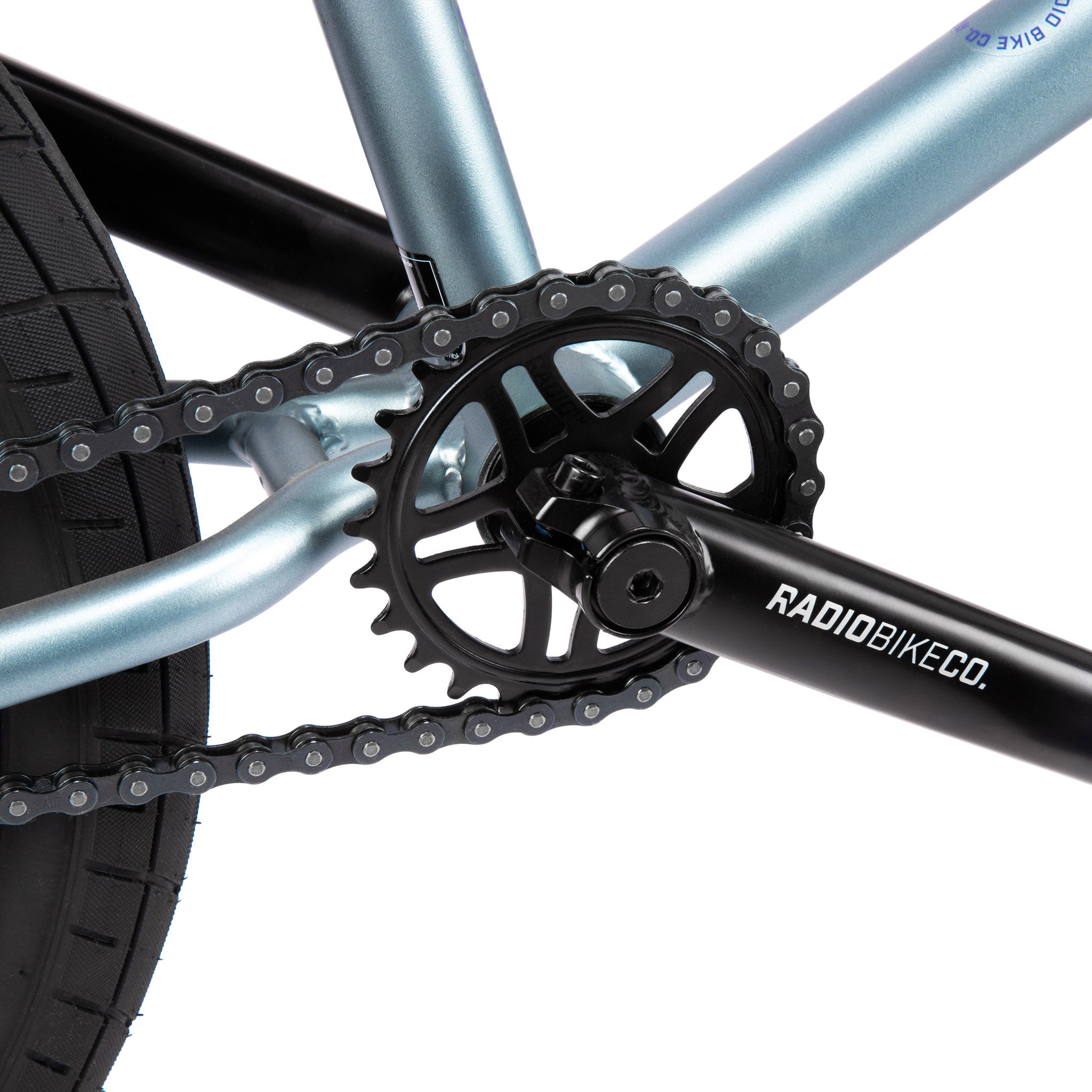

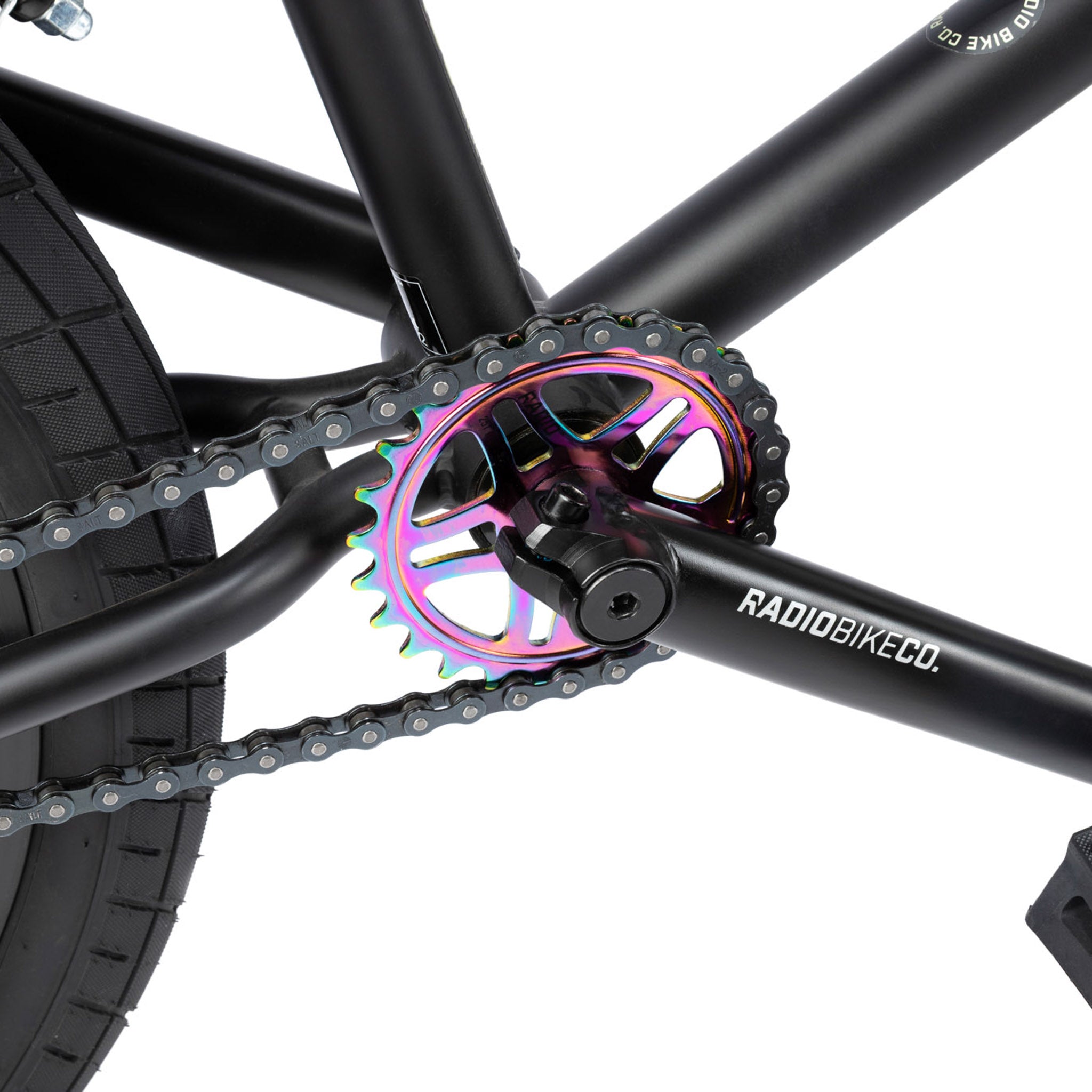

- SPROCKET: RADIO "VISION" sprocket, steel, 25t
- DRIVER: cassette driver, 9t, lb

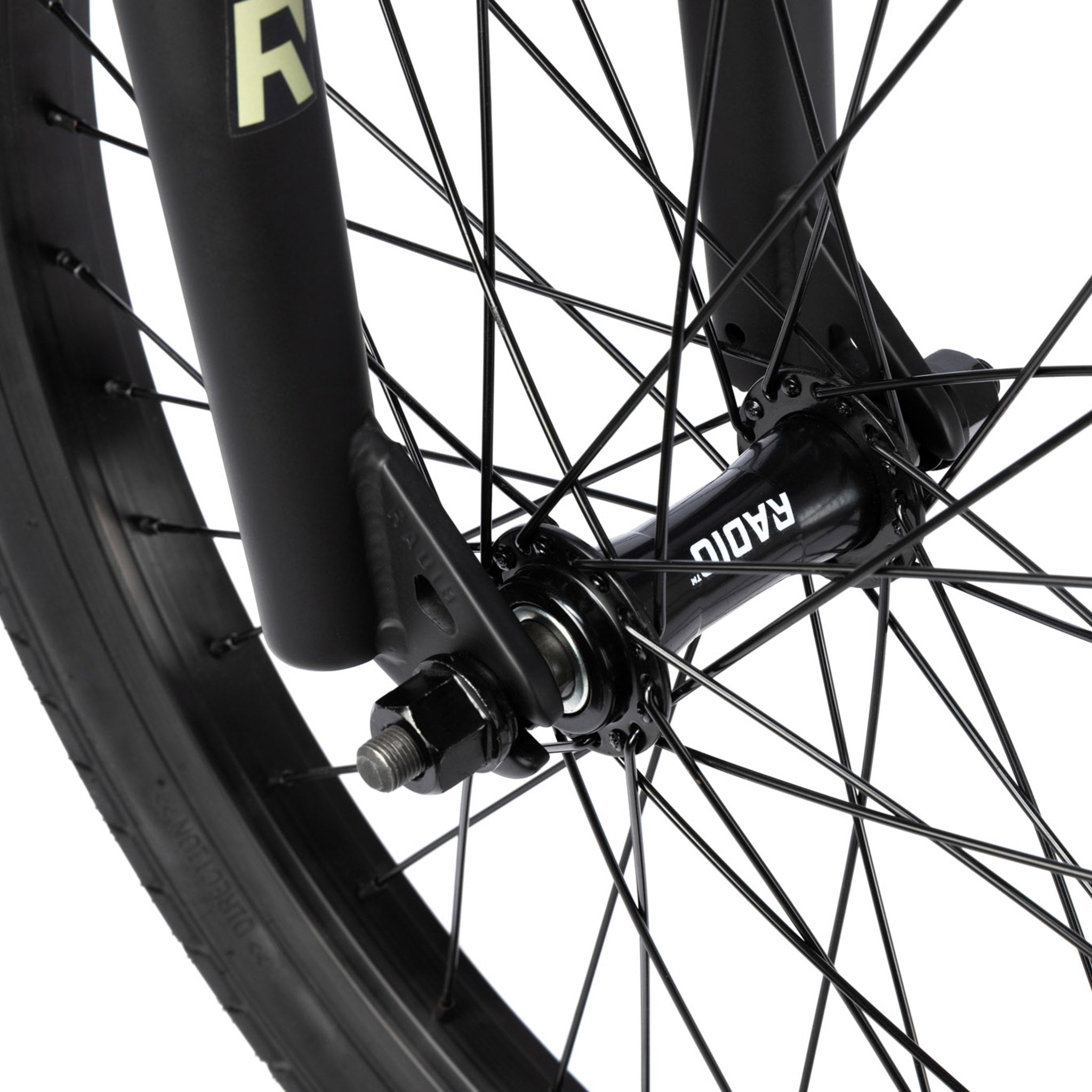

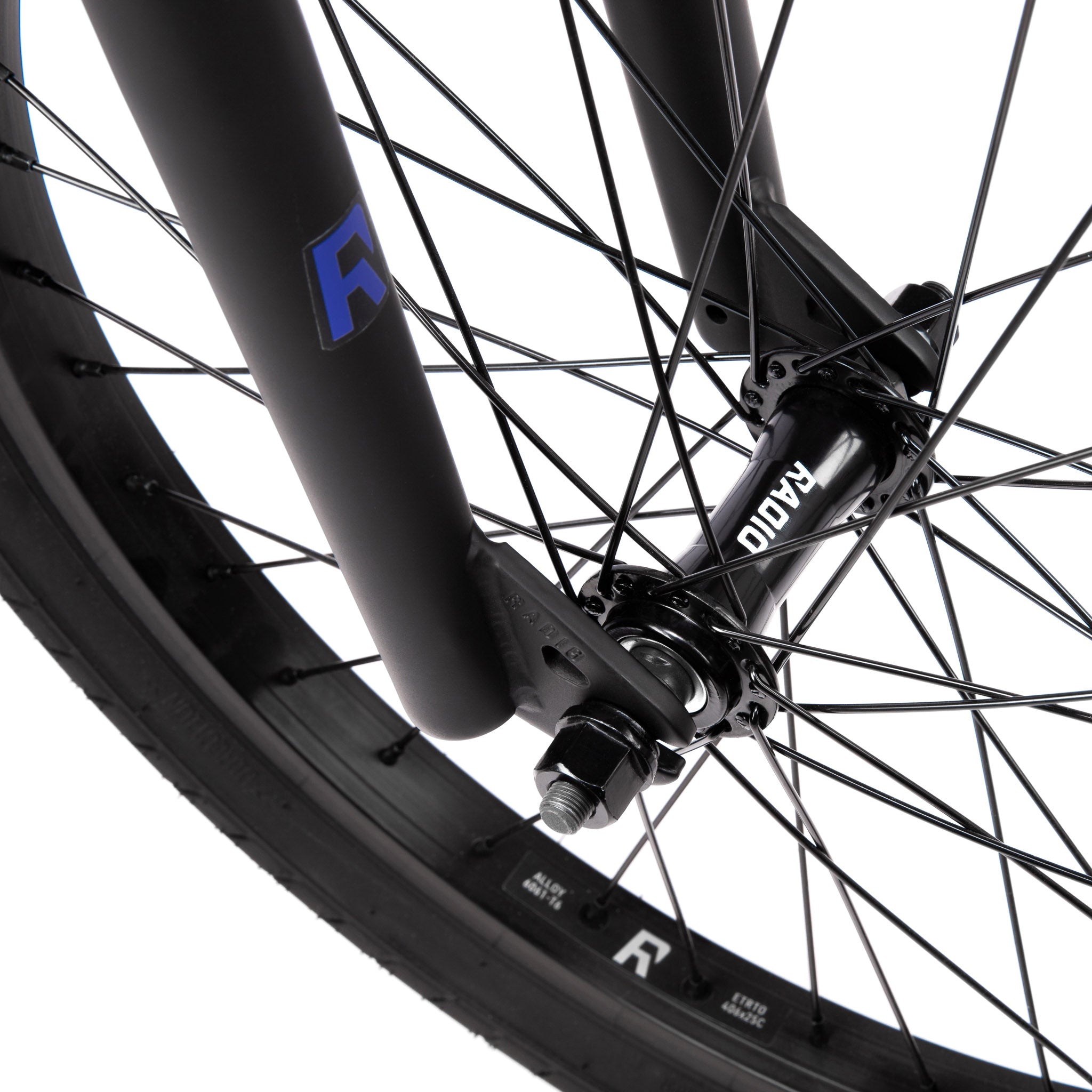

- FRONT HUB: RADIO "ROOKIE" hub, steel, loose ball, 3/8"s, 36h

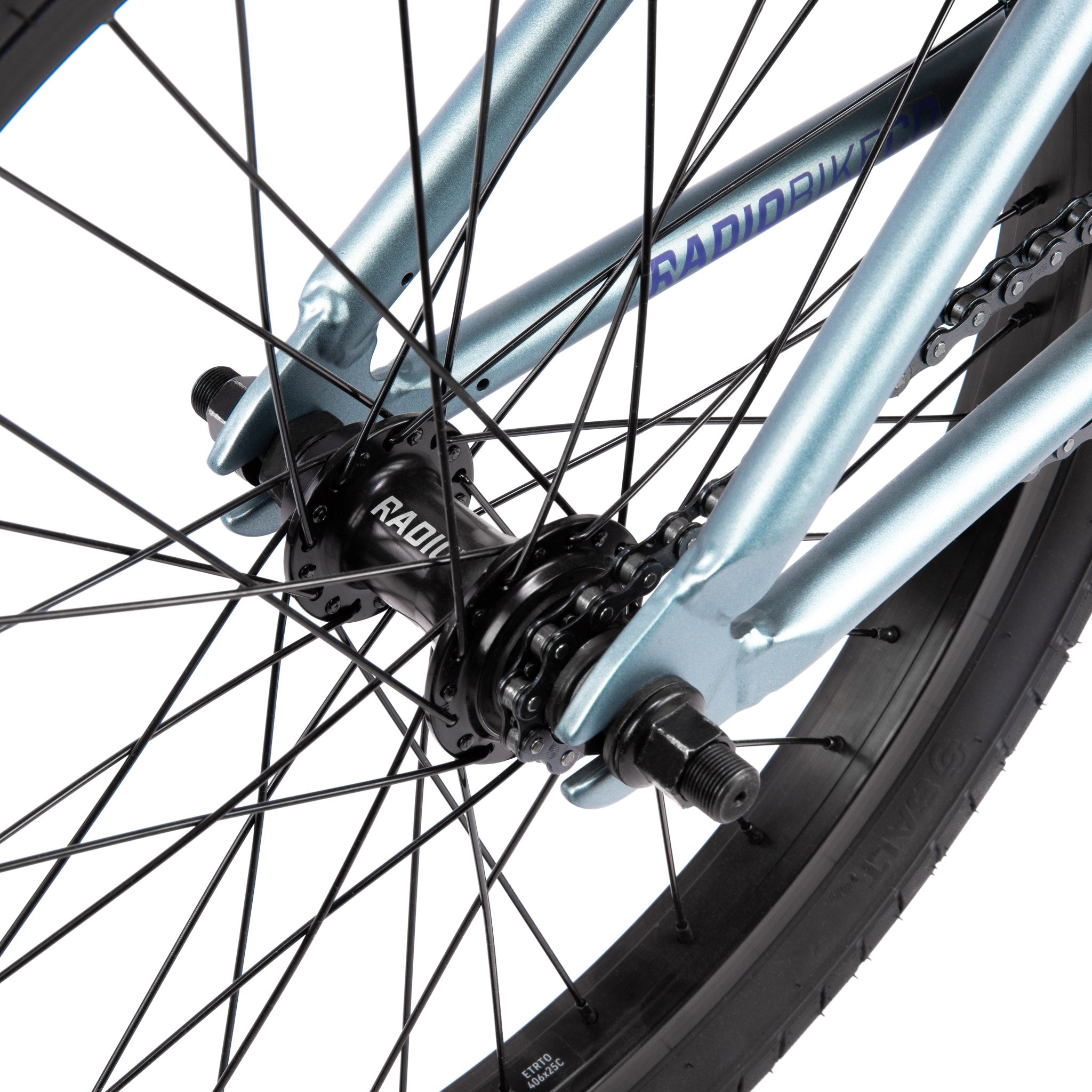

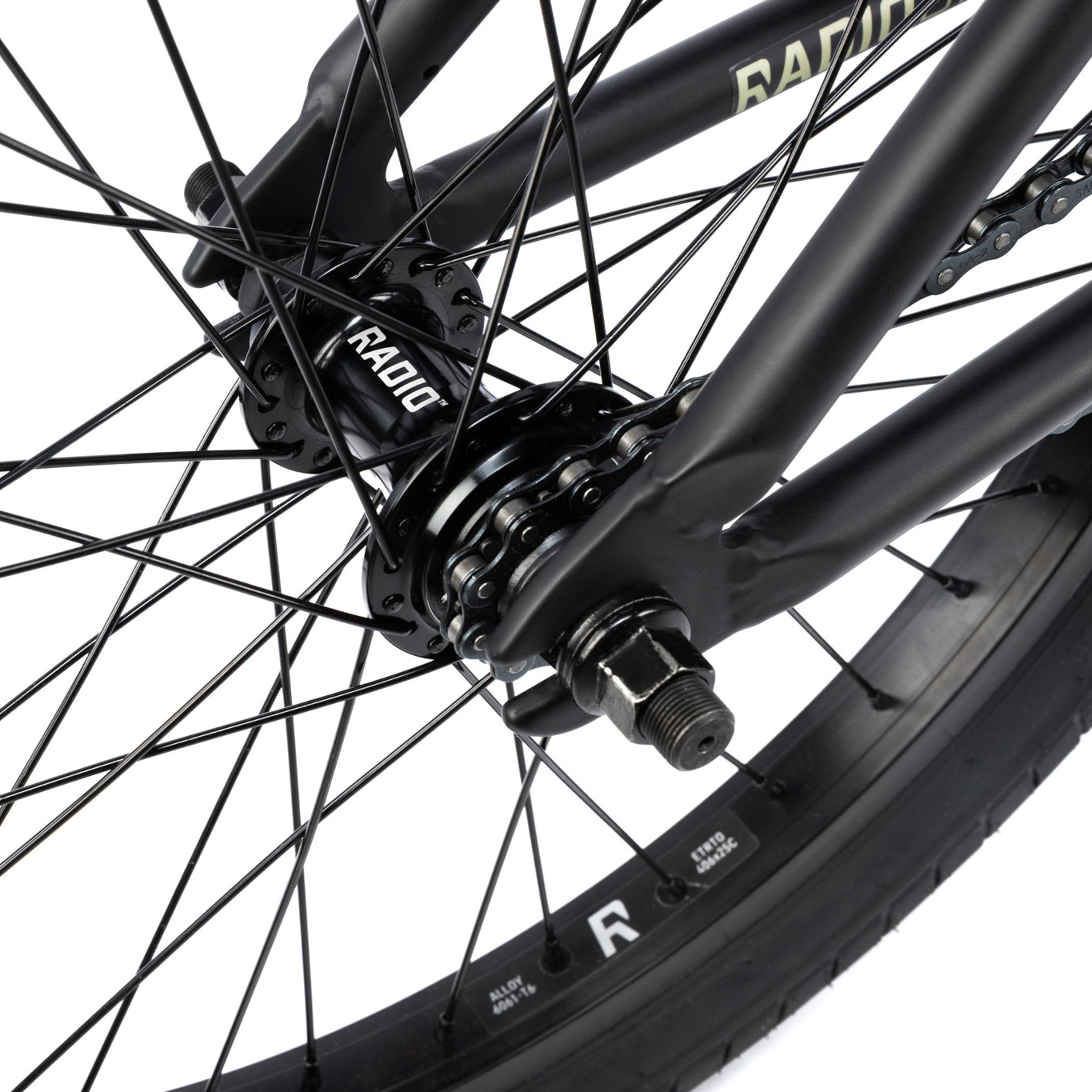

- REAR HUB: RADIO "AM" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
- FRONT RIM: RADIO "ROOKIE" rim, single wall
- REAR RIM: RADIO "ROOKIE" rim, single wall

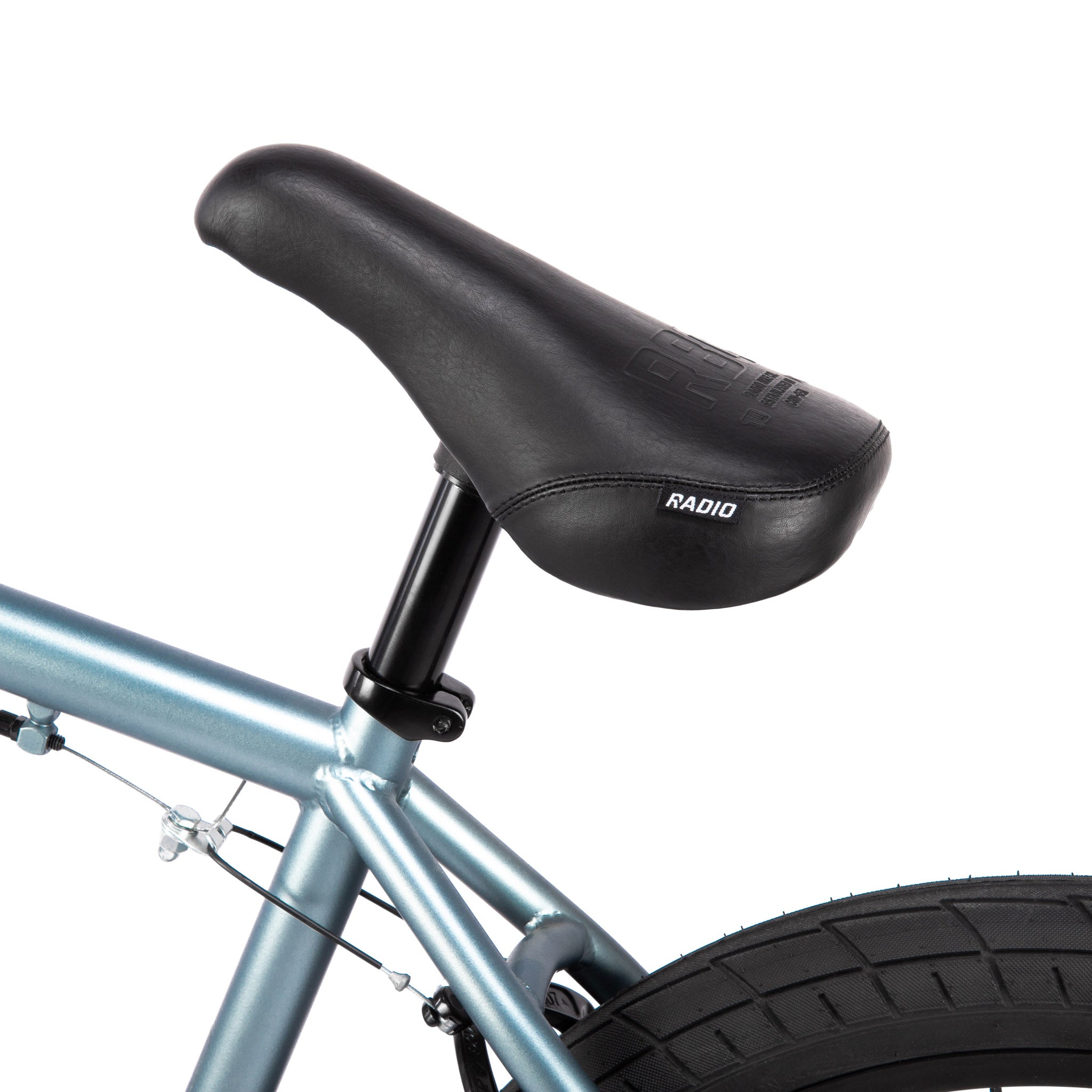

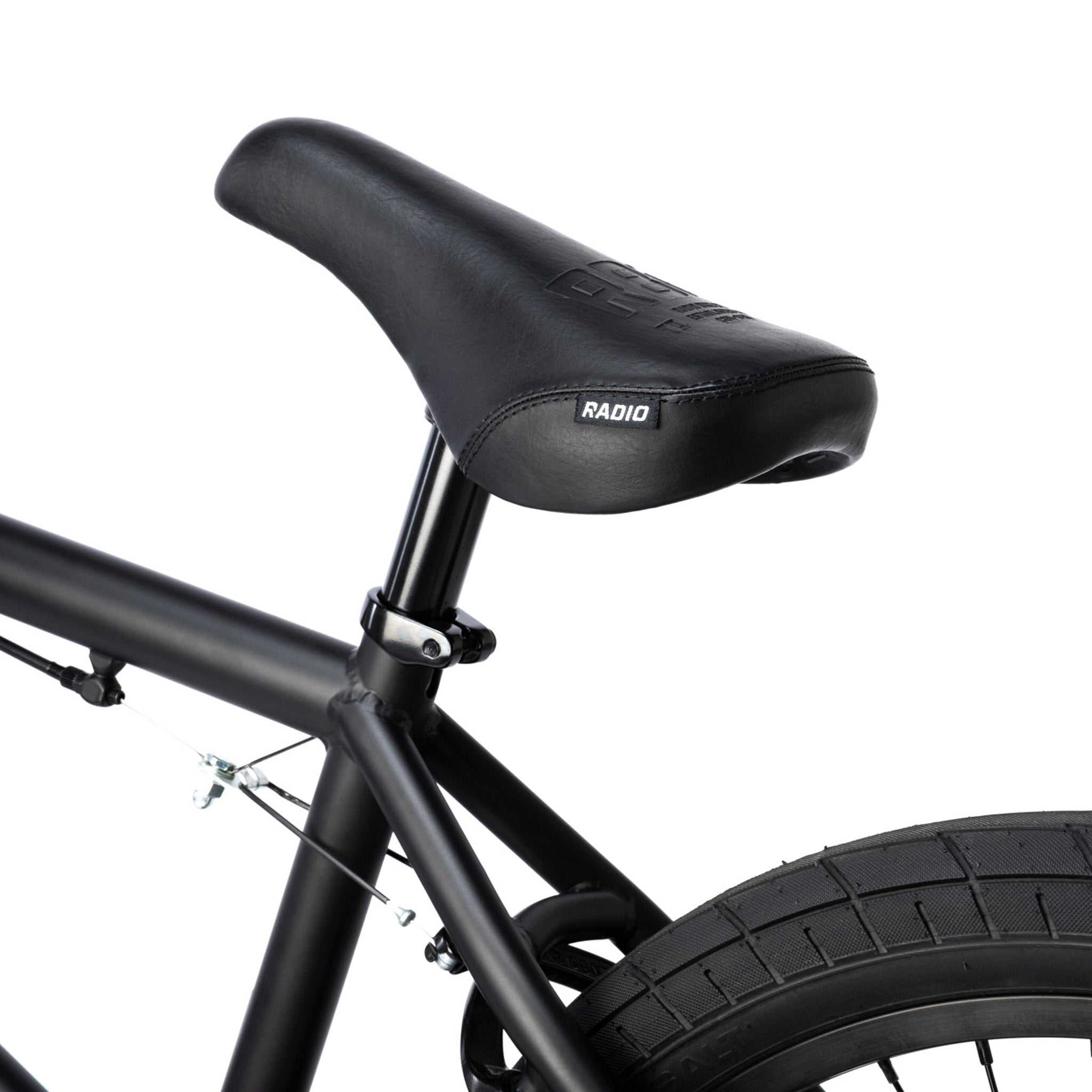

- SEAT: RADIO "CENTURY" combo seat, slim padded
- SEAT CLAMP: RADIO "SLIM" seat clamp, alloy
- TIRES: RADIO "ROOKIE" tires, 2.3", front & rear

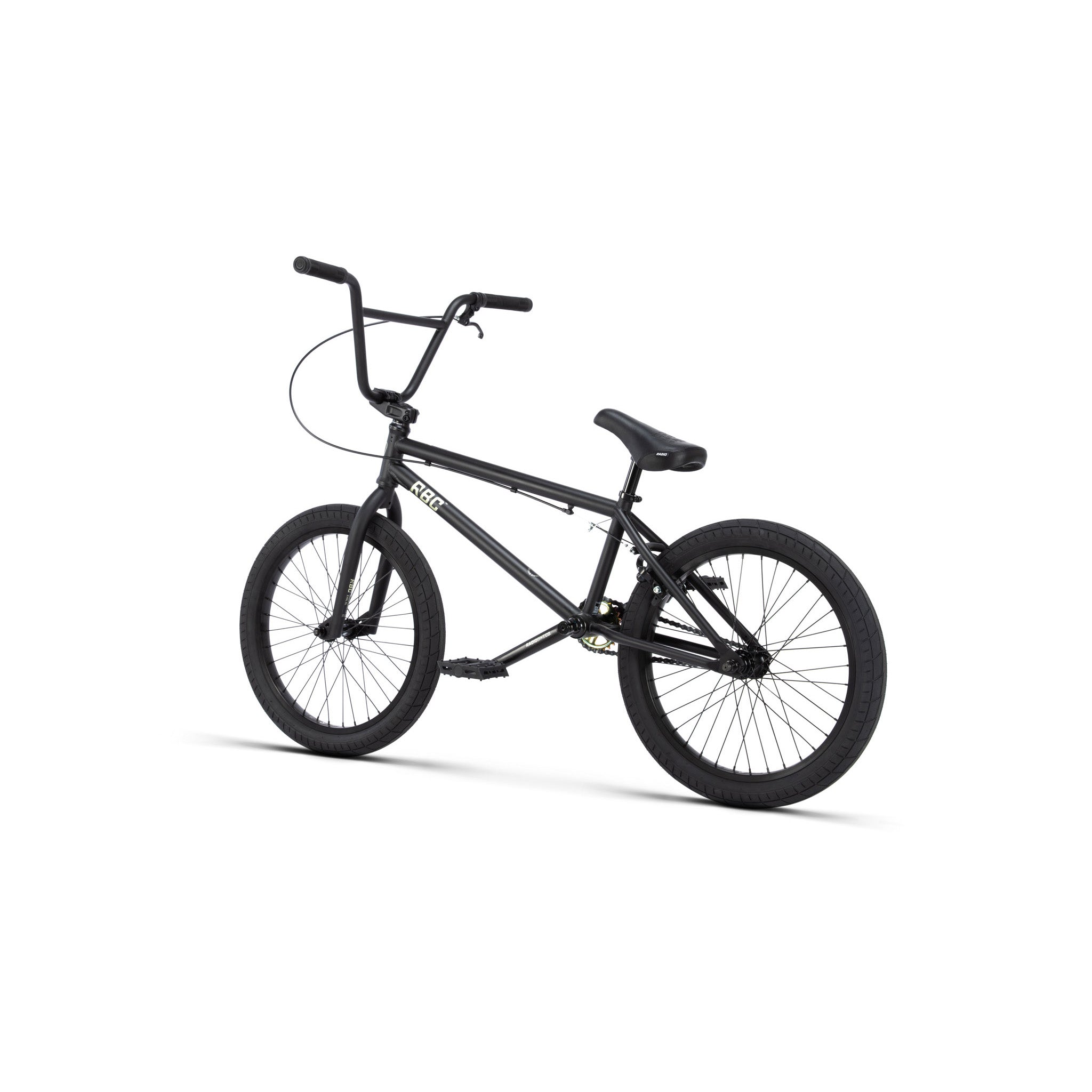

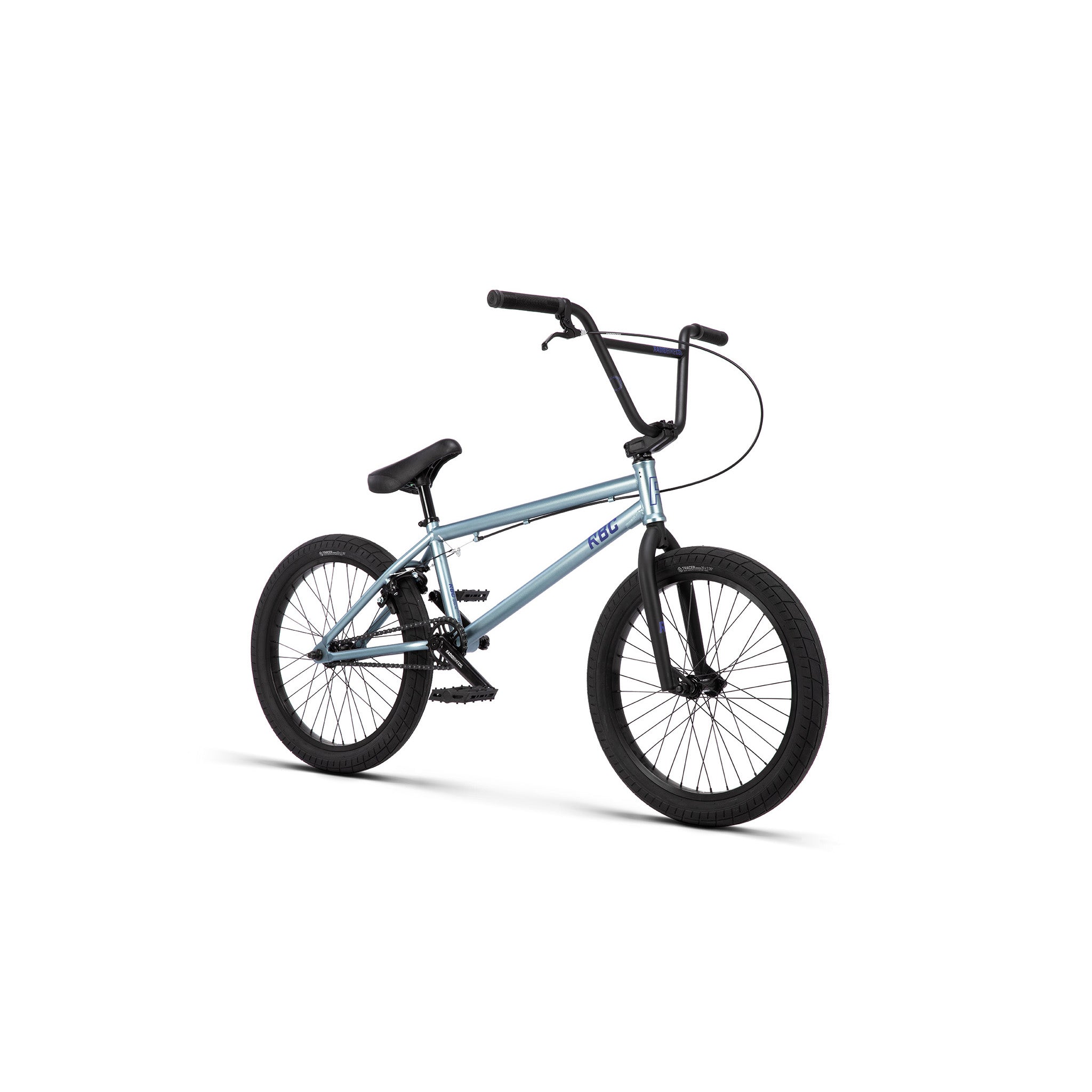

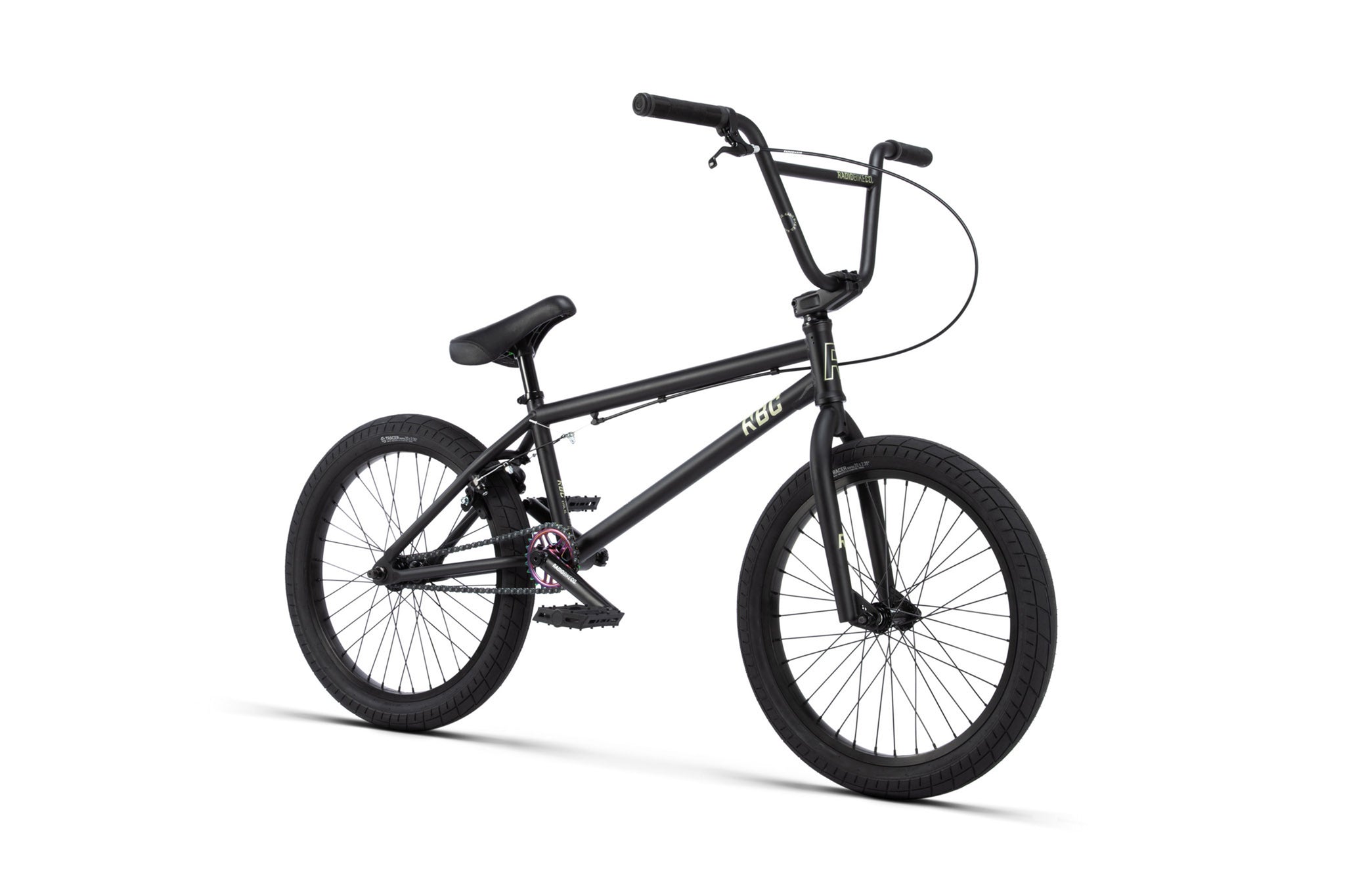

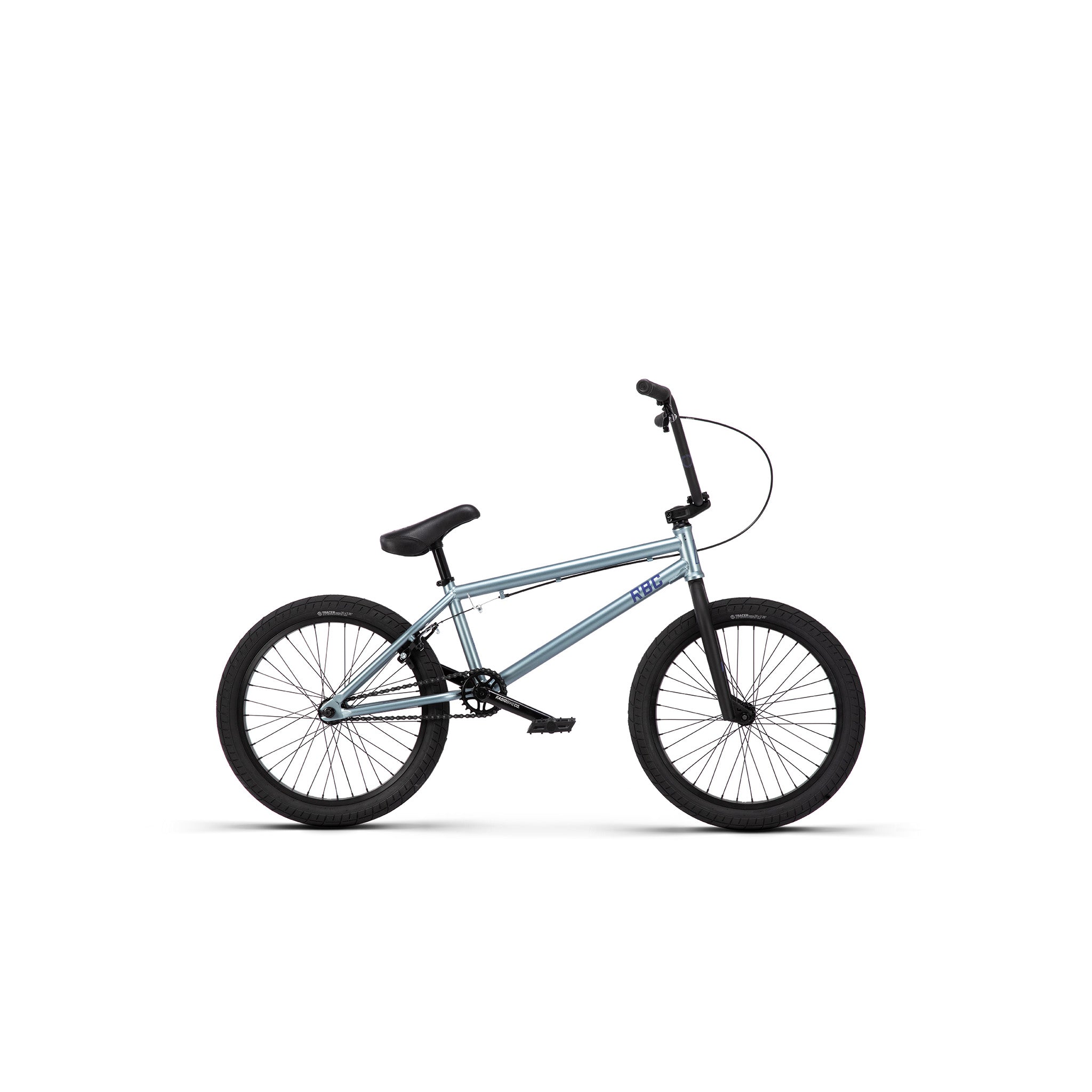

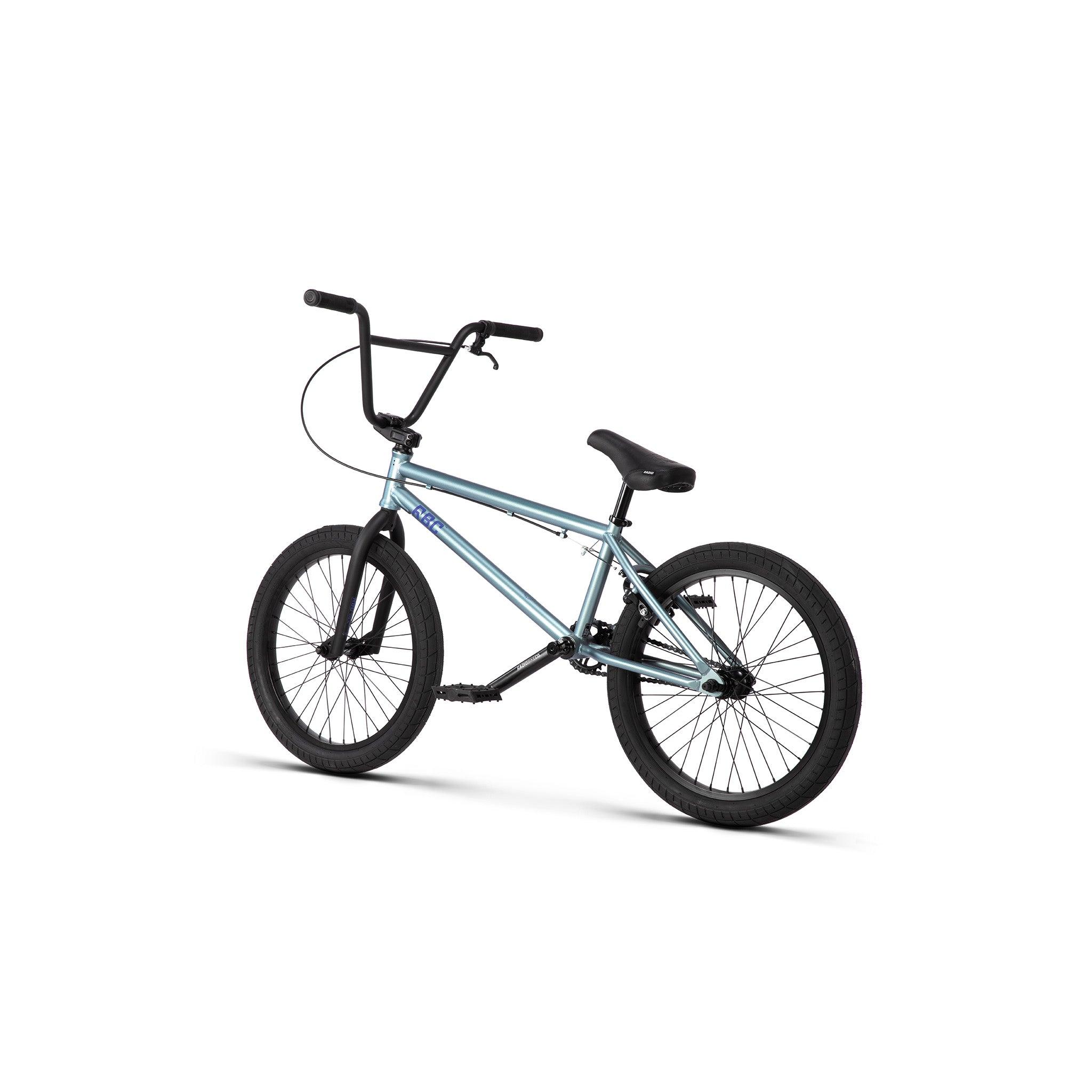

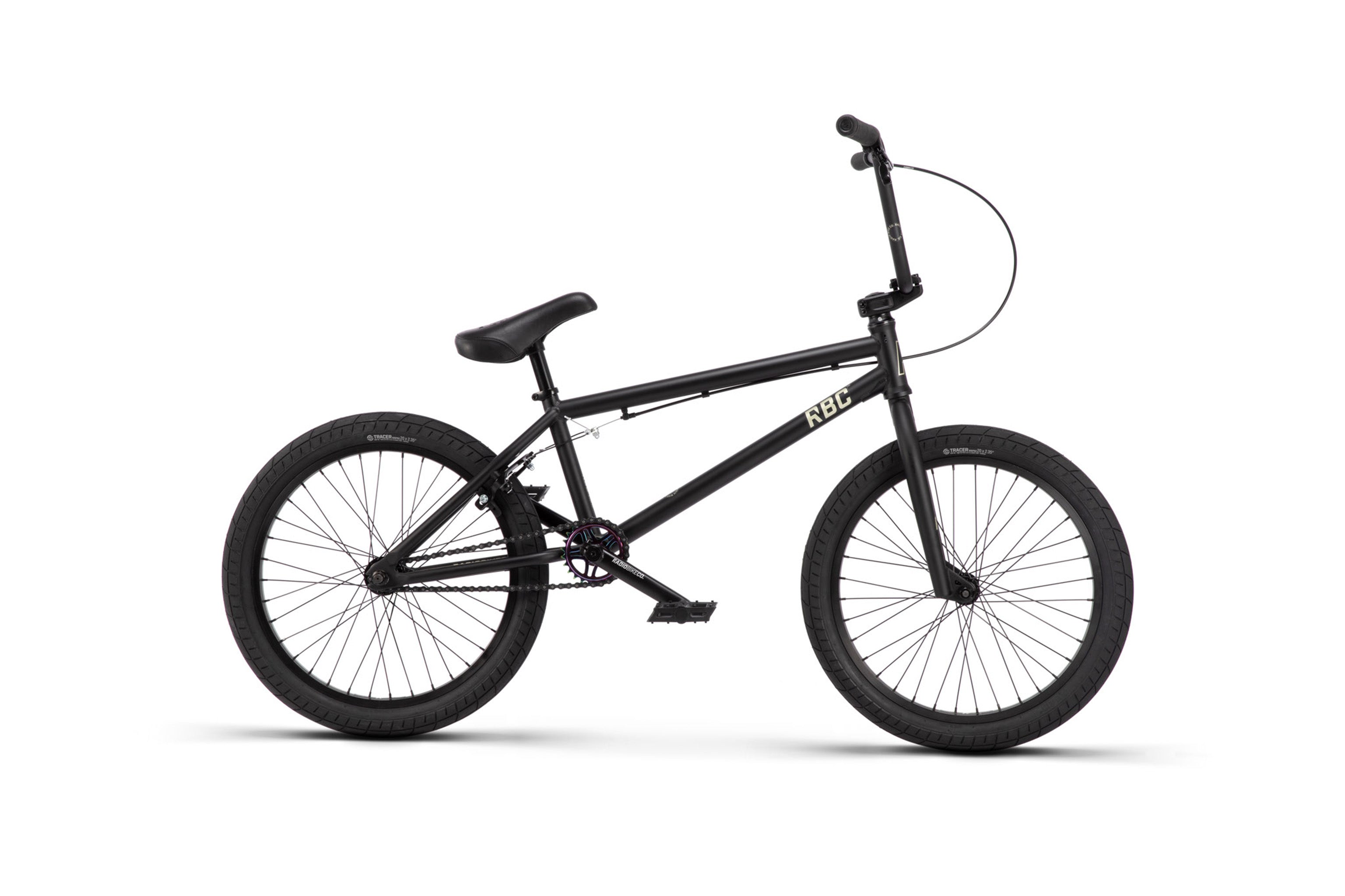

Evol XL Complete Bike
The longer version of the Evol complete bike is the perfect choice for the taller rider looking to step up their game. Built around a durable frame with chromoly top tube, a sealed integrated headset and Mid bottom bracket, it provides a solid platform for progression. Combined with components like Salt Tracer tires and the Salt Vision sprocket, the Evol delivers the performance, reliability, and style needed to keep riders moving forward.
Weight: 12.17kg / 26.83lbs
Frame Geometry:
| Top Tube Length | 20.3" |
| Chain Stay Length | 13.2" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 11.75" |
| Standover Height | 8.25" |
Handlebar Geometry:
| Rise | 8.8" |
| Width | 29" |
| Backsweep | 11° |
| Upsweep | 2° |
