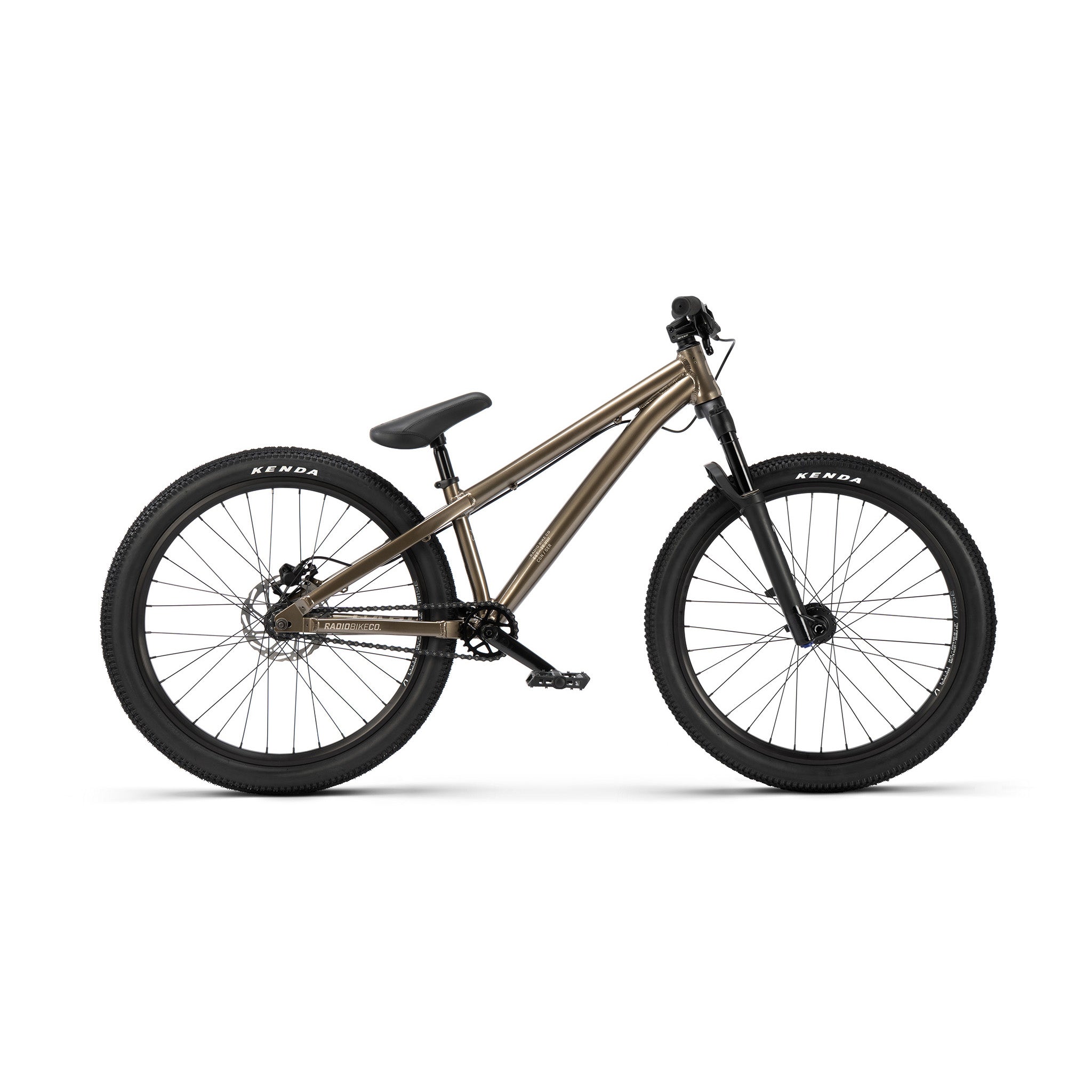

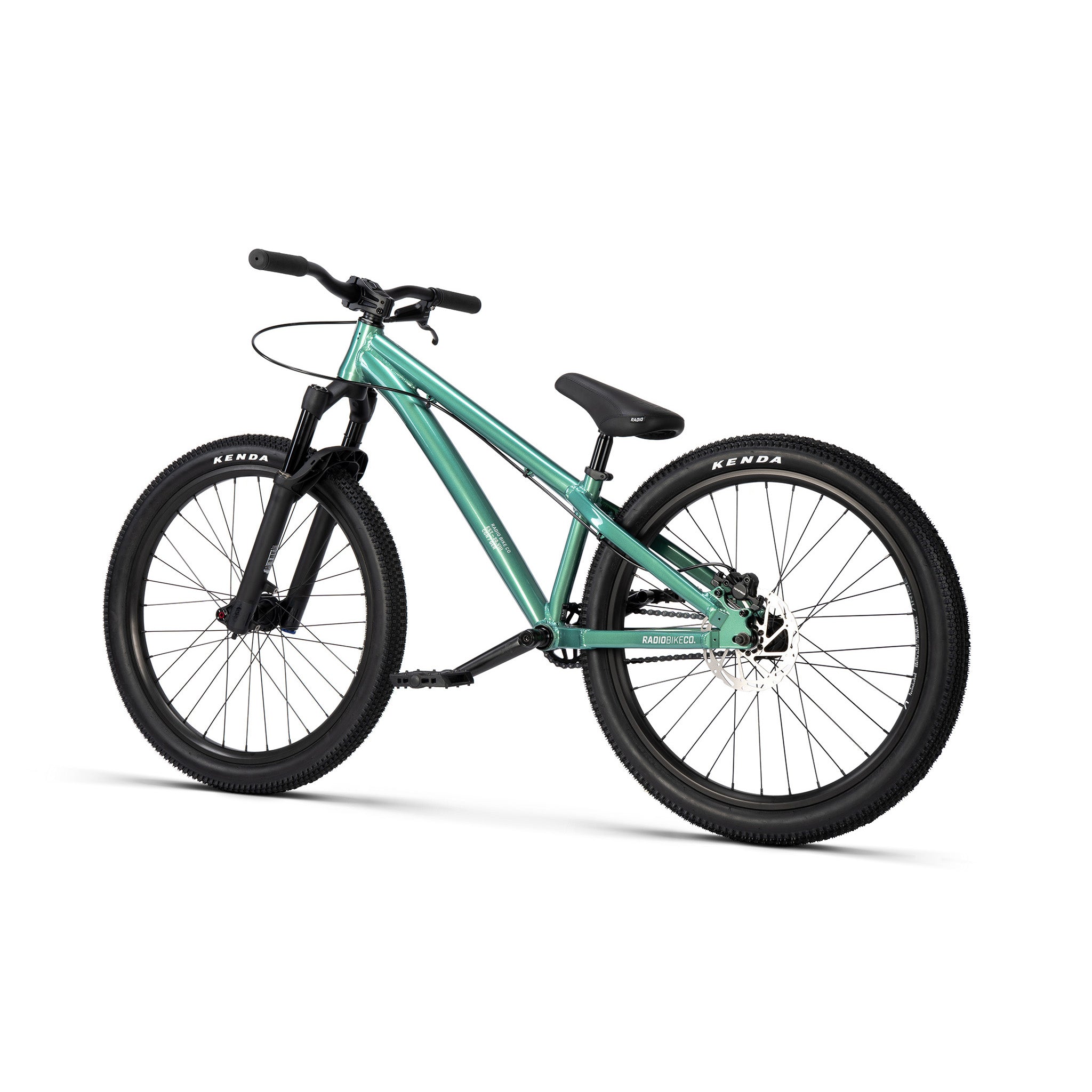

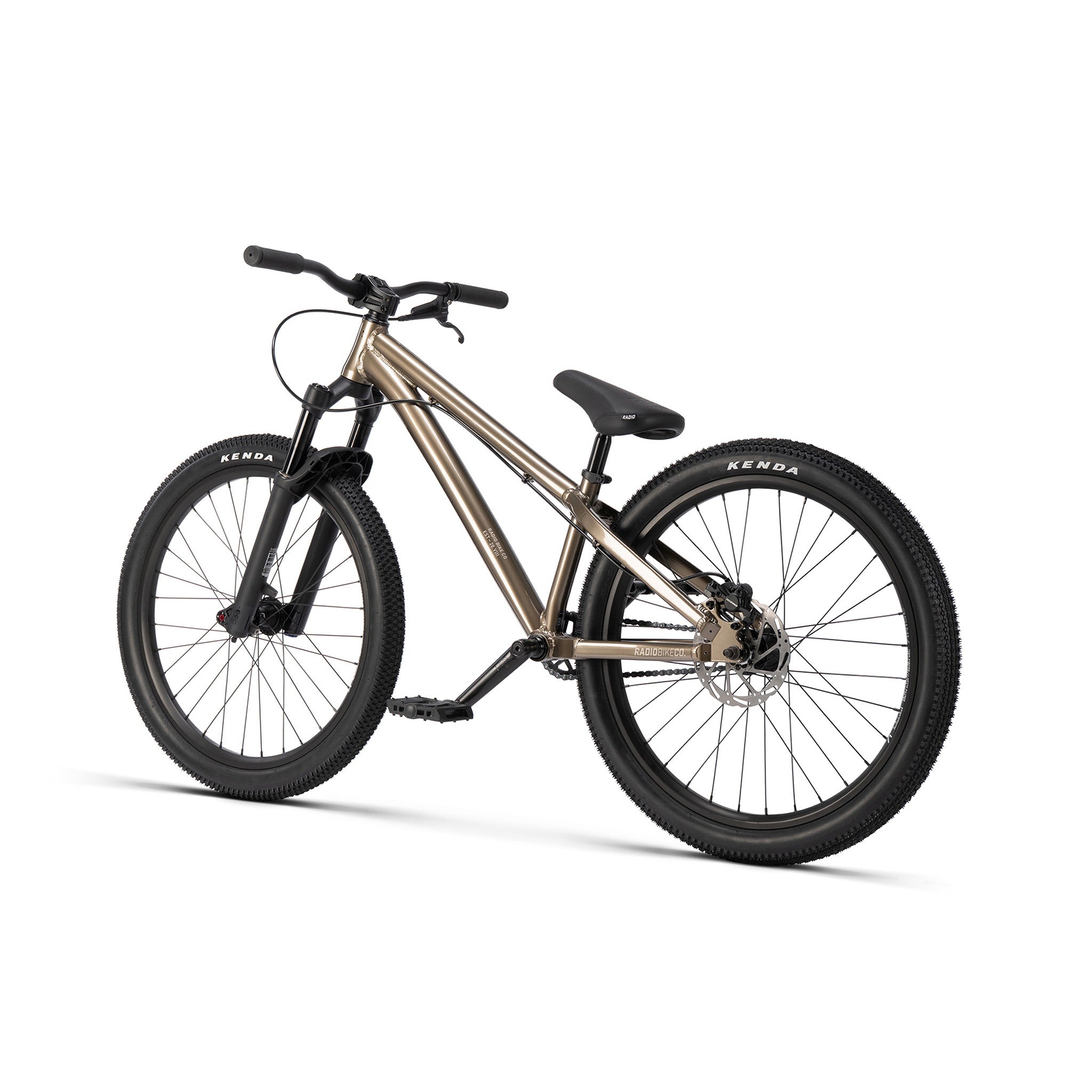

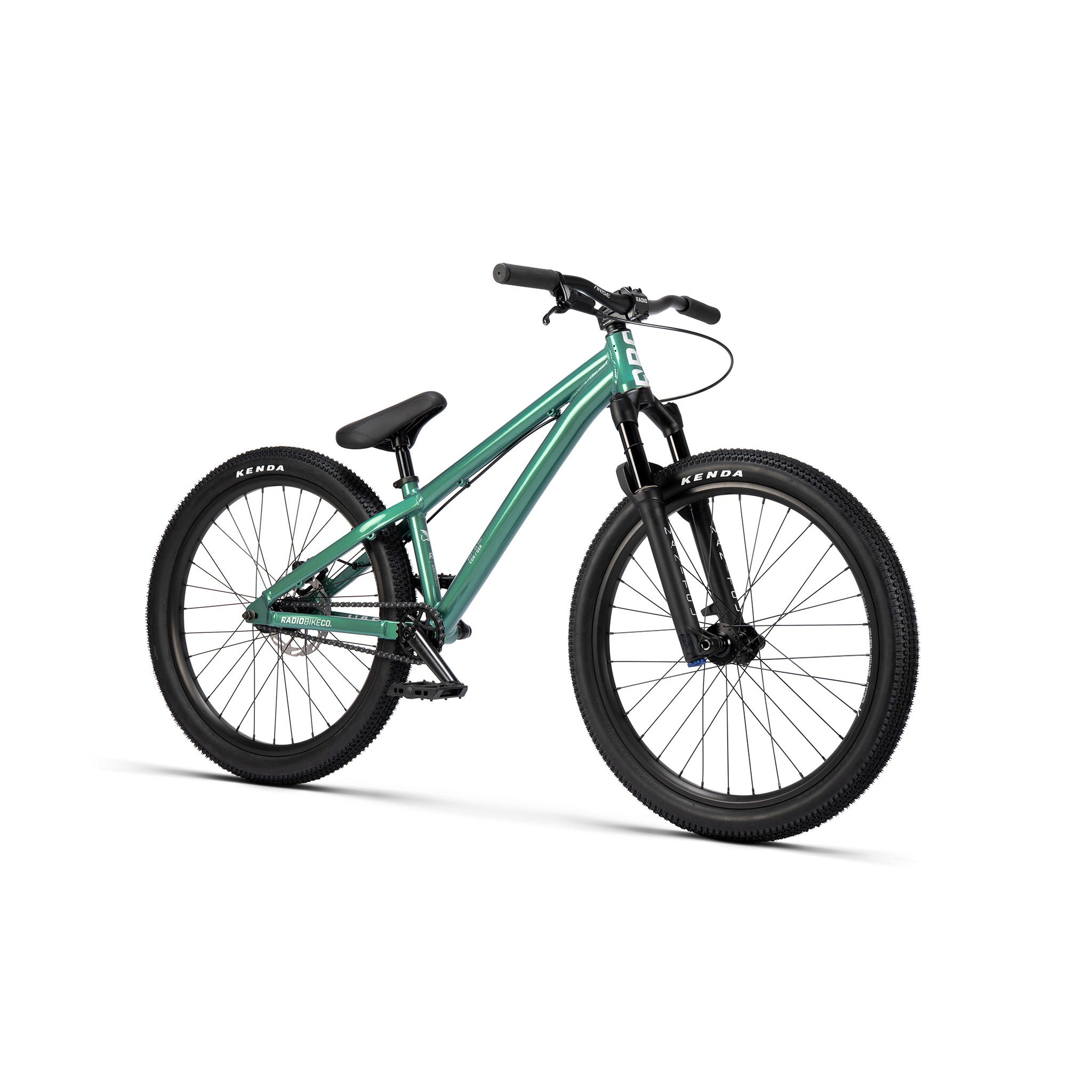

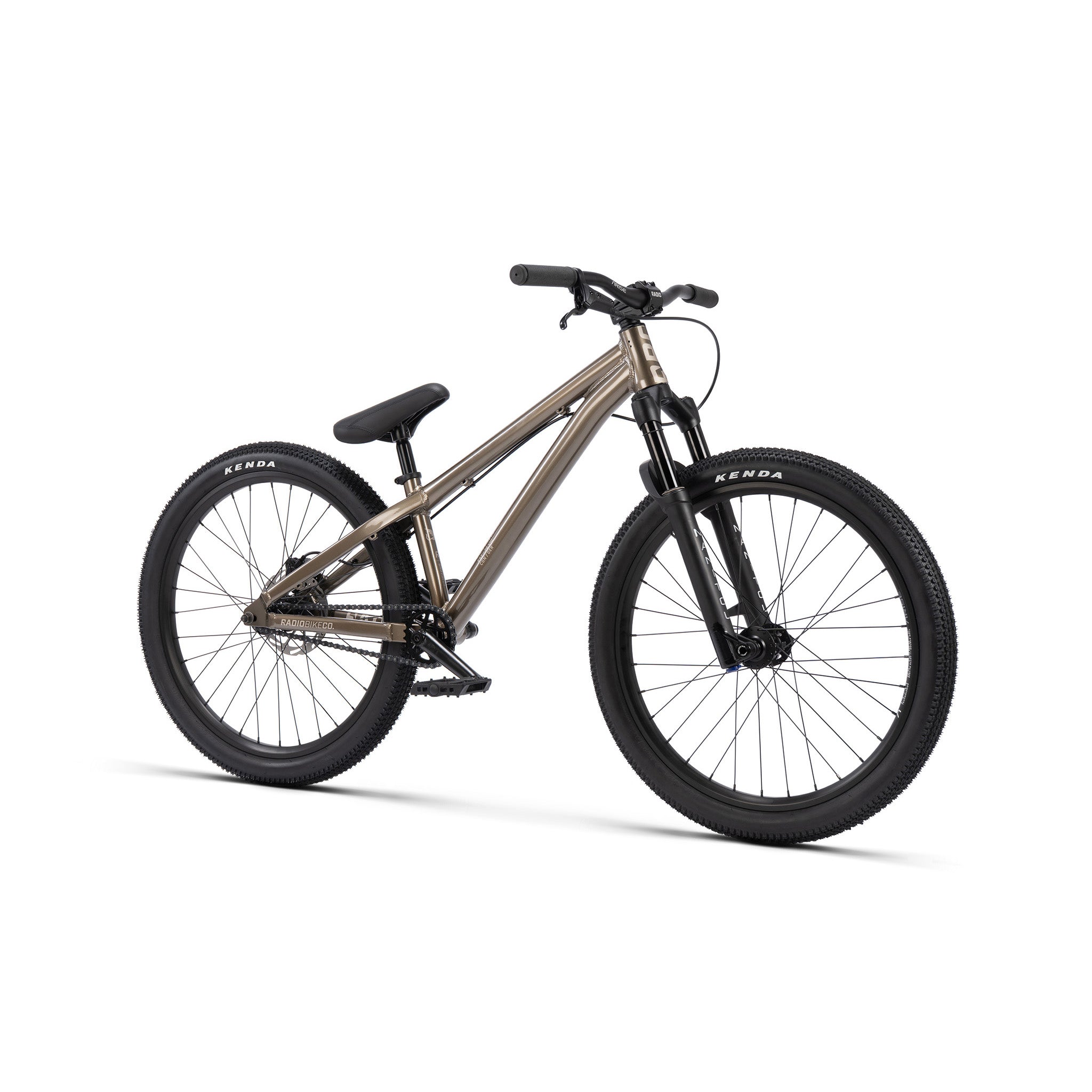

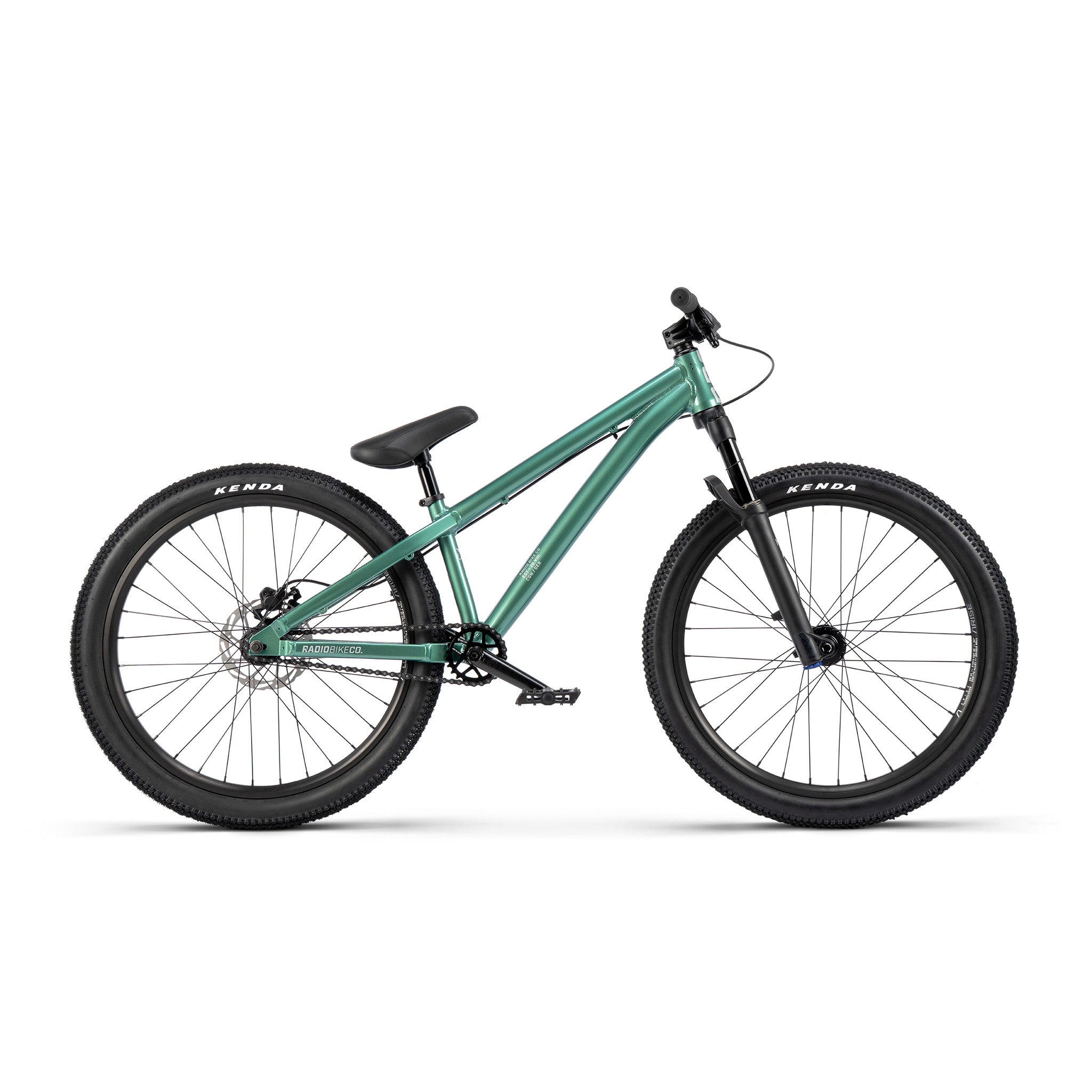

Griffin 24" Complete Bike

Bringing the same competition-inspired performance to a more compact platform, the Griffin 24" is built around a competition-ready 6061-T6 aluminium frame and equipped with a premium Manitou suspension fork for exceptional control and responsiveness. Combined with the same trusted components as it's bigger brother, it delivers a confident and capable ride designed to help riders progress and push their limits. Finished in two striking colourways, the Griffin 24" packs serious dirt jump performance into a perfectly proportioned package.

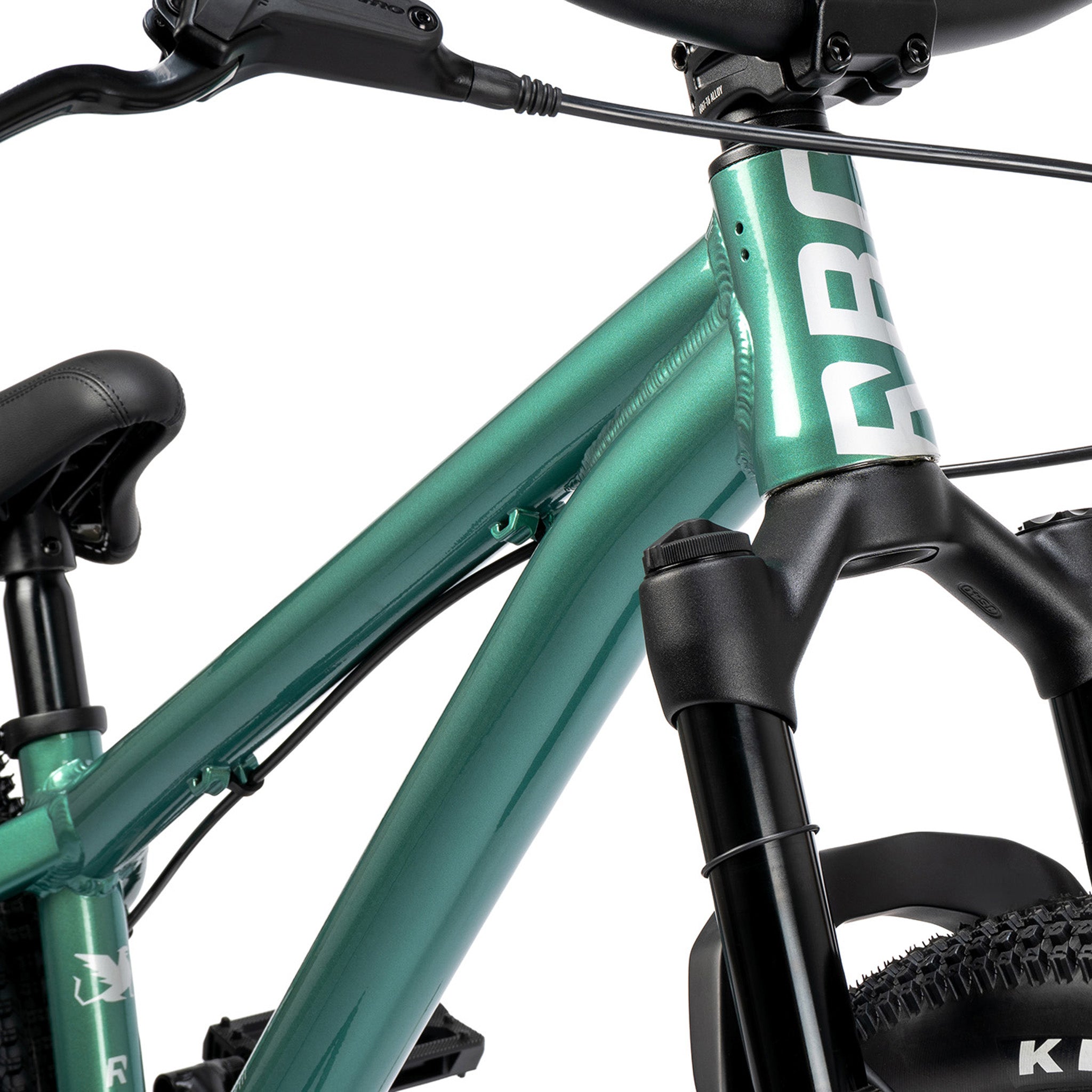

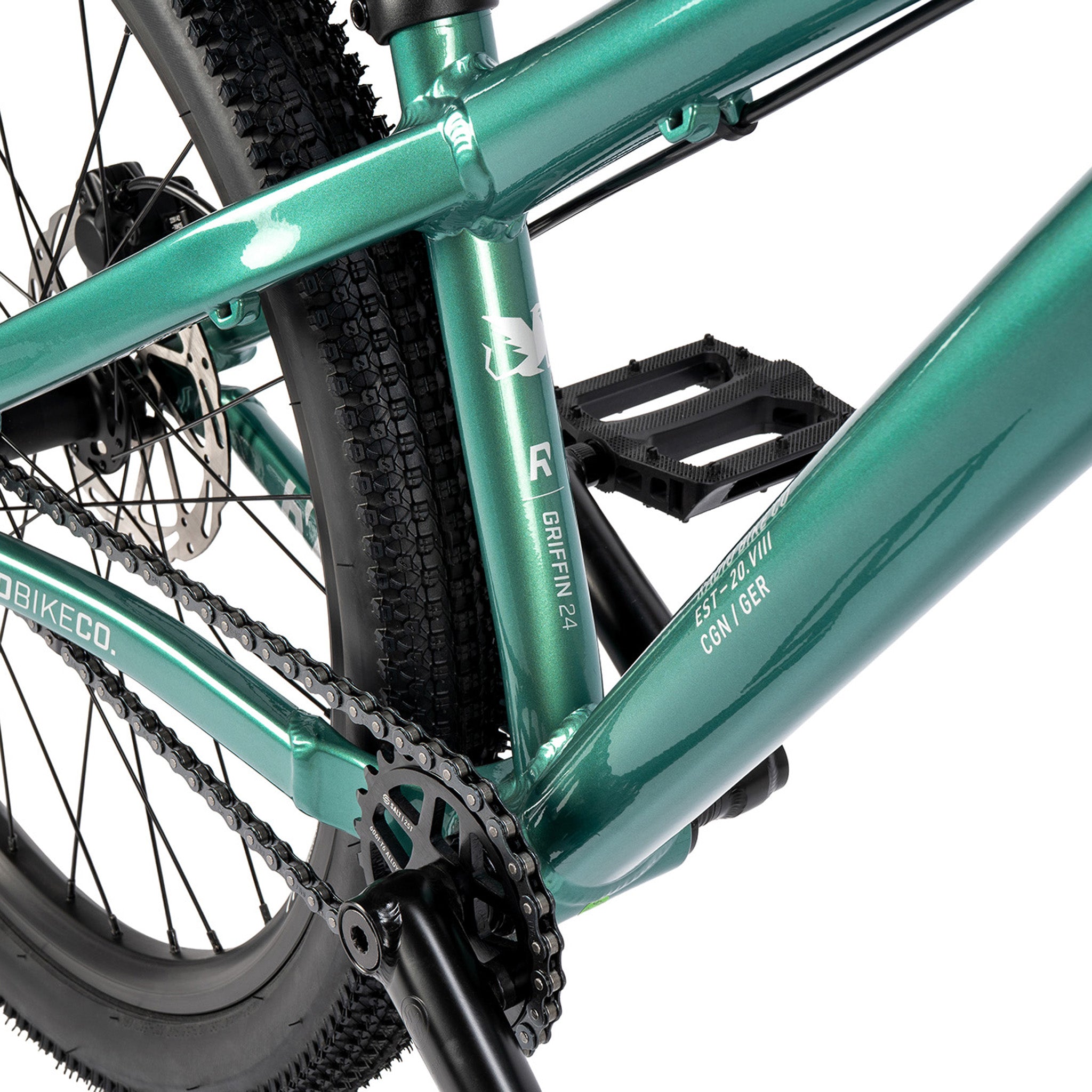

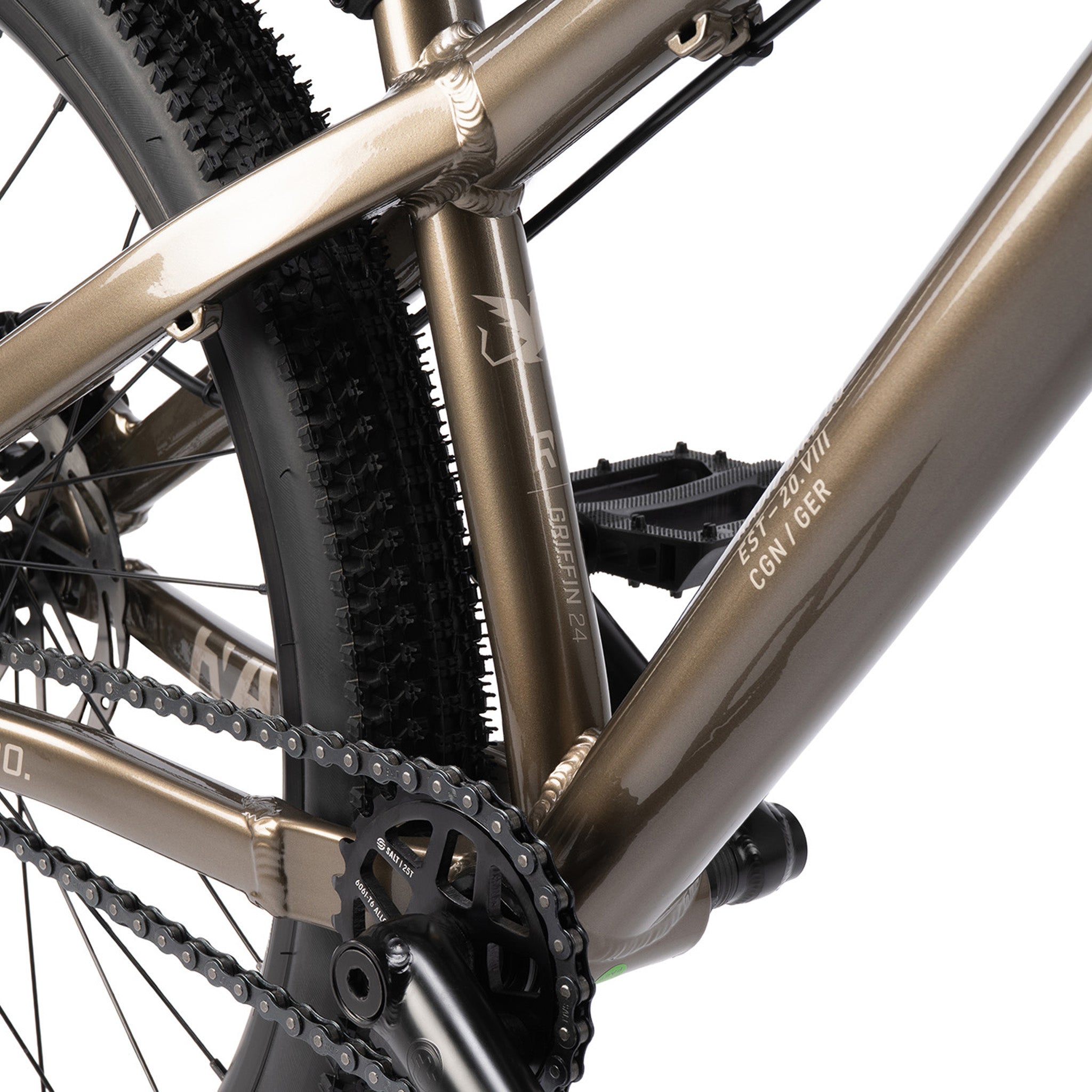

  • FRAME: RADIO "GRIFFIN 24" frame, 6061-T6 alloy, tapered head tube, forged yoke

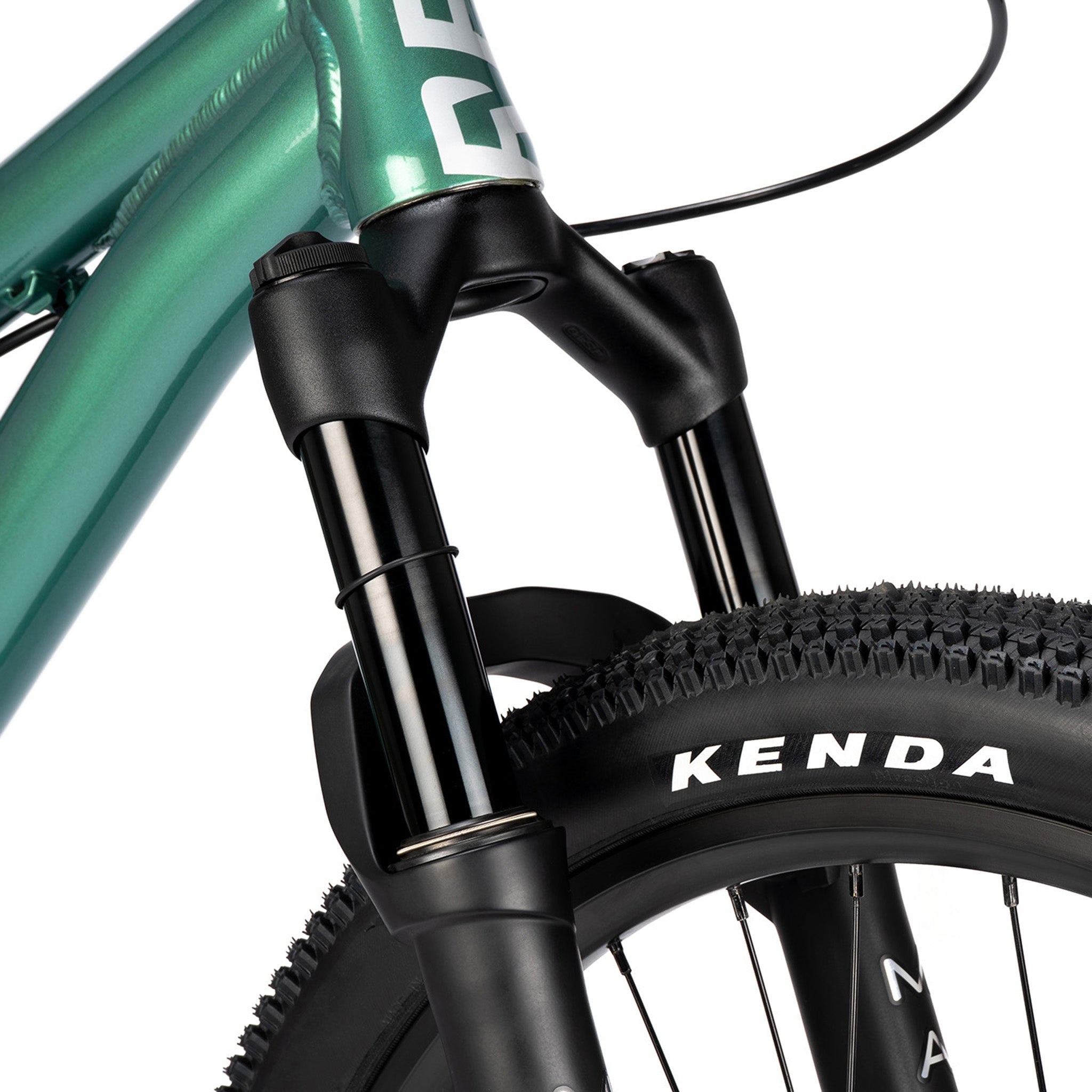

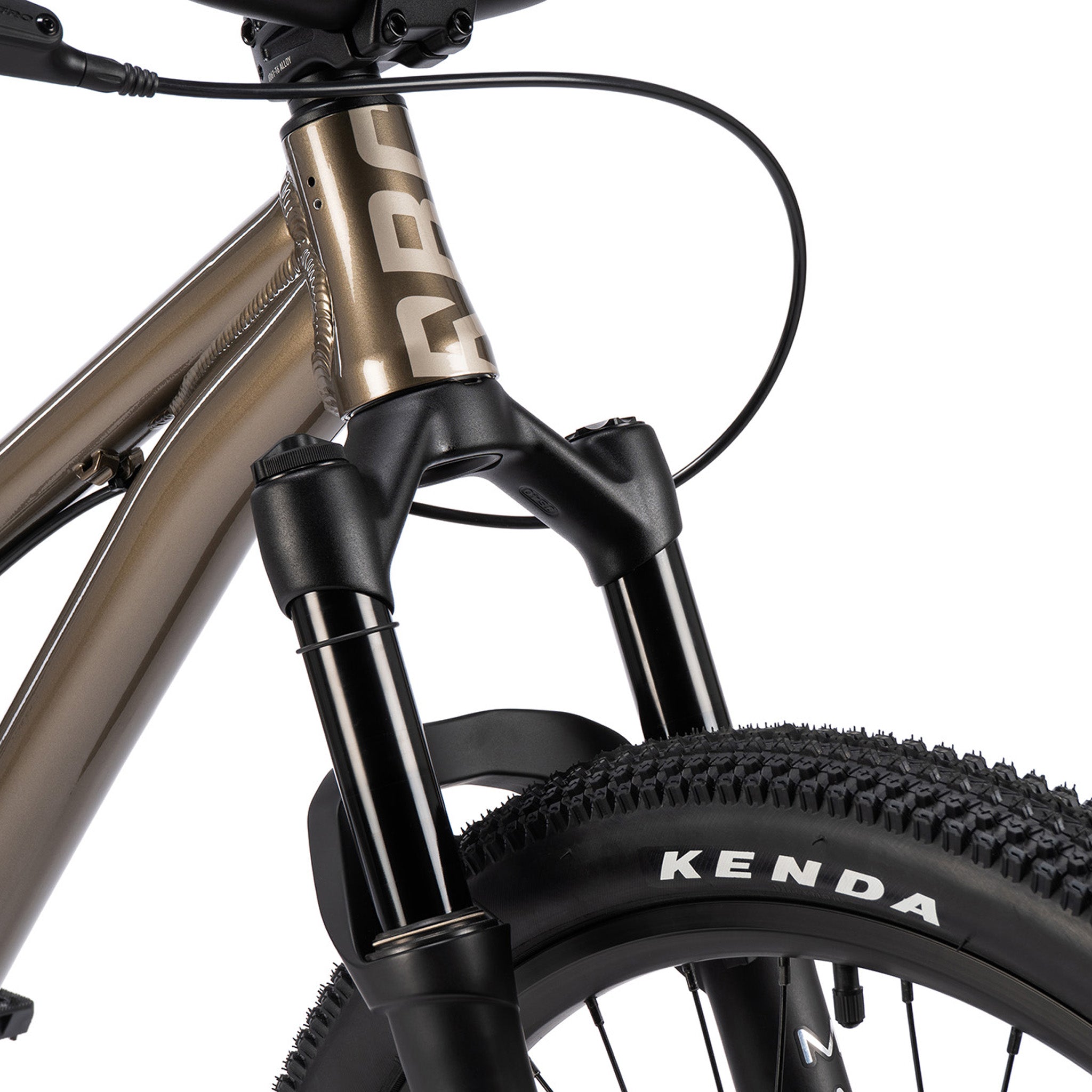

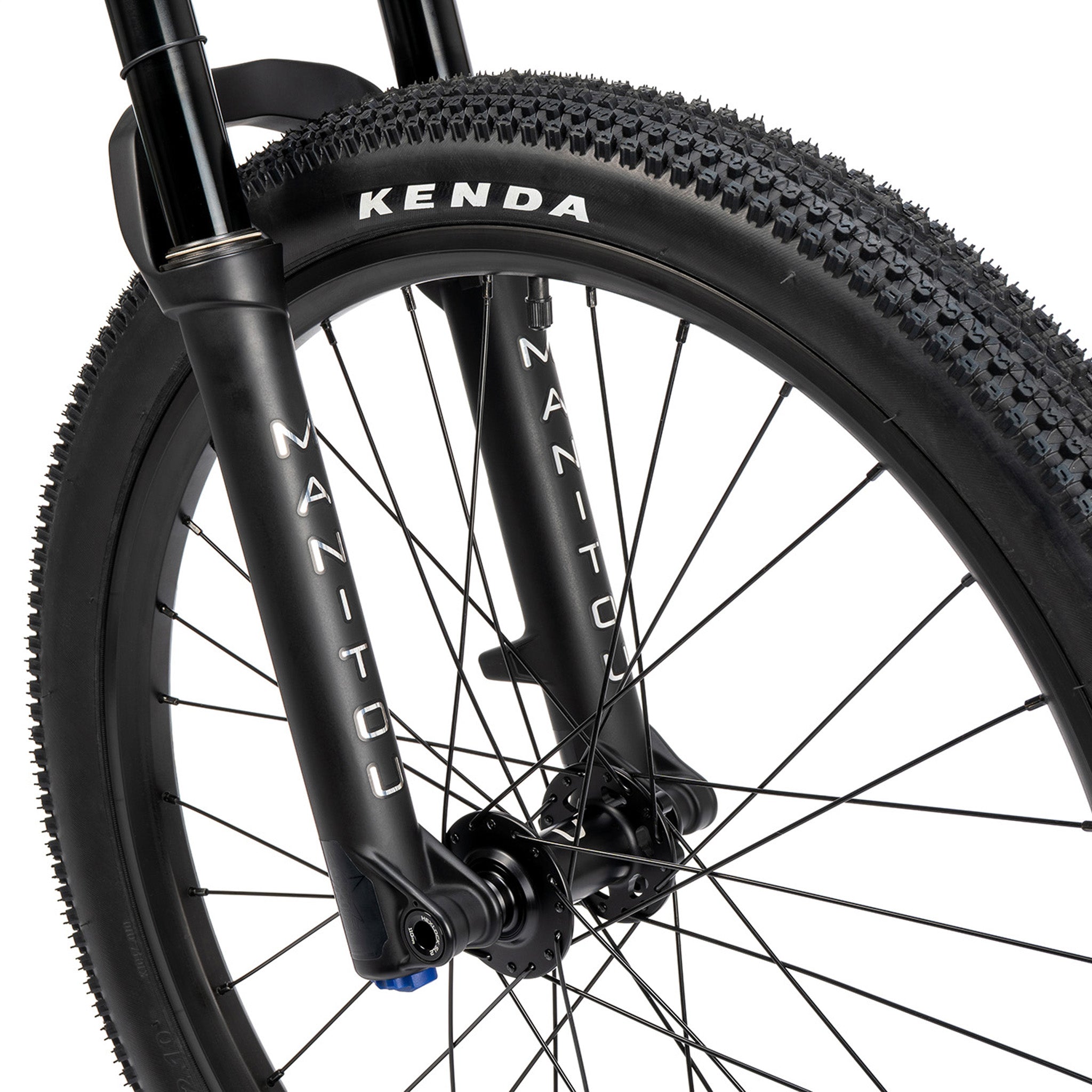

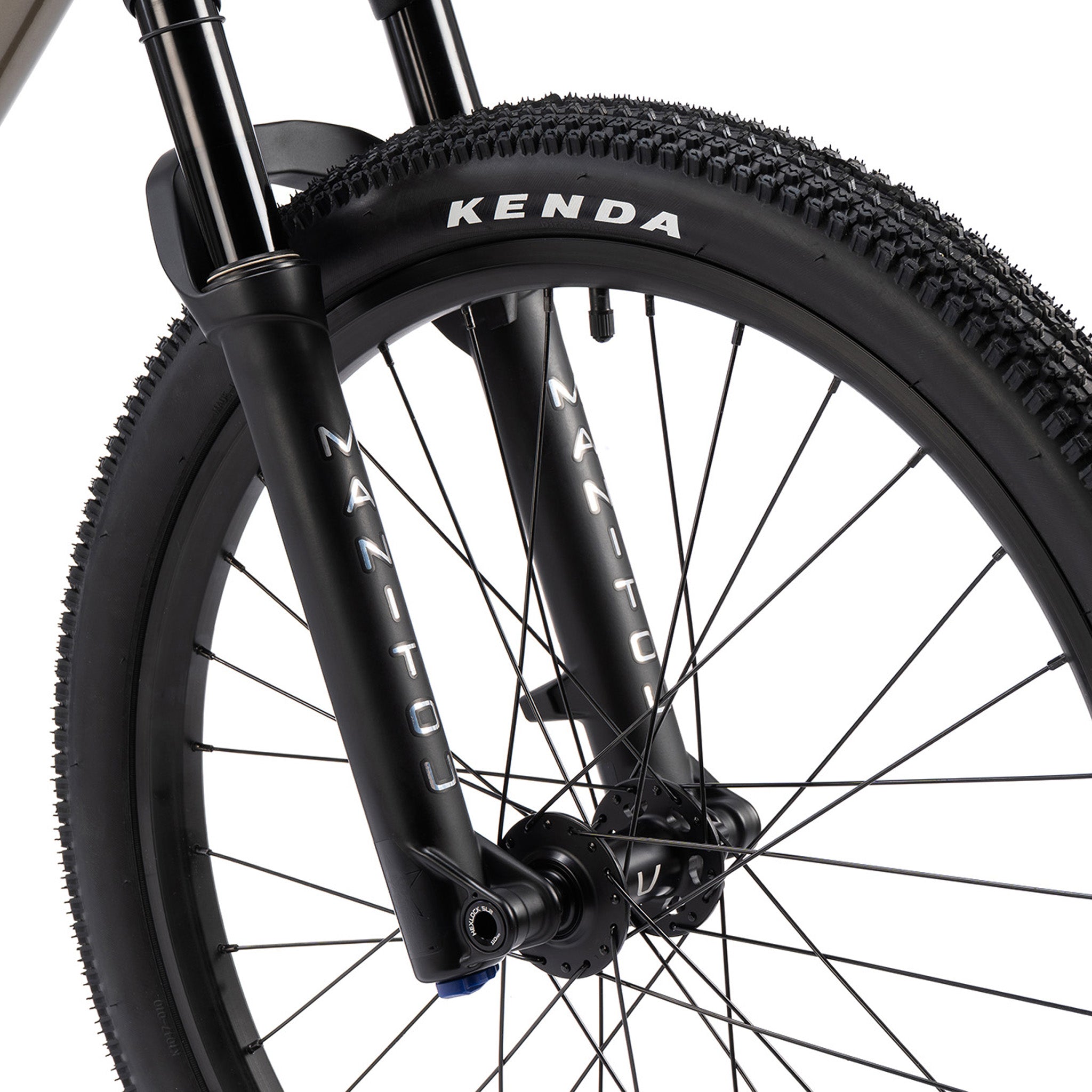

  • FORK: MANITOU "JUNIT CIRCUS COMP" fork, 90mm travel

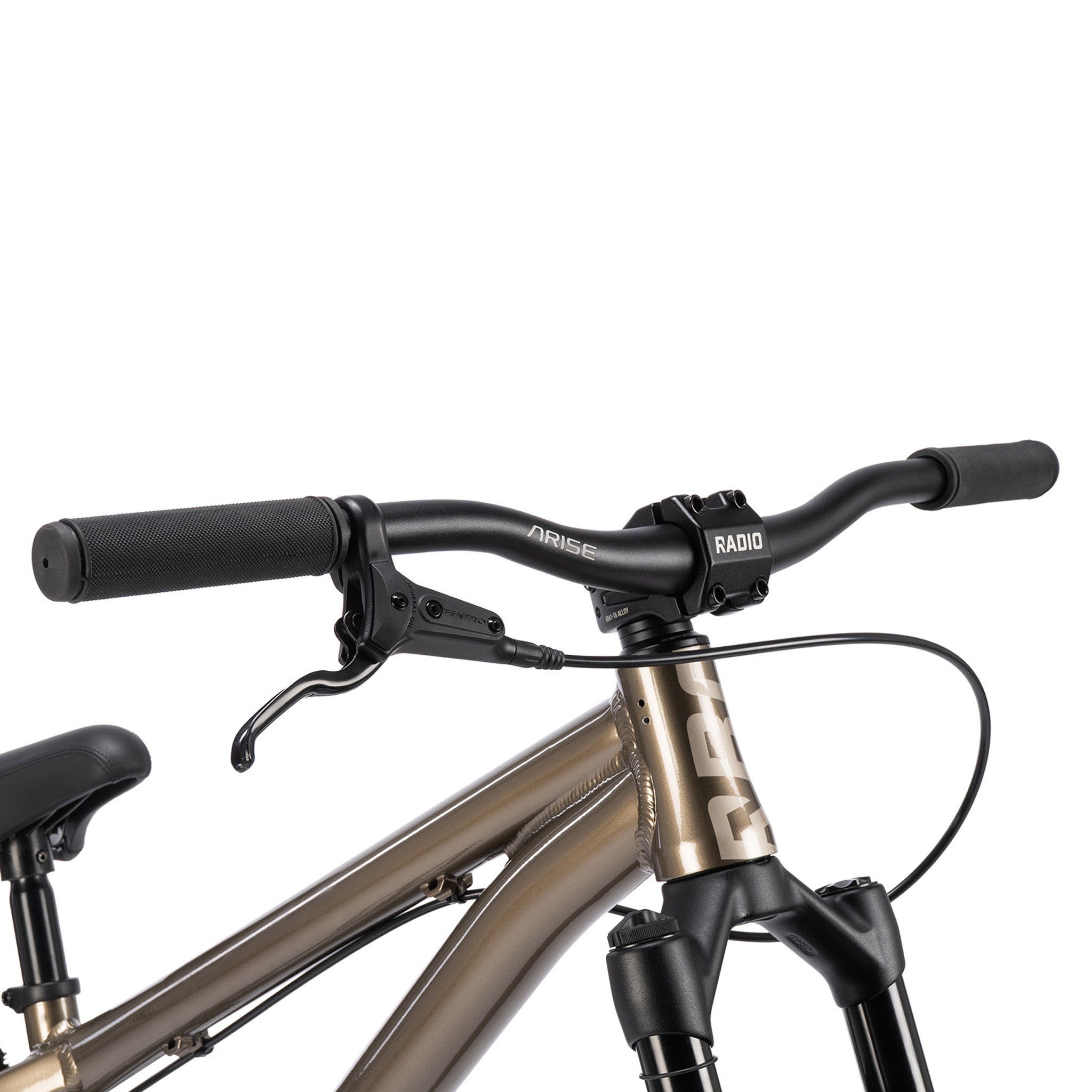

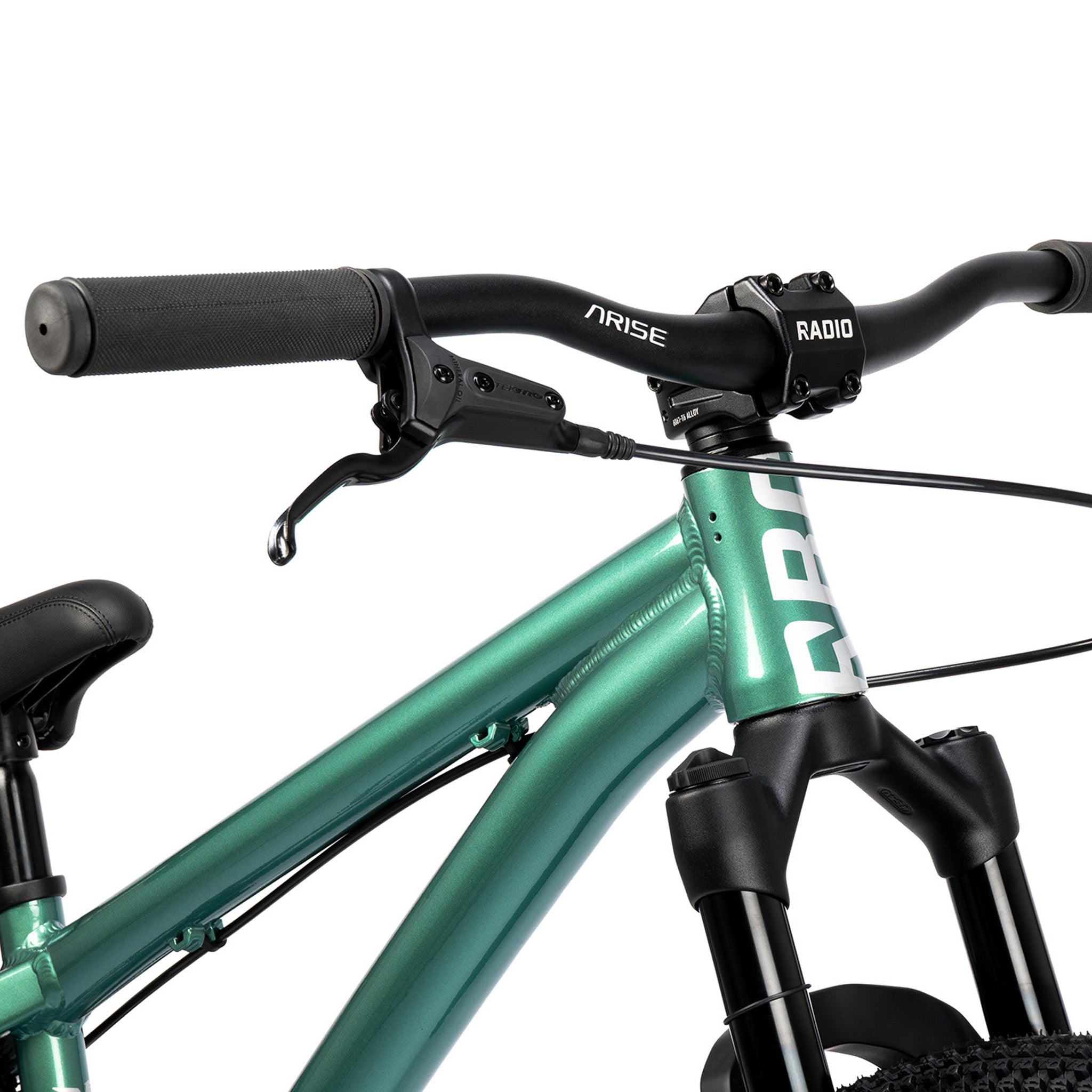

  • HANDLEBAR: ARISE "GRIFFIN 24" bar, 6061-T6 alloy, 31.8mm

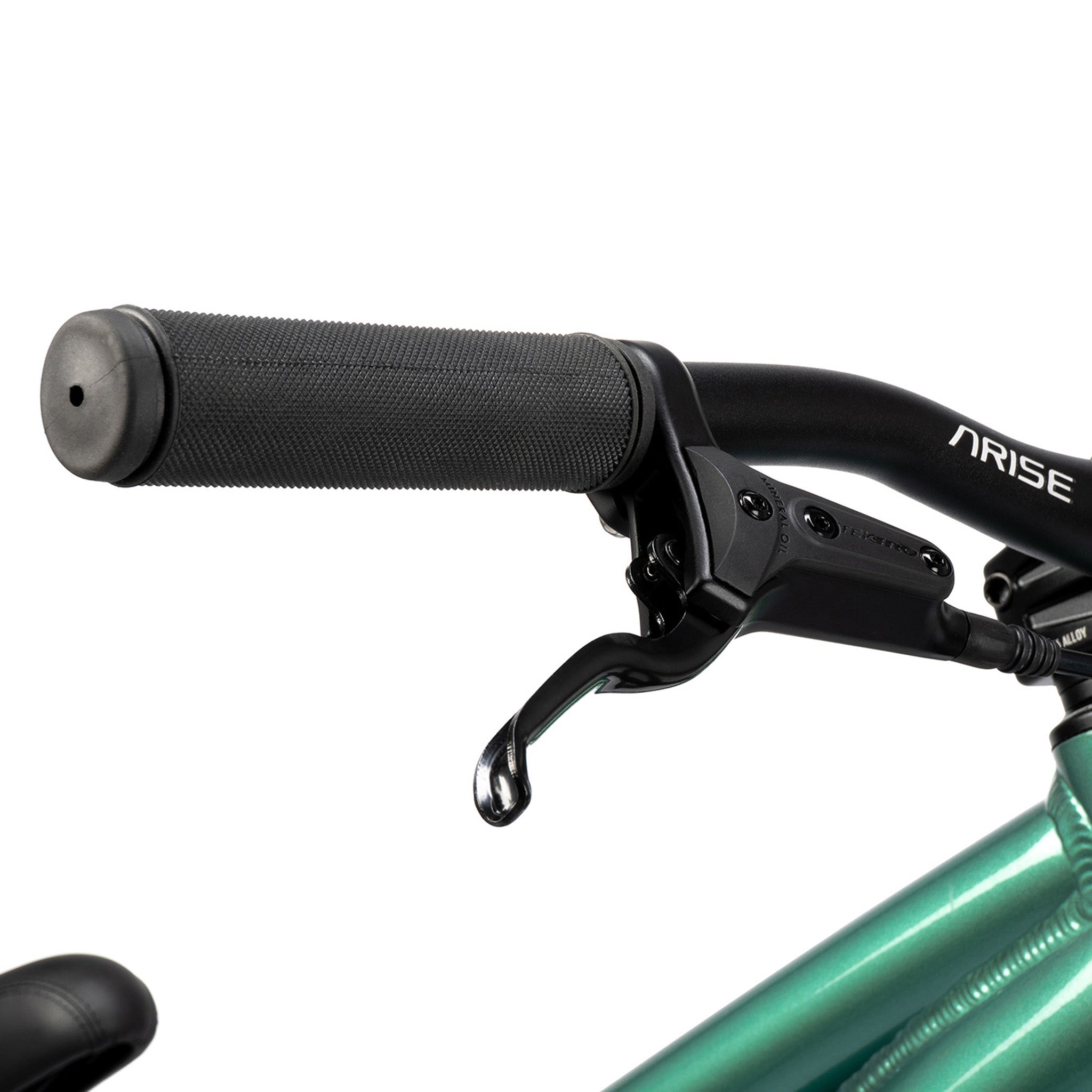

  • GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

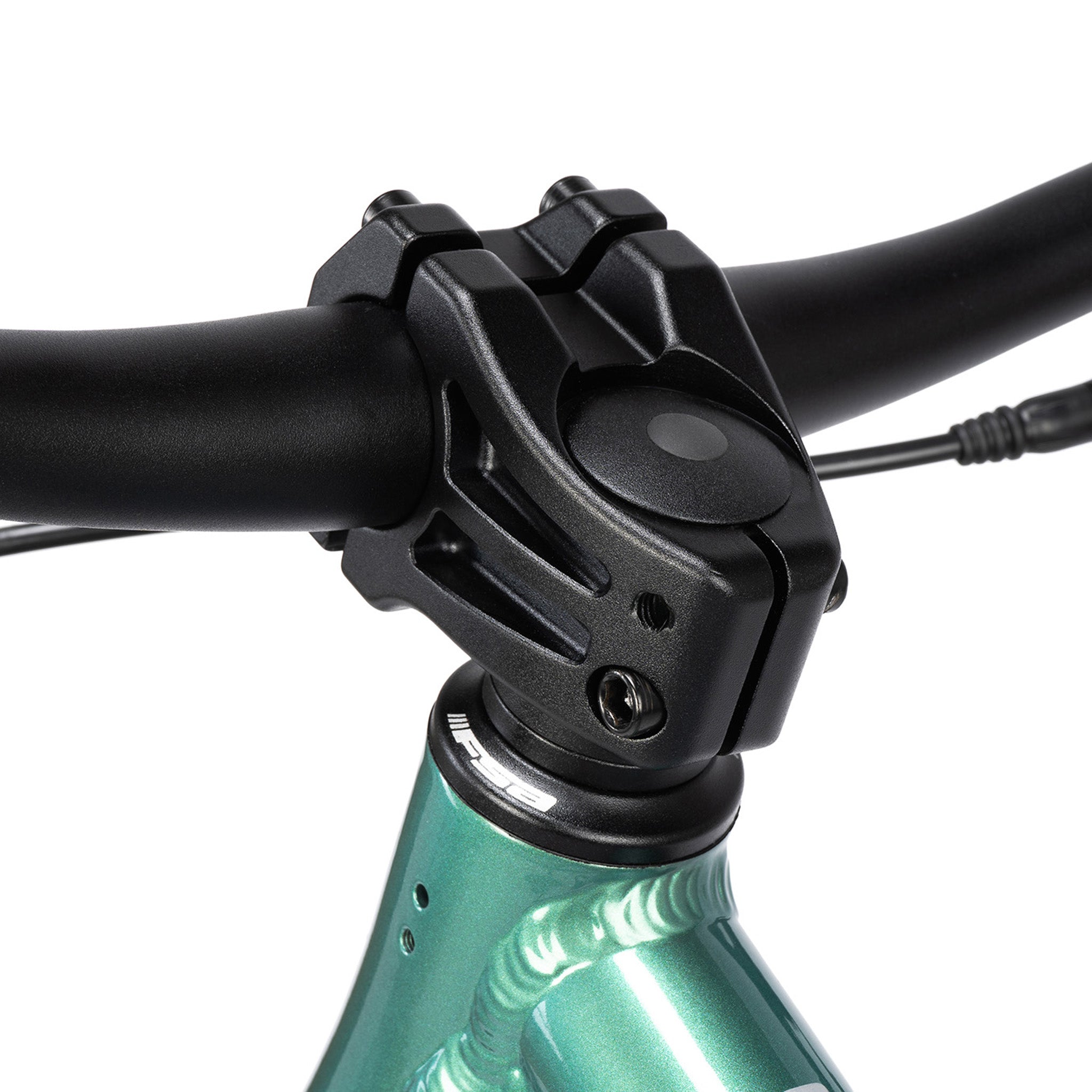

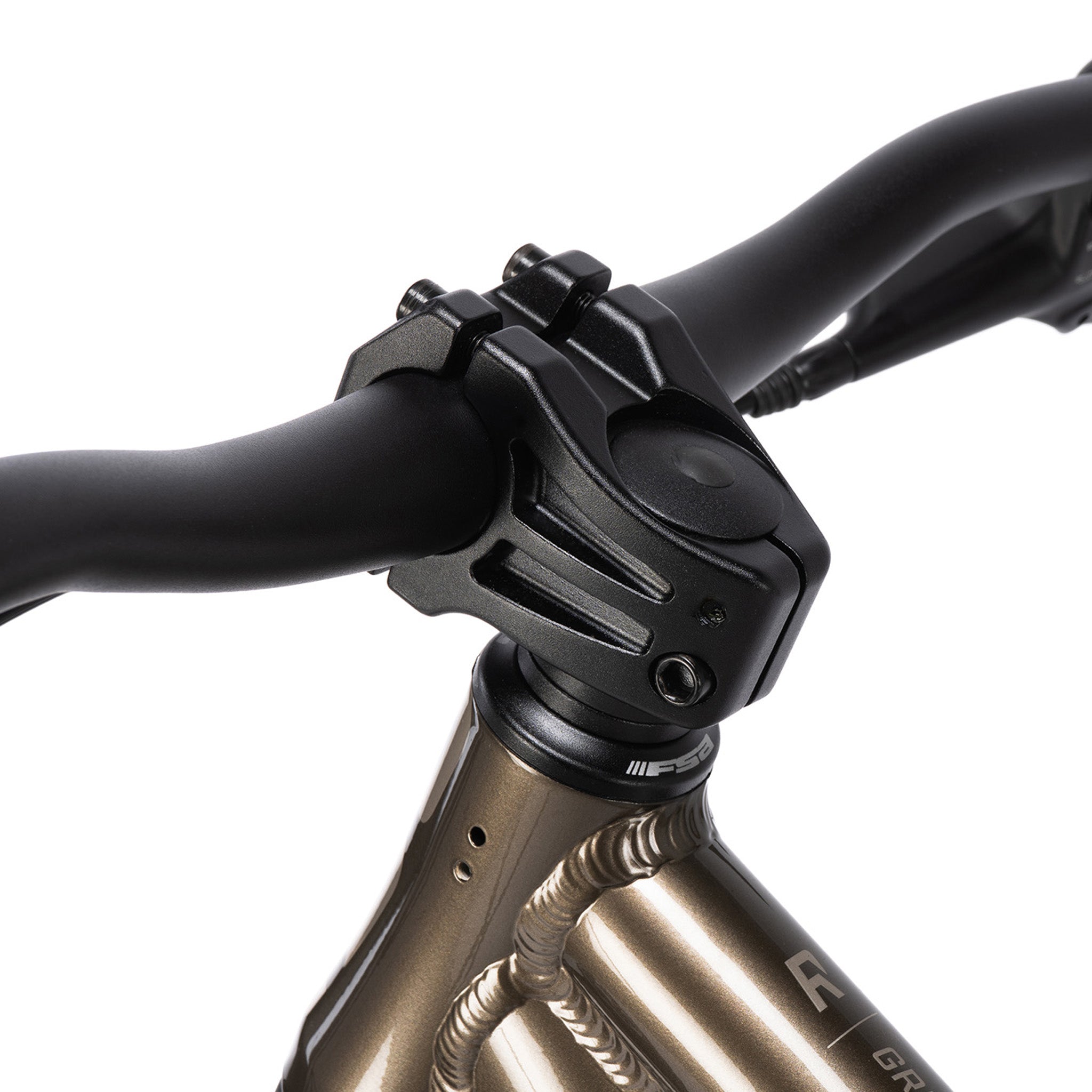

  • STEM: RACE FACE "CHESTER" frontload stem, alloy, 50mm reach
  • HEADSET: FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
  • BRAKE LEVER: TEKTRO "RS-360A" front lever /  TEKTRO " HD-M275" rear lever

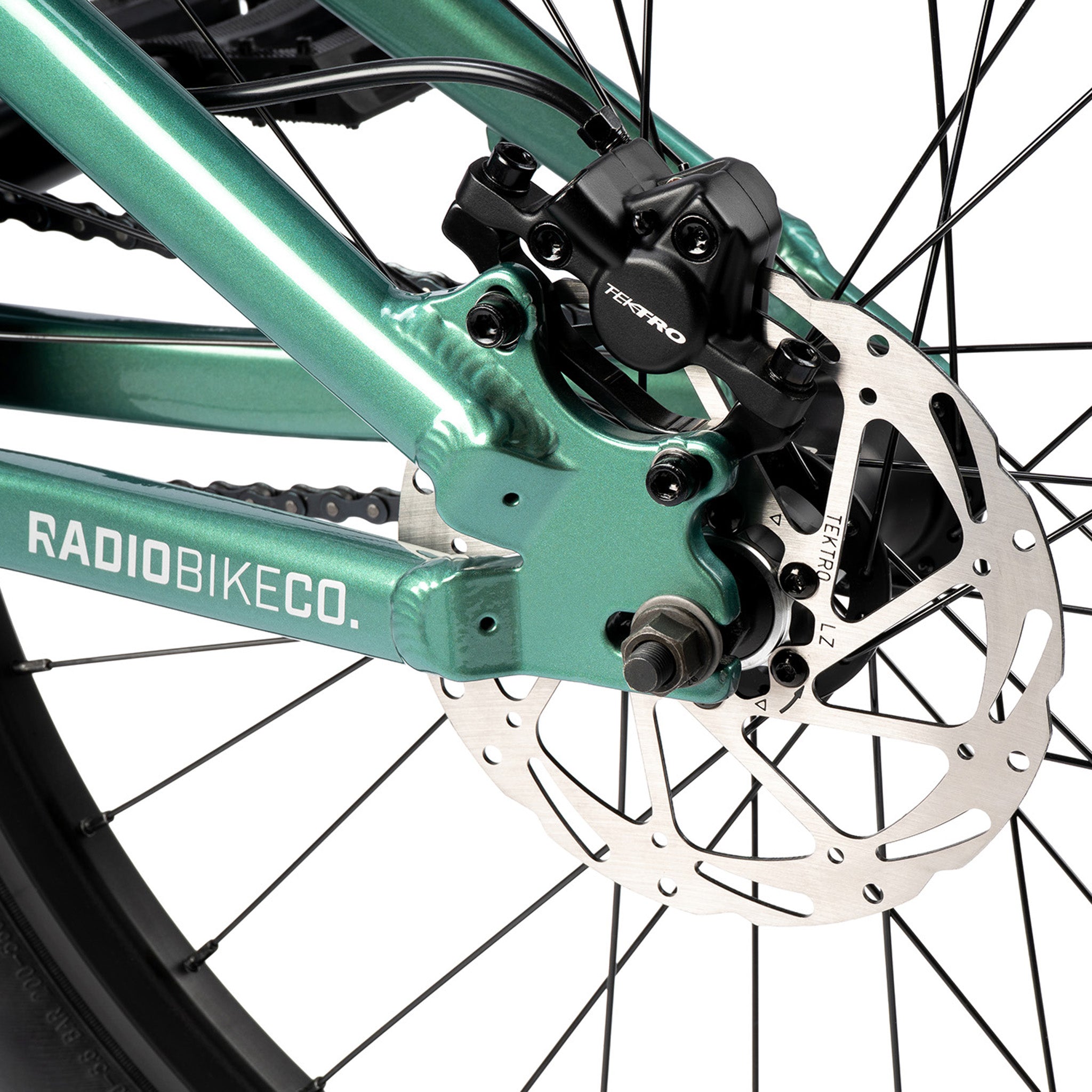

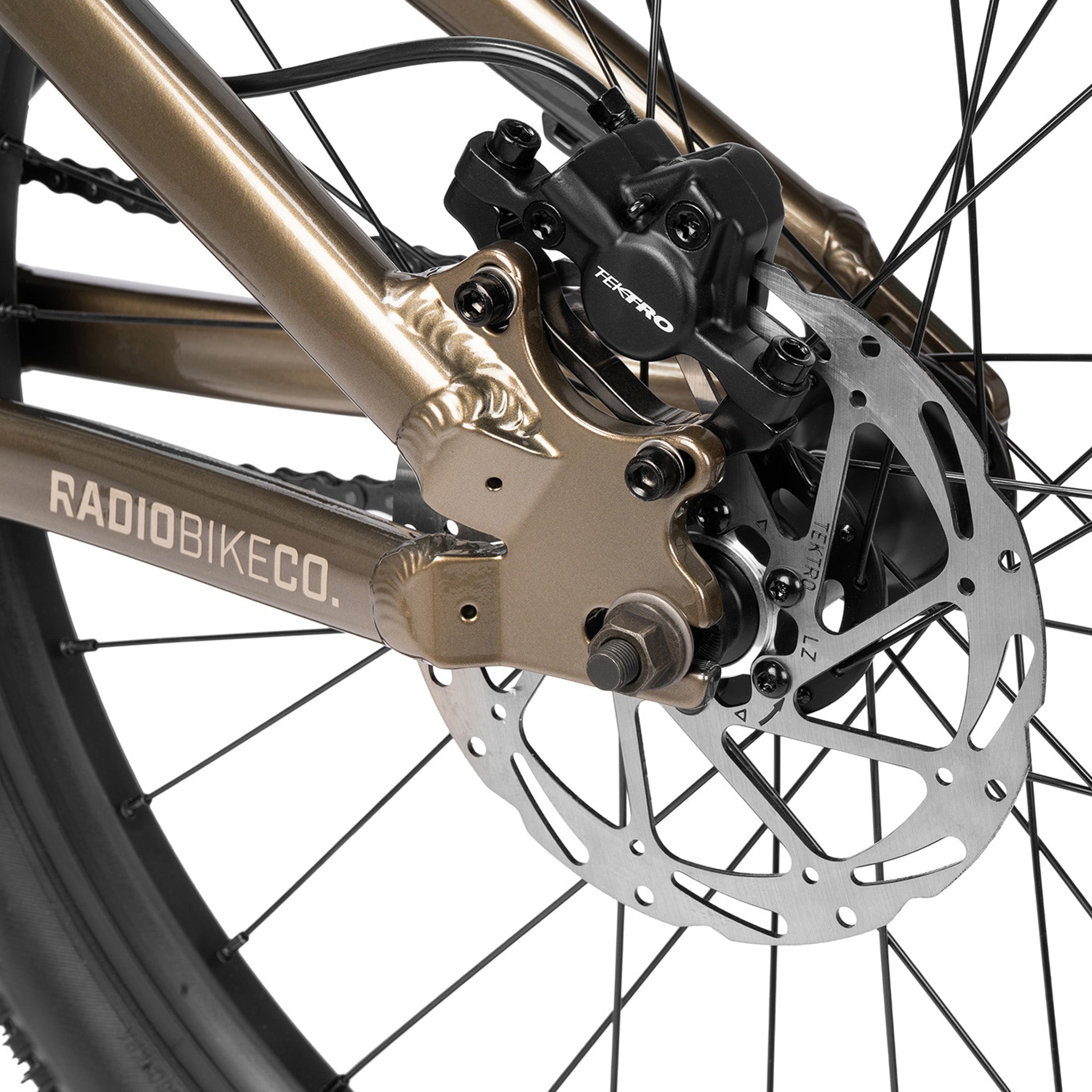

  • BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear

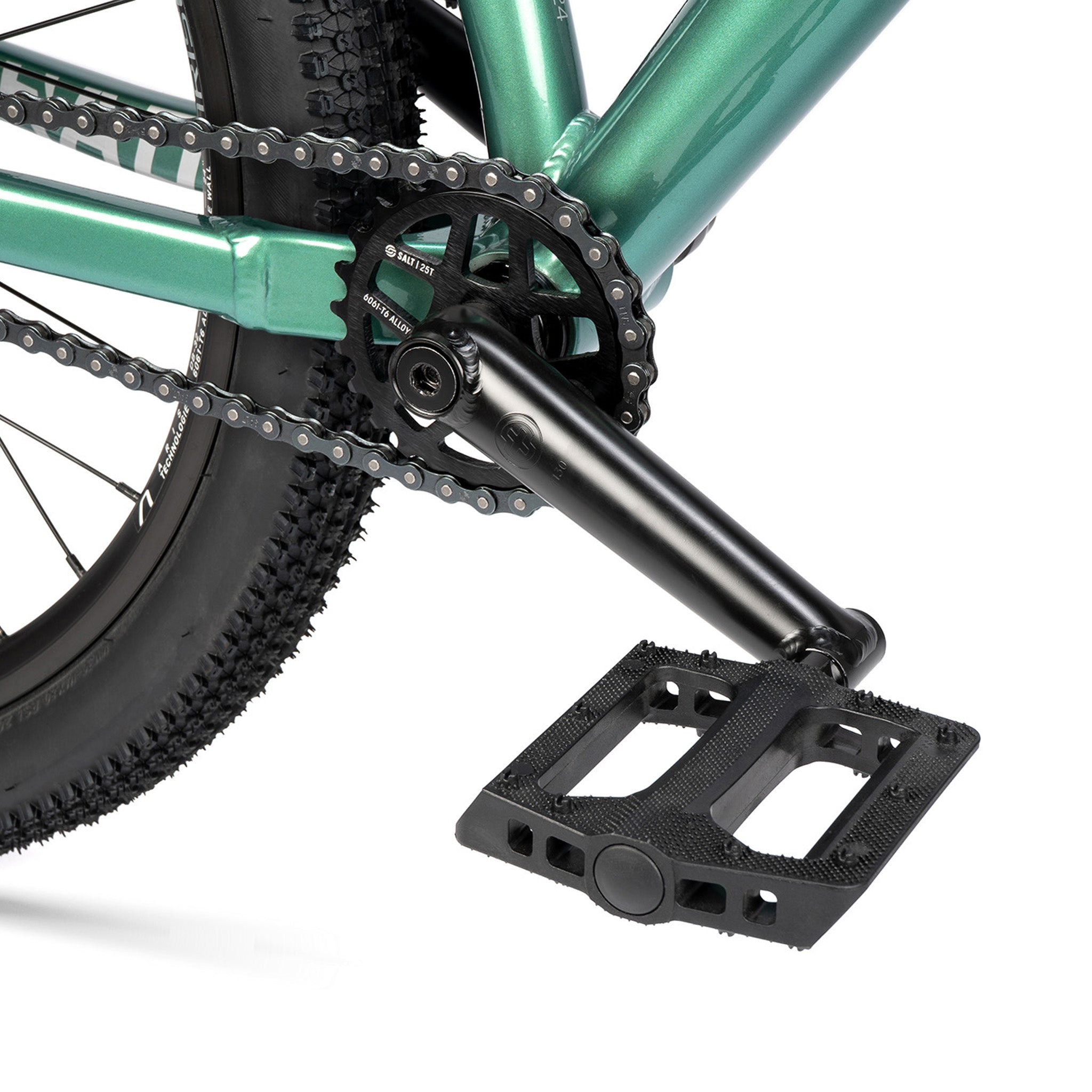

  • CRANK: SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 140mm, 8 spline
  • BB: RADIO "BSA19" bb set, sealed bearing

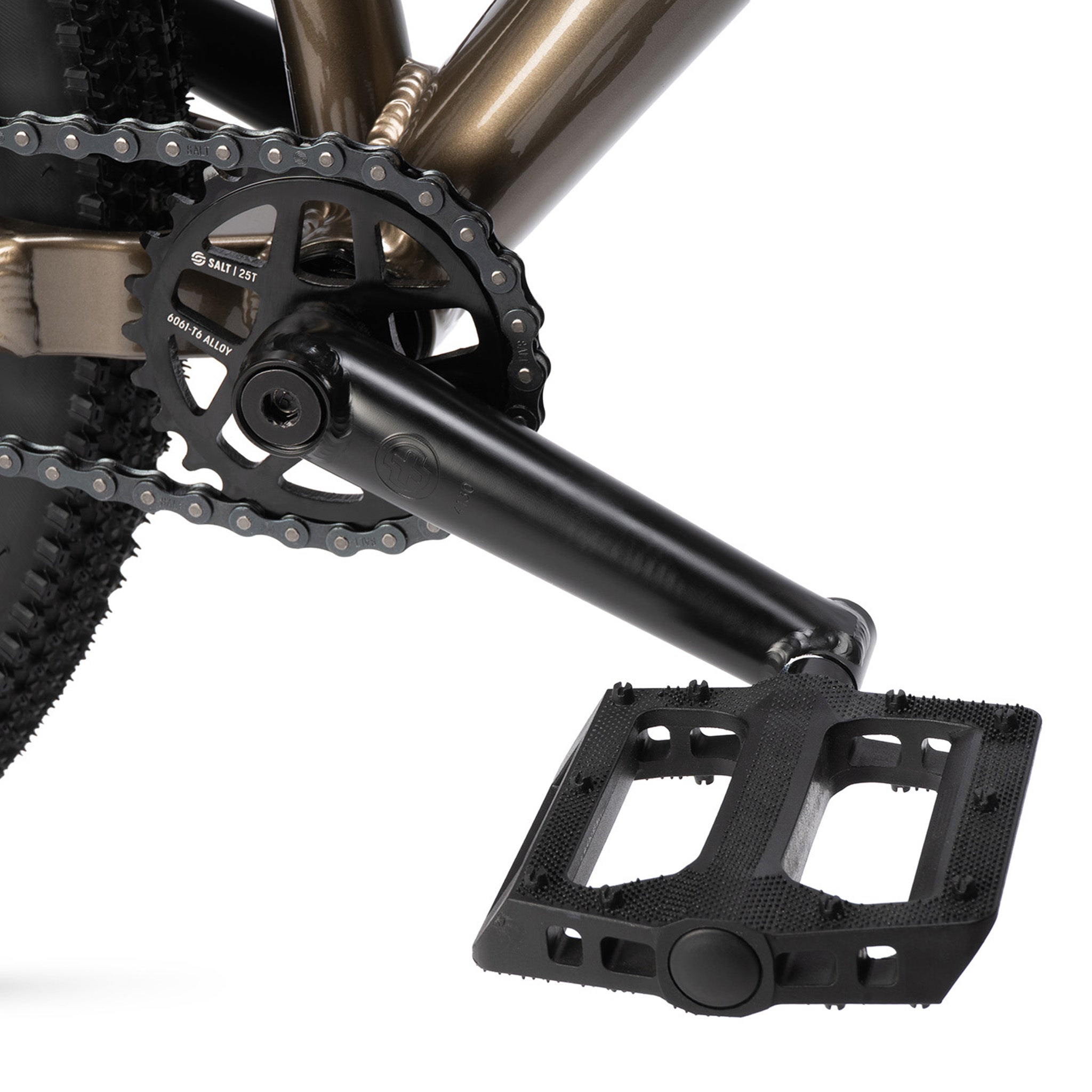

  • PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
  • CHAIN: SALT "AM" chain, WZ1 type

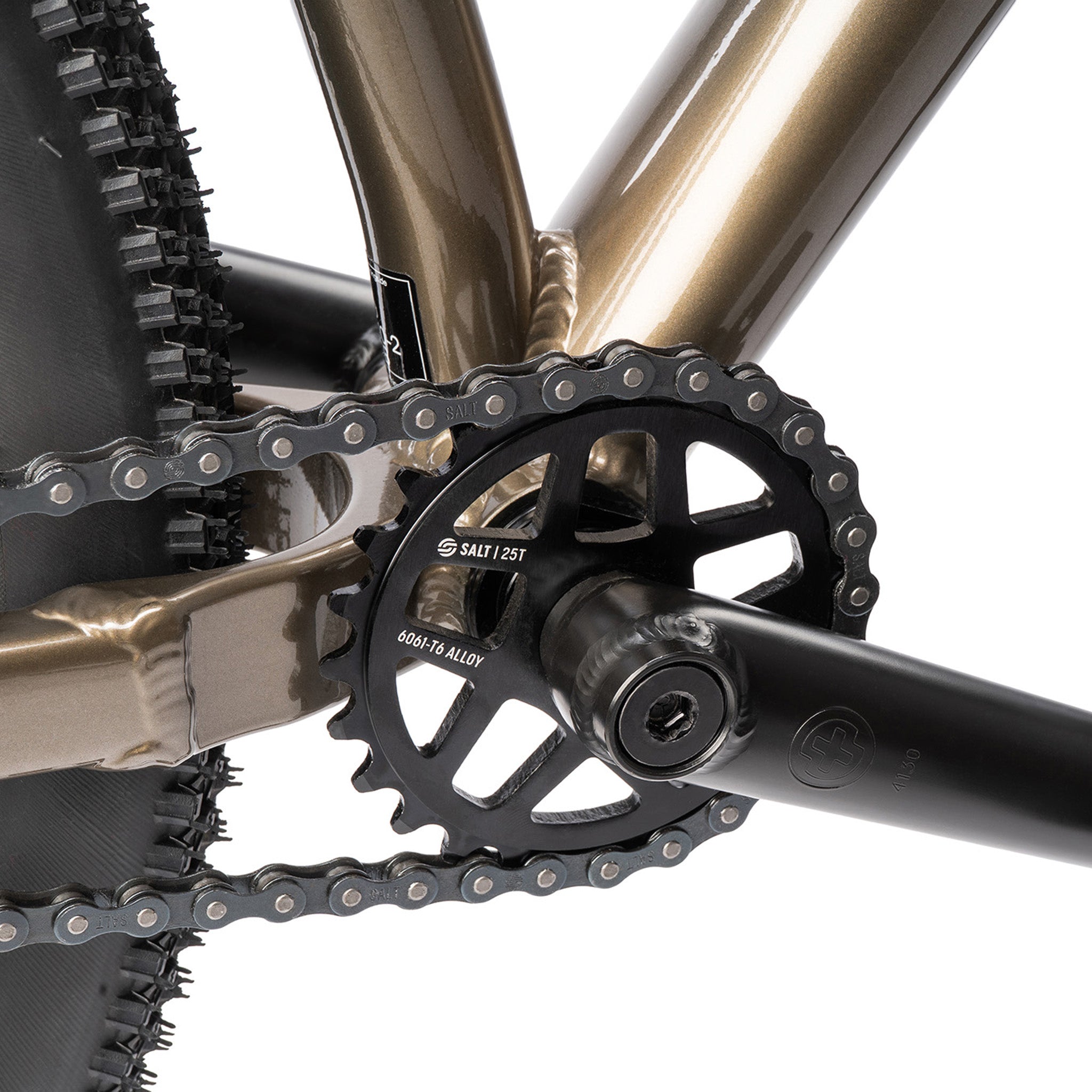

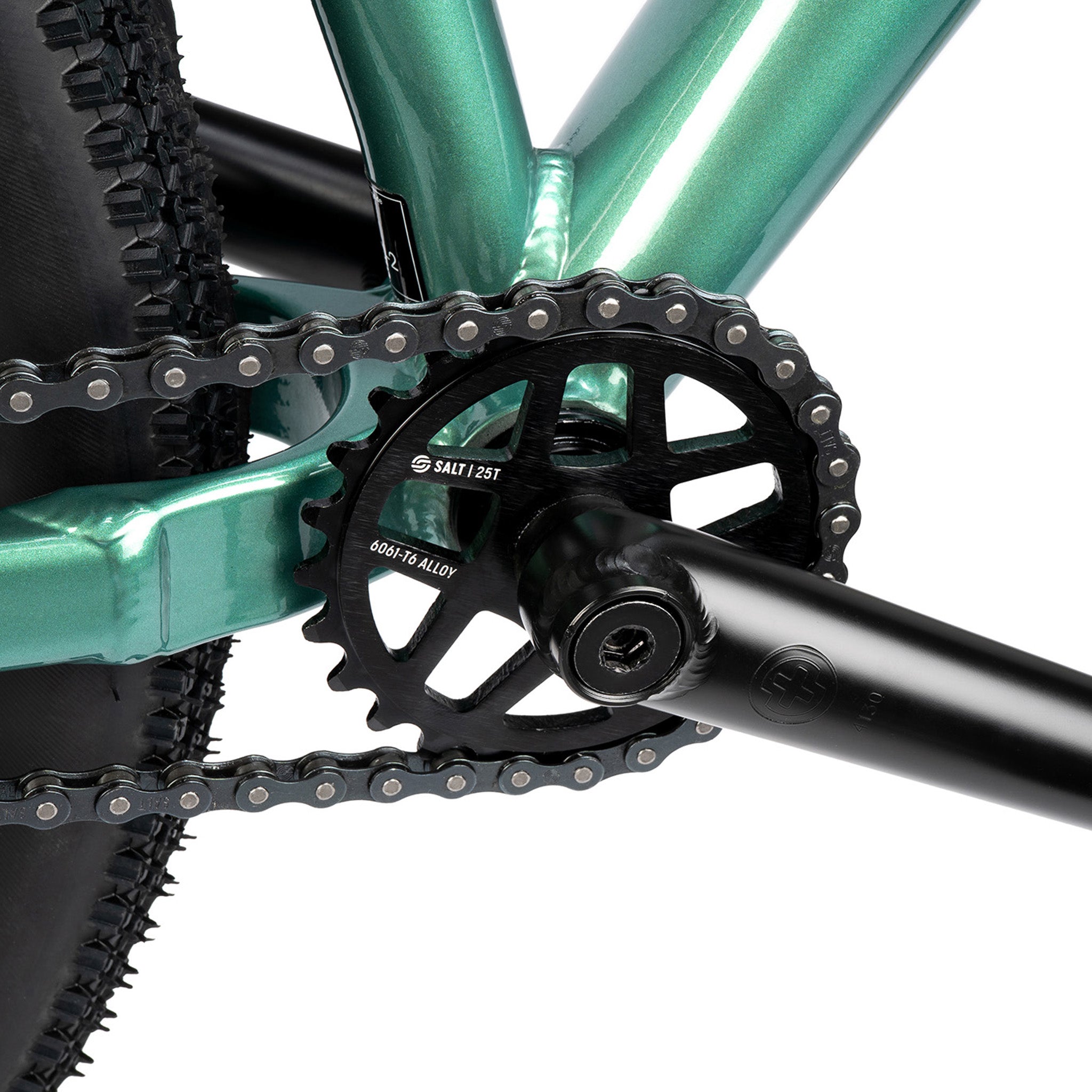

  • SPROCKET: SALT "GATEWAY" sprocket, alloy, 25t
  • DRIVER: cassette driver, 10t, sealed bearing

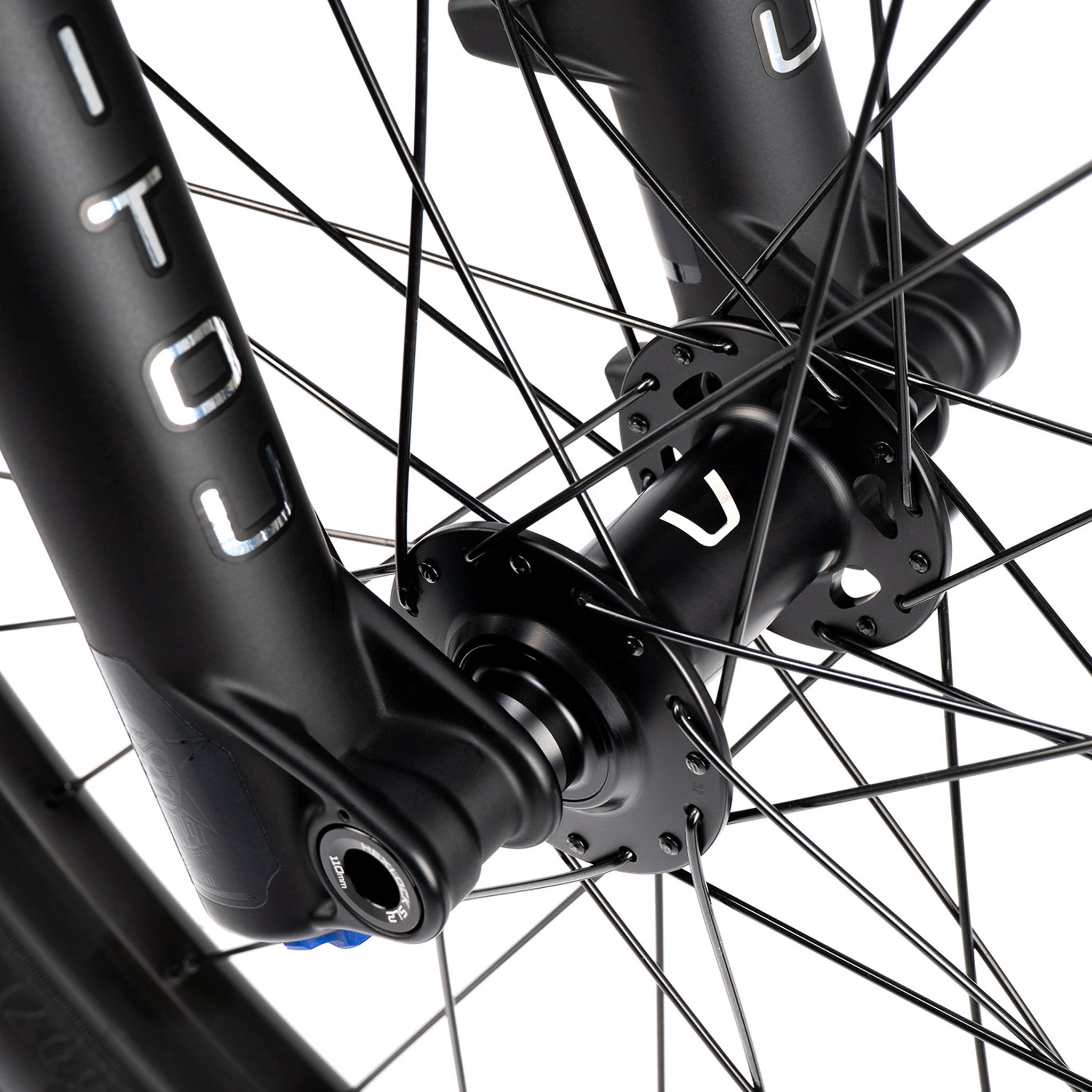

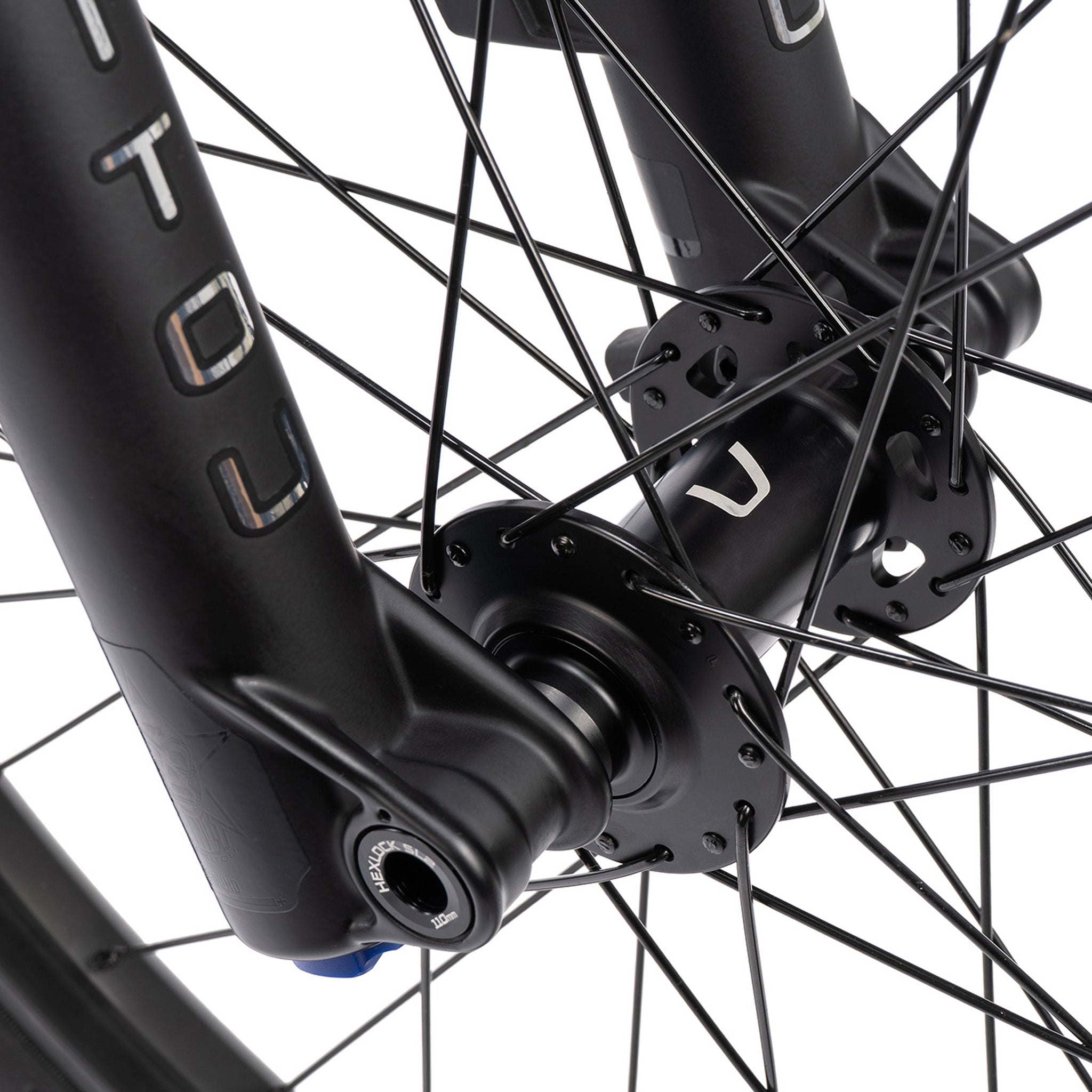

  • FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h

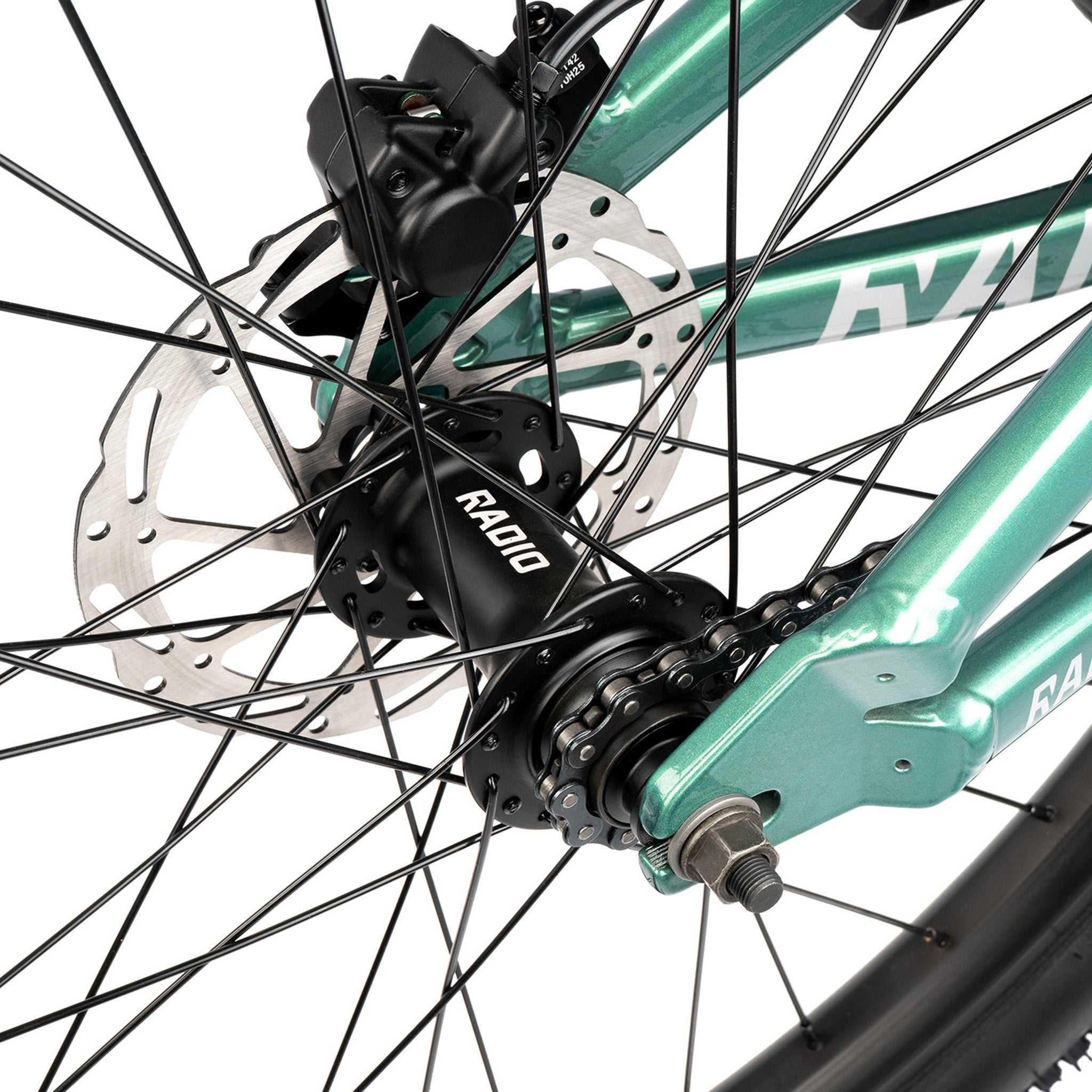

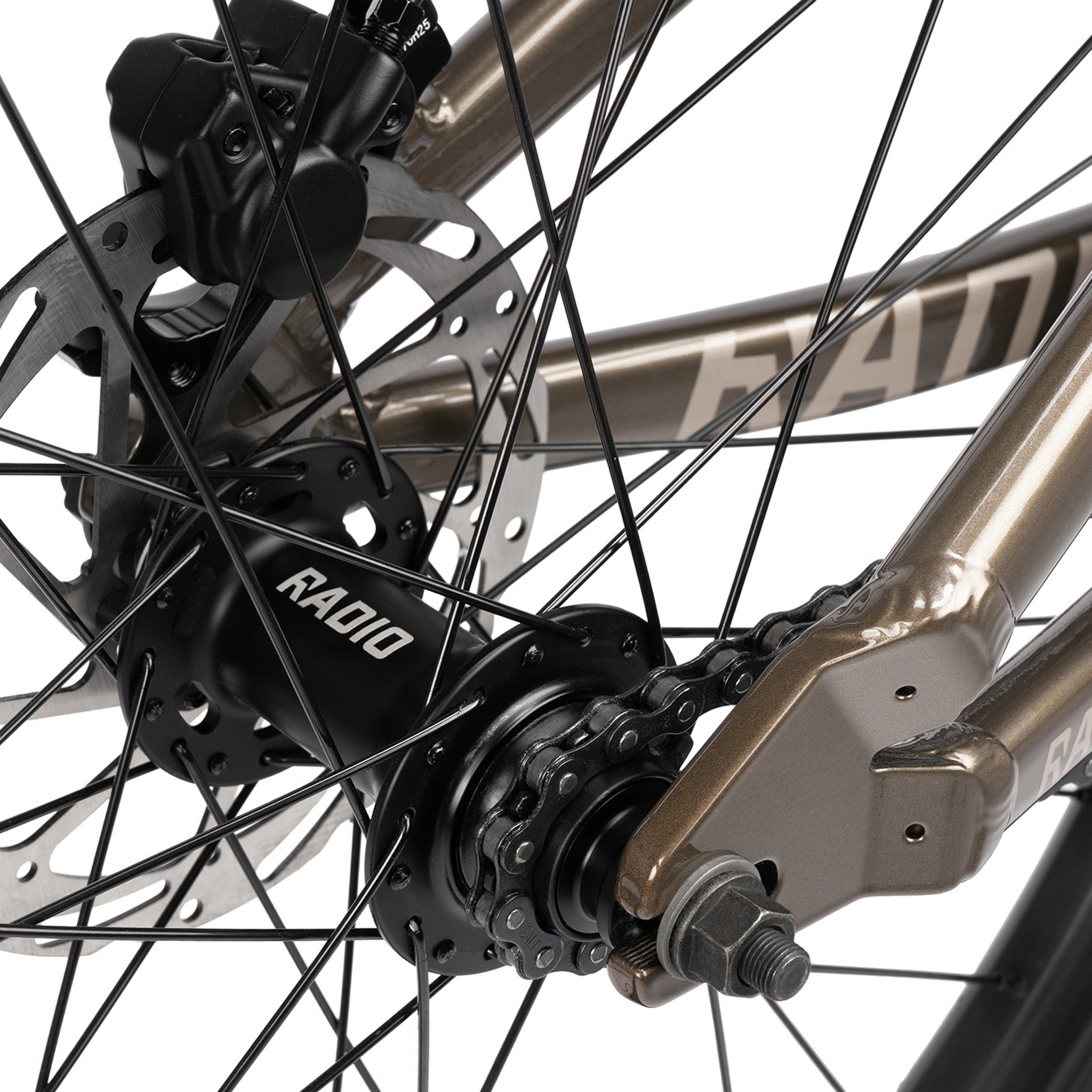

  • REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
  • FRONT RIM: ARISE "DB32" rim, double wall
  • REAR RIM: ARISE "DB32" rim, double wall

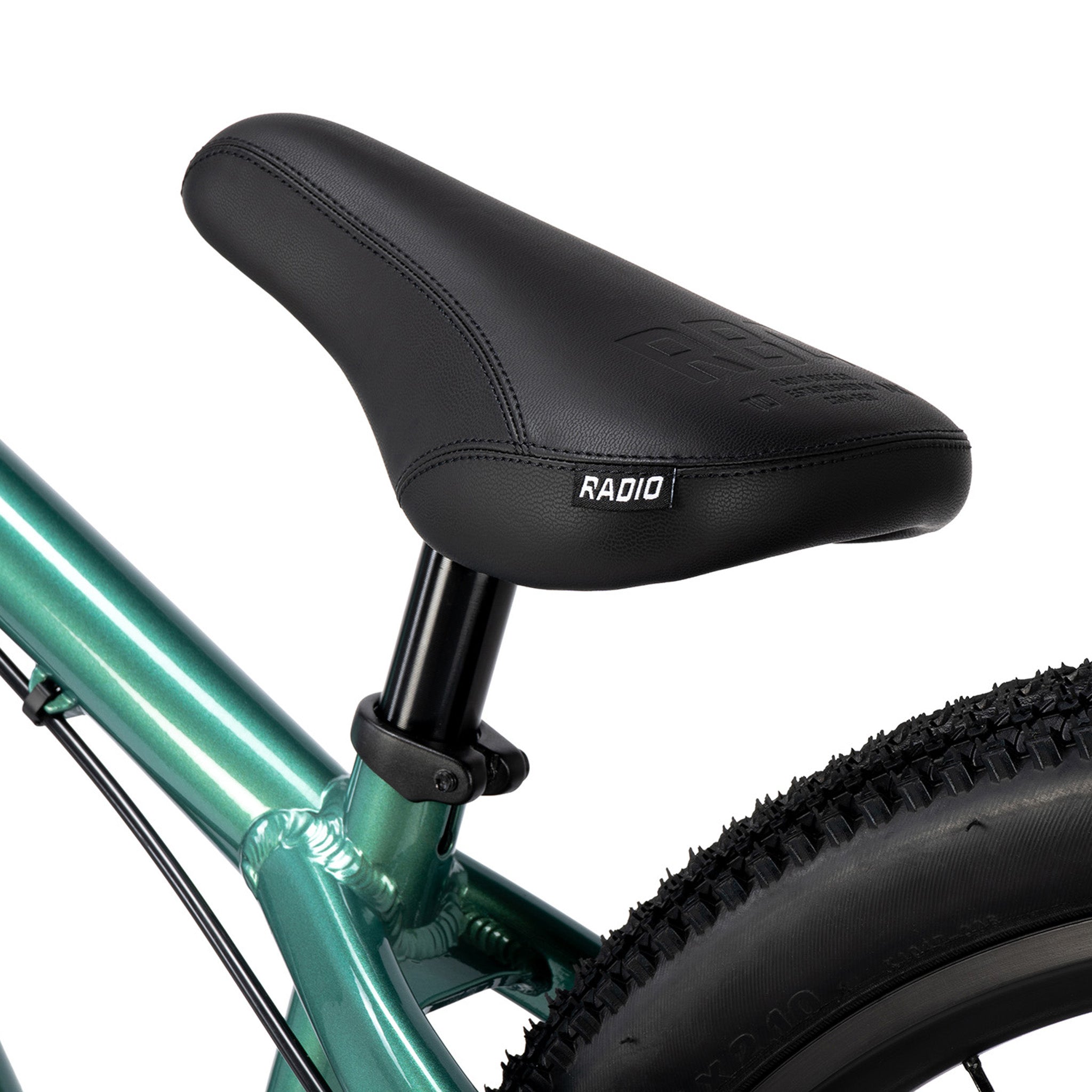

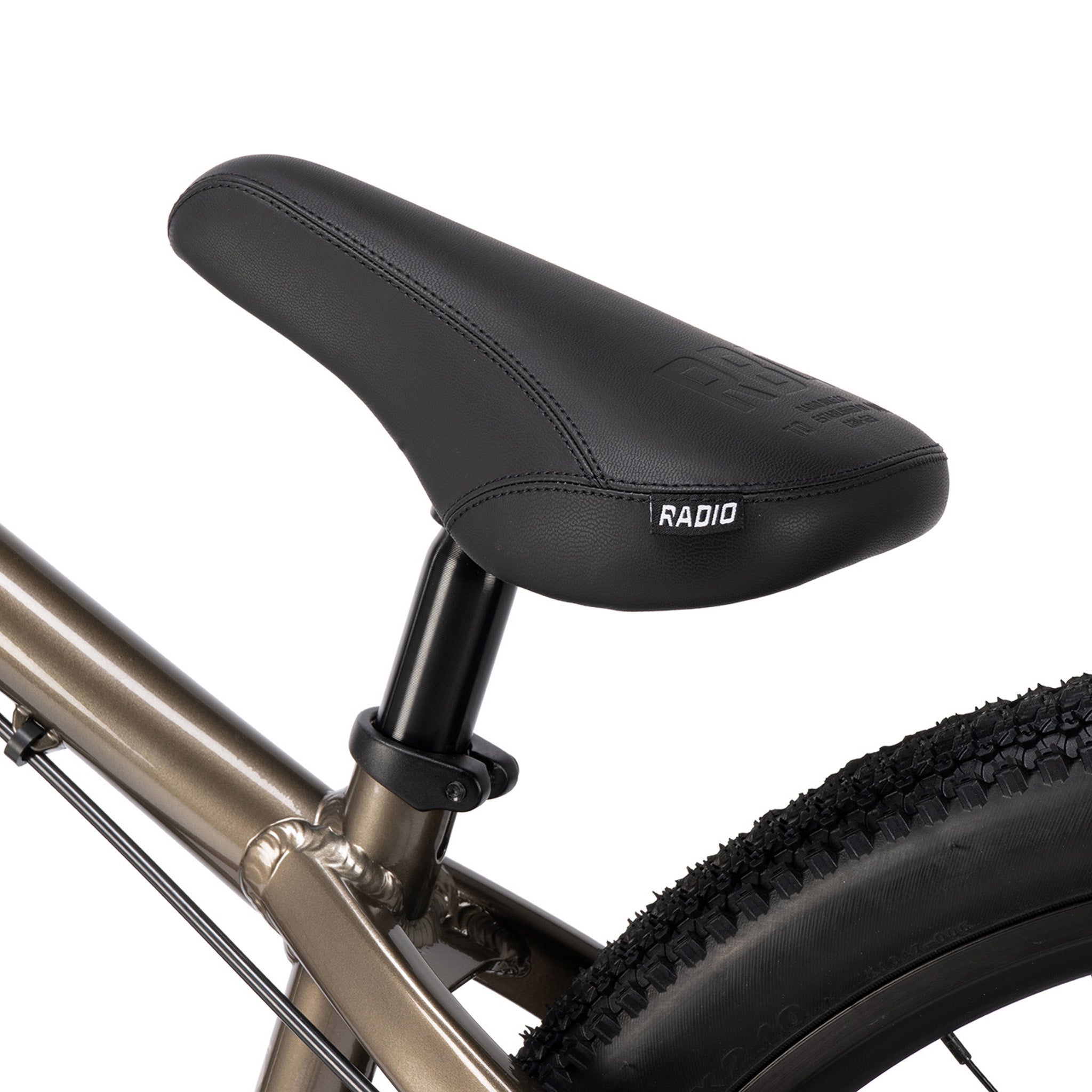

  • SEAT: RADIO "DJ" combo seat, medium padded
  • SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy
  • TIRES: MAXXIS "DTH" tires, 2.3", front & rear

Weight: 10.76kg / 23.72lbs



Frame Geometry:

Top Tube Length 20.05"
Chain Stay Length 13.9"
Head Tube Angle 69°
Seat Tube Angle 72°
Bottom Bracket Height  20mm drop
Standover Height 11"



Handlebar Geometry:

Rise 25mm
Width 660mm
Backsweep
Upsweep



Toptube Length
Color
Wheelsize
