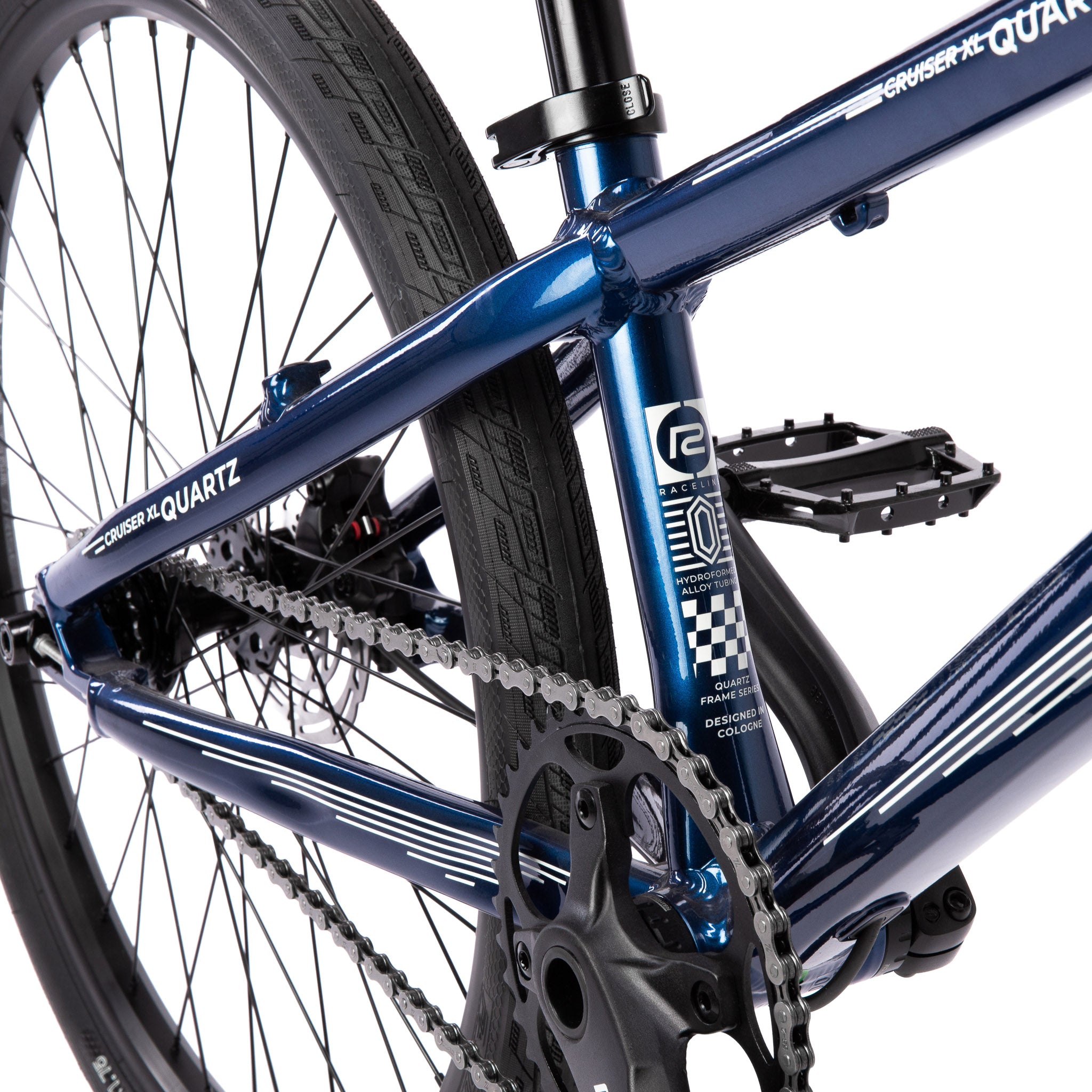

- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners

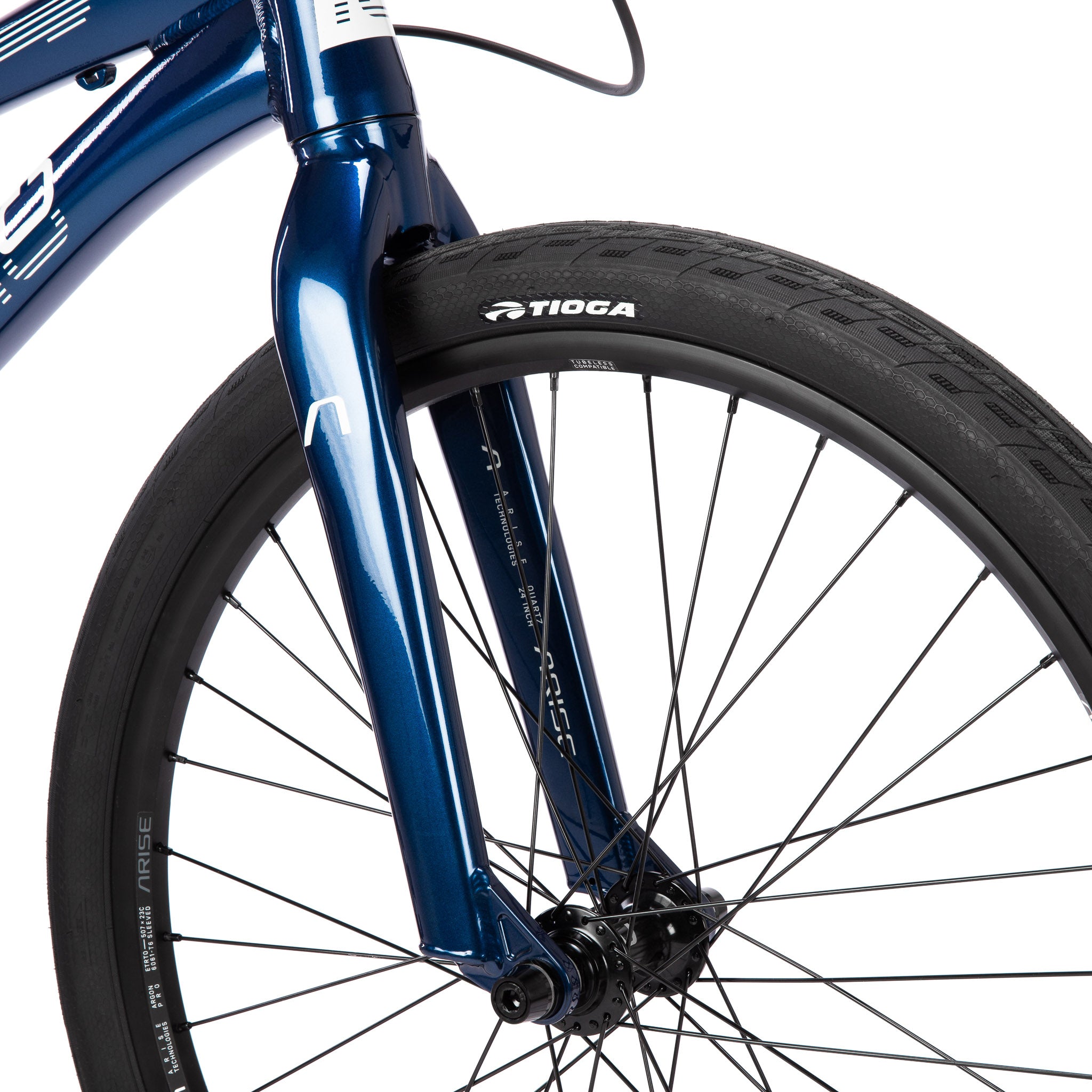

- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset

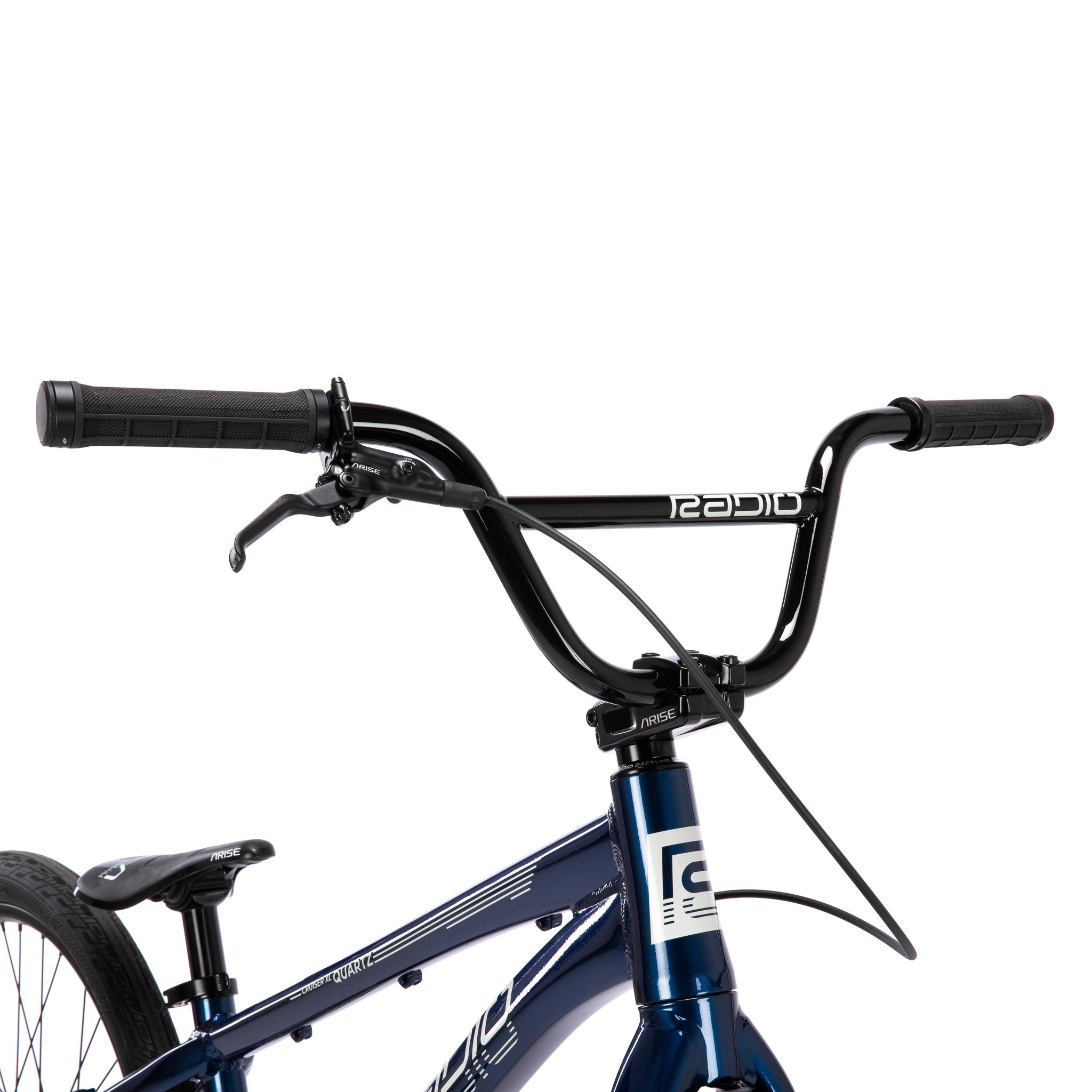

- HANDLEBAR: 4130 crmo bar, seamless

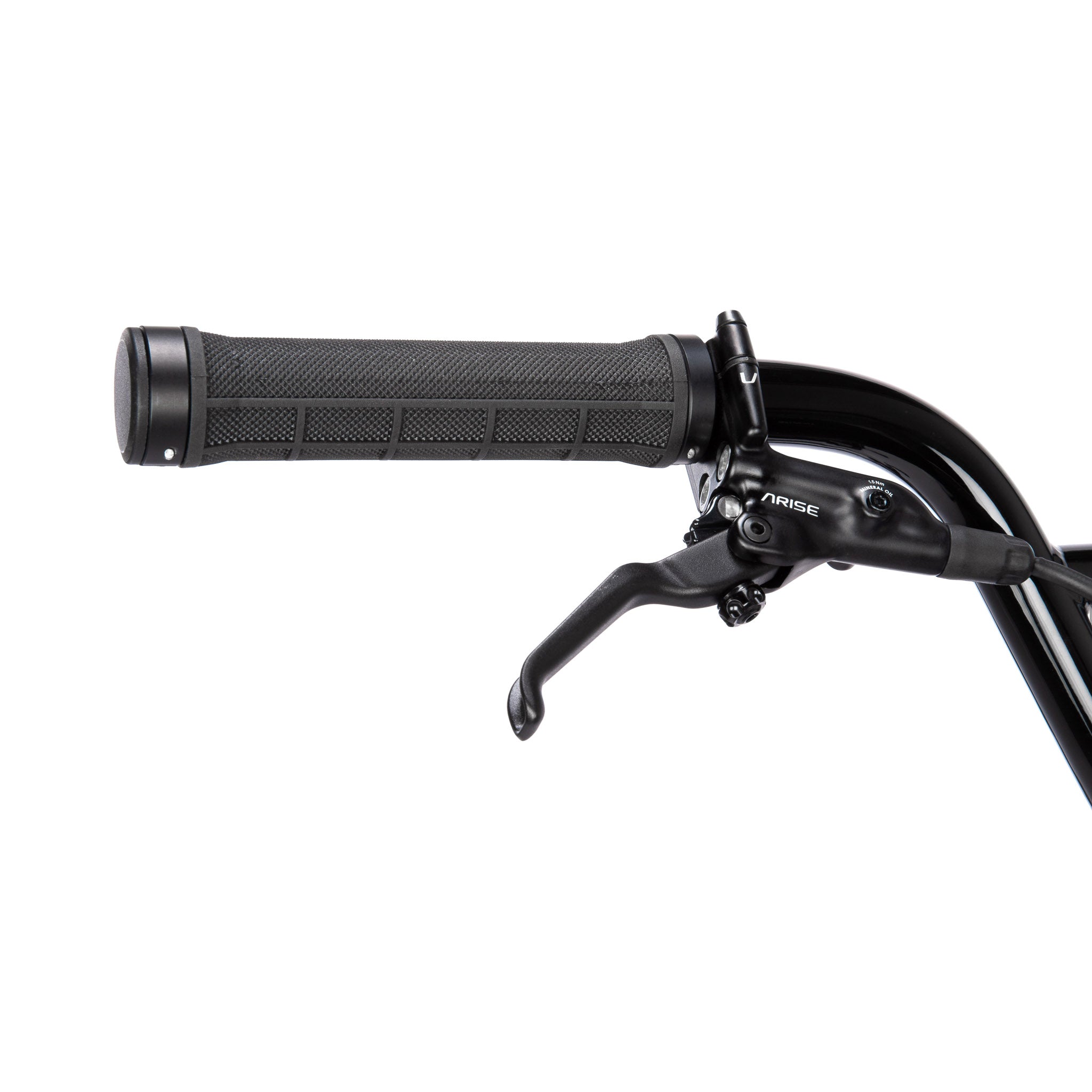

- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

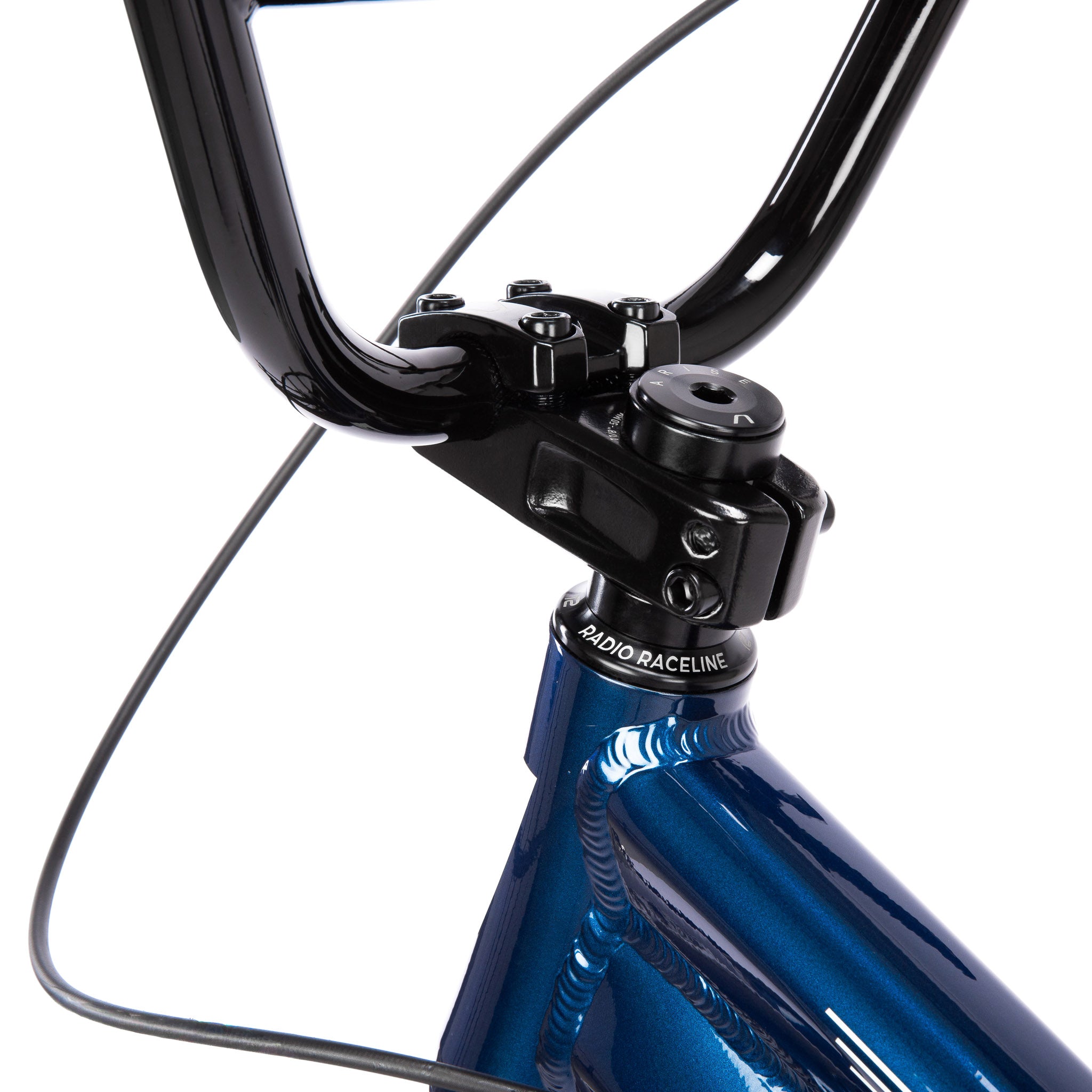

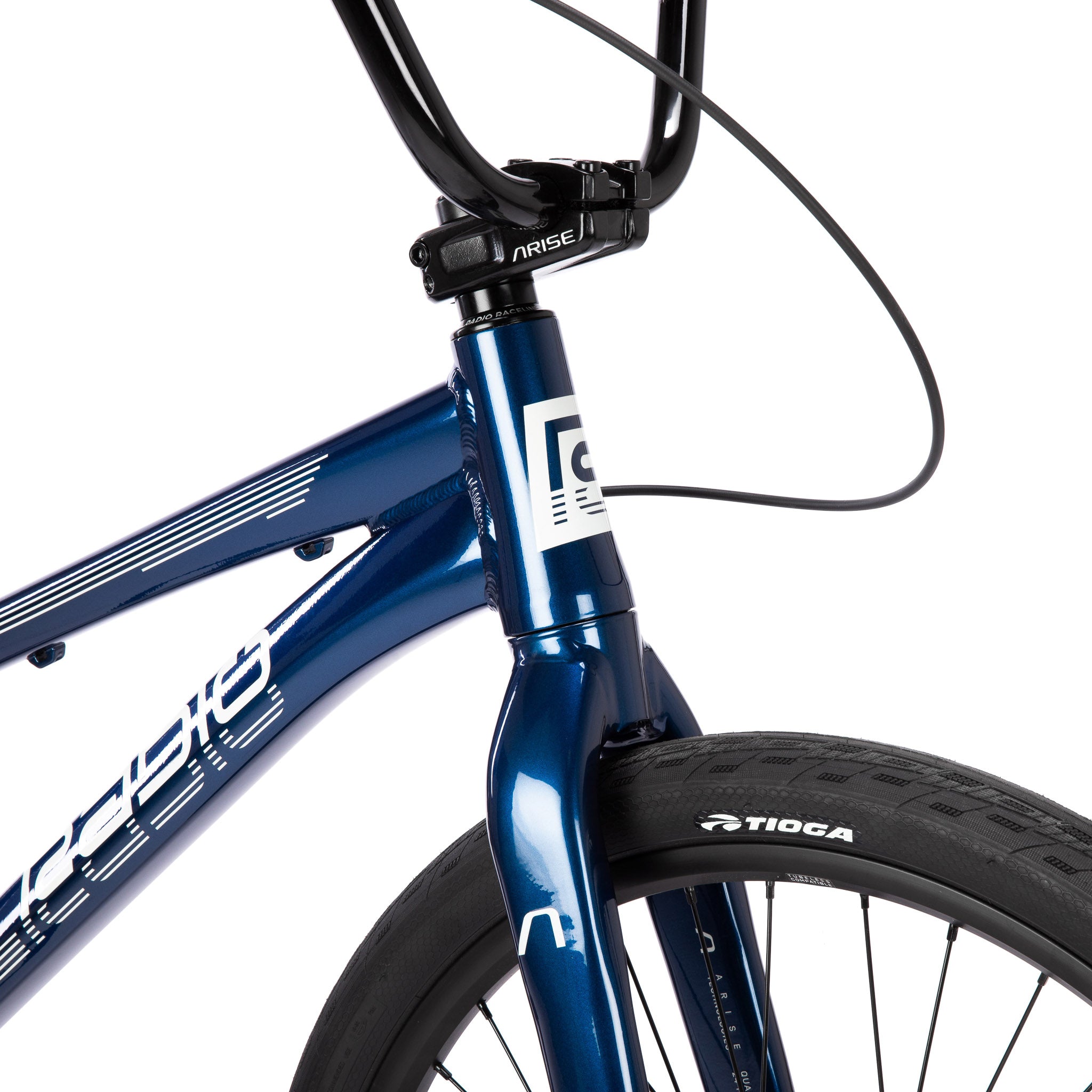

- STEM: ARISE "NEON PRO" toploader stem, ext. 54mm, cnc machined, alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter
- BRAKE LEVER: ARISE "XENON" disc brake lever, rear
- BRAKE: ARISE "XENON" disc brake, rear

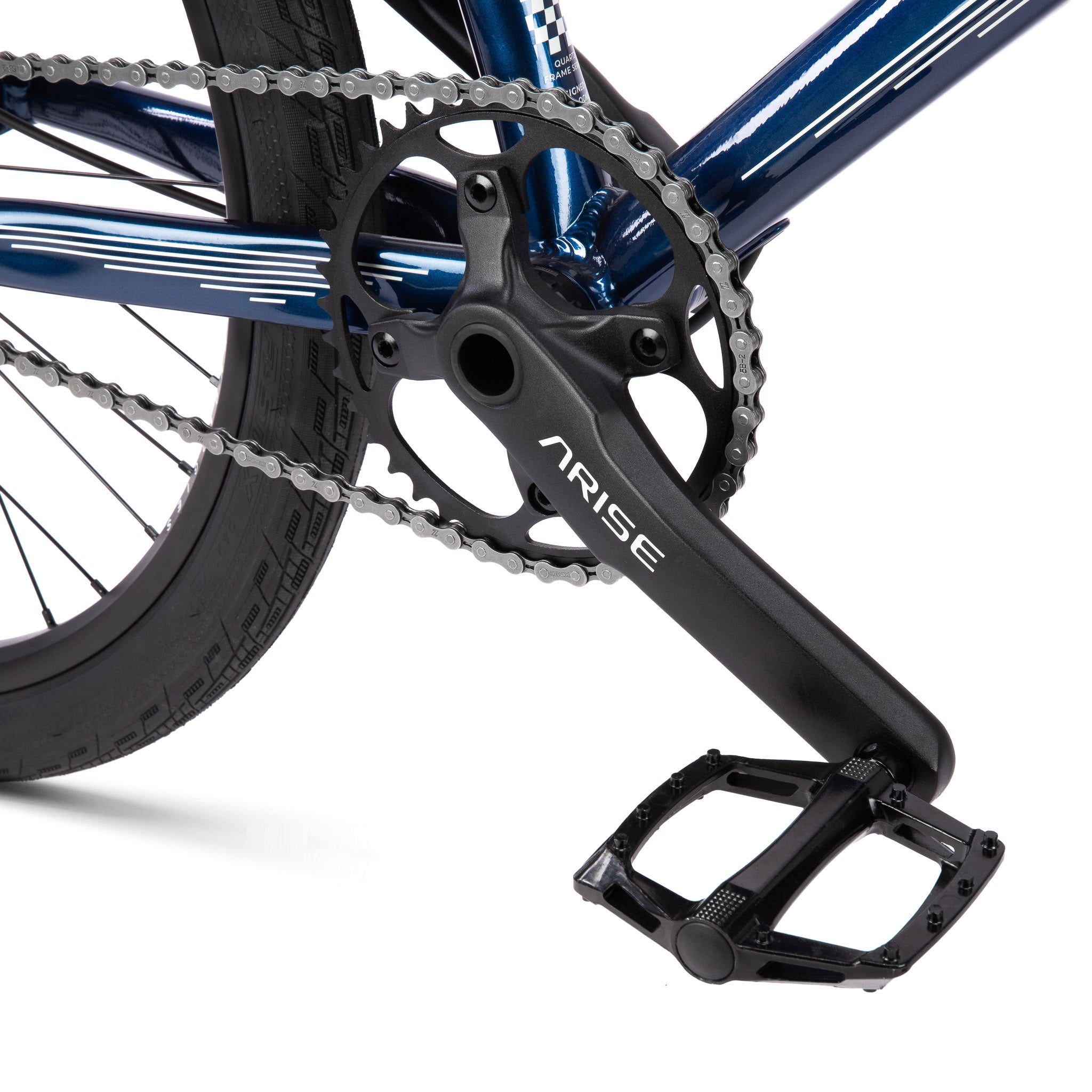

- CRANK: ARISE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: ARISE "XENON PRO" sprocket, 44T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

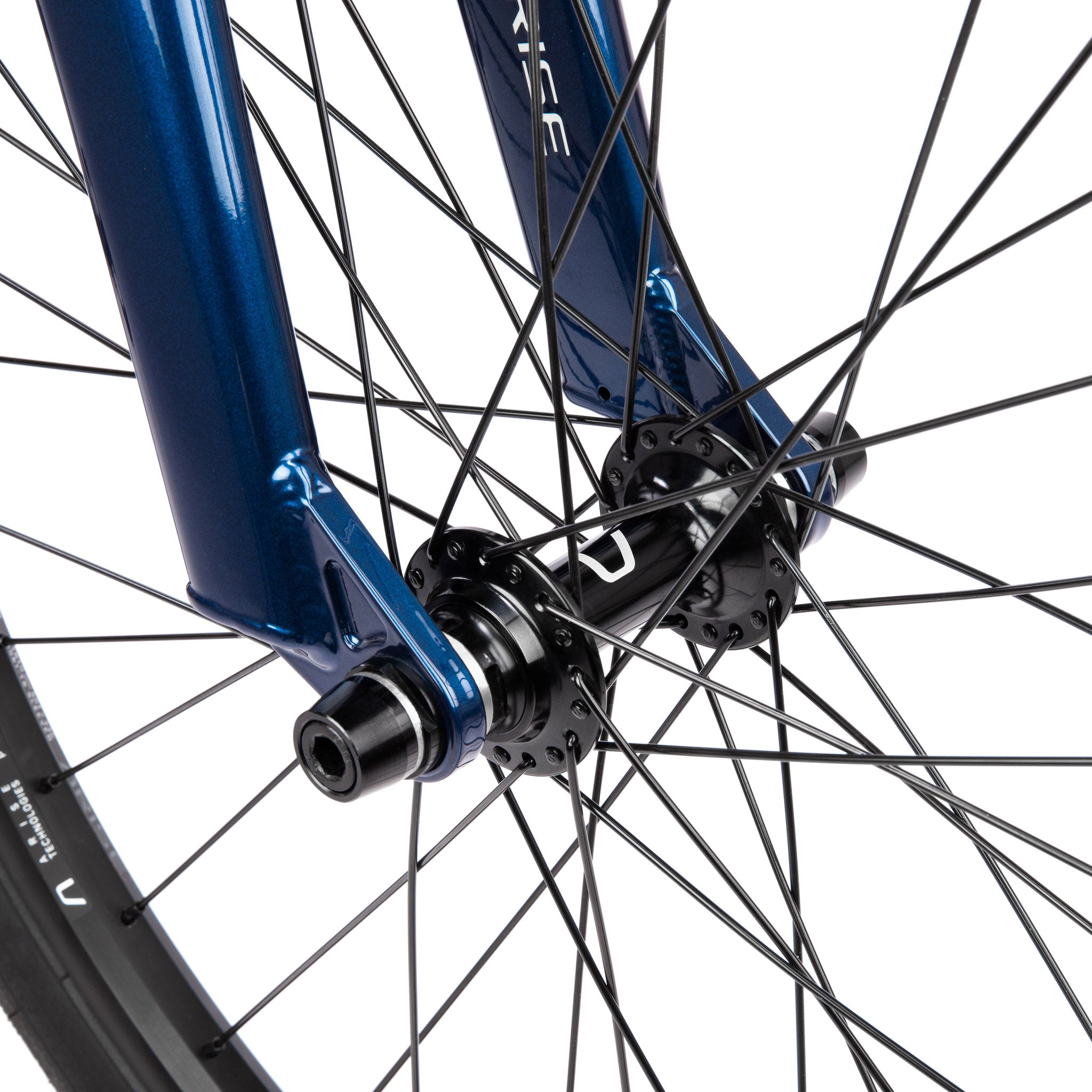

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 36h, 3/8" female crmo axle

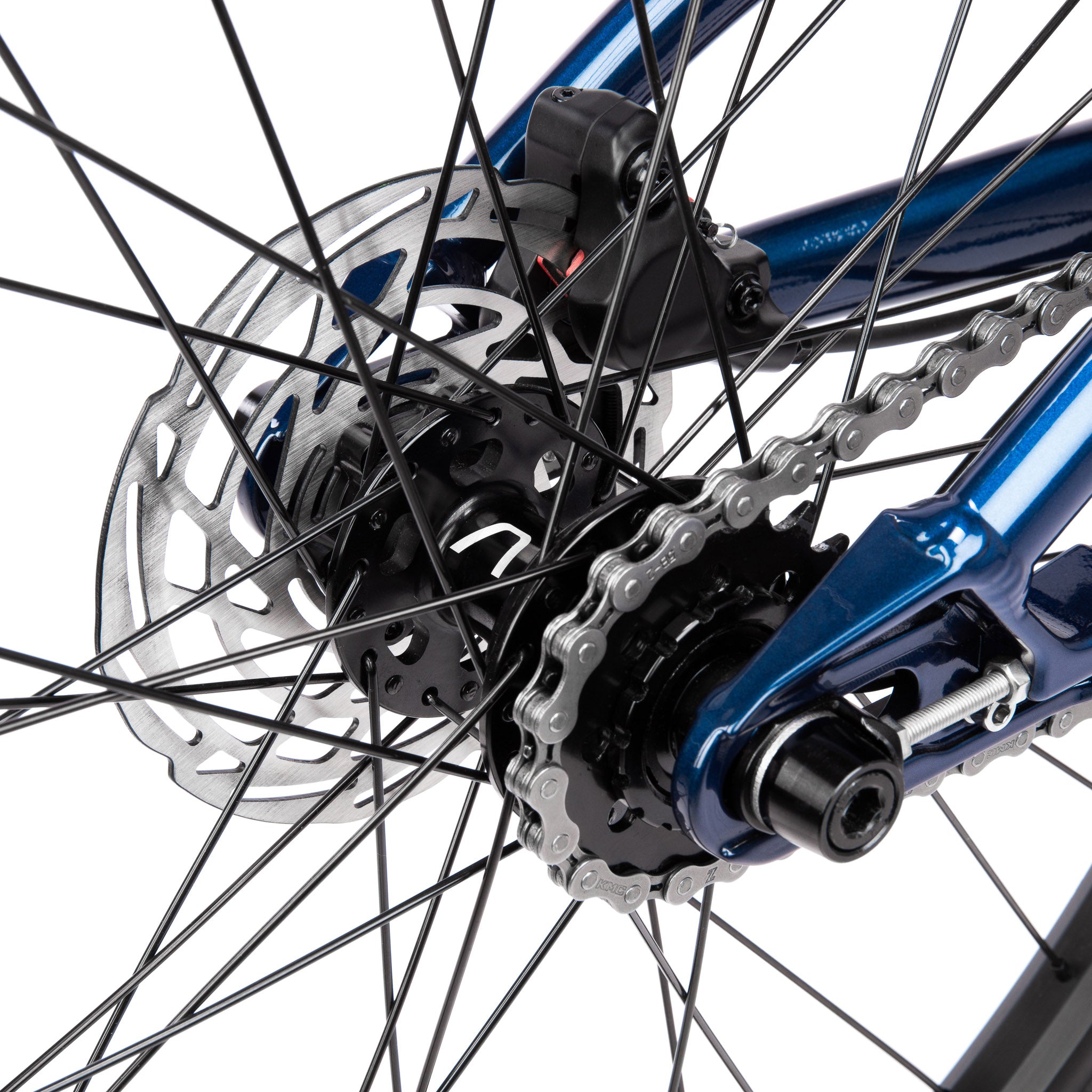

- REAR HUB: ARISE "BRAVO" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 6 pawl, 3/8" female crmo axle
- FRONT RIM: ARISE "ARGON PRO" rim, flash welded, 36h, tubeless ready, alloy
- REAR RIM: ARISE "ARGON PRO" rim, flash welded, 36h, tubeless ready, alloy

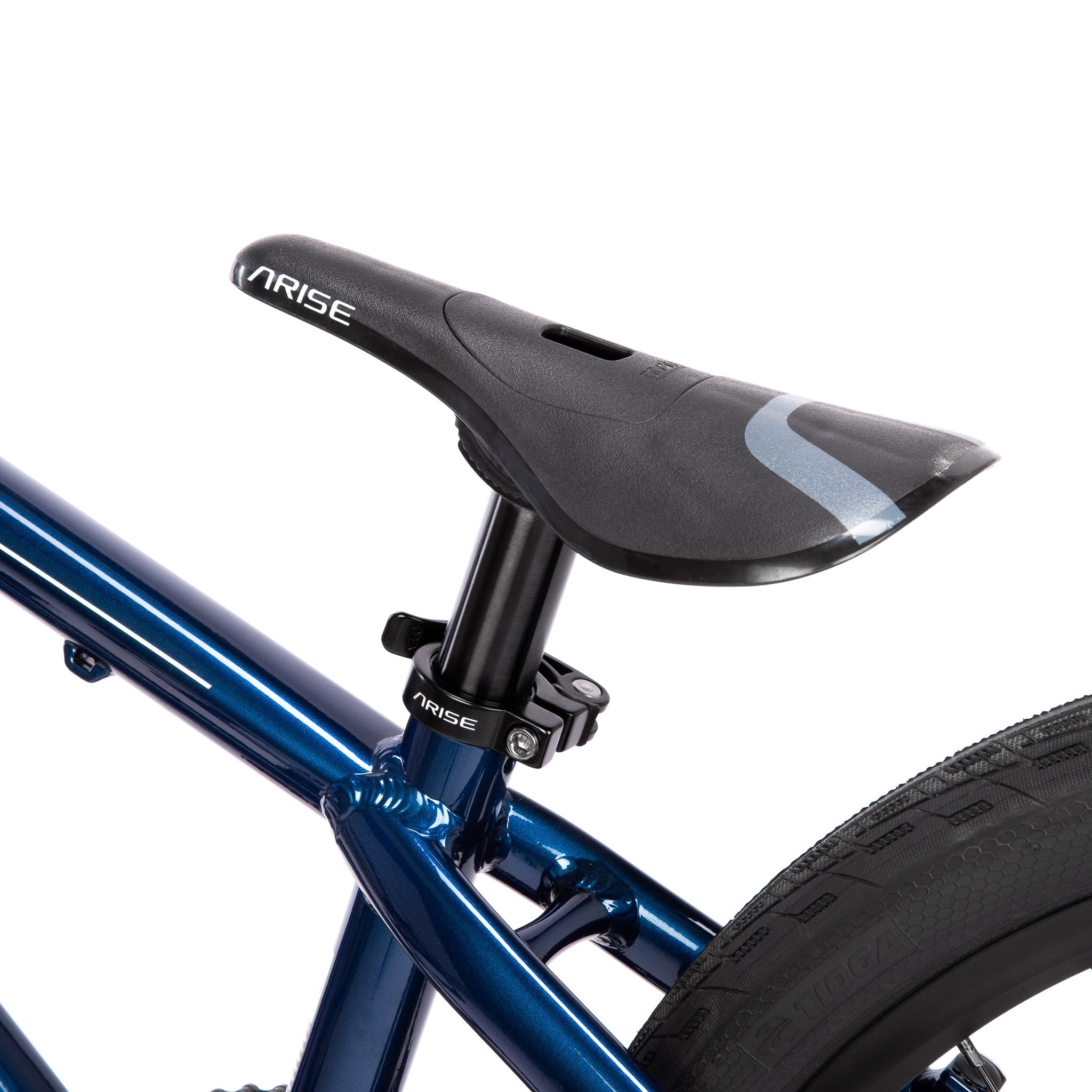

- SEAT: ARISE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
- TIRES: TIOGA "FASTR" tires, front: 24" x 1.75" and rear: 24" x 1.75"

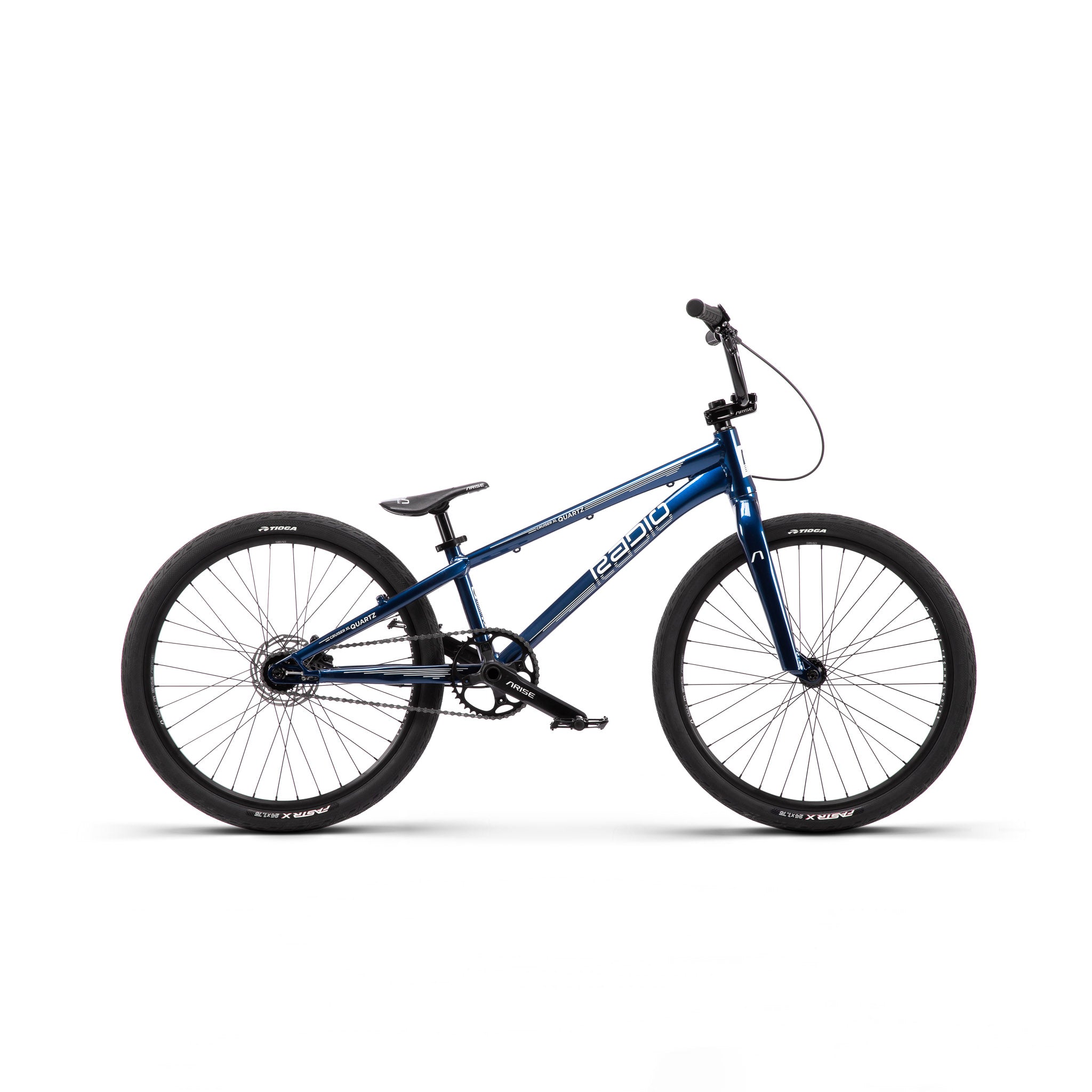

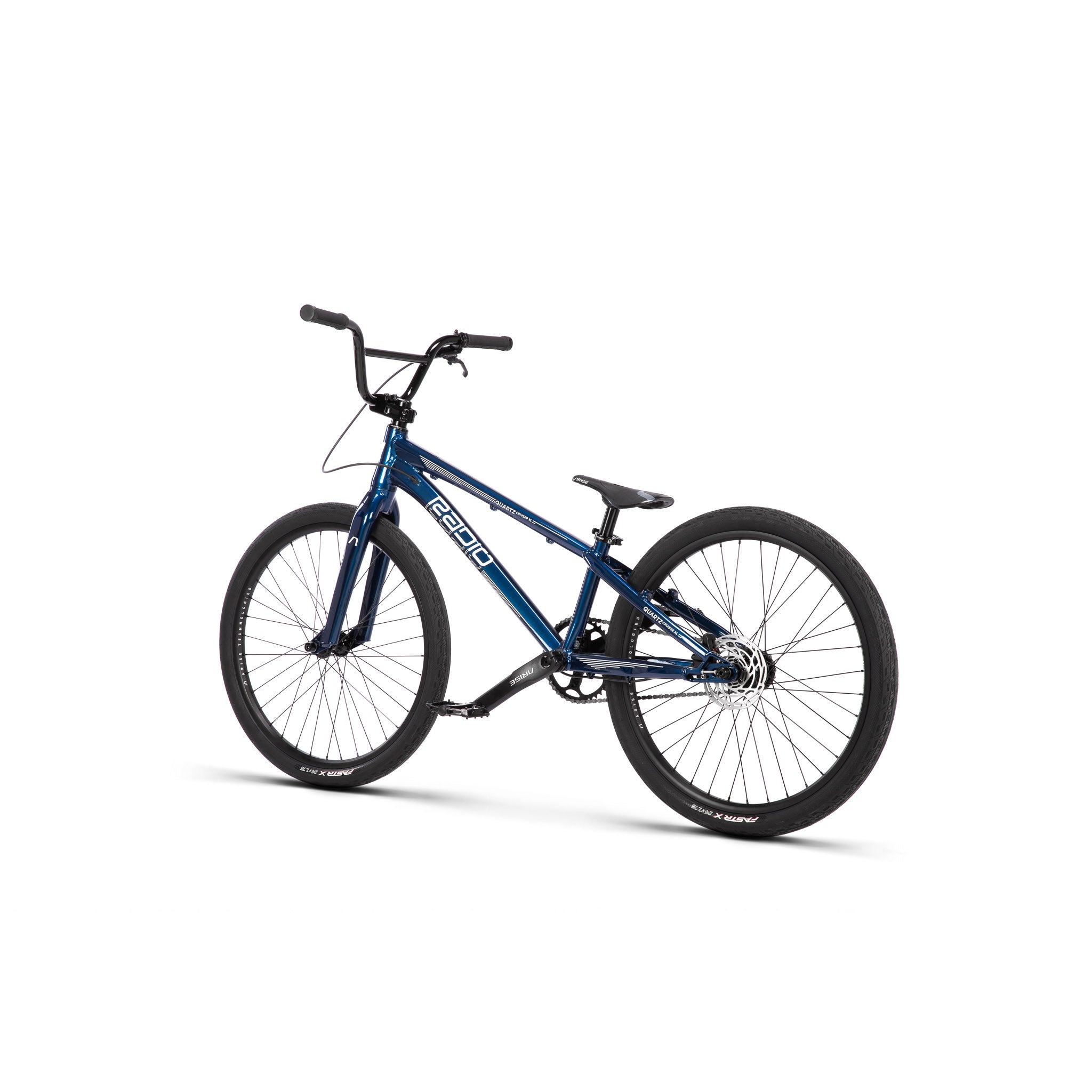

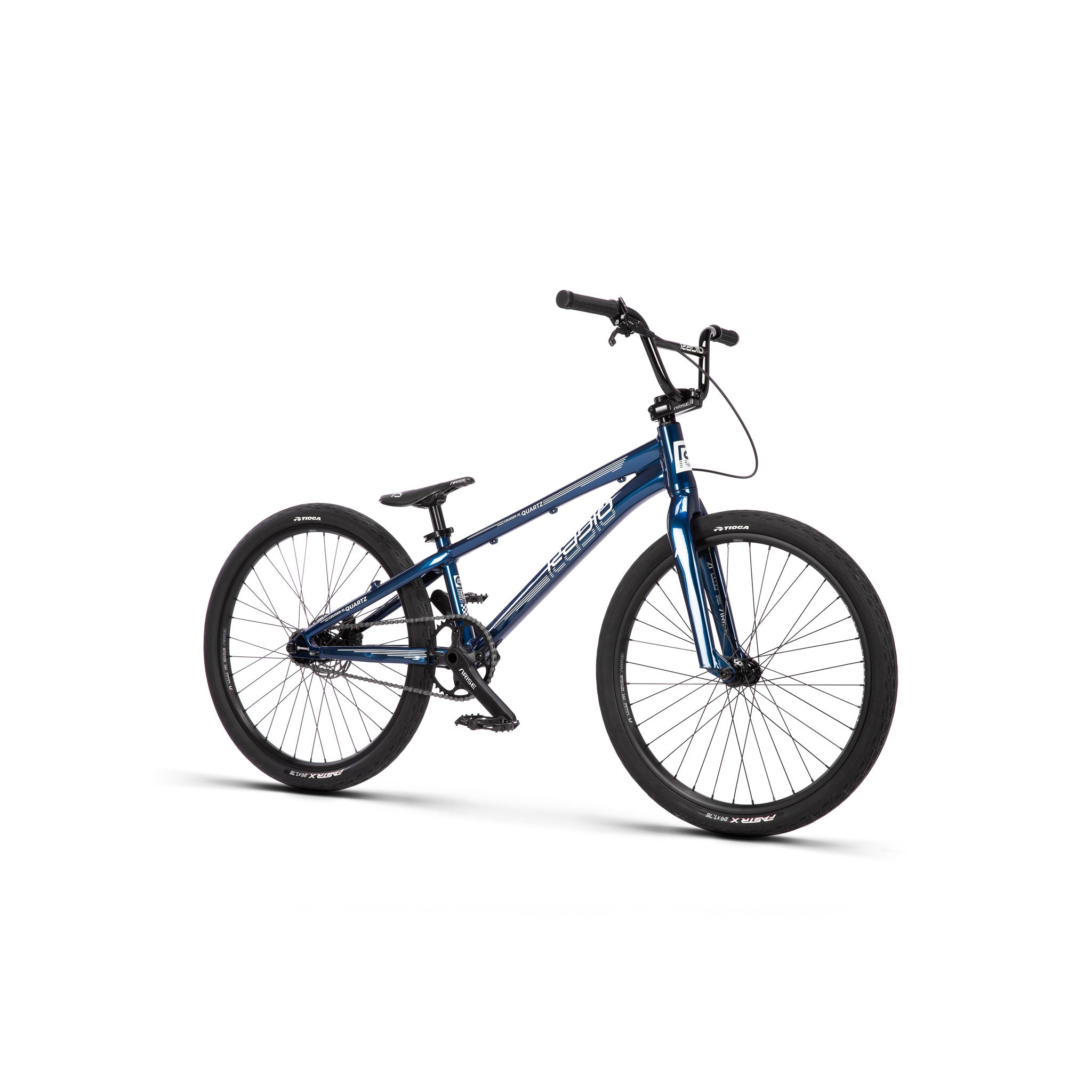

Quartz Pro Cruiser XL Complete Bike
The Quartz Cruiser XL has built a loyal following among cruiser racers, establishing itself as our go-to 24"" workhorse. Built around our aftermarket Quartz Cruiser frame and equipped with a full Pro-level component package, this bike delivers championship-inspired performance in a race-ready cruiser setup.
No detail has been overlooked, from our innovative Sliding Disc Dropout System (SDDS) and Argon Pro rims to premium components from Tioga. Every part has been carefully selected to provide the speed, reliability, and confidence demanded by serious cruiser riders. Whether you're chasing podiums or simply enjoying the unique feel of 24"" racing, the Quartz Cruiser XL is built to perform.
Weight: 9.59kg / 21.14lbs
Frame Geometry:
| Top Tube Length | 22" |
| Chain Stay Length | 15.15" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.23" |
Handlebar Geometry:
| Rise | 6" |
| Width | 26.8" |
| Backsweep | 8° |
| Upsweep | 2° |
