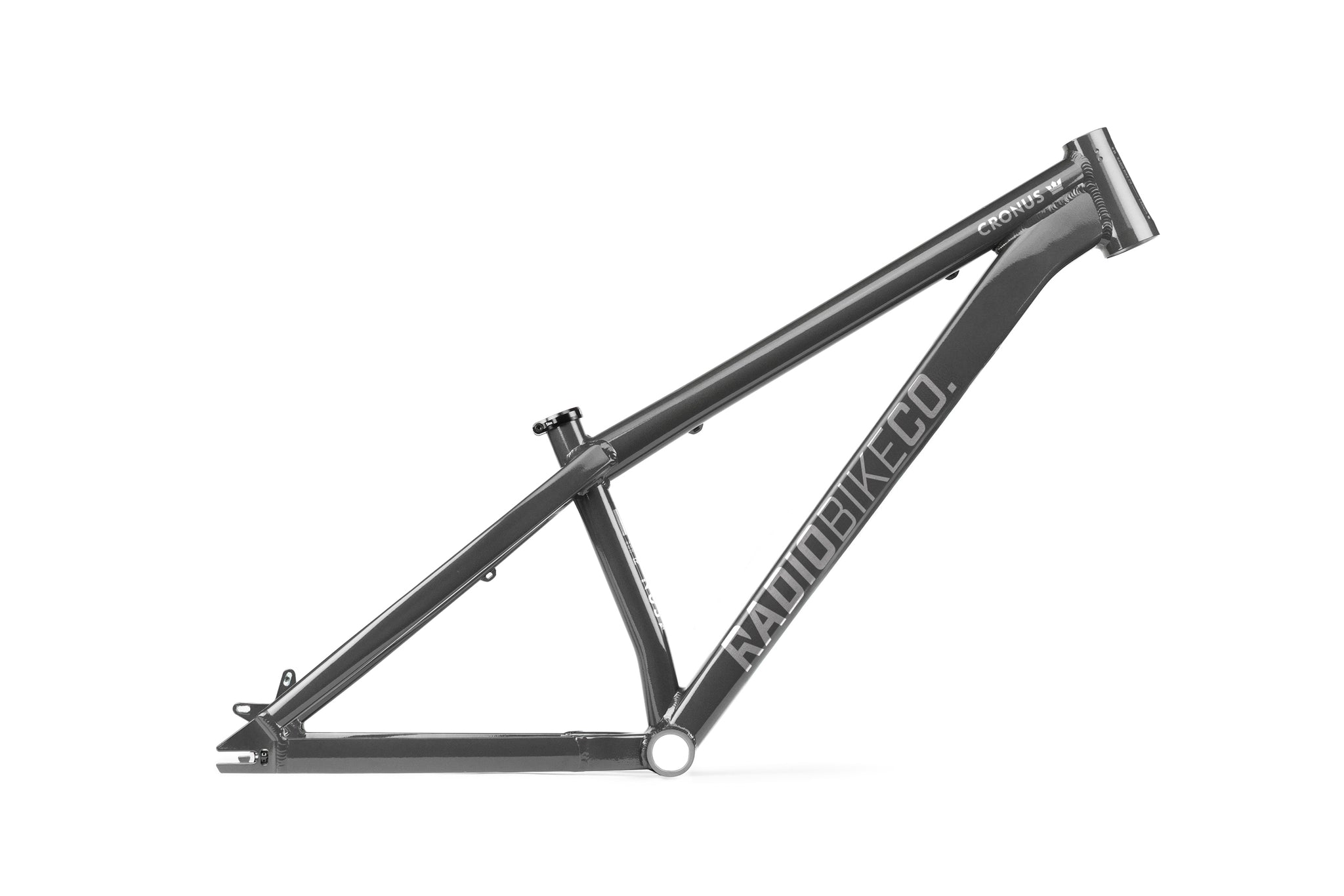

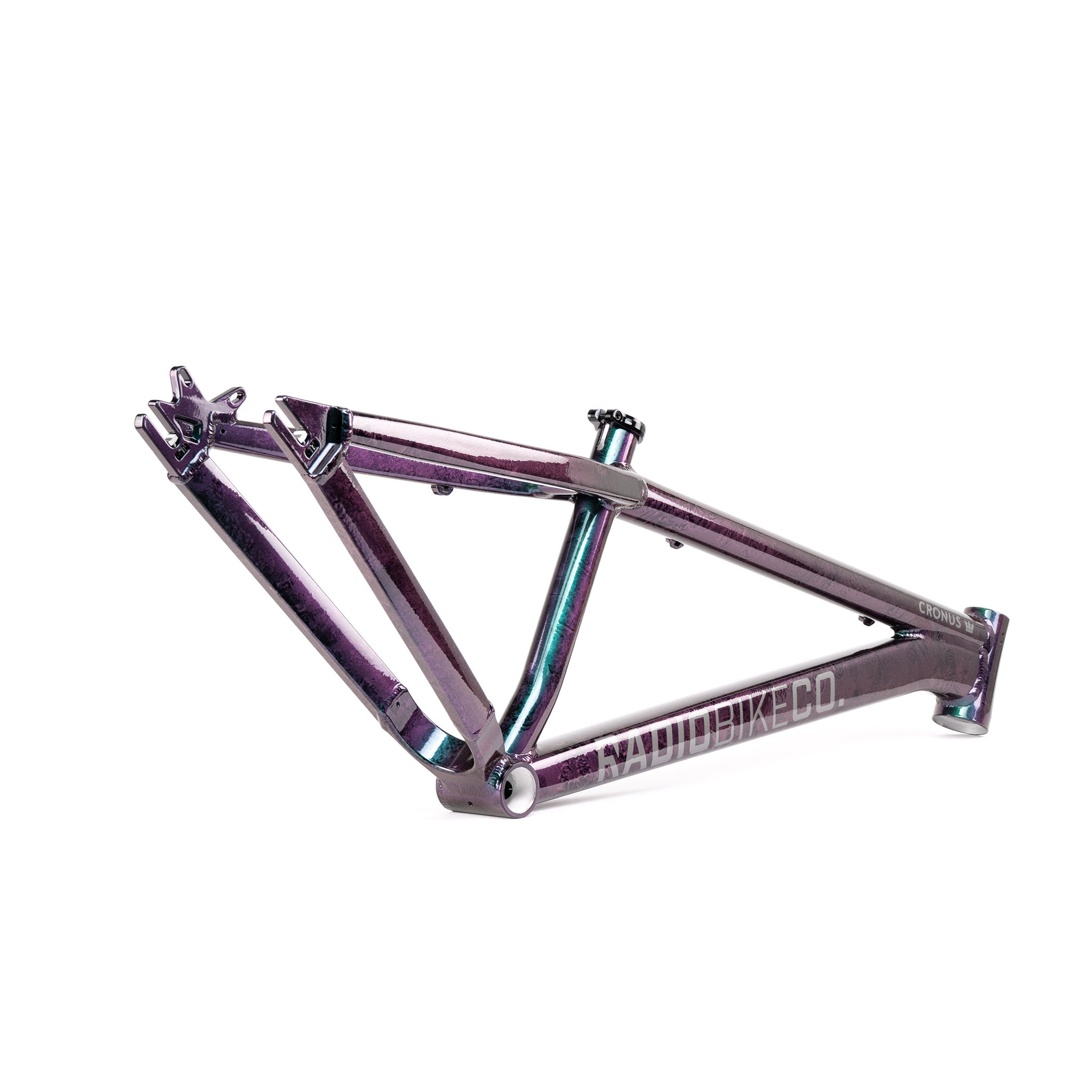

Cronus Frame
An evolution of our Griffin PRO Frame, the CRONUS Frame is the toughest and most badass Slopestyle frame ever made! Utilizing a superior quality 6061-T6 aluminum frame and a brand new tubing construction, we were able to build our toughest and most aggressive 26″ Slope frame to date. The twist-resistant box/shape chainstays keep the Cronus straight when things get dicey, and the new Yoke allows for plenty of tire and sprocket clearance. Just the right balance between strength and weight, new geometry, and incorporating our very own dropouts (with chain tensioners), the CRONUS is a purebred trick machine ready to get buck. Available in two top tube options and two colors, the CRONUS is the new golden standard in Dirt Jump/Slopestyle frames. Featuring drilled holes for gyro/rotor tabs on the head tube and our crank stopper system to keep your pedal just where you want them.
Geometry
- Actual Top Tube Length: 22.5″ (571.5mm) & 22.8″ (579mm)
- Effective Top Tube Length: 23.35″ (596mm) & 23.8″ (605mm)
- Chainstay Length: 15″ (381mm)
- Standover Height: 13″ (330.3mm)
- Head Tube Angle: 69.5°
- Seat Tube Angle: 68°
- Bottom Bracket Height: 18mm drop
Features
- Tubing: 6061-T6 alloy RADIO SIGNATURE Hydroformed butted tube set, tapered head tube, forged yoke

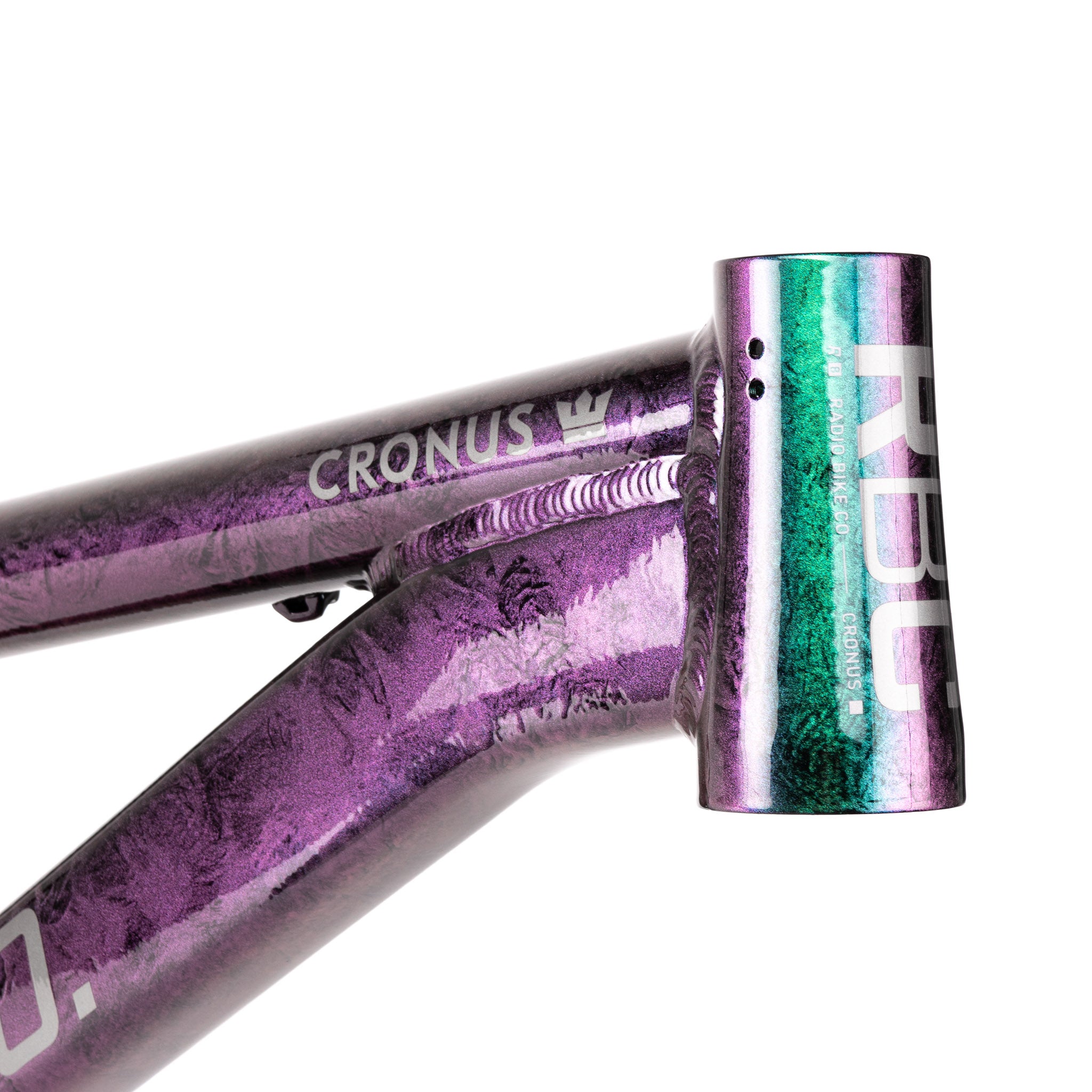

- Headtube: cnc machined, 1 1/8” to 1.5” tapered, 115mm tall, drilled for gyro/rotor tabs

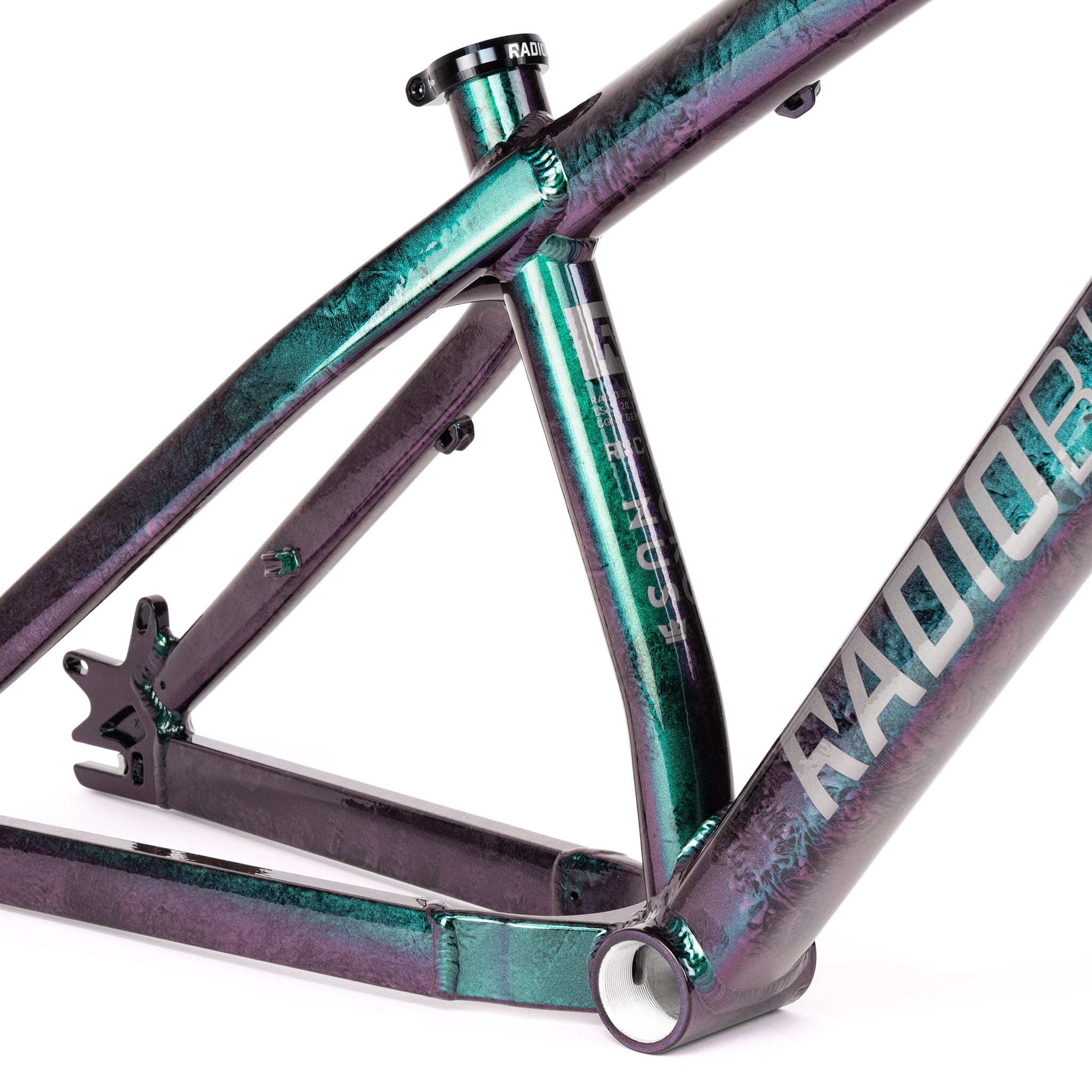

- Bottom Bracket: cnc machined and heat-treated BSA bb, width: 73mm

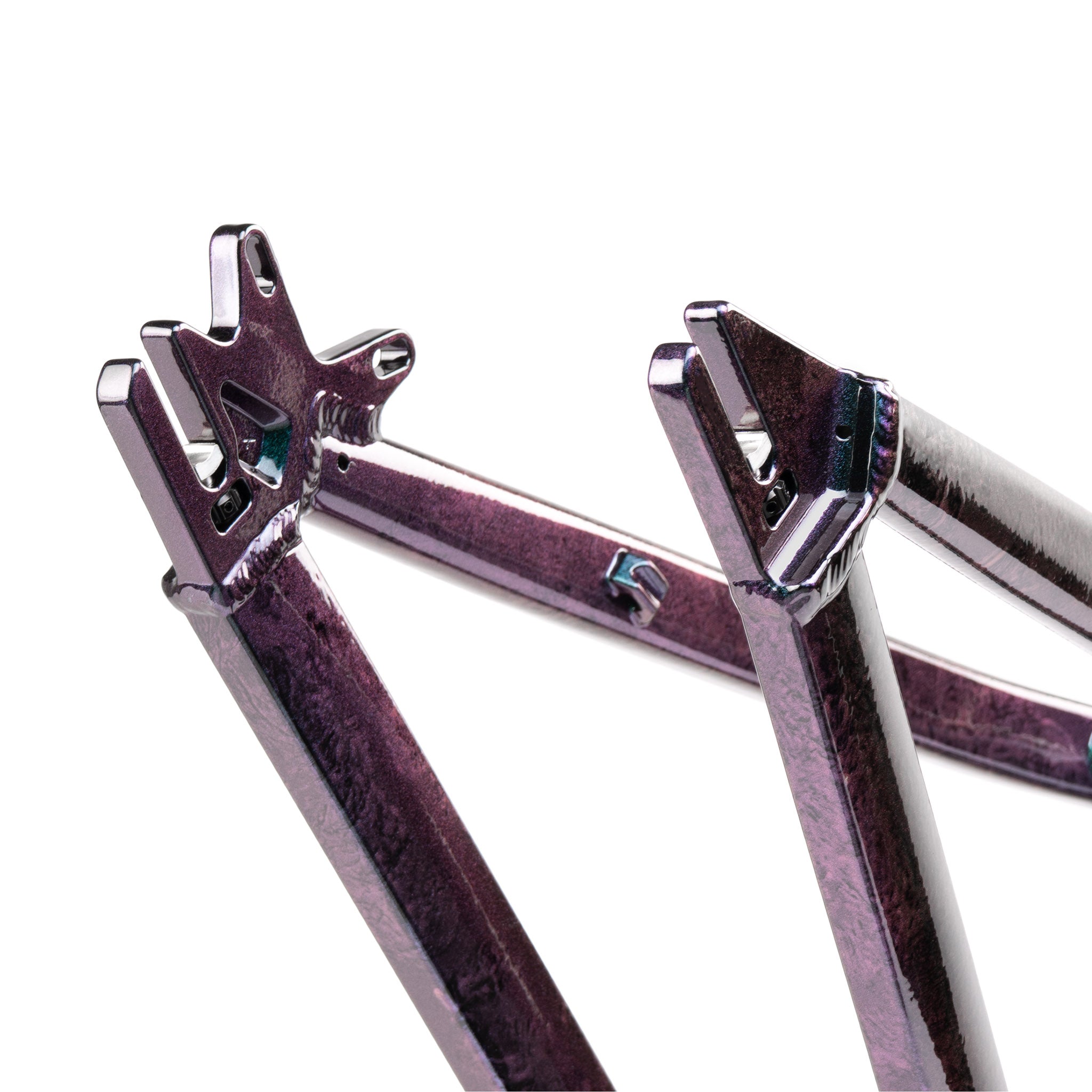

- Dropouts: forged, 135mm OLD, 10mm slots, 8mm thick, integrated chain tensioners, IS disc brake mount
- Weight: 1.98kg (4.37lbs, 22.5″)
