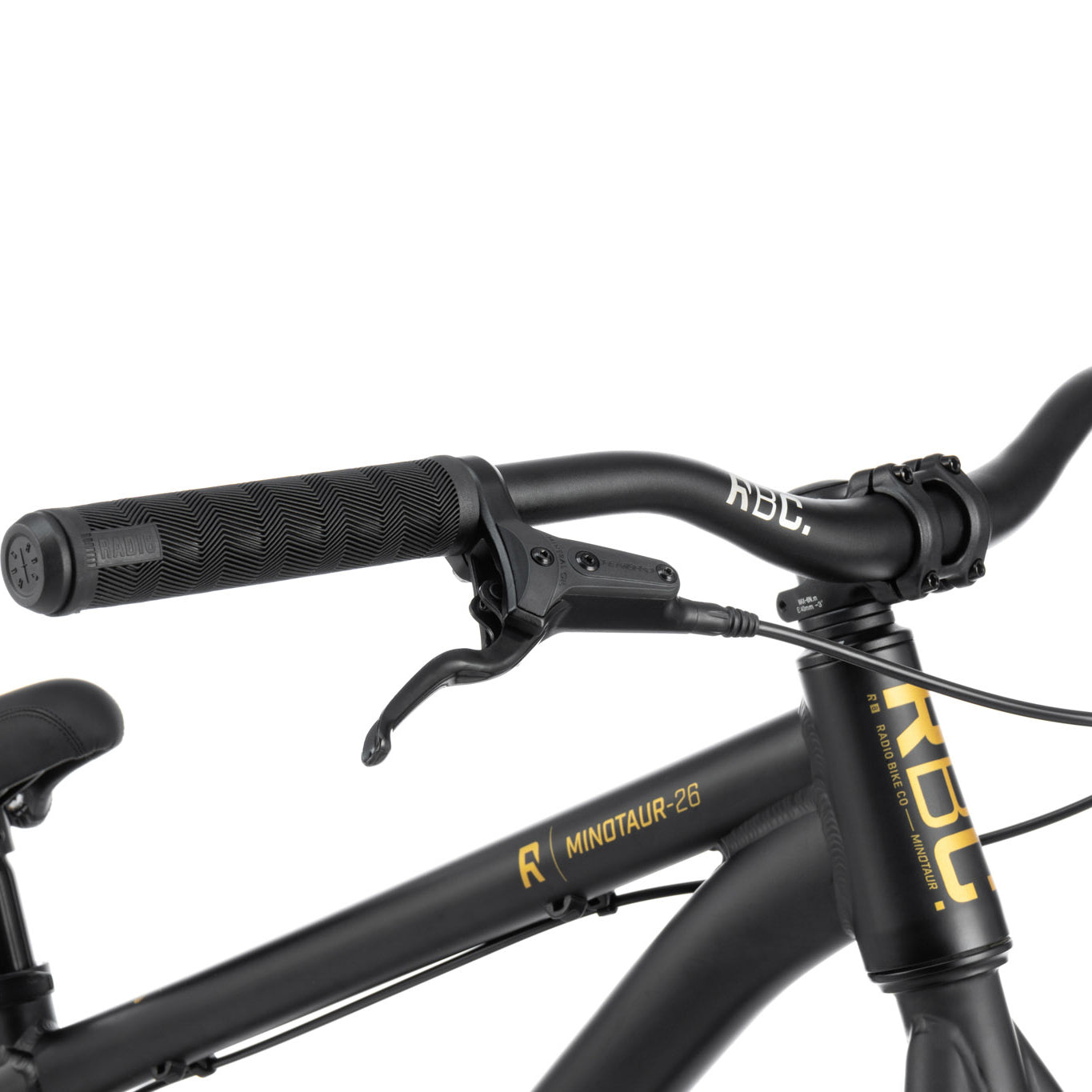

Minotaur Complete Bike

Simply for shredding. The Minotaur is a dirt/pump track beast with a full 6061-T6 alloy frame for performance, and our own rigid chromoly fork for simplicity, speed and style. By using a riged fork we were able to not only offer an easily upgradable bike with a PRO spec alloy frame for a much lower price, but also create a bike which simply didn’t exist yet. The Minotaur is a bike which is as fun to ride as it looks. With Radio Straus Tires and a chromoly ridged fork, this is one lively bike design for nothing but fun!



FRAME: RADIO "MINOTAUR" frame, 6061-T6 alloy, tapered head tube, forged yoke

FORK: RADIO "MINOTOUR" fork, full crmo, tapered crmo steerer, 28mm offset

BARS: RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm

GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

STEM: RADIO "ZOOM" frontload stem, alloy, 40mm reach

HEADSET: FSA "NO.57E" integrated A-headset, 1-1/8"-1.5"

LEVER: TEKTRO "RS-360A" front lever / TEKTRO " HD-M275" rear lever

BRAKES: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear

CRANKS: SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 170mm, 8 spline

BB: RADIO "BSA19" bb set, sealed bearing

PEDALS: RADIO "SLIM" pedals, nylon/fiberglass

CHAIN: SALT "AM" chain, WZ1 type

SPROCKET: SALT "GATEWAY" sprocket, alloy, 25t

DRIVER: cassette driver, 10t, sealed bearing

FRONT HUB: RADIO "AM-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h

REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h

RIM: RADIO "DB30" rim, double wall

SEAT: RADIO "DJ" combo seat, medium padded

SEAT POST: -

SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy

TIRES: RADIO “Stratus” tires, 2.3″, front & rear

TOP TUBE LENGTH: 22.6"

CHAIN STAY LENGTH: 15"

BOTTOM BRACKET HEIGHT: 20mm drop

HEAD TUBE ANGLE: 69°

SEAT TUBE ANGLE: 72°

BAR RISE: 50mm

BAR WIDTH: 740mm

BACKSWEEP:

UPSWEEP:

WEIGHT: 11.87kg / 26.17lbs
