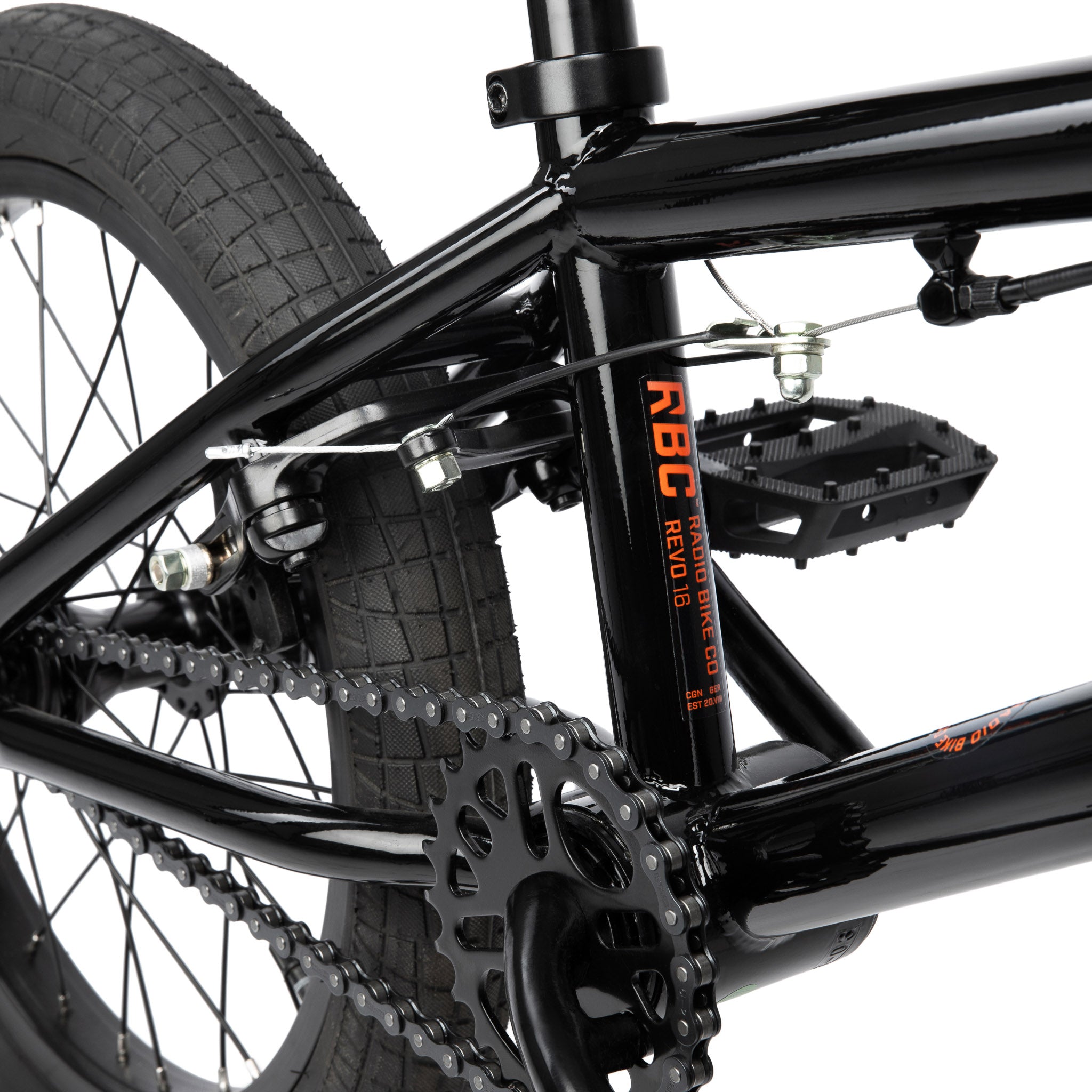

- FRAME: RADIO “REVO 16” frame, full 1020 hi-ten

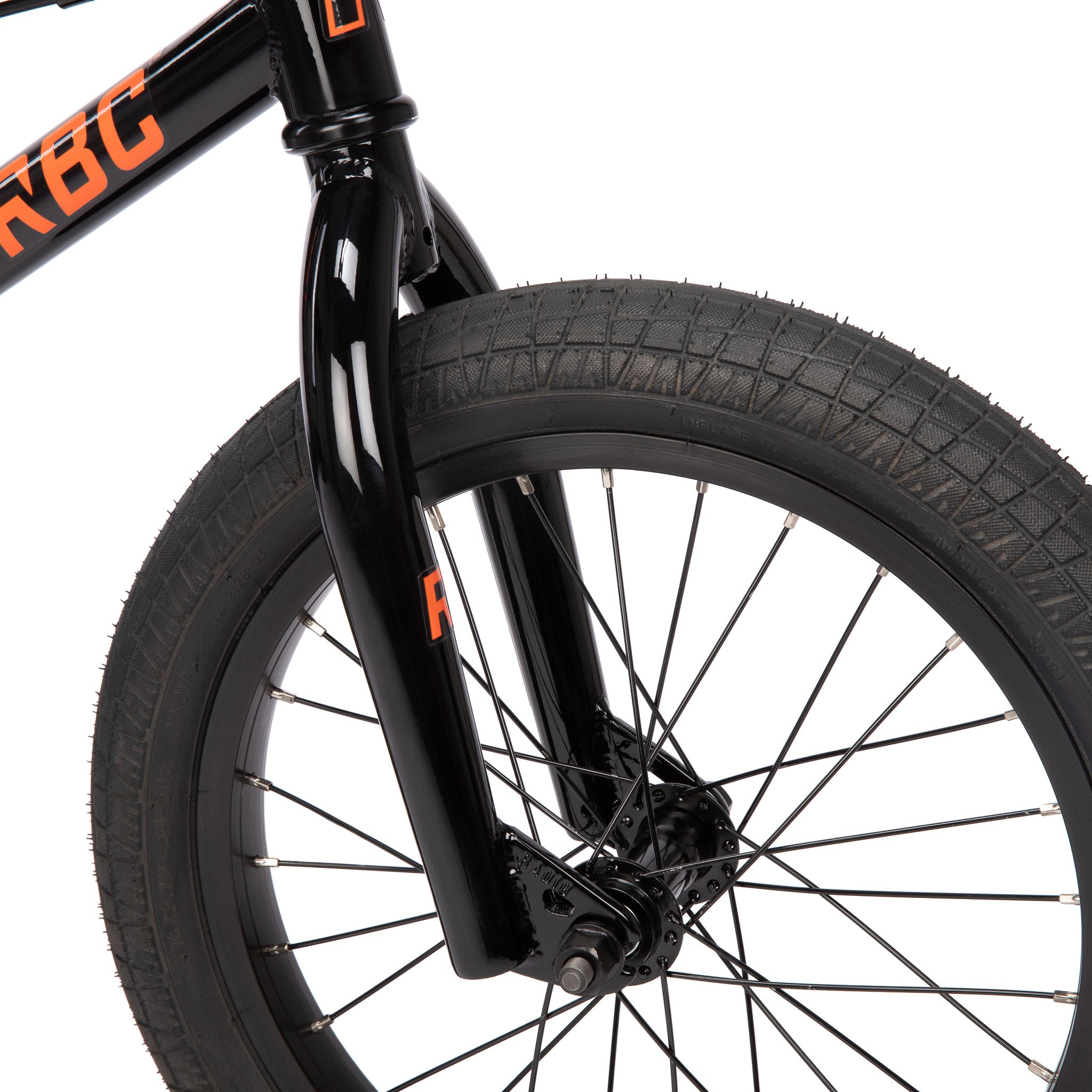

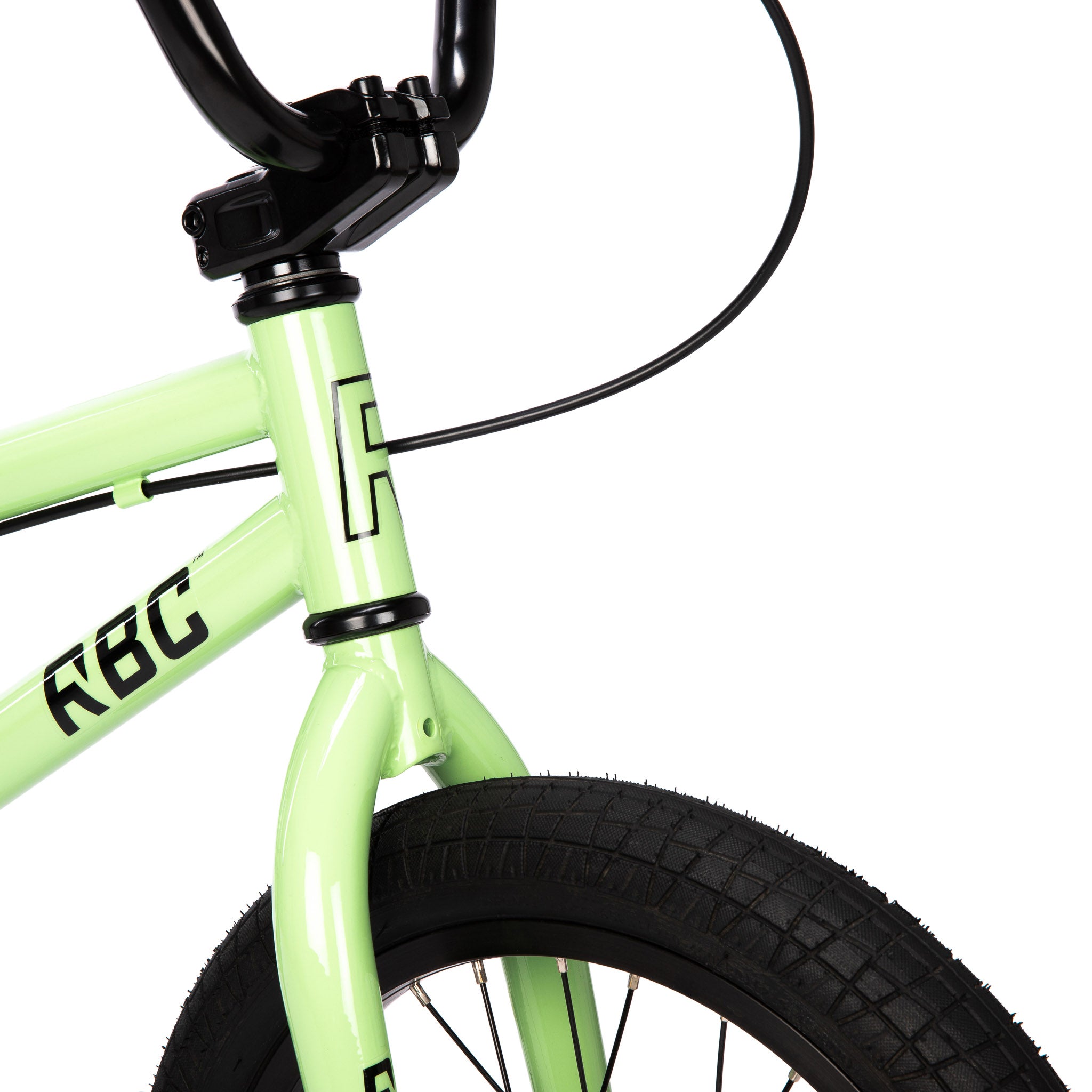

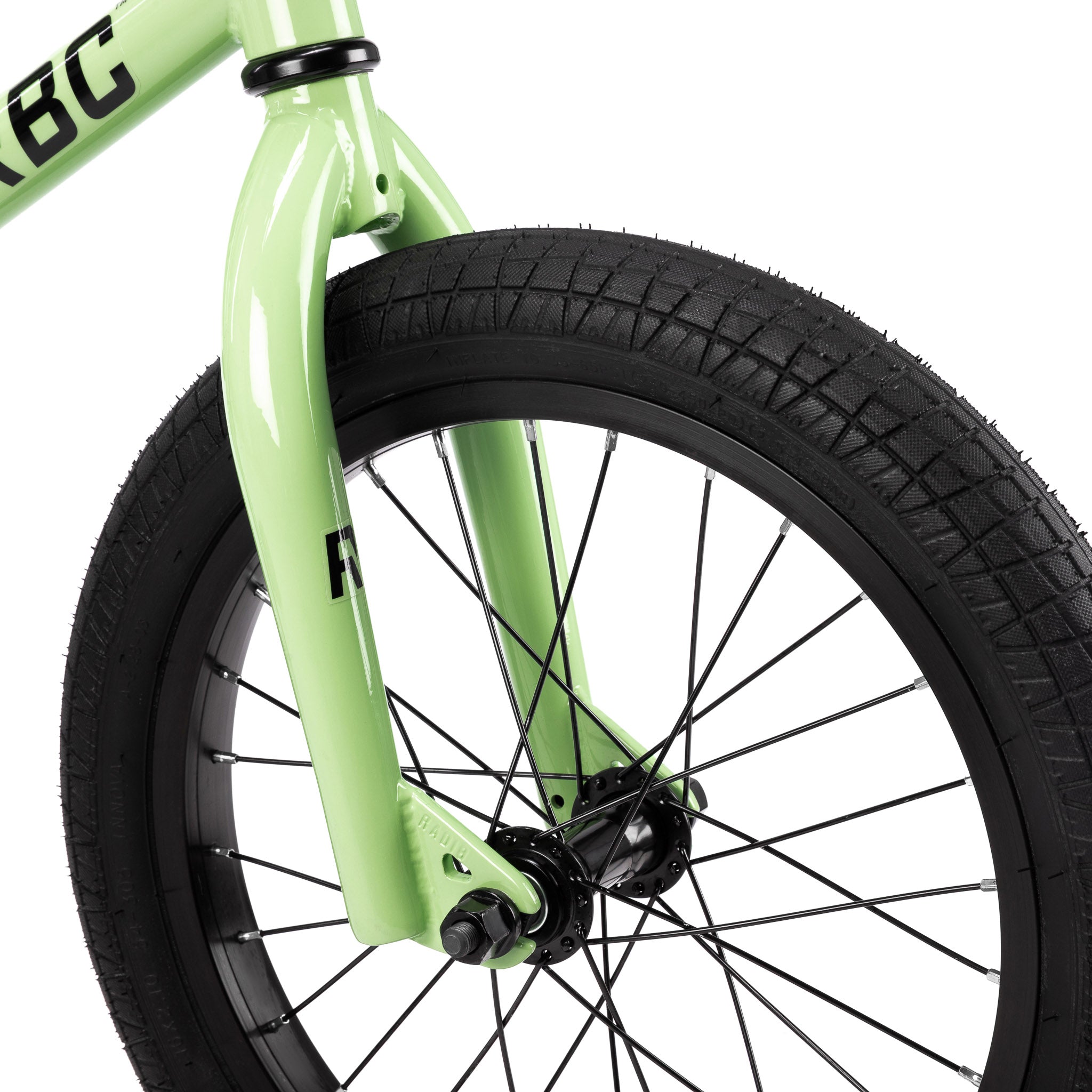

- FORK: RADIO “ROOKIE 16” fork, hi-ten

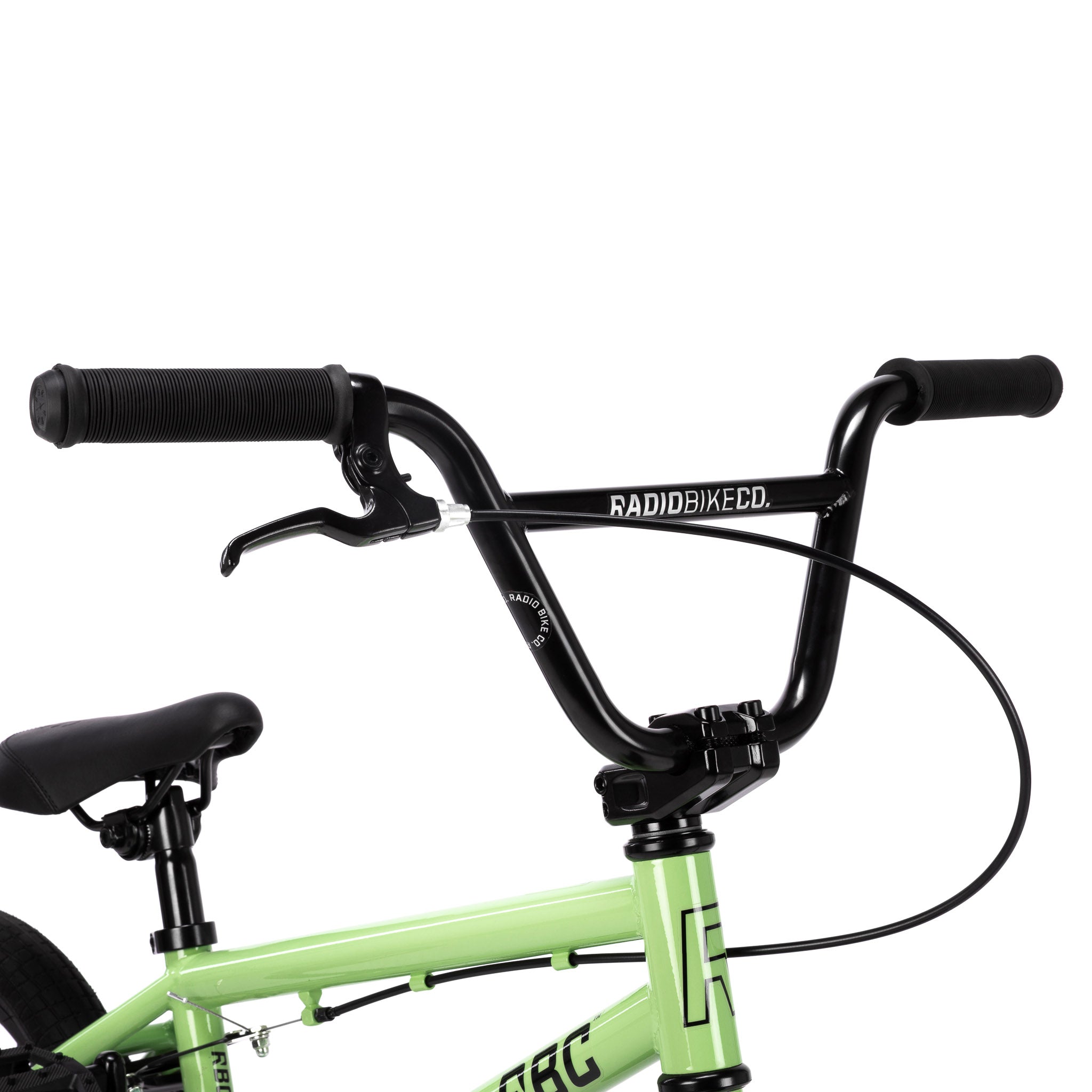

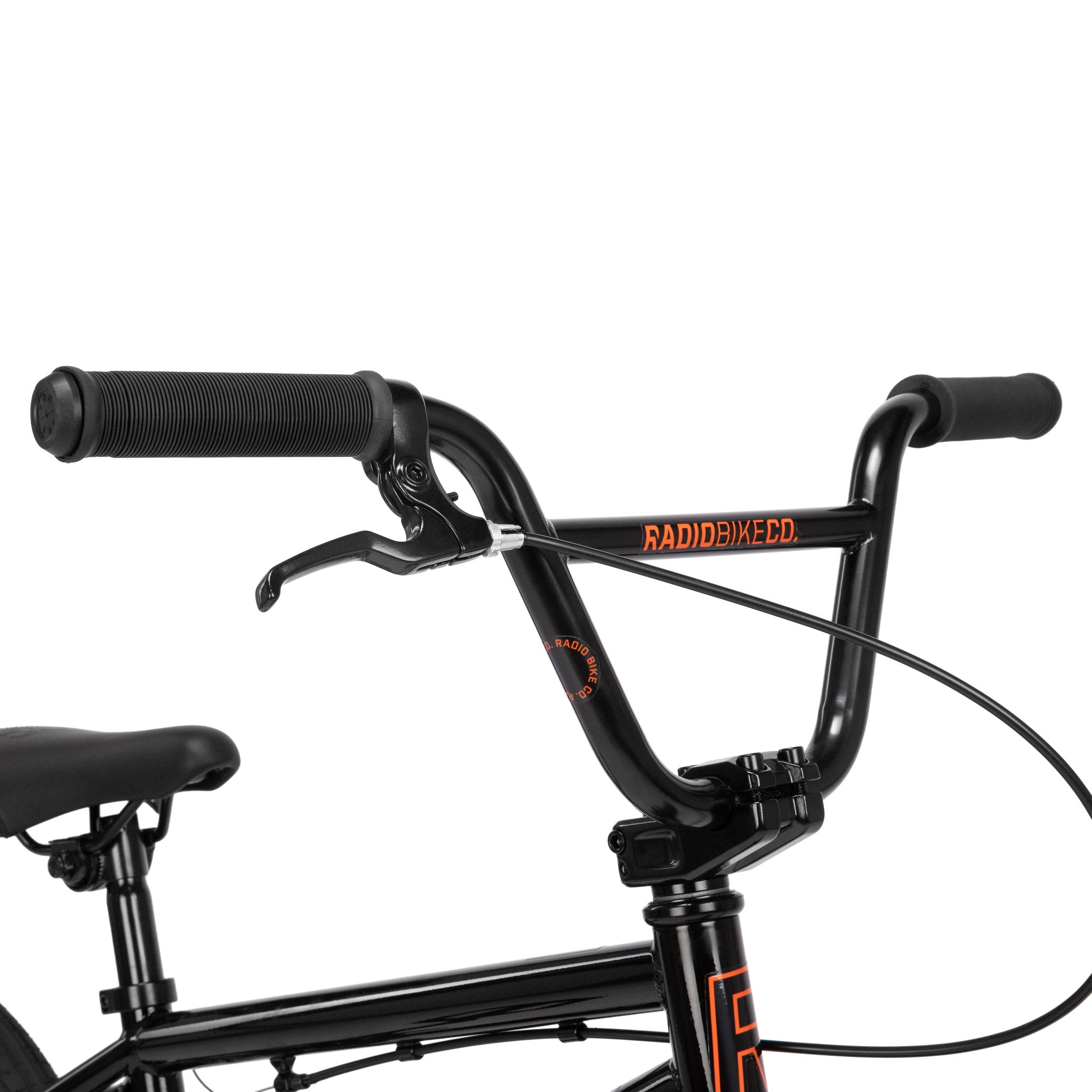

- HANDLEBAR: RADIO “REVO 16” bar, hi-ten

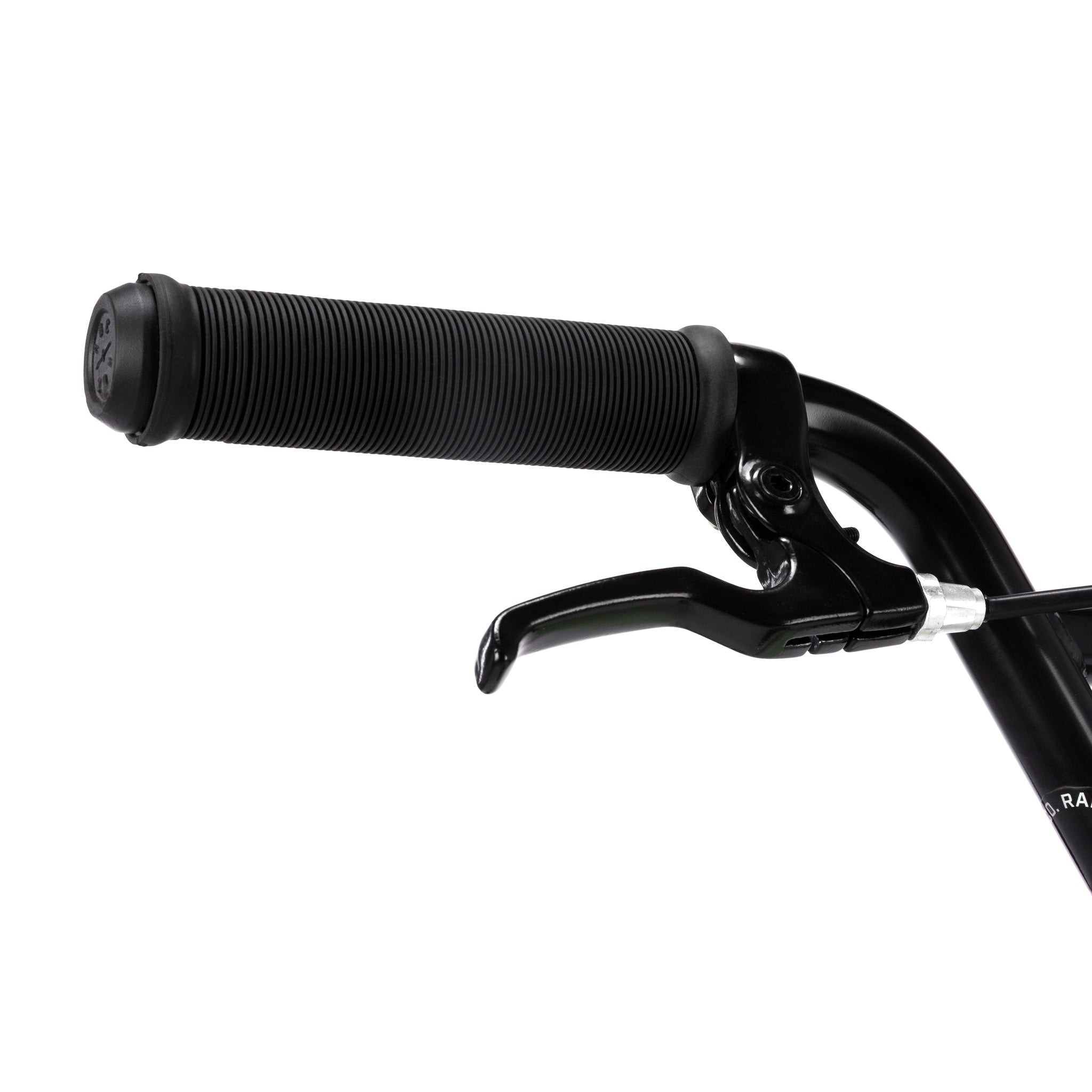

- GRIPS: RADIO “JUNIOR” grips, flangeless, 130mm

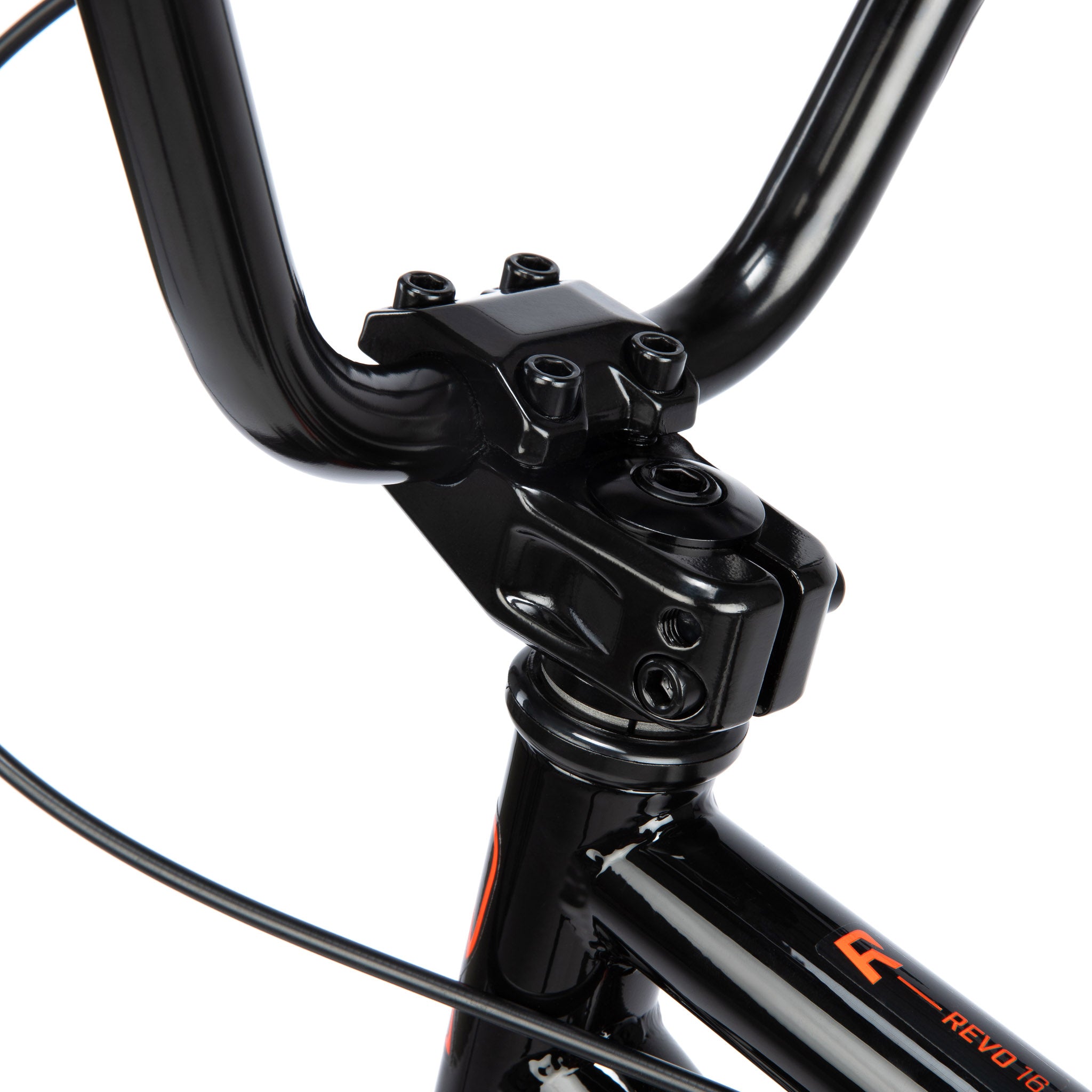

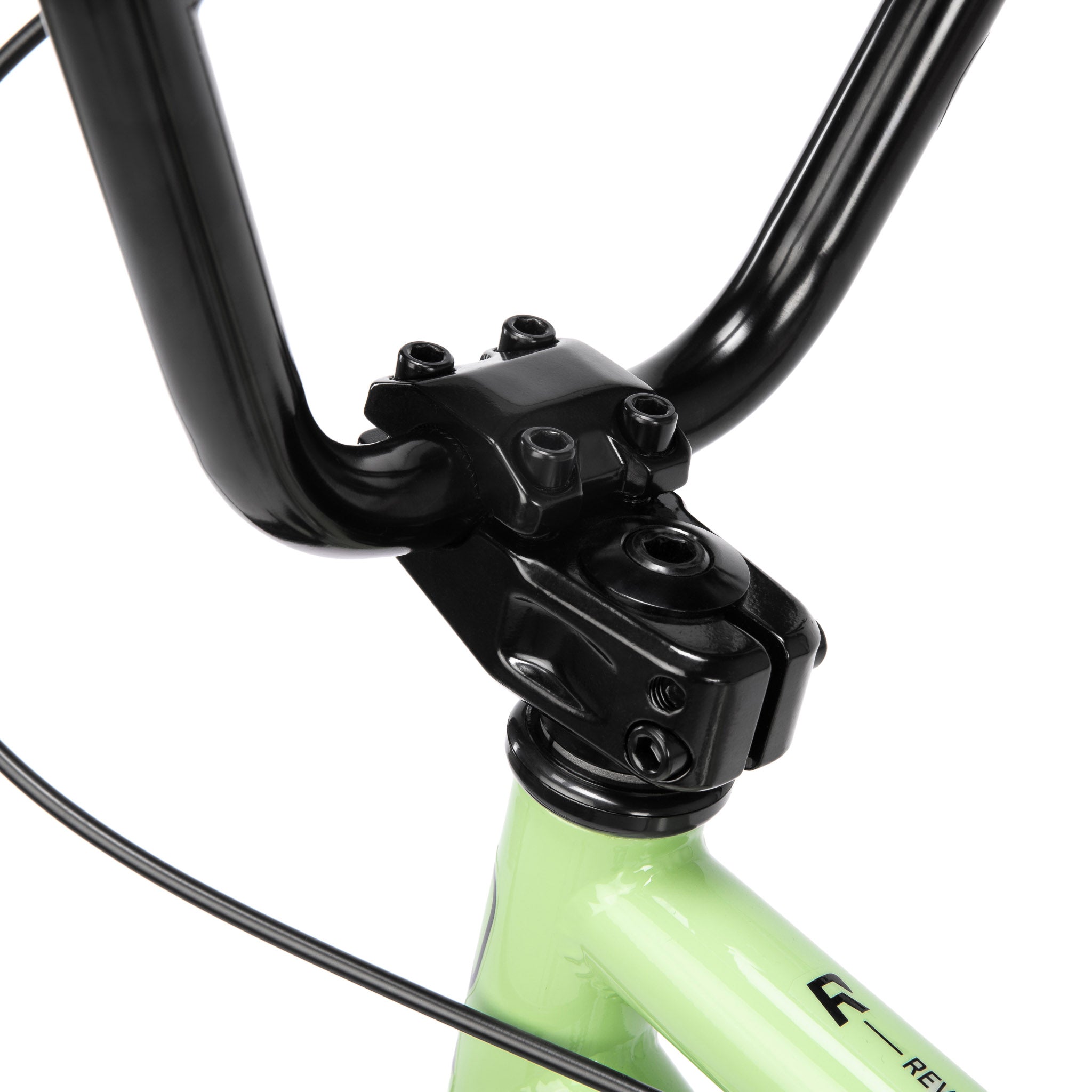

- STEM: SALT “JUNIOR” topload stem, 40mm reach
- HEADSET: FSA “a-head-set” loose ball

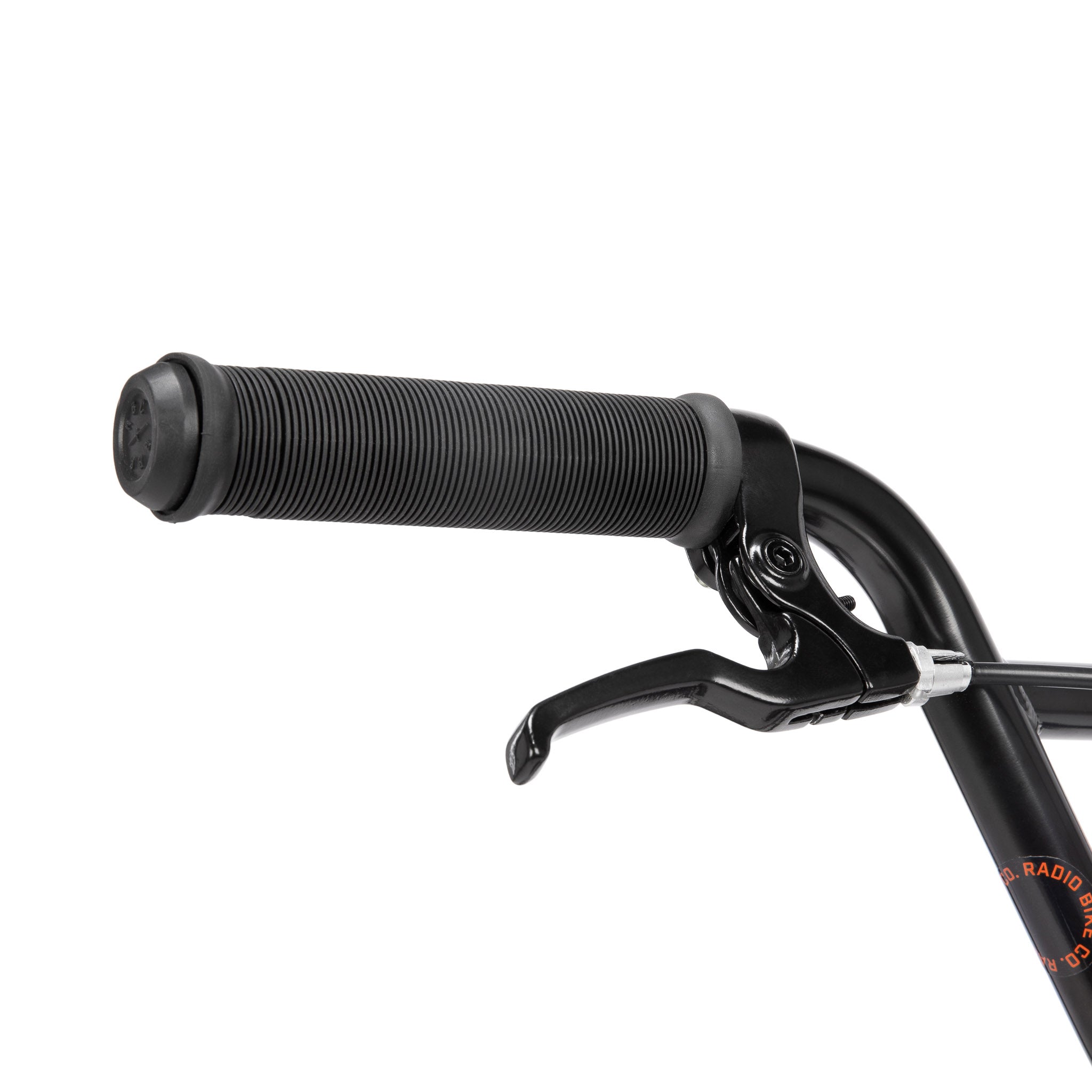

- BRAKE LEVER: RADIO “JUNIOR 16” brake lever, alloy
- BRAKE: RADIO “AM” caliper brake, alloy, front / RADIO “AM-U” u-brake, alloy, rear

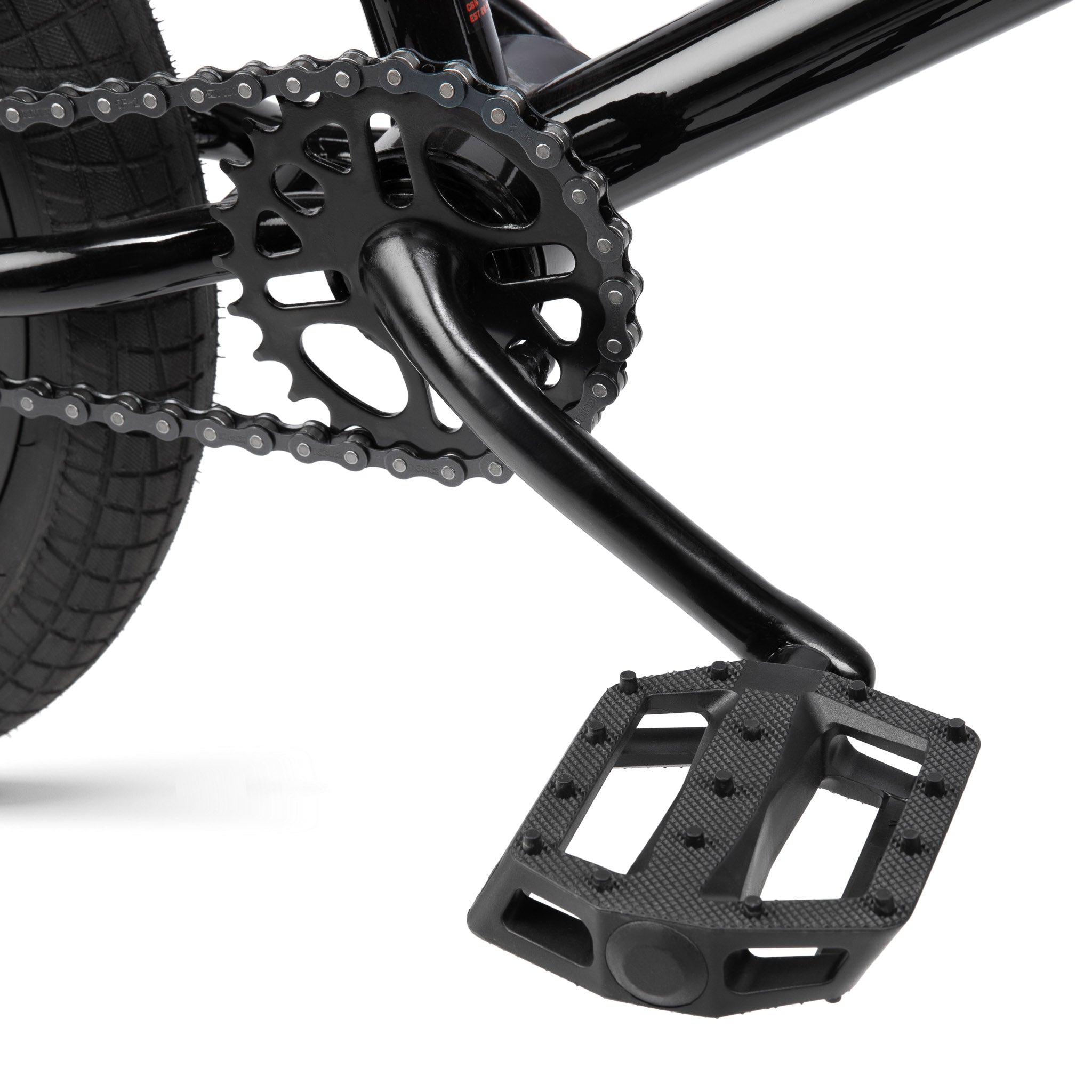

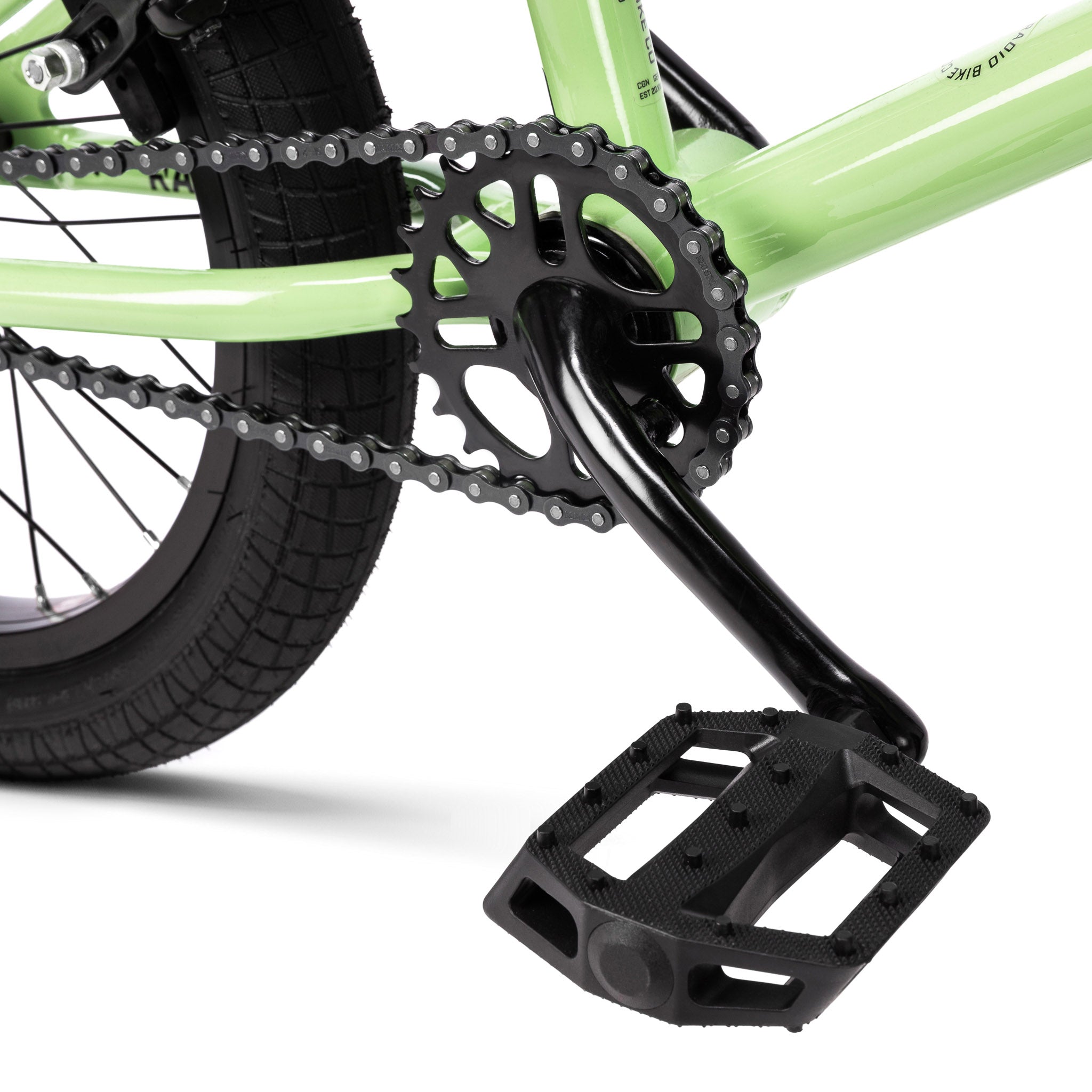

- CRANK: RADIO “ROOKIE” 1pc crank, forged, crmo, 127mm
- BB: USA size, loose ball
- PEDALS: RADIO “Rookie” Nylon Pedals
- CHAIN: KMC “S1” chain

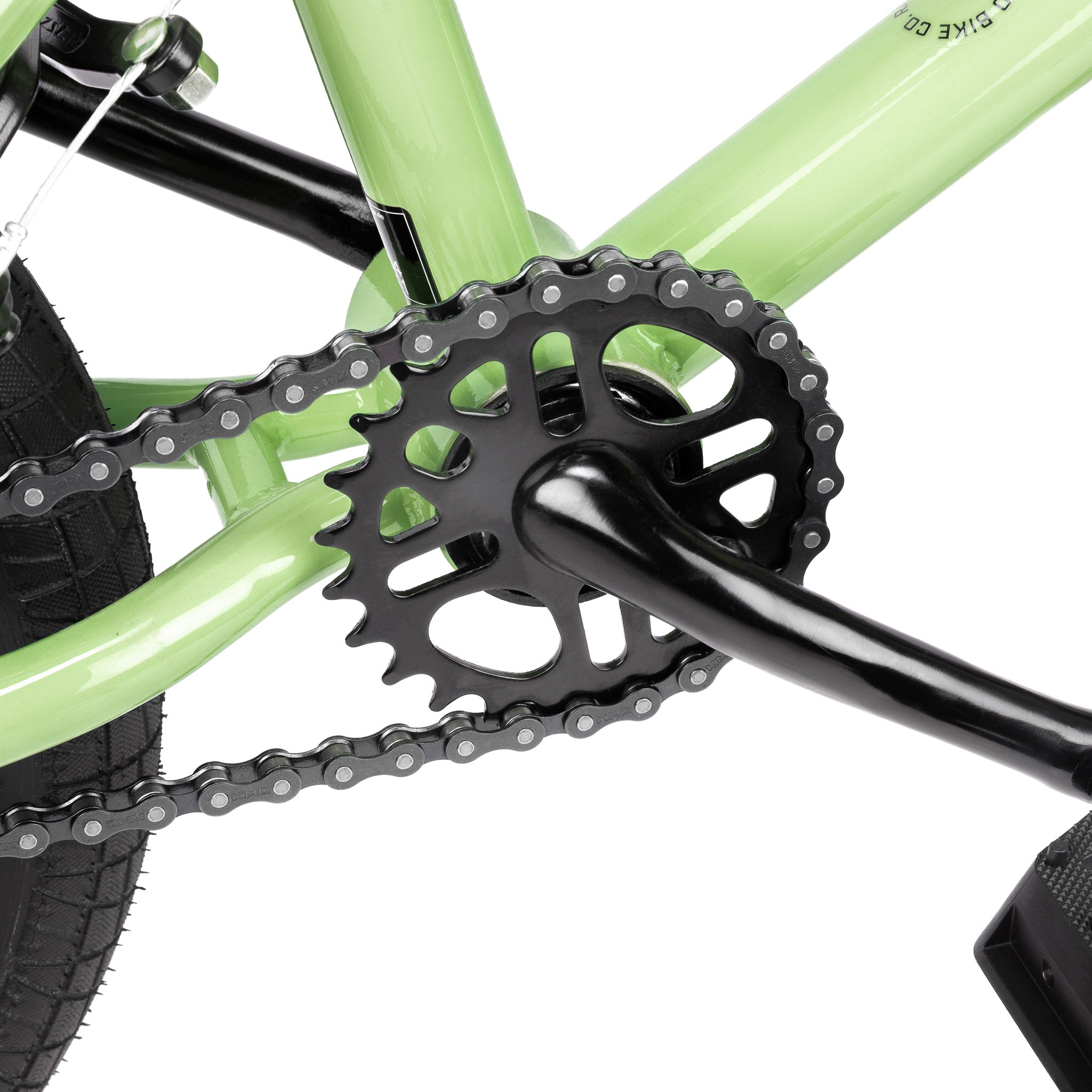

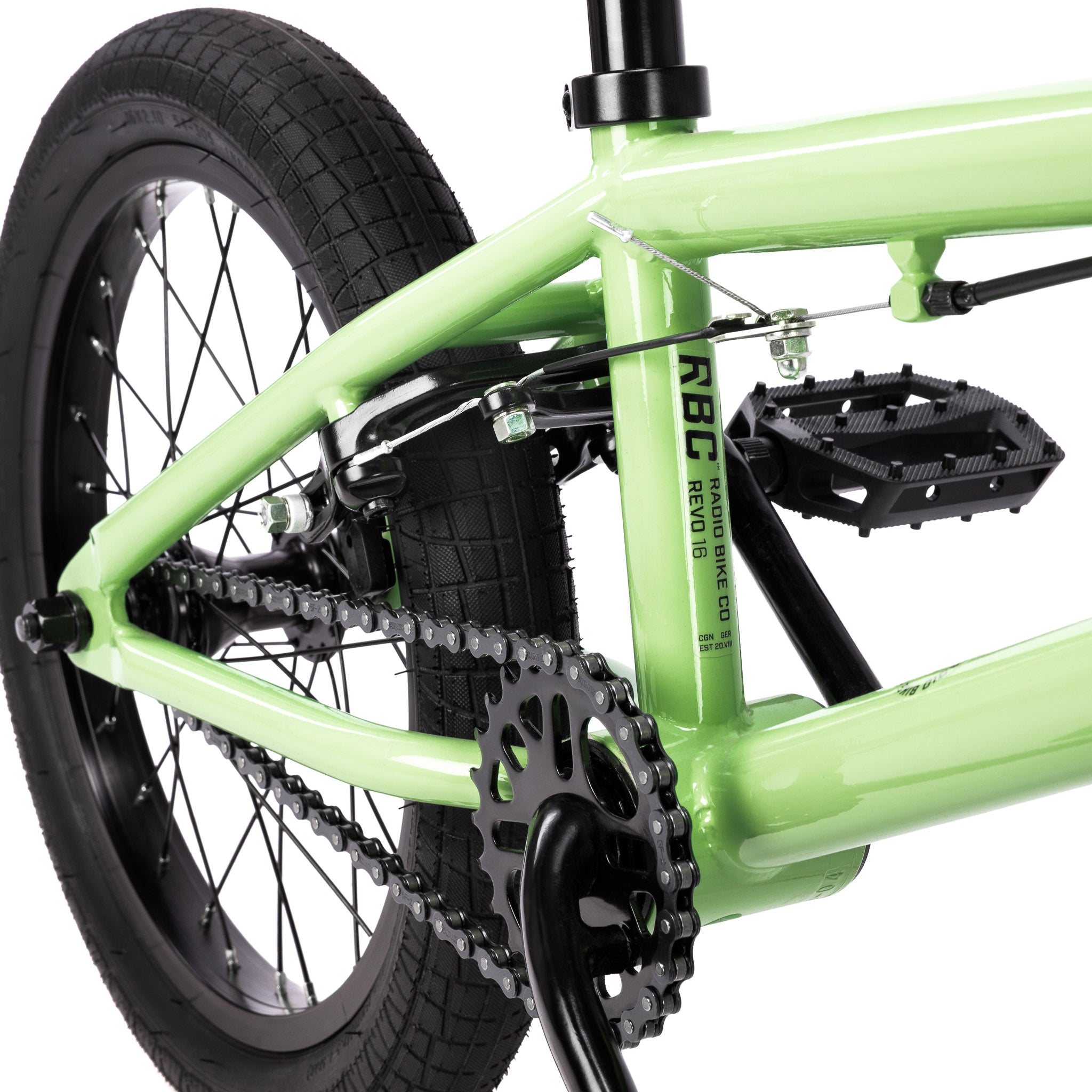

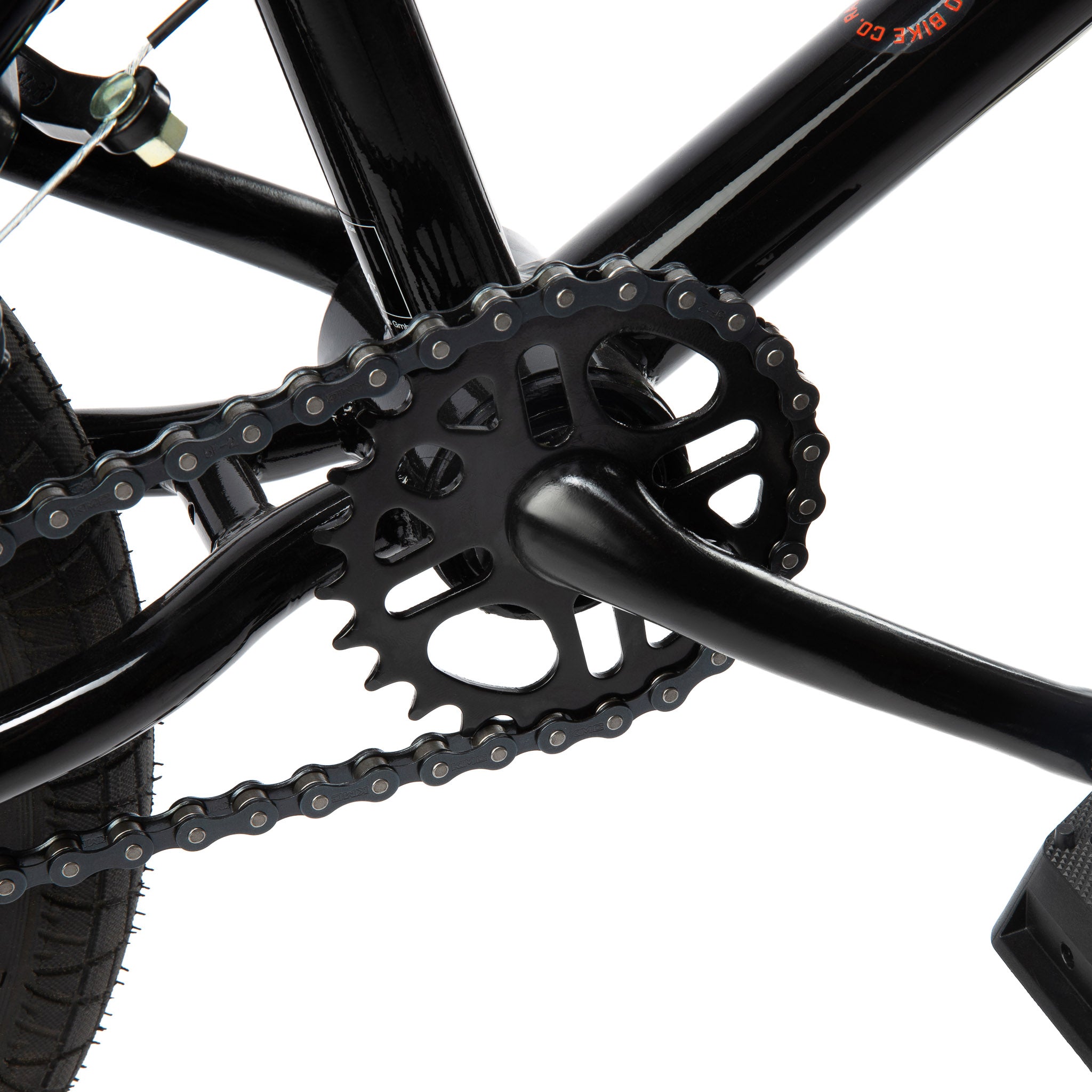

- SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
- DRIVER: 9t, cassette

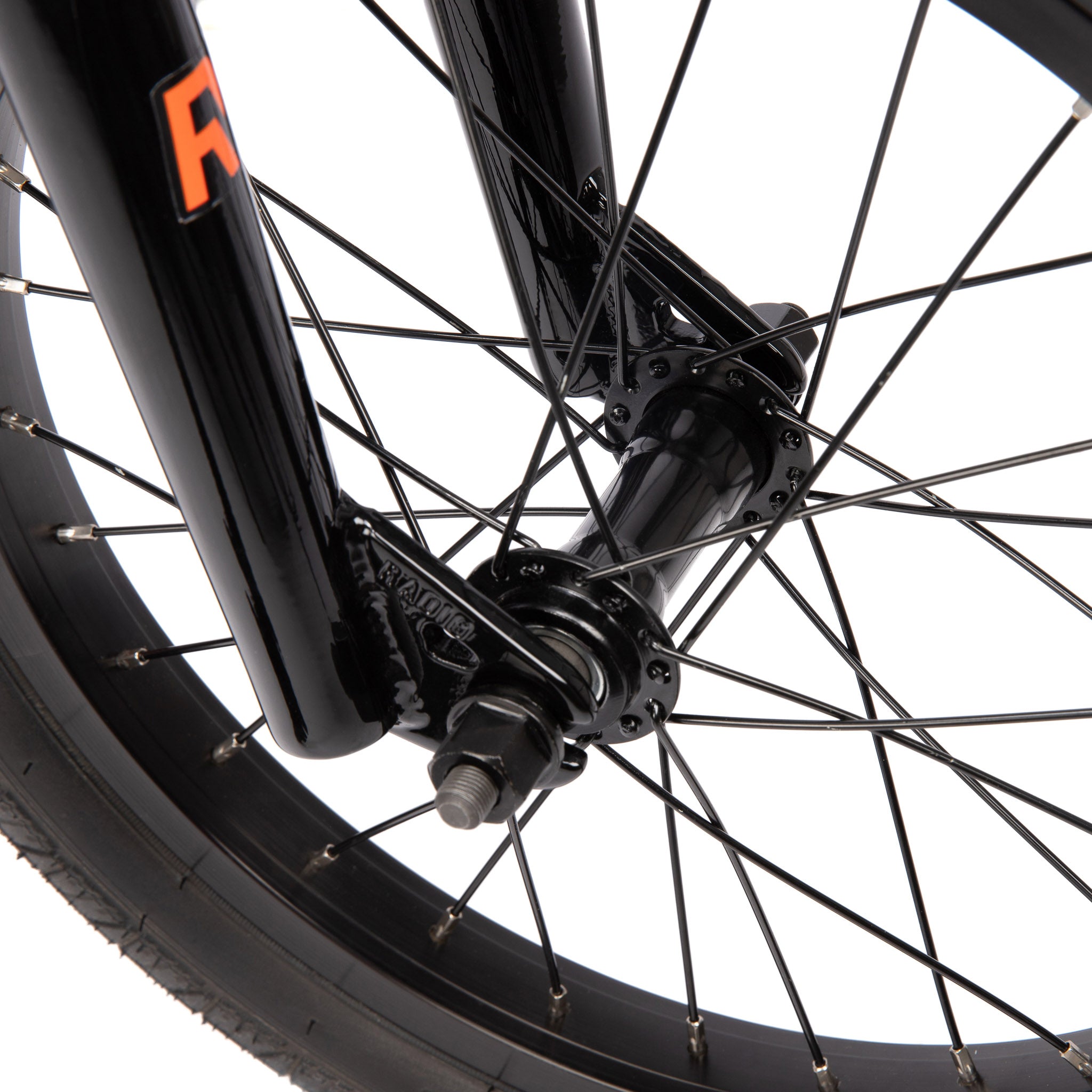

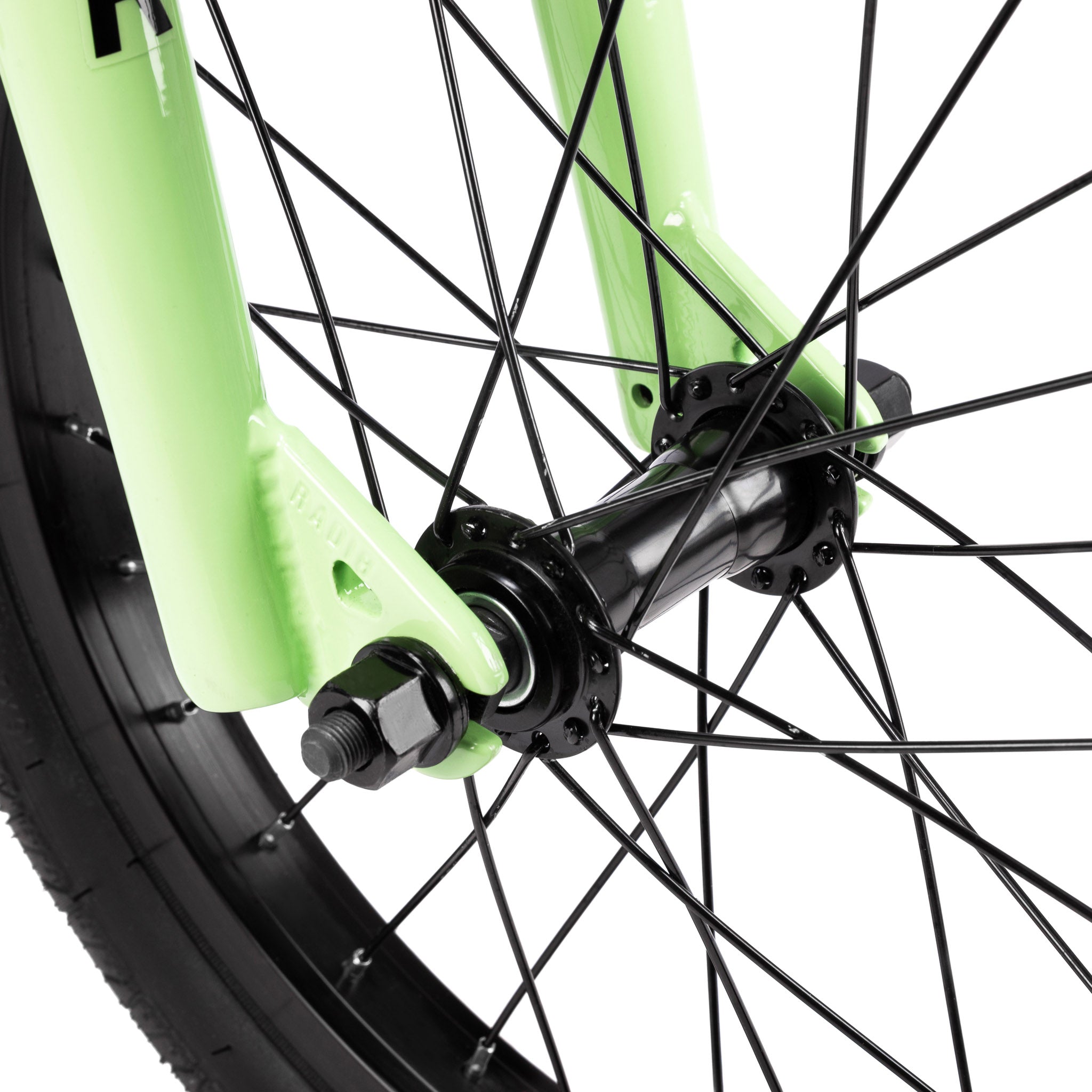

- FRONT HUB: RADIO “Rookie” steel hub, lb, 28h

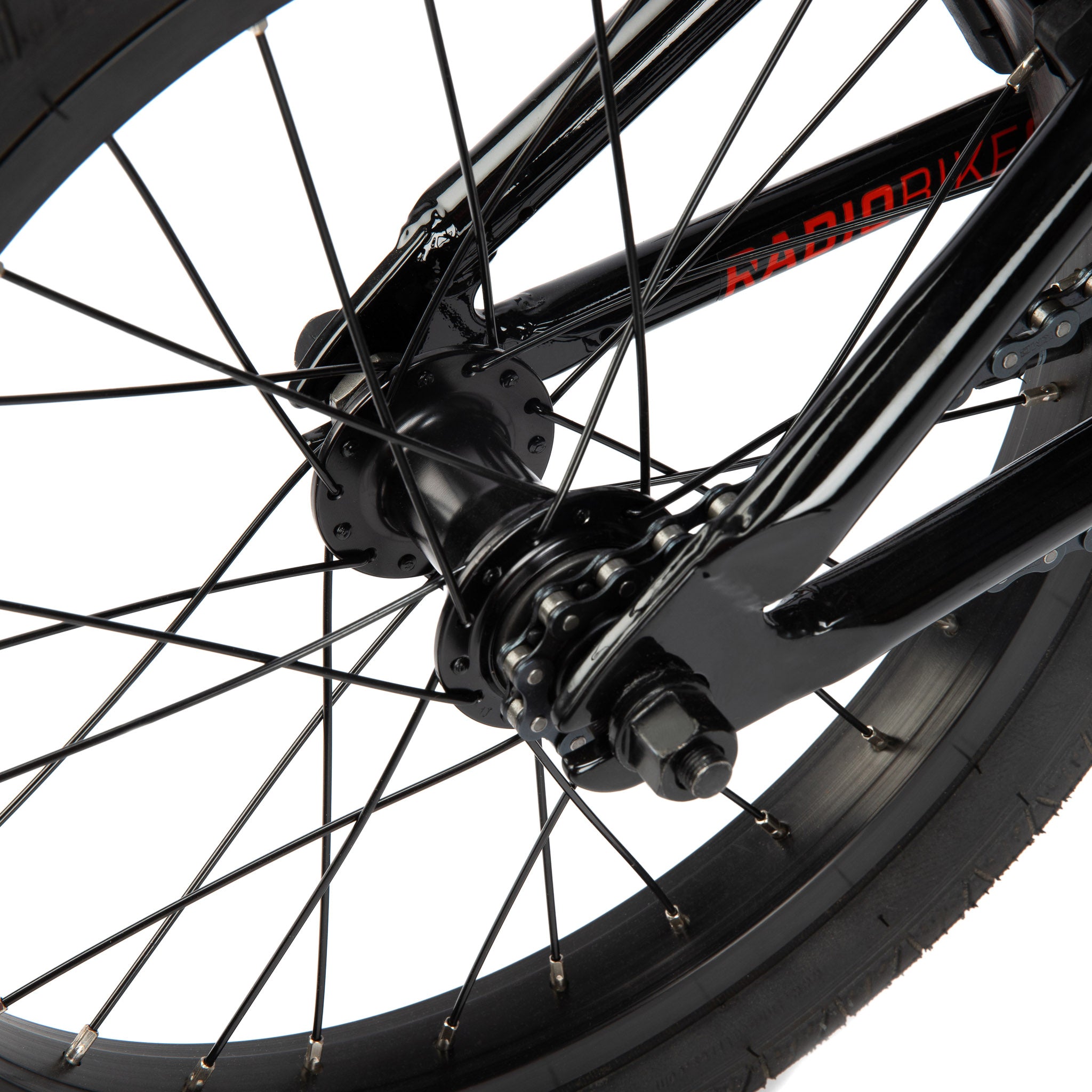

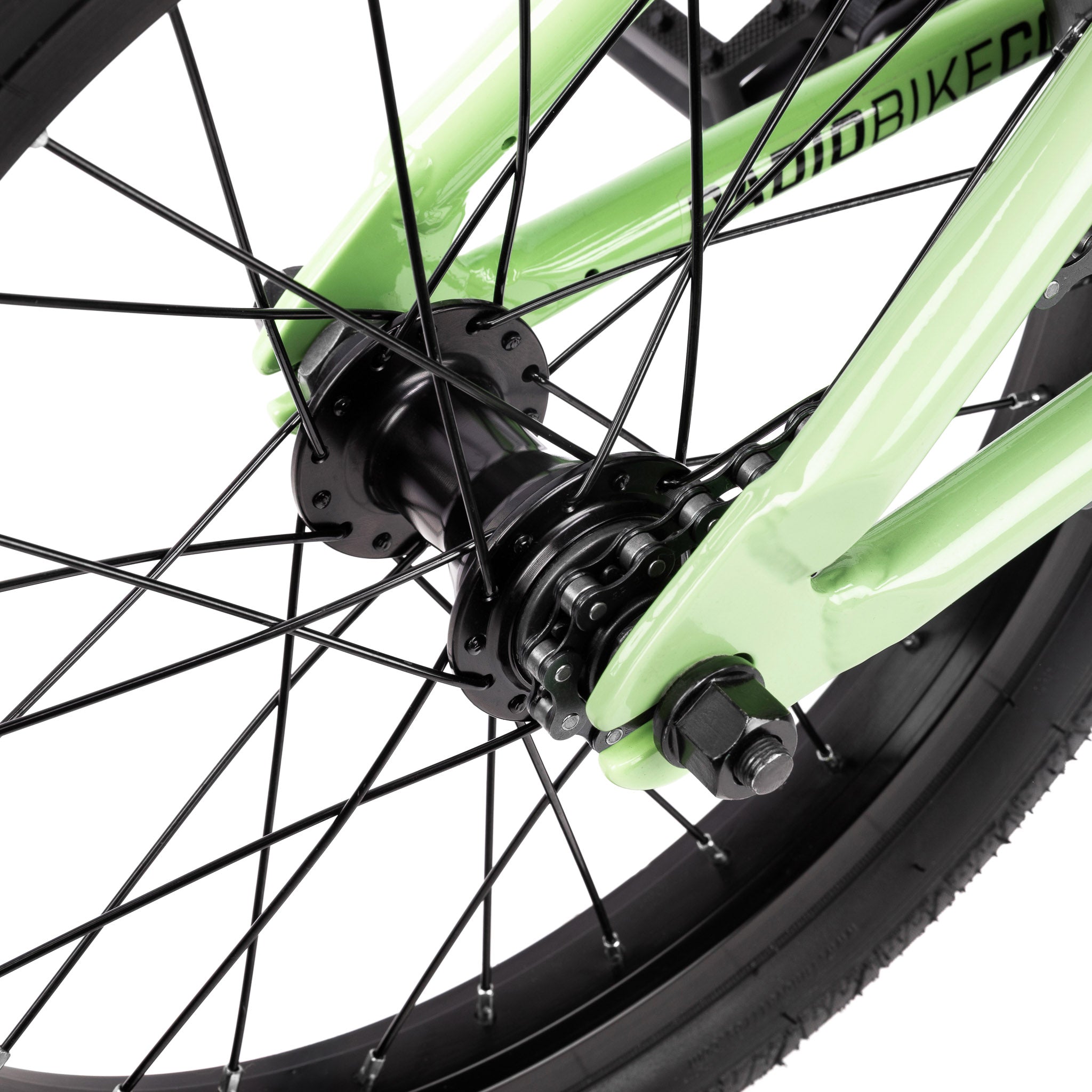

- REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9T, 3/8″ axle, 28h
- FRONT RIM: SALT “AM” rim, straight single wall, 28h
- REAR RIM: SALT “AM” rim, straight single wall, 28h

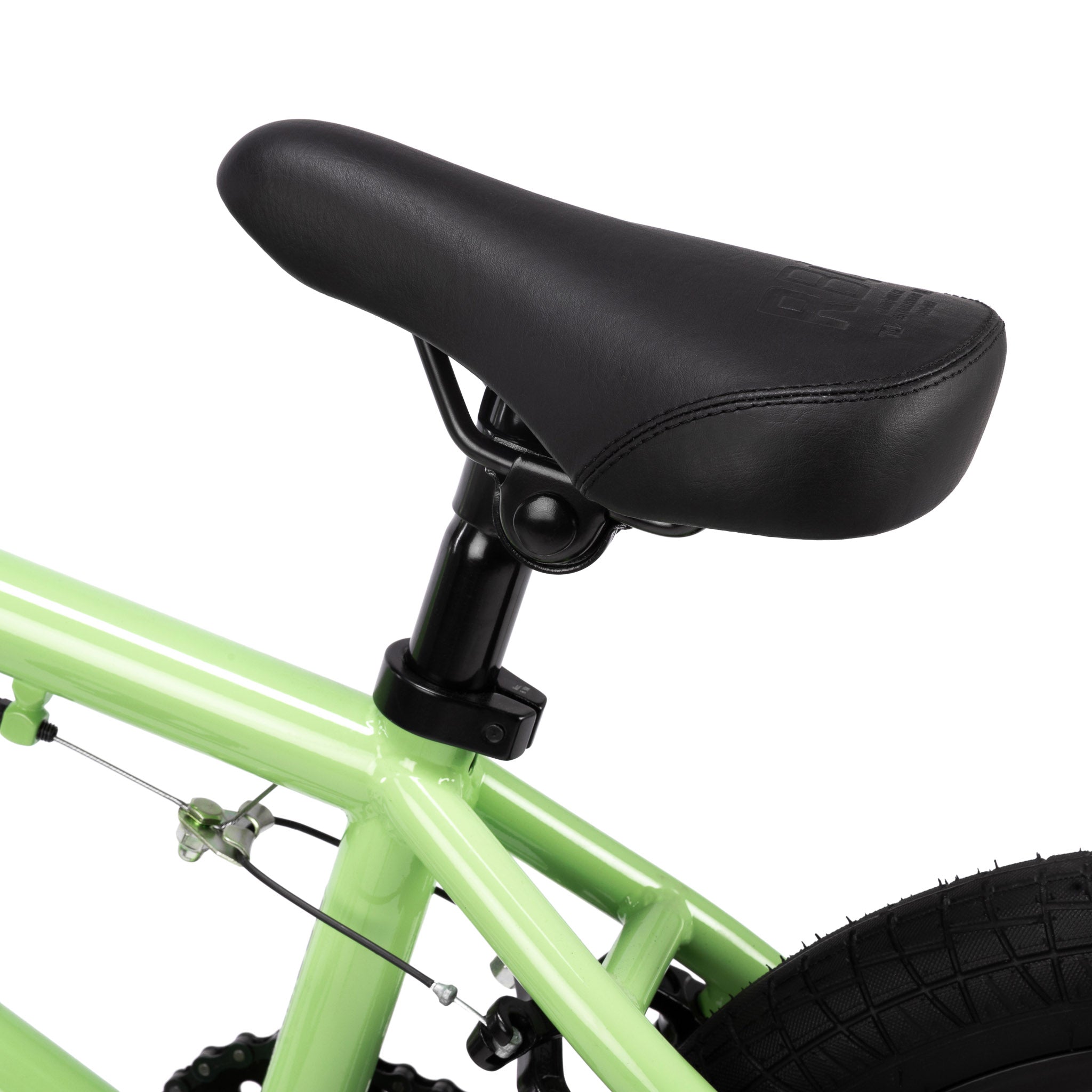

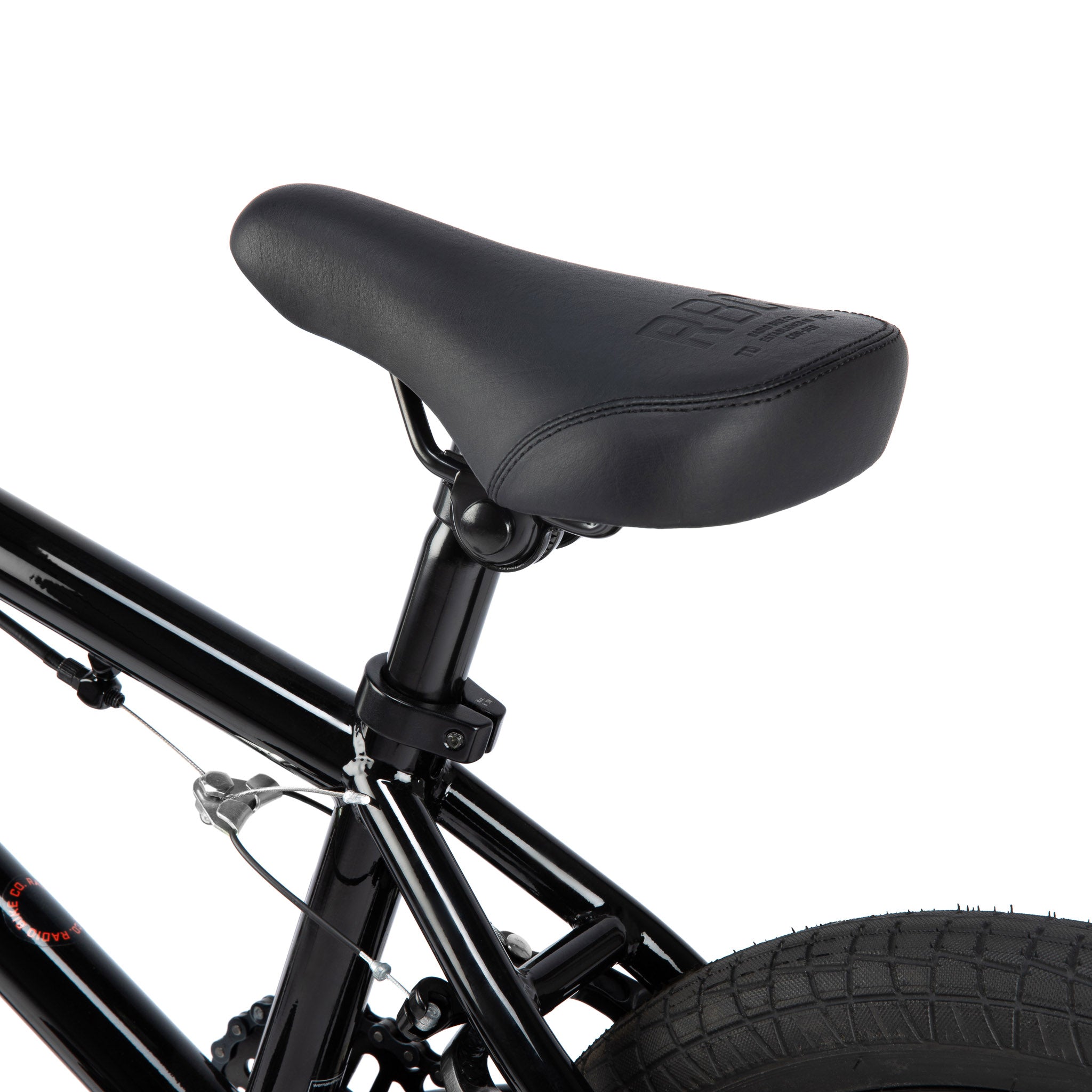

- SEAT: RADIO “Century” railed seat
- SEAT POST: RADIO ‘AM” alloy seatpost
- SEAT CLAMP: RADIO seat clamp, slim, alloy
- TIRES: RADIO “ROOKIE” tires, 16″x2.1″, front & rear

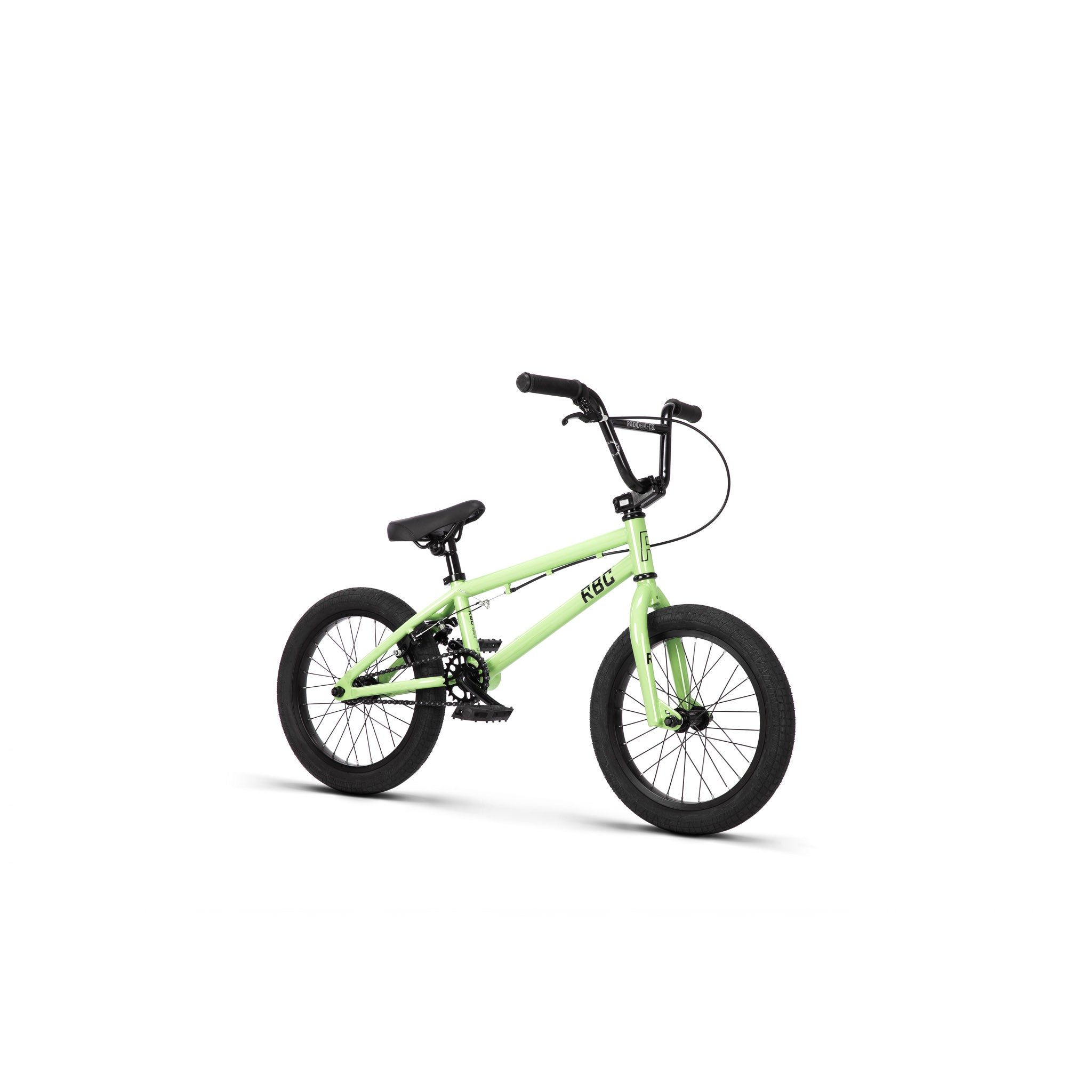

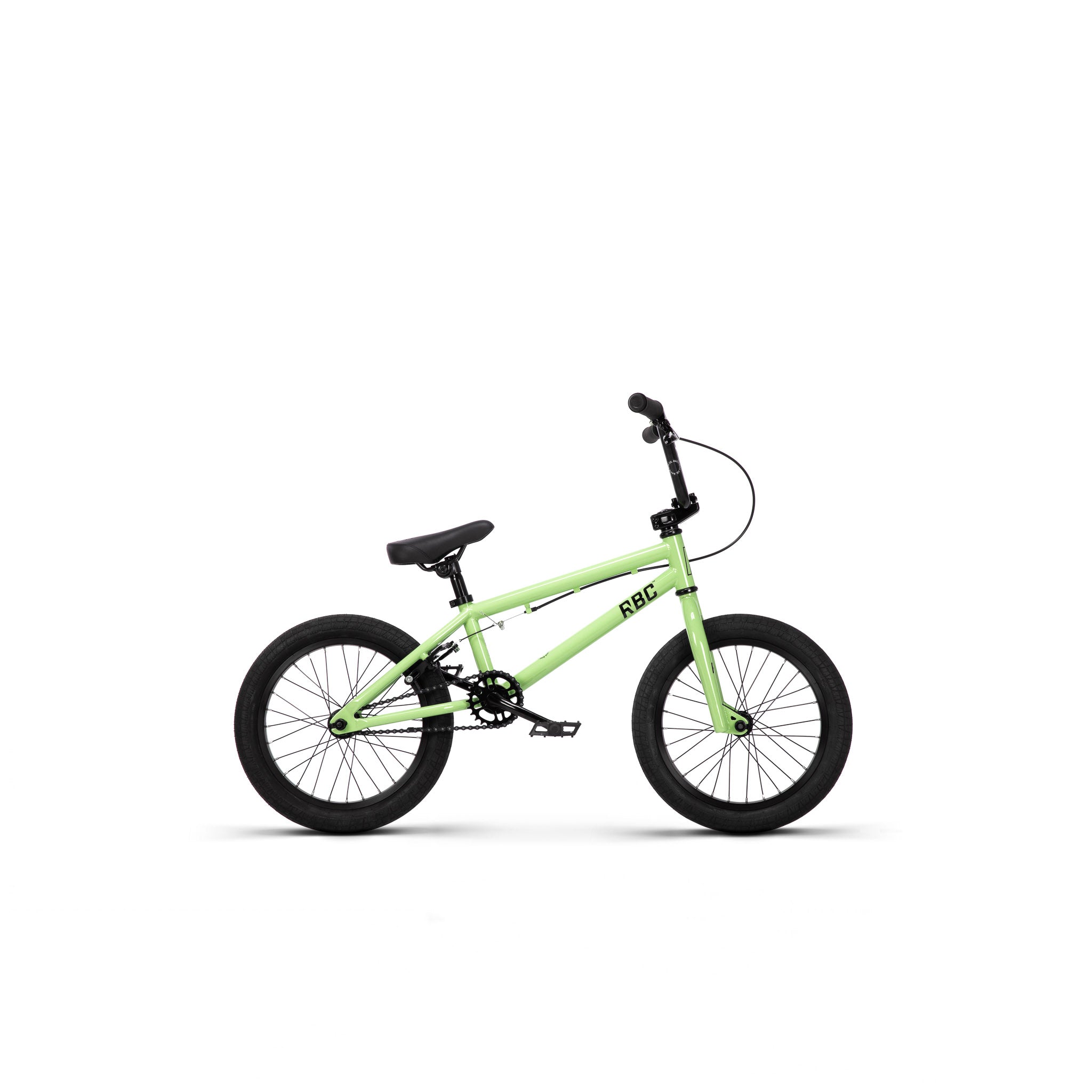

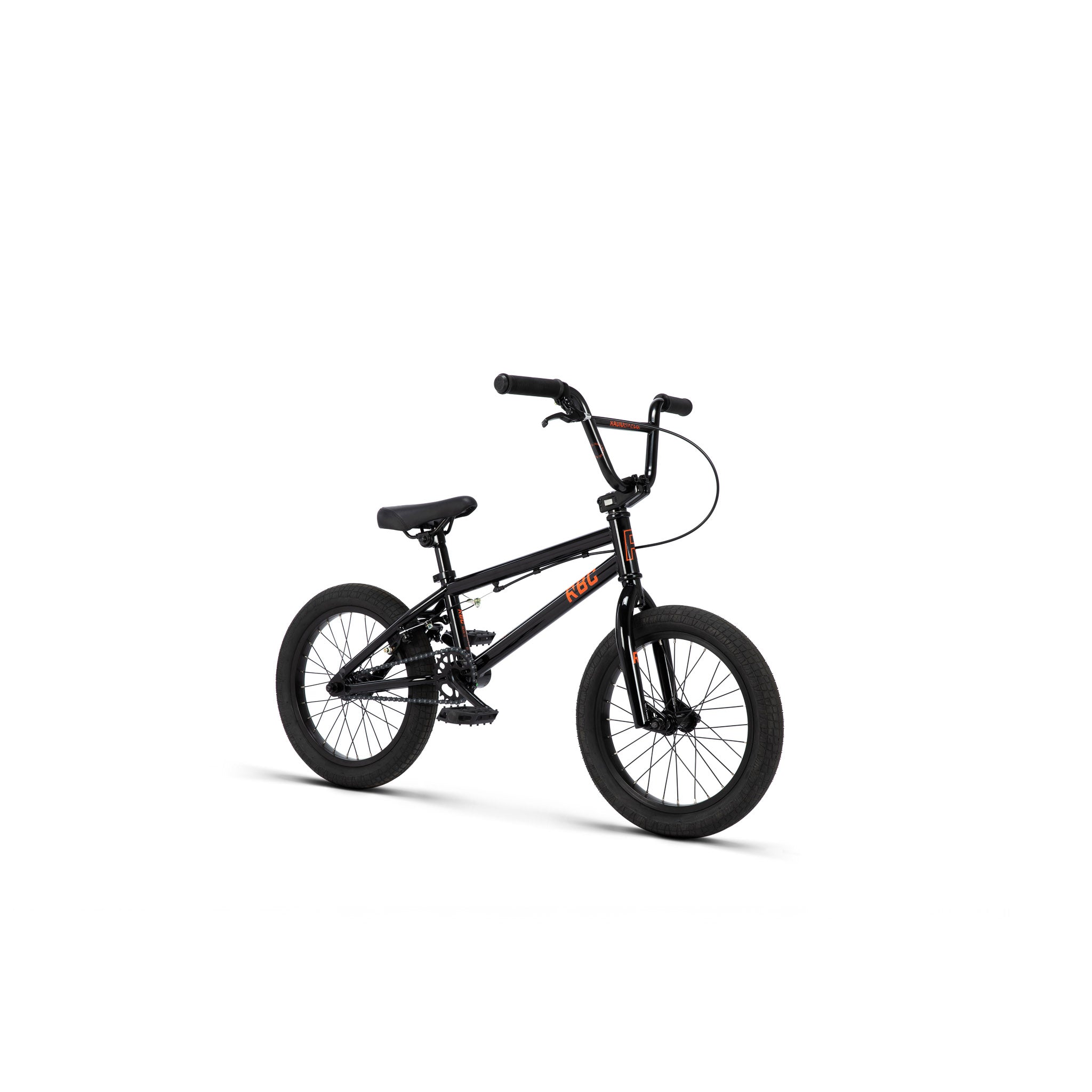

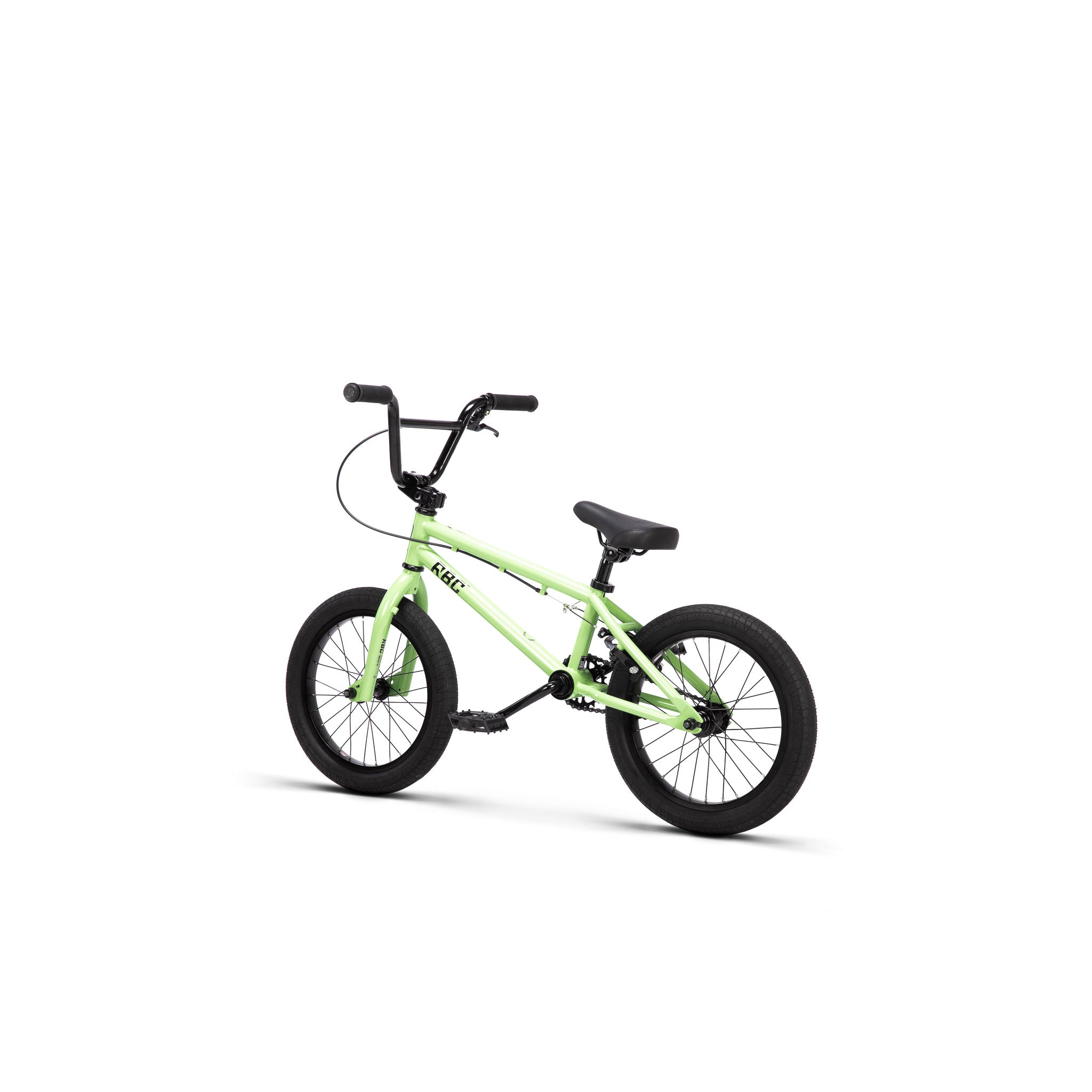

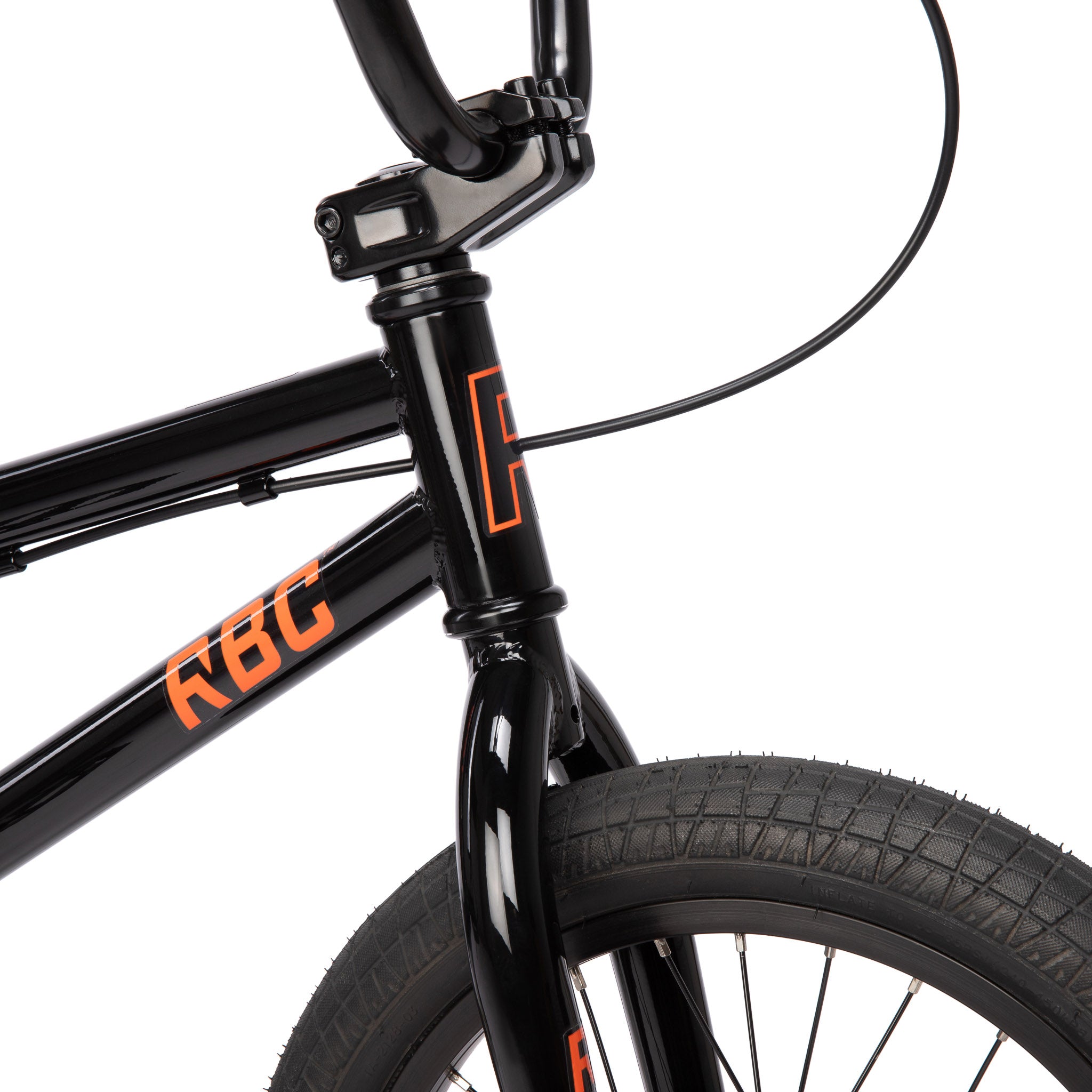

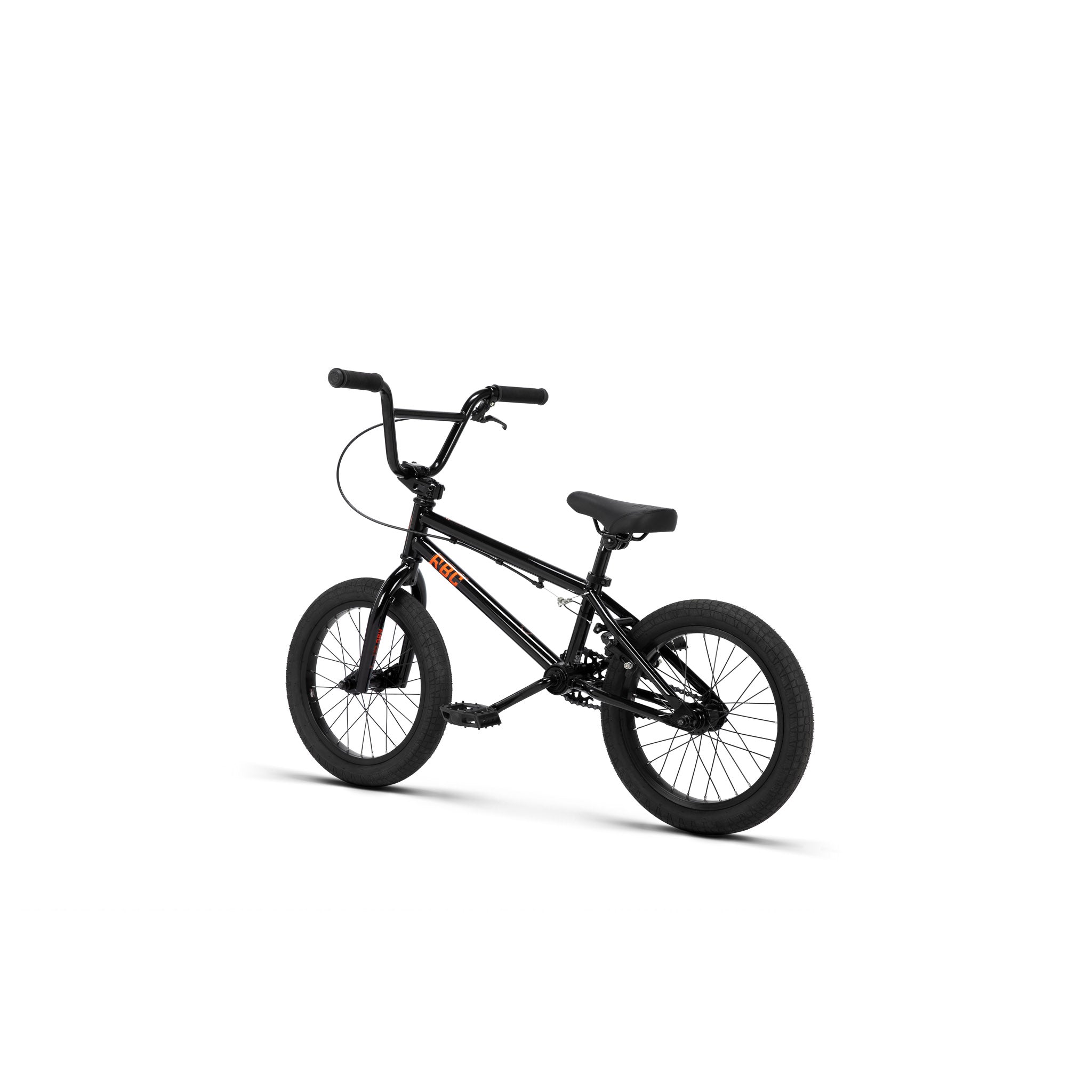

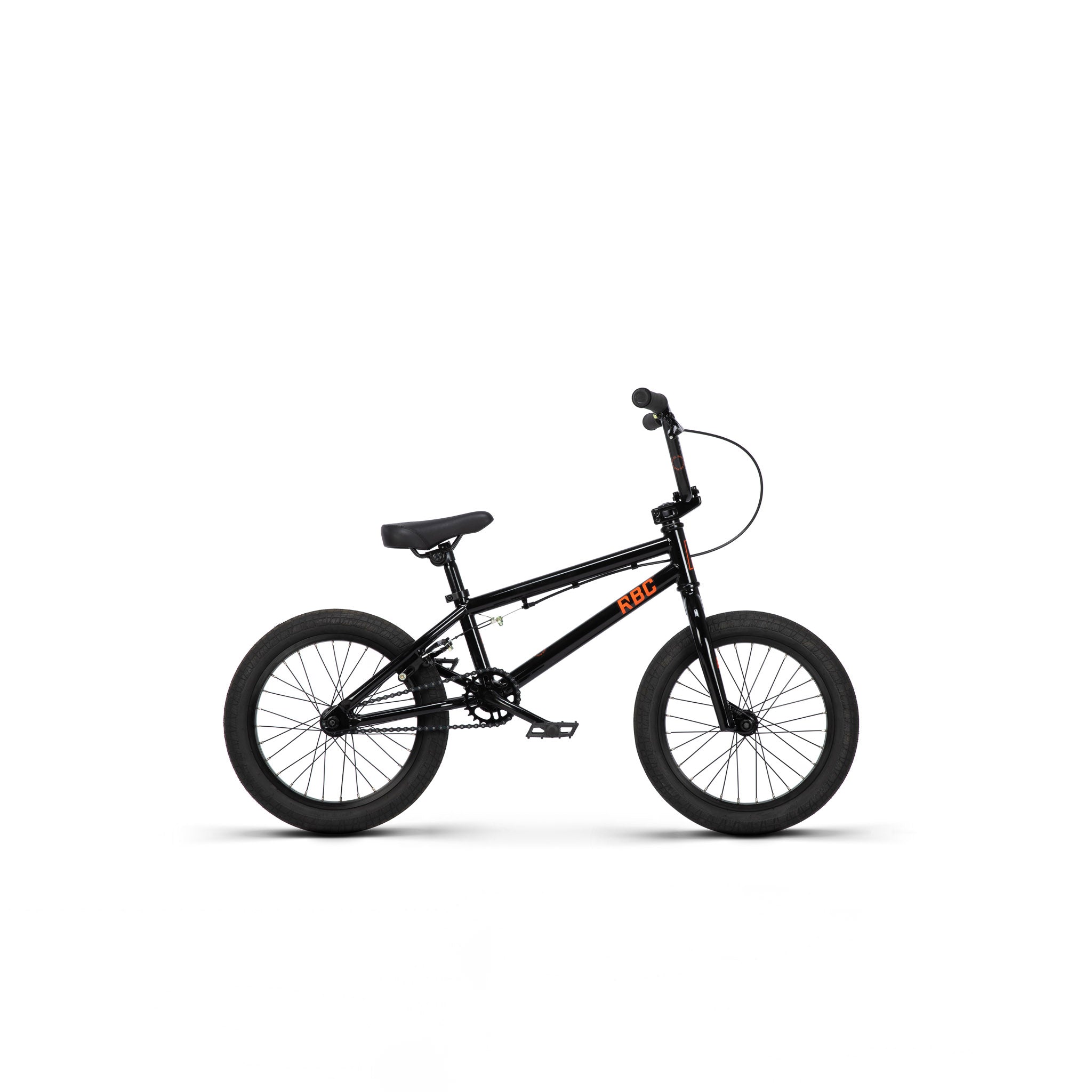

Revo 16" Complete Bike
Start your BMX journey the right way with the Revo line. Built to deliver an authentic freestyle riding experience, the Revo combines durability, performance, and incredible value in one complete package. Every component has been carefully selected to ensure the bike is ready to shred straight out of the box, easy to maintain, and upgradeable as your skills progress. Loaded with features like 25-9 gearing, tapered fork legs, and short, responsive pro-inspired geometry, the Revo is designed to help riders progress faster and have more fun doing it.
Built for young riders ready to push their limits, the Revo 16"" brings big-bike performance to a smaller package. Its responsive geometry, inspired by our Dice 16"", provides the confidence and handling needed for progression at the skatepark. Packed with premium touches like tapered fork blades and a lightweight aluminium seat post, the Revo 16"" delivers outstanding performance and value from the very first session.
Weight: 8.88kg / 19.58lbs
Frame Geometry:
| Top Tube Length | 16" |
| Chain Stay Length | 11.2" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 9.75" |
| Standover Height | 6.6" |
Handlebar Geometry:
| Rise | 6.8" |
| Width | 23.6" |
| Backsweep | 10° |
| Upsweep | 3° |
