The REVO line allows you to get your first taste of the BMX world on a solid and well-designed bike. We took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the REVO is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.

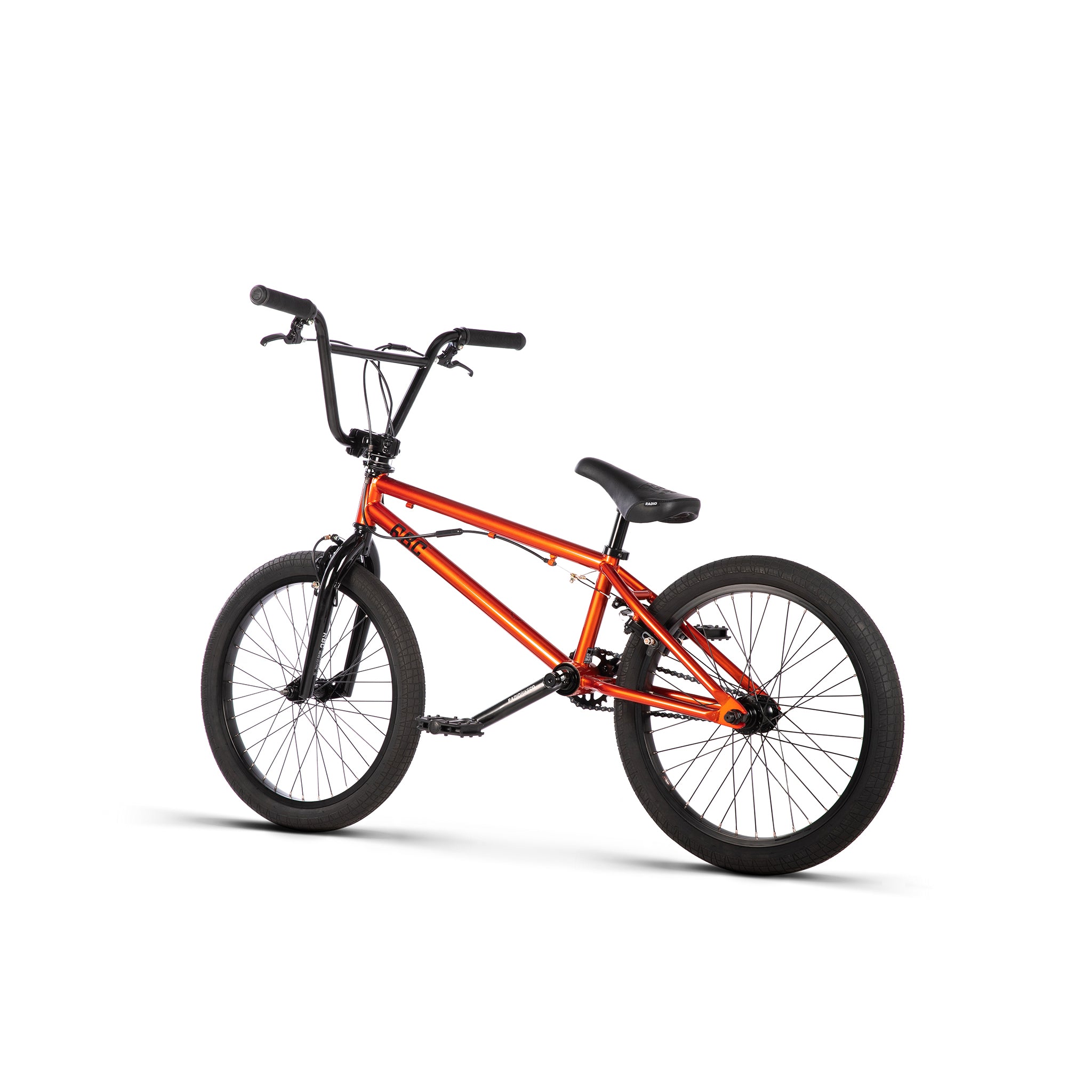

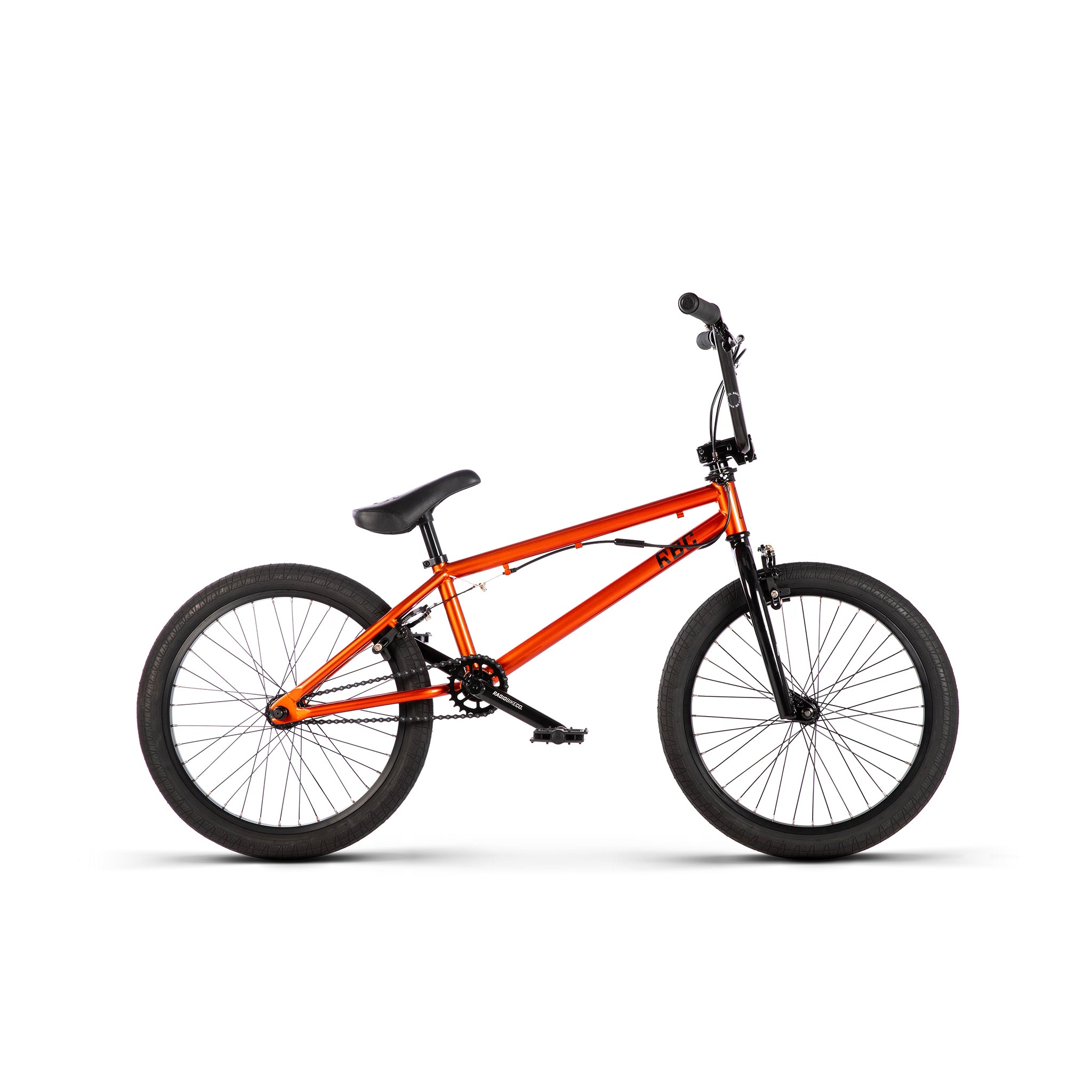

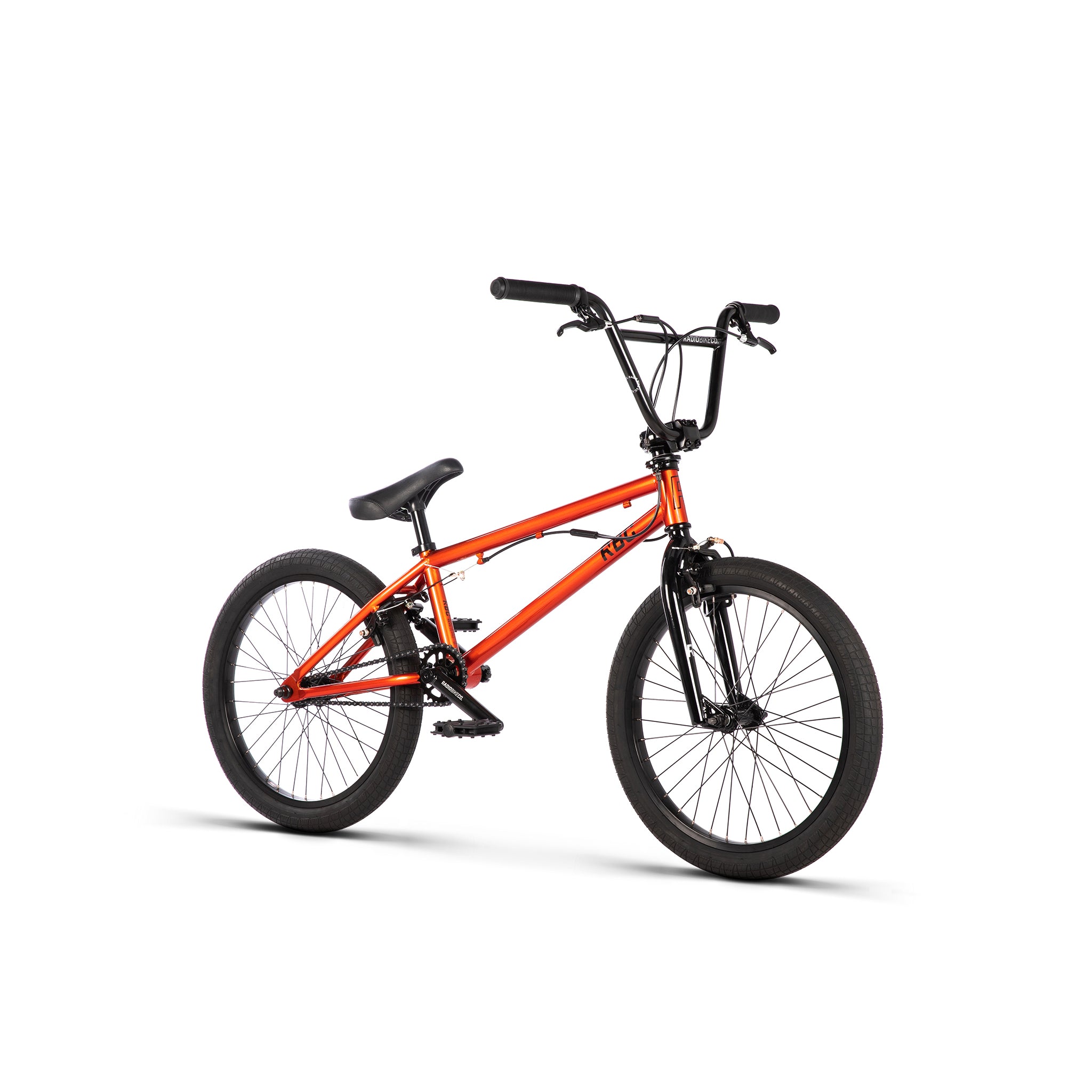

The Revo 20" PRO FS allows you to get your first taste of the BMX world on a solid and well-designed bike. Building on the Revo PRO 20”, this FS (Freestyle) version adds a front u-brake and rotor upgrade allowing this bike to provide everything you could need to get rad plus much, much more…

FRAME: RADIO "REVO PRO FS 20" frame, full 1020 hi-ten

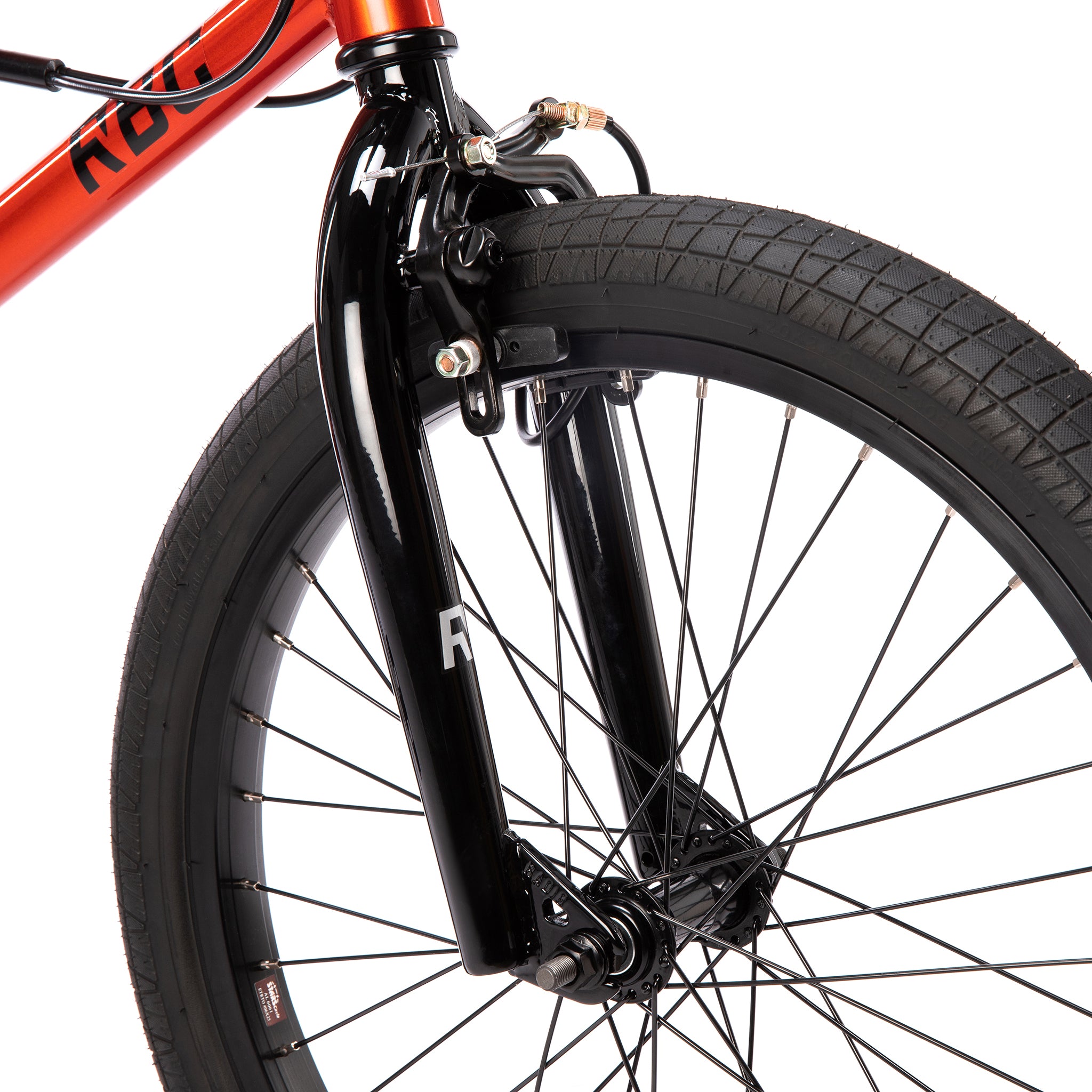

FORK: RADIO "AM 20" fork, 1020 hi-ten, crmo steerer, welded pivots

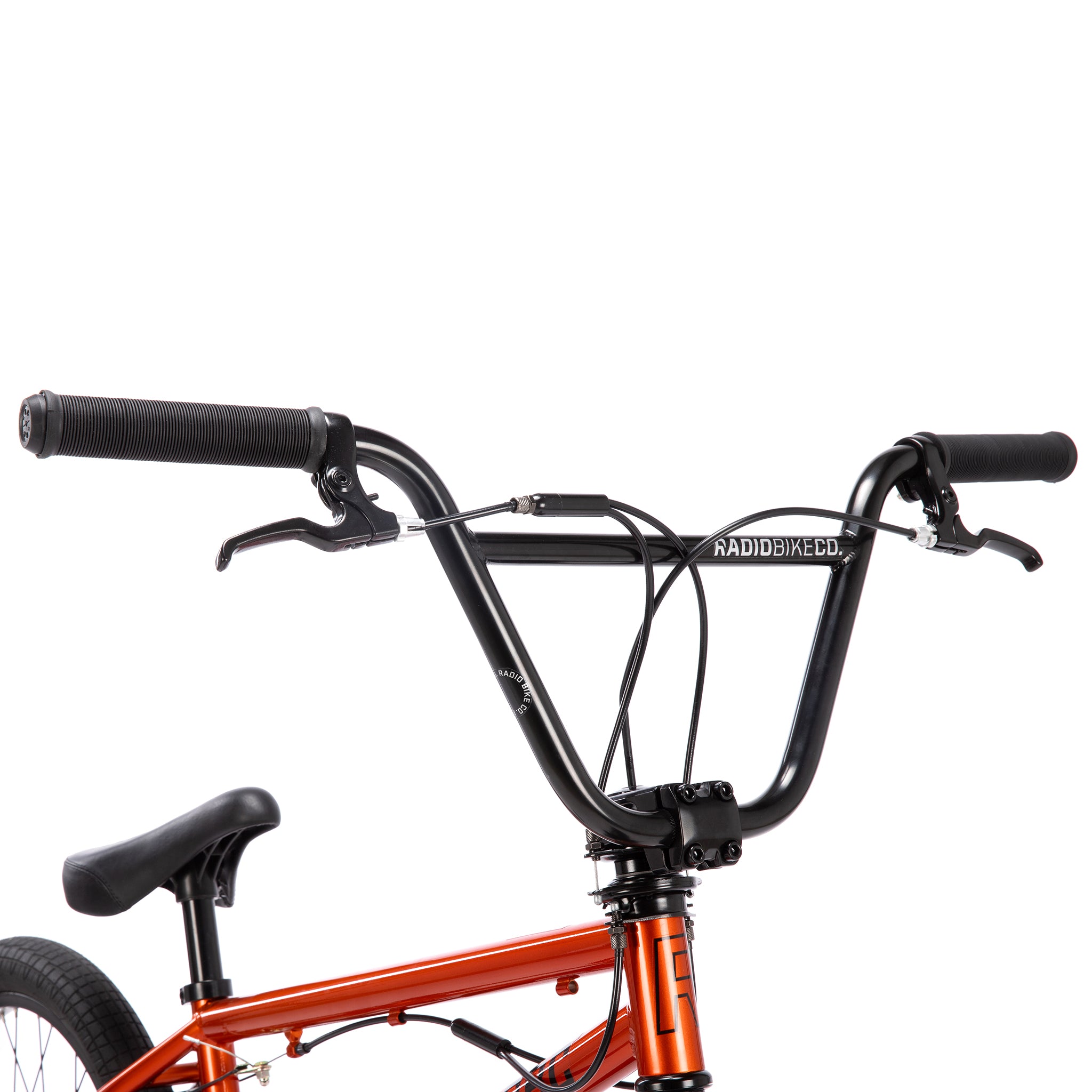

BARS: RADIO "REVO PRO FS 20" bar, hi-ten

GRIPS: RADIO “AM” grips, flangeless, 150mm

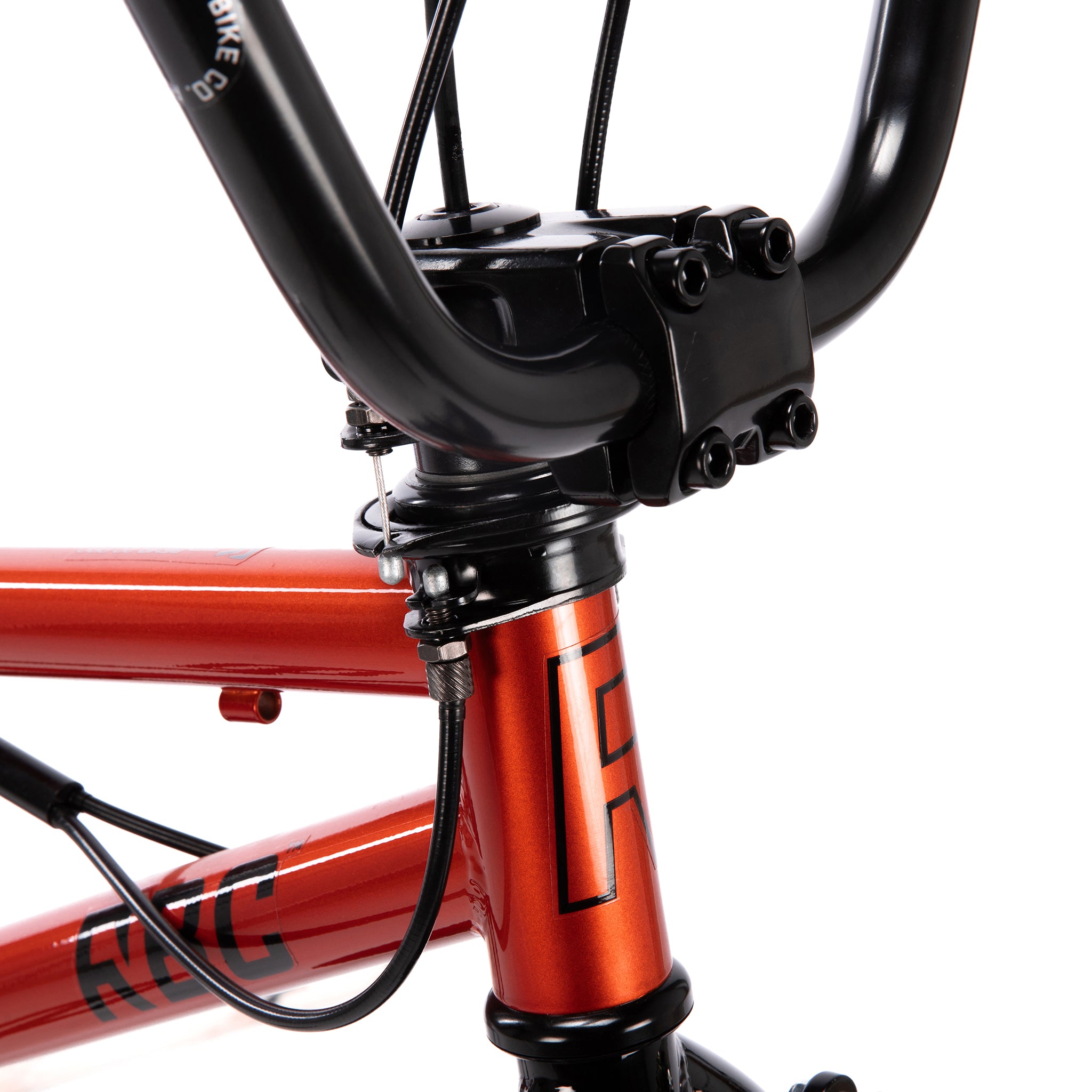

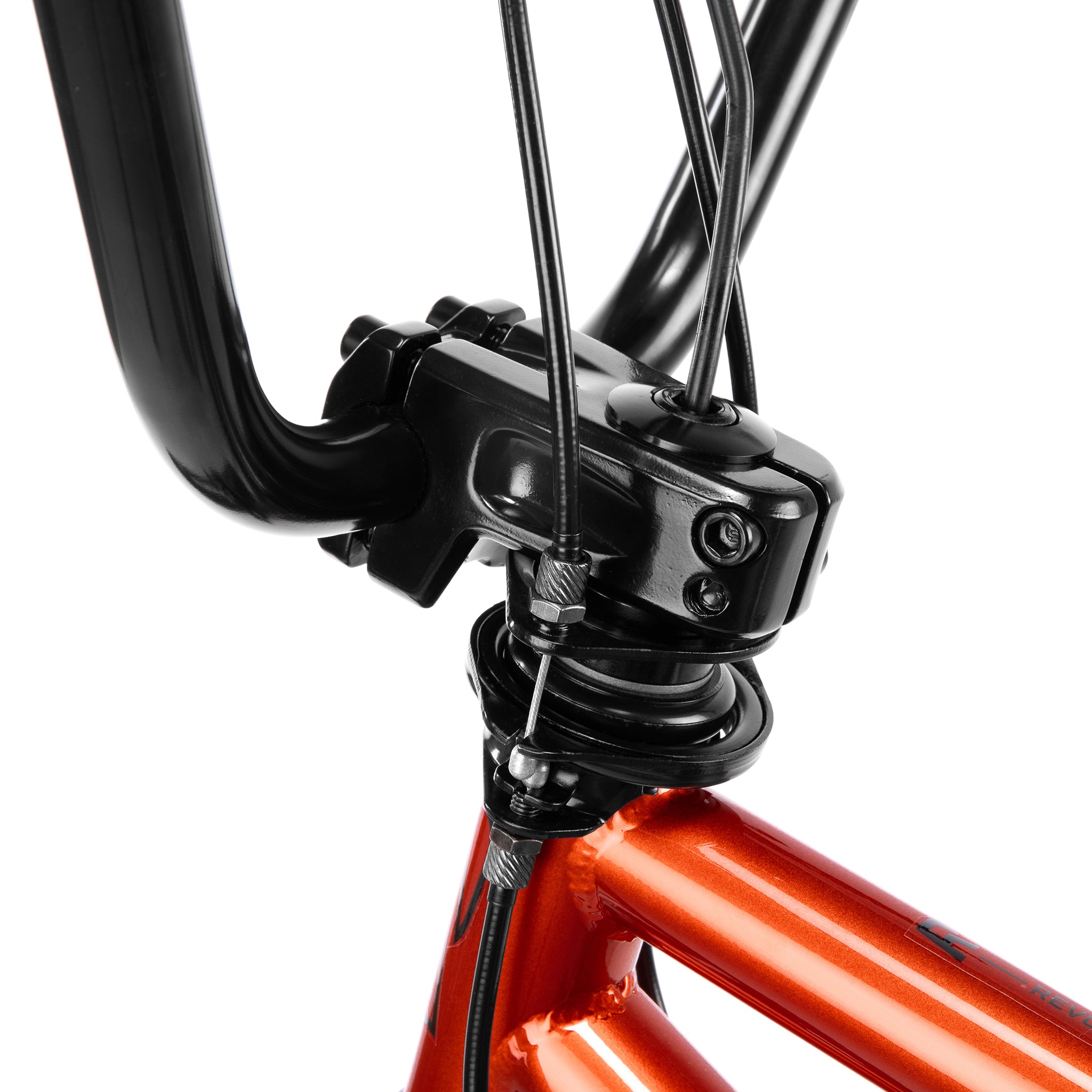

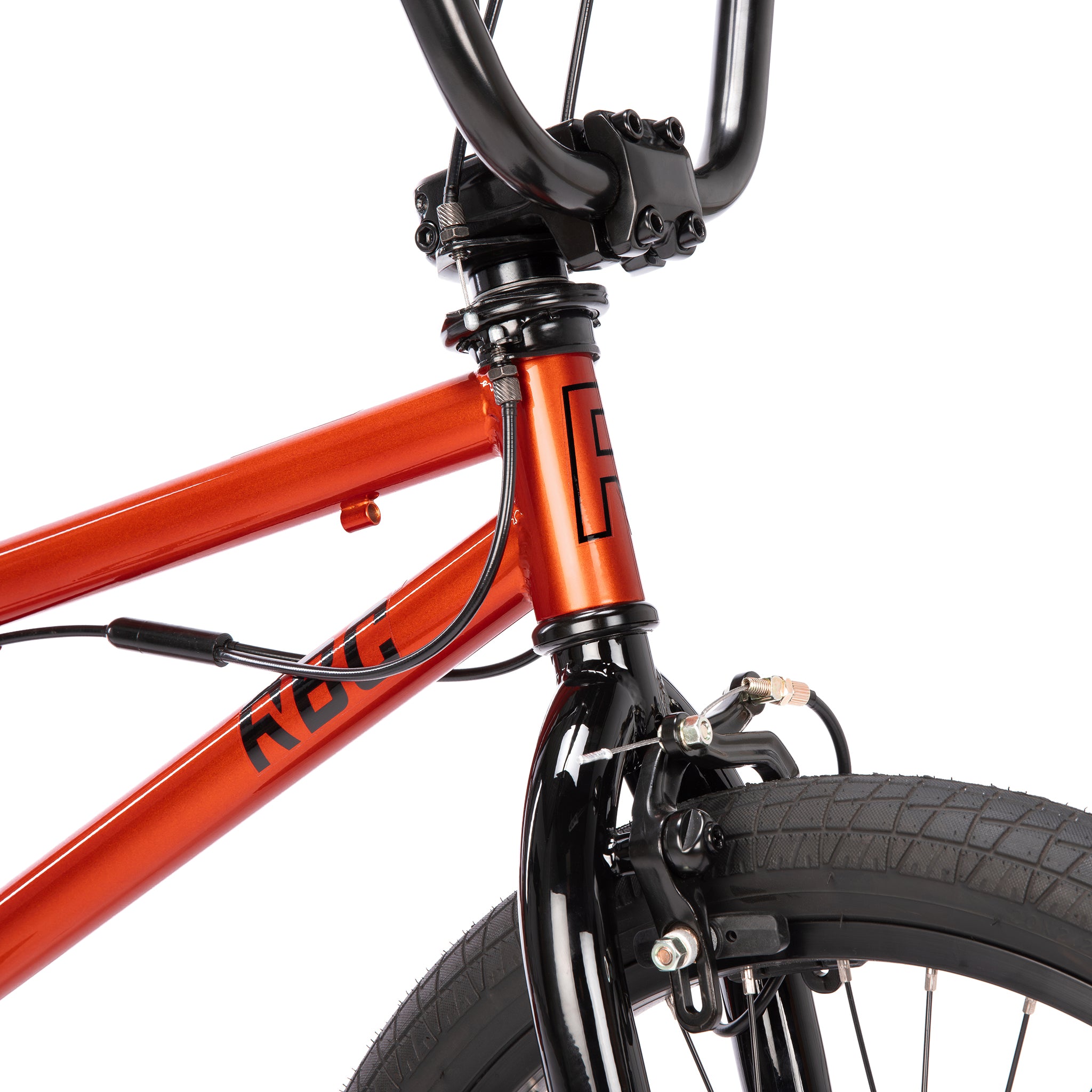

STEM: SALT “AM” frontload stem, 48mm reach

HEADSET: FSA A-headset, loose ball

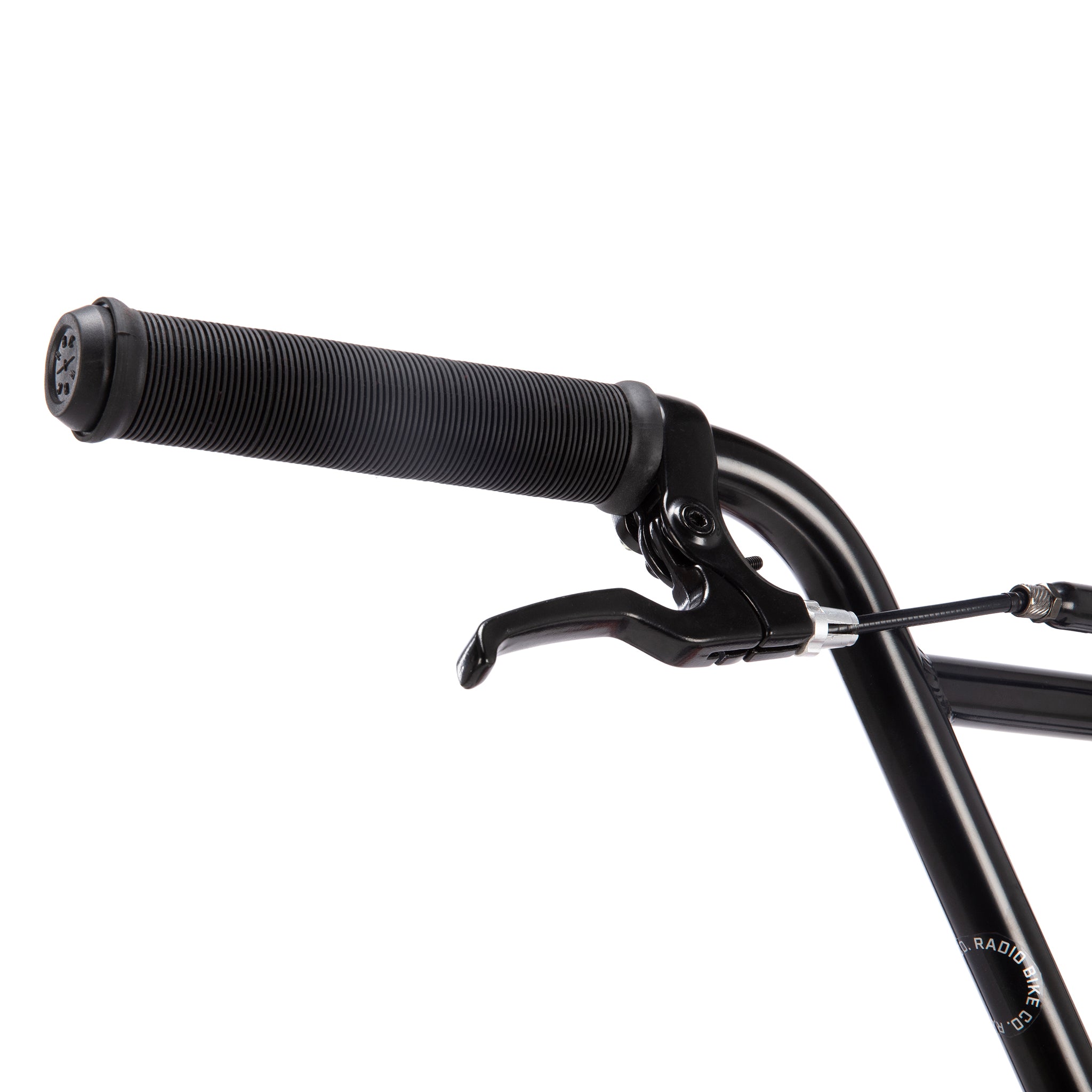

LEVER: RADIO “AM” brake lever, alloy, front & rear

BRAKES: RADIO "AM"u-brakes, alloy, front & rear

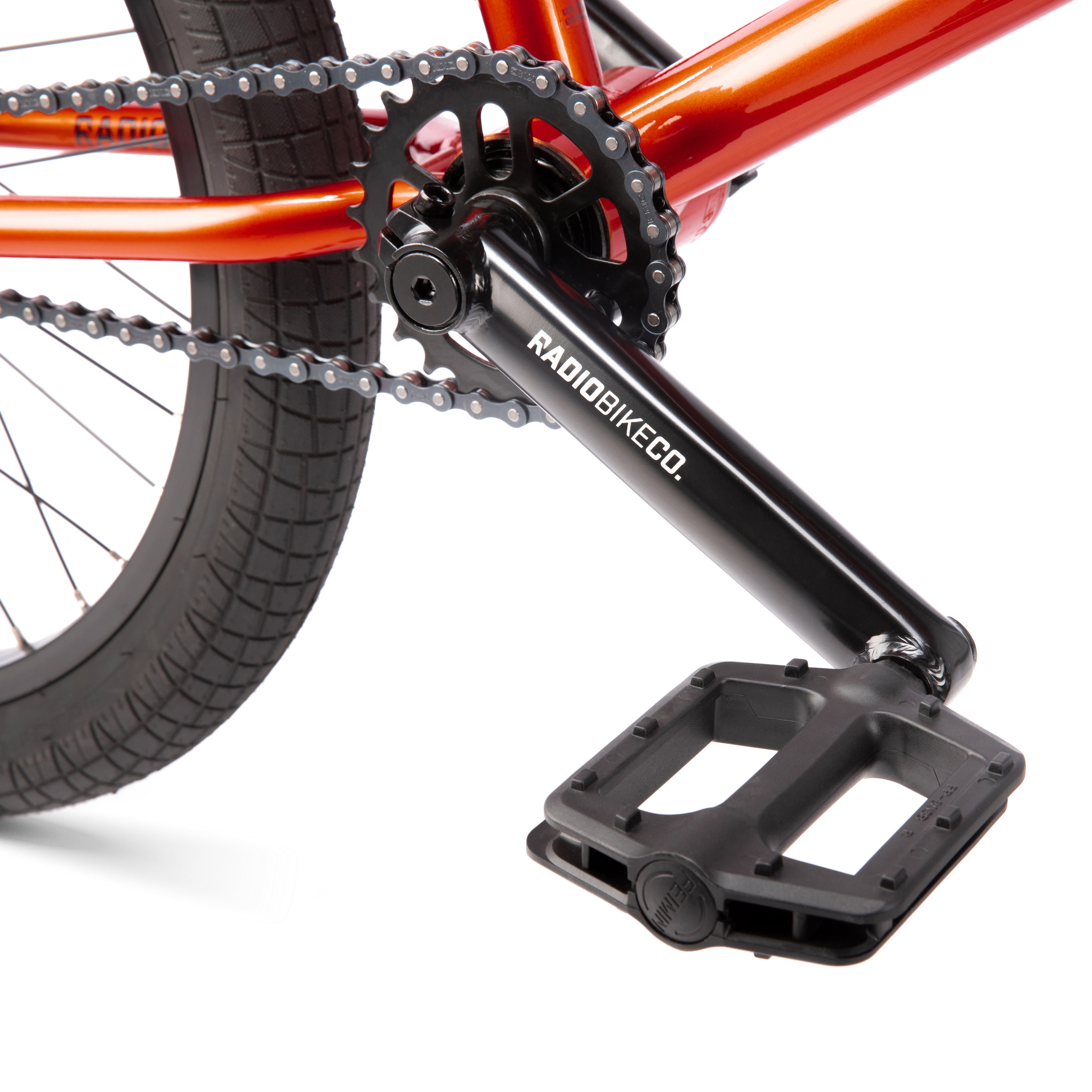

CRANKS: RADIO “ROOKIE” 3pc crank, forged, crmo, 170mm

BB: RADIO "US" bb set, loose ball

PEDALS: RADIO “ROOKIE” pedals, nylon

CHAIN: KMC "S1" chain

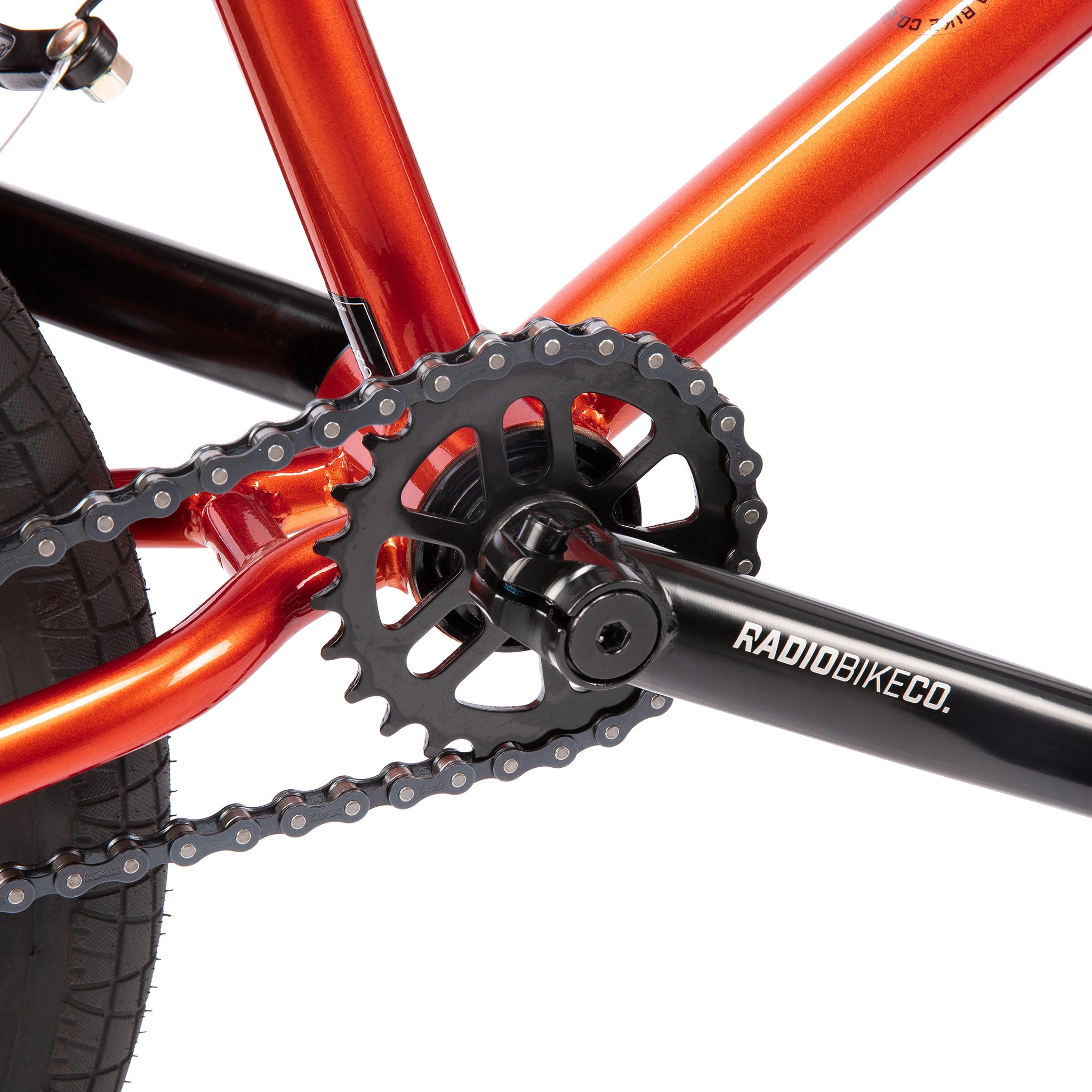

SPROCKET: RADIO "ROOKIE" sprocket, steel, 25t

DRIVER: cassette driver, 9t

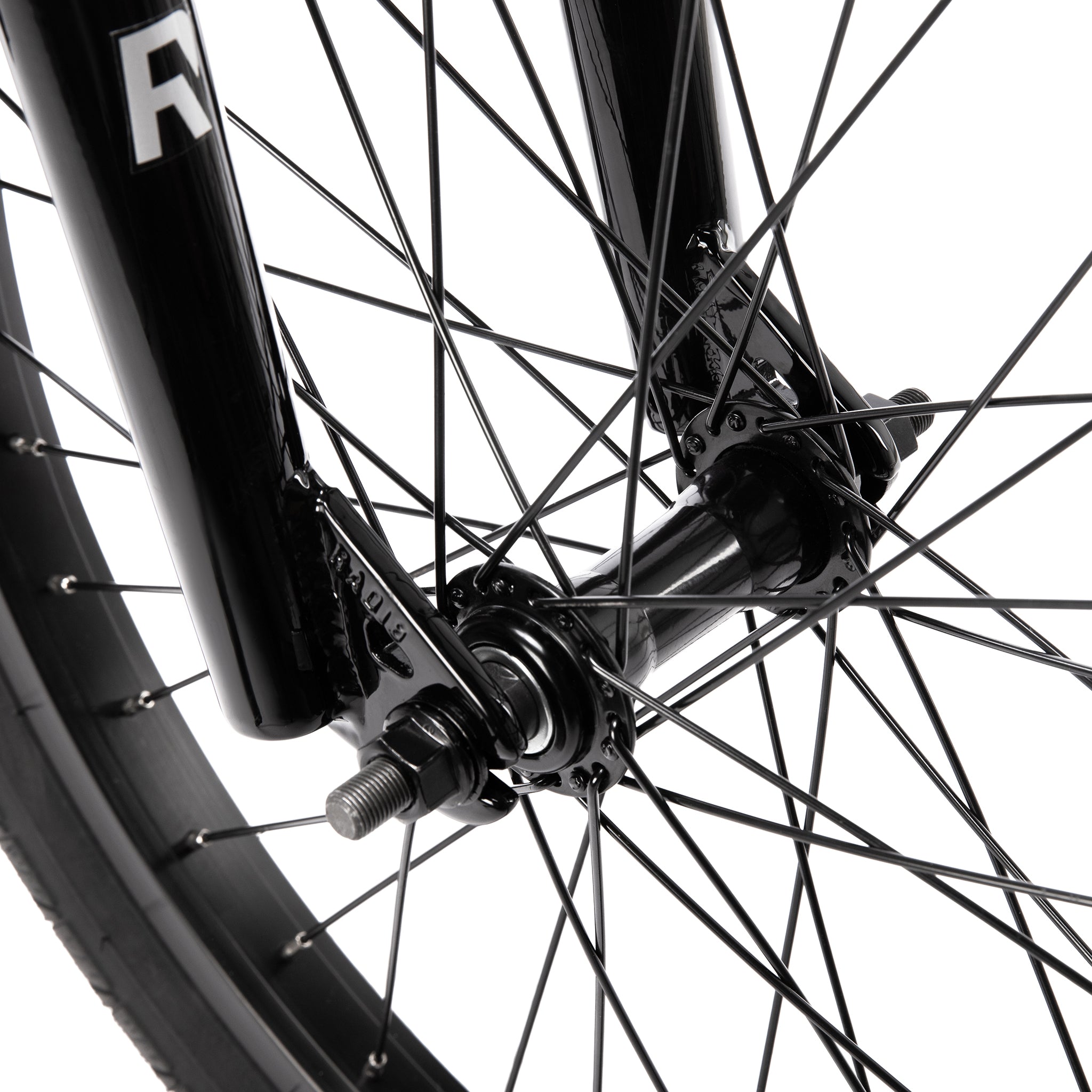

FRONT HUB: RADIO "ROOKIE" hub, steel, lb, 3/8"s, 36h

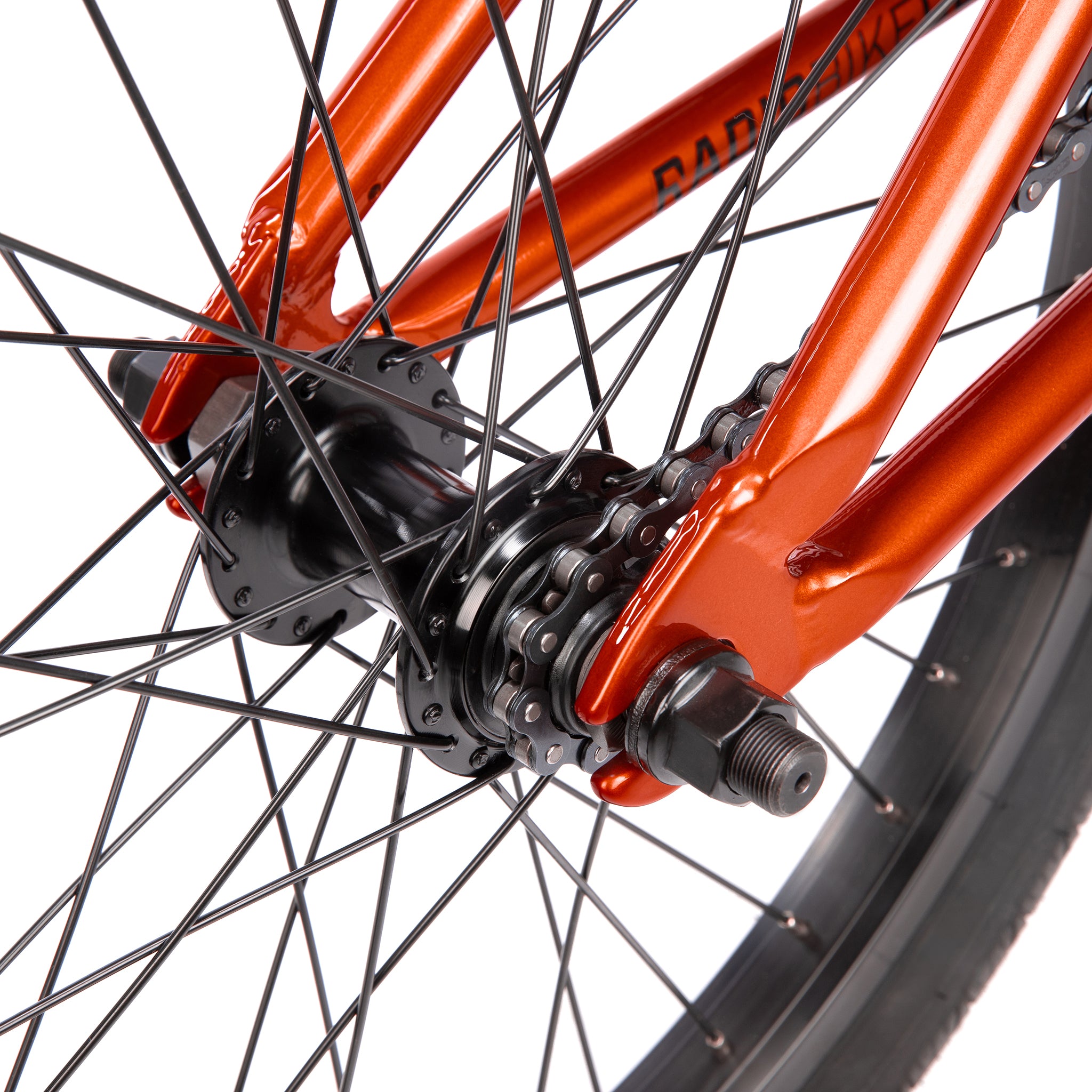

REAR HUB: RADIO "ROOKIE" cassette hub, steel, lb, 9T, 14mm axle, 36h

RIM: SALT “AM” rim, straight single wall, 36h

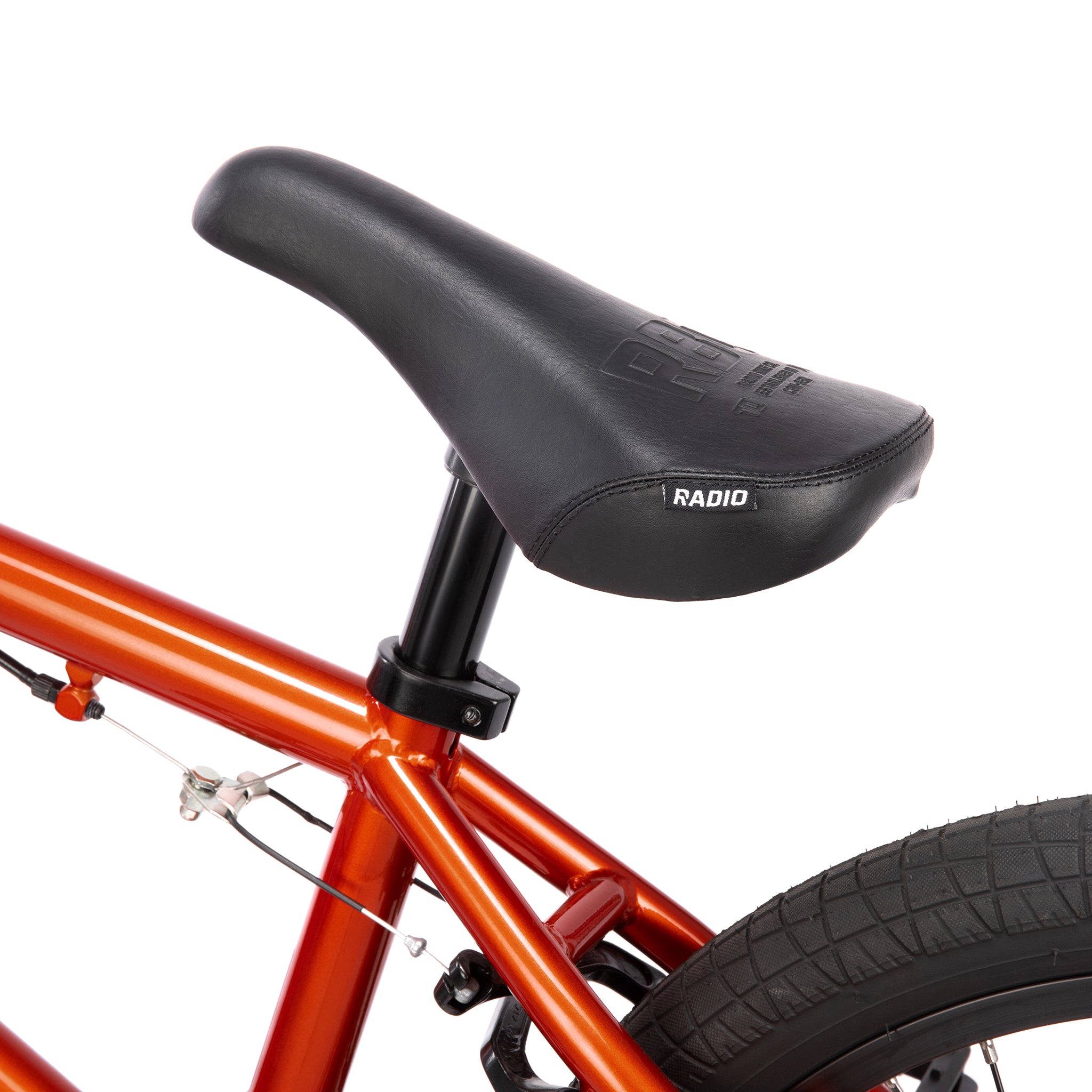

SEAT: RADIO "CENTURY" combo seat, slim padded

SEAT POST: -

SEAT CLAMP: RADIO seat clamp, slim, alloy

TIRES: RADIO "ROOKIE" tires, 20"x2.2", front & rear

TOP TUBE LENGTH: 20"

CHAIN STAY LENGTH: 13"

BOTTOM BRACKET HEIGHT: 11.75"

HEAD TUBE ANGLE: 75°

SEAT TUBE ANGLE: 71.5°

BAR RISE: 8.75"

BAR WIDTH: 29"

BACKSWEEP: 11°

UPSWEEP: 2°

WEIGHT: 13.04kg / 28.74lbs
