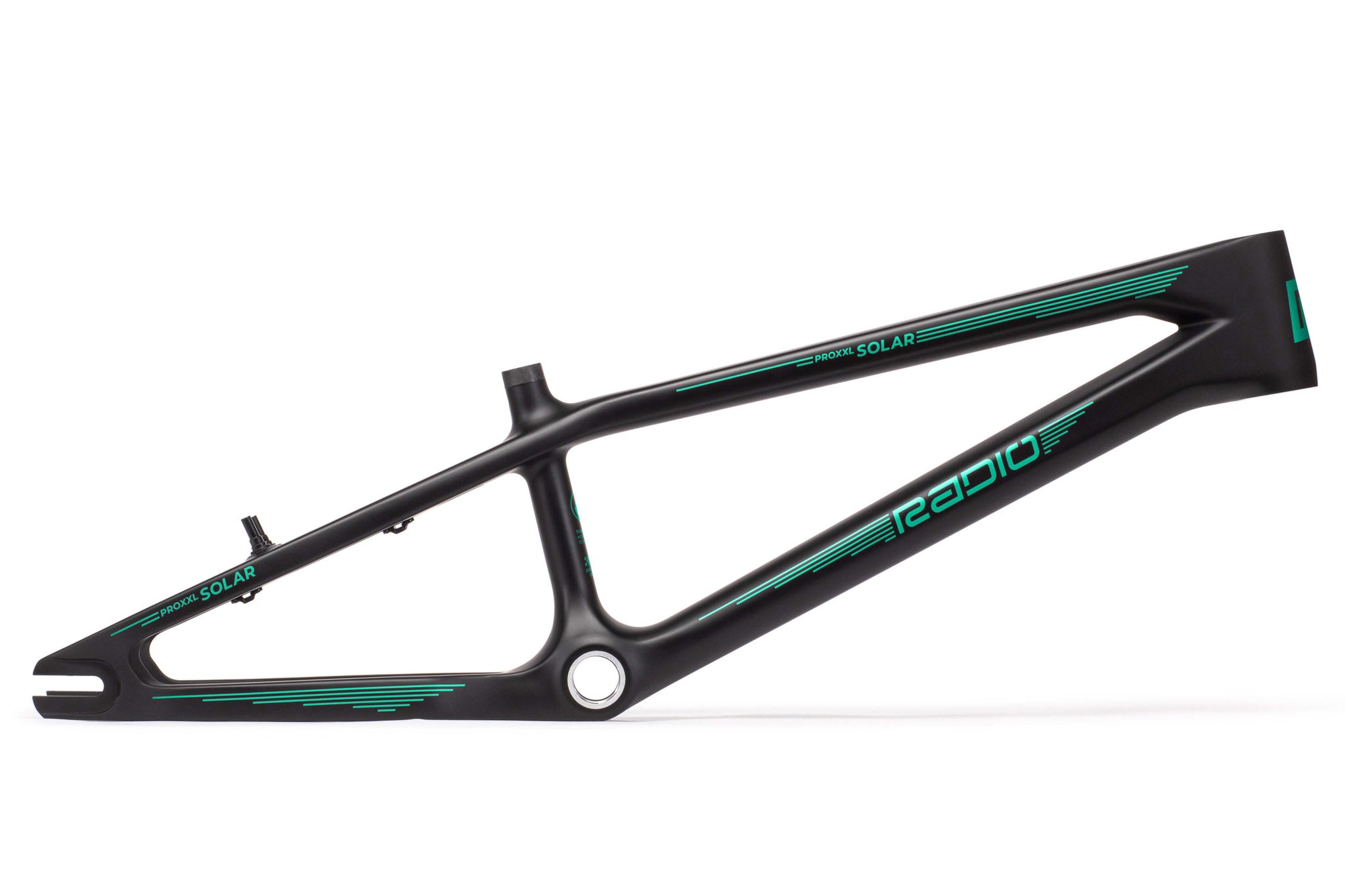

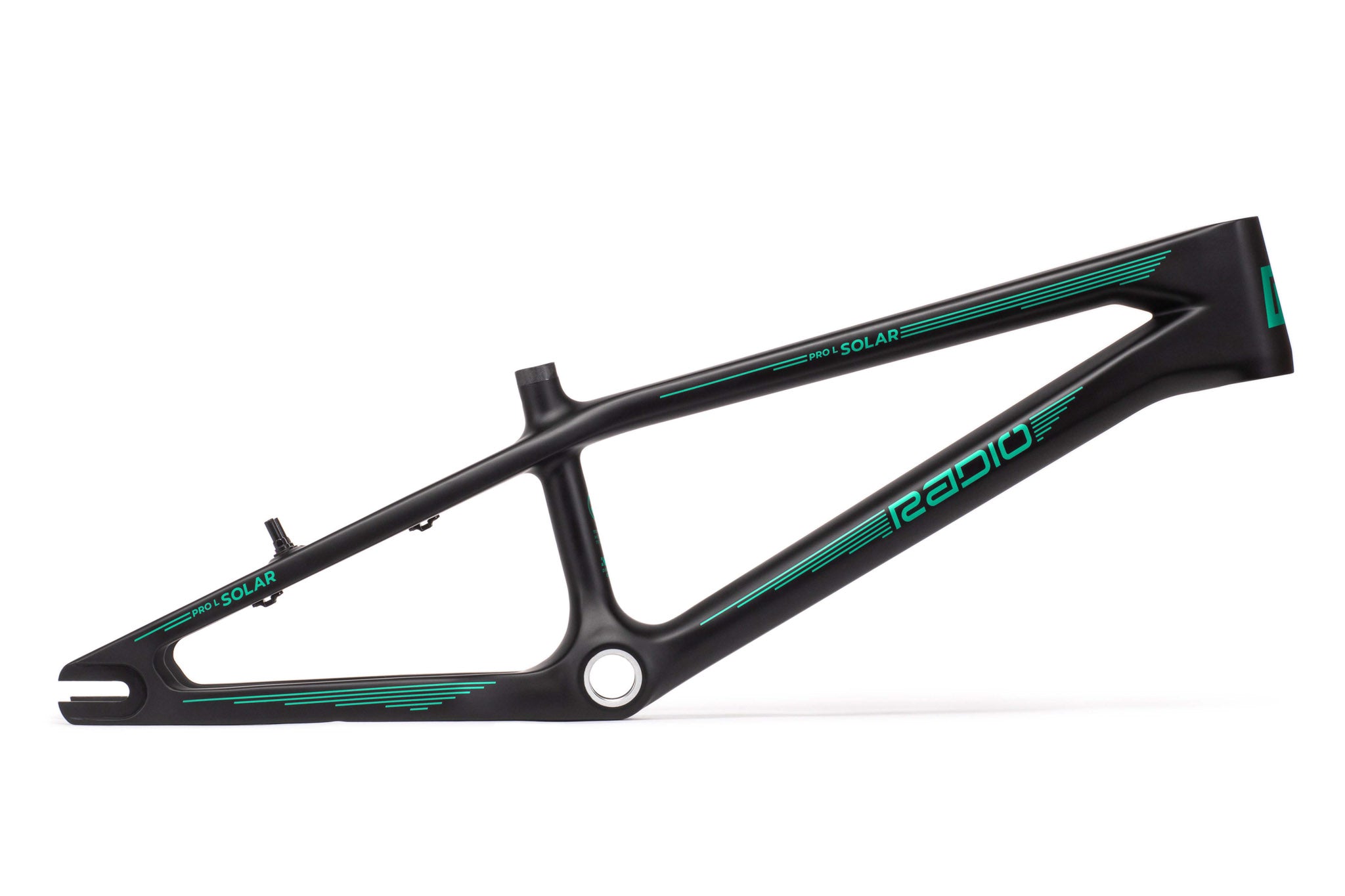

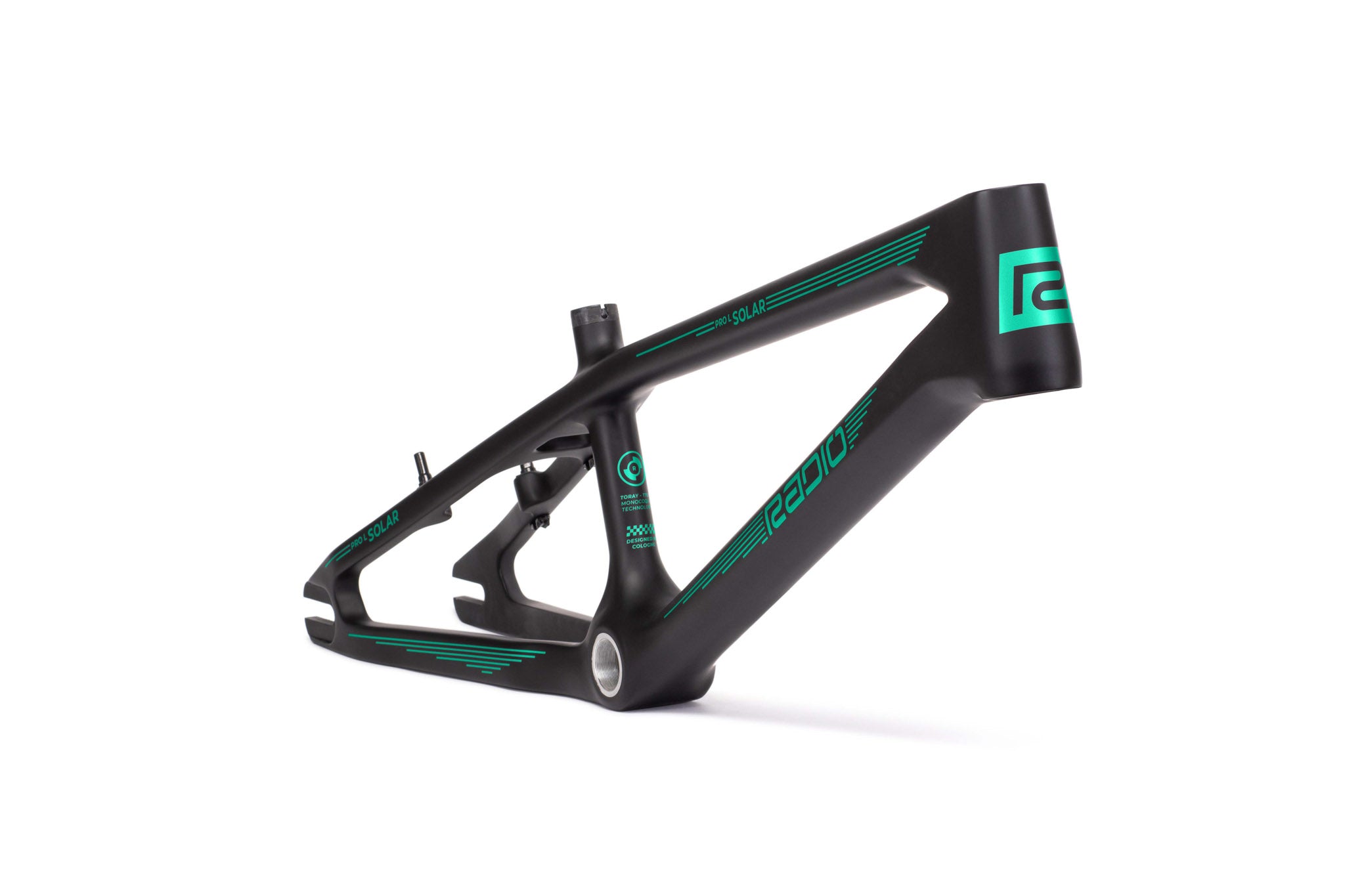

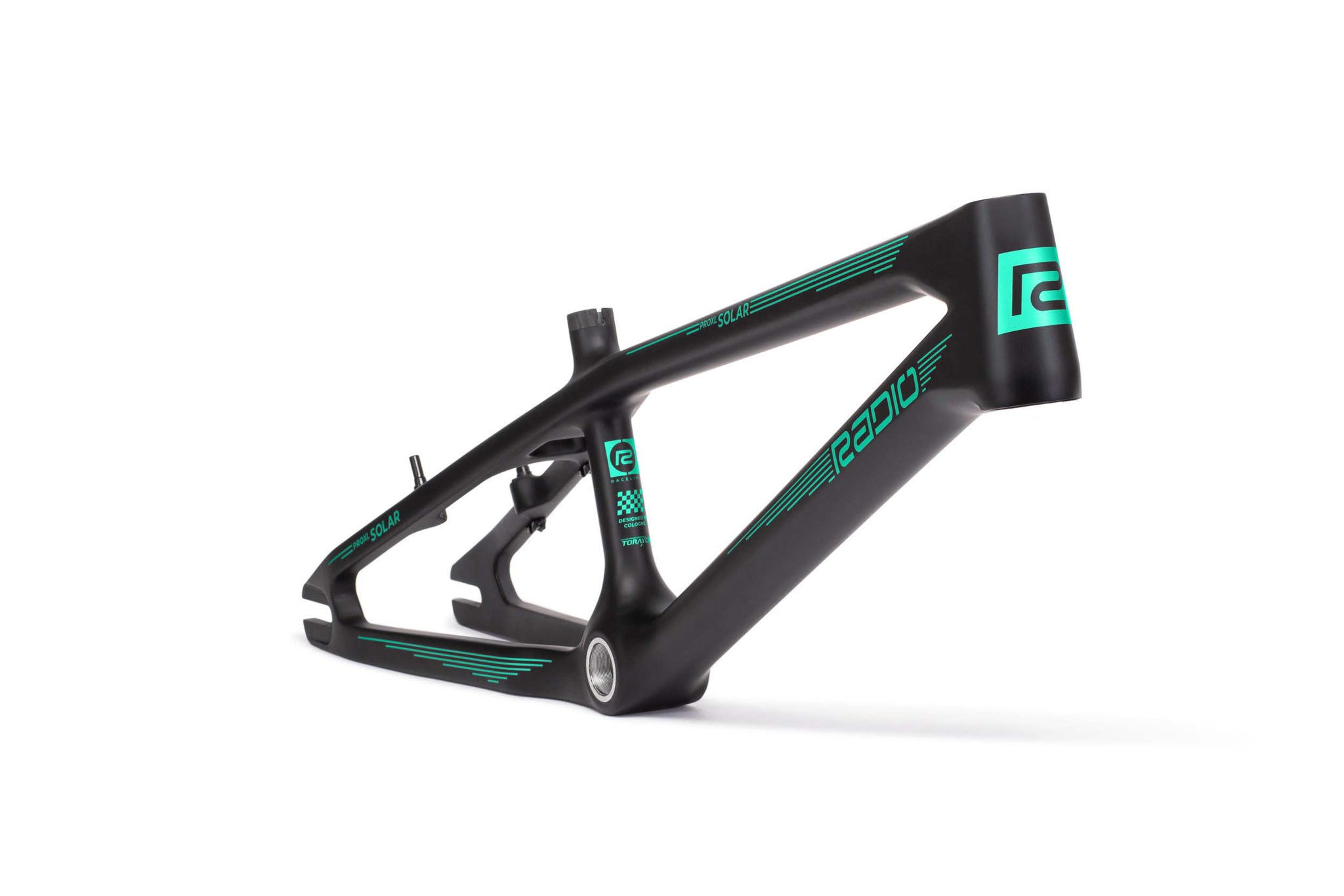

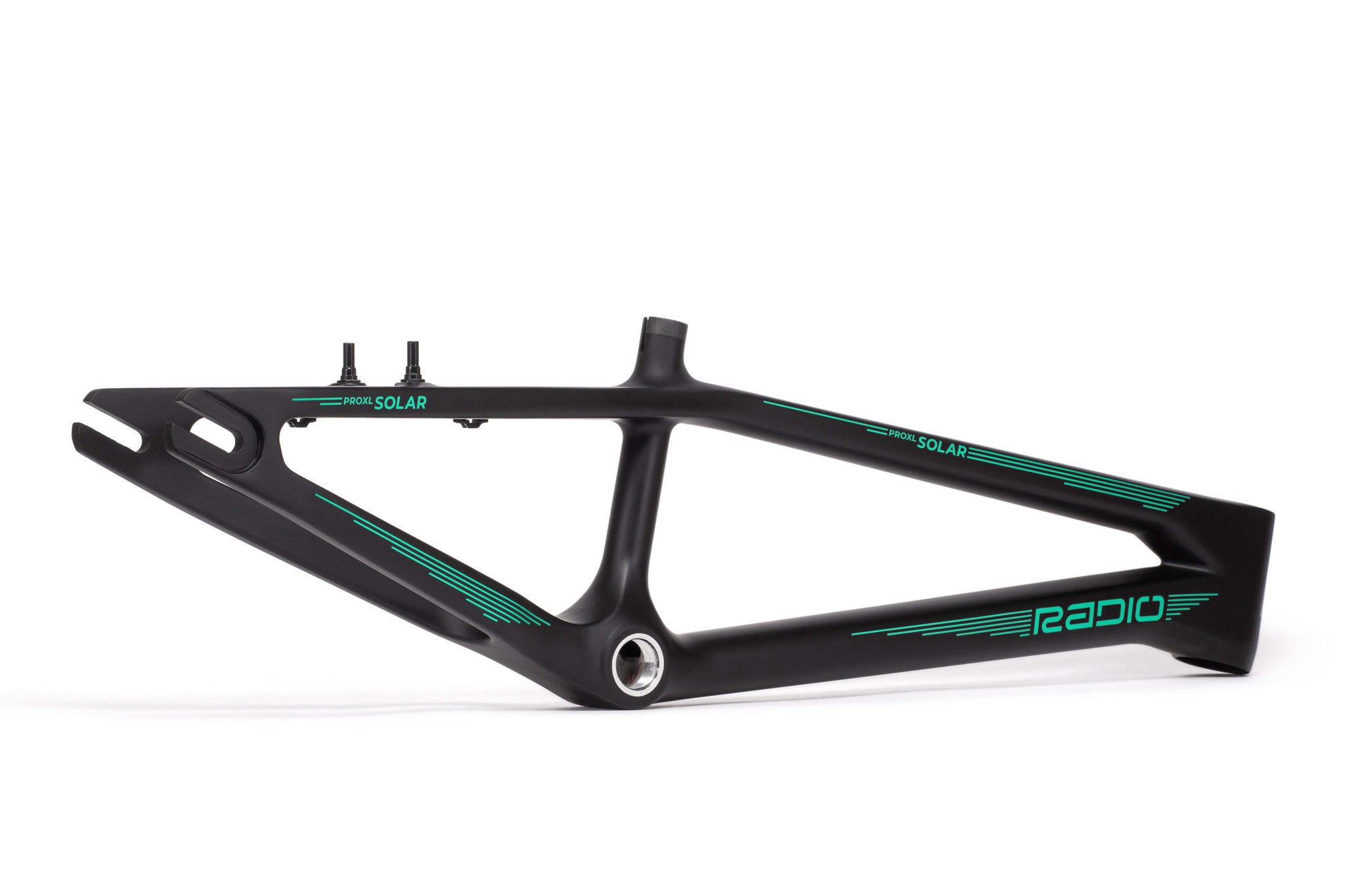

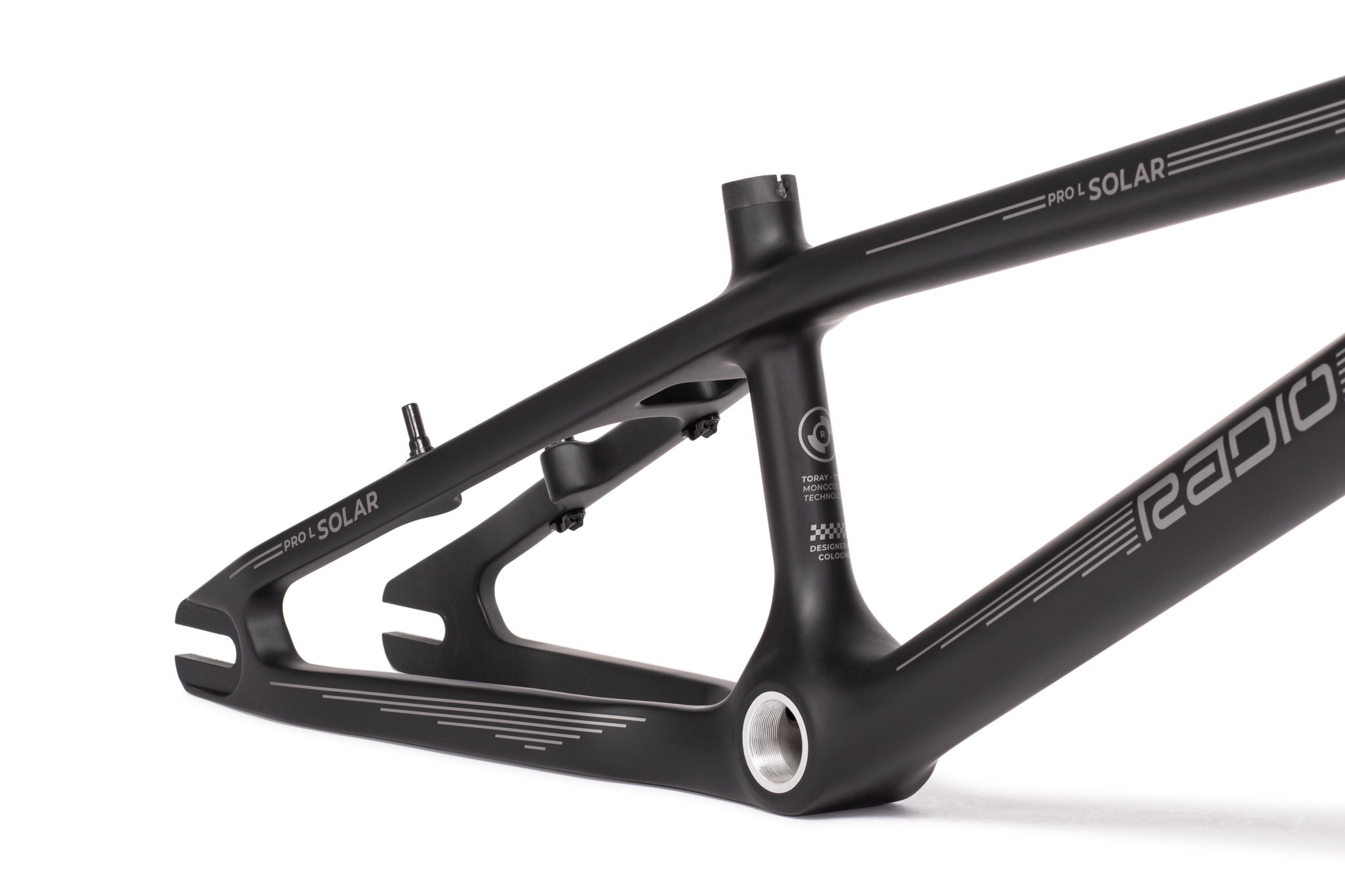

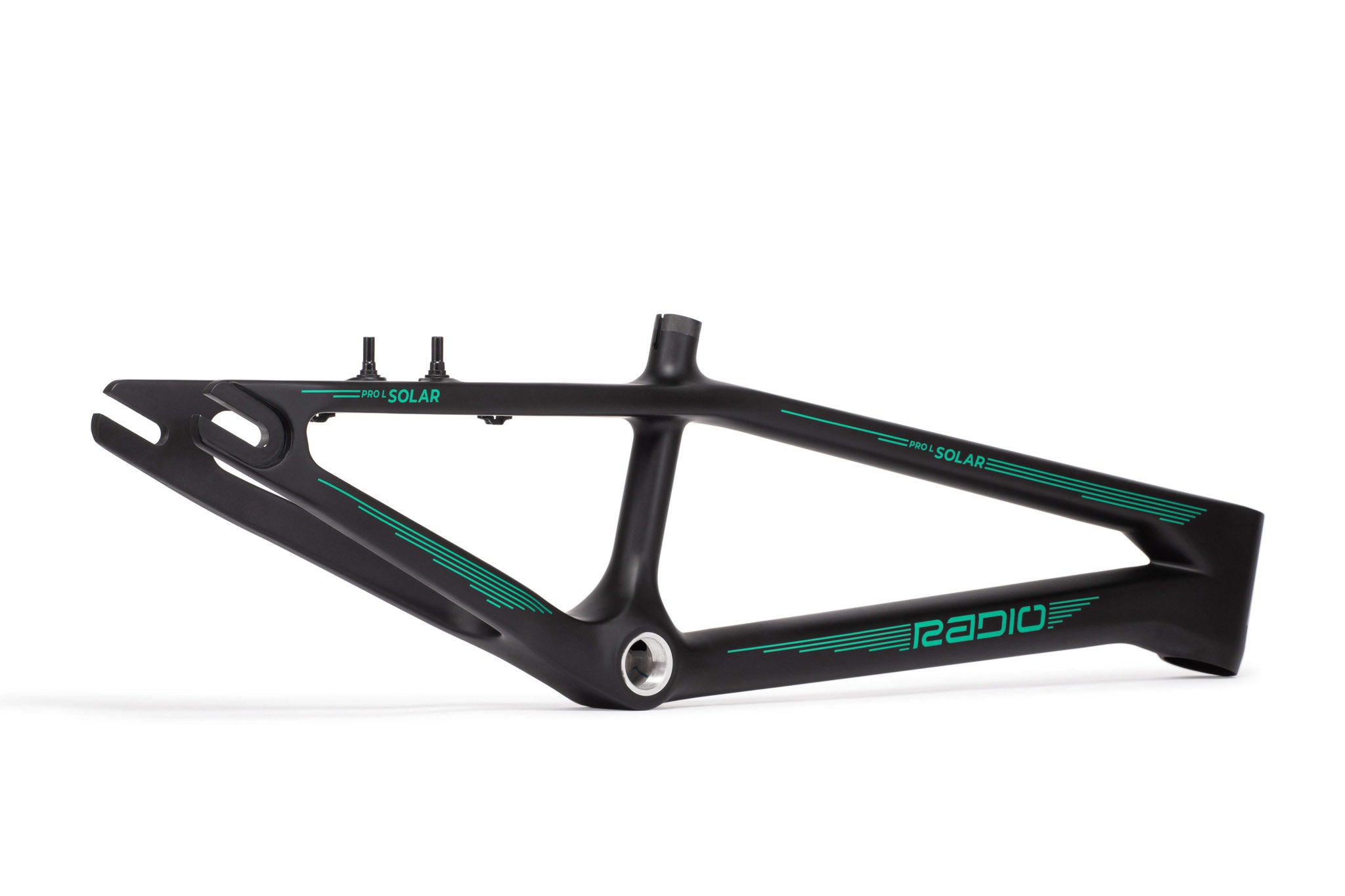

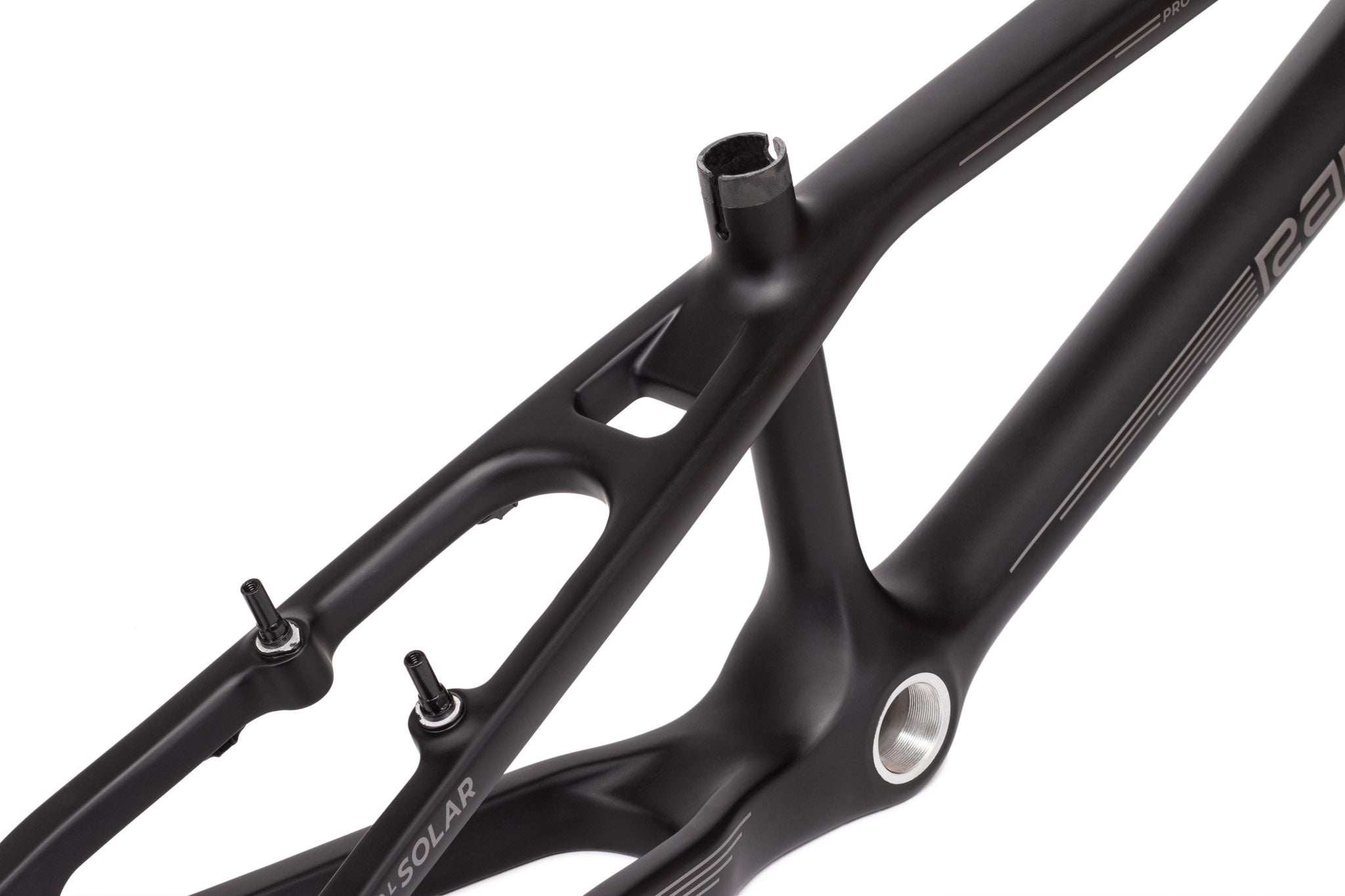

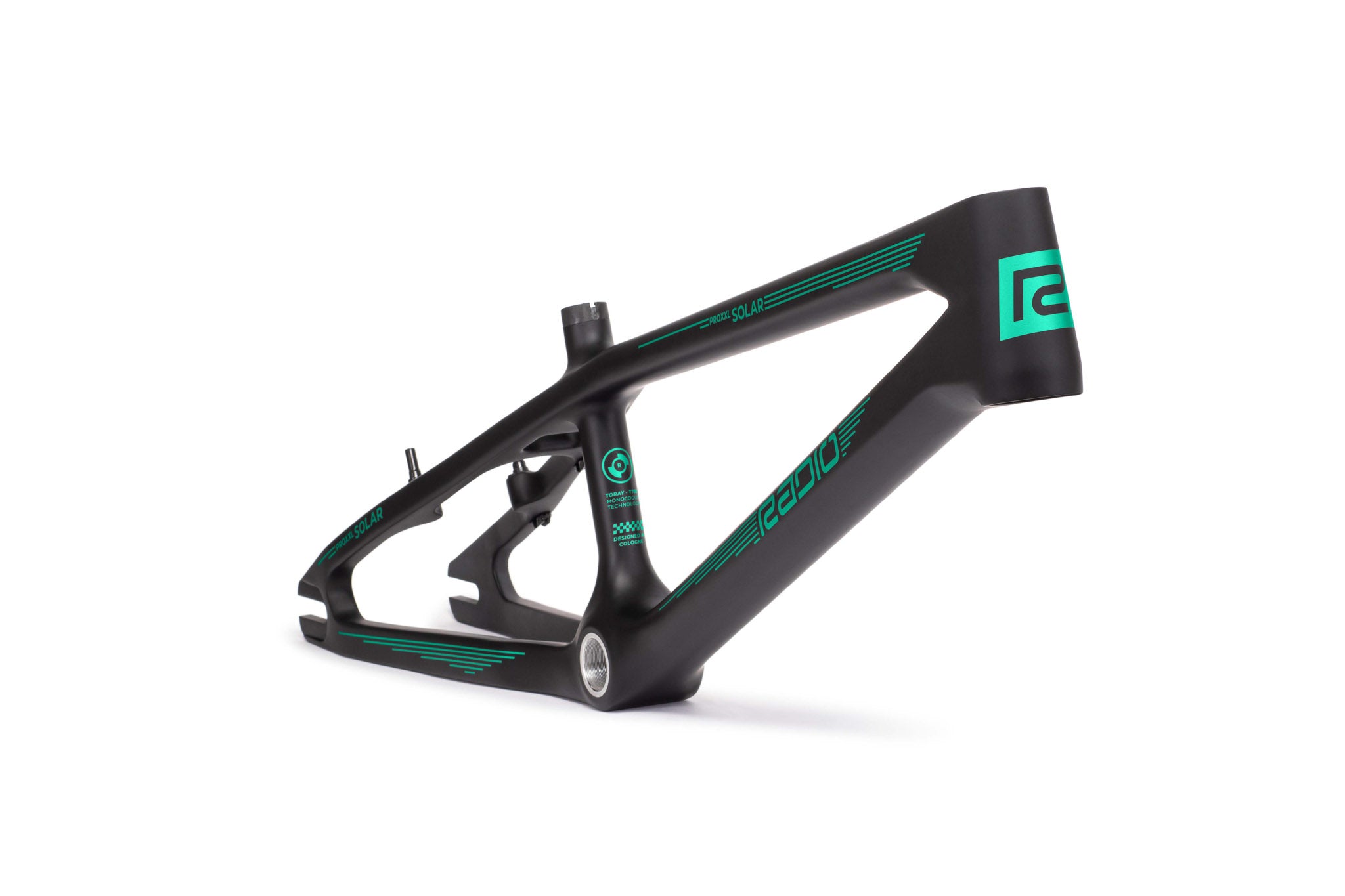

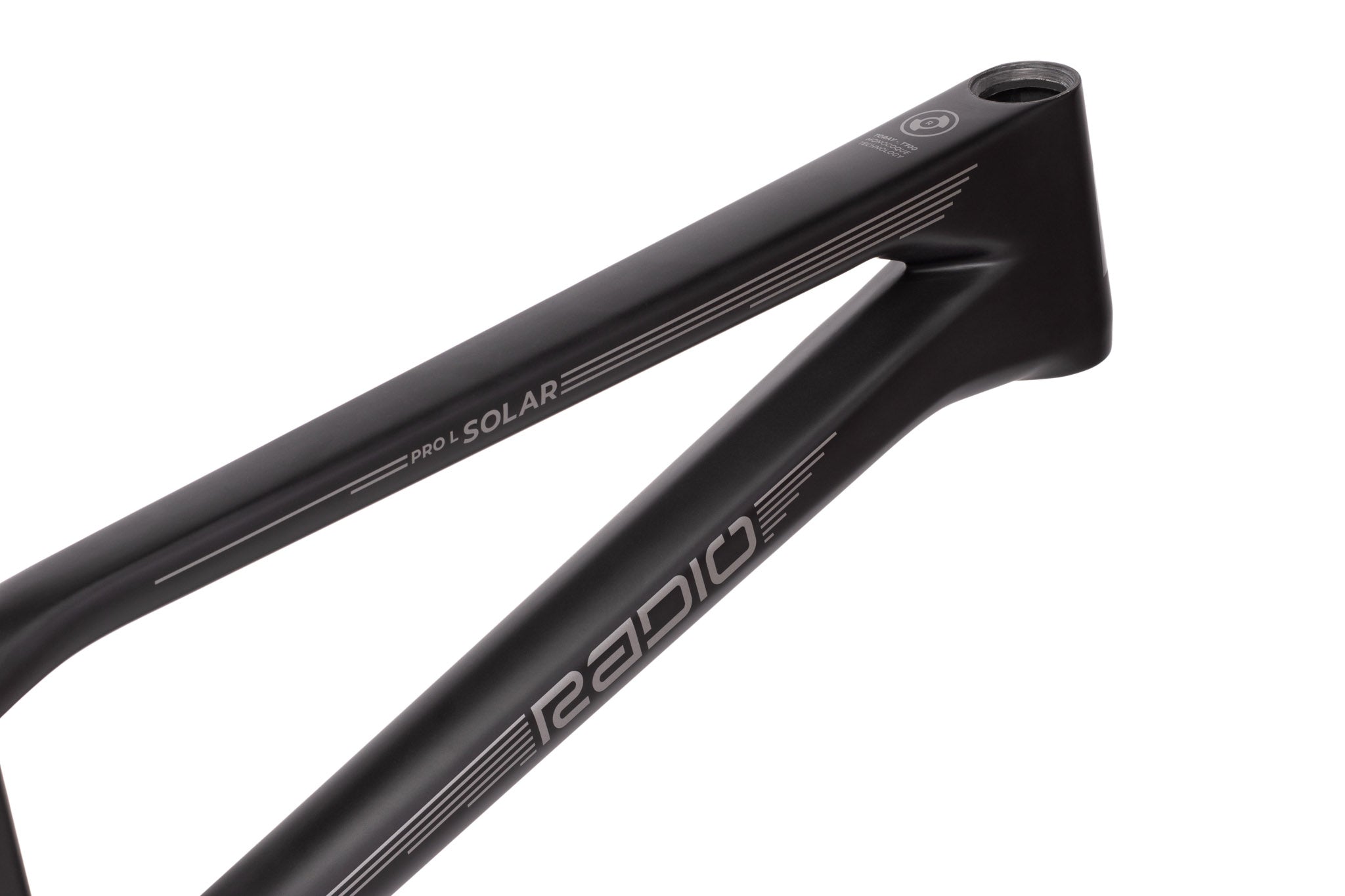

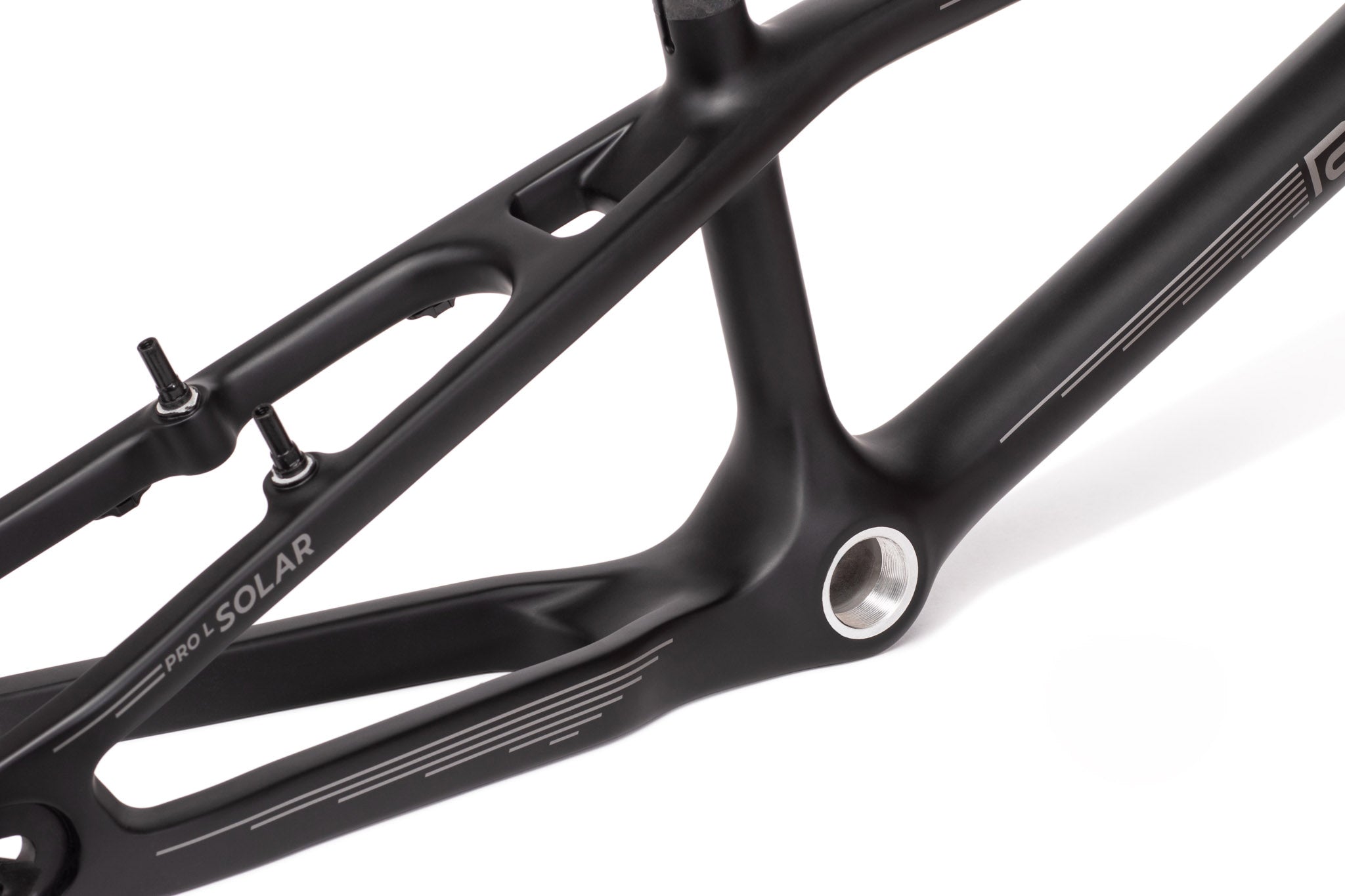

Solar Pro L Frame

Designed and developed in Cologne, Germany over a two-year period, the Solar is manufactured from the highest quality Torayca Carbon and is incredibly unique with its 100% monocoque 1pc construction. By using a mono-construction compared to a 2/3pc construction which most other brands use, we were able to make the frame even stiffer and stronger and create no weak or fatigue points.

The Solar frame is laboratory tested and proven to be insanely stiff and lightweight especially under high impact and stress tests. The internal cable routing allows for a super clean and stealthy setup. Tested by the Race Raceline team the past x5 seasons and now the frame of choice for many of today’s top riders, we could not be prouder of what we have created with the Solar frame.



COLOUR: matt black/grey / matt black/teal / galactic purple

CHAIN STAY LENGTH (MIN): 14.5” (368mm)

HEAD TUBE ANGLE: 74.5°

SEAT TUBE ANGLE: 71°

BB HEIGHT: 11.6" (294.64mm)

SEAT TUBE HEIGHT (CENTRE OF BB TO TOP OF ST): 9.37" (238mm)

WHEEL SIZE: 20" (406mm) x 1.75”

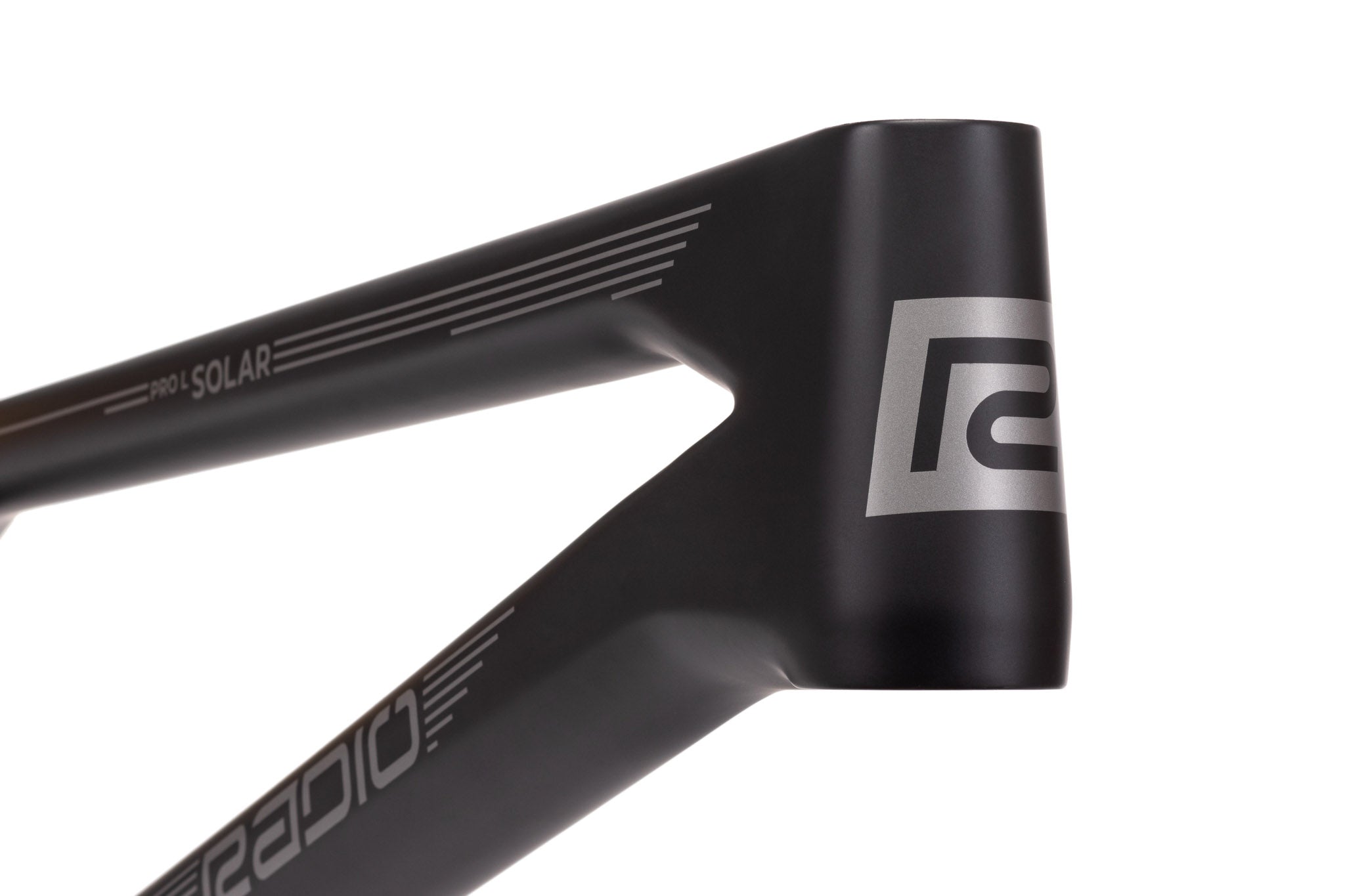

HEAD TUBE SIZE: tapered 1-1/8” - 1.5” for integrated headset

SEAT POST SIZE: 27.2mm

SEAT CLAMP SIZE: for 31.8mm ID seat clamp

TUBING: high performance TORAYCA carbon fiber

BOTTOM BRACKET: BSA, 68mm wide

HEAD TUBE: 4.7" (120mm)

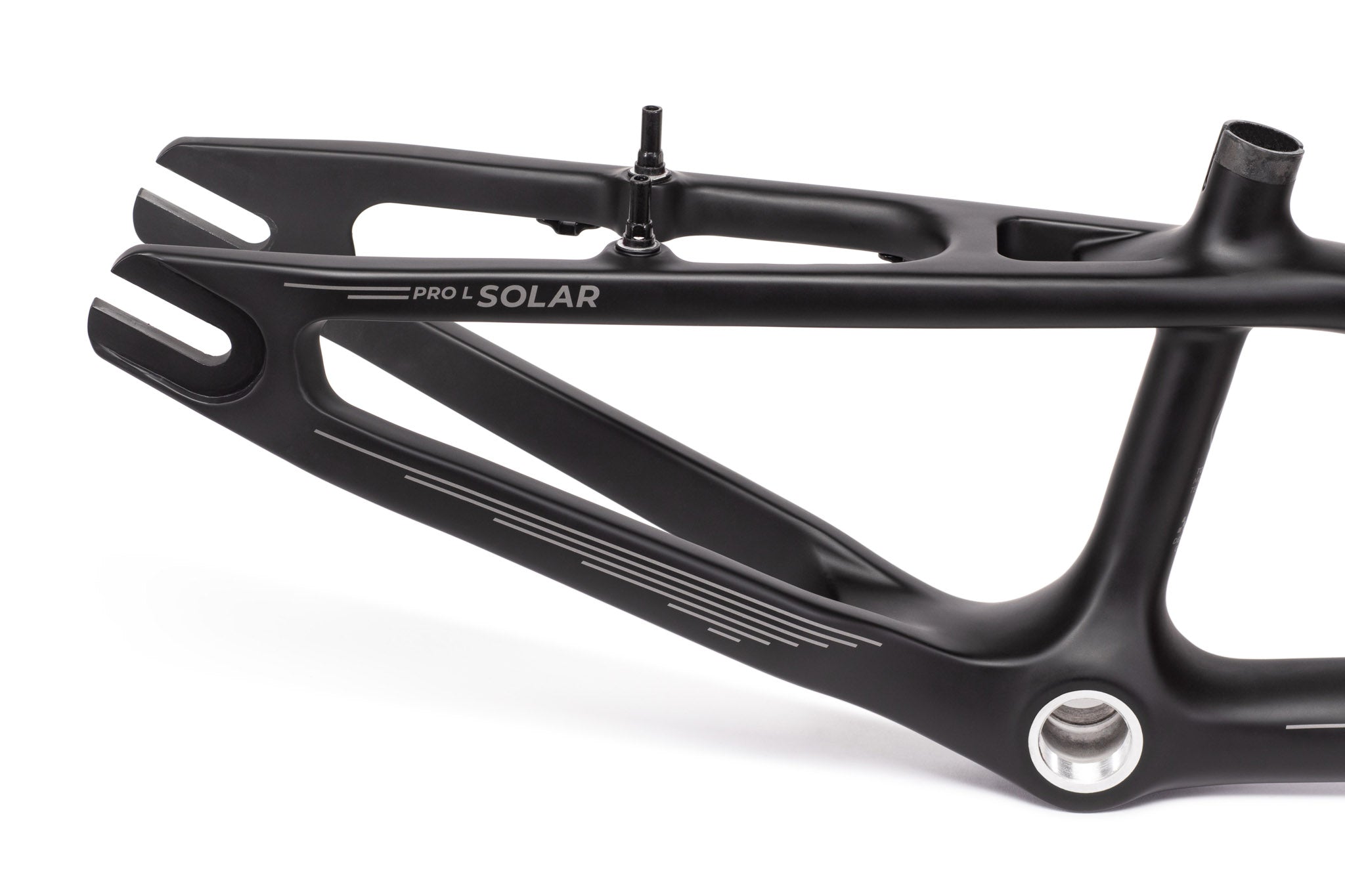

DROPOUTS: 15mm (will fit 10mm with adaptors)

BRAKES: designed for v-brakes (will work with some non-brand disc brake adaptors)

WEIGHT: 1.16kg (2.56lbs)

FEATURES:



• full monocoque technology
• internal cable routing
• laboratory tested for superior strength and
stiffness
