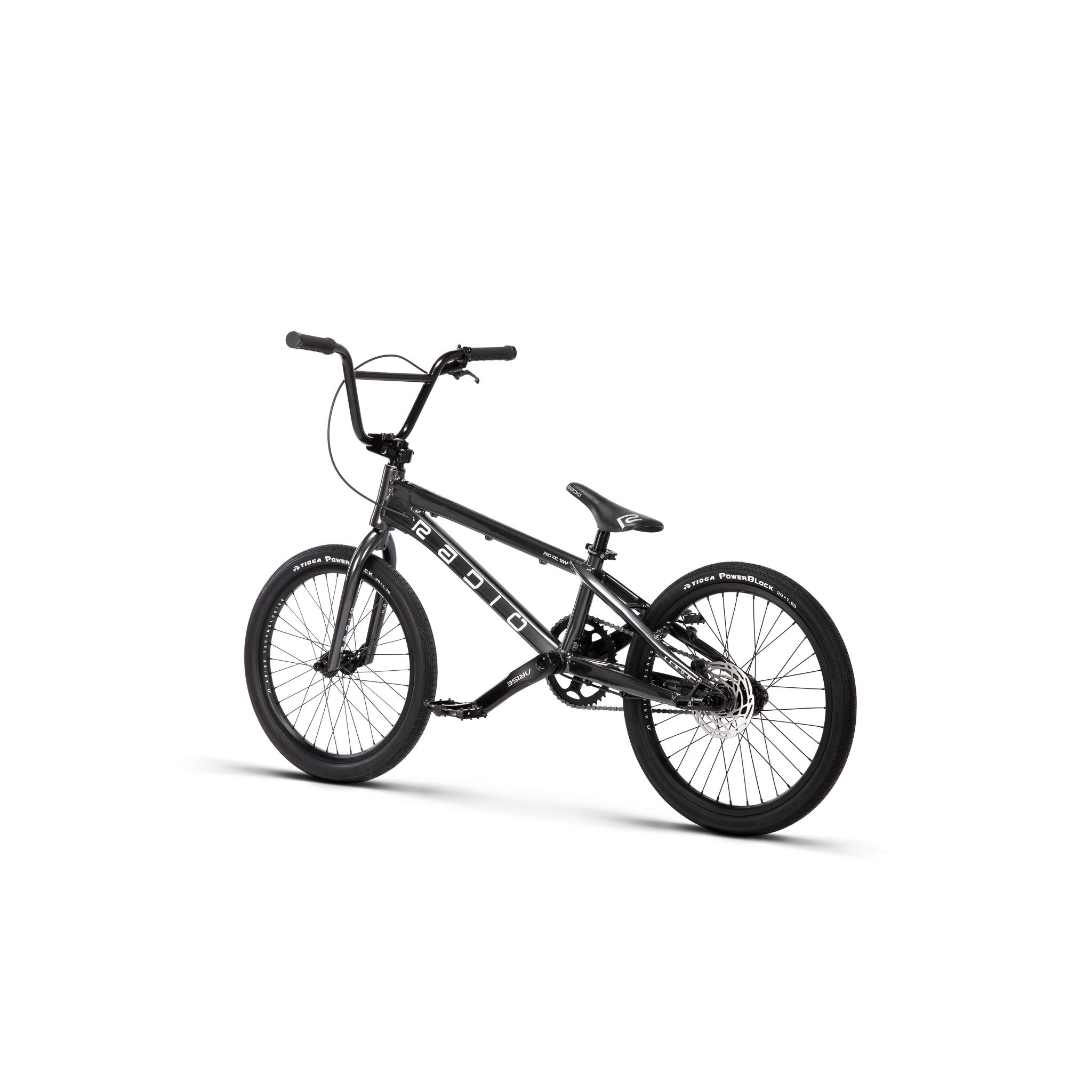

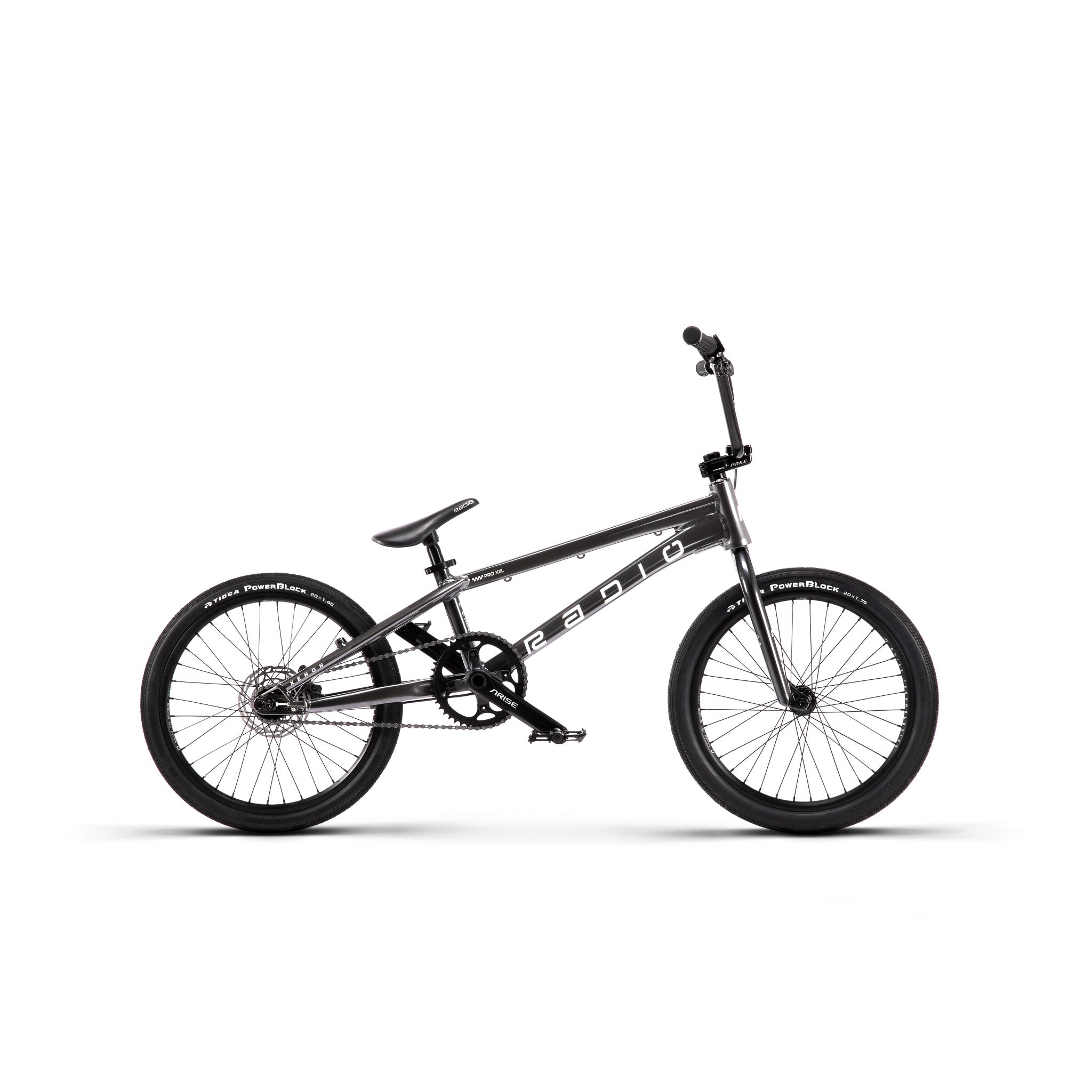

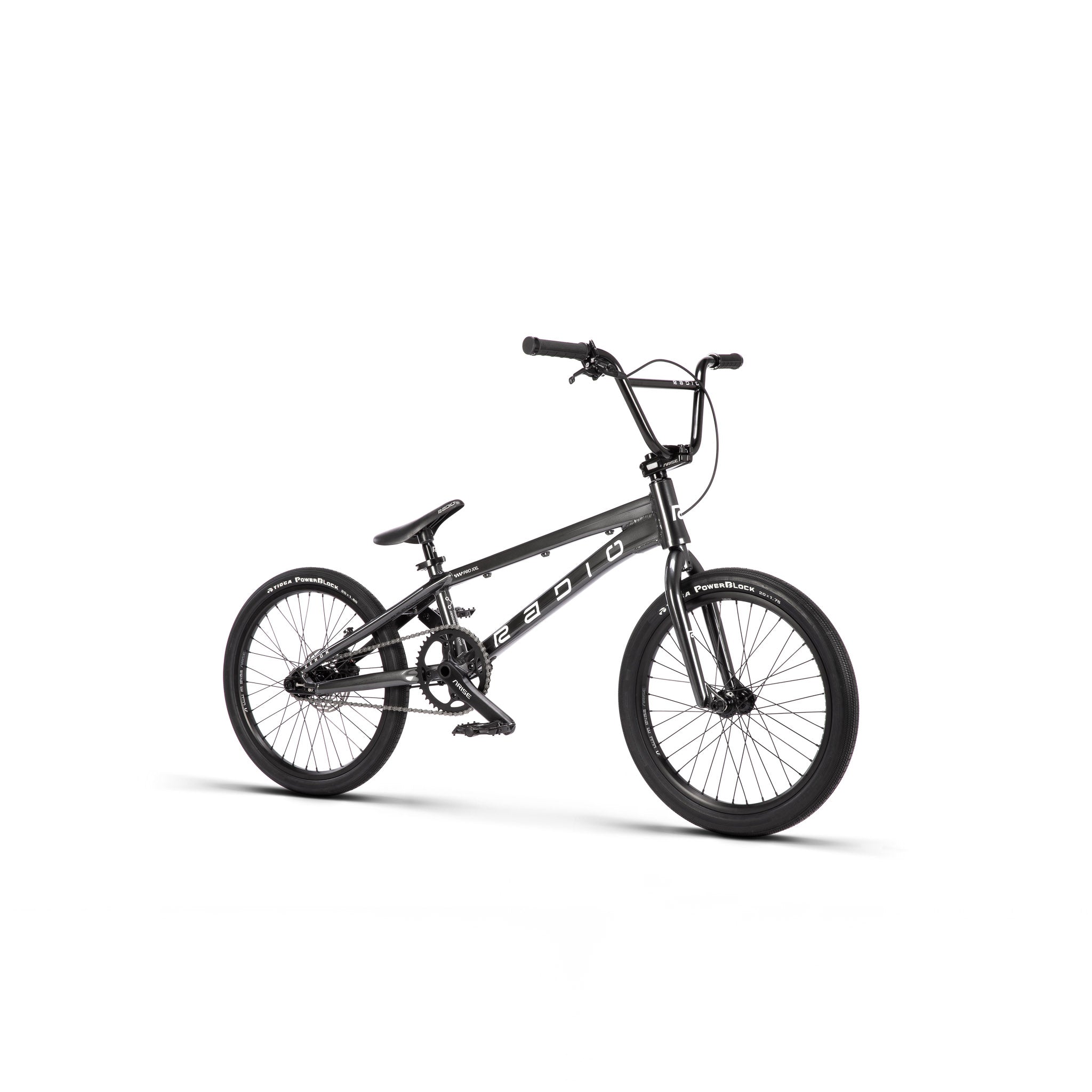

Xenon Pro XXL Complete Bike

The Xenon Pro XXL rounds out the range with Pro XXL geometry and a full specification upgrade, giving taller riders access to the same race-focused performance found throughout the Xenon line. Disc-ready as standard, it can easily be upgraded to a full disc brake setup using our aftermarket conversion kit.

Featuring forged disc-ready dropouts with integrated tensioners, our Xenon stem, Tioga Power Block tires, and Argon Pro rims, the Xenon Pro XXL is built with racing in mind from the ground up. Fast, dependable, and ready to line up, it's designed to help riders perform at their best every time the gate drops.

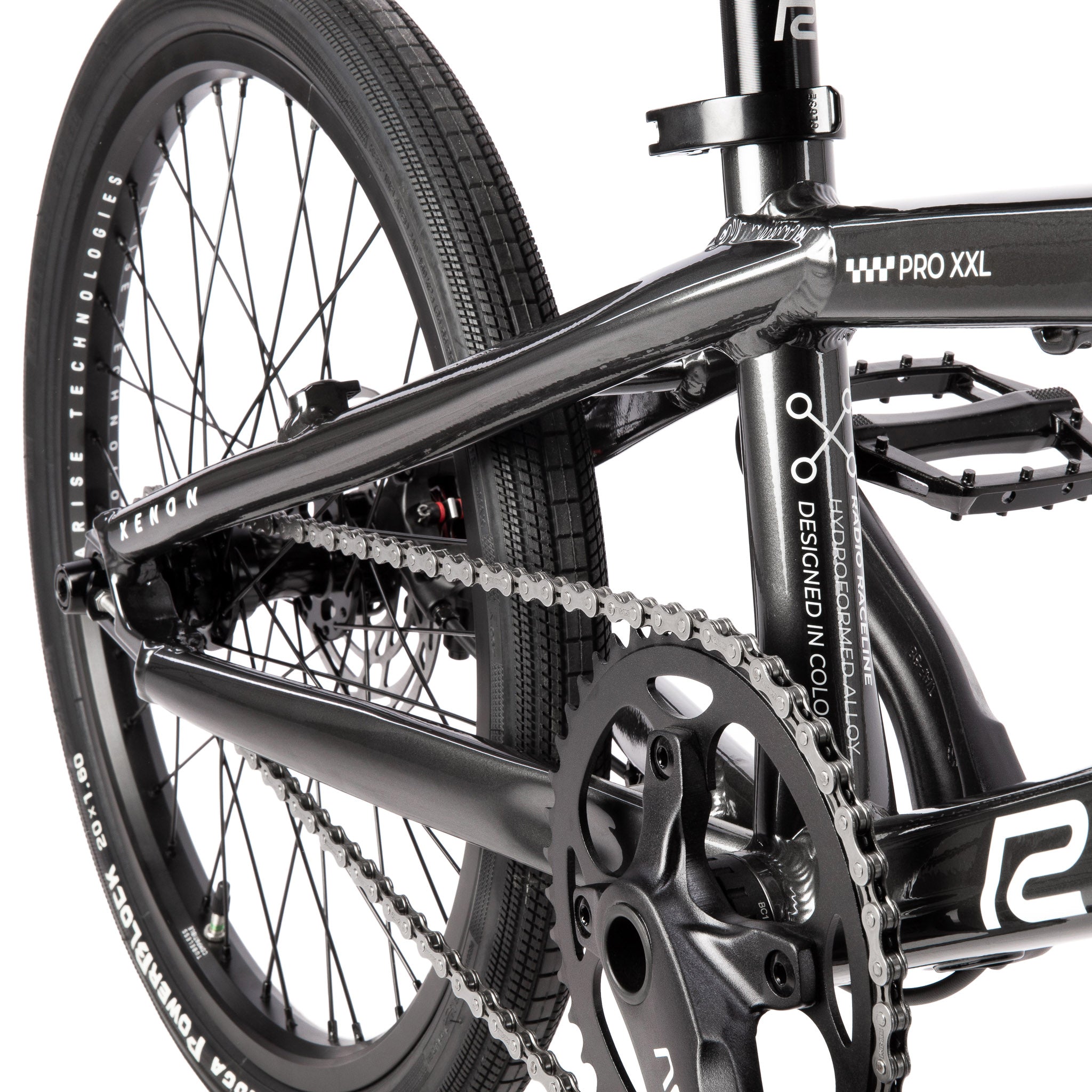

  • FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged & disc brake mount ready dropouts, with int. chaintensioners
  • FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset

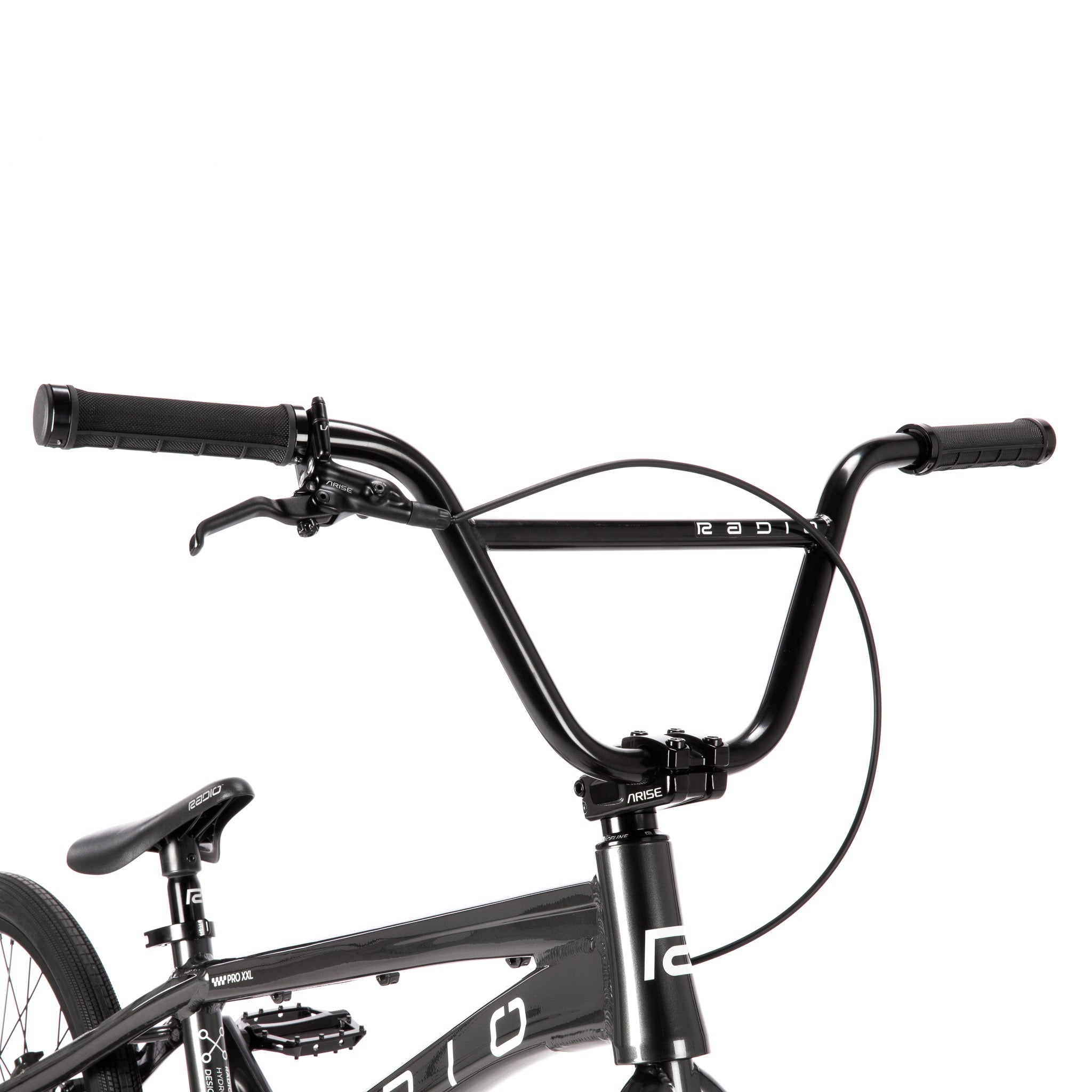

  • HANDLEBAR: 4130 crmo bar, seamless
  • GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

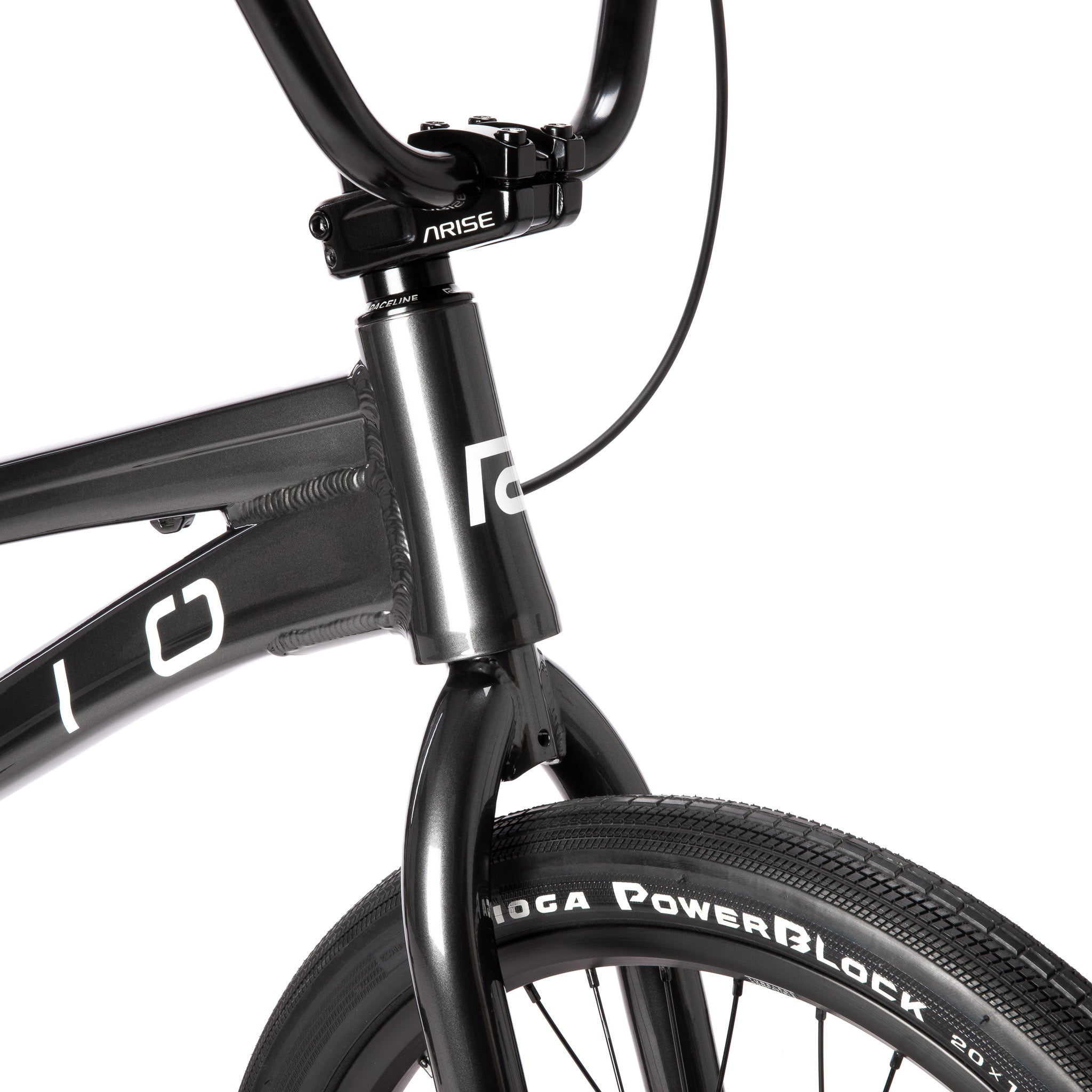

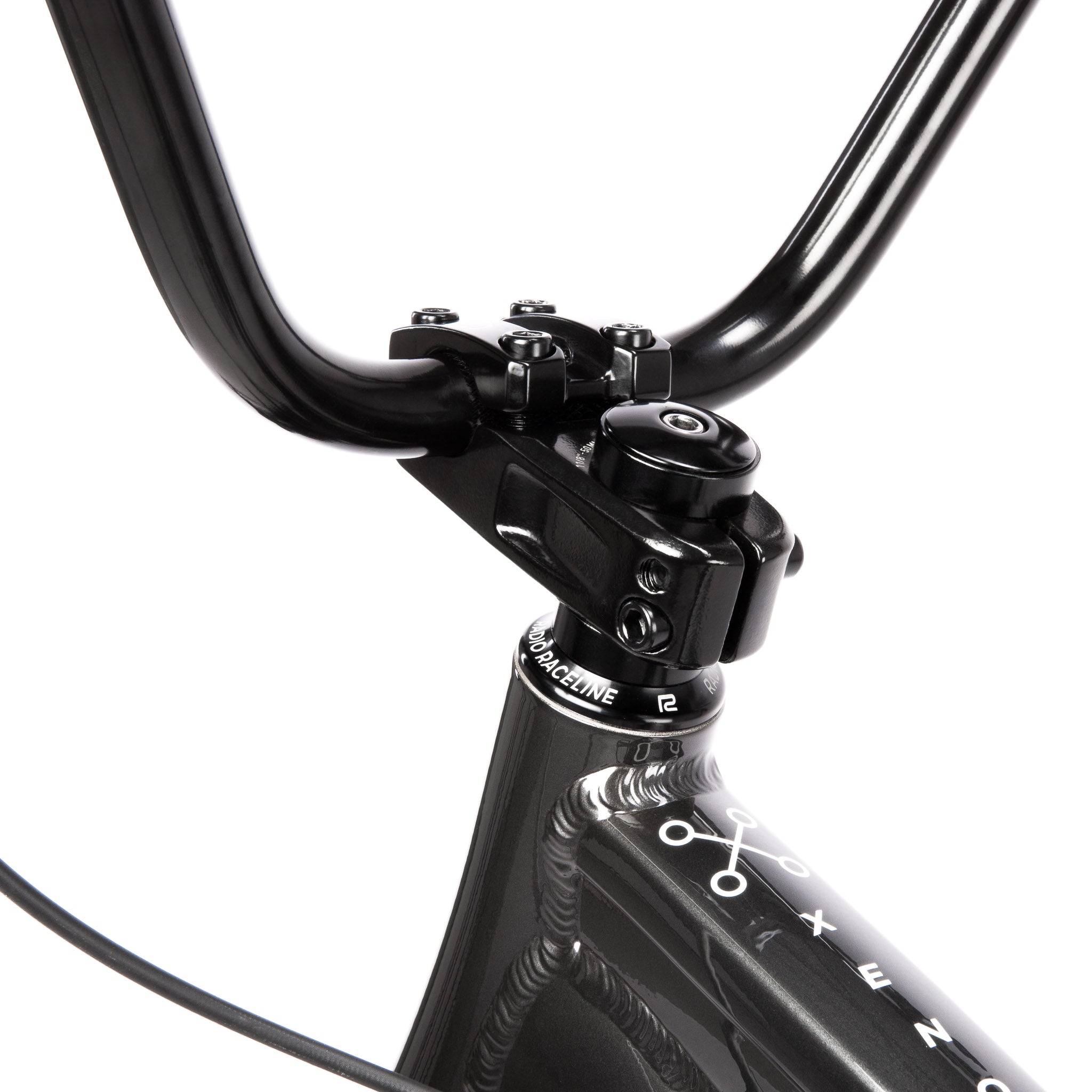

  • STEM: ARISE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
  • HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5",  including fork crown race 1.5"-1 1/8" converter

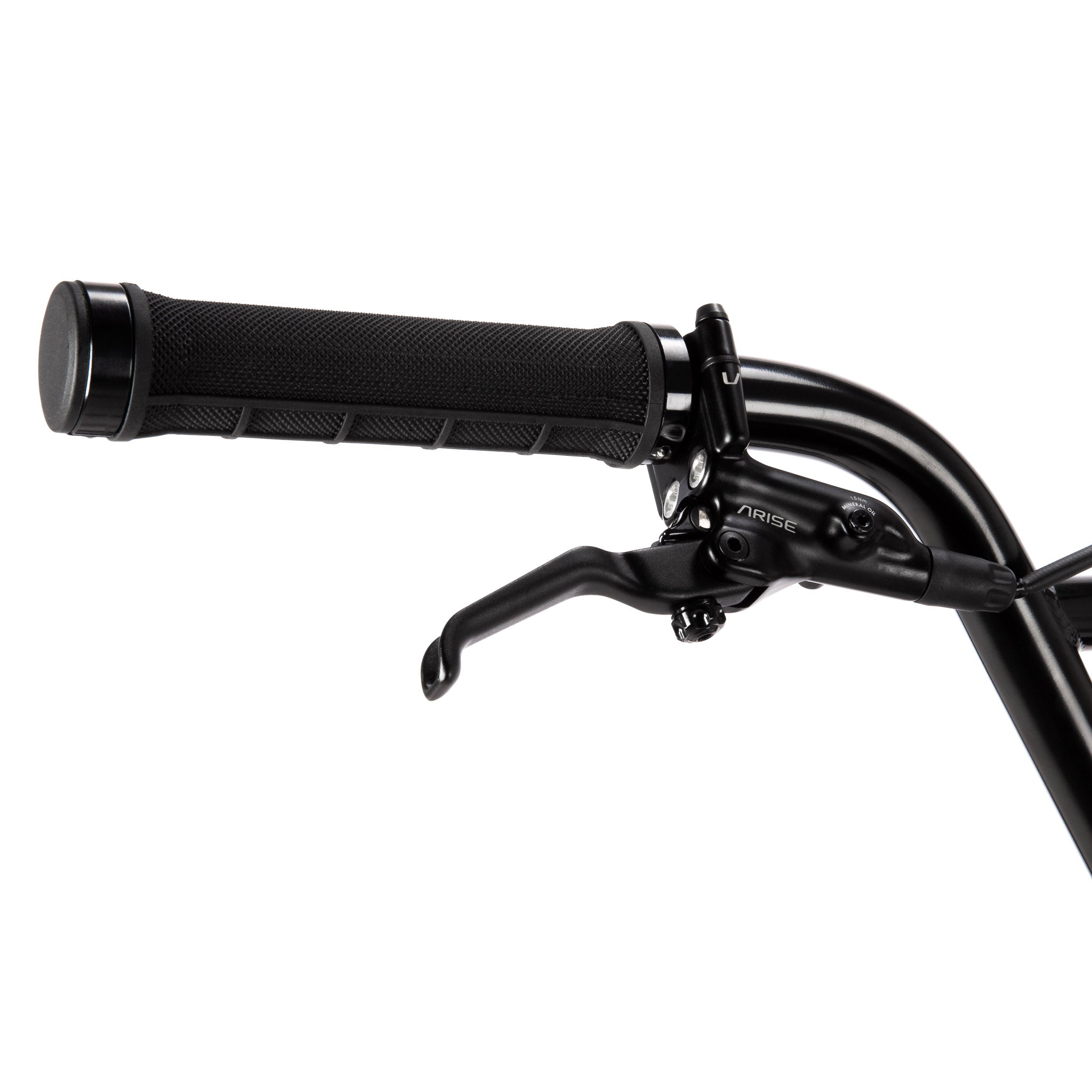

  • BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

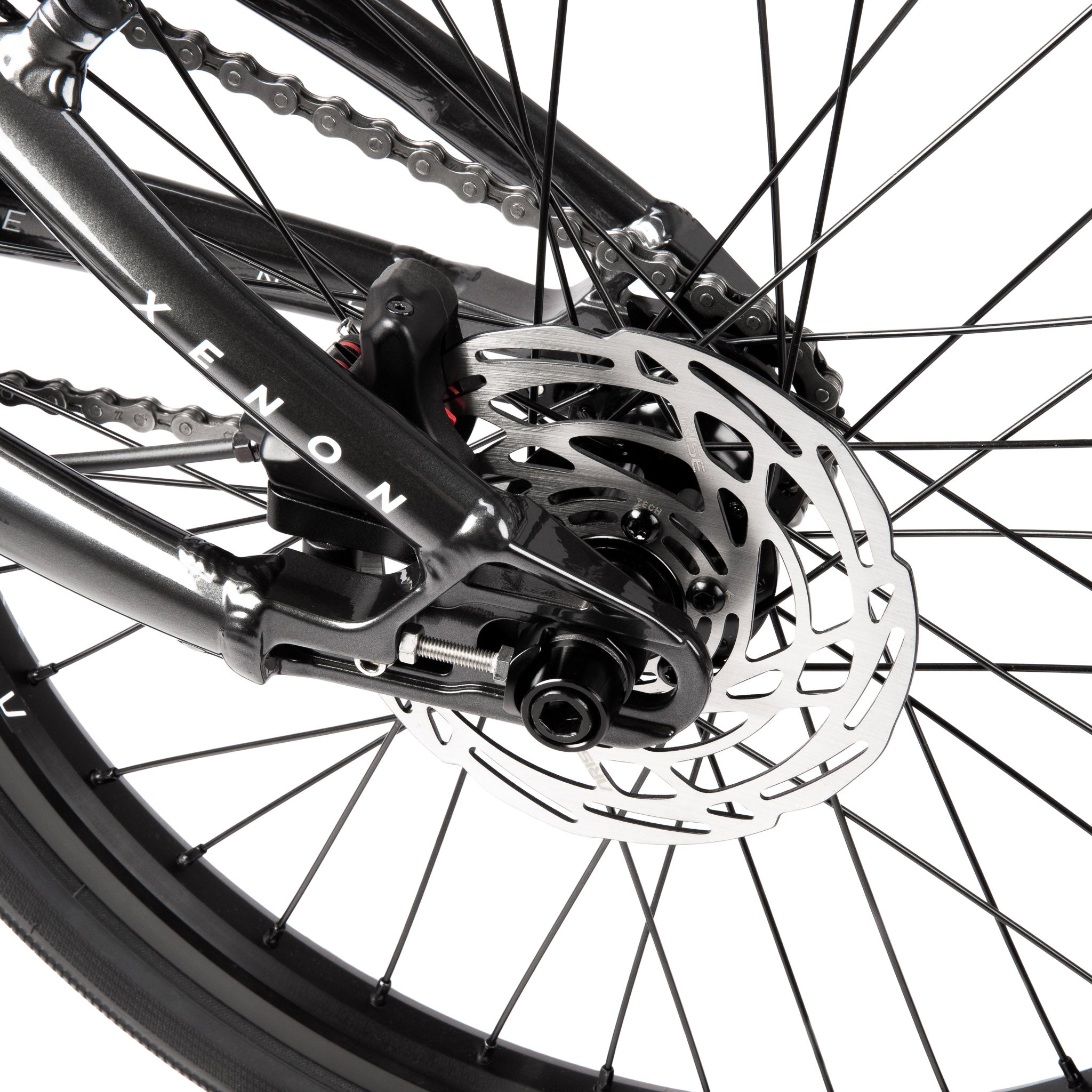

  • BRAKE: ARISE "XENON" Disc brake, rear

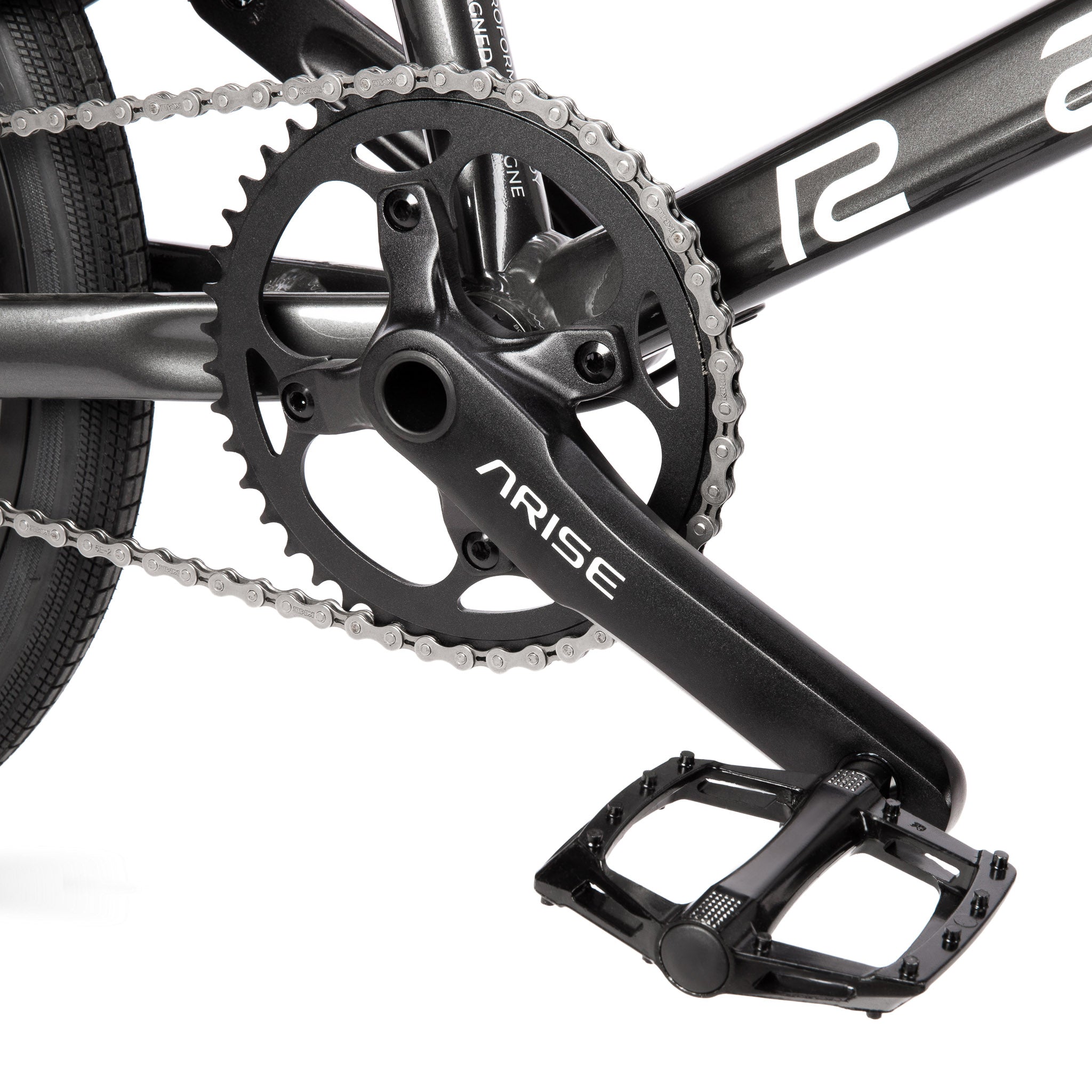

  • CRANK: ARISE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
  • BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
  • PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
  • CHAIN: KMC "Z6" chain, 1/2" x 3/32"
  • SPROCKET: ARISE "XENON PRO" sprocket, 44T, alloy
  • DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

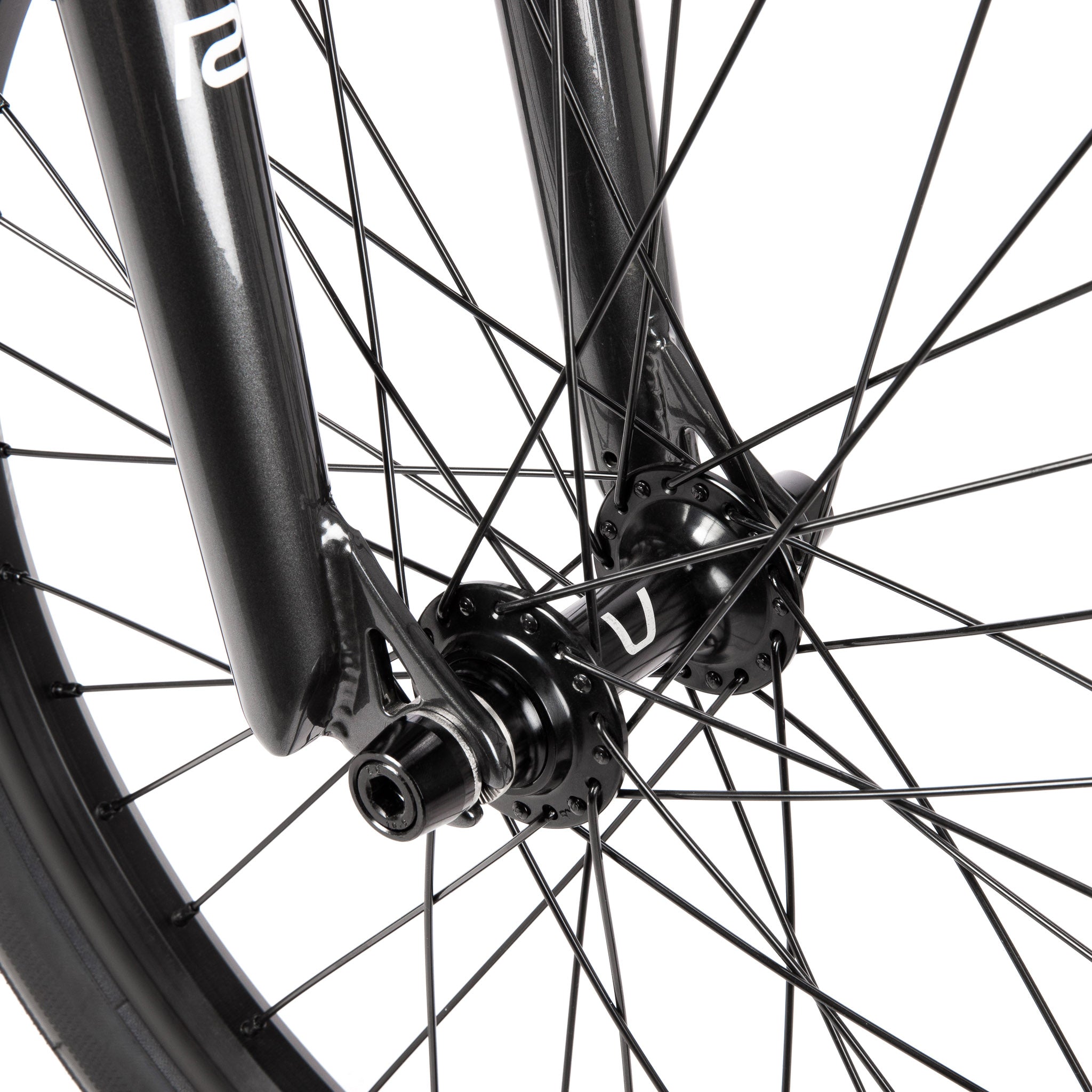

  • FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

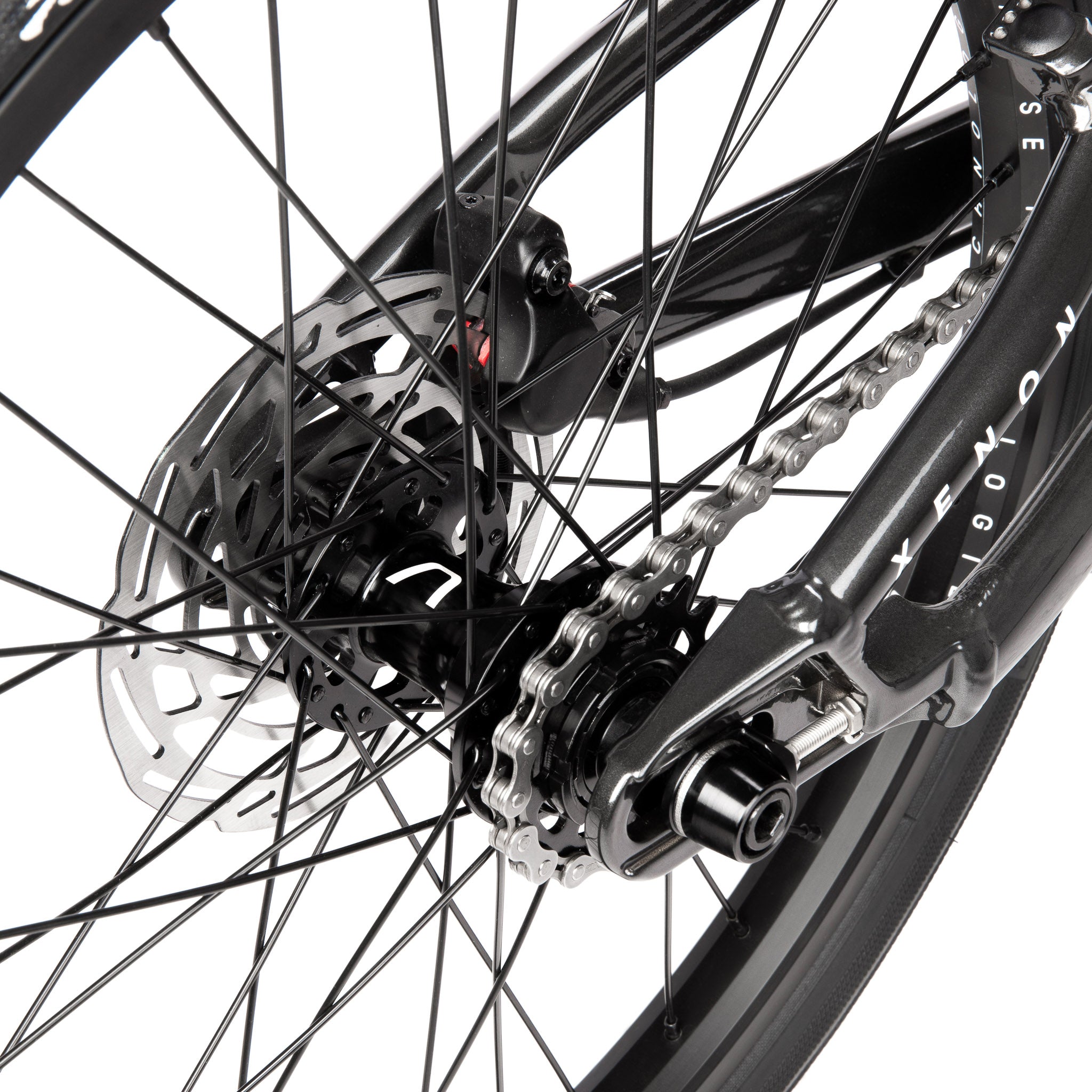

  • REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
  • FRONT RIM: ARISE "ARGON PRO" rim, sleeved joint, 36h, alloy
  • REAR RIM: ARISE "ARGON PRO" rim, sleeved joint, 36h, alloy

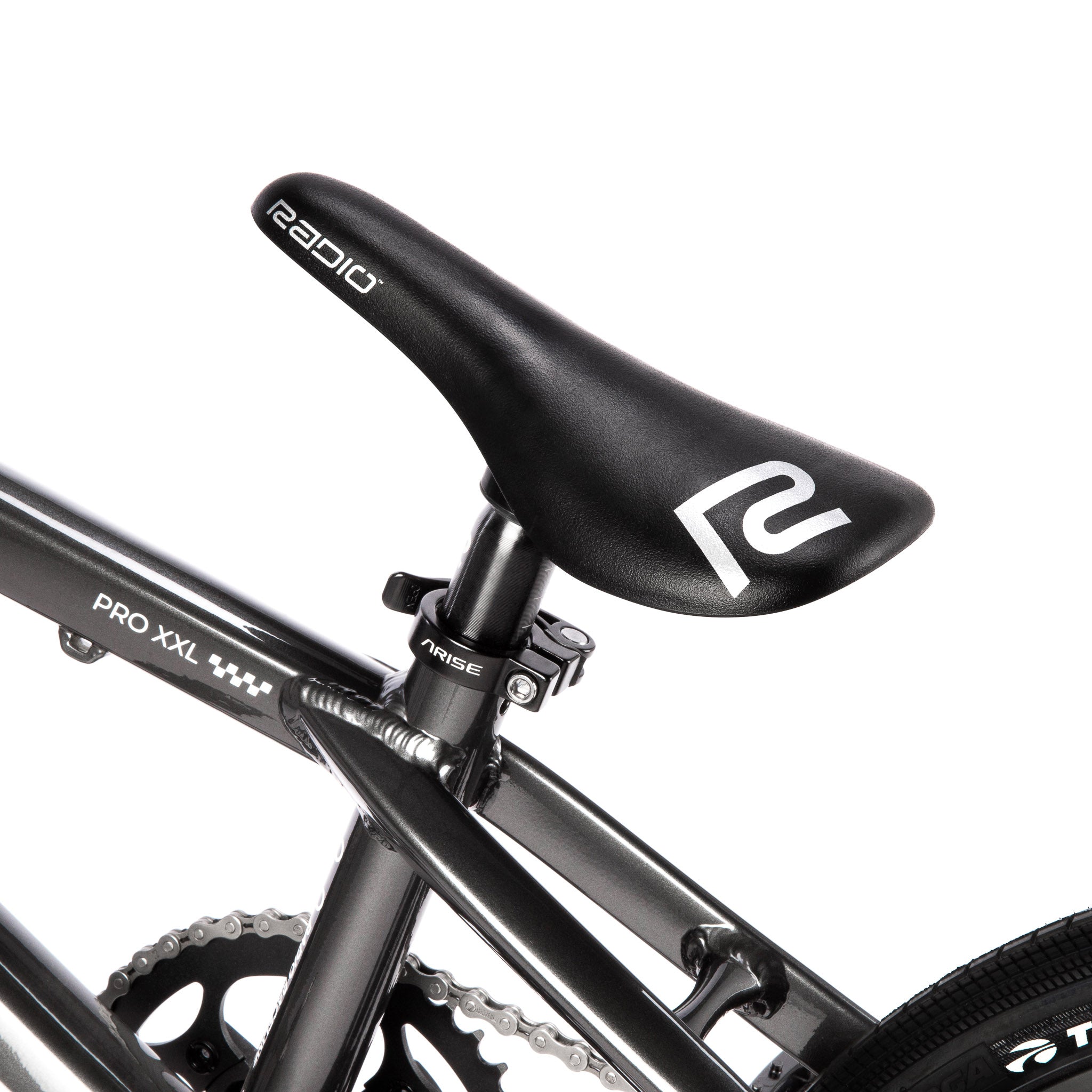

  • SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
  • SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
  • SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy

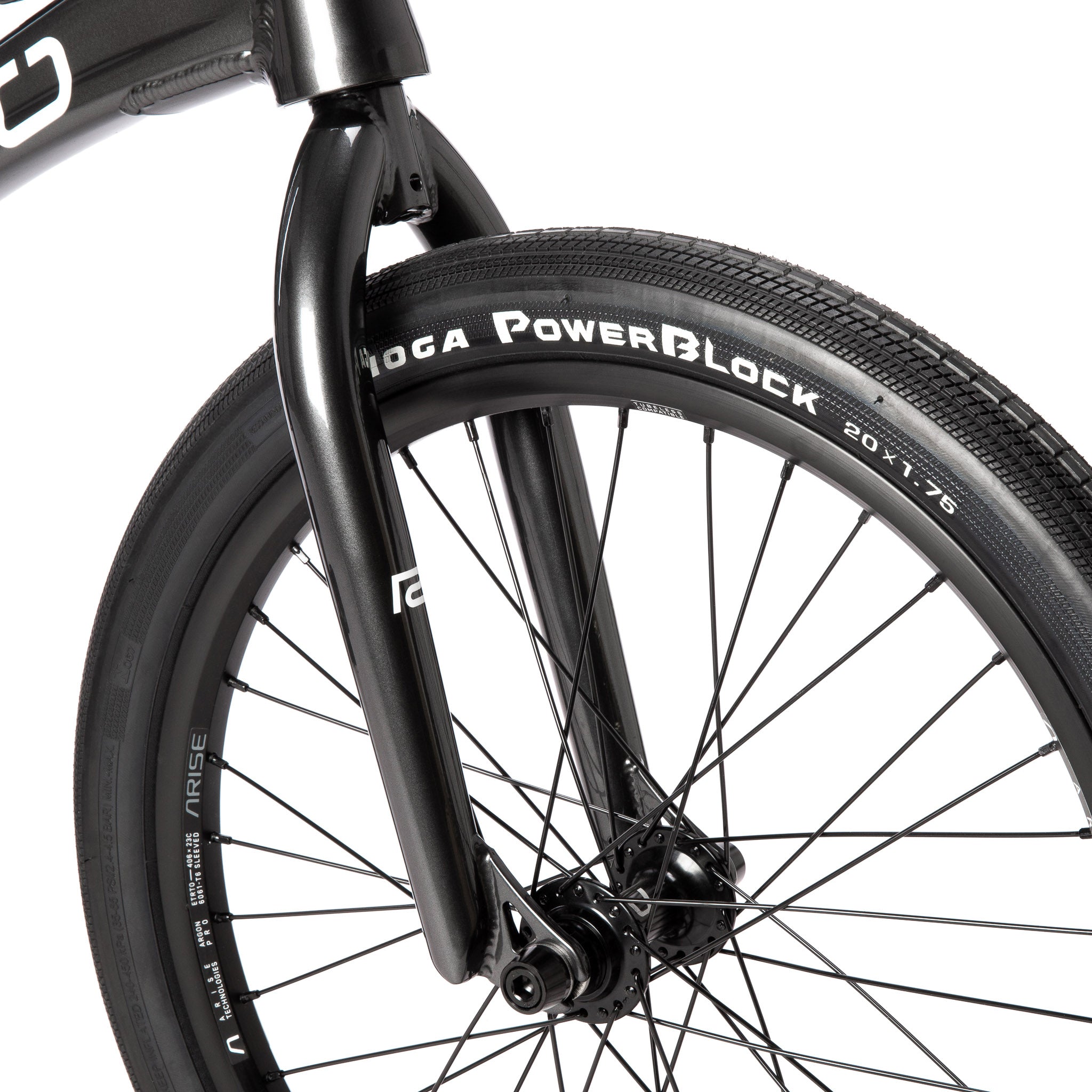

  • TIRES: TIOGA "POWER BLOCK" tires, front: 20" x 1.75" and rear: 20" x 1.6"

Weight: 9.42kg / 20.77lbs



Frame Geometry:

Top Tube Length 21.75"
Chain Stay Length 14.8"
Head Tube Angle 74°
Seat Tube Angle 71°
Bottom Bracket Height  11.6"



Handlebar Geometry:

Rise 8.1"
Width 28.25"
Backsweep 11°
Upsweep 3.5°
